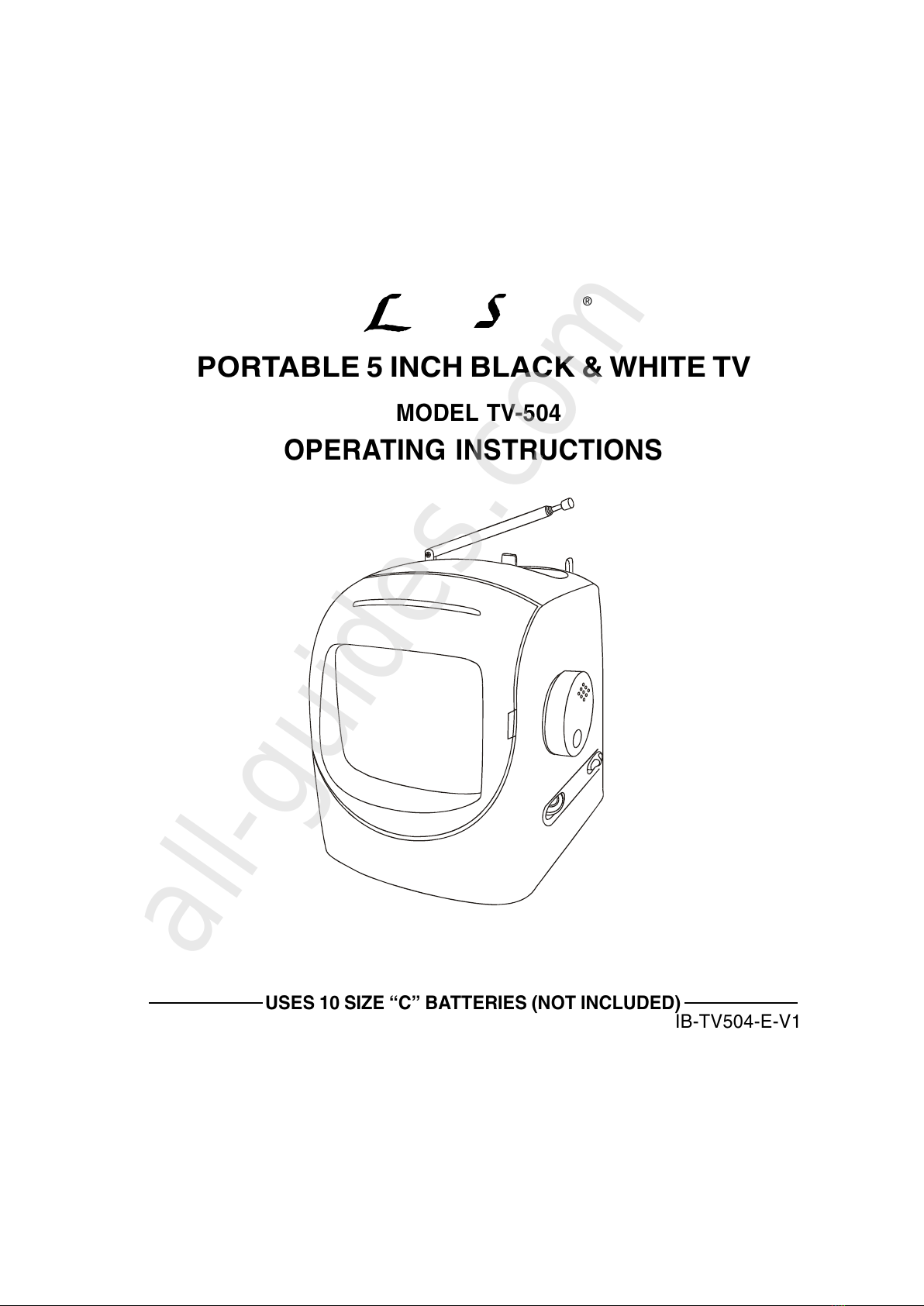

Lenoxx Sound TV-504 User manual

USES 10 SIZE C BATTERIES (NOT INCLUDED)
PORTABLE 5 INCH BLACK & WHITE TV
MODEL TV-504
®
IB-TV504-E-V1
OPERATING INSTRUCTIONS
All manuals and user guides at all-guides.com
all-guides.com

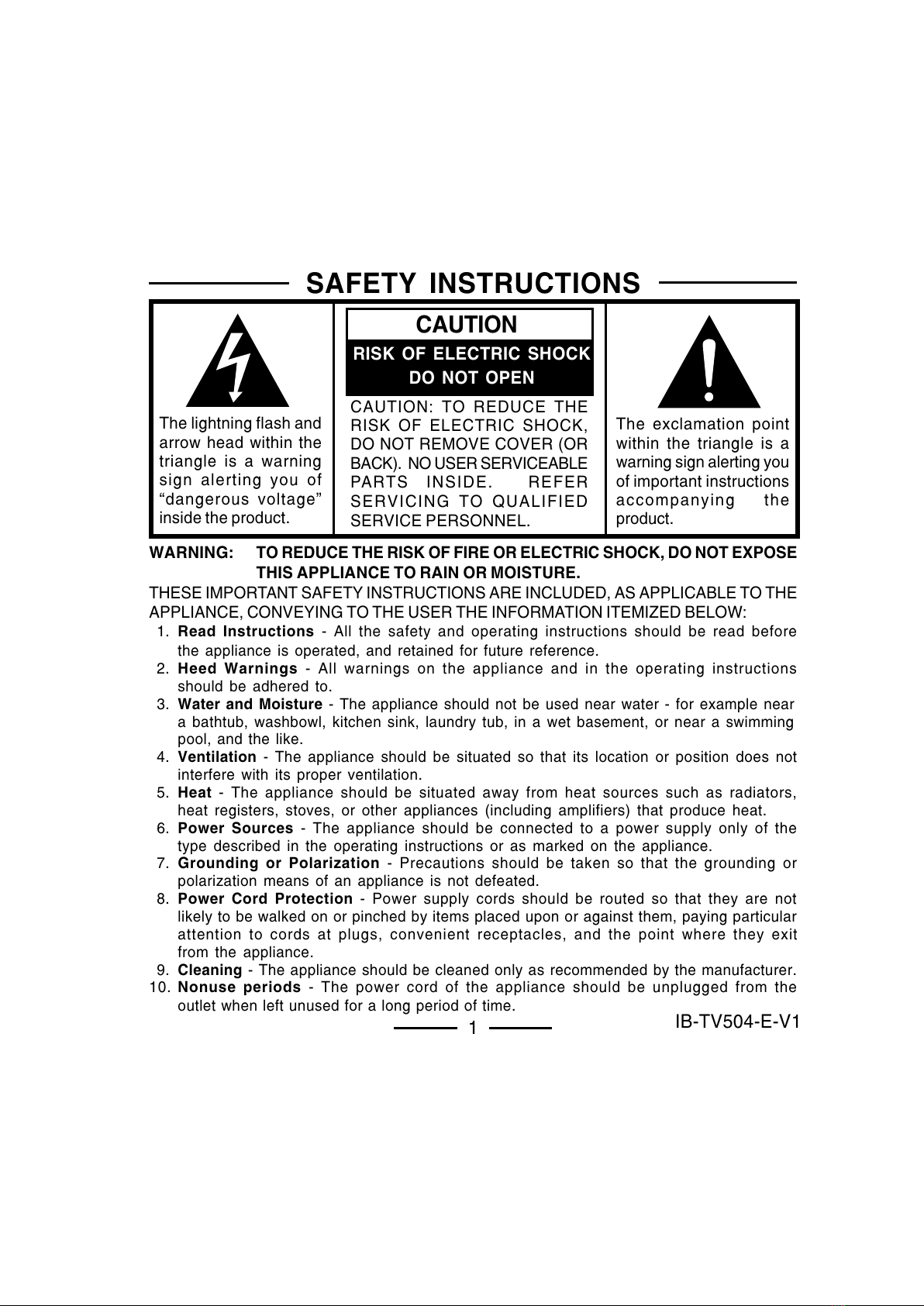

SAFETY INSTRUCTIONS
The lightning flash and
arrow head within the
triangle is a warning
sign alerting you of
dangerous voltage
inside the product.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE
RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR
BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER
SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The exclamation point
within the triangle is a
warning sign alerting you
of important instructions
accompanying the
product.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
THESE IMPORTANT SAFETY INSTRUCTIONS ARE INCLUDED, AS APPLICABLE TO THE
APPLIANCE, CONVEYING TO THE USER THE INFORMATION ITEMIZED BELOW:
1. Read Instructions - All the safety and operating instructions should be read before
the appliance is operated, and retained for future reference.
2. Heed Warnings - All warnings on the appliance and in the operating instructions
should be adhered to.
3. Water and Moisture - The appliance should not be used near water - for example near
a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming
pool, and the like.
4. Ventilation - The appliance should be situated so that its location or position does not
interfere with its proper ventilation.
5. Heat - The appliance should be situated away from heat sources such as radiators,
heat registers, stoves, or other appliances (including amplifiers) that produce heat.
6. Power Sources - The appliance should be connected to a power supply only of the
type described in the operating instructions or as marked on the appliance.
7. Grounding or Polarization - Precautions should be taken so that the grounding or
polarization means of an appliance is not defeated.
8. Power Cord Protection - Power supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or against them, paying particular
attention to cords at plugs, convenient receptacles, and the point where they exit
from the appliance.
9. Cleaning - The appliance should be cleaned only as recommended by the manufacturer.
10. Nonuse periods - The power cord of the appliance should be unplugged from the
outlet when left unused for a long period of time.
1IB-TV504-E-V1
All manuals and user guides at all-guides.com

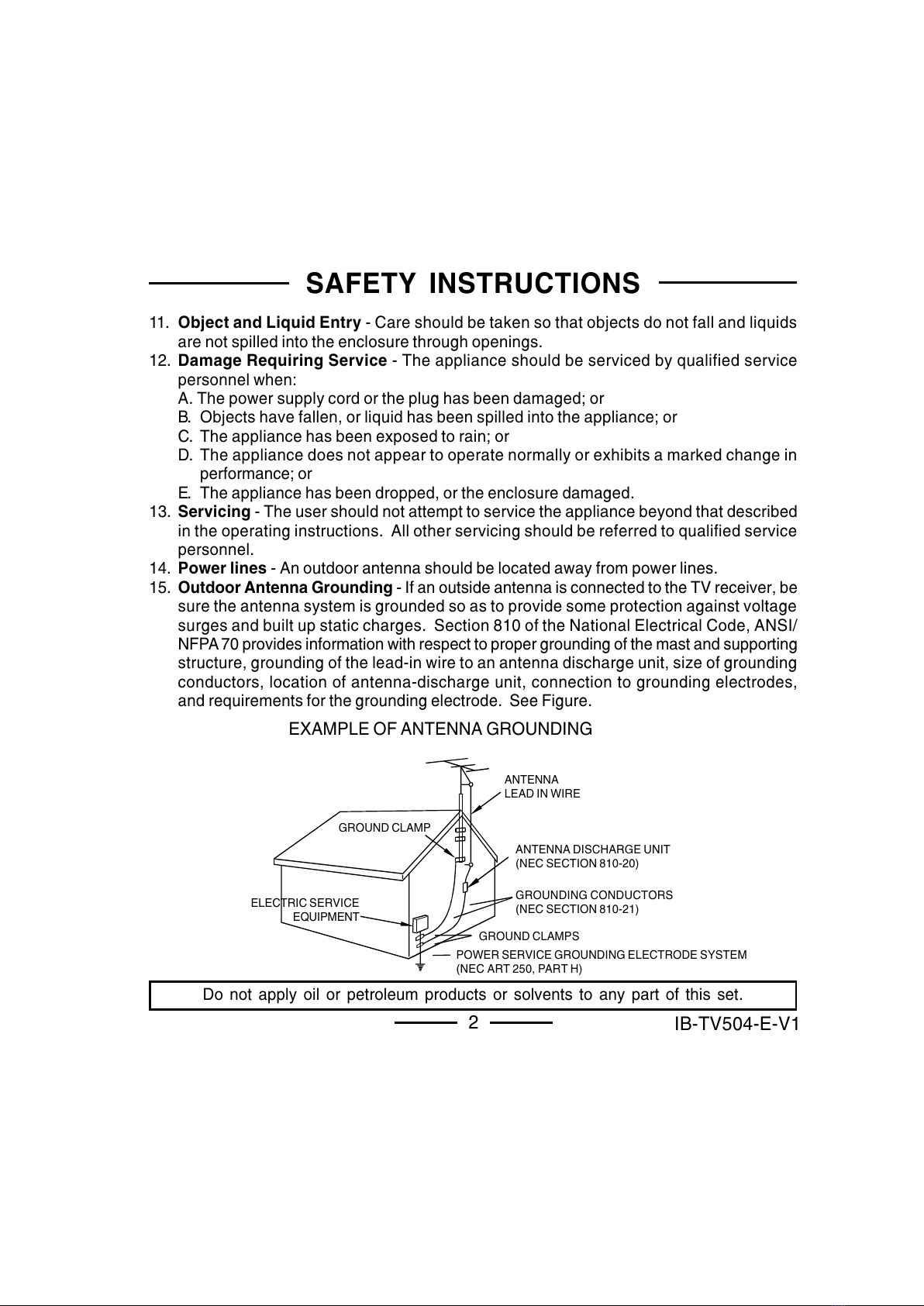

11. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids
are not spilled into the enclosure through openings.
12. Damage Requiring Service - The appliance should be serviced by qualified service
personnel when:
A. The power supply cord or the plug has been damaged; or
B. Objects have fallen, or liquid has been spilled into the appliance; or
C. The appliance has been exposed to rain; or
D. The appliance does not appear to operate normally or exhibits a marked change in
performance; or
E. The appliance has been dropped, or the enclosure damaged.
13. Servicing - The user should not attempt to service the appliance beyond that described
in the operating instructions. All other servicing should be referred to qualified service
personnel.
14. Power lines - An outdoor antenna should be located away from power lines.
15. Outdoor Antenna Grounding - If an outside antenna is connected to the TV receiver, be
sure the antenna system is grounded so as to provide some protection against voltage
surges and built up static charges. Section 810 of the National Electrical Code, ANSI/
NFPA 70 provides information with respect to proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding
conductors, location of antenna-discharge unit, connection to grounding electrodes,
and requirements for the grounding electrode. See Figure.
SAFETY INSTRUCTIONS
Do not apply oil or petroleum products or solvents to any part of this set.
2
EXAMPLE OF ANTENNA GROUNDING
ANTENNA
LEAD IN WIRE
ANTENNA DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
POWER SERVICE GROUNDING ELECTRODE SYSTEM
(NEC ART 250, PART H)
ELECTRIC SERVICE
EQUIPMENT
GROUND CLAMP
GROUND CLAMPS
IB-TV504-E-V1
All manuals and user guides at all-guides.com

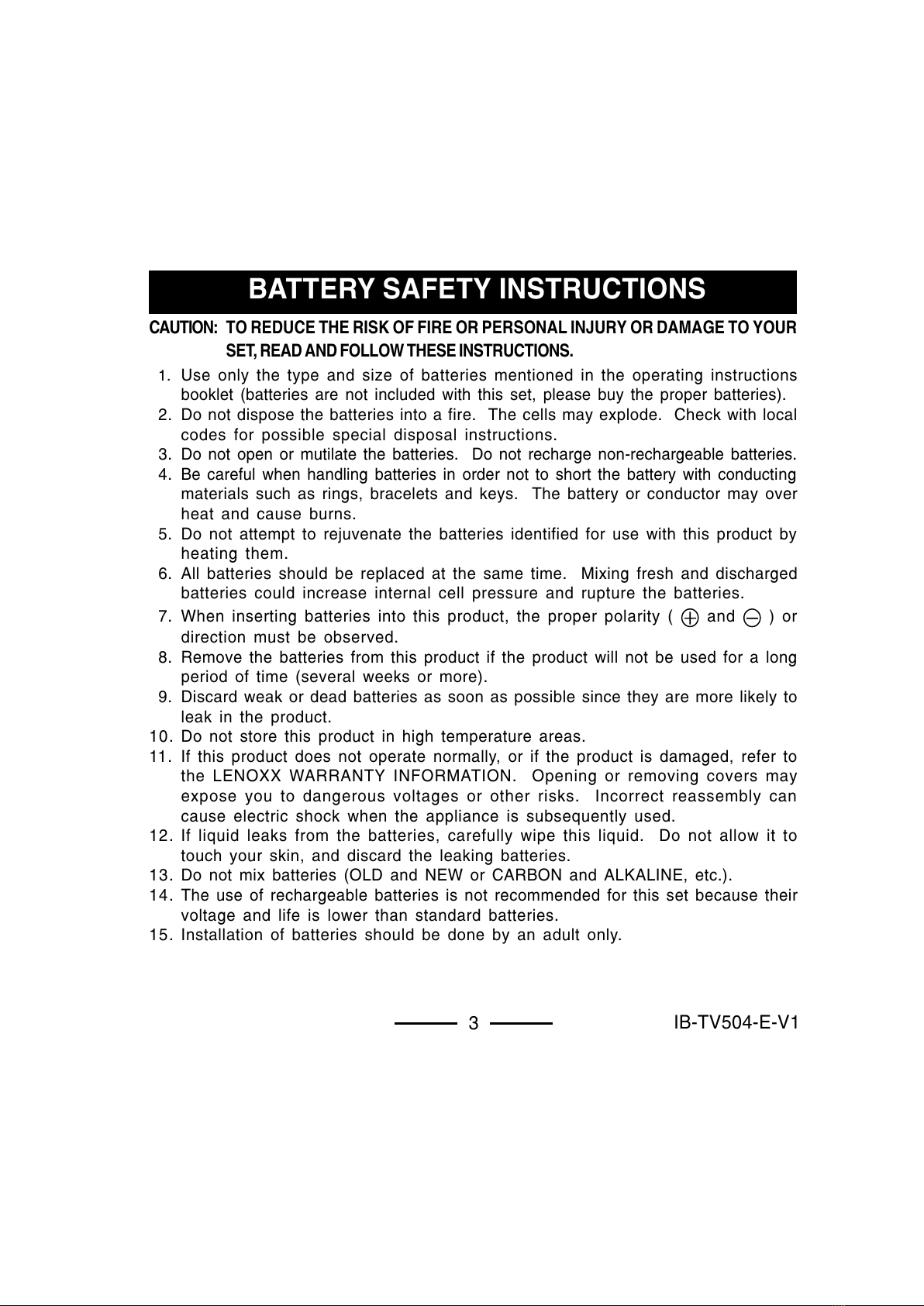

1. Use only the type and size of batteries mentioned in the operating instructions
booklet (batteries are not included with this set, please buy the proper batteries).
2. Do not dispose the batteries into a fire. The cells may explode. Check with local
codes for possible special disposal instructions.
3. Do not open or mutilate the batteries. Do not recharge non-rechargeable batteries.
4. Be careful when handling batteries in order not to short the battery with conducting
materials such as rings, bracelets and keys. The battery or conductor may over
heat and cause burns.
5. Do not attempt to rejuvenate the batteries identified for use with this product by
heating them.
6. All batteries should be replaced at the same time. Mixing fresh and discharged
batteries could increase internal cell pressure and rupture the batteries.
7. When inserting batteries into this product, the proper polarity ( and ) or
direction must be observed.
8. Remove the batteries from this product if the product will not be used for a long
period of time (several weeks or more).
9. Discard weak or dead batteries as soon as possible since they are more likely to
leak in the product.
10. Do not store this product in high temperature areas.
11. If this product does not operate normally, or if the product is damaged, refer to
the LENOXX WARRANTY INFORMATION. Opening or removing covers may
expose you to dangerous voltages or other risks. Incorrect reassembly can
cause electric shock when the appliance is subsequently used.
12. If liquid leaks from the batteries, carefully wipe this liquid. Do not allow it to
touch your skin, and discard the leaking batteries.
13. Do not mix batteries (OLD and NEW or CARBON and ALKALINE, etc.).
14. The use of rechargeable batteries is not recommended for this set because their
voltage and life is lower than standard batteries.
15. Installation of batteries should be done by an adult only.
CAUTION: TO REDUCE THE RISK OF FIRE OR PERSONAL INJURY OR DAMAGE TO YOUR
SET, READ AND FOLLOW THESE INSTRUCTIONS.
BATTERY SAFETY INSTRUCTIONS
3IB-TV504-E-V1
All manuals and user guides at all-guides.com

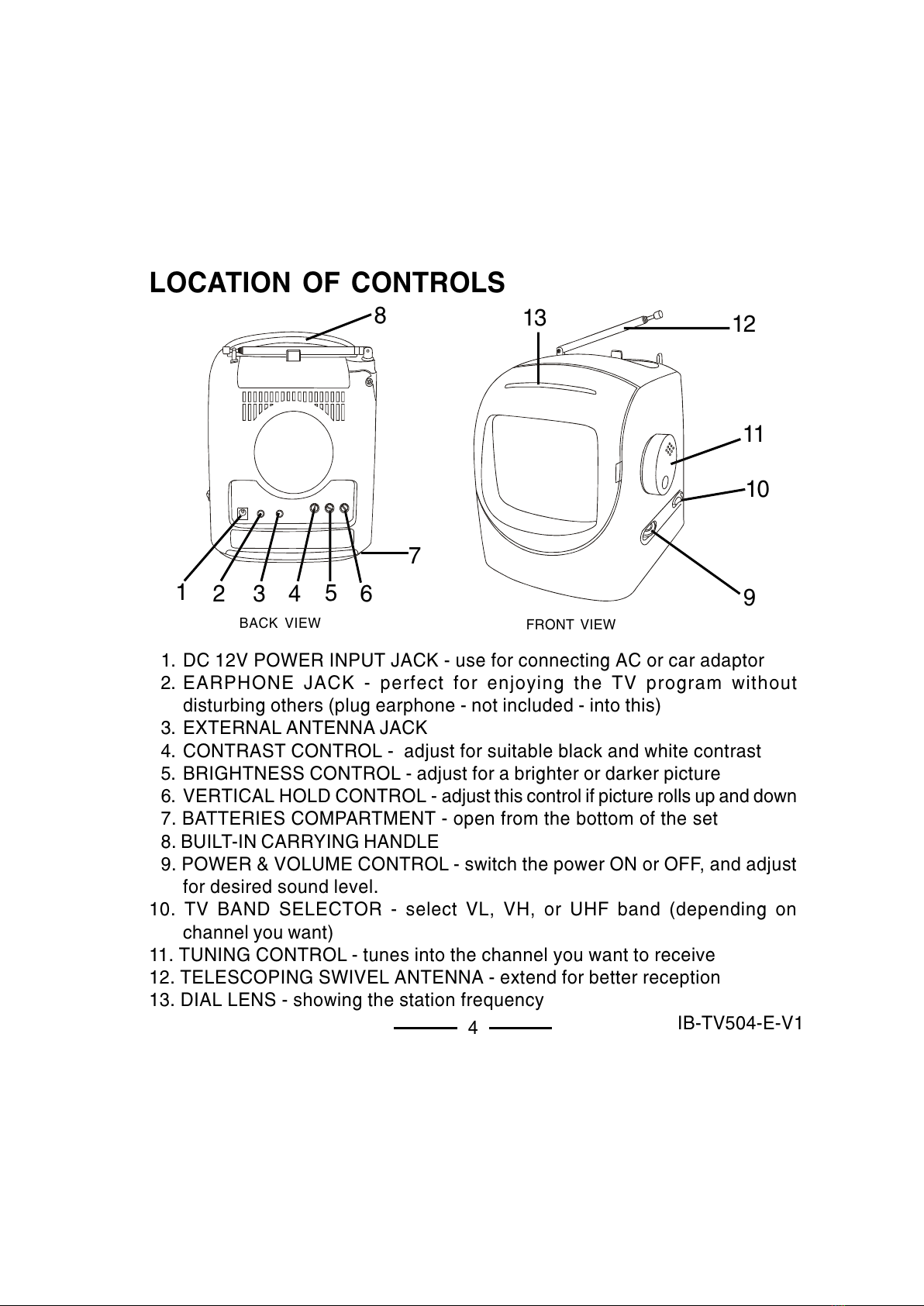

LOCATION OF CONTROLS
1234
569
7
10
11
12
1. DC 12V POWER INPUT JACK - use for connecting AC or car adaptor
2. EARPHONE JACK - perfect for enjoying the TV program without
disturbing others (plug earphone - not included - into this)
3. EXTERNAL ANTENNA JACK
4. CONTRAST CONTROL - adjust for suitable black and white contrast
5. BRIGHTNESS CONTROL - adjust for a brighter or darker picture
6. VERTICAL HOLD CONTROL - adjust this control if picture rolls up and down
7. BATTERIES COMPARTMENT - open from the bottom of the set
8. BUILT-IN CARRYING HANDLE
9. POWER & VOLUME CONTROL - switch the power ON or OFF, and adjust
for desired sound level.
10. TV BAND SELECTOR - select VL, VH, or UHF band (depending on
channel you want)
11. TUNING CONTROL - tunes into the channel you want to receive
12. TELESCOPING SWIVEL ANTENNA - extend for better reception
13. DIAL LENS - showing the station frequency
8
4
BACK VIEW FRONT VIEW
13
IB-TV504-E-V1
All manuals and user guides at all-guides.com

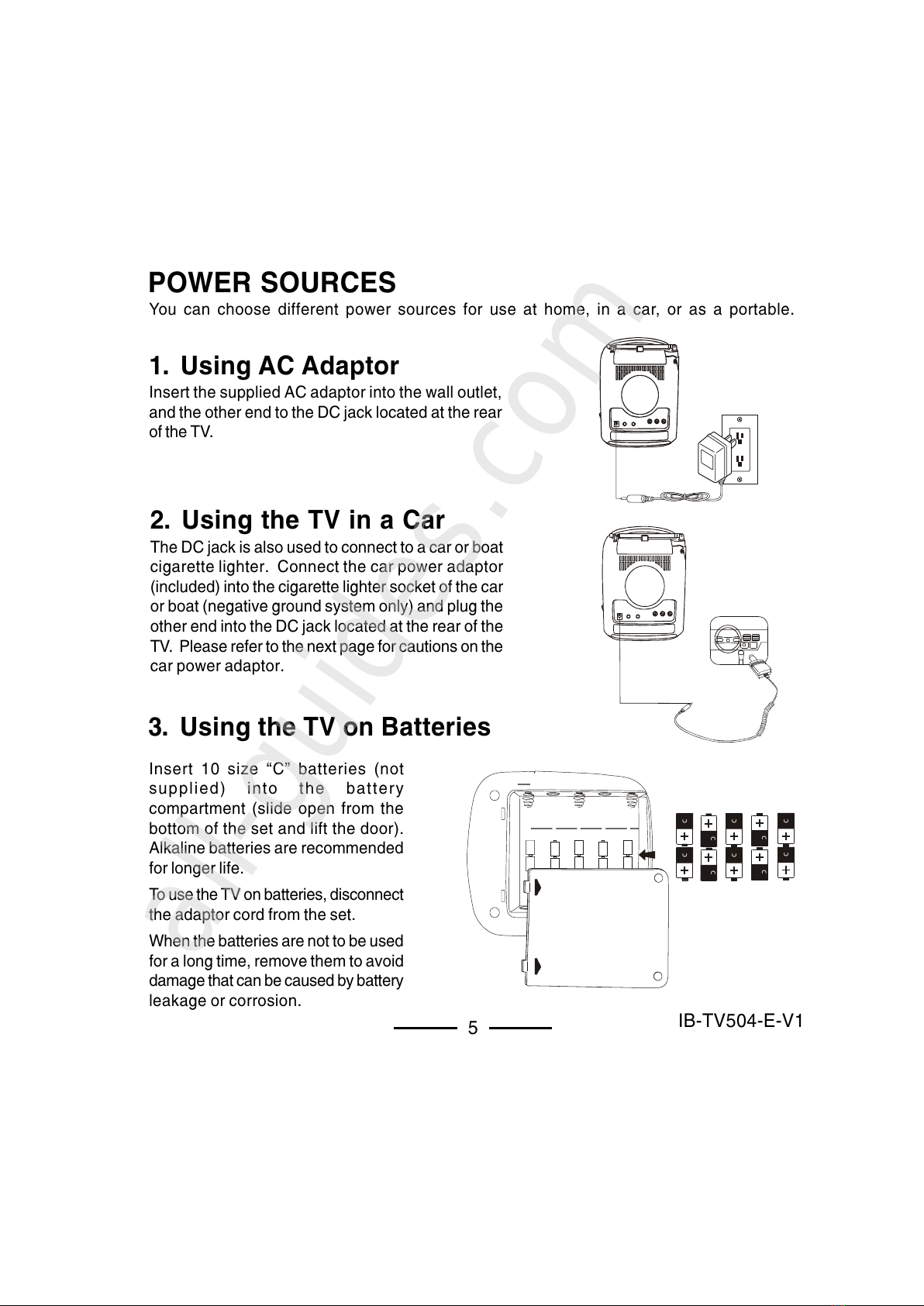

1. Using AC Adaptor
Insert the supplied AC adaptor into the wall outlet,
and the other end to the DC jack located at the rear
of the TV.
POWER SOURCES
You can choose different power sources for use at home, in a car, or as a portable.
2. Using the TV in a Car
The DC jack is also used to connect to a car or boat
cigarette lighter. Connect the car power adaptor
(included) into the cigarette lighter socket of the car
or boat (negative ground system only) and plug the
other end into the DC jack located at the rear of the
TV. Please refer to the next page for cautions on the
car power adaptor.
3. Using the TV on Batteries
5
Insert 10 size C batteries (not
supplied) into the battery
compartment (slide open from the
bottom of the set and lift the door).
Alkaline batteries are recommended
for longer life.
To use the TV on batteries, disconnect
the adaptor cord from the set.
When the batteries are not to be used
for a long time, remove them to avoid
damage that can be caused by battery
leakage or corrosion.
c
cc
cc
cc
cc
cc
IB-TV504-E-V1
All manuals and user guides at all-guides.com
all-guides.com

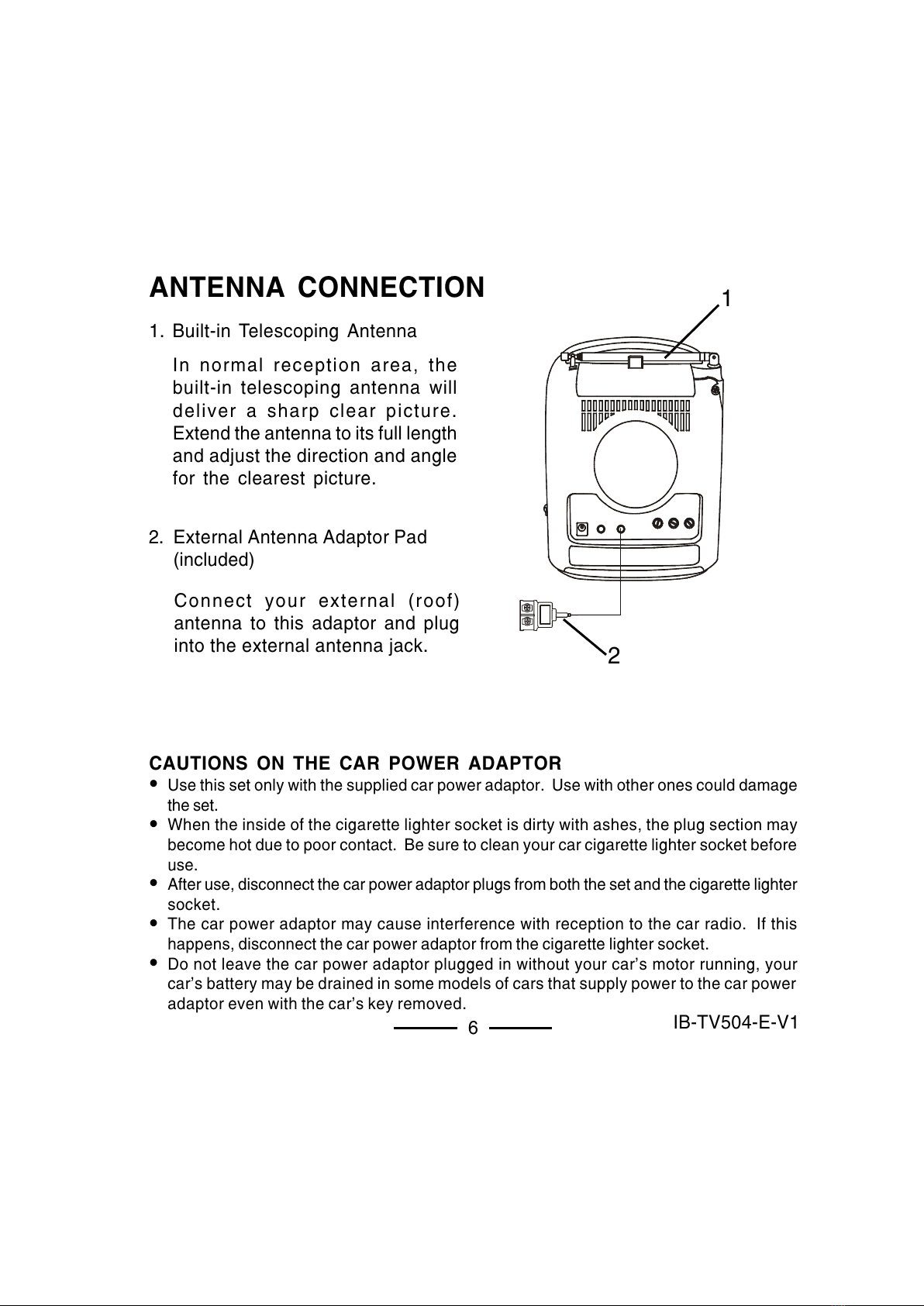

ANTENNA CONNECTION
1. Built-in Telescoping Antenna
In normal reception area, the
built-in telescoping antenna will
deliver a sharp clear picture.
Extend the antenna to its full length
and adjust the direction and angle
for the clearest picture.
2. External Antenna Adaptor Pad
(included)
1
2
CAUTIONS ON THE CAR POWER ADAPTOR
Use this set only with the supplied car power adaptor. Use with other ones could damage
the set.
When the inside of the cigarette lighter socket is dirty with ashes, the plug section may
become hot due to poor contact. Be sure to clean your car cigarette lighter socket before
use.
After use, disconnect the car power adaptor plugs from both the set and the cigarette lighter
socket.
The car power adaptor may cause interference with reception to the car radio. If this
happens, disconnect the car power adaptor from the cigarette lighter socket.
Do not leave the car power adaptor plugged in without your cars motor running, your
cars battery may be drained in some models of cars that supply power to the car power
adaptor even with the cars key removed.
6
Connect your external (roof)
antenna to this adaptor and plug
into the external antenna jack.
IB-TV504-E-V1
All manuals and user guides at all-guides.com

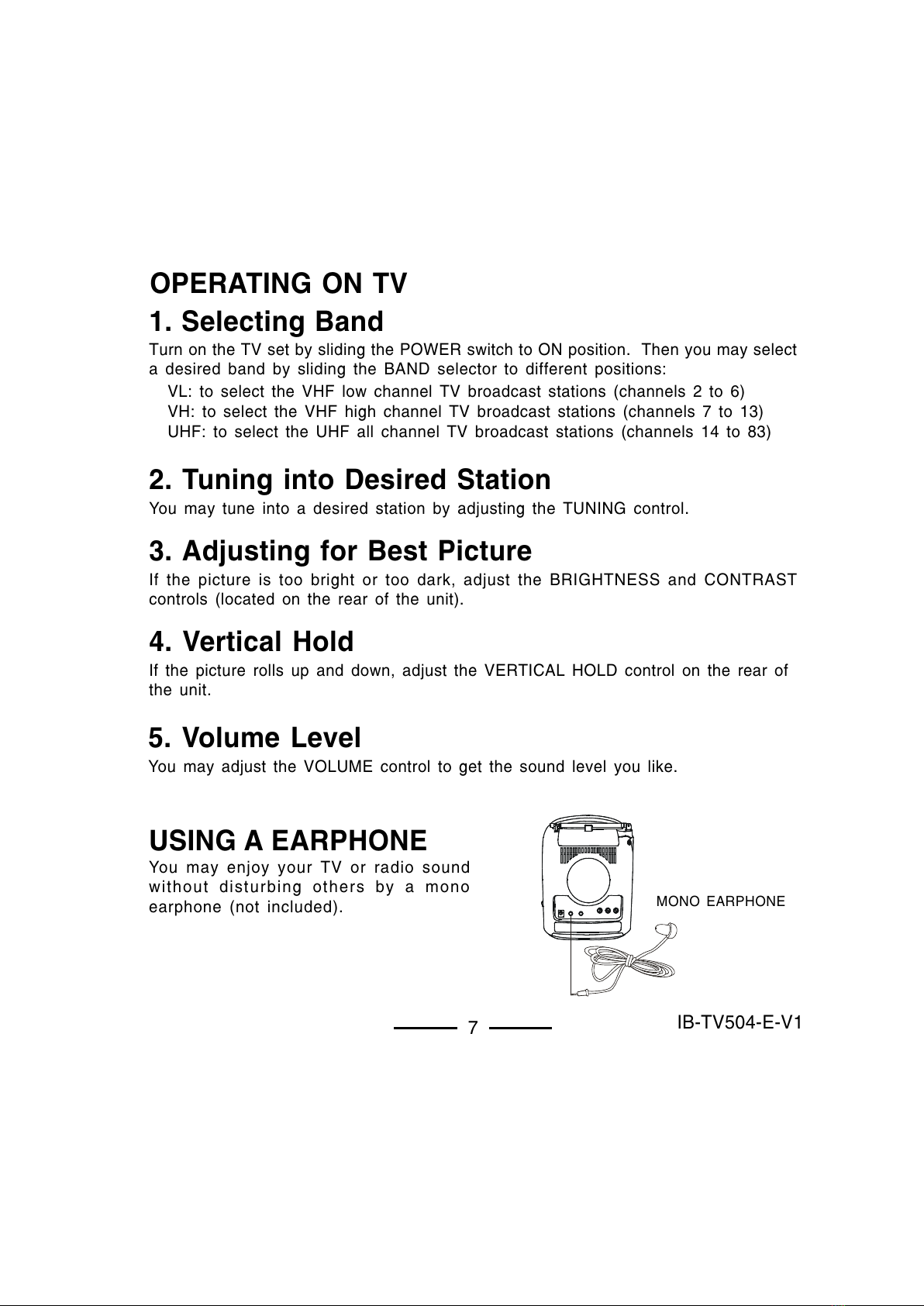

OPERATING ON TV
You may enjoy your TV or radio sound
without disturbing others by a mono
earphone (not included).
USING A EARPHONE
7
MONO EARPHONE
IB-TV504-E-V1
1. Selecting Band
Turn on the TV set by sliding the POWER switch to ON position. Then you may select
a desired band by sliding the BAND selector to different positions:
VL: to select the VHF low channel TV broadcast stations (channels 2 to 6)
VH: to select the VHF high channel TV broadcast stations (channels 7 to 13)
UHF: to select the UHF all channel TV broadcast stations (channels 14 to 83)
2. Tuning into Desired Station
You may tune into a desired station by adjusting the TUNING control.
3. Adjusting for Best Picture
If the picture is too bright or too dark, adjust the BRIGHTNESS and CONTRAST
controls (located on the rear of the unit).
4. Vertical Hold
If the picture rolls up and down, adjust the VERTICAL HOLD control on the rear of
the unit.
5. Volume Level
You may adjust the VOLUME control to get the sound level you like.
All manuals and user guides at all-guides.com

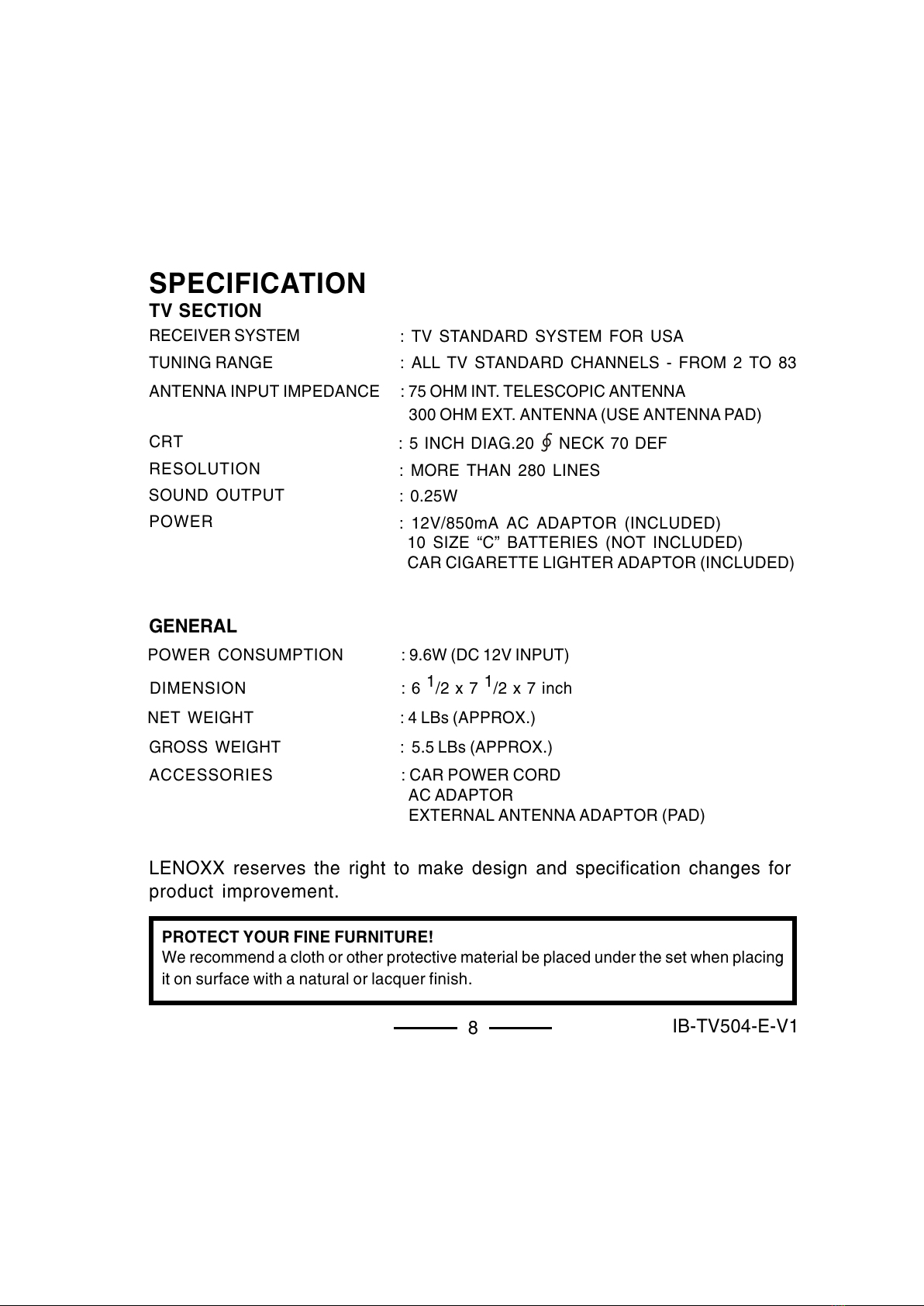

SPECIFICATION
RECEIVER SYSTEM
TUNING RANGE
ANTENNA INPUT IMPEDANCE
CRT
SOUND OUTPUT
POWER
POWER CONSUMPTION
DIMENSION
NET WEIGHT
GROSS WEIGHT
ACCESSORIES
: TV STANDARD SYSTEM FOR USA
: ALL TV STANDARD CHANNELS - FROM 2 TO 83
: 75 OHM INT. TELESCOPIC ANTENNA
300 OHM EXT. ANTENNA (USE ANTENNA PAD)
: 5 INCH DIAG.20 NECK 70 DEF
: MORE THAN 280 LINES
: 0.25W
: 12V/850mA AC ADAPTOR (INCLUDED)
10 SIZE C BATTERIES (NOT INCLUDED)
CAR CIGARETTE LIGHTER ADAPTOR (INCLUDED)
: 9.6W (DC 12V INPUT)
: 6 1/2 x 7 1/2 x 7 inch
: 4 LBs (APPROX.)
: 5.5 LBs (APPROX.)
: CAR POWER CORD
AC ADAPTOR
EXTERNAL ANTENNA ADAPTOR (PAD)
LENOXX reserves the right to make design and specification changes for
product improvement.
8
PROTECT YOUR FINE FURNITURE!
We recommend a cloth or other protective material be placed under the set when placing
it on surface with a natural or lacquer finish.
TV SECTION
GENERAL
RESOLUTION
IB-TV504-E-V1
All manuals and user guides at all-guides.com

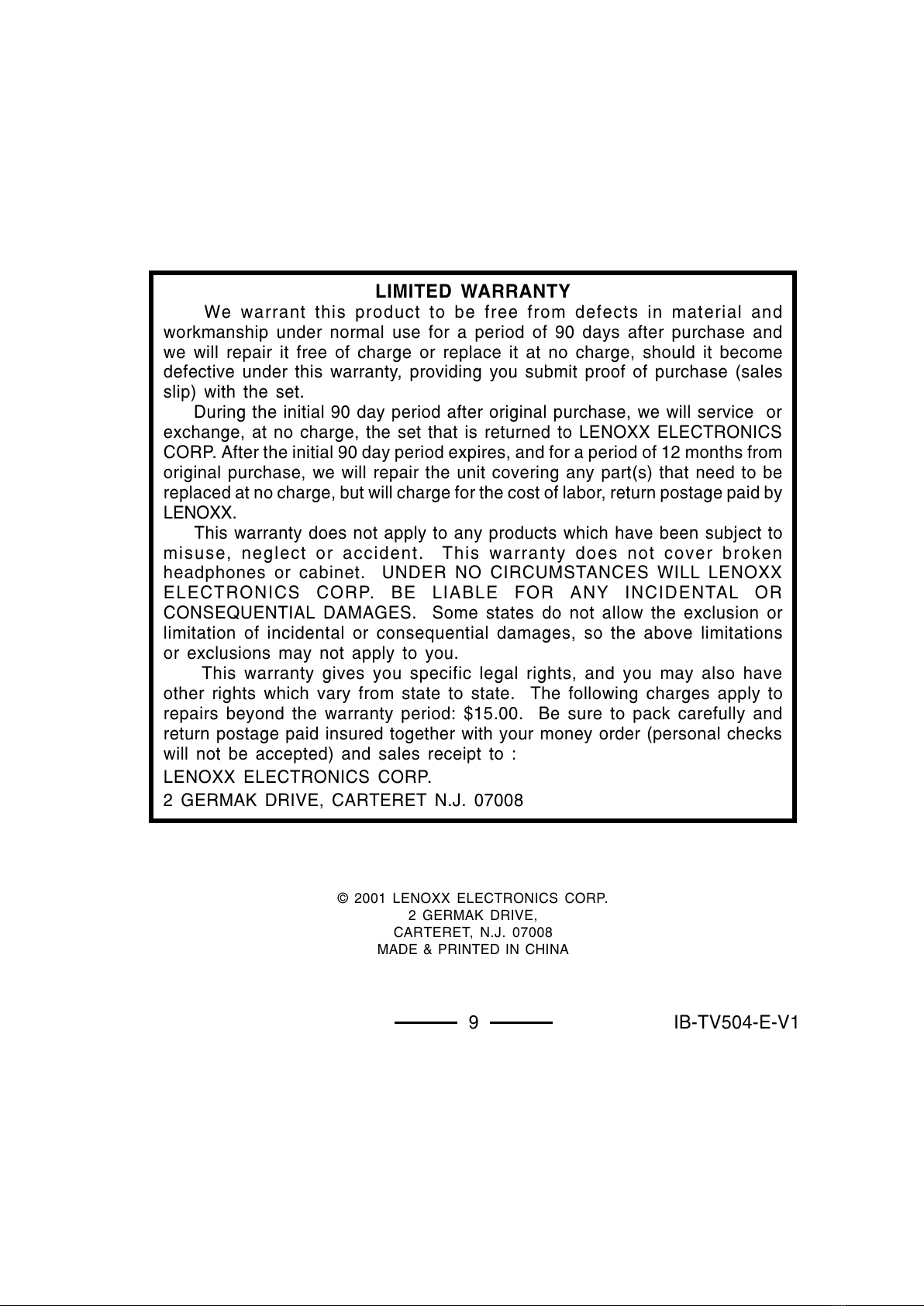

LIMITED WARRANTY
We warrant this product to be free from defects in material and
workmanship under normal use for a period of 90 days after purchase and
we will repair it free of charge or replace it at no charge, should it become
defective under this warranty, providing you submit proof of purchase (sales
slip) with the set.
During the initial 90 day period after original purchase, we will service or
exchange, at no charge, the set that is returned to LENOXX ELECTRONICS
CORP. After the initial 90 day period expires, and for a period of 12 months from
original purchase, we will repair the unit covering any part(s) that need to be
replaced at no charge, but will charge for the cost of labor, return postage paid by
LENOXX.
This warranty does not apply to any products which have been subject to
misuse, neglect or accident. This warranty does not cover broken
headphones or cabinet. UNDER NO CIRCUMSTANCES WILL LENOXX
ELECTRONICS CORP. BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or
limitation of incidental or consequential damages, so the above limitations
or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state. The following charges apply to
repairs beyond the warranty period: $15.00. Be sure to pack carefully and
return postage paid insured together with your money order (personal checks
will not be accepted) and sales receipt to :
LENOXX ELECTRONICS CORP.
2 GERMAK DRIVE, CARTERET N.J. 07008
© 2001 LENOXX ELECTRONICS CORP.
2 GERMAK DRIVE,
CARTERET, N.J. 07008
MADE & PRINTED IN CHINA
9IB-TV504-E-V1
All manuals and user guides at all-guides.com
