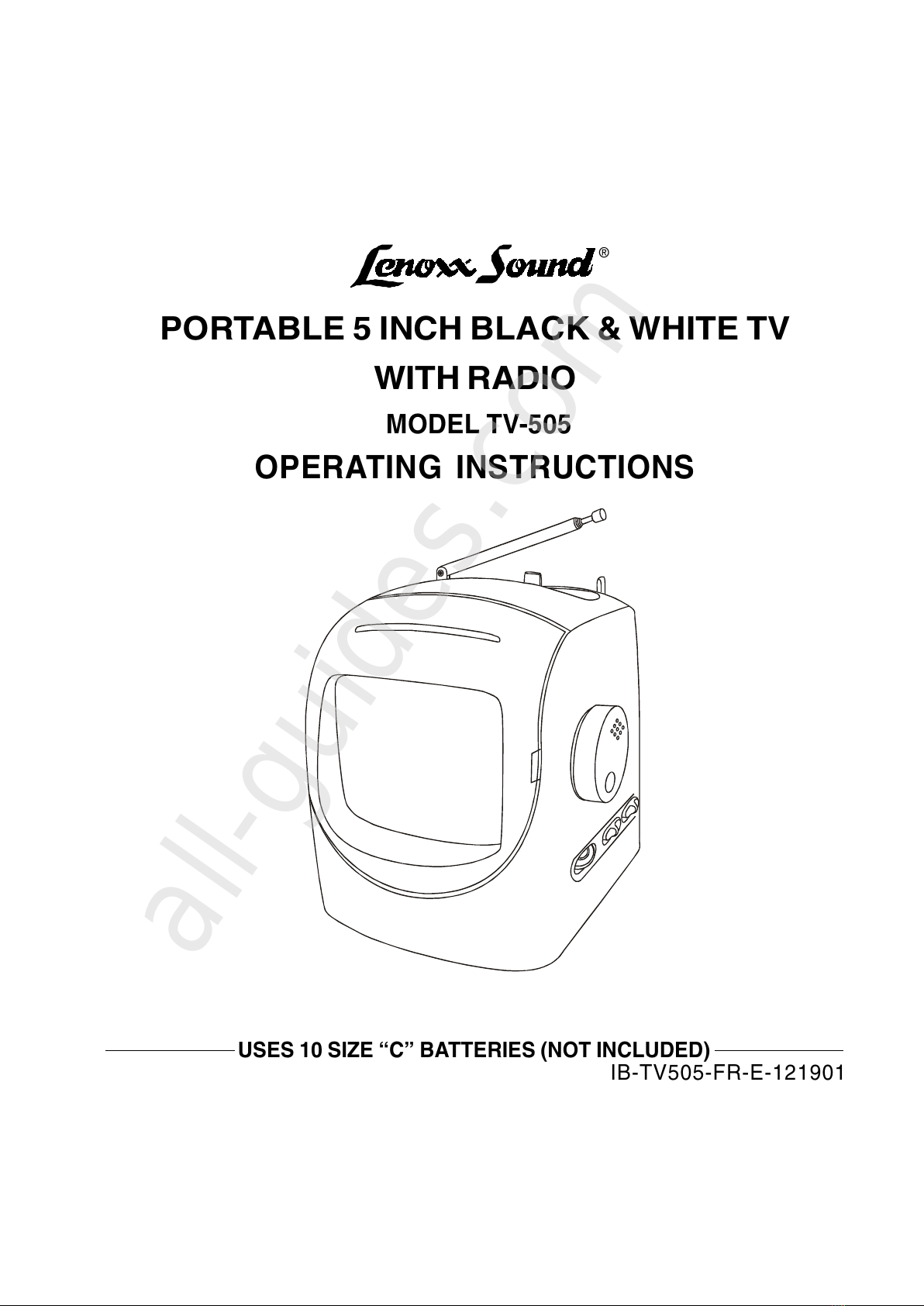

Lenoxx Sound TV-505 User manual

USES 10 SIZE C BATTERIES (NOT INCLUDED)
PORTABLE 5 INCH BLACK & WHITE TV
WITH RADIO
®
IB-TV505-FR-E-121901
MODEL TV-505
OPERATING INSTRUCTIONS
All manuals and user guides at all-guides.com
all-guides.com

1
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THE PLUG WITH AN EXTENSION CORD, RECEPTACLE
OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO
PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings, install in accordance with the manufacturers instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug this apparatus during lightening storms or when unused for long periods of time.
13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally or has been dropped.
14. This appliance shall not be exposed to dripping or splashing water and that no object filled with liquid such
as vases shall be placed on the apparatus.
WARNING
IMPORTANT SAFETY INSTRUCTIONS
The lightning flash with
arrowhead symbol, within an
equilateral triangle, is intended to
alert the user to the presence of
uninsulated dangerous voltage
within the products enclosure
that may be of sufficient
magnitude to constitute a risk of
electric shock to persons.
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE
RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR
BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER
SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and
maintenance (servicing)
instructions in the literature
accompanying the appliance.
IB-TV505-FR-E-121901
All manuals and user guides at all-guides.com

2

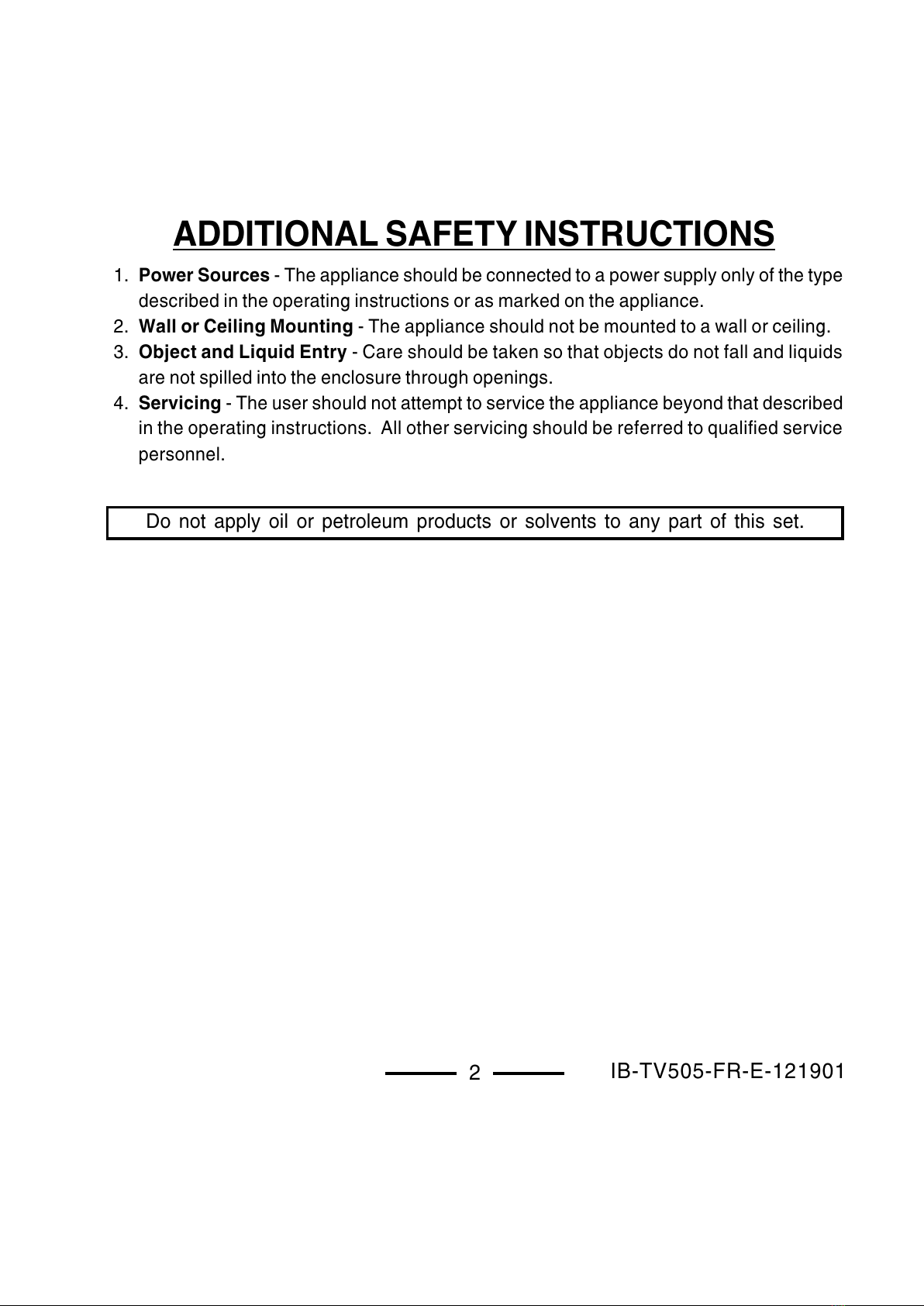

ADDITIONAL SAFETY INSTRUCTIONS
1. Power Sources - The appliance should be connected to a power supply only of the type
described in the operating instructions or as marked on the appliance.
2. Wall or Ceiling Mounting - The appliance should not be mounted to a wall or ceiling.
3. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids
are not spilled into the enclosure through openings.
4. Servicing - The user should not attempt to service the appliance beyond that described
in the operating instructions. All other servicing should be referred to qualified service
personnel.
Do not apply oil or petroleum products or solvents to any part of this set.
IB-TV505-FR-E-121901
All manuals and user guides at all-guides.com

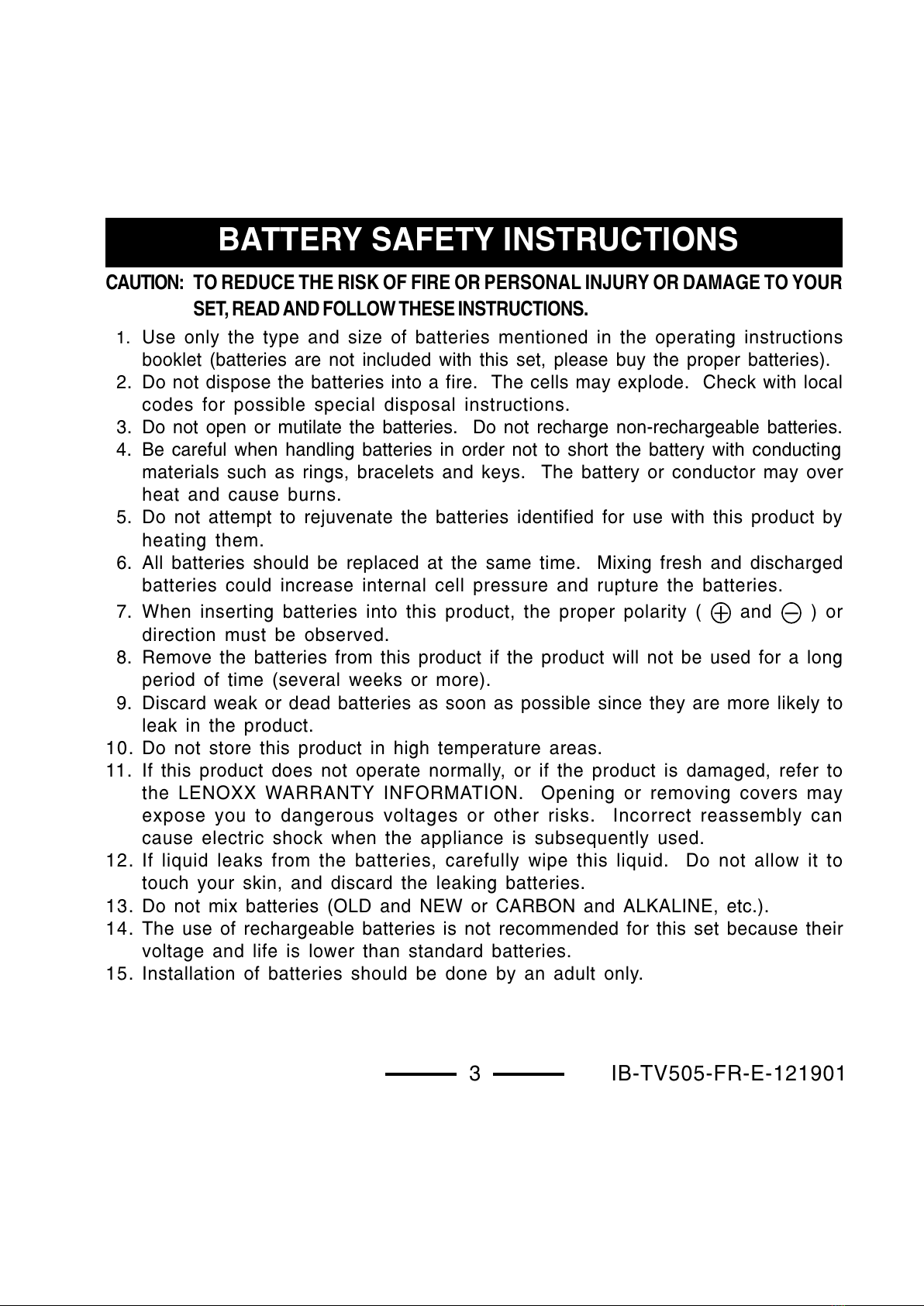

1. Use only the type and size of batteries mentioned in the operating instructions
booklet (batteries are not included with this set, please buy the proper batteries).
2. Do not dispose the batteries into a fire. The cells may explode. Check with local
codes for possible special disposal instructions.
3. Do not open or mutilate the batteries. Do not recharge non-rechargeable batteries.
4. Be careful when handling batteries in order not to short the battery with conducting
materials such as rings, bracelets and keys. The battery or conductor may over
heat and cause burns.
5. Do not attempt to rejuvenate the batteries identified for use with this product by
heating them.
6. All batteries should be replaced at the same time. Mixing fresh and discharged
batteries could increase internal cell pressure and rupture the batteries.
7. When inserting batteries into this product, the proper polarity ( and ) or
direction must be observed.
8. Remove the batteries from this product if the product will not be used for a long
period of time (several weeks or more).
9. Discard weak or dead batteries as soon as possible since they are more likely to
leak in the product.
10. Do not store this product in high temperature areas.
11. If this product does not operate normally, or if the product is damaged, refer to
the LENOXX WARRANTY INFORMATION. Opening or removing covers may
expose you to dangerous voltages or other risks. Incorrect reassembly can
cause electric shock when the appliance is subsequently used.
12. If liquid leaks from the batteries, carefully wipe this liquid. Do not allow it to
touch your skin, and discard the leaking batteries.
13. Do not mix batteries (OLD and NEW or CARBON and ALKALINE, etc.).
14. The use of rechargeable batteries is not recommended for this set because their
voltage and life is lower than standard batteries.
15. Installation of batteries should be done by an adult only.
CAUTION: TO REDUCE THE RISK OF FIRE OR PERSONAL INJURY OR DAMAGE TO YOUR
SET, READ AND FOLLOW THESE INSTRUCTIONS.
BATTERY SAFETY INSTRUCTIONS
3IB-TV505-FR-E-121901
All manuals and user guides at all-guides.com

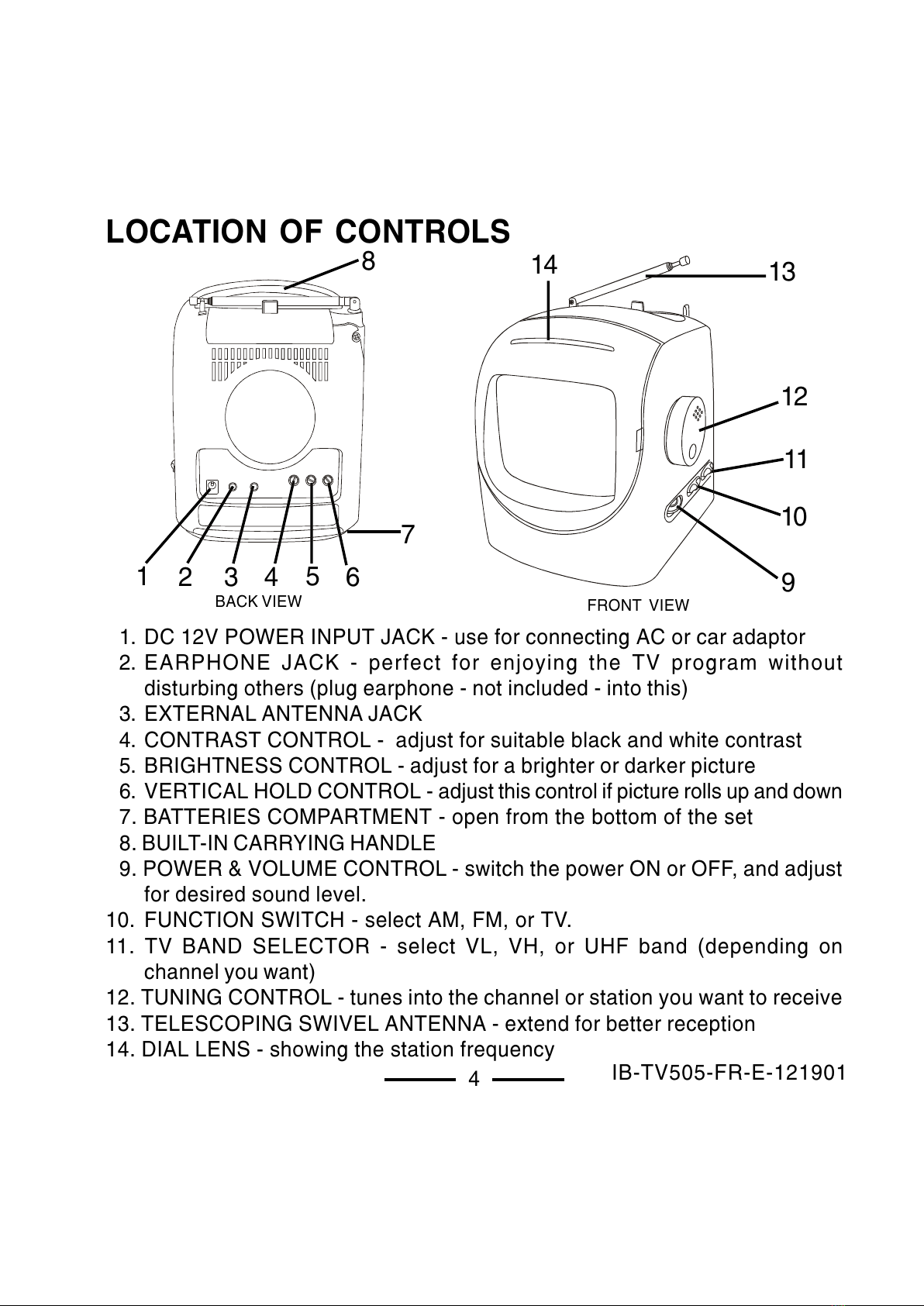

LOCATION OF CONTROLS
1234
569
710
11
12
13
1. DC 12V POWER INPUT JACK - use for connecting AC or car adaptor
2. EARPHONE JACK - perfect for enjoying the TV program without
disturbing others (plug earphone - not included - into this)
3. EXTERNAL ANTENNA JACK
4. CONTRAST CONTROL - adjust for suitable black and white contrast
5. BRIGHTNESS CONTROL - adjust for a brighter or darker picture
6. VERTICAL HOLD CONTROL - adjust this control if picture rolls up and down
7. BATTERIES COMPARTMENT - open from the bottom of the set
8. BUILT-IN CARRYING HANDLE
9. POWER & VOLUME CONTROL - switch the power ON or OFF, and adjust
for desired sound level.
10. FUNCTION SWITCH - select AM, FM, or TV.
11. TV BAND SELECTOR - select VL, VH, or UHF band (depending on
channel you want)
12. TUNING CONTROL - tunes into the channel or station you want to receive
13. TELESCOPING SWIVEL ANTENNA - extend for better reception
14. DIAL LENS - showing the station frequency
8
4
BACK VIEW FRONT VIEW
14
IB-TV505-FR-E-121901
