LENSGO Smoke B User manual

12
MICROPHONE
INTRODUCTION
Thank you for purchasing LENSGO products
IMPORTANT TIPS
This manual provides the Smoke B Smoke machine and accessories of the correct use
and preservation methods, Assist users to solve usage doubts and understand safety
precautions
PLEASE READ AND KEEP THIS MANUAL CAREFULLY
Please be sure to include this instruction manual when handing over the product to
others, pay attention to all warning notices and follow all instructions in the instruction
manual
Smoke B creates visual effects for photography, film, and stage performances.
Should not be used for any other purpose.
Do not continue to use the machine when the fog machine fuid is dry.
Please clean this product with soft cloth and dry cloth
This product is a precision instrument, please avoid using drop, collision or bear
heavy blows
Please contact authorized maintenance personnel when maintenance is required.
This product has a precision electronic circuit. Failure caused by unauthorized
demolition is not covered by our warranty, but users can pay for maintenance
It is recommended to use the LENSGO original cable. Any damage due to the use of
non-LENSGO original accessories is not covered by our warranty, but users can pay for
maintenance.
This specification is based on our strict testing. Design and specifications are
subject to change without prior notice
INSTRUCTION MANUAL
HANDHELD FOG MACHINE
Applicable to all kinds of short video shooting, portrait photography, film and
television smoke effects
！WARNING
Users must read all the warnings and safety precautions in this
manual and take good care of this manual
！WARNING
CONTACT US
MADE IN CHINA
www.lensgo.net
MICROPHONE
Please do not place this product in a corrosive place to avoid
causing damage
SDS REACH
COMPLIANT

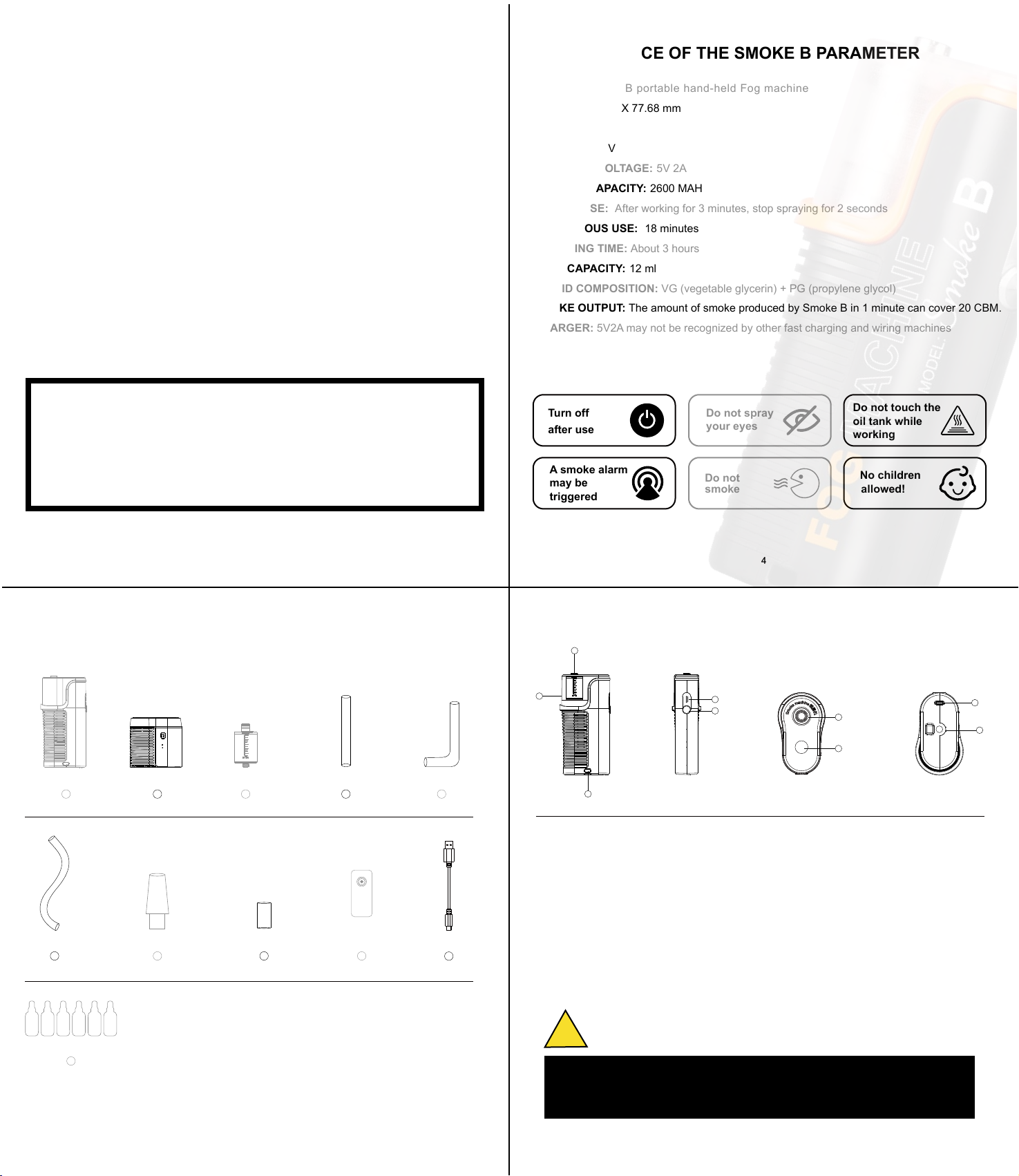

LIST OF SMOKE B ACCESSORIES
34
5 6
PERFORMANCE OF THE SMOKE B PARAMETER
MODEL：Smoke B portable hand-held Fog machine
SIZE：156.2 x 45X 77.68 mm
POWER: 40W
VOLTAGE: 7.4V
CHARGING VOLTAGE: 5V 2A
BATTERY CAPACITY: 2600 MAH
TIME OF USE: After working for 3 minutes, stop spraying for 2 seconds
CONTINUOUS USE: 18 minutes
CHARGING TIME: About 3 hours
TANK CAPACITY: 12 ml
LIQUID COMPOSITION: VG (vegetable glycerin) + PG (propylene glycol)
SMOKE OUTPUT: The amount of smoke produced by Smoke B in 1 minute can cover 20 CBM.
CHARGER: 5V2A may not be recognized by other fast charging and wiring machines
Turn off
after use
Do not spray
your eyes
No children
allowed!
Do not touch the
oil tank while
working
Do not
smoke
A smoke alarm
may be
triggered
INTRODUCTION TO SMOKE B PRODUCTS
Smoke B is a hand-held, Smoke-controlled, easy to carry outdoor portable Fog machine
users can produce high-quality film-grade mist, odor-free, rapid diffusion, and has twice
as long as the ordinary mist machine condensation time, solving the film producers,
photographers, short video creators on location shooting
With the unique accessories of Smoke B, users can create different Smoke effects,
but also can create magical liquid Smoke effects, and in many ways replace the need
for dry ice in product photography or food photography projects
Smoke B solves the problems of waiting time, easy blockage and difficult operation
of the traditional smoke machine, and the user can precisely design the smoke effect
according to their needs
SMOKE B HOST RESOLUTION
1
3
2
4
5
6
7
8
9
1. OIL TANKS: When the oil is below the mark,
please refuel immediately
2. HEAT SHIELD：Used for heat insulation,
prevent hot hands, magnet fixed
3. LANYARD HOLES：Can be connected to
the lanyard, hanging in any place to use
4. POWER INDICATOR: Please see the
following instructions
5. FUNCTION BUTTON：Please see the
following instructions
6. SMOKE OUTLET：Do not spray smoke directly
onto the skin or eyes
7. MAGNETS：Insulated heat shield, not easy to
fall off when in use
8. TYPE-C CHARGING PORT：It is normal for the
body to be slightly hot during charging
9. 1/4 SCREW HOLE：It can be installed on all
kinds of brackets
Hand-held, smoke-controlled, easy to carry outdoors
Applicable to all kinds of short video shooting, Portrait Photography, film
and television special effects
Users can use Smoke B to create different Smoke scenarios
Subject Oil tanks Hard straight tube Hard bent tube
1
Mist fan
2345
Fog Machine Fluid
11
Charging cable
10
Liquid smoke filter
8
Infrared
remote control
9
High pressure nozzle
7
Silicone tube
6
！WARNING
The battery has only 20% power for transportation safety. So it needs
to be charged before use.

SMOKE B MIST FAN RESOLUTION
SMOKE B OIL TANK DESCRIPTION
Heat-sensitive silicone cover: Open the silicone cover gently to add liquid to the oil tank.
Oil below the scale, please use the machine after adding liquid.
Af ter the supplement, need to close the silica gel cover, otherwise will lead to too much oil
immersed in the atomizing element, affect atomization
It is not recommended to use non - official smoke oil. The damage caused by non-official
smoke oil is not in the scope of after - sale
7 8
910
1
24
3
1. ON/OFF: Long press for 3 seconds to turn it on, the blue light will be on, and the green light will be flashing
in the protection state. (When the heating cabin is not properly installed and there is a problem, it will enter
the protection state)
2. LIGHTS：The green light will be on after starting up, if it turns red, it means that the battery is out, please
charge it immediately.
3. TYPE-C CHARGING PORT：It is normal for the body to be slightly hot during charging
4. SMOKE OUTLET：Do not spray smoke directly onto the skin or eyes
BATTERIES: Built-in 1500 milliampere lithium battery, can be used for about 5 hours, charge for about
2 hours
SMOKE B OIL TANK DESCRIPTION
INSTALL OIL TANKS
Align the screw of the oil tank with the 1/4 screw hole
of the machine, and then screw the oil tank into the
screw hole of the machine in a clockwise direction. It
is enough to tighten the oil tank, too tight may cause
the oil tank to separate.
MAGNETIC HEAT INSULATION COVER
The oil tank will generate high temperature during
operation, and the heat insulation cover must be
installed on the machine during use. Do not hold
the heat shield when picking up the machine.
SMOKE B OIL TANK DESCRIPTION
Sometimes, the oil tank bottom will be the case of oil drops, this is because the silicone
cover opened too long, or caused by air pressure
To solve the problem of dripping oil, first close the lid properly, and then take out a paper
towel to wipe the bottom of the oil tank thoroughly
Wipe thoroughly, confirm again whether the silicone cover is closed, and then put it upside
down for 1 minute, and then install it back.
1 2 3 1 2 3
4 5 6
！WARNING
The battery has only 20% power for transportation safety. So it needs
to be charged before use.
！WARNING
When the machine continuously produces smoke, the temperature of
the oil tank will be high, and direct contact with the skin may cause
burns, so be sure to install a magnetic heat insulation cover when using it.
！WARNING
After adding liquid, you need to wait for 5 minutes before using the
machine.

TURN SMOKE ON/OFF
Designed for ease of use and maintenance, it is easy to use in a few simple steps
11 12
13 14
ON/OFF
Designed for ease of use and maintenance, it is easy to use in a few simple steps
Check that the machine is fully charged before use
Open the silicone cover on the top of the oil tank and inject
the provided liquid.
Note: If it is a brand new oil tank, you need to fill the oil tank,
close the silicone cover and let it stand for 5 minutes before
using it.
Long press for 3 seconds to power on
The blue light is on to indicate that it is powered on
Long press for 3 seconds to shut down
The blue light is off, it means the machine is turned off
Press twice in a row
长按3秒
Turn on the smoke
After booting, press the power button twice in a row
Turn off the smoke
Press the power button once
EFFECT AND APPLICATION
With Smoke B Smoke machine unique accessories, users
can create different Smoke effects, now learn to create
innovative visual effects!
Press 3 sec
PORTRAIT MODE
The coil atomization technology is used to solve the problems of waiting time,
easy blocking and difficult control of the traditional fog machine.
With Smoke B hard tube users can accurately hit the Smoke in different locations
！WARNING
When the machine is turned on without an oil tank installed, the
machine will beep for a few seconds and then the green light will be
on. This function is to detect whether the oil tank is installed normally.
After the oil tank is installed correctly, restart the machine, and it
can be used after the blue light is on.
！WARNING
It is normal for the machine to heat up when it continues to produce
smoke. Direct contact with the skin may cause burns, so the magnetic
heat insulation cover must be installed when using it.

17
15 16
DRY ICE MODE
With Smoke B hard tube + liquid Smoke filter, users can freely change
the shape of the Smoke, create a magical liquid Smoke effect,
and in many ways replace the need for dry ice in
product photography or food photography
FILM LEVEL MIST MODE
With the Smoke B mist fan, users can produce high quality
film-grade mist, no odor, spread quickly, and has twice the
condensation time of a normal mist machine, the perfect
solution for filmmakers shooting on location and for traditional
mist machines that can not effectively create mist
15 16
17 18
SMOKE EFFECTS
With the Smoke B remote infrared remote control, you can
hide many Smoke machines in the shooting site, covering a
large area of the shooting area, the infrared remote control
can remote control the Smoke machine, one button to
open / close the Smoke, operating Range 10 meters
INCENSE BURNING MODE
With Smoke b hard tube + high pressure nozzle,
can be compressed Smoke launch, greatly enhance the range of Smoke,
suitable for special, creative Smoke effect production

！
！
！
普通烟雾
SECURITY ALERT
WE TRY OUR BEST TO MAKE SMOKE B SAFE FOR USERS, BUT
HIGH-POWER LITHIUM-ION BATTERY AND HIGH TEMPERATURE
DURING OPERATION HAVE SOME SECURITY RISKS. THEREFORE,
THE USER MUST BE CLEAR ABOUT THE FOLLOWING SAFETY
PRECAUTIONS TO PREVENT PERSONAL, PROPERTY LOSSES
THE USE OF OIL TANKS WITHOUT OIL IS STRICTLY PROHIBITED:
Every time before use must check the oil tank, when the oil is below the scale to form the
habit of adding oil, to avoid dry burning machine
IT IS STRICTLY FORBIDDEN TO SPRAY SMOKE DIRECTLY ON THE
SKIN, EYES AND OTHER PARTS OF THE HUMAN BODY:
When the machine is running for a long time, a small amount of high-temperature oil droplets
in the smoke directly ejected from the body and the nozzle should be kept at a certain
distance to prevent burns
DO NOT TOUCH THE OIL TANK DURING USE:
After continuous smoke output, the oil tank temperature is very high, please install heat
insulation cover for protection
DO NOT OPERATE THE MACHINE NEAR FLAMMABLE,
COMBUSTIBLE OR HEAT - SENSITIVE MATERIALS
23 24
25 26
普通烟雾
Q7: DOES THE OIL GO BAD?
A: The deterioration principle is that the fume oil is water-absorbent. The fume oil is exposed to
the air for a long time and will constantly absorb the moisture in the air. A small amount of air
in the oil tank will not cause deterioration. Therefore, please cover the silicone cover as soon
as possible after refueling, avoid long-term exposure to soot in the air
Q8: WHAT ABOUT THE HEAT?
A: Oil tank continuous smoke, try to ensure that the oil is not too low, so the oil tank will be
more durable, if the oil is too low, oil tank temperature will rise quickly
Q9: WHAT IS THE WARRANTY FOR SMOKE B?
A: The one-year warranty for Smoke B applies to all users who purchase from our authorized
reseller The warranty covers any defects due to production, as well as failures occurring
during normal use
Does not include any fault caused by fire, water, physical damage or actions expressly
prohibited in the instruction manual
Oil tanks are consumables and not covered by warranty
BATTERIES
For the safety of transportation, the machine only has about 20% power when it is shipped,
so you need to charge Smoke B with the included charging cable before using it for the
first time.
The charging time is about 3 hours, After fully charged, the system will automatically stop
charging.
The fogger uses a type-c charging port, which is only allowed for charging
The indicator light is red when charging and green when full
Need to use 5V2A charger to charge the product, other quick-charge machine can not adapt
NOTE: Some versions cannot support dual C-port (PD) charging, and need to be charged
with the standard charging cable.
THE RED LIGHT IS ALWAYS ON
Charging
THE GREEN LIGHT IS ALWAYS ON
The electricity is full
！
IT IS STRICTLY FORBIDDEN TO POINT A PUFF OF SMOKE AT THE
SOURCE OF THE FIRE:
For example, open flame or Spark, please keep a certain distance
DON'T SMOKE DIRECTLY:
Although our formula is safe, it is not suitable for direct inhalation （Cannot be used as
electronic cigarette）and high temperatures can cause burns, and direct ingestion of high
concentrations of aerosols is dangerous
DON'T LET CHILDREN USE SMOKE B:
Although our product is user-friendly, Smoke B is not a toy and can be a health risk to
children and a fire hazard if handled improperly
！WARNING
Users must read all the warnings and safety precautions in this
manual and take good care of this manual
！

！
19 20
21 22
CREATE WITH SMOKE B AND SHOW THE PHOTOS (PART)
It's time to create your own work!
FREQUENTLY ASKED QUESTIONS AND ANSWERS
Q1: WHY DOES THE DRY ICE EFFECT LEAVE A LAYER OF OIL ON
THE SURFACE?
A: because the dry ice effect outputs a high concentration of aerosols, the dissipation
mechanism is different from the normal infinite dilution by air convection, which is gradual
deposition, so it will return to the liquid state. After each shot, the dry ice can be blown
away and sprayed again, reduce the“Dry ice” on the surface of the time, you can avoid the
oil on the surface of the matter can be avoided, can also be wiped clean with a wet paper
towel
Q2: WHY IS THE MACHINE VERY HOT DURING USE?
A: When the machine produces smoke continuously, the temperature of the fuselage and
the oil tank will be higher, which is a normal phenomenon. Remember not to touch the oil
tank directly with your hands to prevent scalding, when you feel very hot, you can shut down
the Smoke B for a few minutes, and then use it again
Q3: CAN I OPEN IT IMMEDIATELY WHEN I RECEIVE IT?
A: Smoke B can be used to boot, no other complex setup steps are required, but for shipping
Safe, the new battery is low, only about 20% of the battery when shipped, need to be
recharged before use
With Smoke B extended silicone hose, hose can be manually
bent by changing the direction of Smoke, so that
Smoke from different parts of the screen appear
CONTROLLED SMOKE
Q4: WHY DOES MY SMOKE B SQUIRT OIL WHEN IT'S RUNNING?
A: This means that the oil tank atomization components were soaked in oil, which is not
necessarily the oil tank damage, may be silicone cover is not tight, the oil tank is not
sealed, may also occur after continuous high temperature
TREATMENT: Place a tissue on the table, then remove the oil tank and place it upside
down on the tissue for 1 minute (pay attention to prevent the oil tank rolling and breaking) , let
the excess oil flow out, then upside down gently knock a few times to remove the excess oil.
Then reinstall the machine
Q5: ARE YOUR SMOKES SAFE? ARE THEY HARMFUL TO YOUR
HEALTH?
A: VG (vegetable glycerin) + PG (propanediol) is an environmentally friendly, safe, odor-free,
non-toxic and non-harmful ingredient that has no adverse health effects and can be safely
used, but remember not to smoke directly! Although our ingredients are safe, they are not
suitable for direct ingestion and high temperatures can cause burns
Q6: WILL THE SMOKE SET OFF THE SMOKE ALARM?
A: After the feedback from users, there is no Smoke B Smoke triggered the Smoke alarm,
but do not rule out the use of other places will trigger the Smoke alarm sensor, so use as
far as possible away from the smoke alarm places
！
