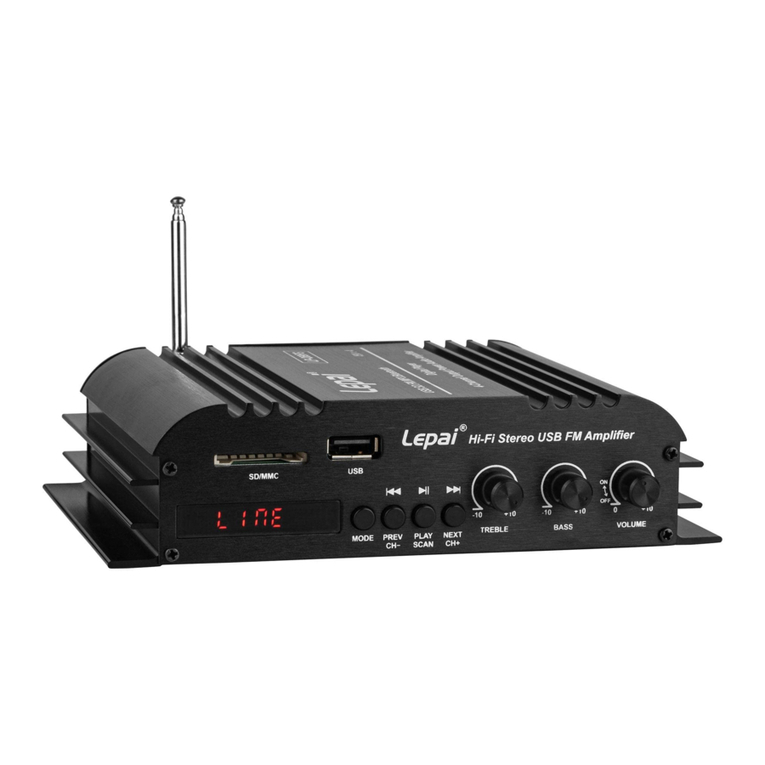

Lepai LP-269FS User manual

Lepai™ is a registered trademark of parts-express.com
TM
TM
LP-269FS
OPERATING MANUAL
2. Amplifier
Input Voltage: DC12-14.4V 2-5A
(current dictates performance)
Output power: 45W×4 Channels
Load impedance: 2-8Ω
Total Harmonic Distortion: <1%
SNR: >80dB
Frequency range: 20Hz-20KHz
Input impedence: 47K
Using the Remote Control
1. Mode Switching
2. Power On/Off
3. Previous
4. Pause/Play and Channel Up
5. Volume Down
6.
Switch Equalizer and Channel Down
7. Repeat Key
8. Numeric Keypad
9. Mute Volume
10. Next
11. Volume Up
12. Scan FM
Main Specifications:
1. FM Tuner
MODEL NO. TEST SPEC FM CONDITION
TUNED RANGE 87.5MHz - 108MHz
ANTENNA TERMINATION OUTSIDE ANTENNA CONNECTION
LP-269FS PRACTICAL SENSITIVITY 16dB
SNR 60dB
SEPARATION DEGREE 39dB

Before operating, please read this manual completely
Features:
• SD/MMC/USB play function
• High performance FM electronic tuner
• Electronic volume control
• RCA input and output
• Station Presets: 30 radio stations can be preset in FM radio mode
• Input voltage DC 12V
• Infrared remote control
• Bright illuminated display
• 4-channel sound output
Basic Operations:
Power On: To power ON, switch volume control clockwise. To power OFF,
switch volume control counter clockwise. To power OFF/ON via the remote,
use the key " " found on the remote control.
1. Power on/off Operation: The default status is AUX when initially power on;
under status without disconnecting power, it will restore automatically to the
mode of operation prior to shutdown, such as USB, SD/MMC, AUX or FM.
2. Volume Control: Switch volume knob clockwise or counterclockwise to get
suitable volume, it also can be operated by pressing key +or- on remote control.
3. Tone Control: Switch TREBLE knob and BASS knob clockwise or
counterclockwise to change the range.
4. Mute Operation: Slightly press the key " " on remote control to control silence.
5. Pause/Play operation: Slightly press the key "PLAY/SCAN" to control
pause and play.
6. Musical Selection: Press "PREV/CH-" key or "NEXT/CH+" key forwards
or backwards to choose music, It also can be operated through the number
keys found on your remote control.
7. Repeat Song: Slightly press the key "RPT" on remote control to repeat songs.
8. Mode Swapping: When USB, SD/MMC are plugged into the amplifier, the
mode can be changed by pressing "MODE" key . The sequence is: USB >
SD/MMC > AUX > FM -
9. AUX Operation: Press "MODE" key to get into AUX status, then plug your
external audio source into the RCA inputs. Under "AUX" status, you can
swap to another mode by pressing "MODE" or plugging in a USB or SD/
MMC card.
10. Band Equalizer: Under status of USB or SD/MMC, Repeat "EQ" key on
your remote control to rotate the equalizer. The swapping sequence is:
POP > CLASSIC > JAZZ > ROCK.
11. Radio Operation: In FM operation, slightly press "NEXT/CH+" key or
"SCN" key on the remote control to get into automatic search. When search
is finished, the amplifier will be set to channel 1 and play automatically,
change different channels by pressing "CH+" or "CH-".
12. AUX Operation: Press the "MODE" key to get into AUX status, then plug
an external audio source into RCA inputs.
13. Radio Operation: In FM operation, slightly press "NEXT/CH+" key or
"SCN" to get into automatic search. When the search is finished, the
amplifier will be set at channel 1 and play automatically, press "CH+" or
"CH-" to change to a different channel.
Back Panel:
Front Panel:
Panel function diagram: (Long press means press and hold button)
PRESS LONG PRESS PRESS LONG PRESS
1 SD/MMC SOCKET - 7 PLAY/PAUSE/SCAN -
2 USB SOCKET - 8 NEXT CHANNEL VOLUME UP
3 DISPLAY SCREEN - 9 TREBLE -
4 REMOTE CONTROL RECEIVER 10 BASS -
5 MODE SWAPPING - 11 VOLUME/POWER -
6 PREV CHANNEL VOLUME DOWN
