VANITY SET: LV4
INSTALLATION INSTRUCTIONS
VANITY CABINET + VANITY TOP + MIRROR
SINK BASE
LV4-24
LV4-30
LV4-36
DRAWER BASE
LV4-DB12
Version 1.0

www.lesscare.com
2
VANITY SET: LV 4
VANITY CABINET + VANITY TOP + MIRROR
DIMENSIONS/TECHNICAL DATA
READ ALL INSTRUCTIONS BEFORE UNPACKING THE PRODUCT
2 PEOPLE ARE REQUIRED TO LIFT AND DURING
ENTIRE INSTALLATION OF THIS PRODUCT
INSTALLATION OF LESSCARE PRODUCTS BY AN
INEXPERIENCED INSTALLER MAY RESULT
PERSONAL INJURY OR DEATH!
INSTRUCTIONS THAT, IF IGNORED COULD RESULT IN DEATH OR SERIOUS INJURY CAUSED BY INCORRECT HANDLING
OR INSTALLATION OF THE PRODUCT. THESE INSTRUCTIONS MUST BE OBSERVED FOR SAFE INSTALLATION.
LessCare reserves the right to change, update, modify, alter, redesign this manual/product or its policies without prior notice!
It is your responsibility to visit website to download or contact customer service for the most updated version of the installation instructions.
LessCare shall not be liable for any injuries or property damages in connection with this product during installation or use of this product!
LessCare products must be installed by a fully insured and licensed plumber only. Installation of any LessCare product by anyone
other than fully insured and licensed plumber shall void limited warranty. LessCare recommends that such licensed plumber have
experience in the installation of products.
Limited warranty is void on any commercial installation
LessCare is not responsible for local code compliance for this product. Building and plumbing codes may vary from state-to-state
in accordance to your location. LessCare is not resonsible for providing any compliance certifications.
LessCare is not responsible to provide any type of certifications for this product
Under no circumstances LessCare shall not be liable for any and all incidental damages sustained in connection with this product
Neither manufacture, nor distributor, nor retailer is responsible for water damage or flood caused due to use of this product.
Under no circumstances LessCare shall not be liable for any and all fees, cost of installation/reinstallation/removal, subsequent
damage or transportation in case of the product defect
Regular and proper care of the product will help to keep its apperance like new for a long time.
Follow these simple steps and rules to take care of your product.
• Use only mild detergents such as soapy water to clean the surface of the product
• Absolutely avoid using cleaning products that contain bleach or ammonia
• Only use a soft cloth material to wipe a surface of the vanity cabinets.
• Never use steel, wool, or wired brushes as they will permanently scratch the surface
• Prolonged exposure of a direct sunlight may cause discoloration of the wood finish surface
PRODUCT CARE & MAINTENANCE

Silicone
Pencil/Marker
Caulk Gun
Pliers Electric Drill
with DrillBits
Stud Finder Hammer
Philips
Screwdriver
Level
Safety Glass Tape Measure
Soft Cloth
or Blanket
www.lesscare.com 3
VANITY SET: LV 4
VANITY CABINET + VANITY TOP + MIRROR
PRODUCT PACKAGE COMPONETS/TOOLS REQUIRED
VANITY COMBINATION
TOOLS REQUIRED FOR INSTALLATION
(NOT INCLUDED)
P-TRAP AND POP AND POP-UP
INSTALLATION DIAGRAMMAIN COMPONENTS
INSTALLATION ACCESSORIES
LV4-4
Wall Anchors
LV4-5
Screws 1 1/4"
x 2 x 2
Other tools may be required
Silicon
Washer
Sink
Pop-up
Mounting
Ring
Silicon Washer
Brass Nut
Rubber Washer
Tail Pipe
LV4-1
Vanity Base Cabinet
LV4-2
Glass Basin
LV4-3
Wall Mount Mirror
x 1
x 1
x 1
LV4-6
Base Leg
LV4-7
Set Screws
x 4 x 12

www.lesscare.com
4
VANITY SET: LV 4
VANITY CABINET + VANITY TOP + MIRROR

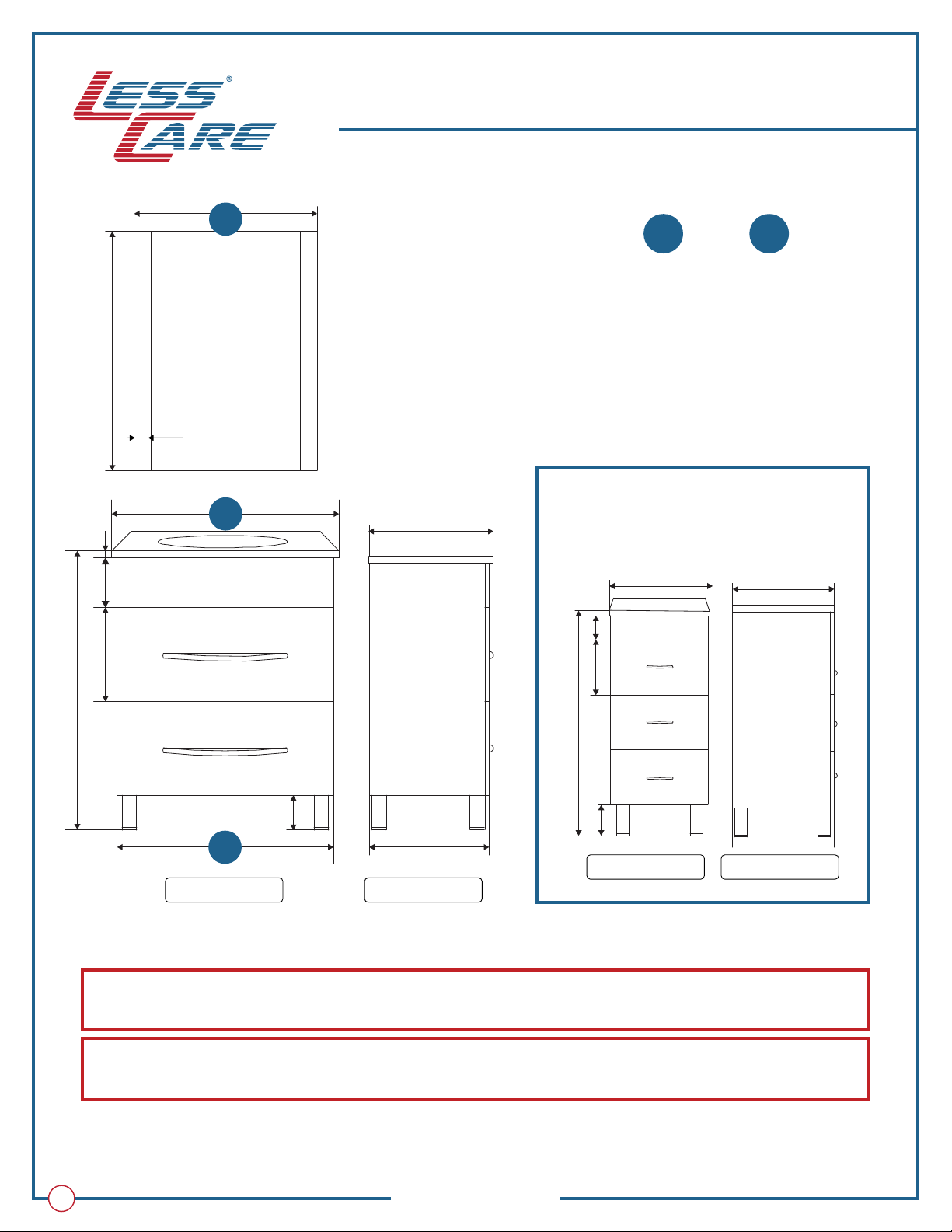

DIMENSIONS & SPECIFICATIONS
Front View Side View
Front View
DRAWER BASE CABINET
For optional installation
Side View
MODEL
LV4-24
LV4-30
LV4-36
W
W
B
ATTENTION! Due to manufacturing process any dimensions may have a tolerance up to 3/8". All sizes are for reference only.
It is highly recommended to pull all dimensions of actual model for installation and measuring purposes.
ATTENTION! If two or more vanity cabinets are installed next to each other there will be a
visible seam between vanity tops and between vanity cabinets or between drawer base cabinets.
W
W
B
33 1/2"
31 1/2"
11 5/8"
4 3/4"
4 3/4"
4 3/4"
2 3/4"
7 3/4"
20"
20 1/2"
5/8"
20 1/8"
20 1/8"
31 1/2"
11 3/4"
23 1/2"
29 1/2"
35 1/2"
22 7/8"
28 3/4"
34 5/8"
LV4-DB12 11 3/4"
2 3/8"

www.lesscare.com 5
VANITY SET: LV 4
VANITY CABINET + VANITY TOP + MIRROR
INSTALLATION STEPS

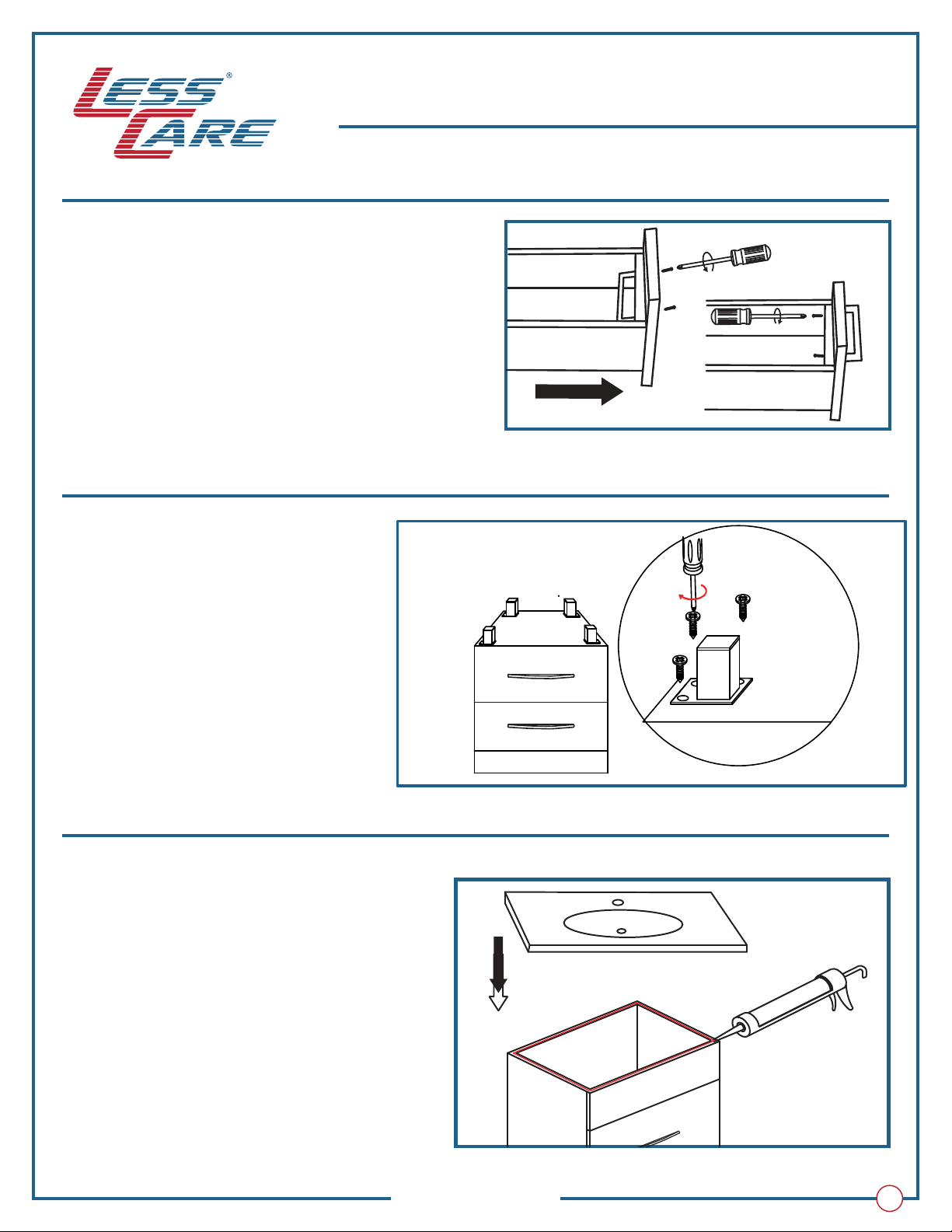

INSTALL DOOR & DRAWER HANDLES
Attach turn the upside down
The holes for the vanity legs are
were already pre-
installed on the
bottom of cabinet.
Screw the leg on the bottom.
See Figure 2
Figure 3
Figure 2
All LV4 vanity cabinets by LessCare® come
pre-assembled. All door and drawer handles
are installed from the inner side of the drawer
to avoid damage during transportation. Open
the drawers to install the handles. Unscrew
every handle and install them from the outer
side of the doors and drawers. See Figure 1
Note: It is highly recommended not to use
electric drill to avoid overtightening the screws
during handle installation. Figure 1
VANITY CABINET ASSEMBLY
Prior to installation of the glass vanity top
you must apply a silicone layer by a
perimeter of the vanity base cabinet and
carefully lay down the vanity top on top of
the vanity cabinet.
See Figure 3
Note (single vanity sink cabinet installation):
Vanity top is slightly wider than the actual
cabinet. Make sure that outstanding edges
are equal at left and right sides.
Apply a silicone layer on the back side of
the vanity top that will be adjacent to the
wall.Allow the silicone dry for 48 hours
prior to the first use of the vanity cabinet.

DRAWER BASE CABINET ASSEMBLY
INSTALLATION OF DRAWER BASE WITH SINK BASE CABINET
www.lesscare.com
6
VANITY SET: LV 4
VANITY CABINET + VANITY TOP + MIRROR
INSTALLATION STEPS
All LV4 vanity cabinets by LessCare® come
pre-assembled. All drawer handles are
installed from the inner side of the drawer. To
install the handles unscrew every handle and
install them from the outer side of the doors
and drawers.
Note: It is highly recommended not to use
electric drill to avoid overtightening the screws
during handle installation.
See Figure 4
If drawer base is to be installed next to sink
base you must apply a silicone layer to the
countertop side adjacent to the sink base
cabinet and the wall
Note: Allow the silicone dry for 48 hours prior
to the first use of the vanity cabinet.
See Figure 6
Figure 4
Prior to installation of the glass coutertop you
must apply a silicone layer by a perimeter of
the vanity drawer base cabinet. Center the
countertop and carefully lay it down on top of
the vanity drawer base cabinet.
See Figure 5
Note: Make sure that the edges of the
countertop are flush with the edges of the
vanity drawer base cabinet.
Figure 5
See Figure 6

INSTALLATION OF TWO OR MORE CABINETS OF THE SAME TYPE
www.lesscare.com 7
VANITY SET: LV 4
VANITY CABINET + VANITY TOP + MIRROR
INSTALLATION STEPS
If two or more of drawer base cabinets are
installed next to each other a slicone layer must
be applied between adjacenets sides of the
cabinets' countertops.
Example: Two drawer base vanity cabinets are
installed next to each other. A silicone must be
aplied on one inner side of one of the cabinet's
countertop before connecting them together.
See Figure 7
If two or more of sink base cabinets are
installed next to each other a slicone layer must
be applied between adjacenets sides of the
cabinets' vanity tops.
Example: Two sink base vanity cabinets are
installed next to each other. A silicone must be
aplied on one inner side of one of the cabinet's
vanity tops before connecting them together.
See Figure 8
Important (double vanity sink cabinet installation):
When two sink base cabinets are installed next
to each other, each of the vanity tops must be
pulled towards the oposite, from center, side
and aligned with the side of the cabinets so
there will be no gap between cabinets after
installation. Install both vanity cabinets
side-by-side and make sure that the inner sides
are flush to each other. See Figure 9
Figure 7
ATTENTION! If two or more vanity cabinets are installed next to each other
there will be a visible seam between vanity tops and between vanity cabinets.
Figure 8Figure 9

Figure 11
Mirror Back View
Peel-Off
Film
www.lesscare.com
8
VANITY SET: LV 4
VANITY CABINET + VANITY TOP + MIRROR
INSTALLATION STEPS
MIRROR INSTALLATION
CHECK OUT NEXT PAGE WITH VARIETY OF COMBINATIONS EXAMPLES
Using a tape measure find a length of the vanity
top and divide it by 2. The result of the division
will be a center of the top. Using a tape measure
find the center of the top and mark a dot on the
wall just right above theb top using a pencil.
Using a level tool find a location of a second dot
to draw a vertical line that will serve as
installation center for the mirror.
Measure the distance between installation
brackets of the mirror and divide it by 2. The
result of the division will be a distance between
the drawn center line and center of a drilled
holes. Mark a center of the first hole and using a
level find and mark a location for a second
hole.Using an electric drill make the holes.
See Figure 10
Apply a silicone inside each hole. Insert wall
anchors (a hammer may be needed if the holes
are too tight.) Using a Philips Screwdriver insert
the mounting screws into the wall anchors (do
not screw in completely as the brackets of the
mirror must hang on top of the screws.) Align
the mirror with the wall and carefully hang the
mirror on the screws. Both screw heads must be
inserted into the brackets on the mirror during
hangin process. Make sure that the mirror is
secured safely on the wall. See Figure 11
Note: If the brackets can not reach the screws or
the mirror is loose after hanging you need to
adjust the screws using the Philips Screwdriver.
IMPORTANT! Using a stud finder locate wooden
studs. Screws for mounting mirror must be installed in
the wooden studs to support weight of the mirror.
IMPORTANT:
At the bottom of the back side of the mirror there are two foam blocks
with adhesive surface covered by a film. Remove the film before hanging
the mirror. These blocks will stick to the wall for extra support, leveling,
and preventing from moving.
Figure 10
WALL WALL
WALL WALL

www.lesscare.com 9
VANITY SET: LV 4
VANITY CABINET + VANITY TOP + MIRROR
EXAMPLES OF COMBINATION INSTALLATION
FO REFERENCE ONLY

www.lesscare.com
VANITY SET: LV 4
VANITY CABINET + VANITY TOP + MIRROR
LessCare reserves the right to modify this installation instructions at any time.
It is a customer's sole resposibility to inquiry for the updates of the installation instructions.
Retain these installation instructions
for future reference!
Thank you for using
LessCare products!
