Level Pro NC30-10 User manual

Read carefully the instructions published in this manual before the fi rst use of the sensor. Keep the manual
at a safe place. The manufacturer reserves the right to implement changes without prior notice
INSTRUCTION MANUAL
industrial electronics
NC SERIES | Thru-Wall Level Switch

CONTENTS
Product description......................................................................................................2
Features of variants.....................................................................................................2
Technicalspecications...............................................................................................2
Dimension drawings ....................................................................................................3
Recommended range of application ...........................................................................4
Unsuitable range of application...................................................................................4
Procedure for put sensor into operation ....................................................................4
1. Installation ...............................................................................................................4
2. Electrical connection................................................................................................5
3. Sensor settings........................................................................................................6
Status signalization......................................................................................................7
Order code...................................................................................................................8
Correctspecicationexamples....................................................................................8
Accessories .................................................................................................................8
Safety, protection and compatibility .............................................................................8

PrOduCT dESCriPTiON
Through wall level switches NC30 Series level switches are intended for liquid
(conductive and non-conductive) level detection on glass or plastic pipes, tubing
and tanks. The sensor is equipped with high frequency technology which allows
reliable operation even for sensing of the adherent electrically conductive medium.
The sensitivity and modes (O - normally open or C - normally closed) of the switches
can be easily set by placing magnetic pen on sensitive spot. Output performance -
transistor output with open collector (PNP) or two wire electronic switch (S). This
connection is done by means of two wires directly into a circuit with relay or to binary
input of control system.
2
FEaTurES OF variaNTS
TEChNiCal SPECiFiCaTiONS
Supply voltage 6 ... 30 V DC
Supply current – Output type P (OFF / ON state)
– Output type S (OFF state)
Max.0.6/7mA
Max.0.6mA
Switchingcurrent(Min./Max.)– Output type P (open collector PNP)
– Output type S (two wire el. switch)
100 mA
3.3 / 40 mA
Remanent voltage - ON state – Output type P (open collector PNP)
– Output type S (two wire el. switch)
1.8 V
6.0 V
Max.switchingfrequency 1Hz
Ambient temperature range –20 ... +80°C
Temperature range at the tube or vessel surface
Temperature range for using of double-side self adhesive tape
–20 ... +90°C
–20 ... +60°C
Max. thickness of the
vessel wall
– Conductive liquids
– Non.conductive liquids with Ɛr< 10*
8 mm
3 mm
Protection class IP 67
Housing material Plastic (PP)
Connection cable type (Variants „A“) – Output type P
– Output type S
PVC3x0.34mm2
PVC2x0.34mm2
Weight (including 2m cable) Approx.60g
*)Ɛr see “Table of dielectric constant“
NC30-10 Prismatic (refracted) electrode, shape-adapted to be attached
tothegaugingpipeorothertube.Thexingofthesensorontoa
pipe is provided by plastic straps.
•NC30-11 Plannar electrode, suitableforinstallationonflatsurfaces(e.g.
plasticorglasstanks).Thesensorcanbexedwithplasticstraps
or by double sided adhesive layer.

dimENSiON drawiNgS
NC30-10
NC30-11
Magnetic pen
PM–8
Variant"A"
with cable outlet
Variant "C"
with connector
cable
LED
Electrode
Sensitive spot
for setting
Detection of various types of liquids - water, disel, oil, cooling liquids, water solutions,
some types of solvents. It is suitable for glass or plastic gauge-pipes, vessels, plastic
container tanks, plastic tubs, pools, canisters, etc.
rECOmmENdEd raNgE OF aPPliCaTiON
3

4
The sensor also is not intended for level measurement on the gauge-pipe and the
container wall with antistatic treatment (partially electrically conductive).
uNSuiTablE raNgE OF aPPliCaTiON
The sensor is installed on a clean
and degreased surface of the ve-
ssel wall. The attachment is done
by doublesides adhesive layer.
Orientation of the sensor can be
arbitrary.Maximumthicknessofthe
vessel wall depends on the detec-
ted medium (see technical data),
themaximumis8mm.
The sensor is xed to the gauge
pipe or tube by means of two
plastic straps (2.5 mm width)
. The
cable should be vertically down-
wardsoriented.Themaximumwall
thickness of the tube depends on
the detected medium (see technical
data),themaximumis8mm.
Plastic straps
1. iNSTallaTiON
a) The sensor type NC30-10, which is intended to point level
detection on plastic or glass and gauge-tubes.
PrOCEdurE FOr PuT SENSOr iNTO OPEraTiON
b) The sensor type NC30-11 which is intended to thru-wall level
sensing of liquids in plastic or glass vessels with lat walls.

2. ElECTriCal CONNECTiON
Positive pole (+U) of power supply is connected through a load (relay) to brown wire
or pin connector No. 1, negative pole is connected to while wire or pin connector No.3.
Note:
The sensor output is protected againts short circuits. Capacity loads and loads with low sleep resistance (bulb) the
sensor evaluation as a short circuit. In case of high ambient electromagnetic interference, parallel conductors with
power lines, or lines at distances greater than 30 m, we recommend to use shielded cable.

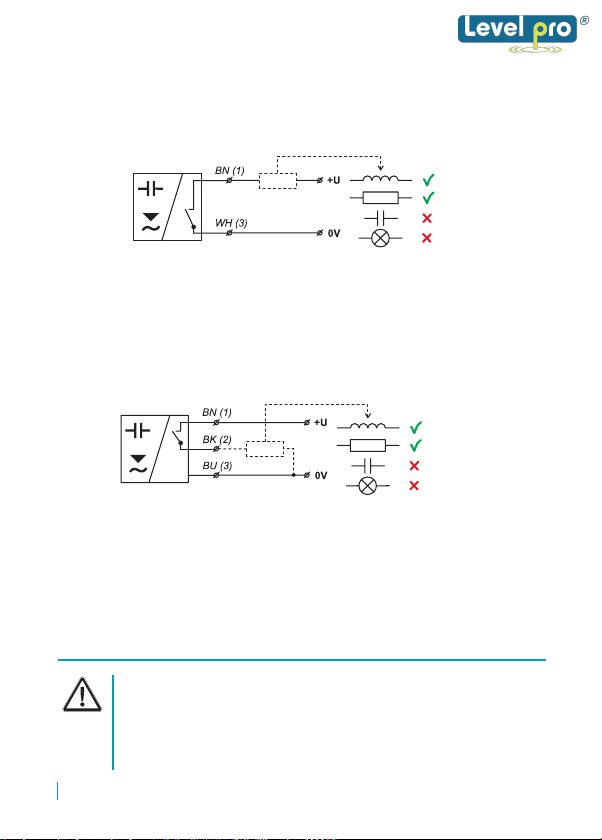

Connection scheme of sensor with “S“ type output
Positive pole (+U) of power supply is connected to brown wire or pin connector No.1,
negative pole is connected to blue wire or pin connector No.3. Load (relay) is connec-
ted to black wire or pin connector No.2.
Connection scheme of sensor with “PNP“ type output
Legend:
(1)...– Terminals number for variants with connector
BN – Brown
Electrical connection must be done in de-energized state!
For switching supply sources, it is necessary to check that the input is galvanically
separated from the network side and that they are tted with a lter suppressing the
conforming interference (terminals + and – oscillate together towards the ground
potential), or the interference is removed in another manner.
b) The type of sensor NC30–11–P
a) The type of sensor NC30-11-S
WH – White
BU – Blue
5

6
Sensitive spot
3. SENSOr SETTiNgS
The setting is done by placing of magnetic pen
PM-8 to sensitive spot M located on the front of
the sensor. Short time attaching (up to 2 sec.)
of the magnetic pen to the sensitive spot M makes
the sensor open. Long attach (at least 4 sec.)
of the pen when the level is changed, defines
closed state of the sensor. In this way the sensiti-
vity for the measured medium and switching modes
“O“ (normally open) or “C“ (normally closed) is set.
Whenchangingtheuiditisnecessarytomake
the new setting.
a) Mode O (normally open)
Put the level of the measured medium in the state below the lower edge of the
IftheLEDdoesn´tlightorisashingrapidly(0.2s),gotostep4.
IftheLEDlights,youmustrepeatstep2soasnottoexceedthelimitof2
seconds attaching magnetic pen.
If the LED lights, settings of the sensor is correct.
If the LED doesn´t light, the sensor was set incorrectly and you must repeat
the procedure from step 1.
I f  t h e  L E D  i s   a s h i n g ,  t h e  s e n s o r  d i d n ´ t  r e c o g n i z e  u p p e r  a n d  l o w e r  l i m i t s . 
Inthiscase,rstverifythatatthestep1thelevelofthemeasuredmedium
was below the lower edge of the sensor and at the step 3 the level of the
measured medium was above the upper edge of the sensor.Then make sure
thatthethicknessofthegauge-pipewallorthetankwalldoesnotexceed
thelimitspeciedintheTechnicalspecications(p.2).Ifnot,checkthere
isn´t a thick layer of sediment on the inner wall of the tank or the gauge-pipe.
1.
2.
3.
4.
5.
6.
sensor in the tank or in the gauge-pipe.
Attach the magnetic pen PM-8 to the sensitive spot M for maximum 2 seconds.
When the LED goes out, the sensor is in the state open.
After removal of the magnetic pen check the status of orange lights:
-
-
Put the level of the measured medium in the state above the upper edge of the
sensor in the tank or in the gauge-pipe.
Attach the magnetic pen PM-8 to the sensitive spot M for minimum 4 seconds.
When the LED lights up, the sensor is in the state closed.
After removal of the magnetic pen check the status of orange lights:
-
-
-
For security reasons, we recommend to set the mode O (normally open, sensor closes
when immersed) for minimum level detection. Any failure of the sensor or wiring is equally
apparent as the emergency level state. Analogously – for the maximum level detection
is recommended to set the mode C (normally closed, sensor opens when immersed).

* Sensor with “S“ type output, for each ash of the LED switches its output on for approx. 3 ms. This period is
sufciently short to avoid unwanted switching of relay contacts. For binary inputs, we recommend to set the lter so
as not to respond to pulses shorter than 3 ms.
Indicator Function
Orange LED
Continuous light – Sensor is closed (switched ON)
Dark – Sensor is open (switched OFF)
Rapid lashing (period 0.2 sec.)*– Unrecognized upper and lower limits of setting mistake
Slow lashing (period 0.8 sec.) – Short circuit at sensor output
STaTuS- Sensing
b)
7
Put the level of the measured medium in the state above the upper edge of the
sensor in the tank or in the gauge-pipe.
Attach the magnetic pen MP-8 to the sensitive spot Mfor maximum 2 seconds.
When the LED goes out, the sensor is in the state open.
After removal of the magnetic pen check the status of orange lights:
IftheLEDlightsorisashingrapidly(0.2s),gotostep4.
If the LED doesn´t light, you must repeat step 2 so as to observe the limit
of 4 seconds attaching magnetic pen.
If the LED doesn´t light, settings of the sensor is correct.
If the LED lights, the sensor was set incorrectly and you must repeat the
procedure from step 1.
I f  t h e  L E D  i s   a s h i n g ,  t h e  s e n s o r  d i d n ´ t  r e c o g n i z e  u p p e r  a n d  l o w e r  l i m i t s . 
Inthiscase,rstverifythatatthestep1thelevelofthemeasuredmedium
was below the lower edge of the sensor and at the step 3 the level of the
measured medium was above the upper edge of the sensor.Then make sure
thatthethicknessofthegauge-pipewallorthetankwalldoesnotexceed
thelimitspeciedintheTechnicalspecications(p.2).Ifnot,checkthere
isn´t a thick layer of sediment on the inner wall of the tank or the gauge-pipe.
1.
2.
3.
4.
5.
6.
Mode C (normally closed)
Put the level of the measured medium in the state below the lower edge of the
sensor in the tank or in the gauge-pipe.
Attach the magnetic pen PM-8 onthe sensitive spot M for minimum 4
seconds. When the LED lights up, the sensor is in the state closed.
After removal of the magnetic pen check the status of orange lights:
-
-
-
-
-
After this settings the sensor responds to the level immersion and emersion in the
upper half of the sensing area and the hysteresis size 5 mm (1/8 of the distance
between the bottom and the top of the sensor).

Standard - included in the level sensors price Optional - for extra charge
•2pcsofPlasticstraps2,5x200mm
•1 pc of Double-side self adhesive tape (NC30)
•1 pc of Magnetic pen PM–8
SaFETy, PrOTECTiONS aNd COmPaTibiliTy
The level sensor is equipped with a protection against electric shock on electrode,
polarity, overvoltage and short-term current overload on the output.
Electromagnetic compatibility is provided by conformity with standards
ČSNEN55022/B,ČSNEN61326-1,ČSNEN61000-4-2,ČSNEN61000-4-3,
ČSNEN61000-4-4,ČSNEN61000-4-6.
NC30 – – – cable
aCCESSOriES
Length of cable in meters (variant “A“)
A– cable outlet (+ Spec. the length of the cable)
C – connector
Electrode type: 0– Prismatic (refracted)
1 – Planar
Electric connection:
P – PNP (open collector)
S – 2-wire electronic switch
Type of output:
OrdEr COdE
8

WARRANTY
Icon Process Controls Ltd warrants to the original purchaser of its products that such products will be free from
defects in material and workmanship under normal use and service in accordance with instructions furnished
by Icon Process Controls Ltd for a period of one years from the date of sale of such products. Icon Process
Controls Ltd obligation under this warranty is solely and exclusively limited to the repair or replacement, at Icon
Process Controls Ltd option, of the products or components, which Icon Process Controls Ltd examination
determines to its satisfaction to be defective in material or workmanship within the warranty period. Icon
Process Controls Ltd must be notified pursuant to the instructions below of any claim under this warranty within
thirty (30) days of any claimed lack of conformity of the product. Any product repaired under this warranty will
be warranted only for the remainder of the original warranty period. Any product provided as a replacement
under this warranty will be warranted for the one year from the date of replacement.
RETURNS
Products cannot be returned to Icon Process Controls Ltd without prior authorization. To return a product that is
thought to be defective, go to www.iconprocon.com, and submit a customer return (MRA) request form and
follow the instructions therein. All warranty and non-warranty product returns to Icon Process Controls Ltd must
be shipped prepaid and insured. Icon Process Controls Ltd will not be responsible for any products lost or
damaged in shipment.
LIMITATIONS
This warranty does not apply to products which: 1) are beyond the warranty period or are products for which
the original purchaser does not follow the warranty procedures outlined above; 2) have been subjected to
electrical, mechanical or chemical damage due to improper, accidental or negligent use; 3) have been modified
or altered; 4) anyone other than service personnel authorized by Icon Process Controls Ltd have attempted to
repair; 5) have been involved in accidents or natural disasters; or 6) are damaged during return shipment to
Icon Process Controls Ltd reserves the right to unilaterally waive this warranty and dispose of any product
returned to Icon Process Controls Ltd where: 1) there is evidence of a potentially hazardous material present
with the product; or 2) the product has remained unclaimed at Icon Process Controls Ltd for more than 30 days
after Icon Process Controls Ltd has dutifully requested disposition. This warranty contains the sole express
warranty made by Icon Process Controls Ltd in connection with its products. ALL IMPLIED WARRANTIES,
INCLUDING WITHOUT LIMITATION, THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE EXPRESSLY DISCLAIMED. The remedies of repair or replacement as stated
above are the exclusive remedies for the breach of this warranty. IN NO EVENT SHALL Icon Process Controls
Ltd BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND INCLUDING
PERSONAL OR REAL PROPERTY OR FOR INJURY TO ANY PERSON. THIS WARRANTY CONSTITUTES
THE FINAL, COMPLETE AND EXCLUSIVE STATEMENT OF WARRANTY TERMS AND NO PERSON IS
AUTHORIZED TO MAKE ANY OTHER WARRANTIES OR REPRESENTATIONS ON BEHALF OF Icon
Process Controls Ltd. This warranty will be interpreted pursuant to the laws of the province of Ontario, Canada.
If any portion of this warranty is held to be invalid or unenforceable for any reason, such finding will not
invalidate any other provision of this warranty.
For complete product documentation and technical support visit www.iconprocon.com | e-mail:
[email protected] | Ph: 905.469.9283
Warranty, Returns and Limitations
