Installation instructions
Warnings & Cautions
• Do not install in areas that are exposed to continual running water or prone to ooding.
• Ensure that the mounting surface is both at and stable.
• Any broken or damaged parts should be replaced as soon as possible.
• JCC will not accept responsibility for claims arising from sub-standard installations
• These products are suitable for indoor or outdoor use.
• This product is battery powered and they are charged using a 5VDC mains adapter plug and USB
charging lead supplied.
• Only the supplied mains adapter plug and USB lead should be used for charging
• The batteries in this product are rechargeable and must only be replaced by a competant person.
INSTALLATION ENGLISH

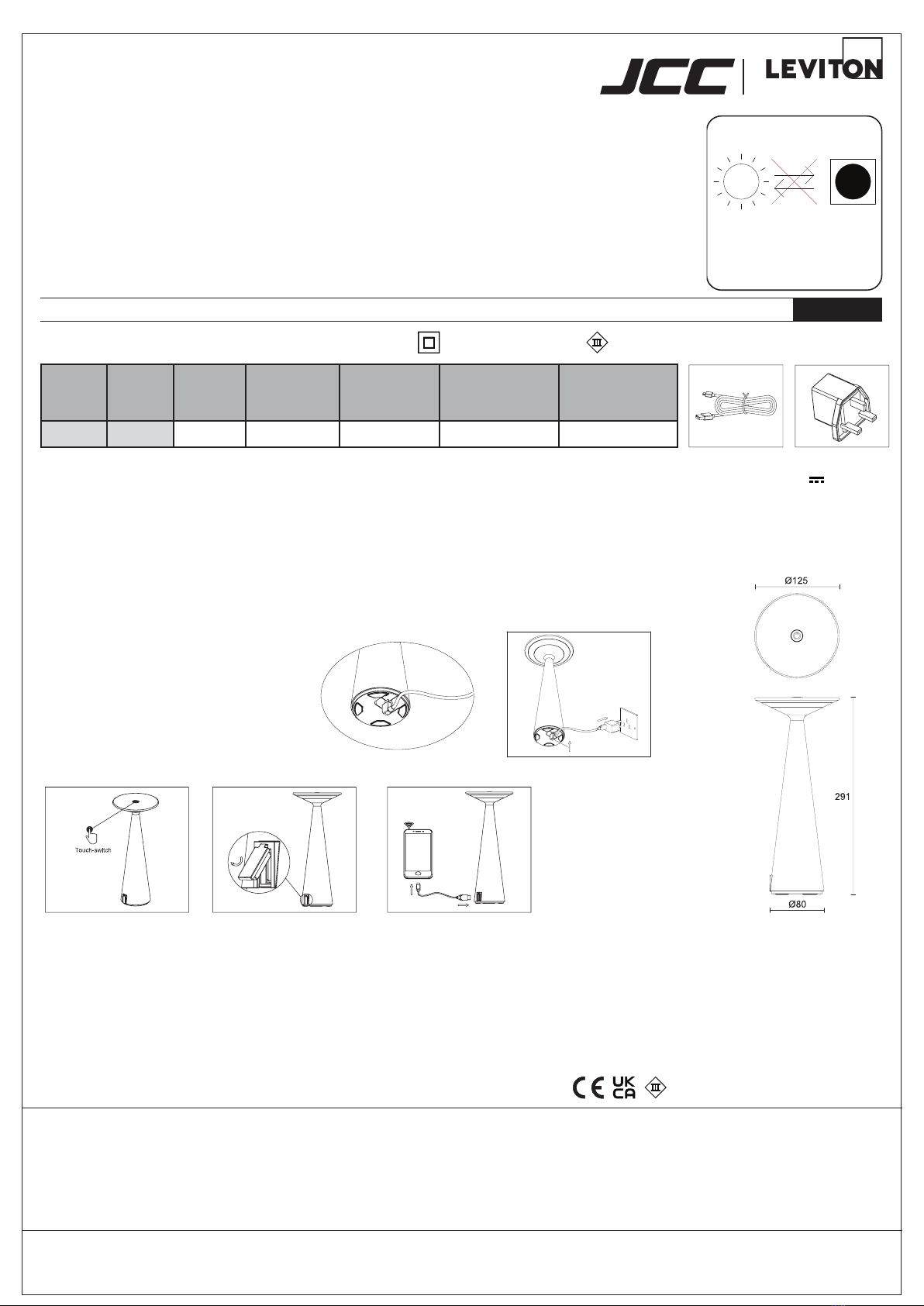

Round Rechargeable Light c/w power bank
V2_October_2021_RS
RoHS
Compliant IP54 jcc.co.uk
Specications Colour temp: 3000K Ra: 84 (Class II Plug Adapter, Class III light)
1. Prior to use, ensure that the product is fully charged
2. Connect the micro USB lead to the charging port by removing the silicone protective cover on the base( Fig.1). Using the supplied Mains
Adapter, connect the USB lead to the mains supply(Fig.2).
3. When the mains supply is connected the Touch Switch(Fig.3) will ash blue while charging, once fully charged will be solid blue. The Touch
Switch will turn green whilst charging a mobile phone.(Note: the Batteries have built in over-charge protection)
4. To charge your mobile phone, connect your phone charging lead to the USB port on the side of the body(Fig.4.)
5. Then connect you phone to the USB charging lead(Fig.5.)
DO NOT USE TO CHARGE MOBLE PHONE WHEN THE LAMP IS CHARGING FROM THE MAINS SUPPLY
Operation of Touch Button:
1. Single Touch: on or off
2. Press/Hold when on: Light increases gradually
(release button when light level is achieved.)
3. When on, press for more than 4 secs
(100% light output)
4. When on, single Touch fades light to off
Mains USB Adapter:
100-240V~ 50/60Hz
5V 1A
Micro USB Lead:
1.2 metres
Product
code
Wattage Lumens Mains USB
Charging
Time
Lighting max
run Time
Phone charging
max run time
Lighting/Phone
charging max
run time
JC17071 2W 154 6 hrs 12 hrs 7.5 hrs 6 hrs
Fig.2.
Fig.3. Fig.4. Fig.5.
Fig.1.
General Maintenance Requirements
JCC Lighting Products recommends that the this product is cleaned with warm water and dried with a chamois leather of absorbent dry cloth.
Weathering, environmental pollution and birddroppings should be cleaned off with a non-abrasive cleaner. This is to ensure that the solar panel is
fully effective in charging the batteries, and to preserve the nish of this product.
You can help protect the environment. Please remember to respect the local regulations: hand in the non-working electrical equipment to an
appropriate waste disposal centre. The packaging material is recyclable. Dispose of the packaging in an environmentally friendly manner and
make it available for the recyclable material collection service.
Non-replaceable light source
LED LED

JCC Lighting Products Ltd. Innovation Centre, Beeding Close, Southern Cross Trading Estate, Bognor Regis, West Sussex, PO22 9TS, United Kingdom
Technical Support: [phone] Customer Services: [phone]
BS EN ISO9001 - 2015 - Registered Firm Certificate No. GB 1552
company
a
Replacement of Batteries:
1 x SPR017002- 2 x 3.7V 18650 2200mAh Lithium battery
Turn the lamp upside down and carefully remove
the 4 foam pads (you will need to save these to
put back on), then remove the screws to release
the base from the body
Remove the three screws holding the plate to the
battery casing, remove the battery pack and replace
with new pack ensuring to feed the battery wires
through the bottom of the casing. Ret the plate to
the casing and secure with the three screws.
Refit battery casing into the body and secure with
the two screws. Make sure that the “o” ring is sitting
correctly on the lip on the inside of the body
Ret the base into the body using the four screws,
then ret the foam pads into the base to cover the
screw holes
Please hand in the non-working battery to an appropriate waste
disposal centre, do not dispose of with household waste
Rest the base to the side ( DO NOT CUT OR TRY TO
DISCONNECT THE WIRES). Remove the two screws holding
the battery casing to the body. Remove the battery
casing from the body and disconnect the battery
Foam pads
Foam pads
1. 2.
3. 4.
5. 6.
Prior to use after replacing the battery, ensure that the product is fully charged.
Please refer to point 2 in the installation instructions.
