Leviton LFD20 User manual

LEO™ LED Fresnel
Cat. Nos. LFD20, LFD32
User’s Guide
© 2015 Leviton Mfg. Co., Inc. PK-A3121-10-00-5A
LEO™

P1
CATALOG LOGIC
LFD20-30B; LFD20-50B
LFD32-30B; LFD32-50B
Fixture Wattage Color Temperature Housing
LFD: LED Fresnel 20: 200W -30: 3200K B: Black Housing
32: 320W -50: 5600K
SPECIFICATIONS
CAT. NO. LFD20 LFD32
WATTAGE 200 W 320 W
STANDBY LOAD
BEAM ANGLE 8°-60° 16°-58°
WEIGHT 19.6 lbs. (8.9 kg) 27.6 lbs. (12.5 kg)
SIZE W 11" (280mm) x H W 13.5" (342mm) x H
17.1" (435mm) x D 19.1" (485mm) x D
19.3" (490mm) 19.3" (490mm)
ELECTRICAL 100-240 VAC, 50/60Hz 100-240 VAC, 50/60Hz
WARNINGS AND CAUTIONS
• TO AVOID FIRE SHOCK OR DEATH; TURN OFF POWER at circuit breaker or fuse and test that
power is off before installation.
• TO AVOID SERIOUS PERSONAL INJURY, always connect this product to a grounded circuit.
• To be installed and/or used in accordance with electrical codes and regulations.
• If you are unsure about any part of these instructions, consult an electrician.
SAFETY NOTES
WARNING: TO AVOID DEATH, SERIOUS PERSONAL INJURY OR PROPERTY DAMAGE:
• Do not open the housing or attempt any repairs. In the unlikely event the unit may require service
please contact Leviton Technical Support. Opening the housing or attempting to repair product will
void the warranty.
• Do not expose this product to rain or moisture. This product is for indoor use only! (IP20) When
transferring product from extreme temperature environments, (e.g., cold truck to warm humid
ballroom) condensation may form on the internal electronics of the product. To avoid causing a
failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
• Do not operate this product if you see damage on the housing, lenses, or cables.

P2
PRODUCT INTRODUCTION
LEO™ LED Fresnel is a high-performance Fresnel-style LED lighting fixture that delivers a beautiful flat
even field of light in a choice of color temperatures (3200K and 5600K) with high color rendering index
(CRI 90+). The fixture is fully dimmable from 0% to 100% and can be controlled manually or via DMX
controller. It also supports power linking with built-in powerCON®connectors. Virtually quiet operation
makes it ideal for use in any situation. The fixture is RDM-ready for precise monitoring of the LED chip’s
performance and status to make maintenance easy.
GETTING STARTED
Thank you for choosing LEO™ LED Fresnel by Leviton®. Every LEO™ LED Fresnel has been thoroughly
tested and has been shipped in perfect operating condition. Your LEO™ LED Fresnel should include:
Power cords with alternate connectors, and, powerCON®extension cables are available.
Please contact Leviton and review product data sheets for details.
Important: Unpack the product and check the box to make sure all the parts are in the package and
are in good condition. If any of them are damaged, please contact the shipper to make a claim. If any
components are missing, please contact our Customer Service Department at 1-800-736-6682.
• Fixture
• powerCON®B connector
• Metal Color Frame 9.65" x 9.65"
(245 x 245mm) (for LFD20)
• Metal Color Frame 12" x 12"
(305 x 305mm) (for LFD32)
• Safety Guard 9.65" x 9.65"
(245 x 245mm) (for LFD20)
• Safety Guard 12" x 12"
(305 x 305mm) (for LFD32)
• User’s Guide
• Fuse, glass tube, 6A (for 110V) (for LFD20)
• Fuse, glass tube, 10A (for 110V) (for LFD32)
• Fuse, glass tube, 3A (for 220V) (for LFD20)
• Fuse, glass tube, 5A (for 220V) (for LFD32)
• Safety Cable, 31.5" (800mm) with Spring Clips
• 36"-39.5" (1m) power lead with powerCON® & PBG
(NEMA 5-15P Connector)

P3

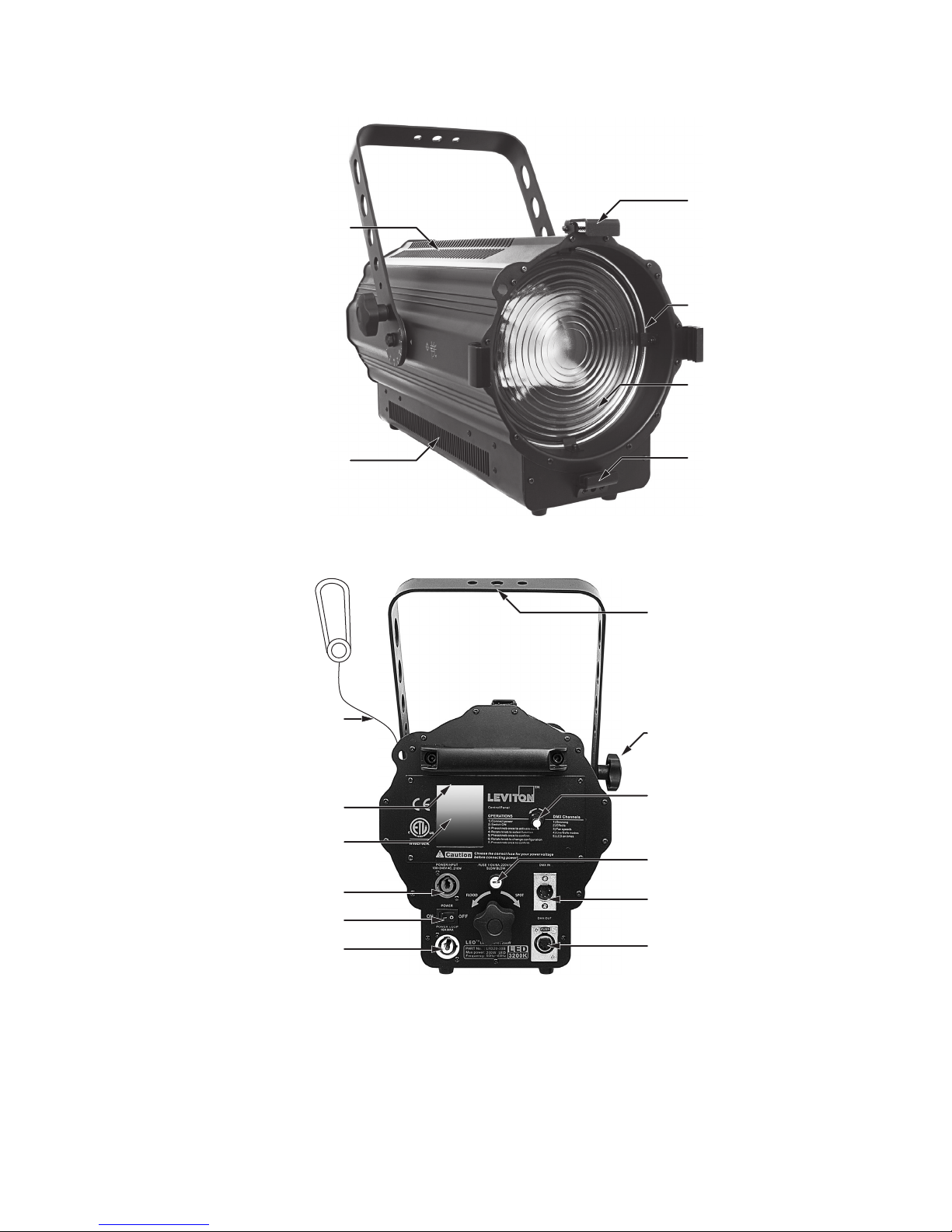

IDENTIFY THE PARTS
Safety Cable
Rear View
Power in
Power switch
12 mm Hole
mounting yoke
Yoke fastening
knob
Display control
knob
Fuse
DMX input
(XLR5-pin male)
Handle
LCD display
DMX output
(XLR5-pin
female)
loop out
Front View
Barn door
clip
Fresnel
Lens
Lens clips
3-Slot
accesory
runners
Vent holes
(do not block)
Vent holes
(do not block)

P4
SAFETY NOTES
• This product contains no user-serviceable parts. Do not open the housing or attempt any repairs,
doing so will void the manufactures warranty. In the unlikely event the unit may require service please
contact Leviton technical support.
• Do not operate this product if you see damage on the housing, lenses, or cables.
• This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to
rain or moisture. When transferring product from extreme temperature environments, (e.g. cold truck
to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid
causing a failure, allow product to fully acclimate to the surrounding environment before connecting
it to power.
REPLACE FUSE
CAUTION:
Fuse pre-installed in BLACK fuse cover supports 220V AC Power only
Fuse pre-installed in GREY fuse cover supports 110V AC Power only
Always make sure you are connecting this product to the proper voltage in accordance
with the specifications in this manual or on the product’s specification label.
Choose the correct fuse for your power voltage before connecting power.
Step 1: Unplug the product from power.
Step 2: Use a slotted screwdriver, push slightly and rotate counterclockwise to open the fuse cap.
Step 3: Take out the fuse cap and fuse. Put a new fuse inside the fuse cap.
Step 4: Screw the fuse cap back in place and reconnect power.
FUSE 110V/6A; 220V/3A
SLOW BLOW
OPEN LOCK

P5
CONNECT POWER
CAUTION:
LEO™ LED Fresnel comes with a power lead terminated with a powerCON®A connector on one side,
and a PBG NEMA 5-15P connector on the other side. Other connector options are available from Leviton
or may be installed by your contractor. In addition, the fixture is designed for "Feed-Thru" operation using
single power source connection at the first fixture, then, using powerCON®extensions between fixtures.
The maximum load supported is 16A through the powerCON®connectors which is reduced to 15A if you
use a 15A source power connector like a NEMA 5-15P.
If creating your own powerCON®connectors, use the table below to wire the included powerCON®
B connector, or a local plug to the power lead.
Connection Wire
AC Live Brown
AC Neutral Blue
AC Ground Green / Yellow

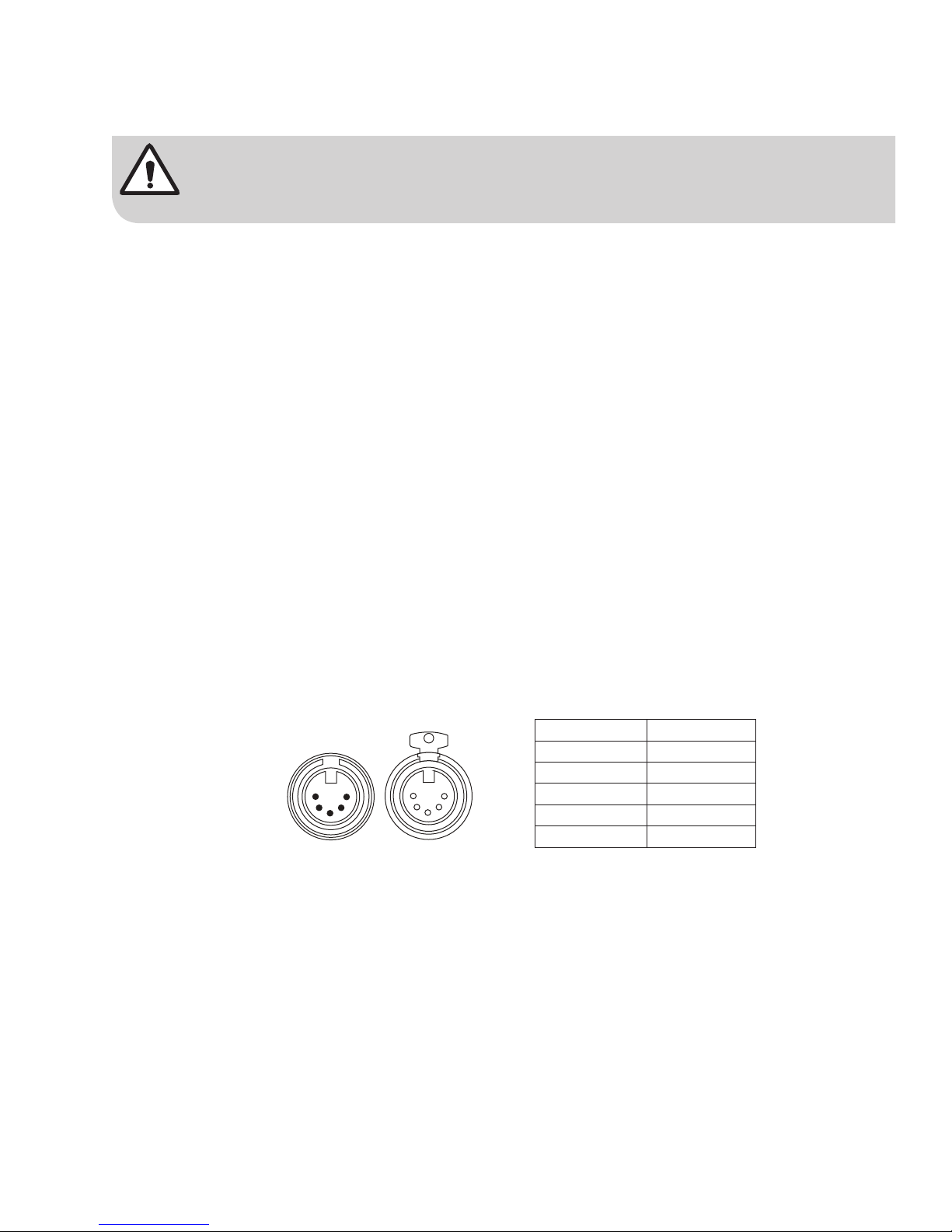

CONNECT DMX
LEO™ LED Fresnel uses 5-pin XLR connectors for signal transmission and can be controlled via
DMX-512 protocol. The diagram below shows the fixture’s XLR-5 signal ports.
Step 1: Connect the (male) 5-pin connector side of the DMX cable to the output (female) 5-pin connector
of the DMX console.
Step 2: Connect the end of the cable coming from the console which will have a (female) 5-pin connector
to the fixture’s input port ("DMX IN") consisting of a (male) 5-pin connector.
Step 3: Then, proceed to connect from the output port ("LOOP") as stated above to the input of the
following fixture and so on.
XLR Pin # Signal
1 common
2 data -
3 data +
4 NC
5 NC
1
2
3
4
5
5
4
3
2
1
DMX IN LOOP
XLR-5 signal ports
WARNING: TO AVOID SERIOUS PERSONAL INJURY, always connect this product to
a grounded circuit.

MOUNT FIXTURE
CAUTION:
LEO™ LED Fresnel may be mounted in any position (max. tilting +45° to -90° from horizontal); however,
make sure there is adequate room for ventilation, configuration, and maintenance.
The fixture comes with a hanging/mounting yoke to which you can attach mounting clamps. The bracket
has a 0.5" (12mm) hole, which is appropriate for this purpose. Make sure the clamps are capable of
supporting the weight of this product.
FIXTURE ANGLE ADJUSTMENT
The fixture can be tilted up and down to position the light where it is needed.
Step 1: Loosen the yoke fastening knob, use the handle on the rear of the unit to keep the fixture
steady.
Step 2: With the fixture turned on, use the handle to tilt it to the desired angle.
Step 3: Tighten the yoke fastening knob.
FIELD ANGLE ADJUSTMENT
You can adjust the field angle of the fixture with the focusing knob on the rear of the unit.
To reduce the field angle (SPOT), turn the focus dial clockwise.
To enlarge the field angle (FLOOD), turn the focus dial counterclockwise.
P6
Always mount this product in a safe position with adequate ventilation and away from
a heat source, at least 20" (50 cm) from adjacent surface, and no flammable materials
close by the product while it is operating, at least 8" (20 cm) from adjacent surfaces.
Always connect the provided Safety Cable to the fixture and a suitable anchor. The safety
cable should loop through the fixture yoke and be connected to a secure attachment at
the other end.

ACCESSORIES
LEO™ LED Fresnel can accommodate many different accessories.
ACCESSORY SLOTS
CAUTION:
LEO™ LED Fresnel has 3 accessory slots in the front of the fixture and is equipped with a spring-loaded
barn door clip that prevents color frames and accessories from falling out.
Step 1: Release the barn door clip by pushing it sideways while gently pulling backwards.
Step 2: Insert the media/accessories, secure with a safety cable where necessary.
Step 3: Lock the barn door clip by pushing sideways while gently pushing forward.
P7
Accessories such as barn doors and color scrollers must be secured by safety cable to
the mounting structure.
Make sure all color / diffusion media are locked in position with the barn door clip before
hanging the fixture.
Cat. No. Description Part Number
All Safety Cable (included) TA0SC-000
LFD20 8 Leaf Barn Door 9.65" x 9.65" (245 x 245mm) LFD20-BDB
LFD20 Metal Color Frame 9.65" x 9.65" (245 x 245mm) (included) LEDAC-CFB
LFD20 Safety Guard 9.65" x 9.65" (245 x 245mm) (included) LEDAC-SGB
LFD32 8 Leaf Barn Door 12" x 12" (305 x 305mm) LFD32-BDB
LFD32 Metal Color Frame 12" x 12" (305 x 305mm) (included) LFD32-CFB
LFD32 Safety Guard 12" x 12" (305 x 305mm) (included) LFD32-SGB

P8
OPERATION
CAUTION:
LEO™ LED Fresnel will start a self-checking process when power is applied. The unit will display the
DMX address for dimming when ready to use. For standard operation, connect the fixture to a power
source (100~240V AC single phase), and a DMX signal cable. The LCD Display will turn on after the
power switch is turned to "ON" position. You are now ready to set the desired configuration and DMX
addresses.
You can assign a DMX channel to control dimming, cooling fan speed, LCD display-on time, built-in
effects and live/safe modes according to the DMX value on the "Menu Map". These parameters can also
be assigned through a console.

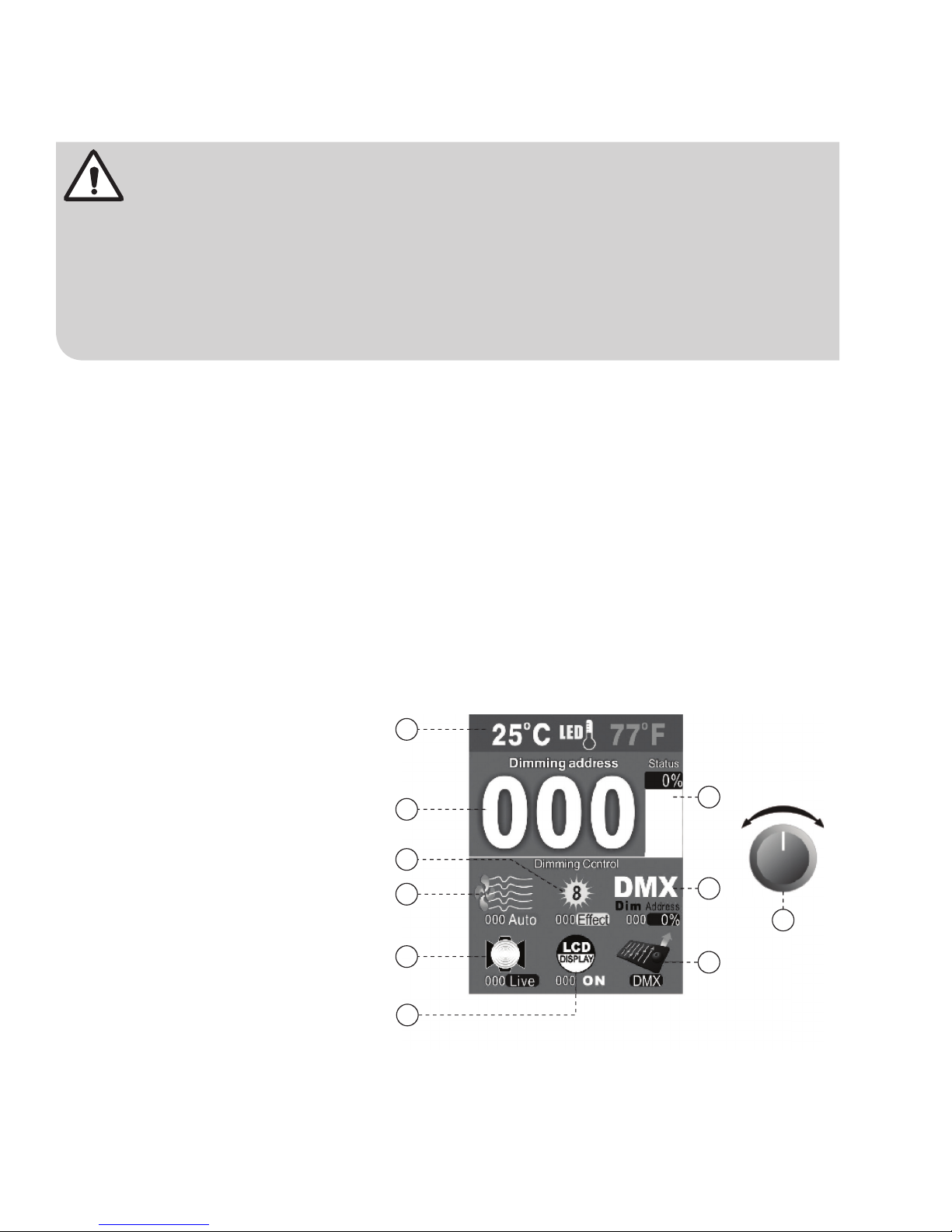

CONTROL INTERFACE
LEO™ LED Fresnel comes with a LCD Display and a control knob on the rear of the unit for control
settings:
1. LED Temperature
2. DMX dimming address
3. Built-in effects
4. Cooling Fan speed control
5. Operation Mode: Live or Safe
6. LCD display on time
7. Control mode: DMX or Manual
8. DMX dimming address setting
9. Status-bar
10. Rotary-press-knob
1
2
3
4
5
6
9
8
7
10
Do not touch this product’s housing during operation because it may be very hot if
overheated.
The maximum ambient temperature is 95˚F (35˚C). Do not operate this product at a
higher temperature.
Do not cover the ventilation holes when operating to avoid internal overheating.
Avoid direct eye exposure to the light source while the product is on.
In case of a serious operating problem, stop using this product immediately!
