Levo AG C3 User manual

1

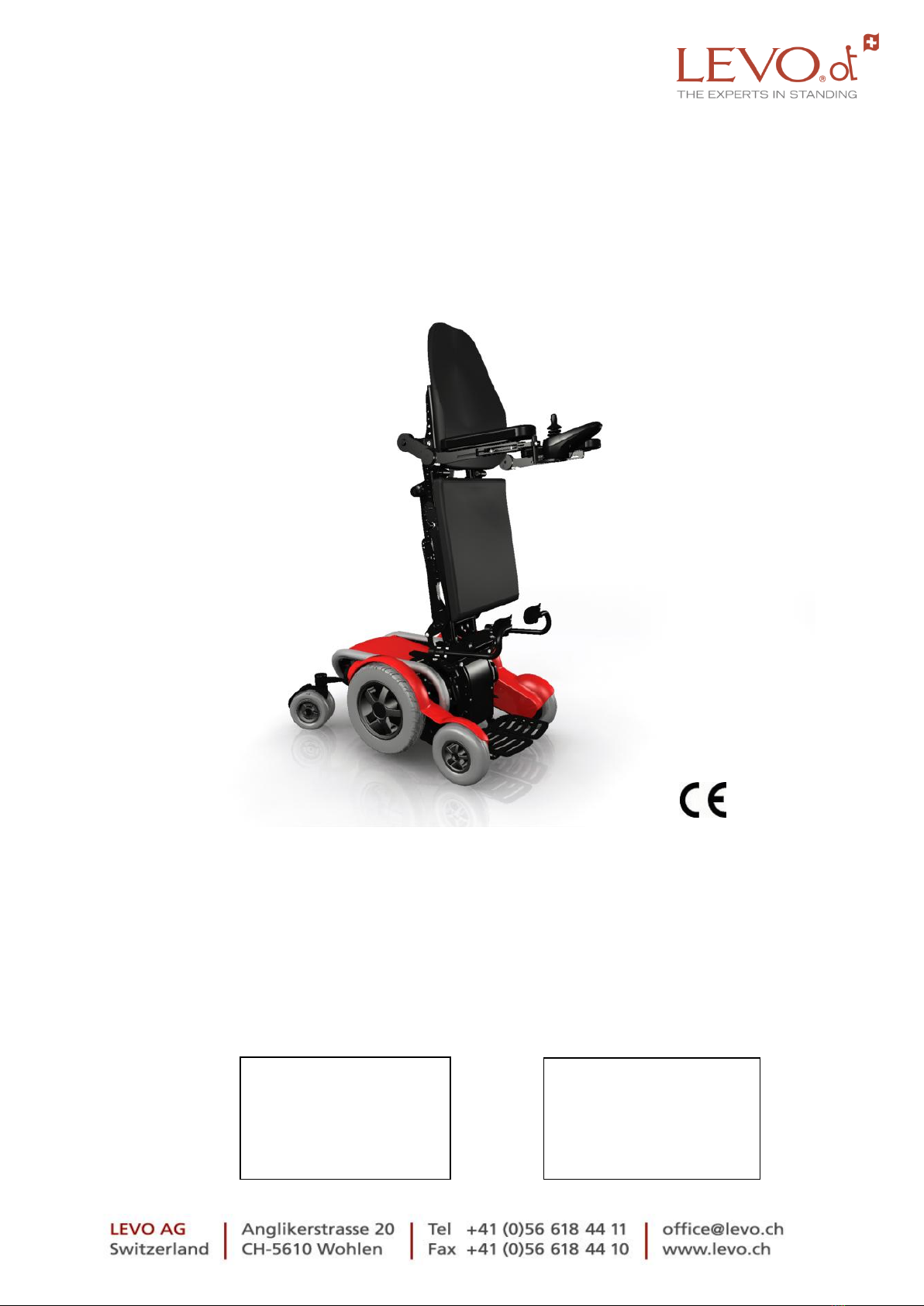

LEVO C3
Instruction manual
Please read the Instruction Manual carefully before attempting to use
your wheelchair
Alterations in constructional and technical manner or to the electronic
require the written authorisation of LEVO AG, otherwise no warranty or
product liability will be accepted.
In case of difficulty contact:
Manufacturer: Agent:
Version 1.8
LEVO AG
Anglikerstrasse 20
CH-5610 Wohlen
Tel:[phone]
Fax:[phone]
Internet: http://www.levo.ch

2
Dear Customer,
We would like to thank you for putting your trust in LEVO stand-up wheelchairs.
The LEVO stand-up wheelchair is a unique aid for use by those facing difficulties
walking and standing up. As well as performing all the functions of an active
wheelchair, the LEVO enables you to stand up on your own.
Please read these operating instructions carefully before using your
LEVO. They contain important information necessary for successful
operation of the wheelchair.
Whether you use your LEVO as a stand-up aid at work in everyday life, or to help
with standing exercises, it guarantees you optimum independence, mobility and
health.
As a LEVO customer, you have a valuable contribution to make to the on-going
further development of our products. We put great store by your suggestions,
which ensure that LEVO still offers the most comprehensive service available and
provides for the widest possible range of needs.
Yours faithfully,
LEVO AG

3
Content
Declaration of Conformity ......................................................................... 6
Warranty ................................................................................................ 8
1. Intoduction........................................................................................ 9
2. Safety instructions........................................................................... 10
2.1. General safety instructions ............................................................. 10
2.2. Operation..................................................................................... 11
2.3. Driving......................................................................................... 11
2.4. Stand-up function ......................................................................... 11
2.5. Safety belt system ........................................................................ 12
2.6. Transportation .............................................................................. 12
2.7. Servicing and maintenance............................................................. 13
3. Preparing the wheelchair for use and operation .............................. 14
3.1. Dispatch and transport................................................................... 14
Initial operation / Main fuse handling in case of replacement,
transportation and storage.................................................................... 14
3.2. Delivery ....................................................................................... 15
3.3. Storage........................................................................................ 15
3.4. First adjustments .......................................................................... 15
4. Control unit...................................................................................... 16
4.1. VR2-control .................................................................................. 16
4.1.1. On-/ Off-button.......................................................................... 16
4.1.2. Battery gauge ............................................................................ 16
4.1.3. Joystick..................................................................................... 17
4.1.4. Speed ....................................................................................... 17
4.1.5. Change of the seat position ......................................................... 18
4.1.6. Light kit .................................................................................... 19
4.1.7. Horn ......................................................................................... 19
4.1.8. Locking/ unlocking the wheelchair ................................................ 19
4.2. R-net control (option) ............................................................. 20
4.2.1. On-/ Off-button .................................................................... 20
4.2.2. Battery gauge ............................................................................ 20
4.2.3. Joystick ................................................................................ 21
4.2.4. Speed ................................................................................... 21
4.2.5. Change of the seat position ......................................................... 22
4.2.6. Light Kit................................................................................ 22
4.2.7. Horn ..................................................................................... 23
4.2.8. Locking/ unlocking the wheelchair ................................................ 23

4
5. Electromagnetic interference (EMI)................................................. 24
6. Driving the wheelchair..................................................................... 26
6.1. Driving in general.......................................................................... 26
6.2. Obstacles ..................................................................................... 26
6.3. Permissible inclinations .................................................................. 27
6.4. Unlock the drive brakes ................................................................. 27
6.5. Charging the batteries ................................................................... 27
7. Safety harness ................................................................................. 28
7.1. Knee support ................................................................................ 28
7.1.1. Knee support „Pro“................................................................ 28
7.1.2. Knee support „Integral“ ......................................................... 28
7.2. Chest strap................................................................................... 28
8. Transfer ........................................................................................... 30
8.1. Getting into the wheelchair ..................................................... 30
8.2. Getting out of the wheelchair .................................................. 30
8.3. Sideways transfer.................................................................... 30
9. Individual settings........................................................................... 31
9.1. Adjustment of the seat depth.......................................................... 31
9.2. Change of the seat width ............................................................... 32
9.3. Change the distance between the armrests ...................................... 32
9.4. Adjustment of the backrest angle .................................................... 32
9.5. Change of the distance footrest - seat cushion and angle adjustment of
the footrest........................................................................................... 33
9.6. Adjustment of the armrest height/angle........................................... 33
9.7. Adjustment of the armrest length.................................................... 34
9.8. Change the position of the control unit............................................. 34
9.9. Adjustment of the knee support ...................................................... 34
9.9.1. Knee support „Pro“................................................................ 34
9.9.2. Knee support „Integral“ ......................................................... 35
9.10. Adjustment of the backrest height ................................................ 35
10. Options ............................................................................................ 36
10.1. Tilt in space ............................................................................... 36
10.2. Swing away holder for the Control unit.......................................... 36
10.3. Joystick protection guard............................................................. 36
10.4. Swing away table tray................................................................. 37
10.5. Skirt guard ................................................................................ 37
10.6. Upper leg support....................................................................... 37
10.7. Chest role.................................................................................. 38
10.8. Foot guide ................................................................................. 38

5
10.9. Lamps for outdoor use with indicators........................................... 38
10.10. Jostick-top.............................................................................. 39
10.11. Rear view mirror...................................................................... 39
11. Transportation of your wheelchair................................................... 40
11.1. Transportation in a vehicle without the person in the wheelchair ...... 40
11.2. Transportation in a vehicle with the person in the wheelchair........... 42
12. Cleaning........................................................................................... 42
13. Maintenance .................................................................................... 43
13.1. Service...................................................................................... 43
13.2. Safety checks ............................................................................ 43
13.2.1. Daily checks............................................................................ 43
13.2.2. Weekly checks ........................................................................ 44
13.3. Spare parts................................................................................ 44
14. Disposal ........................................................................................... 45
15. Trouble shooting.............................................................................. 46
16. Controller self help guide VR2 ......................................................... 47
17. Controller self help guide R-net ....................................................... 48
18. Technical information ...................................................................... 49
19. Version-Management....................................................................... 50

6
Declaration of Conformity
As manufacturer of the LEVO Stand-up wheelchair, the company
LEVO AG
Anglikerstrasse 20
CH-5610 Wohlen, Switzerland
Tel.: [phone]
Fax: [phone]
Internet: http://www.levo.ch
Declares in all responsibility that the product hereby mentioned (see following list) corresponds
with the valid direction of the EC instructions for medical products determined 14th June, 1993
(93/42/EWG).
This Declaration of Conformity of the LEVO C3includes all its accessories and options available from
LEVO.
ISO 7176-1:1999 Wheelchairs - Part 1: Determination of static stability
ISO 7176-2:2001 Wheelchairs - Part 2: Determination of dynamic stability of electric
wheelchairs
ISO 7176-3:2003 Wheelchairs - Part 3: Determination of efficiency of brakes
ISO 7176-4:1997 Wheelchairs - Part 4: Energy consumption of electric wheelchairs and
scooters for determination of theoretical distance range
ISO 7176-5:1986 Wheelchairs - Part 5: Determination of overall dimensions, mass and
turning space
ISO 7176-6:2001 Wheelchairs - Part 6: Determination of maximum speed, acceleration and
deceleration of electric wheelchairs
ISO 7176-8:1998 Wheelchairs - Part 8: Requirements and test methods for static, impact and
fatigue strengths
ISO 7176-9:2001 Wheelchairs - Part 9: Climatic tests for electric wheelchairs
ISO 7176-10:1988 Wheelchairs - Part 10: Determination of obstacle climbing ability of electric
wheelchairs
ISO 7176-11:1992 Wheelchairs - Part 11: Test dummies
ISO 7176-13:1989 Wheelchairs - Part 13: Determination of coefficient of friction of test
surfaces
ISO 7176-14:1997 Wheelchairs - Part 14: Power and control systems for electric wheelchairs -
Requirements and test methods
ISO 7176-15:1996 Wheelchairs - Part 15: Requirements for information disclosure,
documentation and labelling
ISO 7176-16:1997 Wheelchairs - Part 16: Resistance to ignition of upholstered parts -
Requirements and test methods
ISO 8191-1:1987 Furniture - Assessment of the ignitability of upholstered furniture - Part 1:
Ignition source: smouldering cigarette
ISO 8191-2:1988 Furniture - Assessment of ignitability of upholstered furniture - Part 2 :
Ignition source : match-flame equivalent
ISO 10993-5:1999 Biological evaluation of medical devices - Part 5: Tests for In Vitro

7
ISO 14971:2007 Medical devices - Application of risk management to medical devices
EN 12184:2004 Electrically powered wheelchairs, scooters an their chargers
EN 12182:1999 Technical aids for disabled persons. General requirements and test methods
ISO 7176-21:2003 Wheelchairs - Part21: Requirements and test methods for electromagnetic
compatibility
EN 61000-3-2:2006 Limits –Limits for harmonic current emissions
EN 61000-3-3:1995+A1:2001 +A2:2005
Electromagnetic compatibility (EMC). Limits. Limitation of voltage changes,
voltage fluctuations and flicker in public low-voltage supply systems, for
equipment with rated current less or equal 16 A per phase and not subject
to conditional connection
CISPR 11:2003+A1:2004
Industrial, scientific and medical (ISM) radio-frequency equipment -
Electromagnetic disturbance characteristics - Limits and methods of
measurement
EN 61000-4-11:2004 Electromagnetic compatibility (EMC). Testing and measurement techniques.
Voltage dips, short interruptions and voltage variations immunity tests
EN 61000-4-5:2006 Surge Immunity testing
EN 61000-4-4:2004 Electrical fast transient/burst immunity test
EN 61000-4-2:1995+A1:1998+A1:2001
Electrostatic discharge immunity test
EN 61000-4-6:1996+A1:2001
Immunity to conducted disturbances, induced by radio-frequency fields
EN 61000-4-3:2006 Radiated, radio-frequency, electromagnetic field immunity test
ISO WC/Volume1:1998 Section 7:
Method of Measurement of Seating and Wheel Dimensions
ISO WC/Volume1:1998 Section 20:
Determination of the performance of stand-up wheelchairs
ISO WC/Volume1:1998 Section 22:
Set up procedures
ISO WC/Volume1:1998 Section 93:
Maximum overall dimensions
Type of power stand-up wheelchair:
LEVO C3S-XL
52Ah and 73Ah battery capacity
Incl. Its options and accessories
Wohlen, January 1, 2010
Thomas Nietlisbach Thomas Räber

8
Warranty
Your LEVO product is guaranteed from the date of purchase for:
Two years covering all material and manufacturing defects of mechanical
parts.
One year covering all electronic components including the motors.
Batteries are excluded from the warranty.
LEVO AG will not repair or replace free of charge any part or parts found to be
defective due to abuse, misuse or lack of maintenance.
The customer has no claim on warranty, if there has been any design
modifications (mechanic or electronic) been made on the wheelchair without the
approval from LEVO AG.
Warranty claims should be directed to:
In Switzerland LEVO AG
Other Countries To your local agent
Addresses and telephone numbers are given on the front page.

9
1. Intoduction
Thank you to choose the LEVO C3.
The LEVO C3has been designed as a powered stand-up wheelchair for indoor
and outdoor use. As such it belongs to the wheelchair category B.
The LEVO C3makes it possible to stand-up and to drive in a standing as well as
in a sitting position. This function provides great independence to the user.
This wheelchair is made for everyone whose muscles do not support them to
propel a wheelchair manually. The LEVO C3is a unique aid for those facing
difficulties in standing and walking.
The LEVO C3has been designed for older children and adults who will benefit
from motorised mobility and the ability to stand up at will.
The standard model of the LEVO C3allows comfortable sitting and standing on
every stage between the sitting and the complete standing position. Driving is
possible in all stages.
The front wheels are permanent powered with the same speed as the middle
wheels, which offers a great maneuverability around ramps, obstacles and
uneven ground (4WD). In sitting configuration, the chair is driven by the middle
wheels and the front wheels are lifted up from the floor which causes a very
small turning circle. In standing configuration, the chair is driven by the front
wheels and the middle wheels are lifted up from the floor. This allows also a
great mobility in standing position. In sitting or standing position, the driven
wheels are directly in the centerline of the body.
The seat depth, the armrests and the knee support are stage less adjustable, this
gives an ideal possibility to adjust the chair to the customers’ needs.
The maximum load weight is 140 kilograms or 310 pounds; this includes all
personal belongings carried along too.
Read the safety instructions first, to acquaint yourself with the risks and
dangers that can occur by the use of the wheelchair.
The LEVO C3is certificated with the -sign. This product corresponds to the
regulations notified as 93/42 EWG.
If we use the male form in the following, the female form is included in this.
All information, images, pictures and specifications were made on the base of the
product information we had at the point in time when we printed the manual.
The images and pictures are type examples they don’t claim to be exact
reproductions of the various parts of the wheelchair.
We reserve ourselves the right to changes of product without previous
announcement.

10
2. Safety instructions
2.1. General safety instructions
Before using the LEVO C3, have your LEVO dealer explain the instructions to
you. It also helps if you have a friend to listen as well. Study the instruction
manual yourself or if you cannot understand it, get a friend to help you doing
so. Don't hesitate to ask for any explanation.
LEVO AG is not responsible for damages to persons or property, who
resulted from the fact that the user or another person ignored the
recommendations, warnings and instructions specified in this manual.
For your own security we recommend to read and obey all the
instructions carefully in this manual.
On the LEVO C3you find the following symbols attached:
Warning, risk of pinching! Make sure no parts of the body, clothing
or other items get jammed
Warning, read user’s manual!
Anchorage point for the tie down straps.
Label for the shutdown of the brake release

11
2.2. Operation
2.3. Driving
2.4. Stand-up function
Avoid driving through puddles with the LEVO C3. The wheelchair and
especially electrical components are very sensitive to too much water, some
splashes of water don't harm. (There is a danger of false function regarding
some electrical parts getting too wet.)
The LEVO C3is designed for outdoor and indoor use.
-Whenever you are driving, use the knee support and the chest belt.
-LEVO does not recommend driving the LEVO C3on uneven, soft or steeply
sloping ground.
-Using the LEVO C3 outdoors, switch on the lights at dawn and dusk and in the
dark of course.
Don’t let children drive with the wheelchair without supervision.
The wheelchair is not designated to take along passengers, independently
from the age of the driver.
Look further ahead while driving, so that you have sufficient time to react to
obstacles and avoid accidents in your way.
Pay attention to pedestrians, children, dogs etc. close to and especially in
front of you, since they can stop suddenly or change the direction.
Never switch off the joystick module during driving. Otherwise the wheelchair
will stop abrupt, so that you run the risk, to be thrown forward from the
wheelchair. Just release the joystick to stop the wheelchair from moving.
Consider the road permission regulations; these are different from country to
country. It is usually prescribed by law, which kind of streets can be used for
your purposes. Inquire in this regards at your road traffic licensing
department.
Avoid steep edges, hillside situations or stairs if you push the chair manually
(brake release lever in lower position), because there is a risk to lose the
control over the wheelchair because of its weight and measurements. There is
even the risk that the user can fall out of the wheelchair. To overcome an
obstacle we recommend, using a ramp or an elevator.
Be aware of, that your wheelchair can produce electromagnetic emissions and
disturb other devices
The necessary force to push the LEVO C3manually is higher than you are
used to with other powered wheelchairs. Depending on the floor surface and
the constitution of the person which is pushing the wheelchair, it can be
helpful to have a second person around, to help pushing the wheelchair if
necessary.
If unintended movement or brake release occurs, turn the wheelchair OFF as
soon as it is safe.

12
2.5. Safety belt system
2.6. Transportation
Standing up stresses your body in ways you may not be used to. Therefore we
recommend, consulting your doctor or physical therapist before using the
standing function of the LEVO C3.
It is not recommended to drive long distances in the standing position in
outdoor areas. This function is meant for moving around standing indoors, as
in the kitchen or in the office for examples.
The LEVO C3is only allowed to bring you into the stand-up position when the
free wheel device is "ON", this guarantees the motor brakes function correctly.
Do not stand-up while the chair is in “free wheel” configuration!
You should only bring the LEVO C3into standing position, if the chair is on
even, solid ground. If this condition is not ensured, the danger of tilting exists.
It’s absolutely essential to mount the knee support and the chest belt correct
before you use the stand-up function or you are driving (see chapter 5.).
You should under no circumstances attempt to stand up without
following all safety precautions.
Do not lift the wheelchair at mobile parts. This can lead to damages to
property or person and/or damages at the wheelchair.
The chest belt is exclusively intended to hold the torso of the user while
driving and the stand-up function. It is not used to be a protection device at
collisions and/or accidents.
We recommend to stand-up only when in company in case of sudden
spasticity, convulsions and similar problems.

13
2.7. Servicing and maintenance
The LEVO C3is a complicated piece of machinery. Do not attempt to maintain
it yourself. For all maintenance work, please contact an authorized dealer. It is
requested that your authorized dealer is in charge to services the wheelchair
once every year.
You should only use original LEVO spare parts at possible repairs or
modifications. If you use other parts, the function and the security of the
wheelchair can be influenced. This also means that the wheelchair is no longer
covered under warranty.
Programming should only be conducted by healthcare professionals within
depth knowledge of PG Drives electronic control systems. Incorrect
programming could result in an unsafe set-up of a wheelchair for the user.
LEVO accepts no liability for losses of any kind if the drive or stability
characteristics of the wheelchair are altered without prior notification and
discussion with LEVO.
All inappropriate changes of the wheelchair and its different systems can lead
to an increased accident risk.
All changes and interventions have to be made by an authorized dealer, if
you’re unsecure about any issue, please ask your dealer first.

14
3. Preparing the wheelchair for use and operation
3.1. Dispatch and transport
For delivering LEVO wheelchairs they are packed in a cardboard box. The back is
detached and carefully packed. Particularly delicate parts have extra protection
to avoid any damage that could be caused by transportation. All wheelchairs are
transported by lorry or air freight. To ensure no damage during transport the
main fuse is taken / switched off.

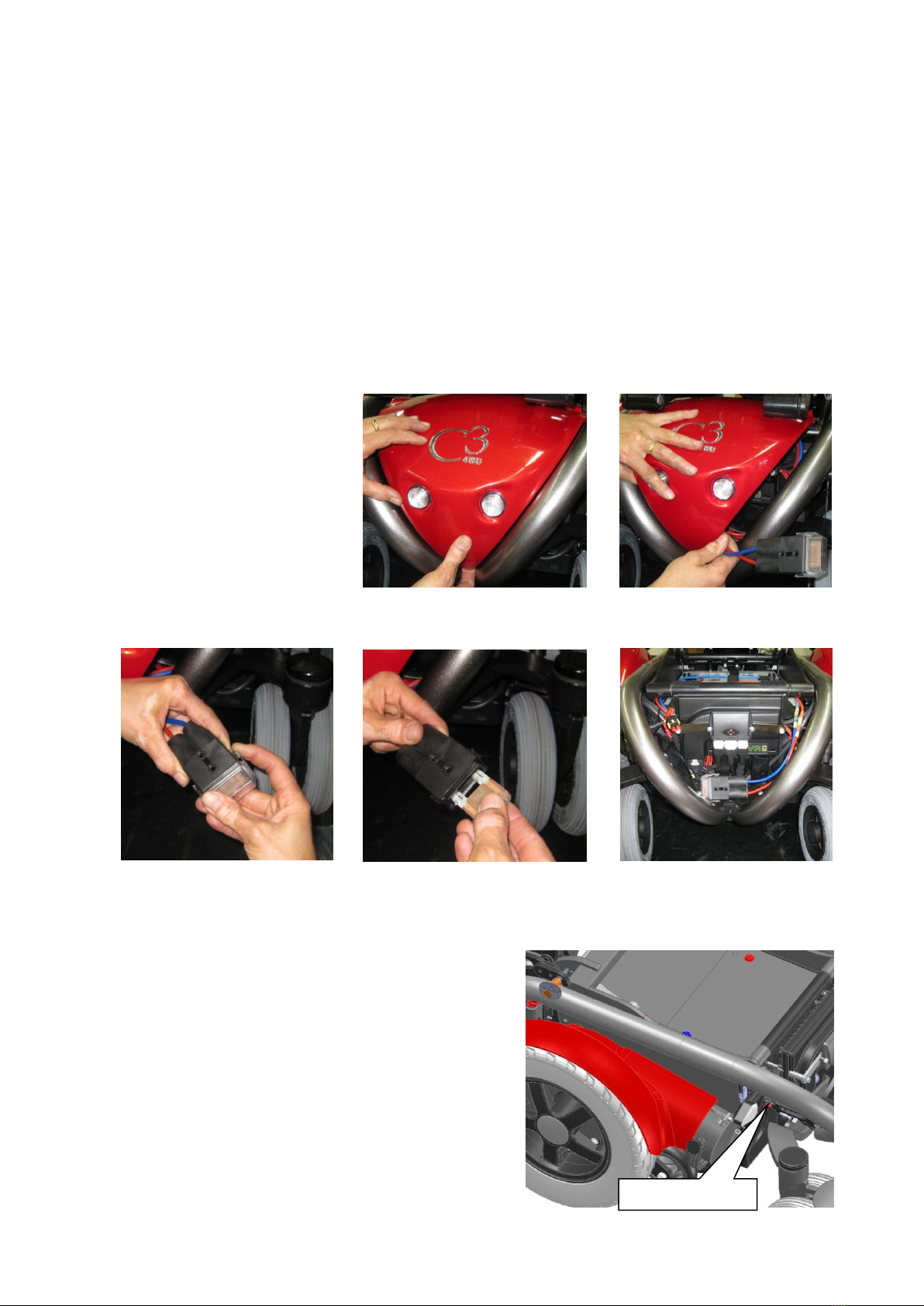

Initial operation / Main fuse handling in case of
replacement, transportation and storage
Installation of the
main fuse
Fuse version since April 2011
Before shipping, the 70A main
fuse is taken off. Before using
the chair the main fuse has to
be inserted. You shall do this
also when travelling by air
with this wheelchair.
The main fuse housing is under the chair cover in the rear.
To get access, carefully open the cover as shown above.
Open the fuse cover, insert the fuse which is delivered in a separate plastic bag and snap the
fuse cover back. Now the chair can be brought into standing position to get access to the
fuse cabling. Store the fuse cabling properly above the batteries and the main fuse housing
below the control system under the chairs cover.
Activating of the
main fuse
Cut out version until March 2011
To activate the main fuse, push the button of the
cut out in
Main fuse

15
3.2. Delivery
Because of the complex nature of this wheelchair it will be delivered and
demonstrated to you by your local agent.
The wheelchair comprises the following components:
Component
Quantity
1.
Wheelchair base
1
2.
Seat unit
1
3.
Backrest unit
1
4.
Knee support
1
5.
Chest strap
1
6.
Joystick unit
1
7.
Joystick Module
1
8.
Set of batteries
1
9.
Battery charger
1
10.
Tool set
1
11.
Options and accessories
Corresponding to
order form
3.3. Storage
The ideal condition to store the LEVO C3is a temperature between –40° and +
60° Celsius (between -30° and +140° Fahrenheit). The humidity should not be
above 90%. Please take care to guarantee these mentioned conditions to provide
a long life time for the LEVO C3.
That the batteries don’t discharge too fast, we recommend to taken respectively
switch off the main fuse (see 3.1.). We also recommend charging the batteries at
least every 2 months if the chair is not used.
3.4. First adjustments
Because the LEVO C3was ordered with your personal measurements, it should
fit your personal constitution when the chair is delivered to you. If there should
be any variations, please take a look at chapter 8. there you can see how the
different elements can be adjusted.
Your local agent is responsible to do the final tuning of the adjustment. Therefore
take your time at delivery of the chair to assure the chair fits correctly.

16
4. Control unit
4.1. VR2-control
4.1.1. On-/ Off-button
4.1.2. Battery gauge
On the control unit you can find a
joystick, buttons and symbols, where
we take a closer look at in the
following.
With the On-/ Off-button the chair
can be turned on or switched off.
Don’t use this button to stop the
wheelchair, unless there is an
emergency.
The battery gauge shows you that
the wheelchair is switched on and it
shows you how much power there is
left in the batteries. The gauge is also
used as an electronic fault detection
(see chapter 16.)

17

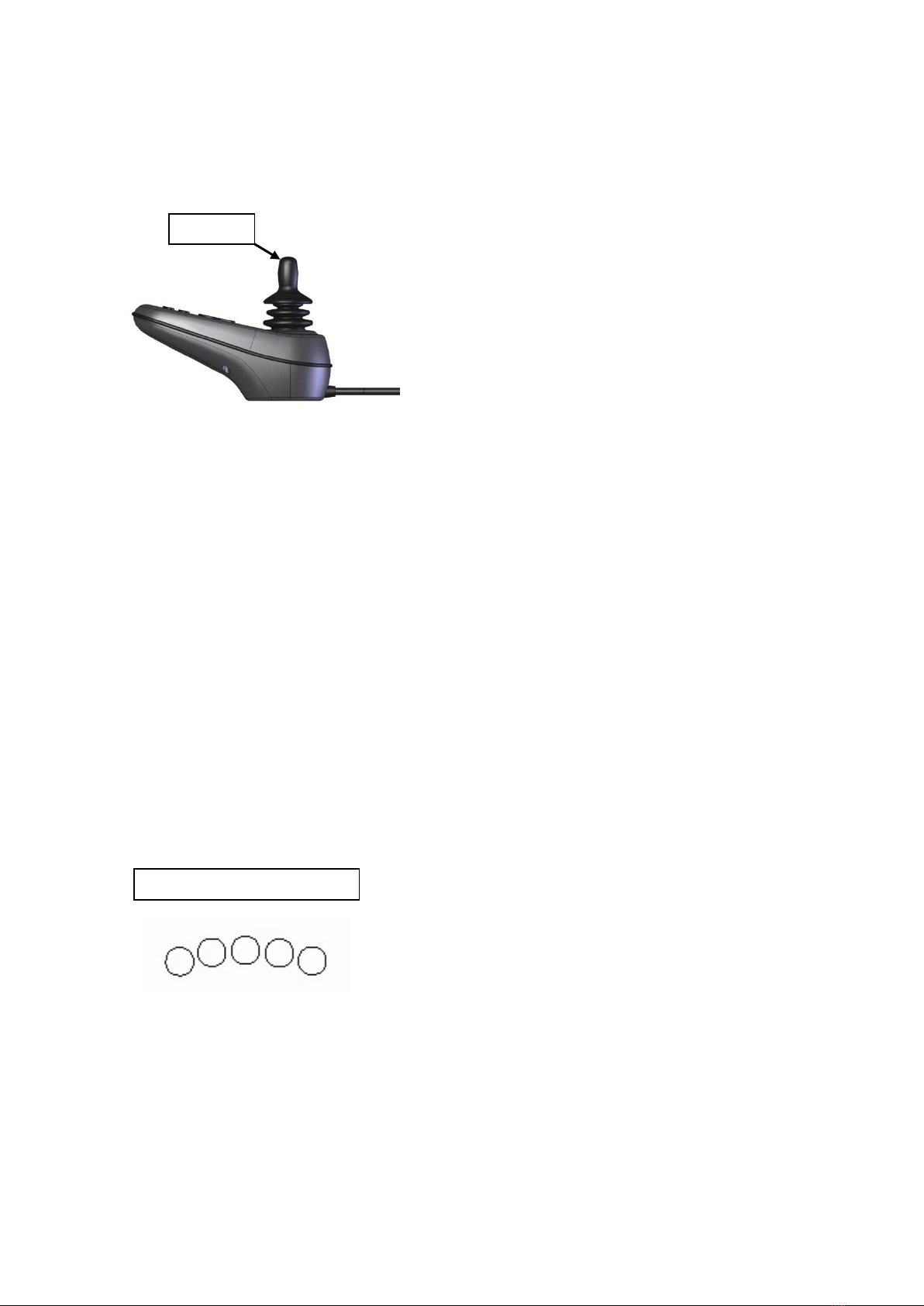

4.1.3. Joystick
4.1.4. Speed
Joystick
The joystick controls the direction
and speed of the wheelchair.
To drive forwards push the joystick
forwards. The further you push it
from the centre the faster the
wheelchair will move. Let go of the
joystick and the wheelchair will stop
and the brakes come on.
For backwards driving push the
joystick backwards. Pushing the
joystick to the right side means a
right hand curve as a reaction.
Pushing the joystick to the left then
the chair will drive to the left hand
side.
The joystick can be used to choose
and to move the actuators as well
(see chapter 4.1.5.).
Speed gauge
This is a gauge that shows the
maximum speed setting for the
wheelchair. This gauge also indicates
if the speed of the wheelchair is
being limited or if the control system
is locked.
If one LED is illuminated, you drive
with the slowest speed, 5 illuminated
LED’s mean that you drive with the
highest programmed speed.
If the LED’s are flashing, it means
the speed is reduced. That happens
when you go into standing position.
If the LED’s are ripple up and down,
it means the chair is locked.

18
Standard chair without light:
By pressing the left actuator-button,
you can activate the stand-up
function. If you move the joystick
forward, the chair is rising upwards, if
you move the joystick backwards, the
chair is moving downwards.
If your chair is equipped with the
option “Tilt in space”, it can be
activated by pressing the right
actuator-button. If you move the
joystick backwards, the complete
seat is tilting backwards, if you press
the joystick forward, the seat is
moving back to the horizontal
position.
Chair with light:
If your chair is equipped with light,
you just have one button to choose
the actuators. To activate the stand-
up function, press the actuator-
button, deflect the joystick to the left,
until the left LED under the actuator-
button is illuminated. Now you can
move the joystick forward to bring
the chair into the stand-up position,
to go down into the seating position,
you just need to move the joystick
backwards.
If you have the option “Tilt in space”
on your chair, to choose this
actuator, press the actuator-button
and move the joystick to the right,
until the right LED is illuminated. If
you move the joystick backwards, the
complete seat is tilting backwards, if
you press the joystick forward, the
seat is moving back to the horizontal
position.
4.1.5. Change of the seat position
Actuator-
button
Actuator-
button

19

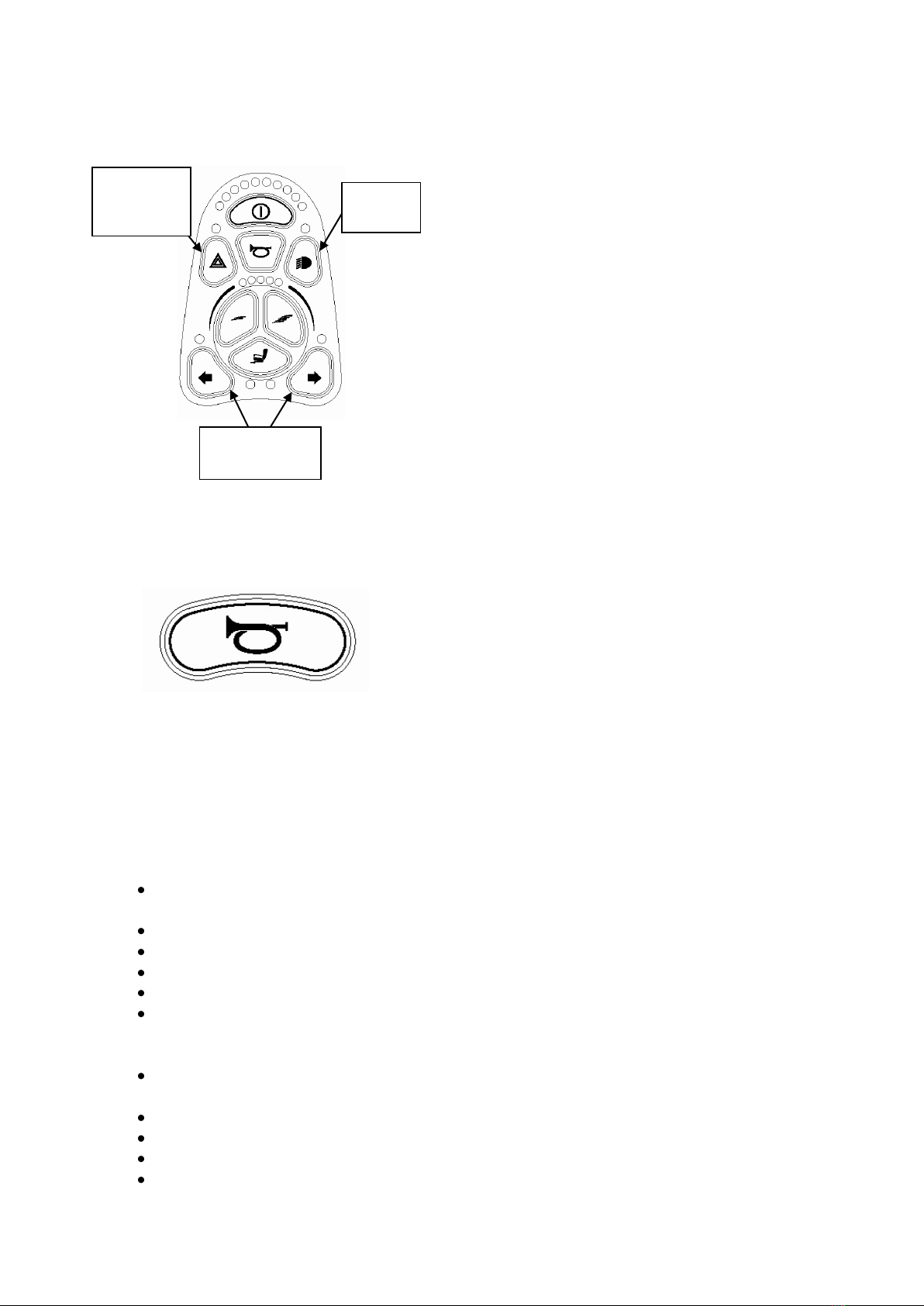

4.1.6. Light kit
4.1.7. Horn
4.1.8. Locking/ unlocking the wheelchair
The VR2 control system can be locked to prevent unauthorized use. The locking
method is via a sequence of key presses and joystick movements, as detailed
below:
To lock the wheelchair:
While the control system is switched on, depress and hold the on/off
button.
After 1 second the control will beep. Now release the on/off button.
Deflect the joystick forwards until the control system beeps.
Deflect the joystick in reverse until the control system beeps.
Release the joystick, there will be a long beep.
The wheelchair is now locked.
To unlock the wheelchair:
Use the on/off button to switch the control system on. The speed indicator
will be rippling up and down.
Deflect the joystick forwards until the control system beeps.
Deflect the joystick in reverse until the control system beeps.
Release the joystick, there will be a long beep.
The wheelchair is now unlocked.
If you choosed the option light for
your chair, the keypad looks like it’s
shown on the left.
To activate the light, press the light-
button, you switch on the two front
and the two rear lights on your chair
with this.
To notify that you like to turn to the
left, press the left indicator-button, to
announce that you like to turn to the
right, press the right indicator-button.
If you have a breakdown or you
would like to call attention to you,
you can activate all indicators at the
same time with the warning-lights-
button.
Indicator-
buttons
The horn will sound while this button
is depressed.
Warning-
lights-
button
Light-
button

20

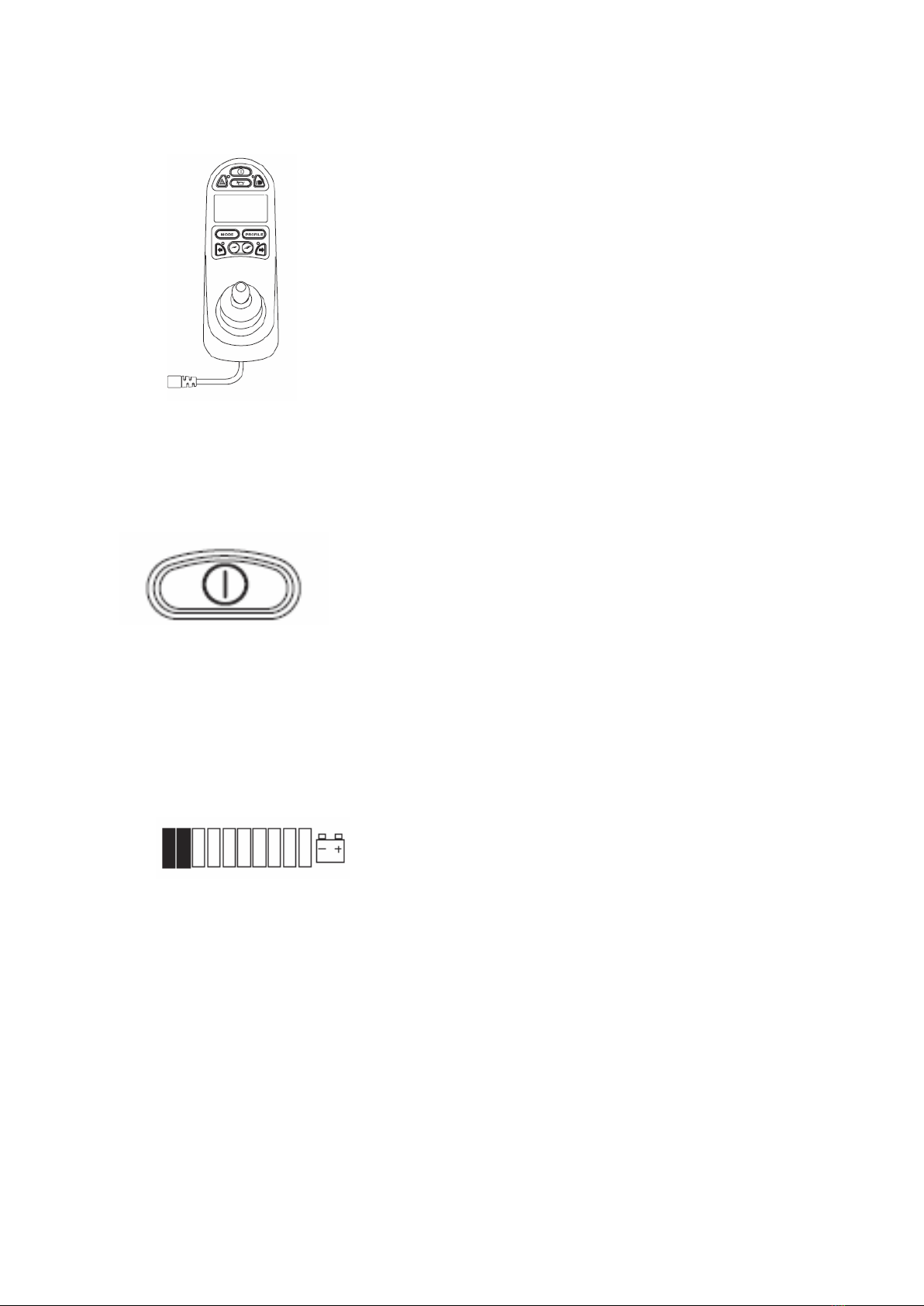

4.2. R-net control (option)
4.2.1. On-/ Off-button
4.2.2. Battery gauge
On the control unit you can find a
joystick, buttons and a LCD-display,
where we take a closer look at in the
following.
With the On-/ Off-button the chair
can be turned on or switched off.
Don’t use this button to stop the
wheelchair, unless there is an
emergency.
This gauge is only visible on the
display, if the control is turned on. It
shows you how much power there is
left in the batteries. If the gauge
starts to flash, it means the chair is
still working correct, but the batteries
should be charged very soon.
