Lex 3I170DW User manual
3I170DW
Intel Skylake-S / Kaby Lake-S Core i CPU,
DDR4 2133 MT/s SODIMM, 5 x LAN / HDMI / USB /
COM / PCIe mini card
All in One
Intel Skylake-S / Kaby Lake-S Core i CPU,
5 x Intel GbE LAN, 2 x PCIe mini card slots, HDMI, VGA
10 x USB, 2 x COM , Wide Range DC-IN
NO. 3I170DW
Release date: July. 06. 2018
i
3I170DW
Warning!...................................................................................................................................
Hardware Notice Guide ......................................................................................................
CHAPTER 1 GENERAL INFORMATION .................................................................................
1-1 MAJOR FEATURE................................................................................................................
1-2 SPECIFICATION ..................................................................................................................
1-3 INSTALLING THE CPU / NORTH BRIDGE CHIP HEATSINK. (SOCKET VERSION) .........
1-4 VERTICAL SODIMM ASSEMBLY GUIDE ............................................................................
1-5 INSTALLING THE MINI PCI-e CARD (FULL SIZE) ..............................................................
1-6 PACKING LIST .....................................................................................................................
CHAPTER 2 HARDWARE INSTALLATION ............................................................................
2-1 UNPACKING PRECAUTION ................................................................................................
2-2 UNPACKING CHECKUP ......................................................................................................
2-3 DIMENSION-3I170DW-TOP ................................................................................................
2-4 LAYOUT-3I170DW-FUNCTION MAP-TOP ..........................................................................
2-5 FUNCTION MAP-3I170DW ..................................................................................................
2-6 CONNECTOR MAP-3I170DW-TOP .....................................................................................
2-7 DIAGRAM-3I170DW-TOP ....................................................................................................
2-8 LIST OF JUMPERS ..............................................................................................................
2-9 JUMPER SETTING DESCRIPTION ....................................................................................
2-10 JCMOS1: CMOS DATA CLEAR ..................................................................................
2-11 COM PORT PIN9 SELECT RI SIGNAL OR VOLTAGE SOURCE .......................................
CHAPTER 3 CONNECTION ....................................................................................................
3-1 LIST OF CONNECTORS.......................................................................................................
3-2 DC POWER INPUT DC-IN CONNECTOR ...........................................................................
3-3 BATTERY INPUT .................................................................................................................
3-4 DC POWER OUTPUT ..........................................................................................................
3-5 FRONT PANEL& FAN ..........................................................................................................
3-6 DISPLAY INTERFACE .........................................................................................................
3-7 AUDIO INTERFACE .............................................................................................................
3-8 I/O INTERFACE ....................................................................................................................
3-8-1 RS485 MODE PORTS (2x5 PIN 2.0mm WAFER) ............................................................
3-8-2 DIGITAL INPUT / OUTPUT / WATCH DOG TIME ..............................................................
3-8-2-1 IO DEVICE: F75111 UNDER DOS .................................................................................
3-8-2-2 IO DEVICE: F75111 UNDER WINDOWS .......................................................................
3-8-2-3 IO DEVICE: F75111 VB6 UNDER WINDOWS ...............................................................
3-8-2-2-4 IO DEVICE: F75111 UNDER LINUX ...........................................................................
3-9 I2C BUS INTERFACE ...........................................................................................................
3-10 PS2 KB/MS ........................................................................................................................
Contents
1
2
4
5
6
7
9
10
11
12
12
13
14
15
16
17
18
19
19
20
21
22
22
23
24
25
27
30
31
33
34
35
37
39
45
49
54
54
ii
55
57
58
59
60
60
61
61
62
63
63
63
64
65
65
66
67
68
68
69
70
70
70
71
71
72
73
73
73
74
75
76
77
78
79
80
81
83
84
85
86
3-11 LAN & USB INTERFACE ....................................................................................................
3-12 USB INTERFACE ...............................................................................................................
3-13 SATA INTERFACE ..............................................................................................................
3-14 MODULE SOCKER ............................................................................................................
3-15 SIM SOCKET .....................................................................................................................
3-16 SODIMM SOCKET .............................................................................................................
CHAPTER 4 INTRODUCTION OF BIOS ................................................................................
4-1 ENTER SETUP ....................................................................................................................
4-2 BIOS MENU SCREEN .........................................................................................................
4-3 FUNCTION KEYS ................................................................................................................
4-4 GETTING HELP ...................................................................................................................
4-5 MENU BARS ........................................................................................................................
4-6 MAIN ....................................................................................................................................
4-7 ADVANCED ..........................................................................................................................
4-7-1 CPU CONFIGURATION ....................................................................................................
4-7-2 TRUSTED COMPUTING ..................................................................................................
4-7-3 ACPI SETTINGS ...............................................................................................................
4-7-4 F81966 SUPER IO CONFIGURATION .............................................................................
4-7-4-1 SERIAL PORT 1 CONFIGURATION ..............................................................................
4-7-4-2 SERIAL PORT 2 CONFIGURATION ..............................................................................
4-7-5 HARDWARE MONITOR ....................................................................................................
4-7-6 SERIAL PORT CONSOLE REDIRECTION .......................................................................
4-7-7 INTEL TXT INFORMATION ...............................................................................................
4-7-8 NETWORK STACK CONFIGURATION ............................................................................
4-7-9 CSM CONFIGURATION ...................................................................................................
4-7-10 USB CONFIGURATION ..................................................................................................
4-8 CHIPSET ..............................................................................................................................
4-8-1 SYSTEM AGENT (SA) CONFIGURATION ........................................................................
4-8-1-1 MEMORY CONFIGURATION ........................................................................................
4-8-2 PCH-IO CONFIGURATION ...............................................................................................
4-8-2-1 PCI EXPRESS CONFIGURATION ................................................................................
4-8-2-1-1 PCI EXPRESS ROOT PORT 5/6/7/8 (I210/I211 LAN2/3/4/5) .....................................
4-8-2-1-2 SATA AND RST CONFIGURATION ............................................................................
4-9 SECURITY ...........................................................................................................................
4-10 BOOT .................................................................................................................................
4-11 SAVE & EXIT ......................................................................................................................
CHAPTER 5 DRIVER INSTALLATION ...................................................................................
5-1 INF INSTALL INTEL SKYLAKE CHIPSET DRIVER .............................................................
5-2 VGA INSTALL INTEL SKYLAKE VGA DRIVER ....................................................................
5-3 HD AUDIO INSTALL REALTEK HIGH DEFINITION AUDIO DRIVER ..................................
5-4 ME TOOLS INSTALL INTEL MANAGEMENT ENGINE INTERFACE DRIVER ....................
iii
5-5 LAN INSTALL INTEL LAN DRIVER ......................................................................................
5-8 HOW TO UPDATE INSYDE BIOS ........................................................................................
APPENDIX A: POWER CONSUMPTION TEST .........................................................................
APPENDIX B: RESOLUTION LIST ............................................................................................
87
89
90
92
Copyright
This manual is copyrighted and all rights are reserved. It does not allow any non
authorization in copied, photocopied, translated or reproduced to any electronic or
machine readable form in whole or in part without prior written consent from the
manufacturer.
In general, the manufacturer will not be liable for any direct, indirect, special, incidental
or consequential damages arising from the use of inability to use the product or
documentation, even if advised of the possibility of such damages.
The manufacturer keeps the rights in the subject to change the contents of this
manual without prior notices in order to improve the function design, performance,
quality, and reliability. The author assumes no responsibility for any errors or omissions,
which may appear in this manual, nor does it make a commitment to update the
information contained herein.
Trademarks
Intel is a registered trademark of Intel Corporation.
Award is a registered trademark of Award Software, Inc.
All other trademarks, products and or product's name mentioned here are for
identification purposes only, and may be trademarks and/or registered trademarks
of their respective companies or owners.
© Copyright 2018
All Rights Reserved.
User Manual edition 0.1, July. 06. 2018
1
Warning !
1. Battery
Batteries on board are consumables.
The life time of them are not guaranteed.
2. Fless solution with HDD
The specification & limitation of HDD should be considered carefully when
the fanless solution is implemented.
3. We will not give further notification in case of changes of
product information and manual.
4. SATA interface does not support Hot SWAP function.
5. There might be a 20% inaccuracy of WDT at room temperature.
6. Please make sure the voltage specification meets the requirement
of equipment before plugging in.
8. Caution! Please notice that the heat dissipation problem could cause the MB
system unstable. Please deal with heat dissipation properly when
buying single MB set.
9. Please avoid approaching the heat sink area to prevent users from
being scalded with fanless products.
12. It is important to install a system fan toward the CPU to decrease
the possibility of overheating / system hanging up issues,
or customer is suggested to have a fine cooling system to dissipate heat
from CPU.
11. DO NOT apply any other material which may reduce cooling
performance onto the thermal pad.
10. If users repair, modify or destroy any component of product unauthorizedly,
We will not take responsibility or provide warranty anymore.
7. There are two types of SSD, commercial grade and industrial grade, which
provide different read/write speed performance, operation temperature and
life cycle. Please contact sales for further information before making orders.
2
Hardware Notice Guide
1. Before linking power supply with the motherboard, please attach DC-in adapter to
the motherboard first. Then plug the adapter power to AC outlet.
Always shut down the computer normally before you move the system unit or
remove the power supply from the motherboard. Please unplug the DC-in adapter first
and then unplug the adapter from the AC outlet.

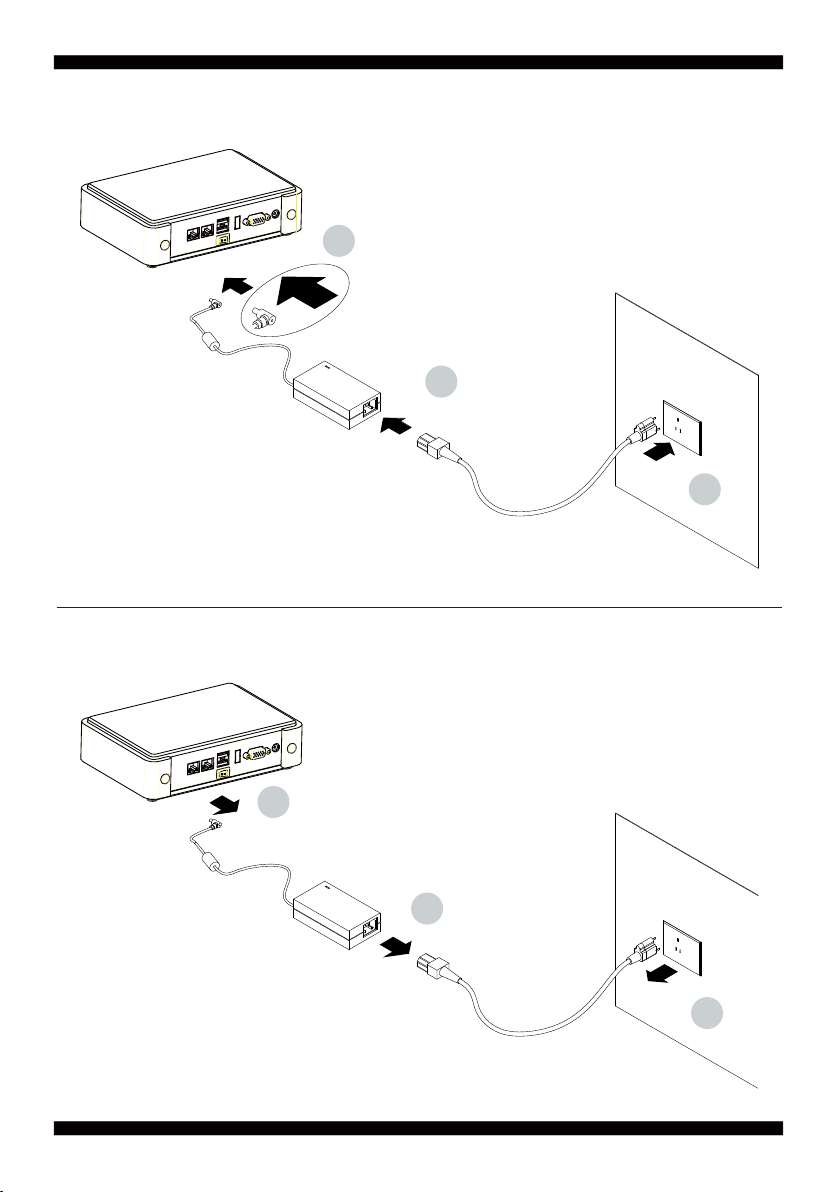

Please refer photo 1 as standard procedures.
2. In case of using DIRECT DC-in (without adapter), please check the allowed range
for voltage & current of cables. And make sure you have the safety protection for
outer issues such as short / broken circuit, overvoltage, surge, lightning strike.
3. In case of using DC-out to an external device, please make sure its voltage and
current comply with the motherboard specification.
4. The total power consumption is determined by various conditions
(CPU / motherboard type, device, application, etc.). Be cautious to the power cable
you use for the system, one with UL standard will be highly recommended.
5. It’s highly possible to burn out the CPU if you change/ modify any parts of
the CPU cooler.
6. Please wear wrist strap and attach it to a metal part of the system unit
before handling a component. You can also touch an object which is
ground connected or attached with metal surface if you don't have wrist strap.
7. Please be careful to handle & don't touch the sharp-pointed components on
the bottom of PCBA.
8. Remove or change any components form the motherboard will VOID the warranty of
the motherboard.
9. Before you install / remove any components or even make any jumper setting
on the motherboard, please make sure to disconnect the power supply first.
(follow the aforementioned instruction guide)
10. "POWERON after PWR-Fail" function must be used carefully as below:
When the DC power adaptor runs out of power, unplug it from the DC current;
Once power returns, plug it back after 5 seconds.
If there is a power outage, unplug it from the AC current, once power returns,
plug it back after 30 seconds. Otherwise it will cause system locked or made
a severe damage.
Remark 1:
Always insert / unplug the DC-in horizontally & directly to/from the motherboard.
DO NOT twist, it is designed to fit snugly.
Moreover, erratic pull / push action might cause an unpredictable damage to the
component & system unit.
*
3
2
1
3
1
2
3
Photo 1 Insert
Unplug
4
Chapter-1
General Information
The 3I170DW is an All-In-One board which is 7th / 6th Gen Intel® Core™ i7 / i5 / i3 and
Pentium® / Celeron® Processor (formerly codenamed Skylake-S & Kaby Lake-S) based
industrial motherboard in the LGA1151 package with Intel® Q170 Express chipset. The
3I170DW supports high-speed data transfer interfaces such as PCIe3.0, USB 3.0, and
SATA 6 Gb/s (SATA III), with one-channel DDR4 2133 MHz memory up to 16 GB in one
SODIMM slot and supports 2 USB 3.0, 8 USB 2.0, 2 COM and 2 SATA III ports, as well as
graphics interface for HDMI and VGA displays.
High-performance and power-efficient communication platform, the embedded
motherboard with wide range 9~36V DC power input and integrated 5 x GbE LAN, 10 x
USB, 2 x COM Port and HDMI, VGA display interface that offer the ideal platforms for high
performance applications in Networking, Smart Automation, Point-Of-Information (POI),
Self-Services, In-vehicle, Industry 4.0 and any compact high-performance Internet of
Things (IoT) applications.
The 3I170DW also supports two serial ports RS232 / RS422 / RS485 auto switch by
BIOS settings and +5V / 12V selectable by jumper. In addition, there are multi-ports of Hi-
Speed USB 3.0 / 2.0 to enhance the host controller interface which will ensure the high
performance level and flexible expansion. The expandable interfaces include two full-
size PCIe Mini card for PCIe x 1 or mSATA (auto-detection) and USB interface. There is
one SIM socket onboard for the mini cards to get the 3G / 4G communication easier and
quickly.
the detail information.
5
1. The Desktop Skylake-S / Kaby Lake-S Platform processor includes Integrated Display
Engine, GPU and Integrated Memory Controller. The processor is designed be offered
in a LAG1151 package.
2. Intel Q170 Chipset Family Platform Controller Hub (PCH)
3. Supports one Channel of DDR4 SODIMM slot, up to 16GB, data transfer rates of
1866MT/s and 2133 MT/s
4. Intel Desktop Skylake-S / Kaby Lake-S Platform Processor Integrated Graphics. GEN
9 architecture supports up to 72 Execution Units (EUs), depending on the processor SKU.
5. Integrated Gigabit LAN Controller with Intel I219LM Gigabit Ethernet PHY supports
vPro. Support 4 x 10 / 100 / 1000 Mbps Intel LAN ports.
6. Supports HDMI & VGA
7. Supports 2 x RS232 auto switch to RS485 / RS422 by BIOS
8. 2 type A USB3.0 external and 8 USB 2.0 internal
9. ALC886 HD Audio Specification 1.0 Two channels sound. Two channel Class D Audio
Amplifier.
10. Two SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s)
11. Support extended 2 x Mini PCIe card for PCIe x 1, mSATA and USB interface.
There is 1 SIM Card Socket for mini card 1. (3G / 4G LTE module)
12. Hardware digital Input & Output, 8 x DI / 8 x DO, Hardware Watch Dog Timer,
0~255 sec programmable
13. Support TPM 2.0 (depends on CPU)
14. PCB Dimension: 146 x 110 mm
1-1 Major Feature
6
1. CPU: Desktop Skylake-S / Kaby Lake-S Platform processor. The processor is
designed be offered in a LAG1151 package.
2. Memory: One SODIMM slot for DDR4 SDRAM, Max. 16GB, data transfer rates of
1866MT/s and 2133 MT/s
3. Graphics: Intel Desktop Skylake-S / Kaby Lake-S Platform Processor Integrated
Graphics. GEN 9 architecture supports up to 72 Execution Units (EUs), depending
on the processor SKU. eDP 1.3 2 Lanes up to 1920 x 1200, DVI 1.2 2048 x 1080,
DP 1.2 4096 x 2160, HDMI 1.3 up to 3840 x 2160
4. SATA: Integrated Serial ATA Host Controller Up to 2 SATA port, SATA Gen3 Data
transfer rates up to 6.0 Gb/s (600 MB/s).
5. LAN: One Gigabit LAN Controller with Intel I219LM Gigabit Ethernet PHY & four
Intel I210-IT LAN chipset or Intel I211-AT LAN chipset (Option) with 10 / 100 / 1000 Mbps
6. I/O Chip: Chipsets for 2 ports RS232 / 422 / 485
7. USB: 2 type A USB 3.0 connector onboard and 8 USB 2.0 (internal)
8. Sound: Support line in, line out and MIC in, Audio Amplifier: Ti TPA2012D2RTJ
Class D 2.1W Audio amplifier
9. WDT/DIO: Hardware digital Input & Output, 8 x DI / 8 x DO / Hardware Watch Dog
Timer, 0~255 sec programmable
10. Expansion interface: Two full-size PCIe Mini card for PCIe x 1, mSATA and USB
interface, 1 SIM socket.
11. TPM: Infineon SLB 9665 TT 2.0 Trusted Platform Module
12. BIOS: AMI UEFI BIOS
13. Dimension: 146 x 110 mm
14. Power: DC IN +9V~36V
1-2 Specification
7
1-3 Installing the CPU / North Bridge Chip Heatsink.
(Socket Version)
1. Put the "CPU Under Bracket" with the CPU
location at the back side of motherboard
2. Open of CPU pin anti- crash cover
3. Install the CPU 4. Put the CPU mounting bracket on the
motherboard
8
5. Screw hexagonal studs in diagonally opposite
corners
6. Use a hexagonal screwdriver
7. Insert the CPU Heat Sink above the CPU and
tighten it with the diagonal screws.
8. Done !
9
1-4 Vertical SODIMM assembly guide
1. Install the memory into SODIMM
2. Press down firmly to ensure the memory is locked.
Uninstall
1. Pull open both sides of the memory slot.
2. Take out the memory.
10
1-5 Installing the Mini PCI-e Card (Full Size)
1. Unscrew the screw on the board
3. Gently push down the Mini Card and screw the screw back.
2. Plug in the Mini Card in a 45 angle
11
1-6 Packing List
Material Code Description Detail Specification Quantit
17G1901-1720001-0 MB-3I170DW-2CXX-001 LF,3I170DW-2CXX,Rev.:001 1
26G6003-7350-0100 Power Cable LF, 2.0 2*4/DC JK,L=9cm 1
36G6003-1009-0100 SATA Power Cable LF,L=25cm,1*4/2.0 to 180° SATA 15p 1
46G6001-2203-0100 SATA DATA Cable (Red) LF,L=25cm 1
56G8006-2350-0100 DVD LF, support Apollo Lake/Skylake 1
66G5212-0620-0100 ■60W Power
Adapter,12V/5A,2.5Ø LF,L Type,FSP060-DIBAN2,FSP 1
*The packing list above is for the users who purchase single motherboard. The users
who purchase the board with chassis may refer to the packing list in the Assembly Guide.
Please contact with your dealer if any of these items is missing or damaged
on delivery. And please keep all parts of the delivery package with packing
materials in case if you need to deliver or store the product in the future.
12
Chapter-2
This chapter provides the information how to install the hardware of 3I170DW.
2-1 and 2-2 to check the delivery package and unpack carefully. Please follow the jumper
setting procedure.
You should follow these
steps to protect the board from the static electric
discharge whenever you handle the board:
1. Ground yourself by a grounded wrist strap at all times when you
handle the 3I170DW.
Well secure the ALLIGATOR clip of the strap to the end of the shielded wire lead from
a grounded object. Please put on and connect the strap before handling the
3I170DW for harmlessly discharge any static electricity
through the strap.
2. Please use anti-static pad to put any components, parts, or tools on the pad whenever
you work on them outside the computer. You may also use the anti-static bag instead of
the pad. Please ask your local supplier for necessary parts on anti-static requirement.
3. Do not plug any connector or set any jumper when the power is on.
Hardware Installation
2-1 Unpacking Precaution
NOTE!
1. Do not touch the board or any other sensitive components without all necessary
anti-static protection.
2. Please pay attention to the voltage limitation of DC-IN 12V 5%.
Overuse of DC-IN voltage limitation or change to another power adapter
(not provided with this system) will VOID warranty.
13
First of all, please follow all necessary steps of section 2-1 to protect 3I170DW
from electricity discharge. With reference to section 1-6
please check the delivery package again with following steps:
1. Unpack the 3I170DW board and keep all
packing material, manual and driver disc etc, do not dispose !
2. Is there any components lose or drops from the board?
DO NOT CONTINUE TO INSTALL THIS BOARD!
CONTACT THE DEALER YOU PURCHASED
THIS BOARD FROM, IMMEDIATELY.
3. Is there any visible damage on the board?
DO NOT CONTINUE TO INSTALL THIS BOARD!CONTACT
THE DEALER YOU PURCHASED THIS BOARD FROM, IMMEDIATELY.
4. Check your optional parts (i.e. DDR, CF etc.), all necessary jumpers
setting to jumper pin-set, and CMOS setup correctly.
Please also refer to all information of jumper settings in this manual.
5. Check your external devices (i.e. Add-On-Card, Driver Type etc.)
for complete add-in or connection and CMOS setup correctly.
Please also refer to all information of connector connection in this manual.
6. Please keep all necessary manual and driver disc in a good condition for future
re-installation if you change your Operating System.
2-2 Unpacking checkup
14
2-3 Dimension-3I170DW
TOP
3
14.19
65.81
11
23
59
79.5
143
146
11
85.2
106.32
5- 3.4
4- 3.8
110
1.6
31.05
15
2-4 Layout-3I170DW-Function Map
TOP
DDR4 SODIMM
CPU Socket
CPU FAN
DC-IN
COM1
VGA
COM1 Pin9 Select
COM2 Pin9 Select
COM2
HDMI
LAN1/USB3.0*2
LAN2/LAN3
LAN4/LAN5
+12V/+5V Output SMBUS
USB2.0
COMS Data Clear
Battery IN
Power Switch
Front Panel
4DIO
PS2 KB/MS
SATA2
SATA1
Heater Power
Line/Line-out/
Mic-in
SIM Socket
Audio AMP-R
Audio AMP-L
Table of contents
