Lexmark MS911 Use and care manual

MS911, MX910, MX911, MX912
Technical Reference
September 2014 www.lexmark.com

September 2014
The following paragraph does not apply to any country where such provisions are inconsistent with local law: LEXMARK INTERNATIONAL, INC.,
PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or implied
warranties in certain transactions; therefore, this statement may not apply to you.
This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these
changes will be incorporated in later editions. Improvements or changes in the products or the programs described may be made at any time.
References in this publication to products, programs, or services do not imply that the manufacturer intends to make these available in all countries
in which it operates. Any reference to a product, program, or service is not intended to state or imply that only that product, program, or service
may be used. Any functionally equivalent product, program, or service that does not infringe any existing intellectual property right may be used
instead. Evaluation and verification of operation in conjunction with other products, programs, or services, except those expressly designated by
the manufacturer, are the user’s responsibility.
For Lexmark technical support, visit http://support.lexmark.com.
For information on supplies and downloads, visit www.lexmark.com.
© 2014 Lexmark International, Inc.
All rights reserved.
Trademarks
Lexmark and Lexmark with diamond design are trademarks of Lexmark International, Inc., registered in the United States and/or other countries.
Mac and the Mac logo are trademarks of Apple Inc., registered in the U.S. and other countries.
PCL® is a registered trademark of the Hewlett-Packard Company. PCL is Hewlett-Packard Company’s designation of a set of printer commands
(language) and functions included in its printer products. This printer is intended to be compatible with the PCL language. This means the printer
recognizes PCL commands used in various application programs, and that the printer emulates the functions corresponding to the commands.
All other trademarks are the property of their respective owners.
GOVERNMENT END USERS
The Software Program and any related documentation are "Commercial Items," as that term is defined in 48 C.F.R. 2.101, "Computer Software"
and "Commercial Computer Software Documentation," as such terms are used in 48 C.F.R. 12.212 or 48 C.F.R. 227.7202, as applicable. Consistent
with 48 C.F.R. 12.212 or 48 C.F.R. 227.7202-1 through 227.7207-4, as applicable, the Commercial Computer Software and Commercial Software
Documentation are licensed to the U.S. Government end users (a) only as Commercial Items and (b) with only those rights as are granted to all
other end users pursuant to the terms and conditions herein.

Contents
Introduction........................................................................................................5
Understanding letters after model numbers.......................................................................................................5
Learning about the printer..................................................................................6
Finding information about the printer................................................................................................................6
Printer Control Language (PCL) page formatting..................................................7
Printable areas.....................................................................................................................................................7
Supported paper and envelope dimensions.......................................................................................................7
Printer Job Language (PJL).................................................................................10
PJL commands information...............................................................................................................................10
PostScript (PS) emulation..................................................................................11
Supported paper sizes.......................................................................................................................................11
PostScript paper tray support...........................................................................................................................12
PostScript envelope size support......................................................................................................................13
PostScript envelope tray support......................................................................................................................14
Printer specifications.........................................................................................16
Airflow requirement..........................................................................................................................................16
Noise emission levels.........................................................................................................................................16
Electrical specifications.....................................................................................................................................16
Power requirements..........................................................................................................................................16
Physical specifications.......................................................................................................................................17
Clearance requirements....................................................................................................................................18
Environmental conditions.................................................................................................................................18
Appendix A: PCL support...................................................................................19
PCL emulation commands.................................................................................................................................19
GL/2 commands................................................................................................................................................24
Appendix B: PJL support....................................................................................28
Common variables for both printer languages..................................................................................................28
Lexmark‑unique PJL variables for both printer languages................................................................................30
Common variables for PCL emulation...............................................................................................................39
Lexmark‑unique variables for PCL emulation....................................................................................................40
Common variables for PostScript emulation.....................................................................................................40
Lexmark‑unique variables for PostScript emulation.........................................................................................40
Lexmark‑unique LRESOURCE variables..............................................................................................................41
Status Readback commands..............................................................................................................................41
Contents 3

USTATUS unsolicited status variables...............................................................................................................41
PJL messages for auto-continuable conditions.................................................................................................42
PJL messages for attendance conditions...........................................................................................................49
PJL messages for paper handling.......................................................................................................................69
PJL messages for paper jams.............................................................................................................................72
Service errors.....................................................................................................................................................78
Device attendance messages............................................................................................................................78
Lexmark‑unique PJL commands........................................................................................................................78
Appendix C: PostScript support.........................................................................80
Supplemental operators....................................................................................................................................80
Page device parameters....................................................................................................................................83
User interpreter parameters.............................................................................................................................87
System interpreter parameters.........................................................................................................................88
Devices supported.............................................................................................................................................90
Device parameters............................................................................................................................................92
PostScript message keys commands...............................................................................................................100
Index...............................................................................................................101
Contents 4

Introduction
Overview
This edition of the Technical Reference contains information about the following printers or multifunction products (MFPs):
• MS911
• MX910
• MX911
• MX912
Understanding letters after model numbers
Some Lexmark
TM
printers may have one or more letters after the model number to indicate features.
Letter Meaning
dDuplex*
nNetwork
t Additional tray included
x High capacity tray
ee-Task(touchscreendevice)
m Mailbox
f Staple finishing option
p Staple with hole punch finisher
h Hard disk
*Duplex (two‑sided) printing using an optional duplex unit or an internal duplex unit based on the product.
Introduction 5

Learning about the printer
Finding information about the printer
What are you looking for? Find it here
Initial setup instructions:
•Connecting the printer
•Installing the printer software
Setup documentation—The setup documentation came
with the printer and is also available at
http://support.lexmark.com.
Additional setup and instructions for using the printer:
•Selecting and storing paper and specialty media
•Loading paper
•Configuring printer settings
•Viewing and printing documents and photos
•Setting up and using the printer software
•Configuring the printer on a network
•Caring for and maintaining the printer
•Troubleshooting and solving problems
User's Guide and Quick Reference Guide—The guides are
available at http://support.lexmark.com.
Note: These guides are also available in other languages.
Information on setting up and configuring the accessibility features
of your printer
Lexmark Accessibility Guide—This guide is available at
http://support.lexmark.com.
Help using the printer software Windows or Mac Help—Open a printer software program or
application, and then click Help.
Click
?
to view context‑sensitive information.
Notes:
•Help is automatically installed with the printer
software.
•The printer software is located in the printer program
folder or on the desktop, depending on your operating
system.
The latest supplemental information, updates, and customer
support:
•Documentation
•Driver downloads
•Live chat support
•E‑mail support
•Voice support
Lexmark support Web site—http://support.lexmark.com
Note: Select your country or region, and then select your
product to view the appropriate support site.
Support telephone numbers and hours of operation for your
country or region can be found on the support Web site or
on the printed warranty that came with your printer.
Record the following information (located on the store
receipt and at the back of the printer), and have it ready
when you contact customer support so that they may serve
you faster:
•Machine Type number
•Serial number
•Date purchased
•Store where purchased
Warranty information Warranty information varies by country or region:
•In the U.S.—See the Statement of Limited Warranty
included with this printer, or go to
http://support.lexmark.com.
•In other countries and regions—See the printed
warranty that came with this printer.
Learning about the printer 6

Printer Control Language (PCL) page formatting
For more information on PCL, see the Printer Languages and Interfaces Technical Reference. It contains a complete listing with
descriptions of PCL commands.
To determine which PCL commands your printer supports, see “Appendix A: PCL support” on page 19.
Printable areas

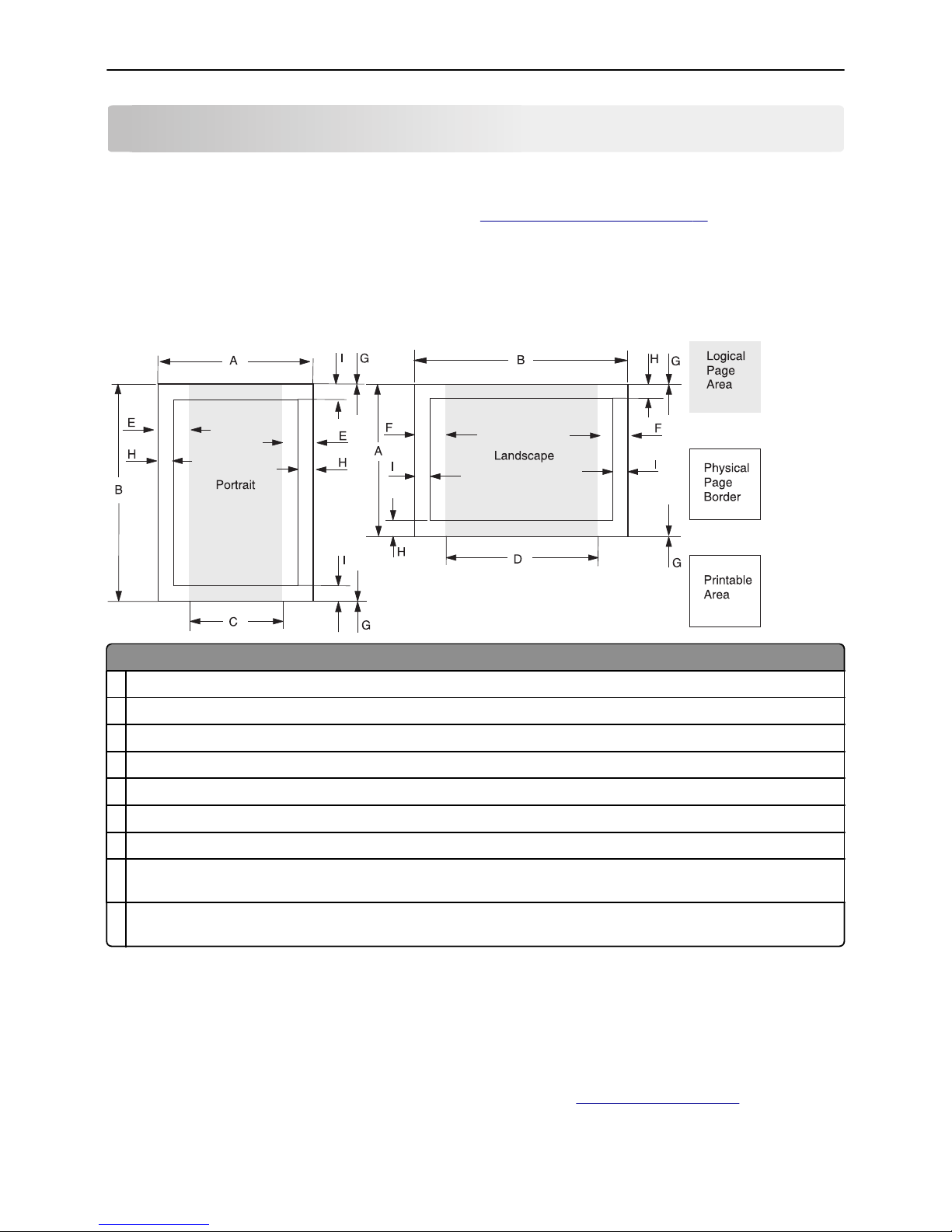

The printable areas and logical pages for PCL emulation (both portrait and landscape orientation) are illustrated below. See
the legend that follows for definitions of areas Athrough I.
Legend:
APortrait physical page width and landscape physical page length
BPortrait physical page length and landscape physical page width
CPortrait logical page width
DLandscape logical page width
EDistance between the side edge of the physical page and the logical page in portrait
FDistance between the side edge of the physical page and the logical page in landscape
GDistance between the top and bottom edge of the physical page and logical page
HDistance between the left and right edge of the physical page and the printable area in portrait, or distance between the top
and bottom edge of the physical page and printable area in landscape
IDistance between the top and bottom edge of the physical page and the printable area in portrait, or distance between the left
and right edge of the physical page and the printable area in landscape
Note: The tables that follow in this chapter list the page sizes and dimensions of each area labeled on the preceding
diagram for all paper and envelope sizes your printer supports.
Supported paper and envelope dimensions
The following table lists the page sizes and print area dimensions for all supported paper and envelope sizes. For more
information about the printable areas and logical pages for PCL emulation, see “Printable areas” on page 7.
Printer Control Language (PCL) page formatting 7

Selection Paper/envelope dimensions Dimensions by area (pels)1
Page size
parameters2
Name mm inches A B C D E F G H I
Paper
2, 602 Letter 216 x 279 8.5 x 11 5100 6600 4800 6360 150 120 0 100 100
3, 603 Legal 216 x 356 8.5 x 14 5100 8400 4800 8160 150 120 0 100 100
12, 45, 612 JIS B5 182 x 257 7.2 x 10.1 4300 6070 4000 5830 150 120 0 100 100
26, 626 A4
(198 mm)3
210 x 297 8.3 x 11.7 4960 7014 4676 6778 142 118 0 80 100
26, 626 A4
(203 mm)3
210 x 297 8.3 x 11.7 4960 7014 4800 6778 80 118 0 80 100
1, 601 Executive 184.2 x 266.7 7.25 x 10.5 4350 6300 4050 6060 150 120 0 100 100
13, 613 A5 148 x 210 5.83 x 8.27 3496 4960 3196 4720 142 118 0 100 100
38 SRA3 320 x 450 12.6 x 17.7 7560 10630 7176 10394 192 118 0 192 100
27 A3 297 x 420 11.7 x 16.54 7014 9920 6730 9684 142 118 0 100 100
46 JIS B4 257 x 364 10.12 x 14.33 6070 8600 5786 8364 142 118 0 100 100
120 12 x 18 305 x 457 12 x 18 7200 10800 6900 10560 150 120 0 100 100
6 or 11 11 x 17
(Ledger)
279.4 x 431.8 11 x 17 6600 10200 6300 9960 150 120 0 100 100
300 Oficio
(México)
215.9 x 340.4 8.5 x 13.4 5100 8040 4800 7800 150 120 0 100 100
4 or 10 Folio 216 x 330 8.5 x 13 5100 7800 4800 7560 150 120 0 100 100
15 Statement 139.7 x 215.9 5.5 x 8.5 3300 5100 3000 4860 150 120 0 100 100
24 A6 105 x 148 4.13 x 5.83 2480 3496 2196 3260 142 118 0 100 100
101 Universal476.2 x 76.2 to
320 x 1219.2
3 x 3 to
12.6 x 48
5100 8400 4800 8160 150 120 0 100 100
Envelope
80 7 3/4
Envelope
98.4 x 190.5 3.875 x 7.5 2324 4500 2024 4260 150 120 0 100 100
89 9 Envelope 98.4 x 225.4 3.875 x 8.875 2324 5324 2024 5084 150 120 0 100 100
81 10
Envelope
104.8 x 241.3 4.125 x 9.5 2474 5700 2174 5460 150 120 0 100 100
90 DL
Envelope
220 x 110 8.66 x 4.33 2598 5196 2314 4960 142 118 0 100 100
1Pel dimensions are for 600 dpi.
2For more information, see the Page Control table in the PCL chapter of the Printer Language and Interfaces Technical Reference.
3The width of the logical page can be changed from the control panel or your application.
4Supports two‑sided printing if size length is between 5.83 inches (148 mm) and 18 inches (458 mm); and the width is between
5.5 inches (140 mm) and 12.6 inches (320 mm). Area dimensions for this paper are listed in pel ranges.
5Paper ID 99 is supported for backward compatibility with other Lexmark printers. It has the same logical paper size as ID 100
(compatible with HP LaserJet 5Si/5SiMx) but is 8 pels wider than the Lexmark 4039.
Note: The explanation of the printable area assumes that the Print Area menu item is set to Normal. For more information, see
“Print Area Menu Item” in the PCL chapter of the Printer Language and Interfaces Technical Reference.
Printer Control Language (PCL) page formatting 8

Selection Paper/envelope dimensions Dimensions by area (pels)1
Page size
parameters2
Name mm inches A B C D E F G H I
91 C5
Envelope
229 x 162 9.02 x 6.38 3826 5408 3542 5172 142 118 0 100 100
995, 100 B5
Envelope
176.0 x 250.0 6.93 x 9.84 4156 5904 3872 5668 142 118 0 100 100
600 Other
Envelope
229.11 x 355.6 9.02 x 14.0 5100 8400 4800 8160 150 120 0 100 100
1Pel dimensions are for 600 dpi.
2For more information, see the Page Control table in the PCL chapter of the Printer Language and Interfaces Technical Reference.
3The width of the logical page can be changed from the control panel or your application.
4Supports two‑sided printing if size length is between 5.83 inches (148 mm) and 18 inches (458 mm); and the width is between
5.5 inches (140 mm) and 12.6 inches (320 mm). Area dimensions for this paper are listed in pel ranges.
5Paper ID 99 is supported for backward compatibility with other Lexmark printers. It has the same logical paper size as ID 100
(compatible with HP LaserJet 5Si/5SiMx) but is 8 pels wider than the Lexmark 4039.
Note: The explanation of the printable area assumes that the Print Area menu item is set to Normal. For more information, see
“Print Area Menu Item” in the PCL chapter of the Printer Language and Interfaces Technical Reference.
Printer Control Language (PCL) page formatting 9

Printer Job Language (PJL)
PJL commands information
Your printer supports complete PJL commands, including certain commands that cause the printer to enter PCL emulation,
PostScript emulation, and Personal Printer Data Stream (PPDS).
For a complete listing with descriptions of PJL commands, see the Printer Languages and Interfaces Technical Reference.
To determine which commands your printer supports, see “Appendix B: PJL support” on page 28.
Printer Job Language (PJL) 10

PostScript (PS) emulation
Your printer supports complete PS emulation supplemental operators. For detailed descriptions of these operators, see the
PS emulation chapter of the Printer Languages and Interfaces Technical Reference.
To determine which commands your printer supports, see “Appendix C: PostScript support” on page 80.
Supported paper sizes
= Supported
X = Not supported
Paper sizes Printer model
Size Literal name Size (mm) Size (in.) Size (points) MS911 MX910,
MX911,
MX912
11 x 17 11 x 17 279.4 x 431.8 11 x 17 792 x 1224
17 x 11 ledger 431.8 x 279.4 17 x 11 1224 x 792
12 x 18 12 x 18 305 x 457 12 x 18 864 x 1296
A3 a3 297 x 420 11.7 x 16.54 842 x 1191
A4 a4 210.0 x 297.0 8.3 x 11.7 595 x 842
A5 a5 148.0 x 210.0 5.83 x 8.27 419 x 595
A6 a6 105.0 x 148.0 4.13 x 5.83 297 x 419
Executive executivepage 184.2 x 266.7 7.25 x 10.5 522 x 756
Folio folio 215.9 x 330.2 8.5 x 13.0 612 x 936
JIS B4 b41257 x 364 10.12 x 14.33 729 x 1032
JIS B5 b51182.0 x 257.0 7.2 x 10.1 516 x 729
Legal legal 215.9 x 355.6 8.5 x 14.0 612 x 1008
Letter letter 215.9 x 279.4 8.5 x 11.0 612 x 792
Oficio oficio 216 x 340 8.5 x 13.4 612 x 9652
612 x 9723
SRA3 SRA3 320 x 450 12.6 x 17.7 907 x 1274
Statement statement 139.7 x 215.9 5.5 x 8.5 396 x 612
Universal 76.2 x 76.2 to
320 x 1219.2
3 x 3 to 12.6 x 48 612 x 1008
1This is a Japanese Industry Standard (JIS) paper size. The same name designation is use by the JIS and International Organization
for Standardization (ISO) for different paper sizes.
2This is a Lexmark‑unique paper size.
3This is an official PostScript paper size.
PostScript (PS) emulation 11

PostScript paper tray support
When the printer receives one of the operators listed in “Tray selected with tray operators” on page 12, it performs the
actions listed in this section. This paper tray selection process ends when a suitable paper source is chosen and paper is fed
from that source.
• The printer checks the value of manualfeed in statusdict and the ManualFeed page device parameter. If either one is true,
then the printer sends a message to load the requested size in the manual feeder or multipurpose feeder.
• The PageSize Policy is set to 0with setpagedevice.
• The printer checks the paper size loaded in the current active source to determine if it matches the requested size. If the
sizes match, then the paper is fed from the active source.
Note: The current active tray is the last source that was selected from the control panel or by the printer language.
• If the requested size and the size loaded in the active source do not match, then the sources are searched in the order
defined by the Priority array in the InputAttributes dictionary in the pagedevice dictionary.
• If the previous search does not find the requested media size, then the following search order is used:
– Tray 1
– Tray 2
– Tray 3
– Multipurpose feeder
– Tray 4
• If the requested size cannot be located in any automatic source, then a configurationerror is issued and the job is flushed.
For printers that support automatic two‑sided printing (duplexing):
• All papers, except custom‑size paper and envelopes, are supported for duplexing in the multipurpose feeder.
• If the paper source is changed before the back side of a two‑sided page print, then a blank back page prints, the paper
source changes, and the information for the back side of the page is printed on the front side of a page sent from the new
paper source.
When these operators are used, it is equivalent to executing the following PostScript emulation sequence:
<< /PageSize [x y]/ImagingBBox null /Policies << /PageSize 0>> >>
setpagedevice
where xand yare the PageSize in points.
= Supported
X = Not supported Printer model
Operator Tray selected (corresponding
image size is set)
MS911 MX910, MX911, MX912
11x17tray Tray with 11 x 17 in.‑size paper
12x18tray Tray with 12 x 18 in.‑size paper
a3tray Tray with A3‑size paper
a4tray Tray with A4-size paper
a5tray Tray with A5-size paper
a6tray Tray with A6-size paper
b4tray Tray with B4‑size paper
b5tray Tray with B5-size paper
customtray Tray with custom-size paper
PostScript (PS) emulation 12

= Supported
X = Not supported Printer model
Operator Tray selected (corresponding
image size is set)
MS911 MX910, MX911, MX912
executivetray Tray with executive-size paper
foliotray Tray with folio-size paper
ledgertray Tray with ledger‑size paper
legaltray Tray with legal-size paper
lettertray Tray with letter-size paper
oficiotray Tray with oficio‑size paper
sra3tray Tray with sra3‑size paper
statementtray Tray with statement-size paper
PostScript envelope size support
The literal names in “Envelope sizes supported” on page 13 are also supported as operators in userdict. These operators
change the image size but not the active paper source. Therefore, when these operators are used, part of the image may be
clipped.
When these literal names are used as operators, it is equivalent to executing the following PostScript emulation sequence.
The following example uses a 3.875 x 7.5‑inch envelope.
<</Policies <</PageSize 7>> /PageSize [279 540]>> >>setpagedevice
= Supported
X = Not supported
Envelope sizes Printer model
Size name Literal name Size (mm) Size (in.) Size (points) MS911 MX910,
MX911,
MX912
7 3/4 3.875x7.5envelope 98.4 x 190.5 3.875 x 7.5 279 x 540
Commercial 9 3.875x8.875envelope 98.4 x 225.4 3.875 x 8.875 279 x 639
Commercial 10 4.125x9.5envelope 104.8 x 241.3 4.125 x 9.5 297 x 684
International B5 176x250envelope 176 x 250 6.93 x 9.84 499 x 708
International C5 162x229envelope 162 x 229 6.38 x 9.01 459 x 649
International DL 110x220envelope 110 x 220 4.33 x 8.66 312 x 624
Other envelope otherenvelope 229.11 x 355.6 9.02 x 14.0 649 x 1008
PostScript (PS) emulation 13

Literal names supported
= Supported
X = Not Supported
Literal names Printer model
Literal name Compatible literal name MS911 MX910, MX911, MX912
b5envelope 176x250envelope
c5envelope 162x229envelope
com10envelope 4.125x9.5envelope
dlenvelope 110x220envelope
monarcenvelope 3.875x7.5envelope
PostScript envelope tray support
The envelope tray the printer selected when it receives an envelopetray operator is listed in “Envelopetray operator selections”
on page 15.
Printer action when manualfeed is false
The printer sets the PageSize Policy to 0if manualfeed in statusdict and the ManualFeed page device parameter are false.
The printer checks and compares source tray size settings between printer and print job data stream.
Envelope setting Printer action
Envelope size settings match The printer pulls the envelope.
Envelope size settings do not
match
The printer searches sources in the order defined by the Priority array in the InputAttributes
dictionary in the pagedevice dictionary.
If search cannot find the requested media size, then the following search order is used:
•Envelope feeder
•Multipurpose feeder
Requested size and type are not
available from any automatic
source
You are prompted to load the requested envelope size and type in the manual feed source.
If the size is still not available, then a configurationerror is issued, and the print job is flushed.
Printer action when manualfeed is true
The printer prompts you to load the requested size manually if manualfeed or ManualFeed is true. If no manual feed exists
on the printer, then a rangecheck error message is issued.
These operators are equivalent to executing the following PostScript emulation sequence:
<</PageSize [x y] /ImagingBBox null /Policies<</PageSize 0>> >>
setpagedevice
where xand yare the PageSize in points.
PostScript (PS) emulation 14

= Supported
X = Not supported
Tray operators Printer model
Operator Tray selected (corresponding image size is set) MS911 MX910, MX911, MX912
110x220envelopetray Tray with 110 x 220‑size envelopes
dlenvelopetray Tray with 110 x 220‑size envelopes
162x229envelopetray Tray with 162 x 229‑size envelopes
c5envelopetray Tray with 162 x 229‑size envelopes
176x250envelopetray Tray with 176 x 250‑size envelopes
b5envelopetray Tray with 176 x 250‑size envelopes
3.875x7.5envelopetray Tray with 3.875 x 7.5‑size envelopes
monarcenvelopetray Tray with 3.875 x 7.5‑size envelopes
3.875x8.875envelopetray Tray with 3.875 x 8.875‑size envelopes
4.125x9.5envelopetray Tray with 4.125 x 9.5‑size envelopes
com10envelopetray Tray with 4.125 x 9.5‑size envelopes
otherenvelopetray Tray with other size envelopes
PostScript (PS) emulation 15

Printer specifications
Airflow requirement
The room should meet ASHRAE 62—1989 standards.
Noise emission levels
The following measurements are in accordance with ISO 7779 and in conformance with ISO 9296.
Status
1-meter average sound pressure, dBA
MS911 MX910 MX911 MX912
Duplex Printing 55 55 55 56
Idle (Standby mode) 28 29 31 31
Simplex Printing 54 52 53 55
ADF Mono Copy
Not applicable
53 54 55
ADF Mono Scan 57 56 56
ADF Color Scan 57 56 56
Note: Measurements apply to 300‑dpi, 600‑dpi, and 1200‑dpi printing.
Status
Declared sound power level, bels
MS911 MX910 MX911 MX912
Duplex Printing 7.1 7.2 7.2 7.5
Idle (Standby mode) 4.7 4.8 4.8 4.4
Simplex Printing 6.9 7.0 7.0 7.2
ADF Mono Copy
Not applicable
7.1 7.1 7.3
ADF Mono Scan 7.4 7.4 7.4
ADF Color Scan 7.4 7.4 7.4
Note: Measurements apply to 300‑dpi, 600‑dpi, and 1200‑dpi printing.
Electrical specifications
Printer model Electrical specification
MS911, MX910, MX911, and MX912 low‑voltage models 100–125 V at 50–60Hz, nominal
90–133 V, extreme
MS911, MX910, MX911, and MX912 high‑voltage models 220–240 V at 50–60Hz, nominal (not available in all countries)
198–264 V, extreme
Warning—Potential Damage: Do not use voltage converters with printers.
Power requirements
The following table specifies the nominal average power requirements for the base configuration, including fuser power.
Printer specifications 16

Lexmark MS911, MX910de, MX911de/dte, and MX912de/dxe nominal average power requirements
State MS911 MX910de MX911de/dte MX912de/dxe
Average power while printing continuously (Watts)
Print (simplex) 910 865 925 985
Print (duplex) 830 790 850 890
Average power while idle (Watts)
Hibernate mode
Ready mode
Sleep mode
0.5
190
2.5
0.6
220
3.6
0.6
220
3.6
0.6
220
3.6
Off 0 000
Average power while copying continuously
Copy Not applicable 880 950 1000
Average power while scanning continuously
Scan Not applicable 230 230 230
Typical Electricity Consumption (kWh)
Normal mode 3.9 3.7 4.3 4.9
Lexmark MS911, MX910de, MX911de/dte, and MX912de/dxe maximum current while printing (Ampere)
State MS911 MX910de MX911de/dte MX912de/dxe
110 V
120 V
230 V
15
12
9
15
12
9
15
12
9
15
12
9
Physical specifications
Printer dimensions (unpackaged)
Printer model Height Width Depth Weight with cartridge
MS911 770 mm (30.3 in.) 615 mm (24.2 in.) 697 mm (27.4 in.) 74 kg (163 lb)
MX910de, MX911de, MX912de 909 mm (35.8 in.) 615 mm (24.2 in.) 697 mm (27.4 in.) 95 kg (209.4 lb)
MX911dte 1152 mm (45.4 in.) 615 mm (24.2 in.) 697 mm (27.4 in.) 121 kg (266.8 lb)
MX910dxe, MX912dxe 1152 mm (45.4 in.) 615 mm (24.2 in.) 697 mm (27.4 in.) 120 kg (264.6 lb)
Dimensions of the MS911, MX910, MX911, and MX912 hardware options
Option Height Width Depth Weight
Input options
2x500‑sheet tray 304 mm (11.97 in.) 615 mm (24.21 in.) 561 mm (22.09 in.) 26.0 kg (57.3 lb)
2500‑sheet tray 304 mm (11.97 in.) 615 mm (24.21 in.) 653 mm (25.71 in.) 25.0 kg (55.16 lb)
10‑sheet banner tray 220 mm (8.66 in.) 414 mm (16.3 in.) 346 mm (13.6 in.) 0.55 kg (1.21 lb)
3000‑sheet tray 405 mm (15.94 in.) 367 mm (14.45 in.) 528 mm (20.79 in.) 18.0 kg (39.68 lb)
Output options
*This applies only to multifunction products.
Printer specifications 17

Option Height Width Depth Weight
Staple, hole punch
finisher
1065 mm (41.93 in.) 641 mm (25.24 in.) 658 mm (25.91 in.) 43.2 kg (95.2 lb)
Hole punch booklet
finisher
1065 mm (41.93 in.) 641 mm (25.24 in.) 658 mm (25.91 in.) 67.2 kg (148.2 lb)
Staple finisher 195 mm (7.68 in.) 473 mm (18.62 in.) 584 mm (22.99 in.) 12.0 kg (26.46 lb)
Other options
Working shelf*79 mm (3.11 in.) 465 mm (18.31 in.) 233 mm (9.17 in.) 1.6 kg (3.53 lb)
Keyboard kit 57.15 mm (2.25 in.) 282.7 mm (11.13 in.) 165.1 mm (6.5 in.) 1 kg (2.2 lb)
*This applies only to multifunction products.
Dimensions of the printer in an open position
Printer model Height Width Depth
MS911 762 mm (30 in.) 953 mm (37.5 in.) 1127 mm (44.38 in.)
MX910de, MX911de, MX912de 1307 mm (51.44 in.) 953 mm (37.5 in.) 1246 mm (49.07 in.)
MX910dxe, MX912dxe 1553 mm (61.13 in.) 953 mm (37.5 in.) 1246 mm (49.07 in.)
Clearance requirements
Note: These clearance values are for the most compact operating configuration of the product. Additional clearance
(especially from the front) may be needed to utilize the multipurpose feeder, clear paper misfeed, lift the scanner lid (for
MFPs only), or replace toner and imaging unit.
Printer model Left side Right side Front Rear Top
MS911 120 mm (4.8 in.) 400 mm (15.7 in.) 444.5 mm (17.5 in.) 120 mm (4.8 in.) 150 mm (5.9 in.)
MX910, MX911,
MX912
120 mm (4.8 in.) 400 mm (15.7 in.) 444.5 mm (17.5 in.) 120 mm (4.8 in.) 400 mm (15.7 in.)
Environmental conditions
Note: When shipping or storing printers, always pack the printer supplies (such as cartridges) separately.
Environment Specifications
Air temperature (product operating) 10 to 30°C (50 to 86°F)
Air Relative Humidity 15 to 85% RH
Altitude 0–2500 m (8202 ft.)
Ambient operating environment 10 to 30°C (50to 86°F)
15 to 85% RH
MFP and packaged supplies storage/shipping ‑10 to 40°C (14 to 104°F)
10 to 85% RH
Cartridge/Imaging unit storage 50°C (122°F) for 8 hours, 25°C (77°F) for 16 hours
3 cycles, ≤40% RH
Printer specifications 18

Appendix A: PCL support
PCL emulation commands
= Supported
X = Not supported Printer model
Command Function MS911 MX910, MX911, MX912
Decimal 8 Backspace (BS)
Decimal 9 Horizontal Tab (HT)
Decimal 10 Line Feed (LF)
Decimal 12 Form Feed (FF)
Decimal 13 Carrier Return (CR)
Decimal 14 Select Secondary Font (SO)
Decimal 15 Select Primary Font (SI)
Decimal 32 Space (SP)
ESCEPrinter Reset
ESCYDisplay Functions On
ESCZDisplay Functions Off
ESCzPrint Test Page XX
ESC&a#C Set Horizontal Cursor Position
(Column Number)
ESC&a#G Duplex Page Side Selection
ESC&a#H Set Horizontal Cursor Position
(in Decipoints)
ESC&a#L Set Left Margin
ESC&a#M Set Right Margin
ESC&a#N Negative Motion XX
ESC&a#P Print Direction
ESC&a#R Set Vertical Cursor Position (Row
Number)
ESC&a#V Set Vertical Cursor Position
(in Decipoints)
ESC&b#M Monochrome Print Mode
ESC&b#W[data] Key / Value Pair XX
ESC&c#T Character Text Path Direction
ESC&d@ Disable Underline
Appendix A: PCL support 19

= Supported
X = Not supported Printer model
Command Function MS911 MX910, MX911, MX912
ESC&d#A Collation ‑Collated Copies (QTY)
ESC&d#D Select Underline Type
ESC&f#F Set Universal Height
ESC&f#G Set Universal Width
ESC&f#O Set Universal Feed Direction
ESC&f#W Set Universal Custom Name
ESC&f#S Push/Pop Cursor
ESC&f#X Macro Control
ESC&f#Y Set Macro ID
ESC&k#G Set Line Termination
ESC&k#H Set Horizontal Motion Index (HMI)
ESC&k#S Select Primary and Secondary Pitch
ESC&k#W Text Scale Mode XX
ESC&l#A Set Page Size
ESC&l#A [optional data] Set Page Size with Custom Load
Messaging
ESC&l#C Set Vertical Motion Index (VMI)
ESC&l#D Set Line Spacing
ESC&l#E Set Top Margin
ESC&l#F Set Text Length
ESC&l#G Set Output Bin
ESC&l#H Select Paper Feed
ESC&l#L Skip Perforation
ESC&l#O Select Orientation
ESC&l#M Media Type XX
ESC&l#P Set Page Length
ESC&l#S Simplex/Duplex
ESC&l1T Job Separation XX
ESC&l#U Left (Long-Edge) Offset Registration
ESC&l#X Set Copy Count
Appendix A: PCL support 20
