Lexus 2004 ls430 User manual

lsu

GAS STATION INFORMATION

DFuel selection:

Select premium unleaded gasoline with an Octane Rating

of 91 (Research Octane Number 96) or higher for optimum

engine performance. However, if such premium type

cannot be obtained, you may temporarily use unleaded

gasoline with an Octane Rating as low as 87 (Research

Octane Number 91).

DFuel tank capacity:

84 L (22.2 gal., 18.5 lmp.gal.)

DEngine oil:

“Toyota Genuine Motor Oil” or equivalent

Oil grade: API grade SL “Energy-Conserving” or ILSAC

multigrade engine oil.

Recommended oil viscosity - SAE 5W- 30 if normal

temperatures are below 38_C (100_F)

Oil capacity: L (qt., lmp.qt.)

Drain and refill

with filter 5.1 (5.4, 4.5)

without filter 4.5 (4.8, 4.0)

See page 463 for detailed information.

DEngine coolant:

Capacity: 9.5 L (10.0 qt, 8.4 lmp.qt.)

Coolant type - “Toyota Super Long Life Coolant” or similar

high quality ethylene glycol based non-silicate, non-amine,

non- nitrite, and non- borate coolant with long- life hybrid

organic acid technology (Coolant with long- life hybrid

organic acid technology is a combination of low phosphates

and organic acids.)

Do not use plain water alone.

For checking the engine coolant, see page 466.

DAutomatic transmission:

Fluid type - “Toyota Genuine ATF WS”

See page 472 for detailed information.

DTire information:

See page 478 through 496 for detailed information.

DTire inflation pressure: cold tires

kPa (kgf/cm2or bar, psi)

Tire size Front Rear

P225/55R17 95H 220 (2.2, 32) 220 (2.2, 32)

245/45R18 96W 230 (2.3, 33) 230 (2.3, 33)

For sustained high speeds above 160 km/h (100 mph), in

countries where such speeds are permitted by law, add the

tire pressure given below to the front tires and rear tires, but

never exceed the maximum cold tire pressure molded on

the tire sidewall.

P225/55R17 95H 20kPa (0.2 kgf/cm2or bar, 3 psi)

245/45R18 96W 40kPa (0.4 kgf/cm2or bar, 6 psi)

cm-1

You should know as much about the quality and

importance of proper maintenance of your new

vehicle as the people who built it.

The Lexus authorized Repair Manual tells you

how to maintain your vehicle and enables you to

correctly perform your own maintenance.

The best way to keep your new vehicle in top running

order is to maintain it properly from the moment you

drive it off the showroom floor.

The Lexus authorized Repair Manual is packed with

literally everything you need to know to perform your

own maintenance in virtually every area of your new

vehicle.

cm-2

Maintenance procedures for the engine, chassis,

body, electrical system, and more, are clearly

explained and illustrated.

Periodic maintenance and tune-up

Periodic maintenance and tune-up helps to prevent small

problems from growing into larger ones later on. The repair

manual outlines exactly what maintenance is required and

clearly explains how to do the work yourself step-by-step.

Areas covered include such things as spark plug replacement,

valve clearance adjustment and engine oil and filter

replacement.

Where to obtain the

Repair Manual

The repair manual for LS430, written in English, may be

purchased as applicable from any Lexus dealer.

Pub. Name: 2004 LS430 Repair Manual

Pub. No.: Vol.1 RM1048U1

Vol.2 RM1048U2

FOREWORD

Congratulations on your selection of this Lexus. In Lexus vehicles we have invested all our engineering and design resources; all

the know-how we have gained in over 60 years of making automobiles; the highest motivation of our most talented employees; and

our tradition of incessant striving toward ever greater quality.

This Owner’s Manual explains the features of your new Lexus. Please read it and follow the instructions carefully so that you can

enjoy many years of safe motoring.

When it comes to service, remember that your Lexus dealer knows your vehicle very well and is interested in your complete

satisfaction. Your Lexus dealer will provide quality maintenance and any other assistance you may require.

If there is not a Lexus dealer near you, or you need emergency assistance for any reason, please call the following number:

U.S. OWNERS

DWhen traveling in the U.S. mainland or Canada:

Lexus Roadside Assistance 1-800-25-LEXUS (Toll-Free)

(1-800-255-3987)

DHAWAII:

Lexus Customer Service Assistance 1-800-25-LEXUS (Toll-Free)

(1-800-255-3987)

CANADIAN OWNERS

DWhen traveling in Canada or the U.S. mainland:

Lexus Roadside Assistance/Customer Service1-800-26-LEXUS (Toll-Free)

(1-800-265-3987)

Please leave this Owner’s Manual in this vehicle at the time of resale. The next owner will need this information also.

All information and specifications in this manual are current at the time of printing. However, because of the Lexus policy

of continual product improvement, we reserve the right to make changes at any time without notice.

Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may find

some explanations for equipment not installed on your vehicle.

IMPORTANT INFORMATION ABOUT YOUR LEXUS

IMPORTANT INFORMATION ABOUT

YOUR LEXUS

Occupant restraint systems

Lexus encourages you and your family to take the time to read

Section 1-6 of this Owner’s Manual carefully. In terms of

helping you understand how you can receive the maximum

benefit of the occupant restraint systems this vehicle provides,

Section 1-6 of this Owner’s Manual is the most important

section for you and your family to read.

Section 1-6 describes the function and operation concerning

seats, seat belts, SRS airbags and child restraint systems of

this vehicle and some potential hazards you should be aware

of. These systems work together along with the overall

structure of this vehicle in order to provide occupant restraint

in the event of a crash. The effect of each system is enhanced

when it is used properly and together with other systems. No

single occupant restraint system can, by itself, provide you or

your family with the equal level of restraint which these

systems can provide when used together. That is why it is

important for you and your family to understand the purpose

and proper use of each of these systems and how they relate

to each other.

The purpose of all occupant restraint systems is to help reduce

the possibility of death or serious injury in the event of a

collision. None of these systems, either individually or

together, can ensure that there is no injury in the event of

collision. However, the more you know about these systems

and how to use them properly, the greater your chances

become of surviving an accident without death or serious

injury.

Seat belts provide the primary restraint to all occupants of the

vehicle, and every occupant of the vehicle should wear seat

belts properly at all times. Children should always be secured

in child restraint systems that are appropriate for their age and

size. SRS (Supplemental Restraint System) airbags are, as

their names imply, designed to work with, and be supplemental

to, seat belts and are not substitutes for them. SRS airbags

can be very effective in reducing the risk of head, chest and

knee injuries by preventing contact of the head, chest and knee

with interior portions of the vehicle.

In order to be effective, the SRS airbags must deploy with

tremendous speed. The rapid deployment of the SRS airbags

makes the SRS airbags themselves potential sources of

serious injury if an occupant is too close to an airbag, or if an

object or some part of his or her body has been placed between

the occupant and the airbag at the time of deployment. This

is just one example of how the instructions in Section 1-6 of

this Owner’s Manual will help ensure proper use of the

occupant restraint systems, and increase the safety they can

provide to you and your family in the event of an accident.

Lexus recommends you to read the provisions in Section 1-6

carefully and refer to them as needed during your time of

ownership of this vehicle.

IMPORTANT INFORMATION ABOUT YOUR LEXUS

iii

New vehicle warranty

Your new vehicle is covered by the following Lexus limited

warranties:

DNew vehicle warranty

DEmission control systems warranty

DOthers

For further information, please refer to the “Owner’s Guide”,

“Owner’s Manual Supplement” or “Warranty Booklet”.

Your responsibility for maintenance

It is the owner’s responsibility to make sure the specified

maintenance is performed. Section 5 of this Owner’s Manual

gives details of these maintenance requirements. Included in

Section 6 is general maintenance. For scheduled

maintenance information, please refer to the “Owner’s Manual

Supplement / Scheduled Maintenance”.

Important health and safety information about your Lexus

CAUTION

DWARNING: Engine exhaust, some of its constituents,

and a wide variety of automobile components

contain or emit chemicals known to the State of

California to cause cancer and birth defects and

other reproductive harm. In addition, oils, fuels and

fluids contained in vehicles as well as waste

produced by component wear contain or emit

chemicals known to the State of California to cause

cancer and birth defects or other reproductive harm.

DBattery posts, terminals and related accessories

contain lead and lead compounds. Wash your hands

after handling. Used engine oil contains chemicals

that have caused cancer in laboratory animals.

Always protect your skin by washing thoroughly with

soap and water.

IMPORTANT INFORMATION ABOUT YOUR LEXUS

Accessories, spare parts and modification of

your Lexus

A wide variety of non-genuine spare parts and accessories for

Lexus vehicles are currently available in the market. You

should know that Toyota does not warrant these products and

is not responsible for their performance, repair, or

replacement, or for any damage they may cause to, or adverse

effect they may have on, your Lexus vehicle.

This vehicle should not be modified with non-genuine Lexus

products. Modification with non- genuine Lexus products

could affect its performance, safety or durability, and may even

violate governmental regulations. In addition, damage or

performance problems resulting from the modification may not

be covered under warranty.

Spark ignition system of your Lexus

The spark ignition system in your Lexus meets all

requirements of the Canadian Interference- Causing

Equipment Standard.

Installation of a mobile two-way radio system

As the installation of a mobile two-way radio system in your

vehicle could affect electronic systems such as the multiport

fuel injection system/sequential multiport fuel injection system,

cruise control system, dynamic radar/laser cruise control

system, anti-lock brake system, SRS airbag system and seat

belt pretensioner system, be sure to check with your Lexus

dealer for precautionary measures or special instructions

regarding installation.

Tires and loading on your Lexus

Underinflated or overinflated tire pressure and the

excess load may result in the deterioration of steering

ability and braking ability, leading to an accident. Check

the tire inflation pressure periodically and be sure to

keep the load limits given in this Owner’s Manual. For

details about tire inflation pressure and load limits, see

pages 478 and 390.

Scrapping of your Lexus

The SRS airbag and seat belt pretensioner devices in your

Lexus contain explosive chemicals. If the vehicle is scrapped

with the airbags and seat belt pretensioners left as they are,

this may cause an accident such as a fire. Be sure to have the

system of the SRS airbag and seat belt pretensioner removed

and disposed of by a qualified service shop or by your Lexus

dealer before you scrap your vehicle.

HOW TO USE THIS MANUAL

The contents of this manual are explained briefly on this

page to help you make the best use of the manual. Please

read this page and the rest of the Owner’s Manual

carefully to make sure you fully understand the operation

of your vehicle.

This will help you enjoy safe and comfortable driving.

TABLE OF CONTENTS

The table of contents and the pictorial index provide easy

reference to the appropriate pages.

BASIC OPERATION - QUICK REFERENCE

Operation of basic equipment is briefly explained in an easily

understandable way for quick reference.

SECTION 1 - INSTRUMENTS AND CONTROLS

The vehicle’s equipment is divided into the 7 groups listed

below. Use of the equipment is explained, including any points

you should pay particular attention to.

1. Keys and doors

2. Switches

3. Gauges, meters and service reminder indicators

4. Interior equipment

5. Exterior equipment

6. Occupant restraint systems

7. Steering wheel and mirrors

SECTION 2 - AIR CONDITIONING AND AUDIO

The features of the vehicle’s air conditioning and audio are

explained in detail. Be sure to read this section so that you can

make full use of them.

SECTION 3 - STARTING AND DRIVING

Starting the engine, driving, stopping, operation of features

affecting vehicle handling, hints on vehicle safety and safe

driving techniques are all explained. Please read everything

in this section, and remember - drive safely!

SECTION 4 - IN CASE OF AN EMERGENCY

This section explains what to do in the event of an urgent

situation such as the engine not starting or getting a flat tire,

etc. If such a problem occurs, check the contents of this

Owner’s Manual and follow the instructions given.

SECTION 5 - MAINTENANCE

This section explains the importance of regular maintenance.

Regular and periodic inspection and maintenance of your

Lexus will help to keep your vehicle in its best condition.

SECTION 6 - SERVICE PROCEDURES AND

SPECIFICATIONS

Simple maintenance procedure and service data are provided

here for your reference should you wish to perform inspection

and maintenance yourself.

INDEX

The page number is listed for each item in the Owner’s Manual

so that you can rapidly find the item and page you are

searching for.

HOW TO USE THIS MANUAL

GAS STATION INFORMATION

The information you need to know for appropriate servicing at

the gas station is provided here.

QUICK INDEX

This is designed so that you can quickly find the needed

information when an urgent situation arises.

Safety symbol

In this manual, you will also see a circle with a slash through

it. This means ”Do not”, ”Do not do this”, or ”Do not let this

happen”.

Safety and vehicle damage warnings

In this manual you will see CAUTION and NOTICE warnings.

These are used in the following ways:

CAUTION

This is a warning against anything which may cause

injury to people if the warning is ignored. You are

informed about what you must or must not do in order

to reduce the risk of injury to yourself and others.

NOTICE

This is a warning against anything which may cause

damage to the vehicle or its equipment if the warning is

ignored. You are informed about what you must or must

not do in order to avoid or reduce the risk of damage to

your Lexus and its equipment.

Your Lexus Owner’s Manual provides you with a

considerable amount of information. To use this

information most effectively, please take the time to

familiarize yourself with the contents and use of the

manual.

PICTORIAL INDEX

vii

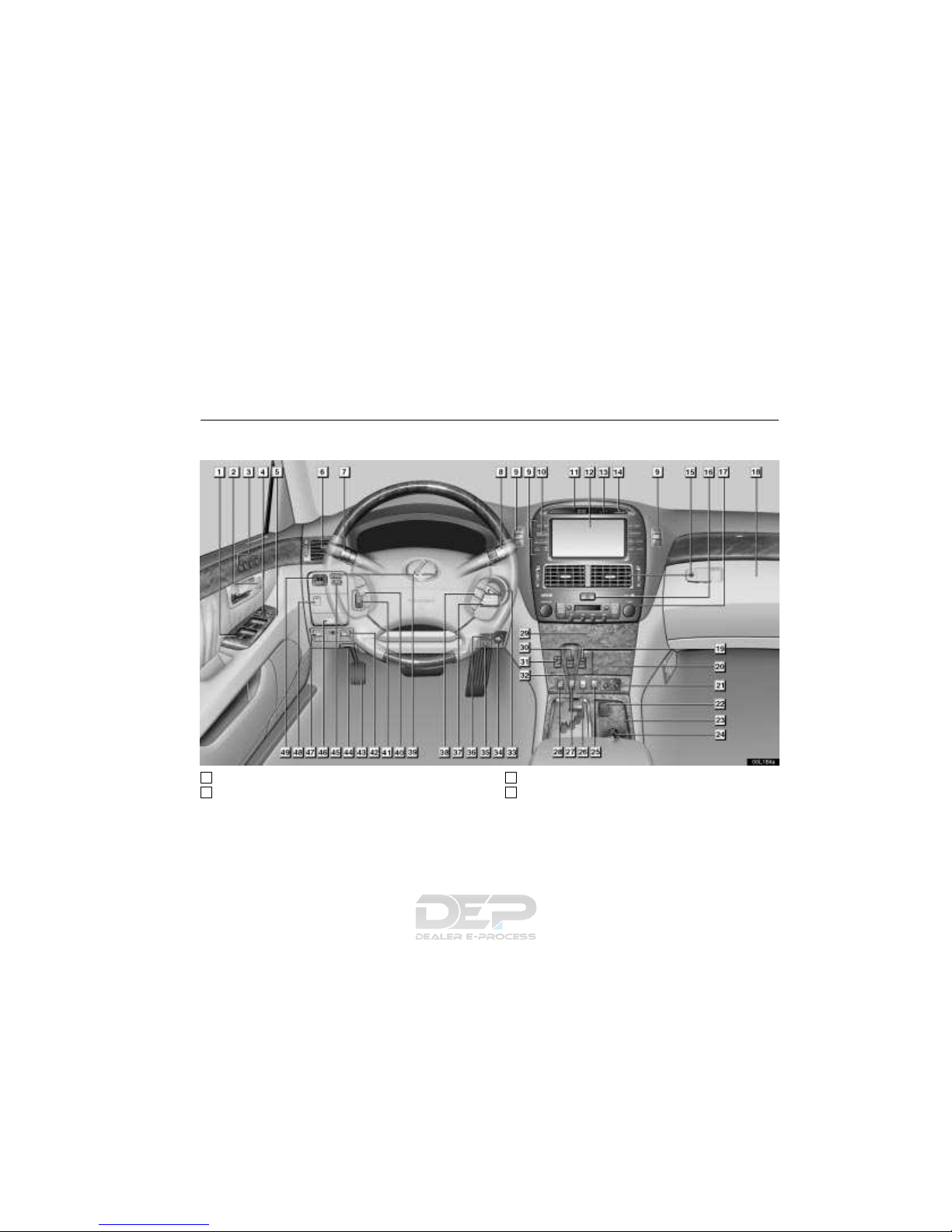

INSTRUMENT PANEL (Vehicles with navigation system)

00L184a

Power window switches 64. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Shoulder anchor control switch 170. . . . . . . . . . . . . . . . . . . . . . . . .

Driving position memory switch 219. . . . . . . . . . . . . . . . . . . . . . . .

Door lock switch 48. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

For detailed information, refer to the description given in each section.

PICTORIAL INDEX

viii

Window lock switch 65. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Side vents 252. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Headlight, turn signal and fog

light switches 54, 57, 58. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Wiper and washer switch 58. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Automatic air conditioning controls 237, 239. . . . . . . . . . . . . . . .

Rear window and outside rear view mirror defogger

switch 63. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Clock 115. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Lexus park assist system/Rear view monitor/

Navigation system display

(See “Navigation System Owner’s Manual”) 314/320. . . . . . . . .

Outside temperature display 116. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Front passenger’s seat belt reminder light 84. . . . . . . . . . . . . . . .

Center vents 251. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Emergency flasher switch 68. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Car audio 259. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Glove box 121. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Driving pattern selector switch 303. . . . . . . . . . . . . . . . . . . . . . . . .

Auxiliary box 128. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Seat heater switches/

Climate control seat switches 69/71. . . . . . . . . . . . . . . . . . . . . . . . .

Power outlet 119. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Auxiliary box if power outlet is selected/

Ashtray if cigarette lighter is selected 128/118. . . . . . . . . . . . . . .

Cigarette lighter 118. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Headlight cleaner switch 62. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear seat and rear head restraints

return switch 162. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Traction control system off switch 360. . . . . . . . . . . . . . . . . . . . . .

Rear electric sunshade switch 136. . . . . . . . . . . . . . . . . . . . . . . . . .

CD automatic changer 281. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Height control switch 357. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Damping mode select switch 359. . . . . . . . . . . . . . . . . . . . . . . . . . .

Automatic transmission selector lever 303. . . . . . . . . . . . . . . . . .

Ignition switch 297, 300. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Volume adjustment knob 30, 39. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Key cancel switch 34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tire pressure warning system reset switch 369. . . . . . . . . . . . . .

Cruise control switch/Dynamic radar/laser cruise

control switch 324/327. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Multi-information display control switch 89. . . . . . . . . . . . . . . . .

Rear view mirror folding switch 231. . . . . . . . . . . . . . . . . . . . . . . . .

Steering pad switches 287. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Adaptive front-lighting system cancel switch 56. . . . . . . . . . . . .

Trunk lid opener 143. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Parking brake 301. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Hood opener 141. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Lexus park assist system switch 314. . . . . . . . . . . . . . . . . . . . . . . .

Parking brake release lever 301. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel filler door opener 145. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Coin box 126. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power rear view mirror control switches 230. . . . . . . . . . . . . . . . .

PICTORIAL INDEX

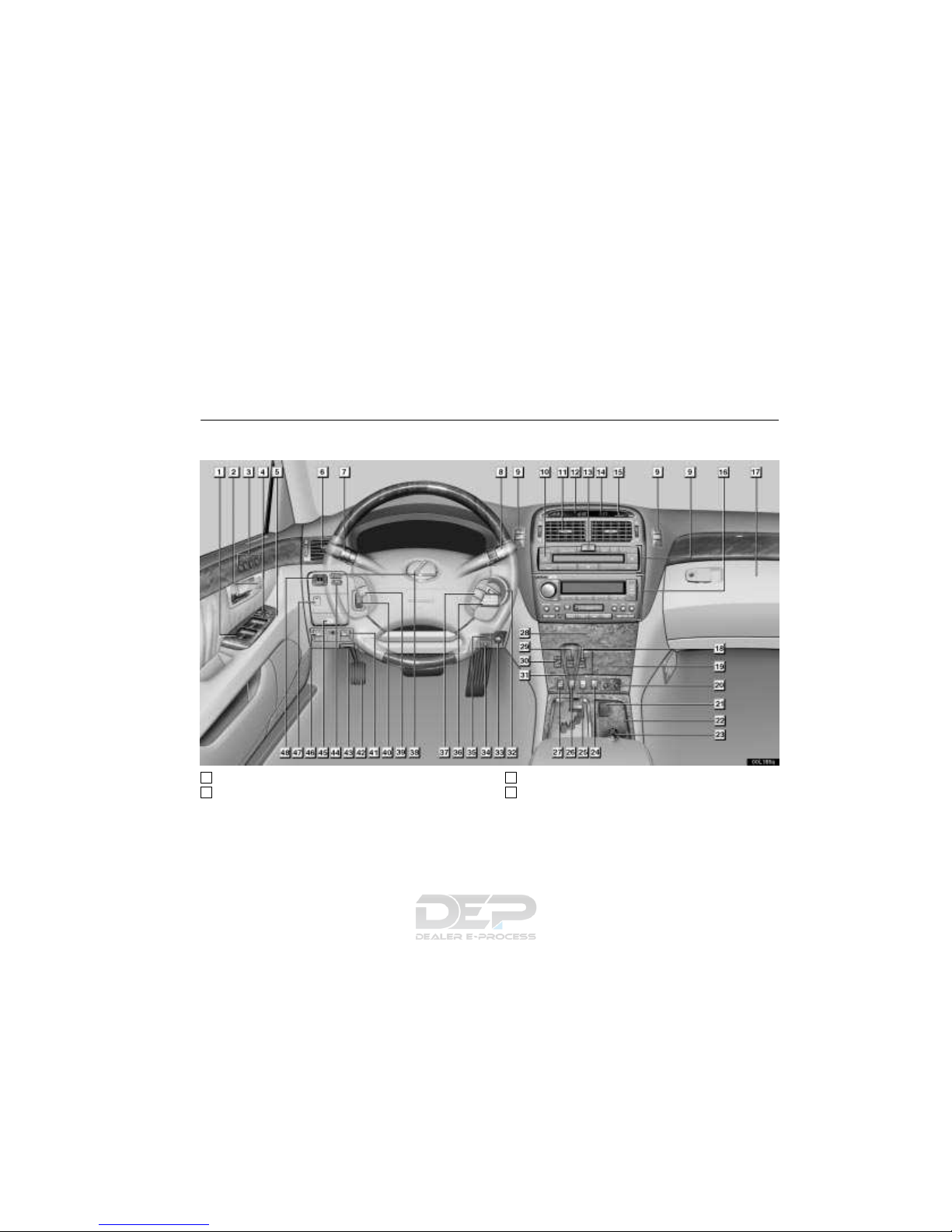

INSTRUMENT PANEL (Vehicles without navigation system)

00L185a

Power window switches 64. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Shoulder anchor control switch 170. . . . . . . . . . . . . . . . . . . . . . . . .

Driving position memory switch 219. . . . . . . . . . . . . . . . . . . . . . . .

Door lock switch 48. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
