GS 450h Pre-Delivery Service Manual
Lexus Technician:
Before you perform a Pre Delivery Service (PDS) on this vehicle, be sure you:
SAttend the Technical Introduction to Lexus Course L005" at the Lexus Area Office
SRead and understand this PDS anual
SRead and understand the PDS Precautions on p. 2, 51
SRead and understand all applicable PDS Technical Service Information Bulletins (TSIBs) for this vehicle
When performing a PDS on this vehicle:
SCheck that indicator light by standard Safety Connect™p. button is green
SUse the PDS anual when performing this service
SCheck the Technical Information System (TIS) for PDS Technical Service Information Bulletins (TSIBs)
that apply to the model you are servicing
SVerify the Vehicle Identification Number (VIN) on repair order and vehicle match
SLift vehicle and perform under vehicle safety/damage inspection
SRoad test vehicle long enough to test hot engine and driven over rough road/Bott dots to test for
rattles/squeaks.
SWhen completed, sign Vehicle Delivery Certificate, Located in the glovebox
The following TSIBs are available on TIS:
DCC Fuse Installation During PDS
Floor at Installation During PDS
Front License Plate ounting Bracket & License Plate Installation
Hybrid System Electrical Safety Precautions (Revised)
Initialization of Driver's Seat Position & Head Restraint Height
Initialization of Power Windows During PDS
Initialization of VGRS System During PDS
Initial Calibration of Compass During PDS
Initial Calibration of Intuitive Parking Assist System During PDS
aintenance for HV Battery & Auxiliary Battery
Removal of Front Wheel Opening Extension Pad Protective Covers
Tire Positioning Before New Vehicle Delivery
Tire Pressure Warning Valve/Sensor Activation
To ob t a i n PDS m a t e ria l :
anual, above TSIBs included
SDownload from TIS website or Lexus Customer Services website on Dealer daily
SOrder from DC, 00242ĆPDSGSĆH N10
Check Sheet
SSheet is two-sided, back side has procedure tips
SOrder from DC, 00242ĆPDSGSĆHCK10, each packet contains 25 Check Sheets
SDownload from TIS website or Lexus Customer Services website on Dealer Daily
Vehicle Delivery Certificate
SOrder from DC, 00242ĆTIQ10
Other PDS TSIBs
SDownload from TIS website
Binders
Contact your District Service and Parts Manager if you have any questions.
DC #00242 PDSGS H AN9
09152009-CJE

GS 450h
PDS MANUAL
©2009 Lexus, a Division of Toyota Motor Sales, U.S.A., Inc

INDEX
Lexus PDS
Technical Service Information Bulletins
TSBs availble on TIS
DCC Fuse Installation During PDS
Floor Mat Installation During PDS
Front License Plate Installation
Hybrid Electrical Precautions (Revised)
Initiali ation
of Driver's Seat & Restraint Initiali ation of Power
Windows Initial
i ation of VGRS System7
Initial Calibration of Compass
Initial Calibration of Parking Assist
Maintenance for HV & Auxiliary Battery
Remove Front Wheel Ext. Pad Covers
Tire Positioning before Delivery
Tire Pressure Warning Activation
Bott Dot Road Test Layout
Manual
AFS 28. . . . . . . . . . . . . . . . . . . . . . . . . .
Air conditioning 39. . . . . . . . . . . . . . .
Ashtray lights 45. . . . . . . . . . . . . . . . .
Audio system 40. . . . . . . . . . . . . . . . .
Auxiliary battery 49, 65. . . . . . . . . . . .
Battery 49. . . . . . . . . . . . . . . . . . . . . . .
Body plugs 56. . . . . . . . . . . . . . . . . . . .
Brake fluid level 51. . . . . . . . . . . . . . .
Brake pedal adjustments 57–58. . . .
Center armrest 47. . . . . . . . . . . . . . . .
Center console 21. . . . . . . . . . . . . . . .
Center console light 45. . . . . . . . . . .
Chassis inspection 55–56. . . . . . . . .
Child protector locks 23. . . . . . . . . . .
Cigarette lighter 43. . . . . . . . . . . . . . .
Clock 20, 41–43. . . . . . . . . . . . . . . . . .
Compass 61. . . . . . . . . . . . . . . . . . . . .
Coolant level 51. . . . . . . . . . . . . . . . . .
Cruise control 60. . . . . . . . . . . . . . . . .
Cupholders 44. . . . . . . . . . . . . . . . . . .
Differential fluid level 55. . . . . . . . . .
Door courtesy light 45. . . . . . . . . . . .
Door locks 26. . . . . . . . . . . . . . . . . . . .
Driver’s head restraint 23 . . . . . . . . .
Electric cooling fans . . . . . . . . 52, 55
Emergency flasher 27. . . . . . . . . . . .
Engine compartment cover 5. . . . . .
Engine oil level 51. . . . . . . . . . . . . . . .
Exterior lights 13, 19, 28. . . . . . . . . .
Exhaust system 56. . . . . . . . . . . . . . .
Fluid leaks 53. . . . . . . . . . . . . . . . . . . .
Foot lights 15, 45. . . . . . . . . . . . . . . . .
Front door pockets 47. . . . . . . . . . . .
Front License Plate Bracket 54. . . . .
Front seat position memory 20, 26.
Front Wheel Opening Ext Pad 56. .
Fuel filler door opener 20, 27. . . . . .
Glove box 44. . . . . . . . . . . . . . . . . . . . .
Glove box portfolio 64. . . . . . . . . . . .
Glove box light 45. . . . . . . . . . . . . . . .
Headlights 19, 27, 54. . . . . . . . . . . . .
Headlight cleaner 20, 29. . . . . . . . . .
Headlight indicator light 27. . . . . . . .
Heater 39. . . . . . . . . . . . . . . . . . . . . . . .
High beam indicator light 28. . . . . . .
HomeLink garage door opener 46. .
Hood release 51. . . . . . . . . . . . . . . . .
Horn 27. . . . . . . . . . . . . . . . . . . . . . . . .
HV immobilizer system 22. . . . . . . . .
Hybrid battery 65. . . . . . . . . . . . . . . . .
Hybrid switch 59. . . . . . . . . . . . . . . . .
Hybrid system start/stop 21–22. . . .
Illuminated entry 15. . . . . . . . . . . . . .
Inside door handle lights 15. . . . . . .
Inside rearview mirror 46. . . . . . . . . .
Inspection Overview 6. . . . . . . . . . . .
Interior lights 45. . . . . . . . . . . . . . . . . .
Intuitive park assist 40. . . . . . . . . . . .
Jack & jack handle 48. . . . . . . . . . . . .
Lug nut torque 55. . . . . . . . . . . . . . . .
Manual fuel filler door release 48. .
Memory system 26. . . . . . . . . . . . . . .
Moon Roof 45. . . . . . . . . . . . . . . . . . . .
Multi–information display 32–36. . .
Navigation system . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . .
On–board diagnostic system . . .
Outside rearview mirrors . .. . 20, 25
Outside temperature display 41. . .
Parking brake 57. . . . . . . . . . . . . . . . .
Personal lights 45. . . . . . . . . . . . . . . .
Power door locks 27. . . . . . . . . . . . . .
Power outlet 43. . . . . . . . . . . . . . . . . .
Power switch 20–22. . . . . . . . . . . . . . .
Power windows 26. . . . . . . . . . . . . . .
Precautions 2. . . . . . . . . . . . . . . . . . . .
Rear seat spot lights 45. . . . . . . . . . .
Rear sunshade 47. . . . . . . . . . . . . . . .
Rearview monitor 40. . . . . . . . . . . . . .
Remote entry 17. . . . . . . . . . . . . . . . .
Road test 57. . . . . . . . . . . . . . . . . . . . .
Safety Connect . . . . . . . . . . . . . . . . .
Seat adjustments. ........ .....24
Seat belts 22. . . . . . . . . . . . . . . . . . . . .
Seat heater / ventilator 38. . . . . . . . .
Shift interlock–lock override 5. . . . .
SmartAccess 16. . . . . . . . . . . . . . . . . .
Spare tire 48. . . . . . . . . . . . . . . . . . . . .
Steering operation 61. . . . . . . . . . . . .
Storage compartments 44. . . . . . . . .
Suspension setting switch 59. . . . . .
Theft deterrent system 18. . . . . . . . .
Tilt steering wheel 24. . . . . . . . . . . . .
Tire Pressure Warning
System 20, 30, 32, 35, 36, 53. . . . . .
Tools 48. . . . . . . . . . . . . . . . . . . . . . . . .
TRAC 59. . . . . . . . . . . . . . . . . . . . . . . .
Transmission 58. . . . . . . . . . . . . . . . .
Trunk lid 14. . . . . . . . . . . . . . . . . . . . . .
Trunk opener 16, 20, 28. . . . . . . . . . .
Turn signal 19, 27. . . . . . . . . . . . . . . . .
VGRS 37, 59. . . . . . . . . . . . . . . . . . . . .
Warning & Indicator lights 29–32. . .
Washer fluid level 52. . . . . . . . . . . . .
Wheel center caps 54. . . . . . . . . . . . .
Wipers & washers 28. . . . . . . . . . . . .
Wiring & hoses 52. . . . . . . . . . . . . . . .
NavWeather 37
47
37
46

Page 1 of 1
Bott Dot Road Test Layout
As part of the PDS road test, the vehicle must be driven over a rough road surface or over Bott Dots in order
to check for squeeks and rattles. If a rough surface is not available for this road test, Bott Dots should be installed
on the dealership property where vehicles can be safely driven 5 to 10 mph. (See Bott Dots installation
instructions below, as recommended and provided by TMC Quality Division.) Bott Dots are commonly available
at industrial supply outlets.
4ft.
Staggered
DOT Instructions
1) 4” dia. dots are preferred
2) Dots are spaced 6” on–center.
3) Row centerlines are 60”
Every 2 ft.
5 ft. on center
100 ft.
50 ft.

TABLE OF CONTENTS
1Lexus PDS
I. Before Starting Pre-Delivery Service 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
II. Inspection Overview 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
III.Inspection Detail 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
A. Vehicle Exterior 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
B. Vehicle Interior 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C. Luggage Compartment 48. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
D. Under Hood 50. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
E. Under Vehicle (On Hoist) 55. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
F. Road Test 57. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
G. Final Inspection 62. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
H. Two Hours Before Delivery 64. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
IV.Maintenance for HV Battery and Auxiliary Battery 65. . . . . . . . . . . . . . . . . . . . . . . . .

PRECAUTIONS
2Lexus PDS
The GS450h has unique operating modes, so always follow the precautions below when
performing the PDS operation:
DThe GS450h contains high voltage (288–650 volts) AC and DC Systems. All high voltage
wiring and connections are orange in color. Do not carelessly touch these orange colored
wiring harnesses and connectors.
DThe gasoline engine may start up and shut down suddenly whenever the “READY” light
is illuminated. Be sure to put the selector lever in “P”, apply the parking brake, and
select the “POWER” switch in the “OFF” mode in order to stop the hybrid system
(the “READY” light goes OFF), before working in the engine compartment.
DThe hybrid transmission, engine radiator, and inverter radiator may reach high tempera-
tures during inspection. Carefully observe all caution labels and instructions on these
components.
DBe sure to keep the selector lever in “P” at all times unless otherwise instructed. When
the selector lever is in “N”, the hybrid vehicle battery will not charge even if the gasoline
engine is operating.
DWhen leaving the vehicle, put the selector lever in “P”, apply the parking brake, and
push the “POWER” switch in the “OFF” mode in order to stop the hybrid system (the
“READY” light goes OFF).
DAir vents are located on the package tray trim to cool the hybrid vehicle battery. Do not
block these air vents.
DIf the hybrid battery cooling system operates when the air conditioning is off, a message
will be shown on the multi–information display and the air conditioning will automatically
turn on.
DDo not splash water on the electric components in the engine compartment.

3Lexus PDS
I.
BEFORE
STARTING
PRE–DELIVERY
SERVICE

BEFORE STARTING PRE-DELIVERY SERVICE
4Lexus PDS
1. WASHING VEHICLE
After thoroughly washing vehicle, check it to
make sure all adhesive wrapping films have
been removed.
HINT:
Hand washing of the vehicle is recommen-
ded.
2. WATER LEAK TEST
Visually and by hand check for water leaks in
the vehicle interior from each of the following
areas(makesurethatthetrim andfloorcarpet
are not damp):
a) Door glass weather strips
b) Front cowl sides
c) Around the front windshield
d) Around the sliding roof area
e) Around the rear window
3. REMOVAL OF THE ENGINE ROOM
COVER
Refer to the provided Technical Service
Information Bulletin.

BEFORE STARTING PRE-DELIVERY SERVICE
5
PD0354
6
PD0246
ORB Cover
5Lexus PDS
4. D/C CUT FUSE INSTALLATION
Refer to the provided Technical Service
Information Bulletin.
5. ENGINE ROOM COVER
INSTALLATION
Refer to the provided Technical Service
Information Bulletin.
6. SHIFT LOCK OVERRIDE BUTTON
COVER INSTALLATION
Install the cover into the shift lock override
button hole.
HINT:
The cover is in a plastic envelope attached
to the transmission shift lever.

6Lexus PDS
II.
INSPECTION
OVERVIEW

A
PD0247
B
PD0457
7Lexus PDS
HINT:
Pages throughout represent an overview of the pre-delivery service only.
For details of each inspection procedure, please refer to Section III - IN-
SPECTION DETAIL starting on page 12.
A. VEHICLE EXTERIOR
A01. Inspect paint finish for blemishes,
imperfections, scratches, etc.
A02. Inspect exterior body parts for installation
damage, rust, alignment, etc.
A03. Check luggage compartment door
operation.
A04. Check door lock system and illuminated
entry system operation.
A05. Check smart access system operation.
A06. Check wireless door lock remote control
system.
A07. Check theft deterrent system.
A08. Check illumination of exterior lights.
Detail starts on page 13.
B. VEHICLE INTERIOR
B01. Inspect interior parts for dirt, damage and
proper fit and alignment.
B02. Check power supply changeover and
hybrid system start/stop.
B03. Check HV immobilizer system.
B04. Check seat belts and operation.
B05. Check child protector lock operation.
B06. Check driver’s head restraint.
B07. Check seat adjustments.
B08. Check tilt and telescopic steering wheel.
B09. Check outside rearview mirrors ope-
ration.
B10. Checkfront seatposition memorysystem.
B11. Check power window.
B12. Check door locks.
B13. Checkluggagecompartmentandfuelfiller
door openers.
B14. Check turnsignal,headlight, high beamand
emergencyflasherindicatorlights,andhorn
operation.
B15. Check wipers and washers.
B16. Check headlight cleaner.
B17. Check warning and indicator lights.
B18. Check Multi-Information Display.

B. VEHICLE INTERIOR (Continued)
*: Optional equipment
8Lexus PDS
B19. Check Lexus Navigation System
operation.
B20. Check seat heater* and ventilator/
heater*.
B21. Check air conditioning and heater.
B22. Check audio system.
B23. Check intuitive parking assist opera-
tion.
B24. Check rear view monitor system.
B25. Check clock and outside temperature
display.
B26. Check cigarette lighters, ashtrays (front and
rear) and power outlet operation.
B27. Check rear console box, glove box and
auxiliary boxes.
B28. Check cup holder operation (front and
rear).
B29. Checkinterior,personal,foot,map,vanity,
door courtesy, door inside handle, glove
box, ashtray, console box and rear seat
spot light.
B30. Check sliding roof* operation (slide and
tilt).
B31. Check inside rear view mirror operation.
B32. Check Home LinkRgarage door opener.
B33. Check overhead console box.
B34. Check power rear sunshade.
B35. Check front door pockets.
B36. Check center armrest.
B37. Check on-board diagnostic system
operation.
Detail starts on page 20.

C. LUGGAGE COMPARTMENT
C
PD0355
Without Active Stabilizer
With Active Stabilizer*
D
PD0356
*: Optional equipment
9Lexus PDS
C01.Check spare tire pressure.
C02.Check sparetireandcover,tools,jackand
jack handle.
C03. Check manual fuel filler door lever operation.
C04.Check auxiliary battery (and auxiliary
battery for active stabilizer*) terminal
tightness and charge level.
C05.Inspect trim appearance and deck board
fit.
Detail starts on page 51.
D. UNDER HOOD
D01.Check engine hood release lever.
D02.Check engine oil level (hybrid system not
running).
D03.Check brake fluid level.
D04.Check hybrid system inverter and engine
coolant level.
D05.Check washer fluid level.
D06.Inspect wiring and hose condition.
D07.Check hybrid system operation.
D08.Check electric cooling fans.
D09.Inspect for fluid leaks.
D10.Activate tire pressure warning valve and
transmitter.
D11. Inspect tires for defects or damage.
D12.Install wheel center caps.
D13.Check headlight aim if not correct.
D14.Install front license plate bracket and
license plate.
Detail starts on page 53.

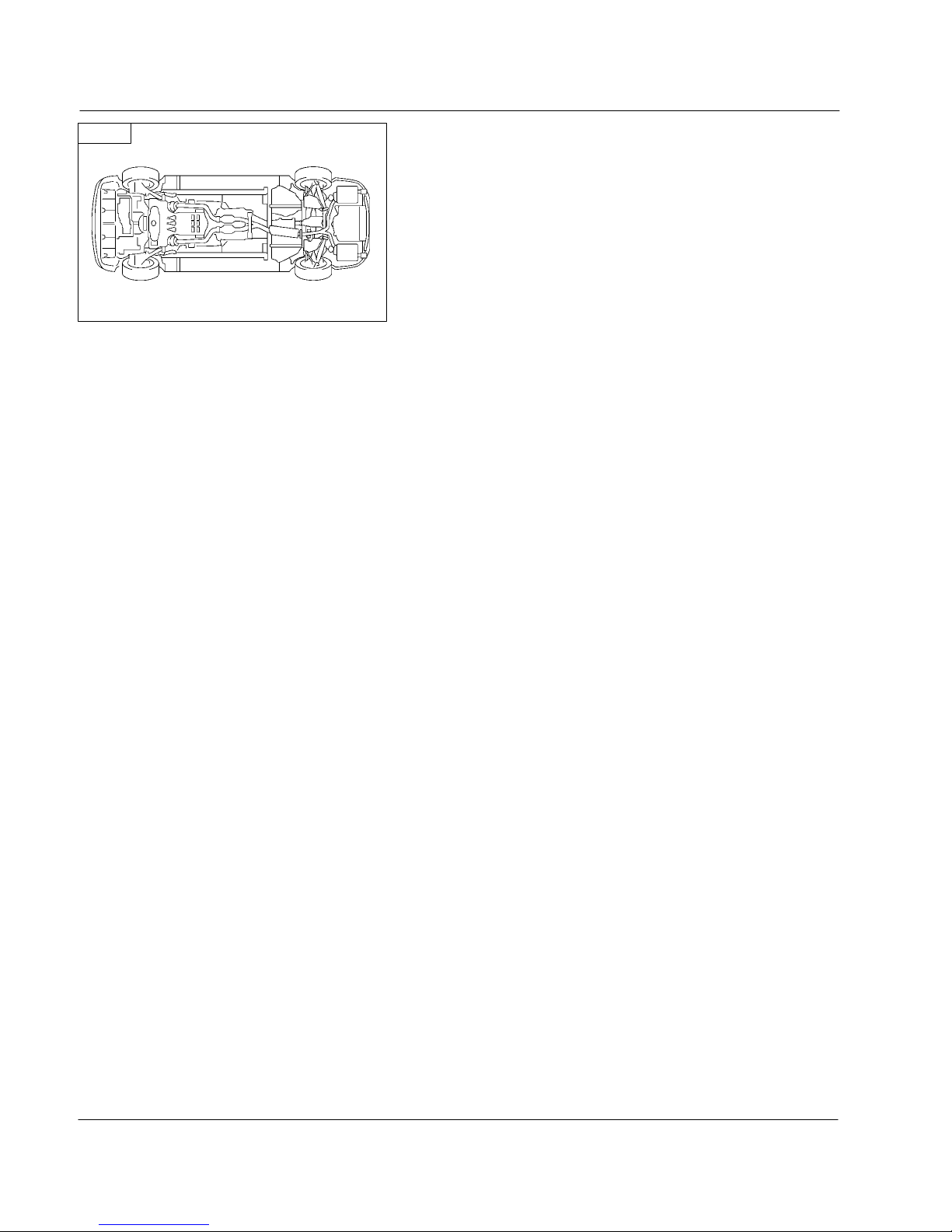

E. UNDER VEHICLE (On Hoist)
E
PD0462
10 Lexus PDS
E01. Checkwheellugnuttorque,ifwheelshave
been taken off.
E02. Check brake rotors.
E03. Inspect chassis for leakage or damage.
E04. Check and tighten all chassis bolts of
components that are replaced due to
repairs.
E05. Inspect exhaust system.
E06. Install rubber body plugs.
E07. Remove the front wheel opening extension
pad covers.
Detail starts on page 64.

F. ROAD TEST
G
PD0249
11 Lexus PDS
F01. Check hybrid system operation while
driving.
F02. Check brake and parking brake functions.
F03. Check brake pedal height, free play and
reserve distance if pedal doesnot operate
correctly.
F04. Check hybrid transmission operation.
F05. Initialize VGRS system.
F06. Check hybrid mode select and TRAC
(Traction Control System)
F07. Check adaptive variable suspension
system.
F08. Check cruise control operation.
F09. Check steering operation and off-
center.
F10. Inspect for any abnormal noise or
vibration.
F11. Inspect for squeaks and rattles.
F12. Initial calibrate compass.
Detail starts on page 66.
G. FINAL INSPECTION
G01.Set mode select switch for customer
comfort.
G02.Remove interior protective covers, etc.
G03.Complete and sign the PDS check sheet.
G04.Sign the Teamwork in Quality Vehicle
Delivery Certificate.
Detail starts on page 75.
H. TWO HOURS BEFORE DELIVERY
H01. Place the Quick Guide booklets in the glove
box. Check that the Owners Manual Portfolio
contains the Owners Manuals and place in
trunk.
H02.Fill up the fuel tank.
H03.Wash and clean the vehicle.
Detail starts on page 77.

12 Lexus PDS
III.
INSPECTION
DETAIL

A01/02
PD0247
A01/02
PD0249
A. VEHICLE EXTERIOR
13 Lexus PDS
A01. PAINT FINISH
a) Wash the vehicle. (Hand washing is
recommended.)
b) Visually and by hand inspect all body
panels (doors, luggage compartment
door, fenders, roof panel) for surface
damage from shipment or any
abnormalities (surface rust, paint
flaking, chips, dents or scratches).
HINT:
Use a well-illuminated area to clearly
inspect all painted surfaces. 800-lux
illumination is recommended.
A02. EXTERIOR COMPONENT
ALIGNMENT
Visually and by hand check the following
parts for proper installation, rust, fit,
misalignment and loose items:
a) Front and rear bumpers
b) Windowmoldings(front,sideandrear)
c) Lexus emblems (front and rear)
d) Outside rear view mirrors
e) Headlights, turn signal lights, side
marker lights, fog lights and tail light
lenses
f) Doors, engine hood, luggage
compartment door and fuel door
g) Sliding roof
h) Front/Rear door panel protector
i) Door outside handle
j) Radiator grille
k) Vehicle name mark

A. VEHICLE EXTERIOR (Continued)
A03a
PD0243
Key Knob
A03a
PD0250
A03b
PD0357
A03d
PD0253
14 Lexus PDS
A03. LUGGAGE COMPARTMENT DOOR
a) Check opening, closing, locking and
unlocking of the luggagecompartment
door using the mechanical key. Each
operation should be smooth.
HINT:
How to remove and store the mechanical
key.
DTo remove the key, slide and hold the
key knob in the direction of the arrow
to release the lock and remove the
mechanical key.
DTo store the key, keep sliding the key
knob in the direction of the arrow to
release the lock, and insert the
mechanical key until it locks securely.
b) When the luggage compartment door
is open, check that the luggage
compartment light illuminates.
c) When the luggage compartment door is
not fully closed or is half closed, check
that the system functions to automatically
close completely. For detailed
information, please refer to the luggage
compartment door section in the
vehicle’s Owner’s Manual.
d) Check first aid kit.
Check that the first aid kit is properly
installed inside the luggage
compartment.

A. VEHICLE EXTERIOR (Continued)
A04d
PD0254
2
1
1
2
A04e
PD0458
A04f
PD0265
Close Open
*: Optional equipment
15 Lexus PDS
A04. DOOR LOCK SYSTEM AND
ILLUMINATED ENTRY SYSTEM
a) Check that all doors open and close
smoothlyusingtheinteriorandexterior
door handles.
b) Checkthat thedoorscannotbeopened
by using the interior and exterior door
handles when the lock button is in the
locked position (except front interior
handles).
c) Check that the front doors can be
opened by using the interior door
handles when the lock button is in the
locked position (front interior doors).
d) Check exteriorkey lock control system
operation with driver’s door.
(two-step unlock function):
1. Turn the key once to unlock the
driver’s door.
2. Turn the key twice to unlock all the
doors.
e) Check the illuminated entry system
operation. The following lights will
illuminate when the door is opened:
DSteering spot light
DSeat spot lights
(with the interior light in “DOOR”
position)
DSelector spot lights
DInside door handle lights
DDoor courtesy lights
DFoot lights
DOuter scuff lights.
DPersonal lights
f) Checktheoperationof thewindow and
sliding roof* from outside the vehicle:
DTo close the window and sliding
roof,insertthemechanicalkeyinto
the door key cylinder and turn it in
the locking direction.
DTo open the window and sliding
roof,turnthemechanicalkeyinthe
unlocking direction.
HINT:
The mechanical key must be held in the
lock or unlock direction for the window
and sliding roof to close or open.

A. VEHICLE EXTERIOR (Continued)
A05b,c
PD0255
A05d
PD0256
16 Lexus PDS
A05. SMART ACCESS SYSTEM
a) With the electronic key within the
vehicle, push the lock button on the
outside handle and check that the
buzzer sounds and that the door does
not lock.
b) Take the electronic key and get out of
thevehicle.Pushthelockbuttononthe
outsidehandleandcheckthat thedoor
locks.
c) From a distance of at least 1 meter,
approach the vehicle and pull the
outside handle of left and right sides.
Check that the door unlocks.
HINT:
The doors cannot be unlocked for 3
seconds after the doors are locked.
d) Check that the luggage compartment
door is unlocked by pushing the
luggage compartment door button.
