LF Harbor Breeze FLORENCE 42127 User manual

1
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 8 p.m., EST, Monday - Sunday.
ATTACH YOUR RECEIPT HERE
Purchase Date _________________________
ITEM #1971064, 1971065
FLORENCE CEILING FAN
MODEL #42127, 42128
Spanish p. 20
SM20028

2
TABLE OF CONTENTS
Package Contents .................................................................3
Hardware Contents ................................................................4
Safety Information .................................................................5
Preparation ......................................................................6
Initial Installation ..................................................................7
Standard or Angle Mounting Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Wiring .........................................................................11
Final Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Operating Instructions .............................................................15
Care and Maintenance ............................................................16
Troubleshooting..................................................................16
Limited Lifetime Warranty ..........................................................18
Replacement Parts List ............................................................19

3

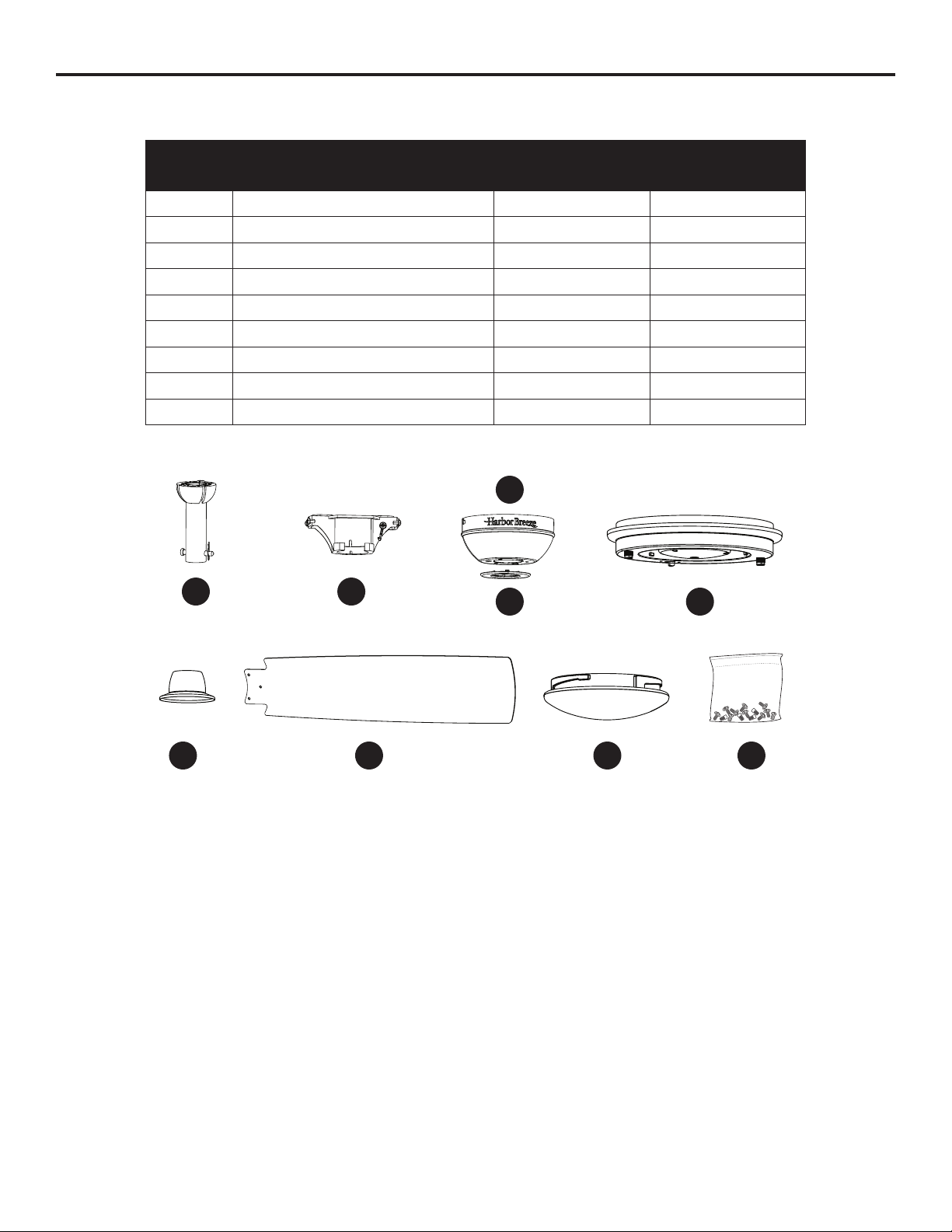

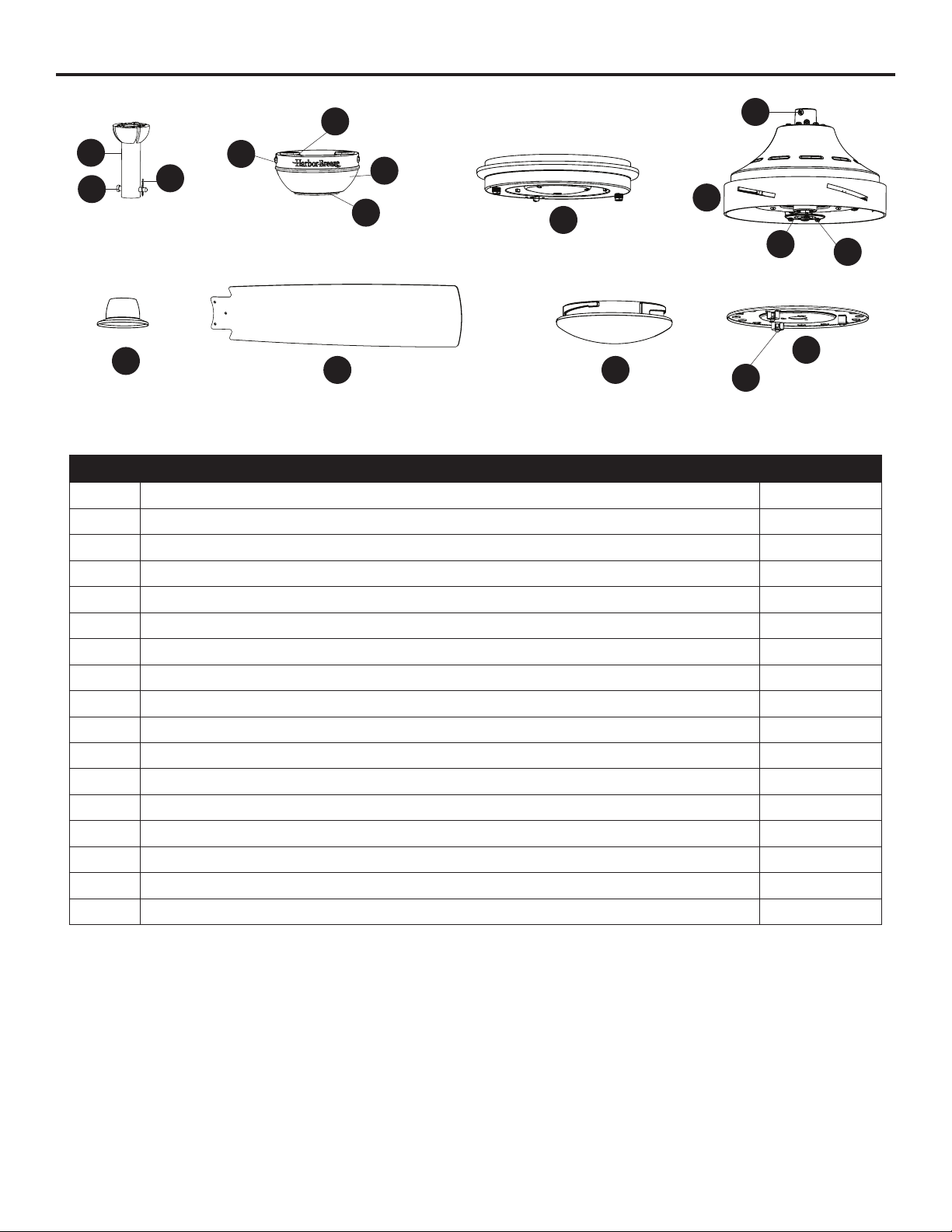

PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Downrod 1
B Downrod Pin (preassembled to Downrod [A]) 1
C Downrod Clip (preassembled to Downrod [A]) 1
D Mounting Bracket (preassembled to Canopy [E]) 1
E Canopy 1
F Canopy Cover (preassembled to Canopy [E]) 1
G Light Kit 1
HMotor Assembly 1
I Fitter Plate (preassembled to Motor Assembly [H]) 1
J Yoke Cover 1
K Fitter Plate Screw (preassembled to Fitter Plate [I]) 3
L Blade 5
M Glass Bowl 1
N Light Pan 1
O Light Pan Screw (preassembled to Light Pan [N]) 3
P Mounting Bracket Screw (preassembled to Mounting Bracket [D]) 4
Q Set Screw (preassembled to Motor Assembly [H]) 2
A
BC
D
E
FG
H
Q
I
J
K
O
L
P
M
N

4

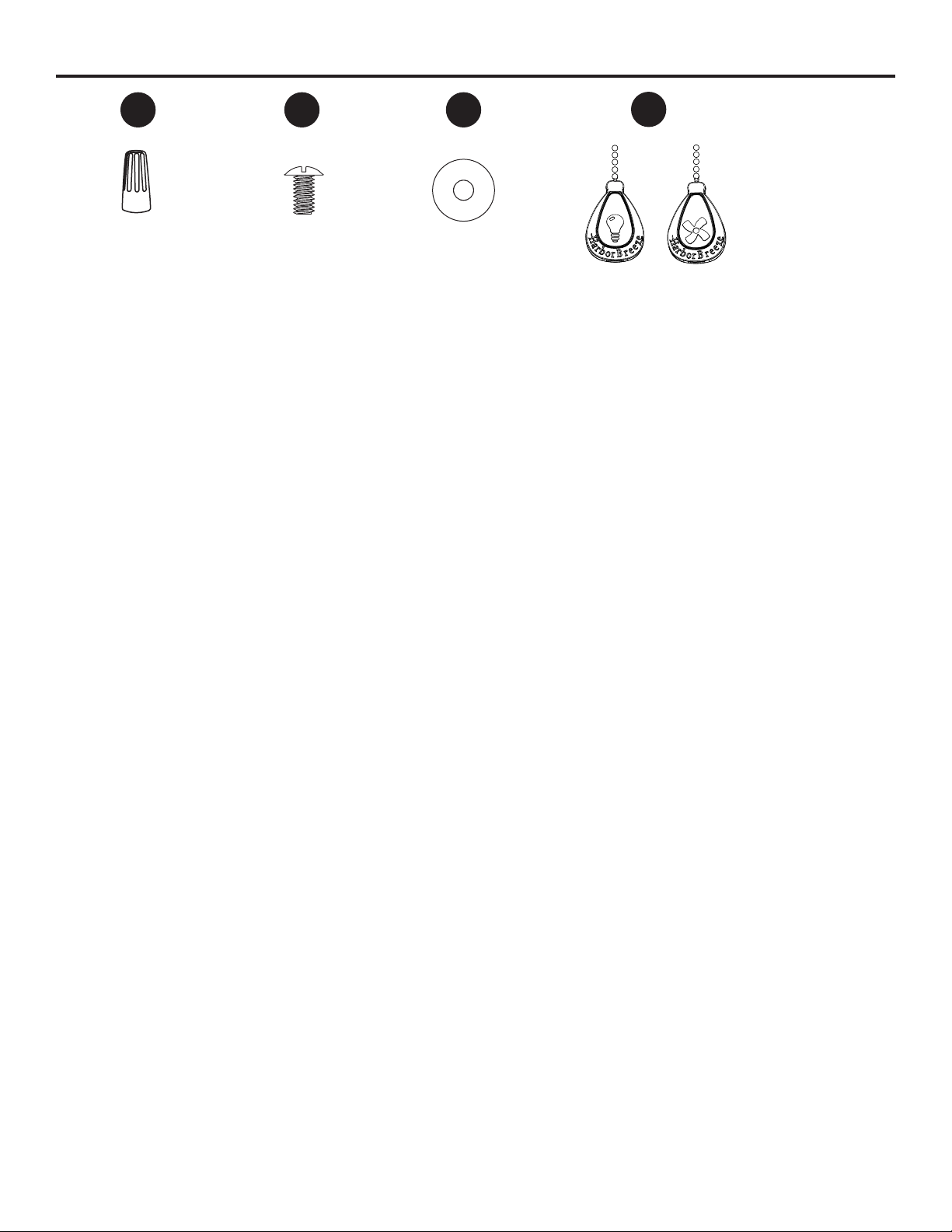

HARDWARE CONTENTS
Wire Connector
Qty. 3
+ 1 extra
Blade Screw
Qty. 15
+ 1 extra
Blade Washer
Qty. 15
+ 1 extra
Pull Chain Extension
Qty. 2
AA BB CC DD
(shown actual size)

5
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
• Before you begin installing the fan, disconnect the power by removing fuses or turning o󰀨 the circuit
breakers.
• Make sure that all electrical connections comply with local codes, ordinances, the National
Electrical Code, and ANSI/NFPA 70-199. Hire a qualied electrician or consult a do-it-yourself
wiring handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
the oor and at least 30 in. from the end of the blades to any obstruction.
• The net weight of this fan is: 16.27 lbs.
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan
parts with sharp edges.
WARNING: Using a full-range dimmer switch to control fan speed will cause a loud humming
noise from the fan. To reduce the risk of re or electric shock, do NOT use a full-range dimmer switch
to control the fan speed.
WARNING: To reduce the risk of re or electric shock, do NOT use with any solid-state speed
control device.
WARNING: To reduce the risk of re, electric shock or personal injury, mount the fan to an
outlet box marked “ACCEPTABLE FOR FAN SUPPORT” and use the mounting screws provided with
the outlet box. Most outlet boxes commonly used for the support of lighting xtures are not acceptable
for fan support and may need to be replaced. Consult a qualied electrician if in doubt. Secure the
outlet box directly to the building structure. The outlet box and its support must be able to support the
moving weight of the fan (at least 35 lbs.). Do NOT use a plastic outlet box.
WARNING: To reduce the risk of re, electrical shock or personal injury, wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12-gauge or there is more than one house wire to connect to
the two fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING: To reduce the risk of re, electric shock, or personal injury, do not bend the blade
arms when installing them, balancing the blades or cleaning the fan. Do not insert objects between
the rotating fan blades.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use
of parts OTHER than those provided with this fan will void the warranty.

6
SAFETY INFORMATION
CAUTION: Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.
CAUTION: Carefully check all screws, bolts and nuts on the fan motor assembly to ensure they are
secured.
CAUTION: This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment o󰀨 and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver
-- Connect the equipment into an outlet on a circuit di󰀨erent from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Please note that changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
HKC-US
3350 Players Club Parkway, Suite 225
Memphis, TN 38125
1-800-643-0067
PREPARATION
Before beginning the assembly of this product, ensure that all parts are present. Compare all parts
with the package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Step Ladder, Wire Cutters and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure and Wiring Handbook

7
INITIAL INSTALLATION
1. Turn o󰀨 the circuit breakers and the wall switch to the
fan supply line leads.
DANGER: Failure to disconnect the power supply
prior to installation may result in serious injury or
death.
2. Determine the mounting method to use.
Standard mounting is best suited for ceilings 8 ft.
or higher. For taller ceilings you may want to use a
longer downrod (not included).
Angle mounting is best suited for angled or vaulted
ceilings. A longer downrod is sometimes necessary
to ensure proper blade clearance. Note: If using the
angle mount, check to ensure the ceiling angle is not
steeper than 16°.
Closemount installation is not available for this
item.
Flushmount installation is not available for this item.
Standard Mounting
Flushmount Closemount
Angle Mounting
3. Ensure the blades (L) will be at least 30 in. from any
obstructions. Also check the downrod (A) length to
ensure the blades (L) will be at least 7 ft. above the
oor.
3
7 ft.
Minimum
30 in.
Minimum
A
L
1
2

8
INITIAL INSTALLATION
4. Loosen all four preassembled mounting bracket
screws (P), then completely remove the two
mounting bracket screws (P) from the round holes
of canopy (E). Set aside for later use.
Detach mounting bracket (D) from canopy (E).
5. Attach mounting bracket (D) to outlet box (not
included) using screws and washers provided with
the outlet box.
CAUTION: It is very important you use the proper
hardware when installing the mounting bracket (D)
as this will support the fan.
4
P
D
E
5
D
D
D
Standard
Mounting
Angle
Mounting

9
STANDARD OR ANGLE MOUNTING INSTRUCTIONS

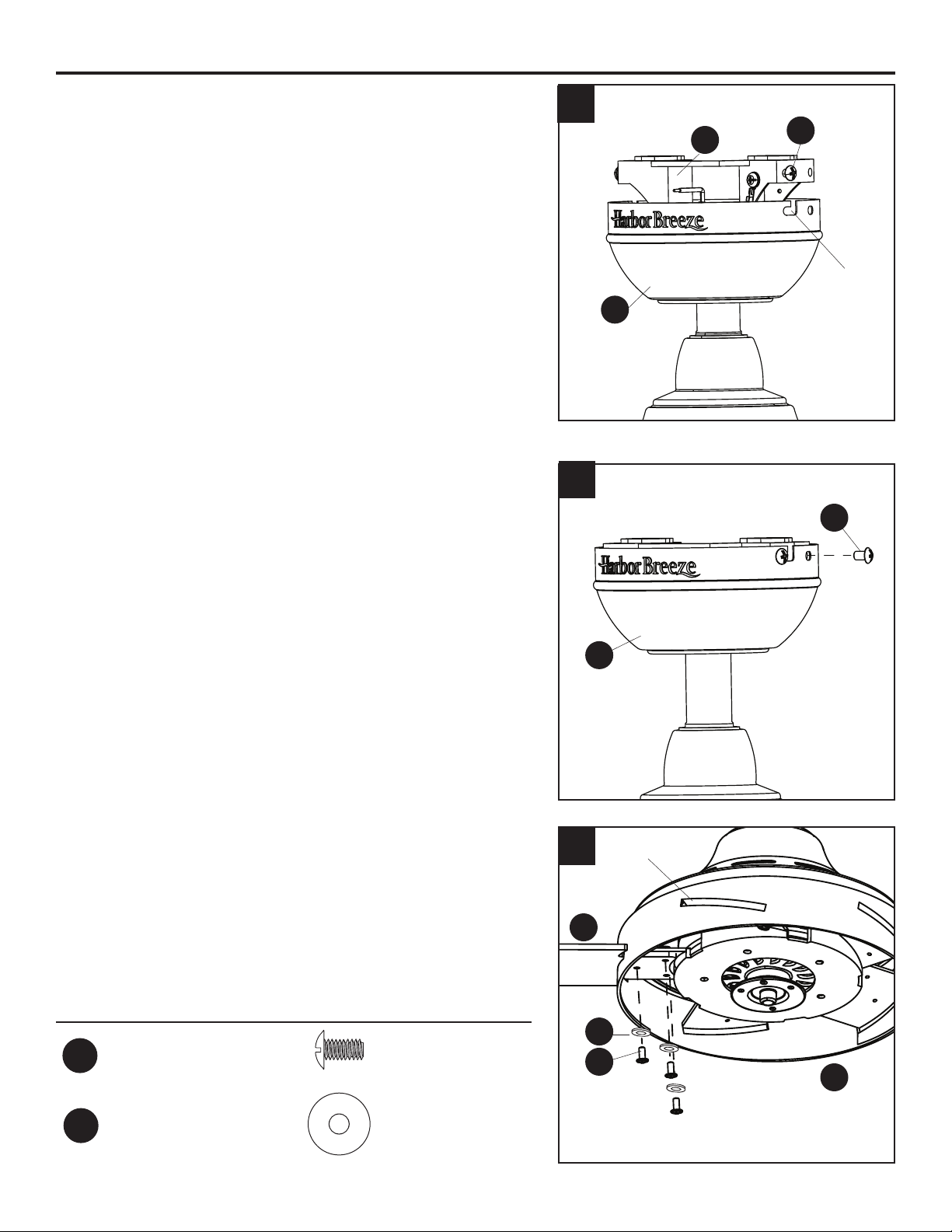

1. Remove the downrod clip (C) and downrod pin (B) from
the downrod (A). Then partially loosen the set screws
(Q) in the yoke at the top of the motor housing (H).
2. Insert the downrod (A) through the canopy (E) and yoke
cover (J). Thread the wires from the motor assembly
(H) through the downrod (A).
3. Slide the downrod (A) into the yoke of the motor
assembly (H), align the holes, then re-install the
downrod pin (B) and downrod clip (C). Secure with the
two set screws (Q) and slide the yoke cover (J) down
until it rests on top of the motor assembly (H).
A
C
B
Q
A
E
J
H
J
C
H
A
B
Q
H
1
2
3
Yoke

10
STANDARD OR ANGLE MOUNTING INSTRUCTIONS
4. Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify the
wiring. If you decide to cut back the lead wires, it is
suggested you do so in the following manner: Take
the lead wires and make sure you have pulled them
all the way through the top of the downrod. Measure
8 inches of lead wire, then cut the excess wire o󰀨 with
wire cutters (not included).
5. If you decided to cut back the lead wire in Step 4, strip
1/2 in. of insulation from the end of the white wire.
Twist the stripped ends of each strand of wire within
the insulation with pliers (not included). Repeat the
step for black and blue wires.
Note:If you did not cut back the lead wires in Step 4,
Step 5 is not necessary and you may proceed to Step
6 instead.
6. Install the ball end of the downrod (A) into the opening
of the mounting bracket (D). Align the slot in the ball
with the tab in the mounting bracket (D). Note: The
downrod should not rotate if it is installed correctly.
DANGER: Failure to align the slot in the downrod
(A) with the tab of the mounting bracket (D) may
cause the fan to wobble or fall, which could result in
serious injury or death.
A
D
4
6
8 in.
5

11
WIRING
WARNING: To reduce the risk of re, electrical shock or personal injury, wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires
from the fan. If your house wire is larger than 12-gauge and/or there is more than one house wire to
connect to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.

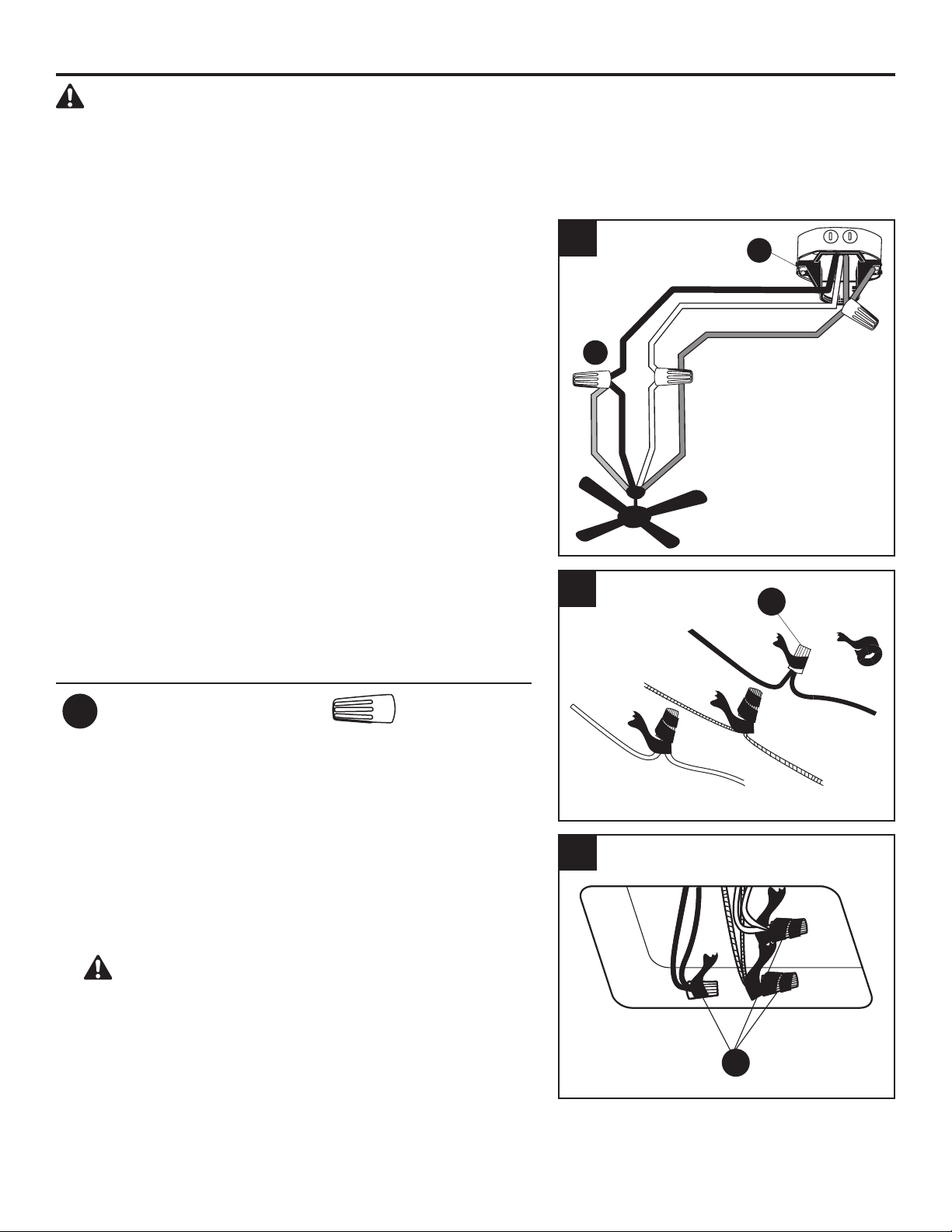

1. Connect household supply and fan wires according to
the diagram and these steps:
• Connect the Green wire from the downrod (A) and
mounting bracket (D) to the Bare/Green supply wire.
• Connect the White wire from the fan to the White
supply wire.
• Connect the Black and Blue wires from the fan to the
Black supply wire.
• Secure all wiring connections together with wire
connectors (AA).
Note: If there is a second hot/power wire coming from
the outlet box, connect it to the Blue (light power) fan
wire for separate light and fan control.
Note: The Black wire is hot power for the fan. The
White wire is neutral for the fan and light kit. The
Green wire is the ground wire. If supply wires are
di󰀨erent colors than referred to above, a professional
electrician should determine the proper wiring.
Hardware Used
AA Wire Connector x 3
Black (Hot)
White (Neutral)
Bare/Green (Ground)
Black Blue White Green
2. Wrap electrical tape (not included) around each
individual wire connector (AA) down to the wire.
3. Turn the spliced/taped wires upward and gently push
the wires and wire connectors (AA) into the outlet box.
WARNING: Ensure no wire strands are visible
after making connections. Place the Green and White
wire connections on the opposite side of the outlet
box from the Black.
1
3
AA
AA
2
D
AA

12
FINAL INSTALLATION
1. Align the canopy (E) over the loose mounting bracket
screws (P) preassembled on mounting bracket
(D). Place the keyholes of the canopy (E) onto the
mounting bracket screws (P) and rotate the canopy
(E) clockwise.
2. Secure the canopy (E) with the mounting bracket
screws (P) previously removed (Step 4, page 8).
Tighten all mounting bracket screws (P) securely.
3. Insert blade (L) through slot in the side of the motor
assembly (H). Align the holes of one blade (L) with
three blade screw holes in underside of the motor
assembly (H). Secure blade (L) with three blade
screws (BB) and blade washers (CC). Repeat for the
remaining blades (L).
Hardware Used
BB Blade Screw x 15
Blade Washer x 15
P
E
P
D
E
1
2
BB
L
CC
H
3Slot
CC
Keyhole

13
FINAL INSTALLATION
4. Remove one of the three tter plate screws (K)
located on the underside of the motor assembly (H)
and loosen the other two screws. Align the key slots of
the light pan (N) with the loosened tter plate screws
(K) and turn the light pan (N) clockwise. Replace
previously removed tter plate screw (K), then tighten
all screws.
5. Remove one of the three light pan screws (O) from
the light pan (N) and loosen the other two screws.
Connect the 9-pin connector from the light kit (G) to
the 9-pin connector coming from the hole in the light
pan (N). Place the key holes in the light kit (G) over
the two light pan screws (O) and turn clockwise. Re-
install the previously removed light pan screw (O) and
tighten all screws.
6. Lift the glass bowl (M) over the light kit (G) and turn
in a clockwise direction until it is secure. CAUTION:
Failure to properly secure the glass bowl, may cause
the glass to fall, which could cause serious injury.
H
K N
4
N
O
M
G
G
5
9-pin
Connector
6
I

14
FINAL INSTALLATION
7. Attach the pull chain extensions (DD) or custom pull
chain extensions (not included) to the fan and light pull
chains. Note: When facing the reverse switch, the pull
chain for the fan is on the right and the pull chain for
the light is on the left.
Hardware Used
DD Pull Chain
Extension x 2
8. Turn on power supply to the fan.
Assembly is complete.
7
8
Reverse Switch
DD

15
OPERATING INSTRUCTIONS
1. Using a ceiling fan will allow you to raise your
thermostat setting in summer and lower your
thermostat setting in winter without feeling a
di󰀨erence in your comfort.

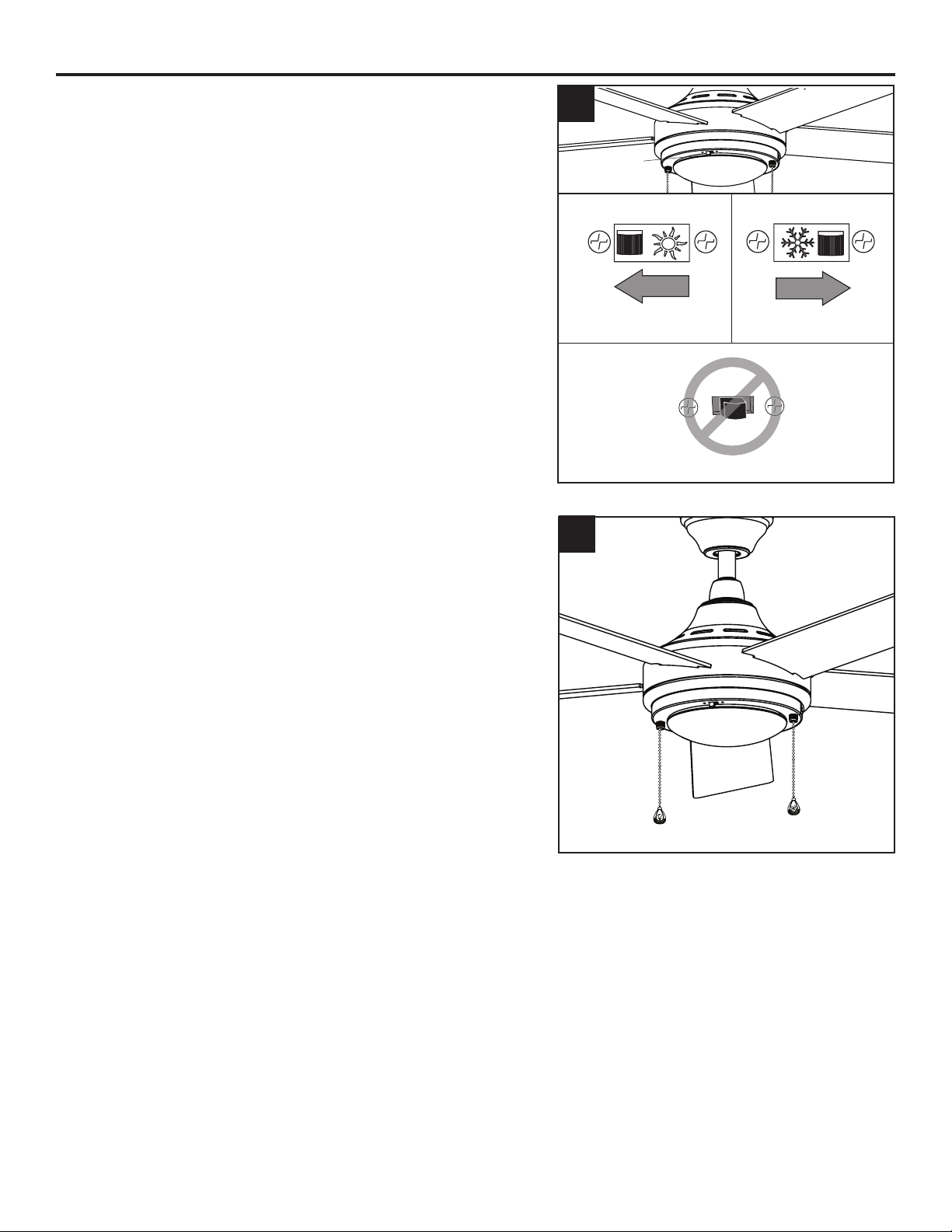

In warmer weather, push the reverse switch to the
left which will result in downward airow creating a
wind chill e󰀨ect (Fig 2a).
In cooler weather, push the reverse switch right
which will result in upward airow that can help move
stagnant, hot air o󰀨 the ceiling area (Fig 2b).
Important: Wait for the fan to stop before moving the
reverse switch. The reverse switch must be set either
completely right or left for the fan to function correctly.
If the reverse switch is set in the middle position, the
fan will not operate (Fig 2c).
2. The fan pull chain has four positions to control fan
speed. One pull is HIGH, two is MEDIUM, three is
LOW and four turns the fan OFF. The light pull chain
has two positions to control the light, ON and OFF.
Fig. 2a Fig. 2b
Fig. 2c
1
2
Light Pull Chain Fan Pull Chain
Reverse
Switch

16
CARE AND MAINTENANCE
At least twice each year, lower the canopy to check the downrod assembly, and then tighten all
screws on the fan. Clean the motor housing with only a soft brush or lint-free cloth to avoid scratching
the nish. Clean the blades with a lint-free cloth.
Total xture wattage is 18.5 watts; do not attempt to replace LED.
Important: Shut o󰀨 the main power supply before you begin any maintenance tasks. Do not use
water or a damp cloth to clean the ceiling fan.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan does not
move.
1. The power is o󰀨 or the fuse is
blown.
2. There is a faulty wire connection.
3. The plugs are not connected
properly.
4. The reverse switch is not
completely engaged.
1. Turn the power on or check the
fuse.
2. Turn the power o󰀨. Loosen the
canopy and check all connections.
3. Check that the connectors from
the light kit and fan are connected
properly.
4. Push the season slide switch
completely to the left or right.
The fan operates
correctly, but the
lights are not
working.
1. The light kit wire plugs are not
connected properly.
2. There is a faulty wire connection.
1. Ensure the single-pin connectors
in the light kit are connected
properly.
2. Turn the power o󰀨 and check all
connections at the ceiling outlet
box.
The fan is noisy.
1. The blades are loose.
2. There is a cracked blade.
3. The wall control is not compatible
with the fan.
4. The outlet box is not secure.
5. The mounting bracket is not
secure.
1. Check and tighten all screws that
hold the fan blades to the blade
arms and the motor.
2. Replace the cracked blade.
3. Do not use a full range dimmer
switch to control the fan speed.
4. Ensure the outlet box is secured
to the building structure.
5. Ensure the mounting bracket is
secured to the outlet box and that
the screws are tight.
El vataje total de la lámpara es de 18,5 vatios; no intente
reemplazar la bombilla LED.

17
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
There is excessive
wobbling.
1. The blades and/or blade arms
are loose.
2. The blades are unbalanced.
3. The fan mounting is not
secure.
4. The fan is too close to the
vaulted ceiling.
5. The set screw on the motor
housing yoke is loose.
1. Check and tighten all screws that hold
the fan blades to the blade arms and
the blade arms to the motor.
2. Switch one blade with a blade from the
opposite side. Or balance the fan using
a blade balancing kit (sold separately).
3. Turn o󰀨 the power. Loosen the canopy
and verify that the mounting bracket
is secure to the electrical outlet box.
The bracket must be ush without
movement against the outlet box.
4. Use a longer downrod (sold separately)
or move the fan to another location.
5. Lift the yoke cover and tighten the set
screw to the yoke until secure.

18
LIMITED LIFETIME WARRANTY
The manufacturer warrants this fan to be free from defects in workmanship and materials present at
time of shipment from the factory for a lifetime from the date of purchase by the original purchaser.
The retailer also warrants that all other fan parts, excluding any glass or plastic blades, to be free
from defects in workmanship and material at the time of shipment from the factory for a period of one
year after the date of purchase by the original purchaser. The manufacturer agrees to correct such
defects without charge or at its option replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Any damage to any part such as by accident or
misuse or improper installation or by a󰀩xing any accessories, is not covered by this warranty. The
manufacturer assumes no responsibility whatsoever for fan installation during the limited lifetime
warranty. Any service performed by an unauthorized person will render the warranty invalid.
Due to varying climate conditions, this warranty does not cover any changes in brass nish, including
rusting, pitting, corroding, tarnishing or peeling. Brass nishes of this type give their longest useful life
when protected from varying weather conditions. Any glass provided with this fan is not covered by
the warranty.
Any replacement of defective parts from the ceiling fan must be reported within the rst year from the
date of purchase. For the balance of the warranty, call our customer service department for return
authorization and shipping instructions so that we may repair or replace the ceiling fan. Any fan or
parts returned improperly is the sole responsibility of the purchaser. There is no other expressed
warranty. The manufacturer disclaims any and all warranties. The duration of any implied warranty
which cannot be disclaimed is limited to the time period as specied in the expressed warranty. The
manufacturer shall not be liable for incidental, consequential, or special damages arising out of or
in connection with product use or performance except as may otherwise be accorded by law. This
warranty gives specic legal rights, and you may also have other rights which vary from state to state.
This warranty supersedes all prior warranties.
Note:A small amount of “wobble” is normal and should not be considered a defect.

19
Printed in China
REPLACEMENT PARTS LIST
For replacement parts, call the customer service department at 1-800-643-0067, 8 a.m. - 8 p.m., EST,
Monday - Sunday.
PART DESCRIPTION 1971064
PART#
1971065
PART#
A Downrod 4L000006400 4L000006330
D Mounting Bracket 4L000006410 4L000006350
E Canopy 4L000002220 4L000008280
F Canopy Cover 4L000000830 4L000008290
G Light Kit 4L000013270 4L000013280
J Yoke Cover 4A000008620 4A000008630
L Blade (x5) 4L085730001 4L085730002
M Glass Bowl 4A166660000 4A166660000
HW Hardware Kit 4L000013290 4L000013300
9614 PB · 033120
A D
E
F G
LJ M HW
