INSTALLATION MANUAL
AIR
CONDITIONER
www.lg.com
Please read this installation manual completely before installing the product.
Installation work must be performed in accordance with the national wiring
standards by authorized personnel only.
Please retain this installation manual for future reference after reading it
thoroughly.
MULTI TYPE CEILING CASSETTE
Copyright © 2012 - 2022 LG Electronics Inc. All Rights Reserved.
MFL65779702
Rev.03_120122
ENGLISH

• Do not cool excessively indoors. This may be harmful for your health and may consume more
electricity.
• Block sunlight with blinds or curtains while you are operating the air conditioner.
• Keep doors or windows closed tightly while you are operating the air conditioner.
• Adjust the direction of the air flow vertically or horizontally to circulate indoor air.
• Speed up the fan to cool or warm indoor air quickly, in a short period of time.
• Open windows regularly for ventilation as the indoor air quality may deteriorate if the air condition-
er is used for many hours.
• Clean the air filter once every 2 weeks. Dust and impurities collected in the air filter may block the
air flow or weaken the cooling / dehumidifying functions.
For your records
Staple your receipt to this page in case you need it to prove the date of purchase or for warranty
purposes. Write the model number and the serial number here:
Model number :
Serial number :
You can find them on a label on the side of each unit.
Dealer’s name :
Date of purchase :
Here are some tips that will help you minimize the power consumption when you use the air
conditioner. You can use your air conditioner more efficiently by referring to the instructions
below:
TIPS FOR SAVING ENERGY
ENGLISH
TIPS FOR SAVING ENERGY
2

3
WARNING
• Installation or repairs made by unqualified persons can result in
hazards to you and others.
• The information contained in the manual is intended for use by
a qualified service technician familiar with safety procedures
and equipped with the proper tools and test instruments.
• Failure to carefully read and follow all instructions in this
manual can result in equipment malfunction, property damage,
personal injury and/or death.
!
ENGLISH
SAFETY INSTRUCTIONS
Read the precautions in this manual
carefully before operating the unit.
This appliance is filled with
flammable refrigerant.(for R32)
This symbol indicates that the
Operation Manual should be read
carefully.
This symbol indicates that a service
personnel should be handling this
equipment with reference to the
Installation Manual.
SAFETY INSTRUCTIONS
The following symbols are displayed on indoor and outdoor units.
WARNING
This indicates that the failure to follow the instructions can cause
serious injury or death.
CAUTION
This indicates that the failure to follow the instructions can cause
the minor injury or damage to the product.
This symbol is displayed to indicate matters and operations
that can cause risk.
Read the part with this symbol carefully and follow the
instructions in order to avoid risk.
!
!
!
The following safety guidelines are intended to prevent unfore-
seen risks or damage from unsafe or incorrect operation of the
appliance.
The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as
described below.

• Compliance with national gas regulations shall be observed.
• Ducts connected to an appliance shall not contain an ignition
source. (for R32)
• This unit is equipped with a refrigerant leak detector for safety.
To be effective, the unit must be electrically powered at all
times after installation, other than when servicing. (for R32)
•
This unit is equipped with electrically powered safety measures.
To be effective, the unit must be electrically powered at all
times after installation, other than when servicing. (for R32)
• Installation MUST conform with local building codes or, in the
absence of local codes, with the Nation Electrical Code NFPA
70/ANSI C1-1003 or current edition and Canadian Electrical Code
Part1 CSA C.22.1.
Installation
• Always perform grounding.
- Otherwise, it may cause electrical shock.
•
Don’t use a power cord, a plug or a loose socket which is damaged.
- Otherwise, it may cause a fire or electrical shock.
• For installation of the product, always contact the service
center or a professional installation agency.
- Otherwise, it may cause a fire, electrical shock, explosion or
injury.
• Securely attach the electrical part cover to the indoor unit and
the service panel to the outdoor unit.
- If the electrical part cover of the indoor unit and the service
panel of the outdoor unit are not attached securely, it could
result in a fire or electric shock due to dust, water, etc.
• Always install an air leakage breaker and a dedicated switching
board.
- No installation may cause a fire and electrical shock.
• Do not keep or use flammable gases or combustibles near the
air conditioner.
- Otherwise, it may cause a fire or the failure of product.
ENGLISH
SAFETY INSTRUCTIONS
4

SAFETY INSTRUCTIONS
ENGLISH
5
• Ensure that an installation frame of the outdoor unit is not
damaged due to use for a long time.
- It may cause injury or an accident.
• Do not disassemble or repair the product randomly.
- It will cause a fire or electrical shock.
• Do not install the product at a place that there is concern of
falling down.
- Otherwise, it may result in personal injury.
• Use caution when unpacking and installing.
- Sharp edges may cause injury.
•
The appliance shall be stored in a room without continuously
operating open flames (for example an operating gas appliance)
and ignition sources (for example an operating electric heater).
• Two or more people must lift and transport the product. Avoid
personal injury.
• Do not use means to accelerate the defrosting process or to
clean, other than those recommended by the manufacturer.
• Do not pierce or burn refrigerant cycle part.
• Be aware that refrigerants may not contain an odour.
• Keep any required ventilation openings clear of obstruction.
• The appliance shall be stored in a well-ventilated area where
the room size corresponds to the room area as specified for
operation. (for R32)
•
Refrigerant tubing shall be protected or enclosed to avoid damage.
• Flexible refrigerant connectors (such as connecting lines between
the indoor and outdoor unit) that may be displaced during normal
operations shall be protected against mechanical damage.
• A brazed, welded, or mechanical connection shall be made
before opening the valves to permit refrigerant to flow
between the refrigerating system parts.
• Mechanical connections shall be accessible for maintenance
purposes.
• The appliance shall be disconnected from its power source
during service and when replacing parts.

6SAFETY INSTRUCTIONS
ENGLISH
• The appliance shall be installed in accordance with national
wiring regulations.
• Do not use a defective or underrated circuit breaker. Use this
appliance on a dedicated circuit.
- There is risk of fire or electric shock.
• For electrical work, contact the dealer, seller, a qualified
electrician, or an Authorized Service Center.
- Do not disassemble or repair the product. There is risk of fire
or electric shock.
• Always install a dedicated circuit and breaker.
- Improper wiring or installation may cause fire or electric
shock.
• Use the correctly rated breaker or fuse.
- There is risk of fire or electric shock.
• Do not let the air conditioner run for a long time when the
humidity is very high and a door or a window is left open.
- Moisture may condense and wet or damage furniture.
• Do not install the product on a defective installation stand.
- It may cause injury, accident, or damage to the product.
• Be sure the installation area does not deteriorate with age.
- If the base collapses, the air conditioner could fall with it,
causing property damage, product failure, and personal injury.
• Do not use the aluminum pipe.
- It will cause gas leakage.
Operation
• Do not share the outlet with other appliances.
- It will cause an electric shock or a fire due to heat generation.
• Do not use the damaged power cord.
- Otherwise, it may cause a fire or electrical shock.
• Do not modify or extend the power cord randomly.
- Otherwise, it may cause a fire or electrical shock.
• Take care so that the power cord may not be pulled during
operation.
- Otherwise, it may cause a fire or electrical shock.

SAFETY INSTRUCTIONS
ENGLISH
7
• Unplug the unit if strange sounds, smell, or smoke comes
from it.
- Otherwise, it may cause electrical shock or a fire.
• Keep the flames away.
- Otherwise, it may cause a fire.
• Take the power plug out if necessary, holding the head of the
plug and do not touch it with wet hands.
- Otherwise, it may cause a fire or electrical shock.
• Do not use the power cord near the heating tools.
- Otherwise, it may cause a fire and electrical shock.
• Do not open the suction inlet of the indoor/outdoor unit during
operation.
- Otherwise, it may electrical shock and failure.
• Do not allow water to run into electrical parts.
- Otherwise, it may cause the failure of machine or electrical
shock.
• Hold the plug by the head when taking it out.
- It may cause electric shock and damage.
• Never touch the metal parts of the unit when removing the
filter.
- They are sharp and may cause injury.
• Do not step on the indoor/outdoor unit and do not put anything
on it.
- It may cause an injury through dropping of the unit or falling
down.
• Do not place a heavy object on the power cord.
- Otherwise, it may cause a fire or electrical shock.
• When the product is submerged into water, always contact the
service center.
- Otherwise, it may cause a fire or electrical shock.
• Take care so that children may not step on the outdoor unit.
- Otherwise, children may be seriously injured due to falling
down.

8SAFETY INSTRUCTIONS
ENGLISH
• Use a vacuum pump or inert (nitrogen) gas when doing
leakage test or air purge. Do not compress air or oxygen, and
do not use flammable gases. Otherwise, it may cause fire or
explosion.
- There is the risk of death, injury, fire or explosion.
• Do not turn on the breaker or power under condition that front
panel, cabinet, top cover, control box cover are removed or
opened.
- Otherwise, it may cause fire, electric shock, explosion or
death.
• Turn off all devices that cause fire when the refrigerant leaks.,
ventilate the room (example : opening window or using
ventilation unit), and contact with dealer who you purchased
the unit.
• The installation of pipe-work shall be kept to a minimum.
• When mechanical connectors are reused indoors, sealing parts
shall be renewed. (for R32)
• When flared joints are reused indoors, the flare part shall be re-
fabricated. (for R32)
CAUTION
Installation
• Install the drain hose to ensure that drain can be securely
done.
- Otherwise, it may cause water leakage.
• Install the product so that the noise or hot wind from the
outdoor unit may not cause any damage to the neighbors.
- Otherwise, it may cause dispute with the neighbors.
• Always inspect gas leakage after the installation and repair of
product.
- Otherwise, it may cause the failure of product.
• Keep level parallel in installing the product.
- Otherwise, it may cause vibration or water leakage.
!

SAFETY INSTRUCTIONS
ENGLISH
9
• Any person who is involved with working on or breaking into a
refrigerant circuit should hold a current valid certificate from an
industry-accredited assessment authority, which authorises
their competence to handle refrigerants safely in accordance
with an industry recognized assessment specification. (for
R32)
• Wear adequate personal protection equipment (PPE) when
installing, maintaining or servicing the product.
• Pipe-work shall be protected from physical damage.
• Do not install the unit in potentially explosive atmospheres.
• Do not install the product where it will be exposed to sea wind
(salt spray) directly.
- It may cause corrosion on the product. Corrosion, particularly
on the condenser and evaporator fins, could cause product
malfunction or inefficient operation.
Operation
• Avoid excessive cooling and perform ventilation sometimes.
- Otherwise, it may do harm to your health.
• Use a soft cloth to clean. Do not use wax, thinner, or a strong
detergent.
- The appearance of the air conditioner may deteriorate, change
color, or develop surface flaws.
•
Do not use an appliance for special purposes such as preserving
animals vegetables, precision machine, or art articles.
- Otherwise, it may damage your properties.
• Do not place obstacles around the flow inlet or outlet.
-
Otherwise, it may cause the failure of appliance or an accident.
• The appliance shall be stored so as to prevent mechanical
damage from occurring.
• Servicing shall only be performed as recommended by the
equipment manufacturer. Maintenance and repair requiring the
assistance of other skilled personnel shall be carried out under
the supervision of the person competent in the use of
flammable refrigerants. (for R32)

10 SAFETY INSTRUCTIONS
ENGLISH
• Dismantling the unit, treatment of the refrigerant oil and
eventual parts should be done in accordance with local and
national standards.
• Periodic ( more than once/year ) cleaning of the dust or salt
particles stuck on the heat exchanger by using water.
• Means for disconnection must be incorporated in the fixed
wiring in accordance with the wiring rules.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play
with the appliance.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.

11
2TIPS FOR SAVING ENERGY
3SAFETY INSTRUCTIONS
12 INTRODUCTION
12 Features
13 INSTALLATION
13 Selection of the best location
16 Ceiling dimension and hanging bolt location
18 Drain Piping
20 Wiring Connection
22 Electrical Wiring
23 Flaring Work
25 Remote Control Preparation
26 INSTALLATION OF DECORATIVE PANEL(ACCESSORY)
29 INSTALLATION INSTRUCTIONS
29 Installer Setting - Setting Address of Central Control
29 Installer Setting - Checking Address of Central Control
30 Installer Setting -How to enter installer setting mode
32 DIP Switch Setting of Indoor unit PCB
TABLE OF CONTENTS
ENGLISH
TABLE OF CONTENTS

Filter
Air Outlet
Air Inlet
Remote
Controller
Name Quantity Shape
for gas pipe for liquid pipe
Clamp metal 2 EA
Insulation for
fitting 1 set
Drain hose 1 EA
Clamp
(Tie Wrap)
8 EA
Washer for
hanging bracket
4 EA
Bolt 4 EA
Other
• Paper pattern for
installation
• Owner's manual
• Installation manual
Screws for fixing panels are attached to decoration panel.
12 INTRODUCTION
Features
ENGLISH
INTRODUCTION

INSTALLATION
ENGLISH
13
INSTALLATION
Read completely, then follow step by step.

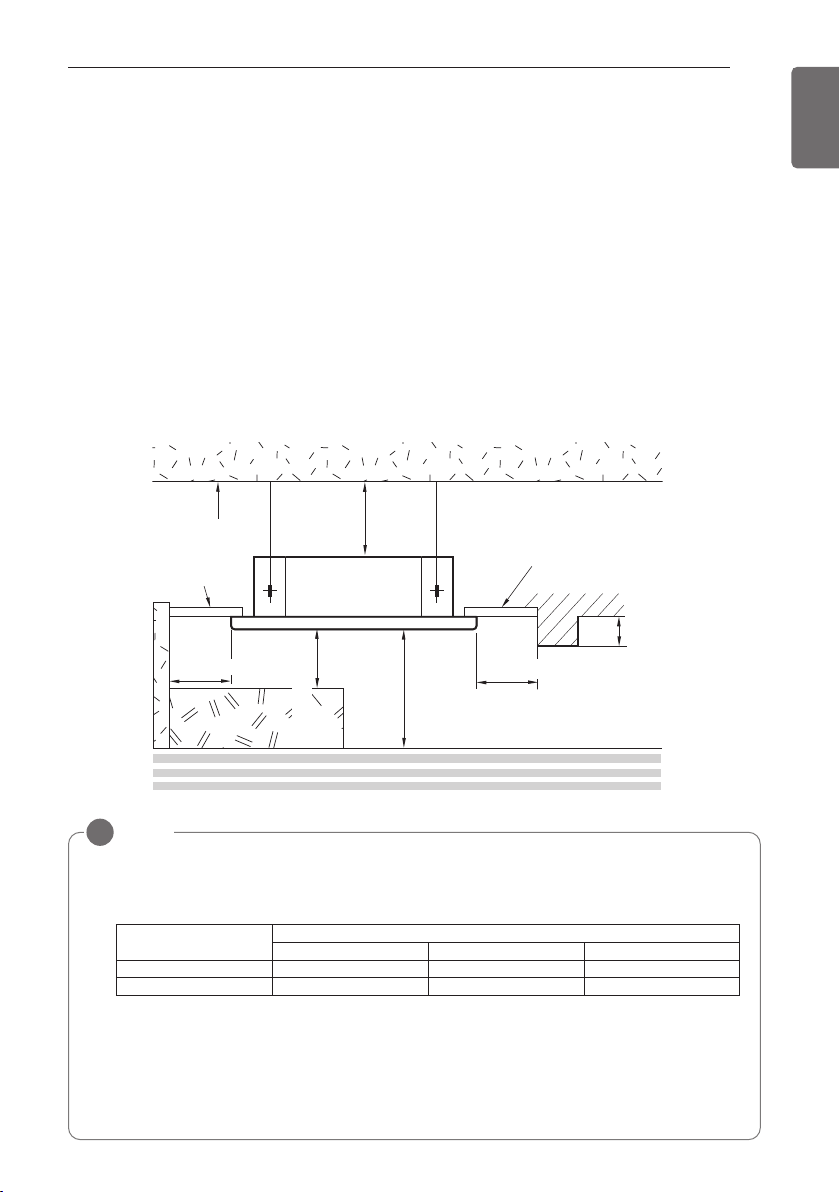

Selection of the best location
There should not be any heat source or steam near the unit.
There should not be any obstacles to the air circulation.
A place where air circulation in the room will be good.
A place where drainage can be easily obtained.
A place where noise prevention is taken into consideration.
Do not install the unit near the door way.
Ensure the spaces indicated by arrows from the wall, ceiling, or other obstacles.
The indoor unit must have the maintenance space.
NOTE
!
* : Minimum Installation Space to Air flow direction A separation distance of at least
1,500 mm is required throughout the airflow direction.
** :
A, Installation Height from the floor
*** : Minimum Height
In case the applied refrigerant is R32, the installation height must be 2.2m or more.
Exact details follow IEC regulations.
**** : Standard Height (Recommended)
If it exceeds the standard height, set the ‘High Ceiling Mode’.
For details about function setting, refer to the installation manual.
Capacity Class Installation Height (A)
Min.*** Standard **** Max.
< 10 kW 2.0 m (6.56 ft) 2.7 m (8.86 ft) 3.6 m (11.81 ft)
≥10 kW 2.5 m (8.20 ft) 3.2 m (10.50 ft) 4.2 m (13.78 ft)
Floor
[Unit:mm(inch)]
A**
Ceiling
≥ 1,500(59-1/16) *
≥ 1,500(59-1/16)*
≤ 300(11-13/16)
Ceiling board
Ceiling board
≥ 1000(39-3/8)
≥ 10(13/32)

14 INSTALLATION
ENGLISH
* Please use an annexed sheet or the corrugated cardboard on the bottom of packing as installa-
tion sheet.
* When using the bottom sheet, please use it after separating the installation sheet from packing
of the product floor by using a knife etc as a picture below.
Annexed sheet
Or
Packing corrugated
cardboard on the
bottom
CAUTION
!
In case that the unit is installed near the sea, the installation parts may be corroded by salt.
The installation parts (and the unit) should be taken appropriate anti-corrosion measures.

INSTALLATION
ENGLISH
15
Floor standing
m (kg) Amin (m2)
< 1.224 -
1.224 12.9
1.4 16.82
1.6 21.97
1.8 27.80
2 34.32
2.2 41.53
2.4 49.42
2.6 58.00
2.8 67.27
3 77.22
3.2 87.86
3.4 99.19
3.6 111.20
3.8 123.90
4 137.29
4.2 151.36
4.4 166.12
Floor standing
m (kg) Amin (m2)
4.6 181.56
4.8 197.70
5 214.51
5.2 232.02
5.4 250.21
5.6 269.09
5.8 288.65
6 308.90
6.2 329.84
6.4 351.46
6.6 373.77
6.8 396.76
7 420.45
7.2 444.81
7.4 469.87
7.6 495.61
7.8 522.04
Wall mounted
m (kg) Amin (m2)
< 1.224 -
1.224 1.43
1.4 1.87
1.6 2.44
1.8 3.09
2 3.81
2.2 4.61
2.4 5.49
2.6 6.44
2.8 7.47
3 8.58
3.2 9.76
3.4 11.02
3.6 12.36
3.8 13.77
4 15.25
4.2 16.82
4.4 18.46
Wall mounted
m (kg) Amin (m2)
4.6 20.17
4.8 21.97
5 23.83
5.2 25.78
5.4 27.80
5.6 29.90
5.8 32.07
6 34.32
6.2 36.65
6.4 39.05
6.6 41.53
6.8 44.08
7 46.72
7.2 49.42
7.4 52.21
7.6 55.07
7.8 58.00
Ceiling Mounted
m (kg) Amin (m2)
< 1.224 -
1.224 0.956
1.4 1.25
1.6 1.63
1.8 2.07
2 2.55
2.2 3.09
2.4 3.68
2.6 4.31
2.8 5.00
3 5.74
3.2 6.54
3.4 7.38
3.6 8.27
3.8 9.22
4 10.21
4.2 11.26
4.4 12.36
Ceiling Mounted
m (kg) Amin (m2)
4.6 13.50
4.8 14.70
5 15.96
5.2 17.26
5.4 18.61
5.6 20.01
5.8 21.47
6 22.98
6.2 24.53
6.4 26.14
6.6 27.80
6.8 29.51
7 31.27
7.2 33.09
7.4 34.95
7.6 36.86
7.8 38.83
- The appliance shall be installed, operated and stored in a room with a floor area larger than the mini-
mum area.
- Use the graph of table to determine the minimum area.
- m : Total refrigerant amount in the system
- Total refrigerant amount : factory refrigerant charge + additional refrigerant amount
- Amin : minimum area for installation
Minimum floor area (for R32)(IEC 60335-2-40:2013+A1:2016 Edition 5.1)
0
100
200
300
400
500
600
m (kg)
0 1.224 2 3 4 5 6 7 8
Floor standing
Wall mounted
Ceiling mounted
Amin (m2)

16 INSTALLATION
ENGLISH
Select and mark the position for fixing bolts and piping hole.
Decide the position for fixing bolts slightly tilted to the drain direction after considering the direc-
tion of drain hose.
Drill the hole for anchor bolt on the wall.
• This air-conditioner uses a drain pump.
• Install the unit horizontally using a level gauge.
• During the installation, care should be taken not to damage electric wires.
CAUTION
!
Ceiling dimension and hanging bolt location
The dimensions of the paper model for installation are the same as those of the ceiling opening
dimensions.
Ceiling board
TQ/TR Chassis TM/TN/TP/TP-B Chassis
Unit:mm
585~660(Ceiling opening)
517
461
517
585~660
(Ceiling opening)
523
570
570
319
Unit:mm
875(Ceiling opening)
787
(Hanging bolt)
684(Hanging bolt)
671
875(Ceiling opening)
840
Unit size
840
Unit size
Level gauge
Ceiling

INSTALLATION
ENGLISH
17
Use the ventilation
fan for smoke
-collecting hood with
sufficient capacity.
Cooking table
Air conditioner
Take enough
distance
NOTE
!
• Avoid the following installation location.
1Such places as restaurants and kitchen where considerable amount of oil steam and
flour is generated. These may cause heat exchange efficiency reduction, or water
drops, drain pump mal-function. In these cases, take the following actions;
• Make sure that ventilation fan is enough to cover all noxious gases from this place.
• Ensure enough distance from the cooking room to install the air conditioner in such a
place where it may not suck oily steam.
2Avoid installng air conditioner in such places where cooking oil or iron powder is gener-
ated.
3Avoid places where inflammable gas is generated.
4Avoid place where noxious gas is generated.
5Avoid places near high frequency generators.
Flat washer for M10
(accessory)
Flat washer for M10
(accessory)
Hanging bolt
(W3/8 or M10)
Nut
(W3/8 or M10)
Nut
(W3/8 or M10)

18 INSTALLATION
ENGLISH

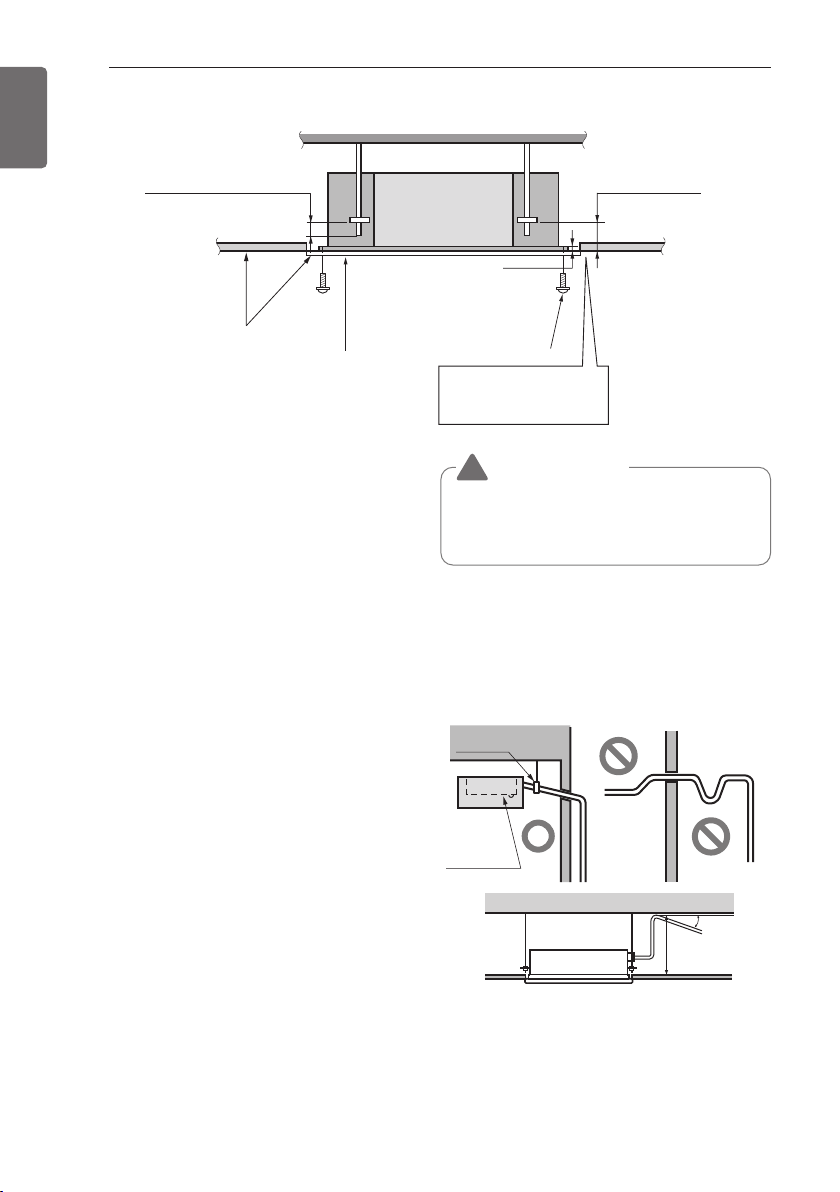

Set screw of
paper model (4 pieces)
Paper model
for installation
Ceiling board
Ceiling board
Ceiling
Keep the length of the bolt
from the bracket to 40mm
Open the ceiling board
along the outer edge of the
paper model
Air Conditioner body
Keep the specified length
between the air conditioner bottom
surface and the ceiling surface
(TQ/TR : 31~34mm, TP-B : 15mm)
Adjust the same height
(Ceiling board ~ Front panel)
Adjust the distance
from unit body
to ceiling board
(TQ/TR : 202mm,
TP-B : 118mm)
* The following parts are local purchasing.
① Hanging Bolt - W 3/8 or M10
② Nut - W 3/8 or M10
③ Spring Washer - M10
④ Plate Washer - M10
Drain Piping
• Drain piping must have down-slope (1/50 to
1/100): be sure not to provide up-and-down
slope to prevent reversal flow.
• During drain piping connection, be careful
not to exert extra force on the drain port on
the indoor unit.
• The outside diameter of the drain connec-
tion on the indoor unit is 32mm.
- Piping material: Polyvinyl chloride pipe VP-
25 and pipe fittings
• Be sure to install heat insulation on the drain
piping.
- Heat insulation material: Polyethylene
foam with thickness more than 8 mm.
Maintenance
drain port
Upward
routing
not allowed
Pipe clamp
Indoor unit
1/50~1/100
MAX 700mm
CAUTION
!
Tighten the nut and bolt to prevent the
unit from falling.

INSTALLATION
ENGLISH
19
The air conditioner uses a drain pump to drain
water.
Use the following procedure to test the drain
pump operation:
• Connect the main drain pipe to the exterior
and leave it provisionally until the test
comes to an end.
• Feed water to the flexible drain hose and
check the piping for leakage.
• Be sure to check the drain pump for normal
operating and noise when electrical wiring is
complete.
• When the test is complete, connect the flex-
ible drain hose to the drain port on the in-
door unit.
Feed water
Drain Pump
Drain pan
Flexible drain hose
(accessory)
Main
drain pipe
Glue the joint
Drain
port
Drain hose connection
Use the clip (accessory)
Drain test
1/50~1/100
MAX 700mm
Flexible drain hose
Flexible drain hose
Flexible drain hose
CAUTION
!
After the confirmation of the above condi-
tions, prepare the wiring as follows:
1Never fail to have an individual power
specialized for the air conditioner. As
for the method of wiring, be guided by
the circuit diagram posted on the in-
side of control box cover.
2Provide a circuit breaker switch be-
tween power source and the unit.
3The screws which fasten the wiring in
the casing of electrical fittings are li-
able to come loose from vibrations to
which the unit is subjected during the
course of transportation. Check them
and make sure that they are all tightly
fastened. (If they are loose, it could
give rise to burn-out of the wires.)
4Specification of power source
5Confirm that electrical capacity is suffi-
cient.
6Be sure that the starting voltage is
maintained at more than 90 percent of
the rated voltage marked on the name
plate.
7Confirm that the cable thickness is as
specified in the power sources specifi-
cation. (Particularly note the relation
between cable length and thickness.)
8Never fail to equip a leakage breaker
where it is wet or moist.
9The following troubles would be
caused by voltage drop-down.
- Vibration of a magnetic switch, dam-
age on the contact point, fuse break-
ing, disturbance by the normal
function of an overload protection de-
vice.
- Proper starting power is not given to
the compressor.
CAUTION
!
The supplied flexible drain hose should
not be curved, neither screwed.
The curved or screwed hose may cause a
leakage of water.

20 INSTALLATION
ENGLISH

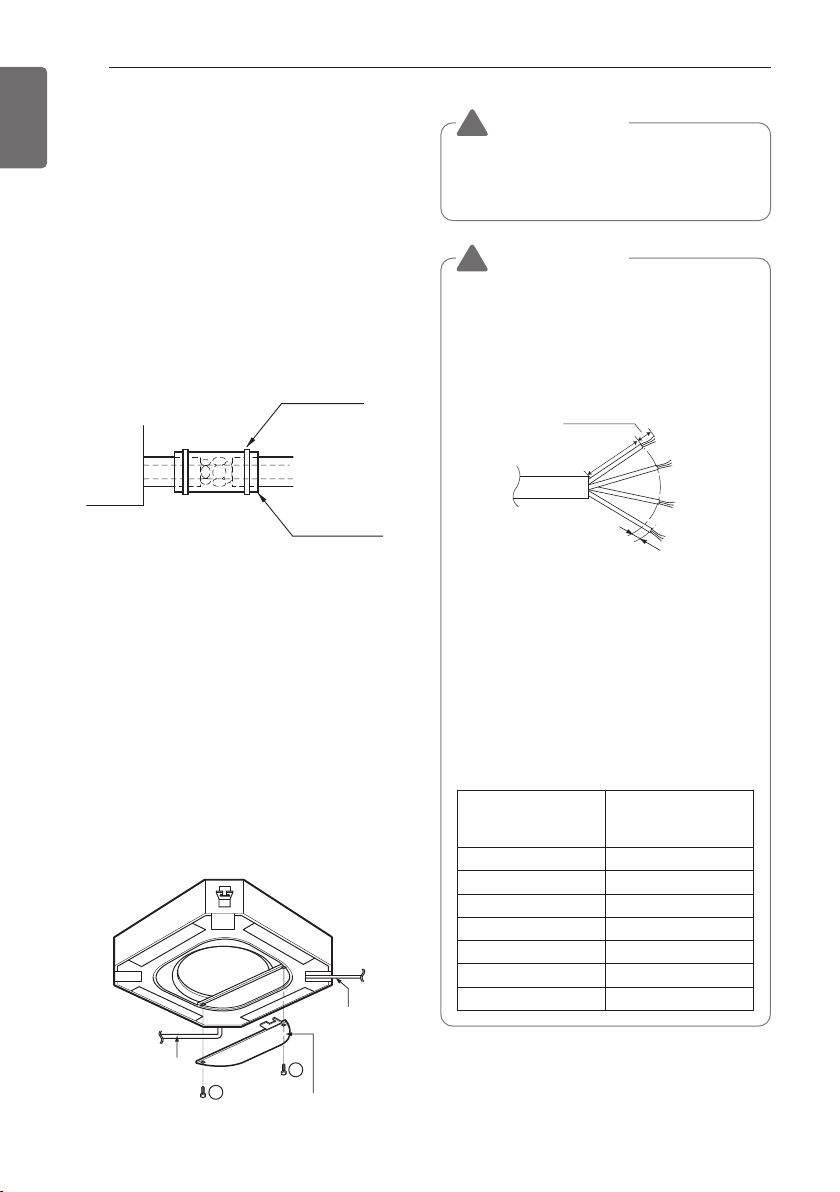

The connecting cable connected to the
indoor and outdoor unit should be com-
plied with the following specifications
(This equipment shall be provided with a
cord set complying with the national regu-
lation).
CAUTION
!
NORMAL
CROSS-SECTIONAL
AREA0.75 mm2
20 mm
35±5 mm
GN/YL
10*3 mm
If the supply cord is damaged, it must be
replaced by a special cord or assembly
available from the manufacturer of its
service agent.
Pipes and wires should be purchased sep-
arately for installation of the product.
Rated current of
Appliance
(A)
Nominal
Cross-sectional area
(mm2)
≤6 0.75
＞6 and ≤10 1
＞10 and ≤16 1.5
＞16 and ≤25 2.5
＞25 and ≤32 4
＞32 and ≤40 6
＞40 and ≤63 10
The Power cord connected to the unit
should be selected according to the fol-
lowing specifications.
CAUTION
!
HEAT INSULATION
- Use the heat insulation material for the
refrigerant piping which has an excellent
heat-resistance (over 120 °C).
- Precautions in high humidity circumstance:
This air conditioner has been tested accord-
ing to the "KS Standard Conditions with Mist"
and confirmed that there is not any default.
However, if it is operated for a long time in
high humid atmosphere (dew point tempera-
ture: more than 23 °C), water drops are liable
to fall. In this case, add heat insulation mate-
rial according to the following procedure:
- Heat insulation material to be prepared...
Adiabatic EPDM or NBR with thickness 10 to
20 mm.
- Stick glass wool on all air conditioners that
are located in ceiling atmosphere.
Indoor
unit
Thermal insulator
(accessory)
Fastening band
(accessory)
Refrigerant
piping
Wiring Connection
- Open the control box cover and connect the
Remote controller cord and Indoor power
wires.
- Remove the control box cover for electrical
connection between the indoor and outdoor
unit. (Remove screws ¿)
- Use the cord clamper to fix the cord.
Remote
controller
cord
1
1
Connection
cord
between the
indoor unit and
the outdoor
unit
Control box cover
(On which the
Electric Wiring
Connection is put)
