LG ARUN096DT2 User manual

System
Outdoor Unit
SERVICE MANUAL R410A
(Exploded View)
MODEL : ARUN Series
CAUTION
Before Servicing the unit, read the safety precautions in General SVC manual.
Only for authorized service personnel.
Internal Use Only
http://biz.lgservice.com
R410A

Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 2 -
1. Specifications ...............................................................................3
2. Function ......................................................................................13

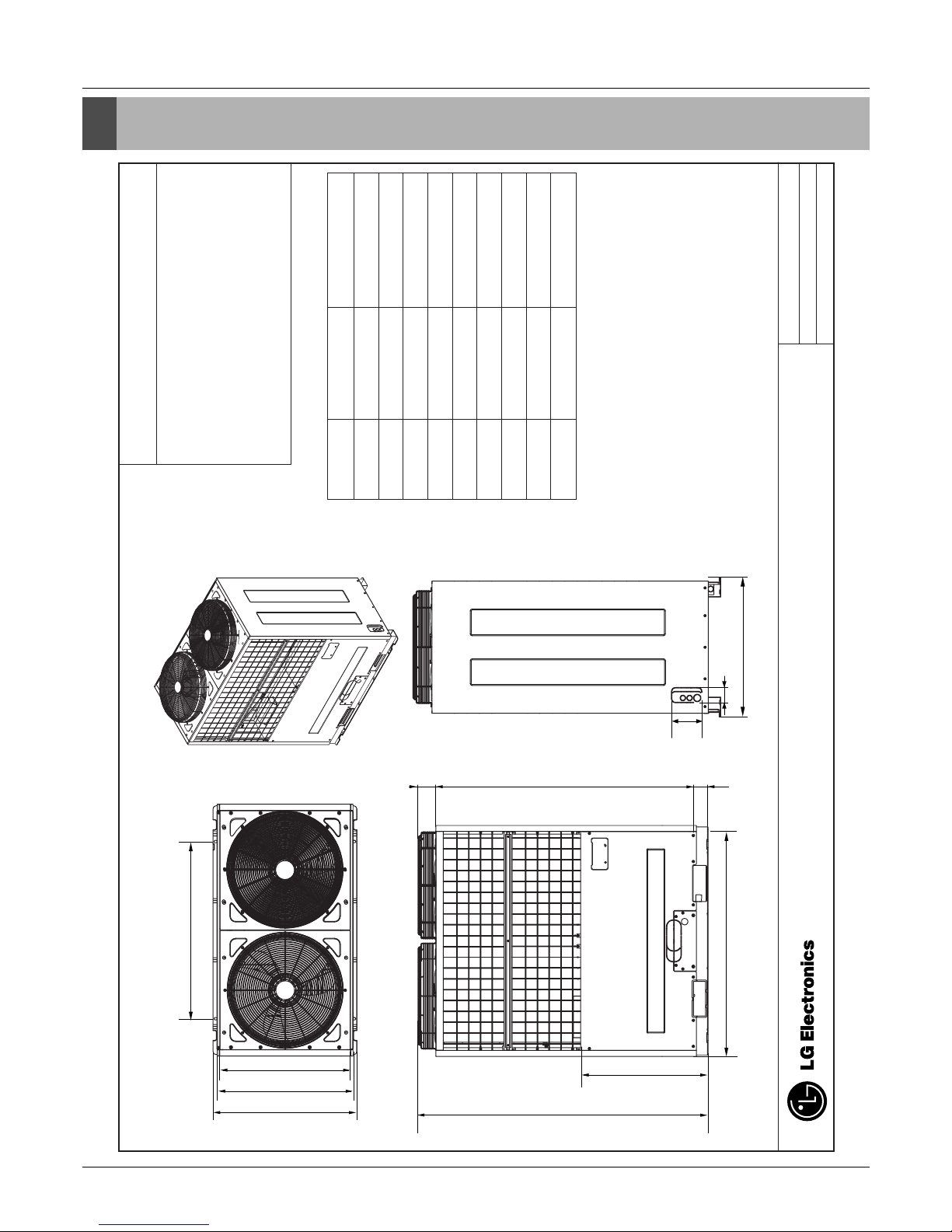

3. Dimensions .................................................................................14
4. Piping Diagrams .........................................................................20
5. Wiring Diagrams.........................................................................26
6. Exploded View ............................................................................32
ARUN Series

Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 3 -
1. Specification
Specification
1.1 Heat Pump(460V)
Notes:
1. Capacities are based on the following conditions:
Cooling * Indoor temp. 27°C[80.6°F]DB/ 19°C[66.2°F]WB
* Outdoor temp. 35°C[95°F]DB/ 24°C[75.2°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
Heating * Indoor temp. 20°C[68°F]DB/ 15°C[59°F]WB
* Outdoor temp. 7°C[44.6°F]DB/ 6°C[42.8°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without prior notification
4. EEV : Electronic Expansion Valve
HP(Equivalent horsepower)
Model Name Combination Unit
Independent Unit
Capacity Cooling kW
kcal/h
Btu/h
Heating kW
kcal/h
Btu/h
Input Cooling kW
Heating kW
Casing Color
Heat Exchanger
Compressor Type
Piston Displacement cm3/rev
Number of Revolution R.P.M
Motor Output x Number
W
Starting Method
Oil Type
Oil Charge cc
Fan Type
Motor Output x Number W
Air Flow Rate(High) CMM
cfm
Drive
Discharge Side / Top
Pipe Connctions Liquid Pipes mm(inch)
Gas Pipes mm(inch)
Dimensions (WxHxD) mm
inch
Net Weight kg
lbs
Transmission Cable mm2
Refigerant Refigerant name
Control
Power Supply Ø, V, Hz
8101214
ARUN076DT2 ARUN096DT2 ARUN115DT2 ARUN134DT2
ARUN076DT2 ARUN096DT2 ARUN115DT2 ARUN134DT2
22.4 28.0 33.6 39.2
19,300 24,100 28,900 33,700
76,400 95,500 114,700 133,800
25.2 31.5 37.8 44.1
21,700 27,100 32,500 37,900
86,000 107,500 129,000 150,500
5.28 7.16 9.08 11.85
5.73 7.33 9.05 10.60
Warm Gray Warm Gray Warm Gray Warm Gray
Gold fin Gold fin Gold fin Gold fin
DC Scroll DC Scroll DC Scroll DC Scroll
52 52+73.4 52+73.4 52+81.6
3,600 3,600+3,495 3,600+3,495 3,600+3,481
5,356x1 (5,356+5,800)x1 (5,356+5,800)x1 (5,356+6,400)x1
Direct On Line Direct On Line Direct On Line Direct On Line
FVC68D(PVE) FVC68D(PVE) FVC68D(PVE) FVC68D(PVE)
3,300 5,600 5,600 5,600
Propeller fan Propeller fan Propeller fan Propeller fan
350 x 2 350 x 2 350 x 2 350 x 2
190 190 190 190
6,700 6,700 6,700 6,700
DC INVERTER DC INVERTER DC INVERTER DC INVERTER
TOP TOP TOP TOP
9.52(3/8) 9.52(3/8) 12.7(1/2) 12.7(1/2)
19.05(3/4) 22.2(7/8) 28.58(1 1/8) 28.58(1 1/8)
1,280x1,607x730 1,280x1,607x730 1,280x1,607x730 1,280x1,607x730
(50-3/8 x 63-5/16 x 28-11/16) (50-3/8 x 63-5/16 x 28-11/16) (50-3/8 x 63-5/16 x 28-11/16) (50-3/8 x 63-5/16 x 28-11/16)
240 285 285 285
529 628 628 628
CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C
R410A R410A R410A R410A
EEV EEV EEV EEV
3, 460, 60 3, 460, 60 3, 460, 60 3, 460, 60
Heat Pump(460V/60Hz)
Conversion Formula
kcal/h= kW x 860
Btu/h = kW x 3412
cfm = m3/min x 35.3
l/s = CMM x 1000/60

Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 4 -
Specification
Notes:
1. Capacities are based on the following conditions:
Cooling * Indoor temp. 27°C[80.6°F]DB/ 19°C[66.2°F]WB
* Outdoor temp. 35°C[95°F]DB/ 24°C[75.2°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
Heating * Indoor temp. 20°C[68°F]DB/ 15°C[59°F]WB
* Outdoor temp. 7°C[44.6°F]DB/ 6°C[42.8°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without prior notification
4. EEV : Electronic Expansion Valve
Heat Pump(460V/60Hz)
Conversion Formula
kcal/h= kW x 860
Btu/h = kW x 3412
cfm = m3/min x 35.3
l/s = CMM x 1000/60
HP(Equivalent horsepower)
Model Name Combination Unit
Independent Unit
Capacity Cooling kW
kcal/h
Btu/h
Heating kW
kcal/h
Btu/h
Input Cooling kW
Heating kW
Casing Color
Heat Exchanger
Compressor Type
Piston Displacement cm3/rev
Number of Revolution R.P.M
Motor Output x Number W
Starting Method
Oil Type
Oil Charge cc
Fan Type
Motor Output x Number W
Air Flow Rate(High) CMM
cfm
Drive
Discharge Side / Top
Pipe Connctions Liquid Pipes mm(inch)
Gas Pipes mm(inch)
Dimensions (WxHxD) mm
inch
Net Weight kg
lbs
Transmission Cable mm2
Refigerant Refigerant name
Control
Power Supply Ø, V, Hz
16 18 20 22
ARUN154DT2 ARUN173DT2 ARUN192DT2 ARUN211DT2
ARUN154DT2 ARUN096DT2 ARUN115DT2 ARUN134DT2
ARUN076DT2 ARUN076DT2 ARUN076DT2
44.8 50.4 56.0 61.6
38,500 43,300 48,200 53,000
152,900 172,000 191,100 210,200
50.4 56.7 63.0 69.3
43,300 48,800 54,200 59,600
172,000 193,500 225,000 236,500
14.00 12.44 14.36 17.13
12.40 12.61 14.33 15.88
Warm Gray Warm Gray Warm Gray Warm Gray
Gold fin Gold fin Gold fin Gold fin
DC Scroll DC Scroll DC Scroll DC Scroll
52+81.6 (52+73.4)+52 (52+73.4)+52 (52+81.6)+52
3,600+3,481 (3,600+3,495)+3,600 (3,600+3,495)+3,600 (3,600+3,481)+3,600
(5,356+6,400)x1
(5,356+5,800)x1+5,356 (5,356+5,800)x1+5,356 (5,356+6,400)x1+5,356
Direct On Line Direct On Line Direct On Line Direct On Line
FVC68D(PVE) FVC68D(PVE) FVC68D(PVE) FVC68D(PVE)
5,600 5,600+3,300 5,600+3,300 5,600+3,300
Propeller fan Propeller fan Propeller fan Propeller fan
350 x 2 350 x 4 350 x 4 350 x 4
190 380 380 380
6,700 13,400 13,400 13,400
DC INVERTER DC INVERTER DC INVERTER DC INVERTER
TOP TOP TOP TOP
12.7(1/2) 15.88(5/8) 15.88(5/8) 15.88(5/8)
28.58(1 1/8) 28.58(1 1/8) 28.58(1 1/8) 28.58(1 1/8)
1,280x1,607x730
(1,280x1,607x730)x2 (1,280x1,607x730)x2 (1,280x1,607x730)x2
(50-3/8 x 63-5/16 x 28-11/16) ((50-3/8 x 63-5/16 x 28-11/16) x 2) ((50-3/8 x 63-5/16 x 28-11/16) x 2) ((50-3/8 x 63-5/16 x 28-11/16) x 2)
285 285+240 285+240 285+240
628 628+529 628+529 628+529
CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C
R410A R410A R410A R410A
EEV EEV EEV EEV
3, 460, 60 3, 460, 60 3, 460, 60 3, 460, 60

Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 5 -
Specification
HP(Equivalent horsepower)
Model Name Combination Unit
Independent Unit
Capacity Cooling kW
kcal/h
Btu/h
Heating kW
kcal/h
Btu/h
Input Cooling kW
Heating kW
Casing Color
Heat Exchanger
Compressor Type
Piston Displacement cm3/rev
Number of Revolution R.P.M
Motor Output x Number W
Starting Method
Oil Type
Oil Charge cc
Fan Type
Motor Output x Number W
Air Flow Rate(High) CMM
cfm
Drive
Discharge Side / Top
Pipe Connctions Liquid Pipes mm(inch)
Gas Pipes mm(inch)
Dimensions (WxHxD) mm
inch
Net Weight kg
lbs
Transmission Cable mm2
Refigerant Refigerant name
Control
Power Supply Ø, V, Hz
24 26 28 30
ARUN230DT2 ARUN250DT2 ARUN270DT2 ARUN290DT2
ARUN154DT2 ARUN134DT2 ARUN134DT2 ARUN154DT2
ARUN076DT2 ARUN115DT2 ARUN134DT2 ARUN134DT2
67.2 72.8 78.4 84.0
57,800 62,600 67,400 72,200
229,300 248,400 267,500 286,600
75.6 81.9 88.2 94.5
65,000 70,400 75,900 81,300
258,000 279,500 301,000 322,500
19.28 21.16 23.08 25.85
17.68 19.73 21.45 23.00
Warm Gray Warm Gray Warm Gray Warm Gray
Gold fin Gold fin Gold fin Gold fin
DC Scroll DC Scroll DC Scroll DC Scroll
(52+81.6)+52 (52+81.6)+(52+73.4) (52+81.6)x2 (52+81.6)x2
(3,600+3,481)+3,600
(3,600+3,481+3,600+3,495) (3,600+3,481)x2 (3,600+3,481)x2
(5,356+6,400)x1+5,356 (5,356+6,400)+(5,356+5,800) (5,356+6,400)x2 (5,356+6,400)x2
Direct On Line Direct On Line Direct On Line Direct On Line
FVC68D(PVE) FVC68D(PVE) FVC68D(PVE) FVC68D(PVE)
5,600+3,300 5,600+5,600 5,600+5,600 5,600+5,600
Propeller fan Propeller fan Propeller fan Propeller fan
350 x 4 350 x 4 350 x 4 350 x 4
380 380 380 380
13,400 13,400 13,400 13,400
DC INVERTER DC INVERTER DC INVERTER DC INVERTER
TOP TOP TOP TOP
15.88(5/8) 19.05(3/4) 19.05(3/4) 19.05(3/4)
34.9(1 3/8) 34.9(1 3/8) 34.9(1 3/8) 34.9(1 3/8)
(1,280x1,607x730)x2 (1,280x1,607x730)x2 (1,280x1,607x730)x2 (1,280x1,607x730)x2
((50-3/8 x 63-5/16 x 28-11/16) x 2) ((50-3/8 x 63-5/16 x 28-11/16) x 2) ((50-3/8 x 63-5/16 x 28-11/16) x 2) ((50-3/8 x 63-5/16 x 28-11/16) x 2)
285+240 285x2 285x2 285x2
628+529 628x2 628x2 628x2
CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C
R410A R410A R410A R410A
EEV EEV EEV EEV
3, 460, 60 3, 460, 60 3, 460, 60 3, 460, 60
Heat Pump(460V/60Hz)
Notes:
1. Capacities are based on the following conditions:
Cooling * Indoor temp. 27°C[80.6°F]DB/ 19°C[66.2°F]WB
* Outdoor temp. 35°C[95°F]DB/ 24°C[75.2°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
Heating * Indoor temp. 20°C[68°F]DB/ 15°C[59°F]WB
* Outdoor temp. 7°C[44.6°F]DB/ 6°C[42.8°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without prior notification
4. EEV : Electronic Expansion Valve
Conversion Formula
kcal/h= kW x 860
Btu/h = kW x 3412
cfm = m3/min x 35.3
l/s = CMM x 1000/60

Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 6 -
Specification
HP(Equivalent horsepower)
Model Name Combination Unit
Independent Unit
Capacity Cooling kW
kcal/h
Btu/h
Heating kW
kcal/h
Btu/h
Input Cooling kW
Heating kW
Casing Color
Heat Exchanger
Compressor Type
Piston Displacement cm3/rev
Number of Revolution R.P.M
Motor Output x Number W
Starting Method
Oil Type
Oil Charge cc
Fan Type
Motor Output x Number W
Air Flow Rate(High) CMM
cfm
Drive
Discharge Side / Top
Pipe Connctions Liquid Pipes mm(inch)
Gas Pipes mm(inch)
Dimensions (WxHxD) mm
inch
Net Weight kg
lbs
Transmission Cable mm2
Refigerant Refigerant name
Control
Power Supply Ø, V, Hz
32 34 36 38
ARUN310DT2 ARUN330DT2 ARUN350DT2 ARUN370DT2
ARUN154DT2 ARUN134DT2 ARUN134DT2 ARUN154DT2
ARUN154DT2 ARUN115DT2 ARUN134DT2 ARUN134DT2
ARUN076DT2 ARUN076DT2 ARUN076DT2
89.6 95.2 100.8 106.4
77,100 81,900 86,700 91,500
305,700 324,800 343,900 363,100
100.8 107.1 113.4 119.7
86,700 92,100 97,500 102,900
343,900 365,400 386,900 408,400
28 26.21 28.98 33.01
24.8 25.38 26.93 30.33
Warm Gray Warm Gray Warm Gray Warm Gray
Gold fin Gold fin Gold fin Gold fin
DC Scroll DC Scroll DC Scroll DC Scroll
(52+81.6)x2 (52+81.6)*2+52 (52+81.6)*2+52 (52+81.6)*2+52
(3,600+3,481)x2 (3,600+3,481)*2+3,600 (3,600+3,481)*2+3,600 (3,600+3,481)*2+3,600
(5,356+6,400)x2 (5,356+6,400)x2+5,356 (5,356+6,400)x2+5,356 (5,356+6,400)x2+5,356
Direct On Line Direct On Line Direct On Line Direct On Line
FVC68D(PVE) FVC68D(PVE) FVC68D(PVE) FVC68D(PVE)
5,600+5,600 3300+5600*2 3300+5600*2 3300+5600*2
Propeller fan Propeller fan Propeller fan Propeller fan
350 x 4 350 x 6 350 x 6 350 x 6
380 570 570 570
13400 20,100 20,100 20,100
DC INVERTER DC INVERTER DC INVERTER DC INVERTER
TOP TOP TOP TOP
19.05(3/4) 19.05(3/4) 19.05(3/4) 19.05(3/4)
34.9(1 3/8) 34.9(1 3/8) 41.3(1 5/8) 41.3(1 5/8)
(1,280x1,607x730)x2 (1280x1607x730)*3 (1280x1607x730)*3 (1280x1607x730)*3
((50-3/8 x 63-5/16 x 28-11/16) x 2) (50.4x63.3x28.7)*3 (50.4x63.3x28.7)*3 (50.4x63.3x28.7)*3
285x2 285*2+240 285*2+240 285*2+240
628x2 628*2 + 529 628*2 + 529 628*2 + 529
CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C
R410A R410A R410A R410A
EEV EEV EEV EEV
3, 460, 60 3, 460, 60 3, 460, 60 3, 460, 60
Heat Pump(460V/60Hz)
Notes:
1. Capacities are based on the following conditions:
Cooling * Indoor temp. 27°C[80.6°F]DB/ 19°C[66.2°F]WB
* Outdoor temp. 35°C[95°F]DB/ 24°C[75.2°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
Heating * Indoor temp. 20°C[68°F]DB/ 15°C[59°F]WB
* Outdoor temp. 7°C[44.6°F]DB/ 6°C[42.8°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without prior notification
4. EEV : Electronic Expansion Valve
Conversion Formula
kcal/h= kW x 860
Btu/h = kW x 3412
cfm = m3/min x 35.3
l/s = CMM x 1000/60

Specification
Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 7 -
HP(Equivalent horsepower)
Model Name Combination Unit
Independent Unit
Capacity Cooling kW
kcal/h
Btu/h
Heating kW
kcal/h
Btu/h
Input Cooling kW
Heating kW
Casing Color
Heat Exchanger
Compressor Type
Piston Displacement cm3/rev
Number of Revolution R.P.M
Motor Output x Number W
Starting Method
Oil Type
Oil Charge cc
Fan Type
Motor Output x Number W
Air Flow Rate(High) CMM
cfm
Drive
Discharge Side / Top
Pipe Connctions Liquid Pipes mm(inch)
Gas Pipes mm(inch)
Dimensions (WxHxD) mm
inch
Net Weight kg
lbs
Transmission Cable mm2
Refigerant Refigerant name
Control
Power Supply Ø, V, Hz
40 42 44 46
ARUN390DT2 ARUN410DT2 ARUN430DT2 ARUN450DT2
ARUN154DT2 ARUN154DT2 ARUN154DT2 ARUN154DT2
ARUN154DT2 ARUN154DT2 ARUN154DT2 ARUN154DT2
ARUN076DT2 ARUN096DT2 ARUN115DT2 ARUN134DT2
112.0 117.6 123.2 128.8
96,300 101,100 105,900 110,700
382,200 401,700 420,500 439,600
126 132.3 138.6 144.9
108,400 113,700 119,100 124,500
429,900 451,500 473,000 494,500
33.28 35.16 37.08 39.85
30.53 32.13 33.85 35.4
Warm Gray Warm Gray Warm Gray Warm Gray
Gold fin Gold fin Gold fin Gold fin
DC Scroll DC Scroll DC Scroll DC Scroll
(52+81.6)*2+52 (52+81.6)*3 (52+81.6)*3 (52+81.6)*3
(3,600+3,481)*2+3,600 (3,600+3,481)*3 (3,600+3,481)*3 (3,600+3,481)*3
(5,356+6,400)x2+5,356 (5,356+6,400)x3 (5,356+6,400)x3 (5,356+6,400)x3
Direct On Line Direct On Line Direct On Line Direct On Line
FVC68D(PVE) FVC68D(PVE) FVC68D(PVE) FVC68D(PVE)
3300+5600*2 5600*3 5600*3 5600*3
Propeller fan Propeller fan Propeller fan Propeller fan
350 x 6 350 x 6 350 x 6 350 x 6
570 570 570 570
20,100 20,100 20,100 20,100
DC INVERTER DC INVERTER DC INVERTER DC INVERTER
TOP TOP TOP TOP
19.05(3/4) 19.05(3/4) 19.05(3/4) 19.05(3/4)
41.3(1 5/8) 41.3(1 5/8) 41.3(1 5/8) 41.3(1 5/8)
(1280x1607x730)*3 (1280x1607x730)*3 (1280x1607x730)*3 (1280x1607x730)*3
(50.4x63.3x28.7)*3 (50.4x63.3x28.7)*3 (50.4x63.3x28.7)*3 (50.4x63.3x28.7)*3
285*2+240 285*3 285*3 285*3
628*2 + 529 628*3 628*3 628*3
CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C
R410A R410A R410A R410A
EEV EEV EEV EEV
3, 460, 60 3, 460, 60 3, 460, 60 3, 460, 60
Heat Pump(460V/60Hz)
Notes:
1. Capacities are based on the following conditions:
Cooling * Indoor temp. 27°C[80.6°F]DB/ 19°C[66.2°F]WB
* Outdoor temp. 35°C[95°F]DB/ 24°C[75.2°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
Heating * Indoor temp. 20°C[68°F]DB/ 15°C[59°F]WB
* Outdoor temp. 7°C[44.6°F]DB/ 6°C[42.8°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without prior notification
4. EEV : Electronic Expansion Valve
Conversion Formula
kcal/h= kW x 860
Btu/h = kW x 3412
cfm = m3/min x 35.3
l/s = CMM x 1000/60

Specification
Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 8 -
HP(Equivalent horsepower)
Model Name Combination Unit
Independent Unit
Capacity Cooling kW
kcal/h
Btu/h
Heating kW
kcal/h
Btu/h
Input Cooling kW
Heating kW
Casing Color
Heat Exchanger
Compressor Type
Piston Displacement cm3/rev
Number of Revolution R.P.M
Motor Output x Number W
Starting Method
Oil Type
Oil Charge cc
Fan Type
Motor Output x Number W
Air Flow Rate(High) CMM
cfm
Drive
Discharge Side / Top
Pipe Connctions Liquid Pipes mm(inch)
Gas Pipes mm(inch)
Dimensions (WxHxD) mm
inch
Net Weight kg
lbs
Transmission Cable mm2
Refigerant Refigerant name
Control
Power Supply Ø, V, Hz
48
ARUN470DT2
ARUN154DT2
ARUN154DT2
ARUN154DT2
134.4
115,500
458,700
151.2
129,900
516,000
42.00
37.20
Warm Gray
Gold fin
DC Scroll
(52+81.6)*3
(3,600+3,481)*3
(5,356+6,400)x3
Direct On Line
FVC68D(PVE)
5600*3
Propeller fan
350 x 6
570
20,100
DC INVERTER
TOP
19.05(3/4)
41.3(1 5/8)
(1280x1607x730)*3
(50.4x63.3x28.7)*3
285*3
628*3
CVV-SB 1.25x2C
R410A
EEV
3, 460, 60
Heat Pump(460V/60Hz)
Notes:
1. Capacities are based on the following conditions:
Cooling * Indoor temp. 27°C[80.6°F]DB/ 19°C[66.2°F]WB
* Outdoor temp. 35°C[95°F]DB/ 24°C[75.2°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
Heating * Indoor temp. 20°C[68°F]DB/ 15°C[59°F]WB
* Outdoor temp. 7°C[44.6°F]DB/ 6°C[42.8°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without prior notification
4. EEV : Electronic Expansion Valve
Conversion Formula
kcal/h= kW x 860
Btu/h = kW x 3412
cfm = m3/min x 35.3
l/s = CMM x 1000/60

Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 9 -
Specification
1.2 Heat Pump(208/230V)
Notes:
1. Capacities are based on the following conditions:
Cooling * Indoor temp. 27°C[80.6°F]DB/ 19°C[66.2°F]WB
* Outdoor temp. 35°C[95°F]DB/ 24°C[75.2°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
Heating * Indoor temp. 20°C[68°F]DB/ 15°C[59°F]WB
* Outdoor temp. 7°C[44.6°F]DB/ 6°C[42.8°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without prior notification
4. EEV : Electronic Expansion Valve
HP(Equivalent horsepower)
Model Name Combination Unit
Independent Unit
Capacity Cooling kW
kcal/h
Btu/h
Heating kW
kcal/h
Btu/h
Input Cooling kW
Heating kW
Casing Color
Heat Exchanger
Compressor Type
Piston Displacement cm3/rev
Number of Revolution R.P.M
Motor Output x Number W
Starting Method
Oil Type
Oil Charge cc
Fan Type
Motor Output x Number W
Air Flow Rate(High) CMM
cfm
Drive
Discharge Side / Top
Pipe Connctions Liquid Pipes mm(inch)
Gas Pipes mm(inch)
Dimensions (WxHxD) mm
inch
Net Weight kg
lbs
Transmission Cable mm2
Refigerant Refigerant name
Control
Power Supply Ø, V, Hz
8101216
ARUN076BT2 ARUN096BT2 ARUN115BT2 ARUN154BT2
ARUN076BT2 ARUN096BT2 ARUN115BT2 ARUN076BT2
ARUN076BT2
22.4 28.0 33.6 44.8
19,300 24,100 28,900 38,500
76,400 95,500 114,700 152,900
25.2 31.5 37.8 50.4
21,700 27,100 32,500 43,300
86,000 107,500 129,000 172,000
6.20 7.80 10.80 12.40
7.00 8.80 11.10 14.00
Warm Gray Warm Gray Warm Gray Warm Gray
Gold fin Gold fin Gold fin Gold fin
DC Scroll DC Scroll DC Scroll DC Scroll
38.3 + 59.8 38.3 + 59.8 38.3 + 59.8 (38.3 + 59.8)x2
3,600 + 3,500 3,600 + 3,500 3,600 + 3,500 (3,600 + 3,500)x2
(4,130 + 5,280)x1 (4,130 + 5,280)x1 (4,130 + 5,280)x1 (4,130 + 5,280)x2
Direct On Line Direct On Line Direct On Line Direct On Line
FVC68D(PVE) FVC68D(PVE) FVC68D(PVE) FVC68D(PVE)
5,600 5,600 5,600 5,600x2
Propeller fan Propeller fan Propeller fan Propeller fan
350 x 2 350 x 2 350 x 2 350 x 4
190 190 190 380
6,700 6,700 6,700 13,400
DC INVERTER DC INVERTER DC INVERTER DC INVERTER
TOP TOP TOP TOP
9.52(3/8) 9.52(3/8) 12.7(1/2) 12.7(1/2)
19.05(3/4) 22.2(7/8) 28.58(1 1/8) 28.58(1 1/8)
1,280x1,607x730 1,280x1,607x730 1,280x1,607x730 (1,280x1,607x730)x2
( 50-3/8 x 63-5/16 x 28-11/16) 50-3/8 x 63-5/16 x 28-11/16) 50-3/8 x 63-5/16 x 28-11/16) ((50-3/8 x 63-5/16 x 28-11/16) x 2)
285 285 285 285+285
628 628 628 628+628
CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C
R410A R410A R410A R410A
EEV EEV EEV EEV
3, 208/230, 60 3, 208/230, 60 3, 208/230, 60 3, 208/230, 60
Heat Pump(208/230V, 60Hz)
Conversion Formula
kcal/h= kW x 860
Btu/h = kW x 3412
cfm = m3/min x 35.3
l/s = CMM x 1000/60

Specification
Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 10 -
1.2 Heat Pump(208/230V)
Notes:
1. Capacities are based on the following conditions:
Cooling * Indoor temp. 27°C[80.6°F]DB/ 19°C[66.2°F]WB
* Outdoor temp. 35°C[95°F]DB/ 24°C[75.2°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
Heating * Indoor temp. 20°C[68°F]DB/ 15°C[59°F]WB
* Outdoor temp. 7°C[44.6°F]DB/ 6°C[42.8°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without prior notification
4. EEV : Electronic Expansion Valve
HP(Equivalent horsepower)
Model Name Combination Unit
Independent Unit
Capacity Cooling kW
kcal/h
Btu/h
Heating kW
kcal/h
Btu/h
Input Cooling kW
Heating kW
Casing Color
Heat Exchanger
Compressor Type
Piston Displacement cm3/rev
Number of Revolution R.P.M
Motor Output x Number W
Starting Method
Oil Type
Oil Charge cc
Fan Type
Motor Output x Number W
Air Flow Rate(High) CMM
cfm
Drive
Discharge Side / Top
Pipe Connctions Liquid Pipes mm(inch)
Gas Pipes mm(inch)
Dimensions (WxHxD) mm
inch
Net Weight kg
lbs
Transmission Cable mm2
Refigerant Refigerant name
Control
Power Supply Ø, V, Hz
18 20 22 24
ARUN173BT2 ARUN192BT2 ARUN211BT2 ARUN230BT2
ARUN096BT2 ARUN096BT2 ARUN115BT2 ARUN115BT2
ARUN076BT2 ARUN096BT2 ARUN096BT2 ARUN115BT2
50.4 56.0 61.6 67.2
43,300 48,200 53,000 57,800
172,000 191,100 210,200 229,300
56.7 63.0 69.3 75.6
48,800 54,200 59,600 65,000
193,500 225,000 236,500 258,000
14.00 15.60 18.60 21.60
15.80 17.60 19.90 22.20
Warm Gray Warm Gray Warm Gray Warm Gray
Gold fin Gold fin Gold fin Gold fin
DC Scroll DC Scroll DC Scroll DC Scroll
(38.3+59.8)*2 (38.3+59.8)*2 (38.3+59.8)*2 (38.3+59.8)*2
(3,600+3,500)x2 (3,600+3,500)x2 (3,600+3,500)x2 (3,600+3,500)x2
(4,130+5,280)x2 (4,130+5,280)x2 (4,130+5,280)x2 (4,130+5,280)x2
Direct On Line Direct On Line Direct On Line Direct On Line
FVC68D(PVE) FVC68D(PVE) FVC68D(PVE) FVC68D(PVE)
5600*2 5600*2 5600*2 5600*2
Propeller fan Propeller fan Propeller fan Propeller fan
350 x 4 350 x 4 350 x 4 350 x 4
380 380 380 380
13,400 13,400 13,400 13,400
DC INVERTER DC INVERTER DC INVERTER DC INVERTER
TOP TOP TOP TOP
15.88(5/8) 15.88(5/8) 15.88(5/8) 15.88(5/8)
28.58(1 1/8) 28.58(1 1/8) 28.58(1 1/8) 34.9(1 3/8)
(1280x1607x730)*2 (1280x1607x730)*2 (1280x1607x730)*2 (1280x1607x730)*2
(50.4x63.3x28.7)*2 (50.4x63.3x28.7)*2 (50.4x63.3x28.7)*2 (50.4x63.3x28.7)*2
285+285 285+285 285+285 285+285
628+628 628+628 628+628 628+628
CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C
R410A R410A R410A R410A
EEV EEV EEV EEV
3,208/230,60 3,208/230,60 3,208/230,60 3,208/230,60
Heat Pump(208/230V, 60Hz)
Conversion Formula
kcal/h= kW x 860
Btu/h = kW x 3412
cfm = m3/min x 35.3
l/s = CMM x 1000/60

Specification
Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 11 -
Notes:
1. Capacities are based on the following conditions:
Cooling * Indoor temp. 27°C[80.6°F]DB/ 19°C[66.2°F]WB
* Outdoor temp. 35°C[95°F]DB/ 24°C[75.2°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
Heating * Indoor temp. 20°C[68°F]DB/ 15°C[59°F]WB
* Outdoor temp. 7°C[44.6°F]DB/ 6°C[42.8°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without prior notification
4. EEV : Electronic Expansion Valve
HP(Equivalent horsepower)
Model Name Combination Unit
Independent Unit
Capacity Cooling kW
kcal/h
Btu/h
Heating kW
kcal/h
Btu/h
Input Cooling kW
Heating kW
Casing Color
Heat Exchanger
Compressor Type
Piston Displacement cm3/rev
Number of Revolution R.P.M
Motor Output x Number
W
Starting Method
Oil Type
Oil Charge cc
Fan Type
Motor Output x Number W
Air Flow Rate(High) CMM
cfm
Drive
Discharge Side / Top
Pipe Connctions Liquid Pipes mm(inch)
Gas Pipes mm(inch)
Dimensions (WxHxD) mm
inch
Net Weight kg
lbs
Transmission Cable mm2
Refigerant Refigerant name
Control
Power Supply Ø, V, Hz
26 28 30 32
ARUN250BT2 ARUN270BT2 ARUN290BT2 ARUN310BT2
ARUN096BT2 ARUN096BT2 ARUN096BT2 ARUN115BT2
ARUN076BT2 ARUN096BT2 ARUN096BT2 ARUN096BT2
ARUN076BT2 ARUN076BT2 ARUN096BT2 ARUN096BT2
72.8 78.4 84.0 89.6
62,600 67,400 72,200 77,100
248,400 267,500 286,600 305,700
81.9 88.2 94.5 100.8
70,400 75,900 81,300 86,700
279,500 301,000 322,500 343,900
20.20 29.40 23.40 26.40
22.80 31.00 26.40 28.70
Warm Gray Warm Gray Warm Gray Warm Gray
Gold fin Gold fin Gold fin Gold fin
DC Scroll DC Scroll DC Scroll DC Scroll
(38.3+59.8)*3 (38.3+59.8)*3 (38.3+59.8)*3 (38.3+59.8)*3
(3,600+3,500)x3 (3,600+3,500)x3 (3,600+3,500)x3 (3,600+3,500)x3
(4,130+5,280)x3 (4,130+5,280)x3 (4,130+5,280)x3 (4,130+5,280)x3
Direct On Line Direct On Line Direct On Line Direct On Line
FVC68D(PVE) FVC68D(PVE) FVC68D(PVE) FVC68D(PVE)
5600*3 5600*3 5600*3 5600*3
Propeller fan Propeller fan Propeller fan Propeller fan
350 x 6 350 x 6 350 x 6 350 x 6
570 570 570 570
20,100 20,100 20,100 20,100
DC INVERTER DC INVERTER DC INVERTER DC INVERTER
TOP TOP TOP TOP
19.05(3/4) 19.05(3/4) 19.05(3/4) 19.05(3/4)
34.9(1 3/8) 34.9(1 3/8) 34.9(1 3/8) 34.9(1 3/8)
(1280x1607x730)*3 (1280x1607x730)*3 (1280x1607x730)*2 (1280x1607x730)*2
(50.4x63.3x28.7)*3 (50.4x63.3x28.7)*3 (50.4x63.3x28.7)*2 (50.4x63.3x28.7)*2
285+285+285 285+285+285 285+285+285 285+285+285
628+628+628 628+628+628 628+628+628 628+628+628
CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C
R410A R410A R410A R410A
EEV EEV EEV EEV
3, 208/230, 60 3, 208/230, 60 3, 208/230, 60 3, 208/230, 60
Heat Pump(208/230V, 60Hz)
Conversion Formula
kcal/h= kW x 860
Btu/h = kW x 3412
cfm = m3/min x 35.3
l/s = CMM x 1000/60

Specification
Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 12 -
Notes:
1. Capacities are based on the following conditions:
Cooling * Indoor temp. 27°C[80.6°F]DB/ 19°C[66.2°F]WB
* Outdoor temp. 35°C[95°F]DB/ 24°C[75.2°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
Heating * Indoor temp. 20°C[68°F]DB/ 15°C[59°F]WB
* Outdoor temp. 7°C[44.6°F]DB/ 6°C[42.8°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without prior notification
4. EEV : Electronic Expansion Valve
HP(Equivalent horsepower)
Model Name Combination Unit
Independent Unit
Capacity Cooling kW
kcal/h
Btu/h
Heating kW
kcal/h
Btu/h
Input Cooling kW
Heating kW
Casing Color
Heat Exchanger
Compressor Type
Piston Displacement cm3/rev
Number of Revolution R.P.M
Motor Output x Number
W
Starting Method
Oil Type
Oil Charge cc
Fan Type
Motor Output x Number W
Air Flow Rate(High) CMM
cfm
Drive
Discharge Side / Top
Pipe Connctions Liquid Pipes mm(inch)
Gas Pipes mm(inch)
Dimensions (WxHxD) mm
inch
Net Weight kg
lbs
Transmission Cable mm2
Refigerant Refigerant name
Control
Power Supply Ø, V, Hz
34 36
ARUN330BT2 ARUN350BT2
ARUN115BT2 ARUN115BT2
ARUN115BT2 ARUN115BT2
ARUN096BT2 ARUN115BT2
95.2 100.8
81,900 86,700
324,800 343,900
107.1 113.4
92,100 97,500
365,400 386,900
29.40 32.40
31.00 33.30
Warm Gray Warm Gray
Gold fin Gold fin
DC Scroll DC Scroll
(38.3+59.8)*3 (38.3+59.8)*3
(3,600+3,500)x3 (3,600+3,500)x3
(4,130+5,280)x3 (4,130+5,280)x3
Direct On Line Direct On Line
FVC68D(PVE) FVC68D(PVE)
5600*3 5600*3
Propeller fan Propeller fan
350 x 6 350 x 6
570 570
20,100 20,100
DC INVERTER DC INVERTER
TOP TOP
19.05(3/4) 19.05(3/4)
34.9(1 3/8) 41.3(1 5/8)
(1280x1607x730)*2 (1280x1607x730)*2
(50.4x63.3x28.7)*2 (50.4x63.3x28.7)*2
285+285+285 285+285+285
628+628+628 628+628+628
CVV-SB 1.25x2C CVV-SB 1.25x2C
R410A R410A
EEV EEV
3, 208/230, 60 3, 208/230, 60
Heat Pump(208/230V, 60Hz)
Conversion Formula
kcal/h= kW x 860
Btu/h = kW x 3412
cfm = m3/min x 35.3
l/s = CMM x 1000/60

Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 13 -
Functions
2. Functions
O : Applied X : Not applied - : No reation
Option : Model name & price are different according to options, and assembled in factory with main unit
Accessory : Installed at field, ordered and purchased separately by the corresponding model name,
supplied with separated package.
O : Applied X : Not applied - : No reation
Option : Model name & price are different according to options, and assembled in factory with main unit
Accessory : Installed at field, ordered and purchased separately by the corresponding model name,
supplied with separated package.
Category Function Single Unit Series Unit
Defrost/ Deicing O O
High pressure switch O O
Phase protection O O
Restart delay(3-minutes) O O
Self diagnosis O O
Soft start O O
Trial operation O O
Auto operation(Artificial intelligence) O O
Auto restart operation O O
Network Solution(LGAP) O O
Power Distribution Indicator(PQNUD1S00) O O
Other Thermistor - -
Reliability
Convenience
CAC network
Function
Category Device PLUS II
Network Solution(LGAP) O
Simple Central Controller PQCSB101S0
Function Controller PQCSC101S0
PC Central control Software PQCSS513A0
Deluxe Central Controller PQCSW502A2
Power Distribution Indicator(PDI) PQNUD1S00
CAC Network CNU2(I-Gataway) PQNFG14B0
Dry contact(Outdoor Unit) PRDSBM
Dry contact(Indoor Unit) PQDSB
AC Smart PQCSW320A0E
ACP PQCPA11A0E/B11A0E
AC Manager PQCSS520A0E
LONWORKS Gateway (BNU-LW) PQNFB16A1
BACnet Gateway (BNU-BAC) PQNFB17B0
Program LG MV Option
Y branch Accessory
Other Header branch Accessory
Air Guide PQAGA
Refrigerant Charging Kit PRAC1

Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 14 -
76, Seongsan-dong, Changwon City, Gyeongnam,
641-713, Korea www.lge.com/airconditioner
CHASSIS CODE: UW
Outdoor Unit(460V)
ARUN076DT2 ARUN096DT2 ARUN115DT2 ARUN134DT2 ARUN154DT2
W mm(inch)
H mm(inch) D mm(inch)
L1 mm(inch) L2 mm(inch) L3 mm(inch) L4 mm(inch) L5 mm(inch) L6 mm(inch) L7 mm(inch)
L4
L3
L2
D
H
L5
L1 L6
WL7 D
60(2.4)
160(6.4)
1280(50.4) 1607(63.3)
730(28.7)
1427(56.1)
692(27.2) 670(26.3) 900(35.4) 704(27.7)
99(3.9) 82(3.2)
3. Dimensions
Dimensions

Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 15 -
Dimensions
76, Seongsan-dong, Changwon City, Gyeongnam,
641-713, Korea www.lge.com/airconditioner
CHASSIS CODE: UW
Outdoor Unit(460V)
ARUN173DT2 ARUN192DT2 ARUN211DT2 ARUN230DT2 ARUN250DT2 ARUN270DT2 ARUN290DT2 ARUN310DT2
W mm(inch) 1280(50.4) H mm(inch) 1607(63.3) D mm(inch) 730(28.7) L1 mm(inch) 1427(56.1) L2 mm(inch) 692(27.2) L3 mm(inch) 670(26.3) L4 mm(inch) 900(35.4) L5 mm(inch) 10(0.4) L6 mm(inch) 704(27.7) L7 mm(inch) 99(3.9) L8 mm(inch) 82(3.2)
L5
H
L6
L1 L7
WL8
D
60(2.4)
160(6.4)
L4
L3
L2
D
Notes: 1. Height of walls in case of pattern1:
Front side:1500mm, Suction side:500mm
2. If the above wall heights are exceeded, then h1/2 and h2/2 should be added to the front and
suction side service spaces respectively as shown in the following figure.
3. When installing the units, the most appropriate pattern should be selected from those shown.
In order to obtain the best fit in the space available, always bear in mind the need to leave enough room for a person to pass between units and wall and for the air to circulate freely. Your layout should take into account the possibility of short circuits.
4. The Units should be installed to leave sufficient space in front for the on site refrigerant piping
work to be carried out comfortably.
1500mm
500mm
h2
h1
Front side
Suction side
Front side
250mm or more
900mm or more
250mm or more
250mm or more

Dimensions
Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 16 -
D
60
160
76, Seongsan-dong, Changwon City, Gyeongnam,
641-713, Korea
CHASSIS CODE: UW1
Outdoor Unit(460V)
ARUN330DT2 ARUN350DT2 ARUN370DT2 ARUN390DT2 ARUN410DT2 ARUN430DT2 ARUN450DT2 ARUN470DT2
W mm(inch) 1280(50.4) H mm(inch) 1607(63.3) D mm(inch) 730(28.7) L1 mm(inch) 1427(56.1) L2 mm(inch) 692(27.2) L3 mm(inch) 670(26.3) L4 mm(inch) 900(35.4) L5 mm(inch) 10(0.4) L6 mm(inch) 704(27.7) L7 mm(inch) 99(3.9) L8 mm(inch) 82 (3.2)
[Unit: mm]
L5
H
L6
L1 L7
WL8
L4
L3
L2
D
Gravity point
542
305
552

Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 17 -
Dimensions
76, Seongsan-dong, Changwon City, Gyeongnam,
641-713, Korea www.lge.com/airconditioner
CHASSIS CODE: UW
Outdoor Unit(208/230V)
ARUN076BT2 ARUN096BT2 ARUN115BT2
W mm(inch)
H mm(inch) D mm(inch)
L1 mm(inch) L2 mm(inch) L3 mm(inch) L4 mm(inch) L5 mm(inch) L6 mm(inch) L7 mm(inch)
L4
L3
L2
D
H
L5
L1 L6
WL7 D
60(2.4)
160(6.4)
1280(50.4) 1607(63.3)
730(28.7)
1427(56.1)
692(27.2) 670(26.3) 900(35.4) 704(27.7)
99(3.9) 82(3.2)

Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 18 -
76, Seongsan-dong, Changwon City, Gyeongnam,
641-713, Korea www.lge.com/airconditioner
CHASSIS CODE: UW
Outdoor Unit(208/230V)
ARUN154BT2 ARUN173BT2 ARUN192BT2 ARUN211BT2 ARUN230BT2
W mm(inch) 1280(50.4) H mm(inch) 1607(63.3) D mm(inch) 730(28.7) L1 mm(inch) 1427(56.1) L2 mm(inch) 692(27.2) L3 mm(inch) 670(26.3) L4 mm(inch) 900(35.4) L5 mm(inch) 10(0.4) L6 mm(inch) 704(27.7) L7 mm(inch) 99(3.9) L8 mm(inch) 82(3.2)
L5
H
L6
L1 L7
WL8
D
60(2.4)
160(6.4)
L4
L3
L2
D
Notes: 1. Height of walls in case of pattern1:
Front side:1500mm, Suction side:500mm
2. If the above wall heights are exceeded, then h1/2 and h2/2 should be added to the front and
suction side service spaces respectively as shown in the following figure.
3. When installing the units, the most appropriate pattern should be selected from those shown.
In order to obtain the best fit in the space available, always bear in mind the need to leave enough room for a person to pass between units and wall and for the air to circulate freely. Your layout should take into account the possibility of short circuits.
4. The Units should be installed to leave sufficient space in front for the on site refrigerant piping
work to be carried out comfortably.
1500mm
500mm
h2
h1
Front side
Suction side
Front side
250mm or more
900mm or more
250mm or more
250mm or more
Dimensions

Dimensions
Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 19 -
D
60
160
76, Seongsan-dong, Changwon City, Gyeongnam,
641-713, Korea
CHASSIS CODE: UW1
Outdoor Unit(460V)
ARUN250BT2 ARUN270BT2 ARUN290BT2 ARUN310BT2 ARUN330BT2 ARUN350BT2
W mm(inch) 1280(50.4) H mm(inch) 1607(63.3) D mm(inch) 730(28.7) L1 mm(inch) 1427(56.1) L2 mm(inch) 692(27.2) L3 mm(inch) 670(26.3) L4 mm(inch) 900(35.4) L5 mm(inch) 10(0.4) L6 mm(inch) 704(27.7) L7 mm(inch) 99(3.9) L8 mm(inch) 82 (3.2)
[Unit: mm]
L5
H
L6
L1 L7
WL8
L4
L3
L2
D
Gravity point
542
305
552

Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 20 -
4. Piping Diagrams
Piping Diagrams
4.1.1 3Ø 460V (ARUN076DT2)
Cooling Operation
EEV
Fil ter
EEV
Fil ter
ss
Liquid Injection
Accumulator
ss
Inverter
Comp
ss
Check valve
EEV
Soleno id valve
SVC Valve
Indoor HEX Indoor HEX
Fan
Indoor Unit Indoor Unit
Outdoor Unit
HEX Temperature
Sensor
Outdoor
Temperature
Sensor
High Pressure
Sensor
4-Way Valve
Outdoor
EEV
Sub-cooli ng Circuit
Outlet Temperature
Sensor
Sub-cooling Circuit
Inlet Temperature
Sensor
Sub-Cooling EEV
Plate Type HEX
Liquid Pipe Temp. Sensor
Comp
Disc harge
Temperature
Sensor
Suction
Temperature
Sensor
Low
Pressure
Sensor
Liquid Pipe
Gas Pipe
High Temp. High Press ure Gas
High Temp. High Pressure Liquid
Low Temp. Low Pressure Gas
Oil
Separator
Outdoo r Unit
Pressure Sensor
Pressure Switch
Temperature Sensor
Hot Gas
Valve
Remarks
Strainer
DCDC
Fan Fan
DCDC
Fan
4.1 Heat Pump Model
