Please read this installation manual completely before installing the product.
Installation work must be performed in accordance with the national wiring
standards by authorized personnel only.
Please retain this installation manual for future reference after reading it
thoroughly.
MFL68061102
Rev.02 _ 052020
www.lg.com
Copyright © 2016 - 2020 LG Electronics Inc. All Rights Reserved.
ENGLISH ESPAÑOL

• Do not cool excessively indoors. This may be harmful for your health and may consume more
electricity.
• Block sunlight with blinds or curtains while you are operating the air conditioner.
• Keep doors or windows closed tightly while you are operating the air conditioner.
• Adjust the direction of the air flow vertically to circulate indoor air.
• Speed up the fan to cool or warm indoor air quickly, in a short period of time.
• Open windows regularly for ventilation as the indoor air quality may deteriorate if the air
conditioner is used for many hours.
• Clean the air filter once every 2 weeks. Dust and impurities collected in the air filter may block the
air flow or weaken the cooling / dehumidifying functions.
For your records
Staple your receipt to this page in case you need it to prove the date of purchase or for warranty
purposes. Write the model number and the serial number here:
Model number :
Serial number :
You can find them on a label on the side of each unit.
Dealer’s name :
Date of purchase :
Here are some tips that will help you minimize the power consumption when you use the air
conditioner. You can use your air conditioner more efficiently by referring to the instructions
below:
TIPS FOR SAVING ENERGY
ENGLISH
TIPS FOR SAVING ENERGY
2

3
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
Always comply with the following precautions to avoid dangerous situations and ensure peak
performance of your product
WARNING
It can result in serious injury or death when the directions are ignored
CAUTION
It can result in minor injury or product damage when the directions are ignored
WARNING
• Installation or repairs made by unqualified persons can result in hazards to you and others.
• The information contained in the manual is intended for use by a qualified service technician
familiar with safety procedures and equipped with the proper tools and test instruments.
• Failure to carefully read and follow all instructions in this manual can result in equipment
malfunction, property damage, personal injury and/or death.
Installation
• Do not use a defective or underrated circuit breaker. Use this appliance on a dedicated circuit.
- There is risk of fire or electric shock.
• For electrical work, contact the dealer, seller, a qualified electrician, or an Authorized Service Center.
Do not disassemble or repair the product.
- There is risk of fire or electric shock.
• Always ground the product.
- There is risk of fire or electric shock.
• Install the panel and the cover of control box securely.
- There is risk of fire or electric shock.
• Always install a dedicated circuit and breaker.
- Improper wiring or installation may cause fire or electric shock.
• Use the correctly rated breaker or fuse.
- There is risk of fire or electric shock.
• Do not modify or extend the power cable.
- There is risk of fire or electric shock.
• Do not let the air conditioner run for a long time when the humidity is very high and a door or a
window is left open.
- Moisture may condense and wet or damage furniture.
• Be cautious when unpacking and installing the product. Sharp edges could cause injury.
- Be especially careful of the case edges and the fins on the condenser and evaporator.
• For installation, always contact the dealer or an Authorized Service Center.
- There is risk of fire, electric shock, explosion, or injury.
• Do not install the product on a defective installation stand.
- It may cause injury, accident, or damage to the product.
• Be sure the installation area does not deteriorate with age.
- If the base collapses, the air conditioner could fall with it, causing property damage, product failure,
and personal injury.
!
!
!
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS

• Use a vacuum pump or Inert (nitrogen) gas when doing leakage test or air purge. Do not compress
air or Oxygen and do not use Flammable gases. Otherwise, it may cause fire or explosion.
- There is the risk of death, injury, fire or explosion.
Operation
• Do not store or use flammable gas or combustibles near the product.
- There is risk of fire or failure of product.
CAUTION
Installation
• Always check for gas (refrigerant) leakage after installation or repair of product.
- Low refrigerant levels may cause failure of product.
• Install the drain hose to ensure that water is drained away properly.
- A bad connection may cause water leakage.
• Keep level even when installing the product.
- To avoid vibration or water leakage.
• Do not install the product where the noise or hot air from the outdoor unit could damage the
neighborhoods.
- It may cause a problem for your neighbors.
• Use two or more people to lift and transport the product.
- Avoid personal injury.
• Do not install the product where it will be exposed to sea wind (salt spray) directly. It may cause
corrosion on the product. Corrosion, particularly on the condenser and evaporator fins, could cause
product malfunction or inefficient operation.
• If you eat the liquid from the batteries, brush your teeth and see doctor. Do not use the remote if
the batteries have leaked. The chemicals in batteries could cause burns or other health hazards.
• Safely dispose of the packing materials. Packing materials, such as nails and other metal or wooden
parts, may cause stabs or other injuries. Tear apart and throw away plastic packaging bags so that
children may not play with them. If children play with a plastic bag which was not torn apart, they
face the risk of suffocation.
!
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
4

TABLE OF CONTENTS
ENGLISH
5
2TIPS FOR SAVING ENERGY
3IMPORTANT SAFETY INSTRUCTIONS
6FEATURES
7Duct Connection Dimensions
8INSTALLATION
8Selection of the best location
9Upflow Installation
10 Duct work
11 Insulation
12 Condensate Drain
14 Wiring Connection
16 INSTALLATION INSTRUCTION
19 Remote controller installation
20 Group control
21 Installer Setting -E.S.P.
22 PRODUCT DATA
22 External Static Pressure & Air Flow
TABLE OF CONTENTS

6FEATURES
ENGLISH
Wiring knockouts
for conduit
Wiring knockouts
for conduit
Refrigerant
connections
Filter access Drain connections for
upflow application
FEATURES

FEATURES
ENGLISH
7
Duct Connection Dimensions
<Top>
<Front>
<Bottom>
Refrigerant
connections
Air filter cover
Drain
connections
for upflow
application
<Side-right>
C
J
J
E
F
D
I
H
G
A
Dimensions Wiring
Knock out Refrigerant
Connections
Pipe size
ABC
D E F G H
I J
Height Width Depth Power Communication Liquid Gas
55-1/8
(1 401)
25
(635)
21-3/8
(540)
1-9/16
(40)
24-1/2
(623)
20
(530)
24
(610)
12-1/8
(308)
1-11/16
(43)
7/8
(22)
3/8
(9.52)
3/4
(19.05)
(Unit: inch(mm))

8INSTALLATION
ENGLISH
Selection of the best location
- Where optimum air distribution can be ensured.
- Where nothing blocks air passage and install the duct work.
- Where condensate can be properly drained.
- Where the ceiling is strong enough to bear the indoor unit weight.
- Where the false ceiling is not noticeably on an incline.
- Where sufficient clearance for maintenance and service can be ensured.
- Where piping between indoor and outdoor units is possible within the allowable limit. Refer to
the installation manual for the outdoor unit.
More than
250(9-27/32)
More than
250(9-27/32)
Unit: mm (inch)
More than
350(13-25/32)
More than
350(11-25/32)
More than
600(23-5/8)
clearance from
access panels
for Service
NOTE
!

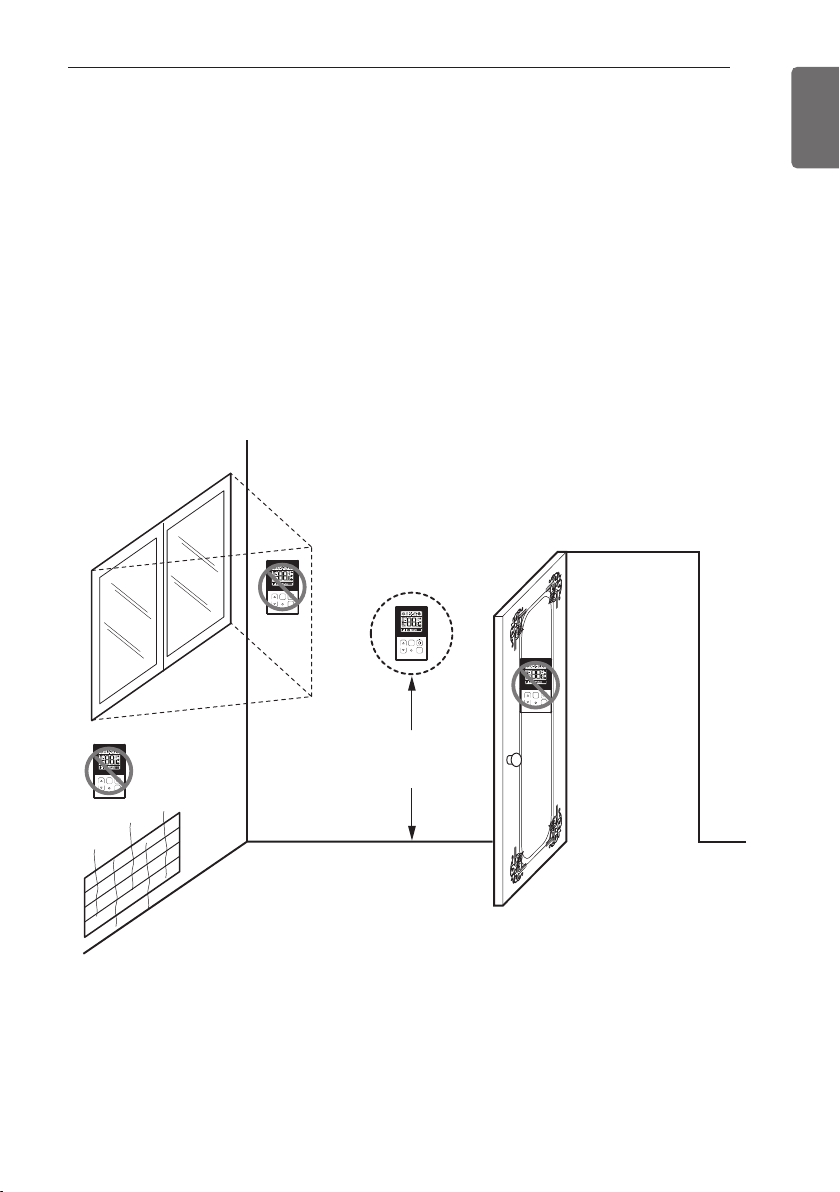

• The remote control may operate other electronic devices if pointed towards them. Make
sure to point the remote control towards the signal receiver of the air conditioner.
• For proper operation, use a soft cloth to clean the signal transmitter and receiver.
CAUTION
In case that the unit is installed near the sea, the installation parts may be corroded by salt.
The installation parts (and the unit) should be taken appropriate anti-corrosion measures.
!
INSTALLATION

INSTALLATION
ENGLISH
9
Do not connect the screws on Front and Rear side, it may cause the filter can not be mounted.

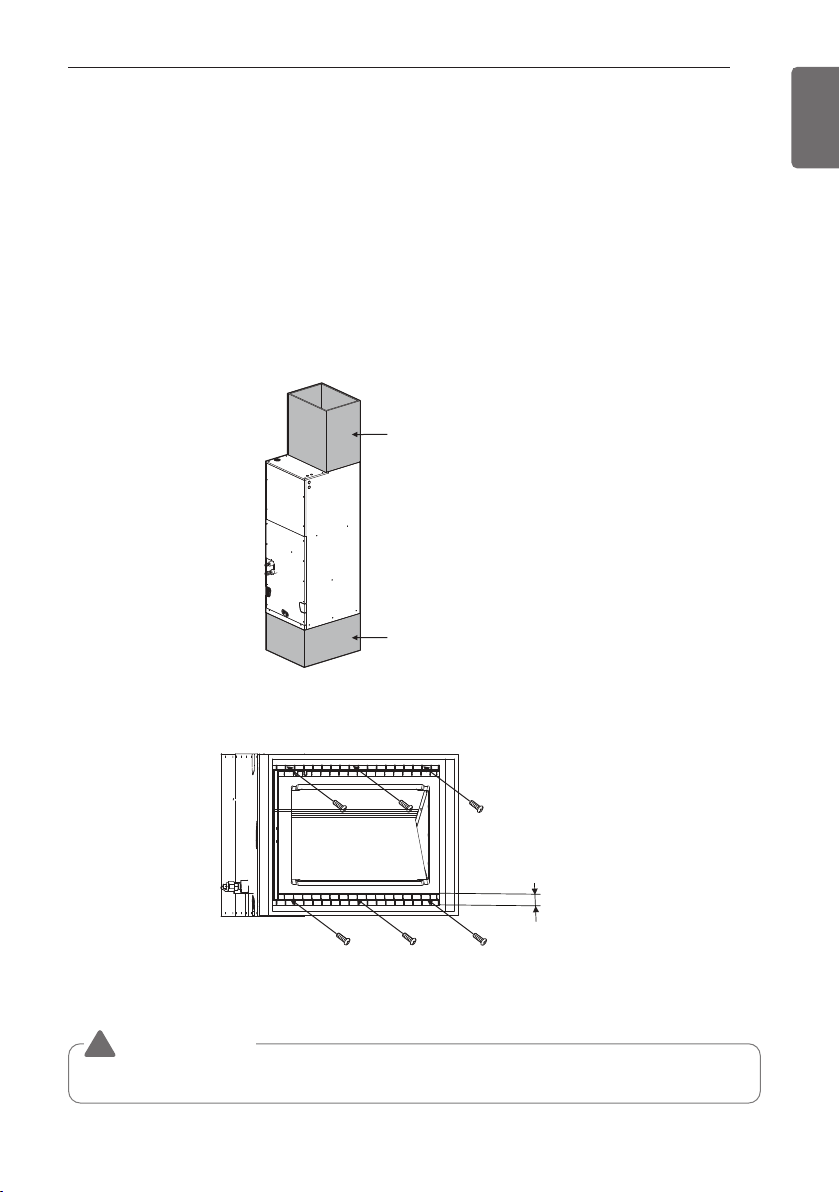

- Position unit on plenum or other suitable foundation.
- If the unit on plenum, make holes in plenum. Return air duct should be connected through
holes. Plenum should be connected in the unit using each 3 screws on the left and right side.
- After the duct is secured, seal around the supply duct to prevent air leakage. The filter access
must remain unobstructed.
- If plenum is not used, a frame strong enough to support the total weight must be provided.
- Provide a minimum height of 14 inches (350 mm) for proper unrestricted airflow.
- Vibration isolators (purchased locally) must be placed between the unit and pedestal.
More than 6 screws (M4*25L)
Field
Supplied Return
Plenum
More than
1inch (25 mm)
Field Supplied
Supply Duct
Upflow Installation
CAUTION
!

10 INSTALLATION
ENGLISH
Duct work

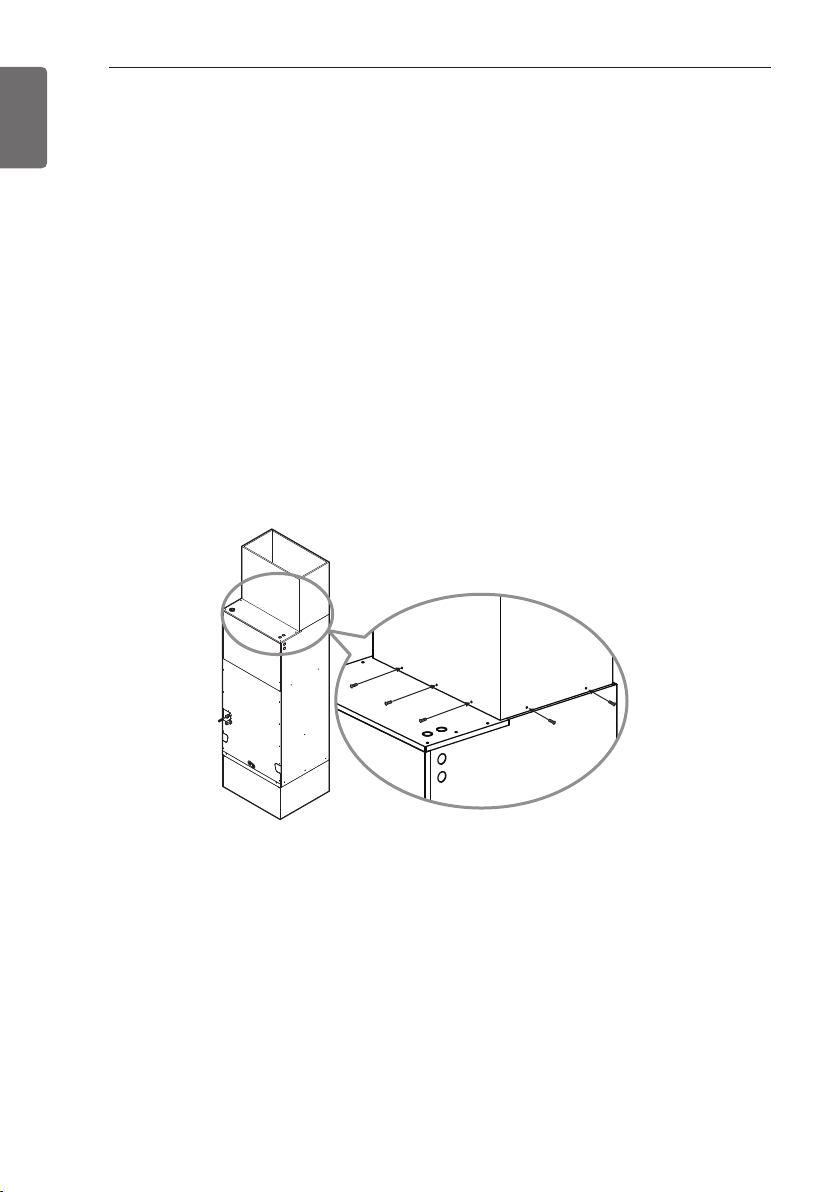

- Over 10 screws should be used for joining supply duct with the unit.
- To prevent vibration transmission, exploit flexible connectors between duct and the unit. It is
mandatory that the flexible connector between unit and duct at discharge connection should be
made off heat resistive material when electric heater is installed.
- Duct work must be insulated and covered with vapor barrier when routed through
unconditioned space.
- Internal acoustical insulation lining may necessary for the metal duct system if it do not have
90° elbow and 10 ft. of main duct to first branch takeoff.
- It is advised that a fibrous duct work could be used as a substitute if built and installed in
accordance with the most recent edition of SMACNA construction standard on fibrous glass
ducts.
- Collectively fibrous duct work and acoustical lining shall obey National Fire Protection
Association standards 90A or B as tested by UL standard 181 for class 1 air ducts.
- Seal around the delivery duct subsequent to when the duct is secured so that to facilitate
prevention of air leakage.
More than 10 screws
(M4*25L)

INSTALLATION
ENGLISH
11
(Unit : inch(mm))

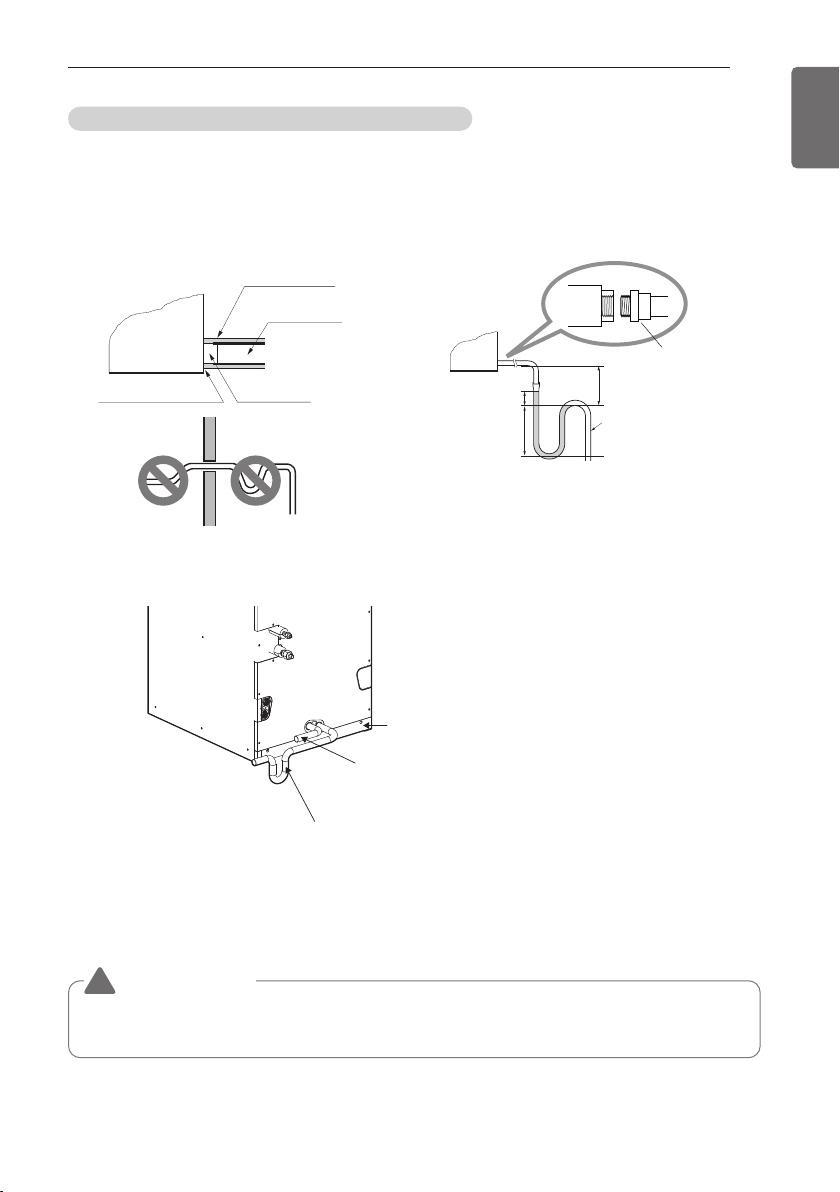

Insulate the joint and tubes completely.
Thermal insullaton : All thermal insulation must comply with local requirement.
Union for liquid pipe
Refrigerant pipe
and thermal
insulator
(Local supply)
Union for gas pipe
Thermal insulator for
refrigerant pipe(Local supply)
Hose crip for thermal insulator
(Local supply)
Make sure that there is no clearance here.
Overlap with thermal
insulator for piping.
Thermal insulator for refrigerant pipe
(Field supply)
Thermal insulator for
Piping (Field supply)
Hose crip for thermal insulator (Field supply)
Recommend
Classification
Air conditioned location Non-air conditioned location
Note1) General
location
Note2) Special
location
Note3) General
location
Note4) Negative
location
Liquid Pipe Ø 3/8(9.52) Above t 3/8
(9.52)
Above t 3/8
(9.52)
Above t 3/8
(9.52)
Above t 3/8
(9.52)
Gas Pipe Ø 3/4(19.05) Above t 1/2
(12.7)
Above t 3/4
(19.05)
Above t 3/4
(19.06)
Above t 1
(25)
Insulation

12 INSTALLATION
ENGLISH
* Note 1) General location: When the pipe passes through indoors in which the indoor unit is
operated
- Apartment, classroom, office, mall, hospital, office-tel etc.
Note 2) Special location
1. When the location is air conditioned but has severe temperature/humidity difference
due to high ceiling
- Church, auditorium, theater, lobby etc.
2. When the location is air conditioned but the internal temperature/humidity of the
ceiling finishing is high
- Bathroom/swimming pool locker room etc. (Building with roof ceiling of sandwich
assembly type)
Note 3) General location: When the pipe passes indoors where the indoor unit is not operated
- Hall way etc. (Dormitory, school, office-tel)
Note 4) Negative condition: When below conditions 1 and 2 are met.
1. When the pipe passes indoors where the indoor unit is not operated
2. When the humidity is high, regionally, and there is no air flow in the pipe passing
area
- When installing the outside unit within the outside pipe tray or at a location where it
is ok to have freezes, apply 13 t.
- If you are not sure with the selection of heat insulation material, coordinate with the
supervision or HQ.
- The thickness of the above heat insulation material is based on the heat conductivity
of 0.088 W/m°C.
Condensate Drain
- The drainage performance has to be optimized by installing both primary and secondary drain
lines along with properly sized condensate traps in order to prevent property damage.
- Care should be taken to avoid the blocking of filter access panel while connecting condensate
drain lines. The primary and secondary condensate traps has to be primed after connecting to
the drain pan.
- A field supplied external condensate pan has to be installed underneath the entire unit if the
unit is above the living space . Other wise damage may result due to condensate over flow.
Also a additional external condensate line should run from unit in to the pan.
- The entire condensate should be drained from the external condensate pan to some noticeable
area. It is advised to install traps in condensate lines as near to the coil as possible. The outlet
of each trap should be below its connection to the condensate pan avert condensate from
overflowing drain pan.
- If located above the living area then all traps should be prime and insulated and also tested for
leakage.
- PVC 3/4 inch(19.05 mm) male pipe thread fitting is advised to use at condensate pan with
gentle tight.
- For easy drain flow the drain hose has to be pointed downward.
- Care should be taken to not use pipe joint connection or PVC/CPVC for units drain line
connection. Use only Teflon tape.
- For preventing winter freeze up on condensate line special means should be provided for
drainage.

INSTALLATION
ENGLISH
13
GRADIENT OF UNIT AND DRAIN PIPING
- Alway lay the drain with downward inclination(1/50 to 1/100).
Prevent any upward flow or reverse flow in any part.
- 5/24 inch(5 mm) or thicker formed thermal insulator shall always be provided for the drain pipe.
Drainage hole
U-Trap
B
C
A ≥
2-9/16 inch
(70 mm)
B ≥ 2C
C ≥ 2 x SP
SP = External Pressure
(in.wc)
Ex) External Pressure
= 0.4 in.wc(10 mmAq)
A ≥ 2-9/16 inch(70 mm)
B ≥ 1-7/12 inch(40 mm)
C ≥ 19/24 inch(20 mm)
A
Make sure to be closed
Unit
Drainage pipe
(Field supply)
Thermal insulator
(Field supply)
Applied U-Trap Dimension
CORRECT
• Install the U-Trap to prevent
a water leakage caused by the blocking
of intake air filter.
Upflow Drain
INCORRECT
3/4 inch(19.05 mm)
connector
Air filter cover
Main drain along with suitable trap.
( Field supplied trap with sufficient
depth can be used. P-traps of
standard size are not sufficient. Refer
the figure for recommended
condensate trap.)
Supplementary drain
with proper trap. (field
supplied kit can be used)
The supplied flexible drain hose should not be strained.
A strained hose may cause leakage of water.
CAUTION
!

14 INSTALLATION
ENGLISH
Wiring Connection
Connect the wires to the terminals on the control board individually according to the outdoor unit
connection.
Ensure that the color of the wires of outdoor unit and the terminal No. are the same as those of
indoor unit respectively.
* Copper wire should be used.
Wiring
knockouts
Control
Box Cover
Upper
Front Panel

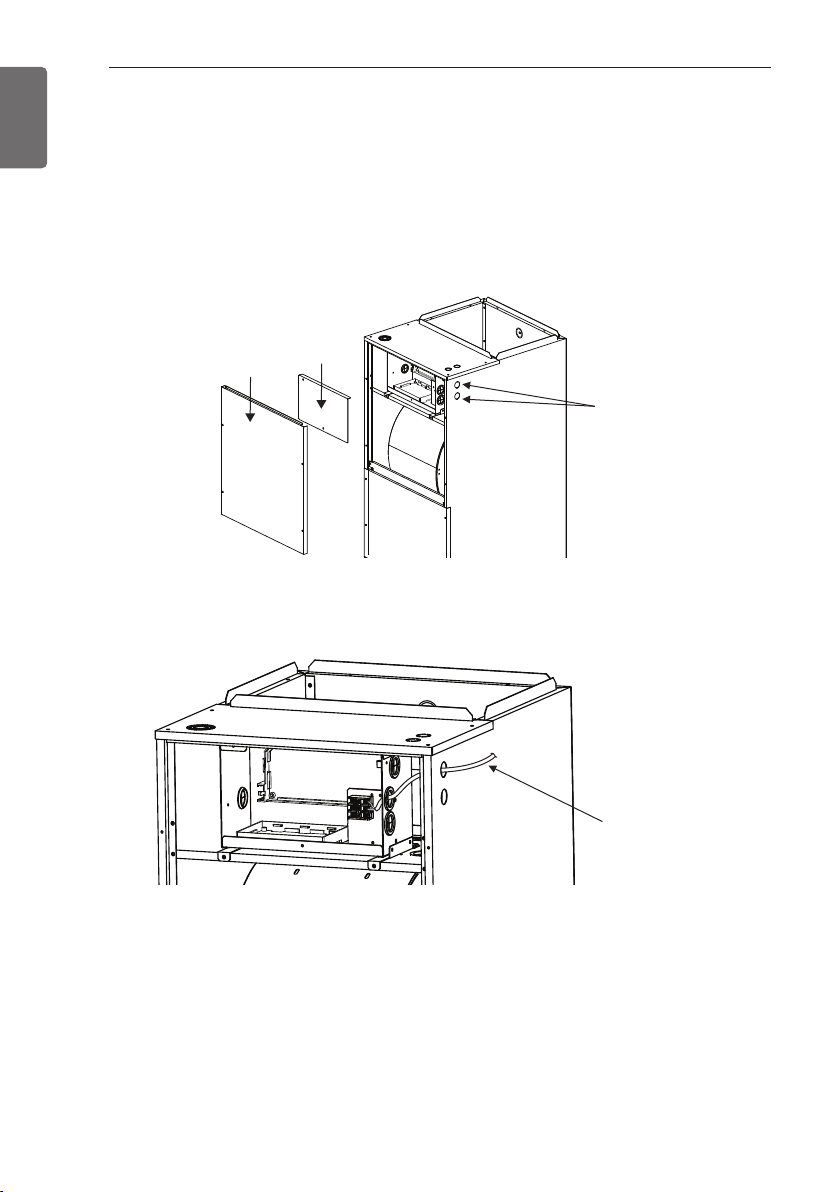

1Detach the upper panel & control box cover. And remove wiring Knockouts.
power/communication
cable
2Install conduit to the wiring knockouts. Connect power/communication cable to terminal
block through the wiring knockouts.

INSTALLATION
ENGLISH
15
NOTE
!
• Separately wire power supply cord and connecting cable.
• Use heat-proof electrical wiring capable of withstanding temperature up to 75 °C(167 °F).
• Use outdoor and waterproof connection cable NRTL(UL, ETL, CSA...) listed and rated more
than 300 V for the connection between indoor and outdoor unit. and this cable should be
enclosed in conduit.
After the confirmation of the above conditions, prepare the wiring as follows:
1Never fail to have an individual power specialized for the air conditioner. As for the
method of wiring, be guided by the circuit diagram pasted on the inside of control box
cover.
2Provide a circuit breaker switch between power source and the unit.
3The screw which fasten the wiring in the casing of electrical fittings are liable to come
loose from vibrations to which the unit is subjected during the course of transportation.
Check them and make sure that they are all tightly fastened. (If they are loose, it could
give rise to burn-out of the wires.)
4Specification of power source
5Confirm that electrical capacity is sufficient.
6Be sure that the starting voltage is maintained at more than 90 percent of the rated
voltage marked on the name plate.
7Confirm that the cable thickness is as specified in the power sources specification.
(Particularly note the relation between cable length and thickness.)
8Never fail to equip a leakage breaker where it is wet or moist.
9The following troubles would be caused by voltage drop-down.
- Vibration of a magnetic switch, damage on the contact point there of fuse breaking,
disturbance to the normal function of a overload protection device.
- Proper starting power is not given to the compressor.
CAUTION
!

16 INSTALLATION INSTRUCTION
ENGLISH
INSTALLATION INSTRUCTION
1Please fix tightly using provided screw
after placing remote controller setup board
on the place where you like to setup.
- Please set it up not to bend because poor
setup could take place if setup board
bends.
Please set up remote controller board fit
to the reclamation box if there is a
reclamation box.
2Can set up wired remote controller cable
into three directions.
- Set up direction: the surface of wall
reclamation, upper, right
- If setting up remote controller cable into
upper and right side, please set up after
removing remote controller cable guide
groove.
* Remove guide groove with long nose.
①Reclamation to the surface of the wall
②Upper part guide groove
③Right part guide groove

INSTALLATION INSTRUCTION
ENGLISH
17
3Please fix remote controller upper part into
the backplate attached to the surface of
the wall, as the picture below, and then,
connect with backplate by pressing lower
part.
- Please make sure to leave no gaps on the
top, bottom, left or right sides between
the remote controller and backplate.
- Before assembly with the backplate,
arrange the Cable not to interfere with
circuit parts.
Remove remote controller by inserting a
screwdriver into the lower separating holes
and twisting to release the controller from
backplate.
- There are two separating holes. Please
individually separate one at a time.
- Please be careful not to damage the
inside components when separating.
4Please refer to the following directions
when connecting the indoor unit and the
wired remote controller together.
- Please connect the cables as shown in
the figure below when connecting the
plug type cable from the indoor unit’s
C/BOX and the housing type of the
extension cable.
- When connecting Terminal Blocks of the
indoor C/BOX and the wired remote
controller with the extension cable, refer
to the steps below.
①Remove the screw on the cable which
is fastened to the wired remote
controller’s Terminal Block by loosening
with a screw driver.
②Remove the housing of the provided
32ft extension cable with a cutting
nipper and peel it as shown in the figure
below. (when purchasing the extension
cable at the site directly, please peel it
as shown in the figure below.)
Wall
Side
Wall
Side
<Connecting order>
Please check if the connectors
are connected properly.
C/BOX Cable (Plug type)
Extension cable(housing type)
Indoor
Unit side
TEMP
FAN
SPEED
OPER
MODE
Wall
Side
Wall
Side
<Separating order>
• Specification of LG supplied extension
cable: AWG#22, 3 core shielded.
(Model : PZCWRC1)
* Apply enclosed noncombustible
conduit(metal raceway) totally or use
FT-6 rated cable or above level in case of
local electric & building code that
requires plenum (CMP) cable usage.
1.378 inch(35 mm)
±0.197 inch(5 mm)
0.394 inch(10 mm) ± 0.118 inch(3 mm)
Signal Yellow
12 V Red
GND Black
CAUTION
!

18 INSTALLATION INSTRUCTION
ENGLISH
③Make sure each wire is securely fastened
under each screw terminal and the wires
are not in contact with each other.
④Please connect the Terminal blocks of
indoor unit’s C/BOX and wired remote
controller by referring to the images and
contents shown below.
Connect the yellow(signal) part of the wired
remote controller’s terminal block and the
‘YL’ part of the indoor unit’s terminal block.
Connect the red(12 V) part of the wired
remote controller’s terminal block and the
‘RD’ part of the indoor unit’s terminal block.
Connect the black(GND) part of the wired
remote controller’s terminal block and the
‘BK’ part of the indoor unit’s terminal block.
* In case of loosened screws or insufficient
contact between the terminal and the wire,
remote controller may not function properly.
* When the power is off on the remote
controller, check the connection between
the remote controller and Terminal Block.
* Use an appropriate screwdriver for
tightening the terminal screws. A
screwdriver with a small head will strip the
head and make proper tightening
impossible.
* Over-tightening the terminal screws may
break wires and terminal block structure.
5Please use an extension cable if the
distance between the wired remote
controller and the indoor unit is longer than
32 ft(10 m).
• Installation work must be performed in
accordance with the national wiring
standards and local by authorized
personnel only.
• Installations must comply with the
applicable local/national or international
standards.
• AWG#22, 3 core shielded is
recommended when using the large hole
in the center of the back plate.
• AWG#24, 3 core shielded is
recommended when using the side or
top knock-out of the back plate.
• When installing the wired remote
controller, do not bury it in the wall.
(It can cause damage in the temperature
sensor.)
• Do not install the cable to be 164 ft(50 m)
or longer. (It can cause communication
error.)
YELLOW RED BLACK
Signal 12 V GND
Remote
controller PCB
Indoor unit
side
Remote controller
PCB Terminal block
Remark
Indoor
Terminal
block
Function
YELLOW YL Signal
RED RD 12 V
BLACK BK GND
<Remote controller> <Indoor Terminal Block>
CAUTION
!
CAUTION
!

INSTALLATION INSTRUCTION
ENGLISH
19
Remote controller installation
Since the room temperature sensor is in the remote controller, the remote controller box should
be installed in a place away from direct sunlight, high humidity and direct supply of cold air to
maintain proper space temperature. Install the remote controller about 5 ft(1.5 m) above the floor
in an area with good air circulation at an average temperature.
Do not install the remote controller where it can be affected by:
- Drafts, or dead spots behind doors and in corners.
- Hot or cold air from ducts.
- Radiant heat from sun or appliances.
- Concealed pipes and chimneys.
- Uncontrolled areas such as an outside wall behind the remote controller.
- This remote controller is equipped with LCD. display. For proper display of the remote controller
LCD's, the remote controller should be installed properly as shown in Fig.1.
(The standard height is 4~5 ft (1.2~1.5 m) from floor level.)
TEMP
FAN
SPEED
OPER
MODE
TEMP
FAN
SPEED
OPER
MODE
TEMP
FAN
SPEED
OPER
MODE
TEMP
FAN
SPEED
OPER
MODE
5 feet
(1.5 meters)
(Fig. 1)
Direct
Sun ray contact area
no
no
no
yes

20 INSTALLATION INSTRUCTION
ENGLISH
Group control
1When installing more than 2 units of air
conditioner to one wired remote controller,
please connect as the right figure.
- If it is not event communication indoor
unit, set the unit as slave.
- Check for event communication through
the product manual.
When controlling multiple indoor units with
event communication function with one
remote controller, you must change the
master/slave setting from the indoor unit.
Indoor units, the master/slave
configuration of the product after
completion of indoor unit power ‘OFF’ and
then ‘ON’ the power after 1 minutes
elapsed sign up.
- For ceiling type cassette and duct product
group, change the switch setting of the
indoor PCB.
- For wall-mount type and stand type
product, change the master/slave setting
with the wireless remote controller.
(Refer to wireless remote controller
manual for detail)
* When installing 2 remote controllers to
one indoor unit with event
communication function, set the
master/slave of the remote controller.
(Refer to remote controller master/slave
selection)
When controlling the group, some
functions excluding basic operation setting,
fan level Min/Mid/Max, remote controller
lock setting and time setting may be
limited.
2When installing more than 2 wired remote
controllers to one air conditioner, please
connect as the right picture.
- When installing more than 2 units of
wired remote controller to one air
conditioner, set one wired remote
controller as master and the others all as
slaves, as shown in the right picture.
- You cannot control the group as shown in
the right for some products.
- Refer to the product manual for more
detail.
- When controlling in groups, set the
master/slaver of the remote controller.
Refer to Installer setting section on how
to set master/slave for more detail.
GND
GND
12 V
Signal wire
Signal wire
TEMP
FAN
SPEED
OPER
MODE
GND
12 V
B Y R B Y R
MASTER SLAVE
Signal wire GND
12 V
Signal wire
TEMP
FAN
SPEED
OPER
MODE
TEMP
FAN
SPEED
OPER
MODE
#3 switch OFF: Master
(Factory default setting)
#3 switch ON: Slave
