LG ARUV Series User manual

System
Outdoor Unit
SERVICE MANUAL
(Exploded View)
MODEL : ARUV Series
ARUN Series
CAUTION
Before Servicing the unit, read the safety precautions in General SVC manual.
Only for authorized service personnel.
Internal Use Only
http://biz.lgservice.com
R410A

Copyright ©2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 2 -
1. Specifications ...............................................................................3
2. Function ......................................................................................15
3. Dimensions .................................................................................16
4. Piping Diagrams .........................................................................22
5. Wiring Diagrams.........................................................................30
6. Exploded View ............................................................................39
7. COMP and COMP Wire Part List ...............................................50
ARUV/ARUN Series

Copyright ©2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 3 -
1. Specification
Specification
Heat Pump
Notes:
1. Capacities are based on the following conditions:
Cooling * Indoor temp. 27°C[80.6°F]DB/ 19°C[66.2°F]WB
* Outdoor temp. 35°C[95°F]DB/ 24°C[75.2°F]WB
* Interconnecting Piping Length 7.5m
* Level Difference of Zero
Heating * Indoor temp. 20°C[68°F]DB/ 15°C[59°F]WB
* Outdoor temp. 7°C[44.6°F]DB/ 6°C[42.8°F]WB
* Interconnecting Piping Length 7.5m
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without prior notification
4. EEV : Electronic Expansion Valve
HP(Equivalent horsepower)
Model Name Combination Unit
Independent Unit
Capacity Cooling kW
kcal/h
Btu/h
Heating kW
kcal/h
Btu/h
Input Cooling kW
Heating kW
Casing Color
Heat Exchanger
Compressor Type
Piston Displacement cm3/rev
Number of Revolution r.p.m
Motor Output x Number W
Starting Method
Oil Type
Oil Charge L
Fan Type
Motor Output x Number W
Air Flow Rate(High) cmm
cfm
Drive
Discharge Side / Top
Pipe Connctions Liquid Pipes mm(inch)
Gas Pipes mm(inch)
Dimensions (WxHxD) mm
inch
Net Weight kg
lbs
Transmission Cable mm2
Refigerant Refigerant name
Control
Power Supply Ø, V, Hz
56810
ARUN50LT2 ARUN60LT2 ARUN80LT2 ARUN100LT2
ARUN50LT2 ARUN60LT2 ARUN80LT2 ARUN100LT2
14.0 16.0 22.4 28.0
12,000 13,800 19,300 24,100
47,800 54,600 76,400 95,900
15.8 18.0 25.2 31.5
13,600 15,500 21,700 27,100
53,900 61,400 86,000 107,500
3.95 4.45 5.88 7.36
3.90 4.42 5.88 7.45
Warm Gray Warm Gray Warm Gray Warm Gray
Wide Louver Wide Louver Wide Louver Wide Louver
DC Scroll DC Scroll DC Scroll DC Scroll
52 52 52 52+72.84
3,600 3,600 3,600 3,600+2,891
5,356x1 5,356x1 5,356x1 (5,356+5,300)x1
Direct On Line Direct On Line Direct On Line Direct On Line
FVC68D(PVE) FVC68D(PVE) FVC68D(PVE) FVC68D(PVE)
2300 2300 3300 5600
DC INVERTER DC INVERTER DC INVERTER DC INVERTER
350 x 1 350 x 1 350 x 2 350 x 2
105 105 190 190
3,700 3,700 6,700 6,700
DC INVERTER DC INVERTER DC INVERTER DC INVERTER
TOP TOP TOP TOP
9.52(3/8) 9.52(3/8) 9.52(3/8) 9.52(3/8)
15.88(5/8) 19.05(3/4) 19.05(3/4) 22.2(7/8)
806x1607x730 806x1607x730 1280x1607x730 1280x1607x730
31.7x63.3x28.7 31.7x63.3x28.7 50.4x63.3x28.7 50.4x63.3x28.7
175 175 240 285
385 385 529 628
CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C
R410A R410A R410A R410A
EEV EEV EEV EEV
3, 380~415, 50 3, 380~415, 50 3, 380~415, 50 3, 380~415, 50
3, 380, 60 3, 380, 60 3, 380, 60 3, 380, 60
Heat Pump(50Hz/60Hz)
Conversion Formula
kcal/h= kW x 860
Btu/h = kW x 3412
cfm = m3/min x 35.3
l/s = cmm x 1000/60

Copyright ©2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 4 -
Specification
Notes:
1. Capacities are based on the following conditions:
Cooling * Indoor temp. 27°C[80.6°F]DB/ 19°C[66.2°F]WB
* Outdoor temp. 35°C[95°F]DB/ 24°C[75.2°F]WB
* Interconnecting Piping Length 7.5m
* Level Difference of Zero
Heating * Indoor temp. 20°C[68°F]DB/ 15°C[59°F]WB
* Outdoor temp. 7°C[44.6°F]DB/ 6°C[42.8°F]WB
* Interconnecting Piping Length 7.5m
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without prior notification
4. EEV : Electronic Expansion Valve
HP(Equivalent horsepower)
Model Name Combination Unit
Independent Unit
Capacity Cooling kW
kcal/h
Btu/h
Heating kW
kcal/h
Btu/h
Input Cooling kW
Heating kW
Casing Color
Heat Exchanger
Compressor Type
Piston Displacement cm3/rev
Number of Revolution r.p.m
Motor Output x Number W
Starting Method
Oil Type
Oil Charge L
Fan Type
Motor Output x Number W
Air Flow Rate(High) cmm
cfm
Drive
Discharge Side / Top
Pipe Connctions Liquid Pipes mm(inch)
Gas Pipes mm(inch)
Dimensions (WxHxD) mm
inch
Net Weight kg
lbs
Transmission Cable mm2
Refigerant Refigerant name
Control
Power Supply Ø, V, Hz
12 14 16 18
ARUN120LT2 ARUN140LT2 ARUN160LT2 ARUN180LT2
ARUN120LT2 ARUN140LT2 ARUN160LT2 ARUN120LT2
ARUN60LT2
33.6 39.2 44.8 50.4
28,900 33,700 38,500 43,300
114,700 133,800 152,900 172,000
37.8 44.1 50.4 56.7
32,500 37,900 43,300 48,800
129,000 150,500 172,000 193,500
9.43 12.05 14.20 13.88
9.15 10.80 12.60 13.57
Warm Gray Warm Gray Warm Gray Warm Gray
Wide Louver Wide Louver Wide Louver Wide Louver
DC Scroll DC Scroll DC Scroll DC Scroll
52+72.84 52+81.02 52+81.02 (52+72.84)+52
3,600+2,891 3,600+2,891 3,600+2,891
(3,600+2,891)+3,600
(5,356+5,300)x1 (5,356+5,300)x1 (5,356+5,300)x1 (5,356+5,300)x1+5,356
Direct On Line Direct On Line Direct On Line Direct On Line
FVC68D(PVE) FVC68D(PVE) FVC68D(PVE) FVC68D(PVE)
5600 5600 5600 5600+2300
DC INVERTER DC INVERTER DC INVERTER DC INVERTER
350 x 2 350 x 2 350 x 2 350 x 3
190 190 190 295
6,700 6,700 6,700 10,400
DC INVERTER DC INVERTER DC INVERTER DC INVERTER
TOP TOP TOP TOP
12.7(1/2) 12.7(1/2) 12.7(1/2) 15.88(5/8)
28.58(1 1/8) 28.58(1 1/8) 28.58(1 1/8) 28.58(1 1/8)
1280x1607x730 1280x1607x730 1280x1607x730 (1280x1607x730)+(806x1607x730)
50.4x63.3x28.7 50.4x63.3x28.7 50.4x63.3x28.7 (50.4x63.3x28.7)+(31.7x63.3x28.7)
285 285 285 285+175
628 628 628 628+385
CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C
R410A R410A R410A R410A
EEV EEV EEV EEV
3, 380~415, 50 3, 380~415, 50 3, 380~415, 50 3, 380~415, 50
3, 380, 60 3, 380, 60 3, 380, 60 3, 380, 60
Heat Pump(50Hz/60Hz)
Conversion Formula
kcal/h= kW x 860
Btu/h = kW x 3412
cfm = m3/min x 35.3
l/s = cmm x 1000/60

Copyright ©2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 5 -
Specification
Notes:
1. Capacities are based on the following conditions:
Cooling * Indoor temp. 27°C[80.6°F]DB/ 19°C[66.2°F]WB
* Outdoor temp. 35°C[95°F]DB/ 24°C[75.2°F]WB
* Interconnecting Piping Length 7.5m
* Level Difference of Zero
Heating * Indoor temp. 20°C[68°F]DB/ 15°C[59°F]WB
* Outdoor temp. 7°C[44.6°F]DB/ 6°C[42.8°F]WB
* Interconnecting Piping Length 7.5m
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without prior notification
4. EEV : Electronic Expansion Valve
Heat Pump(50Hz/60Hz)
Conversion Formula
kcal/h= kW x 860
Btu/h = kW x 3412
cfm = m3/min x 35.3
l/s = cmm x 1000/60
HP(Equivalent horsepower)
Model Name Combination Unit
Independent Unit
Capacity Cooling kW
kcal/h
Btu/h
Heating kW
kcal/h
Btu/h
Input Cooling kW
Heating kW
Casing Color
Heat Exchanger
Compressor Type
Piston Displacement cm3/rev
Number of Revolution r.p.m
Motor Output x Number W
Starting Method
Oil Type
Oil Charge L
Fan Type
Motor Output x Number W
Air Flow Rate(High) cmm
cfm
Drive
Discharge Side / Top
Pipe Connctions Liquid Pipes mm(inch)
Gas Pipes mm(inch)
Dimensions (WxHxD) mm
inch
Net Weight kg
lbs
Transmission Cable mm2
Refigerant Refigerant name
Control
Power Supply Ø, V, Hz
20 22 24 26
ARUN200LT2 ARUN220LT2 ARUN240LT2 ARUN260LT2
ARUN140LT2 ARUN160LT2 ARUN160LT2 ARUN140LT2
ARUN60LT2 ARUN60LT2 ARUN80LT2 ARUN120LT2
56.0 61.6 67.2 72.8
48,200 53,000 57,800 62,600
191,100 210,200 229,300 248,400
63.0 69.3 75.6 81.9
54,200 59,600 65,000 70,400
225,000 236,500 258,000 279,500
16.50 18.65 20.08 21.48
15.22 17.02 18.48 19.95
Warm Gray Warm Gray Warm Gray Warm Gray
Wide Louver Wide Louver Wide Louver Wide Louver
DC Scroll DC Scroll DC Scroll DC Scroll
(52+81.02)+52 (52+81.02)+52 (52+81.02)+52
(52+72.84)+(52+81.02)
(3,600+2,891)+3,600 (3,600+2,891)+3,600 (3,600+2,891)+3,600 (3,600+2,891)x2
(5,356+5,300)x1+5,356 (5,356+5,300)x1+5,356 (5,356+5,300)x1+5,356 (5,356+5,300)x2
Direct On Line Direct On Line Direct On Line Direct On Line
FVC68D(PVE) FVC68D(PVE) FVC68D(PVE) FVC68D(PVE)
5600+2300 5600+2300 5600+3300 5600+5600
DC INVERTER DC INVERTER DC INVERTER DC INVERTER
350 x 3 350 x 3 350 x 4 350 x 4
295 295 380 380
10,400 10,400 13,400 13,400
DC INVERTER DC INVERTER DC INVERTER DC INVERTER
TOP TOP TOP TOP
15.88(5/8) 15.88(5/8) 15.88(5/8) 19.05(3/4)
28.58(1 1/8) 28.58(1 1/8) 34.9(1 3/8) 34.9(1 3/8)
(1280x1607x730)+ (1280x1607x730)+ (1280x1607x730) (1280x1607x730)
(806x1607x730) (806x1607x730) x2 x2
(50.4x63.3x28.7)+ (50.4x63.3x28.7)+ (50.4x63.3x28.7) (50.4x63.3x28.7)
(31.7x63.3x28.7) (31.7x63.3x28.7) x2 x2
285+175 285+175 285+240 285x2
628+385 628+385 628+529 628x2
CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C
R410A R410A R410A R410A
EEV EEV EEV EEV
3, 380~415, 50 3, 380~415, 50 3, 380~415, 50 3, 380~415, 50
3, 380, 60 3, 380, 60 3, 380, 60 3, 380, 60

Copyright ©2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 6 -
Specification
Notes:
1. Capacities are based on the following conditions:
Cooling * Indoor temp. 27°C[80.6°F]DB/ 19°C[66.2°F]WB
* Outdoor temp. 35°C[95°F]DB/ 24°C[75.2°F]WB
* Interconnecting Piping Length 7.5m
* Level Difference of Zero
Heating * Indoor temp. 20°C[68°F]DB/ 15°C[59°F]WB
* Outdoor temp. 7°C[44.6°F]DB/ 6°C[42.8°F]WB
* Interconnecting Piping Length 7.5m
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without prior notification
4. EEV : Electronic Expansion Valve
Heat Pump(50Hz/60Hz)
Conversion Formula
kcal/h= kW x 860
Btu/h = kW x 3412
cfm = m3/min x 35.3
l/s = cmm x 1000/60
HP(Equivalent horsepower)
Model Name Combination Unit
Independent Unit
Capacity Cooling kW
kcal/h
Btu/h
Heating kW
kcal/h
Btu/h
Input Cooling kW
Heating kW
Casing Color
Heat Exchanger
Compressor Type
Piston Displacement cm3/rev
Number of Revolution r.p.m
Motor Output x Number W
Starting Method
Oil Type
Oil Charge L
Fan Type
Motor Output x Number W
Air Flow Rate(High) cmm
cfm
Drive
Discharge Side / Top
Pipe Connctions Liquid Pipes mm(inch)
Gas Pipes mm(inch)
Dimensions (WxHxD) mm
inch
Net Weight kg
lbs
Transmission Cable mm2
Refigerant Refigerant name
Control
Power Supply Ø, V, Hz
28 30 32 34
ARUN280LT2 ARUN300LT2 ARUN320LT2 ARUN340LT2
ARUN140LT2 ARUN160LT2 ARUN160LT2 ARUN140LT2
ARUN140LT2 ARUN140LT2 ARUN160LT2 ARUN140LT2
ARUN60LT2
78.4 84.0 89.6 95.2
67,400 72,200 77,100 81,900
267,500 286,600 305,700 324,800
88.2 94.5 100.8 107.1
75,900 81,300 86,700 92,100
301,000 322,500 343,900 365,400
24.10 26.25 28.40 28.55
21.60 23.40 25.20 26.02
Warm Gray Warm Gray Warm Gray Warm Gray
Wide Louver Wide Louver Wide Louver Wide Louver
DC Scroll DC Scroll DC Scroll DC Scroll
(52+81.02)x2 (52+81.02)x2 (52+81.02)x2 (52+81.02)x2+52
(3,600+2,891)x2 (3,600+2,891)x2 (3,600+2,891)x2
(3,600+2,891)x2+3600
(5,356+5,300)x2 (5,356+5,300)x2 (5,356+5,300)x2 (5,356+5,300)x2+5,356
Direct On Line Direct On Line Direct On Line Direct On Line
FVC68D(PVE) FVC68D(PVE) FVC68D(PVE) FVC68D(PVE)
5600+5600 5600+5600 5600+5600 5600+5600+2300
DC INVERTER DC INVERTER DC INVERTER DC INVERTER
350 x 4 350 x 4 350 x 4 350 x 5
380 380 380 485
13,400 13,400 13,400 17,100
DC INVERTER DC INVERTER DC INVERTER DC INVERTER
TOP TOP TOP TOP
19.05(3/4) 19.05(3/4) 19.05(3/4) 19.05(3/4)
34.9(1 3/8) 34.9(1 3/8) 34.9(1 3/8) 34.9(1 3/8)
(1280x1607x730) (1280x1607x730) (1280x1607x730) (1280x1607x730)x2
x2 x2 x2 +(806x1607x730)
(50.4x63.3x28.7) (50.4x63.3x28.7) (50.4x63.3x28.7) (50.4x63.3x28.7)x2
x2 x2 x2 +(31.7x63.3x28.7)
285x2 285x2 285x2 175+285x2
628x2 628x2 628x2 385+628x2
CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C
R410A R410A R410A R410A
EEV EEV EEV EEV
3, 380~415, 50 3, 380~415, 50 3, 380~415, 50 3, 380~415, 50
3, 380, 60 3, 380, 60 3, 380, 60 3, 380, 60

Copyright ©2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 7 -
Specification
Notes:
1. Capacities are based on the following conditions:
Cooling * Indoor temp. 27°C[80.6°F]DB/ 19°C[66.2°F]WB
* Outdoor temp. 35°C[95°F]DB/ 24°C[75.2°F]WB
* Interconnecting Piping Length 7.5m
* Level Difference of Zero
Heating * Indoor temp. 20°C[68°F]DB/ 15°C[59°F]WB
* Outdoor temp. 7°C[44.6°F]DB/ 6°C[42.8°F]WB
* Interconnecting Piping Length 7.5m
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without prior notification
4. EEV : Electronic Expansion Valve
Heat Pump(50Hz/60Hz)
Conversion Formula
kcal/h= kW x 860
Btu/h = kW x 3412
cfm = m3/min x 35.3
l/s = cmm x 1000/60
HP(Equivalent horsepower)
Model Name Combination Unit
Independent Unit
Capacity Cooling kW
kcal/h
Btu/h
Heating kW
kcal/h
Btu/h
Input Cooling kW
Heating kW
Casing Color
Heat Exchanger
Compressor Type
Piston Displacement cm3/rev
Number of Revolution r.p.m
Motor Output x Number W
Starting Method
Oil Type
Oil Charge L
Fan Type
Motor Output x Number W
Air Flow Rate(High) cmm
cfm
Drive
Discharge Side / Top
Pipe Connctions Liquid Pipes mm(inch)
Gas Pipes mm(inch)
Dimensions (WxHxD) mm
inch
Net Weight kg
lbs
Transmission Cable mm2
Refigerant Refigerant name
Control
Power Supply Ø, V, Hz
36 38 40 42
ARUN360LT2 ARUN380LT2 ARUN400LT2 ARUN420LT2
ARUN160LT2 ARUN160LT2 ARUN160LT2 ARUN140LT2
ARUN140LT2 ARUN160LT2 ARUN160LT2 ARUN140LT2
ARUN60LT2 ARUN60LT2 ARUN80LT2 ARUN140LT2
100.8 106.4 112.0 117.6
86,700 91,500 96,300 101,100
343,900 363,100 382,200 401,700
113.4 119.7 126.0 132.3
97,500 102,900 108,400 113,700
386,900 408,400 429,900 451,500
30.70 32.85 34.28 36.15
27.82 29.62 31.08 32.40
Warm Gray Warm Gray Warm Gray Warm Gray
Wide Louver Wide Louver Wide Louver Wide Louver
DC Scroll DC Scroll DC Scroll DC Scroll
(52+81.02)x2+52 (52+81.02)x2+52 (52+81.02)x2+52
(52+72.84)+(52+81.02)x2
(3,600+2,891)x2+3600 (3,600+2,891)x2+3600 (3,600+2,891)x2+3600 (3,600+2,891)x3
(5,356+5,300)x2+5,356 (5,356+5,300)x2+5,356 (5,356+5,300)x2+5,356 (5,356+5,300)x3
Direct On Line Direct On Line Direct On Line Direct On Line
FVC68D(PVE) FVC68D(PVE) FVC68D(PVE) FVC68D(PVE)
5600+5600+2300 5600+5600+2300 5600+5600+3300 5600+5600+5600
DC INVERTER DC INVERTER DC INVERTER DC INVERTER
350 x 5 350 x 5 350 x 6 350 x 6
485 485 570 570
17,100 17,100 20,100 20,100
DC INVERTER DC INVERTER DC INVERTER DC INVERTER
TOP TOP TOP TOP
19.05(3/4) 19.05(3/4) 19.05(3/4) 19.05(3/4)
41.3(1 5/8) 41.3(1 5/8) 41.3(1 5/8) 41.3(1 5/8)
(1280x1607x730)x2 (1280x1607x730)x2 (1280x1607x730) (1280x1607x730)
+(806x1607x730) +(806x1607x730) x3 x3
(50.4x63.3x28.7)x2 (50.4x63.3x28.7)x2 (50.4x63.3x28.7) (50.4x63.3x28.7)
+(31.7x63.3x28.7) +(31.7x63.3x28.7) x3 x3
175+285x2 175+285x2 240+285x2 285x3
385+628x2 385+628x2 529+628x2 628x3
CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C
R410A R410A R410A R410A
EEV EEV EEV EEV
3, 380~415, 50 3, 380~415, 50 3, 380~415, 50 3, 380~415, 50
3, 380, 60 3, 380, 60 3, 380, 60 3, 380, 60

Copyright ©2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 8 -
Specification
Notes:
1. Capacities are based on the following conditions:
Cooling * Indoor temp. 27°C[80.6°F]DB/ 19°C[66.2°F]WB
* Outdoor temp. 35°C[95°F]DB/ 24°C[75.2°F]WB
* Interconnecting Piping Length 7.5m
* Level Difference of Zero
Heating * Indoor temp. 20°C[68°F]DB/ 15°C[59°F]WB
* Outdoor temp. 7°C[44.6°F]DB/ 6°C[42.8°F]WB
* Interconnecting Piping Length 7.5m
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without prior notification
4. EEV : Electronic Expansion Valve
Heat Pump(50Hz/60Hz)
Conversion Formula
kcal/h= kW x 860
Btu/h = kW x 3412
cfm = m3/min x 35.3
l/s = cmm x 1000/60
HP(Equivalent horsepower)
Model Name Combination Unit
Independent Unit
Capacity Cooling kW
kcal/h
Btu/h
Heating kW
kcal/h
Btu/h
Input Cooling kW
Heating kW
Casing Color
Heat Exchanger
Compressor Type
Piston Displacement cm3/rev
Number of Revolution r.p.m
Motor Output x Number W
Starting Method
Oil Type
Oil Charge L
Fan Type
Motor Output x Number W
Air Flow Rate(High) cmm
cfm
Drive
Discharge Side / Top
Pipe Connctions Liquid Pipes mm(inch)
Gas Pipes mm(inch)
Dimensions (WxHxD) mm
inch
Net Weight kg
lbs
Transmission Cable mm2
Refigerant Refigerant name
Control
Power Supply Ø, V, Hz
44 46 48
ARUN440LT2 ARUN460LT2 ARUN480LT2
ARUN160LT2 ARUN160LT2 ARUN160LT2
ARUN140LT2 ARUN160LT2 ARUN160LT2
ARUN140LT2 ARUN140LT2 ARUN160LT2
123.2 128.8 134.4
105,900 110,700 115,500
420,500 439,600 458,700
138.6 144.9 151.2
119,100 124,500 129,900
473,000 494,500 516,000
38.30 40.45 42.60
34.20 36.00 37.80
Warm Gray Warm Gray Warm Gray
Wide Louver Wide Louver Wide Louver
DC Scroll DC Scroll DC Scroll
(52+72.84)+(52+81.02)x2 (52+81.02)x3 (52+81.02)x3
(3,600+2,891)x3 (3,600+2,891)x3 (3,600+2,891)x3
(5,356+5,300)x3 (5,356+5,300)x3 (5,356+5,300)x3
Direct On Line Direct On Line Direct On Line
FVC68D(PVE) FVC68D(PVE) FVC68D(PVE)
5600+5600+5600 5600+5600+5600 5600+5600+5600
DC INVERTER DC INVERTER DC INVERTER
350 x 6 350 x 6 350 x 6
570 570 570
20,100 20,100 20,100
DC INVERTER DC INVERTER DC INVERTER
TOP TOP TOP
19.05(3/4) 19.05(3/4) 19.05(3/4)
41.3(1 5/8) 41.3(1 5/8) 41.3(1 5/8)
(1280x1607x730)x3 (1280x1607x730)x3 (1280x1607x730)x3
(50.4x63.3x28.7)x3 (50.4x63.3x28.7)x3 (50.4x63.3x28.7)x3
285x3 285x3 285x3
628x3 628x3 628x3
CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C
R410A R410A R410A
EEV EEV EEV
3, 380~415, 50 3, 380~415, 50 3, 380~415, 50
3, 380, 60 3, 380, 60 3, 380, 60

Specification
Copyright ©2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 9 -
Cooling Only(50Hz / 60Hz)
Cooling Only
Notes:
1. Capacities are based on the following conditions:
Cooling * Indoor temp. 27°C[80.6°F]DB/ 19°C[66.2°F]WB
* Outdoor temp. 35°C[95°F]DB/ 24°C[75.2°F]WB
* Interconnecting Piping Length 7.5m
* Level Difference of Zero
Heating * Indoor temp. 20°C[68°F]DB/ 15°C[59°F]WB
* Outdoor temp. 7°C[44.6°F]DB/ 6°C[42.8°F]WB
* Interconnecting Piping Length 7.5m
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without prior notification
4. EEV : Electronic Expansion Valve
HP(Equivalent horsepower)
Model Name Combination Unit
Independent Unit
Capacity Cooling kW
kcal/h
Btu/h
Heating kW
kcal/h
Btu/h
Input Cooling kW
Heating kW
Casing Color
Heat Exchanger
Compressor Type
Piston Displacement cm3/rev
Number of Revolution r.p.m
Motor Output x Number W
Starting Method
Oil Type
Oil Charge L
Fan Type
Motor Output x Number W
Air Flow Rate(High) cmm
cfm
Drive
Discharge Side / Top
Pipe Connctions Liquid Pipes mm(inch)
Gas Pipes mm(inch)
Dimensions (WxHxD) mm
inch
Net Weight kg
lbs
Transmission Cable mm2
Refigerant Refigerant name
Control
Power Supply Ø, V, Hz
56810
ARUV50LT2(E) ARUV60LT2(E) ARUV80LT2(E) ARUV100LT2(E)
ARUV50LT2(E) ARUV60LT2(E) ARUV80LT2(E) ARUV100LT2(E)
14.0 16.0 22.4 28.0
12,000 13,800 19,300 24,100
47,800 54,600 76,400 95,500
----
----
----
3.75 4.25 6.7 7.16
----
Warm Gray Warm Gray Warm Gray Warm Gray
Gold fin Gold fin Gold fin Gold fin
DC Scroll DC Scroll DC Scroll DC Scroll
52 52 52 52
3,600 3,600 3,600 3,600
5,356x1 5,356x1 5,356x1 5,356x1
Direct On Line Direct On Line Direct On Line Direct On Line
FVC68D(PVE) FVC68D(PVE) FVC68D(PVE) FVC68D(PVE)
2300 2300 2300 3300
Propeller fan Propeller fan Propeller fan Propeller fan
350 x 1 350 x 1 350 x 1 350 x 2
105 105 105 190
3,700 3,700 3,700 6,700
DC INVERTER DC INVERTER DC INVERTER DC INVERTER
TOP TOP TOP TOP
9.52(3/8) 9.52(3/8) 9.52(3/8) 9.52(3/8)
15.88(5/8) 19.05(3/4) 19.05(3/4) 22.2(7/8)
806x1607x730 806x1607x730 806x1607x730 1280x1607x730
31.7x63.3x28.7 31.7x63.3x28.7 31.7x63.3x28.7 50.4x63.3x28.7
175 175 175 240
385 385 385 529
CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C
R410A R410A R410A R410A
EEV EEV EEV EEV
3, 380~415, 50 3, 380~415, 50 3, 380~415, 50 3, 380~415, 50
3, 380, 60 3, 380, 60 3, 380, 60 3, 380, 60
Conversion Formula
kcal/h= kW x 860
Btu/h = kW x 3412
cfm = m3/min x 35.3
l/s = cmm x 1000/60
E : Anti-Corrosion Model

Specification
Copyright ©2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 10 -
Notes:
1. Capacities are based on the following conditions:
Cooling * Indoor temp. 27°C[80.6°F]DB/ 19°C[66.2°F]WB
* Outdoor temp. 35°C[95°F]DB/ 24°C[75.2°F]WB
* Interconnecting Piping Length 7.5m
* Level Difference of Zero
Heating * Indoor temp. 20°C[68°F]DB/ 15°C[59°F]WB
* Outdoor temp. 7°C[44.6°F]DB/ 6°C[42.8°F]WB
* Interconnecting Piping Length 7.5m
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without prior notification
4. EEV : Electronic Expansion Valve
Cooling Only(50Hz / 60Hz)
Conversion Formula
kcal/h= kW x 860
Btu/h = kW x 3412
cfm = m3/min x 35.3
l/s = cmm x 1000/60
HP(Equivalent horsepower)
Model Name Combination Unit
Independent Unit
Capacity Cooling kW
kcal/h
Btu/h
Heating kW
kcal/h
Btu/h
Input Cooling kW
Heating kW
Casing Color
Heat Exchanger
Compressor Type
Piston Displacement cm3/rev
Number of Revolution r.p.m
Motor Output x Number W
Starting Method
Oil Type
Oil Charge L
Fan Type
Motor Output x Number W
Air Flow Rate(High) cmm
cfm
Drive
Discharge Side / Top
Pipe Connctions Liquid Pipes mm(inch)
Gas Pipes mm(inch)
Dimensions (WxHxD) mm
inch
Net Weight kg
lbs
Transmission Cable mm2
Refigerant Refigerant name
Control
Power Supply Ø, V, Hz
12 14 16 18
ARUV120LT2(E) ARUV140LT2(E) ARUV160LT2(E) ARUV180LT2(E)
ARUV120LT2(E) ARUV140LT2(E) ARUV160LT2(E) ARUV120LT2(E)
ARUV60LT2(E)
33.6 39.2 44.8 50.4
28,900 33,700 38,500 43,300
114,700 133,800 152,900 172,000
----
----
----
9.08 11.85 14.00 13.33
----
Warm Gray Warm Gray Warm Gray Warm Gray
Gold fin Gold fin Gold fin Gold fin
DC Scroll DC Scroll DC Scroll DC Scroll
52+72.84 52+81.02 52+81.02 (52+72.84)+52
3,600+2,891 3,600+2,891 3,600+2,891
(3,600+2,891)+3,600
(5,356+5,300)x1 (5,356+5,300)x1 (5,356+5,300)x1 (5,356+5,300)x1+5,356
Direct On Line Direct On Line Direct On Line Direct On Line
FVC68D(PVE) FVC68D(PVE) FVC68D(PVE) FVC68D(PVE)
5600 5600 5600 5600+2300
Propeller fan Propeller fan Propeller fan Propeller fan
350 x 2 350 x 2 350 x 2 350 x 3
190 190 190 295
6,700 6,700 6,700 10,400
DC INVERTER DC INVERTER DC INVERTER DC INVERTER
TOP TOP TOP TOP
12.7(1/2) 12.7(1/2) 12.7(1/2) 15.88(5/8)
28.58(1 1/8) 28.58(1 1/8) 28.58(1 1/8) 28.58(1 1/8)
1280x1607x730 1280x1607x730 1280x1607x730 (1280x1607x730)
+(806x1607x730)
50.4x63.3x28.7 50.4x63.3x28.7 50.4x63.3x28.7 (50.4x63.3x28.7)
+(31.7x63.3x28.7)
285 285 285 285+175
628 628 628 628+385
CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C
R410A R410A R410A R410A
EEV EEV EEV EEV
3, 380~415, 50 3, 380~415, 50 3, 380~415, 50 3, 380~415, 50
3, 380, 60 3, 380, 60 3, 380, 60 3, 380, 60
E : Anti-Corrosion Model

Specification
Copyright ©2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 11 -
Notes:
1. Capacities are based on the following conditions:
Cooling * Indoor temp. 27°C[80.6°F]DB/ 19°C[66.2°F]WB
* Outdoor temp. 35°C[95°F]DB/ 24°C[75.2°F]WB
* Interconnecting Piping Length 7.5m
* Level Difference of Zero
Heating * Indoor temp. 20°C[68°F]DB/ 15°C[59°F]WB
* Outdoor temp. 7°C[44.6°F]DB/ 6°C[42.8°F]WB
* Interconnecting Piping Length 7.5m
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without prior notification
4. EEV : Electronic Expansion Valve
Cooling Only(50Hz / 60Hz)
Conversion Formula
kcal/h= kW x 860
Btu/h = kW x 3412
cfm = m3/min x 35.3
l/s = cmm x 1000/60
HP(Equivalent horsepower)
Model Name Combination Unit
Independent Unit
Capacity Cooling kW
kcal/h
Btu/h
Heating kW
kcal/h
Btu/h
Input Cooling kW
Heating kW
Casing Color
Heat Exchanger
Compressor Type
Piston Displacement cm3/rev
Number of Revolution r.p.m
Motor Output x Number W
Starting Method
Oil Type
Oil Charge L
Fan Type
Motor Output x Number W
Air Flow Rate(High) cmm
cfm
Drive
Discharge Side / Top
Pipe Connctions Liquid Pipes mm(inch)
Gas Pipes mm(inch)
Dimensions (WxHxD) mm
inch
Net Weight kg
lbs
Transmission Cable mm2
Refigerant Refigerant name
Control
Power Supply Ø, V, Hz
20 22 24 26
ARUV200LT2(E) ARUV220LT2(E) ARUV240LT2(E) ARUV260LT2(E)
ARUV140LT2(E) ARUV160LT2(E) ARUV140LT2(E) ARUV160LT2(E)
ARUV60LT2(E) ARUV60LT2(E) ARUV100LT2(E) ARUV100LT2(E)
56.0 61.6 67.2 72.8
48,200 53,000 57,800 62,600
191,100 210,200 229,300 248,400
----
----
----
16.1 18.25 20.7 20.93
----
Warm Gray Warm Gray Warm Gray Warm Gray
Gold fin Gold fin Gold fin Gold fin
DC Scroll DC Scroll DC Scroll DC Scroll
(52+81.02)+52 (52+81.02)+52 (52+81.02)+52
(52+72.84)+(52+81.02)
(3,600+2,891)+3,600 (3,600+2,891)+3,600 (3,600+2,891)+3,600 (3,600+2,891)x2
(5,356+5,300)x1+5,356 (5,356+5,300)x1+5,356 (5,356+5,300)x1+5,356 (5,356+5,300)x2
Direct On Line Direct On Line Direct On Line Direct On Line
FVC68D(PVE) FVC68D(PVE) FVC68D(PVE) FVC68D(PVE)
5600+2300 5600+2300 5600+3300 5600+5600
Propeller fan Propeller fan Propeller fan Propeller fan
350 x 3 350 x 3 350 x 4 350 x 4
295 285 380 380
10,400 10,400 13,400 13,400
DC INVERTER DC INVERTER DC INVERTER DC INVERTER
TOP TOP TOP TOP
15.88(5/8) 15.88(5/8) 15.88(5/8) 19.05(3/4)
28.58(1 1/8) 28.58(1 1/8) 34.9(1 3/8) 34.9(1 3/8)
(1280x1607x730) (1280x1607x730) (1280x1607x730) (1280x1607x730)
+(806x1607x730) +(806x1607x730) x2 x2
(50.4x63.3x28.7) (50.4x63.3x28.7) (50.4x63.3x28.7) (50.4x63.3x28.7)
+(31.7x63.3x28.7) +(31.7x63.3x28.7) x2 x2
285+175 285+175 285+240 285+240
628+385 628+385 628+529 628+529
CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C
R410A R410A R410A R410A
EEV EEV EEV EEV
3, 380~415, 50 3, 380~415, 50 3, 380~415, 50 3, 380~415, 50
3, 380, 60 3, 380, 60 3, 380, 60 3, 380, 60
E : Anti-Corrosion Model

Specification
Copyright ©2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 12 -
Notes:
1. Capacities are based on the following conditions:
Cooling * Indoor temp. 27°C[80.6°F]DB/ 19°C[66.2°F]WB
* Outdoor temp. 35°C[95°F]DB/ 24°C[75.2°F]WB
* Interconnecting Piping Length 7.5m
* Level Difference of Zero
Heating * Indoor temp. 20°C[68°F]DB/ 15°C[59°F]WB
* Outdoor temp. 7°C[44.6°F]DB/ 6°C[42.8°F]WB
* Interconnecting Piping Length 7.5m
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without prior notification
4. EEV : Electronic Expansion Valve
Cooling Only(50Hz / 60Hz)
Conversion Formula
kcal/h= kW x 860
Btu/h = kW x 3412
cfm = m3/min x 35.3
l/s = cmm x 1000/60
HP(Equivalent horsepower)
Model Name Combination Unit
Independent Unit
Capacity Cooling kW
kcal/h
Btu/h
Heating kW
kcal/h
Btu/h
Input Cooling kW
Heating kW
Casing Color
Heat Exchanger
Compressor Type
Piston Displacement cm3/rev
Number of Revolution r.p.m
Motor Output x Number W
Starting Method
Oil Type
Oil Charge L
Fan Type
Motor Output x Number W
Air Flow Rate(High) cmm
cfm
Drive
Discharge Side / Top
Pipe Connctions Liquid Pipes mm(inch)
Gas Pipes mm(inch)
Dimensions (WxHxD) mm
inch
Net Weight kg
lbs
Transmission Cable mm2
Refigerant Refigerant name
Control
Power Supply Ø, V, Hz
28 30 32 34
ARUV280LT2(E) ARUV300LT2(E) ARUV320LT2(E) ARUV340LT2(E)
ARUV140LT2(E) ARUV160LT2(E) ARUV160LT2(E) ARUV140LT2(E)
ARUV140LT2(E) ARUV140LT2(E) ARUV160LT2(E) ARUV140LT2(E)
ARUV60LT2(E)
78.4 84.0 89.6 95.2
67,400 72,200 77,100 81,900
267,500 286,600 305,700 324,800
----
----
----
23.7 25.85 28 27.95
----
Warm Gray Warm Gray Warm Gray Warm Gray
Gold fin Gold fin Gold fin Gold fin
DC Scroll DC Scroll DC Scroll DC Scroll
(52+81.02)x2 (52+81.02)x2 (52+81.02)x2 (52+81.02)x2+52
(3,600+2,891)x2 (3,600+2,891)x2 (3,600+2,891)x2
(3,600+2,891)x2+3600
(5,356+5,300)x2 (5,356+5,300)x2 (5,356+5,300)x2 (5,356+5,300)x2+5,356
Direct On Line Direct On Line Direct On Line Direct On Line
FVC68D(PVE) FVC68D(PVE) FVC68D(PVE) FVC68D(PVE)
5600+5600 5600+5600 5600+5600 5600+5600+2300
Propeller fan Propeller fan Propeller fan Propeller fan
350 x 4 350 x 4 350 x 4 350 x 5
380 380 380 485
13,400 13,400 13,400 17,100
DC INVERTER DC INVERTER DC INVERTER DC INVERTER
TOP TOP TOP TOP
19.05(3/4) 19.05(3/4) 19.05(3/4) 19.05(3/4)
34.9(1 3/8) 34.9(1 3/8) 34.9(1 3/8) 34.9(1 3/8)
(1280x1607x730) (1280x1607x730) (1280x1607x730)
(1280x1607x730)x2
x2 x2 x2 +(806x1607x730)
(50.4x63.3x28.7) (50.4x63.3x28.7) (50.4x63.3x28.7) (50.4x63.3x28.7)x2
x2 x2 x2 +(31.7x63.3x28.7)
285x2 285x2 285x2 175+285x2
628x2 628x2 628x2 385+628x2
CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C
R410A R410A R410A R410A
EEV EEV EEV EEV
3, 380~415, 50 3, 380~415, 50 3, 380~415, 50 3, 380~415, 50
3, 380, 60 3, 380, 60 3, 380, 60 3, 380, 60
E : Anti-Corrosion Model

Specification
Copyright ©2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 13 -
Notes:
1. Capacities are based on the following conditions:
Cooling * Indoor temp. 27°C[80.6°F]DB/ 19°C[66.2°F]WB
* Outdoor temp. 35°C[95°F]DB/ 24°C[75.2°F]WB
* Interconnecting Piping Length 7.5m
* Level Difference of Zero
Heating * Indoor temp. 20°C[68°F]DB/ 15°C[59°F]WB
* Outdoor temp. 7°C[44.6°F]DB/ 6°C[42.8°F]WB
* Interconnecting Piping Length 7.5m
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without prior notification
4. EEV : Electronic Expansion Valve
Cooling Only(50Hz / 60Hz)
Conversion Formula
kcal/h= kW x 860
Btu/h = kW x 3412
cfm = m3/min x 35.3
l/s = cmm x 1000/60
HP(Equivalent horsepower)
Model Name Combination Unit
Independent Unit
Capacity Cooling kW
kcal/h
Btu/h
Heating kW
kcal/h
Btu/h
Input Cooling kW
Heating kW
Casing Color
Heat Exchanger
Compressor Type
Piston Displacement cm3/rev
Number of Revolution r.p.m
Motor Output x Number W
Starting Method
Oil Type
Oil Charge L
Fan Type
Motor Output x Number W
Air Flow Rate(High) cmm
cfm
Drive
Discharge Side / Top
Pipe Connctions Liquid Pipes mm(inch)
Gas Pipes mm(inch)
Dimensions (WxHxD) mm
inch
Net Weight kg
lbs
Transmission Cable mm2
Refigerant Refigerant name
Control
Power Supply Ø, V, Hz
36 38 40 42
ARUV360LT2(E) ARUV380LT2(E) ARUV400LT2(E) ARUV420LT2(E)
ARUV160LT2(E) ARUV160LT2(E) ARUV160LT2(E) ARUV160LT2(E)
ARUV140LT2(E) ARUV160LT2(E) ARUV140LT2(E) ARUV160LT2(E)
ARUV60LT2(E) ARUV60LT2(E) ARUV100LT2(E) ARUV100LT2(E)
100.8 106.4 112.0 117.6
86,700 91,500 96,300 101,100
343,900 363,100 382,200 401,700
----
----
----
30.1 32.25 34.7 35.16
----
Warm Gray Warm Gray Warm Gray Warm Gray
Gold fin Gold fin Gold fin Gold fin
DC Scroll DC Scroll DC Scroll DC Scroll
(52+81.02)x2+52 (52+81.02)x2+52 (52+81.02)x2+52 (52+81.02)x2+52
(3,600+2,891)x2+3600 (3,600+2,891)x2+3600 (3,600+2,891)x2+3600 (3,600+2,891)x2+3600
(5,356+5,300)x2+5,356 (5,356+5,300)x2+5,356 (5,356+5,300)x2+5,356 (5,356+5,300)x2+5,356
Direct On Line Direct On Line Direct On Line Direct On Line
FVC68D(PVE) FVC68D(PVE) FVC68D(PVE) FVC68D(PVE)
5600+5600+2300 5600+5600+2300 5600+5600+3300 5600+5600+3300
Propeller fan Propeller fan Propeller fan Propeller fan
350 x 5 350 x 5 350 x 6 350 x 6
485 485 570 570
17,100 17,100 20,100 20,100
DC INVERTER DC INVERTER DC INVERTER DC INVERTER
TOP TOP TOP TOP
19.05(3/4) 19.05(3/4) 19.05(3/4) 19.05(3/4)
41.3(1 5/8) 41.3(1 5/8) 41.3(1 5/8) 41.3(1 5/8)
(1280x1607x730)x2 (1280x1607x730)x2 (1280x1607x730) (1280x1607x730)
+(806x1607x730) +(806x1607x730) x3 x3
(50.4x63.3x28.7)x2 (50.4x63.3x28.7)x2 (50.4x63.3x28.7) (50.4x63.3x28.7)
+(31.7x63.3x28.7) +(31.7x63.3x28.7) x3 x3
175+285x2 175+285x2 240+285x2 240+285x2
385+628x2 385+628x2 529+628x2 529+628x2
CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C
R410A R410A R410A R410A
EEV EEV EEV EEV
3, 380~415, 50 3, 380~415, 50 3, 380~415, 50 3, 380~415, 50
3, 380, 60 3, 380, 60 3, 380, 60 3, 380, 60
E : Anti-Corrosion Model

Specification
Copyright ©2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 14 -
Notes:
1. Capacities are based on the following conditions:
Cooling * Indoor temp. 27°C[80.6°F]DB/ 19°C[66.2°F]WB
* Outdoor temp. 35°C[95°F]DB/ 24°C[75.2°F]WB
* Interconnecting Piping Length 7.5m
* Level Difference of Zero
Heating * Indoor temp. 20°C[68°F]DB/ 15°C[59°F]WB
* Outdoor temp. 7°C[44.6°F]DB/ 6°C[42.8°F]WB
* Interconnecting Piping Length 7.5m
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without prior notification
4. EEV : Electronic Expansion Valve
Cooling Only(50Hz / 60Hz)
Conversion Formula
kcal/h= kW x 860
Btu/h = kW x 3412
cfm = m3/min x 35.3
l/s = cmm x 1000/60
HP(Equivalent horsepower)
Model Name Combination Unit
Independent Unit
Capacity Cooling kW
kcal/h
Btu/h
Heating kW
kcal/h
Btu/h
Input Cooling kW
Heating kW
Casing Color
Heat Exchanger
Compressor Type
Piston Displacement cm3/rev
Number of Revolution r.p.m
Motor Output x Number W
Starting Method
Oil Type
Oil Charge L
Fan Type
Motor Output x Number W
Air Flow Rate(High) cmm
cfm
Drive
Discharge Side / Top
Pipe Connctions Liquid Pipes mm(inch)
Gas Pipes mm(inch)
Dimensions (WxHxD) mm
inch
Net Weight kg
lbs
Transmission Cable mm2
Refigerant Refigerant name
Control
Power Supply Ø, V, Hz
44 46 48
ARUV440LT2(E) ARUV460LT2(E) ARUV480LT2(E)
ARUV160LT2(E) ARUV160LT2(E) ARUV160LT2(E)
ARUV140LT2(E) ARUV160LT2(E) ARUV160LT2(E)
ARUV140LT2(E) ARUV140LT2(E) ARUV160LT2(E)
123.2 128.8 134.4
105,900 110,700 115,500
420,500 439,600 458,700
-- -
-- -
-- -
37.08 39.85 42
-- -
Warm Gray Warm Gray Warm Gray
Gold fin Gold fin Gold fin
DC Scroll DC Scroll DC Scroll
(52+72.84)+(52+81.02)x2 (52+81.02)x3 (52+81.02)x3
(3,600+2,891)x3 (3,600+2,891)x3 (3,600+2,891)x3
(5,356+5,300)x3 (5,356+5,300)x3 (5,356+5,300)x3
Direct On Line Direct On Line Direct On Line
FVC68D(PVE) FVC68D(PVE) FVC68D(PVE)
5600+5600+5600 5600+5600+5600 5600+5600+5600
Propeller fan Propeller fan Propeller fan
350 x 6 350 x 6 350 x 6
570 570 570
20,100 20,100 20,100
DC INVERTER DC INVERTER DC INVERTER
TOP TOP TOP
19.05(3/4) 19.05(3/4) 19.05(3/4)
41.3(1 5/8) 41.3(1 5/8) 41.3(1 5/8)
(1280x1607x730)x3 (1280x1607x730)x3 (1280x1607x730)x3
(50.4x63.3x28.7)x3 (50.4x63.3x28.7)x3 (50.4x63.3x28.7)x3
285x3 285x3 285x3
628x3 628x3 628x3
CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C
R410A R410A R410A
EEV EEV EEV
3, 380~415, 50 3, 380~415, 50 3, 380~415, 50
3, 380, 60 3, 380, 60 3, 380, 60
E : Anti-Corrosion Model

Functions
2. Functions
Copyright ©2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 15 -
O : Applied X : Not applied - : No reation
Option : Model name & price are different according to options, and assembled in factory with main unit
Accessory : Installed at field, ordered and purchased separately by the corresponding model name,
supplied with separated package.
O : Applied X : Not applied - : No reation
Option : Model name & price are different according to options, and assembled in factory with main unit
Accessory : Installed at field, ordered and purchased separately by the corresponding model name,
supplied with separated package.
Category Function Single Unit Series Unit
Defrost/ Deicing O O
High pressure switch O O
Phase protection O O
Restart delay(3-minutes) O O
Self diagnosis O O
Soft start O O
Trial operation O O
Auto operation(Artificial intelligence) O O
Auto restart operation O O
Network Solution(LGAP) O O
Power Distribution Indicator(PQNUD1S00) O O
Other Thermistor - -
Reliability
Convenience
CAC network
Function
Category Device PLUS ll
Network Solution(LGAP) O
Simple Central Controller PQCSB101S0
Power Distribution Indicator(PDI) PQNUD1S00
CAC Network Cool/Heat Selector(Outdoor Unit) PRDSBM
Dry contact(Indoor Unit) PQDSB
AC Smart PQCSW320A0E
ACP PQCPA11A0E/B11A0E
AC Manager PQCSS520A0E
LONWORKS Gateway (BNU-LW) PQNFB16A1
BACnet Gateway (BNU-BAC) PQNFB17B0
Program LG MV Option
Y branch Accessory
Other Header branch Accessory
Air Guide PQAGA
Refrigerant Charging Kit PRAC1

Copyright ©2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 16 -

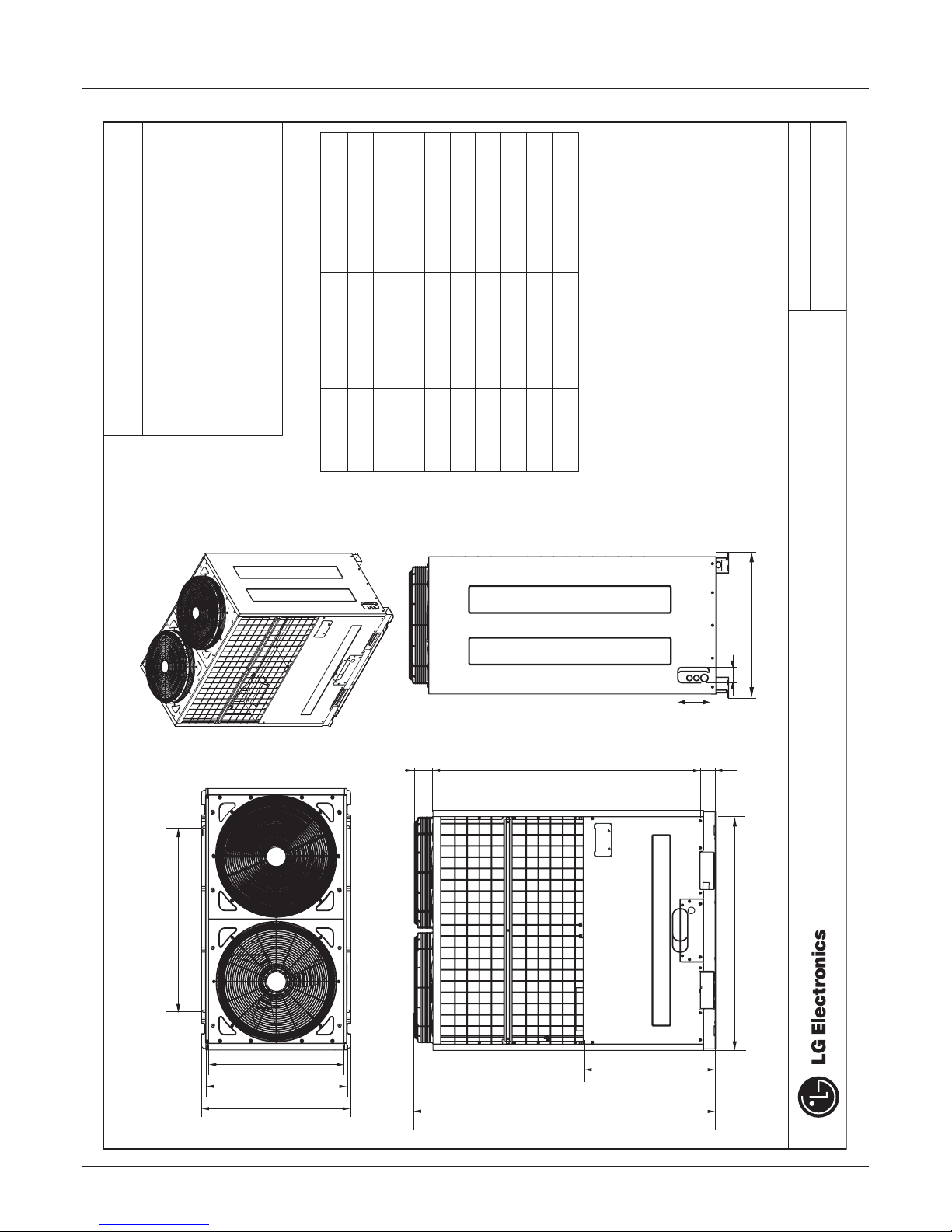

3. Dimensions
Dimensions
76, Seongsan-dong, Changwon City, Gyeongnam,
641-713, Korea www.lge.com/airconditioner
CHASSIS CODE: UY
Outdoor Unit
<Heat Pump>
ARUN50LT2 ARUN60LT2
<Cooling Only>
ARUV50LT2(E) ARUV60LT2(E) ARUV80LT2(E)
W mm(inch) 806(31.5)
H mm(inch) 1607(63.3) D mm(inch) 730(28.7)
L1 mm(inch) 1427(56.1) L2 mm(inch) 692(27.2) L3 mm(inch) 670(26.3) L4 mm(inch) 500(19.7) L5 mm(inch) 704(27.7) L6 mm(inch) 99(3.9) L7 mm(inch) 82(3.2)
W
L7 D
60(2.4)
160(6.4)
L4
L3
L2
DH
L5
L1 L6

Copyright ©2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 17 -
Dimensions
76, Seongsan-dong, Changwon City, Gyeongnam,
641-713, Korea www.lge.com/airconditioner
CHASSIS CODE: UW
Outdoor Unit
<Heat Pump>
ARUN80LT2
ARUN100LT2 ARUN120LT2 ARUN140LT2 ARUN160LT2
<Cooling Only>
ARUV100LT2(E) ARUV120LT2(E) ARUV140LT2(E) ARUV160LT2(E)
W mm(inch)
H mm(inch) D mm(inch)
L1 mm(inch) L2 mm(inch) L3 mm(inch) L4 mm(inch) L5 mm(inch) L6 mm(inch) L7 mm(inch)
L4
L3
L2
D
H
L5
L1 L6
WL7 D
60(2.4)
160(6.4)
1280(50.4) 1607(63.3)
730(28.7)
1427(56.1)
692(27.2) 670(26.3) 900(35.4) 704(27.7)
99(3.9) 82(3.2)

Copyright ©2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 18 -

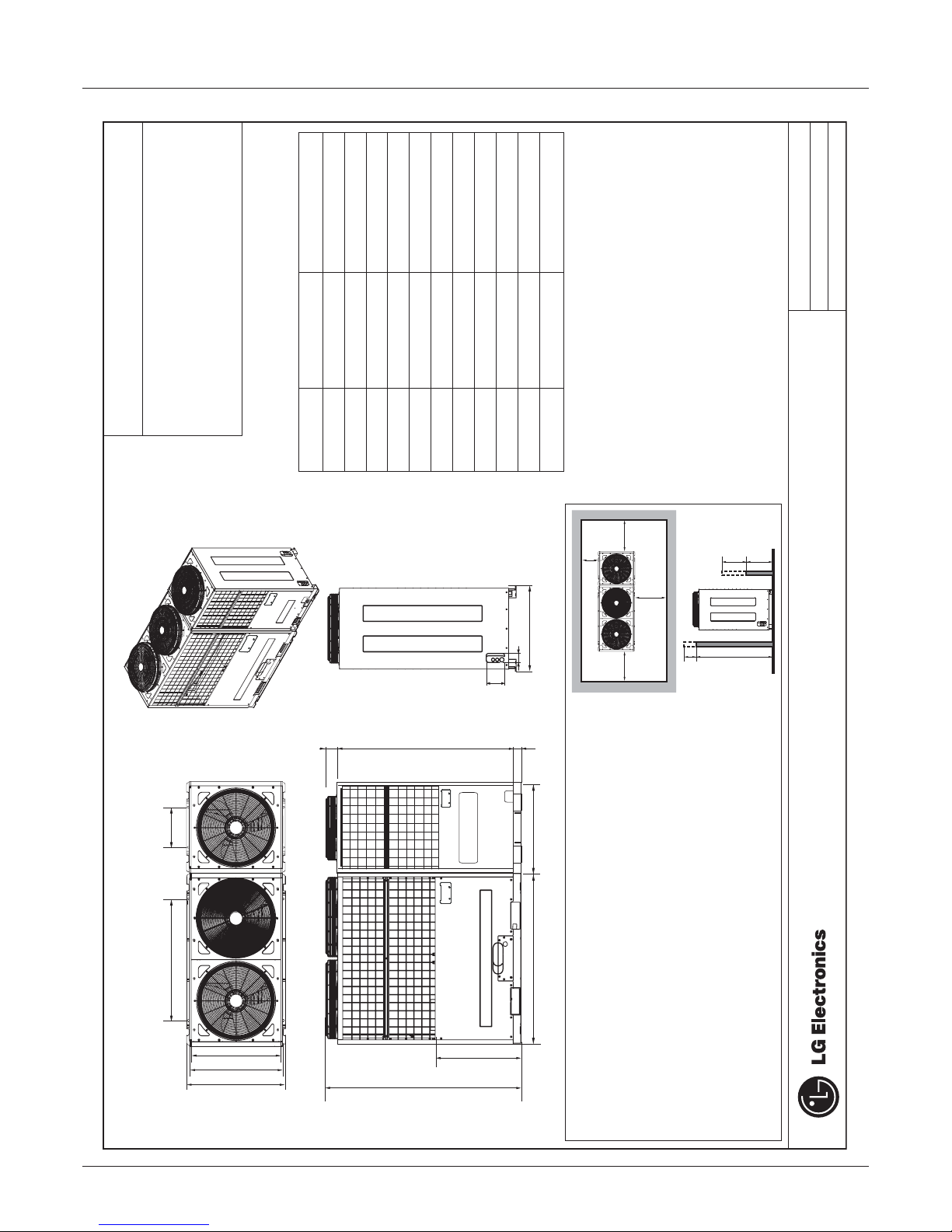

Dimensions
Front side
250mm or more
900mm or more
250mm or more
250mm or more
76, Seongsan-dong, Changwon City, Gyeongnam,
641-713, Korea www.lge.com/airconditioner
CHASSIS CODE: UW, UY
Outdoor Unit
<Heat Pump>
ARUN180LT2 ARUN200LT2 ARUN220LT2
<Cooling Only>
ARUV180LT2(E) ARUV200LT2(E) ARUV220LT2(E)
W1 mm(inch) 1280(50.4) W2 mm(inch) 806(31.5) H mm(inch) 1607(63.3) D mm(inch) 730(28.7) L1 mm(inch) 1427(56.1) L2 mm(inch) 692(27.2) L3 mm(inch) 670(26.3) L4 mm(inch) 900(35.4) L5 mm(inch) 500(19.7) L6 mm(inch) 704(27.7) L7 mm(inch) 99(3.9) L8 mm(inch) 82(3.2)
Notes: 1. Height of walls in case of pattern1:
Front side:1500mm, Suction side:500mm
2. If the above wall heights are exceeded, then h1/2 and h2/2 should be added to the
front and suction side service spaces respectively as shown in the following figure.
3. When installing the units, the most appropriate pattern should be selected from
those shown. In order to obtain the best fit in the space available, always bear in mind the need to leave enough room for a person to pass between units and wall and for the air to circulate freely. Your layout should take into account the possibility of short circuits.
4. The Units should be installed to leave sufficient space in front for the on site
refrigerant piping work to be carried out comfortably.
1500mm
500mm
h2
h1
Front side
Suction side
H
L6
L1 L7
W1 W2 L8
D
80
160
L4 L5
L3
L2
D

Copyright ©2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 19 -
Dimensions
76, Seongsan-dong, Changwon City, Gyeongnam,
641-713, Korea www.lge.com/airconditioner
CHASSIS CODE: UW
Outdoor Unit
<Heat Pump>
ARUN240LT2 ARUN260LT2 ARUN280LT2 ARUN300LT2 ARUN320LT2
<Cooling Only>
ARUV240LT2(E) ARUV260LT2(E) ARUV280LT2(E) ARUV300LT2(E) ARUV320LT2(E)
W mm(inch) 1280(50.4) H mm(inch) 1607(63.3) D mm(inch) 730(28.7) L1 mm(inch) 1427(56.1) L2 mm(inch) 692(27.2) L3 mm(inch) 670(26.3) L4 mm(inch) 900(35.4) L5 mm(inch) 10(0.4) L6 mm(inch) 704(27.7) L7 mm(inch) 99(3.9) L8 mm(inch) 82(3.2)
L5
H
L6
L1 L7
WL8
D
60(2.4)
160(6.4)
L4
L3
L2
D
Notes: 1. Height of walls in case of pattern1:
Front side:1500mm, Suction side:500mm
2. If the above wall heights are exceeded, then h1/2 and h2/2 should be added to the front and
suction side service spaces respectively as shown in the following figure.
3. When installing the units, the most appropriate pattern should be selected from those shown.
In order to obtain the best fit in the space available, always bear in mind the need to leave enough room for a person to pass between units and wall and for the air to circulate freely. Your layout should take into account the possibility of short circuits.
4. The Units should be installed to leave sufficient space in front for the on site refrigerant piping
work to be carried out comfortably.
1500mm
500mm
h2
h1
Front side
Suction side
Front side
250mm or more
900mm or more
250mm or more
250mm or more

Copyright ©2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 20 -
Dimensions
H
L6
L1 L7
W1 W1 W2 L8
D
80
160
L4 L5
L3
L2
D
Front side
250mm or more
900mm or more
250mm or more
250mm or more
76, Seongsan-dong, Changwon City, Gyeongnam,
641-713, Korea www.lge.com/airconditioner
CHASSIS CODE: UW, UY
Outdoor Unit
<Heat Pump>
ARUN340LT2 ARUN360LT2 ARUN380LT2
<Cooling Only>
ARUV340LT2(E) ARUV360LT2(E) ARUV380LT2(E)
W1 mm(inch) 1280(50.4) W2 mm(inch) 806(31.5) H mm(inch) 1607(63.3) D mm(inch) 730(28.7) L1 mm(inch) 1427(56.1) L2 mm(inch) 692(27.2) L3 mm(inch) 670(26.3) L4 mm(inch) 900(35.4) L5 mm(inch) 500(19.7) L6 mm(inch) 704(27.7) L7 mm(inch) 99(3.9) L8 mm(inch) 82(3.2)
Notes: 1. Height of walls in case of pattern1:
Front side:1500mm, Suction side:500mm
2. If the above wall heights are exceeded, then h1/2 and h2/2 should be added to the
front and suction side service spaces respectively as shown in the following figure.
3. When installing the units, the most appropriate pattern should be selected from
those shown. In order to obtain the best fit in the space available, always bear in mind the need to leave enough room for a person to pass between units and wall and for the air to circulate freely. Your layout should take into account the possibility of short circuits.
4. The Units should be installed to leave sufficient space in front for the on site
refrigerant piping work to be carried out comfortably.
1500mm
500mm
h2
h1
Front side
Suction side
