LG LAC-M9600R User manual

CAR CD/MP3/WMA Receiver
OWNER’S MANUAL
MODEL : LAC-M9600R
Please read this instruction booklet carefully and completely
before connecting, operating or adjusting this product.
LAC-M9600R_ENG
ENGLISH
USB

Safety note
2
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT SPLIT
COVER(OR BACK) NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with the arrowhead symbol, within an equilateral
triangle is intended to alert the user about the presence of uninsulated
dangerous voltage within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
Always operate the vehicle in a safe manner.
Do not become distracted while driving, and always be fully aware of all
driving conditions. Do not change settings, or any functions.
Pull over in a safe and legal manner before attempting such operations.
Do not use for prolonged periods at extremely low or high temperature.
(-10~60°C)
To reduce the risk of electric shock, do not remove the cover or back of
this product. There are no user-serviceable parts inside.
Refer servicing to qualified service personnel.
To reduce the risk of fire or electric shock, do not expose this product to
dripping or splashing water, rain, or moisture.
The external temperature of the unit can be extremely high, only use the
unit after proper installation in your vehicle.
CAUTION : VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND
INTERLOCKS DEFEATED.
CAUTION : This product uses a Laser System.
To ensure proper use of this product, please read this owner’s manual carefully
and retain it for future reference. Should the unit require maintenance, contact an
authorized service center.
Performing controls, adjustments, or carrying out procedures other than those
specified herein may result in hazardous radiation exposure.
To prevent direct exposure to the laser beam, do not try to open the unit.
Visible laser radiation when open. DO NOT STARE INTO BEAM.

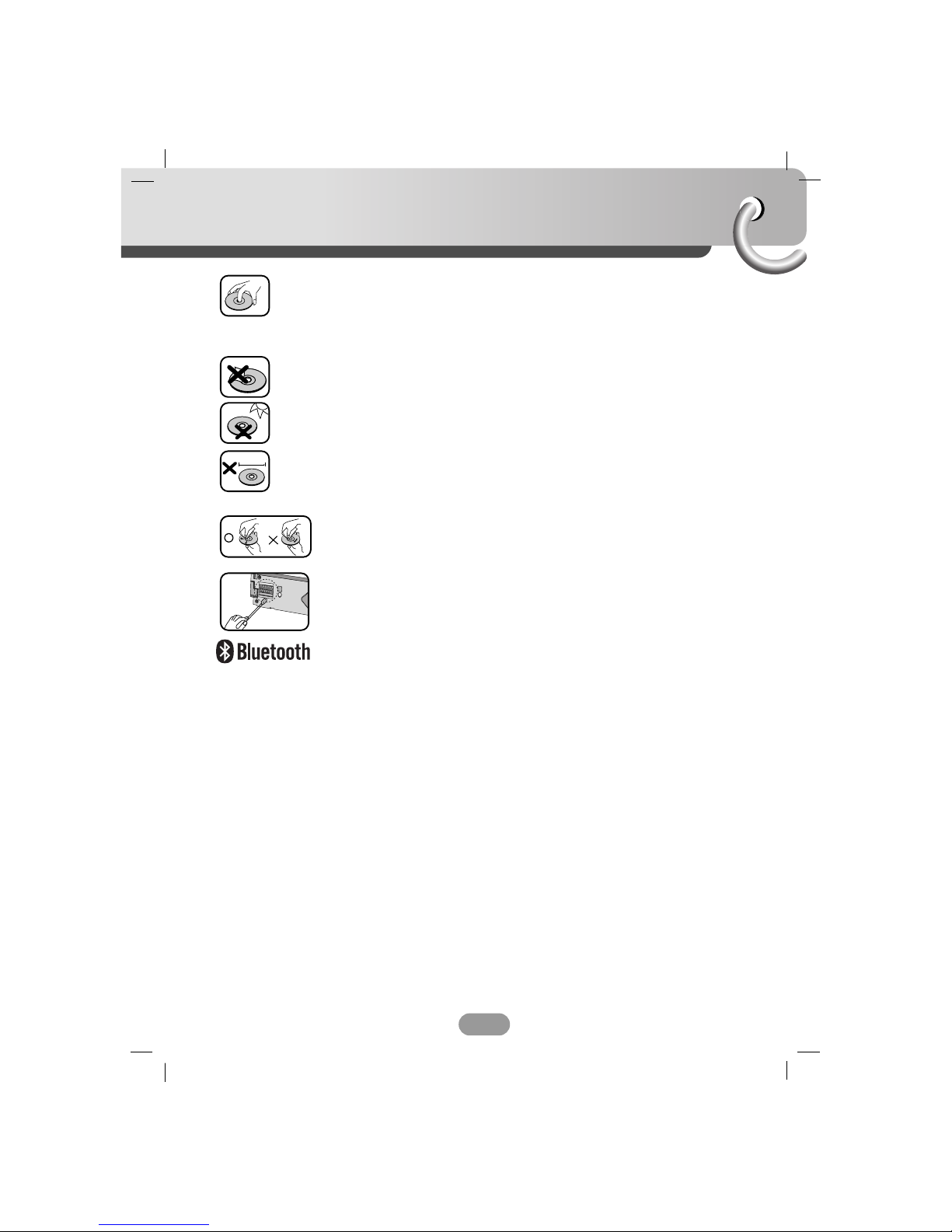

Safety note
3
8 cm
• A defective or soiled disc inserted into the unit can cause the sound to
drop out during playback.
• Handle the disc by holding its inner and outer edges.
• Do not touch the surface of the unlabeled side of the disc.
Do not stick paper or tape, etc. on the surface.
Do not expose the disc to direct sunlight or excessive heat.
This unit cannot use 8cm disc (use 12cm discs only).
If an 8cm disc is inserted in error, press the EJECT button for a prolonged
period with the front panel opened.
• Clean the disc before playback. Wipe the disc from the centre outward
with a cleaning cloth.
• Never use solvents such as benzine or alcohol to clean the disc.
Periodically wipe the contacts on the back of the front panel with a cotton
swab moistened with alcohol.
Bluetooth® wireless technology is a system which allows radio contact
between electronic devices within a max. range of 10 meters.
Connecting individual devices with Bluetooth® wireless technology does
not incur any charges. A mobile phone with Bluetooth® wireless
technology can be operated via the Cascade if the connection was made
via Bluetooth® wireless technology.
CAUTION : Using Bluetooth
Carefully read this manual before using a bluetooth function.
- Close windows.
- Turn off the air conditioner/ heater.
- Stop the vehicle or drive at low speed.
- Make the call in a quiet location.
• There may be differences in call quality depending on phone type, road
conditions weather, etc.
• Adjusting ECM (Echo Cancellation Mode) and MIC VOL, etc can give
better call quality.
ECM (Echo Cancellation Mode) and, MIC VOL can be adjusted only
when call is dropped.
• Using the phone while driving may cause unexpected accidents.
• The Bluetooth function may not operate properly with certain types of
Bluetooth phones.

Safety note / Table of contents
4
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4
Table of contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Before use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Connection diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Basic operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-13
Setup operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-16
Bluetooth operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-21
Radio operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
RDS operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
CD/MP3/WMA operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-25
USB operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
USB(PPS) operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Bluetooth phone compatibility list. . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30-31
Disposal of your old appliance
1. When this crossed-out wheeled bin symbol is attached to a product, it means
the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the
municipal waste stream via designated collection facilities appointed by the
government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative
consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please
contact your local authority, waste disposal service or the shop where you
purchased the product.
This product is manufactured to comply with the radio interference requirements of
EEC DIRECTIVE 89/336/EEC, 93/68/EEC and 73/23/EEC.

Before use
5

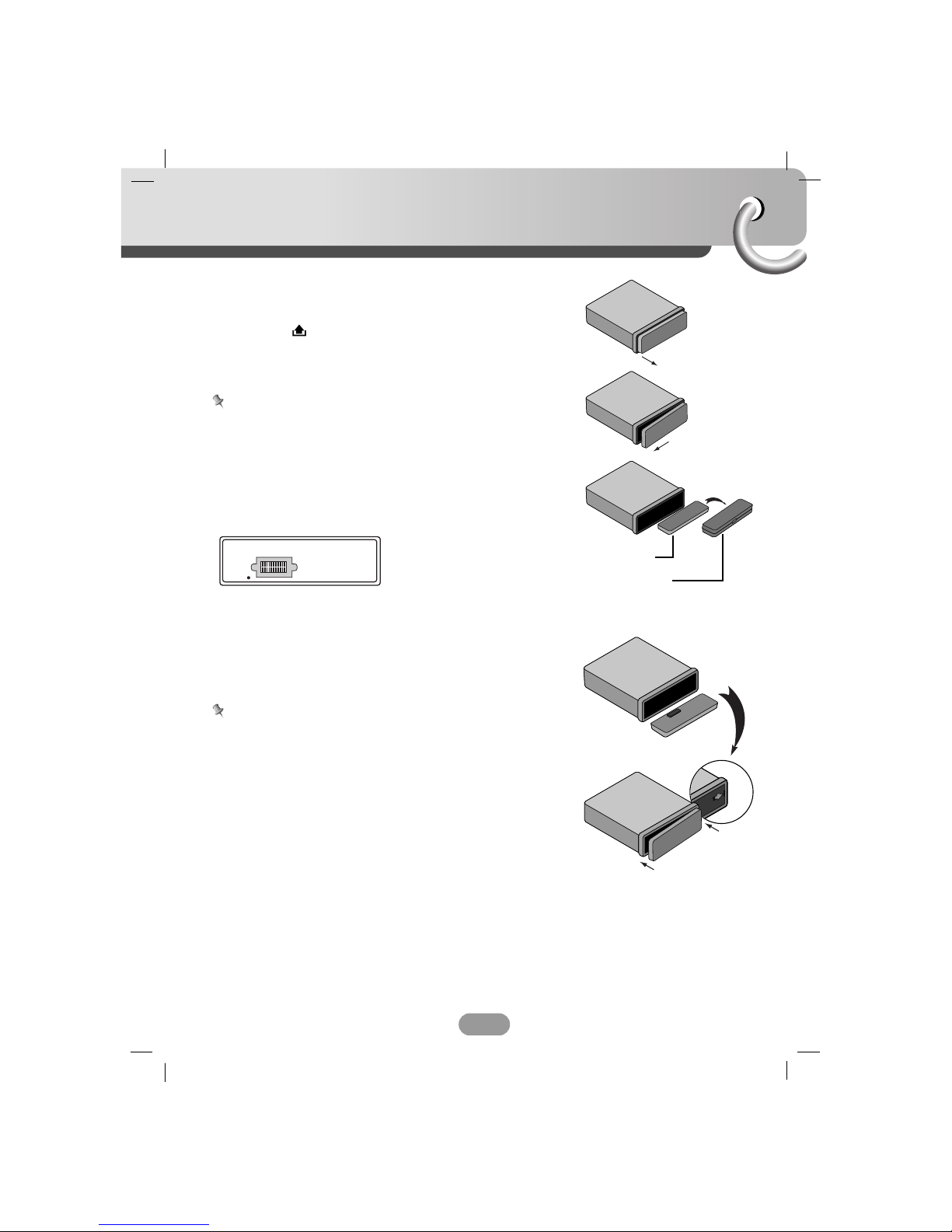

Detaching the front panel
The front panel can be detached to prevent theft.
1 Press the (RELEASE) to open the front panel.
2 Hold the left part of the front panel.
3 Pull the front panel.
4 Place the front panel in the supplied protective case.
Notes
• The front panel is a precision piece of equipment and can be
damaged by shocks or jolts. For that reason, keep the front
panel in its protective case while detached.
• Do not touch the connectors directly with your fingers or with
any metal device.
• If the unit fails to operate properly, press the reset button
using a ball point pen or a similar tool.
RESET
Attaching the front panel
The front panel can be detached to prevent theft.
1 Align the right side of the panel with the stopper.
2 Push the left side of the panel into the unit until it clicks.
Notes
• When detaching or attaching the front panel, do not press
the display or control buttons.
• The control buttons may not work properly if the front panel
is not attached properly. If this occurs, gently press the front
panel.
• Do not leave the front panel in any area exposed to high
temperatures or direct sunlight.
• Do not drop the front panel or it will cause strong impact.
• Do not allow such volatile agents as benzine, thinner, or
insecticides to come into contact with the surface of the front
panel.
• Do not try to disassemble the front panel.
2
3
4
1
2
Protective Case
Front panel

Front Panel
6
1 POWER [PWR / MUTE]
2 • VOLUME [VOL./MULTI]
• SELECT
• MENU (UP/DOWN/LEFT/RIGHT)
• SKIP ?m M? / SEARCH mM
• SEEK/ TUNE
• MP3 TRACK +10/-10
• FOLDER UP/DOWN
• Driver UP/DOWN
(When connecting this unit to Multi reader.)
3 MICROPHONE [MIC]
4 SOURCE [SRC]
5 REMOTE SENSOR
6 EQUALIZER [EQ /XDSS / SRS]
7 DISPLAY WINDOW
8 • EJECT Z
• [OPEN/TILT]
9 USB SLOT
10 *Multi-function key
11 DISPLAY [DISP]
12 BLUETOOTH MENU [B.T MENU]
13 RELEASE
WMAMP3
WMAMP3
WMAMP3
12356 8
9
13 10
7
12 11
4
*Multi-function Key
The Multi-function button controls various functions.
This unit is equipped with the Multi-function Key system which enables the operation of
multiple functions with one button.
Function displaying
Multi-function key

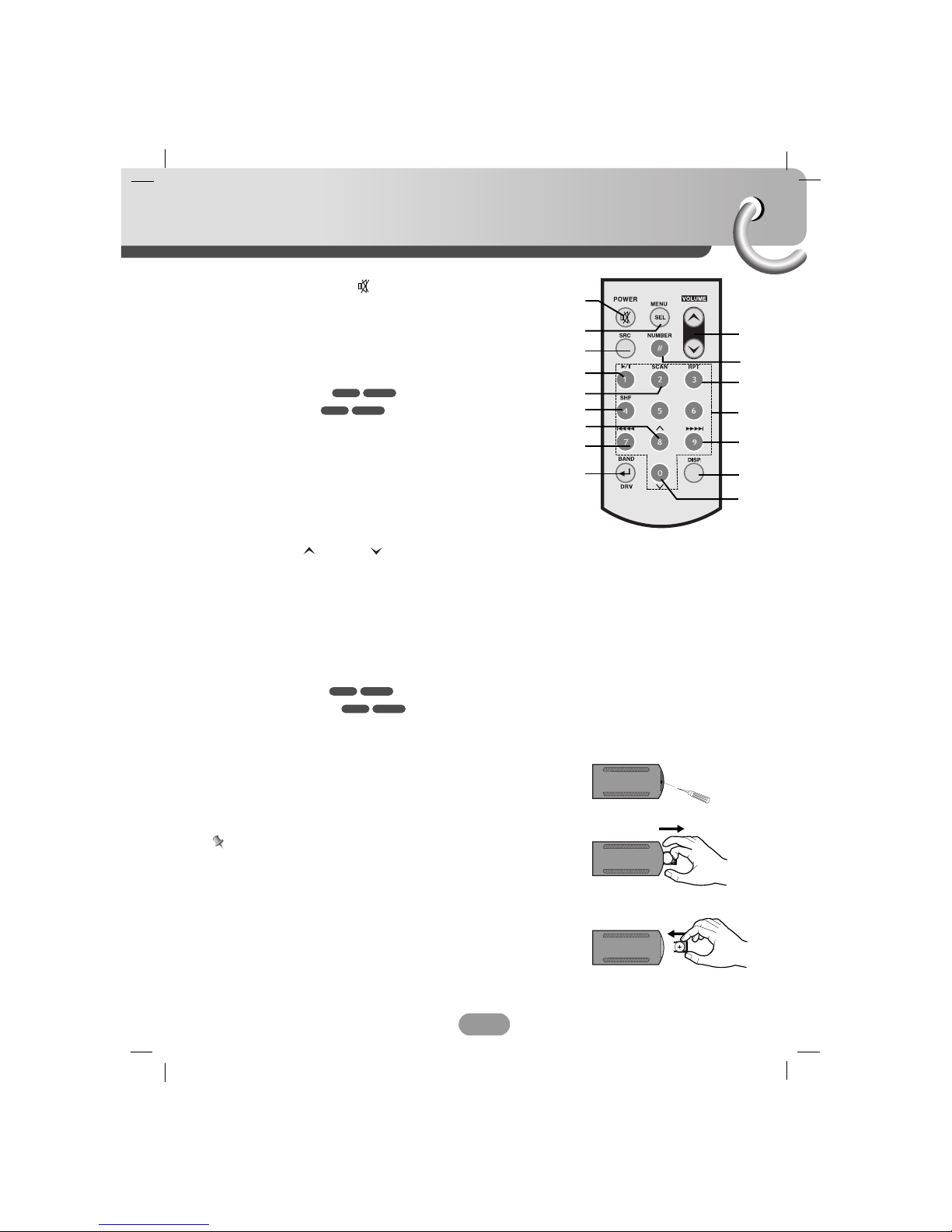

Remote control
7
Battery installation
1 Remove the battery holder with a pencil or ball point pen.
2 Insert the batteries into the battery holder.
3 Insert the battery holder into its original position.
Notes
• Use only one CR2025 (3V) lithium battery.
• Remove the battery if the remote control is not used for a
long period of time.
• Do not leave the product in a hot or humid place.
• Do not handle the battery using metallic tools.
• Do not store the battery together with metallic materials.
• In the event of battery leakage, wipe the remote control
completely clean and install a new battery.
1 POWER [PWR] / MUTE
2 SELECTION [MENU/SEL]
3 SOURCE [SRC]
4 PLAY / PAUSE B/X
5 INTRO SCAN [SCAN]
6 SHUFFLE [SHF]
7 • MP3 TRACK +10
• FOLDER UP UU
• MOVE UP
8 • CD SKIP / SEARCH ?m m
• SEEK / TUNE ?m m
• MOVE LEFT
9•[BAND]
• DRIVER [DRV]
• ENTER
10 VOLUME UP / DOWN
11 NUMBER [#]
12 REPEAT [RPT]
13 NUMBER [0 -9]
14 • CD SKIP / SEARCH M M?
• SEEK / TUNE M M?
• MOVE RIGHT
15 DISPLAY [DISP.]
16 • MP3 TRACK -10
• FOLDER DOWN uu
• MOVE DOWN
WMAMP3
WMAMP3
WMAMP3
WMAMP3
10
12
14
15
16
1
3
8
9
4
5
2
6
7
11
13

Installation
8
A
A
5
4
3
1
2
6
Bend the claws
according to
the thickness
of the
dashboard
Front panel
Front panel
Basic Installation
Before installing, make sure that the ignition switch is set to
OFF and remove the terminal of the car battery to avoid
short-circuiting.
1 Remove the existing receiver unit.
2 Make the necessary connections.
3 Install the installation sleeve.
4 Install the unit into the installation sleeve.
Removing the existing receiver unit.
If there is already an installation sleeve for the receiver unit in
the dashboard, it must be removed.
1 Remove the rear support from the unit.
2 Remove the front panel and trim ring from the unit.
3 Insert the lever Ainto the hole on one side of the unit.
Perform the same operation on the other side and pull the
unit out from the mounting sleeve.
ISO-DIN Installation
1 Slide the unit into the ISO-DIN frame.
2 Install screws removed from the old unit.
3 Slide the unit and frame into the dash opening.
4 Install the dash panel or adapter plate.
5 Install the trim ring into unit.
6 Install the faceplate by fitting the right edge into position
then pushing the left edge closed.

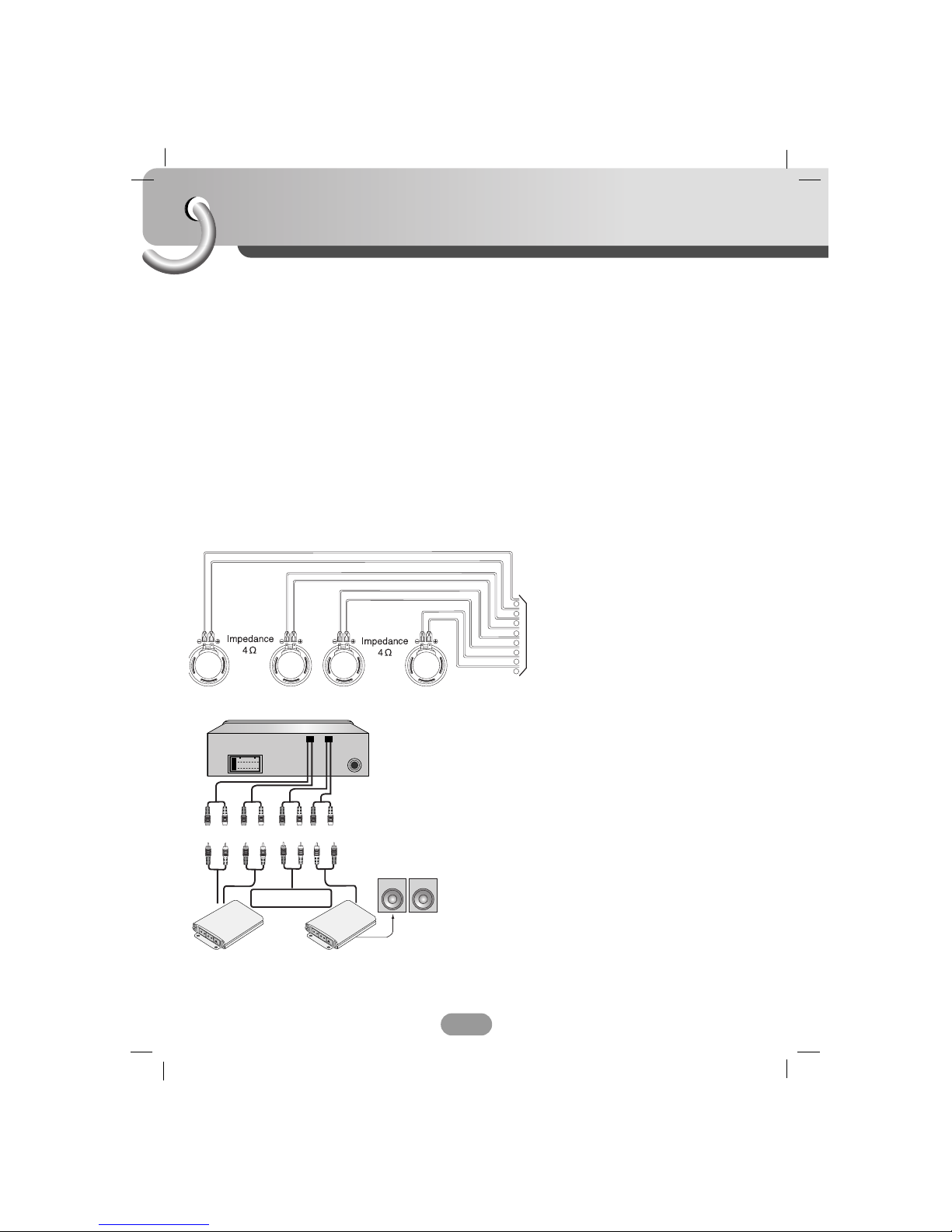

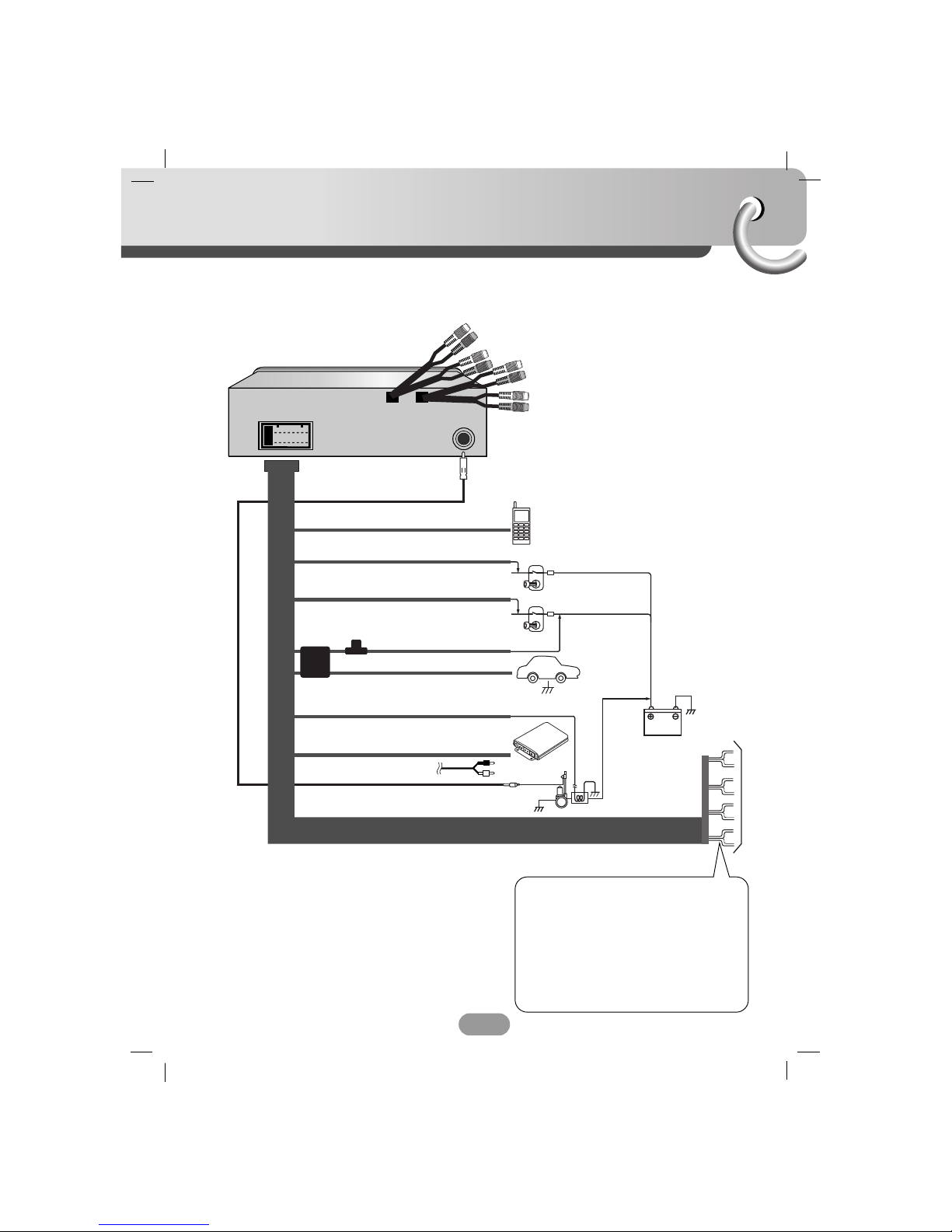

Connection diagram
9
Before connecting, make sure that the ignition switch is set to OFF, and remove the battery #
terminal to avoid short circuits.
1
2
3
4
5
6
7
8
DIMMER (PINK)
PHONE (ORANGE)
IGNITION (RED)
POWER ANTENNA (BLUE)
REMOTE ON (BLUE/WHITE)
TO BATTERY(+) (YELLOW)
GROUND(-) (BLACK)
Filter Box
Fuse 20A
AMPLLIFIER
(Optional)
POWER
ANT
CONTROL RELAY
DIMMER SWITCH
IGNITION SWITCH
BATTERY
1. WHITE FL+
2. WHITE/BLACK STRIPE FL-
3. GRAY FR+
4. GRAY/ BLACK STRIPE FR-
5. GREEN RL+
6. GREEN/ BLACK STRIPE RL-
7. VIOLET RR+
8. VIOLET/ BLACK STRIPE RR-
AA
BB
CC
: To cellular phone system.

Connection
10
AAFrom antenna
BBTo the wiring of the vehicle colors of leads.
• BLACK : This lead is for the ground connection.
• ORANGE : This lead is for the phone line connection.
• PINK : This lead is for the dimmer line connection.
• RED : This lead is for connection to the power supply terminal when the ignition
switch is set to ACC.
• YELLOW : This lead is for connection to the battery (back-up) terminal from which
power is always supplied.
• BLUE : This lead is for the power antenna connection.
• BLUE/WHITE : This lead is for the remote amplifier on connection.
LRLR
1
2345678
REAR FRONT
CCSpeaker Connections
Connecting to Auxiliary Equipment (Optional)
• Connect the AUDIO OUTPUT connector of this unit to the
AUDIO INPUT connector of the Amplifier.
• Connect the SW (Sub-Woofer) connector of this unit to the
AUDIO INPUT connector of the Sub-Woofer.
• Connect the AUX INPUT connector of this unit to the
AUX OUTPUT connector of the Auxiliary Equipment.
Audio Out
AUX
Sub-Woofer
RLRR FLFR RLRL
Auxiliary Device
Sub-Woofer
Amplifier Amplifier
