OWNER’S MANUAL
WASHING MACHINE
WM0642H*
P/NO : MFL31245123 www.lg.com
Please read this manual carefully before operating
your set and retain it for future reference.
D1444**
D1445**
D1446**
DC45*
DC35*
MFL66281415
DISHWA SHER
OWNER'S MANUAL
Before beginning installation, read these instructions carefully.
This will simplify installation and ensure that the dishwasher is installed
correctly and safely. Leave these instructions near the dishwasher
after installation for future reference.

For your safety, the information in this manual must be followed to minimize the risk of fire or
explosion, electric shock, or to prevent property damage, injury to persons, or death.
READ ALL INSTRUCTIONS AND EXPLANATION OF THE INSTALLATION
BEFORE USE
WARNING
You can be killed or seriously injured if you don’t follow instructions.
Your Safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance.
Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word DANGER,
WARNING or CAUTION.
These words mean:
WARNING
You may be slightly injured or cause damage to the product,if you do not follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance
of injury, and tell you what can happen if the instructions are not followed.
CAUTION
You will be killed or seriously injured if you don’t immediately follow instructions.
DANGER
2
CONTENTS................................2
IMPORTANT SAFETY
INSTRUCTIONS
Important safety instructions..............3
Read all instructions before use ........4
Save these instructions......................5
INSTALLATION INSTRUCTIONS

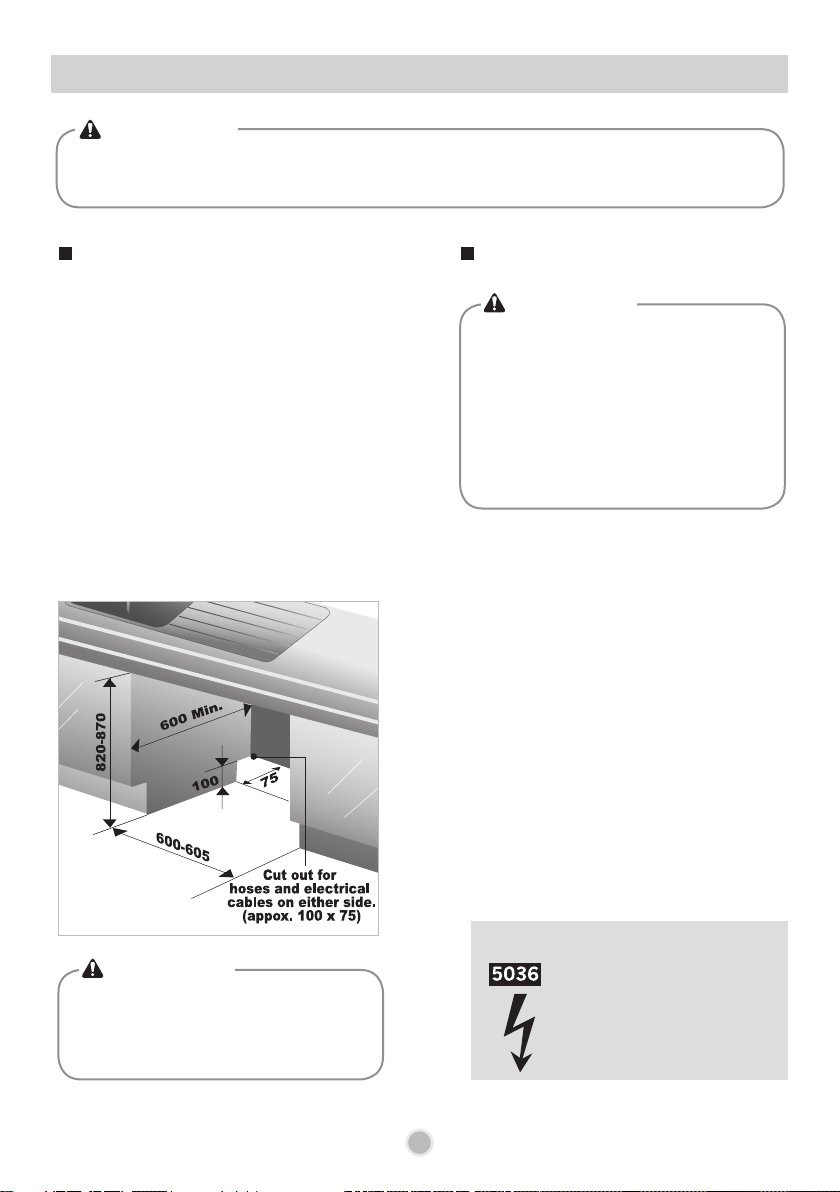

Prepare cupboard opening ................7
Preparation for electrical wiring ........7
Preparing the dishwasher for
installation..........................................8

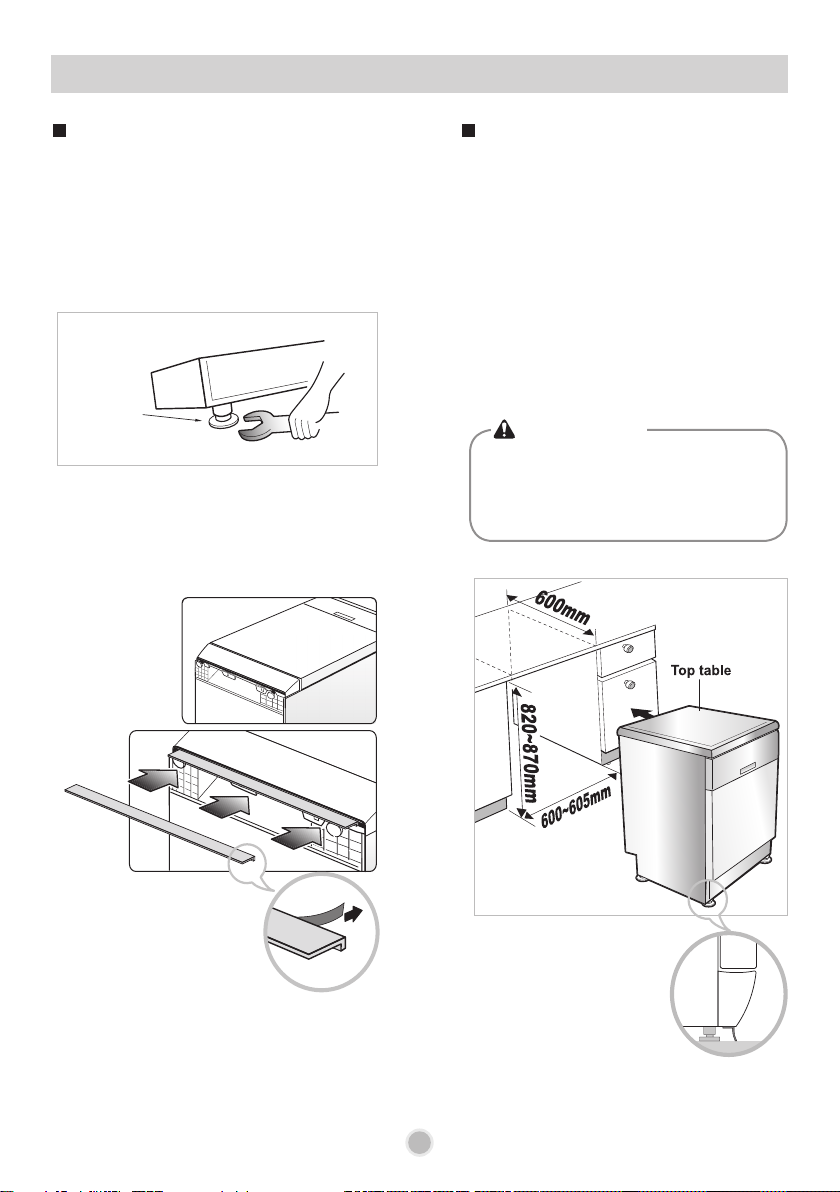

Installing the dishwasher in
cupboard .......................................8
Installation of drain hose....................9
Installation of water inlet hose .........10
Final check and assembling ............10
How to level the dishwasher ............10
PARTS NAME ..........................11

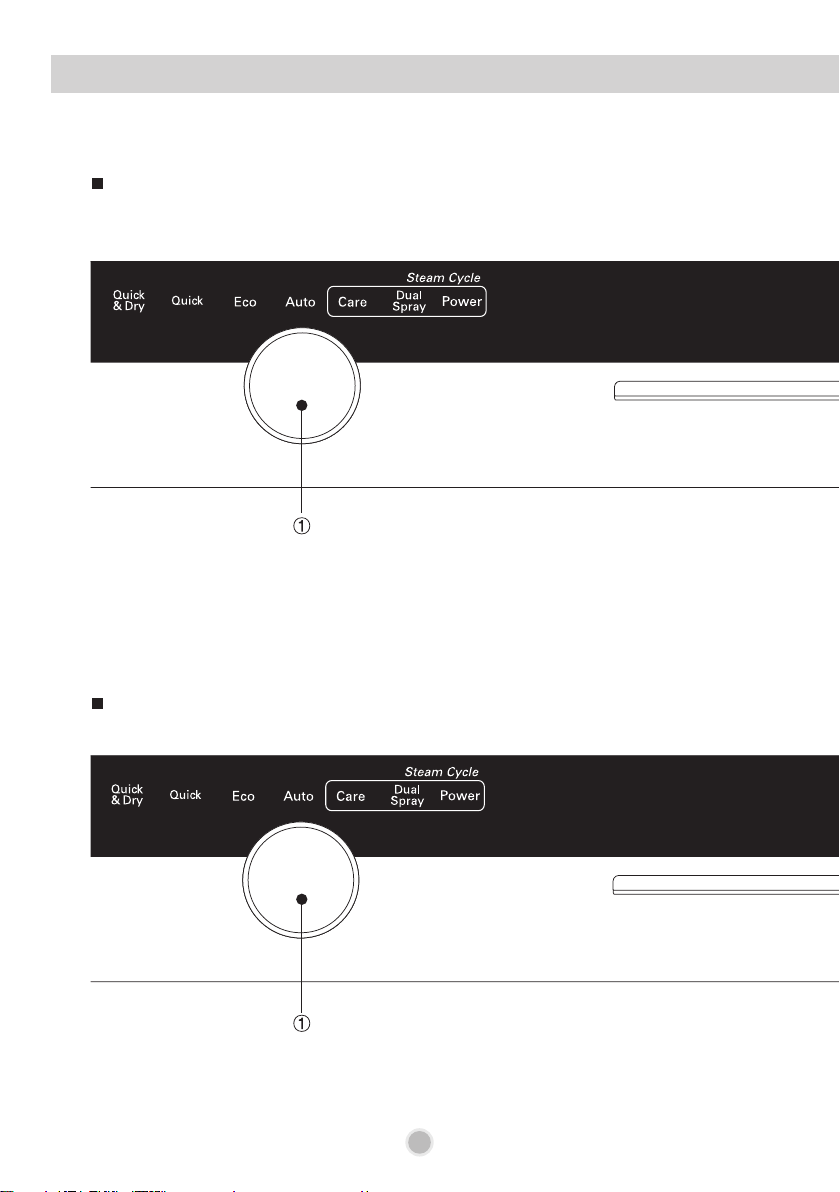

FUNCTION OF CONTROL
BUTTON...................................12
BEFORE USING FOR THE
FIRST TIME
Check and find water hardness
level...........................................15
Setting up the softening system
level of your dishwasher ..................15
Salt Filling ........................................16
Adding Rinse Aid .............................16
INFORMATION FOR ENERGY
TEST ........................................17
HOW TO USE AND OPERATE

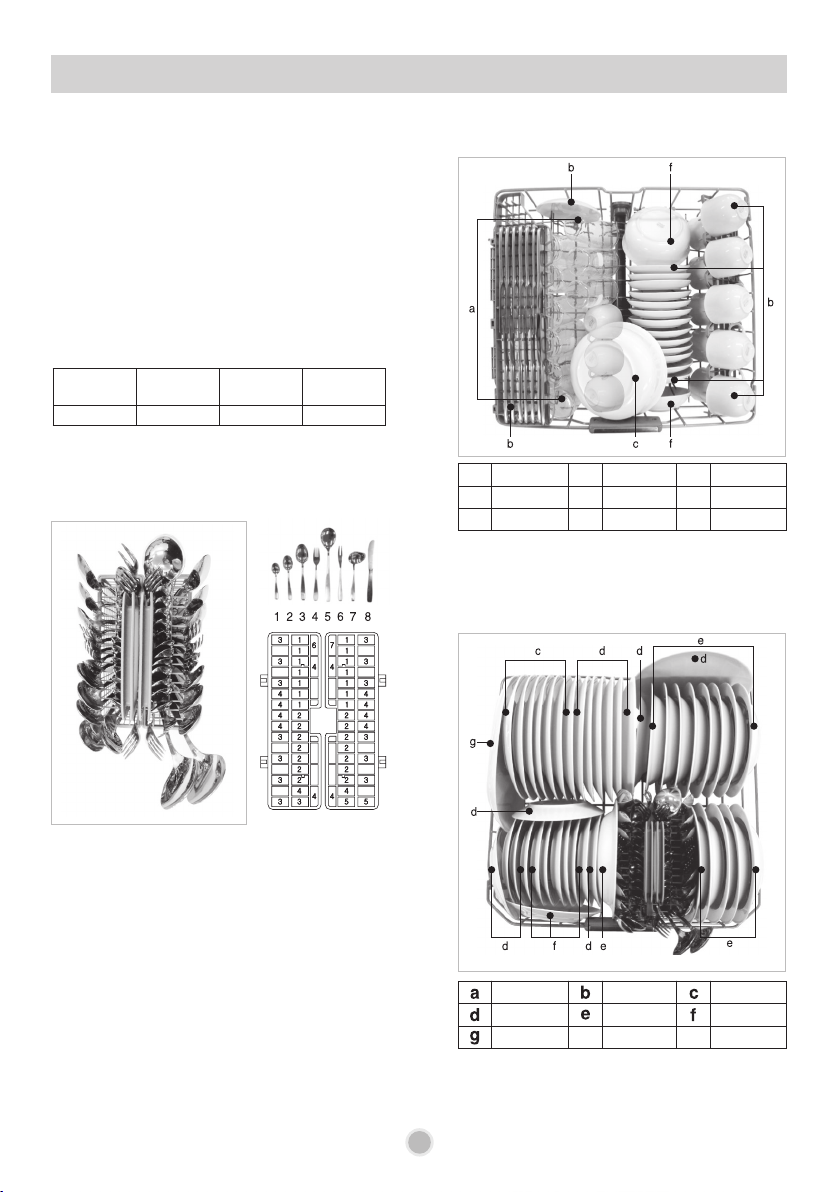

Daily use load ..................................18
Cutlery Basket .................................19
Lower Rack......................................20
Upper Rack......................................21
Adding Detergent.............................22
Relling ............................................23
Drying ..............................................24
Washing ...........................................24
OPERATING SEQUENCE ...... 25
PROGRAMME .........................26
USER MAINTENANCE
INSTRUCTIONS
Keeping the dishwasher ..................27
Filters ...............................................27
Lower Spray Arm .............................27
Upper Spray Arm .............................27
Water Inlet........................................27
TROUBLE SHOOTING GUIDE
Before calling for service .................28
Using SMARTDIAGNOSIS™ ..........31
SPECIFICATION .....................32
CONTENTS
Thank you for buying a LG Dishwasher.
Please read your owner’s manual
carefully, it provides instruction on safe
installation, use and maintenance.
Retain it for future reference.
Record the model and serial number of
your Dishwasher.
Model No.
Serial No.
Date of Purchase

For your safety, the information in this manual must be followed to minimize the risk of fire or
explosion, electric shock, or to prevent property damage, injury to persons, or death.
READ ALL INSTRUCTIONS AND EXPLANATION OF THE INSTALLATION
BEFORE USE
WARNING
You can be killed or seriously injured if you don’t follow instructions.
Your Safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance.
Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word DANGER,
WARNING or CAUTION.
These words mean:
WARNING
You may be slightly injured or cause damage to the product,if you do not follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance
of injury, and tell you what can happen if the instructions are not followed.
CAUTION
You will be killed or seriously injured if you don’t immediately follow instructions.
DANGER
3
IMPORTANT SAFETY INSTRUCTIONS
3

4
• Please read this manual carefully
before using the dishwasher for the first
time.
• This manual contains very important notes
regarding the installation, use and
maintenance of your dishwasher.
• The manufacturer can not be responsible
for problems caused by ignoring these
safety and caution instructions.
• This dishwasher is designed for normal
household use.
• Do not use the dishwasher for
industrial and commercial use, or other
purpose.
• The appliance is not intended for use
by young children or infirm persons
without supervision.
• Check packaging and dishwasher
immediately for signs of transport
damage. If the appliance is damaged, do
not put it into use but contact your
supplier without delay.
• This appliance is intended to be used in
household and similar applications such
as;
- Staff kitchen areas in shops, offices and
other working environments;
- Farm houses;
- By clients in hotels, motels and other
residential type environments;
- Bed and breakfast type environments.
• If this product is used for commercial
purpose, it is not warranted.
(Example: Public places such as
restaurant, lodging house, training center,
dormitory)
If the product is installed outside the
normal service area, any cost of
transportation involved in the repair of the
product, or the replacement of a defective
part, shall be borne by the owner.
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before use
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using the dishwasher,
follow basic precautions, including the following:
• Electrical connection must be in
accordance with the rating label.
• Electrical safety is only guaranteed when
the earth system of your house is in
accordance with the related local
regulations. (Do not use an extension
cable or cord.)
• If the hot water exceeds 65ºC, adjust the
water heater setting. If the hot water
temperature can not be maintained below
65ºC, the dishwasher must be connected
to cold water.
• If power supply cord is damaged, it must
only be replaced by the manufacturer or
its service agent or a similar qualified
person in order to avoid a hazard.
• This appliance must be positioned so that
the plug is accessible.
• The appliance is to be connected to the
water mains using new hose-sets and that
old hose-sets should not be reused.
During installation
• Only suitable household utensils
should be placed in the dishwasher.
(Please avoid utensils; that are non-
heat-resistant, metal decorated, etc.)
During use
