LG LDF6810WW User manual

P/No. : MFL37554801

DISHWASHER
SERVICE MANUAL
BEFORE SERVICING THE UNIT, PLEASE REA THIS MANUAL CAREFULLY
FOR SAFETY AN CORRECT SERVICES.
NOTE
MODEL : LDF6810(WW,BB,ST), LDF7810(WW,BB,ST)
MODEL : LDF7811(WW,BB,ST), LDS5811(WW,BB,ST), LDF8812(WW,BB,ST)
MODEL : LDF6810(WW,BB,ST) / 01, LDF7810(WW,BB,ST) / 01
MODEL : LDF7811(WW,BB,ST) / 01, LDS5811(WW,BB,ST) / 01

- 3 -
1. CAUTION......................................................................................................................... 4
2. SPECIFICATIONS ........................................................................................................... 5
3. WIRING IAGRAM........................................................................................................ 6
4. FEATURES & TECHNICAL EXPLANATION ................................................................... 7
5. PARTS NAME ................................................................................................................ 16
6. PROGRAM CHART ..................................................................................................... 19
7. HOW TO ISASSEMBLE ............................................................................................ 21
8. TROUBLE SHOOTING METHO S.............................................................................. 30
A. TROUBLE SHOOTING ACCOR ING TO ISPLAYE ERROR MESSAGE...........30
B. TROUBLE IAGNOSES AN REPAIR BY SYMPTOM........................................... 32
9. INSTALLATION INSTRUCTION ................................................................................... 36
10. EXPLO E VIEW .......................................................................................................43
11. REPLACEMENT PART LIST ........................................................................................52
CONTENTS

- 4 -
DISCONNECT POWER CORD BEFORE SERVICING
RECONNECT ALL GROUNDING DEVICES
IMPORTANT SAFETY NOTICE !
This service information is intended for individuals
possessing adequate backgrounds of electrical,
electronic and mechanical experience.
Any attempt to repair this appliance may result in
personal injury and property damage.
The manufacturer or seller can not be responsible
for the interpretation of this information, nor can it
assume any liability in connection with its use.
CAUTION !

- 5 -
2. SPECIFICATION
Rated Voltage / Frequency AC 120V/60Hz
Installation Built-In
Place Settings 16
Product imension(in) 23 7/8 x 25 x 33 7/8
Product Weight(lbs) 7811, 7810, 8812 series : 115lbs, 5811/ 6810 series : 110lbs
oor Color White, Black, Stainless
Tub Material Stainless Steel
Control Electronic
Rated Power(Watt) 1,350
Heater Power(Watt) 1,200
Programs 7811, 7810, 5811, 8812 series : 6, 6810 series : 5
Upper Rack Position 7811, 7810, 8812 series : Adjustable, 6810 series : manual
Lower Rack 50% Fold down
Water Consumption 7811,7810 , 6810, 5811 series : 21-30 (Normal)
8812, 7811/ 01, 7810 /01, 6810/ 01, 5811/ 01 series : 10-26 (Normal)
Power Consumption(kWh/year) 7811/ 7810 / 6810 / 5811 series : 352-370
8812, 7811/ 01, 7810 / 01, 6810/ 01, 5811/ 01 series : 285-310
Operating Time (min) 101-135 (Normal)
Fan ry System Yes
elay Start Function Yes
Auto-Off Power Switch Yes
Process Monitor Yes
Wash Level 5
Racks Nylon Coating
Operating Water Pressure (Bar) 20-120 (140-830kPa)
ITEM SPECIFICATION

- 6 -
1. 7811 / 7810 / 6810 serise
3. WIRING DIAGRAM
2. 8812 serise

- 7 -
4. FEATURES & TECHNICAL EXPLANATION
4-1. Product Features
If you raise the Upper Rack, you can load large dishes in the Lower Rack.
(Max. 14 in.)
The tall tub provides large dishes loading as well as large capacity.
LG dishwashers let you load oversized items in the Lower and Upper Rack.
Newly introduced Slim irect Inverter motor is inverter-controlled. Speed is
controlled based on program selection. It also offers high energy efficiency to
minimize energy loss.
This is one of the best performance solutions for drying dishes because it
minimizes venting humid air to the outside of the dishwasher. In addition, this
system ensures better drying results compared to the condensing drying
system.
Because of alternating water spray between the Upper and Lower
Rack, the water pressure allows superior performance and reduced
consumption of water and electricity.
For best wash results, the self-cleaning filter system continuously cleans the
water as it circulates. Your LG dishwasher has a self-cleaning filter that grinds
food into small particles before it goes down the drain.
Ultra Big Capacity
Slim Direct MotorTM
Hybrid Drying System
Vario Spray System
Self Cleaning Filter
Moist
Air
Dry
Air
Mixed
Air
to
Upper
Arm
to
Lower
Arm
Soil Sensor
Fine Mesh
to Drain

- 8 -

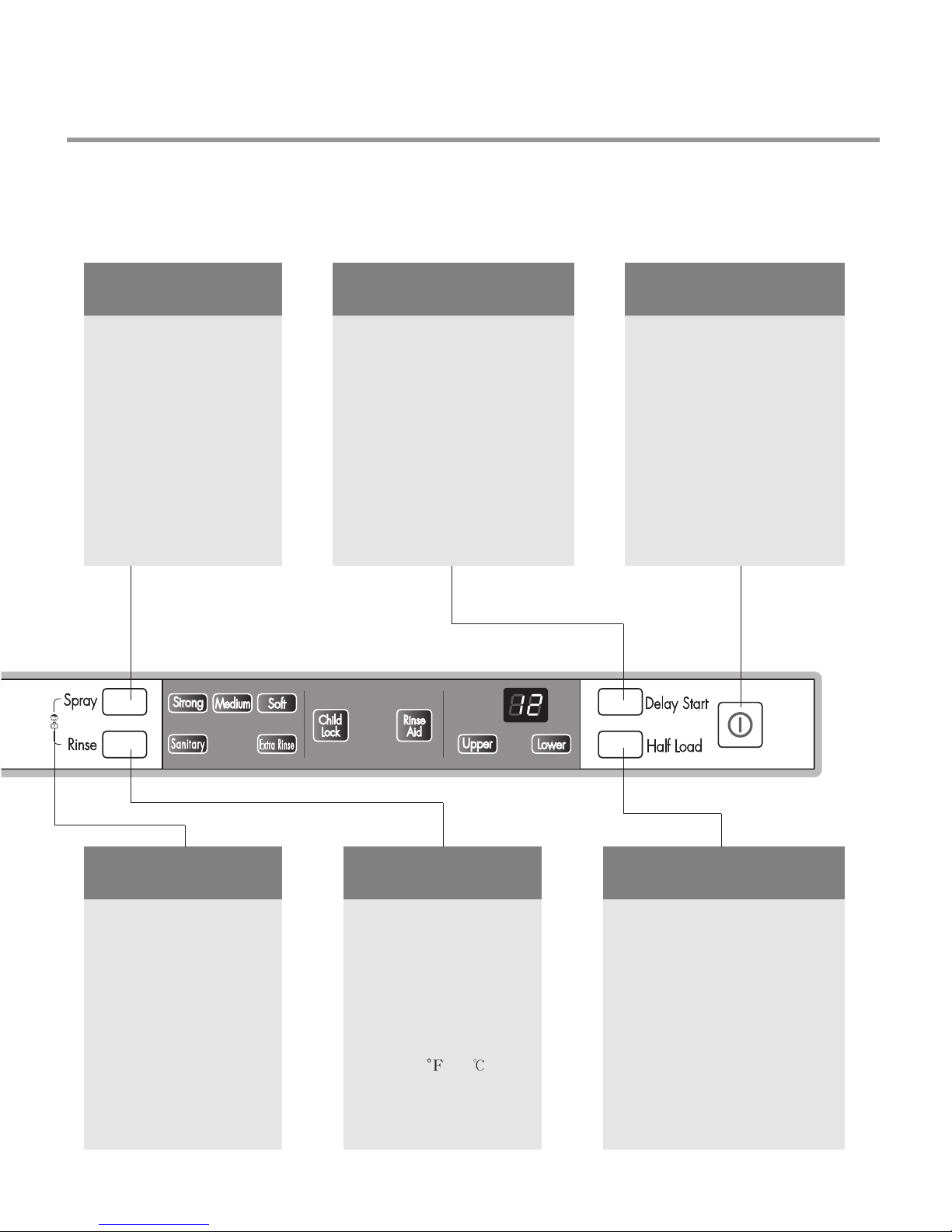

4-2. Display Panel
4-2-1. LDF 7811/7810 Series
PROGRAM
• Press the program that
corresponds to your
desired wash cycle.
CANCEL
• To cancel a running
program, open the door,
then press and hold the
Normal and Delicate
buttons for 3 seconds.
INDICATOR
• Child lock: Lamp will turn on
when Child Lock setting is on.
• inse Aid: efill with inse aid
when Lamp turns on.
This program is for very heavily soiled loads including pots,
pans and casserole dishes which may have dry food residue.
This program is for very heavily soiled loads
This program is for normally soiled everyday loads.
This program is for washing delicate items like glasses.
This program is for that quick wash of lightly soiled recently
used dishes and cutlery.
This program is for very lightly soiled loads.
Soak
Normal
Quick Wash
Rinse Only
Delicate
Power Scrub
Control panel may vary on some models.

- 9 -
SPRAY
(INTENSITY)
• epeated pressing of the
Spray button will select
Strong, Medium or
Soft.
DELAY START
• If you want to delay the start of
a selected program, press the
Delay Start button.
• Each press of Delay Start will
delay the start of the cycle by
one hour.
• The delay start time can be
adjusted from 1 to 24 hours in
one-hour increment.
HALF LOAD
• In case of a small load, use the
upper or lower rack only to save
energy.
• Each press of the Half Load
button cycles between upper
rack only and lower rack only.
• If you don't press Half Load,
the dishwasher runs normally,
i.e, operation of upper and
lower spray arm alternating
periodically.
POWER
• For operating, press this
button first for power on.
• After operating, the power
automatically switches off
for safety and economy.
• In case of an unusual Power
surge or disturbance, the
power may be automatically
turned off for safety.
CHILD LOCK
• Lock the control buttons
to prevent the settings
from being changed.
• To lock/unlock, press
Spray and Rinse
buttons simultaneously
for 3 seconds with door
open.
SANITARY/
EXTRA RINSE
• epeated pressing of the
inse button will select
Sanitary, Extra Rinse
or both.
• If you select the Sanitary
function, the temperature
of Heating inse can
reach 161 (72 ).
• When you select Extra
Rinse, an additional
rinse cycle is added.

- 10 -
SPRAY
(INTENSITY)
• epeated pressing of the
Spray button will select
Strong, Medium or
Soft.
CHILD LOCK
• Lock the control buttons
to prevent the settings
from being changed.
• To lock/unlock, press
Spray and Rinse buttons
simultaneously for 3
seconds.
SANITARY/
EXTRA RINSE
• epeated pressing of the
inse button will select
Sanitary, Extra Rinse
or both.
• If you select the Sanitary
function, the temperature
of Heating inse can
reach 161 (72 ).
• When you select Extra
Rinse, an additional
rinse cycle is added.
HALF LOAD
• In case of a small load, use the
upper or lower rack only to save
energy.
• Each press of the Half Load
button cycles between upper
rack only and lower rack only.
• If you don't press Half Load,
the dishwasher runs normally,
i.e, operation of upper and
lower spray arm alternating
periodically.
4-2-2. LDF 5811 Series

- 11 -
INDICATOR
• Child lock: Lamp will turn
on when Child Lock
setting is on.
• inse Aid: efill with
inse aid when Lamp turns
on.
PROCESSING
INDICATOR
• Current program
phase is indicated.
TIME LEFT
• Before starting, the display window shows
the running time of the selected program.
• After starting, the display window shows
the remaining time.
• If the dishwasher has a trouble, the trouble
type is displayed.
PROGRAM
• Press the
program that
corresponds to
your desired
wash cycle.
CANCEL
• To cancel a
running program,
press and hold
the Normal and
Delicate buttons
for 3 seconds.
DELAY START
• If you want to delay the start of
a selected program, press the
Delay Start button.
• Each press of Delay Start will
delay the start of the cycle by
one hour.
• The delay start time can be
adjusted from 1 to 12 hours in
one-hour increment.
POWER
• For operating, press this
button first for power on.
• After operating, the power
automatically switches off
for safety and economy.
• In case of an unusual Power
surge or disturbance, the
power may be automatically
turned off for safety.

- 12 -
PROGRAM
• Press the program that
corresponds to your
desired wash cycle.
CANCEL
• To cancel a running
program, open the door,
then press and hold the
Po er Scrub and
Normal buttons for 3
seconds.
INDICATOR
• Child lock: Lamp will turn on
when Child Lock setting is on.
• inse Aid: efill with inse aid
when Lamp turns on.
This program is for very heavily soiled loads
This program is for normally soiled everyday loads.
This program is for washing delicate items like glasses.
This program is for very lightly soiled loads.
This program is to wash some items loaded on the upper rack.
Normal
Rinse Only
Upper Only
Delicate
Power Scrub
Control panel may vary on some models.
4-2-3. LDF 6810 Series

- 13 -
DELAY START
• If you want to delay the start of
a selected program, press the
Delay Start button.
• Each press of Delay Start will
delay the start of the cycle by
one hour.
• The delay start time can be
adjusted from 1 to 12 hours in
one-hour increment.
POWER
• For operating, press this
button first for power on.
• After operating, the power
automatically switches off
for safety and economy.
• In case of an unusual Power
surge or disturbance, the
power may be automatically
turned off for safety.
CHILD LOCK
• Lock the control buttons
to prevent the settings
from being changed.
• To lock/unlock, press
Delicate and Rinse Only
buttons simultaneously
for 3 seconds with door
open.
SANITARY/
EXTRA RINSE
• epeated pressing of the
inse button will select
Sanitary, Extra Rinse
or both.
• If you select the Sanitary
function, the temperature
of Heating inse can
reach 161 (72 ).
• When you select Extra
Rinse, an additional
rinse cycle is added.

- 14 -
Control panel may vary on some models.
4-2-4. LDF 8812 Series
INDICATOR
• Child Lock( ): Lamp will turn on
when Child Lock setting is on.
• inse Aid( ): efill with rinse aid
when Lamp turns on.
This program is for very heavily soiled loads including pots,
pans, and casserole dishes, which may have dry food residue.
This program is for very heavily soiled loads
This program is for normally soiled, everyday loads.
This program is for washing delicate items like glasses.
This program is for that quick wash of lightly soiled, recently
used dishes and cutlery.
This program is for very lightly soiled loads.
Soak
Normal
Quick
Rinse Only
Delicate
Power Scrub
CANCEL
• To cancel a running
program, open the door,
then press and hold the
Normal and Delicate
buttons for 3 seconds.
• The drain pump will be
activated and the cycle
will be canceled.
PROGRAM
• Press the program that
corresponds to your
desired wash cycle.
Front Display
WASH
Process Indicator (SignaLight TM )
RINSE DRY CLEAN

- 15 -
HALF LOAD
• In case of a small load, use just
the upper or lower rack to save
energy.
• Each press of the Half Load
button cycles between upper
rack only and lower rack only.
• If you don't press Half Load,
the dishwasher runs normally,
i.e, operation of upper and
lower spray arms alternate
periodically.
CHILD LOCK
• Lock the control buttons
during cycle operation to
prevent the settings from
being changed.
• To lock/unlock, press
Spray and Rinse
buttons simultaneously
for 3 seconds with door
open.
SANITARY/
EXTRA RINSE
• epeated pressing of the inse button
will select Sanitary( ), Extra
Rinse( ) or both.
• If you select the Sanitary Function,
the Sanitary Light blinks when the
water temperature meet the sanitary
temperature level. and illuminates at
the end of cycle when conditions have
been met to achieve sanitization.
• When you select Extra Rinse, an
additional rinse cycle is added.
SPRAY
(INTENSITY)
• epeated pressing of the
Spray button will select
Strong( ), Medium( )
or Soft( ).
DELAY START
• If you want to delay the start of
a selected program, press the
Delay Start button.
• Each press of Delay Start will
delay the start of the cycle by
one additional hour.
• The delay start time can be
adjusted from 1 to 24 hours in
one-hour increments.
POWER
• After operating, the power
automatically switches off
after 4 minutes for safety and
economy.
• In case of an unusual Power
surge or disturbance, the
power may be automatically
turned off for safety.

4-3. TEST MODE
4-3-1. LDF 7811/7810/8812 LDS 5811 Series
CHECK PROGRAM
BUTTON The number of
pushing button Front isplay
Top
isplay Load and Checking points oor open/ closed
Rinse + Time elay +
POWER S/W
Soak
Power Scrub
Normal
elicate
Quick Wash
Rinse Only
Spray
Rinse
Half Load
Time elay
Normal Water Level : 315
Pure Water : more than 229
1 TIME
1 TIME
1 TIME
1 TIME
1 TIME
1 TIME
1 TIME
1 TIME
1 TIME
1 TIME
1 TIME
2 TIME
3 TIME
4 TIME
5 TIME
6 TIME
7 TIME
8 TIME
9 TIME
10 TIME
11 TIME
12 TIME
13 TIME
31
32
33
34
35
36
37
38
39
3A
3b
3c
n : 3H/U:023H/U2
11
22
33
44
55
66
77
88
99
1 : 11
2 : 22
3 : 33
4 : 44
5 : 55
6 : 66
7 : 77
8 : 88
9 : 99
Soil Level
n : 02
n : 03
Frequency
n : 05
n : 06
n : 07
n : 08
Temp. ( )
n : 0A
n : 0b
n : 0c
Soil Sensor
Wash Pump
rain Pump
Inlet Valve
ispenser
Heater
(for 10 sec)
Fan
Thermistor
Lower Nozzle
(VARIO)
Upper Nozzle
(VARIO)
Wash- rain-
Water Supply
Auto-Off
elay Start
Child Lock +
Rinse Aid
Wash
Rinse
ry
Wash-Rinse- ry
Strong-Soft
Sanitary-Extra
Upper-Lower
Soak-Normal
elicate-Rinse
Only
Rinse Aid
All LE s are lighting Both
All LE s are lighting
All LE s are lighting
All LE s are lighting
All LE s are lighting
All LE s are lighting
All LE s are lighting
Strong/Medium/Soft
Sanitary-Extra Rinse
Upper-Lower
Both
Both
Both
Both
Both
Both
Both
Both
Both
Both
Closed
Closed
Both
Closed
Closed
Closed
Both
Closed
Closed
Closed
Closed
Supply water before operating the Test Mode.
- 16 -

Normal Water Level : 295
- 17 -
4-3-2. LDF 6810 Series
CHECK PROGRAM
BUTTON The number of
pushing button
Top
isplay Load and Checking points oor open/ closed
Upper Only +
Time elay +
POWER
Power Scrub
Normal
elicate
Rinse Only
Upper Only
Rinse
Time elay
1 TIME
1 TIME
1 TIME
1 TIME
1 TIME
1 TIME
1 TIME
1 TIME
2 TIME
3 TIME
4 TIME
5 TIME
6 TIME
7 TIME
8 TIME
9 TIME
10 TIME
11 TIME
12 TIME
13 TIME
31
32
33
34
35
36
37
38
39
3A
3b
3c
3H/U2
11
22
33
44
55
66
Wash Pump
rain Pump
Inlet Valve
ispenser
Heater
(for 10 sec)
Fan
Thermistor
Lower Nozzle
(VARIO)
Upper Nozzle
(VARIO)
Wash- rain-
Water Supply
Auto-Off
Child Lock + Rinse Aid
Sanitary-Extra
Power Scrub +
Normal + elicate
Rinse Only +
Upper Only
Rinse Aid
All LE s are lighting
All LE s are lighting
All LE s are lighting
All LE s are lighting
All LE s are lighting
All LE s are lighting
All LE s are lighting
Both
Both
Both
Both
Both
Both
Both
Both
Both
Both
Closed
Both
Closed
Closed
Closed
Closed
Both
Closed
Closed
Closed
Closed

- 18 -

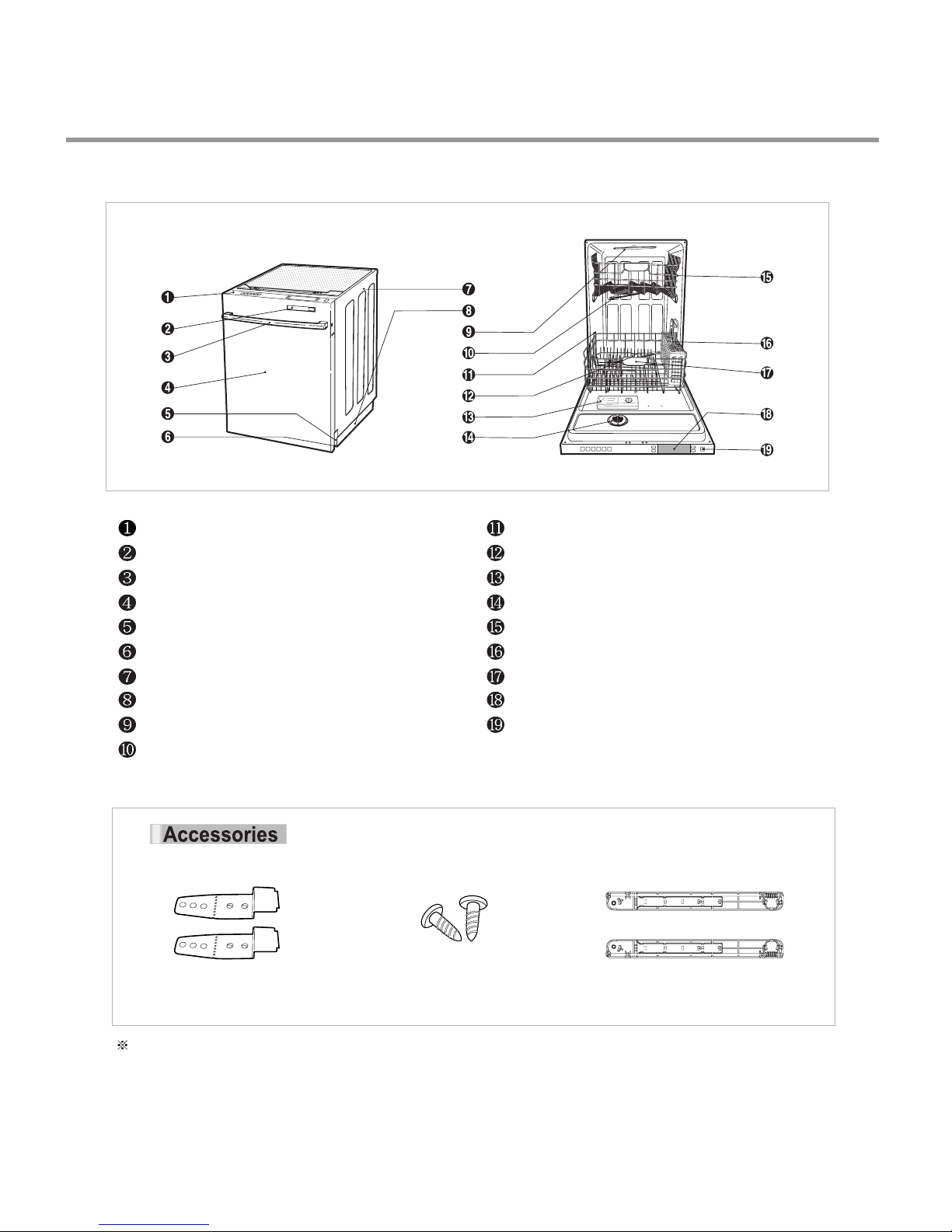

5. PARTS NAME
Control Panel
Front isplay
oor Handle
Front Cover
Lower Cover
Leveling Foot
Side Cabinet
Base
Top Spray Arm
Upper Spray Arm
Removable Tines
Lower Spray Arm
etergent & Rinse Aid ispenser
Vapor Vent Cover
Upper Rack
Cutlery Basket
Lower Rack
Top isplay
Power Button
The appearance and specifications may be varied without notice according to localities.
INSTALL BRACKET WOOD SCREW LEVELING KIT
5-1. LDF 7811/7810 Series

- 19 -
Control Panel
Front isplay
oor Handle
Power Button
Front Cover
Lower Cover
Leveling Foot
Side Cabinet
Base
Top Spray Arm
Upper Spray Arm
Removable Tines
Lower Spray Arm
etergent & Rinse Aid ispenser
Vapor Vent Cover
Upper Rack
Cutlery Basket
Lower Rack
The appearance and specifications may be varied without notice according to localities.
5-2. LDF 5811 Series
INSTALL BRACKET WOOD SCREW LEVELING KIT

- 20 -
Control Panel
oor Handle
Front Cover
Lower Cover
Leveling Foot
Side Cabinet
Base
Top Spray Arm
Upper Spray Arm
Lower Spray Arm
etergent & Rinse Aid ispenser
Vapor Vent Cover
Upper Rack
Cutlery Basket
Lower Rack
Top isplay
Power Button
The appearance and specifications may be varied without notice according to localities.
5-3. LDF 6810 Series
INSTALL BRACKET WOOD SCREW LEVELING KIT
