LG LDS6040ST User manual

DWG.
No.
TRIG.
DR COMPLETED
도면 DR 완료
완료일 : 12.02.28
LG 전자 (주)
LG Electronics Inc.
UNIT SCALE 11 mm
REVIEWEDDESIGNED
RELATED DWG.
CHECKED APPROVED
Y.M.Hong S.W.Woo S.W.Kim
12.02.28 12.02.28 12.02.29
MODELING I
T
L
E
T
APPROVED
승인자
PREPARED
시방자
DATE
년/월/일
REF. NO.
시방 번호
REV. NO.
기호
REVISION DESCRIPTION
변경 사항
1
2
3
4
RELEASING THIS DRAWING
WITHOUT PERMISSION LG
Electronics SHOULD BE
ACCUSED ACCORDING TO THE
LAWS AND COMPANY RULES.
이 도면은 LG전자의 자산으로 불법
유출시 관계법과 회사규정에 의해 처벌됨.
PDF
ILLUSTRATOR
216 216
082
MFL62077185
MANUAL,OWNER’S
Trause
1/1
MFL62077185
<< 주기 >>
1. 재질, 인쇄방법, 인쇄도수, 외곽치수등은 작업표에 준한다.
2. 인쇄내용, 문자크기 및 형상, 선의 굵기 등은 설계에서 제시된 FILM에 준함.
3. 외곽치수는 절단후 치수임.
4. 양산전에 설계 한도를 득할 것.
5. 본 부품에 금지물질이 포함되지 않도록 하고,
상세 내용은 LG(63)-A-5501-34를 만족할 것.
<< NOTES >>
1. Material, printing and exterier size are refer to work tables.
2. Printing, text size and line are based on LG design film.
3. Exterier size on the drawing is cutting line.
4. Before product controlled by criteria sample.
5. The part should not contain prohibited substances(Pb,Cd,Hg,Cr+6,PBB,PBDE)
and details should comply with LG standard of LG(63)-A-5501-34.
가
P/NO. 다
<FRONT>
<BACK>
나
WORK
가
BRAND
LG
LDF8574ST
LDF8072ST
LDF7561ST/WW/BB
LDF7551ST/WW/BB
LSDF9962ST
LSD6040ST
D1426TB
D1425TB
D1472TB/WB/BB
D1471TB/WB/BB
85
나
MODEL
MFL62077185
다
P/NO.
SNOW WHITE 100g OFFSET 인쇄
표지 : 모조지 150g OFFSET 인쇄
내지 : 모조지 80g OFFSET 인쇄
MATERIAL AND PRINTING DESCRIPTION
1 1
PRINTING DEGREE
EXTERIER INTERIER
LG MODEL 명
ENGLISH
SPANISH
FRENCH
LANGUAGE
100
107
PAGE
REMARK
SEC.
5
QR code 삭제 및 내용 추가 AWCD201387 12.03.06 홍영민 김선우
종이 재질 변경 및 P20 세제량 변경 AWCD201542 12.03.12 홍영민 김선우
P9,25,29,30 내용 수정 AWCD201678 12.03.15 홍영민 김선우
P3 US Proposition 65 환경 법규 대응 주의문구 추가 AWCD202698 12.05.04 홍영민 이용재
P30 중량 명확화 AWCD203414 12.06.01 홍영민 이용재
6
Extra Dry 시간 변경
PDF 현실화 시방
AWCD204156 12.07.03 홍영민 이용재
EAGD300945 13.03.28박지원 이용재
legal 문제방지를 위한 경고문구, 청소문구 추가 EAGD400716 13.04.24박지원 이용재
7
P20 세제 관련 주의 문구 추가 AWCD205651 12.09.06 홍영민 이용재
8
P1,8,9,30 모델명 추가, P29 스마트진단 내용 추가 AWCD206014 12.09.24 홍영민 이용재
9
P1,2,5,8,10,11,12,23,27,29,30,31인쇄 내용 변경 EAGD300739 13.03.23 박지원 이용재
10
11
FTC Green Guide 대응을 위한 인쇄 내용 변경 EAGD700292 13.07.16안재홍 권순용
12
8
9
D1438TB.ASTEEUS
8
D1475TUR.ASTEECI
9
LDS5774ST
D1475TUR1.ASTEEUS
적용 품번 수정 EAGE300922 14.03.26 정운용 김선우
13
13 13
13
2
14
Plate Img 현실화 EAGE401141 14.04.30 정운용 김선우

ENGLISH
P/No. : MFL62077185 www.lg.com
OWNER’S MANUAL
DISHWASHER
Please read this owner's manual thoroughly before
operating and keep it handy for reference at all times.
LDS6040ST
LDS5774ST
LDF8574ST
LDF8072ST
LDF7561ST/WW/BB
LDF7551ST/WW/BB
LSDF9962ST
FRANÇAISESPAÑOL

2TABLE OF CONTENTS
TABLE OF CONTENTS
3 IMPORTANT SAFETY INFORMATION
3 Basic Safety Precautions
4 Electrical Safety
5 Before Using the Dishwasher
5 Specifications
6 PARTS AND FEATURES
6 Features
7 Parts

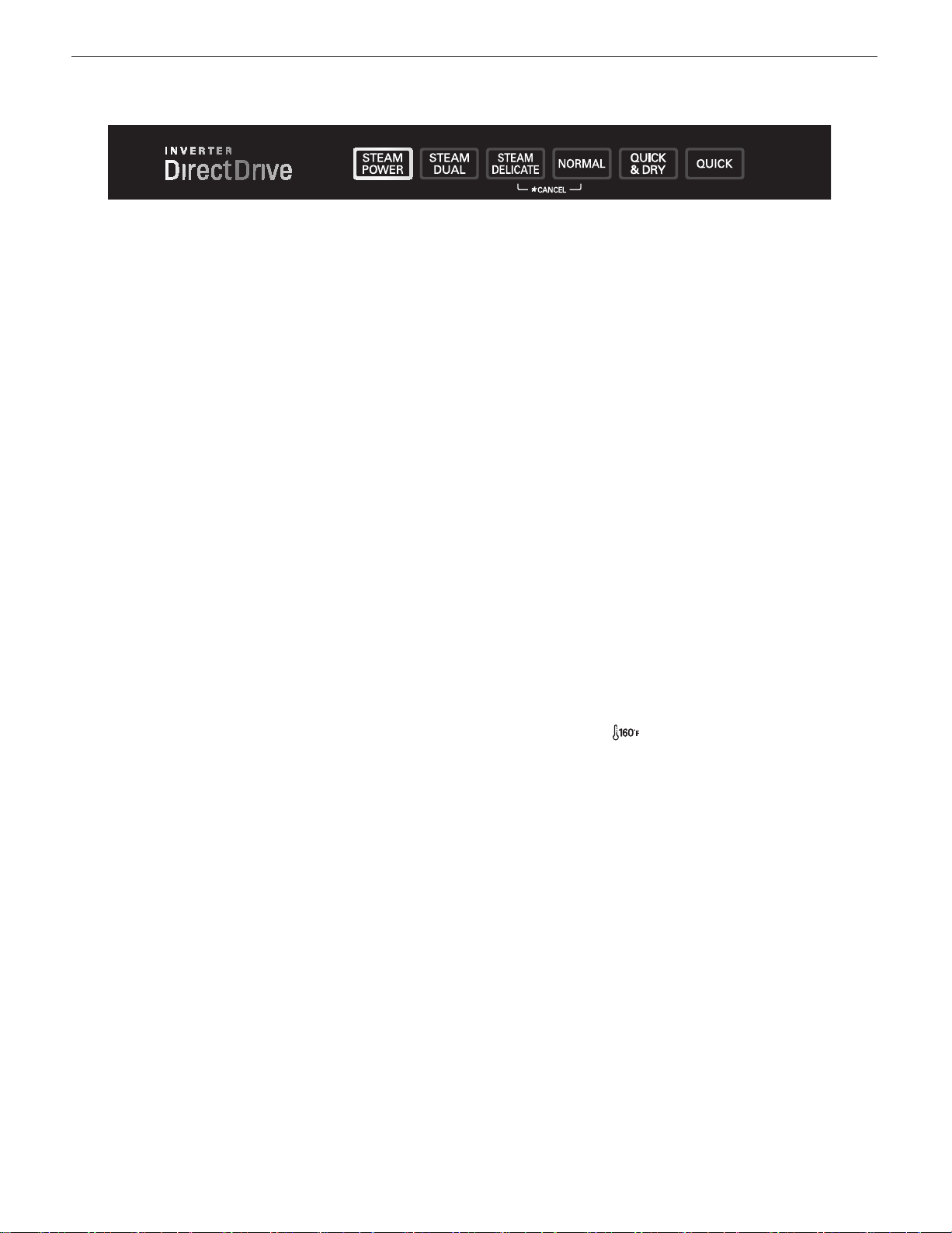

8 Control Panel (steam models)
10 Control Panel (non-steam models)

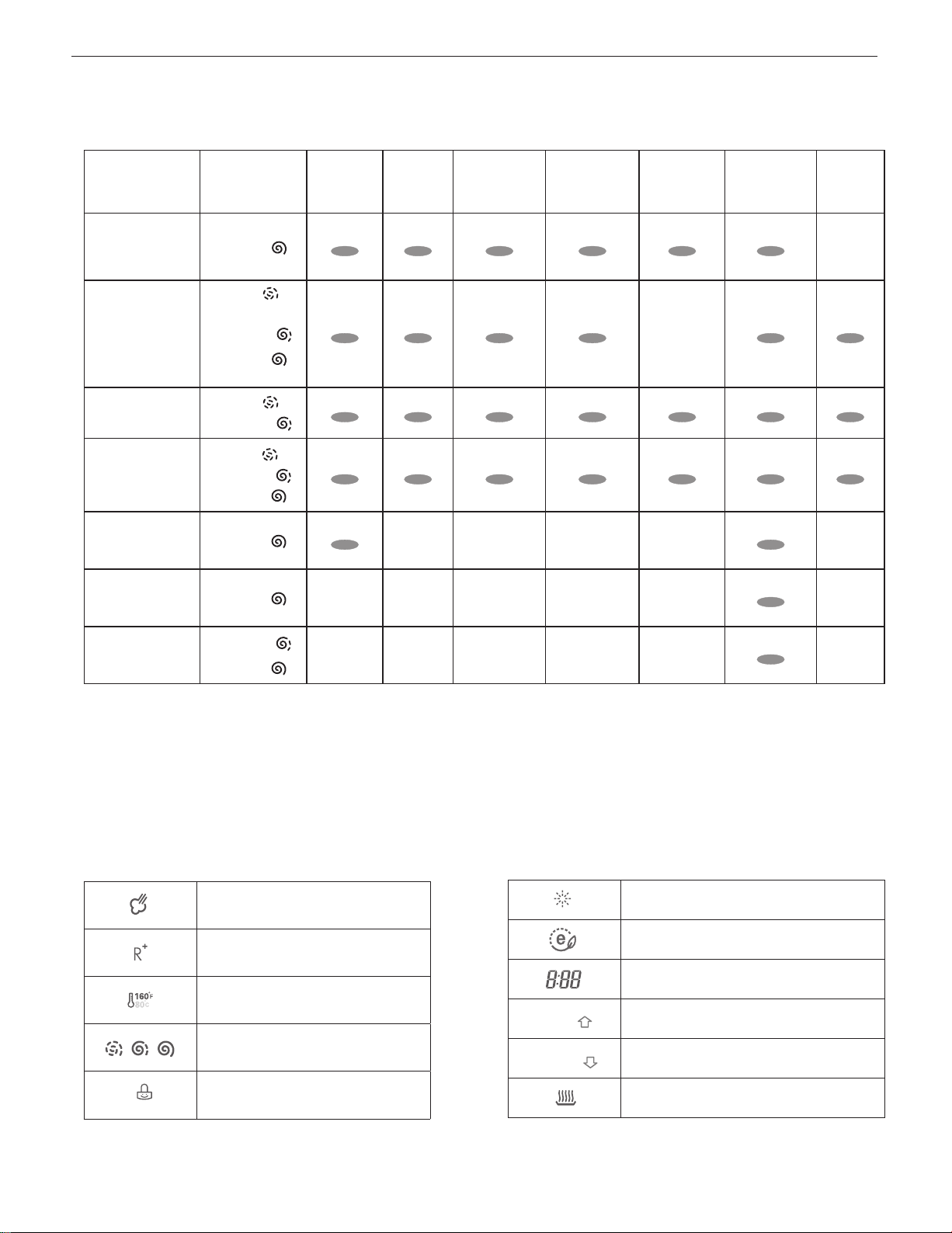

14 Cycle Option Chart
14 Icons

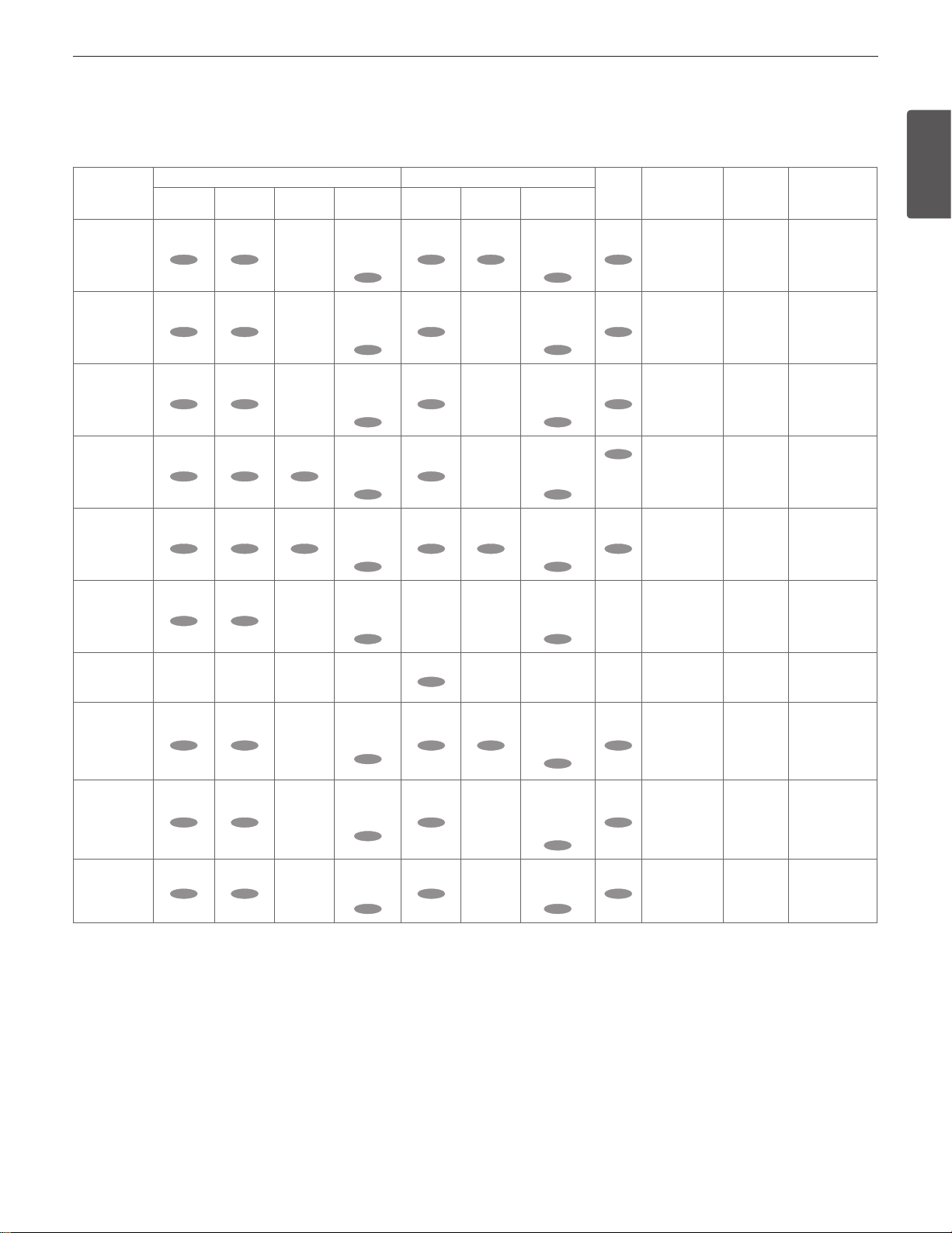

15 Cycle Selection Chart
16 OPERATING INSTRUCTIONS
16 Quick Start

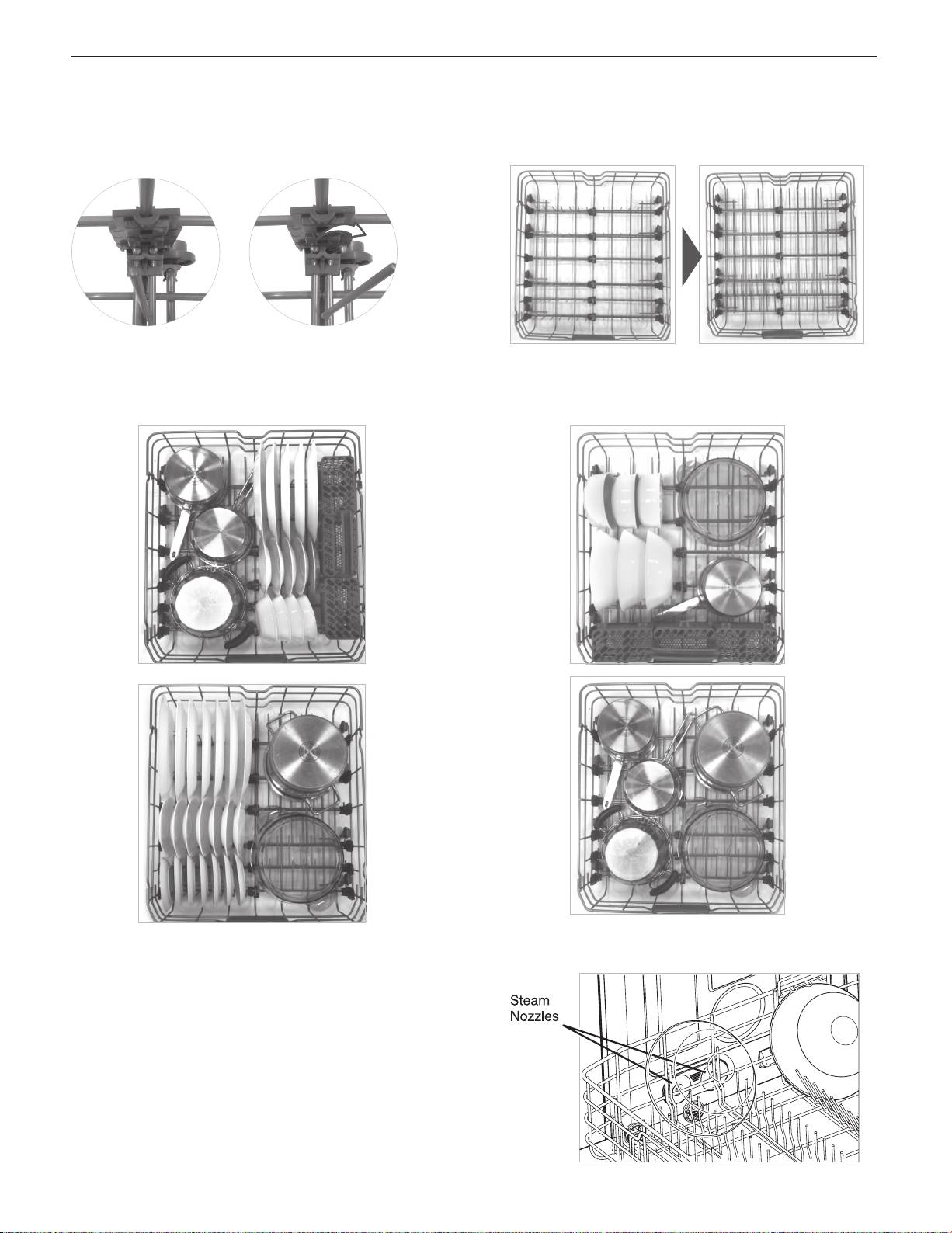

17 Loading the Lower Rack
18 Folding Down the Lower Tines
19 Loading the Silverware Basket
20 Loading the Upper Rack
20 Folding Down the Upper Tines
21 Height Adjustable Upper Rack

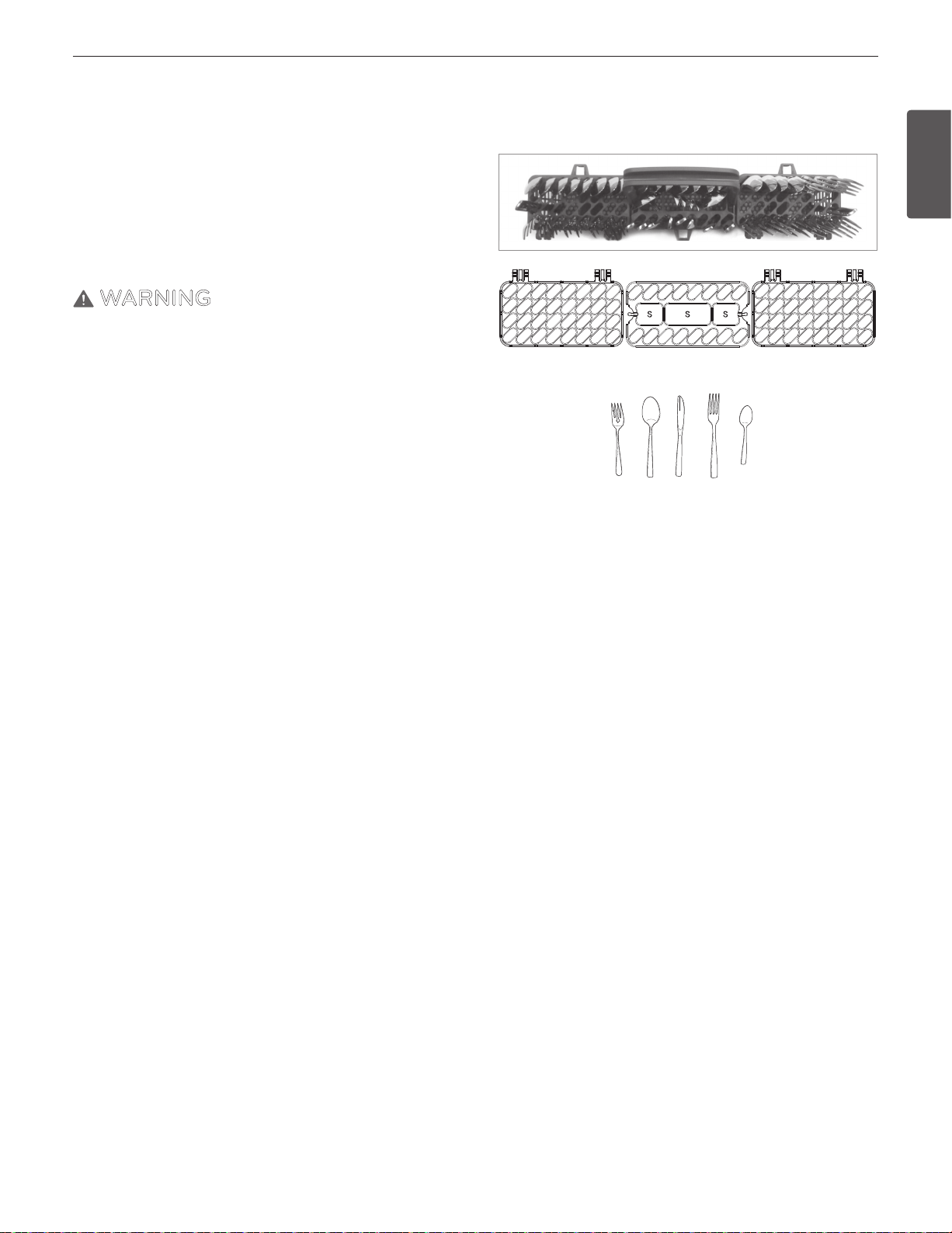

22 Loading the Cutlery Rack (on some models)
22 Height Adjustable Tray (on some models)
23 Adding Detergent to the Dispenser
24 Adding Rinse Aid to the Dispenser
25 CARE AND CLEANING
25 Cleaning the Filters
26 Cleaning Metallic Parts
26 Cleaning the Lower Spray Arm
26 Cleaning the Upper Spray Arm
27 Cleaning the Top Spray Arm
27 Seasonal Maintenance and Storage
28 FAQS
THANK YOU
Congratulations on your purchase and
welcome to the LG family. Your new LG
Dishwasher combines quiet, ecient
operation with advanced cleaning
technology. By following the operating
and care instructions in this manual,
your dishwasher will provide you with
many years of reliable service.
30 TROUBLESHOOTING
30 Before Calling for Service
32 SMART DIAGNOSIS™ SYSTEM
32 SMART DIAGNOSIS™ SYSTEM
33 WARRANTY
33 Product Registration Information

ENGLISH
IMPORTANT SAFETY INFORMATION 3
IMPORTANT SAFETY IMFORMATION
READ ALL INSTRUCTIONS BEFORE USE
Your safety and the safety of others is very important.
We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages.
This is the safety alert symbol. This symbol alerts you to potential hazards that can result in property damage or serious bodily
harm, even death.
The safety alert symbol will be followed by either the word “WARNING”or “CAUTION” then an important safety message. These
words mean:
WARNING Indicates the possibility of serious bodily harm or death.
CAUTION Indicates the possibility of injury or damage to property.
BASIC SAFETY PRECAUTIONS
WARNING To reduce the risk of re, electric shock, or injury to persons when using this appliance, follow basic
precautions, including the following:
• Read all instructions carefully before using the dishwasher.
• Use the dishwasher only for its intended function.
• Only use detergents or rinse agents recommended for use in a
dishwasher. Keep all dishwasher detergents and additives out
of the reach of children.
• This appliance is not intended for use by young children.
• When loading items to be washed:
1) Load sharp items so that they are not likely to damage the
door seal.
2) Load sharp knives with the handles up to reduce the risk of
injury when reaching into the dishwasher.
yDo not wash plastic items in the dishwasher unless they are
labeled “dishwasher safe” or the equivalent. For plastic items
that are not so labeled, check the manufacturer’s recommen-
dations.
• Do not operate the dishwasher unless all enclosure panels are
properly in place.
• Do not tamper with the controls.
• Do not abuse, sit on, or stand on the door or dish racks of the
dishwasher.
• To reduce the risk of injury, do not allow children to play in or
around the dishwasher.
• Under certain conditions, hydrogen gas may be produced in
a hot water system that has not been used for two weeks or
more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system
has not been used for such a period of time, turn on all hot
water faucets and let the water ow for several minutes. This
will release any accumulated hydrogen gas. Since hydrogen
gas is ammable, do not smoke or use an open ame during
this time.
• Remove the door to the wash compartment when disposing of
an old dishwasher.
• The installer must ensure that the dishwasher is completely
enclosed at the time of installation.
• WARNING : This product contains chemicals known to the
State of California to cause cancer and birth defects or other
reproductive harm. Wash hands after handling.
This manual contains very important information regarding the installation, use, and maintenance of your dishwasher. The manufacturer
cannot be responsible for injuries or damage caused by failure to follow these safety and caution instructions.

4IMPORTANT SAFETY INFORMATION
BASIC SAFETY PRECAUTIONS
WARNING To reduce the risk of re, electric shock, or injury to persons when using this appliance, follow basic precautions,
including the following:
For a permanently connected dishwasher:
This appliance must be connected to a grounded metal, perma-
nent wiring system, or an equipment grounding conductor must
be run with the circuit conductors and connected to the equip-
ment grounding terminal or lead on the appliance. Consult with a
qualied electrician.
Tip Hazard
Do not put excessive downward force on the open dishwasher
door prior to installation, as this could cause damage to the unit
or cause it to tip over. Do not use the dishwasher before installa-
tion has been completed in accordance with the Installation In-
structions.
ELECTRICAL SAFETY
WARNING
Electrical Shock Hazard
Failure to follow these instructions can result in death, re, or electrical shock.
• The dishwasher MUST be grounded. Connect the ground wire to the green ground connector in the terminal box.
• Do not use an extension cord with this appliance.
• The dishwasher is designed to be used with standard household current (120 Volts AC, 60Hz.). Before connecting the dishwasher, ensure
that the outlet or cable is properly grounded and polarized by circuit breakers or fuses. Failure to provide adequate grounding of this
appliance may cause electrical shock or malfunction of the appliance. Consult with a qualied electrician.
• Do not install or store the dishwasher where it will be exposed to weather conditions. Failure to observe this precaution may result in
electrical shock, re, malfunction, and/or deformation of the dishwasher.
• Do not damage or place heavy items on the power cord of the appliance. Do not use the dishwasher if it has a damaged power cord.
Power cord damage may cause re and electrical shock. Consult with a qualied electrician.
• Do not grasp the power cord or touch the dishwasher controls with wet hands. Do not use the dishwasher if it has a damaged power
cord or plug, and do not plug the dishwasher into a damaged outlet. Failure to observe these instructions may result in electrical shock.
• Disassembly or repair must be performed by experienced service persons. Improper disassembly or repair could lead to product failure
or electrical shock.

ENGLISH
IMPORTANT SAFETY INFORMATION 5
BEFORE USING THE DISHWASHER
Before using the dishwasher, please read the Important Safety
Instructions.
Water supply temperature should be a minimum of 120°F (49°C)
for better washing and reasonable cycle time.
For this reason, use the hot water supply only. It is also important
that the dishwasher is loaded according to instructions for eec-
tive cleaning. When loading the dishwasher, make sure that in-
soluble items such as bones, toothpicks, and pieces of paper have
been removed.
SAVE THESE INSTRUCTIONS
When loading the dishwasher, observe the following general
guidelines:
1. Place items with deep dish bottoms at an angle to help water
run o and speed the drying process.
2. Remove solid, burned-on scraps from dishes prior to loading
in the dishwasher.
3. Only load items that are dishwasher-safe.
Do not load utensils that are not heat-resistant, have
decorative metal trim, etc.
NOTE
SPECIFICATIONS
• Power Supply: 120V, 60 Hz AC only, minimum 15A circuit breaker
• Water Pressure: 20–120 psi (140–830 kPa)
• Size (WxDxH): 23 3/4" x 24 5/8"x 33 1/2" (603 mm x 625 mm x 851 mm)
• Inlet Water Temperature: 120°F (49°C) minimum
• Product Weight : - LDF8574, LSDF9962 : 102.5 lbs.(46.5kg)
- LDF8072 : 100.5 lbs.(45.6kg)
- LDF7561 : 96.6 lbs.(43.8kg)
- LDF7551 : 88.2 lbs.(40kg)
-LDS6040,LDS5774: 94.9lbs.(43.1kg)
• The appearance and specications are subject to change without notice.

6PARTS AND FEATURES
PARTS AND FEATURES
FEATURES
LARGE CAPACITY
LG dishwashers allow
you to load very large
items in both the upper
and lower racks. The
tall tub provides extra
overall capacity and the
clearance to accommo-
date large dishes. Extra
large items (max. 14 in.)
may be loaded in the
lower rack by raising the
upper rack.
HYBRID DRYING SYSTEM
This system eectively
dries dishes without the
use of a heating element
that would increase en-
ergy consumption.
STEAM WASHING (not available on all models)
Steam technology pro-
vides better cleaning
performance than regu-
lar wash systems. Steam
is the most energy ef-
cient gentle care for
your nest china and
stemware.
VARIABLE SPRAY SYSTEM
Because the water spray
alternates between the
upper and lower racks,
all of the power from
the motor is directed
to one rack at a time.
This concentrates all the
cleaning power of the
motor on each rack in
turn.
BLUE LCD (not on all models) AND LIGHT
TOUCH BUTTONS
The light touch buttons
on the control panel
make selections easy
and convenient. The
blue LCD display clearly
displays the selected
cycle and options.

ENGLISH
PARTS AND FEATURES 7
PARTS
1. CONTROL PANEL
2. DOOR HANDLE
3. FRONT COVER
4. LOWER COVER
5. LEVELING FEET
6. FRONT DISPLAY SIGNALIGHT™
7. BASE
8. TOP SPRAY ARM
9. UPPER SPRAY ARM
10. STEAM NOZZLE on steam models)
11. LOWER SPRAY ARM
12. DETERGENT AND RINSE AID DISPENSER
13. DRYING VENT COVER
14. CUTLERY RACK some models)
15. UPPER RACK
16. SILVERWARE BASKET
17. LOWER RACK
18. TOP DISPLAY
19. POWER BUTTON
20. FILTRATION SYSTEM
SIGNALIGHT (front display)
When a cycle is running, the SignaLight will illuminate for the
active stage.
• Modelwith4LEDs:WASH–RINSE–DRY–CLEAN
• Modelswith2LEDs:OPERATING-CLEAN
• Modelswith1LED:OPERATING(Flickering)/CLEAN
(Lighting)
Once the cycle is complete, the CLEAN light will illuminate for
four minutes.
To keep the CLEAN light on until the door is open, turn the
power on, and then press and hold the EXTRA DRY and HALF
LOAD buttons on the control panel simultaneously until O or
On appears in the display. The dishwasher will remember this
setting until manually changed.
Meshlter
Outerlter
Stainless
SteelFilter

8PARTS AND FEATURES
CONTROL PANEL (steam models)
Cycles
Select your desired cycle.
STEAM POWER
This cycle is for heavily and hard soiled dishes. Steam Power
defaults to the highest spray intensity and uses the power of
steam to wash heavily soiled dishes.
STEAM DUAL
This cycle washes the upper and lower racks at dierent spray
intensities. The default setting for this cycle washes the low-
er rack with strong spray intensity and the upper rack with
soft spray intensity. This provides optimum cleaning perfor-
mance for mixed loads, including ne china and stemware. If
other combinations are desired, use the steps listed below to
change the intensities or to use the HALF LOAD feature.
HowToUseSteamDual:
1. Select Steam Dual.
2. Press the Spray button to toggle between Soft, Medium
and Strong for the upper spray arm.
3. After making your selection for the upper spray arm, press
the Half Load button.
4. Press the Spray button to toggle between Soft, Medium
and Strong for the lower spray arm.
5. Close the door to start the cycle.
STEAM DELICATE
This cycle adds the gentle power of steam to boost the clean-
ing power of the delicate cycle. The cycle is intended for ef-
fectively cleaning delicate items such as ne china and stem-
ware.
NORMAL
This cycle is for normally soiled, everyday loads.
QUICK & DRY
This is a shortened cycle that is intended for washing and dry-
ing recently used dishes or lightly soiled loads. During this
cycle, both spray arms will run at the same time.
QUICK
This is a shortened cycle that is intended to wash recently
used or lightly soiled loads, without drying.
CHIME ON/OFF
To enable or disable the chime, rst, turn on the dishwasher.
Press and hold the Quick and Steam Delicate buttons simul-
taneously for approximately three seconds.
TO CANCEL A CYCLE
To cancel a cycle, open the door and then press and hold the
Steam Delicate and Normal buttons together for approxi-
mately three seconds. The drain pump will activate and the
cycle will cancel. The display will show “dr” and the dishwash-
er will drain the water. After the dishwasher is drained, the
power will turn o.
If power is turned on and no cycle has been selected, the
dishwasher will power o within four minutes.
Cycle Options
(Refer to the control panel on the next page)
Press the desired cycle and then select the options for that
cycle.
EXTRA DRY
Select the EXTRA DRY option for better drying performance.
This option adds 60 minutes of extra drying time to the cycle.
The EXTRA DRY button will illuminate when the option has
been selected.
RINSE
Repeated pressing of the Rinse button will select the desired
Rinse option. The Sanitary, Extra Rinse, or Sanitary and Extra
Rinse lights will show in the bottom left portion of the dis-
play.
SANITARY ( )
This high-temperature rinse sanitizes dishes and glassware in
accordance with NSF/ANSI Standard 184 for residential dish-
washers. Certied dishwashers are not intended for licensed
food establishments.
EXTRA RINSE ( R+ )
The Extra Rinse symbol indicates that an extra rinse has been
added to the cycle. An extra rinse can help reduce hard water
spotting on dishes. To add an extra rinse, press the Rinse but-
ton repeatedly until the Extra Rinse symbol appears in the
display.
RINSE ONLY (LDF****)
This cycle is a quick rinse for dishes that will not be washed
immediately. This cycle will rinse dishes that have excess soil
to soften dried on residue. Rinsing the dishes will help pre-
vent odors in the dishwasher. No detergent should be used.
To select the Rinse Only cycle, turn the dishwasher on, and
press the Rinse button once without pressing any other cycle
buttons. The Rinse Only cycle is not available with any other
cycles.
Steam Models (LDF8574, LDF8072, LSDF9962)

ENGLISH
PARTS AND FEATURES 9
CONTROL PANEL
SPRAY (INTENSITY)
First, select the desired cycle. Press the Spray button repeat-
edly until the desired spray intensity is selected.
Soft (), Medium ( ), Strong ( )
HALF LOAD
For small loads, you may use just the upper or lower rack to
save energy. Each press of the Half Load button cycles be-
tween upper rack only and lower rack only.
DELAY START
The Delay Start feature allows you to delay the start of a se-
lected cycle. Each time the Delay Start button is pressed, the
delay time will increase an hour. The delay start time can be
set from 1 to 19 hours, in one-hour increments.
CHILD LOCK
The Child Lock feature helps prevent your settings from be-
ing changed during a cycle. Selecting this feature locks all
of the buttons, except for the Power button, on the control
panel. This feature does not lock the door.
ToactivatetheChildLock:
1. Open the dishwasher door.
2. Press the Power button.
3. Select the cycle (and desired options).
4. Press and hold the Rinse and Spray buttons for three sec-
onds. The Child Lock indicator will illuminate in the display
once the Child Lock is activated.
5. Close the door to begin the cycle.
DIGITAL DISPLAY
The Digital Display on the control panel shows the ESTIMAT-
ED cycle time. When the dishwasher is powered up, the dis-
play will be blank. When the cycle and options are selected,
the display will show the total estimated time to complete
those selections. During operation, the display shows the re-
maining estimated operating time.
• The estimated time shown in the display does not in-
clude delay times for heating water, etc.
• If Delay Wash is selected, the display shows the delay
time in hours.
• Time may vary depending on the soil level of your load.
NOTE
ENERGY SAVING
The Energy Saving option saves energy by using less water.
This option should only be used with light to medium soiled
dishes.
The RINSE AID symbol indicates that the rinse aid
needs to be relled.
NOTE
POWER
• Press the Power button to turn on the control panel. If no
cycle is selected within four minutes, the dishwasher will
power o.
• After the cycle is complete, the power automatically turns
o for safety and economy purposes.
• If there is a power surge, power outage, or disruption of
any kind, the PF indicator will display and power will be au-
tomatically turned o for safety. The cycle will need to be
restarted.
SMART DIAGNOSIS
Should you experience any problems with your dishwasher,
it has the capability of transmitting data to your Smart Phone
using the LG Smart Laundry & DW Application or via you tele-
phone to the LG call center.
WARNING
Steam can cause burns. Use caution in the area of the steam noz-
zle, on the left side of the dishwasher, if the door is opened during
the steam portion of a cycle. Contact with the steam or the steam
nozzle can cause burns.
Display varies by model (LDF8574, LDF8072, LSDF9962)
Display varies by model (LDF7561, LDF7551)

C;\MIUૺ௻ຬ႞E

C;\MIUૺ௻ຬ႞E

10 PARTS AND FEATURES

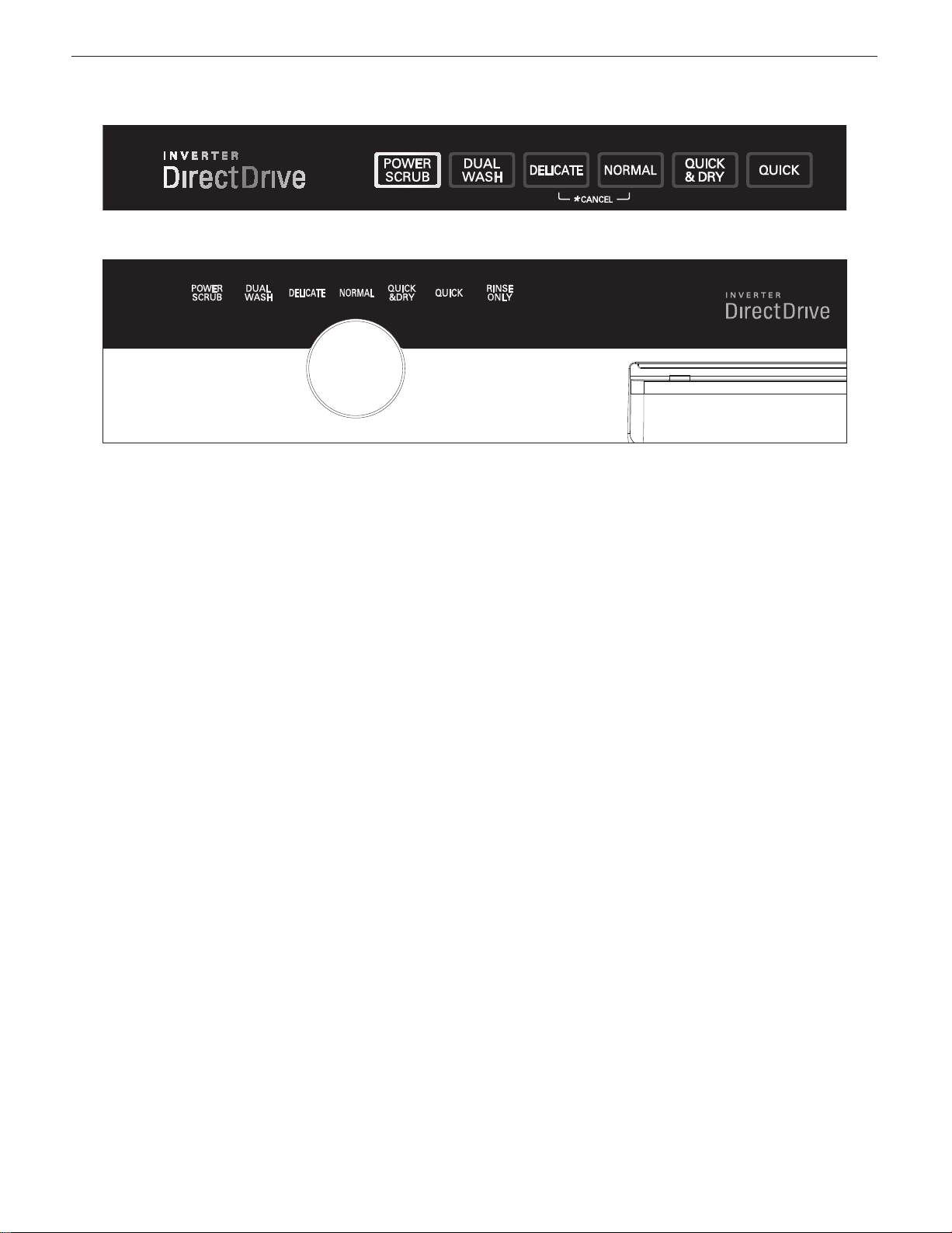

CONTROL PANEL (non-steam models)
Cycles
Select your desired cycle.
POWER SCRUB
This cycle is for heavily and hard soiled dishes.
DUAL WASH
This cycle washes the upper and lower racks at dierent spray
intensities. The default setting for this cycle washes the low-
er rack with strong spray intensity and the upper rack with
soft spray intensity. This provides optimum cleaning perfor-
mance for mixed loads, including ne china and stemware. If
other combinations are desired, use the steps listed below to
change the intensities or to use the HALF LOAD feature.
HowToUseDualWash:
1. Select Dual Wash.
2. Press the Spray button to toggle between Soft, Medium
and Strong for the upper spray arm.
3. After making your selection for the upper spray arm, press
the Half Load button.
4. Press the Spray button to toggle between Soft, Medium
and Strong for the lower spray arm.
5. Close the door to start the cycle.
DELICATE
The cycle is intended for eectively cleaning delicate items
such as ne china and stemware.
NORMAL
This cycle is for normally soiled, everyday loads.
QUICK & DRY
This is a shortened cycle that is intended for washing and dry-
ing recently used dishes or lightly soiled loads. During this
cycle, both spray arms will run at the same time.
QUICK
This is a shortened cycle that is intended to wash recently
used or lightly soiled loads, without drying.
RINSE ONLY (LDS6040)
This cycle is a quick rinse for dishes that will not be washed
immediately. This cycle will rinse dishes that have excess soil
to soften dried on residue. Rinsing the dishes will help pre-
vent odors in the dishwasher. No detergent should be used.
CHIME ON/OFF
To enable or disable the chime, rst, turn on the dishwasher.
Press and hold the Quick and Delicate buttons (LDS6040
: Spray and Delay Start) simultaneously for approximately
three seconds.
TO CANCEL A CYCLE
To cancel a cycle, open the door and then press and hold the
Delicate and Normal buttons (LDS6040 : Spray and Half Load)
together for approximately three seconds. The drain pump
will activate and the cycle will cancel. The display will show
“dr” and the dishwasher will drain the water. After the dish-
washer is drained, the power will turn o.
If power is turned on and no cycle has been selected, the
dishwasher will power o within four minutes.
Display varies by model (LDF7561, LDF7551)
Display varies by models (LDS6040)

ENGLISH
PARTS AND FEATURES 11
CONTROL PANEL
Display varies by model (LDS6040)
Cycle Options
Press the desired cycle and then select the options for that
cycle.
EXTRA DRY ( )
Select the EXTRA DRY option for better drying performance.
This option adds 60 minutes of extra drying time to the cycle.
The EXTRA DRY button will illuminate when the option has
been selected.
Press and hold the Rinse and Spray buttons for three seconds.
RINSE
Repeated pressing of the Rinse button will select the desired
Rinse option. The Sanitary, Extra Rinse, or Sanitary and Extra
Rinse lights will show in the bottom left portion of the dis-
play.
SANITARY ( )
This high-temperature rinse sanitizes dishes and glassware in
accordance with NSF/ANSI Standard 184 for residential dish-
washers. Certied dishwashers are not intended for licensed
food establishments.
EXTRA RINSE ( R+ )
The Extra Rinse symbol indicates that an extra rinse has been
added to the cycle. An extra rinse can help reduce hard water
spotting on dishes. To add an extra rinse, press the Rinse but-
ton repeatedly until the Extra Rinse symbol appears in the
display.
SPRAY (INTENSITY)
First, select the desired cycle. Press the Spray button repeat-
edly until the desired spray intensity is selected.
Soft ( ), Medium ( ), Strong ( )
HALF LOAD ( )
For small loads, you may use just the upper or lower rack to
save energy. Each press of the Half Load button cycles be-
tween upper rack only and lower rack only.
DELAY START
The Delay Start feature allows you to delay the start of a se-
lected cycle. Each time the Delay Start button is pressed, the
delay time will increase an hour. The delay start time can be
set from 1 to 19 hours, in one-hour increments.
CHILD LOCK
The Child Lock feature helps prevent your settings from be-
ing changed during a cycle. Selecting this feature locks all
of the buttons, except for the Power button, on the control
panel. This feature does not lock the door.
ToactivatetheChildLock:
1. Press the Power button.
2. Select the cycle (and desired options).
3. Press and hold the Half Load and Delay Start buttons for
three seconds. The Child Lock indicator will illuminate in
the display once the Child Lock is activated.
4. Close the door to begin the cycle.
DIGITAL DISPLAY
The Digital Display on the control panel shows the ESTIMAT-
ED cycle time. When the dishwasher is powered up, the dis-
play will be blank. When the cycle and options are selected,
the display will show the total estimated time to complete
those selections. During operation, the display shows the re-
maining estimated operating time.

1212 PARTS AND FEATURES
CONTROL PANEL
Display varies by model (LDS5774)
Cycles
Select your desired cycle.
Power Scrub
This cycle is for heavily and hard soiled dishes.
Dual Wash
This cycle washes the upper and lower racks at dierent spray
intensities. The default setting for this cycle washes the low-
er rack with strong spray intensity and the upper rack with
soft spray intensity. This provides optimum cleaning perfor-
mance for mixed loads, including ne china and stemware. If
other combinations are desired, use the steps listed below to
change the intensities or to use the HALF LOAD feature.
HowToUseDualWash:
1. Select Dual Wash.
2. Press the Spray button to toggle between Soft, Medium
and Strong for the upper spray arm.
3. After making your selection for the upper spray arm, press
the Half Load button.
4. Press the Spray button to toggle between Soft, Medium
and Strong for the lower spray arm.
5. Close the door to start the cycle.
Delicate
The cycle is intended for eectively cleaning delicate items
such as ne china and stemware.
Normal
This cycle is for normally soiled, everyday loads.
Quick & dry
This is a shortened cycle that is intended for washing and dry-
ing recently used dishes or lightly soiled loads. During this
cycle, both spray arms will run at the same time.
Quick
This is a shortened cycle that is intended to wash recently
used or lightly soiled loads, without drying.
Rinse Only (LDS5774)
This cycle is a quick rinse for dishes that will not be washed
immediately. This cycle will rinse dishes that have excess soil
to soften dried on residue. Rinsing the dishes will help pre-
vent odors in the dishwasher. No detergent should be used.
Chime On/Off
To enable or disable the chime, rst, turn on the dishwasher.
Press and hold the Quick and Delicate buttons (LDS5774):
Spray and Delay Start) simultaneously for approximately
three seconds.
To Cancel A Cycle
To cancel a cycle, open the door and then press and hold the
Delicate and Normal buttons (LDS5774 : Spray and Half Load)
together for approximately three seconds. The drain pump
will activate and the cycle will cancel. The display will show
“dr” and the dishwasher will drain the water. After the dish-
washer is drained, the power will turn o.
If power is turned on and no cycle has been selected, the
dishwasher will power o within four minutes.

13
ENGLISH
PARTS AND FEATURES 13
CONTROL PANEL
Display varies by model (LDS5774)
Cycle Options
Press the desired cycle and then select the options for that
cycle.
Extra Dry ( )
Select the Extra Dry option for better drying performance.
This option adds 60 minutes of extra drying time to the cycle.
The Extra Dry button will illuminate when the option has
been selected.
Press and hold the Rinse and Spray buttons for three seconds.
Rinse
Repeated pressing of the Rinse button will select the desired
Rinse option. The Sanitary, Extra Rinse, or Sanitary and Extra
Rinse lights will show in the bottom left portion of the dis-
play.
Sanitary ( )
This high-temperature rinse sanitizes dishes and glassware in
accordance with NSF/ANSI Standard 184 for residential dish-
washers. Certied dishwashers are not intended for licensed
food establishments.
Extra Rinse ( R+ )
The Extra Rinse symbol indicates that an extra rinse has been
added to the cycle. An extra rinse can help reduce hard water
spotting on dishes. To add an extra rinse, press the Rinse but-
ton repeatedly until the Extra Rinse symbol appears in the
display.
Spray (intensity)
First, select the desired cycle. Press the Spray button repeat-
edly until the desired spray intensity is selected.
Soft ( ), Medium ( ), Strong ( )
Half Load ( )
For small loads, you may use just the upper or lower rack to
save energy. Each press of the Half Load button cycles be-
tween upper rack only and lower rack only.
Delay Start
The Delay Start feature allows you to delay the start of a se-
lected cycle. Each time the Delay Start button is pressed, the
delay time will increase an hour. The delay start time can be set
from 1 to 19 hours, in one-hour increments.
Child Lock
The Child Lock feature helps prevent your settings from being
changed during a cycle. Selecting this feature locks all of the
buttons, except for the POWER button, on the control panel.
This feature does not lock the door.
TOACTIVATETHECHILDLOCK:
1. Press the POWER button.
2. Select the cycle (and desired options).
3. Press and hold the Half Load and Delay Start buttons for
three seconds. The Child Lock indicator will illuminate in
the display once the Child Lock is activated.
4. Close the door to begin the cycle.
Digital Display
The Digital Display on the control panel shows the ESTIMATED
cycle time. When the dishwasher is powered up, the display
will be blank. When the cycle and options are selected, the
display will show the total estimated time to complete those
selections. During operation, the display shows the remaining
estimated operating time.
• The estimated time shown in the display does not in-
clude delay times for heating water, etc.
• If Delay Start is selected, the display shows the delay
time in hours.
• Time may vary depending on the soil level of your load.
NOTE
POWER
• Press the POWER button to turn on the control panel. If no
cycle is selected within four minutes, the dishwasher will
power o.
• After the cycle is complete, the power automatically turns
o for purposes of safety and economy.
• If there is a power surge, power outage, or disruption of any
kind, the PF indicator will display and power will be auto-
matically turned o for safety. The cycle will need to be re-
started.
Smart Diagnosis
Should you experience any problems with your dishwasher, it
has the capability of transmitting data to your Smart Phone
using the LG Smart Laundry & DW Application or via your tele-
phone to the LG call center.

14 PARTS AND FEATURES
Cycle Available Spray Level
(default bold) Extra Dry Sanitary
Rinse Extra Rinse Sanitary/ Extra Rinse Half Load Delay Start Energy Saving
Steam Power
or
Power Scrub Strong
Steam Dual
or
Dual Wash
Soft
(upper arm)
Medium
Strong
(lower arm)
Steam Delicate
or
Delicate
Soft
Medium
Normal
Soft
Medium
Strong
Quick & Dry Strong
Quick Strong
Rinse Only Medium
Strong
CYCLE OPTION CHART
The cycle guide below shows the available options for each cycle.
* Apply to LDF****
Steam Cycle (steam models)
Extra Rinse
Sanitary Rinse
Low, Medium, High Spray, Intensity
Child Lock
ICONS
Low Rinse Aid Indicator
Energy Saving Cycle
Cycle Time Indicator
UPPER *Upper Spray Arm
LOWER *Lower Spray Arm
*Extra Dry
*Apply to LDS****

ENGLISH
PARTS AND FEATURES 15
Cycle Wash Rinse Dry *Water
Usage
**Cycle
Time
Spray
Intensity
Pre1 Pre2 Pre3 Main
Wash Rinse1 Rinse2 Heated Rinse
STEAM
POWER
140F
60C
158F
70C 6.1 gal.
23.0 L 165 Min. Strong
STEAM
DUAL
154F
68C
158F
70C 4.6 gal.
17. 5 L 147 Min. U: Strong
L: Soft
STEAM
DELICATE
122F
50C
154F
68C 4.6 gal.
17. 5 L 141 Min. Soft
NORMAL
86–122F
30–50C
149–158F
65–70C 1.7–6.4 gal.
6.5–20.5 L
110 ~131
Min. Medium
QUICK
&DRY
122F
50C
162F
72C 7.6 gal.
29 L 79 Min. Strong
QUICK
122F
50C
122F
50C 5.0 gal.
19 L 34 Min. Strong
RINSE
ONLY
1.0 gal.
4 L 22 Min. Medium
POWER
SCRUB
140F
60C
158F
70C 6.1 gal.
23 L 165 Min. Strong
DUALWASH
154F
68C
158F
70C 4.6 gal.
17. 5 L 147 Min U: Strong L: Soft
DELICATE
122F
50C
154F
68C 4.6 gal.
17. 5 L 141 Min. Soft
* Actual water consumption will vary depending on soil level and water hardness.
** Actual cycle times may vary depending on soil level, water temperature and hardness
CYCLE SELECTION CHART
The cycle guide below shows the default settings and available options for each cycle.

16 OPERATING INSTRUCTIONS
QUICK START
1. LOAD THE DISHES
Scrape the dishes free of excess food, bones, and any other
hard, non-soluble residue. Pull each rack out and load the
dishes as described in this manual.
2. MEASURE THE DETERGENT
Using the guidelines in this manual, ll the detergent cup
with the recommended amount of detergent and close the
lid. If a prewash is desired, the recess on top of the lid should
also be lled with detergent.
3. TURN ON THE DISHWASHER
To turn on the display panel, press the Power button.
4. CHECK THE RINSE AID
The Rinse Aid indicator light will illuminate if the level of rinse
aid in the dishwasher is low. Add rinse aid if the level is low to
maintain the eectiveness of the dry cycle.
5. SELECT THE CYCLE AND OPTIONS
Select the cycle and options that best t the load by referring
to the Cycle Selection Chart. The display will show the esti-
mated time for the cycle and options selected.
6. CLOSE THE DOOR
The dishwasher will start automatically, after a slight delay,
when the door is closed and latched. During the cycle, the
display will indicate the estimated time remaining for the
cycle and options selected. If the door is opened during the
cycle, the dishwasher will stop. When the door is closed, the
cycle will resume from the point where it was stopped.
7. END OF CYCLE
When the cycle is complete, a chime will sound and the dis-
play will show “END.” After a short time, the display and con-
trols will shut o for safety and energy conservation.
CAUTION
Empty the lower rack rst and then the upper rack. This will avoid
water from dripping from the upper rack onto dishes in the lower
rack.
WARNING
In general, it is not advisable to open the door while the dish-
washer is in operation. If the door is opened, a safety device stops
the dishwasher. Care should be taken when opening the door im-
mediately following the cycle, as steam may escape.
AUTO-OFF
The dishwasher will automatically turn o if a cycle is not selected
or if the door is not closed within four minutes.
OPERATING INSTRUCTIONS

ENGLISH
OPERATING INSTRUCTIONS 17
CAUTION
NON-DISHWASHER SAFE ITEMS
The combination of high water temperature and dishwasher
detergents may damage certain items. LG does not recommend
washing the following items in the dishwasher:
• Hand painted silver or gold leaf dishes
• Wood or bone handled utensils
• Iron or other rust prone utensils
• Plastic items that are not dishwasher safe
When in doubt, check the manufacturers’ recommendations.
LOADING THE LOWER RACK
The lower rack should not be used for small items such as cups,
wine glasses, or small plates. These items should be loaded in the
upper rack.
For models with steam, load heavily soiled or stained dishes in the
front left side of the lower rack with the dirty side facing down.
This is the area that the stream enters the dishwasher. The use of
hot steam maximizes the dishwasher’s cleaning performance.
The extra tall tub allows loading of dishes, pans, or other utensils
up to 14 inches high.
The lower rack is recommended for dinner plates, soup bowls,
dishes, pots, pans, lids, and grill trays. Plates should be positioned
vertically and facing the center of the rack. Pots, pans, and large
bowls must be turned so that the inside faces downward. The sil-
verware basket may be used in either the lower or upper rack.
LOADING 10 PLACE SETTINGS LOADING 12 PLACE SETTINGS
yLoad plates, soup bowls etc. between the tines.
yLoad cookie sheets, cake pans and other large items on the
sides or back of the rack. Loading these items in the front of
the dishwasher can prevent the water spray from reaching the
detergent dispenser.
yMake sure that pot handles and other large items do not stop
the rotation of the spray arms.
Make sure that large items do not interfere with the
rotation of the spray arms, and do not prevent the
detergent dispenser from opening.
NOTE
RACK LOADING TIPS

18 OPERATING INSTRUCTIONS
FOLDING DOWN THE LOWER TINES
DIFFICULT TO REMOVE FOOD ON
DISHES (steam models)
Load items with dicult to remove or baked-on food near the
steam spray arms, towards the left side of the lower rack, facing
down. The dishes will benet from the direct steam spray and the
lower spray arm wash action.
LOADING DISHES & POTS LOADING POTS & BOWLS
The tines are adjustable to t dishes of various sizes. Rear
Front

ENGLISH
OPERATING INSTRUCTIONS 19
LOADING THE SILVERWARE BASKET
The silverware basket has separators to avoid scratching and tar-
nishing of delicate silverware. The basket can be separated into
three separate baskets that can be used individually in both the
upper and lower racks. Unlock the tabs above the left and right
side to separate.
WARNING
Be careful when loading and unloading sharp items. Load sharp
knives with the handles up to reduce the risk of personal injury.
SILVERWARE LOADING TIPS:
yFor best cleaning results, use the top separators in the basket
when loading silverware. The separators will prevent nesting
of silverware.
yLoad sharp items, such as knives, pointing down.
yWhen unloading the dishwasher, it is best to start with the sil-
verware basket. Doing so will prevent water droplets from fall-
ing on your silverware from the upper rack.
111111
111111
2222222 2 222222
5555
4 4 444444
444444
33333333
3 3
3 3 S S
55 55555555
SSSSSSSS
1 1
3 3
① ③ ④ ⑤②
