LG DLE2140 Series User manual

Life's Good
U_L
DRYER
Please read this manual carefully before operating
your dryer and retain it for future reference.
DLE2140* DLG2141 *
P/No. MFL62512832 www.lg.com
MFL62512832 EN 100720.indd 1 7/21/10 1:55:15PM

INTRODUCTION
2
IMPORTANT SAFETY INSTRUCTIONS
What to Do if You Smell Gas .................................. 3
Basic Safety Precautions ...................................... 4
California safe drinking water and toxic
enforcement act ..................................................... 4
Grounding Instructions ........................................... 5
Safety Instructions for Installation .......................... 5
Safety Instructions for Connecting Electricity ....... 7
PARTSAND FEATURES
Key Parts and Components ................................... 8
INSTALLATION INSTRUCTIONS
IMPORTANT: Read all installation instructions
completely before installing and operating your
dryer! ...................................................................... 9
Installation Location Requirements ........................ 9
Clearances ............................................................. 9
Installation With Optional
Pedestal Base or Stacking Kit.............................. 10
Leveling the Dryer ................................................ 11
Optional Accessories ........................................... 11
To remove Door .................................................... 12
To install Door ....................................................... 13
Changing the Dryer Vent Location ....................... 14
Venting the Dryer .................................................. 15

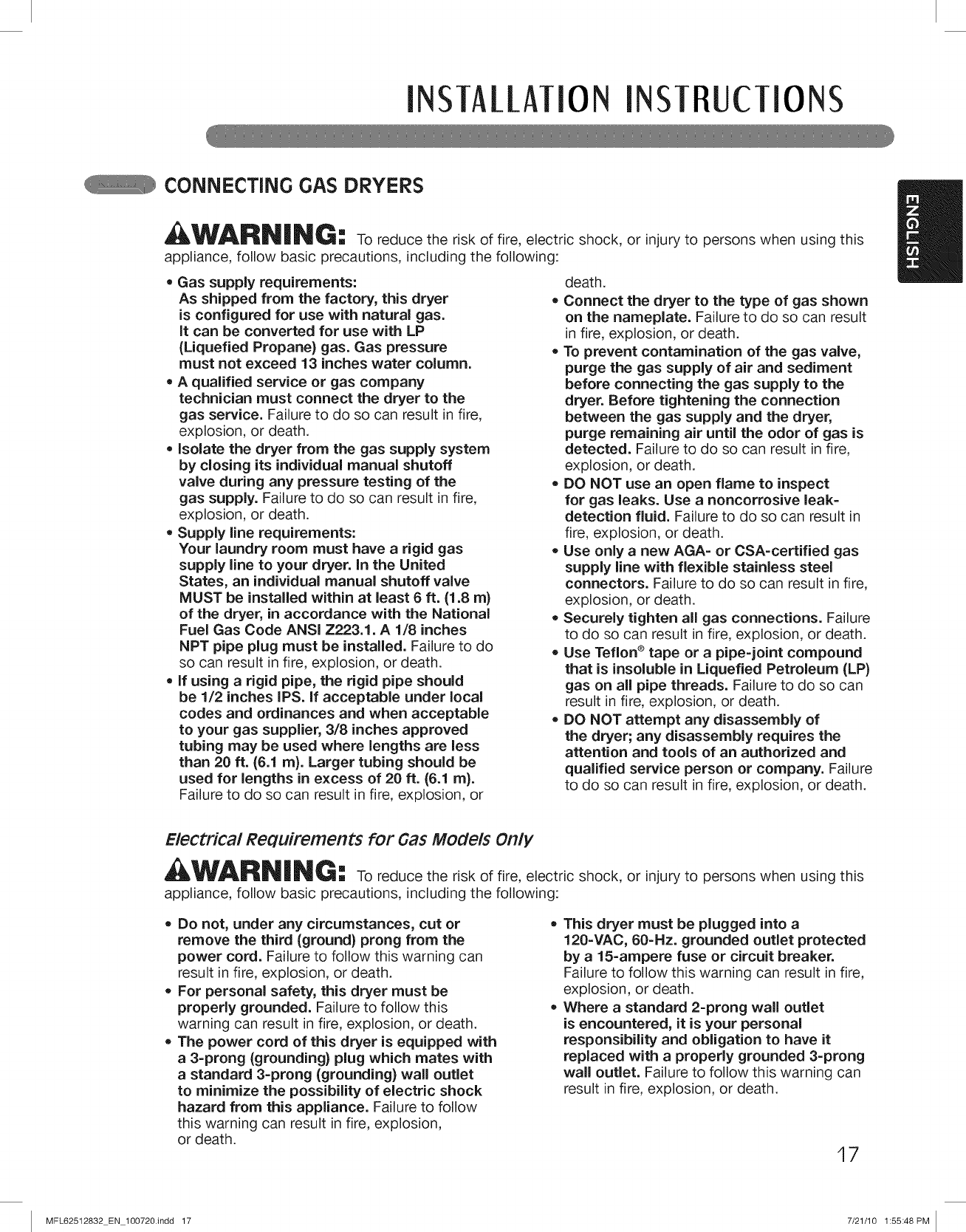

Connecting Gas Dryers ........................................ 17
Connecting Electric Dryers ................................... 18
Special Requirements for Manufactured
or Mobile Homes .................................................. 24
Final Installation Check ....................................... 24
HOW TO USE
Control Panel Features ......................................... 25
Operating the Dryer .............................................. 26
Cycle Guide .......................................................... 27
Sorting Loads ....................................................... 28
Loading the Dryer ................................................. 28
Check the Lint Filter Before Every Load ............... 28
The LED Display ................................................... 29
Cycle Setting Buttons .......................................... 30
Custom Program .................................................. 30
Cycle Option Buttons .......................................... 31
USER-MAINTENANCE INSTRUCTIONS
Regular Cleaning .................................................. 32
TROUBLESHOOTING
Before Calling for Service ..................................... 33
TM
Using SmartDiagnosis ...................................... 35
SPECIFICATIONS/OPTIONAL
ACCESSORIES
Key Dimensions and Specifications ..................... 36
Optional Accessories ........................................... 36
Pedestal Installation ............................................. 37
Stacking Kit Installation ........................................ 39
WARRANTY ...................................................41
THANKYOU!
Congratulations on your purchase
and welcome to the LG family. Your
new LG Dryer combines the most
advanced drying sensor technology
with simple operation and high
efficiency. By following the
operating and care instructions
in this manual, your dryer will
provide you with many years of
reliable service.
J
MFL62512832 EN 100720.indd 2 7/21/10 1:55:16PM

IMPORTANTSAFETYINST UCTIONS
READ ALL iNSTRUCTiONS BEFORE USE
followed to minimize the risk of fire or explosion, electric shock, or to prevent
property damage, personal injury, or loss of life.
Your Safety and the safety of others is very important.
We have provided many important safety messages in this manual and on your appliance. Always read
and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word DANGER or WARNING.
These words mean:
_DA_G_R: You can be killed or seriously injured if you don't immediately follow instructions.
_WARN|NG-" You can be killed or seriously injured ifyou don't follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of
injury, and tell you what can happen if the instructions are not followed.
Do not install a clothes dryer with
flexible plastic venting materials. If
flexible metal (foil type} duct is in-
stalled, it must be of a specific type
identified by the appliance manufac=
turer as suitable for use with clothes
dryers. Flexible venting materials are
known to collapse, be easily crushed,
and trap lint. These conditions will
obstruct clothes dryer airflow and
increase the risk of fire.
•Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this appliance or any other
appliances.
•Installation and service must be
performed by a qualified installer,
service agency, or the gas supplier.
= Install the clothes dryer according to
the manufacturer's instructions and
local codes.
= Save these instructions.
WHAT TO DO IF YOU SMELL GAS:
1. Do not try to light a match or cigarette,
or turn on any gas or electrical
appliance.
2. Do not touch any electrical switches.
Do not use any phone in your building.
3. Clear the room, building, or area of all
occupants.
4. Immediately call your gas supplier
from a neighbor's phone. Follow the
gas supplier's instructions carefully.
5. If you cannot reach your gas
supplier, call the fire department.
5
MFL62512832 EN 100720.indd 3 7/21/10 1:55:17PM

iPORTANTSAFETYINSTRUCTIONS
READ ALL iNSTRUCTiONS BEFORE USE
WARNING For yo.r safety,the information in this manual must be
followed to minimize the risk of fire or explosion, electric shock, or to prevent
property damage, personal injury, or loss of life.
BASIC SAFETY PRECAUTIONS
WARNING:
appliance, follow basic precautions, including the following:
•Read all instructions before using the dryer.
•Before use, the dryer must be properly installed
as described in this manual.
•Do not place items exposed to cooking oils in
your dryer, items contaminated with cooking
oils may contribute to a chemical reaction that
could cause a load to catch fire.
Do not dry articles that have been previously
cleaned in, washed in, soaked in, or spotted
with gasoline, dry-cleaning solvents, or other
flammable or explosive substances as they give
off vapors that could ignite or explode.
•Do not reach intothe dryer if the drum or any
other part is moving.
Do not repair or replace any part of the dryer
or attempt any servicing unless specifically
recommended in this Use and Care Guide or
in published user-repair instructions that you
understand and have the skills to carry out.
•Do not tamper with controls.
Before the dryer is removed from service or
discarded, remove the door to the drying
compartment.
To reduce the risk of fire, electric shock, or injuryto persons when using this
Do not allow children to play on or in the dryer.
Close supervision of children is necessary when
the dryer is used near children.
Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
Do not use heat to dry articles containing
foam rubber or similarly textured rubber-like
materials.
Keep area around the exhaust opening and
adjacent surrounding areas free from the
accumulation of lint, dust, and dirt.
The interior of the dryer and exhaust vent
should be cleaned periodically by qualified
service personnel.
Do not install or store the dryer where it will be
exposed to the weather.
Always check the inside of the dryer for foreign
objects.
Clean lint screen before or after each load.
CALIFORNIA SAFE DRINKING WATER AND TOXIC ENFORCEMENT ACT
This act requires the governor of California to publish a list of substances known to the state to cause
cancer, birth defects, or other reproductive harm and requires businesses to warn customers of potential
exposure to such substances.
Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon monoxide,
formaldehyde, and soot, caused primarily by the incomplete combustion of natural gas or LP fuels.
Properly adjusted dryers will minimize incomplete combustion. Exposure to these substances can be
minimized further by properly venting the dryer to the outdoors.
4
MFL62512832 EN 100720.indd 4 7/21/10 1:55:17PM

iMPORTANTSAFETYINST UCTIONS
READ ALL iNSTRUCTiONS BEFORE USE
WARNING For yo.r safety,the information in this manual must be
followed to minimize the risk of fire or explosion, electric shock, or to prevent
property damage, personal injury, or loss of life.
GROUNDING iNSTRUCTiONS
This appliance must be grounded. In the event
of malfunction or breakdown, grounding will
reduce the risk of electric shock by providing
a path of least resistance for electric current.
This appliance must be equipped with a cord
having an equipment-grounding conductor and
a grounding plug. The plug must be plugged into
an appropriate outlet that is properly installed and
grounded in accordance with all local codes and
ordinances.
WAR NING -Improper
connection of the equipment=grounding
conductor can result in a risk of electric shock.
Check with a qualified electrician or service
person ifyou are in doubt as to whether the
appliance is properly grounded.
Do not modify the plug provided with the
appliance. If it will not fit the outlet, have a proper
outlet installed by a qualified electrician.
This appliance must be connected to a grounded
metal, permanent wiring system or an equipment-
grounding conductor must be run with the circuit
conductors and connected to the equipment-
grounding terminal or lead on the appliance.
Electrical shock can result ifthe dryer is not
properly grounded.
SAFETY iNSTRUCTiONS FOR iNSTALLATiON
WARNING: To reduce the risk of fire, electric shock, or injury to persons when using this
appliance, follow basic precautions, including the following:
, Properly ground dryer to conform with all
governing codes and ordinances. Follow
details in the installation instructions. Electrical
shock can result if the dryer is not properly
grounded.
•Before use, the dryer must be properly
installed as described in this manual.
Electrical shock can result if the dryer is not
properly grounded.
• install and store the dryer where it will not be
exposed to temperatures below freezing or
exposed to the weather.
•All repairs and servicing must be performed
by an authorized servicer unless specifically
recommended in this Owner's Guide. Use
only authorized factory parts. Failure to follow
this warning can cause serious injury,fire,
electrical shock, or death.
• To reduce the risk of electric shock, do not
install the dryer in humid spaces. Failure to
follow this warning can cause serious injury, fire,
electrical shock, or death.
,Connect to a properly rated, protected,
and sized power circuit to avoid electrical
overload, improper power circuit can melt,
creating electrical shock and/or fire hazard.
• Remove all packing items and dispose of all
shipping materials properly. Failure to do so
can result in death, explosion, fire, or burns.
Place dryer at least 18 inches above the floor
for a garage installation. Failure to do so can
result in death, explosion, fire, or burns.
Keep all packaging from children. Packaging
material can be dangerous for children. There is
a risk of suffocation.
•Do not install nearby heat item. Such as
stove, cooking oven. Failure to do so can cause
deform, smoke and fire.
•Do not place candle and cigarettes on top of
the product. Failure to do so can cause deform,
smoke and fire.
•Remove all protective vinyl film from the
product. Failure to do so can cause deform,
smoke and fire. 5
MFL62512832 EN 100720.indd 5 7/21/10 1:55:17PM

iPORTANTSAFETYINSTRUCTIONS
READ ALL iNSTRUCTiONS BEFORE USE
WARNING For yo.r safety,the information in this manual must be
followed to minimize the risk of fire or explosion, electric shock, or to prevent
property damage, personal injury, or loss of life.
SAFETY iNSTRUCTiONS FOR iNSTALLATiON (cont.)
II,WARNING: To reduce the risk of personal injury, adhere to all industry recommended safe-
ty procedures including the use of long sleeved gloves and safety glasses. Failure to follow all of the safety
warnings in this manual could result in property damage, personal injury or death.
Exhaust/Ducting:
,Gas dryers MUST be exhausted to the
outside. Failure to follow these instructions
can result in fire or death.
, The dryer exhaust system must be exhausted
to the outside of the dwelling. If the dryer is
not exhausted outdoors, some fine lint and
large amounts of moisture will be expelled
into the laundry area. An accumulation of
lint in any area of the home can create a health
and fire hazard.
,Use only rigid metal or flexible metal
4inches diameter ductwork inside the dryer
cabinet or for exhausting to the outside. Use
of plastic or other combustible ductwork
can cause a fire. Punctured ductwork can
cause a fire if it collapses or becomes otherwise
restricted in use or during installation.
• Ductwork is not provided with the dryer, and
you should obtain the necessary ductwork
locally. The end cap should have hinged
dampers to prevent backdraft when the dryer
is not in use. Failure to follow these instructions
can result in fire or death.
,The exhaust duct must be 4 inches
(10.2 cm} in diameter with no obstructions.
The exhaust duct should be kept as short as
possible. Make sure to clean any old ducts
before installing your new dryer. Failure to
follow these instructions can result in fire or
death.
•Rigid or semi-rigid metal ducting is
recommended for use between the
dryer and the wall. In special installations
when it is impossible to make a connection
with the above recommendations, a UL=
listed flexible metal transition duct may be
used between the dryer and wall connection
only. The use of this ducting will affect drying
time. Failure to follow these instructions can
result in fire or death.
, DO NOT use sheet metal screws or other
fasteners which extend into the duct that
could catch lint and reduce the efficiency
of the exhaust system. Secure all joints with
duct tape. For complete details, follow the
Installation Instructions. Failure to follow these
instructions can result in fire or death.
6
MFL62512832 EN 100720.indd 6 7/21/10 1:55:17PM

iMPORTANTSAFETYINST UCTIONS
READ ALL iNSTRUCTiONS BEFORE USE
WARNING For yo.r safety,the information in this manual must be
followed to minimize the risk of fire or explosion, electric shock, or to prevent
property damage, personal injury, or loss of life.
SAFETY iNSTRUCTiONS FOR CONNECTING ELECTRiCiTY
AWARNING: To reduce the risk of fire, electric shock, or injury to persons when using this
appliance, follow basic precautions, including the following:
, Do not, under any circumstances, cut or
remove the ground prong from the power
cord. To prevent personal injuryor damage to
the dryer, the electrical power cord must be
plugged into a properly grounded outlet.
, For personal safety, this dryer must be
properly grounded. Failure to do so can result
in electrical shock or injury.
, Refer to the installation instructions in this
manual for specific electrical requirements
for your model. Failure to follow these
instructions can create an electrical shock
hazard and/or a fire hazard.
• This dryer must be plugged into aproperly
grounded outlet. Electrical shock can result if
the dryer is not properly grounded. Have the
wall outlet and circuit checked by a qualified
electrician to make sure the outlet is properly
grounded. Failure to follow these instructions
can create an electrical shock hazard and/or a
fire hazard.
• The dryer should always be plugged into
its own individual electrical outlet which
has a voltage rating that matches the rating
plate. This provides the best performance
and also prevents overloading house wiring
circuits which could cause a fire hazard from
overheated wires.
,Never unplug your dryer by pulling on the
power cord. Always grip plug firmly and pull
straight out from the outlet. The power cord
can be damaged, resulting in a risk of fire and
electrical shock.
•Repair or replace immediately all power
cords that have become frayed or otherwise
damaged. Do not use a cord that shows
cracks or abrasion damage along its length
or at either end. The power cord can melt,
creating electrical shock and/or fire hazard.
•When installing or moving the dryer, be
careful not to pinch, crush, or damage
the power cord. This will prevent injury and
prevent damage to the dryer from fire and
electrical shock.
SAVE THESE iNSTRUCTiONS
7
MFL62512832 EN 100720.indd 7 7/21/10 1:55:17PM

PARTSANDFEATU ES
KEY PARTS AND COMPONENTS
O
O
EASY-TO-USE CONTROL PANEL
Rotate the Cycle Selector Knob to select the
desired dry cycle. Add cycle options or adjust
settings with the touch of a button.
LED DISPLAY
The easy-to-read LED display shows cycle
options and information and provides status
messages during operation.
OEASY-ACCESSREVERSIBLE DOOR
Wide-opening door provides easy access for
loading and unloading. Door swing can be
reversed to adjust for installation location.
OFRONT-MOUNT LINT FILTER
Front-mounted lint filter allows for easy access
and cleaning after every load.
OLEVELING FEET
Four leveling feet (two in the front, and two in
the back) adjust to improve dryer stability on
uneven floors.
SMARTDIAGNOSIS TM
Should you experience any technical difficulty
with your dryer, it has the capability of
transmitting data via your telephone to the
Customer Information Center. The call center
agent records the data transmitted from your
machine and uses it to analyze the issue,
providing a fast and effective diagnosis (refer to
page 35).
Power Cord Location
(Gas Models)
Terminal Block
Access Panel
(Electric Models)
Gas
Connection
Location
(Gas Models)
Outlet
Rear of Dryer
Duct
8
MFL62512832 EN 100720.indd 8 7/21/10 1:55:18PM

iNSTALLATiONINST UCTIONS
iMPORTANT: Read all installation instructions completely before
installing and operating your dryer!
It is important that you review this entire manual before installing and using your dryer. Detailed instructions
concerning electrical connections, gas connections, and exhaust requirements are provided on the
following pages.
INSTALLATIONLOCATION REOUIREMENTS
A location that allows for proper exhaust installation, m A level floor with a maximum slope of 1 inch (2.5 cm)
m
m
A gas dryer must be exhausted to the outdoors. See
Venting Requirements.
A grounded electrical outlet located within 2 ft.
(61 cm) of either side of the dryer. See Electrical
Requirements.
A sturdy floor to support the total dryer weight of
200 Ibs (90.7 kg). The combined weight of a companion
appliance should also be considered.
m
under entire dryer. If slope is greater than 1 inch
(2.5 cm), install Extended Dryer Feet Kit. Clothes may
not tumble properly, and automatic sensor cycles may
not operate correctly if dryer is not level.
For a garage installation, you will need to place the dryer
at least 18 inches (46 cm) above the floor. If using a
pedestal, you will need 18 inches (46 cm) to the bottom
of the dryer.
Do not operate your dryer at temperatures below 45 °F (7°C). At lower temperatures, the dryer might not shut off at the
end of an automatic cycle. This can result in longer drying times.
The dryer must not be installed or stored in an area where it will be exposed to water and/or weather.
Check code requirements. Some codes limit, or do not permit, installation of the dryer in garages, closets, mobile
homes or sleeping quarters. Contact your local building inspector.
NOTE: No other fuel-burning appliance can be installed in the same closet as a dryer.
CLEARANCES
-H t-_4,,m0x.l.-48,.2.
_ (318 crn2)-
HI
h"*_ a29/_6"_15,,*.1
(2.5ern)(82.65cmX12.7era) ClosetDoorVent
Requirements
.6cm) olo
_ ...........
f\ ..... /
3"*
(7.6crn)
;[ 1"-,-II÷ 27"÷11_-1'
(2.5 ore} (66.6 ore)
t _LI..114"max.*l._
_1 _ I1"*-_I_ 27"i_1I_- 1"*
(2.5 cm) (68.6cm) (2.5cm)
1"*1I'_ 329/16" _.-15"**1
(2.5cm) (2.5cm) (82.65cmX12.7cm)
J
installation spacing for recessed area or closet installation
m
m
The following spacing dimensions are recommended
for this dryer. This dryer has been tested for spacing
of 0 inches (0 cm) clearance on the sides and rear.
Recommended spacing should be considered for the
following reasons:
Additional spacing should be considered for ease of
installation and servicing.
Additional clearances might be required for wall, door
and floor moldings.
m Additional spacing should be considered on all sides of
the dryer to reduce noise transfer.
For closet installation, with a door, minimum ventilation
openings in the top and bottom of the door are required.
Louvered doors with equivalent ventilation openings are
acceptable.
m Companion appliance spacing should also be
considered.
Suggestion: There should be at least a little space around the dryer (or any other appliance) to eliminate the transfer
of vibration from one to the other. Too much vibration, it could cause them to make noise or touch each other causing
paint damage and making even more noise.
9
MFL62512832 EN 100720.indd 9 7/21/10 5:01:02PM

iNSTALLATiONINST UCTIONS
iNSTALLATiON WITH OPTIONAL PEDESTAL BASE OR STACKING KiT
iMPORTANT: Ifyou are installingyour dryer using an optional pedestal base or stacking kit, please
refer to Optional Accessories in this manual or to the instructions for your pedestal or stacking kit
before proceeding with the installation.
Recommended installation spacing for cabinet installation
m For cabinet installation, with a door, minimum ventilation openings in the top of the cabinet
are required.
7"*(17,8ore) 7"*(17.8cm)
5.... 329/1_" 1"* 1" 27" 1"
(12.7 cm)(82.65 crn) (2.5 cm) (2.5 cm)(68.6 crn) (2,5 cm)
*Required spacing
**For side or bottom venting, 2inches
(5.1 cm) spacing is allowed.
9"*
(22.9cm)
J
CLOSET VENTILATION REOUIREMENTS
Closets with doors must have both an upper and lower vent to prevent heat and moisture buildup
in the closet. One upper vent opening with a minimum opening of 48 sq. in. (310 sq. cm) must be
installed no lower than 6 feet above the floor. One lower vent opening with a minimum opening of 24
sq. in. (155 sq. cm) must be installed no higher than 1 feet above the floor. One example shown uses
vent grilles in the door.
Recommended installation spacing for recessed or closet
installation, with stacked washer and dryer
The dimensions shown are for the recommended spacing.
48 in.2*
(310¢m2) 3"; (7.6 ¢m)
±
0
_*_2__ 7.6_
24in.2*
(155cm2)
m
iii'i
_- 1''* (2.5cm)
m
m
51/2 "_*
(14cm)
\ .... /
76"
(198_ [
_- 1"-_- _- 27"_
(2.5 cm) (68.6 cm)
*Required spacing
**For side or bottom
venting, 2inches
(5.1 cm) spacing is
allowed.
(2.5 cm)
J
10
MFL62512832 EN 100720.indd 10 7/21/10 5:01:03PM

INSTALLATIONINST UCTIONS
LEVELING THE DRYER
WARN|NG
= Wear gloves during installation.
• The appliances are heavy.
Two or more people are required when installing
the dryer.
Failureto follow these instructions can result in injury.
To ensure that the dryer provides optimal drying
performance, it must be level. To minimize
vibration, noise, and unwanted movement, the
floor must be a perfectly level, solid surface.
NOTE: Adjust the leveling feet only as far as
necessary to level the dryer. Extending the
leveling feet more than necessary can cause
the dryer to vibrate.
Leveling Feet
Position the dryer in the final location. Place
a level across the top of the dryer.
All four leveling feet must rest solidly on the
floor. Gently push on the top corners of the
dryer to make sure that the dryer does not
rock from corner to corner.
If you are installing the dryer on the optional
pedestal, you must use the leveling feet on the
pedestal to level the dryer. The dryer leveling feet
should be fully retracted.
Use an adjustable wrench to turn the leveling
feet. Turn clockwise to raise the dryer or
counterclockwise to lower it. Raise or lower
the leveling feet until dryer is level from
side to side and front to back.
Make sure that all 4 leveling feet are in firm
contact with the floor.
I
OPTIONAL ACCESSORIES
For these and other LG products, contact your local LG dealer, or visit our Web site at www.lg.com
LP CONVERSION KIT
Pedestal
(sold separately) Stacking Kit
(sold separatelW
Side vent kit
(sold separately)
Kit # 383EELgOOIB
UsetheLPCONVERSIONKITforcnslTgilTgthedryerg_s
connectionsfromN_tura/C_stoLiquefiedPrO_JlTeG3s
NOTE.Inst_ll_tionoftheLPconversionkitmustBe
performedBy_qudifiedserviceprofessiond
Kit # 383EEL3002D
11
MFL62512832 EN 100720.indd 11 7/21/10 1:55:22PM

INSTAllATION INST UCTIONS
TO REMOVE DOOR
WARN|NG
THE DRYER DOOR IS VERY LARGE AND HEAVY. Failure to follow the instructionsbelow can result in damage
to the dryer, property damage or personal injury.
• To avoid damage to the dryer or the door, support the door with a stool or box that fits under the door, or have
an assistant support the weight of the door.
Always reverse the door BEFORE stacking the dryer on top of the washer.
Avoid dropping the door to avoid damage to the door or the floor.
Open Door
Open the door to reverse.
j,J
" ! Hinge
Dummy
Screw
Remove four dummy screws by driver.
°_ _
\.\\
Remove two screws and disassembly Latch.
Hold on the hinge while remove 4 screws of
hinge (to prevent door dropping).
Door
Remove door from cabinet cover.
12
MFL62512832 EN 100720.indd 12 7/21/10 1:55:34PM

INSTAllATION INST UCTIONS
TO iNSTALL DOOR
WARNING
THE DRYER DOOR IS VERY LARGE AND HEAVY. Failure to follow the instructionsbelow can result in damage
to the d_/er, property damage or personal inju_L
=TOavoid damage to the dryer or the door, support the door with a stool or box that fits under the door, or have
an assistant support the weight of the door.
= Always reverse the door BEFORE stacking the dryer on top of the washer.
• Avoid dropping the door to avoid damage to the door or the floor,
'_ III I ///
_Hinge hole
....Y
Move door to left side and insert a hinge to
hinge hole.
o///
Hinge Screw,
....... jJ
Hold on hinge while screw down a hinge
(to prevent door dropping).
Latch
Screw
insert latch to right side and install screws.
f' I
__Hinge
,_. _. Dummy
"_. _"X\ Screw
Screw down four dummy screws right side.
Check that the door closes and latches
properly.
15
MFL62512832 EN 100720.indd 13 7/21/10 1:55:44PM

INSTAllATION INST UCTIONS
cHANGiNG THE DRYER VENT LOcATiON
14
, WARN|NG
• Use a heavy metal vent.
• Do not use plastic or thin foil duct.
• Clean old ducts before installing this dryer.
• Toreduce the risk of personal injury,adhere to all
industry recommended safety procedures including
the use of long sleeved gloves and safety glasses.
• Failureto follow all of the safety warnings inthis
manual could result in property damage, personal
injury or death.
An adapter kit, part number 383EEL9001B,
may be purchased from your LG retailer. This
kit contains the necessary duct components
to change the dryer vent location.
OPTION 1: Side venting
Adapter
duct _ ..
. -_
Press the tabs on the knockout and carefully
remove the knockout for the desired vent
opening (right-side venting is not available on
gas models). Press the adapter duct onto the
blower housing and secure to the base of the
dryer as shown.
Cover
Plate
Elbow (3.8 crn)
Preassemble a 4 inches (10 cm) elbow to the
next 4 inches (10 cm) duct section, and secure
all joints with duct tape. Be sure that the male
end of the elbow faces AWAY from the dryer.
insert the elbow/duct assembly through the
side opening and press itonto the adapter
duct. Secure in place with duct tape.
Be sure that the male end of the duct
protrudes 11/2inches(3.8 cm) to connect the
remaining ductwork.
Attach cover plate to the back of the dryer with
included screw.
I
Retaining
Screw
Rear
Exhaust Duct
Remove the rear exhaust duct retaining
screw. Pull out the exhaust duct.
OPTION 2: BOttOm Venting
Adapter
Duct
Press the adapter duct onto the blower
housing and secure to the base of the dryer
as shown.
Cover
Plate
Elbow
J
insert the 4 inches (10 cm) elbow through the
rear opening and press it onto the adapter
duct. Be sure that the male end of the elbow
faces down through hole in the bottom of the
dryer. Secure in place with duct tape.
Attach the cover plate to the back of the
dryer with included screw.
MFL62512832 EN 100720.indd 14 7/21/10 1:55:46PM

INSTALLATIONINST UCTIONS
VENTING THE DRYER
_I_,R_|_G-" TOreduce the risk of fire, electric shock, or injury to persons when using this
appliance, follow basic precautions, including the following:
•Do not crush or collapse ductwork. Failure
to follow these instructions can result in fire
or death.
•Do not allow ductwork to rest on or
contact sharp objects. Failure to follow these
instructions can result in fire or death.
•If connecting to existing ductwork, make
sure it is suitable and clean before installing
the dryer. Failure to follow these instructions
can result in fire or death.
• Venting must conform to local building
codes. Failure to follow these instructions can
result in fire or death.
• Gas dryers MUST exhaust to the outdoors.
Failure to follow these instructions can result
in fire or death.
•Use only 4 inches {10.2 cm} rigid or flexible
metal ductwork inside the dryer cabinet and
for venting outside. Failure to follow these
instructions can result in fire or death.
• To reduce the risk of fire, combustion, or
accumulation of combustible gases, DO
NOT exhaust dryer air into an enclosed and
unventilated area, such as an attic, wall,
ceiling, crawl space, chimney, gas vent, or
concealed space of a building. Failure to
follow these instructions can result in fire
or death.
• To reduce the risk of fire, DO NOT exhaust
the dryer with plastic or thin foil ducting.
Failure to follow these instructions can result
in fire or death.
• The exhaust duct must be 4 inches (10.2
cm} in diameter with no obstructions. The
exhaust duct should be kept as short as
possible. Make sure to clean any old ducts
before installing your new dryer. Failure to
follow these instructions can result in fire or
death.
•Rigid or semirigid metal ducting is
recommended for use between the dryer
and the wall. in special installations when
it is impossible to make a connection with
the above recommendations, a UL=listed
flexible metal transition duct may be used
between the dryer and wall connection only.
The use of this ducting will affect drying
time. Failure to follow these instructions can
result in fire or death.
• DO NOT use sheet metal screws or other
fasteners which extend into the duct that
could catch lint and reduce the efficiency
of the exhaust system. Secure all joints
with duct tape. Failure to follow these
instructions can result in fire or death.
• To maximize operating results, please
observe the duct length limitations noted in
the chart on page 16. Failure to follow these
instructions can result in fire or death.
•Ductwork is not provided with the dryer.
You should obtain the necessary ductwork
locally. The end cap should have hinged
dampers to prevent backdraft when the
dryer is not in use. Failure to follow these
instructions can result in fire or death.
• The Total length of flexible metal duct shall
not exceed 8 ft.(2.4m}
• in Canada, that only those foil-type flexible
ducts, if any, specifically identified for use
with the appliance by the manufacturer
shall be used. In the United States, that only
those foil-type flexible ducts, if any, specifically
identified for use with the appliance by the
manufacturer and that comply with the Outline
for Clothes Dryer Transition Duct, Subject
2158A, shall be used.
15
MFL62512832 EN 100720.indd 15 7/21/10 1:55:46PM

INSTALLATIONINST UCTIONS
VENTING THE DRYER {cont.)
Ductwork
Recommended
00.2cm ) (10.2 cm)
Use Only for Short
Run Installations
(6.35 cm)
o
1
2
3
4
o
1
2
3
4
65 ft. (19.8 m)
55 ft. (16.8 m)
47 ft. (13.7 m)
36 ft. (11.0 m)
28ft._
55 ft. (16.8 m)
47 ft. (13.7 m)
41 ft. (12.5 m)
30 ft. (9.1 m)
22 ft. (6.7 m)
NOTE: Deduct 6 ft. (1.8 m) for each additional elbow. It is not recommended to use more than four 90° elbows.
J
ROuting and Connecting Ductwork
Follow the guidelines below to maximize drying
performance and reduce lint buildup and
condensation in the ductwork.
NOTE: Ductwork and fittings are NOT included
and must be purchased separately.
• Use 4 inches (10.2 cm) diameter rigid or
semirigid metal ductwork.
• The exhaust duct run should be as short as
possible.
• Use as few elbow joints as possible.
• The male end of each section of exhaust duct
must point away from the dryer.
• Use duct tape on all duct joints,
• Insulate ductwork that runs through unheated
areas in order to reduce condensation and lint
buildup on duct surfaces.
iMPORTANT: Failure to exhaust the dryer
correctly will void the dryer's warranty.
Correct Venting
incorrect Venting
16
MFL62512832 EN 100720.indd 16 7/21/10 1:55:48PM

INSTALLATIONINST UCTIONS
cONNEcTiNG GAS DRYERS
_WAF_N|NG -mTo reduce the risk of fire, electric shock, or injury to persons when using this
appliance, follow basic precautions, including the following:
• Gas supply requirements:
As shipped from the factory, this dryer
is configured for use with natural gas.
it can be converted for use with LP
(Liquefied Propane} gas. Gas pressure
must not exceed 13 inches water column.
•A qualified service or gas company
technician must connect the dryer to the
gas service. Failure to do so can result in fire,
explosion, or death.
Isolate the dryer from the gas supply system
by closing its individual manual shutoff
valve during any pressure testing of the
gas supply. Failure to do so can result in fire,
explosion, or death.
•Supply line requirements:
Your laundry room must have a rigid gas
supply line to your dryer. In the United
States, an individual manual shutoff valve
MUST be installed within at least 6 ft. (1.8 m}
of the dryer, in accordance with the National
Fuel Gas Code ANSI Z223.1. A 1/8 inches
NPT pipe plug must be installed. Failure to do
so can result in fire, explosion, or death.
• if using a rigid pipe, the rigid pipe should
be 1/2 inches IPS. if acceptable under local
codes and ordinances and when acceptable
to your gas supplier, 3/8 inches approved
tubing may be used where lengths are less
than 20 ft. (6.1 m). Larger tubing should be
used for lengths in excess of 20 ft. (6.1 m).
Failure to do so can result in fire, explosion, or
death.
Connect the dryer to the type of gas shown
on the nameplate. Failure to do so can result
in fire, explosion, or death.
To prevent contamination of the gas valve,
purge the gas supply of air and sediment
before connecting the gas supply to the
dryer. Before tightening the connection
between the gas supply and the dryer,
purge remaining air until the odor of gas is
detected. Failure to do so can result in fire,
explosion, or death.
DO NOT use an open flame to inspect
for gas leaks. Use anoncorrosive leak-
detection fluid. Failure to do so can result in
fire, explosion, or death.
•Use only a new AGA= or CSA-certified gas
supply line with flexible stainless steel
connectors. Failure to do so can result in fire,
explosion, or death.
- Securely tighten all gas connections. Failure
to do so can result in fire, explosion, or death.
• Use Teflon ®tape or a pipe-joint compound
that is insoluble in Liquefied Petroleum (LP}
gas on all pipe threads. Failure to do so can
result in fire, explosion, or death.
DO NOT attempt any disassembly of
the dryer; any disassembly requires the
attention and tools of an authorized and
qualified service person or company. Failure
to do so can result in fire, explosion, or death.
Electrical Requirements for Gas MOdelS Only
WARN|NG: To reduce the risk of fire, electric shock, or injury to persons when using this
appliance, follow basic precautions, including the following:
• Do not, under any circumstances, cut or
remove the third (ground) prong from the
power cord. Failure to follow this warning can
result in fire, explosion, or death.
. For personal safety, this dryer must be
properly grounded. Failure to follow this
warning can result in fire, explosion, or death.
.The power cord of this dryer is equipped with
a3=prong (grounding} plug which mates with
a standard 3=prong (grounding) wall outlet
to minimize the possibility of electric shock
hazard from this appliance. Failure to follow
this warning can result in fire, explosion,
or death.
This dryer must be plugged into a
120-VAC, 60-Hz. grounded outlet protected
by a 15=ampere fuse or circuit breaker.
Failure to follow this warning can result in fire,
explosion, or death.
Where a standard 2=prong wall outlet
is encountered, it is your personal
responsibility and obligation to have it
replaced with aproperly grounded 3=prong
wall outlet. Failure to follow this warning can
result in fire, explosion, or death.
17
MFL62512832 EN 100720.indd 17 7/21/10 1:55:48PM

INSTAllATiON INST UCTIONS
cONNEcTiNG GAS DRYERS (cont.)
WARN|NG:
appliance, follow basic precautions, including the following:
•installation and service must be performed
by a qualified installer, service agency, or the
gas supplier.Failure to do so can result in fire,
explosion, or death.
•Use only a new stainless steel flexible
connector and a new AGA=certified
connector. Failure to do so can result in fire,
explosion, or death.
• A gas shutoff valve must be installed within
6 ft. (1.8 m) of the dryer. Failure to do so can
result in fire, explosion, or death.
• The dryer is configured for Natural Gas when
shipped from the factory. Make sure that the
dryer is equipped with the correct burner
nozzle for the type of gas being used (Natural
Gas or Liquefied Petroleum). Failure to do so
can result in fire, explosion, or death.
To reduce the risk of fire, electric shock, or injury to persons when using this
If necessary, the correct nozzle (for the LP
nozzle kit order part number 383EEL3002D)
should be installed by a qualified technician
and the change should be noted on the dryer.
Failure to do so can result in fire, explosion,
or death.
All connections must be in accordance with
local codes and regulations. Failure to do so
can result in fire, explosion, or death.
Gas dryers MUST exhaust to the outdoors.
Failure to do so can result in fire, explosion,
or death.
18
Connecting the Gas Supply
O Make sure that the gas supply to the laundry
room is turned OFR Confirm that the type
of gas available in your laundry room is
appropriate for the dryer. The dryer is
prepared for Natural Gas with a 3/8 inches
NPT.
o gas connection.
Remove the shipping cap from the gas
connection at the back of the dryer. Be
careful not to damage the threads of the gas
O connector when removing the shipping cap.
Connect the dryer to your laundry room's gas
supply using a new flexible stainless steel
O connector with a 3/8 inches NPT fitting.
Securely tighten all connections between the
dryer and your laundry room's gas supply.
Turn on your laundry room's gas supply and
check all pipe connections (both internal and
external) for gas leaks with a noncorrosive
leak-detection fluid.
Electrical Connection
Plug dryer into a
120-VAC, 60-Hz.
grounded 3-prong
outlet.
Flexible Connector
High-Altitude Installations
The BTU rating of this dryer is AGA-certified for
elevations below 10,000 feet.
If your gas dryer is being installed at an elevation
above 10,000 feet, it must be derated by a
qualified technician or gas supplier.
MFL62512832 EN 100720.indd 18 7/21/10 1:55:49PM

INSTALLATIONINST UCTIONS
cONNEcTiNG ELEcTRic DRYERS
_WARN|NG -= To help prevent fire, electric shock, serious injury, or death, the wiring and
grounding must conform to the latest edition of the National Electrical Code, ANSI/NFPA 70 and all
applicable local regulations. Please contact a qualified electrician to check your home's wiring and
fuses to ensure that your home has adequate electrical power to operate the dryer.
Electrical Requirements for Electric MOdelS Only
WARNING: To reduce the risk of fire, electric shock, or injury to persons when using this
appliance, follow basic precautions, including the following:
•This dryer must be connected to a grounded
metal, permanent wiring system, or an
equipment=grounding conductor must be run
with the circuit conductors and connected
to the equipment=grounding terminal or lead
on the dryer. Failure to do so can result in fire,
explosion, or death.
•The dryer has its own terminal block that
must be connected to a separate 240 VAC,
60=Hertz, single=phase circuit, fused at 30
amperes (the circuit must be fused on both
sides of the line). ELECTRICAL SERVICE
FOR THE DRYER SHOULD BE OF THE
MAXIMUM RATE VOLTAGE LISTED ON THE
NAMEPLATE. DO NOT CONNECT DRYER ,
TO 110=, 115=, OR 120-VOLT CIRCUIT. Failure
to follow these instructions can result in fire,
explosion, or death.
•if branch circuit to dryer is 15 ft. (4.5 m)
or less in length, use UL (Underwriters
Laboratories) listed No.=10 AWG wire
(copper wire only), or as required by local
codes. If over 15 ft. (4.50 m), use UL=listed
No.=8 AWG wire (copper wire only), or as
required by local codes. Allow sufficient
slack in wiring so dryer can be moved from
its normal location when necessary. Failure
to do so can result in fire, explosion, or death.
The power cord (pigtail) connection between
wall receptacle and dryer terminal block
IS NOT supplied with dryer. Type of pigtail
and gauge of wire must conform to local
codes and with instructions on the following
pages. Failure to follow these instructions can
result in fire, explosion, or death.
A 4-wire connection is required for all mobile
and manufactured home installations, as
well as all new construction after January
1, 1996. A 4=wire connection must be used
where local codes do not permit grounding
through the neutral wire. Failure to do so can
result in fire, explosion, or death.
_I_W_ILR_I_|NG= = To reduce the risk of fire, electric shock, or personal injury when using this
appliance, follow basic precautions, including the following:
•Do not modify the plug and internal wire • If it does not fit the outlet, a proper outlet will
provided with the dryer, need to be installed by a qualified electrician.
,The dryer should be connected to 4-hole outlet.
Special Electrical Requirements for Mobile or Manufactured Homes
_ILW_,RN|_I_G -mTo reduce the risk of fire, electric shock, or injury to persons when using this
appliance, follow basic precautions, including the following:
• Any installation in a manufactured or mobile
home must comply with the Manufactured
Home Construction and Safety Standards
Title 24 CFR, Part 32-80 or Standard CAN/
CSAOZ240 MH and local codes and ordinances.
•A 4-wire connection is required for all mobile
and manufactured home installations, as well
as all new construction after January 1, 1996.
Failure to do so can result in fire, explosion,
or death.
19
MFL62512832 EN 100720.indd 19 7/21/10 1:55:49PM

INSTALLATIONINST UCTIONS
@
cONNEcTiNG ELEcTRic DRYERS {cont.)
USA ONLY
WARNING:
• Connect the power cord to the terminal block. Each colored wire should be connected
to same color screw. Wire color indicated on manual is connected to the same color
screw in block. Failure to follow these instructions may result in a short or overload.
• Grounding through the neutral conductor is prohibited for: (1) new branch-circuit
installations, (2) mobile homes, (3) recreational vehicles, and (4) areas where local
codes prohibit grounding through the neutral conductor.
Four-wire Connection for Electric Dryers: Power Cord
• A 4-wire connection is required for all mobile
and manufactured home installations, as well
as all new construction after January 1, 1996.
A UL-listed strain relief is required.
Use a 30 A, 240 V, UL=listed power cord
with #10 AWG=minirnurn copper conductor
and closed loop or forked terminals with
upturned ends.
Terminal
Block
UL-Listed
UL-Listed
4-Wire
Power Cord
Remove the terminal block access cover
on the upper back of the dryer. Install a
UL-listed strain relief into the power cord
through-hole; then thread a UL-listed,
30 A, 240 V, 4-wire, #10 AWG-minirnum
copper conductor power cord through the
strain relief.
Hot -- Neutral _Hot
(Black) (White) (Red)
Ground Screw
Neutral
Power
Ground Wire
Transfer the dryer's ground wire from behind
the green ground screw to the center screw
of the terminal block. Attach the two hot
leads of the power cord to the outer terminal
block screws. Attach the white neutral wire
to the center terminal block screw. Attach the
power cord ground wire to the green ground
screw. TIGHTEN ALL SCREWS SECURELY.
Reinstall the terminal block access cover.
2O
MFL62512832 EN 100720.indd 20 7/21/10 1:55:50PM
