LG DLE8377 User manual

DWG.
No.
TRIG.
DR COMPLETED
도면 DR 완료
완료일 :
LG 전자 (주)
LG Electronics Inc.
UNIT SCALE 11 mm
REVIEWEDDESIGNED
RELATED DWG.
CHECKED APPROVED
김 진 영 김 성 규
05.12.22
황 성 기
05.12.22 05.12.23
MODELING I
T
L
E
T
APPROVED
승인자
PREPARED
시방자
DATE
년/월/일
REF. NO.
시방 번호
REV. NO.
기호
REVISION DESCRIPTION
변경 사항
1
2
3
4
RELEASING THIS DRAWING
WITHOUT PERMISSION LG
Electronics SHOULD BE
ACCUSED ACCORDING TO THE
LAWS AND COMPANY RULES.
이 도면은 LG전자의 자산으로 불법
유출시 관계법과 회사규정에 의해 처벌됨.
PDF
ILLUSTRATOR
215 215
280
3828EL3010B
MANUAL,OWNER’S
DISCOVERY(D)-PJT (LCD)
1/1
3828EL3010B
<< 주기 >>
1. 재질, 인쇄방법, 인쇄도수, 외곽치수등은 작업표에 준한다.
2. 인쇄내용, 문자크기 및 형상, 선의 굵기 등은 설계에서 제시된 FILM에 준함.
3. 외곽치수는 절단후 치수임.
4. 양산전에 설계 한도를 득할 것.
5. 본 부품에 금지물질이 포함되지 않도록 하고,
상세 내용은 LG(63)-A-5501-34를 만족할 것.
<< NOTES >>
1. Material, printing and exterier size are refer to work tables.
2. Printing, text size and line are based on LG design film.
3. Exterier size on the drawing is cutting line.
4. Before product controlled by criteria sample.
5. The part should not contain prohibited substances(Pb,Cd,Hg,Cr+6,PBB,PBDE)
and details should comply with LG standard of LG(63)-A-5501-34.
가
P/NO. 다
<FRONT>
<BACK>
나
WORK
가
BRAND
LG
-
DLE8377WM/DLG8388WM
DLE8377NM/DLG8388NM
B
나
MODEL
3828EL3010B
다
P/NO.
SNOW WHITE 100g OFFSET 인쇄
MATERIAL AND PRINTING DESCRIPTION
1 1
PRINTING DEGREE
EXTERIER INTERIER
LG MODEL 명
ENGLISH/
SPANISH
LANGUAGE
68
PAGE
LGEUS
REMARK
SEC.
가
나

DLE8377WM / DLG8388WM
DLE8377NM / DLG8388NM
Gracias por comprar una Secadora LG. Por favor lea su
manual correctamente, ya que
contiene informaciòn importante de una instalaciòn segura,
Uso y mantenimiento. Guarde el modelo y nùmero de serie y
conserve su manual para futuras referencias.
Para más información, visite nuestro sitio web http//us.lge.com
☎☎1-800-243-0000
para el Servicio LG (Atención al Cliente) 24 horas al día, 7 días a la semana

P/No.: 3828EL3010B
DLE8377WM / DLG8388WM
DLE8377NM / DLG8388NM
Thank you for buying a LG Dryer.
Please read your manual carefully, as it provides instructions
on safe Installation, Use and Maintenance.
Record the Model and Serial Numbers, and retain the
manual for future reference.
For more information, visit our website at http://us.lge.com
☎☎1-800-243-0000
24 HOURS A DAY, 7 DAYS A WEEK FOR LG CUSTOMER SERVICE

PRODUCT FEATURES
TABLE OF CONTENTS
22
PART1. SPECIFICATIONS ..................................................................................................................................................................................................................3
PART2. IMPORTANT WARRANTY AND SAFETY INSTRUCTIONS ..............................................................................................................................................4-6

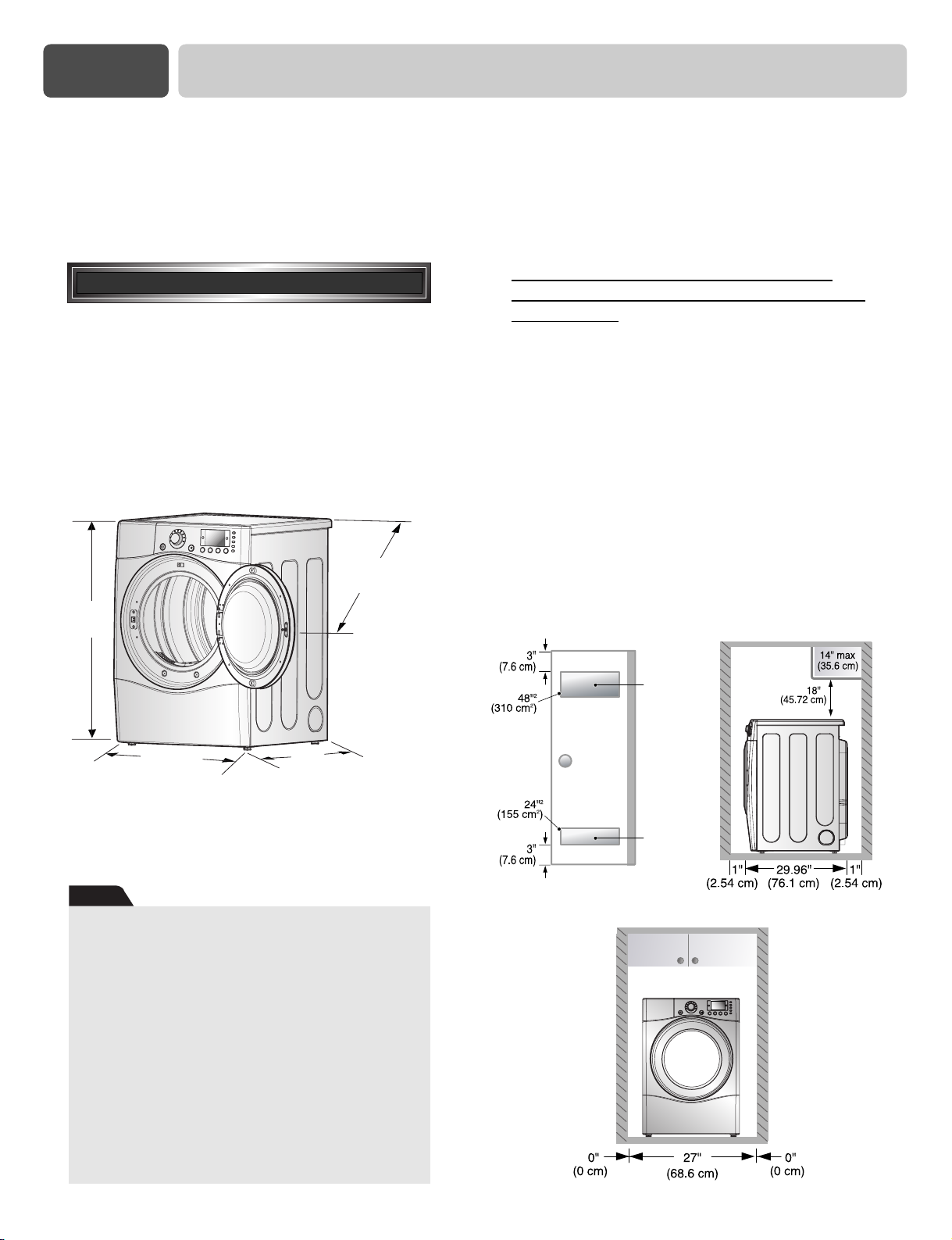

PART3.INITIAL STEPS FOR INSTALLING YOUR DRYER ..........................................................................................................................................................7-12

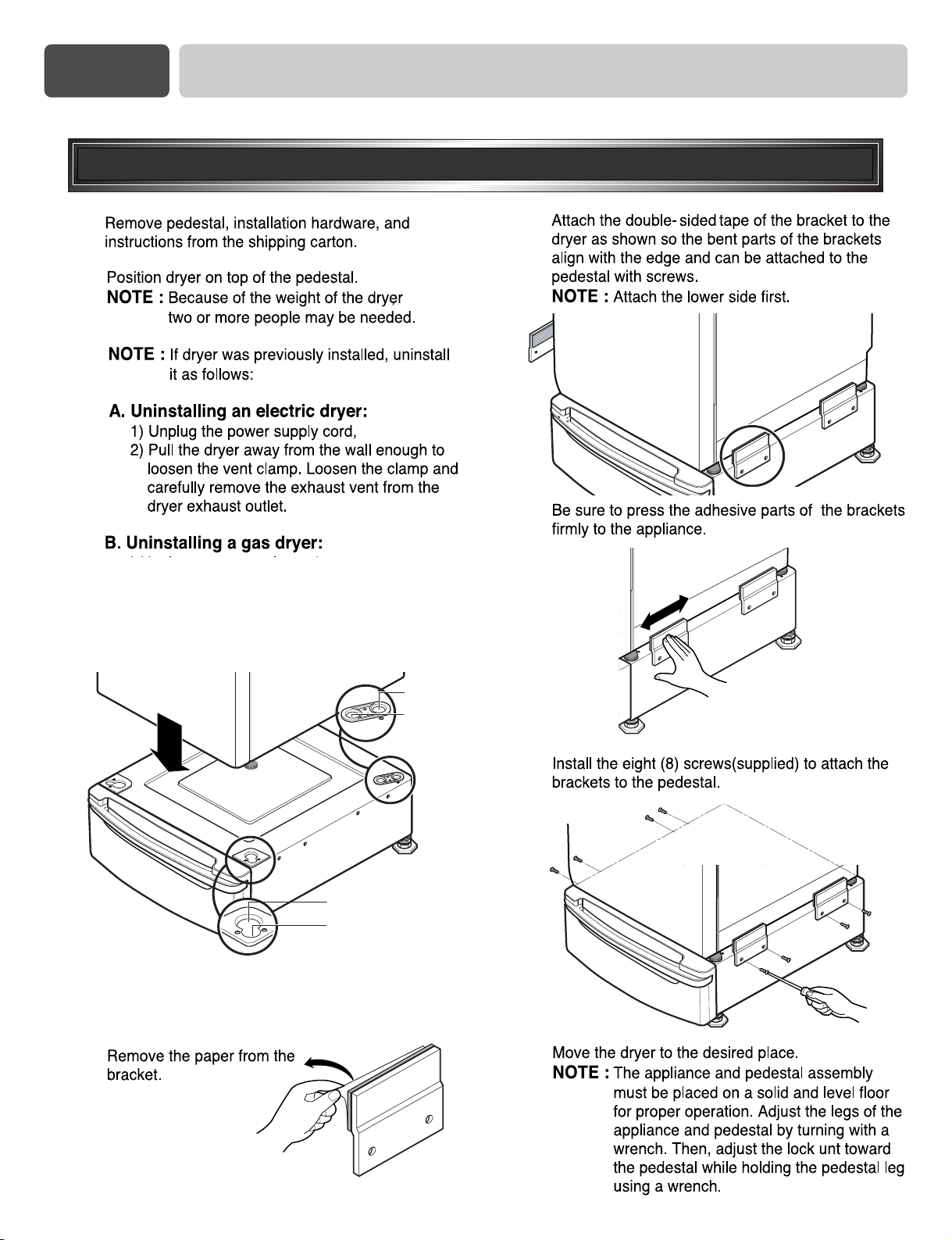

PART4.ACCESSORIES INSTALLATION ....................................................................................................................................................................................13-14

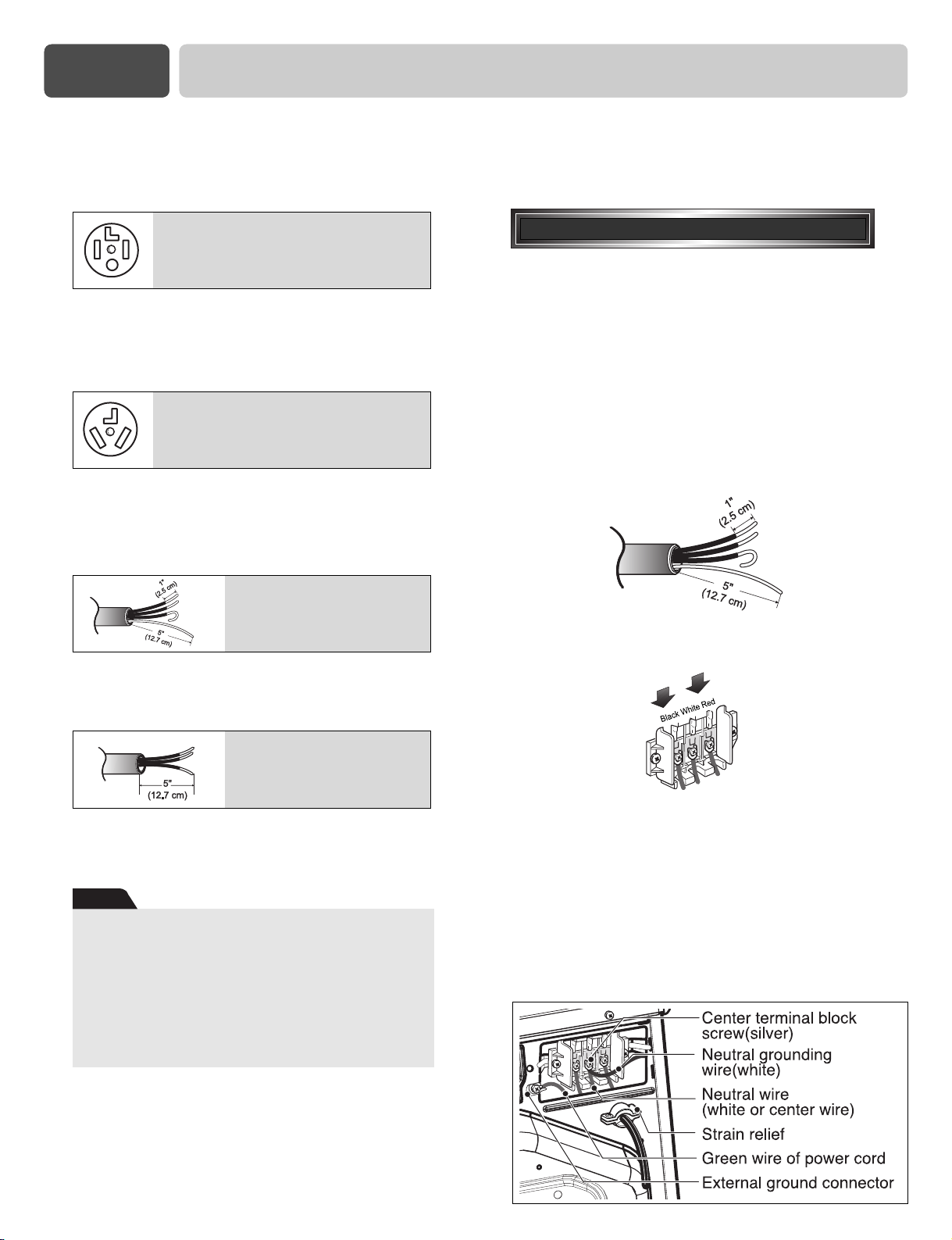

PART5. ELECTRICAL REQUIREMENTS FOR ELECTRIC DRYER.............................................................................................................................................15-18
PART6. ELECTRICAL REQUIREMENTS FOR GAS DRYERS..........................................................................................................................................................19

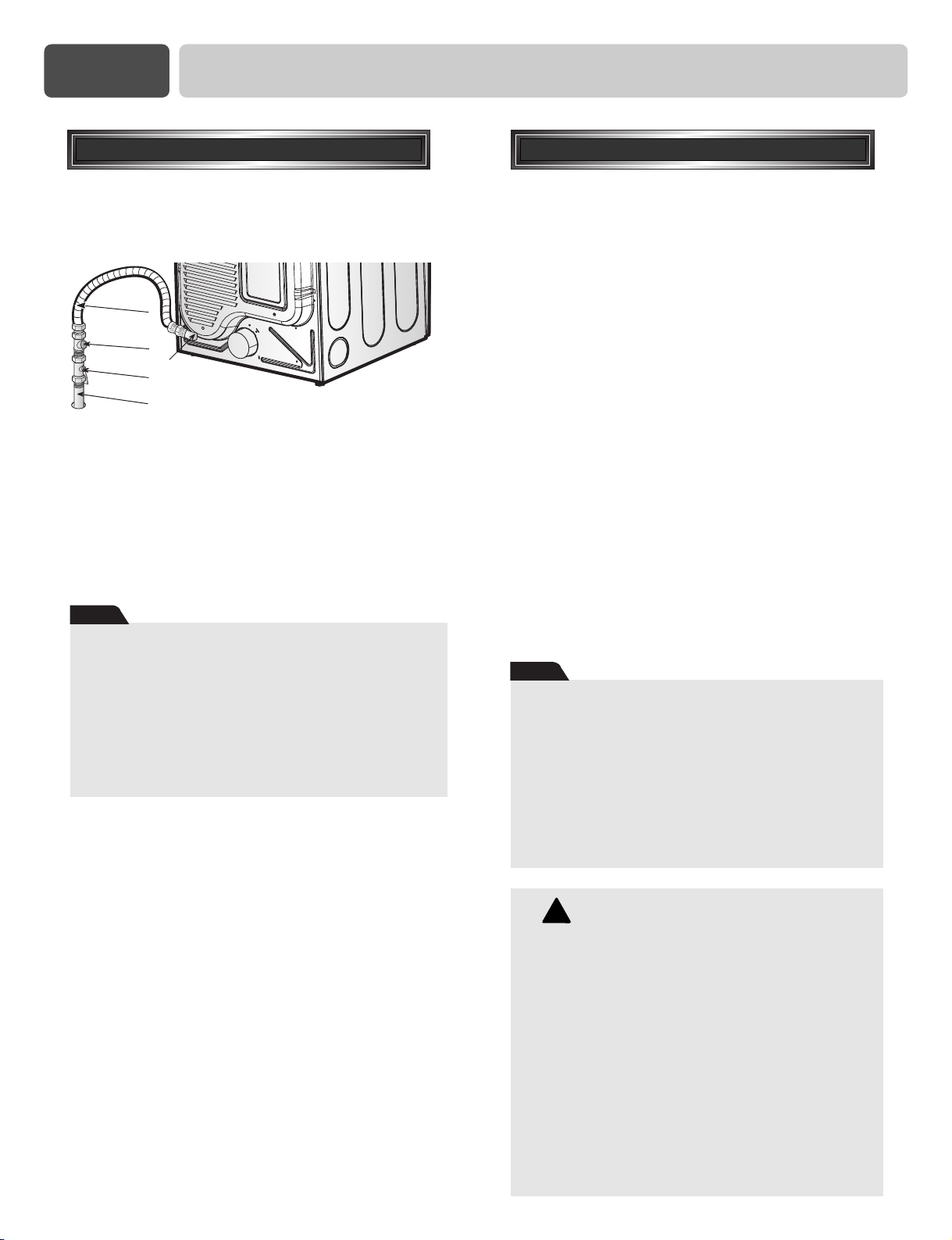

PART7. GAS REQUIREMENTS AND INSTRUCTIONS .....................................................................................................................................................................20
PART8. EXHAUST REQUIREMENTS AND MAINTENANCE.......................................................................................................................................................21-22
PART9. OPERATING YOUR DRYER ............................................................................................................................................................................................23-30
PART10. TROUBLESHOOTING GUIDE........................................................................................................................................................................................31-33
LG DRYER LIMITED WARRANTY......................................................................................................................................................................................................34
OUTSTANDING PERFORMANCE
Not to mention unmatched big capacity, you can benefit from good
time efficiency, quiet operation and energy saving system.
STAINLESS STEEL DRUM
Stainless steel drum doesn’t generate any rust.
ARTISTIC DESIGN
Modern front panel look and big crystal-clear glass door make your dryer look stylish.
DIGITAL FABRIC CARE
Multi-Level temperature control takes better care of your clothes
EASY OF USE
n entire selection of user-friendly functions make operating the dryer easy.
USING THE RLM (REMOTE LAUNDRY MONITOR)
The RLM monitors status of your dryer. You can plug the display unit into any power outlet in your
home. The RLM Display Unit can be purchased separately for this dryer.
WIDE VIEW LCD DISPLAY
LCD display is designed to easily access and read dry program.
DUAL SENSOR TECHNOLOGY
It makes it possible to sense even less than a 1 kg load size. So regardless of load weight, more
accurate sensing is ensured.
1
2
3
4
5
6
7
8
What are Sensor Dry and Time Dry?
Your dryer provides sensor drying and time drying programs.
Sensor Dry : Dryer electronically sense laundry humidity and it automatically determines operation time based on the
dryness of the load and the selected program. t times, you can see sudden increase or decrease in operation time.
It happens because a sensor will detect laundry humidity within a certain period. Sudden change in operation time is not a
malfunction.
Time Dry : You can manualy set drying time to complete drying. Use dry performance if clothes are still damp after
sensor dry cycle is finished. Time Dry is more effective for heavyweight and bulky items such as king-size bed sheets and
thick work clothes.

3
Part 1 SPECIFICATIONS
■Type : Electric and Gas Dryer
■Rating : Please refer to the rating label regarding detailed information.
■Size : 27 x 29.9 x 38.7(inch)
■Capacity : IEC 7.3cu.ft. (22.5 lb)
■Weight : 126 Ibs (57.2 kg)
Specifications are subject to change by manufacturer.
■ ACCESSORIES
Dryer rack (1 each)
See page 26 for how to use. See page 13 for how to use. See page 14 for how to use.
Stacking kit (1 each)
Purchased Separately
Pedestal (1 each)
Purchased Separately
Remote Laundry
Monitor
Purchased Separately
❊ Design of pedestals are subject to
change without manafaturers notice.

The Warranty for your Dryer is located at the end of this manual. Warranty Service is
available by contacting your nearest LG Service Center. If this product is installed and
operated per this manual, LG will repair or replace any parts defective in material or
workmanship throughout the Warranty period, beginning the Date of Purchase.
Warranty Restriction: If the dryer is subjected to other than private family use, all warranty
coverage is effective for only 90 days.
You will need the complete Model and Serial Number when requesting Warranty Service. Proof of
purchase date is required.
Use the space below to record the model number and serial number of your new LG dryer.
Model No.
Serial No.
Date of Purchase
❈ Staple your receipt HERE.
Part 2
4
IMPORTANT WARRANTY AND SAFETY INSTRUCTIONS
SEEKING WARRANTY ASSISTANCE
WARNING!
For your safety, the recommendations in this manual must be followed. To reduce the risk
of fire or explosion, electric shock or to prevent property damage, personal injury, or death
when using your appliance follow basic precautions, including the following.
!

5
Part 2 IMPORTANT WARRANTY AND SAFETY INSTRUCTIONS
1) Read all instructions before using the appliance.
2) Do not dry articles that have come into contact with
gasoline, dry-cleaning solvents, or other flammable
or explosive substances, as they give off vapors that
could ignite or explode.
3) Do not allow children to play on or in the appliance.
Close supervision of children is necessary when
using the appliance.
4) Before the appliance is removed from service or
discarded, remove the door to the drying
compartment.
5) Do not reach into the appliance if the drum is
moving.
6) Do not install or store this appliance where it will be
exposed to the weather.
7) Do not tamper with controls.
8) Do not repair or replace any part of the appliance or
attempt any servicing unless specifically
recommended in the user-maintenance instructions.
9) Do not use heat to dry articles containing foam
rubber or similarly textured rubber-like materials.
10) Clean lint screen before or after each load.
11) Keep area around the exhaust opening and adjacent
surrounding areas free from the accumulation of
lint, dust, and dirt.
12) The interior of the appliance and exhaust duct
should be cleaned periodically by qualified service
personnel.
13) Do not place items exposed to cooking oils in your
dryer. Items contaminated with cooking oils may
contribute to a chemical reaction that could cause a
load to catch fire.
14) Do not use fabric softners or products to eliminate
static unless recommended by the manufacturer of
the fabric softner or product.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of
malfunction or breakdown, grounding will reduce the
risk of electric shock by providing a path of least
resistance for electric current. This appliance is
equipped with a cord having an equipment-grounding
conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local
codes and ordinances.
WARNING - Improper connection of the equipment-
grounding conductor can result in a risk of electric
shock. Check with a qualified electrician or service
person if you are in doubt as to whether the appliance is
properly grounded.
Do not modify the plug provided with the appliance.
If it will not fit the outlet, have a proper outlet installed
by a qualified electrician.
This appliance must be connected to a grounded metal,
permanent wiring system or an equipment-grounding
conductor must be run with the circuit conductors and
connected to the equipment-grounding terminal or lead
on the appliance.
WARNING!
To help reduce any risk of electric shock, fire, or other personal injury or property
damage when using your dryer, please exercise care and follow basic safety
precautions, including the following:
!
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS

Part 2
6
IMPORTANT WARRANTY AND SAFETY INSTRUCTIONS
• Do not try to light a match or cigarette, or turn
on any gas or electrical appliance.
• Do not touch any electrical switches. Do not
use any phone in your building.
• Clear the room, building or area of all
occupants.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions carefully.
• If you cannot reach your gas supplier, call the
fire department.
To reduce the risk of fire or explosion, electric
shock, property damage, personal injury or death
when using this appliance, please follow all
instructions and information, including those in
this manual and instructions provided by your
gas supplier.
• Do not store or use any gasoline, dry-cleaning
solvents any other flammable vapors or
liquids in the area surrounding this appliance.
• Do not dry anything that has ever had anything
flammable on it, even after washing.
• No washer can completely remove oil. Do not
dry any articles that have ever had any kind of
oil on them, including cooking oil.
• Articles containing foam, rubber, rubber-like
materials, plastic or similar materials should be
air dried.
• Failure to follow these instructions can result in
fire, death or serious injury.
• A qualified service person or company must
perform installation and service of this
appliance.
California Safe Drinking Water
and Toxic Enforcement Act
This act requires the governor of California to
publish a list of substances known to the state to
cause cancer, birth defects or other reproductive
harm and requires businesses to warn customers
of potential exposure to such substances.
Gas appliances can cause minor exposure to four
of these substances, namely benzene, carbon
monoxide, formaldehyde and soot, caused
primarily by the incomplete combustion of
natural gas or LP fuels.
Properly adjusted dryers will minimize
combustion. Exposure to these substances can be
minimized further by properly venting the dryer
to the outdoors.
WHAT TO DO IF YOU SMELL
GAS:
WARNING!
• Keep flammable materials and vapors, such
as gasoline, away from dryer.
• Place dryer at least 18 inches above the floor
for a garage installation.
• Failure to do so can result in death,
explosion or fire.
!
!
WARNING
!

7
Part 3 INITIAL STEPS FOR INSTALLING YOUR DRYER
The following instructions will help guide you through the initial steps of setting up your dryer for use.
Please note that every section of this manual provides important information regarding the preparation and
use of your dryer, and it is important that you review this entire manual before proceeding with any
installation or use. More detailed instructions concerning electrical connections, gas connections, and
exhaust requirements are provided in other parts of this manual.
Choose a location with a solid floor for your dryer.
Place the dryer at least eighteen inches above the
floor for a garage installation. After placing the
dryer in the desired location, please make sure that
it has the required clearances shown below. If you
are installing your dryer in a manufactured or
mobile home, please refer to STEP 9 below for
additional instructions.
Certain minimum clearances are required
above, behind, and to the sides of the unit, as
shown below.Those required minimum clearances
are set forth in the picture below. Please keep the
following instructions in mind when installing in a
closet or recessed area:
• Consider allowing additional clearance for
installation and servicing.
• Wall, door and floor molding may force additional
clearances.
• An additional inch of clearance is recommended to
minimize noise transfer .
• Consider space needed for companion appliances.
• For closet installations, the picture below shows the
minimum required ventilation openings for the door.
A louvered door with comparable ventilation openings
is also acceptable.
* Most installations require a minimum 5 1/2 in.
(14 cm) clearance behind the dryer for the exhaust
vent with elbow.
<Closet-Side view><Closet door>
ventilation
hole
ventilation
hole
<Closet-Front view>
STEP 1 Positioning the Dryer.
Leveling legs should be secured.
All four legs are stably placed on the solid and
even floor.
If dryer is not level, laundry may not tumble
properly and sensor will not detect the accurate
humidity information.
When leveling, please be cautious not to injure
your fingers and toes.
If you install the dryer on the optional pedstal.
It is nessary to level with the pedestal leveling
legs.
Note
38.7”
(98.3 cm)
27”
(68.6 cm)
29.96”
(76.1 cm)
49.8”
(126.4 cm)

8
Part 3 INITIAL STEPS FOR INSTALLING YOUR DRYER
Once in position, adjust the leveling legs of the dryer
until it is level from left to right and front to back.
The leveling legs must remain firmly on the floor
and the dryer should not rock. The maximum slope
of the dryer from left to right or front to back should
not exceed 2.5 cm (1 inch). If the dryer is not level,
and if the slope exceeds 2.5 cm (1 inch), a load may
not tumble properly and internal sensors may
malfunction. Note: Other sections of this manual
also provide important information concerning the
placement of and clearances for your dryer. Please
review this entire manual before proceeding with any
installation.
The door on your dryer can be installed to open
either to the left or the right. Follow these
instructions to reverse the direction in which your
door opens:
STEP 2:
1
2
3
STEP 2 Procedure for Reversing
the Door
Door and latch should be aligned at the center
when closed.
Note
