LG DLEX3885W User manual

Lifds Good
DRYER
Please read this manual carefully before operating
your dryer and retain it for future reference.
DLEX3885 _ DLGX3886 _
DLEX3875 _ DLGX3876 _
P/No. MFL62512806 www.Jge.com

INTRODUCTION
iMPORTANT SAFETY iNSTRUCTiONS
What to Do ifYou Smell Gas .................................. 3
Basic Safety Precautions ....................................... 4
California Safe Drinking Water and Toxic
Enforcement Act ................................................... 4
Grounding instructions ........................................... 5
Safety instructions for installation .......................... 5
Safety instructions for Steam Functions ................ 6
Safety instructions for Connecting Electricity ....... 7
PARTSAND FEATURES
Special Features ..................................................... 8
Key Parts and Components ................................... 9
INSTALLATION iNSTRUCTiONS
iMPORTANT: Read all installation instructions
completely before installing and operating your
dryer! ................................................................... 10
installation Location Requirements ..................... 10
Clearances ........................................................... 10
installation With Optional
Pedestal Base or Stacking Kit .............................. 11
Optional Accessories ......................................... 11

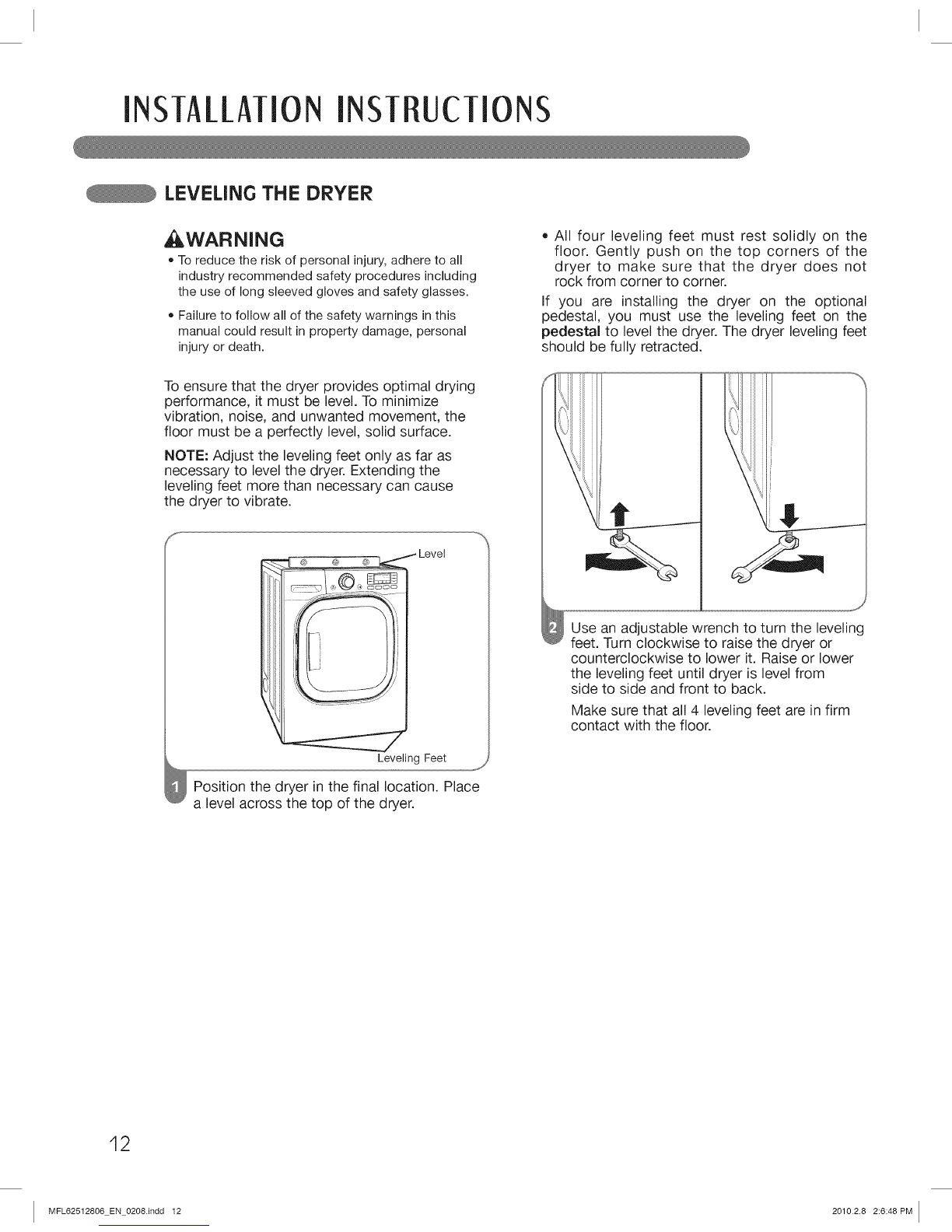

Leveling the Dryer ................................................ 12
To Remove Door .................................................. 13
To install Door ...................................................... 14

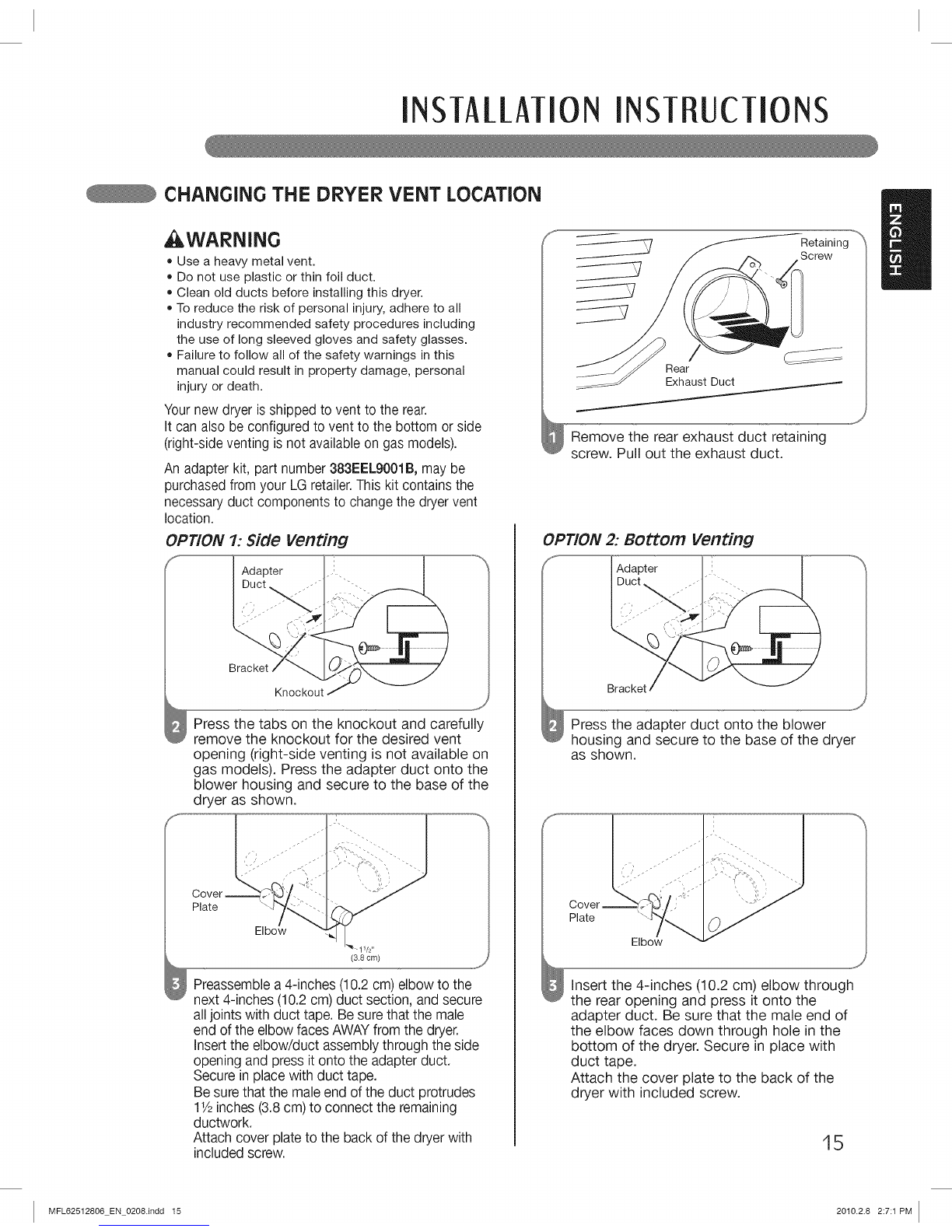

Changing the Dryer Vent Location ....................... 15
Venting the Dryer .................................................. 16

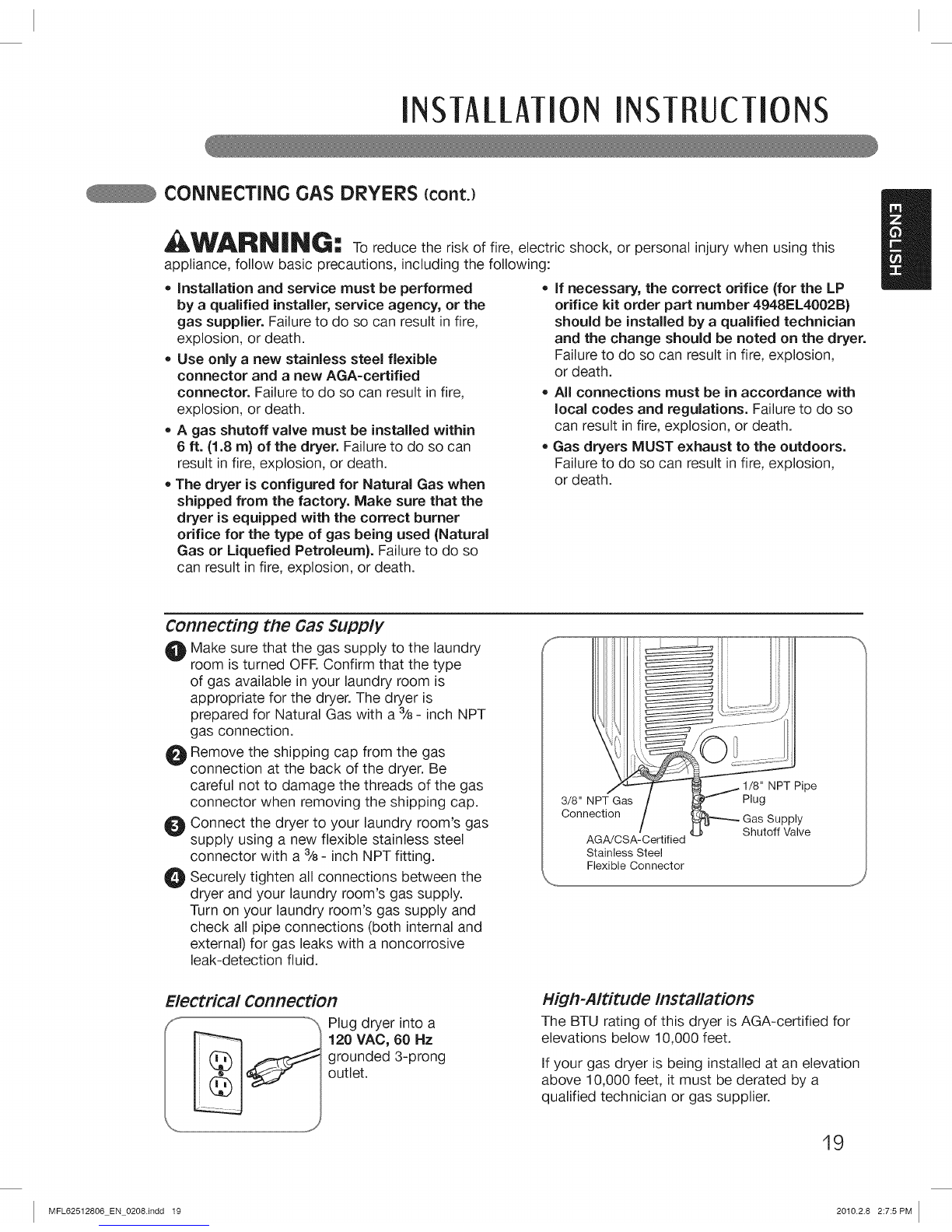

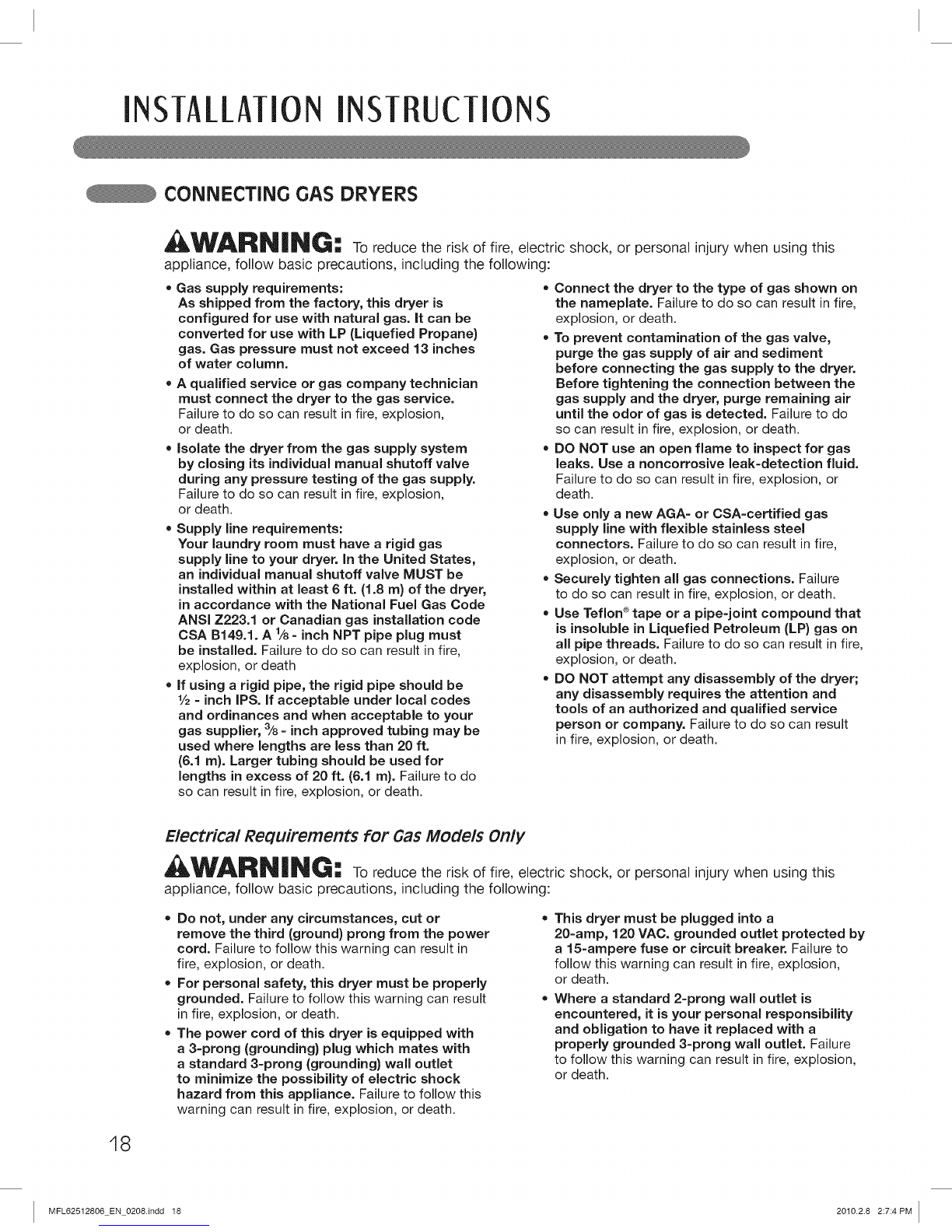

Connecting Gas Dryers ........................................ 18

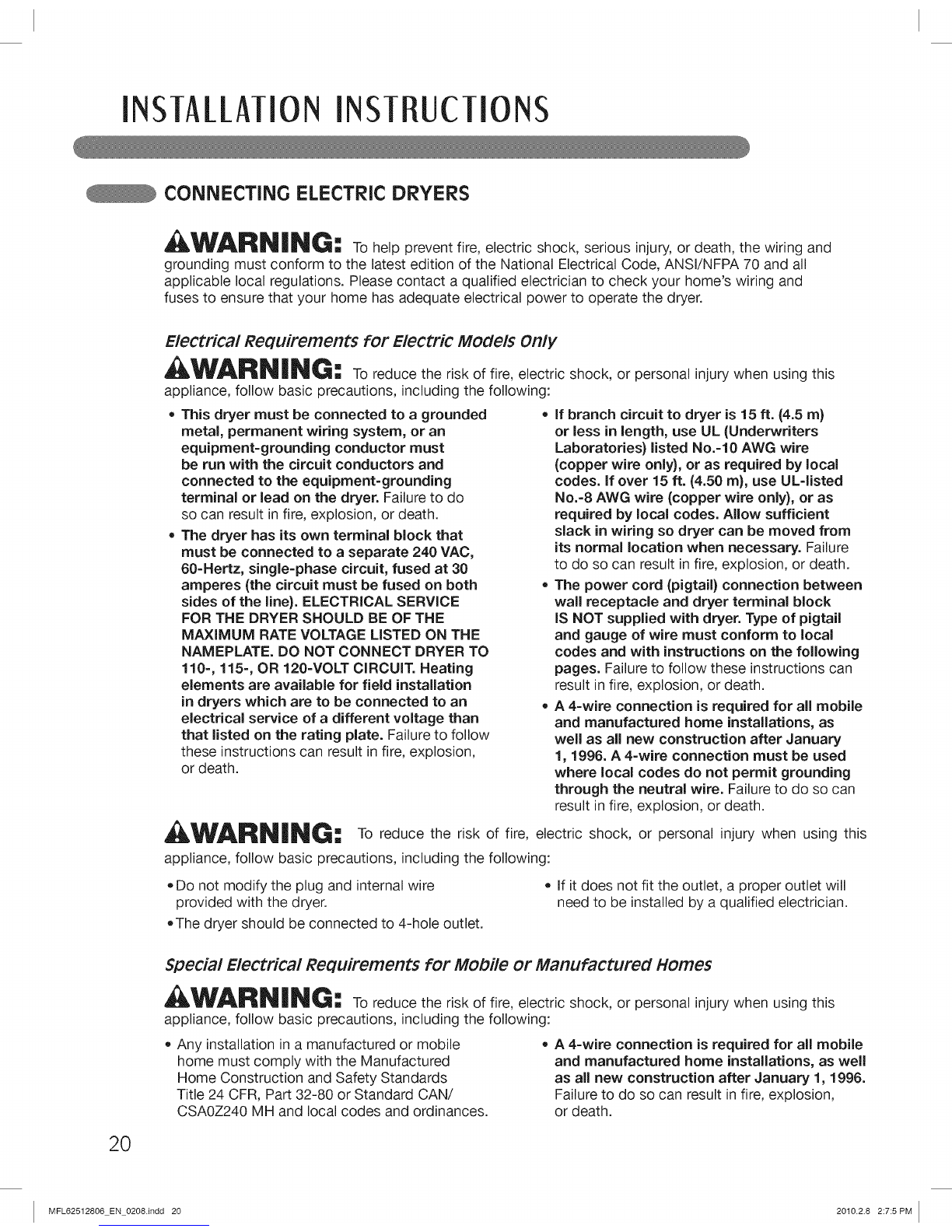

Connecting Electric Dryers .................................. 20
Special Requirements for Manufactured
or Mobile Homes ................................................. 25
Final installation Check ....................................... 25
Duct Condition Test ............................................ 26
HOW TO USE
Control Panel Features ........................................ 27
Operating the Dryer ............................................. 28
Cycle Guide ......................................................... 29
Sorting Loads ...................................................... 30
Loading the Dryer ................................................ 30
Check the Lint Filter Before Every Load .............. 30
The LCD Display .................................................. 31
Cycle Setting Buttons .......................................... 33
Special Functions ................................................ 34
Custom Program ................................................. 35
Steam Functions .................................................. 35
Steam Cycle Guide .............................................. 37
THANKYOU
Congratulations on your purchase
and welcome to the LG family. Your
new LG Dryer combines the most
advanced drying sensor technology
with simple operation and high
Follow the operating and care in-
structions in this manual and your
washer will provide many years of
reliable service
OPTIONAL ACCESSORIES/
SPECIFICATIONS
Optional Accessories ........................................... 42
Pedestal Installation ............................................. 43
Stacking Kit installation ........................................ 45
Key Dimensions and Specifications ..................... 46
_WARRANTY ...................................................47
TROUBLESHOOTING
Regular Cleaning ................................................ 38
Before Calling for Service .................................... 39
2
MFL62512806 EN 0208.indd 2 2010.2.8 2:6:38 PM

IPORTANTSAFETYINST UcTIONS
READ ALL iNSTRUCTiONS BSFORE USE
followed to minimize the risk of fire or explosion, electric shock, or to prevent
property damage, personal injury, or loss of life.
Your Safety and the safety of others is very important.
We have provided many important safety messages in this manual and on your appliance. Always read
and obey all safety messages.
This isthe safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word DANGER or WARNING.
These words mean:
_DANGER." You can be killed or seriously injured if you don't immediately follow instructions.
_t, WARN|_G ==You can be killed or seriously injured if you don't follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of
injury, and tell you what can happen if the instructions are not followed.
Do not install aclothes dryer with
flexible plastic venting materials. If
flexible metal (foil type} duct is in-
stalled, it must be of a specific type
identified by the appliance manufac-
turer as suitable for use with clothes
dryers. Flexible venting materials are
known to collapse, be easily crushed,
and trap lint. These conditions will
obstruct clothes dryer airflow and
increase the risk of fire.
*Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this appliance or any other
appliances.
.Installation and service must be
performed by a qualified installer,
service agency, or the gas supplier.
,, Install the clothes dryer according to
the manufacturer's instructions and
local codes.
*Save these instructions.
WHAT TO DO IF YOU SMELL GAS:
1. Do not try to light a match or cigarette,
or turn on any gas or electrical
appliance.
2. Do not touch any electrical switches.
Do not use any phone in your building.
3. Clear the room, building, or area of all
occupants.
4. Immediately call your gas supplier
from a neighbor's phone. Follow the
gas supplier's instructions carefully.
5. If you cannot reach your gas
supplier, call the fire department.
5
MFL62512806 EN 0208.indd 3 2010.2.8 2:6:39 PM

iMPORTANTSAFETYiNSTRUCTiONS
READ ALL iNSTRUCTiONS BSFORE USE
WARNING For your safety,the information in this manual must be
followed to minimize the risk of fire or explosion, electric shock, or to prevent
property damage, personal injury, or loss of life.
BASIC SAFETY PRECAUTIONS
WARNING:
appliance, follow basic precautions, including the following:
•Read all instructions before using the dryer.
•Before use, the dryer must be properly installed
as described in this manual.
•Do not place items exposed to cooking oils in
your dryer. Items contaminated with cooking
oils may contribute to a chemical reaction that
could cause a load to catch fire.
Do not dry articles that have been previously
cleaned in, washed in, soaked in, or spotted
with gasoline, dry-cleaning solvents, or other
flammable or explosive substances as they give
off vapors that could ignite or explode.
•Do not reach into the dryer if the drum or any
other part is moving.
Do not repair or replace any part of the dryer
or attempt any servicing unless specifically
recommended in this Use and Care Guide or
in published user-repair instructionsthat you
understand and have the skills to carry out.
•Do not tamper with controls.
Before the dryer is removed from service or
discarded, remove the door to the drying
compartment.
To reduce the risk of fire, electric shock, or personal injury when using this
Do not allow children to play on or inthe dryer.
Close supervision of children is necessary when
the dryer is used near children.
Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
Do not use heat to dry articles containing
foam rubber or similarly textured rubber-like
materials.
Keep area around the exhaust opening and
adjacent surrounding areas free from the
accumulation of lint, dust, and dirt.
The interior of the dryer and exhaust vent
should be cleaned periodically by qualified
service personnel.
Do not installor store the dryer where it will be
exposed to the weather.
Always check the inside of the dryer for foreign
objects.
Clean lint screen before or after each load.
CALIFORNIA SAFE DRINKING WATER AND TOXIC ENFORCEMENT ACT
This act requires the governor of California to publish a list of substances known to the state to cause
cancer, birth defects, or other reproductive harm and requires businesses to warn customers of potential
exposure to such substances.
Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon monoxide,
formaldehyde, and soot, caused primarily by the incomplete combustion of natural gas or LP fuels.
Properly adjusted dryers will minimize incomplete combustion. Exposure to these substances can be
minimized further by properly venting the dryer to the outdoors.
4
MFL62512806 EN 0208.indd 4 2010.2.8 2:6:39 PM

IPORTANTSAFETYINST UcTIONS
READ ALL iNSTRUCTiONS BSFORE USE
,WARNING For your safety,the information in this manual must be
followed to minimize the risk of fire or explosion, electric shock, or to prevent
property damage, personal injury, or loss of life.

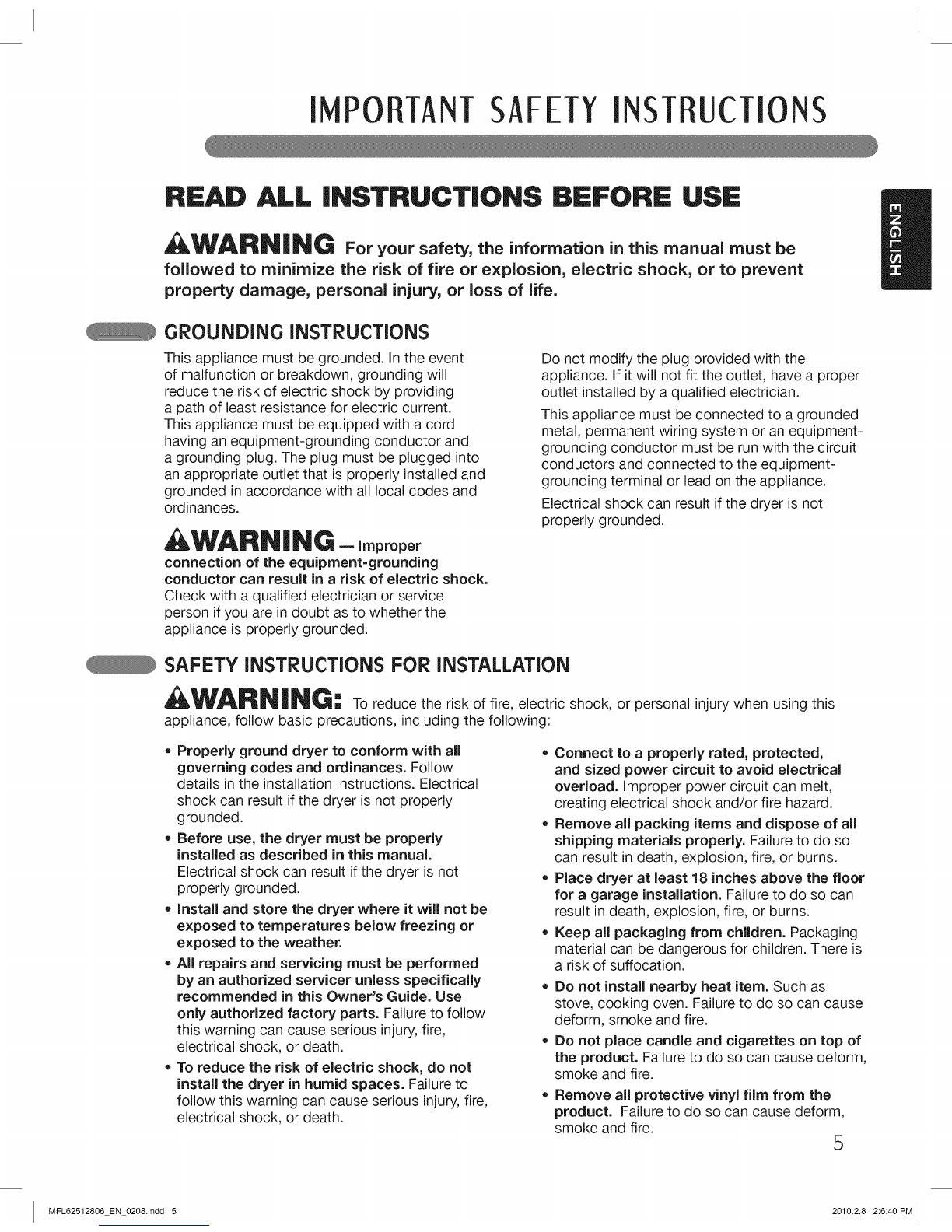

GROUNDING iNSTRUCTiONS
This appliance must be grounded. In the event
of malfunction or breakdown, grounding will
reduce the risk of electric shock by providing
a path of least resistance for electric current.
This appliance must be equipped with a cord
having an equipment-grounding conductor and
a grounding plug. The plug must be plugged into
an appropriate outlet that is properly installed and
grounded in accordance with all local codes and
ordinances.
,WARNING- Improper
connection of the equipment=grounding
conductor can result in a risk of electric shock.
Check with a qualified electrician or service
person if you are in doubt as to whether the
appliance is properly grounded.
Do not modify the plug provided with the
appliance. If it will not fit the outlet, have a proper
outlet installed by a qualified electrician.
This appliance must be connected to a grounded
metal, permanent wiring system or an equipment-
grounding conductor must be run with the circuit
conductors and connected to the equipment-
grounding terminal or lead on the appliance.
Electrical shock can result if the dryer is not
properly grounded.

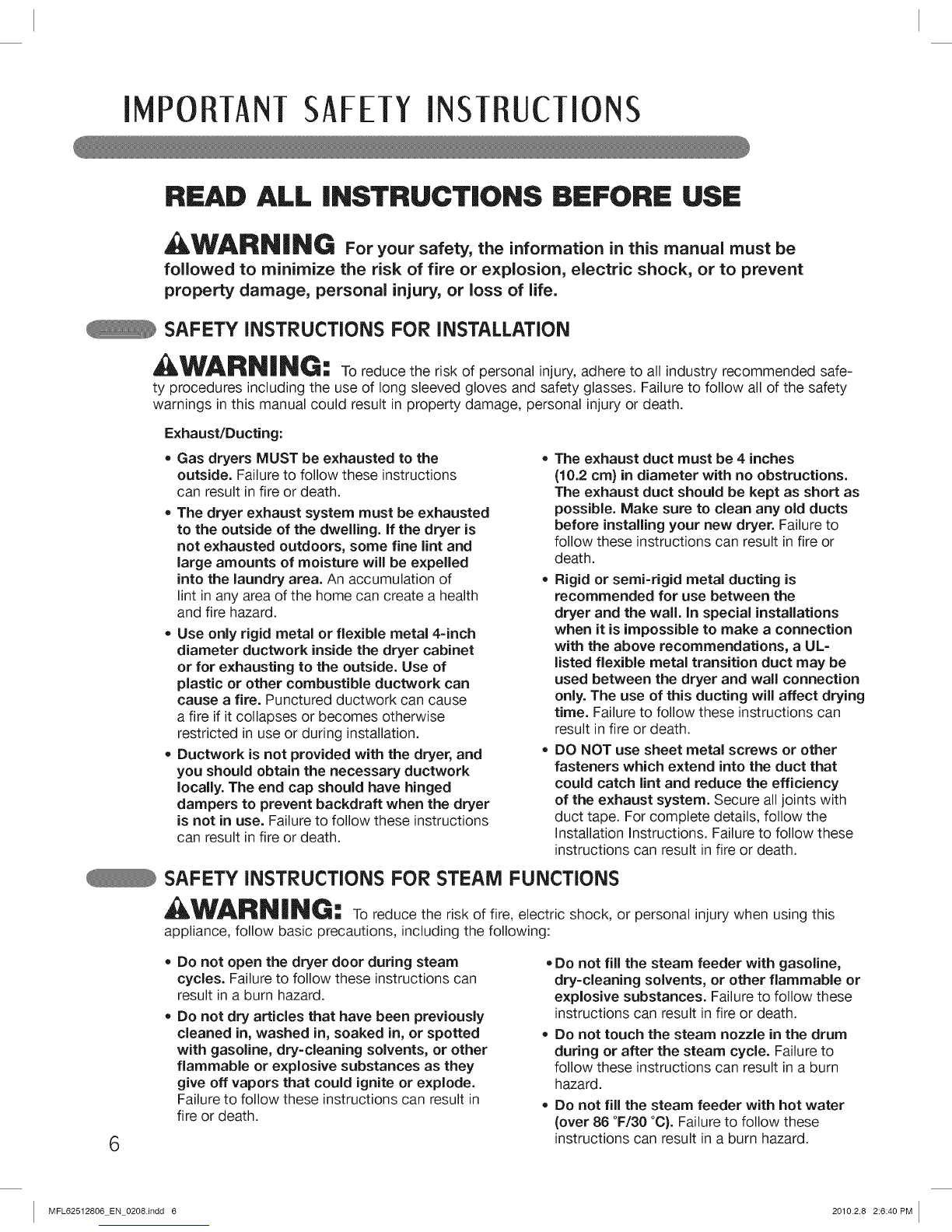

SAFETY INSTRUCTIONS FOR INSTALLATION
WARNING: To reduce the risk of fire, electric shock, or personal injury when using this
appliance, follow basic precautions, including the following:
, Properly ground dryer to conform with all
governing codes and ordinances. Follow
details in the installation instructions. Electrical
shock can result if the dryer is not properly
grounded.
•Before use, the dryer must be properly
installed as described in this manual.
Electrical shock can result if the dryer is not
properly grounded.
• install and store the dryer where it will not be
exposed to temperatures below freezing or
exposed to the weather.
,All repairs and servicing must be performed
by an authorized servicer unless specifically
recommended in this Owner's Guide. Use
only authorized factory parts. Failure to follow
this warning can cause serious injury, fire,
electrical shock, or death.
• To reduce the risk of electric shock, do not
install the dryer in humid spaces. Failure to
follow this warning can cause serious injury,fire,
electrical shock, or death.
• Connect to a properly rated, protected,
and sized power circuit to avoid electrical
overload, improper power circuit can melt,
creating electrical shock and/or fire hazard.
• Remove all packing items and dispose of all
shipping materials properly. Failure to do so
can result in death, explosion, fire, or burns.
Place dryer at least 18 inches above the floor
for a garage installation. Failure to do so can
result in death, explosion, fire, or burns.
•Keep all packaging from children. Packaging
material can be dangerous for children. There is
a risk of suffocation.
•Do not install nearby heat item. Such as
stove, cooking oven. Failure to do so can cause
deform, smoke and fire.
Do not place candle and cigarettes on top of
the product. Failure to do so can cause deform,
smoke and fire.
•Remove all protective vinyl film from the
product. Failure to do so can cause deform,
smoke and fire. 5
MFL62512806 EN 0208.indd 5 2010.2.8 2:6:40 PM

iMPORTANTSAFETYiNSTRUCTiONS
READ ALL iNSTRUCTiONS BSFORE USE
,WARNING For your safety,the information in this manual must be
followed to minimize the risk of fire or explosion, electric shock, or to prevent
property damage, personal injury, or loss of life.
SAFETY iNSTRUCTiONS FOR iNSTALLATiON
_IlbWAR_I!_ING --- To reduce the risk of personal injury, adhere to all industry recommended safe-
ty procedures including the use of long sleeved gloves and safety glasses. Failure to follow all of the safety
warnings in this manual could result in property damage, personal injury or death.
Exhaust/Ducting:
, Gas dryers MUST be exhausted to the
outside. Failure to follow these instructions
can result in fire or death.
• The dryer exhaust system must be exhausted
to the outside of the dwelling. If the dryer is
not exhausted outdoors, some fine lint and
large amounts of moisture will be expelled
into the laundry area. An accumulation of
lint in any area of the home can create a health
and fire hazard.
•Use only rigid metal or flexible metal 4=inch
diameter ductwork inside the dryer cabinet
or for exhausting to the outside. Use of
plastic or other combustible ductwork can
cause a fire. Punctured ductwork can cause
a fire if it collapses or becomes otherwise
restricted in use or during installation.
Ductwork is not provided with the dryer, and
you should obtain the necessary ductwork
locally. The end cap should have hinged
dampers to prevent backdraft when the dryer
is not in use. Failure to follow these instructions
can result in fire or death.
• The exhaust duct must be 4 inches
(10.2 cm) in diameter with no obstructions.
The exhaust duct should be kept as short as
possible. Make sure to clean any old ducts
before installing your new dryer. Failure to
follow these instructions can result in fire or
death.
•Rigid or semi-rigid metal ducting is
recommended for use between the
dryer and the wall. In special installations
when it is impossible to make a connection
with the above recommendations, a UL=
listed flexible metal transition duct may be
used between the dryer and wall connection
only. The use of this ducting will affect drying
time. Failure to follow these instructions can
result in fire or death.
, DO NOT use sheet metal screws or other
fasteners which extend into the duct that
could catch lint and reduce the efficiency
of the exhaust system. Secure all joints with
duct tape. For complete details, follow the
Installation Instructions. Failure to follow these
instructions can result in fire or death.
SAFETY INSTRUCTIONS FOR STEAM FUNCTIONS
WARNING: to reduce the risk of fire, electric shock, or personal injury when using this
appliance, follow basic precautions, including the following:
6
Do not open the dryer door during steam
cycles. Failure to follow these instructions can
result in a burn hazard.
Do not dry articles that have been previously
cleaned in, washed in, soaked in, or spotted
with gasoline, dry=cleaning solvents, or other
flammable or explosive substances as they
give off vapors that could ignite or explode.
Failure to follow these instructions can result in
fire or death.
•Do not fill the steam feeder with gasoline,
dry=cleaning solvents, or other flammable or
explosive substances. Failure to follow these
instructions can result in fire or death.
Do not touch the steam nozzle in the drum
during or after the steam cycle. Failure to
follow these instructions can result in a burn
hazard.
•Do not fill the steam feeder with hot water
(over 86 °F/30 °C). Failure to follow these
instructions can result in a burn hazard.
MFL62512806 EN 0208.indd 6 2010.2.8 2:6:40 PM

IPORTANTSAFETYINST UcTIONS
READ ALL INSTRUCTIONS BSFORE USE
WARNING For your safety,the information in this manual must be
followed to minimize the risk of fire or explosion, electric shock, or to prevent
property damage, personal injury, or loss of life.
SAFETY iNSTRUCTiONS FOR CONNECTING ELECTRiCiTY
AWARNING: To reduce the risk of fire, electric shock, or personal injury when using this
appliance, follow basic precautions, including the following:
•Do not, under any circumstances, cut or
remove the ground prong from the power
cord. To prevent personal injury or damage to
the dryer, the electrical power cord must be
plugged into a properly grounded outlet.
, For personal safety, this dryer must be
properly grounded. Failure to do so can result
in electrical shock or injury.
, Refer to the installation instructions in this
manual for specific electrical requirements
for your model. Failure to follow these
instructions can create an electrical shock
hazard and/or a fire hazard.
• This dryer must be plugged into a properly
grounded outlet. Electrical shock can result if
the dryer is not properly grounded. Have the
wall outlet and circuit checked by a qualified
electrician to make sure the outlet is properly
grounded. Failure to follow these instructions
can create an electrical shock hazard and/or a
fire hazard.
• The dryer should always be plugged into
its own individual electrical outlet which
has a voltage rating that matches the rating
plate. This provides the best performance
and also prevents overloading house wiring
circuits which could cause a fire hazard from
overheated wires.
,Never unplug your dryer by pulling on the
power cord. Always grip plug firmly and pull
straight out from the outlet. The power cord
can be damaged, resulting in a risk of fire and
electrical shock.
•Repair or replace immediately all power
cords that have become frayed or otherwise
damaged. Do not use a cord that shows
cracks or abrasion damage along its length
or at either end. The power cord can melt,
creating electrical shock and/or fire hazard.
•When installing or moving the dryer, be
careful not to pinch, crush, or damage
the power cord. This will prevent injury and
prevent damage to the dryer from fire and
electrical shock.
SAVE THESE INSTRUCTIONS
7
MFL62512806 EN 0208.indd 7 2010.2.8 2:6:40 PM

PARTSAND FEATU ES
SPECIAL FEATURES
O EASY-TO-USE CONTROL PANEL
Rotate the Cycle Selector Knob to select the
desired dry cycle. Add cycle options or adjust
settings with the touch of a button.
_) EASY-ACCESS REVERSIBLE DOOR
Wide-opening door provides easy access for
loading and unloading. Door swing can be
reversed to adjust for installation location.
d{_ ULTRA-CAPACITY STAINLESS STEEL DRUM
WITH DRUM LIGHT
The ultra-large stainless steel drum offers
superior durability. The drum is equipped with a
yellow light that illuminates when the dryer door
is open and turns off when the door is closed.
OSTEAM FUNCTIONS
LG's steam technology allows you to inject
fabrics with a swirling jet of hot steam to refresh
clothes, reduce static, and make ironing easier.
Simply select the STEAMFRESH TM cycle, or you
can add a Steam option to selected cycles.
OLCD DISPLAY SCREEN
The easy-to-read LCD screen shows cycle
options and information and provides status
messages during operation.
FLOW SENSE TM DUCT BLOCKAGE SENSING
SYSTEM INDICATOR
The FLOW SENSF mduct blockage sensing
system detects and alerts you to blockages in
the ductwork that reduce exhaust flow from the
dryer. Clean exhaust systems increase efficiency
and reduce drying times.
DUAL SENSOR+
Enhanced dual sensor possible to sense wetness
level of clothes more accurately.
Regardless of load size, it can be save a energy
and earn more uniformity dryness performance.
Protocol P154
Sanitization Performance of Resi-
dential Clothes dryer
8
MFL62512806 EN 0208.indd 8 2010.2.8 2:6:42 PM

PARTSANDFEATU ES
KEY PARTS AND COMPONENTS
In addition to the special features and
components outlined in the Special Features
section, there are several other important
components that are referenced in this manual.
FRONT-MOUNT LINT FILTER
Front-mount lint filter allows for easy access and
cleaning after every load.
OLEVELING FEET
Four leveling feet (two in the front, and two in the back)
adjust to improve dryer stability on unevenfloors,
DRYING RACK
Usethedrying rack with the RACKDRYcycleto safelydry
such itemsas sweaters,delicates andgym shoes without
tumbling or overheating. Power Cord Location
(Gas Models) Terminal Block
Access Panel
(Electric Models)
/
Gas
Connection
Location
(Gas Models)
Exhaust Duct
Outlet
Rear of Dryer
Included Accessories
O
Drying Rack 9
MFL62512806 EN 0208.indd 9 2010.2.8 2:6:44 PM

iNSTALLATiONINST UCTIONS
iMPORTANT: Read all installation instructions completely before
installing and operating your dryer!
It is important that you review this entire manual before installing and using your dryer. Detailed instructions
concerning electrical connections, gas connections, and exhaust requirements are provided on the
following pages.
INSTALLATIONLOCATION REOUIRE
[] A location that allows for proper exhaust installation. []
A gas dryer must be exhausted to the outdoors. See
Venting Requirements.
[] A grounded electrical outlet located within 2 ft.
(61 cm) of either side of the dryer. See Electrical
Requirements. []
[] A sturdy floor to support the total dryer weight of
200 Ibs (90.7 kg). The combined weight of a companion
appliance should also be considered.
MENTS
A level floor with a maximum slope of 1 inch (2.5 cm)
under entire dryer. If slope is greater than 1 inch (2.5
cm), install Extended Dryer Feet Kit. Clothes may not
tumble properly, and automatic sensor cycles may not
operate correctly ifdryer is not level.
For a garage installation, you will need to place the dryer
at least 18 inches (46 cm) above the floor. If using a
pedestal, you will need 18 inches (46 cm) to the bottom
of the dryer.
Do not operate your dryer at temperatures below 45 °F (7 °C). At lower temperatures, the dryer might not shut off at the
end of an automatic cycle. This can result in longer drying times.
The dryer must not be installed or stored in an area where it will be exposed to water and/or weather.
Check code requirements. Some codes limit, or do not permit, installation of the dryer in garages, closets, mobile
homes or sleeping quarters. Contact your local building inspector.
NOTE: No other fuel-burning appliance can be installed in the same closet as a dryer.
CLEARANCES
f
_ _'_===48 in.2.
(310cm2)-
_t I : ;ll I 24in.2._
(155crn2)
h"* _ 32£/16"_15"*4
(2.5cm)(82.65cm_(12.7crn)
olo
i_ 3 It*
(7.6 cm) 1"-_11÷ 27"÷11_-1''
(2.5ore) (68.6cm) 1"*I I_ 329,_6"-_15"*_1
(2.5cm) (2.5cm) (82.65cm)(12.7cm)
[]
[]
Installation spacing for recessed area or closet installation
The following spacing dimensions are recommended [] Additional spacing should be considered on all sides of
for this dryer. This dryer has been tested for spacing
of 0 inches (0 cm) clearance on the sides and rear.
Recommended spacing should be considered for the
following reasons:
Additional spacing should be considered for ease of
installation and servicing.
Additional clearances might be required for wall, door
and floor moldings.
[]
the dryer to reduce noise transfer.
For closet installation, with a door, minimum ventilation
openings in the top and bottom of the door are required.
Louvered doors with equivalent ventilation openings are
acceptable.
Companion appliance spacing should also be
considered.
Suggestion: There should be at least a little space around the dryer (or any other appliance) to eliminate the transfer
of vibration from one to the other. Too much vibration, it could cause them to make noise or touch each other causing
paint damage and making even more noise.
10
MFL62512806 EN 0208.indd 10 2010.2.8 2:6:45 PM

INSTAllATION INSTRUCTIONS
iNSTALLATiON WITH OPTIONAL PEDESTAL BASE OR STACKING KiT
iMPORTANT: if you are installingyour dryer using an optional pedestal base or stacking kit, please
refer to Optional Accessories in this manual or to the instructions for your pedestal or stacking kit
before proceeding with the installation.
Recommended installation spacing for cabinet installation
[] For cabinet installation, with a door, minimum ventilation openings in the top of the cabinet
are required.
7"*(17.8cm) 7"*(17.8cm)
5.... 32_16" 1"*
Dl___/L91,*
(22.9 cm)
1" 27" 1"
*Required spacing
**For side or bottom venting, 2inches
(5.1 cm) spacing is allowed.
(12.7 crn)(82.65 cm) (2.5 crn) (2.5 cm)(68.6 cm) (2.5 crn)
Recommended installation spacing for recessed or closet
installation, with stacked washer and dryer
[] The dimensions shown are for the recommended spacing.
6"*(15,2crn)
48 in.2*3;(7,6 cm)
(310 cm2) f __
-- _ *Required spacing
_-_L--_ _ __ f _ l _ **F°r side °rb°tt°mventing'2 inches
i[ .i'__ _ ';_ 76" _ (5.1 cm) spacing is
J_- 3_(7,6 cm) .... --
24in.2 , _ -_- _- 1"*(2.5cm) 5_"** -_ _- 1"-:_- ,_-27,,-_ -<- 1"
(155cm2) (14 cm) (2.5 cm) (68,6 cm) (2.5 cm)
OPTIONAL ACCESSORIES
For these and other LG products, contact your local LG dealer, or visit our Web site at us.lge.com.
Pedestal (sold separately) Stacking Kit (sold separately)
%,
11
MFL62512806 EN 0208.indd 11 2010.2.8 2:6:47 PM

INSTALLATIONINST UCTIONS
LEVELING THE DRYER
,WARNING
= Toreduce the risk of personal injury,adhere to all
industryrecommended safety procedures including
the use of long sleeved gloves and safety glasses.
• Failure to follow all of the safety warnings in this
manual could result in property damage, personal
injury or death.
To ensure that the dryer provides optimal drying
performance, it must be level. To minimize
vibration, noise, and unwanted movement, the
floor must be a perfectly level, solid surface.
NOTE: Adjust the leveling feet only as far as
necessary to level the dryer. Extending the
leveling feet more than necessary can cause
the dryer to vibrate.
_ ® e_' _ Level
Leveling Feet
Position the dryer in the final location. Place
a level across the top of the dryer.
•All four leveling feet must rest solidly on the
floor. Gently push on the top corners of the
dryer to make sure that the dryer does not
rock from corner to corner.
If you are installing the dryer on the optional
pedestal, you must use the leveling feet on the
pedestal to level the dryer. The dryer leveling feet
should be fully retracted.
Use an adjustable wrench to turn the leveling
feet. Turn clockwise to raise the dryer or
counterclockwise to lower it. Raise or lower
the leveling feet until dryer is level from
side to side and front to back.
Make sure that all 4 leveling feet are in firm
contact with the floor.
12
MFL62512806 EN 0208.indd 12 2010.2.8 2:6:48 PM

INSTAllATION INSTRUCTIONS
TO REMOVE DOOR
WARN|NG
THE DRYER DOOR IS VERY LARGE AND HEAVY. Failure to follow the instructionsbelow can result indamage
to the dryer, property damage or personal injury.
• To avoid damage to the dryer or the door, support the door with a stool or box that fits under the door, or have
an assistant support the weight of the door.
Always reverse the door BEFORE stacking the dryer on top of the washer.
Avoid dropping the door to avoid damage to the door or the floor.
Open the door to reverse.
Check screws to unravel (Left 6, Right 4).
Hinge
Dummy
Screw
Remove four dummy screws by driver.
J
f S
Latch Screw_
Remove two screws and disassembly Latch.
®,Hinge Screw
///
Hold on the hinge while remove 4 screws of
hinge (to prevent door dropping).
Door
Remove door from cabinet cover.
15
MFL62512806 EN 0208.indd 13 2010.2.8 2:6:53 PM

INSTAllATION INST UCTIONS
TO iNSTALL DOOR
WARN|NG
THE DRYER DOOR IS VERY LARGE AND HEAVY. Failure to follow the instructionsbelow can result indamage
to the dryer, property damage or personal injury.
=To avoid damage to the dryer or the door, support the door with a stool or box that fits under the door, or have
an assistant support the weight of the door.
• Always reverse the door BEFORE stacking the dryer on top of the washer,
Avoid dropping the door to avoid damage to the door or the floor,
\II
Move door to left side and insert a hinge to
hinge hole.
Hold on hinge while screw down a hinge
(to prevent door dropping).
Latch
Screw
insert latch to right side and screw down
latch.
/
/
/
/
/
Screw down four dummy screws right side.
j/
Check properly door installed by swing door.
14
MFL62512806 EN 0208.indd 14 2010.2.8 2:6:59 PM

INSTALLATIONINSTRUCTIONS
CHANGING THE DRYER VENT LOCATION
WARNING
•Use a heavy metal vent.
• Do not use plastic or thin foil duct.
Clean old ducts before installing this dryer.
Toreduce the risk of personal injury,adhere to all
industry recommended safety procedures including
the use of long sleeved gloves and safety glasses.
Failureto follow all of the safety warnings in this
manual could result in property damage, personal
injury or death.
Your new dryer is shipped to vent to the rear.
It can also be configured to vent to the bottom or side
(right-side venting is not available on gas models),
An adapter kit, part number 383EEL9001B, may be
purchased from your LG retailer.This kit contains the
necessary duct components to change the dryer vent
location.
OPTION 1: Side venting
fAdapter
Duct
Press the tabs on the knockout and carefully
remove the knockout for the desired vent
opening (right-side venting is not available on
gas models). Press the adapter duct onto the
blower housing and secure to the base of the
dryer as shown.
Plate
Elbow
(3.8 cm)
Preassemble a 4-inches (10.2 cm) elbow to the
next 4-inches (10.2 cm) duct section, and secure
all joints with duct tape. Be sure that the male
end of the elbow faces AWAY from the dryer.
Insert the elbow/duct assembly through the side
opening and press it onto the adapter duct.
Secure in place with duct tape.
Be sure that the male end of the duct protrudes
11/2inches (3.8cm) to connect the remaining
ductwork.
Attach cover plate to the back of the dryer with
included screw.
Retaining
Screw
Rear
Exhaust Duct
Remove the rear exhaust duct retaining
screw. Pull out the exhaust duct.
OPTION 2: BOttOm venting
f __r
Bracket
Press the adapter duct onto the blower
housing and secure to the base of the dryer
as shown.
Cover
Plate
Elbow
J
Insert the 4-inches (10.2 cm) elbow through
the rear opening and press it onto the
adapter duct. Be sure that the male end of
the elbow faces down through hole in the
bottom of the dryer. Secure in place with
duct tape.
Attach the cover plate to the back of the
dryer with included screw.
15
MFL62512806 EN 0208.indd 15 2010.2.8 2:7:1 PM

INSTALLATIONINST UCTIONS
VENTING THE DRYER
WARN|NG: To reduce the risk of fire, electric shock, or personal injury when using this
appliance, follow basic precautions, including the following:
•Do not crush or collapse ductwork. Failure
to follow these instructions can result in fire
or death.
•Do not allow ductwork to rest on or
contact sharp objects. Failure to follow these
instructions can result in fire or death.
•If connecting to existing ductwork, make
sure it is suitable and clean before installing
the dryer. Failure to follow these instructions
can result in fire or death.
• Venting must conform to local building
codes. Failure to follow these instructions can
result in fire or death.
Gas dryers MUST exhaust to the outdoors.
Failure to follow these instructions can result
in fire or death.
• Use only 4=inch (10.2 cm) rigid or flexible
metal ductwork inside the dryer cabinet and
for venting outside. Failure to follow these
instructions can result in fire or death.
• To reduce the risk of fire, combustion, or
accumulation of combustible gases, DO
NOT exhaust dryer air into an enclosed and
unventilated area, such as an attic, wall,
ceiling, crawl space, chimney, gas vent, or
concealed space of a building. Failure to
follow these instructions can result in fire
or death.
• To reduce the risk of fire, DO NOT exhaust
the dryer with plastic or thin foil ducting.
Failure to follow these instructions can result
in fire or death.
• The exhaust duct must be 4 inches
(10.2 cm} in diameter with no obstructions.
The exhaust duct should be kept as short as
possible. Make sure to clean any old ducts
before installing your new dryer. Failure to
follow these instructions can result in fire or
death.
,Rigid or semirigid metal ducting is
recommended for use between the dryer
and the wall. in special installations when
it is impossible to make a connection with
the above recommendations, a UL=listed
flexible metal transition duct may be used
between the dryer and wall connection only.
The use of this ducting will affect drying
time. Failure to follow these instructions can
result in fire or death.
, DO NOT use sheet metal screws or other
fasteners which extend into the duct that
could catch lint and reduce the efficiency
of the exhaust system. Secure all joints
with duct tape. Failure to follow these
instructions can result in fire or death.
• To maximize operating results, please
observe the duct length limitations noted in
the chart on page 17. Failure to follow these
instructions can result in fire or death.
Ductwork is not provided with the dryer.
You should obtain the necessary ductwork
locally. The end cap should have hinged
dampers to prevent backdraft when the
dryer is not in use. Failure to follow these
instructions can result in fire or death.
• The Total length of flexible metal duct shall
not exceed 8 ft. (2.4m)
• in Canada, that only those foil-type flexible
ducts, if any, specifically identified for use
with the appliance by the manufacturer
shall be used. In the United States, that only
those foil-type flexible ducts, if any, specifically
identified for use with the appliance by the
manufacturer and that comply with the Outline
for Clothes Dryer Transition Duct, Subject
2158A, shall be used.
16
MFL62512806 EN 0208.indd 16 2010.2.8 2:7:2 PM

INSTALLATIONINSTRUCTIONS
VENTING THE DRYER (cont.)
DUCtWOrk
Recommended
(10.2 cm) (10.2 cm)
Use Only for Short
Run Installations
(6.35 cm)
0
1
2
3
4
0
1
2
3
4
65 ft. (19.8 m)
55 ft. (16.8 m)
47 ft. (13.7 m)
36 ft. (11.0 m)
28ft.
55 ft. (16.8 m)
47 ft. (13.7 m)
41 ft. (12.5 m)
30 ft. (9.1 m)
22 ft. (6.7 m)
NOTE: Deduct 6 ft. (1.8 m) for each additional elbow. It is not recommended to use more than four 90° elbows.
ROuting and Connecting Ductwork
Follow the guidelines below to maximize drying
performance and reduce lint buildup and
condensation in the ductwork.
NOTE: Ductwork and fittings are NOT included
and must be purchased separately.
• Use 4-inch (10.2 cm) diameter rigid or semirigid
metal ductwork.
• The exhaust duct run should be as short as
possible.
• Use as few elbow joints as possible.
• The male end of each section of exhaust duct
must point away from the dryer.
• Use duct tape on all duct joints.
• Insulate ductwork that runs through unheated
areas in order to reduce condensation and lint
buildup on duct surfaces.
IMPORTANT: Failure to exhaust the dryer
correctly will void the dryer's warranty.
Correct Venting
I
Incorrect Venting
17
MFL62512806 EN 0208.indd 17 2010.2.8 2:7:4 PM

INSTALLATIONINST UCTIONS
cONNEcTiNG GAS DRYERS
WARN|NG:
appliance, follow basic precautions, including the following:
•Gas supply requirements: •
As shipped from the factory, this dryer is
configured for use with natural gas. it can be
converted for use with LP (Liquefied Propane)
gas. Gas pressure must not exceed 13 inches
of water column.
• A qualified service or gas company technician
must connect the dryer to the gas service.
Failure to do so can result in fire, explosion,
or death.
• Isolate the dryer from the gas supply system •
by closing its individual manual shutoff valve
during any pressure testing of the gas supply.
Failure to do so can result in fire, explosion,
or death.
• Supply line requirements:
Your laundry room must have arigid gas
supply line to your dryer, in the United States,
an individual manual shutoff valve MUST be .
installed within at least 6 ft. (1.8 m) of the dryer,
in accordance with the National Fuel Gas Code o
ANSI Z223.1 or Canadian gas installation code
CSA B149.1. A 1/8- inch NPT pipe plug must
be installed. Failure to do so can result in fire,
explosion, or death o
• If using a rigid pipe, the rigid pipe should be
1/2- inch IPS. If acceptable under local codes
and ordinances and when acceptable to your
gas supplier, 3/8- inch approved tubing may be
used where lengths are less than 20 ft.
(6.1 m). Larger tubing should be used for
lengths in excess of 20 ft. (6.1 m). Failure to do
so can result in fire, explosion, or death.
To reduce the risk of fire, electric shock, or personal injury when using this
Connect the dryer to the type of gas shown on
the nameplate. Failure to do so can result in fire,
explosion, or death.
To prevent contamination of the gas valve,
purge the gas supply of air and sediment
before connecting the gas supply to the dryer.
Before tightening the connection between the
gas supply and the dryer, purge remaining air
until the odor of gas is detected. Failure to do
so can result in fire, explosion, or death.
DO NOT use an open flame to inspect for gas
leaks. Use anoncorrosive leak-detection fluid.
Failure to do so can result in fire, explosion, or
death.
Use only anew AGA- or CSA-certified gas
supply line with flexible stainless steel
connectors. Failure to do so can result in fire,
explosion, or death.
Securely tighten all gas connections. Failure
to do so can result in fire, explosion, or death.
Use Teflon ®tape or a pipe-joint compound that
is insoluble in Liquefied Petroleum (LP) gas on
all pipe threads. Failure to do so can result in fire,
explosion, or death.
DO NOT attempt any disassembly of the dryer;
any disassembly requires the attention and
tools of an authorized and qualified service
person or company. Failure to do so can result
in fire, explosion, or death.
18
Electrical Requirements for Gas MOdelS Only
&WARN|NG: to reduce the risk of fire, electric shock, or personal injury when using this
appliance, follow basic precautions, including the following:
•Do not, under any circumstances, cut or
remove the third (ground) prong from the power
cord. Failure to follow this warning can result in
fire, explosion, or death.
For personal safety, this dryer must be properly
grounded. Failure to follow this warning can result
in fire, explosion, or death.
The power cord of this dryer is equipped with
a 3-prong (grounding) plug which mates with
astandard 3-prong (grounding) wall outlet
to minimize the possibility of electric shock
hazard from this appliance. Failure to follow this
warning can result in fire, explosion, or death.
• This dryer must be plugged into a
20-amp, 120 VAC. grounded outlet protected by
a15-ampere fuse or circuit breaker. Failure to
follow this warning can result in fire, explosion,
or death.
• Where astandard 2-prong wall outlet is
encountered, it is your personal responsibility
and obligation to have it replaced with a
properly grounded 3-prong wall outlet. Failure
to follow this warning can result in fire, explosion,
or death.
MFL62512806 EN 0208.indd 18 2010.2.8 2:7:4 PM

INSTALLATIONINSTRUCTIONS
CONNECTING GAS DRYERS (cont.)
WARNiNG:
appliance, follow basic precautions, including the following:
•Installation and service must be performed •
by a qualified installer, service agency, or the
gas supplier. Failure to do so can result in fire,
explosion, or death.
Use only a new stainless steel flexible
connector and a new AGA=certified
connector. Failure to do so can result in fire, =
explosion, or death.
A gas shutoff valve must be installed within
6 ft. (1.8 m) of the dryer. Failure to do so can
result in fire, explosion, or death.
The dryer is configured for Natural Gas when
shipped from the factory. Make sure that the
dryer is equipped with the correct burner
orifice for the type of gas being used (Natural
Gas or Liquefied Petroleum). Failure to do so
can result in fire, explosion, or death.
To reduce the risk of fire, electric shock, or personal injury when using this
if necessary, the correct orifice (for the LP
orifice kit order part number 4948EL4002B}
should be installed by a qualified technician
and the change should be noted on the dryer.
Failure to do so can result in fire, explosion,
or death.
All connections must be in accordance with
local codes and regulations. Failure to do so
can result in fire, explosion, or death.
Gas dryers MUST exhaust to the outdoors.
Failure to do so can result in fire, explosion,
or death.
Connecting the Gas Supply
O Make sure that the gas supply to the laundry
room is turned OFR Confirm that the type
of gas available in your laundry room is
appropriate for the dryer. The dryer is
prepared for Natural Gas with a %- inch NPT
gas connection.
_t Remove the shipping cap from the gas
connection at the back of the dryer. Be
careful not to damage the threads of the gas
connector when removing the shipping cap.
O Connect the dryer to your laundry room's gas
supply using a new flexible stainless steel
connector with a %- inch NPT fitting.
O Securely tighten all connections between the
dryer and your laundry room's gas supply.
Turn on your laundry room's gas supply and
check all pipe connections (both internal and
external) for gas leaks with a noncorrosive
leak-detection fluid.
Electrical Connection
Plug dryer into a
120 VAC, 60 Hz
grounded 3-prong
outlet.
,1/8" NPT Pipe
3/8" NPT Gas Plug
Connection Supply
Shutoff Valve
AGA!CSA-Certified
Stainless Steel
Flexible Connector
Hig#-Altitude Installations
The BTU rating of this dryer isAGA-certified for
elevations below 10,000 feet.
If your gas dryer is being installed at an elevation
above 10,000 feet, it must be derated by a
qualified technician or gas supplier.
19
MFL62512806 EN 0208.indd 19 2010.2.8 2:7:5 PM

INSTALLATIONINST UCTIONS
cONNEcTiNG ELEcTRic DRYERS
_WARN |_li!_G -= To help prevent fire, electric shock, serious injury, or death, the wiring and
grounding must conform to the latest edition of the National Electrical Code, ANSI/NFPA 70 and all
applicable local regulations. Please contact a qualified electrician to check your home's wiring and
fuses to ensure that your home has adequate electrical power to operate the dryer.
2O
Electrical Requirements for Electric MOdelS Only
WARN|NG: To reduce the risk of fire, electric shock, or personal injury when using this
appliance, follow basic precautions, including the following:
•This dryer must be connected to a grounded
metal, permanent wiring system, or an
equipment=grounding conductor must
be run with the circuit conductors and
connected to the equipment=grounding
terminal or lead on the dryer. Failure to do
so can result in fire, explosion, or death.
•The dryer has its own terminal block that
must be connected to a separate 240 VAC,
60=Hertz, single=phase circuit, fused at 30
amperes (the circuit must be fused on both
sides of the line). ELECTRICAL SERVICE
FOR THE DRYER SHOULD BE OF THE
MAXIMUM RATE VOLTAGE LISTED ON THE
NAMEPLATE. DO NOT CONNECT DRYER TO
110=, 115=, OR 120=VOLT CIRCUIT. Heating
elements are available for field installation
in dryers which are to be connected to an
electrical service of a different voltage than
that listed on the rating plate. Failure to follow
these instructions can result in fire, explosion,
or death.
if branch circuit to dryer is 15 ft. (4.5 m)
or less in length, use UL (Underwriters
Laboratories) listed No.=10 AWG wire
(copper wire only), or as required by local
codes, if over 15 ft. (4.50 m), use UL=listed
No.=8 AWG wire (copper wire only), or as
required by local codes. Allow sufficient
slack in wiring so dryer can be moved from
its normal location when necessary. Failure
to do so can result in fire, explosion, or death.
The power cord (pigtail) connection between
wall receptacle and dryer terminal block
IS NOT supplied with dryer. Type of pigtail
and gauge of wire must conform to local
codes and with instructions on the following
pages. Failure to follow these instructions can
result in fire, explosion, or death.
A 4-wire connection is required for all mobile
and manufactured home installations, as
well as all new construction after January
1, 1996. A 4-wire connection must be used
where local codes do not permit grounding
through the neutral wire. Failure to do so can
result in fire, explosion, or death.
_WAR_I_I_|NG= = To reduce the risk of fire, electric shock, or personal injury when using this
appliance, follow basic precautions, including the following:
•Do not modify the plug and internal wire
provided with the dryer.
•The dryer should be connected to 4-hole outlet.
•If it does not fit the outlet, a proper outlet will
need to be installed by a qualified electrician.
Special Electrical Requirements for Mobile or Manufactured Homes
_ll_W_,R_lt_ | _!II_G -u TOreduce the risk of fire, electric shock, or personal injury when using this
appliance, follow basic precautions, including the following:
•Any installation in a manufactured or mobile
home must comply with the Manufactured
Home Construction and Safety Standards
Title 24 CFR, Part 32-80 or Standard CAN/
CSAOZ240 MH and local codes and ordinances.
•A 4-wire connection is required for all mobile
and manufactured home installations, as well
as all new construction after January 1, 1996.
Failure to do so can result in fire, explosion,
or death.
MFL62512806 EN 0208.indd 20 2010.2.8 2:7:5 PM
