LG GD1329CGS User manual

COMMERCIAL DRYER
OWNER'S MANUAL
Please read this manual carefully before operating
your dryer and retain it for future reference.
MODEL
GD1329CGS / GD1329CES
GD1329CGU / GD1329CEU
GD1329CGD / GD1329CED
GD1329QGS / GD1329QES
GD1329QGU / GD1329QEU
GD1329QGD / GD1329QED
P/NO. : MFL62512817

2
PRODUCT FEATURES
CONTENTS
OUTSTANDING PERFORMANCE
The dryer features the largest capacity, quick drying times, quiet operation, and an
energy-saving system.
STAINLESS STEEL DRUM
Stainless steel drum doesn’t rust.
ARTISTIC DESIGN
Modern front panel look and big clear glass door make your dryer look stylish
EASY OF USE
An entire selection of user-friendly functions makes operating the dryer easy.
ULTRA CAPACITY
The larger drum enables better tumbling and less tangling and wrinkling of the laundry.
PART 1. IMPORTANT SAFETY INSTRUCTIONS ................................................................................................. 3
PART 2. SPECIFCATIONS .................................................................................................................................... 8
PART 3. IDENTIFICATION ..................................................................................................................................... 9
PART 4. OPERATING YOUR DRYER ................................................................................................................. 12
PART 5. PROGRAMMING MODE ....................................................................................................................... 13
PART 6. ERROR MODE ...................................................................................................................................... 38
PART 7. POWER FAIL RECOVERY ................................................................................................................... 38
PART 8. DEFAULT DRYER SETTINGS .............................................................................................................. 38
PART 9. WARRANTY .......................................................................................................................................... 39

3
Part 1 IMPORTANT SAFETY INSTRUCTIONS
• Read all instructions before using the dryer.
• Before use, the dryer must be properly installed as
described in this manual.
• Do not place items exposed to cooking oils in your
dryer. Items contaminated with cooking oils may
contribute to a chemical reaction that could cause
a load to catch fire.
• Do not dry articles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry-cleaning solvents, or other
flammable or explosive substances as they give
off vapors that could ignite or explode.
• Do not reach into the dryer if the drum or any other
part is moving.
• Do not repair or replace any part of the dryer or
attempt any servicing unless specifically
recommended in this Use and Care Guide or in
published user-repair instructions that you
understand and have the skills to carry out.
• Do not tamper with controls.
• Before the dryer is removed from service or
discarded, remove the door to the drying
compartment.
• Do not allow children to play on or in the dryer.
Close supervision of children is necessary when
the dryer is used near children.
• Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
• Do not use heat to dry articles containing foam
rubber or similarly textured rubber-like materials.
• Keep area around the exhaust opening and
adjacent surrounding areas free from the
accumulation of lint, dust, and dirt.
• The interior of the dryer and exhaust vent should
be cleaned periodically by qualified service
personnel.
• Do not install or store the dryer where it will be
exposed to the weather.
• Always check the inside of the dryer for foreign
objects.
• Clean lint screen before or after each load.
Your Safety and the safety of others is very important.
BASIC SAFETY PRECAUTIONS
You can be killed or seriously injured if you don’t immediately follow instructions.
You can be killed or seriously injured if you don’t follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the
chance of injury, and tell you what can happen if the instructions are not followed.
We have provided many important safety messages in this manual and on your appliance.
Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word DANGER or WARNING.
These words mean:
READ ALL INSTRUCTIONS BEFORE USE
For your safety, the information in this manual must be followed to minimize the risk
of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.
DANGER:
WARNING:
To reduce the risk of fire, electric shock, or injury to persons when using
this appliance, follow basic precautions, including the following:
WARNING:
WARNING

• Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this appliance or
any other appliances.
• Installation and service must be performed by a
qualified installer, service agency, or the gas
supplier.
1. Do not try to light a match or cigarette, or turn on
any gas or electrical appliance.
2. Do not touch any electrical switches. Do not use
any phone in your building.
3. Clear the room, building, or area of all occupants.
4. Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions carefully.
5. If you cannot reach your gas supplier, call the fire
department.
READ ALL INSTRUCTIONS BEFORE USE
WHAT TO DO IF YOU SMELL GAS:
CALIFORNIA SAFE DRINkING WATER AND TOXIC ENFORCEMENT ACT
This act requires the governor of California to publish a list of substances known to the state to
cause cancer, birth defects, or other reproductive harm and requires businesses to warn customers
of potential exposure to such substances.
Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon
monoxide, formaldehyde, and soot, caused primarily by the incomplete combustion of natural gas or
LP fuels.
Properly adjusted dryers will minimize incomplete combustion. Exposure to these substances can
be minimized further by properly venting the dryer to the outdoors.
4
Part 1 IMPORTANT SAFETY INSTRUCTIONS
For your safety, the information in this manual must be followed to minimize the risk of
fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.
WARNING

— Improper connection of
the equipment-grounding conductor can result in a
risk of electric shock. Check with a qualified
electrician or service
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using this
appliance, follow basic precautions, including the following:
WARNING
5
Part 1 IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
For your safety, the information in this manual must be followed to minimize the risk
of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.
WARNING
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of
malfunction or breakdown, grounding will reduce the
risk of electric shock by providing a path of least
resistance for electric current. This appliance must
be equipped with a cord having an equipment-
grounding conductor and a grounding plug. The plug
must be plugged into an appropriate outlet that is
properly installed and grounded in accordance with
all local codes and ordinances.
person if you are in doubt as to whether the
appliance is properly grounded.
Do not modify the plug provided with the appliance.
If it will not fit the outlet, have a proper outlet
installed by a qualified electrician.
This appliance must be connected to a grounded
metal, permanent wiring system or an equipment-
grounding conductor must be run with the circuit
conductors and connected to the equipment-
grounding terminal or lead on the appliance.
Electrical shock can result if the dryer is not properly
grounded.
SAFETY INSTRUCTIONS FOR INSTALLATION
•Properly ground dryer to conform with all
governing codes and ordinances. Follow details
in the installation instructions. Electrical shock can
result if the dryer is not properly grounded.
•Before use, the dryer must be properly
installed as described in this manual.
Electrical shock can result if the dryer is not
properly grounded.
•Install and store the dryer where it will not be
exposed to temperatures below freezing or
exposed to the weather.
•All repairs and servicing must be performed by
an authorized servicer unless specifically
recommended in this Owner’s Guide. Use only
authorized factory parts. Failure to follow this
warning can cause serious injury, fire, electrical
shock, or death.
•To reduce the risk of electric shock, do not
install the dryer in humid spaces. Failure to
follow this warning can cause serious injury, fire,
electrical shock, or death.
•Connect to a properly rated, protected, and
sized power circuit to avoid electrical overload.
Improper power circuit can melt, creating electrical
shock and/or fire hazard.
•Remove all packing items and dispose of all
shipping materials properly. Failure to do so can
result in death, explosion, fire, or burns.
•Place dryer at least 18 in. above the floor for a
garage installation. Failure to do so can result in
death, explosion, fire, or burns.
•Keep all packaging from children. Packaging
material can be dangerous for children. There is a
risk of suffocation.
•Keep the area underneath and around your
appliances free of combustible materials such
as lint, paper, rags, chemicals, etc. Failure to do
so can result in fire.

6
Part 1 IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
For your safety, the information in this manual must be followed to minimize the risk
of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using this
appliance, follow basic precautions, including the following:
WARNING:
SAFETY INSTRUCTIONS FOR INSTALLATION
Exhaust/Ducting:
•Gas dryers MUST be exhausted to the outside.
Failure to follow these instructions can result in fire
or death.
•The dryer exhaust system must be exhausted
to the outside of the dwelling. If the dryer is
not exhausted outdoors, some fine lint and
large amounts of moisture will be expelled into
the laundry area. An accumulation of lint in any
area of the home can create a health and fire
hazard.
•Use only rigid metal or flexible metal 4-in.
diameter ductwork inside the dryer cabinet or
for exhausting to the outside. Use of plastic or
other combustible ductwork can cause a fire.
Punctured ductwork can cause a fire if it collapses
or becomes otherwise restricted in use or during
installation.
•Ductwork is not provided with the dryer, and
you should obtain the necessary ductwork
locally. The end cap should have hinged
dampers to prevent backdraft when the dryer
is not in use. Failure to follow these instructions
can result in fire or death.
•The exhaust duct must be 4 in. (10 cm) in
diameter with no obstructions. The exhaust
duct should be kept as short as possible. Make
sure to clean any old ducts before installing
your new dryer. Failure to follow these
instructions can result in fire or death.
•Rigid or semi rigid metal ducting is
recommended for use between the dryer and
the wall. In special installations when it is
impossible to make a connection with the
above recommendations, a UL-listed flexible
metal transition duct may be used between the
dryer and wall connection only. The use of this
ducting will affect drying time. Failure to follow
these instructions can result in fire or death.
•DO NOT use sheet metal screws or other
fasteners which extend into the duct that could
catch lint and reduce the efficiency of the
exhaust system. Secure all joints with duct tape.
For complete details, follow the Installation
Instructions. Failure to follow these instructions
can result in fire or death.
•Do not open the dryer door during steam
cycles. Failure to follow these instructions can
result in a burn hazard.
•Do not dry articles that have been previously
cleaned in, washed in, soaked in, or spotted
with gasoline, dry-cleaning solvents, or other
flammable or explosive substances as they
give off vapors that could ignite or explode.
Failure to follow these instructions can result in fire
or death.
•Do not fill the steam feeder with gasoline, dry-
cleaning solvents, or other flammable or
explosive substances. Failure to follow these
instructions can result in fire or death.
•Do not touch the steam nozzle in the drum
during or after the steam cycle. Failure to follow
these instructions can result in a burn hazard.
•Do not fill the steam feeder with hot water
(over 86° F / 30° C). Failure to follow these
instructions can result in a burn hazard.
SAFETY INSTRUCTIONS FOR STEAM FUNCTIONS

7
Part 1 IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
SAVE THESE INSTRUCTIONS
For your safety, the information in this manual must be followed to minimize the risk
of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.
WARNING
SAFETY INSTRUCTIONS FOR CONNECTING ELECTRICITY
To reduce the risk of fire, electric shock, or injury to persons when using this
appliance, follow basic precautions, including the following:
WARNING:
•Do not, under any circumstances, cut or
remove the ground prong from the power cord.
To prevent personal injury or damage to the dryer,
the electrical power cord must be plugged into a
properly grounded outlet.
•For personal safety, this dryer must be
properly grounded. Failure to do so can result in
electrical shock or injury.
•Refer to the installation instructions in this
manual for specific electrical requirements for
your model. Failure to follow these instructions
can create an electrical shock hazard and/or a fire
hazard.
•This dryer must be plugged into a properly
grounded outlet. Electrical shock can result if
the dryer is not properly grounded. Have the
wall outlet and circuit checked by a qualified
electrician to make sure the outlet is properly
grounded. Failure to follow these instructions can
create an electrical shock hazard and/or a fire
hazard.
•The dryer should always be plugged into its
own individual electrical outlet which has a
voltage rating that matches the rating plate.
This provides the best performance and also
prevents overloading house wiring circuits which
could cause a fire hazard from overheated wires.
•Never unplug your dryer by pulling on the
power cord. Always grip plug firmly and pull
straight out from the outlet. The power cord can
be damaged, resulting in a risk of fire and
electrical shock.
•Repair or replace immediately all power cords
that have become frayed or otherwise
damaged. Do not use a cord that shows cracks
or abrasion damage along its length or at
either end. The power cord can melt, creating
electrical shock and/or fire hazard.
•When installing or moving the dryer, be careful
not to pinch, crush, or damage the power cord.
This will prevent injury and prevent damage to the
dryer from fire and electrical shock.
•To reduce the risk of personal injury, adhere to
all industry recommended safety procedures
including the use of long sleeved gloves and
safety glasses. Failure to follow all of the safety
warnings in this manual could result in property
damage, personal injury or death.

8
Part 2 SPECIFICATIONS
■Type : Electric and Gas Dryer
■Rating : Please refer to the rating label regarding detailed information.
■Size : 686mm(W) x 764mm(H) x 983mm(D)
■Capacity : IEC 7.1 cu.ft. (22.5 lb)
■Weight : 131 Ibs (59.4 kg)
❋ Specifications are subject to change by manufacturer.
Specifications subject to change by manufacturer.
Note

9

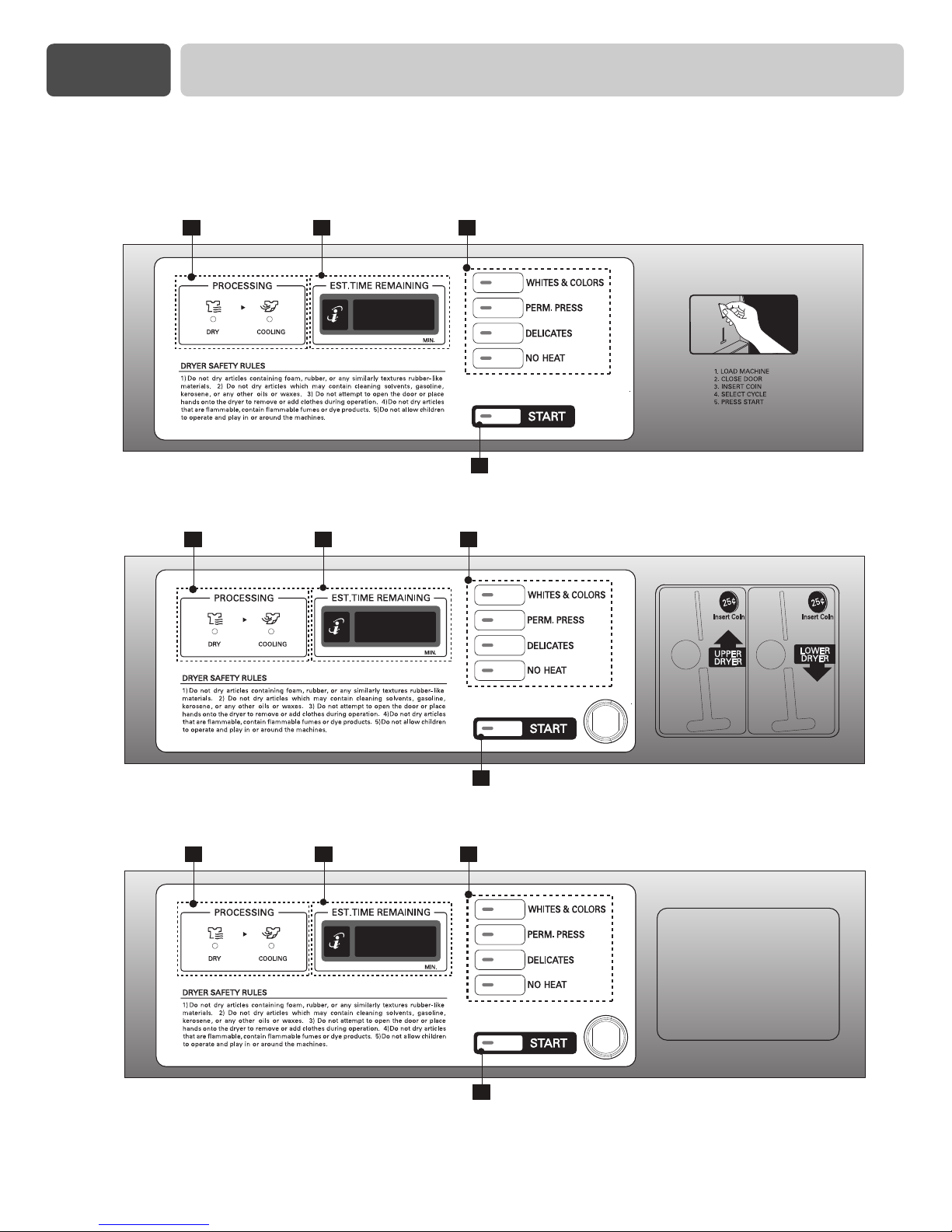

IDENTIFICATIONPart 3
■ CARD TYPE
- SIDE BY SIDE(GD1329CGS, GD1329CES)
■ CARD TYPE
- STACK UPPER(GD1329CGU, GD1329CEU)
STACK LOWER(GD1329CGD, GD1329CED)
1. DISPLAY LED
2. CYCLE BUTTON
3. START BUTTON
4. STATUS LED
1 24
3
1 24
3

10
Part 3 IDENTIFICATION
■ COIN TYPE
- STACK LOWER(GD1329QGD, GD1329QED)
■ COIN TYPE
- STACK UPPER(GD1329QGU, GD1329QEU)
1. DISPLAY LED
2. CYCLE BUTTON
3. START BUTTON
4. STATUS LED
1 24
3
1 24
3
■ COIN TYPE
- SIDE BY SIDE(GD1329QGS, GD1329QES)
1 24
3

11
Part 3 IDENTIFICATION

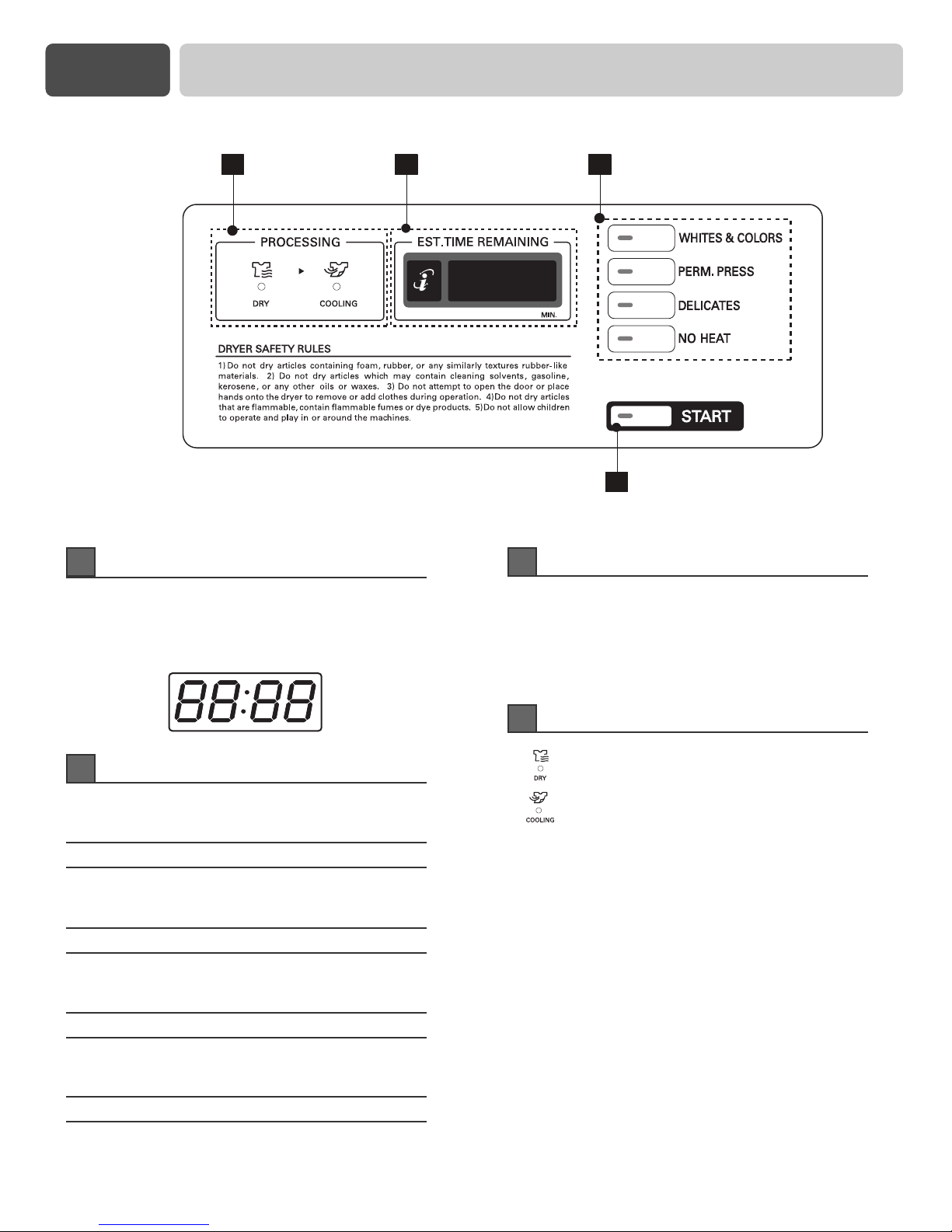

The START LED flashes when the full vend price
has been satisfied then the cycle has been chosen or
the machine is paused.
The START LED flashes when a card is inserted to
add time to the current cycle.
33START BUTTON
• LED flashes whenever the heating
cycle is in operation.
• LED flashes whenever the cool down
cycle is in operation.
44STATUS LED
Press the cycle button to Select the desired cycle
based on laundry types and conditions.
Use this cycle to get high heat for heavy fabrics,
such as jeans corduroys or work clothes (High heat).
22CYCLE BUTTON
WHITES AND COLORS
The Display shows the vend price, remaining time,
and programming options.
Error codes are also displayed here.
11DISPLAY LED
Use for drying sturdy fabrics such as work casual
clothes (Medium heat).
PERMANENT PRESS
Use for drying synthetic fabrics,washable knit
fabrics and no-iron finishes (Low heat).
DELICATES
Use for items that require
heat-free drying such as plastics or rubber.
NO HEAT
START BUTTON
DISPLAY LEDSTATUS LED CYCLE BUTTON
1 24
3

12

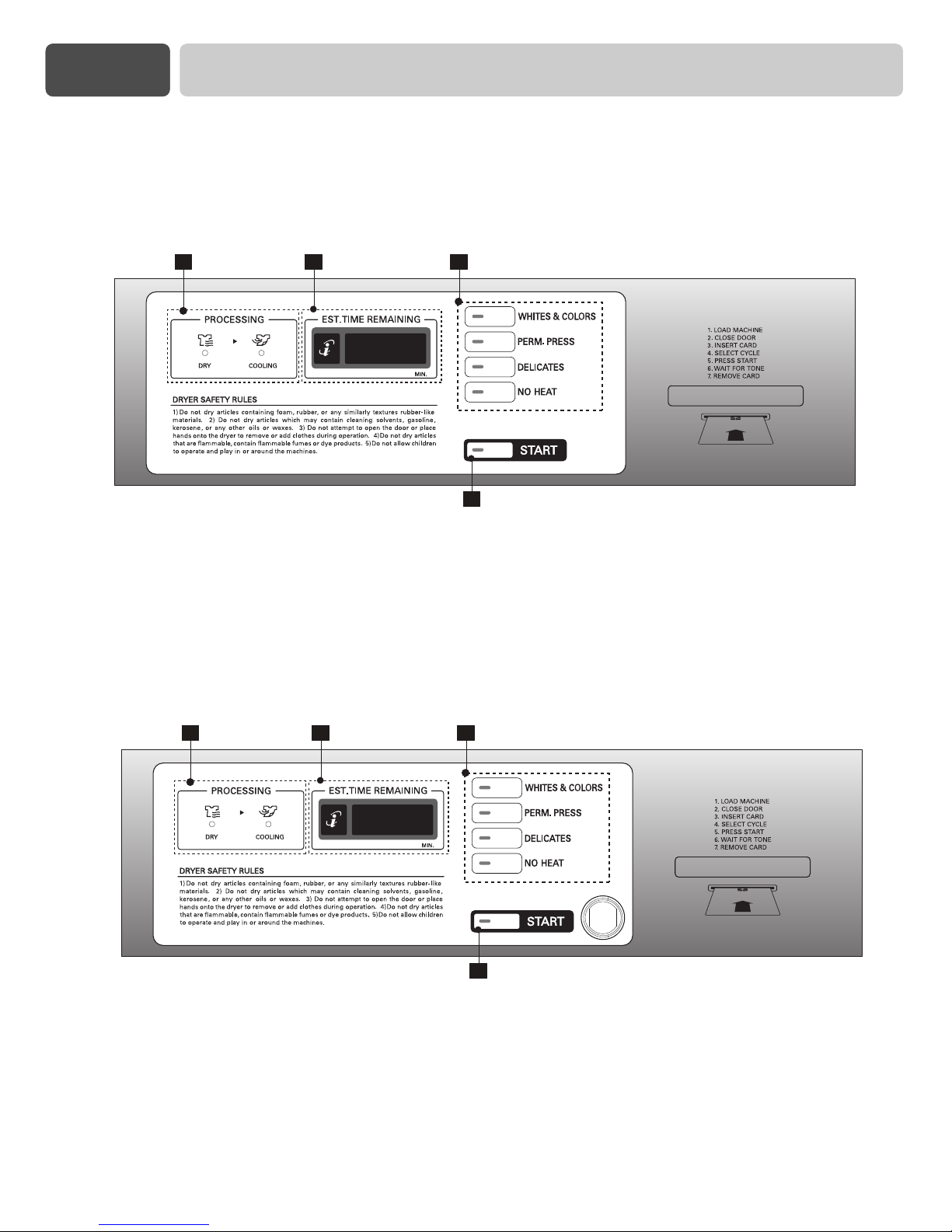

Part 4 OPERATING YOUR DRYER
The display LED shows each cycle price and cycle
LED toggle.
11Ready mode
Insert a cash card that has a sufficient balance.
The card balance should be more than the
programmed vend price for a selected cycle.
Insert a sufficient amount of change that is a more
than the programmed vend price for a selected
cycle.
22Insert card/coin
Press the desired cycle and the start button. The
display LED will show the remaining time and the
selected cycle starts.
33Select the cycle
You cannot change the cycle while the machine is
running.
But if the door is opened, the machine stops
temporarily and the cycle can be changed.
55Change cycle
After the COOL DOWN of cycle, the machine
stops and LED display shows End.
If you press any key or open the door, the dryer
defaults to the ready mode.
66Cycle finish
After a debit card is inserted, the operating
time can be increased to 15 minutes/25¢
(default), when the START button or the
chosen course button has been pressed.
(The card should have enough balance to
satisfy increasing time.)
The operating time can be increased to 15
minutes/25¢ (default) by adding more coins.
When the COOL DOWN has been working, if
time is added, it goes back to the DRYING.
Time can be added up 99 minutes.
44Top off (To add more time)
When the card balance is not enough, machine
displays the balance for 5 seconds and then
displays message repetitively
Note
When the coin amount is not enough, the
machine will not start.
Note
The last 2 minutes of the remaining time are
always for the cool down portion.
Note
Owner can control the additional time and
money setting (top off price).
Note

13
Part 5 PROGRAMMING MODE
- Card Type
1) Insert service card.
2) Display will show
- Coin Type
1) Dissemble upper coin box key.
2) Take out the coin drop from the coin box.
3) Turn on/off the toggle switch at the back of the
coin box.
4) Display will show “ ”.
Press button
WHITES AND
COLORS
PERMANENT
PRESS
DELICATES
NO HEAT
START
Description
Move to upper level
Move to the mode in the
same level (+)
Move to the modes in the
same level (-)
-
Enter the selected mode
Coin Vault
Coin Box Key
COIN TYPE CARD TYPE
Insert debit card
• If you turn on the power without connecting the meter case for the first time, the machine will display .
• When the machine comes from the factory, it is set in the coin type. You can change Card/Coin type by button.
(For more information refer to SETUP mode’s .)
Note
You can enter programming mode
only for Idle state and pause state.
How to enter "Programming mode"
You can change Dryer vend price, cycle time and
Cycle parameters, etc.
How to use button
You can check machine information or change setting on Program setup or Diagnostic test.
There are two methods that you can enter programming mode.
11Programming mode
22Check the programming mode by button

14
Part 5 PROGRAMMING MODE
• Do not use , .
• It is only used in inspecting the machine.
Note
1. Turn on/off toggle switch or Insert the service card to entering set up mode.
2. Press WHITES AND COLORS button to move the upper level.
3. Press PERM PRESS(+) or DELICATES(-) button if you want to be at the same level.
4. Press START button to enter the details of Set up, Diagnostic Tests mode.
is to set price value, time value and vend type etc.
consists of line test, reset, free cycle and kill cycle.
Is to collect the usage data.

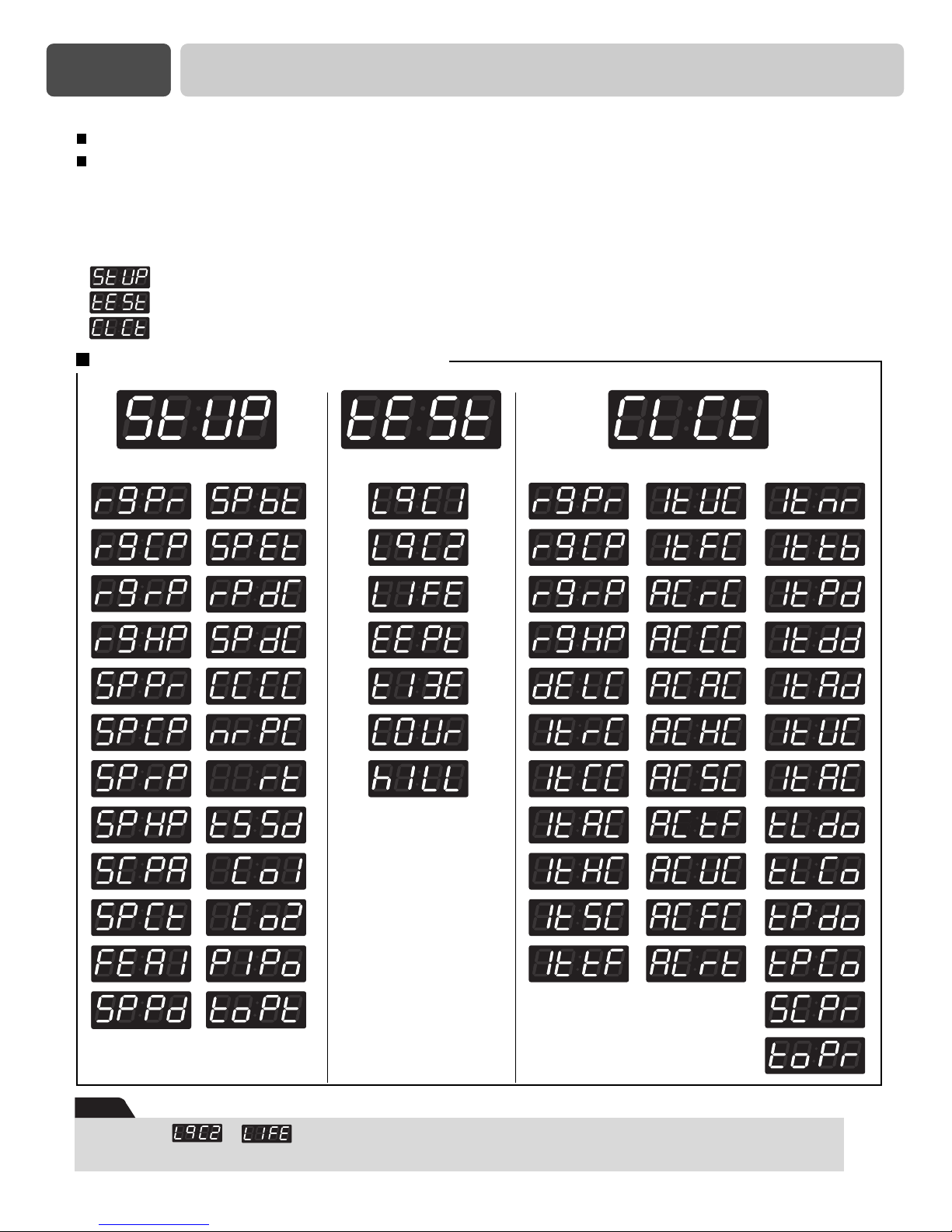

Algorithm Flow Chart shows how to control programming mode.
Before program set, check the structure of programming mode.
STRUCTURE OF PROGRAMMING MODE

15
Part 5 PROGRAMMING MODE - Setup Mode
Setup Mode : (display)
You can change dryer vend price, cycle time, and cycle parameters, etc.
Entering set up mode
• Coin type - Turn on/off toggle switch.
• Card type - Insert the service card.
• Stack type - Take off control panel, and turn on/off toggle switch.
• Then, dryer displays .
Entering set up mode.

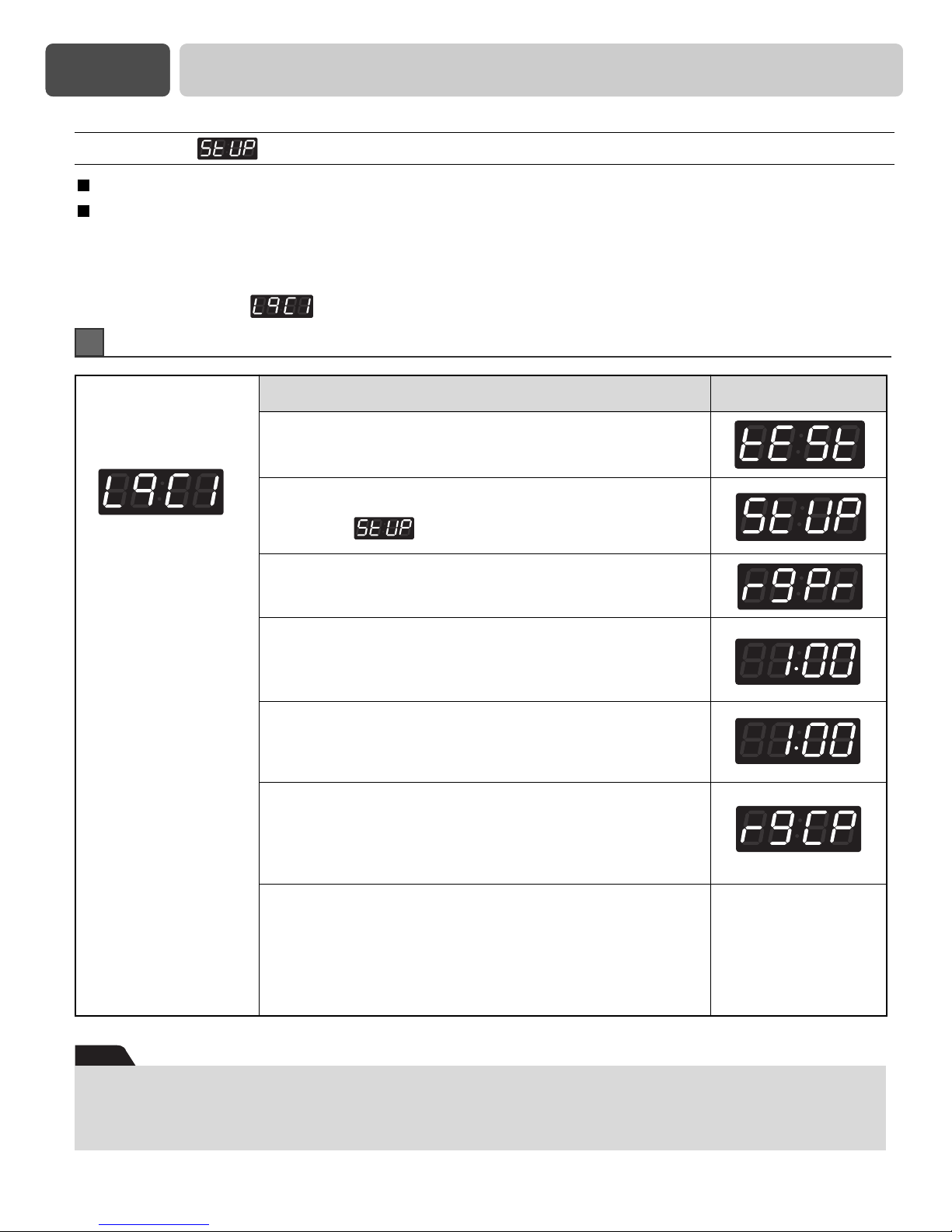

You will see LqC1 Press the WHITES AND COLORS button.
Press the PERMANENT PRESS or the DELICATES
button until appears in the display.
Press the START button.
Press the START button.
Display previous regular price.
Press PERMANENT PRESS(+) or DELICATES(-) button to
set regular price.
(The vend price can be set from 0 to $9.95 in 5¢ increments.)
Press the START button.
The machine sets up the regular price, then advances to the
next process automatically.
1. Continue to set up the next price.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
• Stack type - 1. Control panel open.
2. Turn on/off toggle switch.
11How to change regular price.
Button Display
Note
• rgCP (regular cold price) is not available in dryer.
• rgrP (regular warm price) is not available in dryer.
• rgHP (regular hot price) is not available in dryer.

16
Part 5 PROGRAMMING MODE - Setup Mode
22How to change special price
Entering set up mode.
You will see LqC1 Press the WHITES AND COLORS button.
Press the PERMANENT PRESS or the DELICATES
button until appears in the display.
Press the START button.
Press the PERMANENT PRESS or the DELICATES
button until appears in the display.
Press the START button.
Display previous special price.
Press PERMANENT PRESS(+) or DELICATES(-) button to
set special price.
(The vend price can be set from 0 to $9.95 in 5¢ increments.)
Press the START button.
The machine sets up the regular price, then advances to the
next process automatically.
1. Continue to set up the next price.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
• Stack type - 1. Control panel open.
2. Turn on/off toggle switch.
Button Display
• SPCP (special cold price) is not available in dryer.
• SPrP (special warm price) is not available in dryer.
• SPHP (special hot price) is not available in dryer.
• SCPA (add super cycle price) is not available in dryer.
• SPCt (add super wash type) is not available in dryer.
Note

17
Part 5 PROGRAMMING MODE - Setup Mode
• Special price days apply or not
• Clear escrow enable or not (coin type only)
• Add super wash apply or not
• Select vend type
• Sense dry apply or not (only for dryer)
• Pre-wash apply or not
• Top off apply or not (only for dryer)
• Disable
• Enable
Structure of
33How to enter the
Entering set up mode.
You will see LqC1 Press the WHITES AND COLORS button.
Press the PERMANENT PRESS or the DELICATES
button until appears in the display.
Press the START button.
Press the PERMANENT PRESS or the DELICATES
button until appears in the display.
Button Display
Content of

18
Part 5 PROGRAMMING MODE - Setup Mode
33--11Special price day setup
Entering set up mode.
You will see LqC1 Press the WHITES AND COLORS button.
Press the PERMANENT PRESS or the DELICATES
button until appears in the display.
Press the START button.
Press the PERMANENT PRESS or the DELICATES
button until appears in the display.
Press the START button.
Display .
Press the START button.
Press PERMANENT PRESS or DELICATES button and then
select or .
Press the START button.
The machine sets up the special price, then advances to the
next process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
• Stack type - 1. Control panel open.
2. Turn on/off toggle switch.
Button Display
Disable
One or the other will
display.
Enable
• CLEE (clear escrow enable or not) is not available in dryer.
• SUUE (add super wash apply or not) is not available in dryer.
Note

19
Part 5 PROGRAMMING MODE - Setup Mode
33--22Vend type setup - card type or coin type setup
Entering set up mode.
You will see LqC1 Press the WHITES AND COLORS button.
Press the PERMANENT PRESS or the DELICATES
button until appears in the display.
Press the START button.
Press the PERMANENT PRESS or the DELICATES
button until appears in the display.
Press the START button.
Display .
Press the PERMANENT PRESS or the DELICATES button
until appears in the display.
Press the START button.
Press PERMANENT PRESS or DELICATES button and then
select or .
Press the START button.
The machine sets up the vend type, then go to the idle mode
automatically.
Button Display
Coin type
One or the other will
display.
Card type
• SEdE (sensor dry apply or not) is not available in dryer.
• PrSH (Pre-wash apply or not) is not available in dryer.
Note

20
Part 5 PROGRAMMING MODE - Setup Mode
33--33Top off apply or not setup
Entering set up mode.
You will see LqC1 Press the WHITES AND COLORS button.
Press the PERMANENT PRESS or the DELICATES
button until appears in the display.
Press the START button.
Press the PERMANENT PRESS or the DELICATES
button until appears in the display.
Press the START button.
Display .
Press the PERMANENT PRESS or the DELICATES
button until appears in the display.
Press the START button.
Press PERMANENT PRESS or DELICATES button and then
select or .
Press the START button.
The machine sets up the Vend type, then advances to the
next process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
• Stack type - 1. Control panel open.
2. Turn on/off toggle switch.
Button Display
Enable
One or the other will
display.
Disable
