LG GDP1329CGS User manual

OWNER’S MANUAL
COMMERCIAL DRYER
Please read this manual carefully before operating
your dryer and retain it for future reference.
MFL67863711
MODEL
GDP1329CGS/GDP1329CES
GDP1329CGD/GDP1329CED
GDP1329CGW/GDP1329CEW
GDP1329CGS2/GDP1329CES2
GDP1329CGD2/GDP1329CED2
GDP1329CGW2/GDP1329CEW2
GDP1329QGS/GDP1329QES
GDP1329QGD/GDP1329QED
GDP1329QGW/GDP1329QEW
GDP1329QGS2/GDP1329QES2
GDP1329QGD2/GDP1329QED2
GDP1329QGW2/GDP1329QEW2
ENGLISH ESPAÑOL
www.lg.com
Copyright © 2016 - 2017 LG Electronics Inc. All Rights Reserved.
MFL67863711_en_170328.indd 1 2017-03-28 �� 10:11:49

2PRODUCT FEATURES
PRODUCT FEATURES
ARTISTIC DESIGN
Modern front panel look and big clear glass door make your dryer look stylish
EASY OF USE
An entire selection of user-friendly functions makes operating the dryer easy.
MFL67863711_en_170328.indd 2 2017-03-28 �� 10:11:49

3
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
WARNING
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion,
electric shock, or to prevent property damage, injury to persons, or death.
Your Safety and the safety of others is very important.
We have provided many important safety messages in this manual and on your appliance.
Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word DANGER or WARNING.
These words mean:
DANGER
You can be killed or seriously injured if you don’t immediately follow instructions.
WARNING
You can be killed or seriously injured if you don’t follow instructions. All safety messages will tell you what the
potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions
are not followed.
BASIC SAFETY PRECAUTIONS
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions,
including the following:
• Read all instructions before using the dryer.
• Before use, the dryer must be properly installed as
described in this manual.
• Do not place items exposed to cooking oils in your
dryer. Items contaminated with cooking oils may
contribute to a chemical reaction that could cause a
load to catch fire.
• Do not dry articles that have been previously cleaned
in, washed in, soaked in, or spotted with gasoline, dry-
cleaning solvents, or other flammable or explosive
substances as they give off vapors that could ignite or
explode.
• Do not reach into the dryer if the drum or any other
part is moving.
• Do not repair or replace any part of the dryer
or attempt any servicing unless specifically
recommended in this Use and Care Guide or in
published user-repair instructions that you understand
and have the skills to carry out.
• Do not tamper with controls.
• Before the dryer is removed from service or discarded,
remove the door to the drying compartment.
• Do not allow children to play on or in the dryer. Close
supervision of children is necessary when the dryer is
used near children.
• Do not use fabric softeners or products to eliminate
static unless recommended by the manufacturer of
the fabric softener or product.
• Do not use heat to dry articles containing foam rubber
or similarly textured rubber-like materials.
• Keep area around the exhaust opening and adjacent
surrounding areas free from the accumulation of lint,
dust, and dirt.
• The interior of the dryer and exhaust vent should be
cleaned periodically by qualified service personnel.
• Do not install or store the dryer where it will be
exposed to the weather.
• Always check the inside of the dryer for foreign
objects.
• Clean lint screen before or after each load.
• Do not store plastic, paper, or clothing that may burn
or melt on top of the dryer during operation.
• WARNING: This product contains chemicals known
to the State of California to cause cancer and birth
defects or other reproductive harm.
Wash hands after
handling.
MFL67863711_en_170328.indd 3 2017-03-28 �� 10:11:49

4IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
WARNING
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion,
electric shock, or to prevent property damage, injury to persons, or death.
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious injury, death or property damage.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Clear the room, building or area of all occupants.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas supplier.
WARNING
CALIFORNIA SAFE DRINKING WATER AND TOXIC ENFORCEMENT ACT
This act requires the governor of California to publish a list of substances known to the state to cause cancer, birth
defects, or other reproductive harm and requires businesses to warn customers of potential exposure to such
substances.
Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon monoxide,
formaldehyde, and soot, caused primarily by the incomplete combustion of natural gas or LP fuels.
Properly adjusted dryers will minimize incomplete combustion. Exposure to these substances can be minimized
further by properly venting the dryer to the outdoors.
MFL67863711_en_170328.indd 4 2017-03-28 �� 10:11:49

5
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
WARNING
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion,
electric shock, or to prevent property damage, injury to persons, or death.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of
malfunction or breakdown, grounding will reduce
the risk of electric shock by providing a path of least
resistance for electric current. This appliance must be
equipped with a cord having an equipmentgrounding
conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local
codes and ordinances.
Do not modify the plug provided with the appliance.
If it will not fit the outlet, have a proper outlet installed
by a qualified electrician.
This appliance must be connected to a grounded metal,
permanent wiring system or an equipmentgrounding
conductor must be run with the circuit conductors and
connected to the equipmentgrounding terminal or lead
on the appliance.
Electric shock can result if the dryer is not properly
grounded.
WARNING
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with
a qualified electrician or service person if you are in doubt as to whether the appliance is properly grounded.
SAFETY INSTRUCTIONS FOR INSTALLATION
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions,
including the following:
• Properly ground dryer to conform with all
governing codes and ordinances. Follow details in
the installation instructions. Electric shock can result
if the dryer is not properly grounded.
• Before use, the dryer must be properly installed as
described in this manual. Electric shock can result if
the dryer is not properly grounded.
• Install and store the dryer where it will not be
exposed to temperatures below freezing or
exposed to the weather.
• All repairs and servicing must be performed
by an authorized servicer unless specifically
recommended in this Owner’s Guide. Use only
authorized factory parts. Failure to follow this
warning can cause serious injury, fire, electric shock, or
death.
• To reduce the risk of electric shock, do not install
the dryer in humid spaces. Failure to follow this
warning can cause serious injury, fire, electric shock, or
death.
• Connect to a properly rated, protected, and sized
power circuit to avoid electrical overload. Improper
power circuit can melt, creating electric shock and/or
fire hazard.
• Remove all packing items and dispose of all
shipping materials properly. Failure to do so can
result in death, explosion, fire, or burns.
• Place dryer at least 18 in. above the floor for a
garage installation. Failure to do so can result in
death, explosion, fire, or burns.
• Keep all packaging from children. Packaging
material can be dangerous for children. There is a
risk of suffocation.
• Keep the area underneath and around your
appliances free of combustible materials such as
lint, paper, rags, chemicals, etc. Failure to do so can
result in fire.
• Do not place candles, smoking materials, or other
flammables on to top of the product. Dripping wax,
smoke, or fire can result.
• Remove all protective vinyl film from the product.
Failure to do so can cause product damage, smoke or
fire.
MFL67863711_en_170328.indd 5 2017-03-28 �� 10:11:49

6IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
WARNING
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion,
electric shock, or to prevent property damage, injury to persons, or death.
SAFETY INSTRUCTIONS FOR INSTALLATION
Exhaust/Ducting:
• Gas dryers MUST be exhausted to the outside.
Failure to follow these instructions can result in fire or
death.
• The dryer exhaust system must be exhausted
to the outside of the dwelling. If the dryer is not
exhausted outdoors, some fine lint and large
amounts of moisture will be expelled into the
laundry area. An accumulation of lint in any area of
the home can create a health and fire hazard.
• Use only rigid metal or flexible metal 4-in. diameter
ductwork inside the dryer cabinet or for exhausting
to the outside. Use of plastic or other combustible
ductwork can cause a fire. Punctured ductwork
can cause a fire if it collapses or becomes otherwise
restricted in use or during installation.
• Ductwork is not provided with the dryer, and you
should obtain the necessary ductwork locally. The
end cap should have hinged dampers to prevent
backdraft when the dryer is not in use. Failure to
follow these instructions can result in fire or death.
• The exhaust duct must be 4 in. (10 cm) in diameter
with no obstructions. The exhaust duct should be
kept as short as possible. Make sure to clean any
old ducts before installing your new dryer. Failure
to follow these instructions can result in fire or death.
• Rigid or semi rigid metal ducting is recommended
for use between the dryer and the wall. In special
installations when it is impossible to make a
connection with the above recommendations, a UL-
listed flexible metal transition duct may be used
between the dryer and wall connection only. The
use of this ducting will affect drying time. Failure to
follow these instructions can result in fire or death.
• DO NOT use sheet metal screws or other fasteners
which extend into the duct that could catch lint and
reduce the efficiency of the exhaust system. Secure
all joints with duct tape. For complete details,
follow the Installation Instructions. Failure to follow
these instructions can result in fire or death.
Fire Hazard
Failure to follow safety warnings exactly could result in serious injury, death or property damage.
Do not install a booster fan in the exhaust duct.
Install all clothes dryers in accordance with the installa!on instruc!ons of the manufacturer of the dryer.
WARNING
MFL67863711_en_170328.indd 6 2017-03-28 �� 10:11:49

7
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
WARNING
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion,
electric shock, or to prevent property damage, injury to persons, or death.
SAFETY INSTRUCTIONS FOR CONNECTING ELECTRICITY
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions,
including the following:
• Do not, under any circumstances, cut or remove
the ground prong from the power cord. To prevent
injury to persons or damage to the dryer, the electrical
power cord must be plugged into a properly grounded
outlet.
• For personal safety, this dryer must be properly
grounded. Failure to do so can result in electric shock
or injury.
• Refer to the installation instructions in this manual
for specific electrical requirements for your model.
Failure to follow these instructions can create an
electric shock hazard and/or a fire hazard.
• This dryer must be plugged into a properly
grounded outlet. Electric shock can result if the
dryer is not properly grounded. Have the wall
outlet and circuit checked by a qualified electrician
to make sure the outlet is properly grounded.
Failure to follow these instructions can create an
electric shock hazard and/or a fire hazard.
• The dryer should always be plugged into its own
individual electrical outlet which has a voltage
rating that matches the rating plate. This provides
the best performance and also prevents overloading
house wiring circuits which could cause a fire hazard
from overheated wires.
• Never unplug your dryer by pulling on the power
cord. Always grip plug firmly and pull straight out
from the outlet. The power cord can be damaged,
resulting in a risk of fire and electric shock.
• Repair or replace immediately all power cords that
have become frayed or otherwise damaged. Do not
use a cord that shows cracks or abrasion damage
along its length or at either end. The power cord can
melt, creating electric shock and/or fire hazard.
• When installing or moving the dryer, be careful not
to pinch, crush, or damage the power cord. This will
prevent injury and prevent damage to the dryer from
fire and electric shock.
• To reduce the risk of injury to persons, adhere
to all industry recommended safety procedures
including the use of long sleeved gloves and safety
glasses. Failure to follow all of the safety warnings in
this manual could result in property damage, injury to
persons or death.
ELECTRIC SHOCK HAZARD
Failure to follow safety warnings could result in serious injury or death.
This dryer is equipped with a three-prong grounding plug forprotec!on against shock hazard and should
be plugged directlyinto a properly grounded three-prong receptacle. Do not cut orremove the grounding
prong from this plug.
WARNING
SAVE THESE INSTRUCTIONS
MFL67863711_en_170328.indd 7 2017-03-28 �� 10:11:49

8CONTENTS
CONTENTS
2PRODUCT FEATURES
3IMPORTANT SAFETY
INSTRUCTIONS
3 BASIC SAFETY PRECAUTIONS
4 CALIFORNIA SAFE DRINKING WATER AND
TOXIC ENFORCEMENT ACT
5 GROUNDING INSTRUCTIONS
5 SAFETY INSTRUCTIONS FOR INSTALLATION
7 SAFETY INSTRUCTIONS FOR CONNECTING
ELECTRICITY
9INTRODUCING YOUR DRYER
9 Specification
10 Accessories
10 Control panel features
13 OPERATING YOUR DRYER
14 PROGRAMMING MODE
15 PROGRAMMING MODE - Card / Coin type
16 PROGRAMMING MODE - OPL type
17 PROGRAMMING MODE - Setup Mode
17 1. How to change regular price.
18 2. How to change special price
19 3. How to enter the FEA1
20 3-1. Special price day setup
21 3-2. Vend type setup - card type or coin
type setup
22 3-3. Top off apply or not setup
23 4. How to enter the FEA2
24 4-1. Pause function setup
25 5. How to enter the special price day setup
26 5-1. How to change sunday
27 6. Special price beginning time setup
28 7. Special price ending time setup
29 8. Regular priced dryer cycle time
30 9. Special priced dryer cycle time
31 10. Value of coin 1
32 11. Value of coin 2 (Set up for top off price
and e-suds coin pulse)
33 12. Penny increment pricing offset
34 13. Top off time
35 14. Beep volume
36 15. Time to keep the coin (Use only for coin
type)
37 16. How to enter the tyPE
38 PROGRAMMING MODE - Test Mode
39 1. LqC1
40 2. Factory reset - EEPt
41 3. Time Set Up
42 4. Courtesy cycle
43 5. Cycle Kill
44 PROGRAMMING MODE - Collect Mode
46 MAINTENANCE
47 STACK MACHINE INSTALLATION
INSTRUCTIONS
49 ERROR MODE
49 POWER FAIL RECOVERY
49 DEFAULT DRYER SETTINGS
MFL67863711_en_170328.indd 8 2017-03-28 �� 10:11:49

9
ENGLISH
INTRODUCING YOUR DRYER
INTRODUCING YOUR DRYER
Specification
Type : Electric and Gas Dryer
Rating : Please refer to the rating label regarding detailed information.
Single dryer size : 686 mm(W) x 764 mm(D) x 983 mm(H)
27 in(W) x 30 in(D) x 38.7 in(H)
Stack dryer size : 686 mm(W) x 764 mm(D) x 1954 mm(H)
27 in(W) x 30 in(D) x 76.9 in(H)
Capacity : IEC 7.3 cu.ft. (22.5 lb)
Weight : 131 Ibs (59.4 kg)
Specifications are subject to change by manufacturer.
Specifications subject to change by manufacturer.
NOTE
MFL67863711_en_170328.indd 9 2017-03-28 �� 10:11:50

10 INTRODUCING YOUR DRYER
Accessories

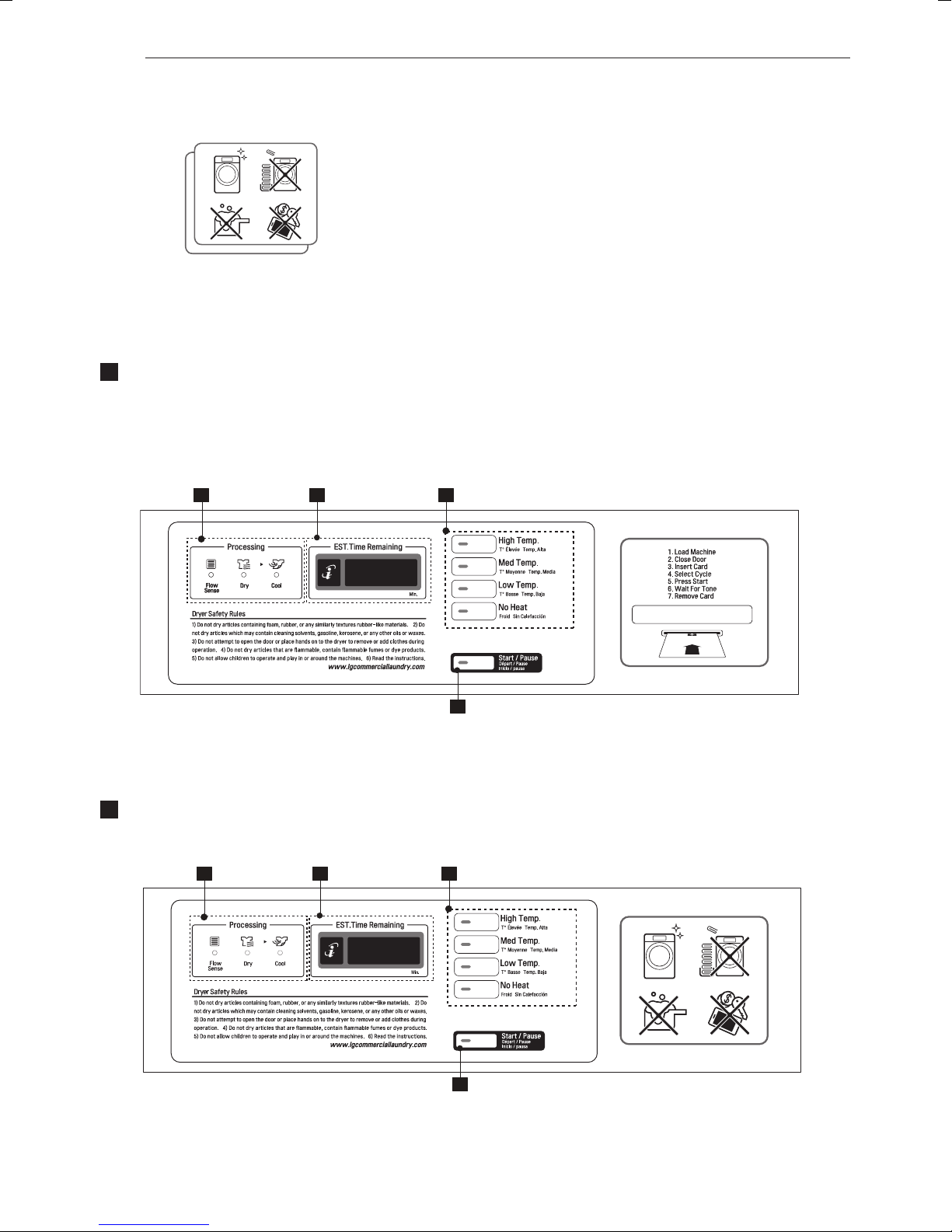

Control panel features
Card type
-Side by side (GDP1329CES, GDP1329CGS, GDP1329CES2, GDP1329CGS2)
-Stack upper (GDP1329CEW, GDP1329CGW, GDP1329CEW2, GDP1329CGW2)
-Stack lower (GDP1329CED, GDP1329CGD, GDP1329CED2, GDP1329CGD2)
1 24
3
1 24
3
1 24
3
1 24
3
1 24
3
1 24
3
OPL sheet
(only for OPL type)
OPL type
1 24
3
1 24
3
1 24
3
1 24
3
1 24
3
1 24
3
1. Display LED
2. Cycle button
3. Start/Pause button
4. Status LED
MFL67863711_en_170328.indd 10 2017-03-28 �� 10:11:52

11
ENGLISH
INTRODUCING YOUR DRYER
1 24
3
1 24
3
1 24
3
1 24
3
1 24
3
1 24
3
- Stack upper (GDP1329QEW, GDP1329QGW, GDP1329QEW2, GDP1329QGW2)
1 24
3
1 24
3
1 24
3
1 24
3
1 24
3
1 24
3
- Stack lower (GDP1329QED, GDP1329QGD, GDP1329QED2, GDP1329QGD2)
1 24
3
1 24
3
1 24
3
1 24
3
1 24
3
1 24
3
1. Display LED
2. Cycle button
3. Start/Pause button
4. Status LED
Control panel features
Coin type
- Side by side
(GDP1329QES, GDP1329QGS, GDP1329QES2, GDP1329QGS2)
MFL67863711_en_170328.indd 11 2017-03-28 �� 10:11:54

12 INTRODUCING YOUR DRYER
1 24
3
1 24
3
1 24
3
1 24
3
1 24
3
1 24
3
Display LED Cycle button
Start/Pause button
Status LED
Display LED
The Display shows the vend price, remaining time, and
programming options.
Error codes are also displayed here.
Cycle button
Press the cycle button to Select the desired cycle based
on laundry types and conditions.
High Temp.
Use this cycle to get high heat for heavy fabrics, such
as jeans corduroys or work clothes (High heat).
Med Temp.
Use for drying sturdy fabrics such as work casual
clothes (Medium heat).
Low Temp.
Use for drying synthetic fabrics,washable knit fabrics
and noiron finishes (Low heat).
No Heat
Use for items that require heat-free drying such as
plastics or rubber.
Start/Pause button
The Start LED flashes when the full vend price has been
satisfied then the cycle has been chosen or the machine
is paused.
The Start LED flashes when a card is inserted to add time
to the current cycle.
If you press the Start/Pause button while dryer is
working, machine will be paused.
Status LED
LED Description
LED flashes when the duct is blocked by
lint.
Check and clean the duct.
LED flashes whenever the heating cycle
is in operation.
LED flashes whenever the cool down
cycle is in operation.
MFL67863711_en_170328.indd 12 2017-03-28 �� 10:11:58

13
ENGLISH
OPERATING YOUR DRYER
OPERATING YOUR DRYER
1. Ready mode
1) Coin / Card type
- The cycle LEDs flash at the same time, when the
price of cycles are equal.
2) OPL type
- The cycle LEDs is lit at the same time, and displayed
‘PUSH’.
• Price setting varies by country.
• Set your country from mode.
(Refer How to enter the )
• After EEPT, reset your country.
(Default country is ELC)
NOTE
2. Insert card/coin (not for OPL type)
Insert a cash card that has a sufficient balance.
The card balance should be more than the
programmed vend price for a selected cycle.
When the card balance is not enough, machine
displays the balance for 5 seconds and then displays
message repetitively
NOTE
Insert a sufficient amount of change that is a more
than the programmed vend price for a selected cycle.
When the coin amount is not enough, the machine
will not start.
NOTE
3. Select the cycle
Press the desired cycle and the start button. The display
LED will show the remaining time and the selected cycle
starts.
The last 2 minutes of the remaining time are always
for the cool down portion.
NOTE
4. Top off (To add more time)
After a debit card is inserted, the operating time can
be increased to 5 minutes / 0.25, when the
Start button or the chosen course button has been
pressed.
(The card should have enough balance to satisfy
increasing time.)
The operating time can be increased to 5 minutes /
0.25 (default) by adding more coins.
When the COOL DOWN has been working, if time is
added, it goes back to the Dry.
Time can be added up 99 minutes.
5. Change cycle
You cannot change the cycle while the machine is
running.
But if the door is opened, the machine stops
temporarily and the cycle can be changed.
Press the Pause button then you can change the
cycle.
6. Cycle finish
After the COOL DOWN of cycle, the machine stops
and LED display shows End.
If you press any key or open the door, the dryer
defaults to the ready mode.
Owner can control the additional time and money
setting (top off price).
NOTE
MFL67863711_en_170328.indd 13 2017-03-28 �� 10:11:59

14 PROGRAMMING MODE
PROGRAMMING MODE

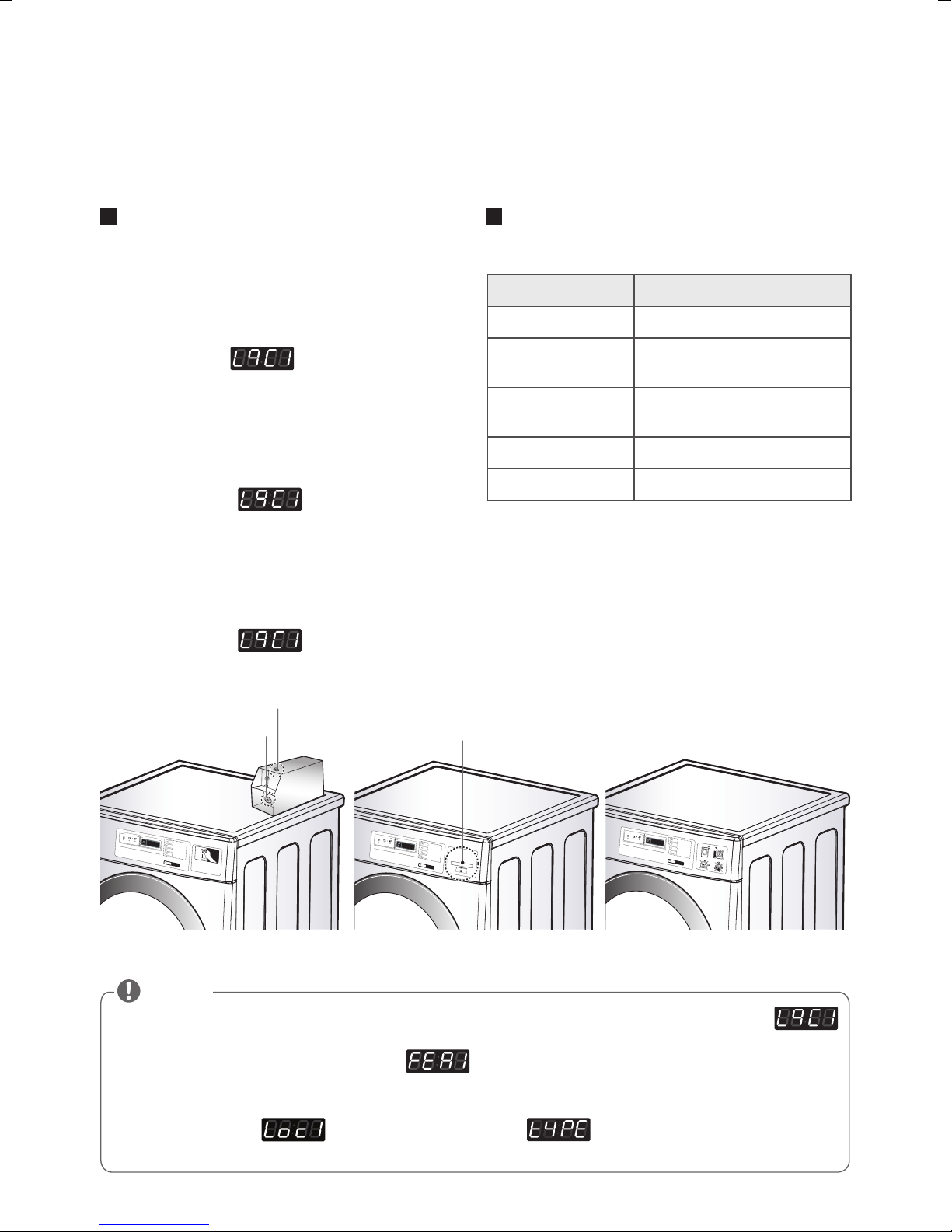

1. Programming mode
You can check machine information or change setting on Program setup or Diagnostic test.
There are two methods that you can enter programming mode.
How to enter“Programming mode”
You can enter programming mode only for Idle state
and pause state.
- Card Type
1) Insert service card.
2) Display will show
- Coin Type
1) Disassemble upper coin box key.
2) Take out the coin drop from the coin box.
3) Turn on/off the toggle switch at the back of the coin
box.
4) Display will show “ ”.
- OPL/Coin Type
1) Push the High Temp. and Low Temp. button at the
same time.
2) Push the Med Temp. button 3 times.
3) Push the Srart button.
4) Display will show “ ”
How to use button
You can change Dryer vend price, cycle time and Cycle
parameters, etc.
Press button Description
High Temp. Move to upper level
Med Temp. Move to the mode in the
same level (+)
Low Temp. Move to the modes in the
same level (-)
No Heat -
Start Enter the selected mode
• If you turn on the power without connecting the meter case for the first time, the machine will display .
• When the machine comes from the factory, it is set in the coin type. You can change Card/Coin type by button.
(For more information refer to SETUP mode’s .)
• The machine will display “PUSH” for OPL type
• Price setting varies by country.
• Set your country from mode. (Refer How to enter the )
• After EEPT, reset your country. (Default country is ELC)
NOTE
Coin Box Key
Coin Vault
Coin type
Insert debit card
Card type OPL type
MFL67863711_en_170328.indd 14 2017-03-28 �� 10:12:01

15
ENGLISH
PROGRAMMING MODE
Card / Coin type
Algorithm Flow Chart shows how to control programming mode.
Before program set, check the structure of programming mode.
1. Turn on/off toggle switch or Insert the service card to entering set up mode.
2. Press High Temp. button to move the upper level.
3. Press Med Temp.(+) or Low Temp.(-) button if you want to be at the same level.
4. Press Start button to enter the details of Set up, Diagnostic Tests mode.
is to set price value, time value and vend type etc.
consists of line test, reset, free cycle and kill cycle.
Is to collect the usage data.
Structure of Programming mode
• Do not use , .
• It is only used in inspecting the machine.
NOTE
MFL67863711_en_170328.indd 15 2017-03-28 �� 10:12:02

16 PROGRAMMING MODE
OPL type
Algorithm Flow Chart shows how to control programming mode.
Before program set, check the structure of programming mode.
1) Push the High Temp. and Low Temp. button at the same time.
2) Push the Med Temp. button 3 times.
3) Push the Start button.
4) Display will show “ “
is to set price value, time value and vend type etc.
consists of line test, reset, free cycle and kill cycle.
Is to collect the usage data.
Structure of Programming mode
• Do not use , .
• It is only used in inspecting the machine.
NOTE
MFL67863711_en_170328.indd 16 2017-03-28 �� 10:12:03

17
ENGLISH
PROGRAMMING MODE
PROGRAMMING MODE - Setup Mode
Setup Mode : (display)
You can change dryer vend price, cycle time, and cycle parameters, etc.
Entering set up mode
• Coin type - Turn on/off toggle switch.
• Card type - Insert the service card.
• Stack type - Take off control panel, and turn on/off toggle switch.
• OPL/Coin Type – Push “High Temp.” + “Low Temp.” and then enter password “3”.
• Then, dryer displays .

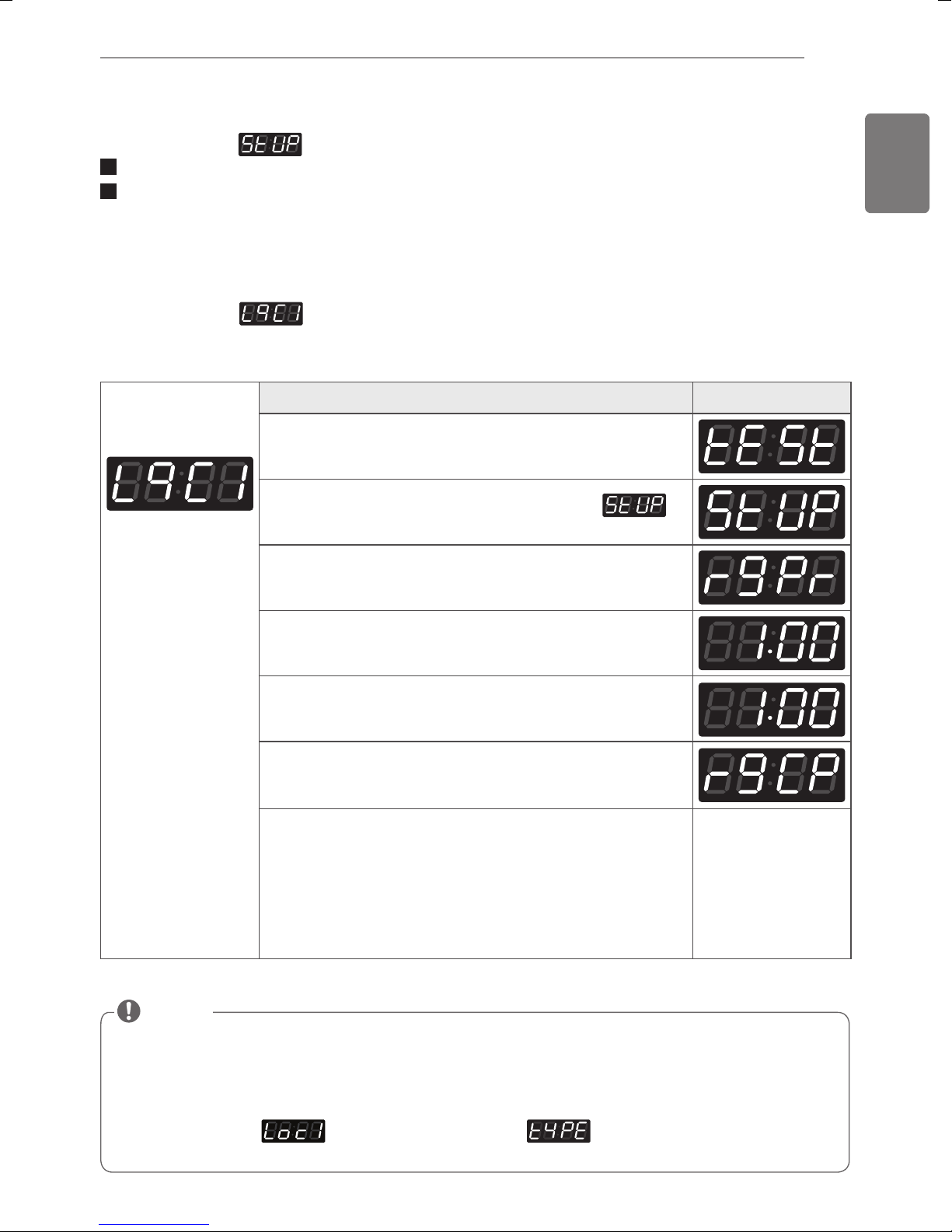

1. How to change regular price.
• rgCP(regular delicate price) is not available in dryer.
• rgrP(regular warm/cold price) is not available in dryer.
• rgHP (regular hot price) is not available in dryer.
• Price setting varies by country.
• Set your country from mode. (Refer How to enter the )
• After EEPT, reset your country. (Default country is ELC)
NOTE
Entering set up
mode.
You will see LqC1
Button Display
Press the High Temp. button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Press the Start button.
Display previous regular price.
Press Med Temp.(+) or Low Temp.(-) button to set regular price.
(The vend price can be set from 0 to 9.95 in 0.05 increments.)
Press the Start button.
The machine sets up the regular price, then advances to the
next process automatically.
1. Continue to set up the next price.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/o toggle switch.
• Card type - Pull the service card.
• Stack type - 1. Control panel open.
2. Turn on/o toggle switch.
• OPL/Coin Type – Press “High Temp.” twice.
MFL67863711_en_170328.indd 17 2017-03-28 �� 10:12:04

18 PROGRAMMING MODE
2. How to change special price
• SPCP(special delicate price) is not available in dryer.
• SPrP(special warm/cold price) is not available in dryer.
• SPHP (special hot price) is not available in dryer.
• SCPA(add super cycle price) is not available in dryer.
• SPCt(add super wash type) is not available in dryer.
• Price setting varies by country.
• Set your country from mode. (Refer How to enter the )
• After EEPT, reset your country. (Default country is ELC)
NOTE
Entering set up
mode.
You will see LqC1
Button Display
Press the High Temp. button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Display previous special price.
Press Med Temp.(+) or Low Temp.(-) button to set special price.
(The vend price can be set from 0 to 9.95 in 0.05 increments.)
Press the Start button.
The machine sets up the special price, then advances to the
next process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/o toggle switch.
• Card type - Pull the service card.
• Stack type - 1. Control panel open.
2. Turn on/o toggle switch.
• OPL/Coin Type – Press “High temp.” twice.
MFL67863711_en_170328.indd 18 2017-03-28 �� 10:12:05

19
ENGLISH
PROGRAMMING MODE
3. How to enter the
Entering set up
mode.
You will see LqC1
Button Display
Press the High Temp. button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Press the Med Temp. or the Low Temp. button until
appears in the display.

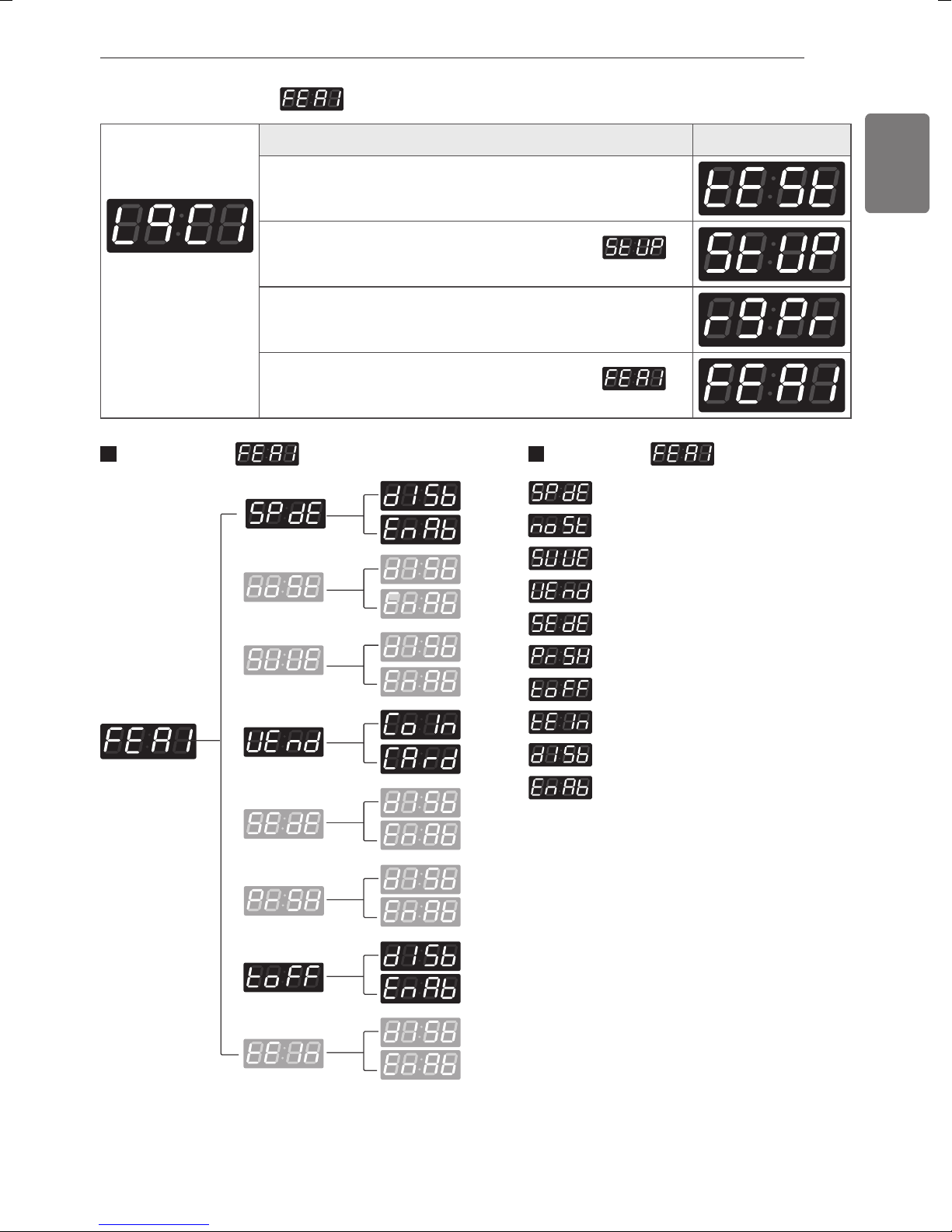

Structure of Content of
• Special price days apply or not
• Disabled
• Add super wash apply or not
• Select vend type
• This function is not available
• Pre-wash apply or not
• Top off apply or not (only for dryer)
• Twin spray apply or not
• Disable
• Enable
MFL67863711_en_170328.indd 19 2017-03-28 �� 10:12:07

20 PROGRAMMING MODE

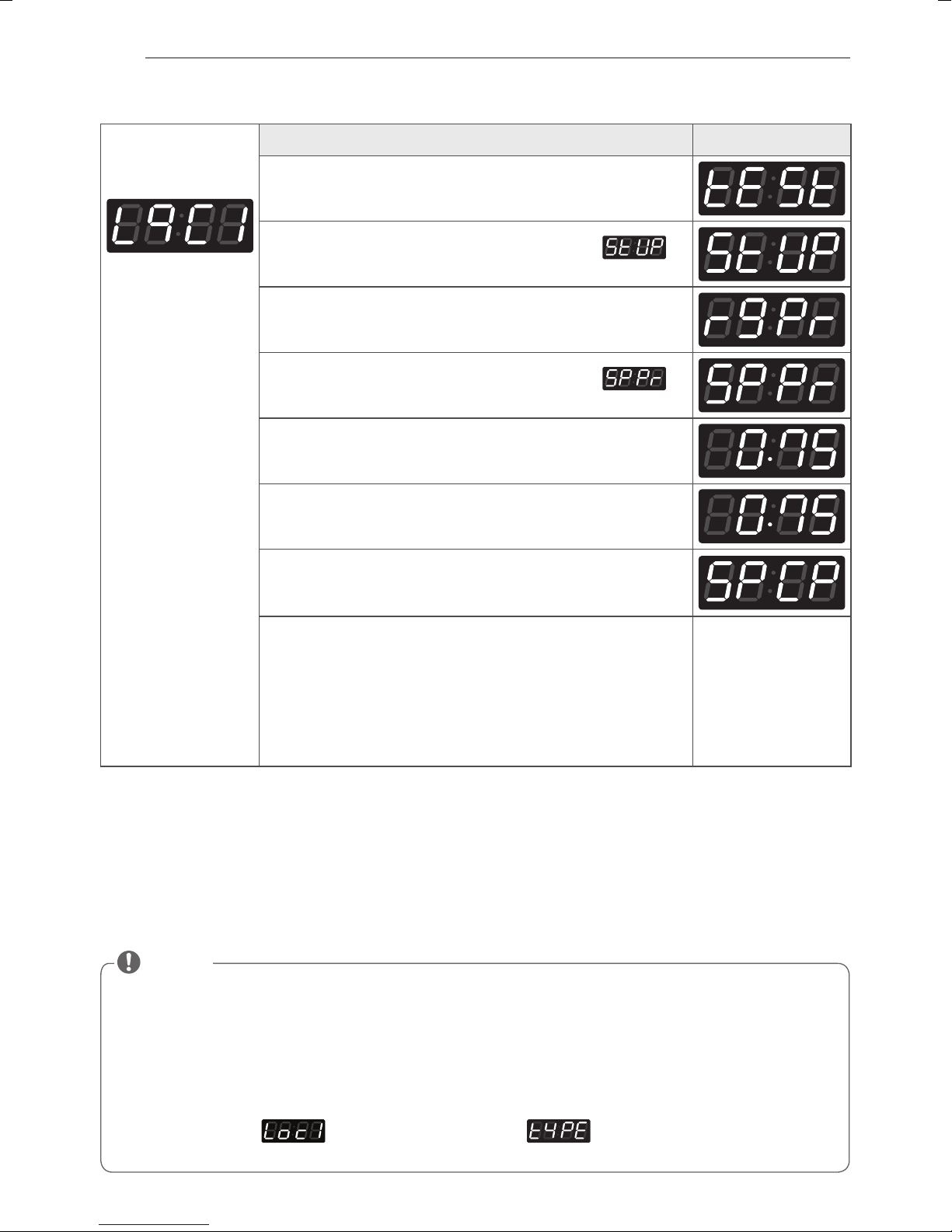

3-1. Special price day setup
• noSt (Non-stop wash apply or not) is not available in dryer.
• SUUE (add super wash apply or not) is not available in dryer.
NOTE
Entering set up
mode.
You will see LqC1
Button Display
Press the High Temp. button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Display .
Press the Start button.
Press Med Temp. or Low Temp. button and then select
or .
Disable
Enable
One or the other will
display.
Press the Start button.
The machine sets up the special price day, then advances to the
next process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/o toggle switch.
• Card type - Pull the service card.
• Stack type - 1. Control panel open.
2. Turn on/o toggle switch.
• OPL/Coin Type – Press “High Temp.” twice.
MFL67863711_en_170328.indd 20 2017-03-28 �� 10:12:07
