LG RC7055 H M Series User manual

OWNER'S MANUAL
DRYER
Before beginning installation, read these instructions carefully. This
will simplify installation and ensure that the product is installed
correctly and safely. Leave these instructions near the product after
installation for future reference.
www.lg.com
MFL68721073
Rev.00_072216
RC7055*HM / RC7055*H*M
RC8055*HM / RC8055*H*M

TABLE OF CONTENTS This manual may contain images or
content different from the model you
purchased.
This manual is subject to revision by the
manufacturer.
SAFETY INSTRUCTIONS .......................................................3
IMPORTANT SAFETY INSTRUCTIONS.................................................... 3
Disposal of Your Old Appliance ................................................................ 10
INSTALLATION ...................................................................... 11
Specifications ............................................................................................11
Accessories ...............................................................................................11

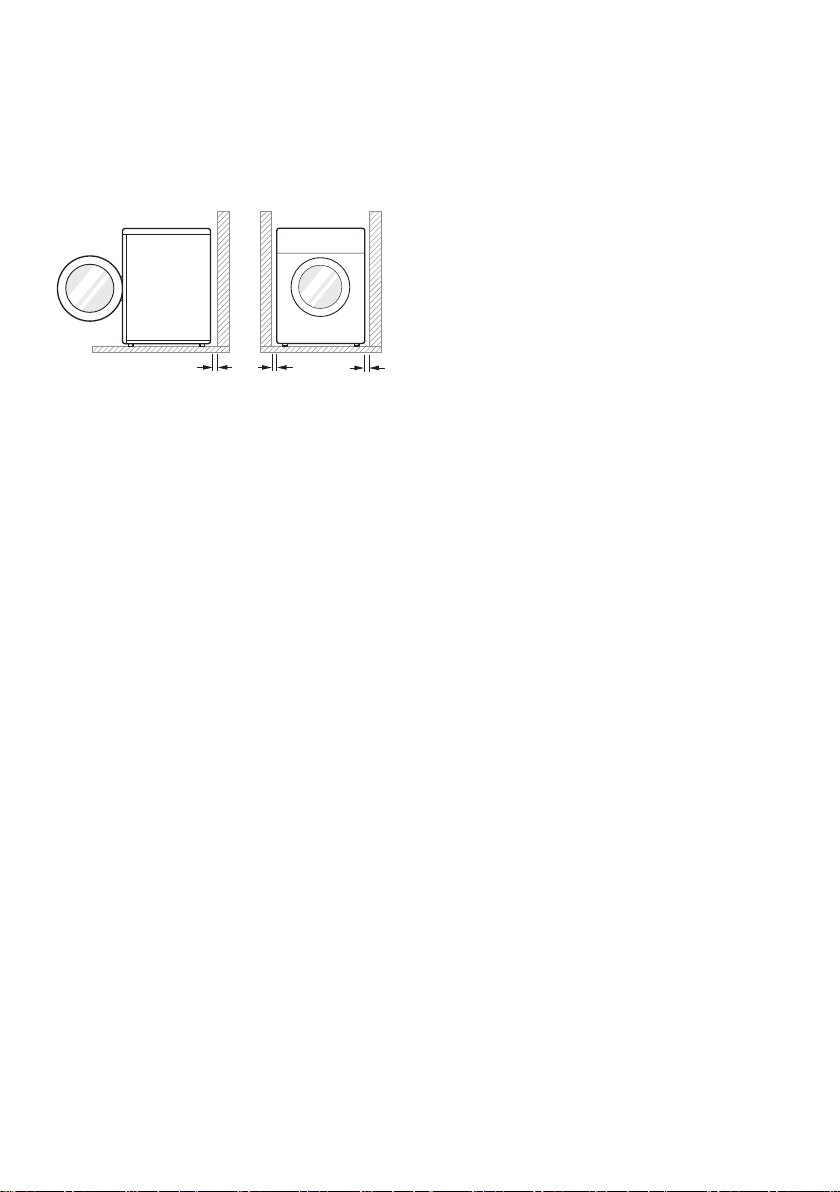

Installation Place Requirements ............................................................... 12

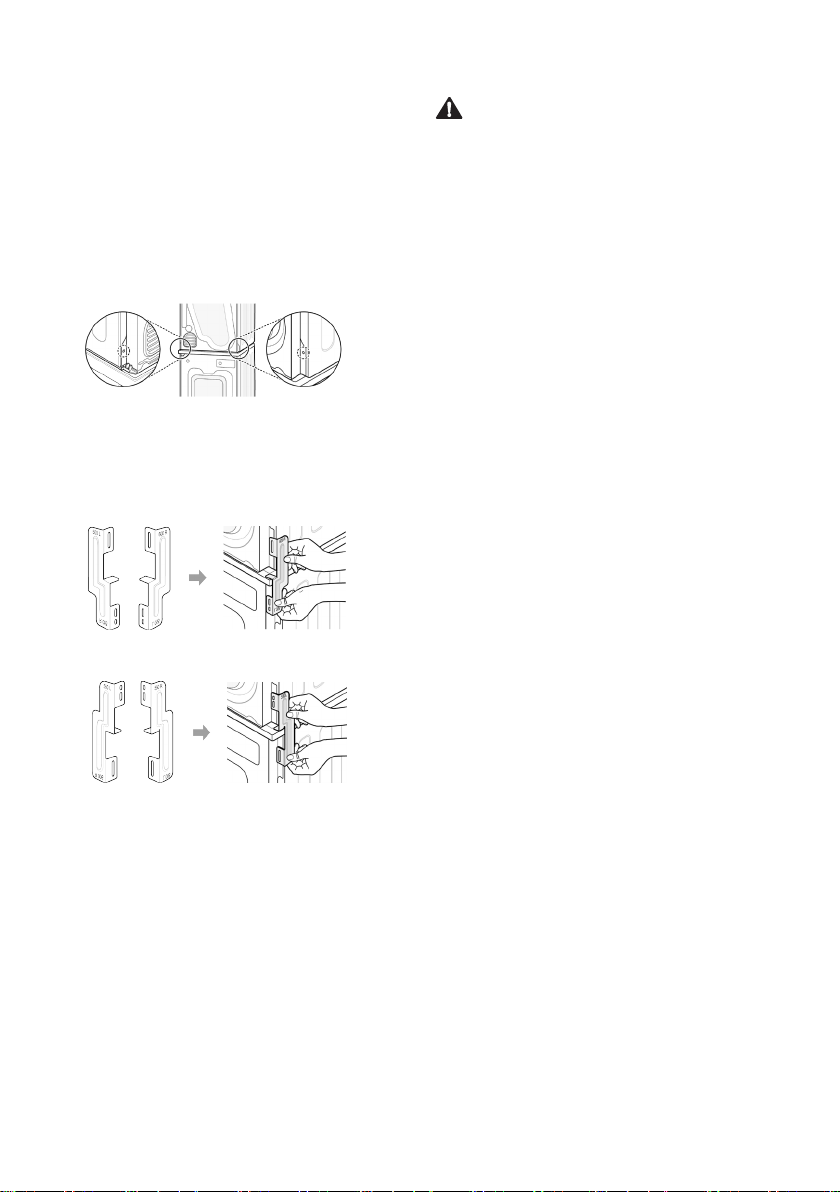

Stacking Installation Instructions .............................................................. 13
OPERATION ...........................................................................16
Using the Appliance.................................................................................. 16

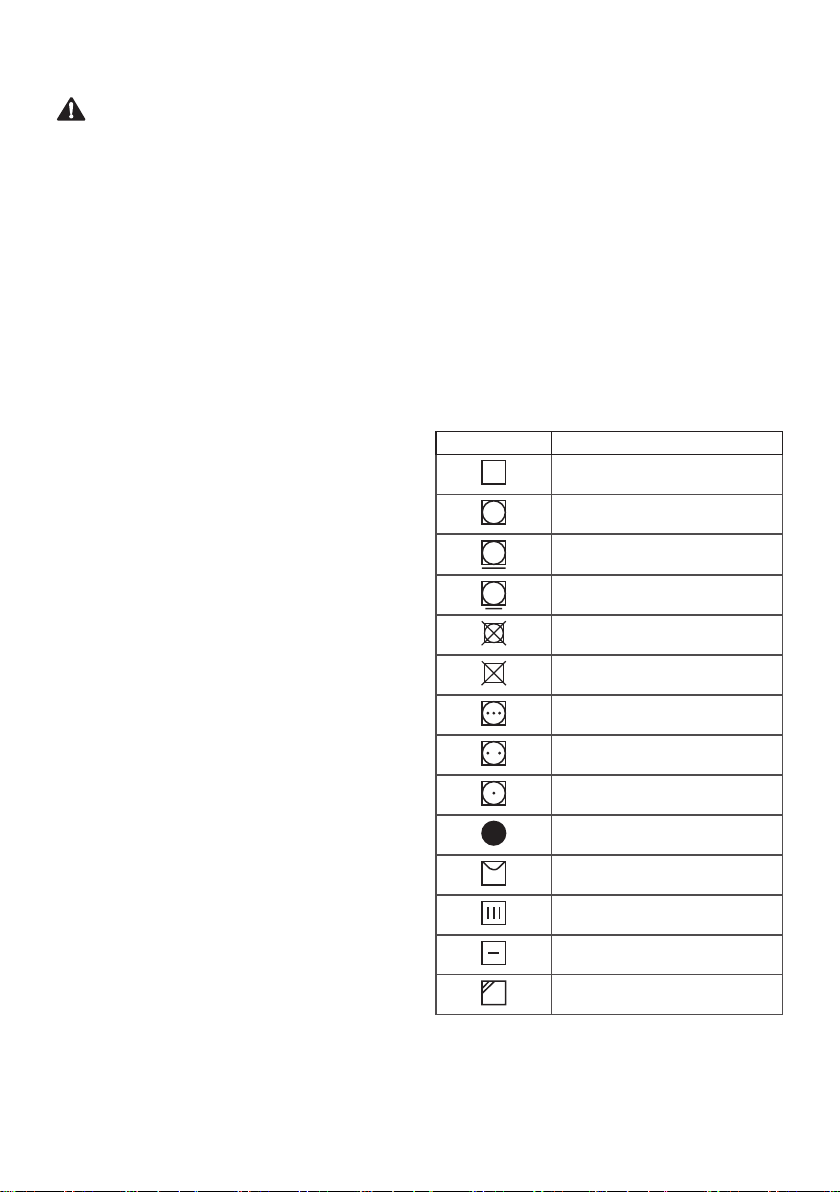

Sorting Laundry ........................................................................................ 17
Control Panel............................................................................................ 18
Programme Table ..................................................................................... 20
Option Programme ................................................................................... 22
Rack Dry (Optional) .................................................................................. 24
SMART FUNCTIONS .............................................................25
Using the Smart Diagnosis™ Function..................................................... 25
MAINTENANCE......................................................................26
Cleaning the Lint Filter.............................................................................. 26
Emptying the Water Container.................................................................. 27
Cleaning the Cool Air Inlet Grill................................................................. 27
Wiping the Moisture Sensor ..................................................................... 27
TROUBLESHOOTING ...........................................................28
Diagnosing Problems ............................................................................... 28
Error Codes .............................................................................................. 32
WARRANTY............................................................................33
OPERATING DATA ................................................................34

3
SAFETY INSTRUCTIONS EN
The following safety guidelines are intended to prevent
unforeseen risks or damage from unsafe or incorrect operation
of the appliance.
The guidelines are separated into ‘WARNING’ and ‘CAUTION’
as described below.
This symbol is displayed to indicate matters and
operations that can cause risk. Read the part with this
symbol carefully and follow the instructions in order to
avoid risk.
WARNING
This indicates that the failure to follow the instructions can
cause serious injury or death.
CAUTION
This indicates that the failure to follow the instructions can
cause the minor injury or damage to the product.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of re, electric shock, or injury to persons
when using your product, basic safety precautions should be
followed, including the following:
Children in the Household
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety. Children should be supervised to ensure
that they do not play with the appliance.

4
EN
For use in Europe:
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not be
made by children without supervision.
Children of less than 3 years should be kept away unless
continuously supervised.
Installation
•Make sure the appliance is properly installed, grounded, and
adjusted by qualied service personnel according to the installation
instructions.
•Never attempt to operate the appliance if it is damaged,
malfunctioning, partially disassembled, or has missing or broken
parts, including a damaged cord or plug.
•This appliance should only be transported by two or more people
holding the appliance securely.
•Do not install the appliance in a damp and dusty place. Do not
install or store the appliance in any outdoor area, or any area that
is subject to weathering conditions such as direct sunlight, wind, or
rain or temperatures below freezing.
•Tighten the drain hose to avoid separation.
•If the power cord is damaged or the hole of the socket outlet is
loose, do not use the power cord and contact an authorized service
centre.
•Do not plug multiple socket outlets, an extension power cable or
adapter with this appliance.

5
EN
•This appliance must not be installed behind a lockable door, a
sliding door or a door with a hinge on the opposite side to that of
the appliance, in such a way that a full opening of the appliance
door is restricted.
•This appliance must be grounded. In the event of malfunction or
breakdown, grounding will reduce the risk of electric shock by
providing a path of least resistance for electric current.
•This appliance is equipped with a power cord having an equipment-
grounding conductor and a grounding power plug. The power plug
must be plugged into an appropriate socket outlet that is installed
and grounded in accordance with all local codes and ordinances.
•Improper connection of the equipment-grounding conductor can
result in risk of electric shock. Check with a qualied electrician or
service personnel if you are in doubt as to whether the appliance is
properly grounded.
•Do not modify the power plug provided with the appliance. If it
does not t the outlet, have a proper outlet installed by a qualied
electrician.
Operation
•Do not attempt to separate any panels or disassemble the
appliance. Do not apply any sharp objects to the control panel in
order to operate the appliance.
•Do not repair or replace any part of the appliance. All repairs
and servicing must be performed by qualied service personnel
unless specically recommended in this Owner’s Manual. Use only
authorized factory parts.

6
EN
•Keep the area underneath and around the appliance free of
combustible materials such as lint, paper, rags, chemicals, etc.
•Do not put animals, such as pets into the appliance.
•Do not leave the appliance door open. Children may hang on the
door or crawl inside the appliance, causing damage or injury.
•Never reach into the appliance while it is operating. Wait until the
drum has completely stopped.
•Do not put in, wash or dry articles that have been cleaned in,
washed in, soaked in, or spotted with combustible or explosive
substances (such as waxes, wax removers, oil, paint, gasoline,
degreasers, drycleaning solvents, kerosene, petrol, spot removers,
turpentine, vegetable oil, cooking oil, acetone, alcohol, etc.).
Improper use can cause re or explosion.
•In case of ood, disconnect the power plug and contact the LG
Electronics customer information centre.
•Do not push down the door excessively, when the appliance door is
open.
•Use new hose or hose-set supplied with the appliance. Reusing old
hoses can cause a water leak and subsequent property damage.
•Do not touch the door during a high temperature programme.
•Do not use ammable gas and combustible substances (benzene,
gasoline, thinner, petroleum, alcohol, etc.) near the appliance.

7
EN
•If the drain hose or inlet hose is frozen during winter, use it only
after thawing.
•Keep all washing detergents, softener and bleach away from
children.
•Do not touch the power plug or the appliance controls with wet
hands.
•Do not bend the power cable excessively or place a heavy object
on it.
Maintenance
•Securely plug the power plug in the socket outlet after completely
removing any moisture and dust.
•Disconnect the appliance from the power supply before cleaning
the appliance. Setting the controls to the OFF or stand by position
does not disconnect this appliance from the power supply.
•Do not spray water inside or outside the appliance to clean it.
•Never unplug the appliance by pulling on the power cable. Always
grip the power plug rmly and pull straight out from the socket
outlet.

8
EN
Technical Safety for Using the Dryer
•Do not dry unwashed items in the appliance.
•Fabric softeners, or similar products, should be used as specied
by the fabric softener instructions.
•Remove all objects from pockets such as lighters and matches.
•Never stop the appliance before the end of the drying cycle unless
all items are quickly removed and spread out so that the heat is
dissipated.
•The appliance is not to be used if industrial chemicals have been
used for cleaning.
•Items such as foam rubber (latex foam), shower caps, waterproof
textiles, rubber backed articles and clothes or pillows tted with
foam rubber pads should not be dried in the appliance.
•Do not drink the condensed water. Failure to do so may result in
food-borne illnesses.
•The lint trap has to be cleaned frequently.
•Lint must not to be allowed to accumulate around the appliance.
•Do not spray dry cleaning detergent directly onto the appliance or
use the appliance to dry clothes left with dry cleaning detergent.
•Do not dry clothes stained with oil substances. Oil substances
(including edible oils) stained on clothes cannot be completely
removed even after washing with water.

9
EN
•The appliance must not be supplied through an external switching
device, such as a timer, or connected to a circuit that is regularly
switched on and off by a utility.
•Remove clothes from the product immediately when drying is
complete or the power is turned off during the drying process.
Leaving clothes that has been dried in the appliance unattended
could result in re. Clothes removed from the appliance after drying
could result in re. Remove clothes immediately after drying, and
then hang or lay the clothes at to cool.
Disposal
•Before discarding an old appliance, unplug it. Cut off the cable
directly behind the appliance to prevent misuse.
•Dispose of all packaging materials (such as plastic bags and
styrofoam) away from children. The packaging materials can cause
suffocation.
•Remove the door before disposing of or discarding this appliance to
avoid the danger of children or small animals getting trapped inside.

10
EN
Disposal of Your Old Appliance
•This crossed-out wheeled bin symbol indicates that waste electrical and electronic
products (WEEE) should be disposed of separately from the municipal waste stream.
•Old electrical products can contain hazardous substances so correct disposal of your
old appliance will help prevent potential negative consequences for the environment
and human health. Your old appliance may contain reusable parts that could be used
to repair other products, and other valuable materials that can be recycled to conserve
limited resources.
•You can take your appliance either to the shop where you purchased the product, or
contact your local government waste ofce for details of your nearest authorised WEEE
collection point. For the most up to date information for your country please see www.
lg.com/global/recycling.
This dryer contains uorinated greenhouse gases. R134a (GWP:
1430): 0.390 kg / 0.558 t CO2-eq. Hermetically sealed.

11
INSTALLATION EN
Specications
1 2
3
5
1 2
5
4
1
Water container
2
Control panel
3
Glass door
4
Opaque door
5
Air ventilation grill
Model RC7055*HM / RC7055*H*M RC8055*HM / RC8055*H*M
Power supply 230 V~ 50 Hz
Size 600 mm (W) X 640 mm (D) X 850 mm(H)
Product weight 53 - 56 kg
Allowable temperature 5 - 35 °C
Max. capacity 7 kg 8 kg
•Appearance and specications may vary without notice to improve the quality of the appliance.
Accessories
Please contact the LG Electronics Customer Information Centre for purchase.
Condensing Drain Hose
and Hose Holder
Dry Rack Stacking Kit

12
EN
Installation Place
Requirements
Location
30-50 cm 2 cm 2 cm
Level oor : Allowable slope under the entire
appliance is 1°.
Power outlet : Must be within 1.5 meters of
either side of the location of the appliance.
•Do not overload the outlet with more than one
appliance.
Additional Clearance : For the wall, 30 – 50
cm: rear /2 cm: right & left side
•Do not place or store laundry products on top
of the appliance at any time.
•These products may damage the nish or
controls.
NOTE
•For better drying performance, please keep the
rear of the appliance away from wall.
•Do not install the appliance where there is a
risk of frost or dust.
•The appliance may not be able to operate
properly or may be damaged by freezing of
condensed water in the pump and drain hose.
•Do not install the appliance next to a high-
temperature appliance like refrigerator, oven
or stove etc, which can cause poor drying
performance and programme duration, and
adversely affect the proper functioning of the
compressor. The appliance performs best at a
room temperature of 23 °C.
Positioning
•Install the appliance on a at hard oor.
•Make sure that air circulation around the
appliance is not impeded by carpets, rugs, etc.
•Never try to correct any unevenness in the
oor with pieces of wood, cardboard or similar
materials under the appliance.
•Do not install the appliance in rooms where
freezing temperatures may occur. Frozen
hoses may burst under pressure. The reliability
of the electronic control unit may be impaired
at temperatures below freezing point.
•If the appliance is delivered in winter and
temperatures are below freezing, place the
appliance at room temperature for a few hours
before putting it into operation.
•Please ensure that when the appliance is
installed, it is easily accessible for an engineer
in the event of a breakdown.
•With the appliance installed, adjust all four
feet using a transit bolt spanner to ensure
the appliance is stable, and a clearance of
approximately 20 mm is left between the top
of the appliance and the underside of any
work-top.
Ventilation Requirement
•Alcove or under counter
−Ensure air ow of 3.17 m3/min through the
appliance
•Closet
−Closet door must have 2 (louvered) openings,
each having a minimum area of 387 cm2,
located 8 cm from bottom and top of door.

13
EN
WARNING
•Avoid installing the appliance around a heat
source.The rear side of the appliance must
be well ventilated. Failure to follow these
instructions may result in problems.
•The appliance should not be installed next to a
refrigeration appliance.
•The appliance is not designed for maritime
use or for use in mobile installations such as
caravans, aircraft etc.
Electrical Connection
•Do not use an extension cord or double
adapter.
•Always unplug the appliance after use.
•Connect the appliance to an earthed socket in
accordance with current wiring regulations.
•The appliance must be positioned so that the
plug is easily accessible.
Stacking Installation
Instructions
Your dryer can be placed on top of an LG
washing machine and securely xed with a
stacking kit. This installation must be conducted
by qualied service personnel to ensure it has
been installed correctly.
The qualied service personnel will ensure
you have the correct stacking kit for your
model of washing machine and will ensure it is
rmly xed. For these reasons, expert tting is
essential.
Stacking Kit
In order to stack this dryer an LG stacking kit is
required.
Dryer
Washing
machine
This dryer may only be stacked on top of an
LG washing machine. Do not attempt to stack
this dryer on any other washing machine, as
damage, injury or property damage could result.
Shape and
assembly
direction
Washing Machine Top plate
size
550 mm 600 mm

14
EN
Installation Procedure
1Place the LG dryer on the LG washing
machine.
2Remove the two screws from the bottom of
the rear cover on each side as illustrated
below.
3Align the stacking kit holes and the rear cover
holes.
•3-1) 600 mm
•3-1) 550 mm
4Fasten the two screws that were removed
earlier from the dryer to the stacking kit.
5Use the four screws in the accessory box (16
mm) to assemble the washing machine rear
cover and stacking kit.
6The procedure for the opposite side will be
the same.
WARNING
•Incorrect installation can cause serious
accidents.
•The weight of the appliance and the height of
installation make the stacking procedure too
risky for one person. This procedure should
be performed by two or more qualied service
personnel.
•The appliance is not suitable for a built-in
installation. Please do not install as a built-in
appliance.
•Do not operate if the appliance is not properly
stacked.

15
EN

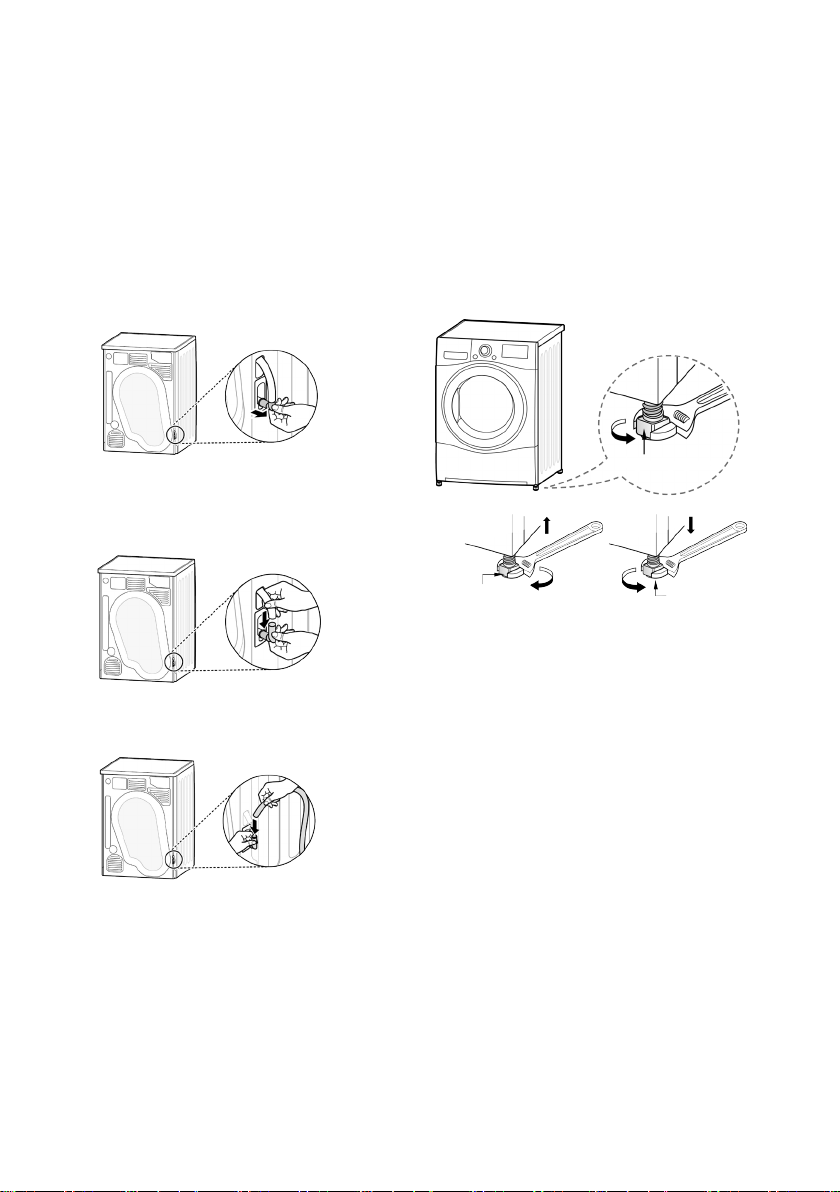

Condensed Water Drain-out
Normally, condensed water is pumped up to the
water container where water is collected until
manually emptied. Water can also be drained
out directly to a mains drain, especially when the
dryer is stacked on top of a washing machine.
With a connecting kit for the mains drain hose,
simply change the water path and re-route to the
drainage facility as below:
1Take the connecting kit out.
2Separate the water container hose from the
kit.
3Connect the drain hose to the kit.
Leveling the appliance
Leveling the appliance prevents unnecessary
noise and vibration. Place the appliance on a
solid, level oor.
If the appliance is not properly level, adjust the
front leveling feet as necessary.
Turn them clockwise to raise and counter-
clockwise to lower until the appliance no longer
wobbles, both front-to-back and side-to-side and
corner-to-corner.
Adjustable Feet
Adjustable Feet Adjustable Feet
Diagonal Check
•When pushing down the edges of the top plate
diagonally, the appliance should not move up
and down at all (Check both directions). If the
appliance rocks when pushing the top plate
diagonally, adjust the feet again.

16
OPERATION EN
Using the Appliance

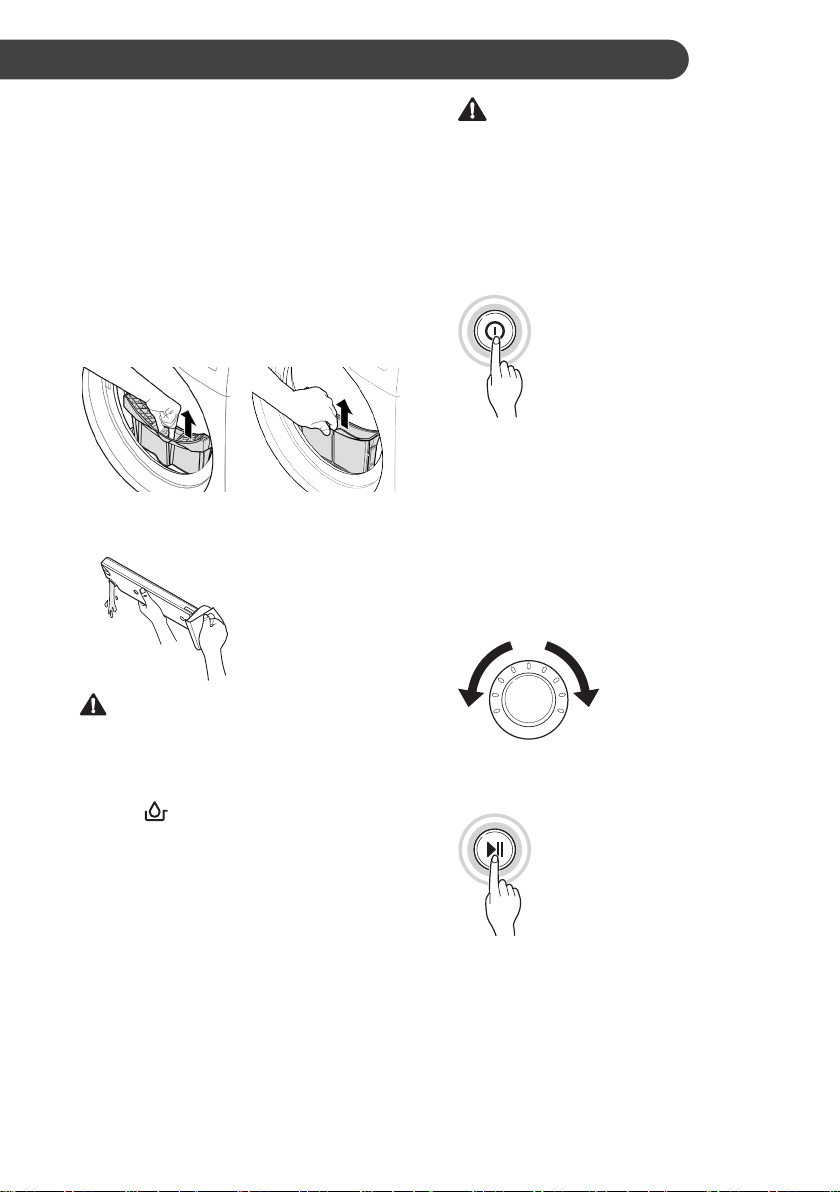

Before the rst cycle, set the appliance to dry
for ve minutes to warm up the drum. Open
the door between loads the rst few times you
use the appliance to allow any odours from the
interior of the appliance to disperse.
1Ensure the lint lter and water container are
clean.
•The lint lter is inside the door rim. It needs
to be cleaned before each drying cycle.
•Open the door and ensure the lint lter is
clean. If it is not, please clean the lint lter.
•Also check if the water container needs to
be emptied for optimum drying results.
WARNING
•Do not drink the condensed water.
NOTE
•In some instances, LED window may
display (Empty water symbol) and the
appliance may stop because the water
container is full.
2Place laundry into the drum after sorting.
•The clothes should be sorted by fabric type
and dryness level and all the strings and
belts of clothes should be well tied and xed
before being put into the drum. Push the
laundry to the back to keep it away from
the door seal. Otherwise, the door seal and
clothes may be damaged. Close the door.
CAUTION
•Be careful not to trap laundry between the
door and rubber seal.
3Turn the power on.
•Press the Power button. The indicator icon
above the button will become illuminated,
indicating that the appliance is all set to run.
4Select the drying programme you want.
•You can choose a programme by turning
the programme selector knob until the
required programme is indicated.
•If you press the Start/Pause button without
choosing a programme, the appliance
will proceed with the Cotton programme.
Please refer to the programme table for the
detailed information.
5Press the Start/Pause button.
6After the cycle has nished, open the door
and remove the laundry.
7Turn off the appliance.
•Press the Power button.

17
EN
CAUTION
•Be careful! The drum inside may still be hot.
•The appliance must not be used for purposes
other than those for which it was designed.
NOTE
•The nal part of a tumble dryer cycle occurs
without heat (cool down cycle) to ensure that
laundry is left at a temperature that ensures the
laundry will not be damaged.
•A high atmospheric temperature and a small
room may both increase drying time as well as
energy consumption.
Sorting Laundry
Clothes have their own wash care labels, so
drying according to the wash care label is
recommended.
Not only that, the laundry must be sorted
according to size and type of fabric.
For the best drying performance and most
efcient energy usage, do not overload the
appliance.
Woollens
•Dry woollens on the Wool programme. Be sure
to follow fabric care label symbols rst. Wool
may not be completely dried from the cycle,
so do not repeat drying. Pull woollens to their
original shape and dry them at.
Woven and Loopknit Materials
•Some woven and loopknit materials may
shrink, depending on quality.
Permanent Press and Synthetics
•Do not overload the appliance. Take out
permanent press items as soon as the
appliance stops to reduce creases.
Baby Clothes and Night Gowns
•Always check fabric care labels.
Rubber and Plastics
•Do not dry any items made from or containing
rubber or plastics such as:
−Aprons, Bibs and Chair Covers
−Curtains and Table Clothes
−Bathmats
Fiberglass
•Do not dry berglass items in the appliance.
Glass particles left in the appliance may be
subsequently picked up by your clothes in later
cycles.
Icon Description
Dry
Tumble dry
Permanent Press /
Crease resistant
Gentle / Delicate
Do not tumble dry
Do not dry
High heating
Medium heating
Low heating
No Heating / Air
Line dry / Hang to dry
Drip dry
Dry at
In the shade

18
EN
Control Panel
RC7055*HM / RC7055*H*M
RC8055*HM / RC8055*H*M

19
EN
1
Power Button
•Press the Power button to turn power on
and off.
•Press the Power button to cancel the
Time Delay function.
2
Programme Selector
•Programmes are available according to
the laundry type.
•The lamp will light up to indicate the
selected programme.
3
Start/Pause Button
•This Start/Pause button is used to start
or pause a dry cycle.
•When in Pause, the power is turned off
automatically after four minutes.
4
Additional Programme Buttons
•Use these buttons to select the desired
options for the selected programme.
Display
• : This icon indicates that the lint lter
should be cleaned or is clogged.
−Cleaning notice: When you press the Power
button, the icon will become displayed.
−Clogging notice: This icon will become
displayed with a buzzer sound whilst the
appliance is in operation.
• : This icon indicates that the water
container needs to be emptied or is full.
−Emptying notice: When you press the Power
button, this icon will become displayed.
−Full water notice: The icon will become
displayed and a buzzer will sound while the
appliance is in operation.
• : This icon indicates the lint lter insertion
status. If the lint lter is not inserted, the
appliance will not operate and the icon will
become displayed.

20
EN
Programme Table
Drying Programme
Sensor Dry Programmes
Programme Laundry Type Detail Drying
Level
Capacity
7 kg 8 kg
Cotton
Towels, dressing gowns
and bed linen
For thick and quilted
fabrics Extra 7 kg 8 kg
Terry towels, tea towels,
towels and bed linen
For thick and quilted
fabrics that do not need
to be ironed
Very 7 kg 8 kg
Bath towels, tea towels,
underwear and cotton
socks
For fabrics that do not
need to be ironed Cupboard 7 kg 8 kg
Sheets, pillowcase and
towels
For fabrics that do not
need to be ironed Light 7 kg 8 kg
Bed linen, table linen,
towels, T-shirts, polo
shirts and work clothes
For fabrics that need to
be ironed Iron 7 kg 8 kg
Mixed
Fabric
Bed linen, table linen,
tracksuits, anoraks and
blankets
For thick and quilted
fabrics that do not need
to be ironed
Very 3.5 kg 4 kg
Shirts and blouses For fabrics that do not
need to be ironed Cupboard 3.5 kg 4 kg
Trousers, dressers, skirts
and blouses
For fabrics that need to
be ironed Iron 3.5 kg 4 kg
Easy Care
Shirts, T-shirts, trousers,
under-wear and socks
For polyamide, acrylic,
and polyester that do not
need to be ironed
Cupboard 3.5 kg 4 kg
Shirts, T-shirts, under-
wear, anoraks and socks
For polyamide, acrylic,
polyester that do need to
be ironed
Iron 3.5 kg 4 kg
Bulky Item Bed clothes, sheets For bulky items - 2 kg 2 kg
Jeans Jeans and colour fading
garments.
For jeans which do not
need to be ironed - 3 kg 3 kg
Skin Care T-shirts, pillowcase, and
towels
For cotton fabrics which
do not need to be ironed - 4.5 kg 4.5 kg
Refresh Shirts and blouses
Odour removal of fabric
(For fabrics in need of
odour removal)
- 1.5 kg 1.5 kg
Sports Wear Soccer kit and training
wear For polyester material - 2 kg 2 kg
