LG TD-H9066 S Series User manual

www.lg.com
OWNER'S MANUAL
DRYER
Before beginning installation, read these instructions carefully. This will
simplify installation and ensure that the product is installed correctly and
safely. Leave these instructions near the product after installation for future
reference.
EN ENGLISH
TD-H9066*S
MFL70442603
Rev.00_090418 Copyright © 2018 LG Electronics Inc. All Rights Reserved.

TABLE OF CONTENTS This manual may contain images or
content different from the model you
purchased.
This manual is subject to revision by the
manufacturer.
SAFETY INSTRUCTIONS .......................................................3
IMPORTANT SAFETY INSTRUCTIONS.................................................... 3
INSTALLATION ......................................................................10
Specifications ........................................................................................... 10
Accessories .............................................................................................. 10
Installation Place Requirements ............................................................... 11
Stacking Installation Instructions .............................................................. 12

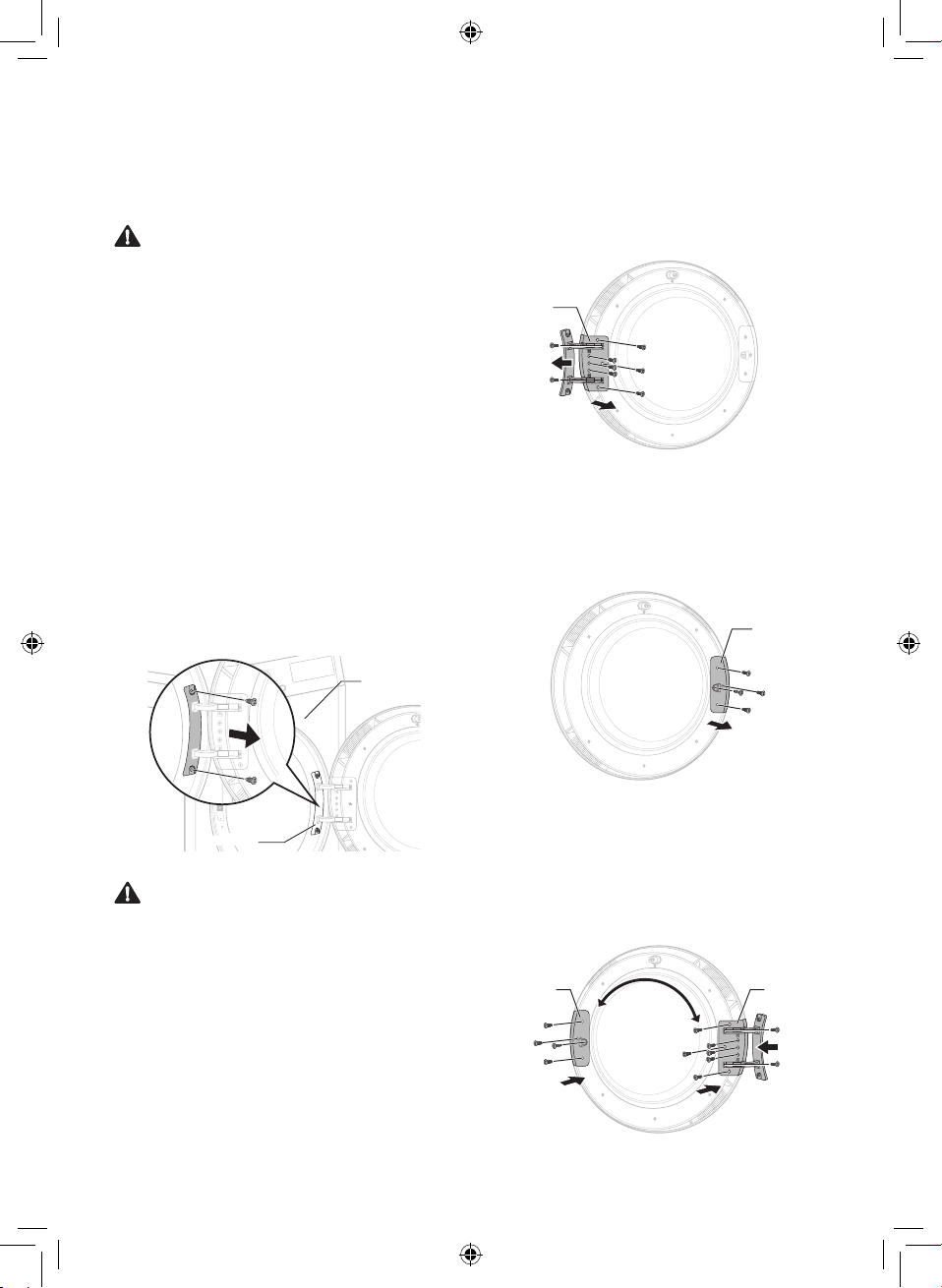

Reversing the door ................................................................................... 15
OPERATION ...........................................................................17

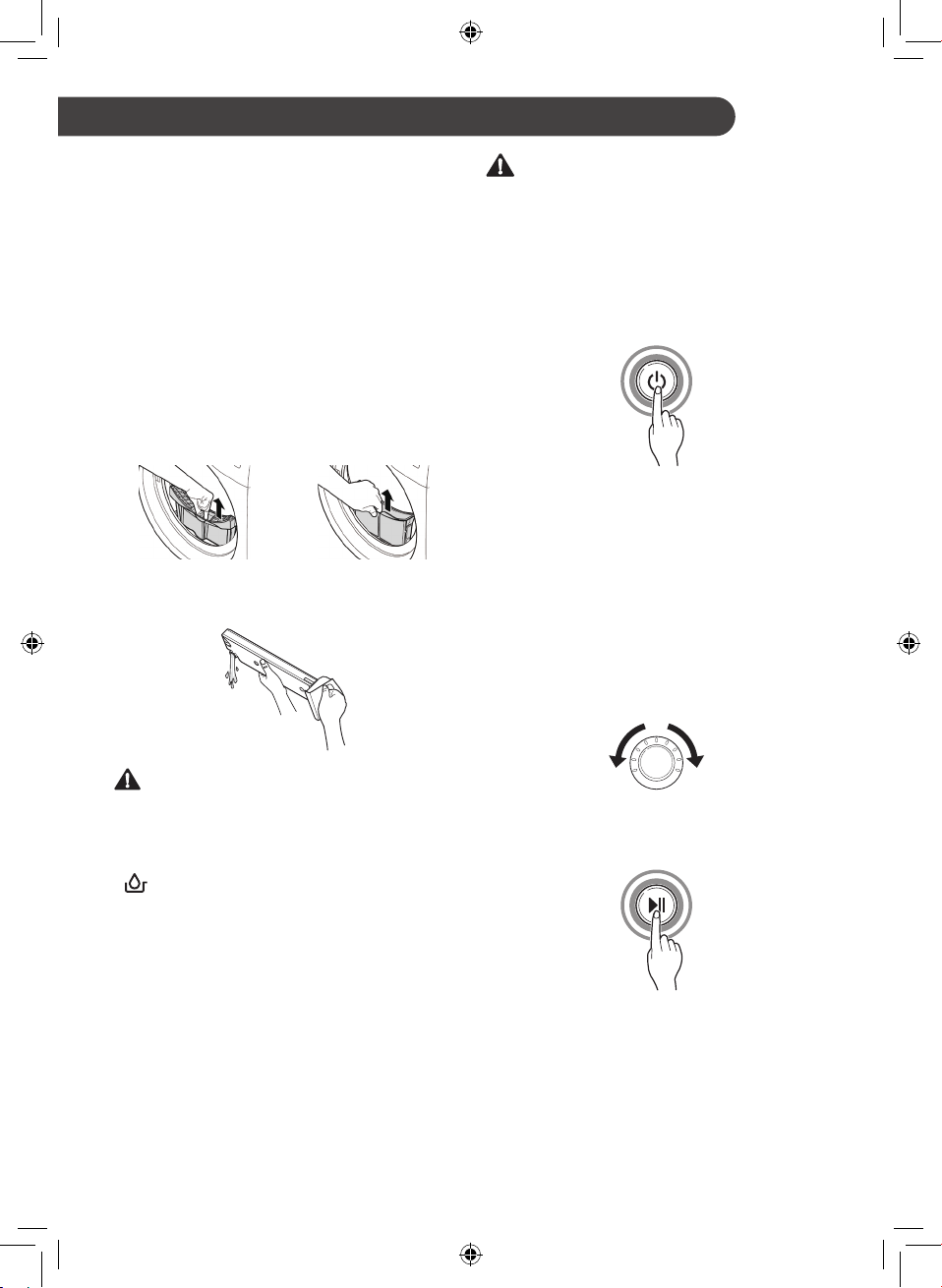

Using the Appliance.................................................................................. 17
Sorting Laundry ........................................................................................ 18

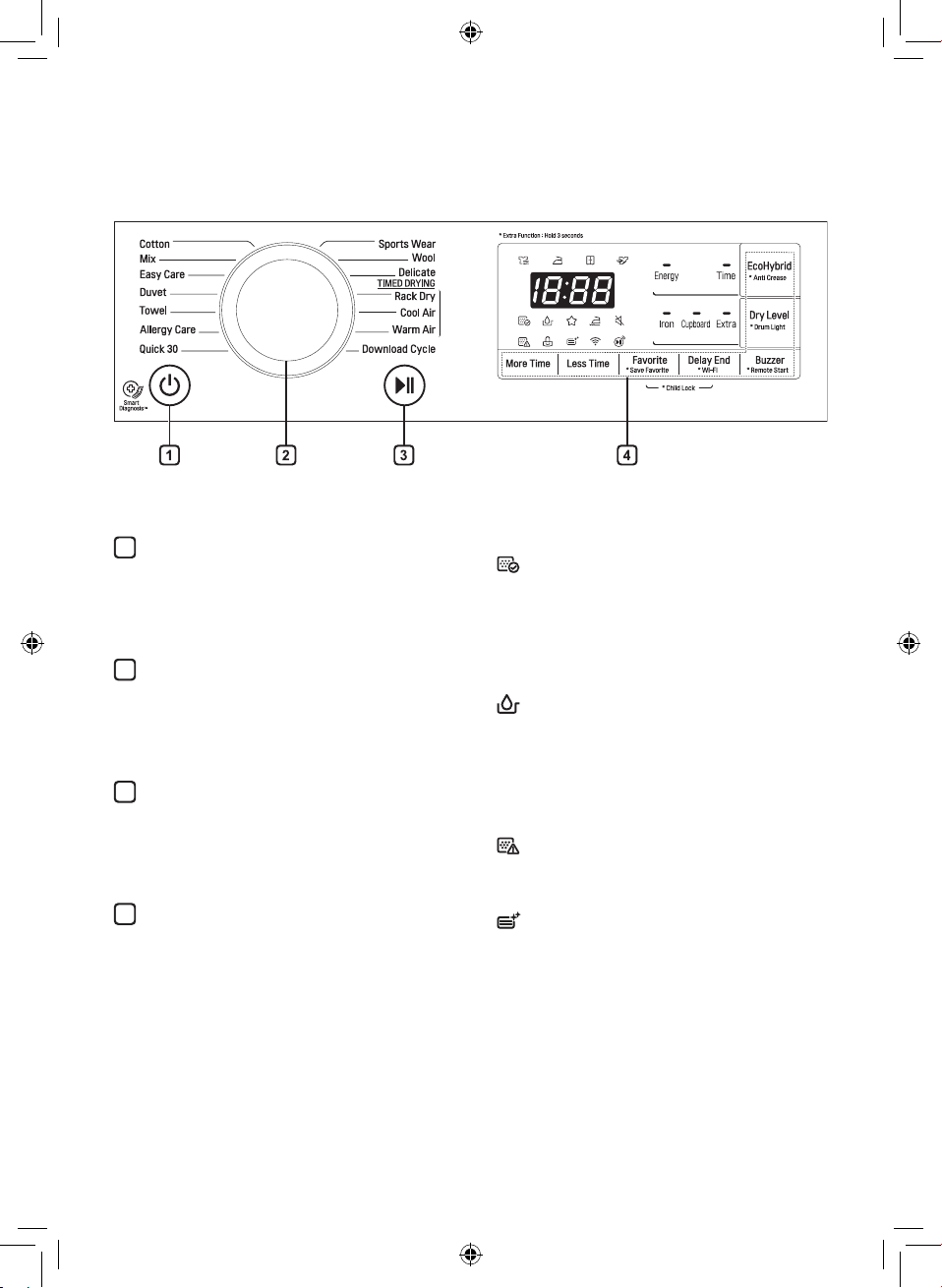

Control Panel............................................................................................ 19
Programme Table ..................................................................................... 20
Option Programme ................................................................................... 22
Rack Dry................................................................................................... 24
SMART FUNCTIONS .............................................................25
Using LG SmartThinQ Application............................................................ 25
Using Smart Diagnosis™ ......................................................................... 29
MAINTENANCE......................................................................30
Cleaning the Lint Filter.............................................................................. 30
Emptying the Water Container.................................................................. 31
Cleaning the Cool Air Inlet Grill................................................................. 31
Wiping the Moisture Sensor ..................................................................... 31
TROUBLESHOOTING ...........................................................32
Diagnosing Problems ............................................................................... 32
Error Codes .............................................................................................. 36
WARRANTY............................................................................37

3
SAFETY INSTRUCTIONS EN
The following safety guidelines are intended to prevent
unforeseen risks or damage from unsafe or incorrect
operation of the appliance.
The guidelines are separated into ‘WARNING’ and ‘CAUTION’
as described below.
This symbol is displayed to indicate matters and
operations that can cause risk. Read the part with this
symbol carefully and follow the instructions in order to
avoid risk.
WARNING
This indicates that the failure to follow the instructions can
cause serious injury or death.
CAUTION
This indicates that the failure to follow the instructions can
cause the minor injury or damage to the product.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of explosion, fire, death, electric shock,
injury or scalding to persons when using this product,
follow basic precautions, including the following:
Children in the Household
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised
to ensure that they do not play with the appliance.

4
EN
Installation
•Make sure the appliance is properly installed, grounded, and
adjusted by qualified service personnel according to the
installation instructions.
•Never attempt to operate the appliance if it is damaged,
malfunctioning, partially disassembled, or has missing or broken
parts, including a damaged cord or plug.
•This appliance should only be transported by two or more people
holding the appliance securely.
•Do not install the appliance in a damp and dusty place. Do not
install or store the appliance in any outdoor area, or any area that
is subject to weathering conditions such as direct sunlight, wind,
rain or temperatures below freezing.
•Tighten the drain hose to avoid separation.
•If the power cord is damaged or the hole of the socket outlet is
loose, do not use the power cord and contact an autwhorized
service centre.
•Do not plug multiple socket outlets, an extension power cable or
adapter with this appliance.
•Items such as foam rubber (latex foam), shower caps, waterproof
textiles, rubber backed articles and clothes or pillows fitted with
foam rubber pads should not be dried in the appliance.

5
EN
•This appliance must not be installed behind a lockable door, a
sliding door or a door with a hinge on the opposite side to that of
the appliance, in such a way that a full opening of the appliance
door is restricted.
•This appliance must be grounded. In the event of malfunction or
breakdown, grounding will reduce the risk of electric shock by
providing a path of least resistance for electric current.
•This appliance is equipped with a power cord having an
equipment-grounding conductor and a grounding power plug. The
power plug must be plugged into an appropriate socket outlet that
is installed and grounded in accordance with all local codes and
ordinances.
•Improper connection of the equipment-grounding conductor can
result in risk of electric shock. Check with a qualified electrician or
service personnel if you are in doubt as to whether the appliance
is properly grounded.
•Do not modify the power plug provided with the appliance. If it
does not fit the outlet, have a proper outlet installed by a qualified
electrician.
•The appliance must not be supplied through an external switching
device, such as a timer, or connected to a circuit that is regularly
switched on and off by a utility.
Operation
•Do not attempt to separate any panels or disassemble the
appliance. Do not apply any sharp objects to the control panel in
order to operate the appliance.
•Do not repair or replace any part of the appliance. All repairs and
servicing must be performed by qualified service personnel unless
specifically recommended in this Owner’s Manual. Use only
authorized factory parts.
•Keep the area underneath and around the appliance free of
combustible materials such as lint, paper, rags, chemicals, etc.
•Do not put animals, such as pets into the appliance.

6
EN
•Do not leave the appliance door open. Children may hang on the
door or crawl inside the appliance, causing damage or injury.
•Never reach into the appliance while it is operating. Wait until the
drum has completely stopped.
•Do not put in, wash or dry articles that have been cleaned in,
washed in, soaked in, or spotted with combustible or explosive
substances (such as wax, oil, paint, gasoline, degreasers,
drycleaning solvents, kerosene, vegetable oil, cooking oil, etc.).
Improper use can cause fire or explosion.
•In case of flood, disconnect the power plug and contact the LG
Electronics customer information centre.
•Do not push down the door excessively, when the appliance door
is open.
•Use new hose or hose-set supplied with the appliance. Reusing
old hoses can cause a water leak and subsequent property
damage.
•Do not touch the door during a high temperature programme.
•Do not use flammable gas and combustible substances (benzene,
gasoline, thinner, petroleum, alcohol, etc.) near the appliance.
•If the drain hose or inlet hose is frozen during winter, use it only
after thawing.
•Keep all washing detergents, softener and bleach away from
children.
•Do not touch the power plug or the appliance controls with wet
hands.
•Do not bend the power cable excessively or place a heavy object
on it.

7
EN
Maintenance
•Securely plug the power plug in the socket outlet after completely
removing any moisture and dust.
•Disconnect the appliance from the power supply before cleaning
the appliance. Setting the controls to the OFF or stand by position
does not disconnect this appliance from the power supply.
•Do not spray water inside or outside the appliance to clean it.
•Never unplug the appliance by pulling on the power cable. Always
grip the power plug firmly and pull straight out from the socket
outlet.
Technical Safety for Using the Dryer
•Do not dry unwashed items in the appliance.
•Fabric softeners, or similar products, should be used as specified
by the fabric softener instructions.
•Remove all objects from pockets such as lighters and matches.
•Never stop the appliance before the end of the drying cycle unless
all items are quickly removed and spread out so that the heat is
dissipated.
•The appliance is not to be used if industrial chemicals have been
used for cleaning.
•Items that have been soiled with substances such as cooking oil,
vegetable oil, acetone, alcohol, petroleum, kerosene, spot
removers, turpentine, waxes and wax removers should be washed
in hot water with an extra amount of detergent before being dried
in the appliance.
•Do not drink the condensed water. Failure to do so may result in
food-borne illnesses.
•If the supply cord is damaged, it must be replaced by the
manufacturer or its service agents or similarly qualified person in
order to avoid a hazard.

8
EN
•The lint trap has to be cleaned frequently.
•Lint must not to be allowed to accumulate around the appliance.
•Do not spray dry cleaning detergent directly onto the appliance or
use the appliance to dry clothes left with dry cleaning detergent.
•Do not dry clothes stained with oil substances. Oil substances
(including edible oils) stained on clothes cannot be completely
removed even after washing with water.
•The appliance must not be supplied through an external switching
device, such as a timer, or connected to a circuit that is regularly
switched on and off by a utility.
•Remove clothes from the product immediately when drying is
complete or the power is turned off during the drying process.
Leaving clothes that has been dried in the appliance unattended
could result in fire. Clothes removed from the appliance after
drying could result in fire. Remove clothes immediately after
drying, and then hang or lay the clothes flat to cool.

9
EN
Disposal
•Before discarding an old appliance, unplug it. Cut off the cable
directly behind the appliance to prevent misuse.
•Dispose of all packaging materials (such as plastic bags and
styrofoam) away from children. The packaging materials can
cause suffocation.
•Remove the door before disposing of or discarding this appliance
to avoid the danger of children or small animals getting trapped
inside.

10
INSTALLATION EN
Specifications
1 2
3
Water container
Control panel
Door
1
2
3
Model TD-H9066*S
Power supply 220 - 240 V~, 50 Hz
Size 600 mm (W) X 690 mm (D) X 850 mm (H)
Product weight 56 kg
Allowable temperature 5 - 35 °C
Max. capacity 9 kg
•Appearance and specifications may vary without notice to improve the quality of the appliance.
Accessories
Please contact the LG Electronics Customer Information Centre for purchase.
Condensing Drain Hose
and Hose Holder
Dry Rack Stacking Kit
