LG 30FZ4D User manual

• 1080i Resolution
• ATSC/NTSC/QAM Clear Tuner
• Flat Screen
• SRS TruSurround XT™
• HDMI with HDCP
30FZ4D
30" Direct View Integrated HDTV
LG’s Exclusive XD™ Engine Six distinct
processes contribute to picture improvement.
LG’s XD Engine takes the low resolution of
analog signals to near HD levels by improv-
ing brightness, contrast, detail and enhanc-
ing color as well as reducing signal noise.
This total solution results in cinema like high
resolution images.
Hign Definition TV Built-in ATSC tuner
allows this TV to receive over-the-air digital
broadcast signals and unscrambled digital
cable.
XT

30FZ4D
30" Direct View Integrated HDTV
LG Electronics U.S.A., Inc.
1000 Sylvan Avenue
Englewood Cliffs, NJ 07632
www.LGusa.com
Design and specifications subject to change without notice. 03/16/05
© 2005 LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. LG Design and Life’s Good are trademarks of LG Electronics, Inc. All other trademarks are the property of their respective owners.
Video
Native Display Resolution 1080i
Screen Size 30"
Aspect Ratio 16:9
3:2 Pulldown Cinema Correction Yes (480i)
Manual Tilt Correction Control •
Invar Mask •
Dynamic Focus •
Picture Tube with Anti Static Coating •
Color Temperature Warm/Mid/Cool
Black Level Expansion/White Level Compression •
2D Y/C Comb Filter 4H Line
Aspect Ratio Adjustment 6 Modes
EZ Video/Picture Selection Mode 7 Modes
Audio
Built-in Speakers 14W (7W + 7W)
SRS TruSurround XT™ •
Dolby® Digital •
MTS/SAP •
Bass/Treble/Balance •
EZ SoundRite (Volume Leveler) •
EZ Sound/Sound Selection Mode 6 Modes
Bass Reflex System •
Cabinet/Accessories
Cabinet Style Table Top
Cabinet Color Noble Black
Core Features
Tuner(s) 1 (ATSC, NTSC, QAM)
Special Features
Custom Channel Labels Text, Over 50 Channels
Custom Input Labels Add/Del
Favorite Channel Selection/Surf •
Tri-lingual Menus English, Spanish, French
Sleep and On/Off Timer •
Auto Off When no video is present
Flashback (Previous Channel) •
Parental Control with V-Chip •
EZ Menus Bit Mapped - 2D
EZ Scan (Auto Programming) •
XD EngineTM •
Decoder Formats MPEG2
Audio/Video Inputs/Outputs
TV Rear
- RF Antenna In 1 (Cable), 1 (Antenna)
- HDMI with HDCP 1
- DVI/HDMI requires HDMI to DVI adapter
(not included)
- RS-232c (Software Upgrade Interface) Yes
- Digital Audio In 1 Optical
- Digital Audio Out 1 Optical
- Composite Video & Audio L/R In 2
- Composite Video & Audio L/R Out 1
- S-Video In 1
- Component DVD/DTV (480i, 480p, 720p, 1080i)
& Audio L/R 2
- Variable Audio Out 1
TV Side
- S-Video In 1
- Composite Video & Audio L/R In 1
Dimensions
Cabinet Dimensions without Stand
- Width x Height x Depth 37.2" x 23.7" x 21.8"
- Weight Out of Package 127.9 lbs.
Dimensions with Packaging
- Width x Height x Depth 42.5” x 32.7” x 26.1”
- Weight In Package 143.3 lbs.
UPC 719192168701
Warranty 2 years parts/labor
Remote Control
Standard IR •
Universal •

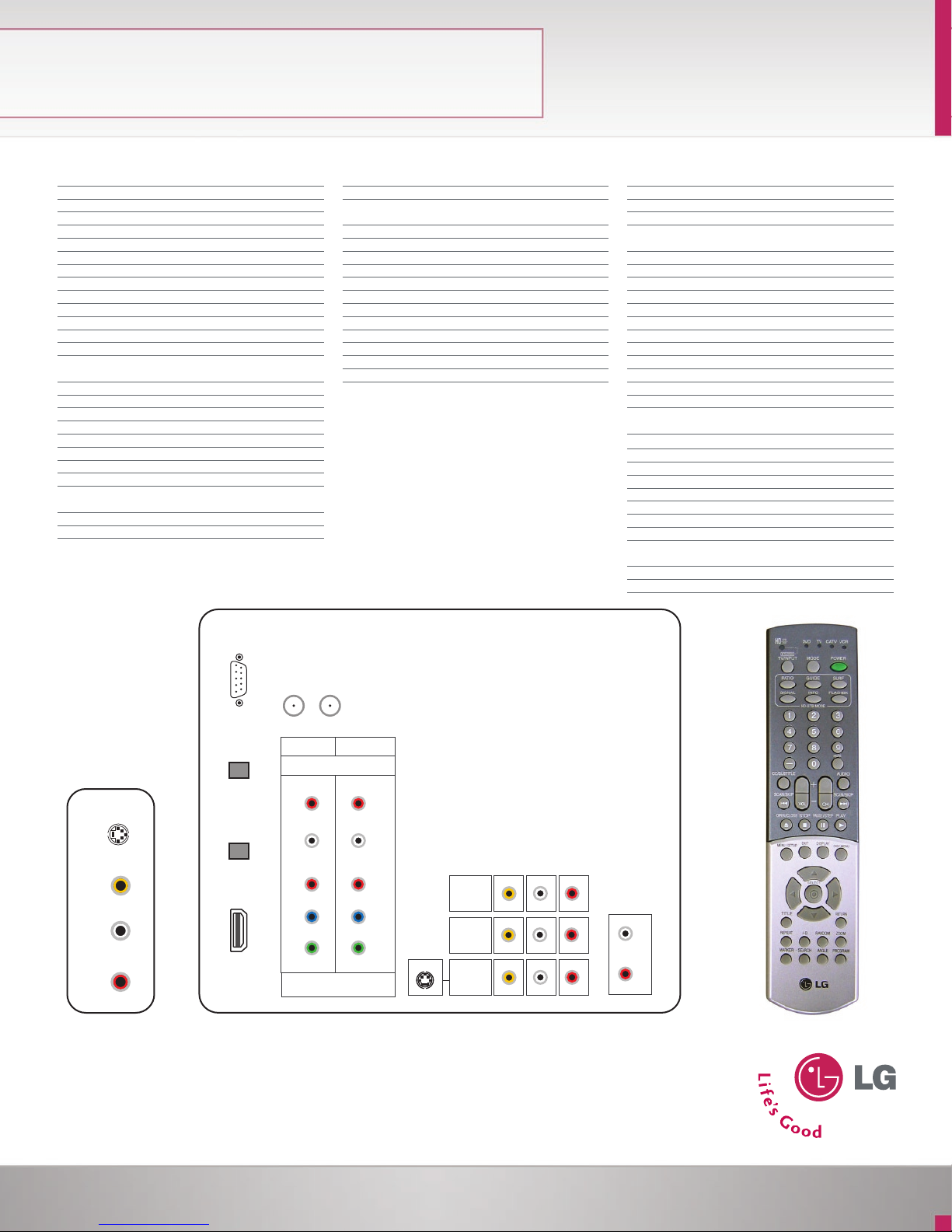

TV Rear
AUDIO
DVD / DTV INPUT
(R)(L)PrPbY
AUDIO(R)(L)PrPbY
COMPONENT 1 COMPONENT 2
CABLE
+75 |ANTENNA +75 |
MONITOR
OUT
INPUT 2
INPUT 1
VIDEO (L) - AUDIO - (R)
S-VIDEO
INPUT
HDMI/DVI
RS-232c
DIGITAL
AUDIO OUTPUT
OPTICAL
DIGITAL
AUDIO INPUT
OPTICAL (DVI)
(480i, 480p, 720p, 1080i)
AUDIO
(R) (L)
VARIABLE
AUDIO
(R) - AUDIO - (L) VIDEO S-VIDEO
TV Side
