LG 52SX4D User manual

• ATSC/NTSC/QAM Clear Tuners
• Digital Cable Ready (CableCARD™)
•
TV Guide On Screen®
• 9-in-2 Multi Memory Card Slot
• Texas Instruments HD3 DLP™ Chip
• HDMI with HDCP
• IEEE 1394 with DTV Link
• 1500:1 Contrast Ratio
• 1280 x 720p Resolution
52SX4D
52" DLP Integrated HDTV
LG’s Exclusive XD™ Engine Six distinct
processes contribute to picture improvement.
LG’s XD Engine takes the low resolution of
analog signals to near HD levels by improv-
ing brightness, contrast, detail and enhanc-
ing color as well as reducing signal noise.
This total solution results in cinema like high
resolution images.
Color Wheel with Air Bearing Increased
reliability over conventional ball bearing
color wheels.
Advanced Connectivity Includes inputs for
the most advanced components and allows
simultaneous PC interactivity while watching
your favorite TV programming.
XT
TM

Video
Native Display Resolution 1280 x 720p
Contrast Ratio 1500:1
Brightness 450 cd/m2
Lifetime 8000 hrs
Viewing Angle 130º x 62º
3D Y/C Comb Filter •
Color Temperature Adjustment 3 Modes
Aspect Ratio Adjustment 6 Modes
3:2 Pull-down Cinema Correction 480i
EZ Video/Picture Selection Mode 6 Modes
XD Engine •
Gamma Correction •
Digital Luminance Transient Improver •
High Contrast Screen w/Non-glare Coating •
Mirror Type Front Surface Mirror
Screen Pitch 0.098mm
Audio
Audio Output Power 40W (2 x 20W)
Surround System Type SRS TruSurround XT
Bass/Treble/Balance •
EZ SoundRite (Volume Leveler) •
EZ Sound/Sound Selection Mode 5 Modes
Speaker System Details Stereo 2way x 6 Speakers
Bass Reflex System •
Cabinet/Accessories
Cabinet Style Table Top
Cabinet Color Black
Speakers Included Built-in
Front Lighted Display LED
Core Features
Tuner(s) ATSC/NTSC/QAM
Digital Cable Ready (DCR) •
Memory Card Reader (9 in 2)
- 1st slot: CF Type I/II
- 2nd slot: MS, MS PRO, SD, MMC, SMC, XD
Special Features
Custom Channel Labels •
Custom Input Labels •
PIP •
Flexible PIP (Size Adjustable) 1/9 only
POP •
Split Screen •
PIP Exchange/Move •
Single Tuner PIP/POP •
Dual Tuner PIP/POP/Split Screen •
Discrete IR Codes •
Favorite Channel Selection/Surf •
Tri-lingual Menus English, Spanish, French
On/Off Timer •
Sleep Timer •
Auto Off (When no video is present) •
Flashback (Previous Channel) •
Parental Control With V-Chip •
EZ Menus (High Performance Interface) •
EZ Scan (Auto Programming) •
EZ Demo •
Program Guide Gemstar
IEEE 1394 Software Capability Full AVC
Decoder Formats MPEG2
Ghost Cancellation •

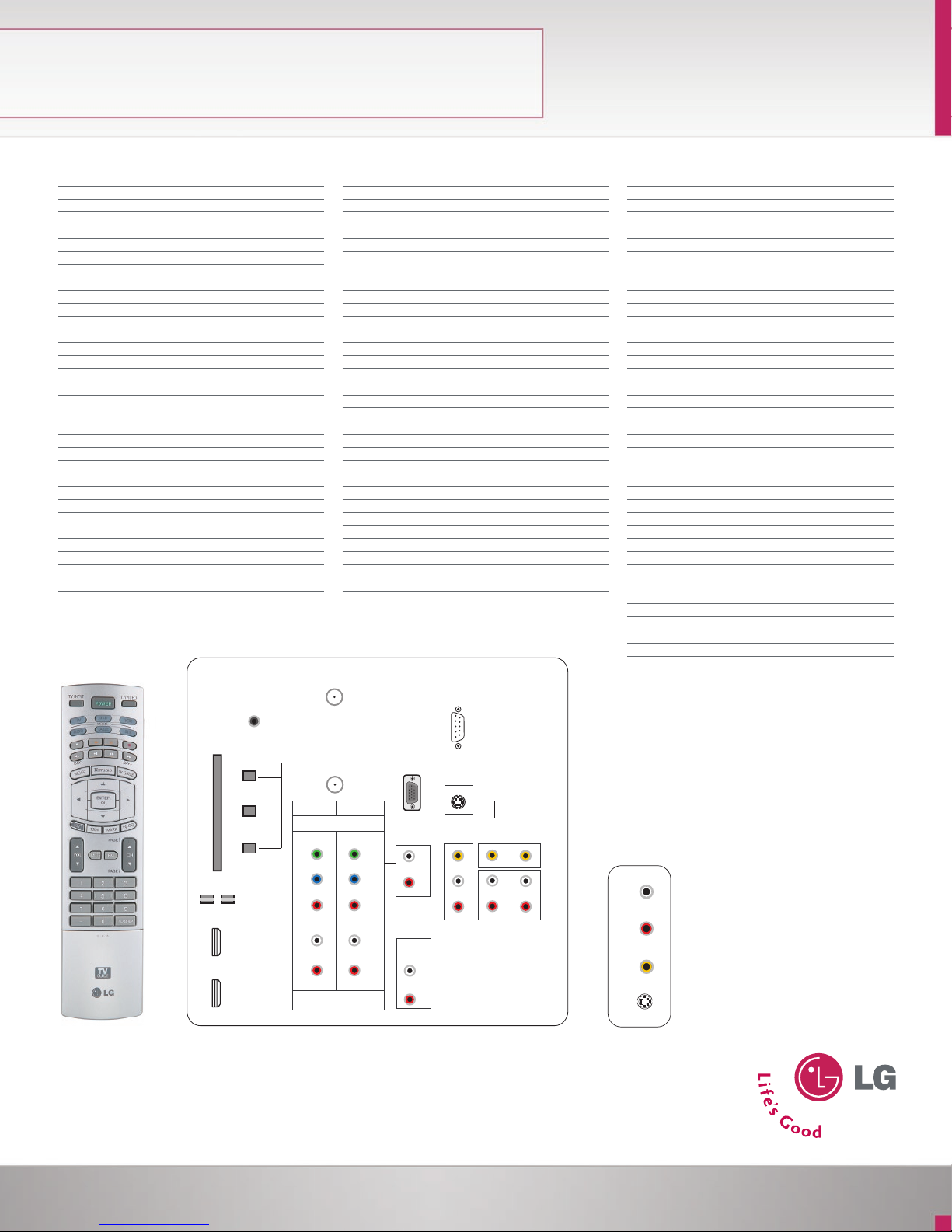

Audio/Video Inputs/Outputs
TV Rear
- RF Inputs 1(Antenna), 1(Cable)
- S-Video In 1
- Composite Video & Audio L/R In 2
- Composite Video Out 1
- Component DVD/DTV
(480i, 480p, 720p, 1080i) & Audio L/R In 2
- RGB In (PC/DTV Input) 1
- HDMI with HDCP 2
- Digital Audio (Optical ) Out 1
- Digital Audio (Optical) In 2
- RS-232c (Software Upgrade Interface & Control) 1
- Variable Audio Out and Type RCA L/R
- Digital Cable Card Slot 1
- IEEE 1394/DTCP 2
- RGB/DVI (L/R) Audio In 1
- Gemstar Out (G-Link) 1
TV Side
- Composite Video & Audio L/R In 1
- S-Video In 1
Dimensions
Cabinet Dimensions
- Width x Height x Depth 55.7” x 35.3” x 15.7”
- Weight Out of Package 88.2 lbs.
Dimensions with Packaging
- Width x Height x Depth
60.2” x 40.2” x 20.1”
- Weight In Package 119.1 lbs.
UPC 719192168381
Warranty 1 year parts/labor
Remote Control
Standard IR •
Wired Option •
Universal •
Backlit •
LG Electronics U.S.A., Inc.
1000 Sylvan Avenue
Englewood Cliffs, NJ 07632
www.LGusa.com
Design and specifications subject to change without notice. 03/23/05
© 2005 LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. LG Design and Life’s Good are trademarks of LG Electronics, Inc. All other trademarks are the property of their respective owners.
AUDIO
DVD / DTV INPUT
(R) (L) Pr Pb Y
AUDIO
(R) (L) Pr Pb Y
COMPONENT
INPUT 2
COMPONENT
INPUT 1
ANTENNA
+75 |
MONITOR
OUT
VIDEO
INPUT 1
VIDEO
INPUT 2
S-VIDEO
INPUT
RS-232c
(480i, 480p, 720p, 1080i)
AUDIO
(R) (L)
VARIABLE
AUDIO
AUDIO
(R) (L)
VIDEO
AUDIO
(R) (L)
RGB/DVI
INPUT
HDMI 1/DVI
HDMI 2
IEEE-1394
CableCARD
G-LINK
OPTICAL
OUTPUT
OPTICAL INPUT 1
(COMPONENT2)
OPTICAL INPUT 2
(DVI)
DIGITAL AUDIO
OPTICAL
CABLE
+75 |
RGB IN
(PC/DTV INPUT)
TV Rear
(L) - AUDIO - (R)
VIDEO
S-VIDEO
TV Side
52SX4D
52" DLP Integrated HDTV
