LG MULTI V CE Series User manual

System
Heat Pump Indoor Unit
INSTALLATION MANUAL
LG
MODELS: CE/CF Series
Type: Floor Standing
Concealed Floor Standing
IMPORTANT
• Please read this installation manual completely before
installing the product.
• Installation work must be performed in accordance with
the national wiring standards by authorized personnel
only.
• Please retain this installation manual for future reference
after reading it thoroughly.
ENGLISH ITALIANO ESPAÑOL FRANÇAIS DEUTSCH

2Indoor Unit
Floor Standing Concealed Floor Standing Type Indoor Unit Installation Manual
TABLE OF CONTENTS
❏Four type "A" screws
❏Connecting cable
❏Pipes: Gas side
Liquid side
(Refer to Product Data)
❏Insulation materials
❏Additional drain pipe
❏Level gauge
❏Screw driver
❏Electric drill
❏Hole core drill
❏Flaring tool set
❏Specified torque wrenches
(different depending on model No.)
❏Spanner .......Half union
❏A glass of water
❏Screw driver
❏Hexagonal wrench
❏Gas-leak detector
❏Vacuum pump
❏Gauge manifold
❏Owner's manual
❏Thermometer
Safety Precautions .................3
Introduction .............................6
Installation
Selection the best location ....7
Preparation of Piping .............9
Drain piping work.................11
How to connect wirings .......12
Wiring Connection ...............12
Two Thermistor system .......15
Installation Requirements Required Parts Required Tools

Installation Manual 3
ENGLISH
Safety Precautions
Safety Precautions
To prevent injury to the user or other people and property damage, the following instructions must be followed.
■Be sure to read before installing the air conditioner.
■Be sure to observe the cautions specified here as they include important items related to safety.
■Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness is classified by the
following indications.
■Meanings of symbols used in this manual are as shown below.
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to properties only.
Be sure not to do.
Be sure to follow the instruction.
■Installation
Do not use a defective or under-
rated circuit breaker. Use this
appliance on a dedicated circuit.
• There is risk of fire or electric shock.
For electrical work, contact the
dealer, seller, a qualified electri-
cian, or an Authorized Service
Center.
• Do not disassemble or repair the
product. There is risk of fire or elec-
tric shock.
Always ground the product.
•Thereisriskoffireorelectricshock.
Install the panel and the cover
of control box securely.
• There is risk of fire or electric shock.
Always install a dedicated cir-
cuit and breaker.
• Improper wiring or installation may
cause fire or electric shock.
Use the correctly rated breaker
or fuse.
•Thereisriskoffireorelectricshock.

4Indoor Unit
Safety Precautions
■Operation
Do not modify or extend the
power cable.
•Thereisriskoffireorelectricshock.
Do not let the air conditioner
run for a long time when the
humidity is very high and a door
or a window is left open.
• Moisture may condense and wet or
damage furniture.
Be cautious when unpacking
and installing the product.
• Sharp edges could cause injury. Be
especially careful of the case edges
and the fins on the condenser and
evaporator.
For installation, always contact
thedealeroranAuthorized
Service Center.
• There is risk of fire, electric shock,
explosion, or injury.
Do not install the product on a
defective installation stand.
• It may cause injury, accident, or
damage to the product.
Be sure the installation area
does not deteriorate with age.
• If the base collapses, the air condi-
tioner could fall with it, causing prop-
erty damage, product failure, and
personal injury.
Do not store or use flammable gas or combustibles near the product.
• There is risk of fire or failure of product.
Gasolin

ENGLISH
Installation Manual 5

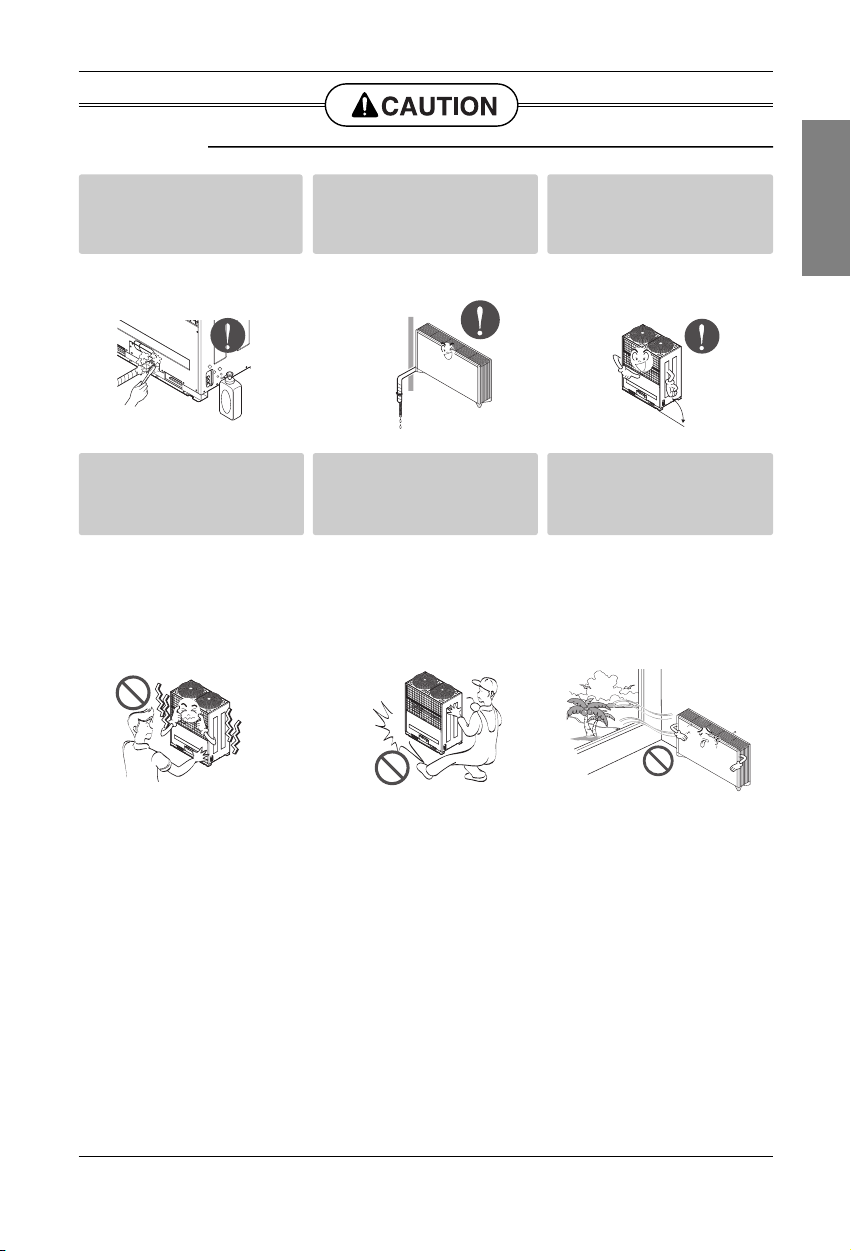

Safety Precautions
Alwayscheckforgas(refriger-
ant) leakage after installation or
repair of product.
• Low refrigerant levels may cause
failure of product.
Install the drain hose to ensure
that water is drained away prop-
erly.
• A bad connection may cause water
leakage.
Keep level even when installing
the product.
• To avoid vibration or water leakage.
Do not install the product where
the noise or hot air from the out-
door unit could damage the
neighborhoods.
• It may cause a problem for your
neighbors.
Use two or more people to lift
and transport the product.
• Avoid personal injury.
Do not install the product where
it will be exposed to sea wind
(saltspray)directly.
• It may cause corrosion on the product.
Corrosion, particularly on the con-
denser and evaporator fins, could
cause product malfunction or inefficient
operation.
90˚
■Installation

6Indoor Unit
Introduction
Introduction
Remote Controller
Air Outlet
Control panel
Control panel
Air Filter
Air Inlet
Air Inlet
Air filter
(At Air Inlet)
This symbol alerts you to the risk of electric shock.
This symbol alerts you to hazards that could cause harm to the
air conditioner.
This symbol indicates special notes.
NOTICE
SymbolsUsedinthisManual
Features
[CEA/CFA Type]
[CEU/CFU Type]

ENGLISH
Installation Manual 7

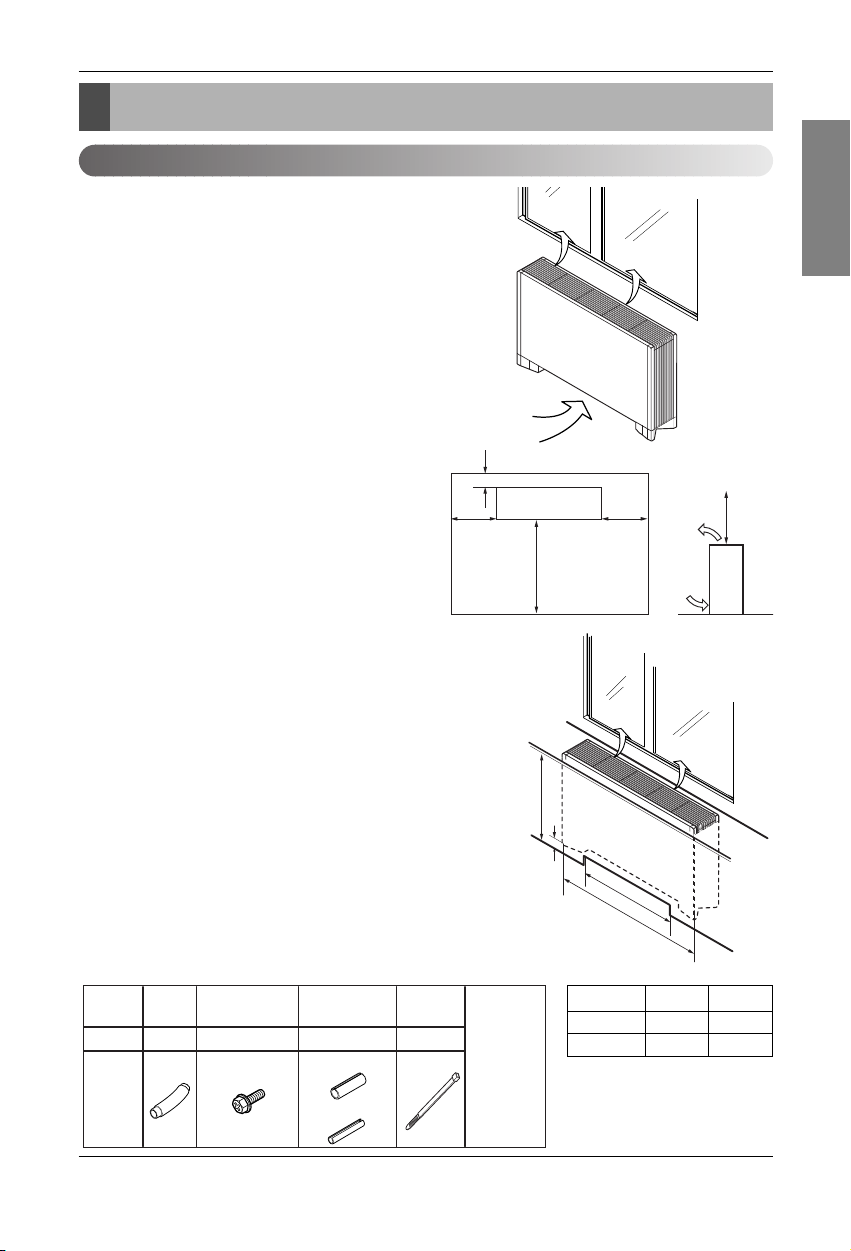

Installation
Installation
Indoor unit
Install the air conditioner in the location that satisfies the fol-
lowing conditions.
•The place shall easily bear a load exceeding four times the
indoor unit’s weight.
•The place shall be able to inspect the unit as the figure.
•The place where the unit shall be leveled.
•The place shall easily connect with the outdoor unit.
•The place where the unit is not affected by an electrical
noise.
•The place where air circulation in the room will be good .
•There should not be any heat source or steam near the unit
Service space
Select an installation site where the following conditions are
satisfied and that meets with your customer's approval.
•Where the floor is strong enough to bear the indoor unit
weight.
•Where the floor is not significantly inclined.
•Where nothing blocks the air passage.
•Where condensate can be properly drained.
•Where sufficient clearance for installation and maintenance
can be ensured.
•Where there is no possibility of flammable gas leakage.
•Where optimum air distribution can be ensured.
•Where piping between indoor and outdoor units is possible
within the allowable limit (Refer to the installation manual of
the outdoor unit.)
•Keep the indoor and outdoor unit, power cable and trans-
mission wiring, at least 1m from TVs and radios, to prevent
distorted pictures and static.(Depending on the type and
source of the electrical waves, static may be heard even
when more than 1 m away.)
Selection of the best location
654
80 or more
B or more
Maintenance area
Window
A or more
20 or
more
100 or
more 100 or more
175 or
more
150 or
more
Front side
Base
Air flow
direction
Air inlet
direction
1000 or
more
Window
Name Dran
hose
Level adjustment
screw
Quantity
Shape
Insulation for
fitting Clamp [Other]
1 each.
(1) For gas pipe
(2) For liquid pipe
8 pcs.1 EA 4 •Operation
manual
•Installation
manual
[IMPORTANT]
Leave sufficient clearance
for air inlet and maintenance.
Model A B
CEU Type 788 1080
CFU Type 1066 1358
(Length: mm)
Accessories
Check the following accessories are included with
your unit.

8Indoor Unit8Indoor Unit
Installation
Bolt pitch
(Unit:mm)
CEA, CEU 858
CFA, CFU 1136
Model
A
198
A
270
(1)
(1)
(2)
(2)
(3)
How to open/close front panel
•Positioning of holes for fastening to the wall
•How to open/close the front panel
(1) Open the lid of control panel(Both left and right)
(2) Remove screws(Both left and right)
(3) Lift the front panel of the unit
•To close, perform the procedure in opposite
order.
1. Use the installationmount for installation. Check
whether the wall is strong enough to bear the
weight of the unit or not. if there is a risk, reinforce
the wall before installing the unit.
2. The unit requires a minimum 100 mm clearance on
the underside for air intake. Also, ensure the unit is
level when installed so that drainage flows smooth-
ly. If inclined, water can leak.
3. By a state of the wall, operating sound may
become bigger.

Installation Manual 9
Installation
ENGLISH
Preparation of Piping
1. Cut the pipes and the cable.
■Use the accessory piping kit or the pipes purchased
locally.
■Measure the distance between the indoor and the out-
door unit.
■Cut the pipes a little longer than measured distance.
■Cut the cable 1.5m longer than the pipe length.
2. Burrs removal
■Completely remove all burrs from the cut cross section
of pipe/tube.
■Put the end of the copper tube/pipe to downward direc-
tion as you remove burrs in order to avoid to let burrs
drop in the tubing.
3. Flaring work
■Carry out flaring work using flaring tool as shown below.
Firmly hold copper tube in a bar(or die) as indicated
dimension in the table above.
4. Check
■Compare the flared work with figure below.
■If flare is noted to be defective, cut off the flared section
and do flaring work again.
Main cause of gas leakage is defect in flaring work. Carry out correct flaring work in the following procedure.
Pipe " A "
Gas Liquid Gas Liquid
<5.6(19,100) 1/2" 1/4" 0.5~0.8 0~0.5
<16.0(54,600) 5/8" 3/8" 0.8~1.0 0.5~0.8
<22.4(76,400) 3/4" 3/8" 1.0~1.3 0.5~0.8
Indoor unit
[kW(Btu/h]
Copper
tube
90°Slanted Uneven Rough
Pipe
Reamer
Point down
Bar
Copper pipe
Clamp handle Red arrow mark
Cone
Yoke
Handle
Bar
"A"
Inclined
Inside is shining without scratches.
Smooth all round
Even length
all round
Surface
damaged
Cracked Uneven
thickness
= Improper flaring =

10 Indoor Unit
Installation
1. Remove the cap and turn the valve counter clockwise with the hexagon wrench.
2. Turn it until the shaft stops.
Do not apply excessive force to the shutoff valve. Doing so may break the valve body, as the valve is not a
backseat type. Always use the special tool.
3. Make sure to tighten the cap securely.
1. Remove the cap and turn the valve clockwise with the hexagon wrench.
2. Securely tighten the valve until the shaft contacts the main body seal.
3. Make sure to tighten the cap securely.
* For the tightening torque, refer to the table on the below.
Precautions when connecting pipes
•See the following table for flare part machining dimensions.
•When connecting the flare nuts, apply refrigerant oil to the inside and outside of the flares and turn them three
or four times at first. (Use ester oil or ether oil.)
•See the following table for tightening torque.(Applying too much torque may cause the flares to crack.)
•After all the piping has been connected, use nitrogen to perform a gas leak check.
Tightening torque
CAUTION
•Always use a charge hose for service port connection.
•After tightening the cap, check that no refrigerant leaks are
present.
•When loosening a flare nut, always use two wrenches in
combination, When connecting the piping, always use a spanner
and torque wrench in combination to tighten the flare nut.
•When connecting a flare nut, coat the flare(inner and outer faces)
with oil for R410A(PVE) and hand tighten the nut 3 to 4 turns as
the initial tightening.
Opening shutoff valve
Closing shutoff valve
FLARE SHAPE and FLARE NUT TIGHTENING TORQUE
Shutoff
valve size
Ø6.4
Ø9.5
Ø12.7
Ø15.9
Ø22.2
Ø25.4
13.5-16.5
18-22
14-17
33-39
50-60
62-75
23-27
13.5-16.5
5.4-6.6 Hexagonal
wrench 4mm
Hexagonal
wrench 6mm
Hexagonal
wrench 10mm
8.1-9.9
27-33 36-44
-
11.5-13.9
22-28-
Tightening torque N-m(Turn clockwise to close)
Shaft(valve body)
Gas line piping attached to unit Cap(Valve lid) Service port Flare nut
90°±2
45°
±2
A
R=0.4~0.8
pipe size tightening torque(Ncm) A(mm) flare shape
Ø6.35 1400~1600 8.7~9.1
Ø9.5 3270-3990 12.8-13.2
Ø12.7 4950-6030 16.2-16.6
Ø15.9 6180-7540 19.3-19.7
Union

1. Use the heat insulation material for the refrigerant piping which has an excellent heat-resistance (over 120°C).
2. Precautions in high humidity circumstance:
This air conditioner has been tested according to the "ISO
Conditions with Mist" and confirmed that there is not any
default. However, if it is operated for a long time in high
humid atmosphere (dew point temperature: more than
23°C), water drops are liable to fall. In this case, add heat
insulation material according to the following procedure:
•Heat insulation material to be prepared... EPDM (Ethylene
Propylene Diene Methylene)-over 120°C
the heat-resistance temperature.
•Add the insulation over 10mm thickness at high humidity
environment.
After inspecting pipe joints for gas leakage, be sure to insulate
wit the accessory joint insulation for fitting while referrig to the
figure. (Fasten both ends with clamps)
Installation Manual 11
Installation
ENGLISH
Indoor unit
Thermal insulator
(accessory)
Fastening band
(accessory)
Insulation for fitting
(accessory)
(For liquid piped)
Insulation for fitting
(accessory)
(For gas piped)
liquid pipe
Refrigerant piping
Clamp (6)
(4 accessory)
HEAT INSULATION
Drain piping work
•Drain piping must have downward (1/50 to 1/100): be sure not to provide up-and-down slope to prevent reverse
flow.
•During drain piping connection, be careful not to exert extra force on the drain port on the indoor unit.
•The outside diameter of the drain connection on the inddor unit is 21mm.
•Be sure to install heat insulation on the drain piping
•If converging multiple dranin pipes, install according to the procedure shown below.
•After piping work is finished check drainage flows smothly.
•Be sure to insulate all indoor units.
Piping material: Polyvinyl chloride pipe 25mm and
pipe fittings
Heat insulation material: Polyethylene foam with
thicknessmorethan10mm.
Slope downwards at a gradient
of at least 1/100

12 Indoor Unit12 Indoor Unit
Installation

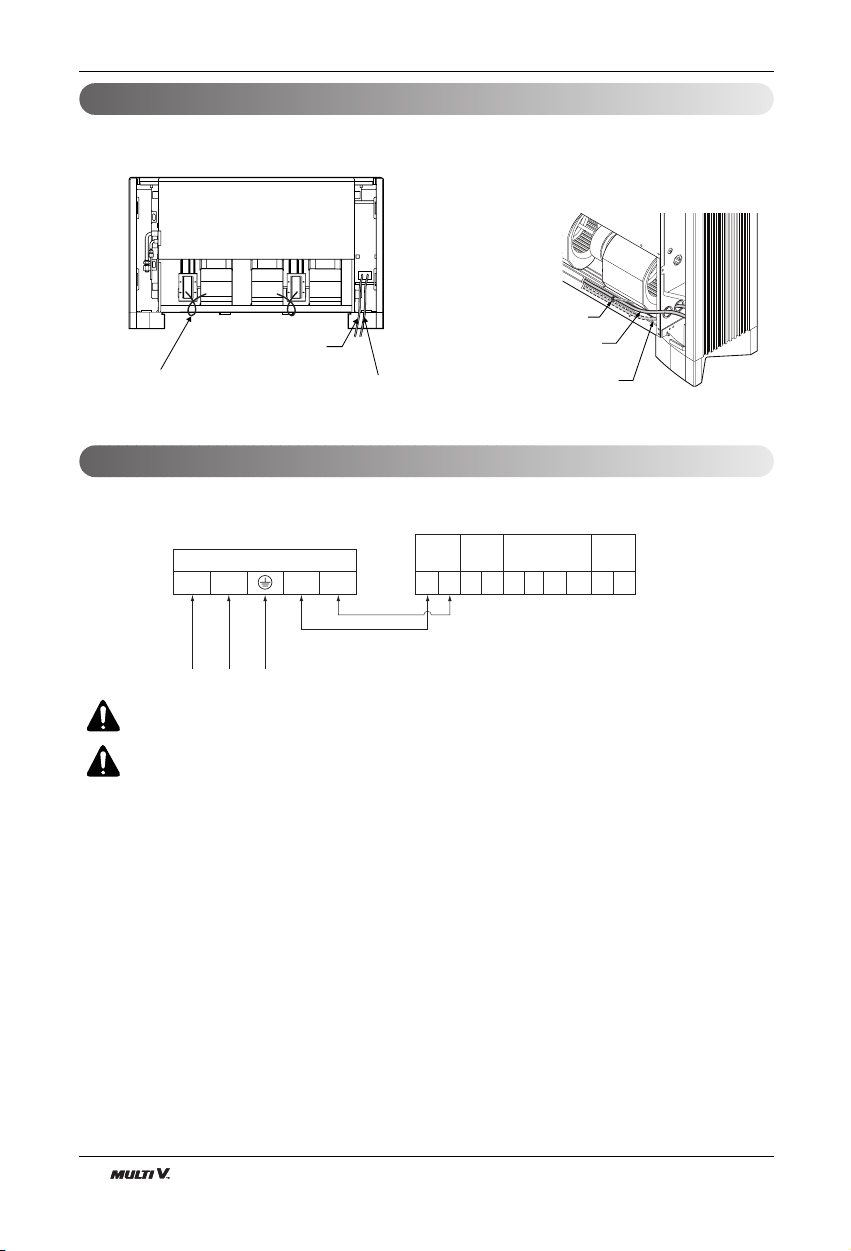

Connect the wires to the terminals on the control board individually according to the outdoor unit connection.
•Ensure that the color of the wires of outdoor unit and the terminal No. are the same as those of indoor unit respectively.
Terminal Block Indoor
1(L) 2(N) 3 4
INDOOR POWER INPUT
Indoor
unit
Outdoor
unit
Central
controller
AB E F C D Vcc GND
Main
outdoor unit
Wiring Connection
WARNING : Make sure that the screws of the terminal are free from looseness.
How to connect wirings
Remove the electric parts Box cover and connect the wiring
Power Supply wiring
ground wiring
(Field wiring)
Fasten with
accessory clamp Transmission wiring
(Field wiring)
Power supply wiring
ground wiring
Fasten with clamp
Transmission wiring
CAUTION:
After the confirmation of the above conditions, prepare the wiring as follows:
1) Never fail to have an individual power circuit specifically for the air conditioner. As for the
method of wiring, be guided by the circuit diagram posted on the inside of control cover.
2) The screw which fasten the wiring in the casing of electrical fittings are liable to come loose from
vibrations to which the unit is subjected during the course of transportation. Check them and
make sure that they are all tightly fastened. (If they are loose, it could cause burn-out of the
wires.)
3) Specification of power source.
4) Confirm that electrical capacity is sufficient.
5) See to that the starting voltage is maintained at more than 90 percent of the rated voltage marked
on the name plate.
6) Confirm that the cable thickness is as specified in the power source specification.
(Particularly note the relation between cable length and thickness.)
7) In a wet or moist area, always install an earth leakage circuit breaker.
8) The following would be caused by voltage drop.
•Vibration of a magnetic switch, which will damage the contact point, fuse breaking, disturbance of the
normal function of the overload.
9) The means for disconnection from a power supply shall be incorporated in the fixed wiring and
have an air gap contact separation of at least 3mm in each active(phase) conductors.

ENGLISH
Installation Manual 13
Installation

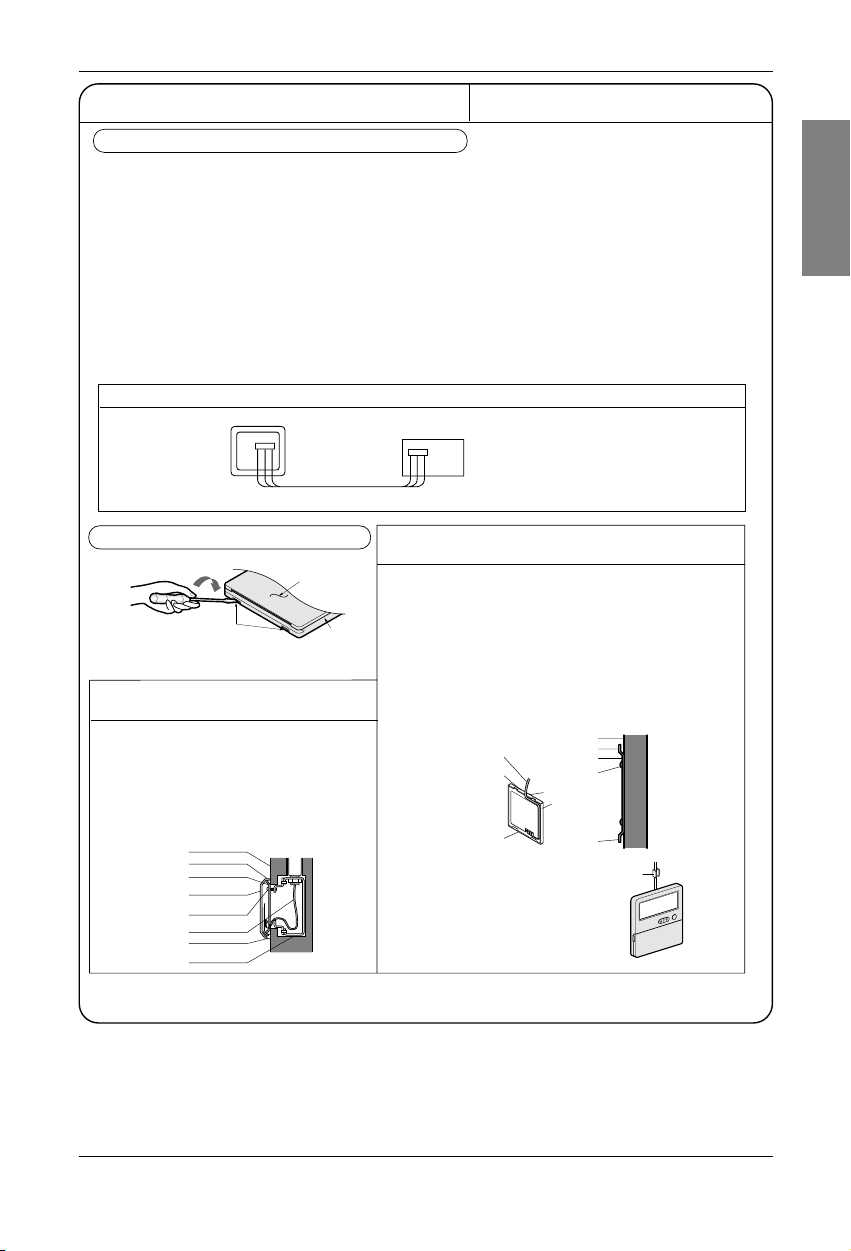

INSTALLATION OF REMOTE CONTROL BOX
Install the remote control box and cord correctly.
•Although the room temperature sensor is in the indoor unit, the remote control box should be installed
in such places away from direct sunlight and high humidity.
INSTALLATION OF THE REMOTE CONTROL BOX
•Select places that is not splashed by water.
•Select control position after receiving customer
approval.
•The room temperature sensor of the thermostat
for temperature control is built in the indoor
unit.
•This remote controller equipped with liquid
crystal display. If this position is higher or
lower, display is difficult to see.
(The standard height is 1.2~1.5m high)
ROUTING OF THE REMOTE CONTROL CORD
•Keep the remote control cord away from the
refrigerant piping and the drain piping.
•To protect the remote control cord from electri-
cal noise, place the cord at least 5cm away
from other power cables. (Audio equipment,
Television set, etc)
•If the remote control cord is secured to a wall,
provide a trap at the top of the cord to prevent
water droplets from running.
POINT OF REMOTE CONTROLLER INSTALLATION
DISASSEMBLING OF THE REMOTE CONTROLLER
ELECTRICAL WIRING TO THE INDOOR UNIT
Make sure that wire and terminal
numbers are matched on unit side
and remote controller side.
(Main board)
CN REMO
The maximum length of the cord is 100m.
If the length of the cord exceeds 50m, use a wire size greater than 0.5mm2.
Remote controller
CN REMO
Remote
control
box body
Lever carefully
the box open
using a screw
driver, etc.
Front case
The lower part
Face of wall
Upper notch
Upper flange
Under plate
Remote
control cord
Remote
control unit
Tapping screw
(Local supply)
Lower notch
Face of wall
Upper notch
Lower notch
Switch box
(Local supply)
Under plate
Remote
control unit
Remote
control cord
Screw
(Local supply)
Cord
clamp
Push hand
(Part B)
(Part A)
FIXING OF REMOTE
CONTROL CORD
1. Fix the cord clamps on the wall
by ø3 tapping screws(Local supply).
2. Fix the remote control cord.
PROCEDURE OF INSTALLATION
1. Fix the under plate on the switch box by
screws(Local supply). In this case, fit the under
plate on the wall, and be careful of deformation.
2. Receive the remote control cord in the switch box.
3. Hook the remote control unit on the under plate.
WHEN THE REMOTE CONTROL BOX IS
INSTALLED WITH THE CORD BURIED.
PROCEDURE OF INSTALLATION
1. Fix the under plate on the wall by self tapping screws
2. Make a slit (Part A) at the top side of the remote control
box by nipper.
3. Rout the cord as shown in the following figure. In this
case, push the cord into the around of case(Part B).
4. Hook the remote control unit on the under plate.
WHEN THE REMOTE CONTROL BOX IS INSTALLED
WITH THE CORD EXPOSED.

14 Indoor Unit
WIERED REMOTE CONTROLLER INSTALLATION
•Since the room temperature sensor is in the remote controller, the remote controller box should be installed in a place
away from direct sunlight, high humidity and direct supply of cold air to maintain proper space temperature.
Install the remote controller about 5ft(1.5m) above the floor in an area with good air circulation at an average tempera-
ture.
Do not install the remote controller where it can be affected by:
- Drafts, or dead spots behind doors and in corners.
-Hotorcoldairfromducts.
- Radiant heat from sun or appliances.
- Concealed pipes and chimneys.
- Uncontrolled areas such as an outside wall behind the remote controller.
- This remote controller is equipped with a seven segment LED. display. For proper display of the remote controller
LED's, the remote controller should be installed properly as shown in Fig.1.
(The standard height is 1.2~1.5 m from floor level.)
•Use the following procedure to mount the remote con-
troller (optionl) on the unit is so desired.
(CEA, CFA Type)
•Open the right side cover of control panel and mount
the lower case on the remote controller.
Fig.1 Typical locations for remote controller
14 Indoor Unit
Installation
Operationunit
ZONE
1234
Humidify JET
AUTO
AUTOSWING OPERATION FANSPEED
Programset
SUBFUNCTION SETTEMP
RoomTemp
HI
MED
LO
Heater
Defrost
Filter
Preheat
Outdoor
Time
Timer
On
Setno. Time
Off
01 03 05 07 09 11 13 15 17 19 21 23
Operationunit
ZONE
1234
Humidify
JET
AUTO
AUTOSWINGOPERATION
FANSPEED
Programset
SUBFUNCTION
SETTEMP
RoomTemp
HI
MED
LO
Heater
Defrost
Filter
Preheat
Outdoor
Time
Timer
On
Setno.Time
Off
010305070911131517192123
5feet
(1.5meters)
no
no
no
yes
Operationunit
ZONE
1234
Humidify JET
AUTO
AUTOSWING OPERATION FANSPEED
Programset
SUBFUNCTION SETTEMP
RoomTemp
HI
MED
LO
Heater
Defrost
Filter
Preheat
Outdoor
Time
Timer
On
Setno. Time
Off
01 03 05 07 09 11 13 15 17 19 21 23
Remote controller
main body
Lower case of
remote control
Installation
screw

Installation Manual 15
ENGLISH
Two Thermistor system
•Open the rear cover of Remote Controller to set up the
mode.
•Selectable options are three as follows.
- Remo: Sensing the room Temperature.
- Indoor Unit: Sensing the intake air into indoor Unit.
- 2 TH: Sensing the lower temperature of the two thermis-
tors.
•To set up the mode, adjust the slide switch to desired
mode position on installing.
HAND OVER
Teach the customer the operation and maintenance procedures, using the operation manual.
(air filter cleaning, temperature control, etc.)
Slide Switch1 Remo.
Room Temp. Sensing
Indoor Unit
2 TH(Remo.+Indoor)
•On installing, don't impact to the PCB
and LCD display.
•Don't remove the protection sheet.
•Use the specified screw.
•On installing, turn off the main power.
CAUTION
Single
Group
Slide Switch2
Two Thermistor system

16 Indoor Unit16 Indoor Unit
Memo

P/No.: 3828A20873H Printed in Korea
After reading this manual, keep it in a place easily accessible to the user for future reference.
