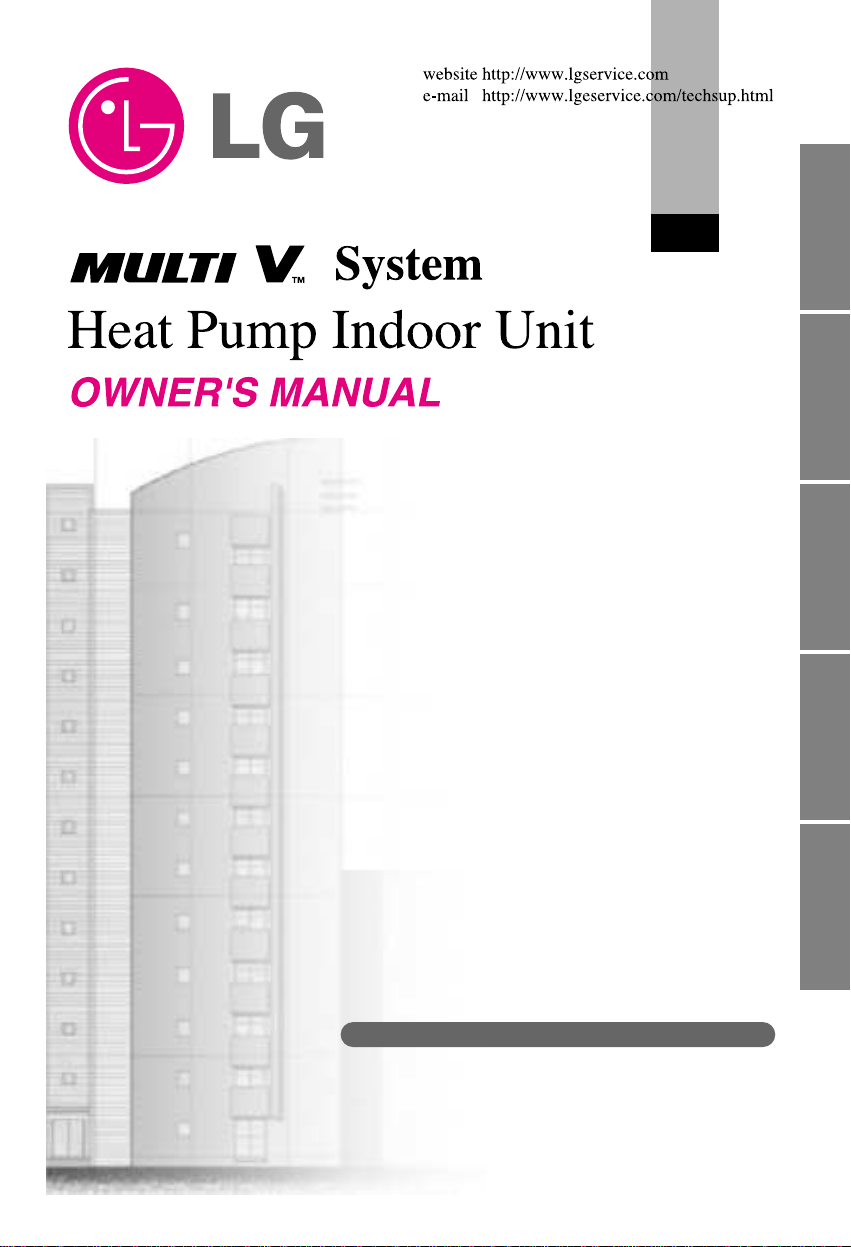

LG multi V S3 Series User manual

LG
IMPORTANT
• Please read this owner's manual carefully and thoroughly
before installing and operating your room air conditioner.
• Please retain this owner's manual for future reference after
reading it thoroughly.
Prior to installation, this air-
conditioning unit must be
submitted for approval by the
utility service which provides
electricity (EN 61000-2,
EN 61000-3 Norm).
Models: SE/S3 Series
Type: ART COOL Mirror Type
ENGLISH ITALIANO ESPAÑOL FRANÇAIS DEUTSCH

2Indoor Unit
Artcool Deluxe Type Indoor Unit Owner’s Manual
TABLE OF CONTENTS
FOR YOUR RECORDS
Write the model and serial numbers here:
Model #
Serial #
You can find them on a label on the side of each unit.
Dealer's Name
Date Purchased
■Staple your receipt to this page in the event you need
to prove date of purchase or to issue warranty.
READ THIS MANUAL
Inside you will find many helpful hints on how to use
and maintain your air conditioner properly. Just a little
preventive care on your part can save you a great deal
of time and money over the life of your air conditioner.
You'll find many answers to common problems in the
chart of troubleshooting tips. If you review our chart of
Troubleshooting Tips first, you may not need to call
for service at all.
PRECAUTION
•Contact the authorized service technician for repair or
maintenance of this unit.
• Contact the installer for installation of this unit.
• The air conditioner is not intended for use by young
children or invalids without supervision.
• Young children should be supervised to ensure that
they do not play with the air conditioner.
• When the power cord is to be replaced, replacement
work shall be performed by authorized personnel only
using only genuine replacement parts.
• Installation work must be performed in accordance with
the National Electric Code by qualified and authorized
personnel only.
Safety Precautions.................3
Prior to Operation ..................8
Product Introduction..............9
Operating Instructions.........10
Maintenance and Service ....12
Before you Call for Service ....14

ENGLISH
Safety Precautions
Owner’s Manual 3
Safety Precautions
To prevent injury to the user or other people and property damage, the following instructions must be
followed.
■Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness is classified
by the following indications.
WARNING
CAUTION
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to properties only.
■Meanings of symbols used in this manual are as shown below.
Be sure not to do.
Be sure to follow the instruction.
WARNING
■Installation
Do not use a defective or
underrated circuit breaker.
Use this appliance on a
dedicated circuit.
• There is risk of fire or electric
shock.
For electrical work, contact
the dealer, seller, a qualified
electrician, or an Authorized
Service Center.
• Do not disassemble or repair
the product. There is risk of fire
or electric shock.
Always ground the product.
• There is risk of fire or electric
shock.
Install the panel and the
cover of control box
securely.
• There is risk of fire or electric
shock.
Always install a dedicated
circuit and breaker.
• Improper wiring or installation
may cause fire or electric shock
Use the correctly rated
breaker or fuse.
• There is risk of fire or electric
shock.

Safety Precautions
4Indoor Unit
■Operation
Do not modify or extend the
power cable.
• There is risk of fire or electric
shock.
Do not install, remove, or
re-install the unit by
yourself (customer).
• There is risk of fire, electric
shock, explosion, or injury.
Be cautious when
unpacking and installing
the product.
• Sharp edges could cause injury.
Be especially careful of the
case edges and the fins on the
condenser and evaporator.
For installation, always contact the
dealer or an Authorized Service Center.
• There is risk of fire, electric
shock, explosion, or injury.
Do not install the product on
a defective installation stand.
• It may cause injury, accident, or
damage to the product.
Be sure the installation area
does not deteriorate with age.
• If the base collapses, the air
conditioner could fall with it,
causing property damage,
product failure, and personal
injury.
Do not plug or unplug the
power supply plug during
operation.
• There is risk of fire or electric
shock.
Do not touch(operate) the
product with wet hands.
• There is risk of fire or electrical
shock.
Do not place a heater or
other appliances near the
power cable.
• There is risk of fire and electric
shock.
Do not let the air conditioner run for a
long time when the humidity is very high
and a door or a window is left open .
• Moisture may condense and
wet or damage furniture.
Take care to ensure that power
cable could not be pulled out
or damaged during operation.
• There is risk of fire or electric
shock.
Do not place anything on
the power cable.
• There is risk of fire or electric
shock.

ENGLISH
Safety Precautions
Owner’s Manual 5
Do not allow water to run
into electric parts.
• It may cause There is risk of
fire, failure of the product, or
electric shock.
Do not store or use flammable
gas or combustibles near the
product.
• There is risk of fire or failure of
product.
Do not use the product in a
tightly closed space for a
long time.
• Oxygen deficiency could occur.
When flammable gas leaks,
turn off the gas and open a
window for ventilation
before turn the product on.
• Do not use the telephone or
turn switches on or off.
There is risk of explosion or fire
If strange sounds, or small or
smoke comes from product. Turn
the breaker off or disconnect the
power supply cable.
• There is risk of electric shock or
fire.
Stop operation and close the window
in storm or hurricane. If possible,
remove the product from the window
before the hurricane arrives.
• There is risk of property
damage, failure of product, or
electric shock.
Do not open the inlet grill of the
product during operation.
(Do not touch the electrostatic
filter, if the unit is so equipped.)
• There is risk of physical injury,
electric shock, or product
failure.
When the product is soaked
(flooded or submerged),
contact an Authorized
Service Center.
• There is risk of fire or electric
shock.
Be cautious that water
could not enter the product.
• There is risk of fire, electric
shock, or product damage.
Gasolin
Ventilate the product from time to time
when operating it together with a stove, etc.
• There is risk of fire or electric shock.
Turn the main power off when cleaning or
maintaining the product.
• There is risk of electric shock.

Safety Precautions
6Indoor Unit
■Installation
CAUTION
■Operation
Always check for gas
(refrigerant) leakage after
installation or repair of product.
• Low refrigerant levels may
cause failure of product.
Install the drain hose to ensure
that water is drained away
properly.
• A bad connection may cause
water leakage.
Keep level even when
installing the product.
• To avoid vibration or water
leakage.
Do not install the product where the
noise or hot air from the outdoor unit
could damage the neighborhoods.
• It may cause a problem for your
neighbors.
Use two or more people to lift
and transport the product.
• Avoid personal injury.
Do not install the product
where it will be exposed to
sea wind (salt spray) directly.
• It may cause corrosion on the product.
Corrosion, particularly on the condenser
and evaporator fins, could cause product
malfunction or inefficient operation .
90˚
When the product is not be used for a long
time, disconnect the power supply plug or
turn off the breaker.
•There is risk of product damage or failure, or
unintended operation.
Take care to ensure that nobody could step
on or fall onto the outdoor unit.
•This could result in personal injury and product
damage.
Do not expose the skin directly to cool air
for long periods of time.
(Don't sit in the draft.)
•This could harm
to your health.
Do not use the product for special purposes, such as
preserving foods, works of art, etc. It is a consumer
air conditioner, not a precision refrigeration system.
•There is risk of
damage or
loss of property.

Safety Precautions
Owner’s Manual 7
ENGLISH
Do not block the inlet or
outlet of air flow.
•It may cause product failure.
Use a soft cloth to clean. Do
not use harsh detergents,
solvents, etc.
•There is risk of fire, electric
shock, or damage to the plastic
parts of the product.
Do not touch the metal parts of
the product when removing the
air filter. They are very sharp!
•There is risk of personal injury.
Wax
Thinner
Do not step on or put
anyting on the product.
(outdoor units)
•There is risk of personal injury
and failure of product.
Always insert the filter
securely. Clean the filter
every two weeks or more
often if necessary.
• A dirty filter reduces the efficiency
of the air conditioner and could
cause product malfunction or
damage.
Do not insert hands or other
objects through the air inlet
or outlet while the product
is operated.
•There are sharp and moving
parts that could cause personal
injury.
Do not drink the water
drained from the product.
•It is not sanitary and could
cause serious health issues.
Use a firm stool or ladder
when cleaning or
maintaining the product.
•Be careful and avoid personal
injury.
Replace the all batteries in the
remote control with new ones
of the same type. Do not mix
old and new batteries or
different types of batteries.
•There is risk of fire or explosion
Do not recharge or disassemble the
batteries. Do not dispose of batteries in a
fire.
•They may burn or explode.
If the liquid from the batteries gets onto your skin
or clothes, wash it well with clean water. Do not
use the remote if the batteries have leaked.
•The chemicals in batteries could cause burns or
other health hazards.

Prior to operation
8Indoor Unit
Prior to Operation
1. Contact an installation specialist for installation.
2. Use a dedicated circuit.
1. Being exposed to direct airflow for an extended period of time could be hazardous to your health.
Do not expose occupants, pets, or plants to direct airflow for extended periods of time.
2. Due to the possibility of oxygen deficiency, ventilate the room when used together with stoves or
other heating devices.
3. Do not use this air conditioner for non-specified special purposes (e.g. preserving precision
devices, food, pets, plants, and art objects). Such usage could damage the items.
1. Do not touch the metal parts of the unit when removing the filter. Injuries can occur when handling
sharp metal edges.
2. Do not use water to clean inside the air conditioner. Exposure to water can destroy the insulation,
leading to possible electric shock.
3. When cleaning the unit, first make sure that the power and breaker are turned off. The fan rotates
at a very high speed during operation. There is a possibility of injury if the unit’s power is
accidentally triggered on while cleaning inner parts of the unit.
For repair and maintenance, contact your authorized service dealer.
Preparing for operation
Usage
Cleaning and maintenance
Service

ENGLISH
Product Introduction
Owner’s Manual 9
Product Introduction
Here is a brief introduction of the indoor units.
Please see the information specific to your indoor unit type.
Indoor Units
Operation indication lamps
On/Off : Lights up during the system operation, error code and auto restart setting.
Sleep mode : Lights up during sleep mode auto operation.
Plasma : The function illustrates its dynamic mode by using a multiple lighting system.
Timer : Lights up during timer operation or sleep mode auto operation.
Defrost mode
Power Display : Indicates the setting temperature and operation mode.
(Cooling, heating,auto operation,dehumidification mode)
: Lights up during defrost mode or *hot start operation (Heat pump model only)
* Hot start operation: Stops the indoor fan in heating operation for minutes to prevent cold air from blowing out
from unit.
* In defrost mode unit stops heating operation for few minutes to remove formation of ice on the heat
exchanger coils to maintain the efficiency.
Art Cool Mirror(Type 1)
Display panel LED indicators
Signal receiver
Front panel
Air discharge
Power cord
ON/OFF button
Plasma filter
Air inlet
Air filter
Art Cool Mirror(Type 2)
Display panel LCD indicators
Signal receiver
Front panel
Air discharge
ON/OFF button
Power cord
Plasma filter
Air inlet
Air filter

Operating Instructions
10 Indoor Unit
Name and Function of Remote Controller (Optional)
Operating Instructions
•Remote Controller Model
Standard Type : PQRCUCA0
Simple Type : PCRCUSZ0
Deluxe type : PQRCUDS0
PQRCUDS0B
PQRCUDS0S
1. Operation indication screen
2. Swirl button(Not Available)
3. 2ndF button
4. Timer set/cancel
Program/Week/Holiday
Hour/Min/SET/Clr/Ventilator
5. Set temperature button
6. ON/OFF button
7. Fan operation
8. Operation mode selection button
9. Fan speed button
10. Horizontal/Vertical air flow
direction button(option)
11. Room temperature
12. Plasma button
13. Time reset button
14. Operation lamp
Timer
Program
Hour
Cancel 2ndF
Week Holiday
Set/Clr
Min
RESET
PLASMA
ZONE
1234
Operation unit No Func
Humidify JET
SLo
AUTO
AUTO SWING OPERATION FAN SPEED
Program set
SUB FUNCTION SET TEMP
Room Temp
HI
MED
LO
Heater
Defrost
Filter
Preheat
Out door
Time
Timer
On
Set no. Time
Off 01 03 05 07 09 11 13 15 17 19 21 23
2ndF
1
2
5
6
7
8
9
10
11
12
13
3
4
14

Operating Instructions
Owner’s Manual 11
ENGLISH
Cooling Operation
Auto Operation
Healthy Dehumidification Operation
Flip-up door
(opened)
Heating Operation
Signal transmitter
ON OFF
CANCEL
AUTO CLEAN
SET
51
3
10
9
17
12
14 16
6
4
2
7
11
8
13
15
Operation Mode
• Cooling Model( ), Heat Pump Model( )
Wireless Remote Controller
(Optional)
1. Start/Stop Button
Operation starts when this button is pressed.
2. Operation Mode Selection Button
Used to select the operation mode.
3. Room Temperature Setting Buttons
Used to select the room temperature.
4. Indoor Fan Speed Selector
Used to select fan speed in four steps low, medium, high
and Chaos.
5. Jet Cool
Speed cooling/heating operates super high fan speed.
6. Chaos Swing Button
Used to stop or start louver movement and set the
desired up/down airflow direction.
7. On/Off Timer Buttons
Used to set the time of starting and stopping operation.
8. Time Setting Button
Used to adjust the time.
9. Timer Set/Cancel Button
Used to set the timer when the desired time is obtained
and to cancel the Timer operation.
10. Sleep Mode Auto Button
Used to set Sleep Mode Auto operation.
11. Air Circulation Button
Used to circulate the room air without cooling or heating.
12. Room Temperature Button
Used to set the desired horizontal airflow direction.
13. Plasma(optional)
Used to start or stop the plasma-purification function.
14. Horizontal Airflow Direction Control Button
(optional)
Used to set the desired horizontal airflow direction.
15. Reset Button
Initialize remote controller.
16. 2nd F Button
Used prior to using modes printed in blue at the bottom of buttons.
17. Auto Clean(optional)
Used to set Auto Clean mode.
of handling the Remote Controller
•Aim at the signal receptor on the wired remote controller so as to operate.
•The remote control signal can be received at a distance of up to about 7m.
•Be sure that there are no obstructions between the remote controller and the signal receptor.
•Do not drop or throw the remote controller.
•Do not place the remote controller in a location exposed to direct sunlight, or near the heating unit, or any other heat source.
•Block a strong light over the signal receptor with a curtain or etc. so as to prevent the abnormal operation. (ex:electronic quick start, ELBA,
inverter type fluorescent lamp)
•Remote Controller Model : PQWRHSF0(Heat pump)
PQWRCSF0(Cooling only)

Maintenance and Service
12 Indoor Unit
Maintenance and Service
Before performing any maintenance, turn off the main power to the system.
Never use any of the followings:
•Water hotter than 40°C.
Could cause deformation and/or discoloration.
•Volatile substances.
Could damage the surfaces of the air conditioner.
Air Filters
The air filters behind the front panel / grill should be checked and cleaned once in
every 2 weeks or more often if necessary. To remove the filters see the self
explanatory diagrams for each model type. Clean the filters with a vacuum cleaner
or warm soapy water. If dirt is not easily removed, wash with a solution of
detergent in luke warm water. Dry well in shade after washing and reinstall the
filters back in place.
Plasma Filters
The plasma filters behind the air filter should be checked and cleaned once in every 3
months or more often if necessary. To remove the filters see the self explanatory
diagrams for each model type. Clean the filters with a vacuum cleaner. If it is dirty
wash it with water and dry well in shade an install back in place.
Deodorizer Filters
Remove the deodorizer filters behind the air filter and expose them in direct
sunlight for 2 hours.
And then insert these filters into original position.
G
a
s
o
l
i
n
e
P
o
w
d
e
r
Removal of Filters
Two different methods to open the front panel based on types of air conditioner as below ;
Type 1:
Open the upside of the panel and lift it up as shown. The hooks of the panel will come off. Remove the
air filters. Then pull out the plasma filter
Type 2:
Open the front panel as shown.
Then pull the filter tab slightly forward to remove the air filter.
After removing the air filter remove the plasma and deodorizer filter by slightly pulling forward.
After cleaning and drying well reinstall the filters in their original position.
Front panel Panel hook
Plasma filter
Plasma filter
Front panel
Don't touch this plasma filter within 10 seconds after opening the inlet grille, it may cause an electric shock.

Owner’s Manual 13
ENGLISH
Maintenance and Service
CAUTION
CAUTION
When the air conditioner is not going to be used for a long time.
Operation Tips
Helpful information
The air filters and your electiric bill.
If the air filters become clogged with dust, the
cooling capacity will drop, and 6% of the electricity
used to operate the air conditioner will be wasted.
When it is not going to be used for
a long time. When the air conditioner is to be used again.
Operate the air conditioner at the
following settings for 2 to 3 hours.
•Type of operation: Fan operation mode.
•This will dry out the internal mechanisms.
Turn off the breaker.
Turn off the breaker when the air conditioner
is not going to be used for a long time.
Dirt may collect and may cause a fire.
Clean the air filter and install it in the
indoor unit.
(Refer to page 12 for cleaning it.)
Check that the air inlet and outlet of the
indoor/outdoor unit are not blocked.
Check that the ground wire is
connected correctly. It may be connect
to the indoor unit side.
Do not overcool the room.
This is not good for the health
and wastes electricity.
Keep blinds or curtains
closed.
Do not let direct sunshine
enter the room when the air
conditioner is in operation.
Keep the room temperature
uniform.
Adjust the vertical and
horizontal airflow direction to
ensure a uniform temperature
in the room.
Make sure that the doors
and windows are shut tight.
Avoid opening doors and
windows as much as possible
to keep the cool air in the
room.
Clean the air filter regularly.
Blockages in the air filter
reduce the airflow and lower
cooling and dehumidifying
effects. Clean at least once
every two weeks.
Ventilate the room
occasionally.
Since windows are kept
closed, it is a good idea to
open them and ventilate the
room now and then.

Maintenance and Service
14 Indoor Unit
?
Check the following points before requesting repairs or service.... If the malfunction persist,
please contact your dealer.
Troubleshooting Tips! Save time and money!
•Have you made a
mistake in timer
operation?
•Has the fuse blown
or has the circuit
breaker been
tripped?
•Check that this is not
a damp smell exuded
by the walls, carpet,
furniture or cloth
items in the room.
•Condensation occurs
when the airflow from
the air conditioner
cools the warm room
air.
•This is the protector
of the mechanism.
•Wait about three
minutes and
operation will begin.
The air conditioner
does not operate. The room has a peculiar odor. It seems that condensation is
leaking from the air
conditioner.
Air conditioner does
not operate for about
3 minutes when
restart.
Does not cool or heat
effectively. The air conditioner operation is noisy. Crack sound is heard. Remote control display is faint, or no
display at all.
•Is the air filter dirty?
See air filter cleaning
instructions.
•The room may have
been very hot when
the room air
conditioner was first
turned on. Allow time
for it to cool down.
•Has the temperature
been set incorrectly?
•Are the indoor unit's
air inlet or outlet vents
obstructed?
•For a noise that
sounds like water
flowing.
-This is the sound of
freon flowing inside
the air conditioner
unit.
•For a noise that
sounds like the
compressed air
releasing into
atmosphere.
-This is the sound of
the dehumidifying
water being
processed inside the
air conditioning unit.
•This sound is generated
by the expansion/
constriction of the front
panel, etc. due to
changes of
temperature.
•Cleaning the filter,
press the Timer button
and button of wired
remote controller at
the same time for 3
sec.
•Are the batteries
depleted?
•Are the batteries
inserted in the
opposite (+) and (-)
directions?
WATER RESISTANT: The outdoor side of this appliance is WATER RESISTANT.
The indoor side is not water resistant and should not be exposed to
excess water.
NOTICE
Filter sign lamp
(LED) is ON.
Before you call for service...

P/No.: 3828A20872F Printed in Korea
After reading this manual, keep it in a place easily accessible to the user for future reference.
