LG LH-E9674PA User manual

5 Disc DVD
HOME THEATER SYSTEM
OWNER’S MANUAL
MODEL: LH-E9674PA
(Main Unit: LH-E9674
Speakers: LHS-96PAF/LHS-96PAC/
LHS-96PAS/LHS-96PAW)
Before connecting up, operating or repairing this product,
please read this instruction booklet carefully and
completely.
R
For service/
support Call:
Toll Free Number
1-800-243-0000

2
This lightning flash with arrowhead symbol within
an equilateral triangle is intended to alert the user
to the presence of uninsulated dangerous voltage
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and maintenance
(servicing) instructions in the literature
accompanying the product.
WARNING: Do not install this equipment in a confined space
such as a bookcase or similar unit.
NOTE TO CABLE/TV INSTALLER: This reminder is provided to
call the cable TV system installer’s attention to Article 820-40 of
the National Electric Code (U.S.A.). The code provides
guidelines for proper grounding and, in particular, specifies that
the cable ground shall be connected to the grounding system of
the
building, as close to the point of the cable entry as practical.
CAUTION:
This DVD Home Theater System employs a Laser System.
To ensure proper use of this product, please read this
owner’s manual carefully and retain for future reference.
Should the unit require maintenance, contact an authorized
service
location.
Use of controls, adjustments, or the performance of
procedures other than those specified herein may result in
hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try to open
the enclosure. Visible laser radiation when open. DO NOT
STARE INTO BEAM.
CAUTION: The apparatus should not be exposed to water
(dripping or splashing) and no objects filled with liquids, such
as vases, should be placed on the apparatus.
FCC WARNING: This equipment may generate or use radio
frequency energy. Changes or modifications to this
equipment may cause harmful interference unless the
modifications are expressly approved in the instruction
manual. The user could lose the authority to operate this
equipment if an unauthorized change or modification is
made.
REGULATORY INFORMATION: FCC Part 15
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the
product is operated in a residential installation. This product
generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
product does cause harmful interference to radio or
television reception, which can be determined by turning the
product off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the product and
receiver.
Connect the product into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
SERIAL NUMBER: The serial number is found on the back
of this unit. This number is unique to this unit and not
available to others. You should record requested information
here and retain this guide as a permanent record of your
purchase.
Model No. ___________________________________
Serial No. ___________________________________
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION: POUR ÉVITER LES CHOC ÉLECTRIQUES,
INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE
DANS LA BORNE CORRESPONDANTE DE LA PRISE
ET POUSSER JUSQU’AU FOND.
WARNING: TO REDUCE THE RISK OF FIRE OR ELEC-
TRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO
RAIN OR MOISTURE.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK
OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.

3
Introduction
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions. - All these safety and
operating instructions should be read before the
product is operated.
2. Keep these instructions. - The safety, operating
and use instructions should be retained for future
reference.
3. Heed all warnings. - All warnings on the product
and in the operating instructions should be adhered
to.
4. Follow all instructions. - All operating and use
instructions should be followed.
5. Do not use this product near water. – For
example: near a bath tub, wash bowl, kitchen sink,
laundry tub, in a wet basement; or near a swimming
pool; and other areas located near water.
6. Clean only with dry cloth. – Unplug this product
from the wall outlet before cleaning. Do not use
liquid cleaners.
7.
Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions. -
Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protect it from over-heating. The
openings should never be blocked by placing the
product on a bed, sofa, rug or other similar surface.
This product should not be placed in a built-in
installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s
instructions have been adhered to.
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
9.
Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two
blades with one wider than the
other. A grounding
type plug has two blades
and a third grounding prong. The wide blade or
the third prong are provided for your safety. If
the provided plug does not fit into your outlet,
consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the product.
11. Only use attachments/accessories specified by
the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold
with apparatus. When a cart is used, use
caution when moving the cart/product
combination to avoid injury from tip-over.
13. Unplug this product during lightning storms or
when unused for long periods of time.
14.
Refer all servicing to qualified service
personnel.
Servicing is required when the
product has been damaged in any way, such as
power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the
product, the product has been exposed to rain
or moisture, does not operate normally, or has
been dropped.

4
Contents
Introduction
IMPORTANT SAFETY INSTRUCTIONS . . . . . . .3
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Symbol Used in this Manual . . . . . . . . . . . . . . . . .5
About the Symbol Display . . . . . . . . . . . . . . . . . .5
Notes on Discs . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Types of Playable Discs . . . . . . . . . . . . . . . . . . . .6
Disc-related terms . . . . . . . . . . . . . . . . . . . . . . . . .7

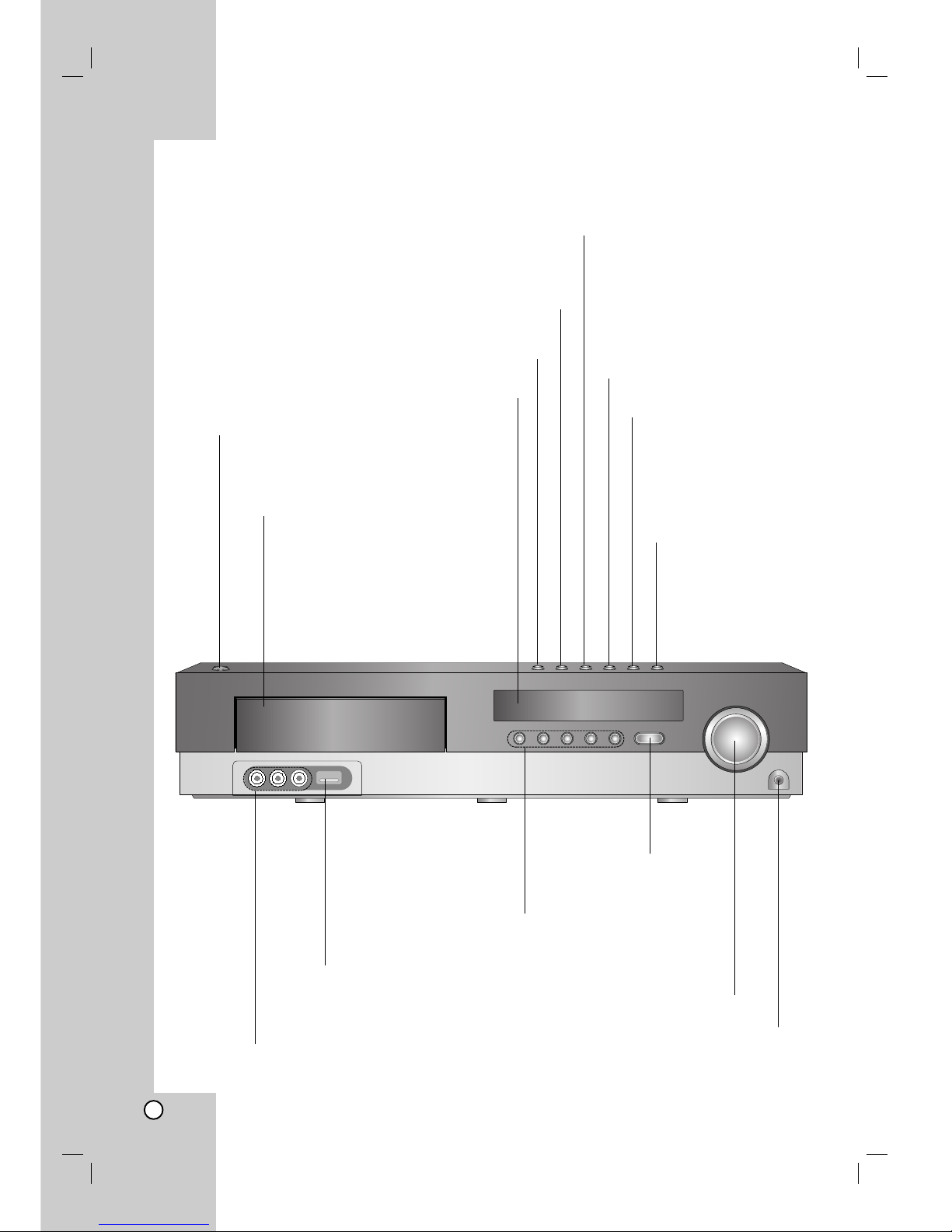

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Display Window . . . . . . . . . . . . . . . . . . . . . . . . . .9

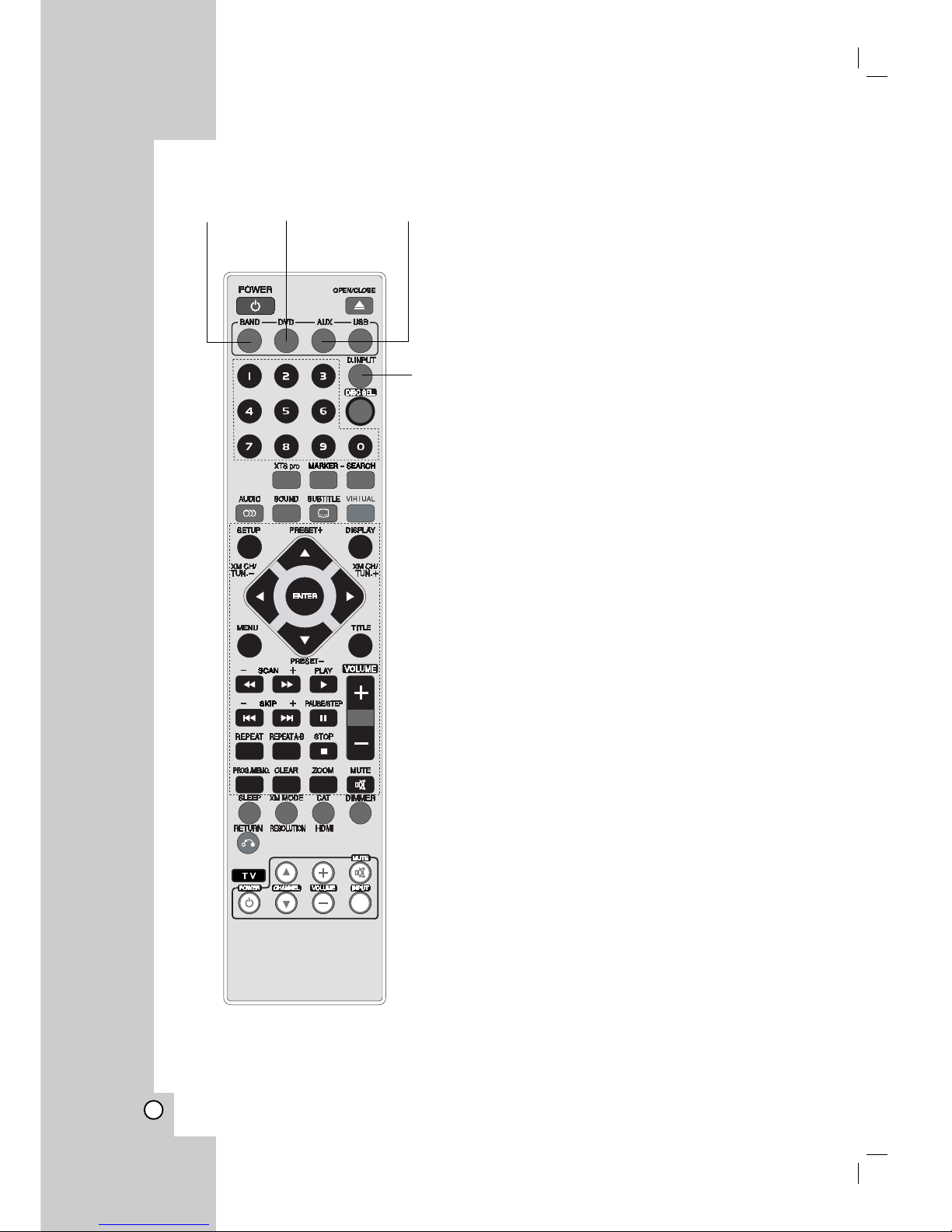

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . .10
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Installation and Setup
Setting up the DVD Home Theater System . . . .12
DVD Home Theater System Connections . . . . .12

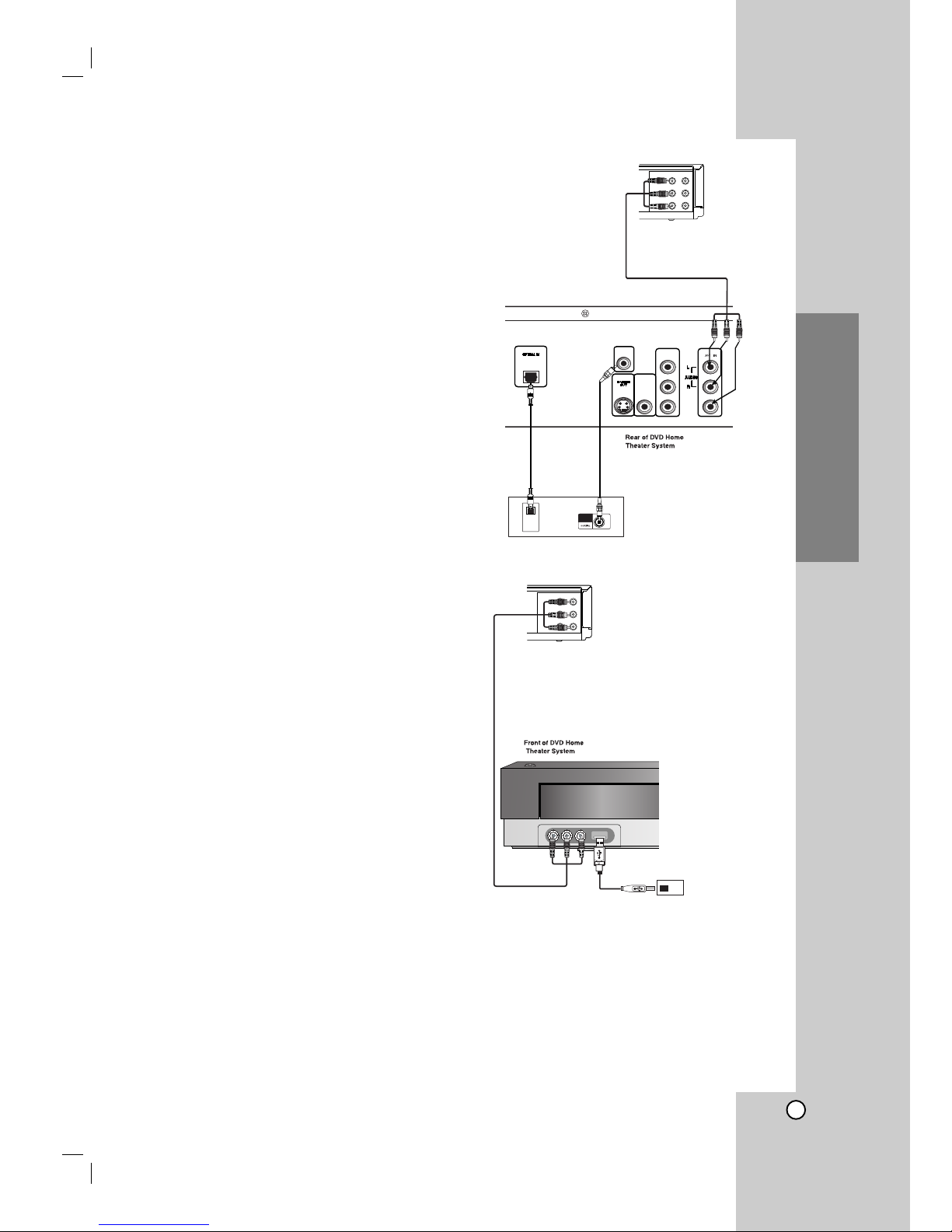

Audio Connection to Optional Equipment . . . . . .13

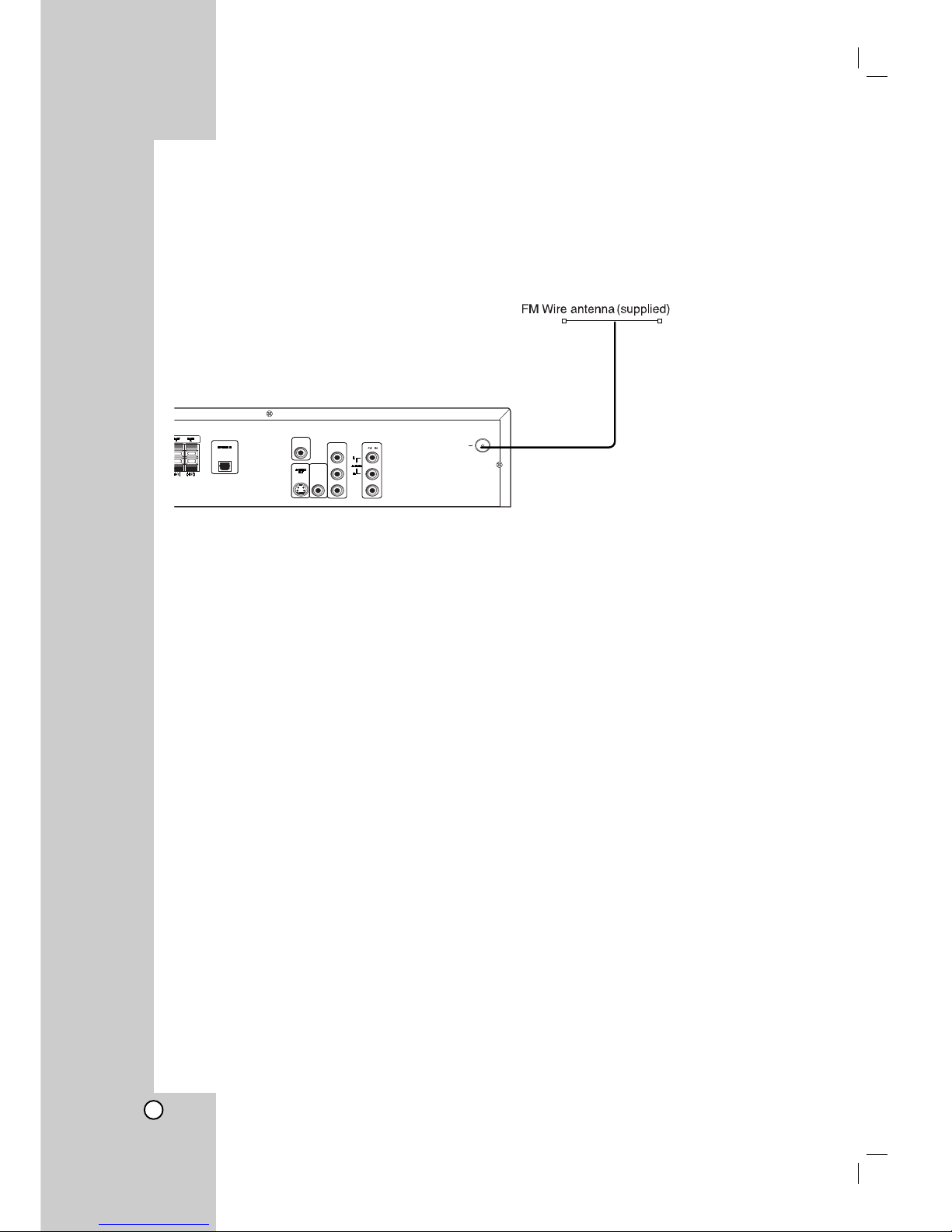

Antenna Connections . . . . . . . . . . . . . . . . . . . . .14

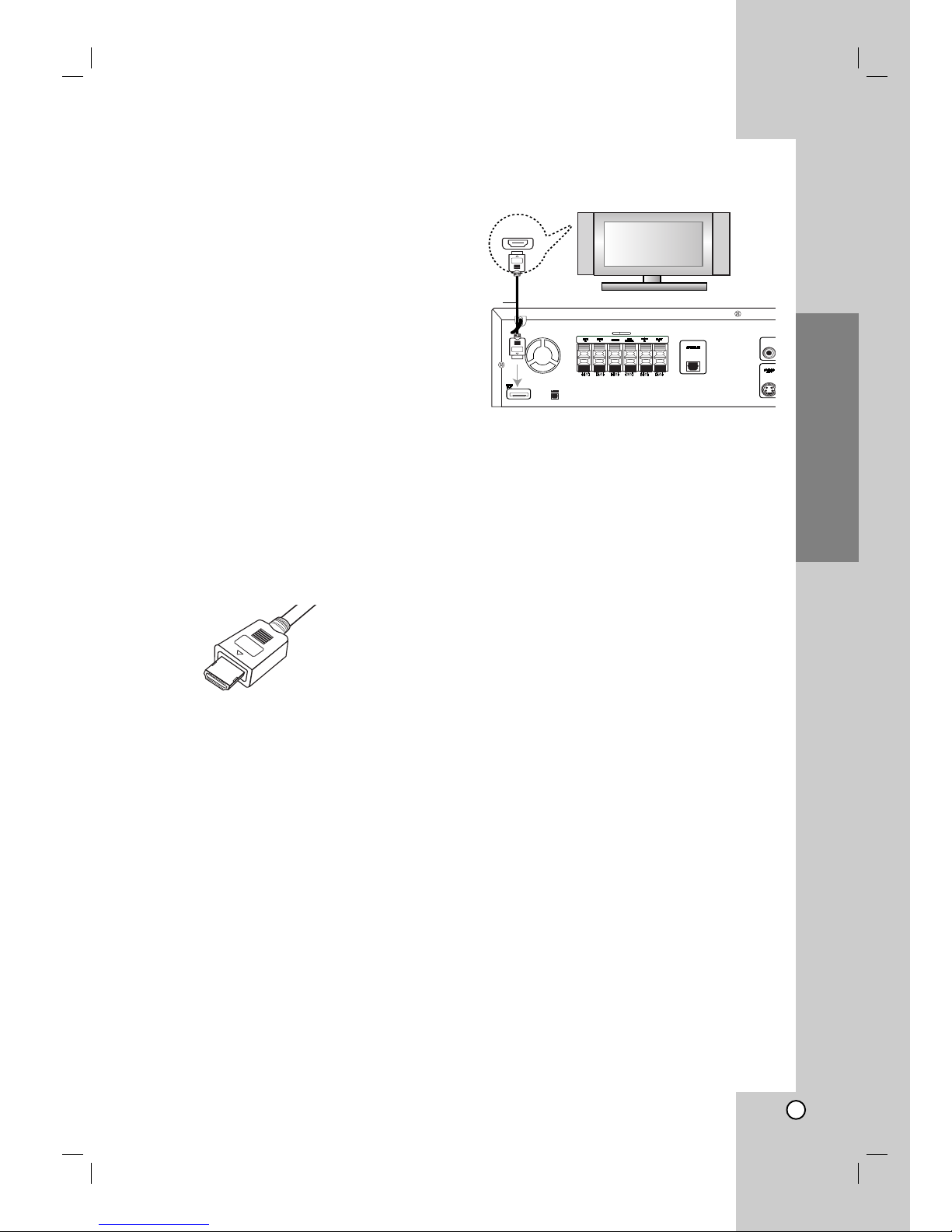

HDMI Connection . . . . . . . . . . . . . . . . . . . . . . . .15

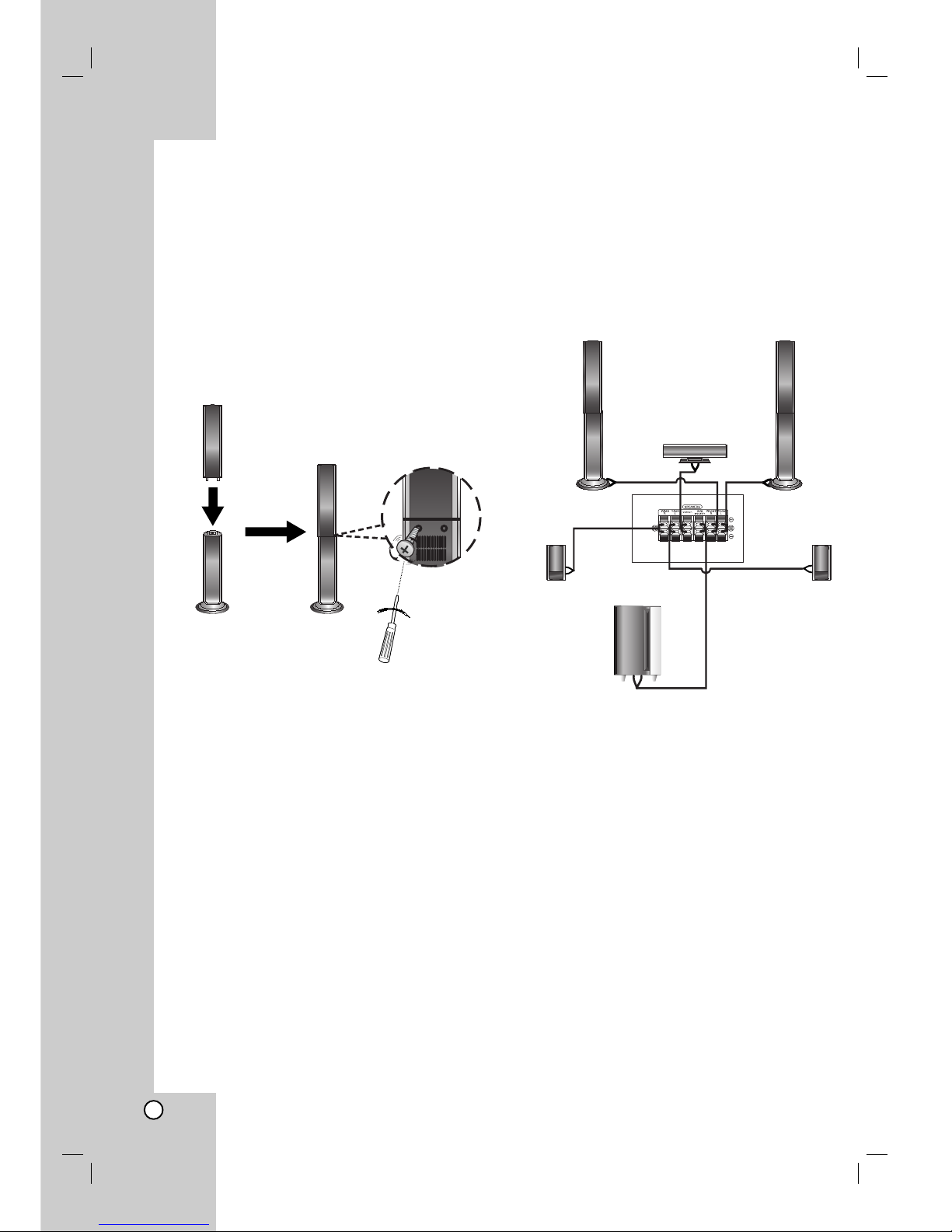

Assembling and Connecting tothe Speakers . . .16
Speaker System Connection . . . . . . . . . . . . . . .16

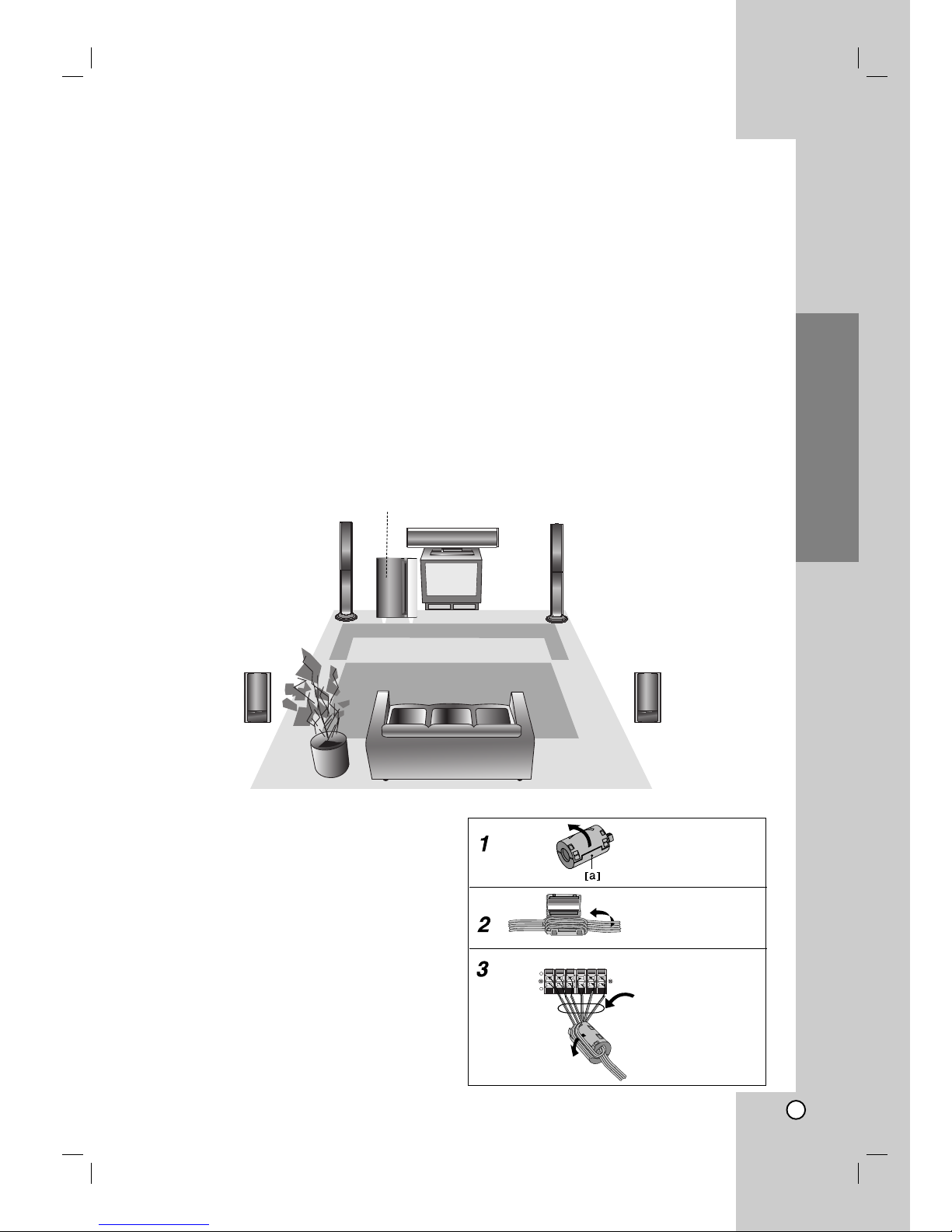

Speaker Positioning . . . . . . . . . . . . . . . . . . . . . .17
Selecting the Input/Output Source . . . . . . . . . . .18
Mini Glossary for Audio Stream & Surround Mode19
Sound Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
QBS sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Displaying Disc Information on-screen . . . . . . . .20
Initial Settings . . . . . . . . . . . . . . . . . . . . . . . . .20
General Operation . . . . . . . . . . . . . . . . . . . . . .20
Language . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
5.1 Speaker Setup . . . . . . . . . . . . . . . . . . . . . .22
Lock (Parental Control) . . . . . . . . . . . . . . . . . .23
Others . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Operation
General features . . . . . . . . . . . . . . . . . . . . . . . . .24
Playback Setup . . . . . . . . . . . . . . . . . . . . . . . . . .25
To open all discs . . . . . . . . . . . . . . . . . . . . . . .25
To select a playback disc . . . . . . . . . . . . . . . . .25
To play all discs on disc trays . . . . . . . . . . . . .25
Special DVD Features . . . . . . . . . . . . . . . . . . . .25
Checking the contents of DVD discs: Menus .25
Camera Angle 25
Additional features . . . . . . . . . . . . . . . . . . . . . . .26
Time Search . . . . . . . . . . . . . . . . . . . . . . . . . .26
Marker Search . . . . . . . . . . . . . . . . . . . . . . . . .26
Last Scene Memory . . . . . . . . . . . . . . . . . . . . .26
Sleep Timer Setting . . . . . . . . . . . . . . . . . . . . .26
Dimmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Using Headphone Jack . . . . . . . . . . . . . . . . . .26
Playing an Audio CD or MP3/WMA file . . . . . . . .27
Programmed Playback . . . . . . . . . . . . . . . . . . . .27
Viewing a JPEG disc . . . . . . . . . . . . . . . . . . . . .28
Playing a DivX Movie Disc . . . . . . . . . . . . . . . . .29
Presetting the FM Radio Stations . . . . . . . . . . . .30
Listening to the FM Radio . . . . . . . . . . . . . . . . . .30
XM Satellite Radio Operation . . . . . . . . . . . . . . .31
What is XM Satellite Radio? . . . . . . . . . . . . . . . .31
What is XM Ready? . . . . . . . . . . . . . . . . . . . . . .31
XM Satellite Radio connections . . . . . . . . . . . . .31
Activating Your Service . . . . . . . . . . . . . . . . . . . .31
Selecting the XM Satellite Radio . . . . . . . . . . . .31
XM information . . . . . . . . . . . . . . . . . . . . . . . . . .31
Presetting the XM Satellite Radio Stations . . . . .32
Channel Selection . . . . . . . . . . . . . . . . . . . . . . . .32
Advisory Message . . . . . . . . . . . . . . . . . . . . . . . .32
Controlling your TV with the Suppllied Remote33-34
Controlling other TVs with the Supplied Remote 33
Reference
Language Codes . . . . . . . . . . . . . . . . . . . . . . . . .35
Area Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . .36-37
Maintenance and Service . . . . . . . . . . . . . . . . . .37
Handling the Unit . . . . . . . . . . . . . . . . . . . . . . .37
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . .38

5
Introduction
To ensure proper use of this product, please read this
owner’s manual carefully and retain for future
reference.
This manual provides information on the operation
and maintenance of your DVD Home Theater System.
Should the unit require service, contact an authorized
service location.
Symbol Used in this Manual
The lightning flash symbol alerts you to the
presence of dangerous voltage within the
product enclosure that may constitute a risk of
electric shock.
The exclamation point alerts you to the
presence of important operating and
maintenance / servicing instructions.
Indicates hazards likely to cause harm to the
unit itself or other material damage.
Note:
Indicates special notes and operating features.
Tip:
Indicates tips and hints for making the task easier.
Asection whose title has one of the following symbols
is applicable only to the disc represented by the
symbol.
DVD and finalized DVD±R/RW
Video CDs
Audio CDs
MP3 Discs
WMA Discs
JPEG Discs
About the Symbol Display
“ ” may appear on your TV display during
operation and indicates that the function explained in
this owner’s manual is not available on that specific
DVD video disc.
Notes on Discs
HANDLING DISCS
Do not touch the playback side of the disc. Hold the
disc by the edges so that fingerprints do not get on
the surface. Never stick paper or tape on the disc.
STORING DISCS
After playing, store the disc in its case. Do not expose
the disc to direct sunlight or sources of heat and never
leave it in a parked car exposed to direct sunlight.
CLEANING DISCS
Fingerprints and dust on the disc can cause poor
picture quality and sound distortion. Before playing,
clean the disc with a clean cloth. Wipe the disc from
the center out.
Do not use strong solvents such as alcohol, benzine,
thinner, commercially available cleaners, or anti-static
spray intended for older vinyl records.
JPEG
WMA
MP3
CD
VCD
DVD
Introduction

6
Types of Playable Discs
DVD
(8 cm / 12 cm disc)
Video CD (VCD)
(8 cm / 12 cm disc)
Audio CD
(8 cm / 12 cm disc)
In addition, this unit plays DVD -R, DVD -RW, SVCD,
and CD-R / CD-RW that contains audio titles, MP3,
WMA, and/or JPEG files.
Notes:
•Depending on the conditions of the recording
equipment or the CD-R/RW (or DVD -R, DVD -RW)
disc itself, some CD-R/RW (or DVD -R, DVD -RW)
discs cannot be played on the unit.
•Do not attach any seal or label to either side (the
labeled side or the recorded side) of a disc.
•Do not use irregularly shaped CDs (e.g., heart-
shaped or octagonal) since they may result in
malfunctions.
Notes on DVDs and Video CDs
Some playback operations of DVDs and Video CDs
may be intentionally programmed by software
manufacturers. This unit plays DVDs and Video CDs
according to disc content designed by the software
manufacturer, therefore some playback features may
not be available or other functions may be added.
Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic”, and the double-D symbol are
trademarks of Dolby Laboratories. Confidential
Unpublished works. Copyright 1992-1997 Dolby
Laboratories. All rights reserved.
Manufactured under license from Digital Theater
Systems, Inc. US Pat. No’s. 5,451,942; 5,956,674;
5,974,380; 5,978,762; 6,487,535 and other US and
world-wide patents issued and pending. “DTS” and
“DTS Digital Surround” are registered trademarks of
Digital Theater Systems, Inc. Copyright 1996, 2003
Digital Theater Systems, Inc. All rights reserved.
Note on DTS-encoded CDs
When playing DTS-encoded CDs, excessive noise
may be exhibited from the analog stereo output. To
avoid possible damage to the audio system, turn down
the volume before playing back such discs, adjust the
volume gradually, and keep the volume level low. To
enjoy DTS Digital Surround®playback, an external 5.1
channel DTS Digital Surround®decoder system must
be connected to the digital output of the unit.
Regional code
This DVD Home Theater System is designed and
manufactured for playback of region “1”
encoded DVD software. This unit can play
only DVD discs labeled “1” or “ALL”.
Notes on Regional Codes
•Most DVD discs have a globe with one or more
numbers in it clearly visible on the cover. This
number must match your DVD Home Theater
System’s regional code or the disc cannot play.
•If you try to play a DVD with a different region code
from your player, the message “Check Regional
Code” appears on the TV screen.
Notes on copyright
The unauthorized recording, use, distribution, or
revision of television programs, videotapes, DVDs and
other materials, is prohibited under the Copyright
Laws of the United States and other countries, and
may subject you to civil and/or criminal liability.
1

7
Introduction
Disc-related terms
VCD (Video CD)
AVCD holds up to 74 minutes (650 MB disc) or 80
minutes (700 MB disc) of MPEG-1 full-motion video
along with quality stereo sound.
MPEG
MPEG is an international standard for video and audio
compression. MPEG-1 is used in encoding video for
VCD and provides for multichannel surround sound
coding such as PCM, Dolby Digital, DTS and MPEG
audio.
MP3
MP3 is a popular compression format used for digital
audio files that yields very high near-CD quality.
WMA
Windows Media®audio file. A type of coding / decoding
developed by Microsoft Corp.
JPEG
Joint Pictures Expert Group. JPEG is a compressed file
format that allows you to save images with no limit on
the number of colors.
Note on Windows Media
Windows Media is either a registered trademark or
trademark of Microsoft Corporation in the United States
and/or other countries.
PBC: Playback Control (Video CD only)
Playback control is available for Video CD (VCD)
version 2.0 disc formats. PBC allows you to interact with
the system via menus, search functions, or other typical
computer-like operations. Moreover, still pictures of high
resolution can be played if they are included in the disc.
Video CDs not equipped with PBC (Version 1.1) operate
in the same way as audio CDs.
Title (DVD video discs only)
Atitle is generally a distinct section of a DVD disc. For
example the main feature could be title 1, a
documentary describing how the film was made could
be title 2, and cast interviews could be title 3. Each title
is assigned a reference number enabling you to locate it
easily.
Chapter (DVD video discs only)
Achapter is a segment of a title such as a scene in a
film or one interview in a series. Each chapter is
assigned a chapter number, enabling you to locate the
chapter you want. Depending on the disc, chapters
may not be recorded.
Scene (VCD)
On a video CD with PBC (playback control) functions,
moving pictures and still pictures are divided into
sections called “scenes”. Each scene is displayed in
the menu screen and assigned a scene number,
enabling you to locate the scene you want. A scene is
composed of one or several tracks.
Track
Adistinct element of audiovisual information, such as
the picture or sound track for a specific language
(DVD), or a musical piece on a video or audio CD.
Each track is assigned a track number, enabling you
to locate the track you want. DVD discs allow one
track of video (with multiple angles) and several tracks
of audio.
Caution
Never throw batteries into a fire.
Notes:
•Be sure to use AAA size batteries.
•Dispose of batteries in a designated disposal area.
•Batteries should always be disposed of with the
environment in mind. Always dispose of batteries in
accordance with applicable laws and regulations.
•If the remote control does not operate correctly, or if the
operating range becomes reduced, replace batteries with
new ones.
•When necessary to replace batteries in the remote control,
always replace both batteries with new ones. Never mix
battery types or use new and used batteries in
combination.
•Always remove batteries from remote control if they are
dead or if the remote control is not to be used for an
extended period of time. This will prevent battery acid from
leaking into the battery compartment.
Remote Control Operation Range
Point the remote control at the remote sensor and
press the buttons.
Distance: About 7m (23ft) from the front of the
remote sensor
Angle: About 30° in each direction of the front of the
remote sensor

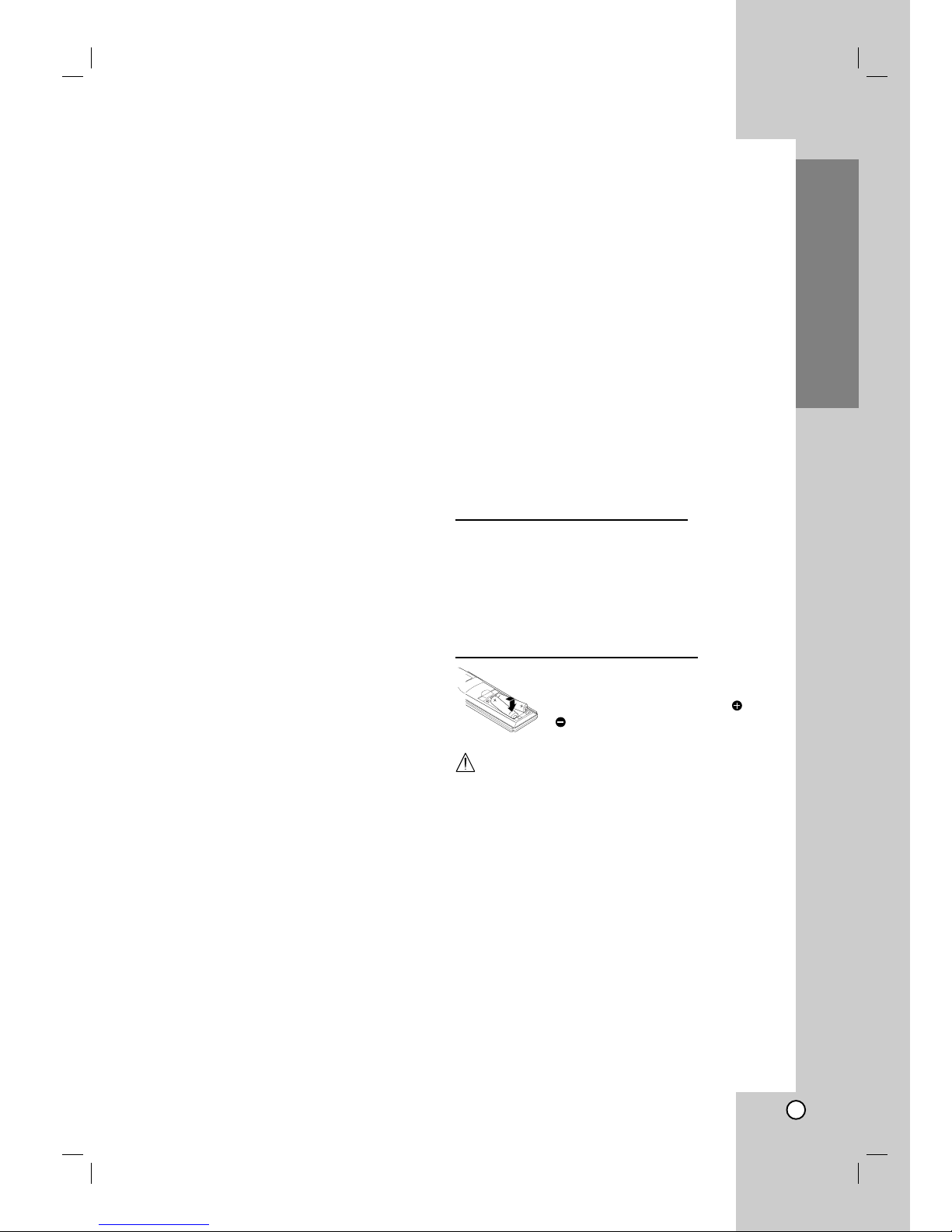

Remote control battery installation
Detach the battery cover on the rear
of the remote control, and insert two
R03 (size AAA) batteries with and
aligned correctly.

8
Front Panel
VOLUME Control
Turn the knob clockwise to increase
sound level, counterclockwise to
decrease sound level.
B(PLAY)
To play back a disc or tape.
L2(VIDEO / AUDIO (Left/Right))
Connect the audio/video output of an external source (Audio
system, TV/ Monitor, VCR, Camcorder, etc.).
Drawer (DVD deck)
Insert discs here.
POWER button and indicator
Switches the Home Theater System ON and
OFF.
Lights red when the Home Theater System is
turned off.
x(STOP)
Stops playback.
Display window
Shows the current status of the Unit.
Disc buttons (DISC 1 - DISC 5)
Press to select the disc directly.
PAUSE(XX)/STEREO/MONO
Pause playback of a disc in the DVD deck
temporarily/press repeatedly for frame-by-
frame playback.
There will be no stereo effect when you
press this button, but the reception will
improve. Press this button again to restore
the stereo effect.
Reverse SKIP/SCAN (
SS
/
QQ
)
/XM CH -/FM CH -
Goes to the beginning of current
chapter/track or to the previous
chapter/track.
Press and hold for two seconds for
a fast reverse search.
Forward SKIP/SCAN (
RR
/
TT
)
/XM CH+/FM CH +
Goes to NEXT chapter/track.
Press and hold for two
seconds for a fast forward
search.
FUNCUNCTION
To select functions.
USB port
Connect to a USB port of
multimedia (USB memory)
Headphone Jack
DISC VIEW
Press to open all disc
trays.

9
Introduction
Display Window
CHPTRK PROG SLEEP STTUNED (((XM))) CAT
TITLE
RPT
XTS
ALLPHOTO
MP3
WMA
DIGITAL
PLII Pro
A B
1
2
4
3
5
DivX MUTE
SLEEP timer indication
Repeat playback mode indicators.
Indicates clock, total playing time, elapsed time,
remaining time, title number, chapter/track number,
radio frequency, volume, Surround mode or current
deck status (Playback, Pause, etc).
Lights up when a stereo
broadcast is being received.
MP3 MP3 disc inserted.
WMA WMA disc inserted.
PHOTO PHOTO disc inserted.
Programmed
playback active.
DISC INDICATORS
Flashes when a disc is loaded in the
disctray.
Indicates sound mode (Dolby Digital, DTS, Dolby Pro Logic II)
Indicates the unit is playing back a disc or
indicates the unit is pause playback of a disc
temporarily.
MUTE
The speaker
sound is
muted.
Lights up when the
unit is receiving XM
signal.
ANGLE active
DivX file recognized
Lights up when the
unit tunes in a station.
Indicates Catagory search mode
Indicates sound mode
is XTS/XTS Pro

10
Remote Control OPEN/CLOSE
Opens and closes all disc trays.
D.INPUT
To listen to an audio source connected to
the DIGITAL AUDIO IN (OPTICAL or
COAXIAL) jack with video from AV IN or
LINE IN 2
.
DISC SEL.
To select a desired disc.
0-9 numerical buttons
Selects numbered options in a menu.
AUDIO
Selects an audio language (DVD) or
an audio channel (CD).
SOUND
Selects sound mode.
SUBTITLE
Selects a subtitle language.
VIRTUAL
Selects the QBS sound
DISPLAY
Accesses On-Screen display.
b/B/v/V(left/right/up/down)
Selects an option in the menu.
ENTER
Acknowledges menu selection.
TITLE
Displays the disc’s Title menu, if available.
VOLUME (+/-)
Adjusts speaker sound level.
PROG/MEMO.
- Accesses or removes Program menu.
- Stores a radio station’s frequency in
the tuner’s memory.
CLEAR
Removes a track number on the
program menu or a mark on the
MARKER SEARCH menu.
Clears preset stations from the tuner
memory.
ZOOM
Enlarges DVD/VCD video image.
MUTE
Turns the sound on and off
temporarily.
SLEEP
Set the System to turn off
automatically at a specified time.
XM MODE
Selects a XM display mode
RESOLUTION
Changes the resolution
CAT
Select the Category Search
HDMI
Turns the HDMI output On or Off
DIMMER
Press to change brightness of the
display window on the front panel
during power-on status.
TV Control Buttons
-POWER: Switches TV ON and
OFF.
-CHANNEL v/V:Selects TV’s
channel.
-VOLUME +/–: Adjusts TV’s
volume.
-INPUT: Selects the TV’s source.
POWER
Turns DVD Home Theater System ON
and OFF.
DVD
Select the DVD Home Theater System’s
function mode to DVD.
BAND
Select FM, XM band as the listening
choice. (FM and XM bands).
AUX
Selects external input source. (AV1 or
AV2)
USB
SelectstheUSBportinputsource.
Disc buttons (1-5)
XTS pro
To enjoy more natural and realistic
sound.
MARKER
Marks a point during playback.
SEARCH
Displays MARKER SEARCH menu.
SETUP
Accesses or removes DVD Setup menu.
MENU
Accesses the menu on a DVD disc.
STOP (xx)
Stops playback.
PLAY (B)
Starts playback.
PAUSE/STEP (XX)
Pause playback temporarily.
SKIP (.)
- Skip to beginning of current DVD/CD
chapter or track, press twice in quick
succession to go to previous DVD/CD
chapter or track.
- Press and hold for a fast reverse picture
search in DVD mode.
- Reverse slow playback.
REW( bb )
For fast reverse picture search.
FWD (BB )
For fast forward picture search.
SKIP (>)
- Skip to next DVD/CD chapter or track.
- Press and hold for a fast forward picture
search in DVD mode.
- Forward slow playback.
REPEAT
Repeat chapter, track, title or all.
A-B REPEAT
Repeats sequence between two points (A
and B)
RETURN
Removes the setup menu.

11
Introduction
Rear Panel
MONITOR
OUT
COMPONENT
VIDEO OUT
FM
COAXAL IN
HDMI
1080i
Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause
permanent damage to the unit.
Note:
Wireless XM transmitter and receiver is not supplied and must be purchased separately.
AV1 IN (VIDEO IN/AUDIO IN
(Left/Right))
Connect the audio/video
output of an external
source (Audio system,
TV/Monitor, etc.).
AC Power Cord
Plug into the power source.
S-VIDEO OUT (DVD OUT)
Connect to an S-Video Input on TV.
FOR DVD VIEWING ONLY.
FM ANTENNA CONNECTORS
Connect the FM antenna to this terminal.
COMPONENT
VIDEO OUT (Y Pb Pr )
Connect to a TV with Y Pb Pr inputs.
XM IN Connector
Connect an XM Passport
System to this
terminal.(sold separately)
HDMI OUT
HDMI output providing a high
quality interface for digital
audio and video.
SPEAKER CONNECTORS
Connect the six supplied speakers
to these terminals.
OPTICAL IN Connector
Connect an optical output of Digital Device.
MONITOR OUT
Connect to a TV with video inputs.
Cooling fan
COAXIAL IN Connector
Connect an coaxial output of
Digital Device.
TRANSMITTER(DC 7V OUT)
Connector

12
Setting up the DVD Home Theater
System
The picture and sound of a nearby TV, VCR, or radio
may be distorted during playback. If this occurs,
position the DVD Home Theater System away from
the TV, VCR, or radio, or turn off the unit after
removing the disc.
DVD Home Theater System Connections
Depending on your TV and other equipment there are
various ways you can connect the DVD Home
Theater System. Please refer to the manuals of your
TV, stereo system or other devices as necessary for
additional connection information.
Video Connections to Your TV
Make sure the DVD Home Theater System is
connected directly to the TV and not to a VCR,
otherwise the DVD image could be distorted by the
copy protection system.
Video: Connect the MONITOR OUT jack on the
DVD Home Theater System to the video in jack on
the TV using the video cable (V).
S-Video: Connect the S-VIDEO OUT jack on the
DVD Home Theater System to the S-Video in jack
on the TV using the S-Video cable (S).
Notes:
•For MONITOR OUT and S-VIDEO OUT jack
connection, resolution must be set to 480i or 480p
by pressing RESOLUTION on the remote control,
however MONITOR OUT and S-VIDEO OUT is
always at 480i standard resolution.
•HDMI mode must be set to OFF for VIDEO OUT
and S-VIDEO OUT jack connection.
Component Video (ColorStream®): Connect the
COMPONENT VIDEO OUT jacks on the DVD
Home Theater System to the corresponding in
jacks on the TV using an Y Pb Pr cable (C).
Progressive Scan (ColorStream Pro®):
• If your television is a high-definition or
“digital ready” television, you may take
advantage of the DVD Home Theater System’s
progressive scan output for the highest video
resolution possible.
• If your TV does not accept the Progressive
Scan format, the picture will appear scrambled if
you try Progressive Scan on the DVD Home
Theater System.
Notes:
•You can change the resolution (480i, 480p, 720p,
1080i) for the COMPONENT VIDEO OUT by
pressing RESOLUTIONon the remote control.
•For 720p and 1080i resolution, only non-copy
protected discs can be played back. If the disc is
copy protected, it will be displayed at the 480p
resolution.
The resolution (720p, 1080i) is for the component
output only.
•HDMI mode must be set to OFF for Component
video connections.
•The resolution (720p, 1080i) does not work with the
analog video connections (VIDEO OUT & S-VIDEO).
MONITOR
OUT
COMPONENT
VIDEO OUT
FM
COAXAL IN
Installation and Setup

13
Installation and Setup
Audio Connection to Optional
Equipment
Connect the DVD Home Theater System to your
optional equipment for audio output.
1. Connect a VCR to the AV IN connectors (rear).
2. Connect an additional VCR to the LINE IN 2
connectors (front).
3. Connect an optical output of DVD Home Theater
System (or Digital Device etc) to the OPTICAL IN
connector.
4. Connect an coaxial output of DVD Home Theater
System (or Digital Device etc) to the COAXIAL IN
connector.
5. Connect Connect the USB port of a USB Memory
(or MP3 player, etc.) to the USB HOST on the front
of the unit.
Note:
If the audio format of the digital output does not
match the capabilities of your DVD Home Theater
System, the receiver will produce a strong, distorted
sound or no sound at all.
To Remove the USB from the unit
1. Choose another function other than USB function in
order to remove the USB.
2. Remove the USB from the unit.
Notes:
Do not remove the USB device during the playback.
Aback up of USB data on a PC of data is recommended.
Besides basic playback, If you want to operate other
functions, see the CD playback section.
Don’t add or remove amemory card when playing
the USB when using a multi-card reader.
Number of file available is limited to 999.
Be sure to save file in the memory card after
formatting.
External hard disc drives are not supported.
AMP3 player requiring installation of a driveris not
supported.
This unit can play USB devicesthat contain
MP3/WMA file.
This player can not format memory cards
This player can not use USB HUBs.
Recommended Memory Card
Compact Flash Card (CFC), Micro Drive (MD), Smart
Media Card (SMD), Memory Stick (MS), Secure
Digital Card (SD), Multi Media Card (MMC), Memory
Stick Pro (MS-Pro)
- Compatible with: FAT12, FAT16, FAT32
- Only use the memory cards recommended.
DivX files on a USB device can not be played.
MONITOR
OUT
COMPONENT
VIDEO OUT
VIDEO
INOUT
AUDIO (L)
AUDIO (R)
To AUDIO IN (L/R)/
VIDEO IN (AV1)
To AUDIO OUT (L/R)/
VIDEO OUT
Digital Set Top Box (Cables or DBS)
OPTICAL
OUT
DIGITAL
OUT
COAXAL IN
The unauthorized recording, use, distribution,
or revision of television programs, videotapes,
DVDs and other materials, is prohibited under
the Copyright Laws of the United States and
other countries, and may subject you to civil
and/or criminal liability.
FM
AM
VIDEO
OUTIN
AUDIO (L)
AUDIO (R)
Additional VCR
To AUDIO IN (L/R)/
VIDEO IN (AV2)
To AUDIO OUT (L/R)/
VIDEO OUT
USB Memory, MP3 Player (or
Memory Card Reader, etc.)

14
MONITOR
OUT
COMPONENT
VIDEO OUT
FM
COAXAL IN
Antenna Connections
Connect the supplied BAND antenna for listening to the radio.
Connect he FM Wire antenna to the FM antenna connector.
Notes:
Be sure to fully extend the FM wire antenna.
After connecting the FM Wire antenna, keep it as horizontal as possible.

15
Installation and Setup
HDMI Connection
If you have a HDMI TV or monitor, you can connect it
to this DVD Home Theater System using a HDMI
cable.
1. Connect the HDMI OUT jack on the Home Theater
System to the HDMI jack on a HDMI compatible
TV or monitor (H).
2. Set the TV’s source to HDMI (refer to TV’s Owner’s
manual).
3. In stop mode, select HDMI mode by pressing
HDMI on the remote control.
Press RESOLUTION repeatedly to select the
resolution you wish to change to then press PLAY.
The DVD disc must not be playing in order to set
the resolution.
Tip:
You can also use a DVI input on the TV (with no
sound) with the HDMI ouput and HDMI to DVI
converter cable.
Notes:
•The cable connector should face the correct
alignment with the connector on the Home Theater
System.
•When you use HDMI, the other connections (Yellow
VIDEO OUT and Component Video (Pr Pb Y) will
not work.
•If there is noise or lines on the screen, please
check the HDMI cable.
Tip:
When you use HDMI connection, you can change the
resolution (480p, 720p, 1080i) for the HDMI output by
pressing RESOLUTIONon the remote control.
480i is not available. You can only change the
resolution within your TV’s and Monitor’s resolution
capabilities.
ABOUT HDMI
HDMITM (High Definition Multimedia Interface) supports
both video and audio. on a single digital connection
for use with DVD Players, Set-Top Boxes, and other
AV devices.
HDMI was developed to provide the technologies of
HDCP (High Definition Contents Protection). HDCP is
used to protect digital content transmitted and
received.
Because HDMI is an evolving technology, it is
possible that some devices may not operate properly
with the DVD Home Theater System.
HDMI has the capability to support standard,
enhanced, or high-definition video plus standard to
multi-channel surround-sound audio, HDMI features
include uncompressed digital video, a bandwidth of up
to 5 gigabytes per second, one connector (instead of
several cables and connectors), and communication
between the AV source and AV devices such as
DTVs.
HDMI, the HDMI logo and High-Definition Multimedia
Interface are trademarks or registered trademarks of
HDMI licensing LLC.
COAXAL IN
HDMI
HDMI compatible TV
H
Rear of Home Theater System

16
Assembling and Connecting to
the Speakers
The front speakers are detached from the speaker
stands. Connect the speaker cables and assemble the
front speakers from speaker stands as illustrated.
1. Connect the speaker cables to the appropriate
terminals on the bottom of each front speaker.
2. Attach the front speakers to the speaker stands by
rotating the screw.
Speaker System Connection
Connect the speakers using the supplied speaker
cables.
To obtain the best possible surround sound, adjust the
speaker parameters (volume, distance, etc.).
Notes:
•Be sure to match the speaker cable to the
appropriate terminal on the components: + to + and
– to –. If the cables are reversed, the sound will be
distorted and will lack base.
•If you use front speakers with low maximum input
rating, adjust the volume carefully to avoid
excessive output on the speakers.
Front speaker
(Right)
Front speaker
(Left)
Center speaker
Rear speaker
(Right surround)
Subwoofer
Rear speaker
(Left surround)

17
Installation and Setup
Centre Speaker
Front Speaker
(Left)
Speaker Positioning Example
Rear Speaker
(Left)
Rear Speaker
(Right)
Front Speaker
(Right)
Subwoofer
Speaker Positioning
In the case of normal position use the 6 speakers (2 front speakers, center speaker, 2 rear speakers and
subwoofer).
If you want to play the excellent bass sound, DTS digital surround or Dolby Digital surround, you should connect a
subwoofer.
•Front speakers
According to your listening position set up the speakers for equal distance. And by hearing position set up the interval between
speakers to 45 degree.
•Center speaker
The center speakers and front speakers are ideally the same height. But normally place it above or below the television.
•Rear speakers
Place left and right behind the listening area. These speakers recreate sound motion and atmosphere required for surround
sound playback. For best results, do not install the rear speakers too far behind the listening position and install them at or
above the level of the listener’s ears. It is also effective to direct the rear speakers towards a wall or ceiling to further disperse
the sound.
In the case of a smaller room size, if the audience is near to the rear wall set the rear speakers opposite each other, and set the
rear speakers above 60 - 90 cm than the listener’s ears.
•Subwoofer
This can be placed in any front position.
About Ferrite Core
Be sure to attach the ferrite core to the speaker
cables (for connecting to this unit).
This ferrite core can reduce noises.
How to attach the ferrite core
1Press the stopper [a] of the ferrite core to
open.
2Wind the cable once on the ferrite core.
3Close the ferrite core unitl it clicks.
Note:
Attach the ferrite core near the unit (Refer to the fig.3
and comment.).
+
-
The length here is
short as much as
possible.

18
Selecting the Input/Output Source
Follow these guidelines to select and switch among
the various DVD Home Theater System input and
output sources:
•DVD/CD
To view output from the DVD deck:
Press DVD on the remote or FUNCTION on the
front panel until the DVD indicator on the front
panel lights and output from the DVD deck is
viewed on the TV screen.
•FM/XM
To listen to FM/XM radio broadcasts:
Press BAND on the remote to toggle between FM
and XM radio. The selected frequency appears on
the front panel display.
•AUX
To view a source connected to the front or rear
LINE inputs:
Press AUX to select AV IN (AV 1) (for rear panel) or
LINE IN 2 (AV 2) (for front panel).
•D.INPUT
To listen to an audio source connected to the
DIGITAL AUDIO IN (OPTICAL or COAXIAL) jack
with video from AV IN or LINE IN 2:
Press D.INPUT on the remote control once. AV 1
OPT or AV 2 OPT will appear on the front panel
display. Audio will come from an external source
connected to the DIGITAL AUDIO IN (OPTICAL)
jack and video will come from an external source
connected to the VIDEO IN jack of AV IN (for rear
panel) or LINE IN 2 (AV 2) (for front panel).
Press D.INPUT on the remote control twice. AV 1
COAX or AV 2 COAX will appear on the front panel
display. Audio will come from an external source
connected to the DIGITAL AUDIO IN (COAXICAL)
jack and video will come from an external source
connected to the VIDEO IN jack of AV IN (for rear
panel) or LINE IN 2 (AV 2) (for front panel).
To listen to an audio source connected to the
AUDIO IN jack of AV IN or LINE IN 2 with video
from AV IN or LINE IN 2 :
Press AUX on the remote control three times.
AV 1 or AV 2 will appear on the front panel display.
Audio will come from an external source connected
to the AUDIO IN jacks of AV IN (for rear panel) or
LINE IN 2 (AV 2) (for front panel) and video will
come from an external source connected to the
VIDEO IN jack of AV IN (for rear panel) or LINE IN
2 (AV 2) (for front panel).
BAND DVD AUX
D.INPUT

19
Mini Glossary for Audio Stream
& Surround Mode
Allows you to enjoy 5.1(or 6) discrete channels of high
quality digital audio from DTS program sources such as
discs, DVD and compact discs, etc.bearing the trademark.
DTS Digital Surround delivers up to 6 channels of
transparent audio(which means identical to the original
masters) and results in exceptional clarity throughout a true
360 degree sound field. “DTS” and DTS Digital Surround”
are registered trademarks of Digital Theater Systems, Inc.
Manufactured under license from Digital Theater Systems,
Inc.
The Dolby Digital surround format lets you enjoy up to 5.1
channels of digital surround sound from a Dolby Digital
program source. If you play DVDs with “ ” mark, you can
enjoy even better sound quality, greater spatial accuracy,
and improved dynamic range.
Use this mode when playing movie or Dolby Digital 2 channel
which carries the “ ” mark. This mode provides the
effect of being in a movie theatre or live concert house-an
effect with an intensity which can only be obtained through
DOLBY PRO LOGIC SURROUND. The effect of the
front/back/left/right movement of the sound image, as well as
the sense of fixed position in the sound image, is much
clearer and more dynamic than before.
(II)
Dolby Pro Logic II creates five full-bandwidth output
channels from two-channel sources. This is done using an
advanced, high-purity matrix surround decoder that extracts
the spatial properties of the original recording without adding
any new sounds or tonal colorations.
MOVIE mode:
The Movie mode is for use with stereo television shows and
all programs encoded in Dolby Surround. The result is
enhanced soundfield directionality that approaches the quality
of discrete 5.1-channel sound.
MUSIC mode:
The Music mode is for use with any stereo music recordings.
MATRIX mode:
The Matrix mode is the same as the Music mode except that
the directional enhancement logic is turned off. It may be used
to enhance mono signals by making them seem “larger.” The
Matrix mode may also find use in auto systems, where the
fluctuations from poor FM stereo reception can otherwise
cause disturbing surround signals from a logic decoder. The
ultimate “cure” for poor FM stereo reception may be simply to
force the audio to mono.
3D SURROUND
This unit can produce a 3D Surround effect, using 3D
Surround Sound technology, which simulates multi-channel
audio playback from two conventional stereo speakers
instead of the five or more speakers normally required to
listen to multi-channel audio from a home theatre. This
feature works with DVD discs encoded with Dolby Pro Logic
and Dolby Digital audio tracks.
BYPASS
Software with multichannel surround audio signals is played
according to the way it was recorded.
Sound Mode
You can enjoy surround sound simply by selecting
one of the pre-programmed sound fields according to
the program you want to listen to.
Each time you press SOUND button, the sound mode
is changed in the following order;
BYPASS → ON STAGE →STUDIO → CLUB → HALL
→ THEATER 1 → CHURCH →PL ll MOVIE →
PL ll MUSIC → PL ll MTRX → BYPASS...
(This function available 2-channel mode only)
When DVD is inserted.
You can change the audio mode of DVD (Dolby Digital, DTS,
PRO LOGIC, etc) by pressing the AUDIO button on the
remote
during playback.Although the DVD contents differ from disc
to disc, the following explains the basic operation when this
feature is used.
Each time you press AUDIO button, the audio mode of DVD
is changed as the following order;
→→→
For your reference
• The DVD Home Theater System memorizes the
last mode settings for each source individually.
• You can identify the encoding format of program
software by looking at its packaging.
-Dolby Digital discs are labeled with the logo.
-Dolby Surround encoded programs are labeled
with the logo.
-DTS Digital Surround discs are marked with DTS.
Note:
Sound Mode is not applicable when headphone is used.
Depending on the disc, some of the DVD audio mode
may not be availabe.
Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic”, and the double-D symbol are
trademarks of Dolby Laboratories.
QBS sound
press VIRTUAL the setting QBS sound.
3D STEREO
Realtime 3D positioned sound rendering
technology with stereo sources, optimized for
stereo headphones/speakers. Listeners may
experience amazing virtual surround effects with
their own multimedia players.
SURROUND-MX.ES
AQBS makes a 5.1 ch feel 10.1 ch sound
therefore this mode provides a emotion which you
are involved with sound and you can feel detailed
sound.
Source Effect
2.1 ch. 3D STEREO
5.1 ch SURROUND-MX.ES
Installation and Setup

20
Displaying Disc Information
on-screen
You can display various information about the disc
loaded on-screen.
1. Press DISPLAY to show various playback
information.
The items displayed differ depending on the disc
type or playing status.
2. You can select an item by pressing v/ Vand
change or select the setting by pressing b/ B.
Title (Track) – Current title (or track).
number/total number of titles (or tracks).
Chapter – Current chapter number/total number
of chapters.
Time – Elapsed playing time.
Audio – Selected audio language or channel.
Subtitle – Selected subtitle.
Angle – Selected angle/total number of angles.
Sound – Selected sound mode.
Note:
If no button is pressed for a few seconds, the on-
screen display disappears.
Initial Settings
By using the Setup menu, you can make various
adjustments to items such as picture and sound.
You can also set a language for the subtitles and
the Setup menu, among other things. For details
on each Setup menu item, see pages 20 to 23
To display and exit the Menu:
Press SETUP to display the menu. A second press of
SETUP will take you back to initial screen.
To go to the next level:
Press Bon the remote control.
To go back to the previous level:
Press bon the remote control.
GENERAL OPERATION
1. Press SETUP. The Setup menu appears.
2. Use v/Vto select the desired option then press
Bto move to the second level. The screen shows
the current setting for the selected item, as well as
alternate setting(s).
3. Use v/Vto select the second desired option then
press Bto move to the third level.
4.
Use v/Vto select the desired setting then press
ENTER to confirm your selection. Some items
require additional steps.
5. Press SETUP or PLAY to exit the Setup menu.
LANGUAGE
OSD
Select a language for the Setup menu and on-screen
display.
Disc Audio / Subtitle / Menu
Select the language you prefer for the audio track
(disc audio), subtitles, and the disc menu.
Original – Refers to the original language in which
the disc was recorded.
Other – To select another language, press number
buttons then ENTER to enter the corresponding 4-
digit number according to the language code list
on page 35. If you enter the wrong language code,
press CLEAR.
OSD
Original
English
Off
Original
Disc Audio
Disc Subtitle
Disc Menu
Move Select
LANGUAGE
