LG LH-T9654S User manual

• Full Digital Amplifier
• Multi Format Disc Playback:
DVD Video/ DVD±R/DVD±RW/
Audio CD/CD-R/ CD-RW/WMA/
JPEG/DivX®/MPEG4
• XTS Pro
• Progressive Scan Video Output
• 1080i Upconversion via
HDMI Output
• Wireless Rear Speaker Ready
• USB Plus
1000 Watt Complete Home Theater System
DVD player, digital receiver and 5.1 speaker combo including a
built-in AM/FM tuner.
1080i Upconversion with HDMI Output
A special video processing circuit upconverts all signals to 1080i
(more than a thousand lines of horizontal resolution) via HDMI
output for use with compatible high-definition televisions.
USB Plus
Plays video, music and photos directly from your portable digital devices.
Wireless Rear Speaker Ready*
2.4 GHz digital wireless ready for most convenient and highest quality
rear speaker connection.
*Optional 2.4GHz Wireless Adapter ACC96WK

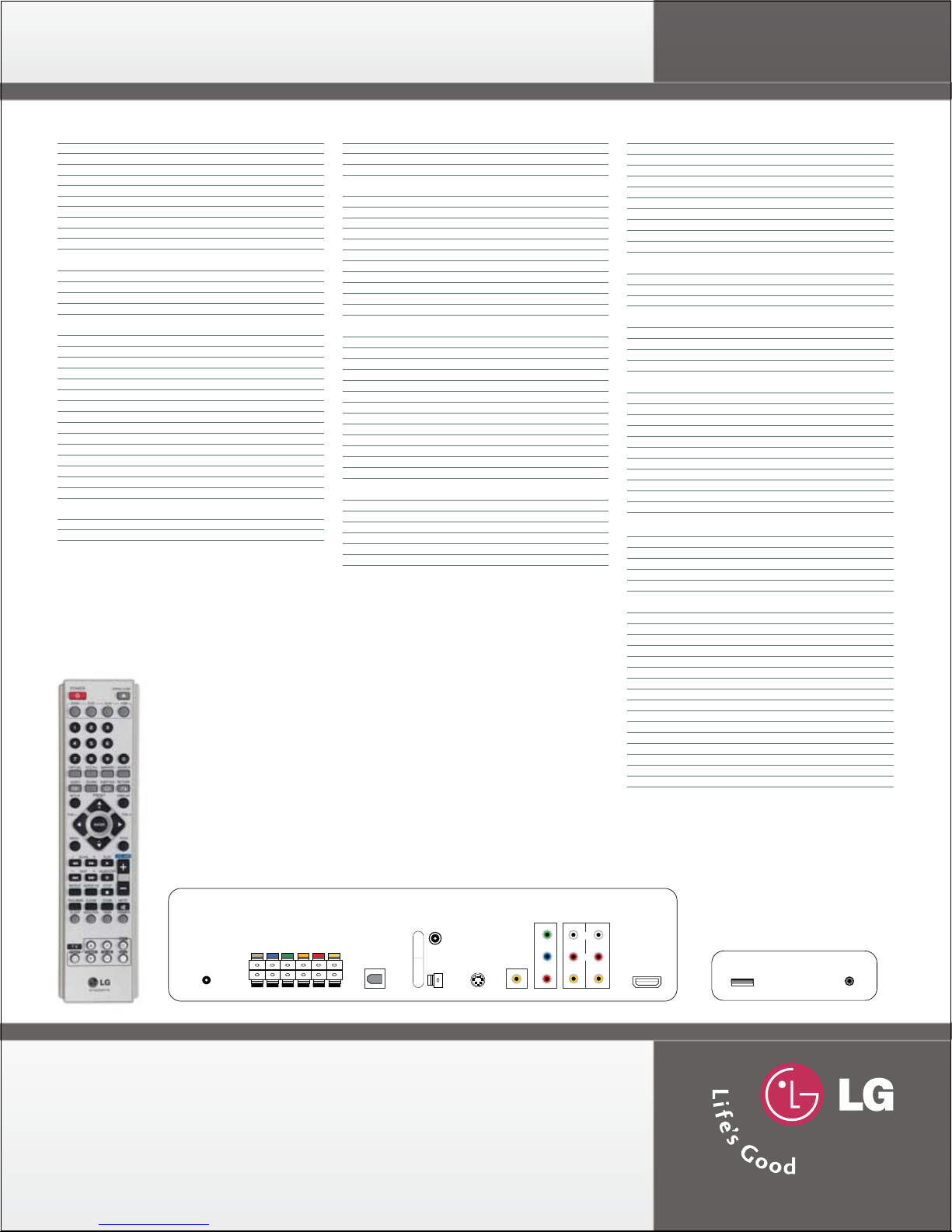

LH-T9654S
1000 Watt DVD Player Home Theater System

LG Electronics U.S.A., Inc.
1000 Sylvan Avenue
Englewood Cliffs, NJ 07632
www.LGusa.com
Design and specifications subject to change without notice. 03/17/06
© 2006 LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. LG Design and Life’s Good are trademarks of LG Electronics, Inc.
All other trademarks are the property of their respective owners.
LH-T9654S
1000 Watt DVD Player Home Theater System
PHONES
USB
(R)
VIDEO
S-VIDEO OUT
Y
Pb
Pr
(L)
VIDEO
AUDIO AUDIO
MONITOR
OUT
COMPONENT
VIDEO OUT
AV 1
IN
AV 2
IN
HDMI OUT
OPTICAL IN
SPEAKERS FM
AM
WIRELESS OUT (7V)
Rear
Front
Amplifier/Speaker
Output Power - Front 155W x 2(4Ω)*
Output Power - Center 155W(4Ω)*
Output Power - Rear 155W x 2(4Ω)*
Output Power - Subwoofer 225W(3Ω)**
Center Speaker Type Horizontal Standing
Front Speaker Types Satellite
Rear Speaker Types Satellite
Subwoofer Speaker Type Standard (7 inch)
Satellite/Center Frequency Response 120 - 20,000 Hz
Subwoofer Frequency Response 40 - 1,500 Hz
Tuner System
Audio Tuner Band FM/AM
FM Tuner Range (100kHz) 87.50~108.00 MHz(50kHz)
AM Tuner Range (10kHz) 530 ~ 1720kHz
Radio Tuner Presets (Number) 50
Audio/Video Playback Formats
Disc Capacity 1
DVD (PAL) •
DVD (NTSC) •
DVD-R •
DVD-RW •
DVD+R •
DVD+RW •
CD-R/RW •
MP3 Audio •
WMA Audio •
DVD Audio •
JPEG Photo •
DivX® Video •
MPEG4 Video •
Music Photo Album •
Graphic User Interface
Initial Menu Language English
Available Menu Languages English/Spanish/French
* Rated at 1 kHz into 4 ohms, 10% THD for satellite speakers.
** Rated at 70Hz into 3 ohms, 10% THD for subwoofers.
Video Capabilities
Video Digita/Analog Conversion 27MHz/10bit
Video Output Resolutions 480i/480p/720p/1080i
Progressive Scan •
Audio Capabilities
Audio Digital/Analog Conversion 192kHz/24bit
DTS Decoding •
S/N Ratio More than 75 dB (1kHz)
XTS Pro •
Dolby Digital 2-Channel Down Mix •
3D Surround Sound •
Sound Modes - 2-Channel 13
Sound Modes - 5.1-Channel 4
Dolby Digital 5.1-Channel Decoding •
Dolby Prologic II •
DRC (Dynamic Range Control) •
DVD Playback Features
Screen Fit •
Zoom •
Parental Lock •
Chapter Skip (REW/FWD) •
Search/Slow/Step Skip for REW/FWD •
1.5x Playback with Audio/Video •
Bookmark Search •
Resume •
Auto Play •
A-B Repeat Play •
Closed Caption •
Subtitle Still •
Vocal On/Off •
CD Playback Features
Programmable Play •
Random Play •
Repeat Play •
Number of Programmable Tracks 300
JPEG Preview •
MP3 ID3 Tag Support •
USB/Memory Card Playback Formats
JPEG Photo •
MPEG1 Video •
MPEG2 Video •
MPEG4 Video •
WMA Audio •
MP3 Audio •
WAV Audio •
DivX® Video •
MP3 Audio •
MP3 VBR (Variable Bit Rate) Audio •
Special Features
Screen Saver •
Auto Power Off •
Wireless Rear Speakers Capability (Sold Seperately-ACC96WK)
Front Panel
Headphone Jack 1
USB (A) Port 1/Plus
Front Display Flourescent
Color Glossy Black/Silver
Rear Panel
Optical Digital Audio In 1
Composite Video and Audio (L/R) In 2
Component Video Out 1
S-Video Out 1
Composite Video (Monitor) Out 1
FM Antenna Input 1
AM Antenna Input 1
Speaker Output Type/Number Push-in/5
Subwoofer Output Type/Number Push-in/1
HDMI Out 1
Wireless Out (7V) 1
Supplied Accessories
Remote Control Type Universal
A/V Cable (RCA Type) •
Battery (Size) 2 AAA
FM Antenna •
AM Antenna •
Dimensions
Width x Height x Depth
- Main Unit 16.9" x 2.2" x 11.6"
- Front Speakers 6.7" x 8.3" x 4.4"
- Rear Speakers 6.7" x 8.3" x 4.4"
- Sub Woofer 9.4" x 15.4" x 17.7"
- Center Speaker 11.8" x 4.5" x 4.4"
- Dimensions in Packaging 19.7" x 17.0" x 22.9"
Weight
- Main Unit 8.6 lbs.
- Front Speakers (Each) 1.4 lbs.
- Rear Speakers (Each) 1.4 lbs.
- Sub Woofer 23.1 lbs.
- Center Speaker 1.7 lbs.
- Weight in Packaging 41.7 lbs
UPC 719192170117
Warranty 1 Year Parts/90 Days Labor
