LG LHD675 Specification sheet

TV Connection (HDMI OUT)
TV
www.lg.com
DVD Home
Theater
System
Model : LHD675
HDMI cable
FM antenna
TV R - AUX - L
AUDIO OUT
Select the
AUX OPT
.
Select the AUX.
Select the PORTABLE.
Speaker Connection
TV Connection (VIDEO OUT)
TV
External device Connection
TV
OPTICAL OUT
OPTICAL IN connection
AUX (L/R) INPUT Connection
PORT. IN Connection
<
Speaker design and connection method may be dierent according to models.
,
Use the speakers far away from either TV screen or PC monitor.
,
ENGLISH | SIMPLE MANUAL (1 of 2)
To view the instructions of advanced features, visit
http://www.lg.com and then download Owner’s Manual.
Some of the content in this manual may differ from
your unit.
,Some TV need to change setting of sound output. Refer to the description below.
Details of TV setting menu vary depending on the manufacturers or models of your TV.
SIMPLINK
SIMPLINK enables you to control some functions of this unit by a remote control of your TV. Controllable
functions are power on/o and volume up/down, mute, etc. Make sure that your TV has SIMPLINK logo as
shown above.
Initial Setup (Optional)
Press 1button.
Select a language.
a
b
Memo
Video cable
LHD675-FC.DLKALLK_SIMPLE SHEET 01_MFL68903222.indd 1 2015-05-07  6:48:07

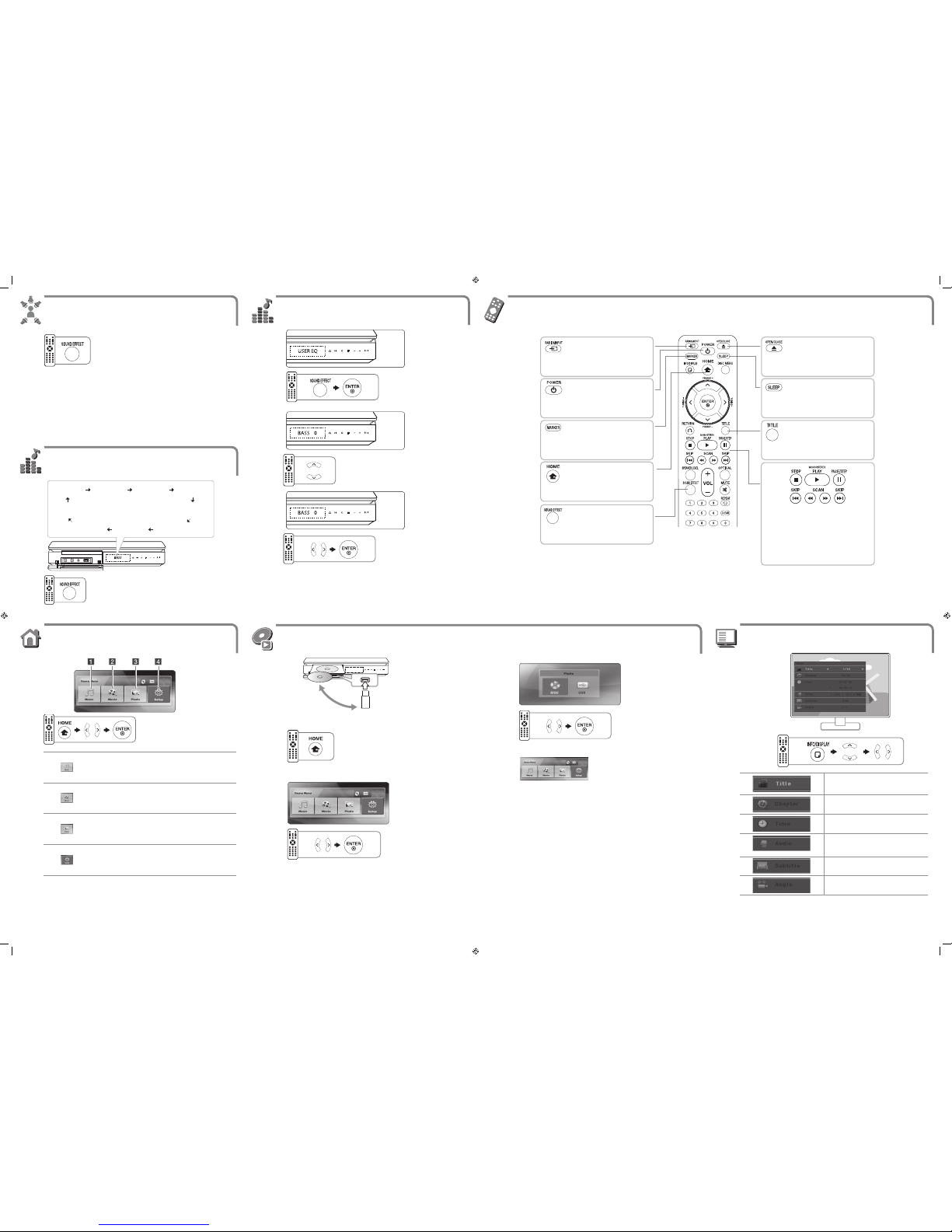

aDisplays MUSIC menu.
bStart video media’s playback or displays the MOVIE menu.
cDisplays PHOTO menu.
dDisplays the Setup menu.
Using HOME menu
a b c d
Select an option.
Use HOME menu to change media(Disc or USB) or option.
(Music, Movie or Photo)
,
For the most Audio CD and DVD discs, playback starts automatically.
Press MENU button to move contained menu when you play DVD.
,
,
Select HOME.
Select Music, Movie or Photo.
Enjoy the sound via all speakers Remote Control
Turns on the power.
Changes input sources.
Marks play list.
Displays the [Home Menu].
Disc tray is opened or closed.
Goes to chapter title.
Sets to turn o automatically at a specied time. /
The display window will be darken by half.
Selects a sound eect mode. Controls play-back.
Press sound eect button repeatedly until Cinema, Bass or Football is displayed.
CINEMA
FOOTBALL
FLATBOOSTTRE/BASS
BASS USER EQ STD MUSIC
Select the SOUND EFFECT
Sound eect
a
b
c
Select DISC or USB.
d
Disc Playback, Data Playback On-Screen Display
Title
Chapter
Time
Audio
Subtitle
Angle
a
b
c
USER EQ
Select the USER EQ.
Select the Bass (BASS) or Treble(TRE).
Select the sound level.
LHD675-FC.DLKALLK_SIMPLE SHEET 01_MFL68903222.indd 2 2015-05-07  6:48:16

www.lg.com
DVD Home
Theater
System
Model : LHD675

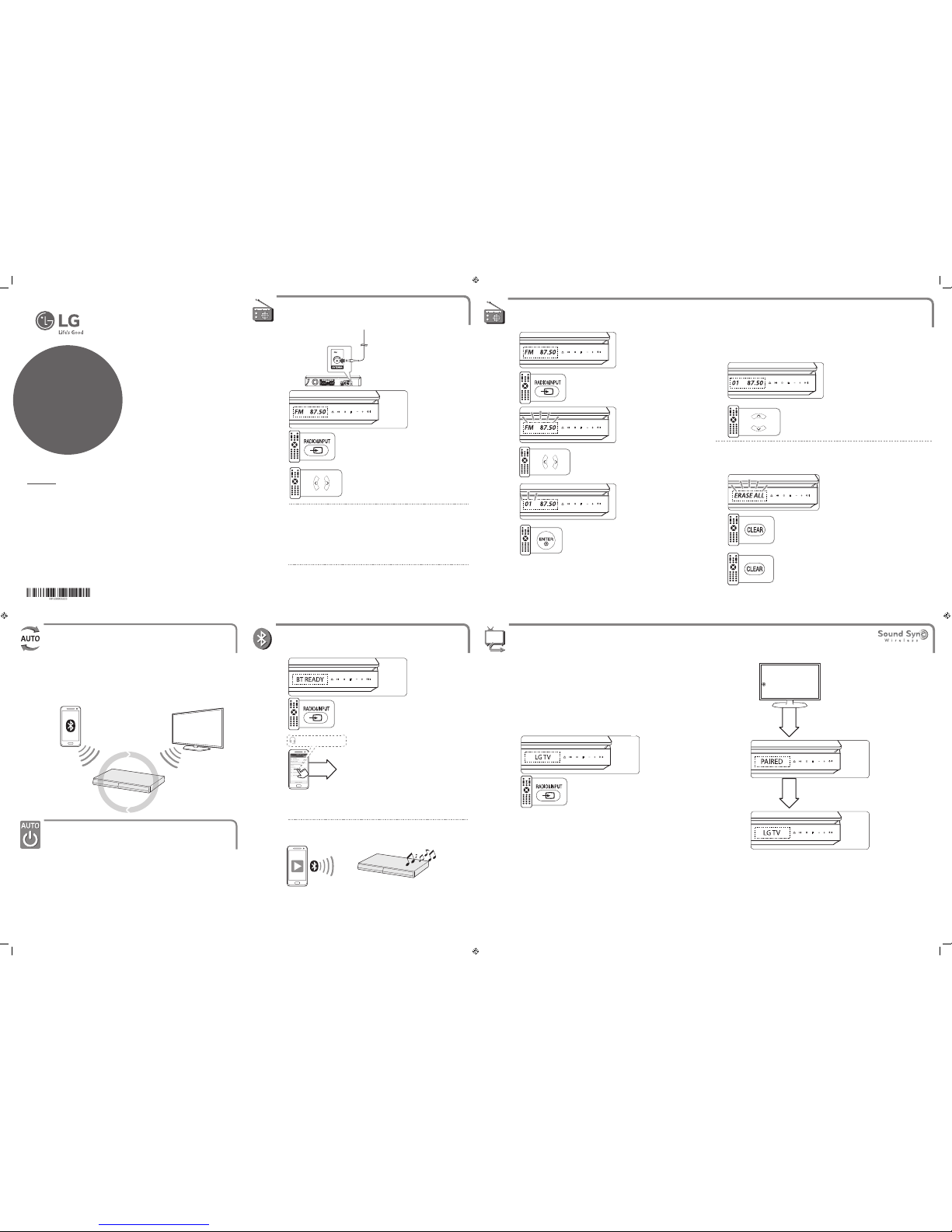

Radio Operation
Select the Radio.
a
b
c
Connect the FM Wire antenna to the FM
antenna connector.
Tune the desired frequency.
Manual tuning : Press.
,
Press and hold CLEAR button. Then,“ERASE ALL””will blink.
Presetting Radio Station
Selected preset station to lesten to.
Press again it when“ERASE ALL”blinks to conrm.
Select the Radio.
a
Select the station to preset.
b
Press the ENTER button repeatedly to
store the station.
c
Listening the preset radio station
Deleting the preset radio station
a
b
Using Bluetooth
Select the Bluetooth.
a
b
LG HTS(XX:XX)
Enter the PIN code (0000) as needed.
,
Wireless
LG Sound Sync enables you to control some functions of this unit by a remote control of your LG TV. Control-
lable functions are volume up/down and mute. Make sure that your TV has LG Sound Sync logo as shown
above. bSet up the sound output of your TV : TV setting menu
[[Sound] [[TV Sound output] [[LG Sound Sync
(Wireless)] /
TV Speaker
External Speaker
LG Sound Sync (Optical)
LG Sound Sync (Wireless)
Select the LG TV.
a
LG Sound Sync
ENGLISH | SIMPLE MANUAL (2 of 2)
To view the instructions of advanced features, visit
http://www.lg.com and then download Owner’s Manual.
Some of the content in this manual may differ from
your unit.
Auto tuning : Press and hold the button for about two seconds until the frequency indication starts to
change, then release. Scanning stops when the unit tunes in a station.
,
When this unit successfully paired with your Bluetooth device, Bluetooth LED
of this unit lights up and appears paired device name.
c
Play music on your Bluetooth device.
Auto Function Change
This unit recognizes input signals such as Bluetooth and LGTV and then changes suitable function
automatically.
BLUETOOTH LG TV
Auto power On/O
This unit automatically turns on by an input source : LG TV or Bluetooth.
This unit automatically turns o when you turn o the LG TV after the unit is connected to LGTV by AUTO
POWER function.
LHD675-FC.DLKALLK_SIMPLE SHEET 02_MFL68903223.indd 1 2015-05-07  6:49:04

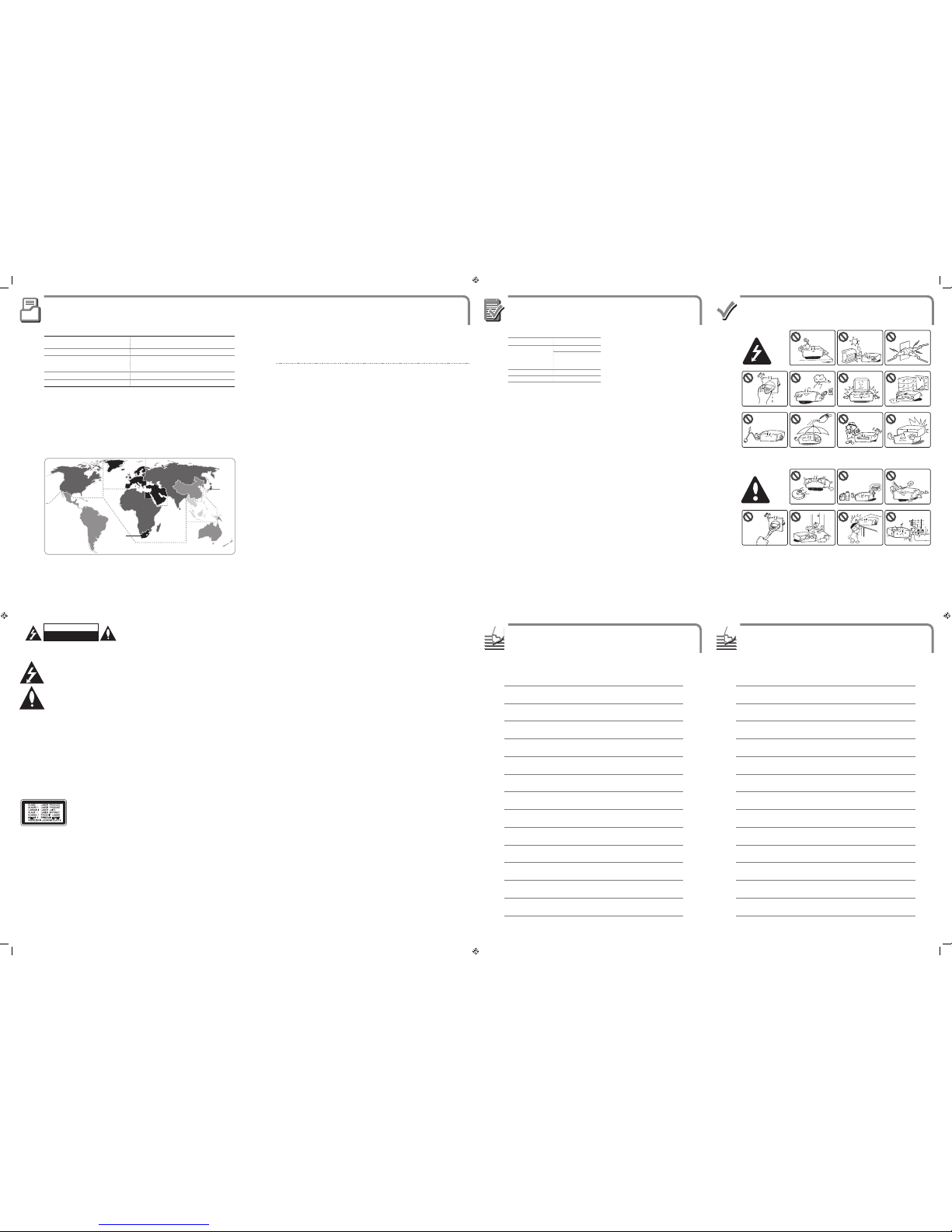

CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE
COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This lightning ash with arrowhead symbol within an
equilateral triangle is intended to alert the user to the
presence of uninsulated dangerous voltage within
the product’s enclosure that may be of sucient
magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT
EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
CAUTION: The apparatus shall not be exposed to water (dripping or
splashing) and no objects lled with liquids, such as vases, shall be
placed on the apparatus.
WARNING: Do not install this equipment in a conned space such as a
book case or similar unit.
CAUTION: Do not use high voltage products around this product. (ex.
Electrical swatter) This product may malfunction due to electrical shock.
CAUTION: Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
Slots and openings in the cabinet are provided for ventilation and to
ensure reliable operation of the product and to protect it from over
heating. The openings shall be never be blocked by placing the product
on a bed, sofa, rug or other similar surface. This product shall not be
placed in a built-in installation such as a bookcase or rack unless proper
ventilation is provided or the manufacturer’s instruction has been
adhered to.
CAUTION: This product employs a
Laser System.To ensure proper use of
this product, please read this owner’s
manual carefully and retain it for
future reference. Shall the unit require
maintenance, contact an authorized
service center.
Use of controls, adjustments or the performance of procedures other
than those specied herein may result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try to open the
enclosure.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a dedicated circuit;
That is, a single outlet circuit which powers only that appliance and
has no additional outlets or branch circuits. Check the specication
page of this owner’s manual to be certain. Do not overload wall outlets.
Overloaded wall outlets, loose or damaged wall outlets, extension
cords, frayed power cords, or damaged or cracked wire insulation are
dangerous. Any of these conditions could result in electric shock or re.
Periodically examine the cord of your appliance, and if its appearance
indicates damage or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an exact replacement part
by an authorized service center. Protect the power cord from physical
or mechanical abuse, such as being twisted, kinked, pinched, closed in
a door, or walked upon. Pay particular attention to plugs, wall outlets,
and the point where the cord exits the appliance. The Power Plug is the
disconnecting device. In case of an emergency, the Power Plug must
remain readily accessible.
This device is equipped with a portable battery or accumulator.
Safety way to remove the battery or the battery from the
equipment: Remove the old battery or battery pack, follow the steps
in reverse order than the assembly. To prevent contamination of the
environment and bring on possible threat to human and animal health,
the old battery or the battery put it in the appropriate container at
designated collection points. Do not dispose of batteries or battery
together with other waste. It is recommended that you use local, free
reimbursement systems batteries and accumulators. The battery shall
not be exposed to excessive heat such as sunshine, re or the like.
CAUTION: The apparatus shall not be exposed to water (dripping or
splashing) and no objects lled with liquids, such as vases, shall be
placed on the apparatus.
Specication
ENGLISH
Power requirements Refer to main lebel
Power consumption
Refer to main lebel
Networked standby :
0.4 W (If all network ports
are activated.)
Bus Power Supply (USB) 5 V 0500 mA
Total amplier 1000 W
Design and specications are subject to change
without notice.
Safety Information
Playable Movie Files
Resolution 720 x 576 (W x H) pixels
File extensions .avi, .mpg, .mpeg
Subtitle SubRip (.srt/ txt), SAMI (.smi), SubStation Alpha (.ssa/.txt), Micro-
DVD (.sub/.txt), SubViewer 2.0 (.sub/.txt), TMPlayer (.txt), DVD
Subtitle System (.txt)
Codec Xvid, Mpeg-1, Mpeg-2
Audio AC3, PCM , MP3, WMA
Region Code
Please check this DVD player’s region code from the package. If the region code is mismatched, the disk cannot be played.
5
4
2
1
3
62
2
Additional Information
Auto power down
This unit will be o itself to save electric consumption in the case main unit is not connected to external device and is not
used for 20 minutes.
So does this unit after six hours since Main unit has been connected to other device using analog input.
How to disconnect the wireless network connection or the wireless device.
Turn o the unit by pressing the power button for more than 5 seconds.
Memo Memo
NOTICE for using this Unit
LG Sound Sync
yFor specic information of operating, refer to the
instruction manual of your TV.
yWhen the connections failed, make sure of the
conditions of this unit and your TV : power, function and
cable connection.
Auto power On/Off
yDepending on the connected device, this function may
not operate.
yAfter the unit is turned on by AUTO POWER function, it
will be automatically turned o if there is no signal for
a certain period of time from the TV connected by LG
Sound Sync (Wireless).
Auto Function Change
yWhen Auto Function Change does not work properly,
turn o the external device and then turn on the device
after 5 seconds. (Bluetooth function only)
Using Bluetooth
ySound quality may become lower or disconnected
depending on the distance, interference or obstacles.
yDepending on the type of the device, you may not be
able to use the Bluetooth function.
Additional Information
yThe exFAT/NTFS le system is not supported on this unit.
(FAT16/FAT32 systems are available.)
