LG LM-K7961KZ User manual

Please read this manual carefully before operating your set.
Retain it for future reference.
Designs and specifications are subject to change without
notice for improvement.
LGEAK_LM-K7960(K7961KZ)/K6960(K6961KZ)/K6961(KW6961KZ)_ENG_MFL39518810
R
CD - R/RW
KARAOKE MINI HOME THEATER
OWNER’S MANUAL
MODEL : LM-K7961KZ
LM-K7961KZ
LMS-K7960V, LMS-K7960C
LMS-K7960S, LMS-K7960W
LM-K6961KZ
LM-K6961KZ
LMS-K6960V, LMS-K6960C, LMS-K6960S
LM-KW6961KZ
LM-KW6961KZ
LMS-KW6960V, LMS-KW6960C, LMS-KW6960S
USB

2
Safety Precautions
This lightning flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to
the presence of uninsulated dangerous voltage
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
CAUTION: Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
Slots and openings in the cabinet are provided for ventilation
and to ensure reliable operation of the product and to protect it
from over heating.
The openings should be never be blocked by placing the prod-
uct on a bed, sofa, rug or other similar surface. This product
should not be placed in a built-in installation such as a book-
case or rack unless proper ventilation is provided or the manu-
facturer's instruction have been adhered to.
CAUTION:
This Product employs a Laser System.
To ensure proper use of this product, please read this owner’s
manual carefully and retain for future reference, should the unit
require maintenance, contact an authorized service location-
see service procedure.
Use of controls, adjustments or the performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
To prevent direct exposure to laser beam, do not try to open
the enclosure. Visible laser radiation when open. DO NOT
STARE INTO BEAM.
CAUTION: The apparatus shall not be exposed to water,
dripping or splashing and that no objects filled with liquids,
such as vases, shall be placed on the apparatus.
CAUTION:
VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN
AND INTERLOCKS DEFEATED
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a dedi-
cated circuit;
That is, a single outlet circuit which powers only that appliance
and has no additional outlets or branch circuits. Check the
specification page of this owner's manual to be certain.
Do not overload wall outlets. Overloaded wall outlets, loose or
damaged wall outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous. Any of
these conditions could result in electric shock or fire.
Periodically examine the cord of your appliance, and if its
appearance indicates damage or deterioration, unplug it, dis-
continue use of the appliance, and have the cord replaced with
an exact replacement part by an authorized servicer.
Protect the power cord from physical or mechanical abuse,
such as being twisted, kinked, pinched, closed in a door, or
walked upon. Pay particular attention to plugs, wall outlets, and
the point where the cord exits the appliance.
Disposal of your old appliance
1. When this crossed-out wheeled bin symbol is
attached to a product it means the product is
covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be
disposed of separately from the municipal waste
stream via designated collection facilities
appointed by the government or the local
authorities.
3. The correct disposal of your old appliance will
help prevent potential negative consequences
for the environment and human health.
4. For more detailed information about disposal of
your old appliance, please contact your city
office, waste disposal service or the shop where
you purchased the product.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE RISK
OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
WARNING: TO REDUCE THE RISK OF FIRE OR ELEC-
TRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
Power Save Mode
You can set up the unit into an economic power save
mode.
In power-on status, press and hold POWER
( STANDBY/ON) button for about 3 seconds.
- Nothing is displayed in the display window when the
unit is turned off.
To cancel, press POWER ( STANDBY/ON), CLOCK,
TIMER or DEMO.

INTRODUCTION
3
Table of Contents
Introduction
Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Table of Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Before Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Front Panel/ Rear Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Preparation
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11
Before Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-20
Operation
Operation with DVD and Video CD . . . . . . . . . . . . . . . . 20-23
Operation with Audio CD and MP3/WMA Disc . . . . . . . 23-24
Programmed Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Operation with JPEG Disc . . . . . . . . . . . . . . . . . . . . . . . . . 25
Operation with DivX Disc . . . . . . . . . . . . . . . . . . . . . . . . . 26
Operation with RADIO . . . . . . . . . . . . . . . . . . . . . . . . . 27-28
Operation with TAPE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Operation with KARAOKE . . . . . . . . . . . . . . . . . . . . . . 30-33
Reference
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Language Code List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Area Code List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Specifications
About Symbols
About the symbol display
“ ” may appear on the TV screen during operation.
This icon means the function explained in this owner’s
manual is not available on that specific DVD video disc.
About the disc symbols for instructions
A section whose title has one of the following symbol is
applicable only to the disc represented by the symbol.
DVD
Video CDs
Audio CDs
MP3 disc
WMA disc
JPEG disc
DivX disc
About the symbols for instructions
Indicates hazards likely to cause harm to the unit itself or
other material damage.
Indicates special operating features of this unit.
Indicates tips and hints for making the task easier.
DivX
JPEG
WMA
MP3
CD
VCD
DVD
Before Use
Playable Discs
DVD
(8 cm / 12 cm disc)
Video CD (VCD)
(8 cm / 12 cm disc)
Audio CD
(8 cm / 12 cm disc)
In addition, this unit can play a DVD±R, DVD±RW,
SVCD, and CD-R or CD-RW that contains audio titles,
MP3, WMA, JPEG or DivX files.
Notes
– Depending on the conditions of the recording equip-
ment or the CD-R/RW (or DVD±R/RW) disc itself,
some CD-R/RW (or DVD±R/RW) discs cannot be
played on the unit.
– Do not attach any seal or label to either side (the
labeled side or the recorded side) of a disc.
–
Do not use irregularly shaped CDs (e.g., heart-shaped
or octagonal). It may result in malfunctions.
Notes on DVDs and Video CDs
Some playback operations of DVDs and Video CDs
may be intentionally fixed by software manufacturers. As
this unit plays DVDs and Video CDs according to disc
content designed by the software manufacturer, some
playback features of the unit may not be available or
other functions may be added.
Refer also to the instructions supplied with the DVDs
and Video CDs. Some DVDs made for business purpos-
es may not be played on the unit.
Regional code of the DVD player and DVDs
This DVD player is designed and manufactured
for playback of region “5” encoded DVD soft-
ware. The region code on the labels of some
DVD discs indicates which type of player can play those
discs. This unit can play only DVD discs labeled “5” or
“ALL”. If you try to play any other discs, the message
“Check Regional Code” will appear on the TV screen.
Some DVD discs may not have a region code label even
though their playback is prohibited by area limits.
ote on DTS-encoded CDs
When playing DTS-encoded CDs, excessive audio level
may be heard from the analog stereo output. To avoid
possible damage to the audio system, turn down the
volume before playing back such discs, adjust the vol-
ume gradually, and keep the volume level low. To enjoy
DTS Digital SurroundTM playback, an external 5.1 chan-
nel DTS Digital SurroundTM decoder system must be
connected to the digital output of the unit.
5

4

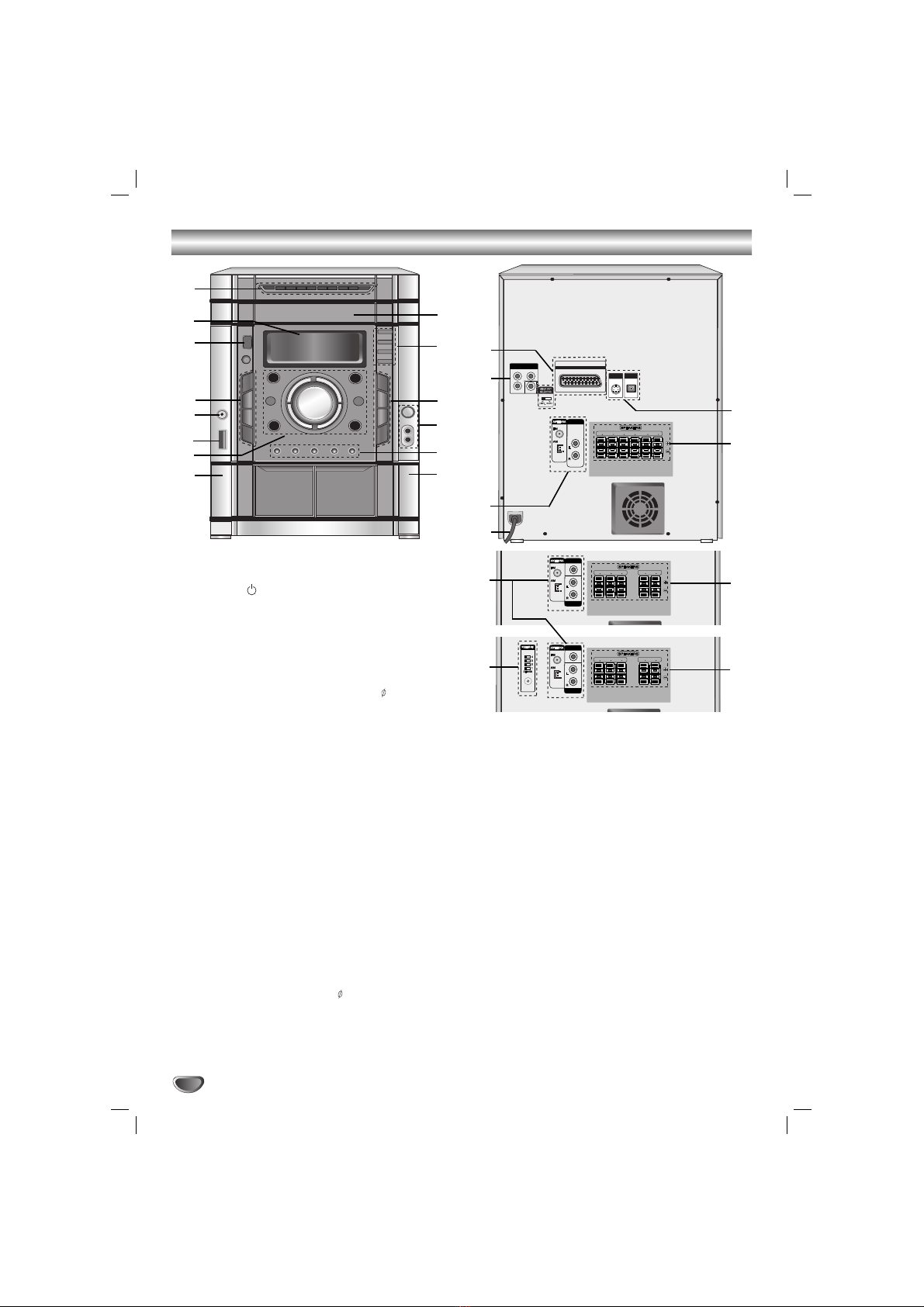

Front Panel/ Rear Panel
1. NUMERIC buttons (0~9)
2. DISPLAY WINDOW
3. POWER ( STANDBY/ON) button
4. • PROGRAM/MEMORY (PROG./MEMO.) button
• STEREO/MONO (ST./MO.),
HIGH DUBBING (HI-DUBB.) button
• CD SYNCHRO RECORDING (CD SYNC.),
NORMAL DUBBING (NOR-DUBB.) button
• RECORD/RECORD PAUSE (zREC/[]) button
5. HEADPHONE SOCKET (PHONES): 3.5 mm
6. USB connector
7. • FUNCTION SELECT buttons
(TUNER, KARAOKE DVD/CD, TAPE, USB, AUX)
• SET/CD[], RDS (OPTIONAL) button
• XDSS plus button
• XTS Pro button
• Virtual E.X button
• EQ master button
• VOLUME knob
8. Z PUSH EJECT position (TAPE 1)
9. Z PUSH EJECT position (TAPE 2)
10. • PRESET (-/+) buttons
• TAPE REVERSE PLAY (bb) button
• PLAY (BB) button
• STOP (xSTOP) button
• CD SKIP/SEARCH (. bbbb/BBBB>), TAPE
REWIND/ FAST FORWARD (. bbbb/BBBB>),
TUNING (-/+) buttons
11. • MIC VOLUME KNOB (MIC VOL.)
• MIC JACKS (MIC1, MIC2): 6.3 mm : OPTIONAL
12. • DISC SKIP (D.SKIP) button
• CLOCK button
• TIMER button
• PLAY MODE, DEMO button
Pr Pb
Y
S-VIDEO
OUT
OPTICAL
IN
EURO AV
TO TV
REAR
R (8 )

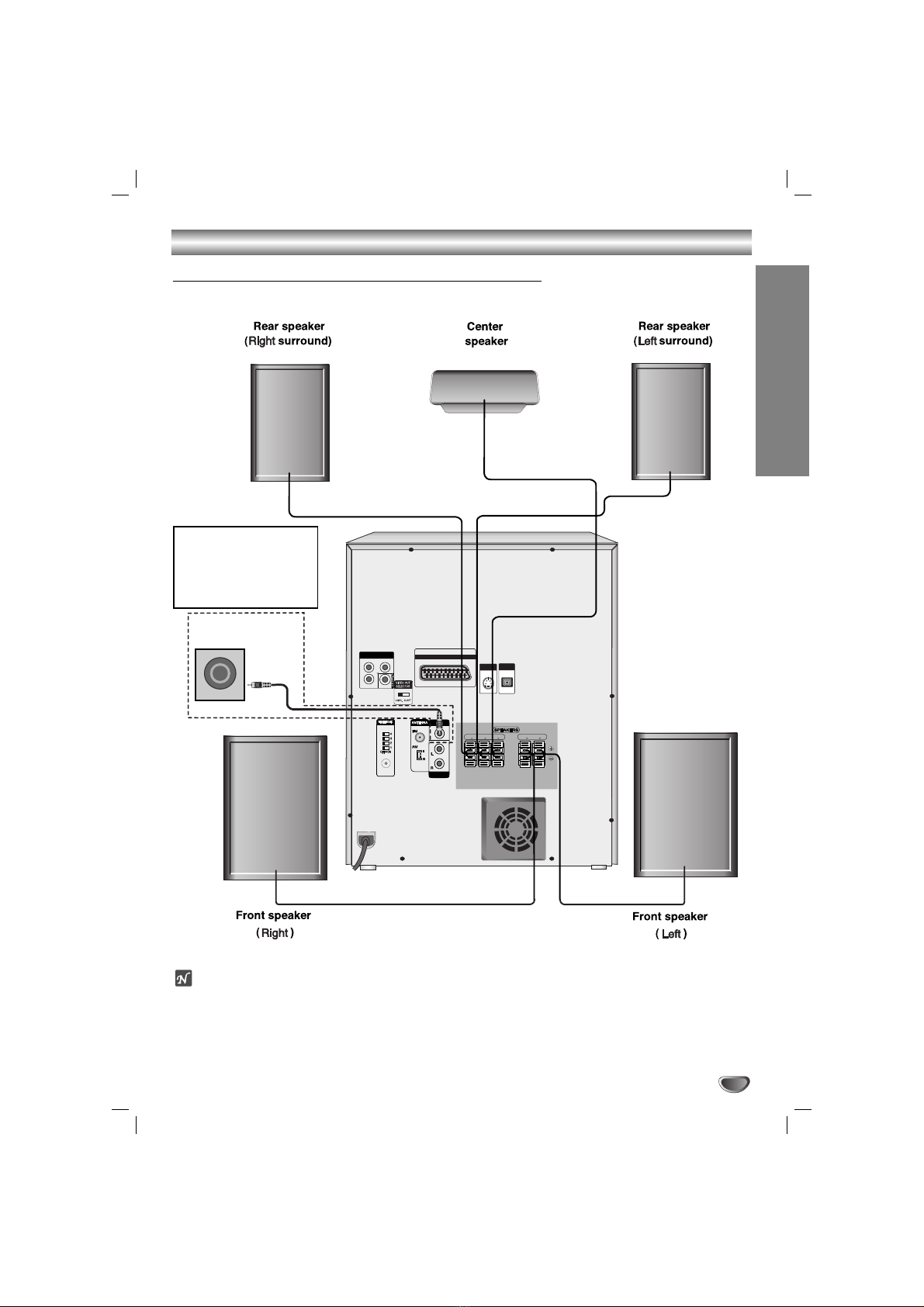

REAR
L(8 )
CENTER
(8 )
WOOFER
(3 )
FRONT
R (4 )
FRONT
L (4 )
AUX IN
COMPONENT
(PROGRESSIVE SCAN)
VIDEO OUT
1
3
4
5
6
7
89
10
11
12
13
2
18
16
23
24
14
15
17
REAR
R (8 )
REAR
L(8 )
CENTER
(8 )
FRONT
R (4 )
FRONT
L (4 )
WOOFER
PRE-OUT
AUX IN
19 22
13. • OPEN/CLOSE (ZOP./CL.) button
•
DISC SELECT buttons (DISC1, DISC2, DISC3)
14. DISC DOOR
15. • EURO AV TO TV connector
• VIDEO OUT SELECTOR switch
16. •
COMPONENT VIDEO OUT (PROGRESSIVE SCAN)
(Y Pb Pr) Connector
• VIDEO OUT Connector
17. LM-K7961KZ model
• FM/AM ANTENNA Connector
• AUXILIARY INPUT (AUX IN) connector
18. POWER CORD
19. LM-K6961KZ/LM-KW6961KZ model
• FM/AM ANTENNA Connector
• AUXILIARY INPUT (AUX IN) connector
• WOOFER PRE-OUT connector
20. LM-KW6961KZ model
• WIRELESS MIC CHANNEL SWITCH
•
WIRELESS MIC ANTENNA Connector
21. SPEAKER Connectors - LM-KW6961KZ model
22. SPEAKER Connectors - LM-K6961KZ model
23. SPEAKER Connectors - LM-K7961KZ model
24. • S-VIDEO OUT Connector
• OPTICAL IN Connector
REAR
R (8 )
REAR
L(8 )
CENTER
(8 )
FRONT
R (4 )
FRONT
L (4 )
WOOFER
PRE-OUT
AUX IN
MIC ANT.
C
H
A
N
N
E
L
20 21

5
INTRODUCTION
Remote Control
Remote Control Operation Range
Point the remote control at the remote sensor and press
the buttons.
•Distance: About 23 ft (7 m) from the front of the
remote sensor
•Angle: About 30° in each direction of the front of the
remote sensor
Remote control battery installation
Detach the battery cover on
the rear of the remote con-
trol, and insert two R03 (size
AAA) batteries with and
aligned correctly.
Caution
Do not mix old and new batteries. Never mix different
types of batteries (standard, alkaline, etc.).
1. POWER button
2. FUNCTION SELECT buttons
(TUNER/BAND, DVD/KARAOKE, AUX, USB)
3. NUMERIC buttons (0-9)
4. TAPE FUNCTION buttons
- REVERSE PLAY (F)
- PLAY (G)
- REWIND/ FAST FORWARD PLAY (FF/GG)
- TAPE 1-2 SELECT buttons (1-TAPE-2)
- RECORD/ RECORD PAUSE (z/[])
- TAPE STOP (x)
5. SET UP button
6. • ARROW buttons ( ///)
(For use in highlighting a selection on a GUI
menu screen, TITLE and MENU screen.)
• PRESET (-/+) buttons ( / )
• TUN. (-/+) buttons ( / )
7. SELECT/ENTER button
8. MENU button
(Use the MENU button to display the menu screen
included on DVD video discs.)
9. STOP (x), PAUSE([])/ STEP, PLAY (G) buttons
10. PROG./MEMO., REPEAT, REPEAT A-B buttons
11.
EQ master, XTS Pro, SOUND/FEMALE( ),
AUDIO/MALE( ), SUBTITLE (S-TITLE)/SHADOW,
CLEAR buttons
12. ECHO VOL. ( / ) buttons
13. MIC VOL. ( / ) buttons
14. RDS, PTY buttons (OPTIONAL)
15.
XDSS plus, VIRTUAL E.X, RETURN, ZOOM buttons
16. SCAN (FF/GG)/ TEMPO (-/+)/ KEY CONTROL
(b/#)/ SKIP (./>), MARKER, SEARCH,
MUTE buttons
17. VOLUME -/+ buttons
18. TITLE button
(Use the TITLE button to display the title screen
included on DVD video discs.)
19. DISPLAY button
20. DIMMER button
21. SLEEP button
22. DISC SKIP (D.SKIP) button
PRESET +
PRESET -
SETUP
TEMPO
KEY CON #
b
MENU
REPEAT
MARKER SEARCH
REPEAT A-B
PROG./MEMO.
XTS Pro XDSS plus VIRTUAL E.X
ZOOM
EQ master
SOUND AUDIO
S-TITLE
SHADOW
RETURN
RDS PTY
CLEAR
TITLE
DISPLAY
SLEEP
DIMMER
AUX
DVD/
KARAOKE
POWER
/ENTER
SELECT
MUTE
TUNER/BAND
USB
D.SKIP
STOP PLAY PAUSE/STEP
ECHO VOL. MIC VOL.
TUN. - TUN. +
1 - TAPE - 2
1
6
5
4
3
2
8
9
21
20
18
16
17
19
7
10
12 13
15
11
22
14
