LG 22LG30DC User manual

lcd tv
Integrated HDTVLCD Widescreen
w w w. LG c o m m e r c i a l . c o m
NATIVE DI PLAY RE OLUTION
1366 x 768 (720p D resolution) - 42”/37”/32”/26”
1680 x 1050 (720p D resolution) - 22”
DYNAMIC POWER AVING
DYNAMIC CONTRA T RATIO
12,000:1 - 42”/37”/32”/26”
5,000:1 ( DMI™ only) - 22”
BUILT-IN TUNER
ATSC/NTSC/Clear QAM
PUBLIC DI PLAY ETTING
Cloning capable
U B CLONING
42”/37”/32”
LG’ EXCLU IVE XD ENGINE™
EYE CARE™
Reduces brightness on extremely bright images
42”/37”/32”/26”
2 HDMI WITH HDCP
V.1.3 with deep color 42”/37”/32”/26”
AUTO- EN ING REMOTE JACK PACK (RJP) COMPATIBLE
42”/37”/32”
PRO:IDIOM®CAPABLE
using optional CS5610 pay-per-view box
ENERGY TAR®COMPLIANT
RoH COMPLIANT
INVI IBLE PEAKER Y TEM
CABINET COLOR
igh-gloss black
1-YEAR LIMITED WARRANTY
(parts/labor)
42" class (42.0" dia onal
37" class (37.0" dia onal)
32" class (31.5" dia onal)
26" class (26.0" dia onal)
22" class (22.0" dia onal)
42LG30DC
37LG30DC
32LG30DC
26LG30DC
22LG30DC

SHARPER
BRIGHTER
CLEARER
Dramatization Dramatization
PUBLIC DISPLAY SETTINGS
CLONING CAPABLE
When used in public areas, these DTVs can be easily
programmed by the installer to have the TV turn on at a
specified channel/volume level, set the minimum/
maximum volume, lock out the control panel/remote, set
the aspect ratio, and return to a factory reset. By using
Power Management, these displays can be programmed
to turn off if there has been no activity (remote or control
panel buttons) for a preset time (1-7) hours.
Public Display Mode No
Start Channel No
Ch. Type TV
Major 2
Minor 0
Minimum Volume 0
Maximum Volume 100
Start Volume No
Level 20
Power Management No
Setting 1
Key Management 0
Factory Reset 0
Aspect Ratio 0
PDM Plus
Public Display Settings+

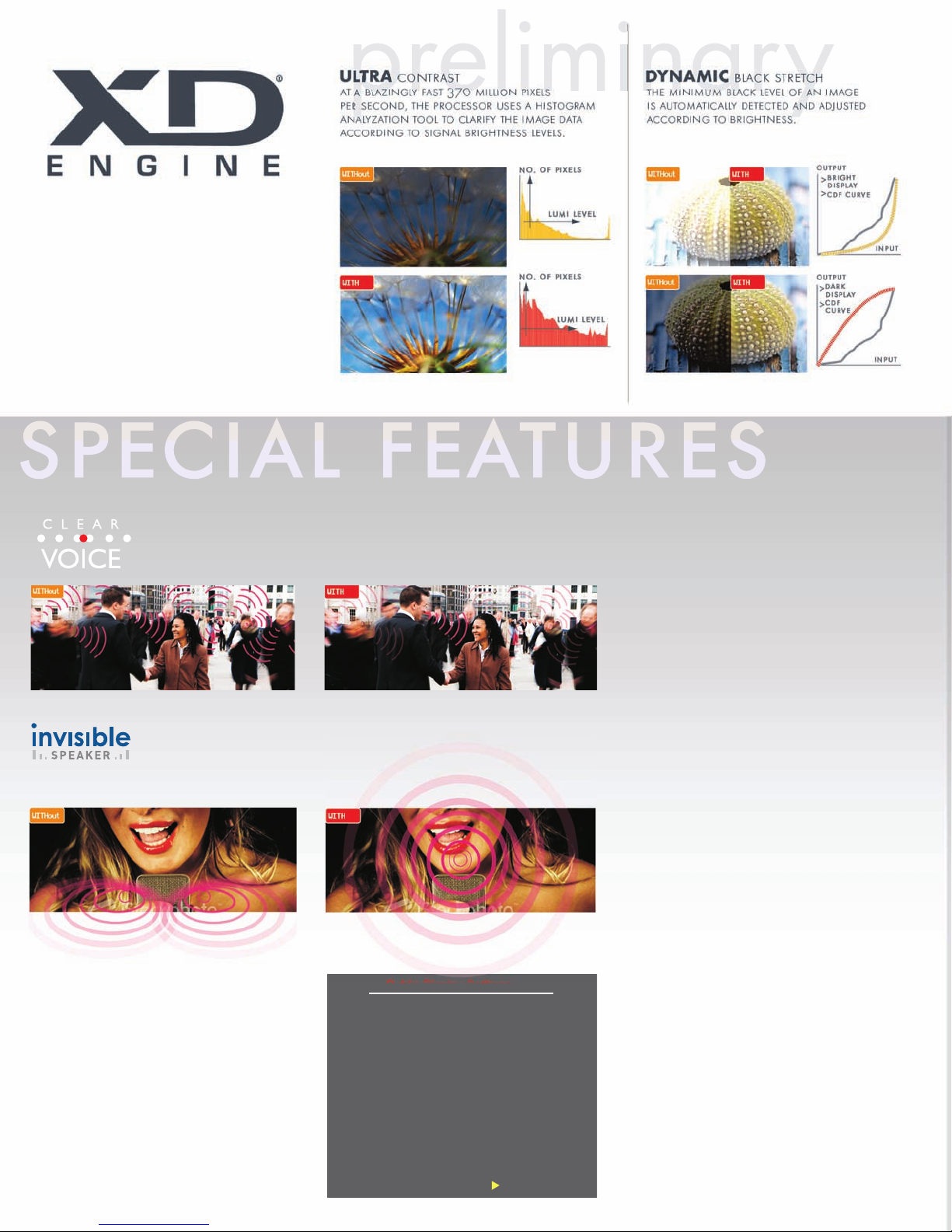

BALANCED SOUND TO EMPHASIZE DIALOGUE
Designed to automatically enhance and amplify the sounds of the human voice frequency
range, Clear Voice Technology preserves high-quality dialogue audio when background
noises swell. You won’t miss a word of the action.
SOUND IS HEARD, NOT SEEN
Breaking through the fixed idea that speaker grills must be exposed, the Invisible Speaker
design provides a “full sweet spot” and realistic sound equal to that of theaters. Personally
tuned by Mr. Mark Levinson, world-renowned audio authority, this unique design has rich and
lively sound that can be enjoyed from any angle.

Dramatization Dramatization Dramatization
The LT2002 allows for
custom setup and program-
ming information to be
quickly copied from a
“master” LG or Zenith
brand LCD, Plasma, or CRT
TV (with the MPI™ input)
into an unlimited number
of identical models. This
saves the installers hours
of time duplicating the
hotel TV settings, such as
minimum volume, maximum
volume, start up channel,
channel mapping, etc.
OPTIONAL CLONING PROGRAMMER
LT2002 REMOTE
QUICK ET II “CLONE” (26”/22”)

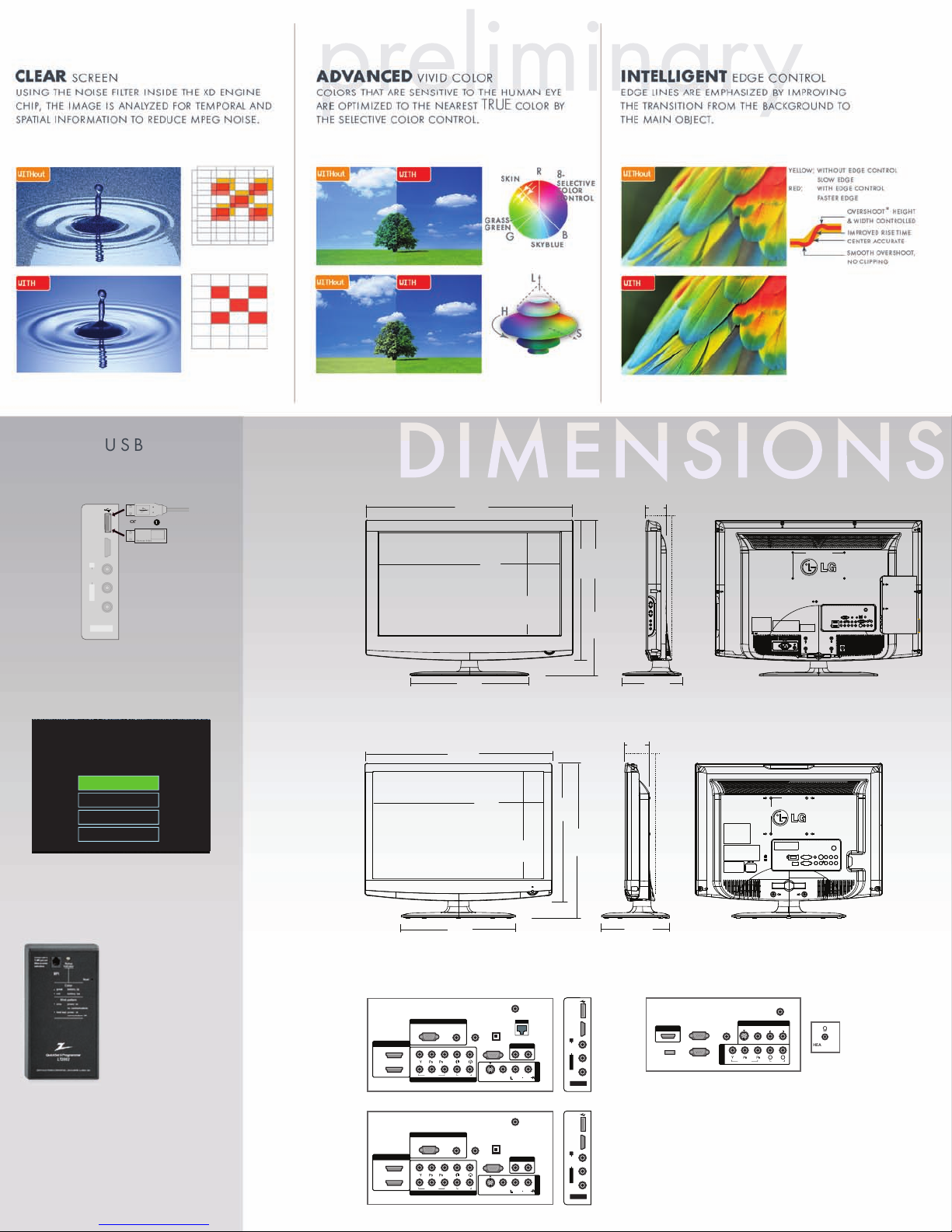

20.56”
18.73”
11.74”
15.13”
16.99”
7.45”
100mm
26.11”
22.76”
12.84”
17.71”
20.01”
12.55”
18.84” 8.95”
100mm
200mm
36.20”
40.66”
32.46”
18.33”
36.80”
20.75”
24.03”
26.86”
26.38”
29.22”
31.56”
27.56”
15.53”
23.79”
21.42”
11.57”
11.57”
9.13”
100mm 200mm
22.93”
22.93”
18.90”
3.51”
3.62”
3.11”
4.50”
4.53”
2.27”
3.15”
3.31”
3.60”
3.98”
200mm
200mm
26LG30DC
22LG30DC
42LG30DC
37LG30DC
32LG30DC
AV IN 2
L/ MONO
R
AUDIO
VIDEO
HDMI IN 3 USB IN
1
or
U S B
C L O N I N G
42” / 37” / 32”
J A C K P A C K S
Upgrade Main Software
Following software types/profiles are found in the memory card.
Select a behavior to upgrade a software or to teach/learn a profile.
Upgrade Main software
Upgrade PTC Software
Teach To TV
Learn From TV
CREEN HOT OF
USB CLONING
LEARNING & TEACHING
SIDE
SIDE
SIDE
REAR 22”
COMPONENT IN
ANTENNA/
CABLE IN
RS-232C IN
(SERVICE ONLY )
AUDIO IN
(RGB/DVI)
RGB(PC) IN
AV IN
VIDEO AUDIO
HDMI/DVI IN VIDEO
L(MONO)R
LR
AUDIO
S-VIDEO
SERVICE
ONLY
RGB IN
COMPONENT IN
AUDIO
(RGB/DVI)
RGB(PC)
REMOTE
CONTROL
IN
ANTENNA/
CABLE IN
1
2
RS-232C IN
(CONTROL&SERVICE)
VIDEO AUDIO
DIGITAL
AUDIO OUT
OPTICAL
AUDIO OUT
AV IN 1
VIDEO
(MONO) AUDIO
S-VIDEO
2
1
HDMI/DVI IN
AV IN 2
L/MONO
R
AUDIO
VIDEO
USB
SERVICE
ONLY
HDMI IN 3
26LG30
19/22LG30, 19/22LG3142/37/32LG30DC
HEADPHONE
RGB IN
COMPONENT IN
AUDIO
(RGB/DVI)
RGB(PC)
REMOTE
CONTROL
IN
ANTENNA/
CABLE IN
1
2
RS-232C IN
(CONTROL&SERVICE)
VIDEO AUDIO
DIGITAL
AUDIO OUT
OPTICAL
AUDIO OUT
AV IN 1
VIDEO
(MONO) AUDIO
S-VIDEO
2
1
HDMI/DVI IN
AV IN 2
L/MONO
R
AUDIO
VIDEO
USB
SERVICE
ONLY
HDMI IN 3
RJP
INTERFACE
REAR 26”
REAR 42”, 37”, 32”

LG Electronics U.S.A., Inc.
Commercial Products Division
2000 Millbrook Drive,
Lincolnshire, IL 60069
Customer Service: 888-.865.3026
Contact your LG Regional Sales Representative:
Hospitality: 800.228.1236
B2B: 800.897.8788
Channel Markets: 800.897.8871
SPEC_42-22LG30DC LG050806_PR
All screen images are simulated. Dimensions and weights are approximate. Design,
features and specifications subject to change without notice.
© Copyright 2008 LG Electronics USA, Inc. All Rights Reserved. “LG Life’s Good” is
a registered trademark of LG Corp. Eye Care is a trademark of LG Corp. XD Engine
is a registered trademark of LG Electronics USA, Inc. Pro:Idiom is a registered
trademark of Zenith Electronics Corp. MPI is a trademark of Zenith Electronics Corp.
ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency.
VESA is a trademark of Video Electronics Standards Association. All other product and
brand names are trademarks or registered trademarks of their respective companies.
Printed in the USA. August 2008
specifications
www.LGcommercial.com
lcd tv
PANEL
LCD Panel Type 42" (42LG30DC)
37" (37LG30DC)
32" (32LG30DC)
26" (26LG30DC)
22" (26LG30DC)
Display Area 42.0" diagonal (42LG30DC)
37.0" diagonal (37LG30DC)
31.5" diagonal (32LG30DC)
26.0" diagonal 26LG30DC)
22.0" diagonal 26LG30DC)
Native Display Resolution 1366 × 768 (42”, 37”, 32”, 26”)
1680 × 1050 (22”)
Brightness 500 cd/m
2
(42”, 37”, 32”)
400 cd/m
2
(26”)
250 cd/m
2
(22”)
Dynamic Contrast Ratio 12,000:1 (42”, 37”, 32”, 26”)
5,000:1 ( DMI only) (22”)
Contrast Ratio 1,000:1 (42”, 37”, 32”)
700:1 (26”)
600:1 (22”)
Viewing Angle ( xV) 178°x178° (42”, 37”, 32”, 26”)
160°x160° (22”)
Response Time (G to G) 5ms
Pure Black Level Yes
True Wide View Yes
Life Span (approx. hr) 60,000 (Module 50,000)
BROADCASTING SYSTEM
Analog/Digitial ATSC/NTSC/Clear QAM 1 tuner
IDEO
XD Engine Yes
Eye Care ™ Yes (42”, 37”, 32”, 26”)
Aspect Ratio 16:9
Aspect Ratio Correction 6 mode (16:9, Just scan, 4:3, Set by program,
Zoom1, Zoom2)
Just Scan (0% overscan)- DMI (1080i/1080p/720p)
when "Just Scan Mode" selected Component (1080i/1080p/720p)
RF(1080i/720p)
Enhanced Line Doubler Yes
Enhanced Noise Reduction Yes (3D & MPEG)
Digital Comb Filter Yes (3D)
DLTI (Digital Luminance Transient Improver) Yes
Color Temperature Control Cool, Medium, Warm, User
Black Stretcher Yes
Cinema 3:2 , 2:2 Pulldown 3:2 (TV/S-Video/Composite - 480i,
Component 480i/576i/1080i)
Picture Status Mode 7 mode (42”, 37”, 32”, 26”)
5 mode (22”)
XD color (Active Color Management) Yes
DTV Signal Strength (Digital) Yes
AUDIO
Mono/Stereo/Dual (MTS/SAP) Yes
Audio Output (Watts - T D 10%) 10W + 10W
(42”, 37”, 32”, 26”)
3W + 3W (22”)
Speaker System igh Tech Speaker (Invisible Speaker)
2 Way 4 Speakers (42”, 37”, 32”, 26”)
1 Way 2 Speakers (22”)
Dolby Digital
®
Decoder Yes
Surround System SRS TruSurround XT ™ (42”, 37”, 32”, 26”)
Bass/Treble/Balance Yes
AVL (Auto Volume Leveler) Yes
Sound Status Mode 5 modes
(Standard, Music, Cinema, Sports, Game)
CC When Mute Yes (42”, 37”, 32”, 26”)
SPECIAL FEATURES
Public Display Settings Yes
EPG (Brief Info) Yes
USB Cloning Yes (42”, 37”, 32”)
1080p Source Input DMI (60/30/24p) /Component (60/30/24p)
RGB (60p)
AV Input Navigation Yes
Auto Navigation Yes
Input Labeling Cable Box/VCR/DVD/Set Top Box/PC/Game
(except 22”)
Quick View (Flash Back) Yes
Clear Voice (On/Off) Yes
Quick Set-up Guide Yes
Parental Control w/ V-Chip Yes
Key Lock Yes
Kensington Lock Slot Yes (22” only)
Closed Caption Yes
SimpleLink ( DMI CEC) Yes (except 22”)
Auto/Manual Clock Yes
On/Off Time, Sleep, Auto off Yes
EZ OSD (Menu System) Yes
Language 3 (English, Spanish, French)
COMPATIBILITIES
Pro:Idiom Yes (using CS 5610 pay-per-view box)
Optional Auto-Sensing Remote Jack Packs Yes 42”, 37”, 32” (26”, 22” with CS 5610 box)
JACK PACK
Side
AV In 1 (42”, 37”, 32”, 26”)
DMI In 1-V.1.3 (26” only)
USB 2.0 (Cloning and Service) 1 (42”, 37”, 32”, 26”)
eadphone In 1 (22” only)
Rear RF In (Antenna/Cable) 1
AV In 1
S-Video In 1
Component in (Y,Pb,Pr) + Audio 2
(42”, 37”, 32”, 26”) , 1 (22”)
Digital Audio Out (Optical) 1 (42”, 37”, 32”, 26”)
Analog Audio Out (L/R) 1 (42”, 37”, 32”, 26”)
DMI/ DCP Input 2 -V.1.3 (42”, 37”, 32”, 26”) , 1-V.1.2 (22”)
RGB In (D-sub 15pin) - PC 1
PC Audio Input 1
RJ45 (for RJP interface) 1(42", 37", 32")
S-232C (Control / SVC) 1
Remote Control In port 1
USB (Service Only) 1 (26” only)
CABINET
Unit Dimensions with Stand (Wx xD) 40.66" x 29.22" x 11.57" (42”)
36.20" x 26.86" x 11.57" (37”)
31.56" x 23.79" x 9.13" (32”)
26.11" x 20.01" x 8.95" (26”)
20.56" x 16.99" x 7.45" (22”)
Unit Dimensions without Stand (Wx xD) 40.66" x 26.38" x 3.62" (4.53")* (42”)
36.20" x 24.03" x 3.51" (4.50")* (37”)
31.56" x 21.42" x 3.11" (3.98")* (32”)
26.11" x 17.71" x 3.15" (3.60")* (26”)
20.56" x 15.13" x 2.72" (3.31")* (22”)
Unit Weight with Stand without Stand
52.0 lbs
(42”) 46.3 lbs (42”)
41.4 lbs (37”) 35.7 lbs (37”)
29.4 lbs (32”) 26.1 lbs (32”)
22.3 lbs (26”) 19.0 lbs (27”)
12.3 lbs (22”) 11.8 lbs (22”)
Carton Dimensions (Wx xD) 52.4" x 30.4" x 10.1" (42”)
47.05” x 26.18” x 9.96” (37”)
38.4" x 26.2" x 7.6" (32”)
32.6" x 21.2" x 8.3" (26”)
23.3" x 18.5" x 6.8" (22”)
Shipping Weight 63.1 lbs (42”)
50.7 lbs (37”)
35.9 lbs (32”)
27.6 lbs (27”)
5.2 lbs (22”)
Invisible Speaker System Yes
Stand able to mount to desk Yes (22” only)
Cabinet Color igh-Gloss Black
Cable Management Clip Yes
Swivel (stand) Included/Detachable +/- 20 ° (42”, 37”, 32”, 26”)
ENERGY STAR Compliant Yes
Ro S Compliant Yes
UL Standard Listed
VESA ™ Compatible Yes (200mm x 200mm, M6) (42”, 37”)
Yes (200mm x 100mm, M4) (32”, 26”)
Yes (100mm x 100mm, M4) (22”)
POWER
Dynamic Power Savings ** Yes (42”–79%, 37”–76%, 32”–69%)
Voltage, z 100 ~240V, 50/60 z
Power Consumption (Max/Typical) 244W/226W (42”) , 191W/167W (37”) ,
171W/149W
(32”) , 115W/99W (27”) ,
48W/46W (22”)
Power Consumption (Stand-by) Under 1W
UPC
42LG30DC 7 19192 17411 5
37LG30DC 7 19192 17410 8
32LG30DC 7 19192 17409 2
26LG30DC 7 19192 17408 5
22LG30DC 7 19192 17407 8
LIMITED WARRANTY 1 Year (parts/labor)
* Depth of monitor including stand adapter plate.
** When Dynamic Power Savings is enabled these power savings could be attained.
42LG30DC
37LG30DC
32LG30DC
26LG30DC
22LG30DC
42" class (42.0" dia onal
37" class (37.0" dia onal)
32" class (31.5" dia onal)
26" class (26.0" dia onal)
22" class (22.0" dia onal)
