LG 26LU50FD User manual

LCD TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : LC91M
MODEL : 26LU50FD 26LU50FD-CA
North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com
Internal Use Only
Printed in KoreaP/NO : MFL60021635 (0908-REV00)

LGE Internal Use OnlyCopyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes
- 2 -
CONTENTS
CONTENTS .............................................................................................. 2
PRODUCT SAFETY ..................................................................................3
SPECIFICATION ........................................................................................6
ADJUSTMENT INSTRUCTION .................................................................9
TROUBLE SHOOTING ............................................................................13
BLOCK DIAGRAM...................................................................................16
EXPLODED VIEW .................................................................................. 17
SVC. SHEET ...............................................................................................

LGE Internal Use OnlyCopyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes
- 3 -
SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1W), keep the resistor 10mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩ and 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
1.5 Kohm/10W
To Instrument's
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
When 25A is impressed between Earth and 2nd Ground
for 1 second, Resistance must be less than 0.1
*Base on Adjustment standard
IMPORTANT SAFETY NOTICE
0.15uF
Ω

LGE Internal Use OnlyCopyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes
- 4 -
CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the
SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conflict between the
following servicing precautions and any of the safety precautions on
page 3 of this publication, always follow the safety precautions.
Remember: Safety First.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC power
source before;
a. Removing or reinstalling any component, circuit board
module or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug or
other electrical connection.
c. Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an
explosion hazard.
2. Test high voltage only by measuring it with an appropriate high
voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".
3. Do not spray chemicals on or near this receiver or any of its
assemblies.
4. Unless specified otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10% (by volume) Acetone and 90% (by
volume) isopropyl alcohol (90%-99% strength)
CAUTION: This is a flammable mixture.
Unless specified otherwise in this service manual, lubrication of
contacts in not required.
5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.
6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.
7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.
8. Use with this receiver only the test fixtures specified in this
service manual.
CAUTION: Do not connect the test fixture ground strap to any
heat sink in this receiver.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged easily
by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some field-effect transistors and
semiconductor "chip" components. The following techniques
should be used to help reduce the incidence of component
damage caused by static by static electricity.
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground.
Alternatively, obtain and wear a commercially available
discharging wrist strap device, which should be removed to
prevent potential shock reasons prior to applying power to the
unit under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.
4. Use only an anti-static type solder removal device. Some solder
removal devices not classified as "anti-static" can generate
electrical charges sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads
electrically shorted together by conductive foam, aluminum foil
or comparable conductive material).
7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be
installed.
CAUTION: Be sure no power is applied to the chassis or circuit,
and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged
replacement ES devices. (Otherwise harmless motion such as
the brushing together of your clothes fabric or the lifting of your
foot from a carpeted floor can generate static electricity
sufficient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and appropriate
tip size and shape that will maintain tip temperature within the
range or 500°F to 600°F.
2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well tinned.
4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
bristle (0.5 inch, or 1.25cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.
5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500°F to 600°F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-
type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
(500°F to 600°F)
b. First, hold the soldering iron tip and solder the strand against
the component lead until the solder melts.
c. Quickly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it there
only until the solder flows onto and around both the
component lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
d. Closely inspect the solder area and remove any excess or
splashed solder with a small wire-bristle brush.
SERVICING PRECAUTIONS

LGE Internal Use OnlyCopyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes
- 5 -
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent flat against the
circuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.
Removal
1. Desolder and straighten each IC lead in one operation by gently
prying up on the lead with the soldering iron tip as the solder
melts.
2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing the
IC.
Replacement
1. Carefully insert the replacement IC in the circuit board.
2. Carefully bend each IC lead against the circuit foil pad and
solder it.
3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor
Removal/Replacement
1. Remove the defective transistor by clipping its leads as close as
possible to the component body.
2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.
Power Output, Transistor Device
Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heat sink mounting screw (if so equipped).
3. Carefully remove the transistor from the heat sink of the circuit
board.
4. Insert new transistor in the circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heat sink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as
possible to diode body.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever
this condition is encountered.
At IC Connections
To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC
connections).
1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).
2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the good
copper pattern. Solder the overlapped area and clip off any
excess jumper wire.
At Other Connections
Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.
1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly
connected to the affected copper pattern.
3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

LGE Internal Use OnlyCopyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes
- 6 -
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement
.
4. Electrical specification
- Module General Specification
1. Application range
This specification is applied to the LCD TV used LC91M
chassis.
2. Requirement for Test
Each part is tested as below without special appointment.
1) Temperature : 25±5ºC (77±9ºF), CST : 40±5ºC
2) Relative Humidity : 65±10%
3) Power Voltage : Standard input voltage (100-240V@50/60Hz)
* Standard Voltage of each products is marked by models.
4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
5) The receiver must be operated for about 5 minutes prior to
the adjustment.
3. Test method
1) Performance: LGE TV test method followed
2) Demanded other specification
- Safety: CE, IEC specification
- EMC:CE, IEC
No. Item Specification Remark
1 Display Screen Device 26” wide Color Display module LCD
2 Aspect Ratio 16:9
3 LCD Module 26” TFT LCD FHD LGD
4 Storage Environment Temp.:-20 ~ 60 deg
Humidity : 10 ~ 90 %
5 Input Voltage AC100-240V~, 50/60Hz
6 Power Consumption Power on (Blue) LCD(Module) + Backlight(Lamp)
Typ : 80.6, Max : 94.1
7 Module Size 626.0 (H) x 373.0 (V) x 47.1 (D) With inverter
8 Pixel Pitch 0.3mm x 0.3mm
9 Back Light EEFL
10 Display Colors 1.06Billion
11 Coating 3H, AG

No. Item Specification Min. Typ. Max. Remark
1. Viewing Angle<CR>10> Right/Left/Up/Down 89 Degree
2. Luminance Luminance (cd/m2) 320 400
Variation 1.3 MAX /MIN
3. Contrast Ratio CR 700 1000
4. CIE Color Coordinates White Wx 0.279
Wy 0.292 Typ
RED Rx 0.637 ±0.03
Ry 0.335
Green Gx 0.288
Gy 0.608
Blue Bx 0.145
By 0.063
- 7 - LGE Internal Use OnlyCopyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes
5. Chroma& Brightness
- Module optical specification
1) Standard Test Condition (The unit has been ‘ON’)
2) Stable for approximately 30 minutes in a dark environment at 25±2°C
3) The values specified are at approximate distance 50Cm from the LCD surface.
4) Ta=25±2ºC, VLCD=12.0V, fV=60Hz, Dclk=74.25MHz, VBR_A=1.6A, EXTVBR_B=100%
6. Component Video Input (Y, CB/PB, CR/PR)
No Specification Remark
Resolution H-freq(kHz) V-freq(Hz)
1. 720x480 15.73 60.00 SDTV,DVD 480i
2. 720x480 15.63 59.94 SDTV,DVD 480i
3. 720x480 31.47 59.94 480p
4. 720x480 31.50 60.00 480p
5. 720x576 15.625 50.00 SDTV,DVD 625 Line
6. 720x576 31.25 50.00 HDTV 576p
7. 1280x720 45.00 50.00 HDTV 720p
8. 1280x720 44.96 59.94 HDTV 720p
9. 1280x720 45.00 60.00 HDTV 720p
10. 1920x1080 31.25 50.00 HDTV 1080i
11. 1920x1080 33.75 60.00 HDTV 1080i
12. 1920x1080 33.72 59.94 HDTV 1080i
13. 1920x1080 56.250 50 HDTV 1080p
14. 1920x1080 67.43/67.5 59.94/60 HDTV 1080p

- 8 - LGE Internal Use OnlyCopyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes
No Specification Proposed Remark
Resolution H-freq(kHz) V-freq(Hz) Pixel Clock(MHz)
1. 720*400 31.468 70.08 28.321 For only DOS mode
2. 640*480 31.469 59.94 25.17 VESA
Input 848*480 60Hz, 852*480 60Hz
-> 640*480 60Hz Display
3. 800*600 37.879 60.31 40.00 VESA
4. 1024*768 48.363 60.00 65.00 VESA(XGA)
5. 1280*768 47.78 59.87 79.5 WXGA
6. 1360*768 47.72 59.8 84.75 WXGA
7. 1280*1024 63.595 60.0 108.875 SXGA FHD model
8. 1920*1080 66.587 59.93 138.5 WUXGA FHD model
7. RGB (PC)
8. HDMI Input (PC/DTV)
(1) DTV Mode
No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark
1. 720*400 31.468 70.08 28.321 HDCP
2. 640*480 31.469 59.94 25.17 VESA HDCP
3. 800*600 37.879 60.31 40.00 VESA HDCP
4. 1024*768 48.363 60.00 65.00 VESA(XGA) HDCP
5. 1280*768 47.78 59.87 79.5 WXGA HDCP
6. 1360*768 47.72 59.8 84.75 WXGA HDCP
7. 1280*1024 63.595 60.0 108.875 SXGA HDCP
8. 1920*1080 67.5 60 148.5 WUXGA HDCP
(2) PC Mode
No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark
1. 720*480 31.469 /31.5 59.94 /60 27.00/27.03 SDTV 480P
2. 720*576 31.25 50 54 SDTV 576P
3. 1280*720 37.500 50 74.25 HDTV 720P
4. 1280*720 44.96 /45 59.94 /60 74.17/74.25 HDTV 720P
5. 1920*1080 33.72 /33.75 59.94 /60 74.17/74.25 HDTV 1080I
6. 1920*1080 28.125 50.00 74.25 HDTV 1080I
7. 1920*1080 26.97 /27 23.97 /24 74.17/74.25 HDTV 1080P
8. 1920*1080 33.716 /33.75 29.976 /30.00 74.25 HDTV 1080P
9. 1920*1080 56.250 50 148.5 HDTV 1080P
10. 1920*1080 67.43 /67.5 59.94 /60 148.35/148.50 HDTV 1080P

LGE Internal Use OnlyCopyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes
- 9 -
ADJUSTMENT INSTRUCTION
1. Application Range
This specification sheet is applied to all of the LCD TV with
LC91M chassis.
2. Designation
1) The adjustment is according to the order which is
designated and which must be followed, according to the
plan which can be changed only on agreeing.
2) Power Adjustment: Free Voltage
3) Magnetic Field Condition: Nil.
4) Input signal Unit: Product Specification Standard
5) Reserve after operation: Above 5 Minutes (Heat Run)
Temperature : at 25±5ºC
Relative humidity : 65±10%
Input voltage : 220V, 60Hz
6) Adjustment equipments: Color Analyzer (CA-210 or CA-
110), Pattern Generator(MSPG-925L or Equivalent), DDC
Adjustment Jig equipment, SVC remote control.
7) Push The “IN STOP KEY” - For memory initialization.
3. Main PCB check process
* APC - After Manual-Insert, executing APC
* Boot file Download
(1) Execute ISP program “Mstar ISP Utility” and then click
“Config” tab.
(2) Set as below, and then click “Auto Detect” and check “OK”
message.
If “Error” is displayed, Check connection between
computer, jig, and set.
(3) Click “Read” tab, and then load download file (XXXX.bin)
by clicking “Read”.
(4) Click “Connect” tab. If “Can’t” is displayed, check
connection between computer, jig, and set.
(5) Click “Auto” tab and set as below
(6) Click “Run”.
(7) After downloading, check “OK” message.
* USB DOWNLOAD(*.epk file download)
(1) Put the USB Stick to the USB socket.
(2) Automatically detecting update file in USB Stick.
- If version of update file in USB Stick is Lower, it didn’t
work. But version of update file is Higher, USB data is
automatically detecting
filexxx.bin
(7) .........OK
(6)
(5)
(1)
Please Check the Speed : To use speed between
from 200KHz to 400KHz
(2)
filexxx.bin
(3) (4)
Case1 : Software version up
1. After downloading S/W by USB, TV set will reboot
automatically
2. Push “In-stop” key
3. Push “Power on” key
4. Function inspection
5. After function inspection, Push “I n-stop” key.
Case2 : Function check at the assembly line
1. When TV set is entering on the assembly line, Push
“In-stop” key at first.
2. Push “Power on” key for turning it on.
-> If you push “Power on” key, TV set will recover
channel information by itself.
3. After function inspection, Push “In-stop” key.

(3) Show the message “Copying files from memory”
(4) Updating is staring.
(5) After updating is complete, the TV will restart automatically.
(6) If TV turns on, check your updated version and Tool
option. (refer to the next page about tool option)
* If downloading version is higher than your TV have, TV
can lost all channel data. In this case, you have to
channel recover. If all channel data is cleared, you didn’t
have a DTV/ATV test on production line.
* After downloading, have to adjust Tool Option again.
(1) Enter ‘EZ ADJUST’ mode by pushing ‘ADJ’ key.
(2) Select each ‘Tool Option(1~4)’ and push ‘OK’ or ‘G’ key.
(3) Correct the number. (Each model has their number.)
(4) Correction Tool option is complete.
3.1. ADC Process
• Input signal : Component 480i
• Signal equipment displays.
- Component 480I
MODEL: 209 in Pattern Generator(480i Mode)
PATTERN : 65 in Pattern Generator(MSPG-925 SERIES)
* You need not connecting RGB(D-sub) cable. Because
ADC in RGB PC mode uses TV internal pattern.
• Enter ‘EZ ADJUST’ mode by pushing ‘ADJ’ key,
• Enter ‘ADC Calibration’ mode by pushing ‘OK’ or “G” key
after selecting “5. ADC Calibration”.
<Caution> Turn on Tv by pushing ‘POWER ON’ or ‘P-ONLY’ key.
* ADC Calibration Protocol (RS232)
Adjust Sequence
• aa 00 00 [Enter Adjust Mode]
• xb 00 40 [Component1 Input (480i)]
• ad 00 10 [Adjust 480i Comp1]
• xb 00 60 [RGB Input (1024*768)]
• ad 00 10 [Adjust 1024*768 RGB]
• aa 00 90 End Adjust mode
* Required equipment : factory Service Remote control
3.2. Function Check
(1) Check display and sound
- Check Input and Signal items. (cf. work instructions)
1) TV
2) AV 1/2
3) COMPONENT1/2 (480i)
4) RGB (PC : 1024 x 768 @ 60hz)
5) HDMI 1/2/3
6) PC Audio In
* Display and Sound check is executed by remote control.
- 10 - LGE Internal Use OnlyCopyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes
Model Tool option1 Tool option2 Tool option3 Tool option4
26LU50FD 9281 2616 672 2688
Item CMD1 CMD2 Data0
Adjust A A 0 0 When transfer the ‘Mode In’,
‘Mode In’ Carry the command.
ADC Adjust A D 1 0 Automatically adjustment
(The use of a internal pattern)
Adjustment pattern
ADC Calibration
ADC Comp 480i NG
ADC Comp 1080p NG
ADC RGB NG
Start Reset
EZ ADJUST
0. Tool Option1
1. Tool Option2
2. Tool Option3
3. Tool Option4
4. Country Group
5. ADC Calibration
6. White Balance
7. Test Pattern
8. EDID D/L
9. Sub B/C

4. Total Assembly line process
4.1. Adjustment Preparation
· W/B Equipment condition
CA210 : CH 9, Test signal : Inner pattern (85IRE)
· Above 5 minutes H/run in the inner pattern. (“power on” key
of adjust remote control)
* Connecting picture of the measuring instrument
(On Automatic control)
Inside PATTERN is used when W/B is controlled. Connect to
auto controller or push Adjustment R/C POWER ON -> Enter
the mode of White-Balance, the pattern will come out
* Auto-control interface and directions
1) Adjust in the place where the influx of light like floodlight
around is blocked. (illumination is less than 10ux).
2) Adhere closely the Color Analyzer (CA210) to the module
less than 10cm distance, keep it with the surface of the
Module and Color Analyzer’s Prove vertically.(80~100°).
3) Aging time
- After aging start, keep the power on (no suspension of
power supply) and heat-run over 15minutes.
- Using ‘no signal’ or ‘full white pattern’ or the others, check
the back light on.
• Auto adjustment Map(RS-232C)
** Caution **
Color Temperature : COOL, Medium, Warm.
One of R Gain/G Gain/ B Gain should be kept on 0xC0, and
adjust other two lower than C0.
(when R/G/B Gain are all C0, it is the FULL Dynamic Range
of Module)
* Manual W/B process using adjusts Remote control.
• Enter ‘EZ ADJUST’ mode by pushing “ADJ” key,
• Enter White Balance by pushing “G” key at “6.White Balance”.
- After all adjustments, press “IN START” key and compare
Tool option value with its BOM, if it is correctly same then
unplug the AC cable.
If it is not same, then correct it same with BOM and unplug AC
cable.
For correct it to the model’s module from factory JIG model.
- Push ‘IN STOP’ key after completing the function inspection.
4.2. DDC EDID Write (RGB 128Byte )
• Connect D-sub Signal Cable to D-sub Jack.
• Write EDID Data to EEPROM(24C02) by using DDC2B
protocol.
• Check whether written EDID data is correct or not.
* For SVC main Assembly, EDID have to be downloaded to
Insert Process in advance.
4.3. DDC EDID Write (HDMI 256Byte)
• Connect HDMI Signal Cable to HDMI Jack.
• Write EDID Data to EEPROM(24C02) by using DDC2B
protocol.
• Check whether written EDID data is correct or not.
* For SVC main Assembly, EDID have to be downloaded to
Insert Process in advance.
- 11 - LGE Internal Use OnlyCopyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes
Cool 11,000k ºK X=0.276(±0.002)
Y=0.283(±0.002) <Test Signal>
Medium 9,300k ºK X=0.285(±0.002) Inner pattern
Y=0.293(±0.002) (216gray,85IRE)
Warm 6,500k ºK X=0.313(±0.002)
Y=0.329(±0.002)
Full White Pattern
COLOR
ANALYZER
TYPE: CA-210
RS-232C Communication
CA-210
RS-232C COMMAND MIN CENTER MAX
[CMD ID DATA] (DEFAULT)
Cool Mid Warm Cool Mid Warm
R Gain jg Ja jd 00 172 192 192 255
G Gain jh Jb je 00 172 192 192 255
B Gain ji Jc jf 00 192 192 172 255
R Cut 64 64 64 128
G Cut 64 64 64 128
B Cut 64 64 64 128
Index Equipment -> Wireless unit Wireless unit -> Set
CMD1 CMD2 Set ID Data CMD1 CMD2 CMD3 CMD4
Start w b 0 00 1F 04 00 00
Gain start w b 0 10 1F 04 00 10
Gain End w b 0 1F 1F 04 00 1F
Offset Start w b 0 20 1F 04 00 20
Offset End w b 0 2F 1F 04 00 2F
End w b 0 FF 1F 04 00 FF
White Balance
Color Temp. Cool
R-Gain 172
G-Gain 172
B-Gain 192
R-Cut 64
G-Cut 64
B-Cut 64
Test-Pattern ON
Reset To Set
EZ ADJUST
0. Tool Option1
1. Tool Option2
2. Tool Option3
3. Tool Option4
4. Country Group
5. ADC Calibration
6. White Balance
7. Test Pattern
8. EDID D/L
9. Sub B/C

4.4. EDID DATA
1) All Data : HEXA Value
2) Changeable Data :
*: Serial No : Controlled / Data:01
**: Month : Controlled / Data:00
***:Year : Controlled
****:Check sum
- Auto Download
• Enter ‘EZ ADJUST’ mode by pushing ‘ADJ’ key,
• Enter EDID D/L mode.
• Enter ‘START’ by pushing ‘OK’ key.
*Caution : Never connect HDMI & D-sub cable when auto
download
* 22LU50FD-CA doesn’t support HDMI3
* EDID data and Model option download (RS232)
- Manual Download
* Caution
1) Use the proper signal cable for EDID Download
- Analog EDID : Pin3 exists
- Digital EDID : Pin3 exists
2) Nerver connect HDMI & D-sub Cable at the same time.
3) Use the proper cables below for EDID Writing.
4) Download HDMI1, HDMI2, HDMI3 separately because
each data is different.
(1) RGB EDID data : 128 byte
(2) HDMI EDID data : 256 byte
* Detail EDID Options are below
ⓐProduct ID
ⓑSerial No: Controlled on production line.
ⓒWeek, Year:Fixed as S/W released day(same as MES data)
ex) Week : 0x02(2), Year 0x13(2009)
ⓓModel Name(Hex):
ⓔChecksum: Changeable by total EDID data.
ⓕVendor Specific(HDMI)
MODEL RGB HDMI1 HDMI2 HDMI3 Remark
22/26 0x1C 0x03, 0x5F 0x03, 0x4F 0x03, 0x3F HDMI3:only 26”
012 3 4 5 6 7 8 9 A BCD EF
00 00 FF FF FF FF FF FF 00 1E 6D ⓐⓑ
10 ⓒ01 03 68 73 41 78 0A CF 74 A3 57 4C B0 23
20 09 48 4C A1 08 00 81 80 61 40 45 40 31 40 01 01
30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 45 00 7E 8A 42 00 00 1E 01 1D 00 72 51 D0 1E 20
50 6E 28 55 00 7E 8A 42 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20 ⓓ
70 ⓓ00 ⓔ
LGE Internal Use OnlyCopyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes
- 12 -
EZ ADJUST
0. Tool Option1
1. Tool Option2
2. Tool Option3
3. Tool Option4
4. Country Group
5. ADC Calibration
6. White Balance
7. Test Pattern
8. EDID D/L
9. Sub B/C
HDMI1 NG
HDMI2 NG
HDMI3 NG
RGB NG
Start Reset
EDID D/L
HDMI1 OK
HDMI2 OK
HDMI3 OK
RGB OK
Start Reset
EDID D/L
MODEL HEX EDID Table DDC Fuction
26LU50FD 0002 02 00 Analog/Digital
MODEL Model name(HX)
All 00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20
INPUT MODEL NAME(HEX) Remark
HDMI1 65 03 0C 00 10 00
HDMI2 65 03 0C 00 20 00
HDMI3 65 03 0C 00 30 00 Except 22”
Item CMD1 CMD2 Data0
Download A A 0 0 When transfer the ‘Mode In’,
‘Mode In’ Carry the command.
Download A E 00 10 Automatically Download
(The use of a internal pattern)
D-sub to D-sub DVI-D to HDMI or HDMI to HDMI
For HDMI EDIDFor Analog EDID
012 3 4 5 6 7 8 9 A BCD EF
00 00 FF FF FF FF FF FF 00 1E 6D ⓐⓑ
10 ⓒ01 03 80 73 41 78 0A CF 74 A3 57 4C B0 23
20 09 48 4C A1 08 00 81 80 61 40 45 40 31 40 01 01
30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 45 00 7E 8A 42 00 00 1E 01 1D 00 72 51 D0 1E 20
50 6E 28 55 00 7E 8A 42 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20 ⓓ
70 ⓓ01 ⓔ
80 02 03 20 F1 4E 10 1F 84 13 05 14 03 02 12 20 21
90 22 15 01 26 15 07 50 09 57 07 ⓕ
A0 01 1D 80 18 71 1C 16 20 58 2C 25 00 7E 8A 42 00
B0 00 9E 01 1D 00 80 51 D0 0C 20 40 80 35 00 7E 8A
C0 42 00 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E 96 00
D0 7E 8A 42 00 00 18 02 3A 80 18 71 38 2D 40 58 2C
E0 45 00 7E 8A 42 00 00 1E 66 21 50 B0 51 00 1B 30
F0 40 70 36 00 7E 8A 42 00 00 1E 00 00 00 00 00 ⓔ
Item
Manufacturer ID
Version
Revision
Condition
GSM
Digital : 1
Digital : 3
Data(Hex)
1E6D
01
03

LGE Internal Use OnlyCopyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes
- 13 -
1. TV/CATV doesn’t display
TROUBLESHOOTING
2. DTV doesn’t display
Check the output data of TU1702 Pin 20,21,22
Can you see the normal signal?
NO Could you measure voltage of TU1702 &
IIC lines?
Are they all normal?
NO You should check power line
& IIC lines.
YES
You should replace Main Board.
YES
Check the output of Main IC(IC100).
Especially you should check
The H,V sync and clock.
Can you see the normal waveform?
YES
NO After checking the Power of Main IC(IC100) you
should decide to replace Main IC or not.
This board has big problem because Main
IC(IC100) have some troubles.
After checking thoroughly all path once again,
You should decide to replace Main Board or not.
Could you measure voltage of IC1701 & IIC
lines?
Are they all normal?
NO You should check power line
& IIC lines.
YES
Check TU1702.
Can you see the normal signal?
Check the output of TR(Q1703).
Can you see the normal waveform?
Check the output of Main IC(IC100).
Especially you should check
The H,V sync and clock.
Can you see the normal waveform?
YES
YES
NO Could you measure voltage of TU1702 &
IIC lines?
Are they all normal?
YES
NO You should check power line
& IIC lines.
YES
You should replace Main Board.
NO
You should decide to replace TR (Q1703) or not.
NO After checking the Power of Main IC(IC100) you
should decide to replace Main IC or not.
This board has big problem because Main
IC(IC100) have some troubles.
After checking thoroughly all path once again,
You should decide to replace Main Board or not.

LGE Internal Use OnlyCopyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes
- 14 -
3. Component1, AV1/2, S-Video doesn’t display
Check JK1402, JK1404, JK1405.
Can you see the normal waveform?
NO JK1402, JK1404,JK1405 may have problem.
Replace this Jack.
Check the output of Main IC(IC100).
Especially you should check
The H,V sync and clock.
Can you see the normal waveform?
YES
NO After checking the Power of Main IC(IC100),
you should decide to replace Main IC or not.
This board has big problem because Main
IC(IC100) have some troubles.
After checking thoroughly all path once again,
You should decide to replace Main Board or not.
YES
4. RGB PC doesn’t display
Check JK1407,
Can you see the normal waveform?
NO JK1407 may have problem.
Replace this Jack.
Check the output of Main IC(IC100).
Especially you should check
The H,V sync and clock.
Can you see the normal waveform?
YES
NO After checking the Power of Main IC(IC100),
you should decide to replace Main IC or not.
This board has big problem because Main
IC(IC100) have some troubles.
After checking thoroughly all path once again,
You should decide to replace Main Board or not.
YES

LGE Internal Use OnlyCopyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes
- 15 -
5. HDMI doesn’t display
Check input connect JK600, JK601, JK602.
Can you see the normal waveform?
Check DDC communication lines
(IC600,IC601,IC602)
YES
NO JK600, JK601, JK602 may have problem.
Replace this Jack.
NO After checking the Power of this chip, you
should decide to replace this or not.
YES
Check HDCP communication lines(IC107)
NO After checking the Power of this chip, you
should decide to replace this or not.
Check the output of Main IC(IC100).
Especially you should check
The H,V sync and clock.
Can you see the normal waveform?
YES
NO After checking the Power of Main IC(IC100) you
should decide to replace Main IC or not.
This board has big problem because Main
IC(IC100) have some troubles.
After checking thoroughly all path once again,
You should decide to replace Main Board or not.
YES

LGE Internal Use OnlyCopyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes
- 16 -
BLOCK DIAGRAM
Saturn6Saturn6
LGE3369ALGE3369A
(IC100)(IC100)
Serial FLASH for boot
(32M, IC103)
5 : SPI, Flash_WP_1
EEPROM
(512K, IC105)
2 : EEPROM_SCL, SDA
HDCP EEPROM
(8K, IC107)
2 : EEPROM_SCL, SDA
NAND FLASH (512M, IC102)
14 : PCM_A[0:7],---
DDR2
(512M, IC301)
45 : DDR2_D[0:15], ---
DDR2DDR2
(1G, IC300)(1G, IC300)
45 : DDR2_D[0:15], ---
Audio AMP
(NTP3100, IC701)
6 : I2S, MCLK, ---¶ 2 : SCL, SDA_SUB/AMP
LCD module
(FHD 60Hz)
28 : LVDS data, PWM_DIM, LVDS/BIT_SEL, OPC_EN 1 : OPC_OUT1 (except 22inch)
Demodulator
(LG3900, IC1701)
SDRAM
(64M, IC1707)
4 : TS_SERIAL, ---
2 : FE_DEMOD_ SCL/SDA
2 : TU_IF_OUT+/-
1 : FE_MAIN(CVBS) 1 : FE_SIF
Comp 1 Comp 2
AV 1
AV 2(SIDE)
RGB
Comp 1 Comp 2
AV 1
AV 2(SIDE)
HDMI 1 HDMI 2 HDMI 3
(Only 26") (Only 26")
(SIDE)
Digital Audio (Optic)
Phone (for RGB)
USB
RS-232C :
Ctrl& SVC
(Only S/W update)
EEPROM
(2K, IC600)
EEPROM
(2K, IC602)
EEPROM
(2K, IC601)
EEPROM
(2K, IC1401)
1 : EDID_WP
12 : DATA+/-X3, CLK+/-, HPD1, V_HDMI1, DDC_SCL1/SDA1
2 : DDC_SCL1/SDA1
1 : EDID_WP
12 : DATA+/-X3, CLK+/-, HPD2, 5V_HDMI2, DDC_SCL2/SDA2
2 : DDC_SCL2/SDA2
1 : EDID_WP
12 : DATA+/-X3, CLK+/-, HPD3, 5V_HDMI3 DDC_SCL3/SDA3
2 : DDC_SCL3/SDA3
TUNER
(TDFR-Z751D,
TU1702)
2 : CVBS, DET 5 : S_Y, S_C, S_DET, CVBS, DET 4 : Y, Pb, Pr, DET 4 : Y, Pb, Pr, DET
1 : EDID_WP
8 : R, G, B, H/VSYNC, DET, ISP_RXD/TXD
2 : ISP_RXD/TXD
2 : L/R 2 : L/R 2 : L/R 2 : L/R 2 : L/R 1 : SPDIF_OUT
OCP
(MP6211,IC1403)
MAX3232CDR
(IC1400)
2 : DBG_ RX/TX
2 : SIDE_USB_DM/DP
2 : DBG_ RX/TX
1 : 5V_USB 2 : USB_CTL,
USB_OCD
Sub
(IR/LED, Control)
1 : LED_ON 2 : SCL, SDA_SUB/AMP 3 : IR, KEY1/2

- 17 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
300
200
200T
200N
500 122
801
803
804 805
802
806 320
551
310
510
511
550
530
540
521
400
LV1
A2
A9 900
910
920
120
A10

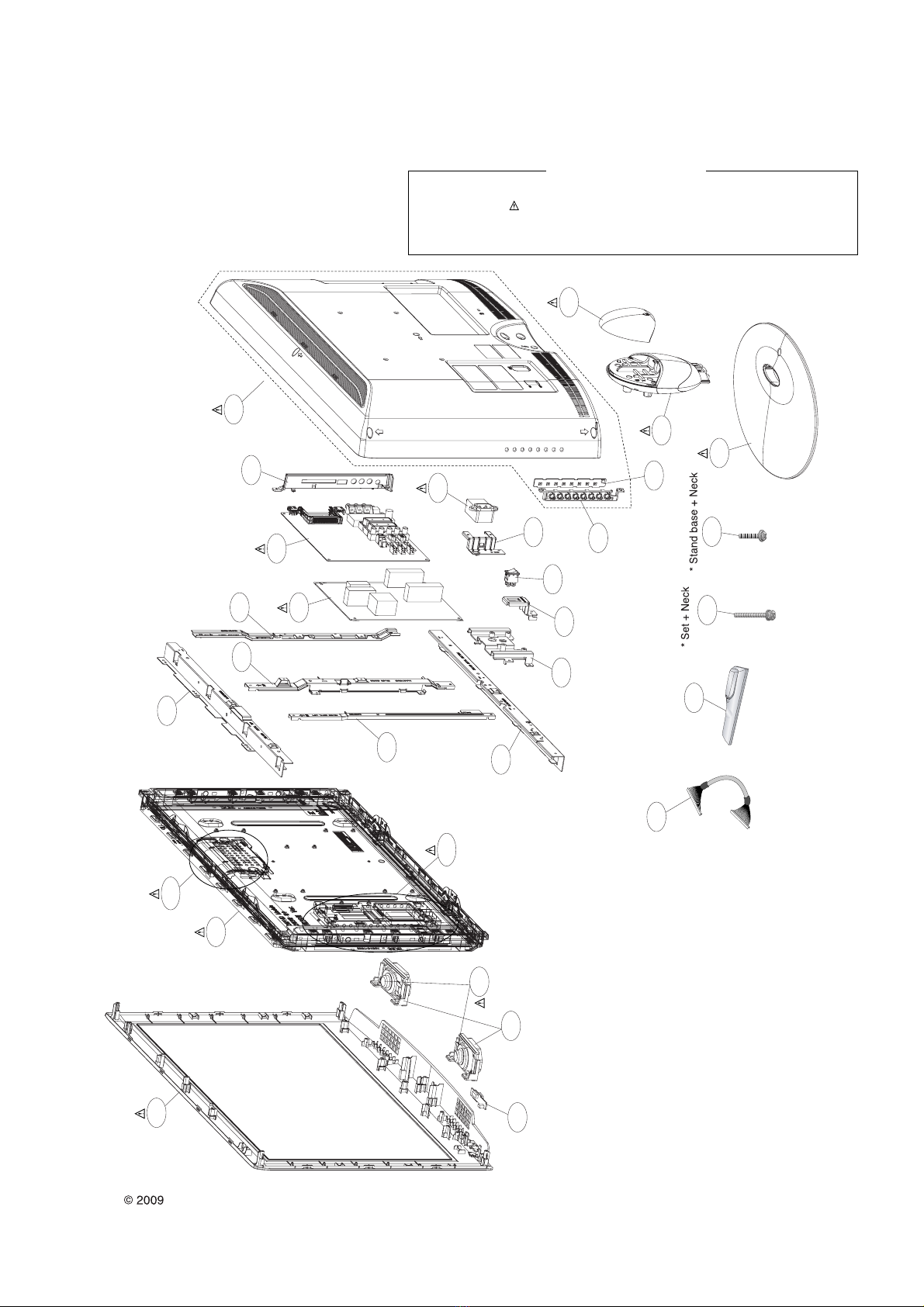

EXPLODED VIEW
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

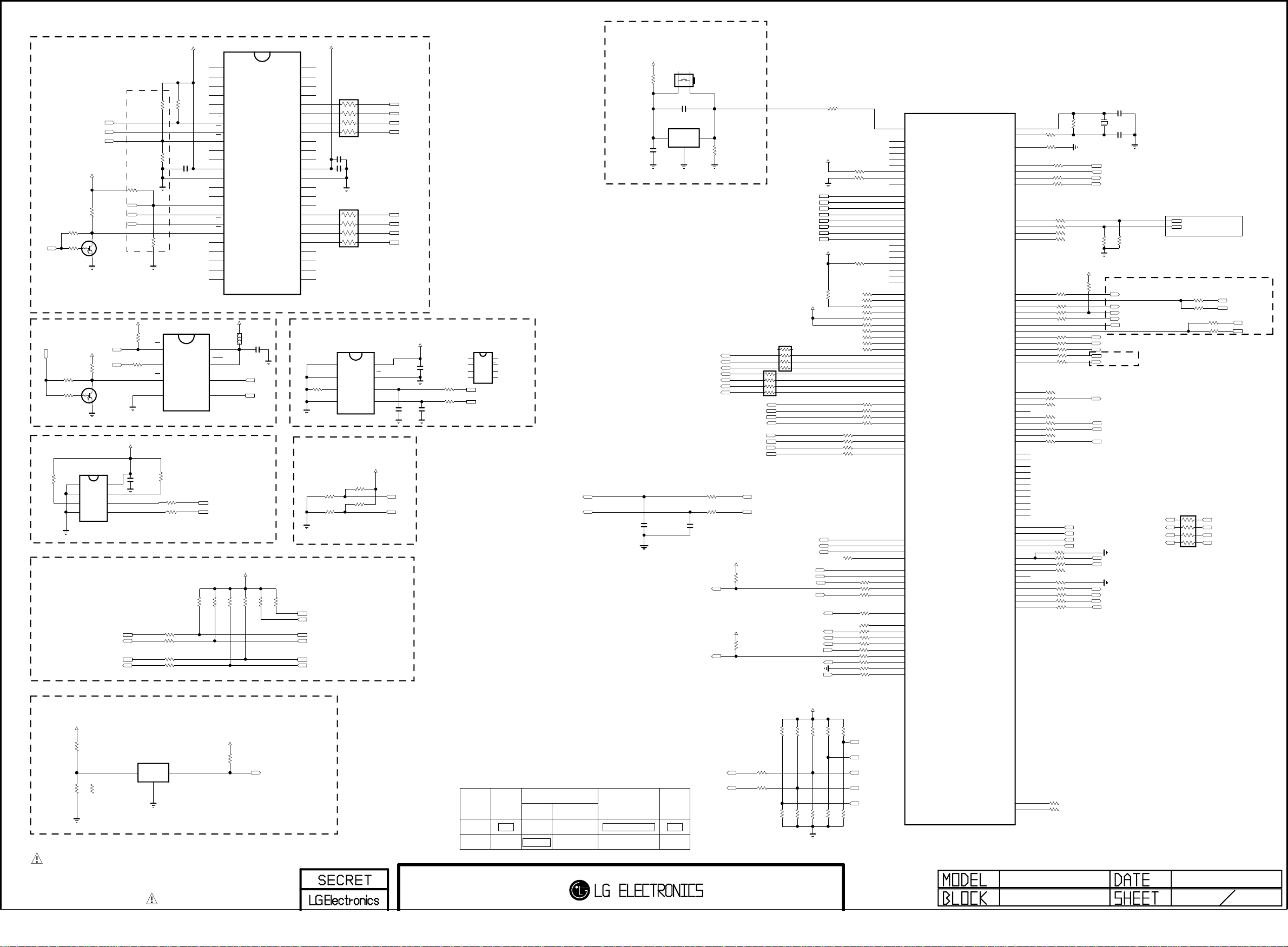

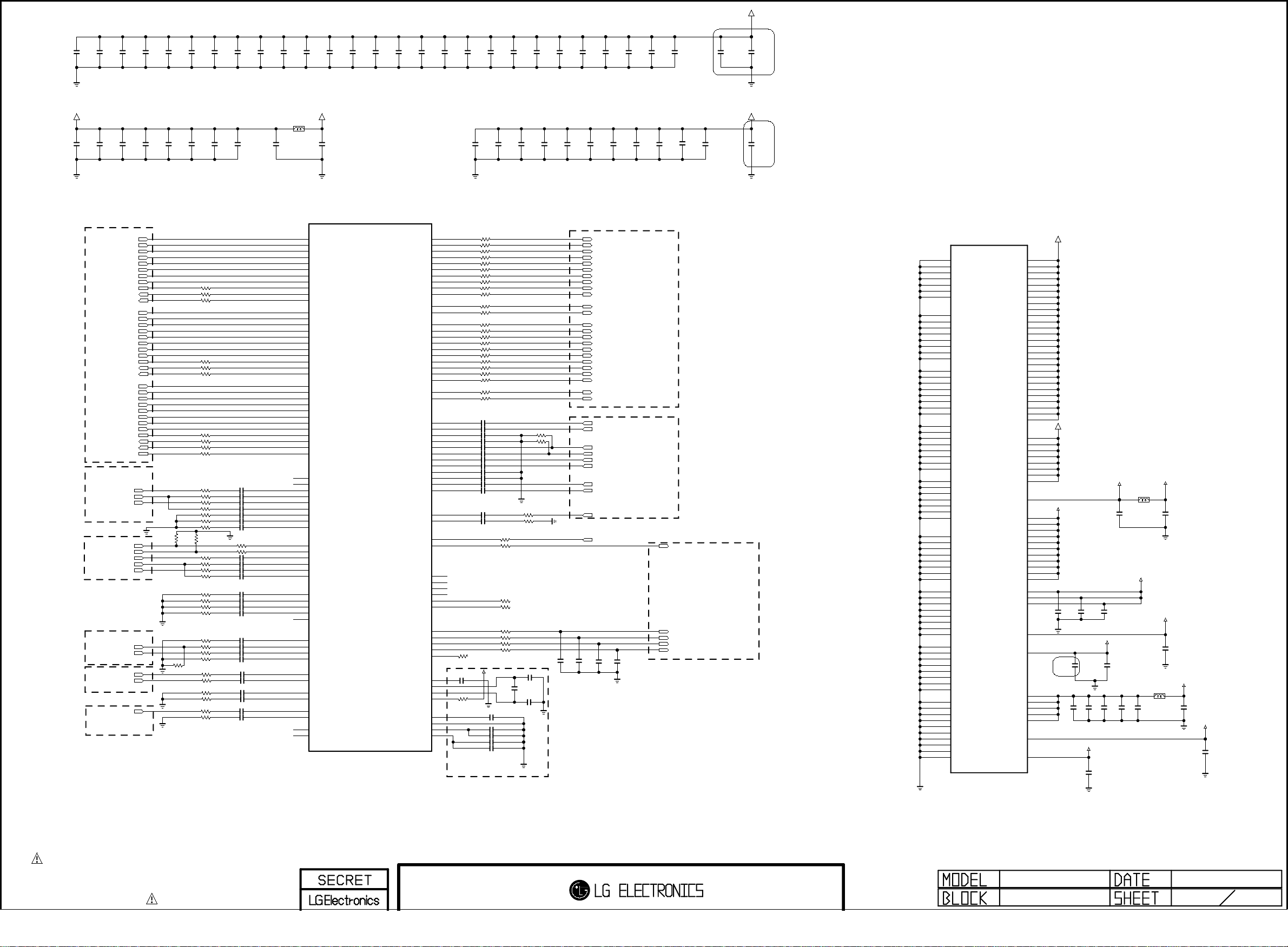

MAIN_1
R1540 1K
R1519 33 OPT
AMP_RST006:K6
IC103
W25X32VSSIG
download
3
WP
2
DO
4
GND
1
CS
5DIO
6CLK
7HOLD
8VCC
DSUB_DET004:Z23
PCM_A[7]
R125 4.7K
R1601 100
PWM0001:M16;001:X16
R101
0
+3.3V
MODEL_OPT_1
001:AA21
R1516 33 OPT
PWM2001:X17
ISP_TXD001:AN11;004:Z18
DBG_RX 001:Y15;004:F17
ERROR_OUT007:L21
R1525 33
MODEL_OPT_1001:AB25
R122 0
PCM_A[7]
+3.3V_ST
AV1_DET 004:E8
+3.3V
R102
0
OPT
+3.3V_ST
IC107
CAT24WC08W-T
3
A2
2
A1
4
VSS
1
A0
5SDA
6SCL
7WP
8VCC
PWM2
R112 1K
OPT
R113
10K
OPT
/PF_CE0001:D5
POWER_ON/OFF1
PCM_A[6]
+5V_GENERAL
L102
SCL1 001:AJ12
Q100
KRC103S
OPT
E
B
C
SPI_DO 001:D12
KEY2008:Z12
SDA0001:J21
R1510 33 OPT
/PF_CE1001:E7
/F_RB
R1526 33
MODEL_OPT_2001:AB25
PCM_A[5]
R1514 10K
PWM1
REAR_USB_DM 004:AK16
+3.3V
R193
1M
SPI_DI 001:H13
R115
10K
SCL0001:J21
KEY1008:Z12
EEPROM_SCL
001:F17;001:J20;001:Y13
+3.3V
/PF_OE001:D4
R105
1K
OPT
PCM_A[4]/PF_OE
OPC_EN 008:K11
POWER_DET
001:AN10;001:AN11
R126 0
R129 0
PWM0
R132
15K
OPT
/FE_RESET
009:H24
IR008:Z14
Flash_WP_1
R1517 33 OPT
R1530
33 /PF_WE
001:E7
PCM_A[3]
R108 10K
BUF_TS_VAL_ERR
R1515 10K
/PF_WE
PWM_DIM008:K8;007:L22
SDA_SUB/AMP006:K12
LED_R008:AD16
MODEL_OPT_2
001:AA21
C104
0.1uF
5V_HDMI_2 005:S3;005:V13
R172 0
IC101
KIA7427F
2
GND
3OUT 1
VCC
COMP1_DET 004:W5
R149 100
PCM_A[2]
DBG_TX001:AN10;004:F16
PF_WP001:B8
MODEL_OPT_4
001:AA20
R140 22
R103
10K
SPI_CS
BUF_TS_SYN
PWM0
+3.3V
/PF_CE1
EEPROM_SDA 001:F17;001:O13;001:Y14
SDA1 001:AJ12
EDID_WP 004:Z17;005:I15;005:W15;005:AL15
R189 0
R151
0
MODEL_OPT_0001:AB24
RF_SWITCH_SEL
009:C14
R133
15K
OPT
EEPROM_SCL
001:J20;001:O13;001:Y13
PCM_A[1]
5V_HDMI_1 005:E3;005:H13
R1533 4.7K
R1511 33 OPT
+3.3V
DBG_RX001:AJ11;004:F17
C120
1uF
OPT
PF_ALE001:E7
PCM_A[0]
C109
2.2uF
OPT
+3.3V
SDA0 001:Y14
BUF_TS_CLK
+3.3V
PF_ALE
A_DIM007:E22
LVDS_SEL 008:L6
R1523 100
INV_CTL 007:L19
AR102
22
R1558
10K
PCM_A[0]
EEPROM_SDA
001:F17;001:J20;001:Y14
C106 0.1uF
+3.3V_ST
PCM_A[1]
X100
12MHz
R106 1K
/F_RB001:D4
MODEL_OPT_3
001:AJ20
R104
10K
SCL0 001:Y14
PF_WP
BUF_TS_DATA[0]
R123 0
R1509
0
OPT
R141 22
R179 0 OPT
Flash_WP_1 001:B12
PCM_A[2]
+3.3V
R1518 33 OPT
AR100
22
+3.3V
C101
0.022uF
16V
R1521 100
R124 4.7K
SPI_CS 001:D12
POWER_DET
001:H25;001:AN11
R192 100 OPT
SCL1 001:J22
C103
0.1uF
PCM_A[3]
R1506 4.7K
EEPROM_SDA001:F17;001:J20;001:O13
SB_MUTE006:Y12
EEPROM_SCL001:F17;001:J20;001:O13
Q101
KRC103S
OPT
E
B
C
R111 3.9K
+24V/+15V
C111
20pF
R174 0
FE_DEMOD_SDA009:H25
SPI_CK 001:H13
R178 0 OPT
SDA1 001:J22
SPI_DI
PCM_A[4]
NTP_MUTE006:Y13
R1512 33
R1539 1K
ISP_RXD004:Z18
+3.3V
ISP_TXD
001:Y15;004:Z18
MODEL_OPT_4001:AB26
FE_DEMOD_SCL009:H27
R107
470
AR103
22
SCL_SUB/AMP006:K12
SPI_CK
C105
10uF 6.3V
FE_BOOSTER_CTL 009:Z15
IC102
HY27US08121B-TPCB
download
26 NC_17
27 NC_18
28 NC_19
29 I/O0
30 I/O1
31 I/O2
32 I/O3
33 NC_20
34 NC_21
35 NC_22
36 VSS_2
37 VCC_2
38 PRE
39 NC_23
40 NC_24
41 I/O4
42 I/O5
43 I/O6
44 I/O7
45 NC_25
46 NC_26
47 NC_27
48 NC_28
17
ALE
3
NC_3
6
NC_6
16
CLE
15
NC_10
14
NC_9
13
VSS_1
12
VCC_1
11
NC_8
10
NC_7
9
CE
8
RE
7
R/B
4
NC_4
5
NC_5
25 NC_16 24
NC_15
23
NC_14
2
NC_2
22
NC_13
21
NC_12
1
NC_1
20
NC_11
19
WP
18
WE
PCM_A[5]
R1513 33 OPT
/PF_CE0
BIT_SEL 008:K14
PANEL_CTL 007:AE6
R1507 4.7K
+3.3V
R1524 33
EEPROM_SDA
001:J20;001:O13;001:Y14
C112
20pF
MODEL_OPT_3 001:AB26
EEPROM_SCL 001:F17;001:O13;001:Y13
R109 10K
R128 0
AR101
22
PWM1001:M17
SPI_DO
PCM_A[6]
REAR_USB_DP 004:AK16
+3.3V
R175 0
MODEL_OPT_0
001:AA22
DBG_TX
001:Y15;004:F16
POWER_DET
001:H25;001:AN10
R1541 100
R1503 2.2K R1502 2.2K
C102
10uF 16V
3216
C100
0.1uF
C114
0.1uF
R100
0
R114 0
R1160
R117 0
R127 100
R142 22
R143 22
R146 0
R147 100
R150 22
R153 100
R155 100 OPT
R156 100 OPT
R157 100
R158
4.7K
R159 100
R160 100
R166 100
R167 100
R173 0
R168 0
R181 0 R182 100OPT
R183 100 OPT
R184 100
R185 100
R186 100
R187 100
OPT
R188 100 OPT
R190 100
R191 100 OPT
R195
10K
R1534 100
R1537 22 OPT
R1538 22 OPT
R1549
4.7K
R1614 10K
R161 22
R171 22 R1500 1K
OPT R1501 1K
R199 1K
OPT
R198 1K
R1612
OPT
R1603
FHD
R1605
BLINKING_LED
R1607
FRC
R1609
LCD
R1613
OPT
R1604
HD
R1606
MOVING_LED
R1608
NO FRC
R1610
PDP
R1602 100
R1561
10K
+3.3V_ST
R1563
10K
OPT
+3.3V
R1552-*1
1K
26inch
R162 0
R163 0
R164 0
R165 0
R1535 0
R1536 0
R118 22
R119 22
C115
8pF
50V
OPT
C116
8pF
50V
OPT
R120 100 OPT
R144 100
FE_TS_SYN 009:T22
BUF_TS_CLK
BUF_TS_DATA[0]
AR515
33
FE_TS_SERIAL 009:T21
FE_TS_DATA_CLK 009:T22
BUF_TS_SYN
FE_TS_VAL_ERR 009:T21BUF_TS_VAL_ERR
R169 100
R170 100
R1551
3.9K
R148 10K
AV2_DET 004:AM22
R154 100 26inch
R1564 10K 22inch
IC105
M24512-WMW6G(REV.B)
Rev B
3
E2
2
E1
4
VSS
1
E0
5SDA
6SCL
7WC
8VCC
IC105-*1
M24512-WMW6
Rev A
3
E2
2
E1
4
VSS
1
E0
5SDA
6SCL
7WC
8VCC
R1522 0
LED_W 008:AD15
IC1500
KIA7042AF
2
G
3O 1
I
R1552
1.8K
22inch
R176 100 OPT
IC100
LGE3368A (Saturn6 No-DivX)
HWRESET
D4
PCMD0/CI_D0
AC16
PCMD1/CI_D1
AA15
PCMD2/CI_D2
AA16
PCMD3/CI_D3
AC6
PCMD4/CI_D4
Y10
PCMD5/CI_D5
Y11
PCMD6/CI_D6
Y12
PCMD7/CI_D7
Y13
PCM_A0/CI_A0
AB16
PCM_A1/CI_A1
AC15
PCM_A2/CI_A2
AC14
PCM_A3/CI_A3
AB14
PCM_A4/CI_A4
AC12
PCM_A5/CI_A5
AB8
PCM_A6/CI_A6
AC13
PCM_A7/CI_A7
AA9
PCM_A8/CI_A8
AB5
PCM_A9/CI_A9
AA4
PCM_A10/CI_A10
V4
PCM_A11/CI_A11
Y4
PCM_A12/CI_A12
AB9
PCM_A13/CI_A13
AA7
PCM_A14/CI_A14
AD6
PCM_RST/CI_RST
AA14
PCM_CD/CI_CD
AB18
/PCM_OE
Y5
PCM_REG/CI_CLK
AB15
PCM_WAIT/CI_WACK
AA10
/PCM_IRQA
AC8
/PCM_WE
AC7
PCM_IOWR/CI_WR
AA5
PCM_IOR/CI_RD
W4
/PCM_CE
T4
/PF_CE0
AE6
/PF_CE1
AF6
/PF_OE
AA12
/PF_WE
AA11
PF_ALE
AC9
PF_AD15
Y14
F_RBZ
AB11
UART2_TX/SCKM
F8
UART2_RX/SDAM
D11
DDCR_DA
AB21
DDCR_CK
AC21
DDCA_CLK
J1
DDCA_DA
J2
UART_RX2
W5
UART_TX2
V5
PWM0
AB13
PWM1
AB12
PWM2
AD12
PWM3
AA13
SAR0
A4
SAR1
B4
SAR2
F4
SAR3
E4
IRIN
C4
GPIO44
AC11
GPIO96
D9
GPIO88
D10
GPIO90/I2S_OUT_MUTE
D7
GPIO91
E11
GPIO97
E8
GPIO98
E10
GPIO99
D6
GPIO103/I2S_OUT_SD3
D5
GPIO102
C5
XIN B3
XOUT A3
TESTPIN/GND E6
SPI_DI AE11
SPI_DO AF12
/SPI_CS AE12
SPI_CK AD11
USB_DP_1 B5
USB_DM_1 A5
USB_DM_2 AC10
USB_DP_2 AB10
GPIO_PM0/GPIO134 E5
GPIO_PM1/GPIO135 F5
GPIO_PM2/GPIO136 G5
GPIO_PM3/GPIO137 H5
GPIO_PM4/GPIO138 F6
GPIO_PM5/INT1/GPIO139 G6
GPIO_PM6/INT2/GPIO140 H6
GPIO131/LDE/SPI_WPn1 AC17
GPIO130/LCK AB17
GPIO132/LHSYNC/SPI_WPn AF11
GPIO60/PCM2_RESET/RX1 AA18
GPIO62/PCM2_CD_N/TX1 AA17
LHSYNC2/I2S_OUT_MUTE/RX1 E7
LVSYNC/GPIO133 AC18
GPIO79/LVSYNC2/TX1 C6
UART2_RX/GPIO84 F9
UART2_TX/GPIO85 F10
UART1_RX/GPIO86 A6
UART1_TX/GPIO87 B6
GPIO42/PCM2_CE_N AF5
GPIO43/PCM2_IRQA_N AF10
TS0_D0 AA8
TS0_D1 Y8
TS0_D2 Y9
TS0_D3 AB7
TS0_D4 AA6
TS0_D5 AB6
TS0_D6 U4
TS0_D7 AC5
TS0_SYNC AC4
TS0_VLD AD5
TS0_CLK AB4
TS1_D0 AB19
TS1_SYNC AA20
TS1_VLD AC19
TS1_CLK AA19
ET_TXD0 C10
ET_TXD1 B11
ET_TX_CLK A9
ET_RXD0 C11
ET_RXD1 C9
ET_TX_EN B10
ET_MDC A10
ET_MDIO B9
ET_COL A11
GPIO67 A7
GPIO68 B8
S_DET 004:AK5
R177 100
SW100
TMSV153BRA
12
4 3
EEPROM
Serial FLASH MEMORY
for BOOT
I2C
NAND FLASH MEMORY
10 : BOOT 51
11 : BOOT RISC
MCU BOOT STRAP
1 9
EAX61023402
/PF_CE0
H : Serial Flash
L : NAND Flash
/PF_CE1
H : 16 bit
L : 8 bit
Addr:10101--
HDCP EEPROM
IC105: EAN43352801(ATMEL SHRINK)
2009.04.28
PM GPIO Assignment Recommended by MStar
Interrupt for ISP Wake up in STB Mode
VOLTAGE DETECTOR
*Mstar reset:Active high reset
REAR_USB(SVC)
EAN43349001(ST Rev.A)
POWER DETECT
[ MODEL OPTION ]
OPT_0 OPT_1 OPT_2 OPT_3
H
L
LCD
PDP
FHD
HD
/RST
JTDO
/JTRST
JTINT
(HP_DET)
NO FRC
FRC
MOVING_LED
BLINKING_LED
SYMBOL:C
LVDS_CH_B
LVDS_CH_A
FHD HD/SMALL
(FE_TUNER_SCL)
(FE_TUNER_SDA)
LC91M(22/26LU50FD-CA)
(COMP2_DET)
(USB_CTL)
(USB_OCD)
*replacement:6600R00004C
Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
MAIN_2
R270
22
C2025
10uF
6.3V
LVB_2M 008:F11
CK+_HDMI1
005:I7
AV1_CVBS_IN
004:C7
COMP1_R_IN 004:Y10
R221 470
LVB_2P 008:F11
C2028
10uF
HDMI_CEC
005:D23
LVA_CKM 008:F17
C287 0.047uF
LVA_0P 008:F15
AV1_L_IN 004:C9
LVA_CKP 008:F17
COMP1_Pb_IN
004:Y6
LVB_1M 008:F10
R247 100
DSUB_R
004:Q25
C298
0.1uF
LVB_0M 008:F10
D1-_HDMI2
005:X8
DDC_SDA_3
005:AL17;005:AL6
LVB_1P 008:F11
FE_VMAIN
009:Z8
C270
0.1uF
LVB_3M 008:F13
R225 470
LVA_1P 008:F15
R244
10K
R274 100
OPT
R283
22
LVA_4M 008:F18
C257
0.1uF
5V_HDMI_3 005:AH4;005:AK13
R243
10K
DSUB_G
004:Q23
PC_R_IN 004:L25
R260
22
C294
0.1uF
R264
22
C225 10uF 6.3V
COMP1_Pr_IN
004:Y8
R248 0 26inch
R282
22
DDC_SCL_1
005:I16;005:I6
LVB_4P 008:F14
R262
22 26inch
LVB_3P 008:F13
LVB_0P 008:F10
R281
22
CK+_HDMI2
005:X7
D0-_HDMI3
005:AL8
C264
0.1uF
LVB_4M 008:F13
D2-_HDMI1
005:I9
HPD1
005:I4
D0-_HDMI2
005:X7
LVA_2P 008:F16
LVA_4P 008:F18
C288 0.047uF
R280
22
D2+_HDMI2
005:X10
C209 1000pF
HPD3
005:AL5
COMP1_L_IN 004:Y9
LVA_3M 008:F17
LVB_CKM 008:F12
DDC_SDA_2
005:W17;005:X5
D1-_HDMI3
005:AL9
LVA_3P 008:F18
C2002
10uF
DDC_SDA_1
005:I17;005:I5
R279
22
R228 100
R214 470
CK+_HDMI3
005:AL8
R278
22
R208 0
R209 100
D0+_HDMI3
005:AL8
R258
22 26inch
CK-_HDMI1
005:I6
LVA_1M 008:F15
R249 0 26inch
PC_L_IN 004:L26
D0-_HDMI1
005:I7
DSUB_B
004:Q22
R268
22
AV1_R_IN 004:C10
R271
22
C236
22pF
OPT
C238
22pF
OPT
LVA_0M 008:F14
HPD2
005:X4
CK-_HDMI3
005:AL7
C237
22pF
OPT
C239
22pF
OPT
C228 4.7uF
R236 47 C2019 0.047uF
R235 47
R277
22
C2024 0.047uF
C2016 2.2uF
C2015 2.2uF
C2014 2.2uF
D1+_HDMI3
005:AL9
D1-_HDMI1
005:I8
C2013 2.2uF
C2012 2.2uF
C2011 2.2uF
D1+_HDMI1
005:I9
AV2_R_IN 004:AM26
DDC_SCL_2
005:W16;005:X6
AV2_L_IN 004:AM25
C2009 2.2uF
C2008 2.2uF
+3.3V_S6
C224 0.1uF
C232 0.1uF
C231 0.1uF
C211 0.047uF
C202 0.047uF
C203 1000pF
C213 0.047uF
C215 0.047uF
R267
22
C205 0.047uF
C218 0.047uF
C200 0.047uF
C212 0.047uF
C204 0.047uF
C206 0.047uF
R259
22 26inch
C216 0.047uF
C207 0.047uF
C210 0.047uF
C217 0.047uF
C221 0.047uF
D2+_HDMI1
005:I10
R207 0
C201 0.047uF
DDC_SCL_3
005:AL16;005:AL6
C214 0.047uF
C222 0.047uF
R245 22
R246 22
C208 1000pF
R276
22
R227 47
R222 47
R223 47
R226 47
R219 47
R275
22
R205 47
R224 47
R220 47
R206 47
R218 47
R212 47
R217 47
R213 47
R211 47
R216 47
R215 47
R204 100
D0+_HDMI2
005:X8
R273
22
D2-_HDMI3
005:AL10
+3.3V_VDDP
+1.26V_VDDC
+1.26V_VDDC
R269
22
R261
22
LVA_2M 008:F16
AV2_CVBS_IN
004:AM24
+3.3V_AVDD_MPLL
C2007 2.2uF
C2006 2.2uF
R263
22 26inch
R272
22
R286 47
+1.8V_DDR+3.3V+3.3V_VDDP
D2-_HDMI2
005:X9
D1+_HDMI2
005:X9
L210
BLM18PG121SN1D
COMP1_Y_IN
004:Y4
R285 47
+3.3V_S6
+3.3V_S6
L206
BLM18PG121SN1D
+3.3V_S6
D0+_HDMI1
005:I8
+3.3V
L209
BLM18PG121SN1D
+3.3V_S6
+1.8V_DDR
+3.3V_AVDD
LVB_CKP 008:F12
R265
22
R242 47
+3.3V
R234 22
R233 22
R200 100 26inch
R232 22
R231 22
MS_SCK 006:K12
AUDIO_MASTER_CLK 006:K6
MS_LRCH 006:K11
CK-_HDMI2
005:X6
D2+_HDMI3
005:AL10
MS_LRCK 006:K12
R241 47 FE_SIF 009:U12
R229 390
1%
Check
DSUB_VSYNC
004:Q20
DSUB_HSYNC
004:Q21
C229 2.2uF
C230 2.2uF
C219
0.1uF C220 0.1uF
C223 0.1uF
C227 1uF 6.3V
C226 0.1uF
C233
0.1uF
C234 0.1uF
C235 0.1uF
C241
0.1uF C242 0.1uF
C243
0.1uF
C244
0.1uF C245 0.1uF
C246
0.1uF
C247
0.1uF C248 0.1uF
C249
0.1uF
C250
0.1uF C251 0.1uF
C252
0.1uF
C253
0.1uF C254 0.1uF
C256
0.1uF
C258
0.1uF C259 0.1uF
C260
0.1uF
C261
0.1uF
C262
0.1uF
C263
0.1uF
C265
0.1uF C266 0.1uF
C267
0.1uF
C268
0.1uF
C269
0.1uF
C271
0.1uF
C273
0.1uF
C274
0.1uF
C275
0.1uF
C276
0.1uF C277 0.1uF
C278
0.1uF
C279
0.1uF
C280
0.1uF
C281
0.1uF C282 0.1uF
C283
0.1uF
C284
0.1uF
C286
0.1uF
C289
0.1uF C290 0.1uF
C291
0.1uF
C293
0.1uF
C295
0.1uF
C296
0.1uF
C297
0.1uF C299 0.1uF
C2000
0.1uF C2001 0.1uF C2003 0.1uF
C2004
0.1uF
C2005
0.1uF
C2026
0.1uF
C2029
0.1uF
C2030
0.1uF
R203 100
R201 0
R202 0
R250 100
OPT
R251 100
OPT
R266 100 26inch
C2027
10uF
R291 0 22inch
R292 0 22inch
R293 0
22inch
LGE3368A (Saturn6 No-DivX)
IC100
RXACKP
F1
RXACKN
F2
RXA0P
G2
RXA0N
G3
RXA1P
H3
RXA1N
G1
RXA2P
H1
RXA2N
H2
DDCD_A_DA
A1
DDCD_A_CK
B2
HOTPLUG_A
A2
RXBCKP
C3
RXBCKN
B1
RXB0P
C1
RXB0N
C2
RXB1P
D2
RXB1N
D3
RXB2P
E3
RXB2N
D1
DDCD_B_DA
E1
DDCD_B_CK
F3
HOTPLUG_B
E2
RXCCKP
AE8
RXCCKN
AD8
RXC0P
AD9
RXC0N
AF8
RXC1P
AF9
RXC1N
AE9
RXC2P
AE10
RXC2N
AD10
DDCD_C_DA
AE7
DDCD_C_CK
AF7
HOTPLUG_C
AD7
CEC
J3
HSYNC0/SC1_ID
N2
VSYNC0/SC1_FB
N1
RIN0P/SC1_R
P2
GIN0P/SC1_G
R3
BIN0P/SC1_B
R1
SOGIN0/SC1_CVBS
P3
RINM
P1
BINM
T3
GINM
R2
HSYNC1/DSUB_HSYNC
K3
VSYNC1/DSUB_VSYNC
K2
RIN1P/DSUB_R
L1
GIN1P/DSUB_G
L3
BIN1P/DSUB_B
K1
SOGIN1
L2
RIN2P/COMP_PR+
V1
GIN2P/COMP_Y+
V2
BIN2P/COMP_PB+
U1
SOGIN2
V3
VSYNC2
J5
CVBS1/SC1_CVBS
U3
CVBS2/SC2_CVBS
U2
CVBS3/SIDE_CVBS
T1
VCOM1
T2
CVBS4/S-VIDEO_Y
M1
CVBS6/S-VIDEO_C
M2
CVBS5
N3
CVBS7
M3
CVBS0/RF_CVBS
W1
VCOM0
Y3
CVBSOUT0/SC2_MNTOUT
Y2
CVBSOUT1
AA2
LVA0P AE16
LVA0M AD16
LVA1P AD15
LVA1M AF16
LVA2P AF15
LVA2M AE15
LVA3P AD13
LVA3M AF14
LVA4P AF13
LVA4M AE13
LVACKP AE14
LVACKM AD14
LVB0P AE20
LVB0M AD20
LVB1P AD19
LVB1M AF20
LVB2P AF19
LVB2M AE19
LVB3P AD17
LVB3M AF18
LVB4P AF17
LVB4M AE17
LVBCKP AE18
LVBCKM AD18
AUR0 AA3
AUL0 Y1
AUR1 AE1
AUL1 AF3
AUR2 AE3
AUL2 AE2
AUR3 AA1
AUL3 AB1
AUR4 AB2
AUL4 AC2
AUR5 AB3
AUL5 AC3
SIF0P W3
SIF0M W2
SPDIF_IN F11
SPDIF_OUT E9
AUOUTR0/HP_ROUT AF1
AUOUTL0/HP_LOUT AF2
AUOUTR1/SC1_ROUT AD3
AUOUTL1/SC1_LOUT AD1
AUOUTR2/SC2_ROUT AC1
AUOUTL2/SC2_LOUT AD2
I2S_OUT_MCK A8
I2S_OUT_WS B7
I2S_OUT_BCK C7
I2S_OUT_SD D8
I2S_IN_SD C8
VCLAMP K4
REFP H4
REFM J4
REXT G4
AUCOM AE5
AUVRM AE4
AUVRP AF4
AUVAG AD4
IC100
LGE3368A (Saturn6 No-DivX)
VDDC_1 D16
VDDC_2 D17
VDDC_3 D18
VDDC_4 D19
VDDC_5 D20
VDDC_6 H18
VDDC_7 H19
VDDC_8 H20
VDDC_9 J20
VDDC_10 K20
VDDC_11 L20
VDDC_12 M20
VDDC_13 P7
VDDC_14 R7
VDDC_15 T7
VDDC_16 T22
VDDC_17 U7
VDDC_18 U20
VDDC_19 U22
VDDC_20 V7
VDDC_21 V22
VDDC_22 W11
VDDC_23 W12
VDDC_24 W19
VDDC_25 W20
VDDC_26 W22
VDDC_27 Y22
VDDP_1 H9
VDDP_2 H10
VDDP_3 H11
VDDP_4 H12
VDDP_5 N20
VDDP_6 P20
VDDP_7 W9
VDDP_8 W10
AVDD_AU W7
AVDD_DDR_1 G12
AVDD_DDR_2 G13
AVDD_DDR_3 H13
AVDD_DDR_4 H14
AVDD_DDR_5 H15
AVDD_DDR_6 H16
AVDD_DDR_7 W14
AVDD_DDR_8 W15
AVDD_DDR_9 W16
AVDD_DDR_10 W17
AVDD_DDR_11 W18
AVDD_MEMPLL_1 H17
AVDD_MEMPLL_2 T20
AVDD_MEMPLL_3 V20
AVDD_LPLL R20
AVDD_MPLL H7
AVDD_33_1 J7
AVDD_33_2 K7
AVDD_33_3 L7
AVDD_33_4 M7
AVDD_33_5 N7
AVDD_DM W8
AVDD_USB H8
GND_2
E16
GND_3
E17
GND_4
E18
GND_5
F7
GND_6
L9
GND_7
L10
GND_8
L11
GND_9
L12
GND_10
L13
GND_11
L14
GND_12
L15
GND_13
L16
GND_14
L17
GND_15
L18
GND_16
M9
GND_17
M10
GND_18
M11
GND_19
M12
GND_20
M13
GND_21
M14
GND_22
M15
GND_23
M16
GND_24
M17
GND_25
M18
GND_26
N4
GND_27
N9
GND_28
N10
GND_29
N11
GND_30
N12
GND_31
N13
GND_32
N14
GND_33
N15
GND_34
N16
GND_35
N17
GND_36
N18
GND_37
P4
GND_38
P9
GND_39
P10
GND_40
P11
GND_41
P12
GND_42
P13
GND_43
P14
GND_44
P15
GND_45
P16
GND_46
P17
GND_47
P18
GND_48
R4
GND_49
R9
GND_50
R10
GND_51
R11
GND_52
R12
GND_53
R13
GND_54
R14
GND_55
R15
GND_56
R16
GND_57
R17
GND_58
R18
GND_59
T5
GND_60
T9
GND_61
T10
GND_62
T11
GND_63
T12
GND_64
T13
GND_65
T14
GND_66
T15
GND_67
T16
GND_68
T17
GND_69
T18
GND_70
U5
GND_71
W13
GND_72
Y21
GND_73
AA23
SPDIF_OUT 004:AF10
S_Y_IN
004:AM6
S_C_IN
004:AM3
R230 100
Close to IC
as close as possible
HDMI
COMP1DSUBCVBS1/2TV
EAX61023402
2 9
2009.04.28
AUDIO IN
LVDS OUT
AUDIO OUT
VDDC : 970mA
VDDP : 102.3mA
AVDD_AU : 36.11mA
AVDD_MEMPLL : 23.77mA
AVDD_LPLL : 4.69mA
AVDD_33 : 281mA
AVDD_DM : 0.03mA
AVDD_OTG : 22.96mA
PI_080719
SYMBOL:D
SYMBOL:A
LC91M(22/26LU50FD-CA)
(AUDIO_R_OUT)
(AUDIO_L_OUT)
(COMP2_R_IN)
(COMP2_L_IN)
(COMP2_Pr_IN)
(COMP2_Y_IN)
(COMP2_Pb_IN)
S-VHS
Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
DDR2
SDDR_A[12]
SDDR_A[11]
SDDR_A[10]
SDDR_A[9]
SDDR_A[0]
SDDR_A[1]
SDDR_A[2]
SDDR_A[3]
SDDR_A[4]
SDDR_A[5]
SDDR_A[6]
SDDR_A[7]
SDDR_A[8]
SDDR_A[1]
SDDR_A[10]
SDDR_A[12]
SDDR_A[7]
SDDR_A[0]
SDDR_A[2]
SDDR_A[4]
SDDR_A[6]
SDDR_A[11]
SDDR_A[8]
TDDR_A[4]
TDDR_A[11]
TDDR_A[3]
TDDR_A[10]
TDDR_A[12]
TDDR_A[2]
TDDR_A[5]
TDDR_A[8]
TDDR_A[1]
TDDR_A[0-12]
TDDR_A[1]
TDDR_A[4]
TDDR_A[3]
TDDR_A[11]
TDDR_A[5]
TDDR_A[12] TDDR_A[6]
TDDR_A[2]TDDR_A[10]
TDDR_A[0]
TDDR_A[8]
TDDR_A[9]
TDDR_A[7]
TDDR_A[0]
TDDR_A[6]
TDDR_A[9]
SDDR_D[10]
SDDR_D[11]
SDDR_D[12]
SDDR_D[10]
SDDR_D[8]
SDDR_D[3]
SDDR_D[8]
SDDR_D[1]
SDDR_D[9]
SDDR_D[4]
SDDR_D[3]
SDDR_D[5]
SDDR_D[1]
SDDR_D[6]
SDDR_D[2]
SDDR_D[4]
SDDR_D[14]
SDDR_D[15]
SDDR_D[6]
SDDR_D[9]
SDDR_D[7]
SDDR_D[0]
SDDR_D[13]
SDDR_D[5]
SDDR_D[2]
SDDR_D[0]
SDDR_D[12]
SDDR_D[13]
SDDR_D[14]
SDDR_D[15]
SDDR_D[7]
SDDR_D[11]
TDDR_D[2]
TDDR_D[6]
TDDR_D[1]
TDDR_D[5]
TDDR_D[11]
TDDR_D[3]
TDDR_D[7]
TDDR_D[4]
TDDR_D[9]
TDDR_D[1]
TDDR_D[8]
TDDR_D[3]
TDDR_D[8]
TDDR_D[10]
TDDR_D[12]
TDDR_D[11]
TDDR_D[15]
TDDR_D[10]
TDDR_D[14]
TDDR_D[13]
TDDR_D[12]
TDDR_D[0]
TDDR_D[2]
TDDR_D[5]
TDDR_D[13]
TDDR_D[0]
TDDR_D[7]
TDDR_D[9]
TDDR_D[6]
TDDR_D[15]
TDDR_D[14]
TDDR_D[4]
SDDR_BA[0]
SDDR_BA[1]
ADDR2_BA[2]
/ADDR2_MCLK
SDDR_CKE ADDR2_CKE
/SDDR_CK
SDDR_CK
/SDDR_RAS
/SDDR_CAS
/SDDR_WE
SDDR_DQS1_P
SDDR_DQS0_P
SDDR_DQM1_P
SDDR_DQM0_P
SDDR_DQS1_N
SDDR_DQS0_N
/ADDR2_RAS
ADDR2_ODT
/ADDR2_CAS
/ADDR2_WE
ADDR2_DQS1_P
ADDR2_DQS0_P
ADDR2_DQM1_P
ADDR2_DQM0_P
ADDR2_DQS0_N
ADDR2_DQS1_N
BDDR2_DQM0_P
BDDR2_DQS1_P
BDDR2_ODT
BDDR2_DQS0_N
TDDR_CKE
TDDR_MCLK
BDDR2_DQS0_P
BDDR2_MCLK
/TDDR_MCLK
TDDR_DQM1_P
BDDR2_DQS1_N
BDDR2_DQM1_P
/TDDR_CAS
BDDR2_BA[2]
TDDR_BA[1]
/TDDR_WE
TDDR_DQS1_P
TDDR_BA[0]
TDDR_DQS1_N
TDDR_DQS0_P
BDDR2_BA[0]
/TDDR_RAS
BDDR2_BA[1]
TDDR_DQM0_P
/BDDR2_MCLK
TDDR_DQS0_N
SDDR_A[3]
SDDR_A[0-12]
ADDR2_A[0-12]
ADDR2_A[0]
ADDR2_A[1]
ADDR2_A[3]
ADDR2_A[2]
ADDR2_A[5]
ADDR2_A[7]
ADDR2_A[6]
ADDR2_A[4]
ADDR2_A[9]
ADDR2_A[8]
ADDR2_A[10]
ADDR2_A[11]
ADDR2_A[12]
ADDR2_A[3]
ADDR2_A[1]
ADDR2_A[10]
ADDR2_A[9]
ADDR2_A[12]
ADDR2_A[7]
ADDR2_A[0]
ADDR2_A[2]
ADDR2_A[4]
ADDR2_A[6]
ADDR2_A[11]
ADDR2_A[8]
ADDR2_BA[0]
ADDR2_BA[1]
ADDR2_MCLK
BDDR2_A[0-12]
BDDR2_A[0]
BDDR2_A[1]
BDDR2_A[2]
BDDR2_A[3]
BDDR2_A[4]
BDDR2_A[5]
BDDR2_A[6]
BDDR2_A[7]
BDDR2_A[8]
BDDR2_A[9]
BDDR2_A[10]
BDDR2_A[11]
BDDR2_A[12]
BDDR2_A[9]
BDDR2_A[3]
BDDR2_A[1]
BDDR2_A[10]
BDDR2_A[5]
BDDR2_A[12]
BDDR2_A[0]
BDDR2_A[2]
BDDR2_A[4]
BDDR2_A[6]
BDDR2_A[11]
BDDR2_A[8]
BDDR2_CKE
/BDDR2_RAS
/BDDR2_CAS
/BDDR2_WE
ADDR2_D[0-15]
ADDR2_D[0]
ADDR2_D[1]
ADDR2_D[3]
ADDR2_D[2]
ADDR2_D[5]
ADDR2_D[4]
ADDR2_D[6]
ADDR2_D[7]
ADDR2_D[12]
ADDR2_D[9]
ADDR2_D[8]
ADDR2_D[14]
ADDR2_D[10]
ADDR2_D[15]
ADDR2_D[11]
ADDR2_D[13]
ADDR2_D[11]
ADDR2_D[12]
ADDR2_D[4]
ADDR2_D[3]
ADDR2_D[1]
ADDR2_D[6]
ADDR2_D[9]
ADDR2_D[14]
ADDR2_D[15]
ADDR2_D[13]
ADDR2_D[10]
ADDR2_D[8]
ADDR2_D[5]
ADDR2_D[7]
ADDR2_D[2]
ADDR2_D[0]
SDDR_D[0-15]
BDDR2_D[0-15]
BDDR2_D[0]
BDDR2_D[1]
BDDR2_D[2]
BDDR2_D[3]
BDDR2_D[6]
BDDR2_D[4]
BDDR2_D[7]
BDDR2_D[5]
BDDR2_D[10]
BDDR2_D[8]
BDDR2_D[12]
BDDR2_D[14]
BDDR2_D[15]
BDDR2_D[11]
BDDR2_D[9]
BDDR2_D[13]
BDDR2_D[11]
BDDR2_D[12]
BDDR2_D[14]
BDDR2_D[9]
BDDR2_D[13]
BDDR2_D[10]
BDDR2_D[8]
BDDR2_D[15]
BDDR2_D[4]
BDDR2_D[3]
BDDR2_D[1]
BDDR2_D[6]
BDDR2_D[7]
BDDR2_D[5]
BDDR2_D[0]
BDDR2_D[2]
TDDR_D[0-15]
SDDR_A[9]
SDDR_A[5] ADDR2_A[5]
BDDR2_A[7] TDDR_A[7]
SDDR_ODT
TDDR_BA[2]
SDDR_BA[2]
AR304
56
AR308
56
AR305
56
AR306
56
R31556
IC301
HYB18TC512160B2F-2.5
512M_QIMONDA
J2
VREF
J8
CK
H2 VSSQ2
B7
UDQS
N8
A4
P8
A8
L1
NC4
L2
BA0
R8
NC3
K7
RAS
F8 VSSQ3
F3
LDM
P3
A9
M3
A1
N3
A5
K8
CK
R3
NC5
L3
BA1
J7
VSSDL
L7
CAS
F2 VSSQ4
B3
UDM
M2
A10/AP
K2
CKE
R7
NC6
M7
A2
N7
A6
M8
A0
J1
VDDL
K3
WE
E8
LDQS
P7
A11
K9
ODT
A2
NC1
N2
A3
P2
A7
H8 VSSQ1
F7
LDQS
A8
UDQS
R2
A12
L8
CS
E2
NC2
E7 VSSQ5
D8 VSSQ6
D2 VSSQ7
A7 VSSQ8
B8 VSSQ9
B2 VSSQ10
P9 VSS1
N1 VSS2
J3 VSS3
E3 VSS4
A3 VSS5
G9 VDDQ1
G7 VDDQ2
G3 VDDQ3
G1 VDDQ4
E9 VDDQ5
C9 VDDQ6
C7 VDDQ7
C3 VDDQ8
C1 VDDQ9
A9 VDDQ10
R1 VDD1
M9 VDD2
J9 VDD3
E1 VDD4
A1 VDD5
B9 DQ15
B1 DQ14
D9 DQ13
D1 DQ12
D3 DQ11
D7 DQ10
C2 DQ9
C8 DQ8
F9 DQ7
F1 DQ6
H9 DQ5
H1 DQ4
H3 DQ3
H7 DQ2
G2 DQ1
G8 DQ0
R31356
+1.8V_DDR
R31856
R337 56
R340 56
R31456
R339 56
R341 56
IC300
HYB18TC1G160C2F-2.5
1G_QIMONDA
J2 VREF
J8 CK
H2
VSSQ2
B7 UDQS
N8 A4
P8 A8
L1 BA2
L2 BA0
R8 NC3
K7 RAS
F8
VSSQ3
F3 LDM
P3 A9
M3 A1
N3 A5
K8 CK
R3 NC4
L3 BA1
J7 VSSDL
L7 CAS
F2
VSSQ4
B3 UDM
M2 A10/AP
K2 CKE
R7 NC5
M7 A2
N7 A6
M8 A0
J1 VDDL
K3 WE
E8 LDQS
P7 A11
K9 ODT
A2 NC1
N2 A3
P2 A7
H8
VSSQ1
F7 LDQS
A8 UDQS
R2 A12
L8 CS
E2 NC2
E7
VSSQ5 D8
VSSQ6 D2
VSSQ7 A7
VSSQ8 B8
VSSQ9 B2
VSSQ10
P9
VSS1 N1
VSS2 J3
VSS3 E3
VSS4 A3
VSS5
G9
VDDQ1 G7
VDDQ2 G3
VDDQ3 G1
VDDQ4 E9
VDDQ5 C9
VDDQ6 C7
VDDQ7 C3
VDDQ8 C1
VDDQ9 A9
VDDQ10
R1
VDD1 M9
VDD2 J9
VDD3 E1
VDD4 A1
VDD5
B9
DQ15 B1
DQ14 D9
DQ13 D1
DQ12 D3
DQ11 D7
DQ10 C2
DQ9 C8
DQ8 F9
DQ7 F1
DQ6 H9
DQ5 H1
DQ4 H3
DQ3 H7
DQ2 G2
DQ1 G8
DQ0
R31656
R31756
+1.8V_DDR
AR301
56
AR300
56
+1.8V_DDR
R338 56
R342 56
R331 22
R344 150
OPT
R330 22
+1.8V_DDR
R300 150
OPT
R30722
+1.8V_DDR
+1.8V_DDR
+1.8V_DDR
AR303
56
AR302
56
+1.8V_DDR
AR309
56
AR311
56
AR307
56
C303 10uF
C324
10uF
AR312
56
AR310
56
R30622
+1.8V_DDR
AR313
56
+1.8V_DDR
+1.8V_DDR
R301
1K 1%R302 1K 1%
R30356
R30456
R30556
R30856
R30956
R31056
R31156
R31256
R319 56
R320 56 R325 56
R326 56
R327 56
R328 56
R329 56
OPT
R332 56
R333 56
R334 56
R335 56
R336 56
R321
1K 1%
R322
1K 1%
R343 1K 1%
R345 1K 1%
R346 4.7K
OPT
R347 4.7K
OPT
R348 4.7K
OPT
R349 4.7K
OPT
R350
0
R351
0
OPT
C300 0.1uF
C301 0.1uF
C302
0.1uF
C304
0.1uF
C305
0.1uF
C306
0.1uF
C307
0.1uF
C308
0.1uF
C309 0.1uF
C310
0.1uF
C311
0.1uF
C312
0.1uF
C313
0.1uF
C314
0.1uF
C315
0.1uF
C316
0.1uF
C317
0.1uF
C318
0.1uF
C319
0.1uF
C320
0.1uF
C323
0.1uF
C325
0.1uF
C326
0.1uF
C327
0.1uF
C328
0.1uF
C329 0.1uF C330
0.1uF
C331
0.1uF
C332
0.1uF
C333
0.1uF
C334
0.1uF
C335
0.1uF
C336
0.1uF
C337
0.1uF
C338
0.1uF
C339
0.1uF
C340
0.1uF
C341
0.1uF
C342
0.1uF
IC300-*1
HY5PS1G1631CFP-S6
1G_HYNIX
J2 VREF
J8 CK
H2
VSSQ2
B7 UDQS
N8 A4
P8 A8
L1 BA2
L2 BA0
R8 NC3
K7 RAS
F8
VSSQ3
F3 LDM
P3 A9
M3 A1
N3 A5
K8 CK
R3 NC5
L3 BA1
J7 VSSDL
L7 CAS
F2
VSSQ4
B3 UDM
M2 A10/AP
K2 CKE
R7 NC6
M7 A2
N7 A6
M8 A0
J1 VDDL
K3 WE
E8 LDQS
P7 A11
K9 ODT
A2 NC1
N2 A3
P2 A7
H8
VSSQ1
F7 LDQS
A8 UDQS
R2 A12
L8 CS
E2 NC2
E7
VSSQ5 D8
VSSQ6 D2
VSSQ7 A7
VSSQ8 B8
VSSQ9 B2
VSSQ10
P9
VSS1 N1
VSS2 J3
VSS3 E3
VSS4 A3
VSS5
G9
VDDQ1 G7
VDDQ2 G3
VDDQ3 G1
VDDQ4 E9
VDDQ5 C9
VDDQ6 C7
VDDQ7 C3
VDDQ8 C1
VDDQ9 A9
VDDQ10
R1
VDD1 M9
VDD2 J9
VDD3 E1
VDD4 A1
VDD5
B9
DQ15 B1
DQ14 D9
DQ13 D1
DQ12 D3
DQ11 D7
DQ10 C2
DQ9 C8
DQ8 F9
DQ7 F1
DQ6 H9
DQ5 H1
DQ4 H3
DQ3 H7
DQ2 G2
DQ1 G8
DQ0
IC301-*1
H5PS5162FFR-S6C
512M_HYNIX
J2
VREF
J8
CK
H2 VSSQ2
B7
UDQS
N8
A4
P8
A8
L1
NC4
L2
BA0
R8
NC3
K7
RAS
F8 VSSQ3
F3
LDM
P3
A9
M3
A1
N3
A5
K8
CK
R3
NC5
L3
BA1
J7
VSSDL
L7
CAS
F2 VSSQ4
B3
UDM
M2
A10/AP
K2
CKE
R7
NC6
M7
A2
N7
A6
M8
A0
J1
VDDL
K3
WE
E8
LDQS
P7
A11
K9
ODT
A2
NC1
N2
A3
P2
A7
H8 VSSQ1
F7
LDQS
A8
UDQS
R2
A12
L8
CS
E2
NC2
E7 VSSQ5
D8 VSSQ6
D2 VSSQ7
A7 VSSQ8
B8 VSSQ9
B2 VSSQ10
P9 VSS1
N1 VSS2
J3 VSS3
E3 VSS4
A3 VSS5
G9 VDDQ1
G7 VDDQ2
G3 VDDQ3
G1 VDDQ4
E9 VDDQ5
C9 VDDQ6
C7 VDDQ7
C3 VDDQ8
C1 VDDQ9
A9 VDDQ10
R1 VDD1
M9 VDD2
J9 VDD3
E1 VDD4
A1 VDD5
B9 DQ15
B1 DQ14
D9 DQ13
D1 DQ12
D3 DQ11
D7 DQ10
C2 DQ9
C8 DQ8
F9 DQ7
F1 DQ6
H9 DQ5
H1 DQ4
H3 DQ3
H7 DQ2
G2 DQ1
G8 DQ0
C321
0.1uF
IC100
LGE3368A (Saturn6 No-DivX)
B_DDR2_A0 T26
B_DDR2_A1 AF26
B_DDR2_A2 T25
B_DDR2_A3 AF23
B_DDR2_A4 T24
B_DDR2_A5 AE23
B_DDR2_A6 R26
B_DDR2_A7 AD22
B_DDR2_A8 R25
B_DDR2_A9 AC22
B_DDR2_A10 AD23
B_DDR2_A11 R24
B_DDR2_A12 AE22
B_DDR2_BA0 AC23
B_DDR2_BA1 AC24
B_DDR2_BA2 AB22
B_DDR2_MCLK V25
/B_DDR2_MCLK V24
B_DDR2_CKE AB23
B_DDR2_ODT U26
/B_DDR2_RAS U25
/B_DDR2_CAS U24
/B_DDR2_WE AB24
B_DDR2_DQS0 AB26
B_DDR2_DQS1 AA26
B_DDR2_DQM0 AC25
B_DDR2_DQM1 AC26
B_DDR2_DQSB0 AB25
B_DDR2_DQSB1 AA25
B_DDR2_DQ0 W25
B_DDR2_DQ1 AE26
B_DDR2_DQ2 W24
B_DDR2_DQ3 AF24
B_DDR2_DQ4 AF25
B_DDR2_DQ5 V26
B_DDR2_DQ6 AE25
B_DDR2_DQ7 W26
B_DDR2_DQ8 Y26
B_DDR2_DQ9 AD25
B_DDR2_DQ10 Y25
B_DDR2_DQ11 AE24
B_DDR2_DQ12 AD26
B_DDR2_DQ13 Y24
B_DDR2_DQ14 AD24
B_DDR2_DQ15 AA24
A_MVREF
D15
A_DDR2_A0
C13
A_DDR2_A1
A22
A_DDR2_A2
B13
A_DDR2_A3
C22
A_DDR2_A4
A13
A_DDR2_A5
A23
A_DDR2_A6
C12
A_DDR2_A7
B23
A_DDR2_A8
B12
A_DDR2_A9
C23
A_DDR2_A10
B22
A_DDR2_A11
A12
A_DDR2_A12
A24
A_DDR2_BA0
C24
A_DDR2_BA1
B24
A_DDR2_BA2
D24
A_DDR2_MCLK
B14
/A_DDR2_MCLK
A14
A_DDR2_CKE
D23
A_DDR2_ODT
D14
/A_DDR2_RAS
D13
/A_DDR2_CAS
D12
/A_DDR2_WE
D22
A_DDR2_DQS0
B18
A_DDR2_DQS1
C17
A_DDR2_DQM0
C18
A_DDR2_DQM1
A19
A_DDR2_DQSB0
A18
A_DDR2_DQSB1
B17
A_DDR2_DQ0
B15
A_DDR2_DQ1
A21
A_DDR2_DQ2
A15
A_DDR2_DQ3
B21
A_DDR2_DQ4
C21
A_DDR2_DQ5
C14
A_DDR2_DQ6
C20
A_DDR2_DQ7
C15
A_DDR2_DQ8
C16
A_DDR2_DQ9
C19
A_DDR2_DQ10
B16
A_DDR2_DQ11
B20
A_DDR2_DQ12
A20
A_DDR2_DQ13
A16
A_DDR2_DQ14
B19
A_DDR2_DQ15
A17
DDR2 1.8V By CAP - Place these Caps near Memory
EAX61023402
3 9
2009.04.28
Close to DDR Power Pin Close to DDR Power Pin
EAN55687601 HYB18TC1G160C2F-2.5
EAN55706101 HY5PS1G1631CFP-S6
EAN54839201 HYB18TC512160B2F-2.5
EAN55705501 H5PS5162FFR-S6C
QIMONDA
HYNIX
1G
512M QIMONDA
HYNIX
SYMBOL:B
LC91M(22/26LU50FD-CA)
Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
