Lg 32ld350 User manual

LCD TV

SERVICE MANUAL

CAUTION

BEFORE SERVICING THE CHASSIS,

READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS : LA04A

MODEL : 32LD350 32LD350-UA

North/Latin America http://aic.lgservice.com

Europe/Africa http://eic.lgservice.com

Asia/Oceania http://biz.lgservice.com

Internal Use Only

Printed in KoreaP/NO : MFL62863204 (1003-REV00)

Only for training and service purposes - 2 -

CONTENTS

CONTENTS .............................................................................................. 2

SAFETY PRECAUTIONS ......................................................................... 3

SPECIFICATION....................................................................................... 6

ADJUSTMENT INSTRUCTION .............................................................. 10

EXPLODED VIEW .................................................................................. 16

SVC. SHEET ...............................................................................................

Only for training and service purposes - 3 -

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the

Schematic Diagram and Exploded View.

It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent

Shock, Fire, or other Hazards.

Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the

servicing of a receiver whose chassis is not isolated from the AC

power line. Use a transformer of adequate power rating as this

protects the technician from accidents resulting in personal injury

from electrical shocks.

It will also protect the receiver and it's components from being

damaged by accidental shorts of the circuitry that may be

inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown,

replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor,

over 1W), keep the resistor 10mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed

metallic parts of the cabinet, such as antennas, terminals, etc., to

be sure the set is safe to operate without damage of electrical

shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an

electrical jumper across the two AC plug prongs. Place the AC

switch in the on position, connect one lead of ohm-meter to the AC

plug prongs tied together and touch other ohm-meter lead in turn to

each exposed metallic parts such as antenna terminals, phone

jacks, etc.

If the exposed metallic part has a return path to the chassis, the

measured resistance should be between 1MΩand 5.2MΩ.

When the exposed metal has no return path to the chassis the

reading must be infinite.

An other abnormality exists that must be corrected before the

receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor

between a known good earth ground (Water Pipe, Conduit, etc.)

and the exposed metallic parts.

Measure the AC voltage across the resistor using AC voltmeter

with 1000 ohms/volt or more sensitivity.

Reverse plug the AC cord into the AC outlet and repeat AC voltage

measurements for each exposed metallic part. Any voltage

measured must not exceed 0.75 volt RMS which is corresponds to

0.5mA.

In case any measurement is out of the limits specified, there is

possibility of shock hazard and the set must be checked and

repaired before it is returned to the customer.

Leakage Current Hot Check circuit

1.5 Kohm/10W

To Instrument’s

exposed

METALLIC PARTS

Good Earth Ground

such as WATER PIPE,

CONDUIT etc.

AC Volt-meter

IMPORTANT SAFETY NOTICE

0.15uF

Only for training and service purposes - 4 -

CAUTION: Before servicing receivers covered by this service

manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication.

NOTE: If unforeseen circumstances create conflict between the

following servicing precautions and any of the safety precautions on

page 3 of this publication, always follow the safety precautions.

Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power

source before;

a. Removing or reinstalling any component, circuit board

module or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver.

CAUTION: A wrong part substitution or incorrect polarity

installation of electrolytic capacitors may result in an

explosion hazard.

2. Test high voltage only by measuring it with an appropriate high

voltage meter or other voltage measuring device (DVM,

FETVOM, etc) equipped with a suitable high voltage probe.

Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its

assemblies.

4. Unless specified otherwise in this service manual, clean

electrical contacts only by applying the following mixture to the

contacts with a pipe cleaner, cotton-tipped stick or comparable

non-abrasive applicator; 10% (by volume) Acetone and 90% (by

volume) isopropyl alcohol (90%-99% strength)

CAUTION: This is a flammable mixture.

Unless specified otherwise in this service manual, lubrication of

contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which

receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its

electrical assemblies unless all solid-state device heat sinks are

correctly installed.

7. Always connect the test receiver ground lead to the receiver

chassis ground before connecting the test receiver positive

lead.

Always remove the test receiver ground lead last.

8. Use with this receiver only the test fixtures specified in this

service manual.

CAUTION: Do not connect the test fixture ground strap to any

heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily

by static electricity. Such components commonly are called

Electrostatically Sensitive (ES) Devices. Examples of typical ES

devices are integrated circuits and some field-effect transistors and

semiconductor "chip" components. The following techniques

should be used to help reduce the incidence of component

damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or

semiconductor-equipped assembly, drain off any electrostatic

charge on your body by touching a known earth ground.

Alternatively, obtain and wear a commercially available

discharging wrist strap device, which should be removed to

prevent potential shock reasons prior to applying power to the

unit under test.

2. After removing an electrical assembly equipped with ES

devices, place the assembly on a conductive surface such as

aluminum foil, to prevent electrostatic charge buildup or

exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES

devices.

4. Use only an anti-static type solder removal device. Some solder

removal devices not classified as "anti-static" can generate

electrical charges sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate

electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective

package until immediately before you are ready to install it.

(Most replacement ES devices are packaged with leads

electrically shorted together by conductive foam, aluminum foil

or comparable conductive material).

7. Immediately before removing the protective material from the

leads of a replacement ES device, touch the protective material

to the chassis or circuit assembly into which the device will be

installed.

CAUTION: Be sure no power is applied to the chassis or circuit,

and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged

replacement ES devices. (Otherwise harmless motion such as

the brushing together of your clothes fabric or the lifting of your

foot from a carpeted floor can generate static electricity

sufficient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate

tip size and shape that will maintain tip temperature within the

range or 500°F to 600°F.

2. Use an appropriate gauge of RMA resin-core solder composed

of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wire-

bristle (0.5 inch, or 1.25cm) brush with a metal handle.

Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique

a. Allow the soldering iron tip to reach normal temperature.

(500°F to 600°F)

b. Heat the component lead until the solder melts.

c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique.

a. Allow the soldering iron tip to reach a normal temperature

(500°F to 600°F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there

only until the solder flows onto and around both the

component lead and the foil.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

SERVICING PRECAUTIONS

Only for training and service purposes - 5 -

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through

which the IC leads are inserted and then bent flat against the

circuit foil. When holes are the slotted type, the following technique

should be used to remove and replace the IC. When working with

boards using the familiar round hole, use the standard technique

as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently

prying up on the lead with the soldering iron tip as the solder

melts.

2. Draw away the melted solder with an anti-static suction-type

solder removal device (or with solder braid) before removing the

IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and

solder it.

3. Clean the soldered areas with a small wire-bristle brush.

(It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor

Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as

possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining

on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding

leads extending from the circuit board and crimp the "U" with

long nose pliers to insure metal to metal contact then solder

each connection.

Power Output, Transistor Device

Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit

board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as

possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit

board.

3. Observing diode polarity, wrap each lead of the new diode

around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of

the two "original" leads. If they are not shiny, reheat them and if

necessary, apply additional solder.

Fuse and Conventional Resistor

Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow

stake.

2. Securely crimp the leads of replacement component around

notch at stake top.

3. Solder the connections.

CAUTION: Maintain original spacing between the replaced

component and adjacent components and the circuit board to

prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit

board will weaken the adhesive that bonds the foil to the circuit

board causing the foil to separate from or "lift-off" the board. The

following guidelines and procedures should be followed whenever

this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the

following procedure to install a jumper wire on the copper pattern

side of the circuit board. (Use this technique only on IC

connections).

1. Carefully remove the damaged copper pattern with a sharp

knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if

used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and

carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper

pattern and let it overlap the previously scraped end of the good

copper pattern. Solder the overlapped area and clip off any

excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern

at connections other than IC Pins. This technique involves the

installation of a jumper wire on the component side of the circuit

board.

1. Remove the defective copper pattern with a sharp knife.

Remove at least 1/4 inch of copper, to ensure that a hazardous

condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern

break and locate the nearest component that is directly

connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the

nearest component on one side of the pattern break to the lead

of the nearest component on the other side.

Carefully crimp and solder the connections.

CAUTION: Be sure the insulated jumper wire is dressed so the

it does not touch components or sharp edges.

Only for training and service purposes - 6 -

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement.

1. Application range

This spec sheet is applied all of the 19”, 22”, 26”, 32” LCD TV

with LA04A chassis.

2. Requirement for Test

Each part is tested as below without special appointment.

1) Temperature: 25±5ºC, (77°±9ºF), CST: 40±5°C

2) Relative Humidity: 65±10%

3) Power Voltage : Standard input voltage(100-240V~, 50/60Hz)

* Standard Voltage of each product is marked by models

4) Specification and performance of each parts are followed

each drawing and specification by part number in

accordance with BOM.

5) The receiver must be operated for about 20 minutes prior to

the adjustment.

3. Test method

1) Performance: LGE TV test method followed

2) Demanded other specification

- Safety : UL, CSA, IEC specification

- EMC: FCC, ICES, IEC specification

Model Market Appliance

19LD350-UB North America Safety : UL1492, CSA C22.2.No.1,

22LD350-UB EMC : FCC Class B, IEC Class B

26LD350-UB

32LD350-UB

4. General Specification(TV)

No Item Specification Remark

1 Receivable System 1) ATSC / NTSC-M

2 Available Channel VHF : 02 ~ 13

UHF : 14 ~ 69

DTV : 02 ~ 69

CATV : 01 ~ 135

CADTV : 01 ~ 135

3 Input Voltage 1) AC 100 ~ 240V 50/60Hz

4 Market North America

5 Screen Size 19 inch Wide(1366x 768) HD 19LD350-UB

22 inch Wide(1366x 768) HD 22LD350-UB

26 inch Wide(1366x 768) HD 26LD350-UB

32 inch Wide(1366x 768) HD 32LD350-UB

6 Aspect Ratio 16:9

7 Tuning System FS

8 LCD Module CMO 18.5 HD 60 CCFL CMO

LC190WH1-TLC1 LGD(V4)

CMO 21.6 HD 60 CCFL CMO

LC220WXE-TBA1 LGD(V4)

Sharp 26 HD 60 CCFL Sharp

T260XW04-V3 AUO

T315XW03-V1 AUO

9 Operating Environment Temp : 0 ~ 40 deg

Humidity : ~ 80 %

10 Storage Environment Temp : -20 ~ 60 deg

Humidity : -85 %

Only for training and service purposes

5. Chrominance & Luminance

5.1. 32LD350-UB (AUO)

No. Item Min Typ Max Unit Remarks

1 Max Luminance

Module

245 294 cd/m2

(Center 1-point / Full White Pattern) Set 300 380

2 Luminance uniformity

3 Color coordinate RED X Typ. 0.64 Typ.

(Default) Y -0.03 0.33 +0.03

GREEN X 0.29

Y 0.60

BLUE X 0.15

Y 0.05

WHITE X 0.28

Y 0.29

4 Contrast ratio 1680:1 2100:1

10000:1 15000:1

6 Color Temperature Cool x:0.267 x:0.269 x:0.271 oK The W/B Tolerance is

y:0.271 y:0.273 y:0.275 ±0.015 for Adjustment

Medium x:0.283 x:0.285 x:0.287

y:0.291 y:0.293 y:0.295

Warm x:0.311 x:0.313 x:0.315

y:0.327 y:0.329 y:0.331

Only for training and service purposes

6. Component Video Input (Y, CB/PB, CR/PR)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed

1. 720*480 15.73 60 13.5135 SDTV ,DVD 480I

2. 720*480 15.73 59.94 13.5 SDTV ,DVD 480I

3. 720*480 31.50 60 27.027 SDTV

4. 720*480 31.47 59.94 27.0 SDTV

5. 1280*720 45.00 60.00 74.25 HDTV

6. 1280*720 44.96 59.94 74.176 HDTV

7. 1920*1080 33.75 60.00 74.25 HDTV

8. 1920*1080 33.72 59.94 74.176 HDTV

9. 1920*1080 67.500 60 148.50 HDTV

10. 1920*1080 67.432 59.94 148.352 HDTV

11. 1920*1080 27.000 24.000 74.25 HDTV

12. 1920*1080 26.97 23.976 74.176 HDTV

13. 1920*1080 33.75 30.000 74.25 HDTV

14. 1920*1080 33.716 29.97 74.176 HDTV

7. RGB Input (PC)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed

PC DDC

1 640*350 31.469 70.08 25.17 EGA X

2 720*400 31.469 70.08 28.32 DOS O

3 640*480 31.469 59.94 25.17 VESA(VGA) O

4 800*600 37.879 60.31 40.00 VESA(SVGA) O

5 1024*768 48.363 60.00 65.00 VESA(XGA) O

7 1280*768 47.776 59.87 79.50 CVT(WXGA) X

8 1360*768 47.720 59.799 84.75 CVT(WXGA) O

Only for training and service purposes - 9 -

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed

PC DDC

1 640*350 31.469 70.08 25.17 EGA X

2 720*400 31.469 70.08 28.32 DOS O

3 640*480 31.469 59.94 25.17 VESA(VGA) O

4 800*600 37.879 60.31 40.00 VESA(SVGA) O

5 1024*768 48.363 60.00 65.00 VESA(XGA) O

6 1280*768 47.776 59.87 79.50 CVT(WXGA) X

7 1360*768 47.720 59.799 84.75 CVT(WXGA) O

DTV

1 720*480 31.5 60 27.027 SDTV 480P

2 720*480 31.47 59.94 27.00 SDTV 480P

3 1280*720 45.00 60.00 74.25 HDTV 720P

4 1280*720 44.96 59.94 74.176 HDTV 720P

5 1920*1080 33.75 60.00 74.25 HDTV 1080I

6 1920*1080 33.72 59.94 74.176 HDTV 1080I

7 1920*1080 67.500 60 148.50 HDTV 1080P

8 1920*1080 67.432 59.939 148.352 HDTV 1080P

9 1920*1080 27.000 24.000 74.25 HDTV 1080P

10 1920*1080 26.97 23.976 74.176 HDTV 1080P

11 1920*1080 33.75 30.000 74.25 HDTV 1080P

12 1920*1080 33.716 29.97 74.176 HDTV 1080P

8. HDMI input (PC/DTV)

Only for training and service purposes - 10 -

ADJUSTMENT INSTRUCTION

1. Application range

This spec. sheet applies to LA04A Chassis applied LCD TV all

models manufactured in TV factory

2. Specification

2.1 Because this is not a hot chassis, it is not necessary

to use an isolation transformer. However, the use of

isolation transformer will help protect test instrument.

2.2 AdjThe adjustment must be performed in the

circumstance of 25 ±5 C of temperature and

65±10% of relative humidity if there is no specific

designation.

2.4 The input voltage of the receiver must keep

100~240V, 50/60Hz.

2.5 The receiver must be operated for about 5 minutes

prior to the adjustment when module is in the

circumstance of over 15

In case of keeping module is in the circumstance of

0°C, it should be placed in the circumstance of above

15°C for 2 hours

In case of keeping module is in the circumstance of

below -20°C, it should be placed in the circumstance of

above 15°C for 3 hours,.

Caution) When still image is displayed for a period of 20

minutes or longer (especially where W/B scale is

strong. Digital pattern 13ch and/or Cross hatch

pattern 09ch), there can some afterimage in the

black level area.

3. Adjustment items

3.1 Board Level Adjustment

•Adjust 480i Comp1(ADC)

•EDID/DDC download

Above adjustment items can be also performed in Final

Assembly if needed. Both Board-level and Final assembly

adjustment items can be check using In-Star Menu 1.ADJUST

CHECK. Component 1080p and RGB-PC Adjust will be

calculated by 480i adjust value.

3.2 Final assembly adjustment

•White Balance adjustment

•RS-232C functionality check

•Factory Option setting per destination

•Ship-out mode setting (In-Stop)

3.3 Etc

•Ship-out mode

•Service Option Default

•USB Download(S/W Update, Option, Service only)

•ISP Download (Optional)

4. Automatic Adjustment

4.1. ADC Adjustment

(1) Overview

ADC adjustment is needed to find the optimum black level

and gain in Analog-to-Digital device and to compensate

RGB deviation.

(2) Equipment & Condition

1) Jig (RS-232C protocol)

2) MSPG-925 Series Pattern Generator(MSPG-925FA)

- Resolution : 480i Comp1 (MSPG-925FA: model-209,

pattern-65)

- Resolution : 1024*768 RGB (Inner Pattern)

- Pattern : Horizontal 100% Color Bar Pattern

- Pattern level : 0.7±0.1 Vp-p

- Image

(3) Adjustment

1) Adjustment method

- Using RS-232, adjust items listed in 3.1 in the other

shown in “4.1.3.3”

2) Adj. protocol

Ref.) ADC Adj. RS232C Protocol_Ver1.0

3) Adj. order

- aa 00 00 [Enter ADC adj. mode]

- xb 00 40 [Change input source to Component1(480i)]

- ad 00 10 [Adjust 480i Comp1]

- xb 00 60 [Change input source to RGB(1024*768)]

- ad 00 10 [Adjust 1024*768 RGB]

- ad 00 90 End adj.

Protocol Command Set ACK

Enter adj. mode aa 00 00 a 00 OK00x

Source change xb 00 40 b 00 OK40x (Adjust 480i Comp1 )

xb 00 60 b 00 OK60x (Adjust 1024*768 RGB)

Begin adj. ad 00 10

Return adj. result OKx (Case of Success)

NGx (Case of Fail)

Read adj. data (main) (main)

ad 00 20 000000000000000000000000007c007b006dx

(sub) (Sub)

ad 00 21 000000070000000000000000007c00830077x

Confirm adj. ad 00 99 NG 03 00x (Fail)

NG 03 01x (Fail)

NG 03 02x (Fail)

OK 03 03x (Success)

End adj. aa 00 90 a 00 OK90x

Only for training and service purposes

5. Manual Adjustment

5.1. ADC(Saturn5) Adjustment

(1) Overview

ADC adjustment is needed to find the optimum black level

and gain in Analog-to-Digital device and to compensate

RGB deviation.

(2) Equipment & Condition

1) Adjust Remocon

2) 801GF(802B, 802F, 802R) or MSPG925FA Pattern

Generator

- Resolution: 480i, 1024*768

- Pattern : Horizontal 100% Color Bar Pattern

- Pattern level: 0.7±0.1 Vp-p

- Image

3) Must use standard cable

(3) Adjust method

• ADC 480i/1080p Comp1, RGB

1) Check connected condition of Comp1 cable to the

equipment

2) Give a 480i Mode, Horizontal 100% Color Bar Pattern

to Comp1.

(MSPG-925FA -> Model: 209, Pattern: 65)

3) Change input mode as Component1 and picture mode

as “Standard”

4) Press the In-start Key on the ADJ remote after at least

1 min of signal reception. Then, select 5.ADC

Calibration. And Press OK Button on the menu “Start”.

The adjustment will start automatically.

5) If ADC Comp 480i is successful, “ADC Component

Success” is displayed and Comp480i/1080p is

completed.

If ADC calibration is failure, “ADC Component Fail” is

displayed.

6) If ADC calibration is failure, after rechecking ADC

pattern or condition, retry calibration

7) After completing ADC Component, input mode will be

changed to RGB automatically.

8) If ADC calibration is successful, “ADC RGB Success”

is displayed. If ADC calibration is failure, “ADC RGB

Fail” is displayed.

9) If ADC calibration is failure, after recheck ADC pattern

or condition, retry calibration

5.2 EDID/DDC Download

(1) Overview

It is a VESA regulation. A PC or a MNT will display an

optimal resolution through information sharing without any

necessity of user input. It is a realization of “Plug and Play”.

(2) Equipment

• Adjust remocon.

• Since embedded EDID data is used, EDID download JIG,

HDMI cable and D-sub cable are not need.

(3) Download method

1) Press Adj. key on the Adj. R/C,

2) Select EDID D/L menu.

3) By pressing Enter key, EDID download will begin

4)If Download is successful, OK is display, but If

Download is failure, NG is displayed.

5) If Download is failure, Re-try downloads.

•Caution) When EDID Download, must remove RGB/HDMI

Cable.

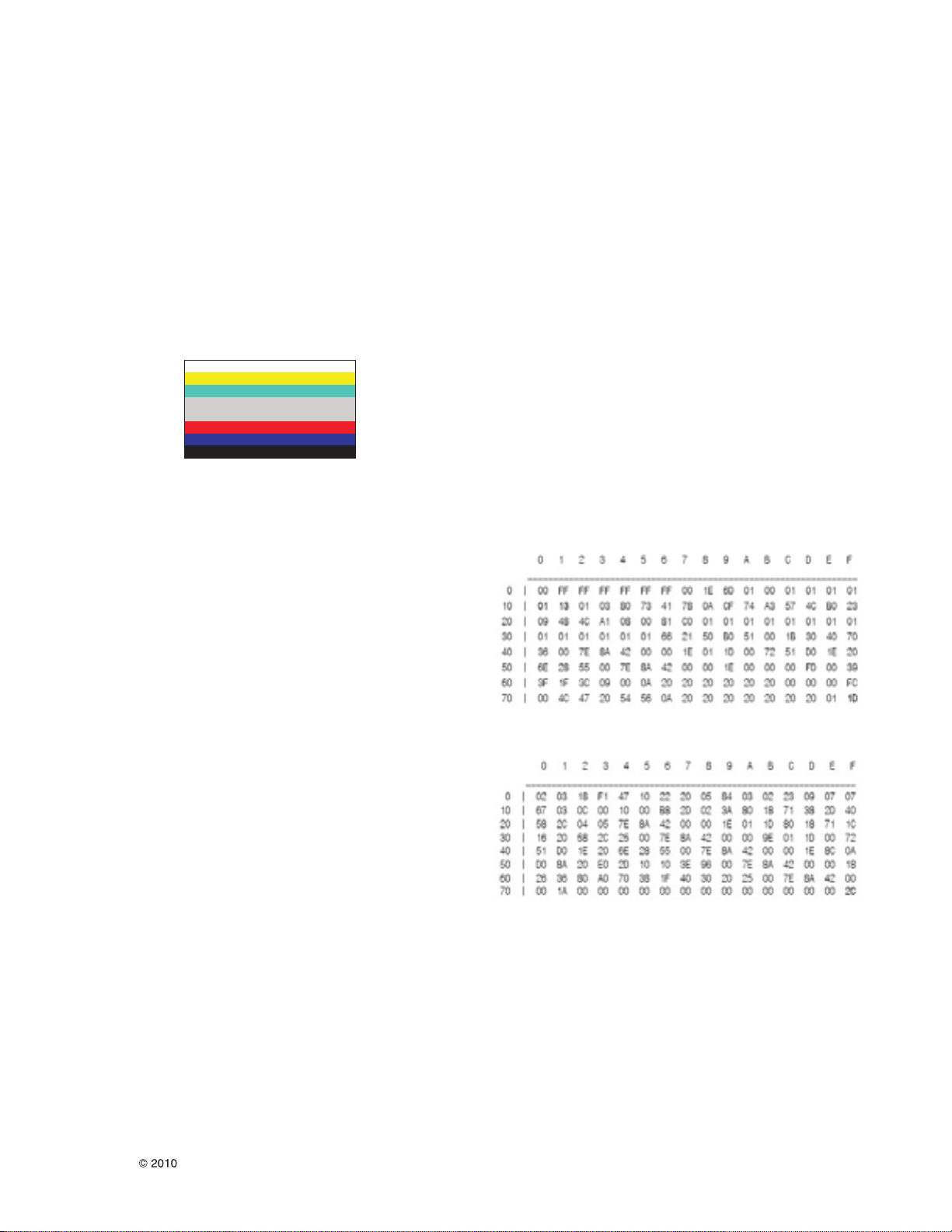

(4) EDID DATA

1)LD350 Tool(HD)

• HDMI I [C/S: XXBA]

EDID Block 0 table =

EDID Block 1 table =

Only for training and service purposes

• HDMI II [C/S: XXAA]

EDID Block 0 table =

EDID Block 1 table =

• RGB [C/S: XX]

EDID Block 0 table =

5.3. White Balance Adjustment

(1) Overview

• W/B adj. Objective & How-it-works

- Objective: To reduce each Panel’s W/B deviation

- How-it-works: When R/G/B gain in the OSD is at 192, it

means the panel is at its Full Dynamic

Range. In order to prevent saturation of

Full Dynamic range and data, one of

R/G/B is fixed at 192, and the other two is

lowered to find the desired value.

- Adj. condition : normal temperature

1) Surrounding Temperature: 25±5ºC

2) Warm-up time: About 5 Min

3) Surrounding Humidity: 20% ~ 80%

(2) Equipment

1) Color Analyzer: CA-210 (NCG: CH 9 / WCG: CH12)

2) Adj. Computer(During auto adj., RS-232C protocol is

needed)

3) Adjust Remocon

4) Video Signal Generator MSPG-925F 720p/216-Gray

(Model:217, Pattern:78)

-> Only when internal pattern is not available

• Color Analyzer Matrix should be calibrated using CS-1000

(3) Equipment connection MAP

(4) Adj. Command (Protocol)

1) RS-232C Command used during auto-adj.

Ex) wb 00 00 -> Begin white balance auto-adj.

wb 00 10 -> Gain adj.

ja 00 ff -> Adj. data

jb 00 c0

...

wb 00 1f -> Gain adj. complete

*(wb 00 20(start), wb 00 2f(end)) -> Off-set adj.

wb 00 ff -> End white balance auto adj.

Color Analyzer

Computer

Pattern Generator

RS-232C

Probe

Signal Source

* If TV internal pattern is used, not needed

Connection Diagram of Automatic Adjustment

RS-232C COMMAND Meaning

[CMD ID DATA]

wb 00 00 Begin White Balance adj.

wb 00 ff End White Balance adj.(Internal pattern disappeared)

70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 00 71

Only for training and service purposes

2) Adjustment Map

Applied Model : 19LD350-UB, 22LD350-UB, 26LD350-UB,

32LD350-UB

(5) Adj. method

•Auto adj. method

1) Set TV in adj. mode using POWER ON key

2) Zero calibrate probe then place it on the center of the

Display

3) Connect Cable(RS-232C)

4) Select mode in adj. Program and begin adj.

5) When adj. is complete (OK Sing), check adj. status pre

mode (Warm, Medium, Cool)

6) Remove probe and RS-232C cable to complete adj.

* W/B Adj. must begin as start command “wb 00 00”, and

finish as end command “wb 00 ff”, and Adj. offset if

need

•Manual adj. method

1) Set TV in Adj. mode using POWER ON

2) Zero Calibrate the probe of Color Analyzer, then place

it on the center of LCD module within 10cm of the

surface..

3) Press ADJ key -> EZ adjust using adj. R/C > 6. White-

Balance then press the cursor to the right (KEYG).

(When KEY(G) is pressed 216 Gray internal pattern

will be displayed)

4) One of R Gain / G Gain / B Gain should be fixed at

192, and the rest will be lowered to meet the desired

value.

5) Adj. is performed in COOL, MEDIUM, WARM 3 modes

of color temperature.

- If internal pattern is not available, use RF input. In EZ

Adj. menu 6.White Balance, you can select one of 2

Test-pattern: ON, OFF. Default is inner(ON). By

selecting OFF, you can adjust using RF signal in 216

Gray pattern.

* Adj. condition and cautionary items

1) Lighting condition in surrounding area

Surrounding lighting should be lower 10 lux. Try to

isolate adj. area into dark surrounding.

2) Probe location

- LCD: Color Analyzer (CA-210) probe should be

within 10cm and perpendicular of the module

surface (80°~ 100°)

3) Aging time

- After Aging Start, Keep the Power ON status during 5

Minutes.

- In case of LCD, Back-light on should be checked

using no signal or Full-white pattern.

(6) Reference (White Balance Adj. coordinate and color

temperature)

•Luminance: 216 Gray

•Standard color coordinate and temperature using CS-

1000 (over 26 inch)

•26/32LD350-UB

•19/22LD350-UB (Small size panel have different color

coordinate)

•Standard color coordinate and temperature using CA-

210(CH 9)

•26/32LD350-UB

•19/22LD350-UB (Small size panel have different color

coordinate)

ITEM Command Data Range Default

(Hex.) (Decimal)

Cmd 1 Cmd 2 Min Max

Cool R-Gain j g 00 C0

G-Gain j h 00 C0

B-Gain j i 00 C0

R-Cut

G-Cut

B-Cut

Medium R-Gain j a 00 C0

G-Gain j b 00 C0

B-Gain j c 00 C0

R-Cut

G-Cut

B-Cut

Warm R-Gain j d 00 C0

G-Gain j e 00 C0

B-Gain j f 00 C0

R-Cut

G-Cut

Mode Color Coordination Temp ∆UV

COOL 0.269 0.273 13000K 0.0000

MEDIUM 0.285 0.293 9300K 0.0000

WARM 0.313 0.329 6500K 0.0000

Mode Color Coordination Temp ∆UV

COOL 0.285 0.293 9300K 0.0000

MEDIUM 0.295 0.305 8000K 0.0000

WARM 0.313 0.329 6500K 0.0000

Mode Color Coordination Temp ∆UV

COOL 0.269±0.002 0.273±0.002 13000K 0.0000

MEDIUM 0.285±0.002 0.293±0.002 9300K 0.0000

WARM 0.313+0.002 0.329±0.002 6500K 0.0000

Mode Color Coordination Temp ∆UV

COOL 0.285±0.002 0.293±0.002 9300K 0.0000

MEDIUM 0.295±0.002 0.305±0.002 8000K 0.0000

WARM 0.313+0.002 0.329±0.002 6500K 0.0000

- 14 -

5.4. HDCP SETTING

- HDCP setting is not necessary in Saturn5 model.

5.5 Option selection per country

(1) Overview

- Option selection is only done for models in Non-USA

North America due to rating

-Applied model: LA92A Chassis applied None USA

model(CANADA, MEXICO)

(2) Method

1) Press ADJ key on the Adj. R/C, then select Country

Group Menu

2) Depending on destination, select KR or US, then on the

lower Country option, select US, CA, MX. Selection is

done using +, - KEY

5.6. Tool Option selection

•Method: Press Adj. key on the Adj. R/C, then select Tool

option.

5.7. Ship-out mode check (In-stop)

•After final inspection, press In-Stop key of the Adj. R/C and

check that the unit goes to Stand-by mode.

•After final inspection, Always turn on the Mechanical S/W.

6. GND and Internal Pressure check

6.1. Method

1) GND & Internal Pressure auto-check preparation

- Check that Power Cord is fully inserted to the SET.

(If loose, re-insert)

2) Perform GND & Internal Pressure auto-check

- Unit fully inserted Power cord, Antenna cable and A/V

arrive to the auto-check process.

- Connect D-terminal to AV JACK TESTER

- Auto CONTROLLER(GWS103-4) ON

- Perform GND TEST

- If NG, Buzzer will sound to inform the operator.

- If OK, changeover to I/P check automatically.

(Remove CORD, A/V form AV JACK BOX)

- Perform I/P test

- If NG, Buzzer will sound to inform the operator.

- If OK, Good lamp will lit up and the stopper will allow the

pallet to move on to next process.

6.2. Checkpoint

•TEST voltage

- GND: 1.5KV/min at 100mA

- SIGNAL: 3KV/min at 100mA

•TEST time: 1 second

•TEST POINT

- GND TEST = POWER CORD GND & SIGNAL CABLE

METAL GND

- Internal Pressure TEST = POWER CORD GND & LIVE &

NEUTRAL

•LEAKAGE CURRENT: At 0.5mArms

Only for training and service purposes

Model Tool 1 Tool 2 Tool 3 Tool 4 Menu

19LD350(CMO) 1 HDMI

19LD350(LGD) 2689 548 1442 1824 1 HDMI

22LD350(CMO) 1HDMI

22LD350(LGD) 6785 548 1442 1824 1 HDMI

26LD350(Sharp) 2HDMI

26LD350(AUO) 10897 1576 1442 1824 2 HDMI

32LD350(AUO) 19089 1576 34210 1824 2 HDMI

Only for training and service purposes - 15 -

7. USB S/W Download (option)

(1) Put the USB Stick to the USB socket

(2) Automatically detecting update file in USB Stick

- If your downloaded program version in USB Stick is Low,

it didn’t work.

But your downloaded version is High, USB data is

automatically detecting

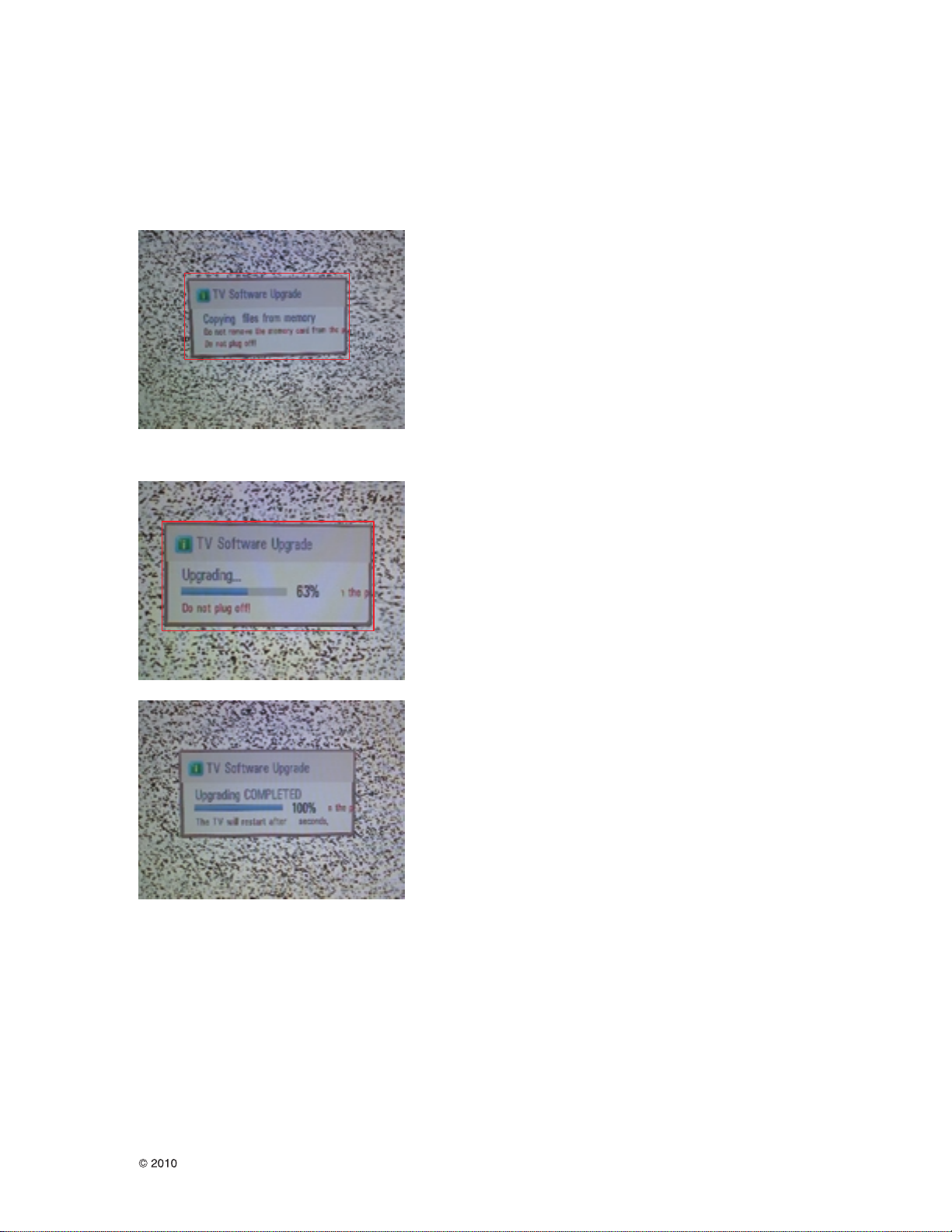

(3) Show the message “Copying files from memory”

(4) Updating is staring.

(5) Updating Completed, The TV will restart automatically

(6) If your TV is turned on, check your updated version and

Tool option. (explain the Tool option, next stage)

* If downloading version is more high than your TV have,

TV can lost all channel data. In this case, you have to

channel recover. if all channel data is cleared, you didn’t

have a DTV/ATV test on production line.

* After downloading, have to adjust TOOL OPTION again.

1) Push "IN-START" key in service remote controller.

2) Select "Tool Option 1" and Push “OK”button.

3) Punch in the number. (Each model has their number.)

Only for training and service purposes - 16 -

300

500

510

120

A10

200 800

530

550

810

900

910

540

521

400

A21

A2 A5

LV1

EXPLODED VIEW

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These

parts are identified by in the Schematic Diagram and EXPLODED VIEW.

It is essential that these special safety parts should be replaced with the same components as

recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.

Do not modify the original design without permission of manufacturer.

IMPORTANT SAFETY NOTICE

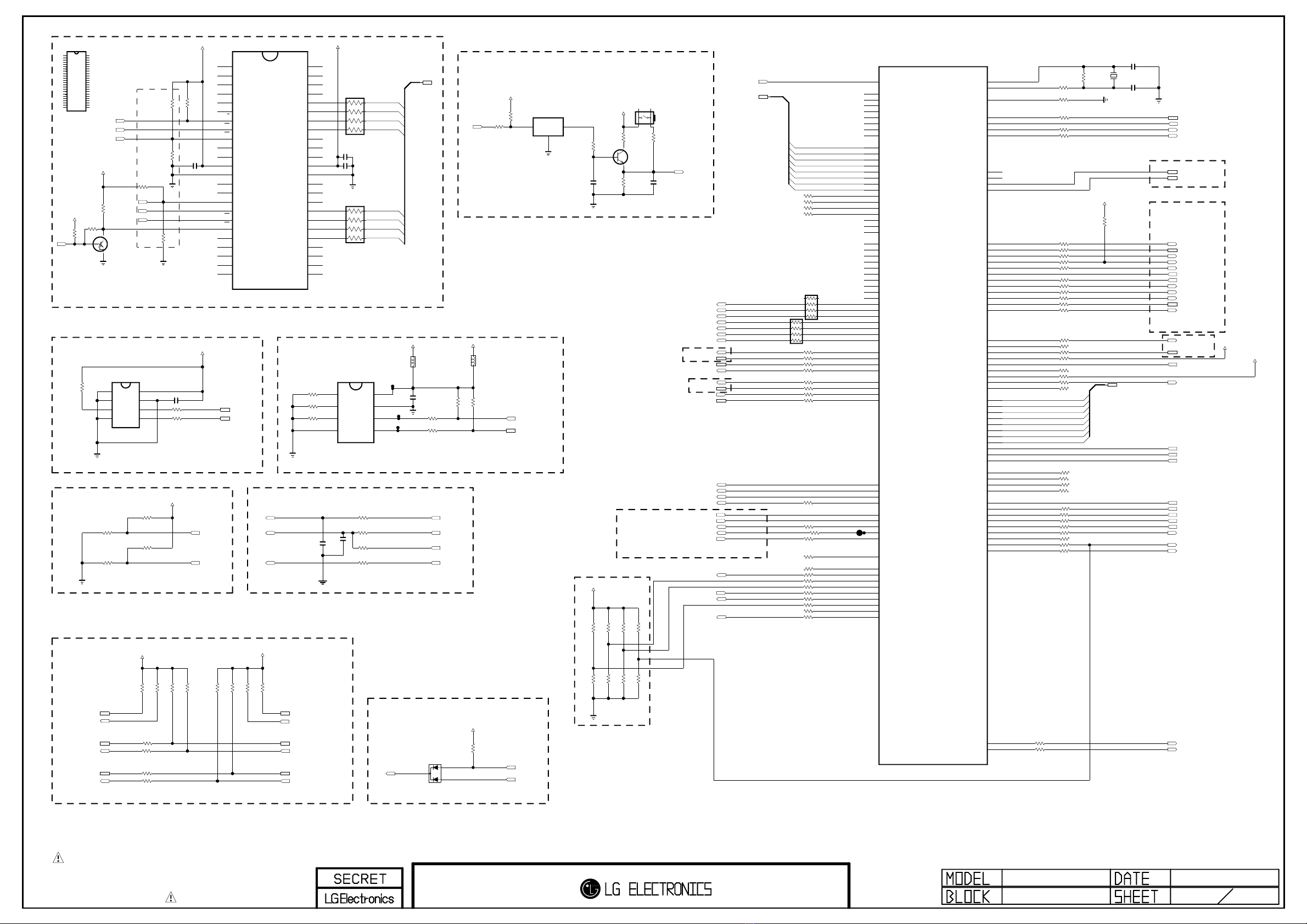

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

MMAIN_SOC_1

TS_DATA[0]

TS_DATA[3]

TS_DATA[4]

TS_DATA[2]

TS_DATA[6]

TS_DATA[5]

TS_DATA[7]

TS_DATA[1]

PCM_A[0]

PCM_A[4]

PCM_A[5]

PCM_A[3]

PCM_A[1]

PCM_A[2]

PCM_A[6]

PCM_A[7]

PCM_A[3]

PCM_A[2]

PCM_A[4]

PCM_A[6]

PCM_A[5]

PCM_A[1]

PCM_A[0]

R2104 0

FE_DEMOD_SCL

010:AK22

SCL1

001:AR30

SCL0

001:AB28

FE_TUNER_SCL

001:AQ29;010:Q25

R2100 0 SDA0

001:AB28

SCL_SUB/AMP

004:J28;006:K12

+3.3V_Normal

+5V_Normal

R2105 0

R2101 0

FE_DEMOD_SDA

010:AK21

FE_TUNER_SDA

001:AQ28;010:Q24

SDA_SUB/AMP

004:J27;006:K12

SDA1

001:AR30

PWM1

001:AB24;001:AL12

R147 1K

OPT

R150 1K

+3.3V_Normal

PWM0

001:AB24;001:AL12

R118

4.7K

OPT

R132

4.7K

OPT

R148 1K

OPT

R151 1K

C100

0.1uF

R157

OPT

R156 1K

PF_WP

001:AB29

R158 3.9K

+3.3V_Normal

/PF_OE

001:AB29

IC102

HY27US08121B-TPCB

HYNIX

26 NC_17

27 NC_18

28 NC_19

29 I/O0

30 I/O1

31 I/O2

32 I/O3

33 NC_20

34 NC_21

35 NC_22

36 VSS_2

37 VCC_2

38 PRE

39 NC_23

40 NC_24

41 I/O4

42 I/O5

43 I/O6

44 I/O7

45 NC_25

46 NC_26

47 NC_27

48 NC_28

ALE

NC_3

NC_6

CLE

NC_10

NC_9

VSS_1

VCC_1

NC_8

NC_7

R/B

NC_4

NC_5

25 NC_16

NC_15

NC_14

NC_2

NC_13

NC_12

NC_1

NC_11

R153

10K

+3.3V_Normal

R154

OPT C162 0.1uF

C131 0.1uF

/PF_CE0

001:AB30

PF_ALE

001:AB29

+3.3V_Normal

/PF_WE

001:AB29

/F_RB

001:AB29

/PF_CE1

001:AB30

R155

C161

10uF 6.3V

D102

ENKMC2838-T112

+3.5V_ST

NTP_MUTE

001:AB20

AMP_MUTE 006:W10 SB_MUTE

001:AA22;001:AR32

R245 100

SDA0 001:AN7

ERROR_OUT 007:M20

INV_CTL

007:M21

R238 100

RL_ON

004:E21

R201 100

R243 100

KEY2 004:B27;004:D11

R221 100

R200 100

C182

1uF

OPT

USB_CTL

004:AL28

R232 0

R196 100

OPT

/PF_WE 001:T7

R249 100

S5/S6_Reset 001:V17

Flash_WP_1

001:C11

TP806 R250 100

R185 1.2K

R253

10K

SDA1

001:AN6

IR 004:I24;004:AD4

TS_CLK

010:AC19;010:AK19

A_DIM

007:A23

SPI_CS

001:E12

PF_WP 001:Q7

NTP_MUTE 001:H15

R224 100

R242 100

R191 22

PWM0 001:N11;001:AL12

ISP_TXD 001:AR31;004:AB26

R227 33

PANEL_CTL

007:R23

PWM1

001:N10;001:AB24

AMP_RST 006:K19

FE_TUNER_SCL

001:AI8;010:Q25

TS_VALID

010:AC20;010:AK19

SCL1

001:AN6

/PF_CE0 001:S10

R237 100

R225 33

+3.5V_ST

SCL0 001:AN6

R226 33

R248 100

R195 100

R235 100 SIDE_AV_OPT

R220 100

PF_ALE 001:T8

R193 0

R192 22

PWM1 001:N10;001:AL12

R244 100

R252

/PF_OE 001:S10

TS_SYNC

010:AC19;010:AK20

R251 100

SPI_CK

001:I11

USB_OCD

004:AN27;004:AN28

C181

1uF

KEY1 004:B28;004:D12

PWM0

001:N11;001:AB24

ISP_RXD 004:AB26

R219 100

SPI_DO

001:E11

PWM_DIM

007:N19;008:V15;008:AE24

DBG_RX

001:AB27;004:AE8

R231 0

/F_RB 001:S11

EEPROM_SDA 001:H5;001:O16;001:AO8

FE_TUNER_SDA

001:AI8;010:Q24

EEPROM_SCL 001:H6;001:O16;001:AO8

POWER_ON/OFF1

007:O27;007:Q25;004:E21;010:AG9

EEPROM_WP

005:AH25;005:AH19;005:AH13;004:AB27

/PF_CE1 001:T8

SPI_DI

001:I10

TS_DATA[0-7]

010:AD18

R2160 22

19"~22"

R255 100

R267 22 HDMI_1

R268 22 HDMI_2

EEPROM_SDA

001:H5;001:O16;001:AB28

EEPROM_SCL

001:H6;001:O16;001:AB28

R2172 33

OPT

R2123 33

OPT

R2124 33

OPT

R2175 100

OPT

R2173 100

OPT

R2176 100

OPT

R2174 100

OPT

R2185 22

R2186 22 HDMI_4

R2187 22

OPT

R2188 100

R2189 100

R2190 0

R2193 100

R2194 22

DSUB_DET

004:AC22

SIDE_USB_DP

004:AK26

SIDE_USB_DM

004:AK26

EEPROM_SCL

001:O16;001:AB28;001:AO8

EEPROM_SDA

001:O16;001:AB28;001:AO8

AV_CVBS_DET

004:F5

R110 100

R2127

R2125

R2126

R178 33

OPT

SB_MUTE 001:H16;001:AR32

SIDEAV_DET

004:AN15

R111 100

OPT

TUNER_RESET

010:D13

VSB_RESET

010:AJ26

POWER_ON/OFF2_1

007:AH18;007:AN26

R112 0

R179 22

OPT

X100

12MHz

R186 100

OPT

R2111

R2112 33

R180

PCM_A[0-7]

EEPROM_SCL

001:H6;001:AB28;001:AO8

IC105

CAT24WC08W-T

VSS

5SDA

6SCL

7WP

8VCC

R182 22

C197 0.1uF

R106

4.7K

R181 22

EEPROM_SDA

001:H5;001:AB28;001:AO8

+3.3V_Normal

DBG_RX

DBG_TX

R183 22

R184 22

COMP1_DET

004:Y4

5V_DET_HDMI_4

5V_DET_HDMI_2

R197

4.7K

OPT

R2106

4.7K

OPT

L105

OPT

L104

+5V_Normal

R189 100 PWM2

001:AB23

PWM2 001:AL12

R284

0OPT

+3.5V_ST

R28310K FHD

R287 0

R286 0

Normal LED

R28110K

R28210K

Moving LED

R28010K

R285

0FHD

R218 0

R215 0

R216 0

R217 0

R239 0

R240 0

R202 0

R203 0

R2191 0

+3.5V_ST

R258

10K

OPT Q101

KRC103S

OPT

R2108 1.2K

R2107 1.2K

R2110 1.2K

R2109 1.2K

+3.5V_ST

C121

10uF

6.3V

Q108

2SC3052

C120

4.7uF

10V

S5/S6_Reset

SW100

4 3

R135

100

R228

100

R133

10K

R134

10K

+3.5V_ST

IC104

AT24C512BW-SH-T

GND

5SDA

6SCL

7WP

8VCC

R131

3.3K

R2222 100 POWER_DET

R2221 100 DBG_TX

IC100

MSD3159GV

HWRESET

PCMD0/CI_D0

AC16

PCMD1/CI_D1

AA15

PCMD2/CI_D2

AA16

PCMD3/CI_D3

AC6

PCMD4/CI_D4

Y10

PCMD5/CI_D5

Y11

PCMD6/CI_D6

Y12

PCMD7/CI_D7

Y13

PCM_A0/CI_A0

AB16

PCM_A1/CI_A1

AC15

PCM_A2/CI_A2

AC14

PCM_A3/CI_A3

AB14

PCM_A4/CI_A4

AC12

PCM_A5/CI_A5

AB8

PCM_A6/CI_A6

AC13

PCM_A7/CI_A7

AA9

PCM_A8/CI_A8

AB5

PCM_A9/CI_A9

AA4

PCM_A10/CI_A10

PCM_A11/CI_A11

PCM_A12/CI_A12

AB9

PCM_A13/CI_A13

AA7

PCM_A14/CI_A14

AD6

PCM_RST/CI_RST

AA14

PCM_CD/CI_CD

AB18

/PCM_OE

PCM_REG/CI_CLK

AB15

PCM_WAIT/CI_WACK

AA10

/PCM_IRQA

AC8

/PCM_WE

AC7

PCM_IOWR/CI_WR

AA5

PCM_IOR/CI_RD

/PCM_CE

/PF_CE0

AE6

/PF_CE1

AF6

/PF_OE

AA12

/PF_WE

AA11

PF_ALE

AC9

PF_AD15

Y14

F_RBZ

AB11

UART2_TX/SCKM

UART2_RX/SDAM

D11

DDCR_DA

AB21

DDCR_CK

AC21

DDCA_CLK

DDCA_DA

UART_RX2

UART_TX2

PWM0

AB13

PWM1

AB12

PWM2

AD12

PWM3

AA13

SAR0

SAR1

SAR2

SAR3

IRIN

GPIO44

AC11

GPIO96

GPIO88

D10

GPIO90/I2S_OUT_MUTE

GPIO91

E11

GPIO97

GPIO98

E10

GPIO99

GPIO103/I2S_OUT_SD3

GPIO102

XIN B3

XOUT A3

TESTPIN/GND E6

SPI_DI AE11

SPI_DO AF12

/SPI_CS AE12

SPI_CK AD11

USB_DP_1 B5

USB_DM_1 A5

USB_DM_2 AC10

USB_DP_2 AB10

GPIO_PM0/GPIO134 E5

GPIO_PM1/GPIO135 F5

GPIO_PM2/GPIO136 G5

GPIO_PM3/GPIO137 H5

GPIO_PM4/GPIO138 F6

GPIO_PM5/INT1/GPIO139 G6

GPIO_PM6/INT2/GPIO140 H6

GPIO131/LDE/SPI_WPn1 AC17

GPIO130/LCK AB17

GPIO132/LHSYNC/SPI_WPn AF11

GPIO60/PCM2_RESET/RX1 AA18

GPIO62/PCM2_CD_N/TX1 AA17

LHSYNC2/I2S_OUT_MUTE/RX1 E7

LVSYNC/GPIO133 AC18

GPIO79/LVSYNC2/TX1 C6

UART2_RX/GPIO84 F9

UART2_TX/GPIO85 F10

UART1_RX/GPIO86 A6

UART1_TX/GPIO87 B6

GPIO42/PCM2_CE_N AF5

GPIO43/PCM2_IRQA_N AF10

TS0_D0 AA8

TS0_D1 Y8

TS0_D2 Y9

TS0_D3 AB7

TS0_D4 AA6

TS0_D5 AB6

TS0_D6 U4

TS0_D7 AC5

TS0_SYNC AC4

TS0_VLD AD5

TS0_CLK AB4

TS1_D0 AB19

TS1_SYNC AA20

TS1_VLD AC19

TS1_CLK AA19

ET_TXD0 C10

ET_TXD1 B11

ET_TX_CLK A9

ET_RXD0 C11

ET_RXD1 C9

ET_TX_EN B10

ET_MDC A10

ET_MDIO B9

ET_COL A11

GPIO67 A7

GPIO68 B8

C187 20pF

C186 20pF

IC103

MAX810RTR

GND

VCC 2RESET

R266

3.3K

R260

3.3K

POWER_DET

PWM3 001:AL12

PWM3

001:AB23

LED_B/LG_LOGO

007:N19;008:V15;008:AE24

LED_R/BUZZ 007:A23

R115

100

HP_DET

SIDE_HP_MUTE

POWER_ON/OFF2_2

007:AH18;007:AN26

HP_MUTE

004:AL28

OLP 001:H15

R187

R113

OPT

AR100

AR101

AR103

AR102

IC102-*1

NAND512W3A2CN6E

NUMONIX

26 NC_17

27 NC_18

28 NC_19

29 I/O0

30 I/O1

31 I/O2

32 I/O3

33 NC_20

34 NC_21

35 NC_22

36 VSS_2

37 VDD_2

38 NC_23

39 NC_24

40 NC_25

41 I/O4

42 I/O5

43 I/O6

44 I/O7

45 NC_26

46 NC_27

47 NC_28

48 NC_29

NC_3

NC_6

NC_10

NC_9

VSS_1

VDD_1

NC_8

NC_7

NC_4

NC_5

25 NC_16

NC_15

NC_14

NC_2

NC_13

NC_12

NC_1

NC_11

MAIN_SOC_1

I2C

MCU BOOT STRAP

10 : BOOT 51

11 : BOOT RISC

EEPROM

NAND FLASH MEMORY

/PF_CE0

H : Serial Flash

L : NAND Flash

/PF_CE1

H : 16 bit

L : 8 bit

Audio Mute

USB

ISP Debug port for S5

Stand-by GPIO

Stand-by GPIO(SAR[0-3])

PWM Dimming

Interrupt for ISP Wake up in STB Mode

$0.199

Addr:10101--

HDCP EEPROM

D6 D7 E11 B9

S5 Reset

LD350

----------------------

HIGH LOW

D6 LCD PDP

D7 B_LVDS A_LVDS

E11 MOVING : PWM R/B

B9 FHD HD

----------------------

09.09.03

I2C for Tuner_5V

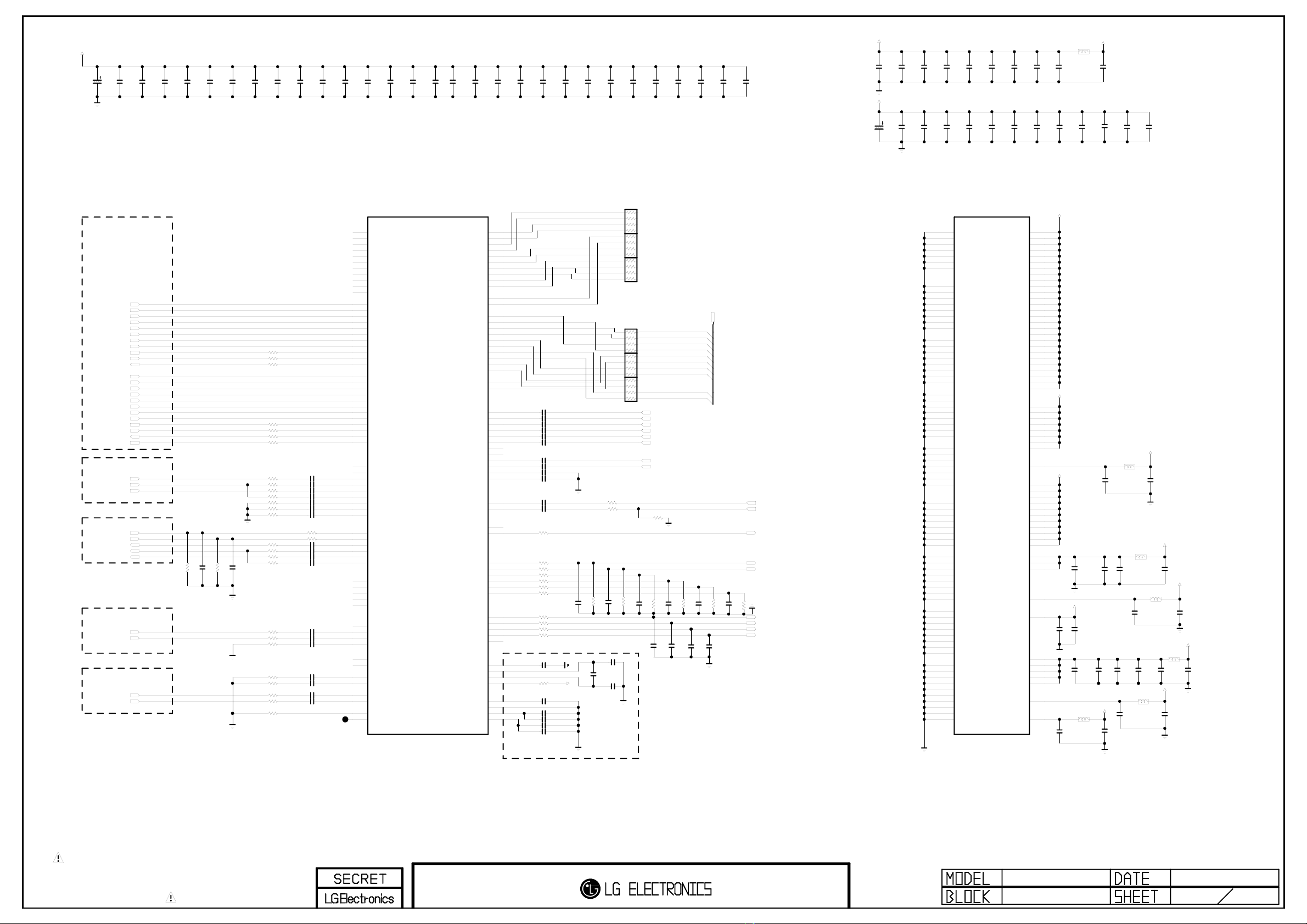

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

Main_SOC_2

TXA3-[3]

TXA3+[2]

TXA4-[1]

TXA4+[0]

TXA2-[7]

TXA2+[6]

TXAC-[5]

TXAC+[4]

TXA1-[9]

TXA1+[8]

C165

330uF

OPT

C185

0.1uF

C180

0.1uF C199

0.1uF C2105

0.1uF

C168

0.1uF C171

0.1uF C174

0.1uF C177

0.1uF C2110

0.1uF

C194

0.1uF

C190

0.1uF

C150

0.1uF

C105 0.047uF

C130 0.1uF

R145 100

C142 2.2uF

C149

0.1uF

C124 0.047uF

C143 2.2uF

C134 2.2uF SIDE_AV_OPT

R122 47

CEC_REMOTE 005:L26

R161 22

R129 47

R170

22K

D0+_HDMI4 005:H6

R149 22

C151

0.01uF

C155

22pF

OPT

C156

0.01uF

OPT

R174

22K

OPT

R127 47

+3.3V_Normal

R140 47

D2-_HDMI4 005:H4

DSUB_HSYNC 004:R23

C113 0.047uF

R160 22

R138 47

R169 100

OPT

R164 100

DSUB_R 004:R20

C148

0.1uF

DDC_SCL_4 005:H8;005:AH13

DSUB_G 004:R21

C102 0.047uF

R139 100 C128 0.1uF

DSUB_B 004:R23

R124 47

C129 10uF 10V

C145 2.2uF

MS_SCK

006:K13

C154

22pF

OPT

R117 100

C108 0.047uF

C144 2.2uF

SPDIF_OUT

006:D6

C103 0.047uF

R177

22K

OPT

HPD4 005:G10

C157

22pF

OPT

R172 47

R107

10K

C139 2.2uF

C118 0.047uF

C153

0.01uF

R125 47

C146 0.1uF

R121 47

R120 47

AUDIO_MASTER_CLK

006:K18

C106 0.047uF

R114 47

SIDE_AV_OPT

R176

22K

OPT

R143 0HDMI_4

R142 0HDMI_4

MS_LRCH

006:K13

DDC_SDA_4 005:H8;005:AH12

FE_SIF

010:P20

C123 0.047uF

CK+_HDMI4 005:H7

R171 47

R109

10K

R173

22K

R162 22

R159 100

C112 0.047uF

SIDE_AV_OPT

R166 100

OPT

D2+_HDMI4 005:H4

R167 100

OPT

R152 390

D0-_HDMI4 005:H6

R165 100

C114 0.047uF

C135 2.2uF SIDE_AV_OPT

D1-_HDMI4 005:H5

D1+_HDMI4 005:H5

C136 2.2uF

C133 4.7uF

C138 2.2uF

R163 22

R146 22

R141 47

C137 2.2uF

C127 0.1uF

C152

22pF

OPT

R128 47

TP803

R168 100

OPT

C132 1uF

AV_CVBS_IN 004:F4

C160

0.01uF

OPT

C122 0.047uF

C119 0.047uF

R137 47

DSUB_VSYNC 004:R24

C101 0.047uF

R175

22K

OPT

C158

0.01uF

OPT

C107 0.047uF

CK-_HDMI4 005:H7

C147 0.1uF

C159

0.01uF

OPT

C125 0.047uF

R126 47

FE_VMAIN 010:S17

AV_R_IN

004:F7

SIDEAV_L_IN

004:AN14

PC_L_IN

004:AO20

SIDEAV_R_IN

004:AN13

AV_L_IN

004:F6

MS_LRCK

006:K13

+1.8V_DDR

VCOMO 010:N15

SIFMO

010:P19

R2122 100

SIDEAV_CVBS_IN 004:AN16

R2116 0HDMI_2

D2-_HDMI2 005:H14

DDC_SDA_2 005:H18;005:AH18

D0+_HDMI2 005:H15

DDC_SCL_2 005:H18;005:AH19

D1+_HDMI2 005:H14

D2+_HDMI2 005:H13

D0-_HDMI2 005:H16

CK-_HDMI2 005:H17

D1-_HDMI2 005:H15

HPD2 005:H19

CK+_HDMI2 005:H16

R2117 0HDMI_2

AR109

AR107

AR108

AR106

FHD

AR105

FHD

AR104

FHD

TXA0+[10],TXA0-[11],TXA1+[8],TXA1-[9],TXA2+[6],TXA2-[7],TXA3+[2],TXA3-[3],TXA4+[0],TXA4-[1],TXAC+[4],TXAC-[5]

PC_R_IN

004:AO21

COMP1_Y 004:Y4

COMP1_PB 004:Y5

COMP1_PR 004:Y6

COMP1_L_IN

004:Y7 COMP1_R_IN

004:Y8

R123 470

R130 470 C109 1000pF

C104 1000pF

C2111

10uF

R2220 0

MSD3159GV

IC100

RXACKP

RXACKN

RXA0P

RXA0N

RXA1P

RXA1N

RXA2P

RXA2N

DDCD_A_DA

DDCD_A_CK

HOTPLUG_A

RXBCKP

RXBCKN

RXB0P

RXB0N

RXB1P

RXB1N

RXB2P

RXB2N

DDCD_B_DA

DDCD_B_CK

HOTPLUG_B

RXCCKP

AE8

RXCCKN

AD8

RXC0P

AD9

RXC0N

AF8

RXC1P

AF9

RXC1N

AE9

RXC2P

AE10

RXC2N

AD10

DDCD_C_DA

AE7

DDCD_C_CK

AF7

HOTPLUG_C

AD7

CEC

HSYNC0/SC1_ID

VSYNC0/SC1_FB

RIN0P/SC1_R

GIN0P/SC1_G

BIN0P/SC1_B

SOGIN0/SC1_CVBS

RINM

BINM

GINM

HSYNC1/DSUB_HSYNC

VSYNC1/DSUB_VSYNC

RIN1P/DSUB_R

GIN1P/DSUB_G

BIN1P/DSUB_B

SOGIN1

RIN2P/COMP_PR+

GIN2P/COMP_Y+

BIN2P/COMP_PB+

SOGIN2

VSYNC2

CVBS1/SC1_CVBS

CVBS2/SC2_CVBS

CVBS3/SIDE_CVBS

VCOM1

CVBS4/S-VIDEO_Y

CVBS6/S-VIDEO_C

CVBS5

CVBS7

CVBS0/RF_CVBS

VCOM0

CVBSOUT0/SC2_MNTOUT

CVBSOUT1

AA2

LVA0P AE16

LVA0M AD16

LVA1P AD15

LVA1M AF16

LVA2P AF15

LVA2M AE15

LVA3P AD13

LVA3M AF14

LVA4P AF13

LVA4M AE13

LVACKP AE14

LVACKM AD14

LVB0P AE20

LVB0M AD20

LVB1P AD19

LVB1M AF20

LVB2P AF19

LVB2M AE19

LVB3P AD17

LVB3M AF18

LVB4P AF17

LVB4M AE17

LVBCKP AE18

LVBCKM AD18

AUR0 AA3

AUL0 Y1

AUR1 AE1

AUL1 AF3

AUR2 AE3

AUL2 AE2

AUR3 AA1

AUL3 AB1

AUR4 AB2

AUL4 AC2

AUR5 AB3

AUL5 AC3

SIF0P W3

SIF0M W2

SPDIF_IN F11

SPDIF_OUT E9

AUOUTR0/HP_ROUT AF1

AUOUTL0/HP_LOUT AF2

AUOUTR1/SC1_ROUT AD3

AUOUTL1/SC1_LOUT AD1

AUOUTR2/SC2_ROUT AC1

AUOUTL2/SC2_LOUT AD2

I2S_OUT_MCK A8

I2S_OUT_WS B7

I2S_OUT_BCK C7

I2S_OUT_SD D8

I2S_IN_SD C8

VCLAMP K4

REFP H4

REFM J4

REXT G4

AUCOM AE5

AUVRM AE4

AUVRP AF4

AUVAG AD4

R144 220 HDMI_4

R2118 220 HDMI_2

C110

68pF C111

68pF

C2124

0.1uF C2133

0.1uF

C198

0.1uF

C170

0.1uF

C2126

0.1uF

C163

330uF

OPT

C2131

0.1uF

C164

0.1uF

C2130

0.1uF

C2129

0.1uF

C2123

0.1uF

C176

0.1uF

L101

BLM18PG121SN1D

C189

0.1uF

+3.3V_Normal

+3.3V_VDDP

C2128

0.1uF

C179

0.1uF

C2109

0.1uF C2120

0.1uF C2135

0.1uF

C193

0.1uF C2119

0.1uF C2125

0.1uF

C188

0.1uF C2134

0.1uF

C175

0.1uF

C167

0.1uF C195

0.1uF

C173

0.1uF

C2132

0.1uF

C184

0.1uF

C2104

0.1uF

C196

0.1uF

C183

0.1uF C2137

0.1uF

C166

0.1uF C178

0.1uF C2115

0.1uF C2136

0.1uF

C2127

0.1uF

C172

0.1uF

C169

0.1uF

C217

0.1uF

+3.3V_AVDD_MPLL

+3.3V_VDDP

L109

BLM18PG121SN1D

C208

0.1uF

C218

0.1uF

C215

0.1uF

C204

0.1uF

+3.3V_Normal

C191

0.1uF

+3.3V_Normal

C205

0.1uF

C209

0.1uF

C201

10uF

10V

+1.8V_DDR

C202

0.1uF

+3.3V_Normal

C214

0.1uF

+3.3V_Normal

C207

0.1uF

C192

0.1uF

L106

BLM18PG121SN1D

L103

BLM18PG121SN1D

L107

BLM18PG121SN1D

+3.3V_Normal

C200

0.1uF

C210

0.1uF

+3.3V_Normal

C206

0.1uF

IC100

MSD3159GV

VDDC_1 D16

VDDC_2 D17

VDDC_3 D18

VDDC_4 D19

VDDC_5 D20

VDDC_6 H18

VDDC_7 H19

VDDC_8 H20

VDDC_9 J20

VDDC_10 K20

VDDC_11 L20

VDDC_12 M20

VDDC_13 P7

VDDC_14 R7

VDDC_15 T7

VDDC_16 T22

VDDC_17 U7

VDDC_18 U20

VDDC_19 U22

VDDC_20 V7

VDDC_21 V22

VDDC_22 W11

VDDC_23 W12

VDDC_24 W19

VDDC_25 W20

VDDC_26 W22

VDDC_27 Y22

VDDP_1 H9

VDDP_2 H10

VDDP_3 H11

VDDP_4 H12

VDDP_5 N20

VDDP_6 P20

VDDP_7 W9

VDDP_8 W10

AVDD_AU W7

AVDD_DDR_1 G12

AVDD_DDR_2 G13

AVDD_DDR_3 H13

AVDD_DDR_4 H14

AVDD_DDR_5 H15

AVDD_DDR_6 H16

AVDD_DDR_7 W14

AVDD_DDR_8 W15

AVDD_DDR_9 W16

AVDD_DDR_10 W17

AVDD_DDR_11 W18

AVDD_MEMPLL_1 H17

AVDD_MEMPLL_2 T20

AVDD_MEMPLL_3 V20

AVDD_LPLL R20

AVDD_MPLL H7

AVDD_33_1 J7

AVDD_33_2 K7

AVDD_33_3 L7

AVDD_33_4 M7

AVDD_33_5 N7

AVDD_DM W8

AVDD_USB H8

GND_2

E16

GND_3

E17

GND_4

E18

GND_5

GND_6

GND_7

L10

GND_8

L11

GND_9

L12

GND_10

L13

GND_11

L14

GND_12

L15

GND_13

L16

GND_14

L17

GND_15

L18

GND_16

GND_17

M10

GND_18

M11

GND_19

M12

GND_20

M13

GND_21

M14

GND_22

M15

GND_23

M16

GND_24

M17

GND_25

M18

GND_26

GND_27

GND_28

N10

GND_29

N11

GND_30

N12

GND_31

N13

GND_32

N14

GND_33

N15

GND_34

N16

GND_35

N17

GND_36

N18

GND_37

GND_38

GND_39

P10

GND_40

P11

GND_41

P12

GND_42

P13

GND_43

P14

GND_44

P15

GND_45

P16

GND_46

P17

GND_47

P18

GND_48

GND_49

GND_50

R10

GND_51

R11

GND_52

R12

GND_53

R13

GND_54

R14

GND_55

R15

GND_56

R16

GND_57

R17

GND_58

R18

GND_59

GND_60

GND_61

T10

GND_62

T11

GND_63

T12

GND_64

T13

GND_65

T14

GND_66

T15

GND_67

T16

GND_68

T17

GND_69

T18

GND_70

GND_71

W13

GND_72

Y21

GND_73

AA23

C203

0.1uF

C211

0.1uF

C216

0.1uF

C219

0.1uF

L108

BLM18PG121SN1D

L102

BLM18PG121SN1D

H/P_R

006:K18

H/P_L

006:K18

+1.26V_VDDC

CVBS

Close to IC

as close as possible

TV/MNT

DSUB

COMPONENT1

HDMI1/2/3(Side)

MAIN_SOC_2

LD350 09.09.03

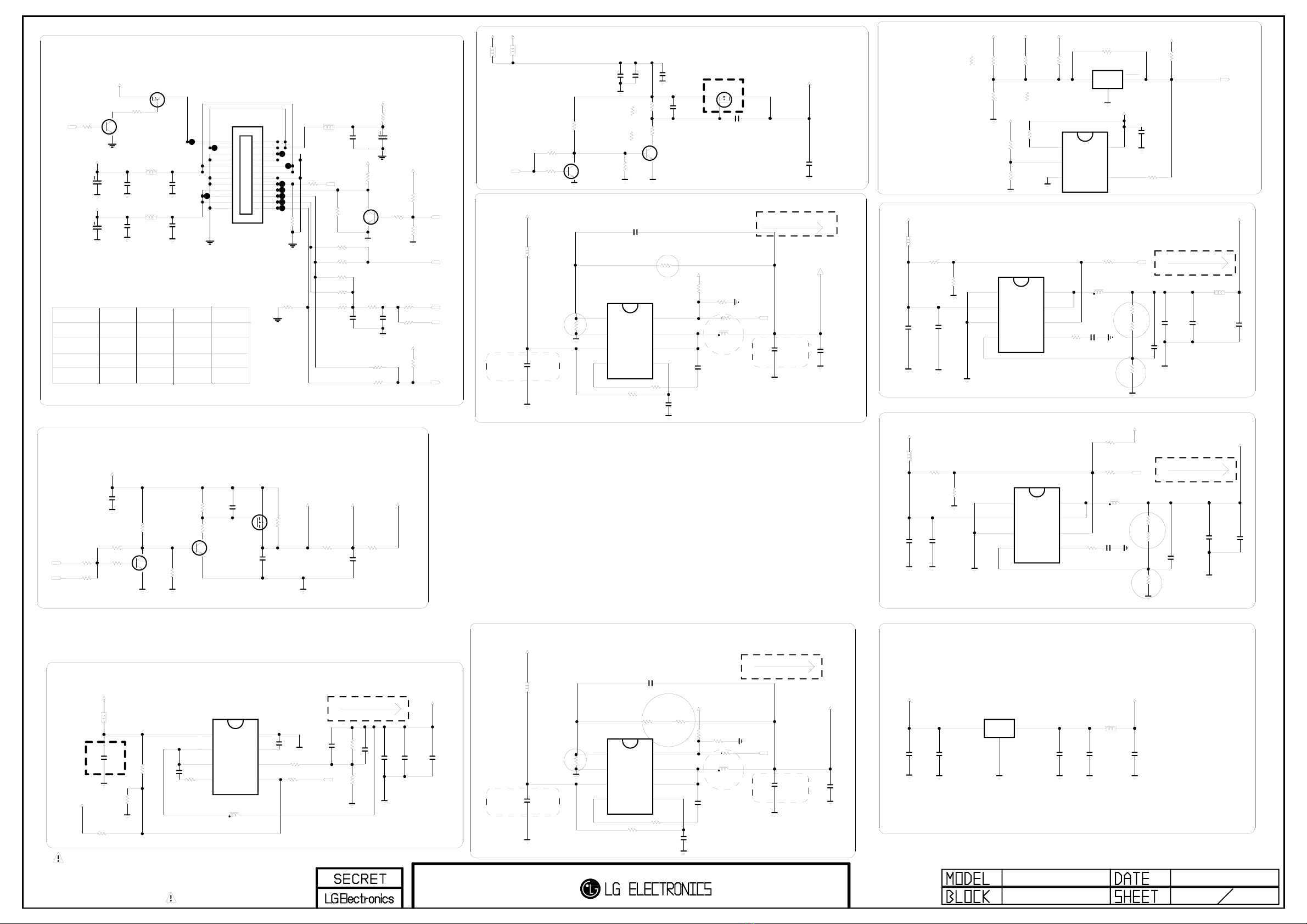

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

+5V_USB

C467

0.1uF

50V

R411

10K

OPT

C482

100pF

50V

OPT

C472

22uF

10V

R461

4.7K

R456

10K

R452

1/10W

+1.8V_DDR

R441 0

IC403

MP2212DN

GND

5VCC

6SW_1

7SW_2

8EN/SYNC

POWER_ON/OFF1

L423

3.6uH

NR8040T3R6N

POWER_ON/OFF2_1

C439

100pF

50V

R416

33K

R442

22K 1%

L421

3.6uH

NR8040T3R6N

R444

24K 1%

R464

10K

C463

100pF

50V

L420

CIC21J501NE

R417

6.2K

+5V_USB

+12V/+15V

C429

100pF

50V

OPT

+12V/+15V

C410

0.1uF

R460

27K

C453

22uF

10V

C444

1uF

10V

L416

+3.5V_ST

L401

IC405

AOZ1073AIL

AGND

VIN

PGND

5COMP

6EN

7LX_1

8LX_2

C423

100pF

50V

OPT

C430

22uF

10V

C424

0.1uF

16V

+1.26V_VDDC

C473

0.1uF

16V

C457

10uF

25V

+3.3V_Normal

C448

0.1uF

50V

R455 0

C461

22uF

10V

0.1uF

C456

R432

75K

1/8W

C405

10uF

25V

C459

10uF

25V

L413

C465

1uF

10V

0.1uF

C476

R436

1/10W

C428

0.1uF

16V

C464

2200pF

C414

1uF

50V

+3.5V_ST

R454

9.1K

L406

3.6uH

NR8040T3R6N

POWER_ON/OFF1

IC407

MP2212DN

GND

5VCC

6SW_1

7SW_2

8EN/SYNC

R410

10K

R462

10K

L415

3.6uH

NR8040T3R6N

IC401

MP8706EN-C247-LF-Z

SW_2

SW_1

BST

5EN/SYNC

6FB

7VCC

8GND

R445

10K OPT

C420

22uF

10V

C469

22uF

10V

L424

CIC21J501NE

C485

0.1uF

16V

R487

C478

0.1uF

50V C479

2.2uF

19"~22"

50V

R469

26"~32"

2012

C481

0.1uF

50V

C480

0.01uF

50V

RL_ON

R476

1/10W

19"~22"

2012

+24V/+15V

+12V

R477

26"~32"

2012

R428

2.2K

19"~22"

AMP_VCCR468

22K

19"~22"

+12V/+15V

Q411

19"~22"

RT1C3904-T112

Q407

2SC3052

C436

0.01uF

25V

+5V_Normal

L412

12V_PANEL

Q406

2SC3052

CR435

22K

R440

1.8K

12V_PANEL

R439-*1

22K

5V_PANEL

R440-*1

2.7K

5V_PANEL

PANEL_VCC

C455

0.1uF

16V

C451

1uF

25V

PANEL_CTL

1:AK10

C438

0.1uF

16V

R429

47K

L411

5V_PANEL

C442

10uF

16V

OPT

R439

10K

12V_PANEL

R431

22K

R430

10K

OPT

+12V/+15V

C443

4.7uF

16V

R450

14K

PD_+3.5V

R448-*1

16K

PD_+15V

+12V/+15V

R446

30K

PD_+24V

R480

100

OPT

IC408

NCP803SN293

GND

VCC 2RESET

IC409

NL17SZ08DFT2G

OPT

1 5

R488

100K

+24V/+15V

POWER_DET

+3.5V_ST

R481

R482

20K

+12V

R463

10K

OPT

R446-*1

24K

PD_+20V

R483

10K

C483

0.1uF

+3.5V_ST

R447

5.1K

1/16W

EXCEPT_PD_+3.5V

R448

12K

PD_+12V

R423

1/4W

3216

R406

4.7K

R453 0

LGD_26"~32"

R472

AUO

OPC_OUT

P403

FW20020-24S

NORMAL_26~32

12V

GND

3.5V

24V

INV_ON

GND

24V

12V

3.5V

GND

24V

GND/OLP

3.5V

GND

PWR_ON

A.DIM

GND

3.5V

GND

12V

P.DIM

GND

Err_OUT/NC

R471

NON_AUO_26"~32"

R420

LGD

Q401

2SC3052

L404

MLB-201209-0120P-N2

C407

0.1uF

16V

R437

AUO/SHARP

+24V/+15V

C419

1uF

25V

OPT

R418

6.8K

OPT

L407

MLB-201209-0120P-N2

C418

0.1uF

50V

C401

100uF

16V

P402

SMAW200-12

NORMAL_19~22

1+15V

2+15V‘

3GND

4GND

5+3.5V_ST

63.5V_ST

7GND

8OLP

9INV_EN

10PWM_DIM

11A_DIM

12NC

+3.3V_Normal

+3.5V_ST

C426

68uF

35V

R421

10K

+3.5V_ST

C416

0.1uF

OPT

R401

10K

26"~32"

C404

0.1uF

16V

C402

100uF

16V

L402

MLB-201209-0120P-N2

R413

19"~22"

PWM_DIM

A_DIM

ERROR_OUT

C406

0.1uF

16V

C408

0.1uF

16V

R486

4.7K

R424

NON_OPC

Q402

RT1P141C-T112

RL_ON

Q405

2SC3052

R470

LGD_OPC

R426

10K

R427

10K

OPT

OLP

+12V

INV_CTL

+3.3V_Normal

+3.5V_ST

C400

0.1uF

16V

+3.3V_AVDD_MPLL

L400

BLM18PG121SN1D

L417

R459

10K

C477

0.1uF

16V

C471

22uF

10V

R465

51K

C458

10uF

25V

+5V_Normal

R467

10K

POWER_ON/OFF1

L422

3.6uH

NR8040T3R6N

+12V/+15V

C466

2200pF

C460

10uF

25V

R466

1.5K

C427

100pF

50V

OPT

IC406

AOZ1073AIL

AGND

VIN

PGND

5COMP

6EN

7LX_1

8LX_2

R419

R412

26"~32"

R9825

Sharp

C403

0.1uF

16V

C411

0.1uF

16V

C9809

22uF

10V

C9810

22uF

10V

POWER_ON/OFF1

+3.3V_Normal

R407

10K

OPT

R408

10K

OPT

R457

15K 5%

R449

12K

1/10W

R414

19"~22"

R409

19"~22"

R479

Q410

19"~22"

AO3407A

Q409

AO3407A

+3.3V_Normal

R434

10K

OPT

R451

22K

OPT

R473

22K

OPT

R438

10K

R443

47K

OPT

Q400

2SC3052

OPT

R405

19"~22"

R400

OPT

R402

100K R415

100K

OPT

R422

120K OPT

R425

120K

OPT

R403

33K

OPT

R404

33K

OPT

R433

33K

OPT

+3.3V_Normal

R474

10K

R475

10K

OPT

+3.3V_Normal

R458

9.1K

IC400

TJ3965S-3.3V-3L

GND

OUTIN

Placed on SMD-TOP

Vout=0.8*(1+R1/R2)

Placed on SMD-TOP

+5V_USB

C IN

1074 mA

S7M DDR 1.8V

1934 mA

Vout=(1+R1/R2)*0.8

Placed on SMD-TOP

Replaced Part

Close to IC

Vout=(1+R1/R2)*0.8

MAX 2000mA

2026 mA

Close to IC

C IN

Vout=0.8*(1+R1/R2)

Replaced Part

S7M core 1.26V volt

+3.3V_Normal

+15V Control

New item

PANEL_POWER

UNDER CHECKING

12V-->3.58V

20V-->3.5V

15V-->3.6V

Power_DET

ST_3.5V-->3.5V

24V-->3.48V

INV_ON

GND

18 A-DIM

PWM_DIM PWM_DIM

LGD

Err_out

AUO

PWM_DIM

Err_out

INV_ON

Err_out

V4:VBR-A

V5:NC

A-DIM

PWM_DIM

FROM LIPS & POWER B/D

SHARP

PIN No

INV_ON

CMO(09)

Power Block

LD350 09.09.03

+3.3V_AVDD_MPLL

Vout=0.8*(1+R1/R2)

MAX 1A

+5V_Normal

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

KEY2

D2404

5.6V

CDS3C05HDMI1

OPT

R2412

100

EYEQ

R2403

COMERTIAL

R2408

47K

COMERTIAL

C2408

1000pF

50V

OPT

R2409

47K

COMERTIAL

+3.5V_ST

C2405

0.1uF

16V

C2402

0.1uF

26"~32"

D2401

5.6V

AMOTECH

26"~32"

R2402

100

C2407

100pF

50V

C2404

1000pF

50V

L2402

BLM18PG121SN1D

26"~32"

C2401

0.1uF

26"~32"

LED_R/BUZZ

+3.3V_Normal

+3.5V_ST

C2406

1000pF

50V

D2403

5.6V

CDS3C05HDMI1

OPT

R2410

100

C2410

0.1uF

16V

OPT

R2401

100

LED_B/LG_LOGO

C2409

1000pF

50V

OPT

+3.5V_ST

KEY1

L2403

BLM18PG121SN1D

L2401

BLM18PG121SN1D

26"~32"

R2411

100

EYEQ

C2403

0.1uF

16V

R2416

10K

Q2402

2SC3052

COMERTIAL

D2405

5.6V

AMOTECH

L2404

BLM18PG121SN1D

IR_OUT

D2402

5.6V

AMOTECH

26"~32"

R2404

10K

R2405

10K

P2401

12507WR-12L

SCL

SDA

GND

KEY1

KEY2

ST_3.3V

GND

LED_B

GND

+3.3V

LED_R

GND

R2425

47K

Q2406

2SC3052 EB

R2429

47K

R2430

10K

R2431

47K

R2428

+3.5V_ST

Q2405

2SC3052 EB

+3.5V_ST

IR +3.5V_ST

R2426

3.3K

OPT

R2427

OPT

SCL_SUB/AMP

SDA_SUB/AMP

L2405

BLM18PG121SN1D

19"~22"

D2407

5.6V

19"~22"

C2412

0.1uF

16V

19"~22"

P2402

12507WR-03L

19"~22"

C2411

0.1uF

16V

19"~22"

D2406

5.6V

19"~22"

L2406

BLM18PG121SN1D

19"~22"

R2413

1.5K

R2414

1.5K

CONTROL

IR & LED

COMMERCIAL

LD350 09.09.03

Other manuals for 32LD350

This manual suits for next models

Table of contents

Popular LCD TV manuals by other brands

Haier

Haier L32A6A-A1 operating instructions

Dell

Dell W1900 19 Setting up

Philips

Philips 40PFL8664H user manual

Samsung

Samsung LN-T2342H Owner's instructions

Vizio

Vizio E500i-A1 user manual

Philips

Philips 42PFL3312 Specifications

Toshiba

Toshiba 32WL68A owner's manual

Seiki

Seiki SC261FS instruction manual

RCA

RCA LED29B30RQ user manual

Philips

Philips NULL 42PFL5603D manual

Logik

Logik L19DIGB10 instruction manual

NEC

NEC NLT-20 owner's manual

Philips

Philips 32PFL5606H brochure

Samsung

Samsung LE26A45 C Series Service manual

Sharp

Sharp AQUOS LC-19SB28UT Operation manual

Medion

Medion LIFE E14033 user manual

Sony

Sony BRAVIA KLV-32U100M Specifications

Philips

Philips 26PF9531/10 manual

LG 32LD350 User manual

Popular LCD TV manuals by other brands
