LG 55LK535C User manual

LED LCD TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : LC0AD
MODEL: 55LK535C
http://biz.lgservice.com
Internal Use Only
P/NO : MFL67180810 (1206-REV00)

LGE Internal Use OnlyCopyright ©2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
- 2 -
CONTENTS
CONTENTS .............................................................................................. 2
PRODUCT SAFETY ................................................................................. 3
SPECIFICATION........................................................................................6
ADJUSTMENT INSTRUCTION..................................................................9
BLOCK DIAGRAM.....................................................................................13
EXPLODED VIEW ....................................................................................15
SCHEMATIC CIRCUIT DIAGRAM ..............................................................

LGE Internal Use OnlyCopyright ©2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
- 3 -
SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1 W), keep the resistor 10 mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5 mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
1.5 Kohm/10W
To Instrument's
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
When 25A is impressed between Earth and 2nd Ground
for 1 second, Resistance must be less than 0.1
*Base on Adjustment standard
IMPORTANT SAFETY NOTICE
0.15 uF
Ω

LGE Internal Use OnlyCopyright ©2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
- 4 -
CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the
SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conflict between the
following servicing precautions and any of the safety precautions on
page 3 of this publication, always follow the safety precautions.
Remember: Safety First.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC power
source before;
a. Removing or reinstalling any component, circuit board
module or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug or
other electrical connection.
c. Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an
explosion hazard.
2. Test high voltage only by measuring it with an appropriate high
voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".
3. Do not spray chemicals on or near this receiver or any of its
assemblies.
4. Unless specified otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10 % (by volume) Acetone and 90 %
(by volume) isopropyl alcohol (90 % - 99 % strength)
CAUTION: This is a flammable mixture.
Unless specified otherwise in this service manual, lubrication of
contacts in not required.
5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.
6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.
7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.
8. Use with this receiver only the test fixtures specified in this
service manual.
CAUTION: Do not connect the test fixture ground strap to any
heat sink in this receiver.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged easily
by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some field-effect transistors and
semiconductor "chip" components. The following techniques
should be used to help reduce the incidence of component
damage caused by static by static electricity.
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground.
Alternatively, obtain and wear a commercially available
discharging wrist strap device, which should be removed to
prevent potential shock reasons prior to applying power to the
unit under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.
4. Use only an anti-static type solder removal device. Some solder
removal devices not classified as "anti-static" can generate
electrical charges sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads
electrically shorted together by conductive foam, aluminum foil
or comparable conductive material).
7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be
installed.
CAUTION: Be sure no power is applied to the chassis or circuit,
and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged
replacement ES devices. (Otherwise harmless motion such as
the brushing together of your clothes fabric or the lifting of your
foot from a carpeted floor can generate static electricity
sufficient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and appropriate
tip size and shape that will maintain tip temperature within the
range or 500 °F to 600 °F.
2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well tinned.
4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
bristle (0.5 inch, or 1.25 cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.
5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500 °F to 600 °F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-
type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
(500 °F to 600 °F)
b. First, hold the soldering iron tip and solder the strand against
the component lead until the solder melts.
c. Quickly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it there
only until the solder flows onto and around both the
component lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
d. Closely inspect the solder area and remove any excess or
splashed solder with a small wire-bristle brush.
SERVICING PRECAUTIONS

LGE Internal Use OnlyCopyright ©2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
- 5 -
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent flat against the
circuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.
Removal
1. Desolder and straighten each IC lead in one operation by gently
prying up on the lead with the soldering iron tip as the solder
melts.
2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing the
IC.
Replacement
1. Carefully insert the replacement IC in the circuit board.
2. Carefully bend each IC lead against the circuit foil pad and
solder it.
3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor
Removal/Replacement
1. Remove the defective transistor by clipping its leads as close as
possible to the component body.
2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.
Power Output, Transistor Device
Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heat sink mounting screw (if so equipped).
3. Carefully remove the transistor from the heat sink of the circuit
board.
4. Insert new transistor in the circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heat sink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as
possible to diode body.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever
this condition is encountered.
At IC Connections
To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC
connections).
1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).
2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the good
copper pattern. Solder the overlapped area and clip off any
excess jumper wire.
At Other Connections
Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.
1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly
connected to the affected copper pattern.
3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

LGE Internal Use OnlyCopyright ©2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
- 6 -
SPECIFICATION
.
4. Model General Specification
1. Application range
This is applied to the LCD/ LEDLCDTV used
LC0AD chassis.
2. Requirement for Test
Each part is tested as below without special appointment.
1) Temperature
: 25 ºC ± 5 ºC (77 ºF ± 9 ºF), CST : 40 ºC ± 5 ºC
2) Relative Humidity : 65 % ± 10 %
3) Power Voltage
: Standard input voltage (AC 100-240 V~ 50 / 60 Hz)
* Standard Voltage of each products is marked by models.
4) and performance of each parts are followed
each drawing and by part number in
accordance with BOM.
5) The receiver must be operated for about 5 minutes prior to
the adjustment.
3. Test method
1) Performance: LGE TV test method followed
- EMC:CE, IEC
No Item Specification
Meas
urem
ent
Result
1 Display Screen Device 55”Wide color display module CCFL/EEFL LCD
2 Aspect Ratio 16:9
3 LCD Module
55” TFT LCD FHD
LGD : 42LK530-CC
4 Storage Environment Temp. : -20 ~ 60 deg, Humidity : 10 ~ 90 %
5 Input Voltage 100-240V~ 50/60Hz
55”LGD(FHD) Edge
55”LGD(FHD,100Hz)
55”LGD(FHD) Edge 3D
55”LGD(FHD,100Hz)
55”LGD(FHD) Edge 3D
55”LGD(FHD,100Hz)
55”LGD(FHD) Edge 3D
1.06 Billion, 16.7 Milion
3H, AG
Typ:108.5W
1286.0(H)× 745.0(V) X 60 mm(D)
1225.6(H)× 726.0(V) X 10.8(B)
0.630 mm x 0.630 mm
0.630 mm x 0.630 mm
EEFL
EEFL
6 Power Consumption
Module Size
Pixel Pitch
Back Light
Display Colors
Coating
Remark
Power on (Blue)
55”LGD(FHD,100Hz) Typ:248.2W

- 7 - LGE Internal Use OnlyCopyright ©2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
5. Component Video Input (Y, CB/PB, CR/PR)
No. Specification Remark
Resolution H-freq(kHz) V-freq(Hz)
1. 720x480 15.73 60.00 SDTV,DVD 480i
2. 720x480 15.63 59.94 SDTV,DVD 480i
3. 720x480 31.47 59.94 480p
4. 720x480 31.50 60.00 480p
5. 720x576 15.625 50.00 SDTV,DVD 625 Line
6. 720x576 31.25 50.00 HDTV 576p
7. 1280x720 45.00 50.00 HDTV 720p
8. 1280x720 44.96 59.94 HDTV 720p
9. 1280x720 45.00 60.00 HDTV 720p
10. 1920x1080 31.25 50.00 HDTV 1080i
11. 1920x1080 33.75 60.00 HDTV 1080i
12. 1920x1080 33.72 59.94 HDTV 1080i
13. 1920x1080 56.250 50 HDTV 1080p
14. 1920x1080 67.5 60 HDTV 1080p
No. Specification Proposed Remark
Resolution H-freq(kHz) V-freq(Hz) Pixel Clock(MHz)
1. 720*400 31.468 70.08 28.321 For only DOS mode
2. 640*480 31.469 59.94 25.17 VESA Input 848*480 60 Hz, 852*480 60 Hz
-> 640*480 60 Hz Display
3. 800*600 37.879 60.31 40.00 VESA
4. 1024*768 48.363 60.00 65.00 VESA(XGA)
5. 1280*768 47.78 59.87 79.5 WXGA
6. 1360*768 47.72 59.8 84.75 WXGA FHD Model
7. 1366*768 47.56 59.6 84.75 WXGA WXGA Model
8. 1200*1024 63.595 60.02 108.875 SXGA FHD model
9. 1280*720 45 60 74.25 720p DTV Standard
10. 1920*1080 66.587 59.93 138.5 WUXGA FHD model
6. RGB (PC)

- 8 - LGE Internal Use OnlyCopyright ©2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
7. HDMI Input
(1) DTV Mode
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark
1. 720*400 31.468 70.08 28.321 HDCP
2. 640*480 31.469 59.94 25.17 VESA HDCP
3. 800*600 37.879 60.31 40.00 VESA HDCP
4. 1024*768 48.363 60.00 65.00 VESA(XGA) HDCP
5. 1280*768 47.78 59.87 79.5 WXGA HDCP
6. 1360*768 47.72 59.8 84.75 WXGA HDCP
7. 1280*720 45 60 74.25 HDCP
8. 1920*1080 67.5 60 148.5 WUXGA HDCP/FHD model
(2) PC Mode
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark
1. 720*480 31.469/31.5 59.94/60 27.00/27.03 SDTV 480P
2. 720*576 31.25 50 54 SDTV 576P
3. 1280*720 37.500 50 74.25 HDTV 720P
4. 1280*720 44.96/45 59.94/60 74.17/74.25 HDTV 720P
5. 1920*1080 33.72/33.75 59.94/60 74.17/74.25 HDTV 1080I
6. 1920*1080 28.125 50.00 74.25 HDTV 1080I
7. 1920*1080 26.97/27 23.97/24 74.17/74.25 HDTV 1080P
8. 1920*1080 33.716/33.75 29.976 /30.00 74.25 HDTV 1080P
9. 1920*1080 56.250 50 148.5 HDTV 1080P
10. 1920*1080 67.43/67.5 59.94/60 148.35/148.50 HDTV 1080P

LGE Internal Use OnlyCopyright ©2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
- 9 -
ADJUSTMENT INSTRUCTION
1. Application Range
This specification sheet is applied to all of the LCD/ LED LCD
TV with LC01U chassis.
2. Designation
1) The adjustment is according to the order which is
designated and which must be followed, according to the
plan which can be changed only on agreeing.
2) Power Adjustment: Free Voltage
3) Magnetic Field Condition: Nil.
4) Input signal Unit: Product Specification Standard
5) Reserve after operation: Above 5 Minutes (Heat Run)
Temperature : at 25 ºC ± 5 ºC
Relative humidity : 65 % ± 10 %
Input voltage : 220 V, 60 Hz
6) Adjustment equipments: Color Analyzer(CA-210 or CA-110),
DDC Adjustment Jig equipment, Factory SVC remocon.
7) Push the “IN STOP” key - For memory initialization.
3. Main PCB check process
* APC - After Manual-Insult, executing APC
* Boot file Download
1) Execute ISP program “Mstar ISP Utility” and then click
“Config” tab.
2) Set as below, and then click “Auto Detect” and check “OK”
message.
If “Error” is displayed, check connection between computer,
jig, and set.
3) Click “Read” tab, and then load download file(XXXX.bin) by
clicking “Read”
4) Click “Connect” tab. If “Can’t” is displayed, check connection
between computer, jig, and set.
5) Click “Auto” tab and set as below.
6) Click “Run”.
7) After downloading, check “OK” message.
* USB DOWNLOAD
1) Put the USB Stick to the USB socket.
2) Automatically detecting update file in USB Stick.
- If your downloaded program version in USB Stick is Low,
it didn’t work. But your downloaded version is High, USB
data is automatically detecting.

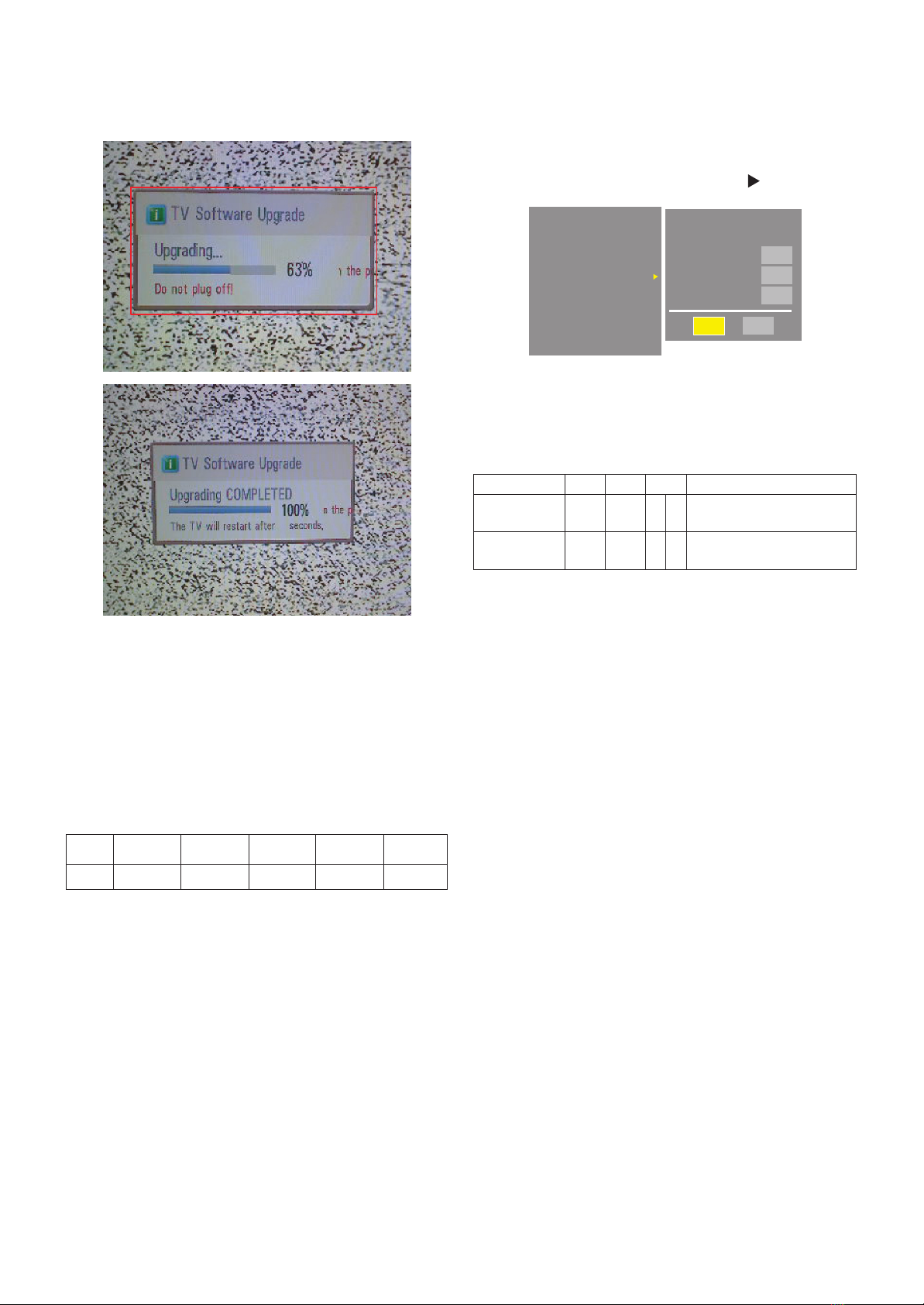

3) Show the message “Copying files from memory”.
Pattern Generator (MSPG-925L or Equivalent),
Case1 : Software version up
1. After downloading S/W by USB, TV set will reboot
automatically
2. Push “In-stop” key
3. Push “Power on” key
4. Function inspection
5. After function inspection, Push “In-stop” key.
Case2 : Function check at the assembly line
1. When TV set is entering on the assembly line, Push
“In-stop” key at first.
2. Push “Power on” key for turning it on.
-> If you push “Power on” key, TV set will recover
channel information by itself.
3. After function inspection, Push “In-stop” key.
filexxx.bin
(4)
(7) ……….OK
(5)
(6)
(1)
filexxx.bin
(2) (3)
Please Check the Speed :
To use speed between
from 200KHz to 400KHz

EZ ADJUT
0. Tool Option1
1. Tool Option2
2. Tool Option3
3. Tool Option4
4. Tool Option5
5. Country Group
6. ADC Calibration
7. WHITE Balance
8. 10Point WB
9. Test Pattern
10. V-Com
11. Sub B/C
12. V-Com
13. P-Gamma
4) Updating is starting.
5) Uploading completed, the TV will restart automatically.
6) If your TV is turned on, check your updated version and
Tool option.(explain the Tool option, next stage)
* If downloading version is more high than your TV have,
TV can lost al l chann el da ta . In this case,you have to
channel recover. if all channel data is cleared, you didn’t
have a DTV/ATV test on production line.
* After downloading, have to adjust Tool Option again.
1) Push "IN-START" key in service remote control.
2) Select “Tool Option 1” and push “OK” key.
3) Punch in the number. (Each model has their number)
4) Completed selecting Tool option.
3.1. ADC Process
(1) ADC
- Enter Service Mode by pushing “ADJ” key,
- Enter Internal ADC mode by pushing “ ” key at “6. ADC
Calibration”
<Caution> Using ‘power on’ key of the Adjustment remote
control, power on TV.
* ADC Calibration Protocol (RS232)
Adjust Sequence
• aa 00 00 [Enter Adjust Mode]
• xb 00 40 [Component1 Input (480i)]
• ad 00 10 [Adjust 480i Comp1]
• xb 00 60 [RGB Input (1024*768)]
• ad 00 10 [Adjust 1024*768 RGB]
• aa 00 90 End Adjust mode
* Required equipment : Adjustment R/C.
3.2. Function Check
* Check display and sound.
- Check Input and Signal items. (cf. work instructions)
1) TV
2) AV (SCART1/SCART2/CVBS)
3) COMPONENT (480i)
4) RGB (PC : 1024 x 768 @ 60 Hz)
5) HDMI
6) PC Audio In
* Display and Sound check is executed by factory SVC remocon.
- 10-LGE Internal Use OnlyCopyright ©2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Module Tool option1 Tool option2 Tool option3 Tool option4 Tool option5
55LK535C 46784 19478
14616
24864
49161
Item CMD1 CMD2 Data0
Adjust ‘Mode In’ A A 0 0 When transfer the ‘Mode In’,
Carry the command.
ADC Adjust A D 1 0 Automatically adjustment
(The use of a internal pattern)
ADC Calibration
ADC Comp 480i
ADC Comp 1080p
ADC RGB
NG
NG
NG
Reset
Start

4. Total Assembly line process
4.1. Adjustment Preparation
· W/B Equipment condition
CA210
: CCFL/EEFL -> CH9, Test signal: Inner pattern(80IRE)
LED -> CH14, Test signal: Inner pattern(80IRE)
· Above 5 minutes H/run in the inner pattern. (“power on” key
of adjust remote control)
· Edge LED W/B Table is process of time (Only LGD Module)
CA210: CH14, Test signal : Inner pattern(80IRE)
4.2. DDC EDID Write (RGB 128Byte )
• Connect D-sub Signal Cable to D-sub Jack.
•Write EDIDData to EEPROM(24C0 gnisu)by2 DDC2 B
protocol.
• Check whether written EDID data is correct or not.
* ForServicemain Assembly, EDID have to be downloaded to
Insert Process in advance.
4.3. DDC EDID Write (HDMI 256Byte)
• Connect HDMI Signal Cable to HDMI Jack.
•Write EDIDData to EEPROM(24C0 gnisu) by2 DDC2B
protocol.
• Check whether written EDID data is correct or not.
* ForServicemain Assembly, EDID have to be downloaded to
Insert Process in advance.
- 11 - LGE Internal Use OnlyCopyright ©2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Aging Time Cool Medium Warm
GP2R (Min.) X Y X Y X Y
269 273 285 293 313 329
1 0-2 279 288 295 308 319 338
2 3-5 278 286 294 306 318 336
3 6-9 277 285 293 305 317 335
4 10-19 276 283 292 303 316 333
5 20-35 274 280 290 300 314 330
6 36-49 272 277 288 297 312 327
7 50-79 271 275 287 295 311 325
8 80-149 270 274 286 294 310 324
9 Over 150 269 273 285 293 309 323
4.4. EDID DATA
1) All Data : HEXA Value
2) Changeable Data :
*: Serial No : Controlled / Data:01
**: Month : Controlled / Data:00
***:Year : Controlled
****:Check sum
- Auto Download
• After enter Service Mode by pushing “ADJ” key,
• Enter EDID D/L mode.
• Enter “START” by pushing “OK” key.
* Caution : Never connect HDMI & D-sub Cable when EDID
download
* Edid data and Model option download (RS232)
EZ ADJUT
0. Tool Option1
1. Tool Option2
2. Tool Option3
3. Tool Option4
4. Tool Option5
5. Country Group
6. ADC Calibration
7. White Balance
8. 10 Point WB
9. Test Pattern
10. EDID D/L
11. P-Gamma
12. V-Com
13. P-Gamma
Item CMD1 CMD2 Data0
Download A A 0 0 When transfer the ‘Mode In’,
‘Mode In’ Carry the command.
Download A E 00 10 Automatically Download
(The use of a internal pattern)
EDID D/L
HDMI1
HDMI2
HDMI3
RGB
NG
NG
NG
NG
Reset
Start
EDID D/L
Reset
Start
HDMI1
HDMI2
HDMI3
RGB
OK
OK
OK
OK

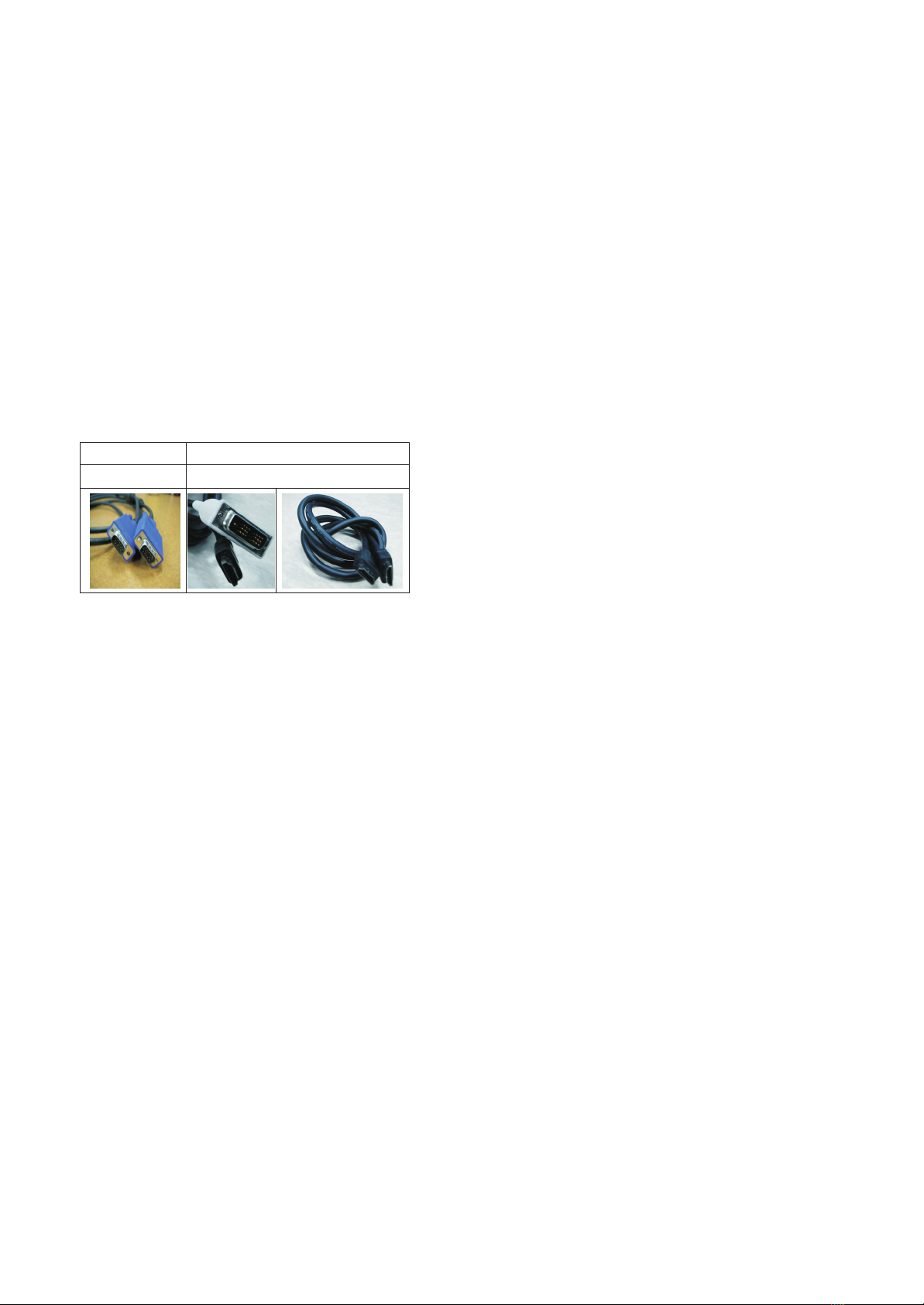

D-sub to D-sub DVI-D to HDMI or HDMI to HDMI
For HDMI EDID
For Analog EDID
4.4. EDID DATA
1) All Data : HEXA Value
2) Changeable Data :
*: Serial No : Controlled / Data:01
**: Month : Controlled / Data:00
***:Year : Controlled
****:Check sum
- Auto Download
• After enter Service Mode by pushing
“ADJ” key．
• Enter EDID D/L mode.
• Enter “START” by pushing “OK” key.
- 12 - LGE Internal Use OnlyCopyright ©2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

- 13-LGE Internal Use OnlyCopyright ©2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
BLOCK DIAGRAM

- 14 - LGE Internal Use OnlyCopyright ©2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

- 15-LGE Internal Use OnlyCopyright LG Electronics. Inc. All rights reserved.
Only for training and service purposes
EXPLODED VIEW
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE
300
200
810 820
830
520
400
540
840
850
900
910
550
800
120
510500
530
A2
A21
A10
LV2
LV1

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
R293 1K
OPT
TP202
R212 1K
PHM_OFF
C292 0.1uF
OPT
MVREF
10uFC4001
C204 0.047uF
TU_CVBS
D0+_HDMI1
C4044 0.1uF
OPT
C263
10uF
L207
BLM18PG121SN1D
SCART1_Lout
L226
BLM18SG700TN1D
C290 0.1uF
OPT
DSUB_R+
D1+_HDMI1
D2+_HDMI1
VDD33_DVI
AVDD_DMPLL
AU33
AVDD_DDR0
C4056 0.1uF
C4060 2.2uF
10uFC276
D1+_HDMI4
SIDE_USB_DM
DSUB_HSYNC
C4008 0.1uF
OPT
AU33
C4011 0.1uF
OPT
C285 0.1uF
D2-_HDMI2
AUD_LRCK
VDD_RSDS
C4004
0.1uF
OPT
C253
1uF
AVDD_DMPLL
L223
BLM18SG121TN1D
C210 1000pF VDD_RSDS
R4016 33
SC1_FB
L228
BLM18SG700TN1D
C4045 1uF
AU25
+1.26V_VDDC
D1-_HDMI4
D0-_HDMI4
C4042 0.1uF
OPT
HP_LOUT
CK+_HDMI4
C214 0.047uF
+2.5V_Normal
R4026
10K
C208 0.047uF
C4022
10uF
OPT
L227
BLM18PG121SN1D
L217
BLM18PG121SN1D
C4032 0.1uF
C245 2.2uF PC_R_IN
C231 0.047uF
AVDD25_PGA
R249 33
C286 0.1uF
OPT
R257 33
AVDD_DDR0
R236 0
NON_EU
C4026 0.1uF
D2+_HDMI2
C4028 0.1uF
VDD33_DVI
R201 100
OPT
TP209
D0-_HDMI1
C4019 0.1uF
OPT
AVDD_DMPLL
C4014 0.1uF
AUD_SCK
VDD33
HPD2
R288 100
TU_SCL
C242 2.2uF
C4061 10uF
FRC
C251 0.1uF
VDD33
C283 0.1uF
OPT
AVDD_DDR0
IR
+3.3V_Normal
+2.5V_Normal
FRCVDDC
+1.5V_FRC_DDR
C291
0.1uF
FRC
COMP2_R_IN
VDD33
R231 68
RF_SWITCH_CTL
CEC_REMOTE_S7
+1.26V_VDDC
C238 2.2uF
MODEL_OPT_1
D1-_HDMI1
R292 22
FULL_NIM
AVDD2P5
R248 33
10uFC275
COMP2_Pb+
MODEL_OPT_4
C4043 0.1uF
R258 68
C279
10uF
FRC L210
BLM18PG121SN1D
FRC
AVDD2P5
MODEL_OPT_4
C223 0.047uF
SIDE_USB_DP
DDC_SDA_2
COMP2_DET
C4058 0.1uF
FRC
R226 1K
FRC_H/W_OPT
C4016 0.1uF
C209 0.047uF
+2.5V_Normal
+3.3V_Normal
R4019
1K
R297 1K
50/60Hz LVDS
L206
BLM18PG121SN1D
C225 0.047uF
C221 0.047uF
C213 0.047uF
C4038 0.1uF
CK-_HDMI2
AV_R_IN
D2-_HDMI1
DSUB_B+
TP210
C222 0.047uF
C4046 0.1uF
SIDEAV_L_IN
SC1_R+/COMP1_Pr+
R242 68
L215
BLM18PG121SN1D
R202 100
BOOSTER_OPT
R210 100
OPT
R227 1K
NO_FRC
SC1_G+/COMP1_Y+
R211 1K
PHM_ON
R4014 1K 1/16W 1%
VDD33
C218 0.047uF
X201
24MHz
C4065
0.022uF
16V
C4062 0.1uF
D0-_HDMI2
C220 0.047uF
R4023
10K
TP201
C247 2.2uF OPT
R255 33
AU25
R250 33
MIU1VDDC
C240
0.1uF
FRC
R4018
22
FRC
MODEL_OPT_2
L204
BLM18PG121SN1D
AVDD_DDR0
D0+_HDMI4
+3.3V_Normal
+2.5V_Normal
SC1_SOG_IN
MODEL_OPT_5
C217 1000pF
SC1_B+/COMP1_Pb+
VDD33
L222
BLM18PG121SN1D
FRC
R4003 47
C4041 0.1uF
FRC
CK-_HDMI4
R4025 22
L203 5.6uH
CM2012F5R6KT HEAD_PHONE
DDC_SDA_4
C288
0.1uF
R4020
10K
C4007 0.1uF
OPT
R215 1K
OPT
C4017 0.1uF
SCART1_Rout
AVDD2P5
R289 100
DDC_SDA_1
C4031 0.1uF
R207 1K
HD
C239 2.2uF
C4005
0.1uF
LED_DRIVER_D/L_SDA
R291 22
FULL_NIM
R256 68 FRC_VDD33_DDR
TP203
R245 33
MIU0VDDC
AUD_LRCH
C4024 0.1uF
R237 33
HP_ROUT
R206 1K
FHD
C216 0.047uF
D1+_HDMI2
MODEL_OPT_5
C230 0.047uF
C244 2.2uF
C4003 0.1uF
+1.26V_VDDC
C4057 0.047uF
R239 33
C207 0.047uF
C4040 0.1uF
AVDD_DDR0
C289 10uF
C258 0.1uF
C4063 10uF
C298
0.1uF
OPT
R296 100
C234 2.2uF
OPT
C232 0.047uF
C295 0.1uF
IF_P_MSTAR
HPD4
MODEL_OPT_0IF_AGC_SEL
C227 0.047uF
C287
10uF
C262 27pF
D0+_HDMI2
TP211
C272 4.7uF
HEAD_PHONE
C4009 0.1uF
C294 0.1uF
C4020 0.1uF
OPT
D1-_HDMI2
AUD_MASTER_CLK_0
SPDIF_OUT
C211 0.047uF
+1.5V_DDR
C215 0.047uF
MODEL_OPT_6
TP205
SOC_RESET
C246 2.2uF OPT
TU_SIF
SC1/COMP1_R_IN
R287
1M
FRC_AVDD
CK+_HDMI1
L219
BLM18PG121SN1D
C4066 10uF
AVDD_DDR0
AVDD2P5
10uFC293
OPT
AV_CVBS_IN
L221
BLM18PG121SN1D
FRC
DDC_SCL_4
LED_DRIVER_D/L_SCL
R4017
10K
OPT
R295 1K
OPT
DDC_SCL_2
HPD1
R233 68
C226 0.047uF
PC_L_IN
TP207
R4015 1K 1/16W 1%
R228 33
R246 33
IF_AGC_MAIN
C4012 0.1uF
R253 33
MODEL_OPT_3
AMP_SCL
D2-_HDMI4
FRCVDDC
AV_CVBS_IN2
VDD33
FRC_VDD33_DDR
D2+_HDMI4
AV_L_IN
C241
0.1uF
C4025 0.1uF
R294 1K
100/120Hz LVDS
C4027 0.1uF
R214 1K
OPT
DSUB_G+ C206 0.047uF
L213
BLM18PG121SN1D
OPT
R244 33
L212
BLM18PG121SN1D
NEC_SCL
+1.26V_VDDC
AVDD2P5
NEC_SDA
R240 68
DEMOD_SDA
IF_N_MSTAR
R229 68
FRC_LPLL
C233 0.047uF
SC1/COMP1_L_IN
+2.5V_Normal
R205
10K
FRC
L202
BLM18SG121TN1D
C212 0.047uF
R241 33
DTV/MNT_VOUT
L214
BLM18PG121SN1D
FRC
C219 0.047uF
C297 0.1uF
OPT
C281
10uF
OPT
TU_SDA
SC1_CVBS_IN
AVDD2P5
DEMOD_SCL
C4002 0.1uF
C4015
0.1uF
OPT
CK-_HDMI1 MIU0VDDC
TP208
C237 2.2uF
C257 0.1uF
AVDD_DDR_FRC
10uFC284
COMP2_L_IN
L205 5.6uH
CM2012F5R6KT HEAD_PHONE
LNA2_CTL
AVDD_DDR_FRC
C229 0.047uF
R204 100
OPT
C282
10uF
FRC
+3.3V_Normal
+1.26V_VDDC
TP204
DDC_SCL_1
C205 0.047uF
R238 68
L209
BLM18PG121SN1D
R251 33
AVDD25_PGA
R4002 47
COMP2_Pr+
R203 100
RF_SW_OPT
COMP2_Y+
C236 2.2uF
10uFC228
R4006
10K
C4036 0.1uF
OPT
C4064
0.1uF
VDD33
SIDEAV_CVBS_IN
C4010
0.1uF
FRC
AMP_SDA
SIDEAV_R_IN
C243 2.2uF
FRC_RESET
R209 1K
NON_DVB_T2
CK+_HDMI2
C264 1000pF
OPT
C261 27pF
DSUB_VSYNC
C4023 0.1uF
R4024 22
AV_CVBS_IN2
R298 100
OPT
R254 68
C250 0.1uF
C224 1000pF
C203
1000pF
OPT
SC1_ID
C4059 2.2uF
FRC_AVDD
+3.3V_Normal
C249
4.7uF
MVREF
R230 33
C268 4.7uF
HEAD_PHONE
C4018
10uF
L225
BLM18SG700TN1D
FRC
C278
10uF
C256
0.1uF
FRC_LPLL
L211
BLM18PG121SN1D
C235 2.2uF
OPT
C296 0.1uF
TP206
MIU1VDDC
R232 33
R208 1K
DVB_T2
R252 68
C280 0.1uF
ET_MDC
ET_TXD1
ET_CRS
ET_TXD0
ET_REF_CLK
ET_RXD1
ET_MDIO
ET_TX_EN
ET_RXD0
LGE107DC-RP [S7M+ DIVX/MS10]
IC101
S7M-PLUS_DivX_MS10
A_RXCP
F1
A_RXCN
F2
A_RX0P
G2
A_RX0N
G3
A_RX1P
H3
A_RX1N
G1
A_RX2P
H1
A_RX2N
H2
DDCDA_DA/GPIO24
F5
DDCDA_CK/GPIO23
F4
HOTPLUGA/GPIO19
E6
B_RXCP
D3
B_RXCN
C1
B_RX0P
D1
B_RX0N
D2
B_RX1P
E2
B_RX1N
E3
B_RX2P
F3
B_RX2N
E1
DDCDB_DA/GPIO26
D4
DDCDB_CK/GPIO25
E4
HOTPLUGB/GPIO20
D5
C_RXCP
AA2
C_RXCN
AA1
C_RX0P
AB1
C_RX0N
AA3
C_RX1P
AB3
C_RX1N
AB2
C_RX2P
AC2
C_RX2N
AC1
DDCDC_DA/GPIO28
AB4
DDCDC_CK/GPIO27
AA4
HOTPLUGC/GPIO21
AC3
D_RXCP
A2
D_RXCN
A3
D_RX0P
B3
D_RX0N
A1
D_RX1P
B1
D_RX1N
B2
D_RX2P
C2
D_RX2N
C3
DDCDD_DA/GPIO30
B4
DDCDD_CK/GPIO29
C4
HOTPLUGD/GPIO22
E5
CEC/GPIO5
D6
HSYNC0
G5
VSYNC0
G6
RIN0P
K1
RIN0M
L3
GIN0P
K3
GIN0M
K2
BIN0P
J3
BIN0M
J2
SOGIN0
J1
HSYNC1
G4
VSYNC1
H6
RIN1P
K5
RIN1M
K4
GIN1P
J4
GIN1M
K6
BIN1P
H4
BIN1M
J6
SOGIN1
J5
HSYNC2
H5
RIN2P
N3
RIN2M
N2
GIN2P
M2
GIN2M
M1
BIN2P
L2
BIN2M
L1
SOGIN2
M3
CVBS0P
N4
CVBS1P
N6
CVBS2P
L4
CVBS3P
L5
CVBS4P
L6
CVBS5P
M4
CVBS6P
M5
CVBS7P
K7
CVBS_OUT1
M6
CVBS_OUT2
M7
VCOM0
N5
VIFP W2
VIFM W1
IP V2
IM V1
SSIF/SIFP Y2
SSIF/SIFM Y1
QP U3
QM V3
IFAGC Y5
RF_TAGC Y4
TGPIO0/UPGAIN U1
TGPIO1/DNGAIN U2
TGPIO2/I2C_CLK R3
TGPIO3/I2C_SDA T3
XTALIN T2
XTALOUT T1
SPDIF_IN/GPIO177 G14
SPDIF_OUT/GPIO178 G13
DM_P0 B7
DP_P0 A7
DM_P1 AF17
DP_P1 AE17
I2S_IN_BCK/GPIO175 F14
I2S_IN_SD/GPIO176 F13
I2S_IN_WS/GPIO174 F15
I2S_OUT_BCK/GPIO181 D20
I2S_OUT_MCK/GPIO179 E20
I2S_OUT_SD/GPIO182 D19
I2S_OUT_SD1/GPIO183 F18
I2S_OUT_SD2/GPIO184 E18
I2S_OUT_SD3/GPIO185 D18
I2S_OUT_WS/GPIO180 E19
LINE_IN_0L N1
LINE_IN_0R P3
LINE_IN_1L P1
LINE_IN_1R P2
LINE_IN_2L P4
LINE_IN_2R P5
LINE_IN_3L R6
LINE_IN_3R T6
LINE_IN_4L U5
LINE_IN_4R V5
LINE_IN_5L U6
LINE_IN_5R V6
LINE_OUT_0L U4
LINE_OUT_2L W3
LINE_OUT_3L W4
LINE_OUT_0R V4
LINE_OUT_2R Y3
LINE_OUT_3R W5
MIC_DET_IN R4
MICCM T5
MICIN R5
AUCOM T4
VRM P7
VAG R7
VRP P6
HP_OUT_1L R1
HP_OUT_1R R2
ET_RXD0 E21
ET_TXD0 E22
ET_RXD1 D21
ET_TXD1 F21
ET_REFCLK E23
ET_TX_EN D22
ET_MDC F22
ET_MDIO D23
ET_CRS F23
AVLINK F8
IRINT G8
TESTPIN K8
RESET A4
U3_RESET Y17
LGE107DC-RP [S7M+ DIVX/MS10]
IC101
S7M-PLUS_DivX_MS10
VDDC_1
H11
VDDC_2
H12
VDDC_3
H13
VDDC_4
H14
VDDC_5
H15
VDDC_6
J12
VDDC_7
J13
VDDC_8
J14
VDDC_9
J15
VDDC_10
J16
VDDC_11
L18
A_DVDD
H16
B_DVDD
K19
FRC_VDDC_0
L19
FRC_VDDC_1
M18
FRC_VDDC_2
M19
FRC_VDDC_3
N18
FRC_VDDC_4
N19
FRC_VDDC_5
N20
FRC_VDDC_6
P18
FRC_VDDC_7
P19
FRC_VDDC_8
P20
U3_DVDD_DDR
Y12
AVDD1P2
J11
DVDD_NODIE
L7
AVDD2P5_ADC_1
H7
AVDD2P5_ADC_2
J7
AVDD25_REF
J8
AVDD_AU25
L8
PVDD_1
W15
PVDD_2
Y15
AVDD25_PGA
U8
AVDD_NODIE
M8
AVDD_DVI_1
N9
AVDD_DVI_2
P9
AVDD3P3_CVBS
N8
AVDD_DMPLL
P8
AVDD_AU33
T7
AVDD_EAR33
U7
AVDD33_T
T9
VDDP_1
R8
VDDP_2
R9
VDDP_3
T8
FRC_VD33_2_1
V20
FRC_VD33_2_2
W20
FRC_AVDD_RSDS_1
U19
FRC_AVDD_RSDS_2
U20
FRC_AVDD_RSDS_3
V19
FRC_AVDD
W19
FRC_AVDD_LPLL
U18
FRC_AVDD_MPLL
T20
FRC_VDD33_DDR
Y14
AVDD_MEMPLL
R19
FRC_AVDD_MEMPLL
W14
AVDD_DDR0_D_1
D15
AVDD_DDR0_D_2
D16
AVDD_DDR0_D_3
E15
AVDD_DDR0_D_4
E16
AVDD_DDR0_C
E17
AVDD_DDR1_D_1
F16
AVDD_DDR1_D_2
F17
AVDD_DDR1_D_3
G16
AVDD_DDR1_D_4
G17
AVDD_DDR1_C
H17
FRC_AVDD_DDR_D_1
AB11
FRC_AVDD_DDR_D_2
AB12
FRC_AVDD_DDR_D_3
AC11
FRC_AVDD_DDR_D_4
AC12
FRC_AVDD_DDR_C
AA12
MVREF
G15
NC_1
Y7
NC_2
Y8
GND_1 G18
GND_2 H9
GND_3 H10
GND_4 H18
GND_5 H19
GND_6 J10
GND_7 J17
GND_8 J18
GND_9 J19
GND_10 K9
GND_11 K10
GND_12 K11
GND_13 K12
GND_14 K13
GND_15 K14
GND_16 K15
GND_17 K16
GND_18 K17
GND_19 K18
GND_20 L9
GND_21 L10
GND_22 L11
GND_23 L12
GND_24 L13
GND_25 L14
GND_26 L15
GND_27 L16
GND_28 L17
GND_29 M9
GND_30 M10
GND_31 M11
GND_32 M12
GND_33 M13
GND_34 M14
GND_35 M15
GND_36 M16
GND_37 M17
GND_38 N10
GND_39 N11
GND_40 N12
GND_41 N13
GND_42 N14
GND_43 N15
GND_44 N16
GND_45 N17
GND_46 P10
GND_47 P11
GND_48 P12
GND_49 P13
GND_50 P14
GND_51 P15
GND_52 P16
GND_53 P17
GND_54 R10
GND_55 R11
GND_56 R12
GND_57 R13
GND_58 R14
GND_59 R15
GND_60 R16
GND_61 R17
GND_62 R18
GND_63 T10
GND_64 T11
GND_65 T12
GND_66 T13
GND_67 T14
GND_68 T15
GND_69 T16
GND_70 T17
GND_71 T18
GND_72 T19
GND_73 U10
GND_74 U11
GND_75 U12
GND_76 U13
GND_77 U14
GND_78 U15
GND_79 U16
GND_80 U17
GND_81 V7
GND_82 V8
GND_83 V9
GND_84 V10
GND_85 V11
GND_86 V12
GND_87 V13
GND_88 V14
GND_89 V15
GND_90 V16
GND_91 V17
GND_92 V18
GND_93 W7
GND_94 W8
GND_95 W9
GND_96 W10
GND_97 W11
GND_98 W12
GND_99 W13
GND_100 W16
GND_101 W17
GND_102 W18
GND_103 Y13
GND_104 Y18
GND_105 AA13
GND_106 AB13
GND_107 AC13
GND_FU J9
PGA_VCOM U9
GND_108 D17
GND_109 H23
GND_110 AF13
C277 0.1uF C299 0.1uF C4006 0.1uF C4013 0.1uF
C248 0.047uF
3D_GPIO_1
3D_GPIO_2
R213 0
3D_SG
R216 0
3D_SG
D18
MODEL_OPT_3
DVB_T2
reserved for FRC : LOW HIGH
HD
B6
FRC_AVDD:60mAAU33:31mA
TU/DEMOD_I2C
E18
AUDIO OUT
CVBS In/OUT
U5_EXTERNALBOOT :HIGH HIGH
MODEL_OPT_0
Close to MSTAR
FRC_MPLL:4mA
MODEL_OPT_5
AVDD_DDR1:55mA
AVDD_DMPLL/AVDD_NODIE:7.362mA
VDD33_T/VDDP/U3_VD33_2:47mA
100/120Hz LVDS
MODEL_OPT_6
DTV_IF
F9
Normal Power 3.3V
LCD
AVDD_DDR_FRC:55mA
FRC_LPLL:13mA
MODEL OPTION
OLED
MODEL_OPT_2
Close to MSTAR
HDMI
B/T USB
Normal 2.5V
AVDD2P5/ADC2P5:162mA
RSDS Power OPT
DSUB
50/60Hz LVDS
PIN NAME
MODEL_OPT_1
I2S_I/F
VDD_RSDS:88mA
Close to MSTAR
NO FRC FRC_HW_OPT
PIN NO.
DDR3 1.5V
AUDIO IN
U3_INTERNAL : HIGH LOW
VDDC 1.26V
LOW
H/P OUT
HIGH
AVDD_DDR0:55mA
Ready
VDDC : 2026mA
AVDD25_PGA:13mA
G19
C5
MODEL_OPT_4
SCART1_RGB/COMP1
SIDE USB
FHD
default
MODEL OPTION
VDD33_DVI:163mA
F7
FRC_VDD33_DDR:50mA
NO_FRC : LOW LOW
NON_DVB_T2
AVDD_MEMPLL:24mA
Delete CHB_CVBS_IN
Close to MSTAR
OPT_0
RSDS Power OPT
AU25:10mA
-->In case of GP2, This port was used for GIP/NON_GIP
ANALOG SIF
COMP2
PHM_ON
OPT_4
PHM_OFF --> This option is only applied in EU.
In case of NON_EU, default value set LOW.
GP2R
MAIN2, HW OPT 2
20101023
--> MODEL_OPT_5, MODEL_OPT_6
: Only 3D_SG GPIO OUTPUT CONTROL

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
C-MDQU7
I2C_SDA
C-MDQU0
C-TMA12
FRC_MODEL_OPT_0
C-MA1
C-TMA0
RXA0-
C-MDQU7
C-TMDQL5
RXB0-
R338
1K
OPT
VCC1.5V_U3_DDR
C-TMA6
C-MBA2
C-MA11
C317
0.1uF
L/DIM_SCLK
RXC0+
C-MDQU2
RXCCK+
RXACK-
RXA1+
C-TMA3
C-MDML
FRC_PWM1
C-MBA0
C-TMA0
R334 22
OPT
C-MDQL2
C-MA7
R307
22
RXA1-
RXD2+
C-TMCKB
C-TMDQU1
C306
0.1uF
C-TMCKE
R330
10
S7M-PLUS
C-TMA7
C-TMA12
R329
10
S7M-PLUS
C-MDQSU
RXD1+
R323
1K
FRC
C-MA4
C304
1000pF
C-TMRESETB
R311
22
FRC_CONF0
+1.5V_FRC_DDR
R301
1K 1%
C-TMA4
C-MDQU5
RXD4+
C320
0.1uF
R325
1K
S7M-R
RXA2-
FRC_SPI_SDI
C301 10uF
C-MDQU6
C-TMDQU5
RXCCK-
FRC_MODEL_OPT_2
R322
1K
OPT
C-TMA5
+3.3V_Normal
C-TMDQU4
C-TMDQL0
C-TMDQU5
2D/3D_CTL
C-TMA11
C-MA5
VCC1.5V_U3_DDR
C-MODT
C-TMDMU
RXA2+
C-TMA10
AR308
22
AR309
22
C-MBA0
C-MDQSLB
C-MDQU2
RXB4-
FRC_SPI_SCK
C-MA2
C-MVREFDQ
C-TMDML
C-TMDQL6
C-MCK
C-MCKE
C-MDQL6
C-MCKB
C-TMCKB
R341
1K
LVDS_S7M-PLUS
R316
22
RXB1-
C-TMA6
AR303
22
R317
820
S7M-R
C-TMDQU6
C-MA9
RXB1+
R321
1K
S7M-PLUS
C-MA3
C305
0.1uF
C-TMDQL4
FRC_SPI_SDI
C-TMDQU6
C-MDQL4
C323
0.1uF
C-MA7
C-MDQL3
FRC_PWM1
R300 33
FRC_L/DIM
AR307
22
C-MDQSL
AR305
22
C-TMA9
C-TMDQU4
C-MDQSL
R314
22
RXA3+
C308
0.1uF
R327
10
S7M-PLUS
RXC4+
C322
0.1uF
R313
22
FRC_/SPI_CS
C-MRASB
C-TMDQL7
C-TMCKE
RXB4+
C-MDQL3
2D/3D_CTL
RXD3+
C-MA1
FRC_PWM0
RXDCK-
C-TMA3
RXD0+
C-TMRASB
RXC2-
C-TMDQU7
VCC1.5V_U3_DDR
C-TMDQU3
C-MDML
C316
0.1uF
RXB0+
C303
0.1uF
OPT
C-TMA8
C-TMA2
C-TMDQSL
C318
0.1uF
RXA3-
C310
0.1uF
C-TMDQL2
C-MA12
C-TMCK
R308
22
C-TMDQL1
C-TMA7
R340
1K
LVDS_EXT_URSA5
FRC_MODEL_OPT_0
C-MDQU3
RXD4-
C314
1000pF
C-MA10
R343
1K
OPT
FRC_CONF0
C-MDQU5
C-MVREFCA
C-TMBA0
R309
22
RXBCK-
C-TMDQL4
C-MBA1
RXA4+
C-MDQU6
C319
0.1uF
C-MWEB
C-TMCASB
C302
0.1uF
RXB2+
C-MDQU1
C-MA10
C-MBA2
C-MVREFCA
R310
22
C-MDQSLB
C321
0.1uF
C-TMDQL3
C-TMDQU0
VCC1.5V_U3_DDR
RXD1-
FRC_SDA
C-TMA10
C-MA4
R312
22
FRC_MODEL_OPT_1
C-MDQU4
RXC4-
C-TMBA2
FRC_CONF1
R306
150
OPT
C-MDMU
C-TMDQSUB
R303
240
1%
R319
1K
OPT
R335 22
OPT
C-TMODT
R305
1K 1%
C-TMDQSU
C-TMBA1
C-TMA9
C-MDQSU
C-TMDQSU
R328
10
S7M-PLUS
C-MDQU0
C-MCK
C-MCASB
C-TMBA1
C-MA12
C-MDQU4
C-MDQSUB C-TMDQU1
C-MA9
C313
0.1uF
C-TMDQU3
C-TMBA0
FRC_SPI_SDO
C-TMA1
C312
0.1uF
R336
1K
L/DIM_EDGE_32/37
C-MRESETB
R318
1K
FRC
RXC3-
C-TMDQSL
I2C_SCL
L301
C-TMDQL3
RXC1+
C-TMBA2
FRC_PWM0
RXA4-
C-MA6
C-MDQL7
FRC_/SPI_CS
R326 22 FRC
C-MA8
C-TMWEB
C-MDQL2
C-TMDQL2
C-TMDQU2
C-TMDQL7
C-TMA8
C311
0.1uF
C315
0.1uF
C-MCKB
C-MA11
C-MWEB
C-MA0
V_SYNC
AR301
22
R324
1K
OPT
C-TMDML
C-MDQL0
C325
0.1uF
16V
FRC_SPI_SCK
C-MA5
C-MDQL1
C-MDQL1
C-MDQL6
C-TMCK
RXC1-
R349 10K
S7M-PLUS
RXC3+
RXACK+
C-MODT
RXB3+
RXD2-
R339
1K
C-MDQSUB
RXBCK+
C-TMDQSLB
R331 22 FRC
R348 33
FRC_L/DIM
R304
1K 1%
R342
1K
OPT
R337
1K
L/DIM_EDGE_42/47/55
C-TMDQL1
C-TMA1
RXD3-
RXDCK+
C-TMRESETB
RXC2+
C-TMWEB
C-MRASB
C-MA3
L/DIM_MOSI
AR304
22
C-MA6
R332
33
FRC_L/DIM
RXD0-
C-TMA5
RXB3-
AR302
22
C307
0.1uF
+3.3V_Normal
C-TMA11
FRC_SPI_SDO
R320
1K
FRC
C-TMDQL0
C309
0.1uF
R333
10K
C-TMDMU
C-TMCASB
C-MA8
C-TMA2
C-TMDQU7
C-MA2
C324
10uF
10V
C-TMA4
C-MCKE
C-MBA1
+3.3V_Normal
FRC_MODEL_OPT_2
C-MDQL0
C-TMDQL5
C-MDMU
VCC1.5V_U3_DDR
R350 4.7K
OPT
C-MVREFDQ
FRC_SCL
C-TMDQSUB
R302
1K 1%
+3.3V_Normal
AR306
22
C-MDQU3
C-MA0
R315
22
FRC_MODEL_OPT_1
C-MDQL5
RXA0+
C-TMDQSLB
C-MDQL7
C-TMDQL6
C-MDQL4
RXB2-
C-TMRASB
C-MRESETB
C-TMDQU0
C-MDQU1
FRC_CONF1
C-MDQL5
VCC1.5V_U3_DDR
C-TMODT
RXC0-
C-TMDQU2
C-MCASB
LGE107DC-RP [S7M+ DIVX/MS10]
IC101
S7M-PLUS_DivX_MS10
FRC_DDR3_A0/DDR2_NC
AE1
FRC_DDR3_A1/DDR2_A6
AF16
FRC_DDR3_A2/DDR2_A7
AF1
FRC_DDR3_A3/DDR2_A1
AE3
FRC_DDR3_A4/DDR2_CASZ
AD14
FRC_DDR3_A5/DDR2_A10
AD3
FRC_DDR3_A6/DDR2_A0
AF15
FRC_DDR3_A7/DDR2_A5
AF2
FRC_DDR3_A8/DDR2_A2
AE15
FRC_DDR3_A9/DDR2_A9
AD2
FRC_DDR3_A10/DDR2_A11
AD16
FRC_DDR3_A11/DDR2_A4
AD15
FRC_DDR3_A12/DDR2_A8
AE16
FRC_DDR3_BA0/DDR2_BA2
AF3
FRC_DDR3_BA1/DDR2_ODT
AF14
FRC_DDR3_BA2/DDR2_A12
AD1
FRC_DDR3_MCLK/DDR2_MCLK
AD13
FRC_DDR3_CKE/DDR2_RASZ
AE14
FRC_DDR3_MCLKZ/DDR2_MCLKZ
AE13
FRC_DDR3_ODT/DDR2_BA1
AE4
FRC_DDR3_RASZ/DDR2_WEZ
AD5
FRC_DDR3_CASZ/DDR2_CKE
AF4
FRC_DDR3_WEZ/DDR2_BA0
AD4
FRC_DDR3_RESETB/DDR2_A3
AE2
FRC_DDR3_DQSL/DDR2_DQS0
AF8
FRC_DDR3_DQSLB/DDR2_DQSB0
AD9
FRC_DDR3_DQSU/DDR2_DQS1
AE9
FRC_DDR3_DQSUB/DDR2_DQSB1
AF9
FRC_DDR3_DML/DDR2_DQ7
AE11
FRC_DDR3_DMU/DDR2_DQ11
AF6
FRC_DDR3_DQL0/DDR2_DQ6
AE6
FRC_DDR3_DQL1/DDR2_DQ0
AF11
FRC_DDR3_DQL2/DDR2_DQ1
AD6
FRC_DDR3_DQL3/DDR2_DQ2
AD12
FRC_DDR3_DQL4/DDR2_DQ4
AE5
FRC_DDR3_DQL5/DDR2_NC
AF12
FRC_DDR3_DQL6/DDR2_DQ3
AF5
FRC_DDR3_DQL7/DDR2_DQ5
AE12
FRC_DDR3_DQU0/DDR2_DQ8
AE10
FRC_DDR3_DQU1/DDR2_DQ14
AF7
FRC_DDR3_DQU2/DDR2_DQ13
AD11
FRC_DDR3_DQU3/DDR2_DQ12
AD7
FRC_DDR3_DQU4/DDR2_DQ15
AD10
FRC_DDR3_DQU5/DDR2_DQ9
AE7
FRC_DDR3_DQU6/DDR2_DQ10
AF10
FRC_DDR3_DQU7/DDR2_DQM1
AD8
FRC_DDR3_NC/DDR2_DQM0
AE8
FRC_VSYNC_LIKE
Y11
FRC_TESTPIN
Y19
ACKP/RLV3P/RED[3] W26
ACKM/RLV3N/RED[2] W25
A0P/RLV0P/RED[9] U26
A0M/RLV0N/RED[8] U25
A1P/RLV1P/RED[7] U24
A1M/RLV1N/RED[6] V26
A2P/RLV2P/RED[5] V25
A2M/RLV2N/RED[4] V24
A3P/RLV4P/RED[1] W24
A3M/RLV4N/RED[0] Y26
A4P/RLV5P/GREEN[9] Y25
A4M/RLV5N/GREEN[8] Y24
BCKP/TCON13/GREEN[1] AC26
BCKM/TCON12/GREEN[0] AC25
B0P/RLV6P/GREEN[7] AA26
B0M/RLV6N/GREEN[6] AA25
B1P/RLV7P/GREEN[5] AA24
B1M/RLV7N/GREEN[4] AB26
B2P/RLV8P/GREEN[3] AB25
B2M/RLV8N/GREEN[2] AB24
B3P/TCON11/BLUE[9] AC24
B3M/TCON10/BLUE[8] AD26
B4P/TCON9/BLUE[7] AD25
B4M/TCON8/BLUE[6] AD24
CCKP/LLV3P AD23
CCKM/LLV3N AE23
C0P/LLV0P/BLUE[5] AE26
C0M/LLV0N/BLUE[4] AE25
C1P/LLV1P/BLUE[3] AF26
C1M/LLV1N/BLUE[2] AF25
C2P/LLV2P/BLUE[1] AE24
C2M/LLV2N/BLUE[0] AF24
C3P/LLV4P AF23
C3M/LLV4N AD22
C4P/LLV5P AE22
C4M/LLV5N AF22
DCKP/TCON5 AD19
DCKM/TCON4 AE19
D0P/LLV6P AD21
D0M/LLV6N AE21
D1P/LLV7P AF21
D1M/LLV7N AD20
D2P/LLV8P AE20
D2M/LLV8N AF20
D3P/TCON3 AF19
D3M/TCON2 AD18
D4P/TCON1 AE18
D4M/TCON0 AF18
GPIO0/TCON15/HSYNC/VDD_ODD AB22
GPIO1/TCON14/VSYNC/VDD_EVEN AB23
GPIO2/TCON7/LDE/GCLK4 AC23
GPIO3/TCON6/LCK/GCLK2 AC22
FRC_SPI_CZ AB16
FRC_GPIO1 AA14
FRC_SPI1_CK AC15
FRC_GPIO8 Y16
FRC_SPI_DO AC16
FRC_SPI1_DI AC14
FRC_SPI_CK AA16
FRC_SPI_DI AA15
FRC_I2CS_DA Y10
FRC_I2CS_CK AA11
FRC_PWM0 AB15
FRC_PWM1 AB14
H5TQ1G63DFR-H9C
IC301
FRC_DDR_1333_HYNIX
EAN61828901
A0 N3
A1 P7
A2 P3
A3 N2
A4 P8
A5 P2
A6 R8
A7 R2
A8 T8
A9 R3
A10/AP L7
A11 R7
A12/BC N7
A13 T3
NC_5 M7
BA0 M2
BA1 N8
BA2 M3
CK J7
CK K7
CKE K9
CS L2
ODT K1
RAS J3
CAS K3
WE L3
RESET T2
DQSL F3
DQSL G3
DQSU C7
DQSU B7
DML E7
DMU D3
DQL0 E3
DQL1 F7
DQL2 F2
DQL3 F8
DQL4 H3
DQL5 H8
DQL6 G2
DQL7 H7
DQU0 D7
DQU1 C3
DQU2 C8
DQU3 C2
DQU4 A7
DQU5 A2
DQU6 B8
DQU7 A3
VREFCA
M8
VREFDQ
H1
ZQ
L8
VDD_1
B2
VDD_2
D9
VDD_3
G7
VDD_4
K2
VDD_5
K8
VDD_6
N1
VDD_7
N9
VDD_8
R1
VDD_9
R9
VDDQ_1
A1
VDDQ_2
A8
VDDQ_3
C1
VDDQ_4
C9
VDDQ_5
D2
VDDQ_6
E9
VDDQ_7
F1
VDDQ_8
H2
VDDQ_9
H9
NC_1
J1
NC_2
J9
NC_3
L1
NC_4
L9
NC_6
T7
VSS_1
A9
VSS_2
B3
VSS_3
E1
VSS_4
G8
VSS_5
J2
VSS_6
J8
VSS_7
M1
VSS_8
M9
VSS_9
P1
VSS_10
P9
VSS_11
T1
VSS_12
T9
VSSQ_1
B1
VSSQ_2
B9
VSSQ_3
D1
VSSQ_4
D8
VSSQ_5
E2
VSSQ_6
E8
VSSQ_7
F9
VSSQ_8
G1
VSSQ_9
G9
H5TQ1G63DFR-PBC
IC301-*2
FRC_DDR_1600_HYNIX
EAN61829001
A0
N3
A1
P7
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
A12/BC
N7
A13
T3
A15
M7
BA0
M2
BA1
N8
BA2
M3
CK
J7
CK
K7
CKE
K9
CS
L2
ODT
K1
RAS
J3
CAS
K3
WE
L3
RESET
T2
DQSL
F3
DQSL
G3
DQSU
C7
DQSU
B7
DML
E7
DMU
D3
DQL0
E3
DQL1
F7
DQL2
F2
DQL3
F8
DQL4
H3
DQL5
H8
DQL6
G2
DQL7
H7
DQU0
D7
DQU1
C3
DQU2
C8
DQU3
C2
DQU4
A7
DQU5
A2
DQU6
B8
DQU7
A3
VREFCA M8
VREFDQ H1
ZQ L8
VDD_1 B2
VDD_2 D9
VDD_3 G7
VDD_4 K2
VDD_5 K8
VDD_6 N1
VDD_7 N9
VDD_8 R1
VDD_9 R9
VDDQ_1 A1
VDDQ_2 A8
VDDQ_3 C1
VDDQ_4 C9
VDDQ_5 D2
VDDQ_6 E9
VDDQ_7 F1
VDDQ_8 H2
VDDQ_9 H9
NC_1 J1
NC_2 J9
NC_3 L1
NC_4 L9
NC_6 T7
VSS_1 A9
VSS_2 B3
VSS_3 E1
VSS_4 G8
VSS_5 J2
VSS_6 J8
VSS_7 M1
VSS_8 M9
VSS_9 P1
VSS_10 P9
VSS_11 T1
VSS_12 T9
VSSQ_1 B1
VSSQ_2 B9
VSSQ_3 D1
VSSQ_4 D8
VSSQ_5 E2
VSSQ_6 E8
VSSQ_7 F9
VSSQ_8 G1
VSSQ_9 G9
IC302
W25X20BVSNIG
S7M-PLUS_S_FLASH_2MBIT_WIN
3
WP
2
DO
4
GND
1
CS
5DIO
6CLK
7HOLD
8VCC
R317-*1
4.7K
S7M-PLUS
K4B1G1646G-BCH9
IC301-*3
FRC_DDR_1333_SS_NEW
EAN61857101
A0
N3
A1
P7
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
A12/BC
N7
A13
T3
NC_5
M7
BA0
M2
BA1
N8
BA2
M3
CK
J7
CK
K7
CKE
K9
CS
L2
ODT
K1
RAS
J3
CAS
K3
WE
L3
RESET
T2
DQSL
F3
DQSL
G3
DQSU
C7
DQSU
B7
DML
E7
DMU
D3
DQL0
E3
DQL1
F7
DQL2
F2
DQL3
F8
DQL4
H3
DQL5
H8
DQL6
G2
DQL7
H7
DQU0
D7
DQU1
C3
DQU2
C8
DQU3
C2
DQU4
A7
DQU5
A2
DQU6
B8
DQU7
A3
VREFCA M8
VREFDQ H1
ZQ L8
VDD_1 B2
VDD_2 D9
VDD_3 G7
VDD_4 K2
VDD_5 K8
VDD_6 N1
VDD_7 N9
VDD_8 R1
VDD_9 R9
VDDQ_1 A1
VDDQ_2 A8
VDDQ_3 C1
VDDQ_4 C9
VDDQ_5 D2
VDDQ_6 E9
VDDQ_7 F1
VDDQ_8 H2
VDDQ_9 H9
NC_1 J1
NC_2 J9
NC_3 L1
NC_4 L9
NC_6 T7
VSS_1 A9
VSS_2 B3
VSS_3 E1
VSS_4 G8
VSS_5 J2
VSS_6 J8
VSS_7 M1
VSS_8 M9
VSS_9 P1
VSS_10 P9
VSS_11 T1
VSS_12 T9
VSSQ_1 B1
VSSQ_2 B9
VSSQ_3 D1
VSSQ_4 D8
VSSQ_5 E2
VSSQ_6 E8
VSSQ_7 F9
VSSQ_8 G1
VSSQ_9 G9
NT5CB64M16DP-CF
IC301-*4
FRC_DDR_1333_NANYA_NEW
EAN61857201
A0
N3
A1
P7
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
A12
N7
NC_6
T3
NC_5
M7
BA0
M2
BA1
N8
BA2
M3
CK
J7
CK
K7
CKE
K9
CS
L2
ODT
K1
RAS
J3
CAS
K3
WE
L3
RESET
T2
DQSL
F3
DQSL
G3
DQSU
C7
DQSU
B7
DML
E7
DMU
D3
DQL0
E3
DQL1
F7
DQL2
F2
DQL3
F8
DQL4
H3
DQL5
H8
DQL6
G2
DQL7
H7
DQU0
D7
DQU1
C3
DQU2
C8
DQU3
C2
DQU4
A7
DQU5
A2
DQU6
B8
DQU7
A3
VREFCA M8
VREFDQ H1
ZQ L8
VDD_1 B2
VDD_2 D9
VDD_3 G7
VDD_4 K2
VDD_5 K8
VDD_6 N1
VDD_7 N9
VDD_8 R1
VDD_9 R9
VDDQ_1 A1
VDDQ_2 A8
VDDQ_3 C1
VDDQ_4 C9
VDDQ_5 D2
VDDQ_6 E9
VDDQ_7 F1
VDDQ_8 H2
VDDQ_9 H9
NC_1 J1
NC_2 J9
NC_3 L1
NC_4 L9
NC_7 T7
VSS_1 A9
VSS_2 B3
VSS_3 E1
VSS_4 G8
VSS_5 J2
VSS_6 J8
VSS_7 M1
VSS_8 M9
VSS_9 P1
VSS_10 P9
VSS_11 T1
VSS_12 T9
VSSQ_1 B1
VSSQ_2 B9
VSSQ_3 D1
VSSQ_4 D8
VSSQ_5 E2
VSSQ_6 E8
VSSQ_7 F9
VSSQ_8 G1
VSSQ_9 G9
R344
0
3D_SG 3D_SYNC_RF
$ 0.17
CLose to Saturn7M IC
(FRC_CONF0)
Close to DDR Power Pin
<U3 CHIP Config>
CLose to DDR3
(FRC_CONF1,FRC_PWM1, FRC_PWM0)
DDR3 1.5V By CAP - Place these Caps near Memory
3’d5 : boot from internal SRAM
3’d6 : boot from EEPROM
3’d7 : boot form SPI flash
HIGH : I2C ADR = B8
LOW : I2C ADR = B4
GP2R
FRC_DDR
20101023
3

THERMAL
THERMAL
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
C462
0.1uF
16V
C432
0.1uF
16V
R452
330K1/16W 5%
IC406
AOZ1072AI-3
3
AGND
2
VIN
4
FB
1
PGND
5COMP
6EN
7LX_1
8LX_2
R480
100
PD_+12V
PANEL_VCC
TP5302
C477
0.1uF
16V
C470
0.1uF
16V
C411
0.1uF
16V
V_SYNC
R486 4.7K
OPT
Q408
AO3438
FRC
G
D S
R440 5.6K
C405
10uF
25V
C476
22uF
10V
R455
15K
1/16W 5%
C416
0.1uF
16V
OPT
C423
100pF
50V
OPT
C413
2200pF
L422
3.6uH
NR8040T3R6N
PWM_DIM
C463
100pF
50V
C441
0.1uF
16V
R476 0
POWER_23_GND
R431
22K
R449
56K
1/16W
1%
+3.5V_ST
C427
100pF
50V
OPT
R445
10K
C407
0.1uF
16V
OPT
C430
10uF
10V
ERROR_OUT
+3.3V_Normal
+3.5V_ST
L420
A_DIM
C431
0.1uF
16V
L413
SCAN_BLK1/OPC_OUT
L417
R407
2.2K
OPT
L412
+3.3V_Normal
R462 10K
1%
C420
22uF
16V
R459
10K
R606
3.9K
PWM_PULL-DOWN_3.9K
Q402
RT1P141C-T112
1
2
3
R439
33K
C461
10uF
10V
C473
0.1uF
16V
Q409
AO3407A
G
D
S
R415
100
POWER_18_INV_CTL
R416
1.5K
1%
C455
0.1uF
16V
R485 0
POWER_22_A_DIM
R419
1K
R456
10K
Q406
2SC3052
E
B
C
R464
10K
P403
FW20020-24S
NORMAL_EXPEPT_32
19
14
9
4
18
13
8
3
17
12
7
2
16
11
6
1
20
15
10
5
21 22
23 24
P401
SMAW200-H24S2
SLIM_32~52
19
12V
14 GND
9
3.5V
424V
18 INV ON
13
GND
8GND
3
24V
17
12V
12 3.5V
7
GND
224V
16 GND/V-sync
11
3.5V
6GND
1
PWR ON
20 A.DIM
15
GND
10 3.5V
5
GND
21
12V 22 P.DIM1
23
GND/P.DIM2 24 Err OUT
25
+12V/+15V
C438
0.1uF
16V
IC401
AOZ1073AIL-3
3
AGND
2
VIN
4
FB
1
PGND
5COMP
6EN
7LX_1
8LX_2
R457
47K 1%
C410
10uF
25V
R414 51K
1%
R404
100K
PD_+12V
POWER_ON/OFF2_2
INV_CTL
POWER_ON/OFF2_1
+24VC451
0.1uF
50V
OPT
1608
R443 10K
FRC
C428
0.1uF
16V
OPT
C408
0.1uF
16V
OPT
R488
100K
L416
TP5305
+12V/+15V
POWER_DET
Q401
2SC3052
E
B
C
R461
4.7K
1%
POWER_ON/OFF2_2
PANEL_CTL
1:AK10
OPC_OUT
+12V/+15V
R401
10K
L415
3.6uH
NR8040T3R6N
C440
0.1uF
16V
C401
100uF
16V
R427
10K
OPT
R463 10K
OPT
0
R484
POWER_20_PWM_DIM
C474
0.1uF
R475 0
POWER_24_GND
R460 27K
1%
R406
4.7K
+2.5V_Normal
C453
22uF
10V
POWER_ON/OFF1
R458
12K
+1.5V_FRC_DDR
C468
0.1uF
16V
C445
4.7uF
OPT
TP5304 SCAN_BLK2
C435
4.7uF
10V
OPT
L423
3.6uH
NR8040T3R6N
+12V/+15V
+3.5V_ST
C406
0.1uF
16V
C444
0.1uF
16V
R405
2.2K
OPT
POWER_ON/OFF2_1
C472
22uF
10V
+3.5V_ST
R426
10K OPT
R434 120K
OPT
R436
7.5K
1/16W 5%
R473
1
R432
330K1/16W 5%
OLP
C475
0.1uF
16V
L404
MLB-201209-0120P-N2
C404
0.1uF
16V
R467 10K
1%
C439
100pF
50V
L401
C467
4700pF
50V
+24V
+3.5V_ST
R444
22K
1%
+5V_USB
+3.3V_Normal
R410
10K
C412
0.1uF
16V
PD_+12V
RL_ON
+1.5V_DDR
L424
CIC21J501NE
R453 0
POWER_20_A_DIM
+3.5V_ST
+12V/+15V
TP5303
C448
3300pF
50V
Q407
2SC3052
E
B
C
L407
MLB-201209-0120P-N2
+3.3V_Normal
100R437
POWER_20_ERROR_OUT
R451 0
POWER_18_A_DIM
+3.5V_ST
POWER_ON/OFF2_1
R421
10K
R442
24K 1%
C403
10uF
10V
C402
100uF
16V
P404
FM20020-24
NORMAL_32
19
14
9
4
18
13
8
3
17
12
7
2
16
11
6
1
20
15
10
5
21 22
23 24
25
C442
10uF
16V
OPT
R425
100
POWER_24_INV_CTL
0R471
POWER_22_PWM_DIM
C426
68uF
35V
R402
100
C436
0.01uF
25V
0.01uF
L406
3.6uH
NR8040T3R6N
R412 0
POWER_16_GND
+12V/+15V
C424
0.1uF
16V
R429
47K
C485
0.1uF
16V
IC402
AZ2940D-2.5TRE1
2
GND
3VOUT 1
VIN
R441
75K
1/8W
1%
Q405
2SC3052
E
B
C
R430
10K
OPT
+1.26V_VDDC
C418
0.1uF
50V R435
22K
L421
3.6uH
NR8040T3R6N
R423 10K
1%
R418
6.8K
OPT
C447
0.1uF
16V
IC405
AOZ1073AIL-3
3
AGND
2
VIN
4
FB
1
PGND
5COMP
6EN
7LX_1
8LX_2
C456
22uF
10V
0R472
POWER_24_PWM_DIM
100
R420
POWER_24_ERROR_OUT
+1.5V_DDR
C429
100pF
50V
OPT
TP5306
C466
2200pF
IC409
NCP803SN293
PD_+12V_PWR_DET_ON_SEMI
1
GND
3
VCC 2RESET
IC408
NCP803SN293
PWR_DET_ON_SEMI
1
GND
3
VCC 2RESET
IC407
TPS54319TRE
1
VIN_1
3
GND_1
7
COMP
9SS/TR
10 PH_1
11 PH_2
12 PH_3
13 BOOT 14 PWRGD 15 EN 16 VIN_3
5
AGND
8
RT/CLK
6
VSENSE
4
GND_2
2
VIN_2 17
EP[GND]
R450 0 5%
PD_+3.5V
R482 8.2K
1%
POWER_+24V
R403 1.5K
1%
POWER_+24V
C465
0.01uF
50V
C488
0.01uF
50V
L402
MLB-201209-0120P-N2
L402-*1
CIS21J121
L404-*1
CIS21J121
L407-*1
CIS21J121
R448 2.7K 1%
PD_+12V
R447 1.21K 1/10W 1%
PD_+12V
C443
10uF
25V
C457
10uF
25V
C458
10uF
25V
C459
10uF
25V
C460
10uF
25V
C409
0.015uF
50V
0.015uF
R454
12K
R413
12K
C469
22uF
16V
C464
2200pF
IC403
SN1007054RTER
1
VIN_1
3
GND_1
7
COMP
9SS
10 PH_1
11 PH_2
12 PH_3
13 BOOT 14 PWRGD 15 EN 16 VIN_3
5
AGND
8
RT/CLK
6
VSENSE
4
GND_2
2
VIN_2 17
EP[GND]
R606-*1
1K
PWM_PULL-DOWN_1K
R465 24K
1%
R466
51K
1%
C471
22uF
16V
R424
1
5%
IC410
AP1117EG-13
ADJ/GND
OUTIN
+5V_Normal
IC411
AP1117EG-13
ADJ/GND
OUTIN
R422
1
5%
C417
0.1uF
16V
R408
110
C414
0.1uF
16V
R417
110
C491
0.1uF
50V
C422
0.1uF
50V
C415
10uF
10V C419
10uF
10V
R409
330
R411
330
C489
0.1uF
16V
C490
0.1uF
16V
+5V_TUNER
C492
0.1uF
16V
R405-*1
3K
PANEL_DISCHARGE_RES
R407-*1
3K
PANEL_DISCHARGE_RES
16
R1
PIN No
LGD edge led error-out use or not? checking is necessary...
INV_ON
New item
26/32/52:GND
24V-->3.78V --> 3.92V (3.79V)
2000 mA
INV_ON
26/32/52:PWM
NC
CMO10"LED
NC
GND
err_out
(PSU)
Vout=(1+R1/R2)*0.8
3A
NC
GND
<LED MODULE PIN MAP -> latest update 20100618>
$ 0.145
err_out
23
GNDGND
18.5V-->3.5V --> 3.75V (3.59V)
NC
SHARP
err_out
INV_ON
err_out
AUO 10"Lamp
NC
4A
INV_ON
A-DIM
MAX 1A
Vout=0.8*(1+R1/R2)
LGD LPB/
+3.5V_ST -> 3.375V
23
<MODULE PIN MAP>
INV_ON
GND
+3.3V_Normal
or LIPS
PANEL_POWER
NC
CMO10"Lamp
+5V_Normal
S7M DDR 1.5V
26/32HD:NC
S7M core 1.26V volt
(PSU)
NC
INV_ON
Err_out
PWM_DIM
NC
22
(PSU)
OS LPB (PSU)
24
AUO 10"LED
18
2A
32LE5300-TA
1934 mA
32LE4500-TA
LGD(PSU)
NC
R1
VBR-A
(PSU)
NC
Err_out
GND
PWM_DIM
20
NC
20V-->3.51V --> 3.76V (3.59V)
60:PWM
INV_ON
300 mA
PWM_DIM
GND
PWM_DIM
NC
INV_ON
Vout=0.8*(1+R1/R2)=1.29V
PWM_DIM
Err_out
LGD 10"LED
12V -->3.58V --> 3.82V (3.68V)
R1
52/60:ERROR
R2
R2
GND
--> NC
GND
ST_3.5V--> 3.375V --> 3.46V
+5V_USB
R2
NC
20
3A
32LE5300-TA
22
$ 0.165
--> NC
IPS-@
16
--> NC
FROM LIPS & POWER B/D
60:NC
Power_DET
R1
R2
18
PWM_DIM
3A
--> NC
1074 mA
24
PWM_DIM
Vout=(1+R1/R2)*0.8
INV_ON
(PSU)
PIN No
+2.5V/+1.8V
R1
+1.5V_DDR_FRC
Vd=550mV
R2
GND
NC
PWM_DIM
NC
(PSU)
Vout=0.827*(1+R1/R2)=1.521V
20101023
GP2R
POWER_LARGE 4
<Module Inv to Main Pin Connection>
INV <--> MAIN
#11 <--> #24
#12 <--> #18
#13 <--> #20
#14 <--> #22
C421,C422 Close to LDO

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
+3.5V_ST
R1057 22
+3.5V_ST
+3.5V_ST
OCD1A
TP1001
NEC_ISP_Tx
POWER_ON/OFF2_1
R1009 10K
PWM_BUZZ/IIC_LED
AMP_RESET
SIDE_HP_MUTE
CEC_ON/OFF
R1034
4.7M
CRYSTAL_KDS
C1002 0.1uF
C1009 1uF
KEY2
NEC_ISP_Rx
NEC_EEPROM_SCL
KEY1
FLMD0
R1065 22
SOC_RESET
AMP_RESET
NEC_SDA
R1010 22
MICOM_DEBUG
OCD1A
MODEL1_OPT_2
R1030 10K
R1090 22
OPT
TP1602
C1003
0.1uF
R1075 10K
TOUCH_KEY
R1060 22
NEW_SUB
MODEL1_OPT_2
C1010
0.1uF
R1091 10K
TP1002
OCD1B
+3.5V_ST
S/T_SDA
S7_NEC_RXD
P1001
12505WS-12A00
MICOM_DEBUG_WAFER
1
2
3
4
5
6
7
8
9
10
11
12
13
R1046 47K
R1049 22
OPT
R1081 22
MICOM_DEBUG
NEC_ISP_Tx
NEC_ISP_Rx
TP1003
OCD1A
OCD1B
R1080
22
IC1001-*1
AT24C16BN-SH-B
EEPROM_NEC_16KBIT_ATMEL
3
NC_3
2
NC_2
4
GND
1
NC_1
5SDA
6SCL
7WP
8VCC
R1023 22
IC1001
M24C16-WMN6T
EEPROM_NEC_16KBIT_STM
3
NC/E2
2
NC/E1
4
VSS
1
NC/E0
5SDA
6SCL
7WC
8VCC
TP1601
OLP
C1007 15pF
PANEL_CTL
X1002
32.768KHz
CRYSTAL_EPSON
+3.5V_ST
R1039 22
POWER_ON/OFF2_2
R1066 22
CEC_REMOTE_NEC
NEC_ISP_Tx
R1073 10K
OPT
IC1002
uPD78F0514
NEC_MICOM
1
P60/SCL0
2
P61/SDA0
3
P62/EXSCL0
4
P63
5
P33/TI51/TO51/INTP4
6
P75
7
P74
8
P73/KR3
9
P72/KR2
10
P71/KR1
11
P70/KR0
12
P32/INTP3/OCD1B
13
P31/INTP2/OCD1A
14
P30/INTP1
15
P17/TI50/TO50
16
P16/TOH1/INTP5
17
P15/TOH0
18
P14/RXD6
19
P13/TXD6
20
P12/SO10
21
P11/SL10/RXD0
22
P10/SCK10/TXD0
23
AVREF
24
AVSS
25 ANI7/P27
26 ANI6/P26
27 ANI5/P25
28 ANI4/P24
29 ANI3/P23
30 ANI2/P22
31 ANI1/P21
32 P20/ANI0
33 P130
34 P01/TI010/TO00
35 P00/TI000
36 P140/PCL/INTP6
37 P120/INTP0/EXLVI 38 P41 39 P40 40 RESET 41 P124/XT2/EXCLKS 42 P123/XT1 43 FLMD0 44 P122/X2/EXCLK/OCD0B 45 P121/X1/OCD0A 46 REGC 47 VSS 48 VDD
INV_CTL
R1089 20K 1/16W 1%
CEC_ON/OFF
R1013 22
MICOM_DEBUG
R1020 0
R1071 10K
B/L_LED
X1002-*1
32.768KHz
CRYSTAL_KDS
Q1001
2SC3052
E
B
C
+3.5V_ST
R1078 22
MICOM_DEBUG
R1012 10K
B/L_LAMP
OCD1B
R1001
47K
NEC_EEPROM_SCL
R1048 22
+3.5V_ST
R1019 22
R4035
4.7K
NEW_SUB
R4034
4.7K
NEW_SUB
C1008 15pF
R1006 10K
OPT
R1011 10K
TACT_KEY
+3.5V_ST
+3.5V_ST
R1076 22
MICOM_DEBUG
AMP_MUTE
POWER_ON/OFF1
LED_R/BUZZ
LED_B/LG_LOGO C1006 0.1uF
S7_NEC_TXD
R1052 10K
NEC_SCL R1018 22
R1074 10K
GP3
MICOM_RESET
FLMD0
R1047 20K
1/16W
1%
R1041 22
R1056 22
R1037 22
NEC_ISP_Rx
S/T_SCL
+3.5V_ST
RL_ON
NEC_EEPROM_SDA
MICOM_RESET
EDID_WP
R1055 22
R1043 22
NEW_SUB
PANEL_CTL
R1005 10K
OPT
R1050 10K
R1068 22
R1008
22
POWER_DET
R1079 10K
GP2
+3.5V_ST
R1072 10K
OPT
R1069 22
R1004 10K
PWM_LED
R1084
10K
OPT
R1083 10K
OPT
IR
R1063 22
R1002 10K
MICOM_DEBUG
NEC_EEPROM_SDA
SCART1_MUTE
GND
R1054 22 19-22_LAMP
R1014 2.7K
R1015 2.7K
 
TOP SIDE for reset.
EEPROM for Micom
NEC CONFIGURATION
MODEL_OPT_0
MODEL_OPT_3
(MODEL_OPT_3)
MICOM MODEL OPTION
(MODEL_OPT_0)
for Debugger
MODEL_OPT_1
(MODEL_OPT_1)
GP2R
MICOM Rev.4
20101125
5
31
HIGH
31 LOW
S/T & IIC LED & NO BUZZ & LED Blink
32/37/42/47/55LE5300
PIN NO.
8
HIGH
LOW
HIGH
LOW
HIGH
LOW
LOW
GP3
LOW
PWM_BUZZ/IIC_LED : For model that use LED Lighting used IIC
LOW
LOW
LOW GPIO_LED
TACT_KEY IIC LED(09Y IIC Protocol) & No BUZZ
HIGH
Low
LOW
MODEL_OPT_2
IIC LED & PWM BUZZ
LE7300
B/L_LED
HIGH
LOW
NON_GPIO_LED
HIGH : LAMP
LOW
30
PIN NAME
LV25/LV35/LV45/LW45/LV55/LK45/LK55
MODEL OPTION MODEL OPTION
MODEL_OPT_0
TOUCH_KEY
PWM_BUZZ/IIC_LED
LOW
PWM_LED : For model that use LED Lighting used PWM Signal
LOW
LOW
PWM_BUZZ/IIC_LED :Using IIC for LED Breathing & PWM Buzz
MODEL_OPT_2
MODEL_OPT_0
PWM_LED
MODEL_OPT_3
HIGH
PIN NAME
8
Description
LOW
LD350/450/550HIGH
LOW : LED HIGH
11
HIGH
PIN NO.
PWM_BUZZ/IIC_LED
GPIO LED & NO BUZZ
MODEL_OPT_1
TBD
B/L_LED
MODEL_OPT_1
KEY & PWM LED & No Buzz & No LED Blink
LOW
HIGH
HIGH
HIGH
PWM LED & No Buzz & No LED Blink
LK330/LK430/LK530
MODEL_OPT_2
30
MODEL_OPT_1
PWM_LED
TACT_KEY
PWM_LED : Using PWM Signal for LED Lighting
LOW
MODEL_OPT_3
LOW
MODEL_OPT_0
LOW
MODEL_OPT_0
LOW
IIC LED & PWM IIC BUZZ
MODEL_OPT_3
TBD
LK330/LK430 for KR/US
KEY & PWM LED & No Buzz & No LED Blink
MODEL_OPT_3
LOW
HIGH
LOW
LOW
MODEL_OPT_2
LOW
HIGH
11
TOUCH_KEY
10Y EYE-Q Sensor
2010Y,GP2
IIC LED(09Y IIC Protocol) & No BUZZ
B/L_LAMP B/L_LAMP
GP2
19/22/26LE5300/5300
S/T & IIC LED & No Buzz & LED Blink
2011Y,GP2R, 101125 Update
LD420
MODEL_OPT_1

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
R2402
100
P2401
12507WR-12L
OLD_SUB
1
2
3
4
5
6
7
8
9
10
11
12
13
P2402
12507WR-15L
NEW_SUB
1
2
3
4
5
6
7
8
9
10
11
12
13
14
16
15
L2404
BLM18PG121SN1D
C2409
18pF
50V
OPT
LED_B/LG_LOGO
R2431
47K
OPT
JP2407
Q2406
2SC3052
OPT EB
C
D902
5.6V
CDS3C05HDMI1
NEW_SUB
C906
18pF
50V
OPT
R2414
1.5K
L2401
BLM18PG121SN1D
KEY1
+3.3V_Normal
JP2410
R2416
10K
OPT
R2405
10K
1% NEC_EEPROM_SCL
D2402
5.6V
AMOTECH
R2411
100
EYEQ/TOUCH_KEY
IR
C2401
0.1uF
R2412
100
EYEQ/TOUCH_KEY
S/T_SDA
JP2409
C2406
1000pF
50V
R2425
47K
OPT
+3.5V_ST
Q2405
2SC3052
OPT
EB
C
C2410
0.1uF
16V
OPT
C2405
0.1uF
16V
C2407
100pF
50V
L2403
BLM18PG121SN1D
R2404
10K
1%
R2430
10K
OPT
R2413 1.5K
JP2408
C2404
1000pF
50V
JP2411
D2401
5.6V
AMOTECH
+3.5V_ST
+3.5V_ST
L2402
BLM18PG121SN1D
R2429
47K
OPT
KEY2
LED_R/BUZZ
D903
5.6V
CDS3C05HDMI1
NEW_SUB
C907
18pF
50V
OPT
R2427
0
+3.5V_ST
S/T_SCL
R2401
100
NEC_EEPROM_SDA
+3.5V_ST
C2408
18pF
50V
OPT
C2402
0.1uF
C2403
0.1uF
16V
R2428
22
D2403
5.6V
EYEQ/TOUCH_KEY
D2404
5.6V
EYEQ/TOUCH_KEY
D2405
5.6V
R2426
47K
CONTROL
IR & LED
20101023
6
GP2R
IR/CONTROL-L
