ASSEMBLING AND PREPARING
Product Components
Please check whether all the components are included in the box before using the product. If there are missing com-
ponents, contact the retail store where you purchased the product. Note that the product and components may look
different from those shown here.
yAlways use genuine components to ensure safety and product performance.
yThe product warranty will not cover damage or injury caused by the use of counterfeit components.
yIt is recommend that use the supplied components.
yIf you use generic cables not certified by LG, the screen may not display or there may be image noises.
yNote that the components may look different from those shown here.
yWithout prior notice, all information and specifications in this manual are subject to change to improve the
performance of the product.
yTo purchase optional accessories, visit an electronics store or online shopping site or contact the retail store
where you purchased the product.
CAUTION
NOTE
32UK50T
CD / Card
Stand Base
Stand Base
Stand Body
Stand Body
HDMI Cable
( This cable is not included
in all countries. )
DisplayPort Cable
( This cable is not included
in all countries. )
( Depending on the country ) ( Depending on the country )
Power Cord AC-DC Adapter AC-DC Adapter
or
Cable Holder
Cable Holder
6
ENG
ENGLISH
Component and Button Description
How to Use the Joystick Button
You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with your
finger.
Basic Functions
Power on Press the joystick button once with your finger to turn on the
monitor.
Power off Press and hold the joystick button once with your finger to turn off the
monitor.
◄/►Volume
Control You can control the volume by moving the joystick button left/right.
yThe joystick button is located at the bottom of the monitor.
NOTE
32UK50T
32UK50T
32UK50T
Power LED
yOn: power is on
yOff: power is off
Joystick Button
7
ENG
ENGLISH
Input Connector
32UK50T
32UK50T
32UK50T
8
ENG
ENGLISH
Moving and Lifting the Monitor
When moving or lifting the monitor, follow these in-
structions to prevent the monitor from being scratched
or damaged and to ensure safe transportation regard-
less of its shape or size.
yAs far as possible, avoid touching the monitor
screen. This may result in damage to the screen or
some of the pixels used to create images.
yIt is advisable to place the monitor in the original
box or packing material before attempting to
move it.
yBefore moving or lifting the monitor, disconnect
the power cord and all cables.
yHold the top and bottom of the monitor frame
firmly. Do not hold the panel itself.
yWhen holding the monitor, the screen should face
away from you to prevent it being scratched.
yWhen moving the monitor, avoid any strong shock
or vibrations to the product.
yWhen moving the monitor, keep it upright, never
turn the monitor on its side or tilt it sideways.
CAUTION
yIf you use the monitor panel without the stand
base, its joystick button may cause the monitor to
become unstable and fall, resulting in damage to
the monitor or human injury. In addition, this may
cause the joystick button to malfunction.
9
ENG
ENGLISH
Installing the Monitor
Assembling the stand base
Stand Body
Stand Body
Stand Base
or
yTo protect the screen from scratches, cover the
surface with a soft cloth.
CAUTION
1
2
3
4
5
10
ENG
ENGLISH
Installing the Monitor
Assembling the stand base
1
2
3
4
32UK50T
Stand Body
Stand Base
or
Cable Holder
yPress the stand until the button reaches the top.
NOTE
11
ENG
ENGLISH
32UK50T
Using the cable holder
Cable Holder
Cable Holder
Arrange the cables using the cable holder as shown in
the illustration.
yIllustrations in this document represent typical
procedures, so they may look different from the
actual product.
yDo not carry the monitor upside down by just
holding the stand base. This may cause the
monitor to fall off the stand and could result in
personal injury.
yWhen lifting or moving the monitor, do not
touch the monitor screen. The force applied to
the monitor screen may cause damage to it.
yDo not apply foreign substances (oils, lubricants,
etc.) to the screw parts when assembling the
product. (Doing so may damage the product.)
yApplying excessive force when tightening screws
may cause damage to the monitor. Damage
caused in this way will not be covered by the
product warranty.
yFor wave pattern on appearance, unlike the
general method of coating, it’s applied to added
glittering material in raw material.With no
peeled-off appearance, it has good durability.
Please use it with confidence because there is
no problem in using the product at all.
CAUTION
yYou can disassemble the stand in the reverse
order of the assembly.
NOTE
12
ENG
ENGLISH
32UK50T
32UK50T
Installing onto a table
1Lift the monitor and place it on the table in an
upright position.
Place at least 100 mm(3.94 inches) away from the
wall to ensure sufficient ventilation.
2Connect the power adapter to the monitor and then
plug the power cord into the wall outlet.
100 mm
(3.94 inches)
or
or
yUnplug the power cord prior to moving or install-
ing the monitor. There is risk of electric shock.
CAUTION
3Press the joystick button on the bottom of the
monitor to turn on the monitor.
100 mm
(3.94 inches) 100 mm
(3.94 inches)
100 mm
(3.94 inches)
100 mm
(3.94 inches)
100 mm
(3.94 inches) 100 mm
(3.94 inches)
100 mm
(3.94 inches)
13
ENG
ENGLISH
Adjusting the stand height
1Handle the monitor with both hands for safety.
2The height can be adjusted up to 120.0 mm (4.72
inches).
yDo not put your fingers or
hand between the screen
and the base (chassis) when
adjusting the screen's height.
WARNING
120.0 mm
(4.72 inches)
Monitor head
yThe left or right side of the monitor head can be
slightly rotated up or down (up to 3°). Adjust the
horizontal level of the monitor head.
NOTE
32UK50T
32UK50T
14
ENG
ENGLISH
15
32UK50T
32UK50T

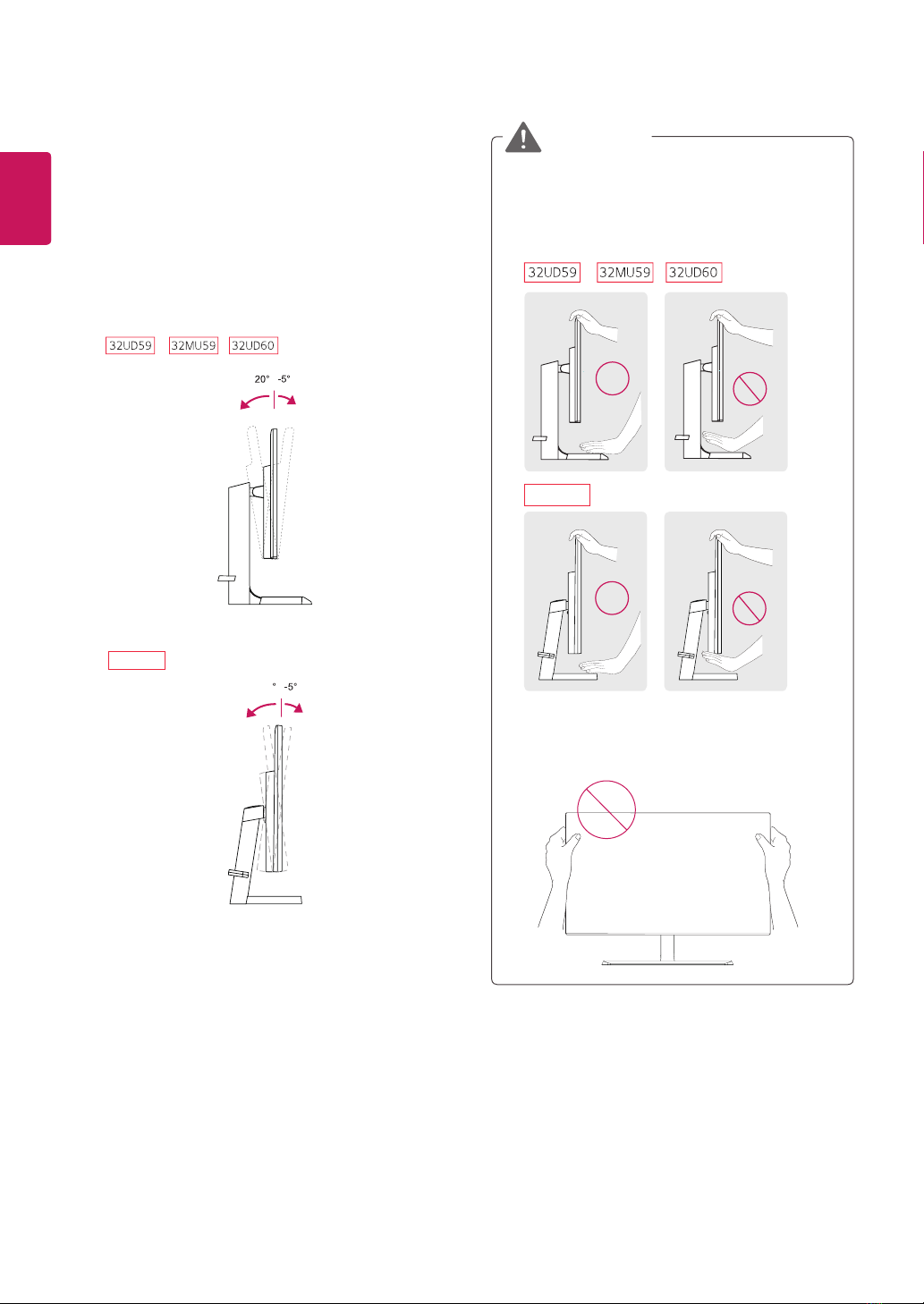

Adjusting the angle
1Place the monitor in an upright position, mounted
on the stand base.
2Adjust the angle of the screen. The angle of the
screen can be adjusted forwards or backwards for a
comfortable viewing experience.
Front Side
Front Side
Rear Side
Rear Side
yTo avoid injury to the fingers when adjusting the
screen, do not hold the lower part of the moni-
tor's frame as illustrated below.
WARNING
yBe careful not to touch or press the screen area
when adjusting the angle of the monitor.
15
ENG
ENGLISH
Installing the wall mount plate
This monitor supports the specification of the standard
wall mount plate or compatible device.
1Place the screen face down. To protect the screen
from scratches, cover the surface with a soft cloth.
2Remove the four screws tightened on the back of
the monitor.
3Place the wall mount plate onto the monitor and
align it with the screw holes.
4Tighten the four screws to fix the plate to the
monitor using a screwdriver.
yThe wall mount plate is sold separately.
yFor more information on installation, refer to the
wall mount plate's installation guide.
yBe careful not to use excessive force when
mounting the wall mount plate, as this can dam-
age the monitor's screen.
NOTE
Using the Kensington lock
The Kensington security system connector is located at
the back of the Monitor set.
For more information on installation and usage, refer to
the Kensington lock user manual or visit the website at
http://www.kensington.com.
Connect the Kensington security system cable between
the Monitor set and a table.
yUse of the Kensington lock is optional. The acces-
sories can be purchased at your local electronics
store.
NOTE
32UK50T
16
ENG
ENGLISH
To install the monitor to a wall, attach a wall mounting
bracket (optional) to the back of the monitor.
Make sure that the wall mounting bracket is securely fixed
to the monitor and to the wall.
1If you use screw longer than standard, the monitor
might be damaged internally.
2If you use improper screw, the product might be
damaged and drop from mounted position.
In this case, LG Electronics is not responsible for it.
Installing to a wall
Install the monitor at least 100 mm (3.94 inches) away
from the wall and leave about 100 mm (3.94 inches)
of space at each side of the monitor to ensure suf-
ficient ventilation. Detailed installation instructions can
be obtained from your local retail store. Please refer to
the manual to install and set up a tilting wall mounting
bracket.
100 mm
(3.94 inches)
100 mm
(3.94 inches)
100 mm
(3.94 inches)
100 mm
(3.94 inches)
yUnplug the power cord before moving or
installing the monitor to avoid electric shocks.
yInstalling the monitor on the ceiling or on a
slanted wall may result in the monitor falling
off, which could lead to injury. Please use the
genuine LG wall mounting bracket. For more
information, contact your local retail store or a
qualified installer.
yApplying excessive force when fastening screws
may cause damage to the monitor. Damage
caused in this way will not be covered by the
product warranty.
yUse the wall mounting bracket and screws
that conform to the VESA standard. Damage
caused by the use or misuse of inappropriate
components will not be covered by the product
warranty.
yScrew length from outer surface of back cover
should be under 8 mm(0.31 inches).
yUse the screws specified by the VESA standard.
yThe wall mount kit includes the installation guide
and all necessary parts.
yThe wall mounting bracket is optional. The acces-
sories can be purchased at your local retail store.
yThe length of the screw may differ for each wall
mounting bracket. Ensure the correct length
screw is used.
yFor more information, please refer to the user
manual for the wall mounting bracket.
CAUTION
NOTE
Wall mount Pad
Wall mount Pad
Back Cover
Back Cover
Standard screw
Max. 8mm (0.31 inches)
yWall Mount (A x B)
B
B
A
Wall Mount (A x B) 100 x 100
Standard screw M4 x L10
Number of screws 4
Wall Mount Plate
(Optional)
LSW 149
17
ENG
ENGLISH
USING THE MONITOR
Connecting to a PC
yThis monitor supports the *Plug and Play feature.
*Plug and Play: A feature that allows you to add
a device to your computer without having to
reconfigure anything or install any manual drivers.
DisplayPort connection
Transmits the digital video and audio signals from your
PC to the monitor. Connect your PC to the monitor us-
ing the DisplayPort cable as illustrated below.
Press the menu button and then select the input option
from the input menu.
HDMI connection
Transmits the digital video and audio signals from your
PC and A/V devices to the monitor. Connect your PC
and AV device to the monitor with the HDMI cable as
illustrated below.
Press the menu button and then select the input option
from the input menu.
NOTE
32UD59
32UD60
32MU59
32UK50T
yIf you use HDMI PC, it can cause compatibility
problem.
yUse a certified cable with the HDMI logo attached.
If you do not use a certified HDMI cable, the
screen may not display or a connection error may
occur.
yRecommended HDMI cable types
- High-Speed HDMI®/TM Cable
- High-Speed HDMI®/TM Cable with Ethernet
yThere may be no video or audio output depending
on the DP version of the PC.
yIf you use generic cables not certified by LG, the
screen may not display or there may be image
noises.
NOTE
18
ENG
ENGLISH
Connecting to AV Devices
HDMI connection
Transmits the digital video and audio signals from your
PC and A/V devices to the monitor. Connect your PC
and AV device to the monitor with the HDMI cable as
illustrated below.
Press the menu button and then select the input option
from the input menu.
NOTE
yIf you use HDMI PC, it can cause compatibility
problem.
yUse a certified cable with the HDMI logo attached.
If you do not use a certified HDMI cable, the
screen may not display or a connection error may
occur.
yRecommended HDMI cable types
- High-Speed HDMI®/TM Cable
- High-Speed HDMI®/TM Cable with Ethernet
Connecting to External Devices
(sold separately)
Connecting Headphones
Connect peripherals to the monitor via the headphones
port. Connect as illustrated.
yPeripheral devices are sold separately.
yIf you use angled earphones, it may cause a prob-
lem with connecting another external device to
the monitor. Therefore, it is recommended to use
straight earphones.
Angled Straight
yDepending on the audio settings of the PC and
external device, headphones and speaker functions
may be limited.
NOTE
32UD60
32UD59
32MU59
32UK50T
19
ENG
ENGLISH
Button Menu Status Description
Power Off
MenuInput Exit
Game
Main menu disabled Enables the main menu.
Main menu enabled
Exits the main menu.
(Holding down the button to turn off the monitor. You can turn off the
monitor this way at any time, including when the OSD is on.)
Power Off
MenuInput Exit
Game
◄Main menu disabled Adjusts the monitor volume level.
Main menu enabled Enters the Input feature.
►Main menu disabled Adjusts the monitor volume level.
Main menu enabled Enters the Menu features.
Power Off
MenuInput Exit
Game
▲Main menu disabled Displays information on the current input.
Main menu enabled Turns off the monitor.
▼
Main menu disabled Displays information on the current input.
Main menu enabled Enters the Game features.
Main Menu Features
Main Menu Description
Menu Configures the screen settings.
Game Sets the picture mode for gaming.
Input Sets input mode.
Power Off Turns off the monitor.
Exit Exits the main menu.
USER SETTINGS
Activating the Main Menu
1 Press the joystick button on the bottom of the monitor.
2 Move the joystick up/down (▲/▼) and left/right (◄/►) to set the options.
3 Press the joystick button once more to exit the main menu.
Joystick Button
Power Off
MenuInput Exit
Game
Power Off
MenuInput Exit
Game
20
ENG
ENGLISH
User Settings
Menu Settings
1 To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the Menu.
2 Configure the options by moving the joystick up/down/left/right.
3 To return to the upper menu or set other menu items, move the joystick to◄or pressing ( / Ok) it.
4 If you want to exit the OSD menu, move the joystick to ◄until you exit.
Quick Settings Input Picture General
yYour monitor’s OSD (On Screen Display) may differ slightly from that shown in this manual.
CAUTION
Each option is described below.
Menu > Input Description
Input List Selects the input mode.
Aspect Ratio Adjusts the aspect ratio of the screen.
Full Wide Displays the video in wide-screen, regardless of the video signal input.
Original Displays video according to the aspect ratio of the video signal input.
1:1 The aspect ratio is not adjusted from the original.
NOTE
yThe display may look the same for Full Wide , Original, and 1:1 options at the recommended
resolution (3840 x 2160).
yThere is no 1:1 menu on FreeSync Mode. ( Go to Picture →Game Adjust →FreeSync, to set
FreeSync Option)
Menu > Picture Description
Picture Mode Custom Allows the user to adjust each element. The color mode of the main menu can be adjusted.
Reader Optimizes the screen for viewing documents. You can brighten the screen in the OSD menu.
Photo Optimizes the screen for photos.
Cinema Optimizes the screen for video.
Dark Room 1 This mode adjusts the brightness to the optimal level for working in a dark environment.
Dark Room 2 This mode sets the brightness to a lower level than Dark Room 1.
Color
Weakness
This mode is for users who cannot distinguish between red and green. It enables users
with color weakness to easily distinguish between the two colors.
Menu > Quick Settings Description
Brightness Adjusts the color contrast and brightness of the screen.
Contrast
Volume Adjusts the volume level.
NOTE
yYou can adjust Mute / Unmute by moving the joystick button to▼in the Volume menu.
Color Temp Custom The user can adjust it to red, green, or blue by customization.
Warm Sets the screen color to a reddish tone.
Medium Sets the screen color between a red and blue tone.
Cool Sets the screen color to a bluish tone.
Manual The user can fine-tune the color temperature. 32UD59 32MU59 32UK50T
This manual suits for next models
4
Table of contents
Other LG Monitor manuals
