LG 34UM61 User manual

www.lg.com
Please read the safety information carefully before using the product.
IPS LED Monitor (LED Monitor) Model List
Owner's Manual
IPS LED MONITOR
(LED MONITOR*)
*LG LED Monitors are LCD Monitors with LED Backlighting.
34UM61

2
ENG
ENGLISH
CONTENTS
24 TROUBLESHOOTING
26 SPECIFICATIONS
26 34UM61
27 Factory Support Mode (Preset Mode, PC)
27 HDMI
27 HDMI Timing (Video)
27 Power Indicator
3LICENSE
4ASSEMBLING AND PREPARING
4 Product Components
5 Supported Drivers and Software
6 Component and Button Description
6 - How to Use the Joystick Button
7 Input Connector
8 Moving and Lifting the Monitor
9 Installing the Monitor
9 - Assembling the stand base
10 - Using the cable holder
11 - Installing onto a table
12 - Adjusting the angle
13 - Using the Kensington lock
13 - Detaching the Stand Body
13 - Installing the wall mount plate
14 - Installing to a wall
15 USING THE MONITOR
15 Connecting to a PC
15 - HDMI connection
15 Connecting to AV Devices
15 - HDMI connection
16 - Connecting Headphones
17 CUSTOMIZING SETTINGS
17 Activating the Main Menu
18 Customizing settings
18 - Menu Settings

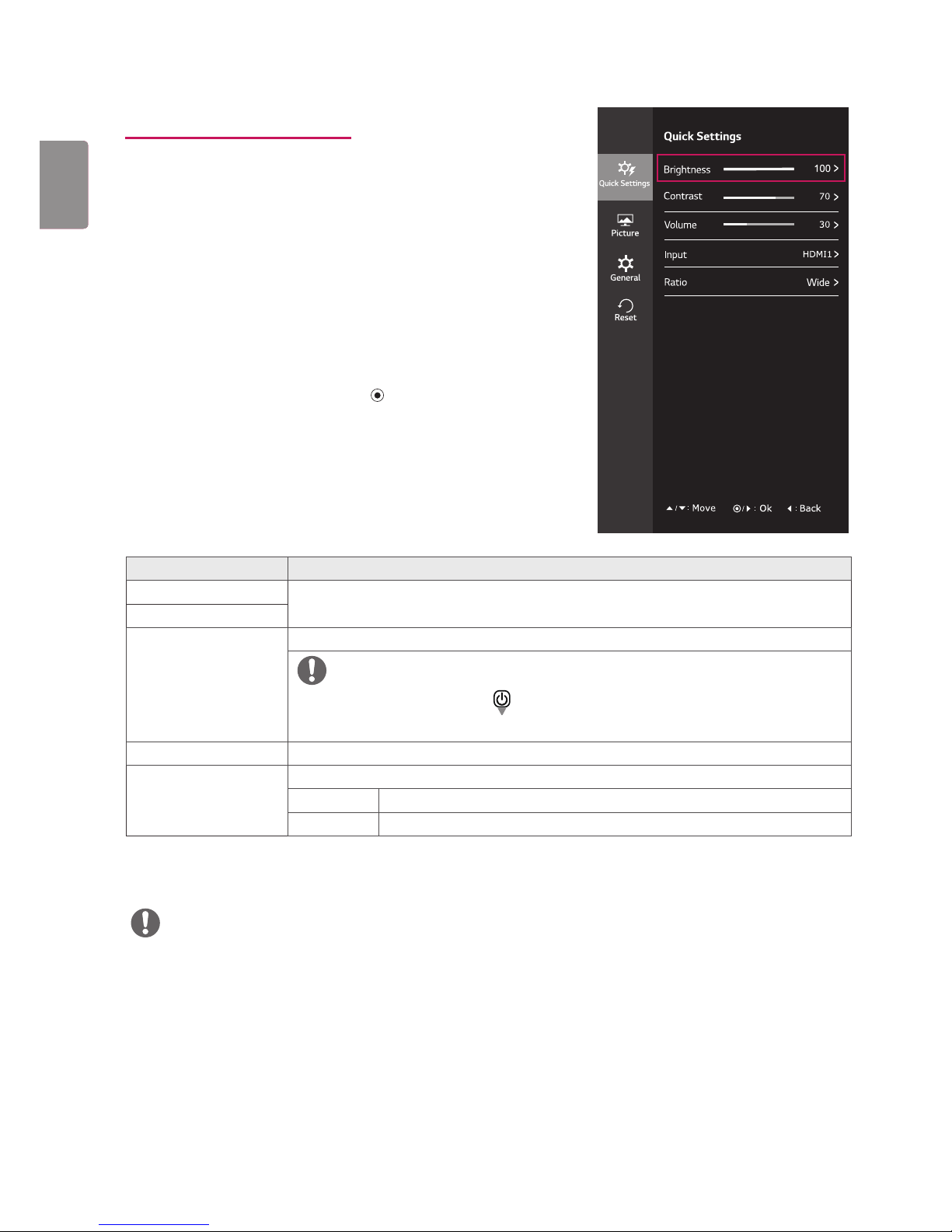

18 - -Quick Settings

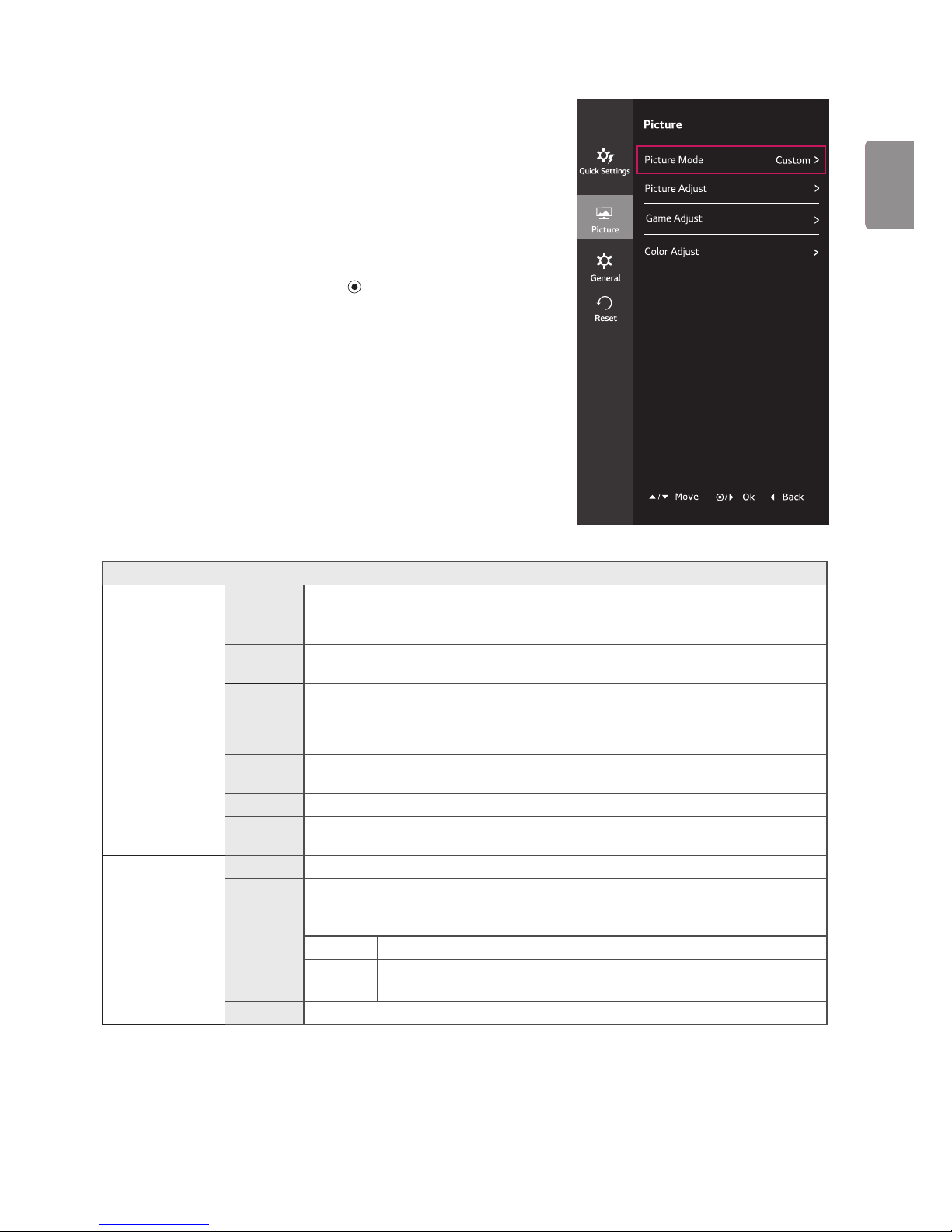

19 - -Picture
21 - -General
22 - -Reset
23 - -Picture Mode

3
ENG
ENGLISH
LICENSE
Each model has different licenses. Visit www.lg.com for more information on the license.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo
are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the
United States and other countries.
The following content is only applied to the monitor which is sold in Europe market and which needs to meet the ErP
Directive:
* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no adjustment to
display.
* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.

4
ENG
ENGLISH
(Depending on the country)
ASSEMBLING AND PREPARING
Product Components
Please check whether all the components are included in the box before using the product. If there are missing com-
ponents, contact the retail store where you purchased the product. Note that the product and components may look
different from those shown here.
yAlways use genuine components to ensure safety and product performance.
yThe product warranty will not cover damage or injury caused by the use of counterfeit components.
yIt is recommend that use the supplied components.
yIf you use generic cables not certified by LG, the screen may not display or there may be image noises.
yNote that the components may look different from those shown here.
yWithout prior notice, all information and specifications in this manual are subject to change to improve the
performance of the product.
yTo purchase optional accessories, visit an electronics store or online shopping site or contact the retail store
where you purchased the product.
CAUTION
NOTE
CD(Owner's Manual) /
Card
Stand BaseStand Body
HDMI Cable HDMI-DVI Cable
Power Cord AC-DC Adapter AC-DC Adapter
Cable Holder
or
or
(Depending on the country)
(This cable is not included in all
countries. ) (This cable is not included in all
countries. )

5
ENG
ENGLISH
Supported Drivers and Software
Check the drivers and software supported by your product and refer to the manuals on the CD enclosed in the product
package.
yRequired and Recommended: You can download and install the latest version from the enclosed CD or from the
LGE website
(www.lg.com) .
yOptional: You can download and install the latest version from the LGE website
(www.lg.com) .
Drivers and Software Installation Priority 34UM61
Monitor Driver Recommended O
OnScreen Control Recommended O
Dual Controller Optional O

6
ENG
ENGLISH
Component and Button Description
Power LED
yOn: power is on
yOff: power is off
Joystick Button
How to Use the Joystick Button
You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with your
finger.
Basic Functions
Power on Press the joystick button once with your finger to turn on the
monitor.
Power off Press and hold the joystick button once with your finger to turn
off the monitor.
◄/►Volume
Control
You can control the volume by moving the joystick button left/
right.
yThe joystick button is located at the bottom of the monitor.
NOTE

7
ENG
ENGLISH
Input Connector

8
ENG
ENGLISH
Moving and Lifting the Monitor
When moving or lifting the monitor, follow these in-
structions to prevent the monitor from being scratched
or damaged and to ensure safe transportation regard-
less of its shape or size.
yAs far as possible, avoid touching the monitor
screen. This may result in damage to the screen or
some of the pixels used to create images.
yIt is advisable to place the monitor in the original
box or packing material before attempting to
move it.
yBefore moving or lifting the monitor, disconnect
the power cord and all cables.
yHold the top and bottom of the monitor frame
firmly. Do not hold the panel itself.
yWhen holding the monitor, the screen should face
away from you to prevent it being scratched.
yWhen moving the monitor, avoid any strong shock
or vibrations to the product.
yWhen moving the monitor, keep it upright, never
turn the monitor on its side or tilt it sideways.
CAUTION
yIf you use the monitor panel without the stand
base, its joystick button may cause the monitor to
become unstable and fall, resulting in damage to
the monitor or human injury. In addition, this may
cause the joystick button to malfunction.

9
ENG
ENGLISH
Installing the Monitor
Assembling the stand base
yTo protect the screen from scratches, cover the
surface with a soft cloth.
yPress the stand until the button reaches the
top.
CAUTION
1
3
2
Stand Body
Stand Base
4
NOTE

10
ENG
ENGLISH
yIllustrations in this document represent typical
procedures, so they may look different from the
actual product.
yApplying excessive force when tightening screws
may cause damage to the monitor. Damage
caused in this way will not be covered by the
product warranty.
yDo not carry the monitor upside down by just
holding the base. This may cause the monitor
to fall off the stand and could result in personal
injury.
yWhen lifting or moving the monitor, do not touch
the monitor screen. The force applied to the moni-
tor screen may cause damage to it.
CAUTION Using the cable holder
Cable Holder
Arrange the cables using the cable holder as shown in
the illustration.
NOTE
yYou can disassemble the stand in the reverse
order of the assembly.

11
ENG
ENGLISH
2
1
3

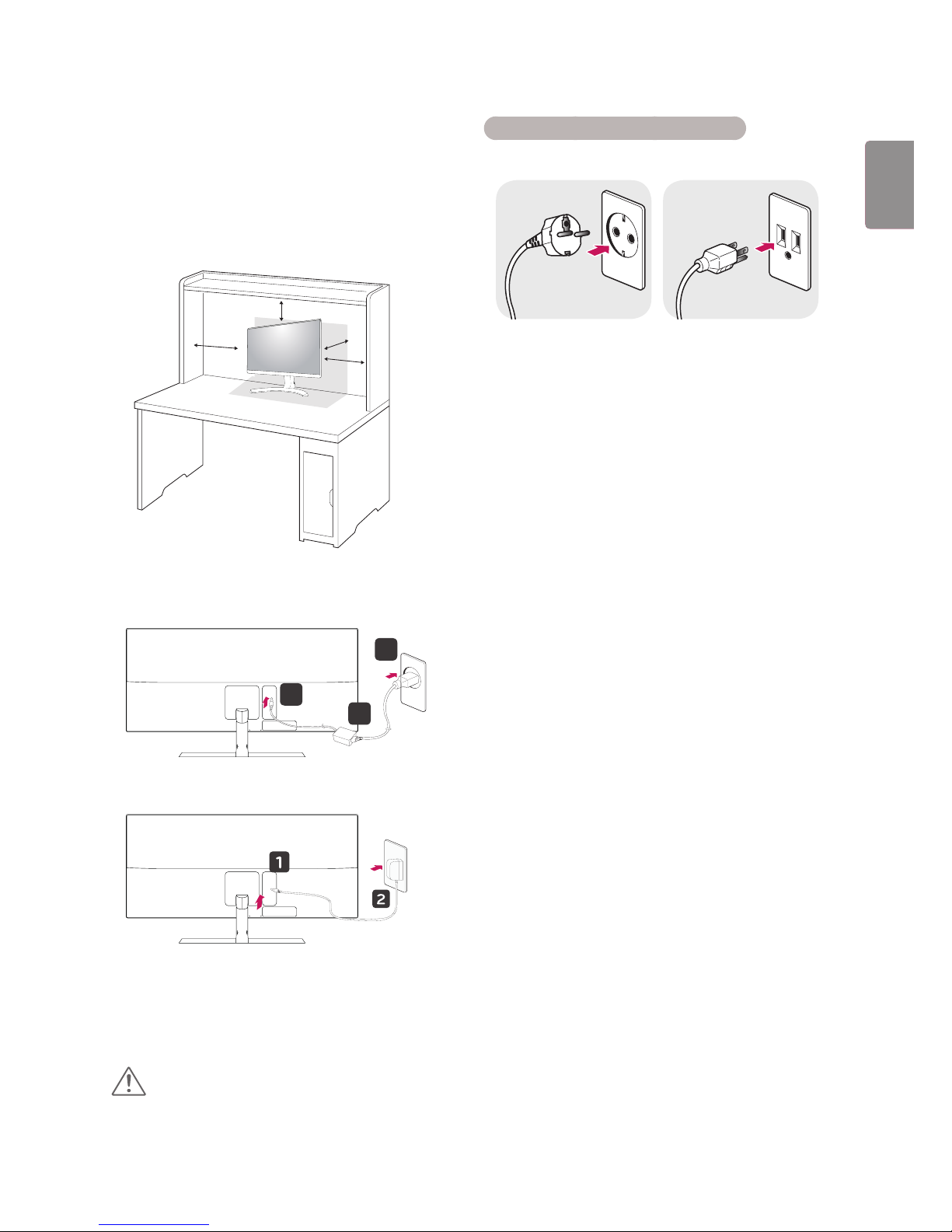

Installing onto a table
1Lift the monitor and place it on the table in an up-
right position.
Place at least 100 mm (3.94 inches) away from
the wall to ensure sufficient ventilation.
2Connect the power adapter to the monitor and then
plug the power cord into the wall outlet.
yUnplug the power cord prior to moving or install-
ing the monitor. There is risk of electric shock.
CAUTION
3Press the joystick button on the bottom of the
monitor to turn on the monitor.
100-240 V ~
Cautions When Connecting Power Cord
yMake sure to use the power cord that is pro-
vided in the product package and connect it to a
grounded power outlet.
yIf you need another power cord, please contact
your local dealer or the nearest retail store.
or
100 mm
(3.94 inches) 100 mm
(3.94 inches)
100 mm
(3.94 inches)
100 mm
(3.94 inches)

12
ENG
ENGLISH
Adjusting the angle
1Place the monitor in an upright position, mounted
on the stand base.
2Adjust the angle of the screen. The angle of the
screen can be adjusted forwards or backwards for a
comfortable viewing experience.
Front SideRear Side
yTo avoid injury to the fingers when adjusting the
screen, do not hold the lower part of the moni-
tor's frame as illustrated below.
WARNING
yBe careful not to touch or press the screen area
when adjusting the angle of the monitor.
yThe left or right side of the monitor head can be
slightly rotated up or down (up to 3°). Adjust the
horizontal level of the monitor head.
Monitor head
NOTE

13
ENG
ENGLISH
yUse of the Kensington lock is optional. The acces-
sories can be purchased at your local electronics
store. Installing the wall mount plate
This monitor supports the specification of the standard
wall mount plate or compatible device.
1Place the screen face down. To protect the screen
from scratches, cover the surface with a soft cloth.
2Place the wall mount plate onto the monitor and
align it with the screw holes.
3Tighten the four screws to fix the plate to the moni-
tor using a screwdriver.
yThe wall mount plate is sold separately.
yFor more information on installation, refer to the
wall mount plate's installation guide.
yBe careful not to use excessive force when
mounting the wall mount plate, as this can dam-
age the monitor's screen.
NOTE
NOTE

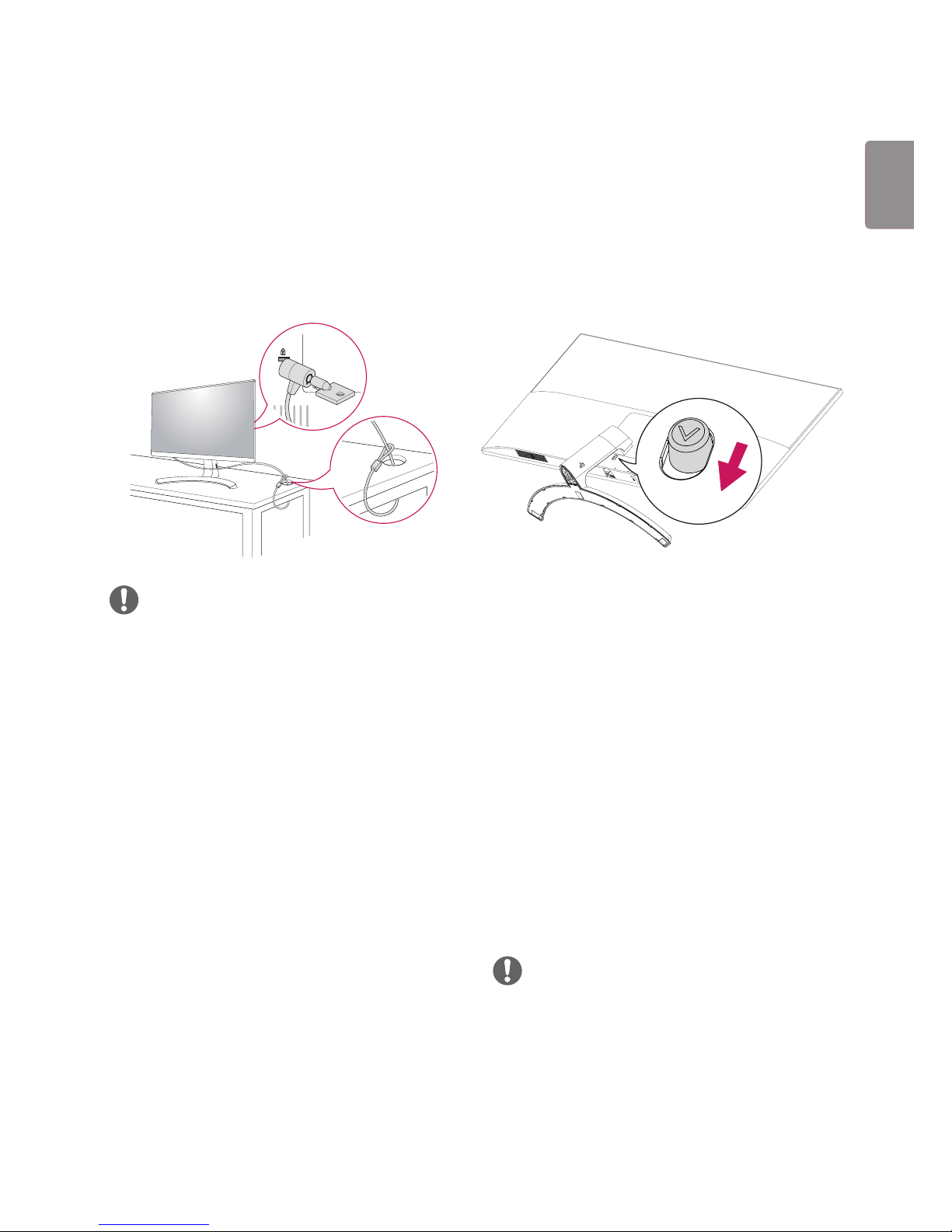

Using the Kensington lock
The Kensington security system connector is located at
the back of the Monitor set.
For more information on installation and usage, refer to
the Kensington lock user manual or visit the website at
http://www.kensington.com.
Connect the Kensington security system cable between
the Monitor set and a table.
1Place the monitor’s screen face down. To protect the
screen from scratches, cover the surface with a soft
cloth.
2Remove the stand from the monitor by pressing
the button on the bottom center of the back of the
monitor.
Detaching the Stand Body

14
ENG
ENGLISH
To install the monitor to a wall, attach a wall mounting
bracket (optional) to the back of the monitor.
Make sure that the wall mounting bracket is securely fixed
to the monitor and to the wall.
1If you use screw longer than standard, the monitor
might be damaged internally.
2If you use improper screw, the product might be dam-
aged and drop from mounted position.
In this case, LG Electronics is not responsible for it.
Installing to a wall
Install the monitor at least 100 mm (3.94 inches) away
from the wall and leave about 100 mm (3.94 inches)
of space at each side of the monitor to ensure suf-
ficient ventilation. Detailed installation instructions can
be obtained from your local retail store. Please refer to
the manual to install and set up a tilting wall mounting
bracket.
yUnplug the power cord before moving or install-
ing the monitor to avoid electric shocks.
yInstalling the monitor on the ceiling or on a
slanted wall may result in the monitor falling off,
which could lead to injury. Please use the genu-
ine LG wall mounting bracket. For more informa-
tion, contact your local retail store or a qualified
installer.
yApplying excessive force when fastening screws
may cause damage to the monitor. Damage
caused in this way will not be covered by the
product warranty.
yUse the wall mounting bracket and screws
that conform to the VESA standard. Damage
caused by the use or misuse of inappropriate
components will not be covered by the product
warranty.
yScrew length from outer surface of back cover
should be under 8mm.
yUse the screws specified by the VESA standard.
yThe wall mount kit includes the installation guide
and all necessary parts.
yThe wall mounting bracket is optional. The acces-
sories can be purchased at your local retail store.
yThe length of the screw may differ for each wall
mounting bracket. Ensure the correct length
screw is used.
yFor more information, please refer to the user
manual for the wall mounting bracket.
CAUTION
NOTE
Wall mount Pad
Wall mount Pad
Back Cover
Back Cover
Standard screw:
Max.8mm
yWall Mount (A x B)
A
B
Wall Mount (A x
B)
100 x 100
Standard screw M4 x L10
Number of
screws 4
Wall Mount
Plate
(Optional)
RW120
100 mm
(3.94 inches)
100 mm
(3.94 inches)
100 mm
(3.94 inches)
100 mm
(3.94 inches)

15
ENG
ENGLISH
USING THE MONITOR
Connecting to a PC
yThis monitor supports the *Plug and Play
feature.
*Plug and Play: A feature that allows you to
add a device to your computer without having
to reconfigure anything or install any manual
drivers.
HDMI connection
Transmits the digital video and audio signals from your
PC and A/V devices to the monitor. Connect your PC
and AV device to the monitor with the HDMI cable as
illustrated below.
Press the menu button and then select the input option
from the input menu.
NOTE
yIf you use HDMI PC, it can cause compatibility
problem.
yUse a certified cable with the HDMI logo attached.
If you do not use a certified HDMI cable, the
screen may not display or a connection error may
occur.
yRecommended HDMI cable types
- High-Speed HDMI®/TM Cable
- High-Speed HDMI®/TM Cable with Ethernet
Connecting to AV Devices
HDMI connection
Transmits the digital video and audio signals from your
PC and A/V devices to the monitor. Connect your PC
and AV device to the monitor with the HDMI cable as
illustrated below.
Press the menu button and then select the input option
from the input menu.
NOTE
yIf you use HDMI PC, it can cause compatibility
problem.
yUse a certified cable with the HDMI logo attached.
If you do not use a certified HDMI cable, the
screen may not display or a connection error may
occur.
yRecommended HDMI cable types
- High-Speed HDMI®/TM Cable
- High-Speed HDMI®/TM Cable with Ethernet

16
ENG
ENGLISH
(sold separately)
Connecting Headphones
Connect peripherals to the monitor via the headphones
port. Connect as illustrated.
yPeripheral devices are sold separately.
yIf you use angled earphones, it may cause a prob-
lem with connecting another external device to
the monitor. Therefore, it is recommended to use
straight earphones.
Angled Straight
yDepending on the audio settings of the PC and
external device, headphones and speaker functions
may be limited.
NOTE

17
ENG
ENGLISH
Button Menu Status Description
Main menu disabled Enables the main menu.
Main menu enabled
Exits the main menu.
(Holding down the button to turn off the monitor: You can turn
off the monitor this way at any time, including when the OSD is
on.)
◄
Main menu disabled Adjusts the monitor volume level.
Main menu enabled Enters the menu features.
►
Main menu disabled Adjusts the monitor volume level.
Main menu enabled Operates the Input change.
▲Main menu disabled Enables the main menu.
Main menu enabled Enters the picture mode feature.
▼Main menu disabled Enables the main menu.
Main menu enabled Turns off the monitor.
Main Menu Features
Main Menu Description
Menu Configures the screen settings.
Picture Mode Select picture mode to achieve the best display
effect.
Input
You can choose the input signal.
• When two input signals are connected, you
can select the input signal you want.
Monitor off Turns off the monitor.
Exit Exits the main menu.
CUSTOMIZING SETTINGS
Activating the Main Menu
1 Press the joystick button on the bottom of the monitor.
2 Move the joystick up/down (▲/▼) and left/right(◄/►) to set the options.
3 Press the joystick button once more to exit the main menu.
Joystick Button
Power Indicator

18
ENG
ENGLISH
Each option is described below.
Customizing settings
Menu Settings
-Quick Settings
1 To view the OSD menu, press the joystick button at the
bottom of the monitor and then enter the Menu.
2 Go to Quick Settings > Brightness by moving the joy-
stick.
3 Configure the options following the instructions that ap-
pear in the bottom right corner.
4 To return to the upper menu or set other menu items,
move the joystick to ◄or pressing ( / OK) it.
5 If you want to exit the OSD menu, move the joystick to ◄
until you exit.
NOTE
yThe display may look the same for Wide, Original options at the recommended resolution (2560 x 1080).
yThe ratio is disabled in the interlaced signal.
Menu > Quick Settings Description
Brightness Adjusts the color contrast and brightness of the screen.
Contrast
Volume Adjusts the volume.
NOTE
yJog joystick button down (
) in the Volume menu will enable/disable the Mute
function.
Input Selects the input mode.
Ratio Adjusts the screen ratio.
Wide Displays the video in wide-screen, regardless of the video signal input.
Original Displays a video according to the input video signal aspect ratio.

19
ENG
ENGLISH
Each option is described below.
-Picture
1 To view the OSD menu, press the joystick button at the
bottom of the monitor and then enter the Menu.
2 Go to Picture by moving the joystick.
3 Configure the options following the instructions that ap-
pear in the bottom right corner.
4 To return to the upper menu or set other menu items,
move the joystick to ◄or pressing ( / OK) it.
5 If you want to exit the OSD menu, move the joystick to ◄
until you exit.
Menu > Picture Description
Picture Mode Custom Allows the user to adjust each element. The color mode of the main menu can be
ad-
justed.
Reader It is a mode that the screen is adjusted to the best for the newspaper. If you want
screen more bright, you can control brightness in Menu OSD.
Photo Optimizes the screen to view photos.
Cinema Optimizes the screen to improve the visual effects of a video.
FPS1 This mode is optimized for FPS games.
FPS2 It has a higher Black Stabilizer value than FPS Game 1. It is suitable for very dark
FPS games.
RTS This mode is optimized for RTS Game.
Custom
(Game)
In this mode, users can customize various elements including game-related options.
Picture Adjust Sharpness Adjusts the sharpness of the screen.
Black
Level
Sets the offset level (for HDMI only).
yOffset: as a reference for a video signal, this is the darkest color the monitor can
display.
High Keeps the current contrast ratio of the screen.
Low Lowers the black levels and raises the white levels from the current con-
trast ratio of the screen.
DFC Adjusts the brightness automatically according to the screen.

20
ENG
ENGLISH
Game Adjust Black Stabilizer Black Stabilizer
: You can control the black contrast to have better visibility in dark
scenes.
Increasing the Black Stabilizer value brightens the low gray level
area on the screen. (You can easily distinguish objects on dark
game screens.)
Reducing the Black Stabilizer value darkens the low gray level area
and increases the dynamic contrast on the screen.
Response Time Sets a response time for displayed pictures based on the speed of
the screen. For a normal environment, it is recommended that you
use Middle. For a fast-moving picture, it is recommended that you
use High.
Setting to High may cause image sticking.
High Sets the response time to High.
Middle Sets the response time to Middle.
Low Sets the response time to Low.
Off Sets the response time to Off.
FreeSync Provides seamless and natural images by synchronizing the vertical
frequency of the input signal with that of the output signal.
NOTE
yTo use the FreeSync feature, a graphic card that supports FreeSync is
necessary.
ySupported Interface: HDMI
yFor more information, refer to AMD website at http://www.amd.com/
FreeSync
On FreeSync function on.
Off FreeSync function off.
Color Adjust Gamma The higher the gamma value, the darker the image becomes.
Likewise, the lower the gamma value, the lighter the image
becomes. If you do not need to adjust the gamma settings, select
Off.
Color Temp Selects the factory default picture color.
Warm: Sets the screen color to a reddish tone.
Medium: Sets the screen color between a red and blue tone.
Cool: Sets the screen color to a bluish tone.
Custom
Red
Green
Blue
You can customize the picture color using Red, Green,
and Blue colors.
Six Color Meets the user requirements for colors through adjusting the color
and saturation of the six colors(Red_Hue, Red_Saturation, Green_
Hue, Green_Saturation, Blue_Hue, Blue_Saturation, Cyan_Hue,
Cyan_Saturation, Magenta_Hue, Magenta_Saturation, Yellow_
Hue, Yellow_Saturation) and saving the settings.
*Hue: Adjusts tone of the screen.
*Saturation: Adjusts the saturation of the screen colors. The lower
the value, less saturated and bright the colors become. The higher
the value, the more saturated and dark the colors become.
Reset Returns the color settings to the default settings.
