LG Flatron ez T710PH User manual

COLOR MONITOR
SERVICE MANUAL
Website:http://biz.LGservice.com
E-mail:http://www.LGEservice.com/techsup.html
CAUTION
BEFORE SERVICING THE UNIT,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
MENU SELECT
Brightview
MODEL: T710PH (T710PHJ-AL**E, AL**Q)
CHASSIS NO. : CA-128
( ) **Same model for SVC
*Same looking with new chassis.
Issue Date; 2003. 6.

1. PICTURE TUBE
Size : 17 inch (Flat Square Tube)
DefIection Angle : 90°
Neck Diameter : 29.1mm
Diagonal Inch : 16.0”
Dot Pitch : 0.25mm
Face Treatment : Anti-Glare,
Anti-Static&Anti-Reflection
2. SIGNAL
2-1. Horizontal & Vertical Sync
1) Input Voltage Level: Low=0~1.2V, High=2.5~5.5V
2) Sync Polarity : Positive or Negative
3) Seperated Sync Signal
2-2. Video Input Signal
1) Voltage Level : 0 ~ 0.7 Vp-p
a) Color 0, 0 : 0 Vp-p
b) Color 7, 0 : 0.467 Vp-p
c) Color 15, 0 : 0.7 Vp-p
2) Input Impedance : 75 Ω
3) Video Color : R, G, B Analog
4) Signal Format : Refer to the Timing Chart
2-3. Signal Connector
15-pin Attached Connector
2-4. Scanning Frequency
Horizontal : 30 ~ 85kHz
Vertical : 50 ~ 160Hz
3. POWER SUPPLY
3-1. Power Range
AC 100-240V~ 50/60Hz, 2.0A Max.
3-2. Power Consumption
4. DISPLAY AREA
4-1. Active Video Area :
• Max Image Size - 325.1 x 243.8 mm (12.79" x 9.59")
• Preset Image Size - 315 x 230 mm (12.40" x 9.06")
4-2. Display Color : Full Colors
4-3. Display Resolution : 1280 x 1024 / 75Hz(Max)
(Non-Interlace)
4-4. MTBF : 50,000HRS
5. ENVIRONMENT
5-1. Operating Temperature: 0°C ~ 40°C (Ambient)
5-2. Relative Humidity : 10%~ 90%
(Non-condensing)
5-3. Altitude : 5,000m
6. DIMENSIONS (with TILT/SWIVEL)
Width : 400mm (15.75 inch)
Depth : 411mm (16.18 inch)
Height : 401mm (15.79 inch)
7. WEIGHT (with TILT/SWIVEL)
Net Weight : 15.7 kg (34.62 lbs.)
Gross Weight : 18.3 kg (40.35 lbs.)
CONTENTS
- 2 -
SPECIFICATIONS ................................................... 2
SAFETY PRECAUTIONS ........................................ 3
TIMING CHART ....................................................... 4
OPERATING INSTRUCTIONS ................................ 5
WIRING DIAGRAM ................................................. 6
BLOCK DIAGRAM ................................................... 8
ADJUSTMENT ....................................................... 11
TROUBLESHOOTING GUIDE .............................. 13
EXPLODED VIEW...................................................23
REPLACEMENT PARTS LIST ............................... 25
PIN CONFIGURATION........................................... 30
SCHEMATIC DIAGRAM......................................... 32
PRINTED CIRCUIT BOARD................................... 34
SPECIFICATIONS
MODE
MAX
NORMAL (ON)
STAND-BY
SUSPEND
DPMS OFF
POWER CONSUMPTION
90 W
73 W
less than 15 W
less than 15 W
less than 5 W
LED COLOR
GREEN
GREEN
AMBER
AMBER
AMBER

SAFETY-RELATED COMPONENT WARNING!
There are special components used in this color monitor
which are important for safety. These parts are marked
on the schematic diagram and the replacement
parts list. It is essential that these critical parts should be
replaced with the manufacturer's specified parts to
prevent X-radiation, shock, fire, or other hazards. Do not
modify the original design without obtaining written
permission from manufacturer or you will void the original
parts and labor guarantee.
CAUTION: No modification of any circuit should be
attempted.
Service work should be performed only after
you are thoroughly familiar with all of the
following safety checks and servicing
guidelines.
SAFETY CHECK
Care should be taken while servicing this color monitor
because of the high voltage used in the deflection circuits.
These voltages are exposed in such areas as the
associated flyback and yoke circuits.
FIRE & SHOCK HAZARD
An isolation transformer must be inserted between the
color monitor and AC power line before servicing the
chassis.
• In servicing, attention must be paid to the original lead
dress specially in the high voltage circuit. If a short
circuit is found, replace all parts which have been
overheated as a result of the short circuit.
• All the protective devices must be reinstalled per the
original design.
• Soldering must be inspected for the cold solder joints,
frayed leads, damaged insulation, solder splashes, or
the sharp points. Be sure to remove all foreign
materials.
IMPLOSION PROTECTION
All used display tubes are equipped with an integral
implosion protection system, but care should be taken to
avoid damage and scratching during installation. Use only
same type display tubes.
X-RADIATION
The only potential source of X-radiation is the picture tube.
However, when the high voltage circuitry is operating
properly there is no possibility of an X-radiation problem.
The basic precaution which must be exercised is keep the
high voltage at the factory recommended level; the normal
high voltage is about 25.8kV. The following steps describe
how to measure the high voltage and how to prevent X-
radiation.
Note : It is important to use an accurate high voltage
meter calibrated periodically.
• To measure the high voltage, use a high impedance
high voltage meter, connect (–) to chassis and (+) to
the CDT anode cap.
• Set the brightness control to maximum point at full
white pattern.
• Measure the high voltage. The high voltage meter
should be indicated at the factory recommended level.
• If the meter indication exceeds the maximum level,
immediate service is required to prevent the possibility
of premature component failure.
• To prevent X-radiation possibility, it is essential to use
the specified picture tube.
CAUTION:
Please use only a plastic screwdriver to protect yourself
from shock hazard during service operation.
SAFETY PRECAUTIONS
- 3 -

- 4 -
TIMING CHART
VIDEO
SYNC
C
E
DFA
B
<< Dot Clock (MHz), Horizontal Frequency (kHz), Vertical Frequency (Hz), Horizontal etc... (µs), Vertical etc... (ms) >>
* No Composite Mode.
H–37.50 26.67 20.32 6.35 2.03 3.81 0.51
V–74.99 13.335 12.802 0.533 0.080 0.427 0.026
Mode H/V
Sort
1
2
3
4
640x480
75Hz
Sync
Polarity
Frequency Total Period
(A) Video Active
Time (B) Sync Duration (E)
Blanking Time
(C) Back Porch
(F) Front Porch
(D)
Resolution
H + 53.68 18.63 14.22 4.41 1.14 2.70 0.57
V + 85.07 11.755 11.178 0.577 0.056 0.503 0.018
H + 68.677 14.561 10.836 3.725 1.016 2.201 0.508
V + 85.00 11.764 11.182 0.582 0.044 0.524 0.014
1280x1024
75Hz
800x600
85Hz
1024x768
85Hz
H + 79.976 12.504 9.481 3.022 1.067 1.837 0.119
V + 75.025 13.329 12.804 0.525 0.038 0.475 0.013

- 5 -
OPERATING INSTRUCTIONS
1. Power ON/OFF Button
Use this button to turn the monitor ON or OFF.
2. Power Indicator
This indicator lights up green when the monitor operates
normally; in DPMS (Energy Saving) mode, -stand-by,
suspend, or power off mode -its color changes to
orange, and if abnormal or damaging circuit turns out
orange blink.
3. Select Button
Use this button to enter a selection in the on screen
display.
4. Button
Use these buttons to choose or adjust items in the on
screen display.
5. MENU Button
Use this button to enter or exit the on screen display.
6. Brightview Button(To apply the High brightness)
Use this button to select brightview function.
(TEXT/PHOTO/MOVIE/NORMAL)
FRONT VIEW REAR VIEW
AC Power Socket
Signal Connector
ID Label
Front Control Panel
MENU SELECT
Brightview
Power ON/OFF Button
See Front Control Panel
MENU SELECT
Brightview
Buttons
MENU Button
Power Button
Power (DPMS) Indicator
SELECT Button
Brightiew Button
<Shortcut Keys>
•Brightness and Contrast can be
adjusted directly without entering
the On Screen Display (OSD)
system.
Press the buttons to adjust the settings and then
the MENU button to save all changes. The Brightness and
Contrast functions are also available in the On Screen
Display (OSD) menu.
100
100

WIRING DIAGRAM
- 6 -
P501
P201
P405
P301
P302
G2
P702 P701
T1
P402
P902
S+S
Signal
Cable
AC
Socket
FBT

- 7 -
DISASSEMBLY
1. TILT/SWIVEL & BACK COVER REMOVAL
1) Set the monitor face downward.
2) Carefully remove the Tilt/Swivel by pulling it upward.
3) Pressing the latch (b), Back cover by pushing it upward.
4) Release the latch (c). (See Tip Spec.)
5) Slide the Back Cover away from the Front Cabinet of the monitor.
Tip
C
B
A
Tip Spec.
A(Width) : 5.0~15.0mm
B(Depth) : 0.6~0.9mm
C(Height) : 12.0mm
(a)
Back Cover
Cabinet
(b)
(c)
1
2
3

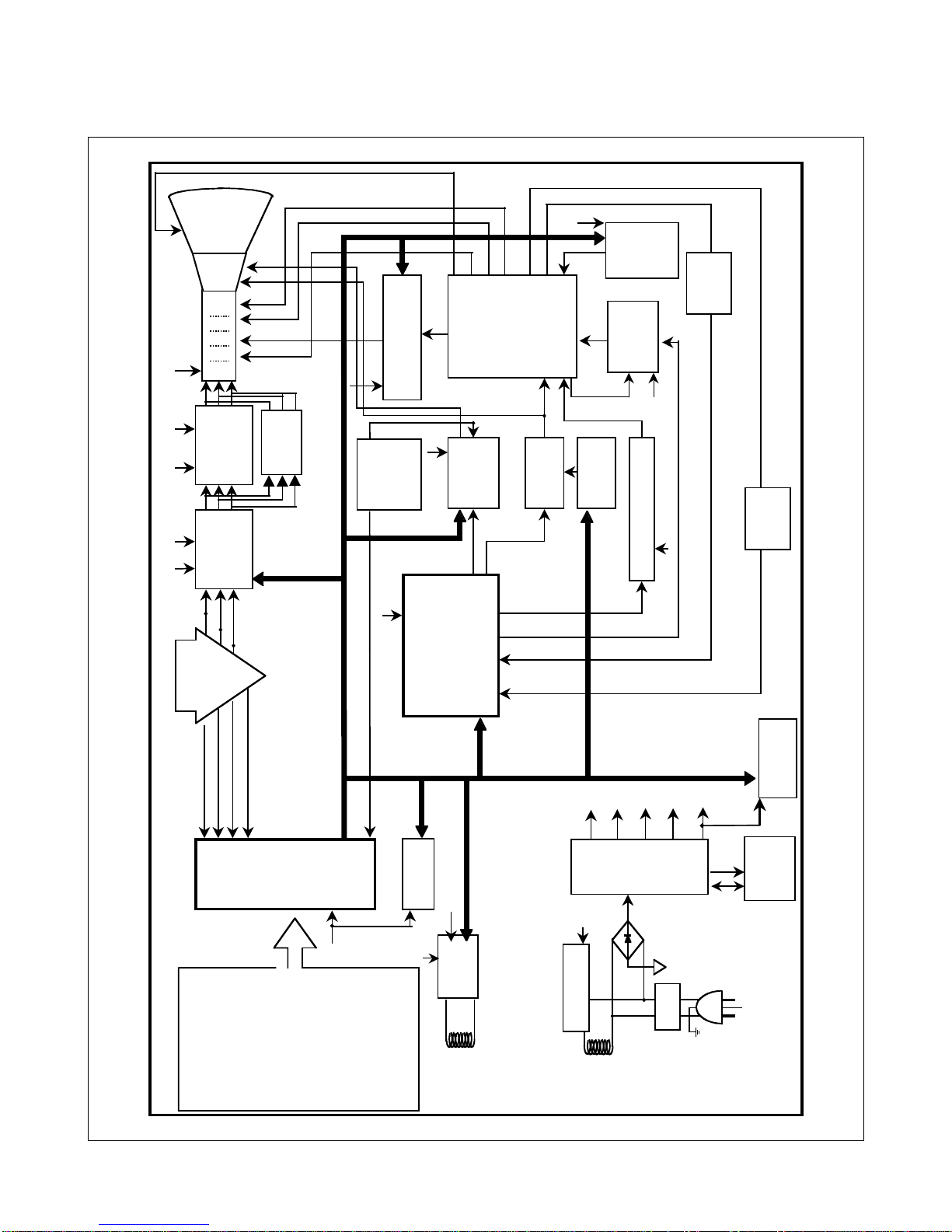

BLOCK DIAGRAM
- 8 -
Input_power
100~240VAC
(50/60Hz)
Line Filter
Degaussing Circuit
[ OSD Control ]
Power Control (IC901)
TILT Control Circuit
6.3V
15V
E2PROM
(IC402)
5V
H-sync Signal V-sync Signal I2C DATA(SDA)
I2C CLOCK(SCL)
VIDEO
OSD+pre_Amp
(IC302)
Signal
cable
R
G
BVIDEO
Main_Amp
(IC303)
H/V Sync Processor
( IC701 )
TDA4841 V-out
( IC601)
TDA4867J
H-out
(Q706)
H-Linearity
Correction
Circuit
X-RAY
Protection
Circuit
Dynamic
FOCUS
Circuit
Vertical Blanking,
- 160V
15V
D/D
Feed Back
12V
MICOM (IC401)
SCL / SDA H/V sync PWM control signal 15V
15V
50V
DY CDT
Heater ( 6.3V )
I2C
I2C
I2C
H/V
Sync
Screen
H.V
R/G/B
Bias
R/G/B
Contrast
H-Drive
B-Drive
B+
15V
BRIGHTNESS/CONTRAST COLOR CURVE H / V POSITION H / V SIZE SPCC TRAPEZOID PIN BALANCE PARALLELOGRAM TOP CORNER BOTTOM CORNER RECALL DEGAUSSING MOIRE LANGUAGE RESET OSD TIME TILT VIDEO INPUT LEVEL BRIGHT VIEW TEXT PHOTO MOVIE MORMAL
DPM Control Circuit
400V
15V
6.3V
15V 80V
Voltage feedback
Voltage
feedback
Degaussing Coil
Dynamic Focus
Static Focus
TILT Coil
50V
80V
15V
G2 G1
DC/DC Converter
FBT
( T701 )
Regulation
Circuit
SMPS
(T901)
5V 15V
CUT-OFF IC
(IC304)
5V
Auto Beam Limit

DESCRIPTION OF BLOCK DIAGRAM
- 9 -
1. Line Filter & Associated Circuit.
This is used for suppressing noise of power input line
flowing into the monitor and/or some noise generated in
this monitor flowing out through the power input line.
That is to say, this circuit prevents interference between
the monitor and other electric appliances.
2. Degauss Circuit & Coil.
The degauss circuit consists of the degaussing coil, the
PTC(Positive Temperature Coefficient) thermistor(TH901),
and the relay(RL901). This circuit eliminates abnormal
color of the screen automatically by degaussing the
shadow mask in the CRT during turning on the power
switch. When you need to degauss in using the monitor,
select DEGAUSS on the OSD menu.
3. SMPS(Switching Mode Power Supply).
This circuit is working of 90~264V AC(50/60Hz).
The operation procedure is as follows:
1) AC input voltage is rectified and smoothed by the bridge
diodes (D900) and the capacitor (C908).
2) The rectified voltage(DC) is applied to the primary coil
of the transformer(T901).
3) The control IC(IC901) generates switching pulse to turn
on and off the primary coil of the transformer (T901)
repeatedly.
4) Depending on turn ratio of the transformer, the
secondary voltages appear at the secondary coils of the
transformer(T901).
5) These secondary voltages are rectified by each
diode(D941, D942, D951, D961, D962, D971) and operate
other circuit. (horizontal and vertical deflection, video
amplifier, ...etc.)
4. X-ray Protection.
If the high voltage of the FBT reaches up to 29kV (abnormal
state), IC401(MICOM) pin 35 Sensing from FBT directly.
Then MICOM control IC701 (Deflection controller) to stop
Horizontal drive pulse and stop Horizontal Deflection.
5. Micom(Microprocessor) Circuit.
The operating procedure of Micom(Microprocessor) and
its associated circuit is as follows:
1) H and V sync signal is supplied from the signal cable.
2) The Micom(IC401) distinguishes polarity and
frequency of H and V sync.
3) The Micom sets operating mode and offers the
controlled data. (H-size, H-position, V-size, ... etc.)
4) The controlled data of each mode is stored in itself.
5) User can adjust screen condition by each OSD
function. The data of the adjusted condition is stored
in EEPROM(IC402).
6. Horizontal and Vertical Oscillation.
This circuit generates the horizontal pulse and the vertical
pulse by taking the H and V sync signal.
This circuit consists of the TDA4867J(IC601) and the
associated circuit.
7. D/D(DC to DC) Converter.
This circuit supplies DC voltage to the horizontal deflection
output circuit by increasing DC 50V which is the
secondary voltage of the SMPS in accordance with the
input horizontal sync signal.
8. Side-Pincushion & Trapezoid Correction Cirucit.
This circuit improves the side-pincushion and the
trapezoid distortion of the screen by mixing parabola and
saw-tooth wave to output of the horizontal deflection D/D
converter which is used for the supply voltage(B + ) of the
deflection circuit.
9. Horizontal Deflection Output Circuit.
This circuit makes the horizontal deflection by supplying
the saw-tooth current to the horizontal deflection yoke.
10. High Voltage Output & FBT(Flyback Transformer).
The high voltage output circuit is used for generating pulse
to the primary coil of the FBT(Flyback Transformer)
secondary of the FBT and it is supplied to the anode,
focus, and screen voltage of the CRT.
11. H-Linearity Correction Circuit.
This circuit corrects the horizontal linearity for each
horizontal sync frequency.
12. Vertical Output Circuit.
This circuit takes the vertical ramp wave from the
TDA4841(IC701) and performs the vertical deflection by
supplying the saw-tooth current to the vertical deflection
yoke.
13. Dynamic Focus Output Circuit.
This circuit takes the horizontal and the vertical parabola
waves from the TDA4841(IC701) and amplifies it to
maintain constant focus on center and corners in the
screen.
14. H& V Blanking and Brightness Control.
Blanking circuit eliminates retrace line by supplying
negative pulse to the G1 of the CRT. And Brightness
control uses the R/G/B cut-off DC level by IIC line.

- 10 -
15. Image Rotation (Tilt) Circuit.
This circuit corrects the tilt of the screen by supplying the
image rotation signal to the tilt coil which is attached near
the deflection yoke of the CRT.
16. Video Pre-Amp Circuit.
This circuit amplifies the analog video signal from 0-0.7V
to 0-4V. It is operated by taking the clamp, R, G, B drive
and contrast signal from the Micom(IC401).
17. Video Output Amp Circuit.
This circuit amplifies the video signal which comes from
the video pre-amp circuit and amplified it to applied the
CRT cathode.

ADJUSTMENT
- 11 -
GENERAL INFORMATION
All adjustment are thoroughly checked and corrected
when the monitor leaves the factory, but sometimes
several adjustments may be required.
Adjustment should be following procedure and after
warming up for a minimum of 30 minutes.
•Alignment appliances and tools.
- IBM compatible PC.
- Programmable Signal Generator.
(eg. VG-819 made by Astrodesign Co.)
- EPROM or EEPROM with saved each mode data.
- Alignment Adaptor and Software.
- Digital Voltmeter.
- White Balance Meter.
- Luminance Meter.
- High-voltage Meter.
AUTOMATIC AND MANUAL DEGAUSSING
The degaussing coil is mounted around the CDT so that
automatic degaussing when turn on the monitor. But a
monitor is moved or faced in a different direction, become
poor color purity cause of CDT magnetized, then press
DEGAUSS on the OSD menu.
ADJUSTMENT PROCEDURE & METHOD
-Install the cable for adjustment such as Figure 1and run
the alignment program on the DOS for IBM compatible PC.
-Set external Brightness and Contrast volume to max position.
1. Checked for B+ Voltage.
1) Display cross hatch pattern at Mode 4.
2) Check D961 voltage to 50.0V ± 1V with.
2. Adjustment for High-Voltage.
1) Display cross hatch pattern at Mode 4.
2) DIST.ADJ→CTRL PWM →High Voltage Command.
3) Adjust High Voltage to 25.8kV
± 0.1 kVdc.
4) Press Enter Key.
3. Adjustment for Factory Mode (Preset Mode).
1) Display cross hatch pattern at Mode 1.
2) Run alignment program for T710PHJ on the IBM
compatible PC.
3) EEPROM → ALL CLEAR → Y(Yes) command.
<Caution> Do not run this procedure unless the
EEPROM is changed. All data in EEPROM (mode
data and color data) will be erased.
4) Power button of the monitor turn off →turn on.
5) COMMAND→PRESET START→Y(Yes) command.
6) DIST. ADJ. →CTRL PWM → TILT command.
7) Adjust tilt as arrow keys to be the best condition.
8) DIST. ADJ. →BALANCE command.
9) Adjust parallelogram as arrow keys to be the best
condition.
10) Adjust balance of pin-balance as arrow keys to be
the best condition.
11) DIST. ADJ. →FOS. ADJ command.
12) Adjust V-SIZE as arrow keys to 230 ± 2mm.
13) Adjust V-POSITION as arrow keys to center of the
screen.
14) Adjust H-SIZE as arrow keys to 310 ± 2mm.
15) Adjust H-POSITION as arrow keys to center of the
screen.
16) Adjust S-PCC (Side-Pincushion) as arrow keys to be
the best condition.
17) Adjust TRAPEZOID as arrow keys to be the best
condition.
18) Save of the Mode 1~4.
19) Display from Mode 2 to 4 and repeat above from
number 12) to 19)
20) PRESET EXIT →Y (Yes) command.
4. Adjustment for White Balance and Luminance.
1) Set the White Balance Meter.
2) Press the DEGAUSS on the OSD menu for
demagnetization of the CDT.
3) COLOR ADJ. →LUMINANCE command of the
alignment program.
4) Set Brightness and Contrast to Max position.
5) Display color 0,0 pattern at Mode 4.
6) COLOR ADJ.→BIAS ADJ.→ COLOR No. → 1
command of the alignment program.
7) Check whether green color or not at R-BIAS and G-
BIAS to min position and B-BIAS to 127(7F) position
and Sub-Brightness to 205(CD) position. Adjust G2
(screen) command to 0.2
± 0.05FL of the raster
luminance.
8) Adjust R-BIAS and G-BIAS command to x=0.283
±
0.005 and y=0.298 ± 0.005 on the White Balance
Meter with PC arrow keys.
9) Adjust SUB-Brightnesscommand to 0.4 ± 0.1FL of the
raster luminance.
10)
Adjust repeat number 8).
11)
push the “ENTER”key.
11-1) COMMAND → PRESET START →Y(Yes) command.
12)
Display color 15,0 full white pattern at Mode 4.
13)
DRIVE ADJ.→ No 1. command.

- 12 -
14) Set Brightness and Contrast to Max position.
15) Set SUB-CONTRAST 127(7F) (decimal) position.
16) Set B-DRIVE to 85(55) at DRIVE of the alignment
program.
17-1) Adjust R-DRIVE and G-DRIVE command to white
balance x=0.283
± 0.003 and y=0.298 ± 0.003 on the
White Balance Meter with PC arrow keys.
17-2) Display color 15,0 window pattern (70x70mm) at mode 4.
18) Adjust SUB-CONTRAST command to 50 ± 2FL .
19) push the “ENTER”key.
20) Display color 15,0 full white patten at Mode 4..
21) COLOR ADJ. →LUMINANCE →ABL command.
22) Adjust ABL to 32 ± 1FL of the luminance.
23) push the “ENTER”key, and “COMMAND →
PRESET EXIT →Y(Yes)”command.
24) Exit from the program.
5. Input EDID Data.
1) Display color 15,0 cross hatch pattern at Mode 4.
2) EEPROM → Write EDID command and confirm
“EDID Write OK!!”message of monitor.
3) Exit from the alignment program.
4) Power switch OFF/ON for EDID data save.
6. Adjustment for Focus.
1) Set the Brightness and Contrast to max position.
2) Display H character in full screen at Mode 4.
3) Adjust two Focus control on the FBT that focus
should be the best condition.

- 13 -
1. NO POWER
NO POWER
(POWER INDICATOR OFF)
TROUBLE IN
D900
TROUBLE IN FUSE
(F901)
TROUBLE IN
IC901
TROUBLE IN
D941, D942, D951,
D961, D962, D971
TROUBLE IN
Q903, Q952,
Q951, Q942, Q941
CHECK
FUSE OK?
CHECK
C908 VOLTAGE?
(AC120V: 160VDC,
AC220V: 304VDC)
NO
YES
YES
YES
YES
NO
NO
NO
CHECK
IC901 PIN 6
WAVEFORM
?
CHECK
D941, D942,
D951, D961, D962, D971
VOLTAGE?
TROUBLESHOOTING GUIDE

- 14 -
2. NO CHARACTER
NO CHARACTER
CHECK
IC302
PIN 18(5V) ?
CHECK
IC302 PIN 5, 6, 7?
CHECK
IC302 PIN 19, 20, 21 ?
CHECK
IC303
PIN 1, 2, 3 ?
CHECK
IC303 PIN 4 (80V)
PIN 8 (15V) ?
TROUBLE IN
P302 5V LINE
TROUBLE IN
PC SIGNAL,
P301 SIGNAL CABLE
TROUBLE IN
IC302
TROUBLE IN
P303 15V LINE/
80V LINE
TROUBLE IN IC303
NO
YES
NO
NO
YES
YES
YES
YES
NO
NO
CHECK
R, G, B CATHODE
VOLTAGE?
TROUBLE IN
R331~R333,
L311~L313,
D307~D312, IC304
TROUBLE IN
CRT SOCKET
YES
NO

- 15 -
3. NO RASTER
NO VIDEO
(POWER INDICATOR ON)
CHECK
POWER INDICATOR
GREEN or AMBER?
CHECK
D712 ANODE
(-160V)?
CHECK
G1VOLTAGE?
(-55V~-15V)
TROUBLE IN
D712
TROUBLE IN
Q799
DPM MODE
(NO H and/or V SYNC)
AMBER
NO
GREEN
YES
NO
CHECK
CDT HEAT
VOLTAGE? (6.3V)
TROUBLE IN
D941, Q942, Q941
YES
NO
TROUBLE IN
CDT
YES

- 16 -
4. NO HORIZONTAL DEFLECTION
NO H-DEFLECTION
(ONE VERTICAL LINE)
CHECK
Q706?
CHECK
B+ VOLTAGE
(50V)?
CHECK
T701(FBT) PIN 2
(31KHZ 60V,
69KHZ 140V) ?
CHECK
Q705 COLLECTOR
WAVEFORM?
TROUBLE IN
Q706
TROUBLE IN
50V LINE
TROUBLE IN
Q719, Q720, D710
TROUBLE IN
Q705
TROUBLE IN
T701, P701
NO
NO
YES
YES
YES
YES
NO
NO
0V T

- 17 -
5. TROUBLE IN H-LINEARITY
UNBALANCED OF H-LIN.
CHECK
IC401
PIN 6, 7, 8 ?
CHECK
Q711~Q716?
CHECK
L703?
TROUBLE IN
IC401 (MICOM)
TROUBLE IN
Q711 ~ Q716
TROUBLE IN
L703
TROUBLE IN
C722, C723, C726, C729
NO
NO
NO
YES
YES
YES Cs SIGNAL TABLE
HORIZONTAL
FREQUENCY(fH)
30K ~ 33.9K
34K ~ 38.9K
39K ~ 43.9K
44K ~ 48.9K
49K ~ 51.9K
52K ~ 57.9K
58K ~ 61.9K
62K ~ 65.9K
66K ~ 71K
74K ~ 77.9K
78.0K ~ 83.9K
84.0K ~ 86.9K
Cs1
L
L
L
L
H
L
L
L
H
H
H
H
Cs3
L
L
H
H
H
H
H
H
H
H
H
H
Cs2
L
H
L
L
L
H
H
H
H
H
H
H

- 18 -
6. NO VERTICAL DEFLECTION
NO V-DEFLECTION
(ONE HORIZONTAL LINE)
CHECK
IC601 PIN 3
(15V+)?
CHECK
IC701 PIN 12, 13?
TROUBLE IN
R603 15V LINE
TROUBLE IN
IC701
TROUBLE IN
IC601, V-CIRCUIT
NO
YES
YES
NO
5V 12Pin
13Pin

- 19 -
7. TROUBLE IN OSD
TROUBLE IN
OSD PERIPHERAL
CIRCUIT
NO OSD
TROUBLE IN
5V LINE
TROUBLE IN
IC401 PIN 29 (V-FBP),
IC701 PIN 1 LINE (H-FBP)
NO
YES
DC 5V
YES
NO
Pin 24 5V
Pin 1
FV
FH
CHECK
IC302 B+
(5V) ?
(ENTER BUTTON MUST BE PRESSED.)
CHECK
IC302 PIN 1, 24
WAVEFORM?

- 20 -
8. TROUBLE IN DPM
CHECK
IC401 (MICOM)
PIN 30, 31 (H/V INPUT)
SIGNAL?
CHECK
IC401 PIN 13
WAVEFORM?
CHECK
IC401 (MICOM)
PIN 2, 3 ?
CHECK
B+LINE
(6.3V,15V+) ?
CHECK PC,
(PC IS NOT GOING INTO
DPM OFF MODE)
TROUBLE IN
X401
TROUBLE IN
IC401 (MICOM)
TROUBLE IN
Q941, Q942, Q951, Q952,
TROUBLE IN PC
OFF MODE FAILURE
INPUT H/V SYNC SIGNAL
H/V SYNC
(NO OFF MODE.)
NO
NO
NO
NO (DPMF: 0V)
DPM TABLE
Mode Item
NORMAL
STAND-BY
SUSPEND
OFF
DPM
H
L
L
L
LED
GREEN
AMBER
AMBER
AMBER
DPMS
H
H
H
L
YES
YES
SEE DPM TABLE
YES
YES
5V
12MHz
