COLOR MONITOR
SERVICE MANUAL
Website:http://biz.LGservice.com
E-mail:http://www.LGEservice.com/techsup.html
CAUTION
BEFORE SERVICING THE UNIT,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS NO. : CL-32
MODEL: L1515S (L1515SL-AL**R)
L1516S (L1516SL-AL**R)
*( ) **Same model for Service
*To apply the Mstar Chip.

CONTENTS
SPECIFICATIONS
- 2 -
1. LCD CHARACTERISTICS
Type : TFT XGA LCD Module
Size : 352.0(H) x 263.5(V) x 14.0(T)
Pixel Pitch : 0.297mm x 0.297mm
Color Depth :
6bits(with FRC)/ 16M colors
Active Video Area : 15.0inch
(304.128 x 228.096)
Surface Treatment : Anti-Glare, Hard Coating (3H)
Backlight Unit : Top/Bottom edge side 2CCFL
Electrical Interface : LVDS interface
2. OPTICAL CHARACTERISTICS
2-1. Viewing Angle by Contrast Ratio
≥
10
Left : 55° min. Right : 55° min.
Top : 40° min. Bottom : 40° min.
2-2. Luminance
:
200(min.), 250(typ.) at Center point
2-3. Contrast Ratio :250(min.), 350(typ.)
3. SIGNAL (Refer to the Timing Chart)
3-1. Sync Signal
1) Type : Separate Sync. (Horizontal & Vertical)
2) Input Voltage Level: Low=0~0.8V, High=2.1~5.5V
3) Sync Polarity : Positive or Negative
3-2. Video Input Signal
1) Type : R, G, B Analog
2) Voltage Level : 0~0.7 V
a) Color 0, 0 : 0 Vp-p
b) Color 7, 0 : 0.35 Vp-p
c) Color 15, 0 : 0.7 Vp-p
3) Input Impedance : 75 Ω
3-3. Operating Frequency
Horizontal : 30 ~ 63kHz
Vertical : 56 ~ 75Hz
4. POWER SUPPLY
4-1. Power
100~240V, 50/60Hz 0.6A
4-2. Power Consumption
5. ENVIRONMENT
5-1. Operating Temperature: 10°C~35°C (50°F~95°F)
(Ambient)
5-2. Relative Humidity : 10%~80%
(Non-condensing)
5-3. MTBF : 50,000 Hours (Min.)
Lamp Life : 40,000 Hours (Min.)
6. DIMENSIONS (with TILT/SWIVEL)
(FULL Up Position)
Width : 350mm (13.78'')
Depth : 133mm (5.24'')
Height : 318mm (12.52'')
(Folded Position)
Width : 350mm (13.78'')
Depth : 64mm (2.52'')
Height : 334mm (13.15'')
7. WEIGHT (with TILT/SWIVEL)
Net. Weight : 2.5kg (5.51 lbs)
Gross Weight : 5.5kg (12.13 lbs)
SPECIFICATIONS ................................................... 2
PRECAUTIONS ....................................................... 3
TIMING CHART ....................................................... 4
OPERATING INSTRUCTIONS ................................ 5
WIRING DIAGRAM ................................................. 6
BLOCK DIAGRAM ................................................... 7
DESCRIPTION OF BLOCK DIAGRAM ................... 8
ADJUSTMENT ........................................................ 9
TROUBLESHOOTING GUIDE .............................. 10
PRINTED CIRCUIT BOARD................................... 14
EXPLODED VIEW...................................................18
REPLACEMENT PARTS LIST ...............................20
PIN CONFIGURATION............................................22
SCHEMATIC DIAGRAM......................................... 24
MODE
POWER ON (NORMAL)
STAND-BY
SUSPEND
DPM OFF
H/V SYNC
ON/ON
OFF/ON
ON/OFF
-
POWER CONSUMPTION
less than 25 W
less than 3 W
less than 3 W
less than 3 W
LED COLOR
GREEN
AMBER
AMBER
AMBER
VIDEO
ACTIVE
OFF
OFF
-

- 3 -
WARNING FOR THE SAFETY-RELATED COMPONENT.
• There are some special components used in LCD
monitor that are important for safety. These parts are
marked on the schematic diagram and the
replacement parts list. It is essential that these critical
parts should be replaced with the manufacturer’s
specified parts to prevent electric shock, fire or other
hazard.
• Do not modify original design without obtaining written
permission from manufacturer or you will void the
original parts and labor guarantee.
TAKE CARE DURING HANDLING THE LCD MODULE
WITH BACKLIGHT UNIT.
• Must mount the module using mounting holes arranged
in four corners.
• Do not press on the panel, edge of the frame strongly
or electric shock as this will result in damage to the
screen.
• Do not scratch or press on the panel with any sharp
objects, such as pencil or pen as this may result in
damage to the panel.
• Protect the module from the ESD as it may damage the
electronic circuit (C-MOS).
• Make certain that treatment person’s body are
grounded through wrist band.
• Do not leave the module in high temperature and in
areas of high humidity for a long time.
• The module not be exposed to the direct sunlight.
• Avoid contact with water as it may a short circuit within
the module.
• If the surface of panel become dirty, please wipe it off
with a softmaterial. (Cleaning with a dirty or rough cloth
may damage the panel.)
WARNING
BE CAREFUL ELECTRIC SHOCK !
• If you want to replace with the new backlight (CCFL) or
inverter circuit, must disconnect the AC adapter
because high voltage appears at inverter circuit about
650Vrms.
• Handle with care wires or connectors of the inverter
circuit. If the wires are pressed cause short and may
burn or take fire.
PRECAUTION
CAUTION
Please use only a plastic screwdriver to protect yourself
from shock hazard during service operation.

TIMING CHART
- 4 -
VIDEO
SYNC
B
D
CFE
A
H / V
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
Sync
Polarity
+
–
–
+
–
–
–
–
–
–
–
–
+
+
+
+
+
+
+
+
–
–
–
–
–
–
+
+
Dot
Clock
25.175
28.322
25.175
30.24
31.5
31.5
36.0
40.0
50.0
49.5
57.2832
65
75
78.75
Frequency
31.468 KHz
70.0 Hz
31.468 KHz
70.0 Hz
31.469 KHz
60.0 Hz
35.00 KHz
66.67 Hz
37.861 KHz
72.8 Hz
37.50 KHz
75.0 Hz
35.156KHz
56.25 Hz
37.879 KHz
60.3 Hz
48.077 KHz
72.188 Hz
46.875 KHz
75.0 Hz
49.725 KHz
74.55 Hz
48.363 KHz
60.0 Hz
56.476 KHz
70.0 Hz
60.023 KHz
75.0 Hz
Resolution
640 x 350
720 x 400
640 x 480
640 x 480
640 x 480
640 x 480
800 x 600
800 x 600
800 x 600
800 x 600
832 x 624
1024 x 768
1024 x 768
1024 x 768
Total
Period
( E )
800
449
900
449
800
525
864
525
832
520
840
500
1024
625
1056
628
1040
666
1056
625
1152
667
1344
806
1328
806
1312
800
Video
Active
Time ( A )
640
350
720
400
640
480
640
480
640
480
640
480
800
600
800
600
800
600
800
600
832
624
1024
768
1024
768
1024
768
Blanking
Time
( B )
160
99
180
49
160
45
224
45
192
40
200
20
224
25
256
28
240
66
256
25
320
43
320
38
304
38
288
32
Sync
Duration
( D )
96
2
108
2
96
2
64
3
40
3
64
3
72
2
128
4
120
6
80
3
64
3
136
6
136
6
96
3
Back
Porch
( F )
48
60
55
34
48
33
96
39
128
28
120
16
128
22
88
23
64
23
160
21
224
39
160
29
144
29
176
28
Front
Porch
( C )
16
37
17
13
16
10
64
3
24
9
16
1
24
1
40
1
56
37
16
1
32
1
24
3
24
3
16
1
MODE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
(MAC)
(TEXT)

- 5 -
Bring up Contrast and Brightness adjustment.
:
1. Power ON/OFF Button
Use this button to turn the monitor on or off.
Power Indicator
This indicator lights up green when the monitor
operates normally. If the display is in DPM(Energy
Saving)mode, this indicator color change to amber.
2. MENU Button
Use this button to enter or exit the On Screen Display.
3. ▼▲◀▶ Button
Use these buttons to choose or adjust items in the On
Screen Display.
4. SELECT / AUTO Button
Use this button to enter a selection in the On Screen Display.

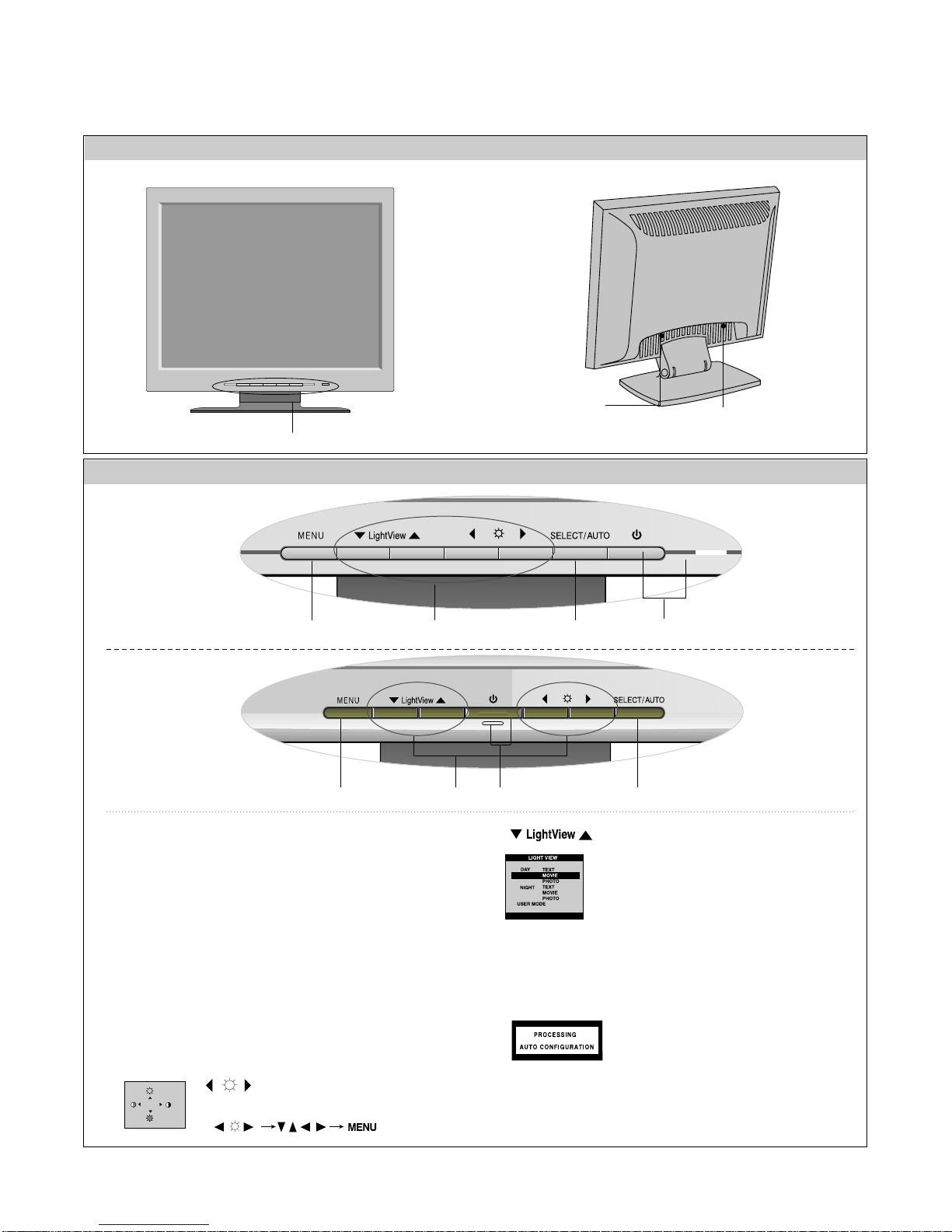

FRONT VIEW REAR VIEW
OPERATING INSTRUCTIONS
D-Sub Signal
Connect
Front Control Panel
132 4
100
100
When adjusting your display settings,
always press the AUTO/SELECT button
before entering the On Screen
Display(OSD). This will automatically
adjust your display image to the ideal settings for the current
screen resolution size (display mode).
The best display mode is 1024x768@60Hz.
This function optimizes the brightness, contrast or color
value to the surrounding conditions and settings and
enables you to enjoy the most suitable picture by
adjusting the surroundings (DAY/NIGHT/USER MODE).
• TEXT: For viewing letters
• MOVIE: For viewing movies
• PHOTO: For viewing pictures or the photographs
• USER MODE: This function memorizes the
manual adjustment -Brightness, Contrast and
Color value on the On Screen Display.
See Front Control Panel
Power Connect
L1515S
L1516S
3 1
2 4

- 6 -
J706
J704
CN1
CN2 J707
J8
J1

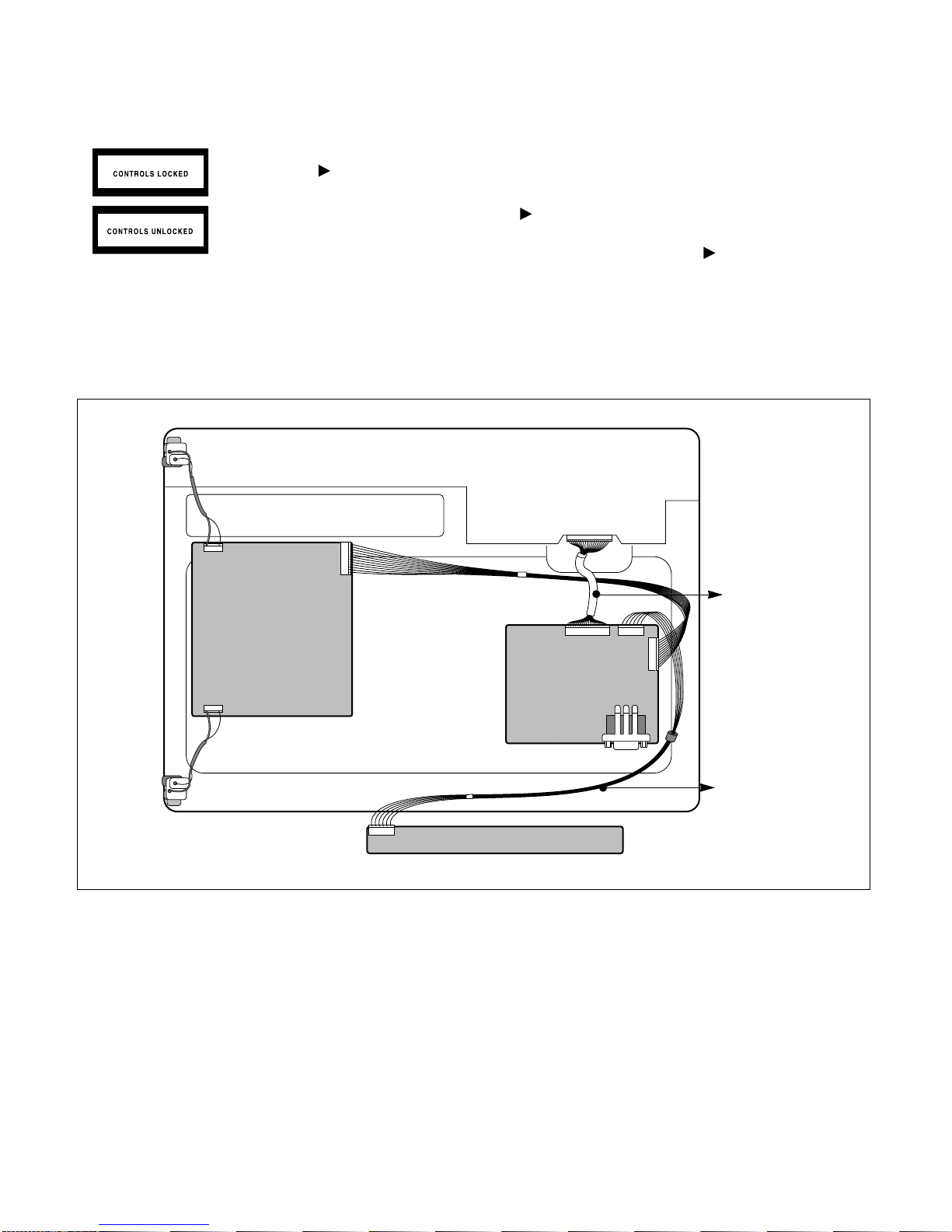

WIRING DIAGRAM
Connector Ass’y P/N:
6631T20024B
Connector Ass’y P/N:
6631T11012R
This function allows you to secure the current control settings, so that they cannot be inadvertently
changed. Press and hold the MENU button and button for 3 seconds: the message “CONTROLS
LOCKED”appears.
You can unlock the OSD controls at any time by pushing the MENU button and button for 3 seconds:
the message “CONTROLS UNLOCKED”will appear.
CONTROLS LOCKED/UNLOCKED
:
MENU and

- 7 -

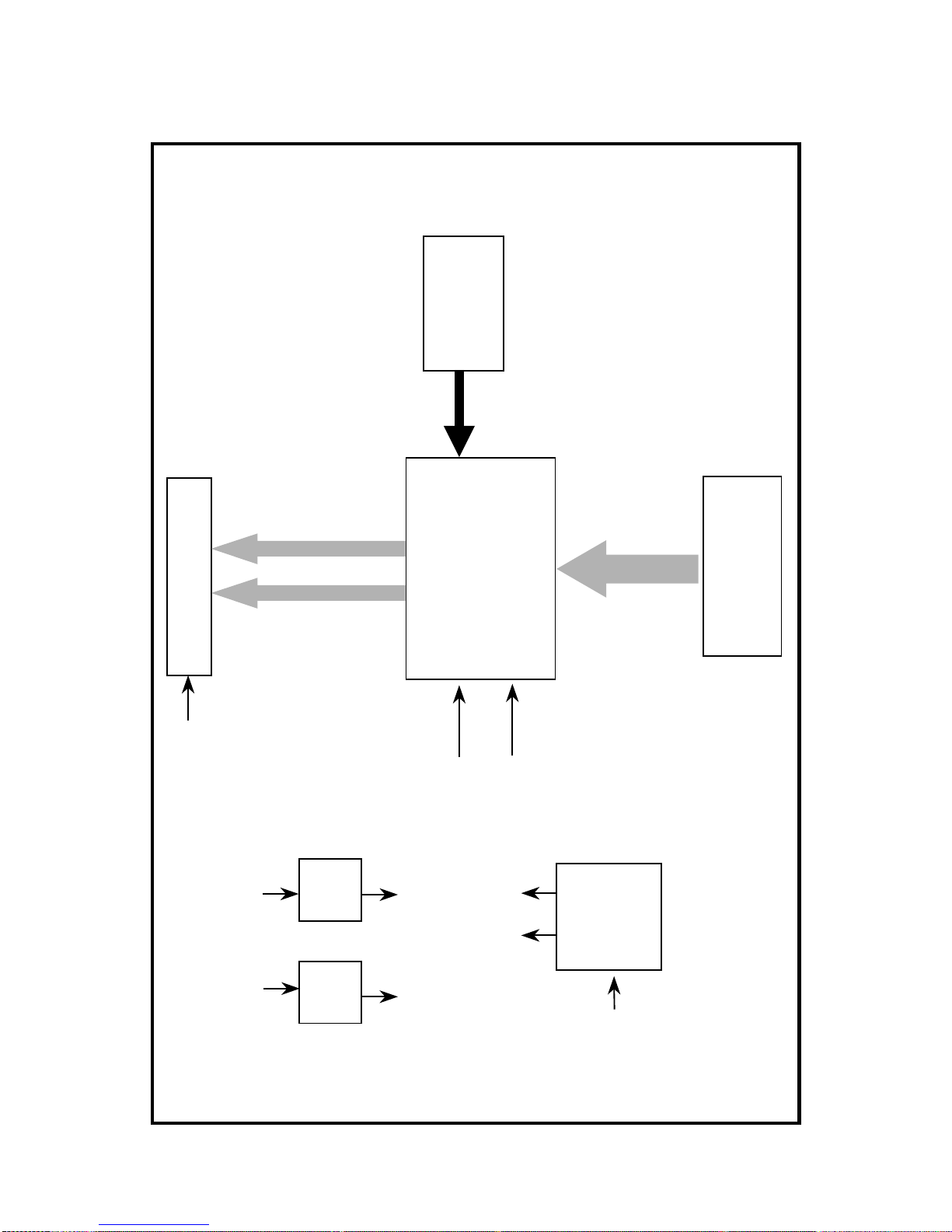

BLOCK DIAGRAM
D-SUB
MST9011
including
(ADC/LVDS/SCALER )
MTV312
Micom
LCD Module
R,G,B differential
LVDS (Low Voltage
Differential Signaling)
LIPS
5V
5V
AC Input
3.3V
Reg. 2.5V
Reg.
5V 5V
12V
R,G,B, H/V Sync
3.3V 2.5V
3.3V 2.5V

DESCRIPTION OF BLOCK DIAGRAM
- 8 -
1. Video Controller Part & Display Data Transmitter Part.(MST9011)
This part amplifies the level of video signal for the digital conversion and converts from the analog video signal to
the digital video signal using a pixel clock.
The pixel clock for each mode is generated by the PLL.
The range of the pixel clock is from 25MHz to 80MHz.
This part consists of the Scaler.
The Scaler gets the video signal converted analog to digital, interpolates input to 1024 x 768 resolution signal and
outputs 8-bit R, G, B signal to transmitter.
Especially pre-amp / ADC / Video controller/ Transmitter are merged to one chip “MST9011”by MSTAR.
This part transmit digital signal from the Scaler to the receiver of module.
2. Micom Part
This Part consists of EEPROM IC which stores control data, Reset IC and the Micom.
The Micom distinguishes polarity and frequency of the H/V Sync are supplied from signal cable.
The controlled data of each modes is stored in EEPROM.
3. Power Part
This part consists of the one 3.3V and one 2.5 regulators to convert power which is provided 5V in LIPS Board.
5V is provided for LCD Panel and Micom part.
Also, 5V is converted 3.3V and 2.5V by regulator. Converted power is provided for IC in the main board.

- 9 -
ADJUSTMENT
All adjustment are thoroughly checked and corrected
when the monitor leaves the factory, but sometimes
several minor adjustment may be required.
Adjustment should be following procedure and after
warming up for a minimum of 10 minutes.
Alignment appliances and tools.
- IBM Compatible PC
- Programmable Signal Generator.
(eg. VG-819 made by Astrodesign Co.)
- E(E)PROM with each mode data saved.
- Alignment Adapter and Software.
1. Adjustment for Factory Preset Mode
1) Run alignment program for L1515/16SL on the IBM
compatible PC.
2) Select EEPROM All Init. command and Enter.
3) Display cross hatch pattern at Mode 1.
4) Select EDID WRITE command and Enter.
2. Adjustment for White Balance
1) Display color 0,0 pattern at Mode 12.
2) Set External Bright to MAX position and Contrast to
MAX Position.
3) Select PRESET START →BIAS CAL command
and Enter.
4) No attempt to manually adjust, BIAS data is auto-
matically adjusted and saved to the EEPROM.
5) Display color 15,0 pattern at Mode 13.
6) Select DRIVE CAL command and Enter.
7) Color 1 (9300K) and Color 2 (6500K) are
automatically adjusted and saved to the EEPROM.
8) Select PRESET EXIT command and Enter.
Figure 1. Cable Connection
220
IBM
Compatible PC
Video Signal
Generator
PARALLEL PORT
Power inlet (required)
Power LED
ST Switch
Power Select Switch
(110V/220V)
Control Line
Not used
RS232C
PARALLEL
V-SYNC POWER
ST
VGS MONITOR
E
E
V-Sync On/Off Switch
(Switch must be ON.)
F
F
A
A
B
B
C
C
1510
5
569
1
1
1
14
13
25
6
5V
5V
5V
4.7K
4.7K
4.7K
74LS06
74LS06
OFF ON
OFF
ON
11

- 10 -
TROUBLESHOOTING GUIDE
1. NO POWER
CHECK U801.
CHECK
U801 PIN 1& U803
PIN 3 VOLTAGE
(5V) ?
NO
NO POWER
(POWER INDICATOR OFF)
CHECK POWER
BOARD, AND FIND
OUT A SHORT POINT
AS OPENING
EACH POWER LINE
CHECK J707
VOLTAGE
PIN5, PIN6 (5V)?
NO
CHECK 5VR LINE
(OPEN CHECK)
CHECK
U802 PIN 3(3V) &
U803 PIN 4 (2.5V)? NO
CHECK IIC LINE
CONNECTION
(U501, U502)
CHECK U201 VCC,
XTAL, RESET
IS U201
PIN42
VOLTAGE REPEATED
AS PULSE
SHAPE ?
NO
YES
YES
YES NO PROBLEM
YES
CHECK KEY CONTROL
CONNECTOR ROUTINE

- 11 -
2. NO RASTER (OSD IS NOT DISPLAYED) –LIPS
CHECK MICOM INV
ON/OFF PORT.
(U501 PIN25)
J705 PIN2
5V? NO
NO RASTER
(OSD IS NOT DISPLAYED)
CHECK LIPS
J705
PIN5, PIN 6
5V?
NO
1. CONFIRM BRIGHTNESS
OSD CONTRL STATE.
2. CHECK MICOM DIM-ADJ
PORT(U501 PIN41)
J705 PIN1
5V? NO
LIPS
CHECK
PULSE AS
CONTACTING SCOPE
PROBE TO CAUTION LABEL.
(CONTACT PROBE TO
CAUTION LABEL.
CAN YOU SEE PULSE
AT YOUR
SCOPE?
NO
REPLACE CCFL LAMP
IN THE LCD MODULE
YES
YES
YES
YES

- 12 -
1. CHECK PIN122, 123
SOLDERING CONDITION
2. CHECK X501
3. TROUBLE IN U201
U201
POWER PINS
3.3V?
NO CHECK U803, U801
U201
PIN122, 123
OSCILLATE AS
12MHZ?
CHECK CONNECTION LINE
FROM U201 TO U501
TROUBLE IN CABLE
OR LCD MODULE
CHECK 5VR LINE
U501 PIN8
5V?
YES
YES
YES
YES
3. NO RASTER (OSD IS NOT DISPLAYED) –MST9011
NO RASTER
(OSD IS NOT DISPLAYED)
U501
PIN41 IS 48KHz H-SYNC?
PIN42 IS 60Hz V-SYNC?
IS PULSE APPEARED
AT SIGNAL PINS?
NO
NO
NO

- 13 -
CHECK U803, U801
U201
POWER PIN114(3.3V)
PIN111(2.5V)
?
NO
1. CHECK PC
2. CHECK SIGNAL CABLE
& D-SUB CONNECTOR
LINE
CHECK
R,G,B INPUT?
U201 PIN 33,30,28 NO
CHECK H-SYNC LINE
(D-SUB→U501 →U201
PIN126)
CHECK
H-SYNC INPUT
U201 PIN 126?
NO
YES
YES
YES
CHECK V-SYNC LINE
(D-SUB→U501 →U201
PIN127)
CHECK
V-SYNC INPUT
U201 PIN 127?
NO
YES
NO RASTER
(OSD IS DISPLAYED)
4. NO RASTER (OSD IS DISPLAYED) –MST9011
TROUBLE IN
LCD MODULE
YES

PRINTED CIRCUIT BOARD
- 14 -
R708
C711 C708
C709
J706
Q703
R709
C710
C803
R812
U802
C828
J704
C821
C822
R769
J705
Q704
R747
R748
U801
1
R744
R745
R811
R801
R802
R804
C804
C829
R749
C832
C818
1
C820
R770
R840
R846
R847
R841
U804
R803
C230
C801
C817
C221
C831
100
C819
C222 C217
90 80
C227
70
U201
J707
1
R735
U502
C516
C760
R842
R848
R844
R845
R843
R849
U803
R511
C225
C226
C219
C802
110
C223C218
60
C727
Q705
R753
R779
C732
R533
R534
R537
Q506
R510
X501
Q503
R535
R532R550
C550
X201
C228 C229
120
R739
C220 J702
50
R502
R750 R751
U501
R501
C512
C502
C503
15
R536C513
10
Q502
C501
C514
5
R592
R593
R204
R205
C211
10
1
C212
C215
20
C207
30
C208
1
40
Q505
R525
R541
20
R581
R571
R531
D707
R530
R580
R570
R520
R504
R509
R590 R591
Q701
R207
R733
R522
C216
A
Q702
R716
R740
C201
C712
C202
C203
C209
C713
C210
C714
1
R528
R529
25
C703
40
D703
R725
R705
R722
ZD702
C505
C715
D706
R717
ZD701
D701D702
R701R703 R706
R202 R203 R208 R209 R210 R240
C205 C206 C232 C233 C240 C231
R201C204
MODEL:L-CHASSIS-ANALOG
P/N :6870T628A11
DATE :2003.02.24
Q504
R515
30
R734
R540 R551
35
A
R707
R741
U702
C707
C731 C730
R723
R724
R726
R727
R523
R524
ZD703 ZD704
C506
J703

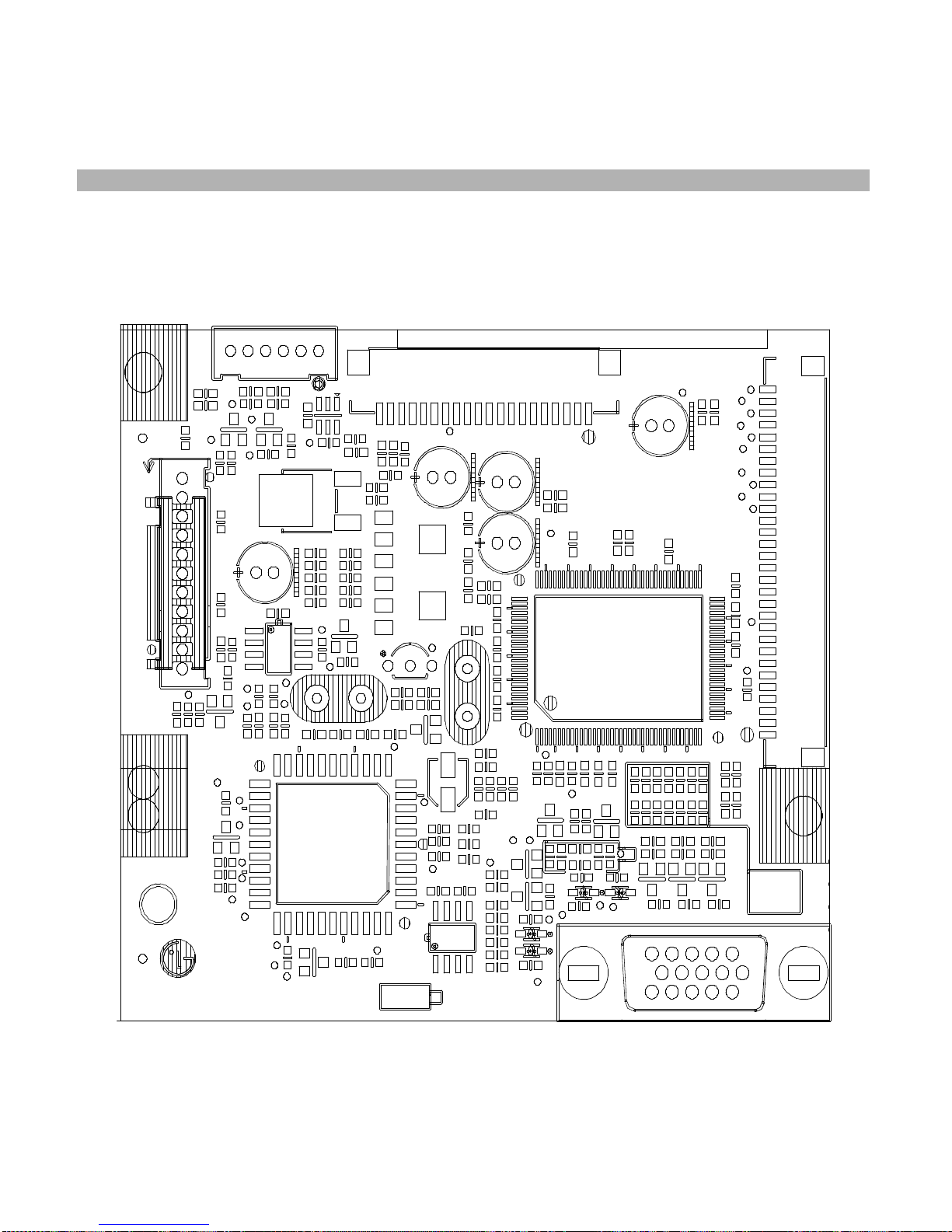

1. MAIN BOARD (Component Side)

- 15 -
2. MAIN BOARD (Solder Side)
1
C214
C224
C213

- 16 -
3.POWER BOARD (Component Side)
4.POWER BOARD (Solder Side)

- 17 -
5. CONTROL BOARD(Component Side)-L1515SL
6. CONTROL BOARD(Solder Side)-L1515SL
7. CONTROL BOARD(Component Side)-L1516SL
8. CONTROL BOARD(Solder Side)-L1516SL

- 18 -
EXPLODED VIEW
1
2
3
4
5
6
7
9
810
11

- 19 -
EXPLODED VIEW PARTS LIST
Ref. No.
1
2
3
4
5
6
7
8
9
10
11
Part No.
3091TKL068A
3091TKL081A
6304FLP074A
6304FLP068A
3809TKL047A
3043TKK122F
6871TST393A
6871TST428A
6871TMT430A
6871TMT430F
6871TPT242C
or 6871TPT236G
6631T11012R
4951TKS104A
4814TKK236A
4814TKK237A
Description
CABINET ASSEMBLY, L1515SL BRAND 3090TKL065 .. -FLATRON L1515S
CABINET ASSEMBLY, L1516SL BRAND 3090TKL071A CA ASSY -FLATRON L1516S
LCD(LIQUID CRYSTAL DISPLAY), LM150X06-A4K8 LG PHILPS TFT COLOR 5MASK
LCD(LIQUID CRYSTAL DISPLAY), LM150X06-A4C3 LG PHILPS TFT COLOR LPL
BACK COVER ASSEMBLY, L1515SL 3808TKL051 ..
TILT SWIVEL ASSEMBLYL1515SL..(STAND ASY+B/COVER ASSY)
PWB(PCB) ASSEMBLY,SUB, L1515SL CONTROL TOTAL BRAND CL-32 -FLATRON L1515S
PWB(PCB) ASSEMBLY,SUB, L1516SL CONTROL TOTAL BRAND -FLATRON L1516S
PWB(PCB) ASSEMBLY, MAIN, L1515SL ALRDR BRAND CL-32 TOTAL-FOR EUROPE
PWB(PCB) ASSEMBLY, MAIN, L1515SL ALKRR BRAND CL-32 TOTAL -For JAPAN, CHINA
PWB(PCB) ASSEMBLY,POWER, 15"(L1510/1515) POWER TOTAL SPI FSP017-2PI02 LIPS FOR 1515 TOOL(180MM)
PWB(PCB) ASSEMBLY, POWER, ADP-30EP POWER TOTAL DELTA L1515SL(180MM)
CONNECTOR ASSEMBLY, 20P H-H 120MM UL20276 PANEL LINK CABLE LM567D
METAL ASSEMBLY, FRAME 1515SL_ANALOG_(LPL)
SHIELD, INVERTER WIRE SHIELD(TOP)
SHIELD, INVERTER SHIELD CAP(BOTTOM)

- 20 -
DATE: 2003. 5. 6.
*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION
C201 0CC180CK41A 18PF 1608 50V 5% R/TP NP0
C202 0CC180CK41A 18PF 1608 50V 5% R/TP NP0
C203 0CC180CK41A 18PF 1608 50V 5% R/TP NP0
C204 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C205 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C206 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C207 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C208 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C209 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C210 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C211 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C212 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C215 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C216 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C217 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C218 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C219 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C220 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C221 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C222 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C223 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C225 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C226 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C227 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C230 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C231 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C232 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C233 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C240 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C501 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C502 0CC101CK41A 100PF 1608 50V 5% R/TP NP0
C503 0CC101CK41A 100PF 1608 50V 5% R/TP NP0
C505 0CC101CK41A 100PF 1608 50V 5% R/TP NP0
C506 0CC101CK41A 100PF 1608 50V 5% R/TP NP0
C512 0CC180CK41A 18PF 1608 50V 5% R/TP NP0
C513 0CC030CK01A 3PF 1608 50V 0.25 PF R/TP NP
C514 0CH8106F611 10UF 16V M 85STD(CYL) R/TP
C516 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C550 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0
C703 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C707 0CC680CK41A 68PF 1608 50V 5% R/TP NP0
C708 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y
C709 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y
C710 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y
C711 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y
C712 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C713 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C714 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C715 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C727 0CK105CD56A 1UF 1608 10V 10% R/TP X7R
C730 0CC101CK41A 100PF 1608 50V 5% R/TP NP0
C731 0CC680CK41A 68PF 1608 50V 5% R/TP NP0
DATE: 2003. 5. 6.
*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION
C732 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y
C760 0CE107EF610 “100UF KMG,RD 16V 20% FL BULK”
C801 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y
C802 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C803 0CK105CD56A 1UF 1608 10V 10% R/TP X7R
C804 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0
C817 0CE107EF610 “100UF KMG,RD 16V 20% FL BULK”
C818 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C819 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y
C820 0CE107EF610 “100UF KMG,RD 16V 20% FL BULK”
C821 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y
C822 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C828 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C829 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y
C831 0CE107EF610 “100UF KMG,RD 16V 20% FL BULK”
C832 0CE107EF610 “100UF KMG,RD 16V 20% FL BULK”
D701 0DS226009AA KDS226 TP KEC SOT-23 80V 30
D702 0DS226009AA KDS226 TP KEC SOT-23 80V 30
D703 0DS226009AA KDS226 TP KEC SOT-23 80V 30
D706 0DS226009AA KDS226 TP KEC SOT-23 80V 30
D707 0DD184009AA KDS184 TP KEC - 85V - - - 30
ZD701 0DZ560009GB BZT52C5V6S DIODES R/TP SOD32
ZD702 0DZ560009GB BZT52C5V6S DIODES R/TP SOD32
ZD703 0DZ560009GB BZT52C5V6S DIODES R/TP SOD32
ZD704 0DZ560009GB BZT52C5V6S DIODES R/TP SOD32
U201 0IPRPM3003A MST9011 ANALOG MSTAR 128P LQ
U501 0IZZTSZ267A MYSON 44P PLCC ST OTP-For Europe
U501 0IZZTSZ267B
MYSON 44P PLCC ST OTP-For Japan, China
U502 0ISG240860B M24C08W6 SGS-THOMSON 8SOP R/
U801 0IPMGKE011A KIA78D33F KEC DPAK R/TP 3.3V
U802 0TFVI80023A VISHAY SI3865DV R/TP TSOP-6
U803 0IPMGNS001D LM1117MPX-2.5 NATIONAL SEMIC
Q502 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP
Q503 0IKE704200H KIA7042AP TO-92 TP 4.2 VOLT
Q504 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP
Q505 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP
Q506 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP
Q701 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP
Q702 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP
Q703 0TR390609FA KST3906-MTF TP SAMSUNG SOT2
Q704 0TR390609FA KST3906-MTF TP SAMSUNG SOT2
Q705 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP
R201 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP
REPLACEMENT PARTS LIST
CAUTION: BEFORE REPLACING ANY OF THESE COMPONENTS,
READ CAREFULLY THE SAFETY PRECAUTIONS IN THIS MANUAL.
* NOTE : S SAFETY Mark
AL ALTERNATIVE PARTS
MAIN BOARD
CAPACITORS
ICs
DIODEs
TRANSISTOR
RESISTORs
