LG MU-42PZ90XC User manual

I
MONITO
MODELS : MU-42PZ90XC
owner's manual thoroughly before operatin
serial number of _e Monitor.
back of the Monitor and relate
ever require service.

Warning
arni n
WARNING"
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER
SERVICEABLE PARTS INSIDE REFER TO QUALIFED SERVICE PERSONNEL
The lightning flash with arrowhead symbol, within an equilatera_ triangle, is intended to alert the user to
the presence of uninsu_ated "dangerous voltage" within the product's enclosure that may be of suffF
cient magnitude to constitute a risk of electric shock to persons
The exclamation point within an equiiatera_ triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the appli-
ance.
WARNING"
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAiN OR MOISTURE.
FCC NOTICE
A Class Bdigital device
This equipment has been tested and found to comply, with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules These limits are designed to provide reasonable protection against: harmful interference in
a residential installation, This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference wilt not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
-increase the separation between the equipment and receiver.
Connect the equipment into an outiet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for hetp.
Any changes or modifications not expressly approved; by the pady responsible for compli-
ance could void the user's authority to operate the equipment.
Do not attempt to modify this product in any way without written authorization from LG Electronics Unauthorized mod-
ification could void the user's authority to operate this producL
The responsibie party for this product's compliance is:
LG Electronics U.S.A., lnc
t 000 Sylvan Avenue, Englewood Cliffs, NJ 07632
1-201-816-2000
http:/!www:tgusa corn

Safety tnstrs
!ons
f
Important safeguards for you and your new product
Your product has been manufactured and tested with your safety in mind However, improper use can result in potential el(
trical shock or fire hazards. To avoid defeating the safeguards that have been built into your new product, please read a
observe the following safety points when installing and using your new product, and save them for future reference.
Observing the simple precautions discussed in this booklet can help you get many years of enjoyment and safe operati,
that are built into your new producL
This product complies with nit applicable U.S. Federal safety requirements, and those of the Canadian Standar
Association,
1. Read Instructions 9, Attachments
All the safety and operating instructions should be read Do not use attachments not recommended by the prod
before the product is operated, manufacturer as they may cause hazards.
2, Follow Instructions
A!I operating and use instructions should be followed,
3. Retain Instructions
The safe_ and operating instructions should be retained for
future reference
4, Heed Warnings
All warnings on the product and in the operating instructions
should be adhered to.
10, Ventilation
Slots and openings: in the cabinet are provided for venti_at
and to ensure reliabie operation of the product and to proti
it from overheating, and these openings must not be bloc_
or covered The openings should never be blocked by pl_
ing the product on a bed, sofa_ rug, or other similar surfa,
This product shoutd not be placed in a buitt-in insta]lat
such as a bookcase or rack unless proper ventilation is p
vided or the manufacturer's instructions have been adhe_
to.
5. Cleaning
Unplug this product from the wall outlet before cleaning. Do
not use liquid cleaners or aerosol cleaners Use a damp
cloth for cleaning.
6, Water and Moisture
Do not use this product near water, for example, near a bath
tub, wash bowl, kitchen sink, or laundry" tub, in a wet base_
merit, or near a swimming pool.
7, Accessories, Carts, and S_nds
Do not place this product on a slippery or tilted surface, or on
an unstable cart, stand, tripod, bracket, or table. The product
may slide or fall, causing serious injury to a child or- adult,
and serious damage to the product. Use only with a cart,
stand, tripod, bracket, or table recommended by the manu-
facturer, or sold with the product. Any mounting of the prod-
uct should follow the manufacturer's instructions, and should
use a mounting accessory recommended by the manufac-
turer.
8, Transporting Product
Aproduct and cart combination should be moved with care
Quick stops, excessive force, and uneven surfaces may
cause the product and cart combination to overturn.
11, Power Sources
This product should be operated only from the type of pov
source indicated on the marking label If you are not sure
the type of power supply to your home, consult your prod
dealer or local power company. For products intended
operate from battery power, or other sources, refer to 1
operating instructions
i2. Power-Cord Polarization
This product is equipped with a three-wire grounding ty
plug, a plug having a third (grounding) pin This plug will o
fit intothe grounding-type power outlet. This is a safety fl
ture. If you are unable to inse_ the plug into the outlet, c(
tact your efectrician to replace your obsolete outlet Do
defeat the safety purpose of the grounding-type plug,
13. Power-Cord Protection
Power-supply cords should be routed so that they are
likely to be walked on or pinched by items placed upon
against them, paying particular attention to cords at plu.
convenience receptacles, and the point where they exit fr,
the product.
P_OR'fABLE CART WARNING

Safety Instructions
Safety Instructions continued
F
14, Outdoor Antenna Grounding
tf an outside antenna or cable system is connected to the
producL be sure the antenna or cable system is grounded so
as to provide some protection against vottage surges and
buiitoup static charges_ Article 810 of the National Electricat
Code (U S.A.), ANSI/ NFPA 70 provides information with
regard to proper grounding of the mast and supporting struc-
ture, grounding of the _eadqn wire to an antenna discharge
unit, size of grounding conductors, location of antenna-dis _
charge uniL connection to grounding electrodes, and
requirements for the grounding electrode.
Example of Grounding According to National
Electrical Code instructions
Antenna Lead ir_W#e
(N_C _e_ti_n 810-20_
G_#ndir_ C_ductor
G_<_nd CI3rr_s;
Poe'e_ Z_r_c_ G_ound_ 9
Becb_ Sy@_err_INEC
At_ 250 P'&It H)
15. Lightning
For added protection for this product (receive0 during a light-
ning storm, or when it is teft unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect
the antenna or cabte system. This will prevent damage to the
product due to lightning and powerqine surges.
16. Power Lines
An outside antenna system should not be located in the
vicinity of overhead power lines or other electric light or
power circuits, or where it can fail into such power lines or
circuits. When installing an outside antenna system, extreme
care should be taken to keep from touching such power lines
or circuits as contact with them might be fatal.
Do not overload wall outlets and extension cords as this can
result in a risk of fire or electric shock,
19, _rvicing
Do not attempt to service this product yourself as opening
removing covers may expose you to dangerous vottage
other hazards. Refer nit servicing to qualified service p_
sonneJ
20. Damage Requiring Service
Unptug this product from the wall outlet and refer servicing
qualified service personnel under the following conditions
a If the power-supply cord or plug is damage&
b. If liquid has been spilled, or objects have fat[en into t
product.
c. If the product has been exposed to rain or water.
d, If the product does not operate normally by following t
operating instructions. Adjust only those controts that
covered by the operating instructions as an improF
adjustment of other controls may result in damage a
witl often require extensive work by a qualified technici
to restore the product to its normal operation.
e. If the product has been dropped or the cabinet has be
damaged_
f if the product exhibits a distinct change in performanc
21. Replacement Parts
When replacement parts are required, be sure the servi
technician has used replacement parts specified by the m_
ufacturer or have the same characteristics as the orig#
part Unauthorized substitutions may resutt in fire, elect
shock, or other hazards.
22. Safety Check
Upon completion of any set€ice or repairs to this produ
ask the service technician to perform safety checks to deb
mine that the product is in proper operating condition
23. Wall or Ceiling Mounting
The product should be mounted to a wall or ceiling only
recommended by the manufacturer. The product may sli
or fa]t, causing serious injury to a child or adult, and serio
damage to the product.
24, Heat
The product should be situated away from heat sourc
such as radiators, heat registers, stoves, or other produ(
(including amplifiers) that produce heal
18. Object and Liquid Entry
Never push objects of any kind into this product through
openings as they may touch dangerous voltage points or
short-out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the product.

Co
Wamings ............................... 2
Safety instructions ............................. 3~4
introduction
Controls and Connection Options ............ 7
Remote Control Key Functions .............. 8
installation
Installation instruction .................. 9~10
External Equipment Connections .......... 11_-14
VCR Setup .............................. 11
Cable _ Setup ........................ 11
Extemal AN Source Setup ................ 12
DVD Setup ........................... 12
DTV Setup ............................ 12
PC Setup .......................... 13~14
Turning on the Monitor ..................... 15
Menu Language Selection .................. 15
Picture Menu Options
APC (Auto Picture Control) ............... 16
Manual Picture Control .................... 16
Auto Color Temperature Control ............ 16
Manual Color Temperature Control ....... 16
Sound Menu Options
DASP (Digital Auto Sound Processing) ....... 17
Manual Sound Control ................... 17
AVL (Auto Volume Leveler) ............... 17
Timer Menu Options
Clock Setup ........................... 18
On/Off Timers Setup ..................... 18
Auto Off .............................. 18
Sleep Timer ........................... 18
Special Menu Options
Key Lock ............................. 19
ISM (image Sticking Minimization) Method 19
Low power ........................ 19
Menu Rotation For Ve_ioal Viewing .......... 19
Screen Menu Options
Auto Adjustment ..................
Setting Picture Format .................
Picture Size Zoom ....................
Adjusting HorizontaKVertical Position ......
Manual Configure .................
Screen Adjustments ...................
Initializing ...........................
Luminance Noise Reduction ..............
Selecting Wide VGA mode ..............
Split Zoom ...........................
PIP (Picture in Picture) Feature
Watching PIP .........................
Swapping PIP ..........................
Moving PiP ..........................
Selecting a Input Signal Source for PIP .....
PiP Aspect Ratio ......................
Double Window Setup Options
Watching Double Window ...............
Sub Picture Size Adjustment .............
Swapping the Double Window ...........
Selecting a Source for the Double Window _,
External Control Device Setup ................ 2.=
IR Code ................................. 31
Troubleshooting Checklist ....................
Maintenance ...............................
Product Specifications .......................
After maHinn thi_ m_nHal k_n it handy fnr flltHm, r#f_r_n_

Introduction
What is a Plasma Display Panel (PDP)?
If voltage is applied to gas within glass panels, ultraviolet rays are produced and fused with a fluorescent substance. At that
instant, light is emitted. A Plasma Display is a next generation flat Display using this phenomenon.
160° - Wide angle range of vision
Your flat panel plasma screen offers an exceptionally broad viewing angle -- over 160 degrees. TMs means that the dispUay i,,
clear and visible to viewers anywhere in the room.
Wide Screen
The screen of the Plasma Display is 42" so wide that your viewing experience is as if you are in a theater.
Multimedia
Connect your plasma display to a PC and you can use itfor conferencing_ games, and internet browsing_ The PictureqmPict_
feature allows you to view your PC and video images simultaneously.
Versatile
The light weight and thin size makes it easy to install your plasma display in a variety of locations where conventional TVs w
not fit.
The PDP Manufacturing Process: Why minute colored dots may be present on the PDP screen
The PDP (Plasma Display Panel) which is the display device of this product is composed of 09 to 22 million cells, A few cel
defects wilt normally occur in the PDP manufacturing process. Several minute colored dots visible on the screen should be a
able. This atso occurs in other PDP manufacturers' products and the tiny dots appearing does not mean that this PDP is def_
Thus a few cell defects are not sufficient cause for the PDP to be exchanged or returned Our production technology is desi£
to minimize cell defects during the manufacture and operation of this product
Cooling Fan Noise
In the same way that a fan is used in a PC computer to keep the CPU (Centrat Processing Unit) cool, the PDP is equipped v
cooling fans to cool the Monitor and improve its reliability_ Therefore, a certain _evel of noise could occur while the fans are o{
ing and cooling the PDR
The fan noise doesn't have any negative effect on the PDP's efficiency or reliability. The noise from these fans is normal dud
operation of this product. We hope you understand that a certain level of noise from the cooling fans is acceptabie and is no1
cient cause for the PDP to be exchanged or returned
WARNING
TO REDUCE THE RiSK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THiS PRODUCT TO
RAiN OR MOISTURE.

introd
Controls
oThis is a simplified representation of front panel,
Here shown may be somewhat different from your monitor.
Main Power Button; V, ,I, Buttons
INPUT SELECT Button VOLUME (<,1_) Buttons
Remote Control Sensor MENU Button Power Standby Indica
Illuminates red in standby mc
Illuminates green when
Monitor is turned
Connection Options
Connection panels shown may be somewhat different from your monitor
L====J_L===J L=,==J
I
12
@@
_ _ o V o o...........
I I
3 4 5 6 7 8
1,
2,
3=
4,
EXTERNAL SPEAKER (8 ohm output)
Connect to optional externat speaker(s).
* For further information, refer to 'Speaker & Speaker
Stand' manual.
RS-232C INPUT (CONTROL/SERVICE) PORT
Connect to the RS_232C port on a PC.
DVI (Digial Visual Interface) INPUT/
RGB INPUTIAUDIO INPUT JACKS
Connect the monitor output connector of a PC to the appro=
priate input porL
RGB OUTPUT JACKS
You can watch the RGB signal on another monitor, connect
RGB OUTPUT to another monitor's PC input port,
6,
7,
8,
REMOTE CONTROL
Connect your wired remote control to the remote cont
port on the Monitor,
S-VIDEO INPUT
Connect SWideo out from an S-VIDEO VCR to the So\,
inpuL
AUDIO/VIDEO INPUT JACKS
Connect audio/video out from external equipment to tt
jacks.
POWER CORD SOCKET
This Monitor operates on an AC power. The 'voltage i_
cated on the Specifications page, Never attempt to o_:
the Monitor on DC power,
5. COMPONENT INPUT!AUDIO INPUT JACKS

Introduction
Remote Contro!
-When using the remote control, aim it at the remote control sensor on the monitor.
Under certain conditions such as if the remote IR signat is interrupted, the remote control may not function,. Press the key
as necessary,
POWER.
the monitor between _.
Switches ON and STANDBY. "_,.
APC
Adjusts the factory preset picture
according to the room,
Changes the picture formal
PIP
Switches the sub picture on and off.
SWAP
Exchanges main and sub picture
images
MENU
Displays on screen menus.
Exi_ the current menu
NUMBER buttons
WIN,POSITION
Moves the sub picture.
SPLIT ZOOM
Enlarge the screen with regular
ration.
INPUT SELECT
Selects source: Video, S-Vide
Com_nent, RGB, or DVl mo
DASP
Selec_ the sound appropriate I
your viewing program characte
mat, Music, Mode, Sports, c
User.
Sets the sleep timer,
DW (_uble Window)
Selects Double Window mode.
PIP INPUT
Selects the input mode for the,
picture.
MUTE
Switches the sound on or off.
ENTER
A/V
Setects menu options.
VOL_! /!_" (Volume button)
increases/decreases sound levi
Adjusts menu settings.
WIN. SIZE
Adjusts the sub picture size.
ZOOM-/ZOOM+
Entarges or reduces the main {c
size,
VCR BUTTONS
Control some LG video cassett,
recorders.
• Open the battery compartment cover on the back side and
insert the batteries with correct polarity.
° Instal] two 1,5V batteries of AAA type. Don't mix used batteries
with new batteries,

Insta
m
B
!0 n

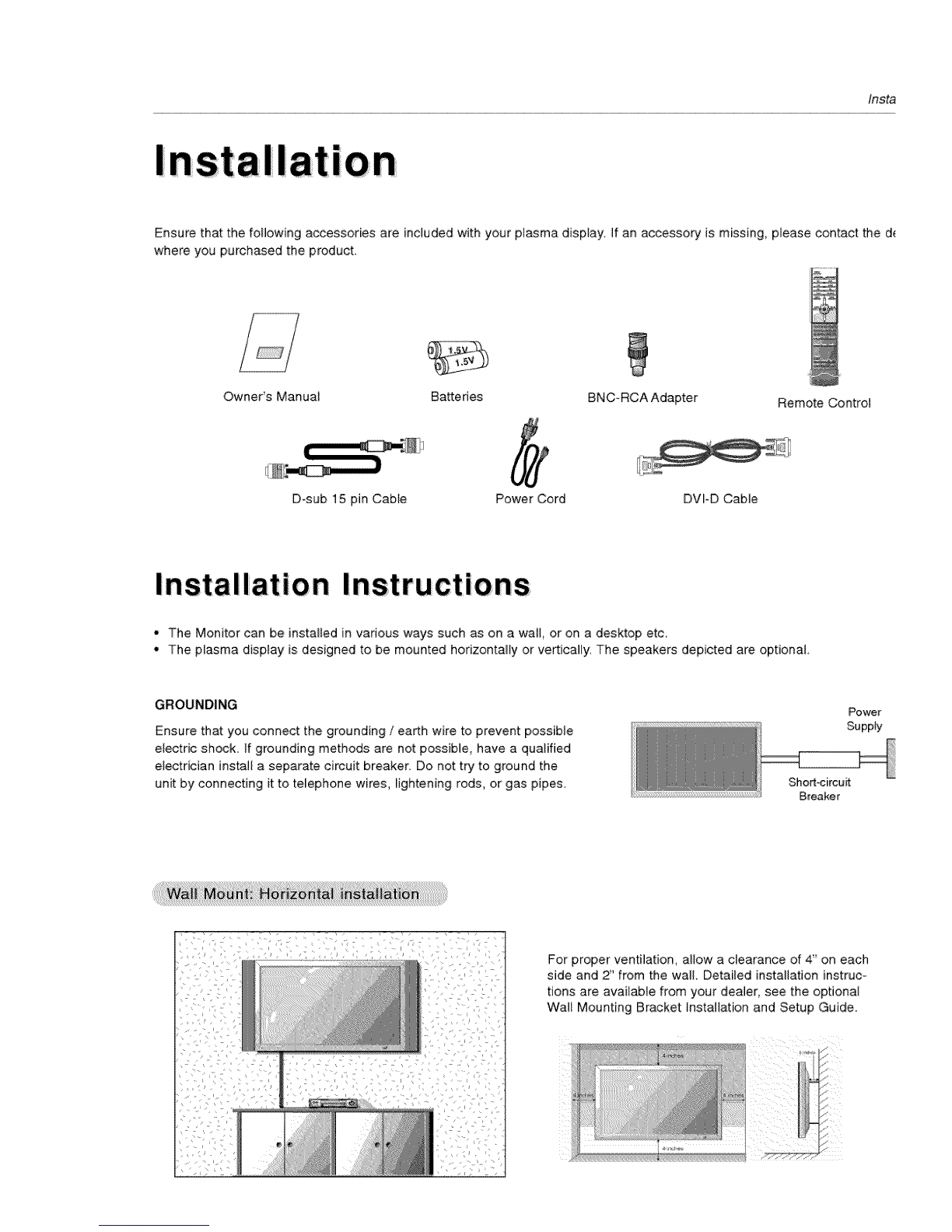

Ensure that the following accessories are included: with your plasma display If an accessory is missing, please contact the d{
where you purchased the product,
Owner's Manual Batteries BNC-RCA Adapter Remote Control
D-sub 15 pin Cable Power Cord DVFD Cable
Instructions
• The Monitor can be installed in various ways such as on a walt, or on a desktop etc.
• The plasma display is designed to be mounted horizontally or vertically, The speakers depicted are optional
GROUNDING
Ensure that you connect the grounding /earth wire to prevent possible
electric shock. If grounding methods are not possible, have a qualified
electrician install a separate circuit breaker: Do not try to ground the
unit by connecting it to telephone wires, lightening rods, or gas pipes.
Power
Supply
Short-circuit
Breaker
For proper ventilation, allow a clearance of 4" on each
side and 2' from the walt. Detailed installation instruc-
tions are availab{e from your dealer, see the optional
Wall Mounting Bracket installation and Setup Guide.

Installation
Installation Instructions continued
For proper ventilation, aliow a clearance of 4' on each
side and the top, 2.36" on the boEom, and 2' from the
wail. Detailed installation instructions are included in the
optional Desktop Stand hstaHation and Setup Guide
available from your dealer.
Detailed installation instructions are included in the
optional Vertieat Walt Mounting Bracket Installation and
Setup Guide available from your dealer.
NOTE; When installing the monitor vertically, the front
panel controls must be in the left side position.
When installing the monitor vertically, you
have to change the OSD display mode so
that the menus will appear correctly and als
to protect the monitor from overeating
(Refer to P. 19),

Insta
Equipment Connections
NOTE: All cables shown are not included with the plasma display,
To. avoid picture noise (interference), leave an adequate distance between the VCR and Monitor
Use the ISM Method feature to avoid having a fixed image remain on the screen for a long period of time. Typically a froze
picture from a VCR. If the 4:3 picture format is used; the fixed image may remain visibte on the screen.
Now to connect
1. Connect the provided BNC-RCA adapter to the monitoCs
VIDEO INPUT.
2, Connect the audio and video cables from the VCR's output
jacks to the monitor input jacks, as shown in the figure When
connecting the monitor to a VCR, match the jack colors: (Video
=yellow; Audio Left =white, and Audio Right =red).
VCR: Connect the video output cable from the VCR to the
VIDEO input on the monitor,
S-VIDEO VCR: Connect the S-Video output cable from the
VCR to the S-V]DEO input. (Note that SoVideo yields higher
quality video).
w
m
4MM_wRmmRma_mmuummmu_mwwmmmm t
m
4mlmmmmlmmllm•lmwlmmBmmmm
ui
How to use
1, Insert a video tape into the VCR and press PLAY on the VCR
(Refer to the VCR owner's manual.)
2. Use the INPUT SELECT button on the remote control to select
Video.
(if connected to S-VIDEO, select the S-Video external input
source.) VCR
After subscribing to a cable TV service from a local provider and installing a converter, you can watch cable TV programmi
The monitor cannot display TV programming unless a TV tuner device or cable P,/ converter box is connected to the Moni
For further information regarding cable TV sewice, contact your local cable Tv service provider(s).
How to connect
1_ Connect the provided BNC-RCA adapter to the monitods
VIDEO INPUT,
2. Connect the audio and video cables from the cable b,ox's out-
put iacks to the monitor input jacks, as shown in the figure.
When connecting the monitor to a cable TV, match the jack
colors (Video = yellow, Audio Left = white, and Audio Right =
red)
How to use
1, Use the INPUT SELECT button on the remote control to
select Video,
2. Select your desired channel with the cable box remote control.
Cable Box

Installadon
How to connect
1. Connect the provided BNC-RCA adapter to the monitor's
VIDEO INPUT.
2 Connect the audio and video cables from the external
equipment's output jacks to the monitor input jacks, as
shown in the figure. When connecting the monitor to exter-
nal equipment, match the jack co_ors (Video = yellow, Audio
Left = white, and Audio Right = red).
How to use
1. Use the INPUT SELECT button on the remote control to
select Video.
2, Operate the corresponding external equipment, Refer to
external equipment operating guide,
Carnc_
Video ga
DVD

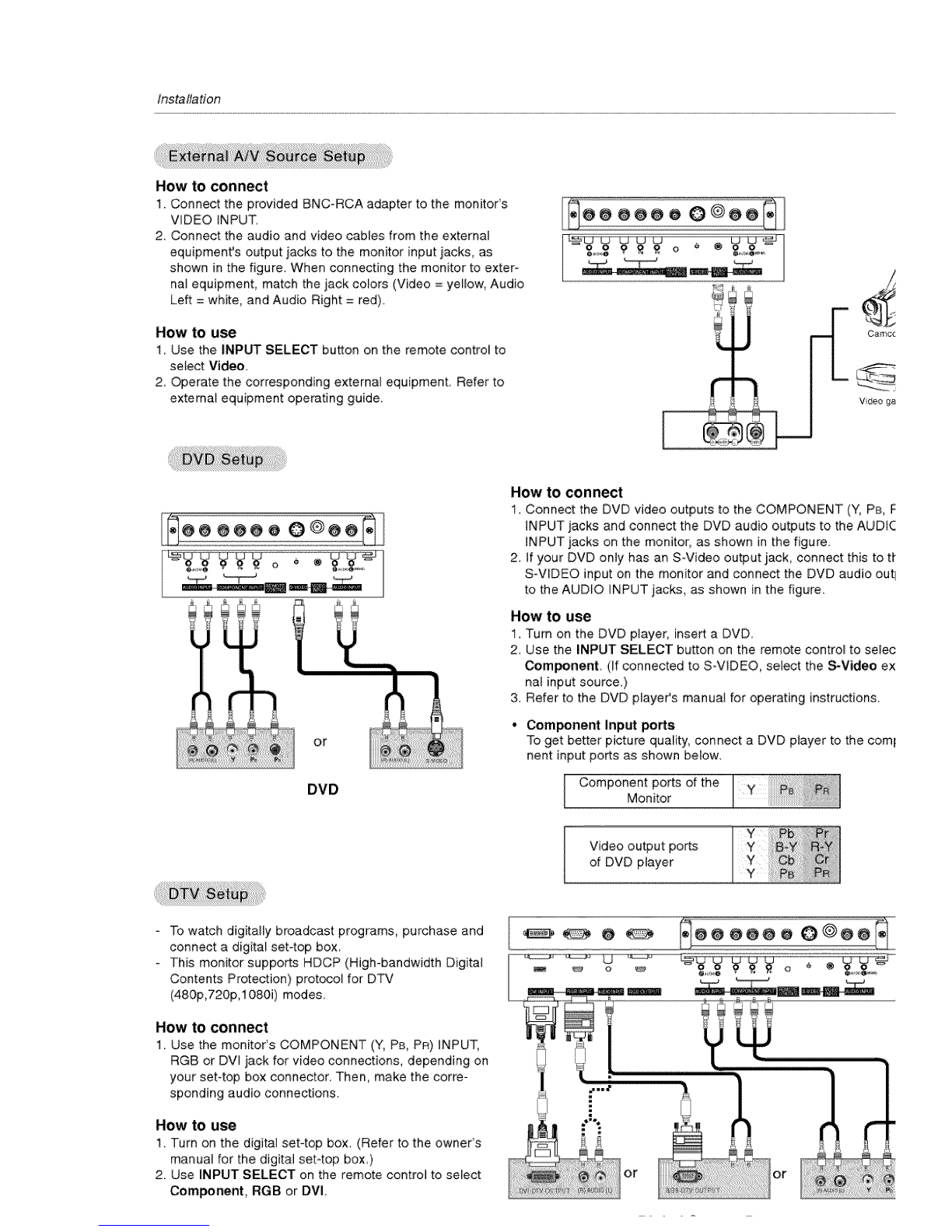

How to connect
1. Connect the DVD video outputs to the COMPONENT (Y, PB, F
INPUT jacks and connect the DVD audio outputs to the AUDIC
INPUT jacks on the monitor, as shown in the figure.
2. If your DVD only has an S-Video output jack, connect this to t_
S-VIDEO input on the monitor and connect the DVD audio outi
to the AUDIO INPUT jacks, as shown in the figure.
How to use
1. Tum on the DVD player, insert a DVD.
2_ Use the INPUT SELECT button on the remote control to selec
Component (if connected to S-VIDEO, select the S-Video ex
hal input source,)
3. Refer to the DVD playeCs manual for operating instructions.
• Component Input ports
To get better picture quality, connect a DVD ptayer to the coml
nent input ports as shown below.
Component ports of the
Monitor
Video output ports
of DVD player
-To watch digitally broadcast programs, purchase and
connect a digital set4op box_
=This monitor supports HDCP (High-bandwidth Digital
Contents Protection) protocol for DTV
(480p,720p,1080i) modes
How to connect
1. Use the monitor's COMPONENT (Y, Pc, PR) INPUT,
RGB or DVt jack for video connections, depending on
your set4op box connector, Then, make the corre -
sponding audio connections,
How to use
1. Turn on the digital sebtop box. (Refer to the owner's
manual for the digital set4op box)
2. Use INPUT SELECT on the remote control to select
Component, RGB or DVI,
oooooo O@eoi °.

/nsta

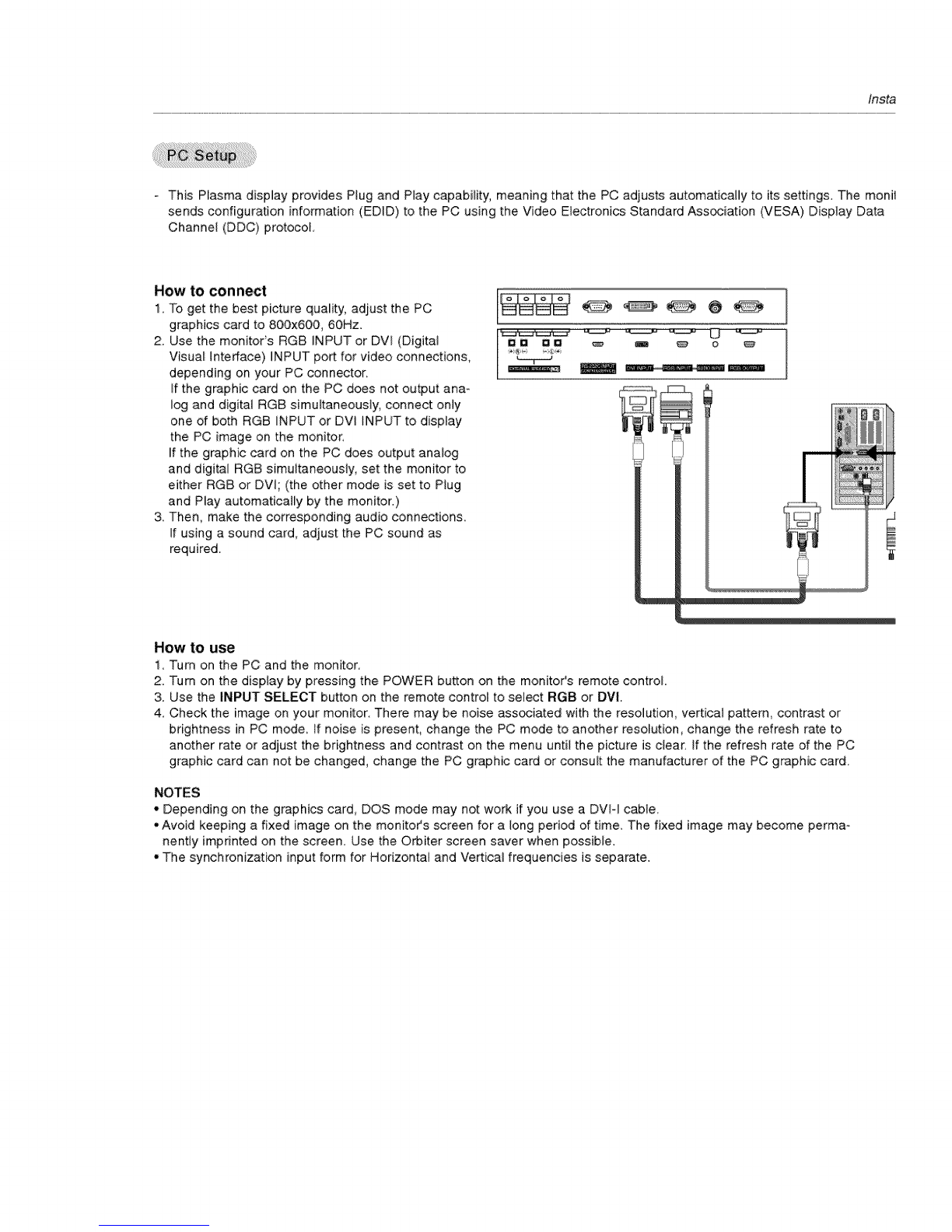

This Plasma display provides Ptug and Play capability, meaning that the PC adjusts automatically to its settings. The monil
sends configuration information (EDID) to the PC using the Video Electronics Standard Association (VESA) Display Data
Channel (DDC) protocol
How to connect
1. To get the best picture quality; adjust the PC
graphics card to 800x600, 60Hz.
2. Use the monitors RGB iNPUT or DVi (Digital
Visual Interface) INPUT port for video connections,
depending on your PC connector,
If the graphic card on the PC does not output ana-
log and digital RGB simultaneousiy, connect only
one of both RGB INPUT or DVl tNPUT to display
the PC image on the monitor.
If the graphic card on the PC does output analog
and digital RGB simultaneously, set the monitor to
either RGB or DVl; (the other mode is set to Ptug
and Play automatically by the monitor.)
3, Then, make the corresponding audio connections,
If using a sound card, adjust the PC sound as
required.
DDQG
How to use
1. Turn on the PC and the monitor,
2. Tum on the display by pressing the POWER button on the monitor's remote control.
3. Use the INPUT SELECT button on the remote control to select RGB or DVI.
4. Check the image on your monitor. There may be noise associated with the resolution, vertical pattern, contrast or
brightness in PC mode if noise is present, change the PC mode t:o another resolution, change the refresh rate to
another rate or adjust the brightness and contrast on the menu until the picture is ctear, tf the refresh rate of the PC
graphic card can not be changed, change the PC graphic card or consult the manufacturer of the PC graphic card.
NOTES
•Depending on the graphics card_ DOS mode may not work if you use a DVtl cable_
• Avoid keeping a fixed image on the monitoCs screen for a long period of time. The fixed image may become perma-
nently imprinted on the screen. Use the Orbiter screen saver when possible.
° The synchronization input form for Horizontal and Vertical frequencies is separate.

installation
Monitor Display Specifications (RGB-PC !DVI-PC Mode)
Resolution
640x350
720x400
640x480
848x480
852x480
Horizontal
Frequency(KHz)
31.468
37.861
31.469
37.927
31.469
35.000
37.861
37.500
43.269
45.913
31.500
35.00
37.500
31.500
35.000
37.500
Vertical
Frequency(Hz) Resolution
70.09
85.08
70.08 800x600
85.03
59.94
66.66 (Mac)
72.80 832x624 (Mac)
75.00
85.00 1024x768
90.03
60.00
70.00 1152x864
75.00
60.00 1152x870
70.00 1280x960
75.00 1280x1024
Horizontal
Frequency(KHz)
35.156
37.879
46.875
53.674
56.000
49.725
48.363
56.476
60.023
54.348
63.£95
67.500
68.881
60.000
63.981
Vertical
Frequency(Hz)
56.25
60.31
75.00
85.06
90.00
74.55
60.00
70.06
75.02
60.05
70.01
75.00
75.06
60.00
60.02

OpE
Turning on the Monitor
1, Connect power cord correctly.
2, Press the • ON/OFF button on the Monitor. At this moment, the Monitor is switched to standby
mode. Press the INPUT SELECT button on the Monitor or press the POWER, INPUT SELECT,
MULTIMEDIA button on the remote control to switch the Monitor on,
1, If the Monitor was turned off with the (i) ON/OFF button on the Monitor
• Press the _ONiOFF button on the Monitor to turn the Monitor on_
2, if the Monitor was turn_ off with the remote control and the _ON/OFF button on the Monitor
•Press the _ONiOFF button on the Monitor and then press the INPUT SELECT button on the
Monitor, Or, on the remote control, press POWER, INPUT SELECT, or MULTIMEDIA to turn the
Monitor on.
Language Se Iect ion
- The menus can be shown on the screen in the selected language. First select your language.
1, Press the MENU button and then use A1V button to select the SPECIAL menu,
2. Press the I_ button and then use A/V button to setect Lcmgu_ge.
3. Press the I_ button and then use &/Vbutton to select your desired language.
From this point on, the on-screen menus will be shown in the language of your
choice.
4, Press the ENTER button to save,

Operation
i

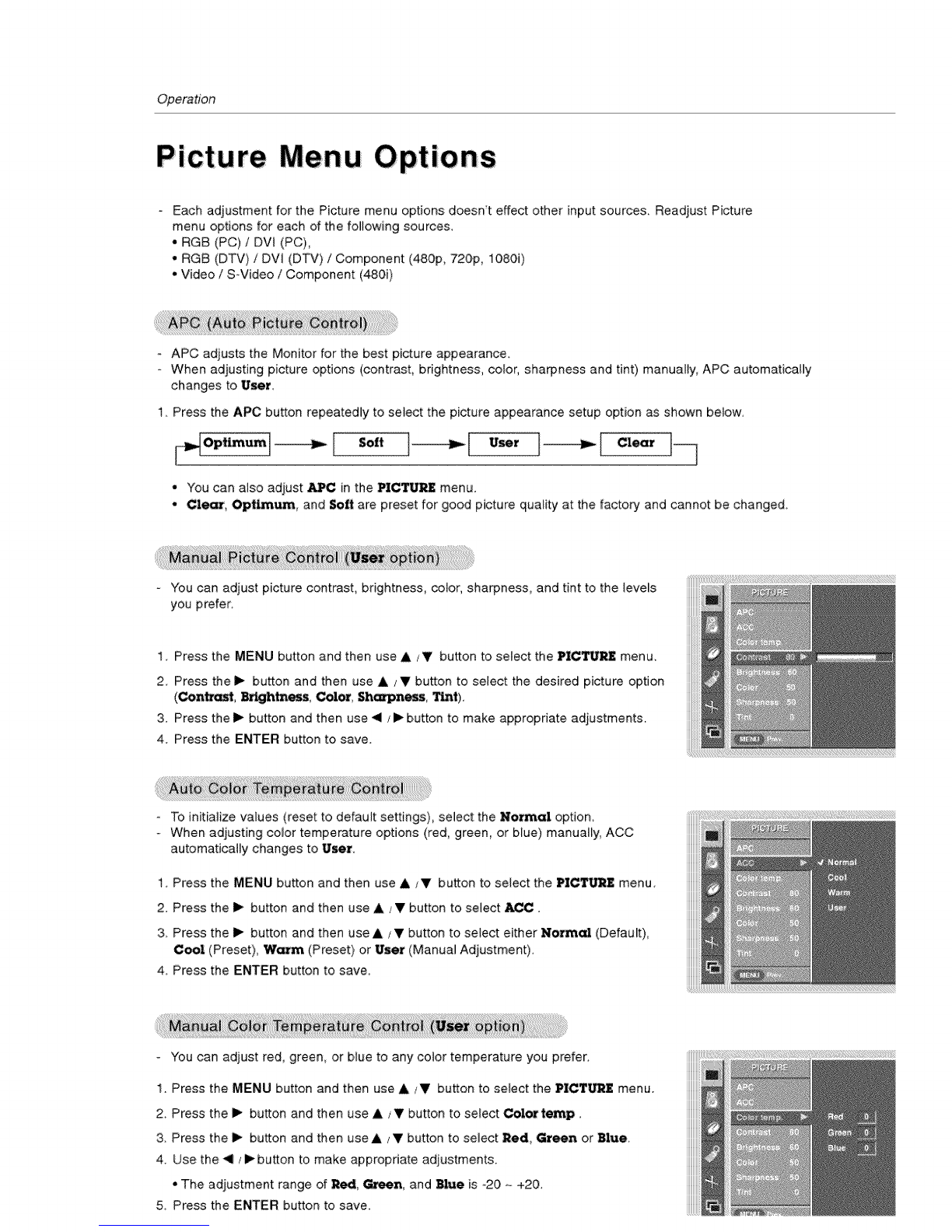

Picture Menu Opt ons
Each adjustment for the Picture menu options doesn't effect other input sources. Readjust Picture
menu options for each of the following sources.
• RGB (PC) /UVt (PC)_
° RGB (DTV) /DVl (DTV) /Component (480p, 720p, 1080i)
• Video /S-Video /Component (480i)
APC adjusts the Monitor for the best picture appearance.
When adjusting picture options (contrast, brightness, cofor, sharpness and tint) manually, APC automatically
changes to User
t Press the APC button repeatedly to select the picture appearance setup option as shown below.
[4_J Op|lmum _ I Solt ] ................_ I User l_I Clear l_
• You can also adjust _C in the PICTURE menu.
°C|_, Opt_um, and Soft are preset for good picture quality at the facto_ and cannot be changed.
"You can adjust picture contrast, brightness, color, sha_ness, and tint to the levels
you prefer.
1. Press the MENU button and then use A /V button to select the PIC_PJK menu.
2. Press the i_ button and then use A/V butt:on to select the desired picture option
(Contrast, Brightness, Color, Sharpness, Tint),
3. Press the II_ button and then use </I_ button to make appropriate adjustments.
4. Press the ENTER button to save.
To initialize values (reset to default settings), select the Normal option.
When adjusting color temperature options (red, green, or blue) manually, ACC
automatically changes to User.
t_ Press the MENU button and then use A/V button to select the PICTURE menu
2. Press the I_ button and then use A, V button to select _LJ_C.
3 Press the I_ button and then use A /V button to select either Nozlrn_ (Default),
Cool (Preset), Warm (Preset) or User (Manual Adjustment).
4. Press the ENTER button to save.
iiiiiiiiiiiii
You can adjust red, green, or b,lue to any color temperature you prefer.
1. Press the MENU button and then use A iV button to setect the PICTURE menu.
2. Press the I_ button and then use & !V button to sefect Cole_r temp.
3_ Press the I_ button and then useA/_!' button to select Red, Grin or Blue.
4. Use the _ /I_ button to make appropriate adjustments.
*The adjustment range of Red, Green, and Blue is -20 ~ +20.
5, Press the ENTER button to save,
iiiiiiiiiiiii

OpE
Menu

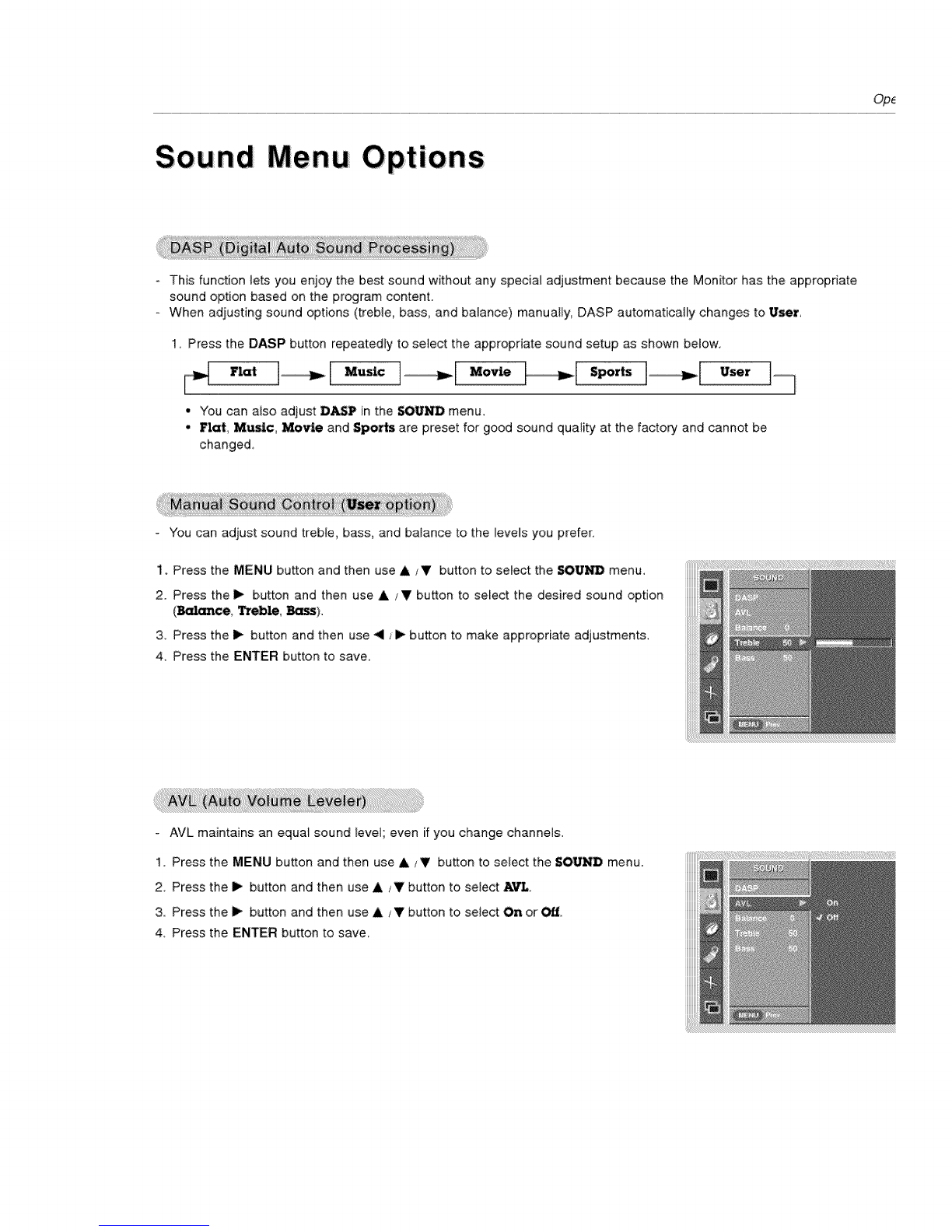

This function lets you eqoy the best sound without any special adjustment because the Monitor has the appropriate
sound option based on the program content.
-When ad}usting sound options (treble, bass and balance) manually, DASP automatically changes to User,
1. Press the DASP button repeatedly to select the appropriate sound setup as shown below.
,iat l_ [ Music ]_[ Movie _l Sports 1_ l User 17
° You can also adjust DASP in the SOUND menu_
•Flat, Music Movie and Spo_ are preset for good sound quality at the factory and cannot be
changed
- You can adjust sound treble, bass, and balance to the levels you prefer.
1. Press the MENU button and then use A /V button to select the SOU_ menu.
2. Press the I_ button and then use A /V button to select the desired sound option
(Balance, Treble, Bass),
3. Press the I_ button and then use <1/ I_ button to make appropriate adjustments.
4. Press the ENTER button to save.
- A:VL maintains an equal sound level; even if you change channels.
1. Press the MENU button and then use A _V button to select the ,SOUND menu.
2 Press the I_ button and then use A zV button to. setect AVL,
3. Press the I_ button and then use A zV button to setect _ or Off.
4 Press the ENTER button to save_

OperatioR
Menu 0 ptions
if current time setting is erased by a power failure ifTV is unplugged or if the monitor is tumed off with
the (]) ON/OFF button on the monitor, reset the clock.
1. Press the MENU button and then use ,L tVbutton to select the TIMER menu,
2_ Press the i_ button and then use ,ill /V button to select Clock
3. Press the I_ button and then use A /Vbutton to set the hour.
4. Press the Ib button and then use A Vbutton to set the minutes.
5. Press the ENTER button to save.
Timer functions operate only if current time has been seL
Off Timer function overrides On-Timer function if they are set to the same time,
The monitor must be in standby mode for the On-Timer to work.
1. Press the MENU button and then use A iY button to setect the TIMER menu.
2. Press the I_ button and then use A/V button to setect _r or Onflme_r.
3_ Press the I_ button and then use A/V button to select On
• To cancel C'_Off _r function, setect Off
4, Press the 1_ button and then use A/V button to set the hour.
5, Press the I_ button and then use A iV button to set the minutes.
6. For only On timer function; Press the I_ button and then use &/V button to set
sound teveL
7. Press the ENTER button to save.
if there is no input signai, the Monitor wifl turn off automatically after 10 minutes.
1, Press the MENU button and then use ,k/V button to select the TIeR menu
2. Press the I_ button and then use A iV button to select Autoo_.
3. Press the I_ button and then use A /V button to select O_ or O_.
4. Press the ENTER button to save.
-The Sleep Timer turns the Monitor off at the preset time. Note that this setting is cleared when the monitor is turned off.
1, Press the SLEEP button repeatedly to select the number of minutes, First the _7o _n option appears on the
screen, followed by the following sleep timer options:
10, 20, 30, 60, 90, 120, 180, and 240 minutes.
2. When the number of minutes you want is displayed on the screen, press the ENTER button, The timer begins to
count down from the number of minutes selected.
3, To check the remaining minutes before the monitor turns off, press the SLEEP or ENTER button once,
4. To cancel the Sleep Timer, press the SLEEP button repeatedly until _-o- _ _pears.

OpE
Menu
The monitor can be set up so that it can onJy be used with the remote control.
This feature can be used to prevent unauthorized viewing by disabling the front
pane] controls_
This Monitor is programmed to remember which option it 'was last set to even if
you turn the monitor off.
1. Press the MENU button and then use ,4,/_11' button to select the SPECIAL menu.
2. Press the I_ button and then use &/V button to select Keylock.
3, Press the i_ button and then use A /V button to select On or _.
4, Press the ENTER button to save_
° With the KEY LOCK ON, the display '_ Key 1o_' appears on the screen if any
button on the front panel is pressed.
A frozen still picture from a PC/video game displayed on the screen for prolonged periods wi!l result in a ghost image rem_
even when you change the image. Avoid a]lowing a fixed image to remain on the MonitoCs screen for a tong pedod of time
1, Press the MENU button and then use _,/V button to select the SPECIAL menu,
2. Press the I_ button and then use A /'V button to select lSMMethod.
3. Press the P, button and then use &_V button to select either Normal, V_%_lte
wash, Orbiter, or Inversion.
• Nom'_l:
If image sticking is never a problem, ISM is not necessary oset to Normal.
•Mite wash
White Wash removes permanent images from the _reen Note An excessive per-
manent image may be impossible to clear entirely with White Wash, To return to
normal viewing, press the any button.
• Orbiter
Orbiter may help prevent ghost images. However_ it is best not to al]ow any fixed image to remain on the screen To avoic
permanent image on the screen, the screen will move eve_ 1 minutes: Right _ Right _ooo_Downside _ Downside .ooo_Left o
-e Upside --> Upside.
,,Inversion
Inversion will automatically invert the ptasma display panel color every 30 minutes,
4, Press the ENTER button to save,
Low power reduces the p_asma display power consumption_
1, Press the MENU button and then use A/V button to select the SPECIAL menu,
2, Press the I_ button and then use A/V button to select Low power_
3. Press the I_ button and then use & _'Y button to select On orOff
• When you select On, the screen darkens,
4, Press the ENTER button to save
1, Press the MENU button and then use A/V button to select the SPECIAL menu
2, Press the I1_button and then use & fV button to select OS# (On Screen Display)
Rotate,
3, Press the I_ button and then use &, V button to select Normal or Rotete,
• Select Normal, if the monitor was installed horizontally.
•Select Rotate, if the monitor was instalied vertically.

Operation
RGB (PC) mode only; This function doesn't work for RGB-DTV mode.
Automatically adjusts picture position and minimizes image shaking.
After adjustment, if the image is still not correct, your Monitor is functioning properly but needs further adjustment.
The Auto config, and Manual conflg, are not active in DV_ mode.
1_ Press the MENU button and then use A/V button to setect the SCREEN menu
2_ Press the I_ button and then use A /V button to select Auto conng,,
3. Press the I_ button to run Auto configure.
• When Auto co_,ff,g. has finished, OK will be shown on screen.
• If the position of the image is still not correct, try Auto adjustment again
4_ in RGB (PC) mode, if the image needs to be adjusted more after using Auto con-
fig., you can make further adjustments with the M_ual conflg, option.
-Caution: If a 4:3 fixed image is on the screen for a long time, it may remain visible.
Set every aspect ratio for RGB 480p, DVl 480p, Component 480i/480p, Video, and S-Video sources,
Use 4:3, or 16:9 for other input sources.
1, Use the ARC button repeatedly to select the desired picture format, "Youcan also adjust ARC in the SCREEN menu
• 4;3
• Choose 4,,3 when you want to view a picture with an odginal 4:3 aspect ratio, with gray bars appearing at both the
left: and right sides,
• 16-.9
- Choose 16.-9when you want to adjust the picture horizontally, in a linear proportion to fill the entire screen.
• Horizon
Choose Horizon when you want to adjust the picture in a non-linear proportion, that is, more entarged at both
sides, to create a spectacular view.
,,_orn
- Choose Zoom when you want to view the picture without any alteration However, the top and bottom portions of
the picture wilt be cropped.
When enlarging or reducing the picture, the image may become distorted.
1 Use ZOOM+i2[OOM- button to enlarge or reduce the picture size.
• Zoom adjustment range is 100--300.
2, Adjust the main picture position using the A ,"V _,_11/!_ buttons while in the
enlarged picture mode.
