LG StudioWorks 710S User manual

Make sure to read the Important Precautions before using the product.
Keep the User's Guide(CD) in an accessible place for furture reference.
See the label attached on the back cover and quote this information to your
dealer when you require service.
710E
710S
710B
User’s Guide

A1
This unit has been engineered and manufactured to ensure your personal
safety, however improper use may result in potential eletrical shock or fire
hazards. In order to allow the proper operation of all safeguards
incorporated in this monitor, observe the following basic rules for its
installation, use, and servicing. Keep it in an accessible place for future
reference.
On Safety
Use only the power cord supplied with the unit. In case you use another power
cord, make sure that it is certified by the applicable national standards if not being
provided by the supplier. If the power cable is faulty in any way, please contact the
manufacturer or the nearest authorized repair service provider for a replacement.
The power supply cord is used as the main disconnect device. Ensure that the
socket-outlet is easily accessible after installation.
Operate the monitor only from a power source indicated in the specifications of
this manual or listed on the monitor. If you are not sure what type of power supply
you have in your home, consult with your dealer.
Overloaded AC outlets and extension cords are dangerous. So are frayed power
cords and broken plugs. They may result in a shock or fire hazard. Call your service
technician for replacement.
Hands must be dry when holding the power plug to avoid an electric shock.
Do not damage the power cord by disassembling, bending, pulling or heating up.
It can cause fire or electric shock.
Make sure to completely insert the power plug. Insecure connections can cause
fire.
Do not Open the Monitor.
There are no user serviceable components inside.
There are Dangerous High Voltages inside, even when the power is OFF.
Contact your dealer if the monitor is not operating properly.
To Avoid Personal Injury :
Do not place the monitor on a sloping shelf unless properly secured.
Use only a stand recommended by the manufacturer.
Do not try to roll a stand with small casters across thresholds or deep pile
carpets.
Important Precautions

A2
Important Precautions
To Prevent Fire or Hazards:
Always turn the monitor OFF if you leave the room for more than a short period
of time. Never leave the monitor ON when leaving the house.
Keep children from dropping or pushing objects into the monitor's cabinet
openings. Some internal parts carry hazardous voltages.
Do not add accessories that have not been designed for this monitor.
During a lightning storm or when the monitor is to be left unattended for an
extended period of time, unplug it from the wall outlet.
Do not bring magnetic devices such as magnets or motors near the picture
tube.
On Installation
Do not allow anything to rest upon or roll over the power cord, and do not place
the monitor where the power cord is subject to damage.
Do not use this monitor near water such as near a bathtub, washbowl, kitchen
sink, laundry tub, in a wet basement, or near a swimming pool.
Monitors are provided with ventilation openings in the cabinet to allow the release
of heat generated during operation. If these openings are blocked, built-up heat
can cause failures which may result in a fire hazard. Therefore, NEVER:
Block the bottom ventilation slots by placing the monitor on a bed, sofa, rug,
etc.
Place the monitor in a built-in enclosure unless proper ventilation is provided.
Cover the openings with cloth or other material.
Place the monitor near or over a radiator or heat source.
Do not install the monitor in a dusty area. It can cause fire.
On Cleaning
Unplug the monitor before cleaning the face of the monitor screen.
Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the
monitor screen because overspray may cause electrical shock.
On Repacking
Do not throw away the carton and packing materials. They make an ideal
container in which to transport the unit. When shipping the unit to another
location, repack it in its original material.

A3
Connecting the Monitor
Latch
Before setting up the monitor, ensure that the power is turned off to the
monitor, computer system, and other attached devices.
Carefully set the monitor face-down with the underside facing you.
Connecting the Tilt/Swivel stand
1. Align the hooks on the tilt/swivel stand with the matching slots in the base of
the monitor.
2. Insert the hooks into slots.
3. Slide the tilt/swivel stand toward the front of the monitor until the latches click
into the locked position.
NOTE
This illustration depicts the general model of connection. Your monitor may differ from the
items shown in the picture.
Hook
Slot
Hook

A4
Connecting the Monitor
Using the Computer
1. Connect the signal cable. When mated, tighten the thumbscrews to secure the
connection.
2. Connect the power cord into a properly power outlet that is easily accessible and
close to the monitor.
Mac adapter
For Apple Macintosh use, a separate plug adapter is needed to
change the 15 pin high density (3 row) D-sub VGA connector
on the supplied cable to a 15 pin 2 row connector.
Wall-outlet type*
NOTE
This is a simplified representation of the rear view.
This rear view represents a general model; your monitor
may differ from the view as shown.
PC-outlet type*
PC
MAC
Power Cord Signal Cable
Attached Type*Detached Type*
* Varies according to model.

A5
Control Panel Functions
Front Panel Controls
Buttons Use these buttons to choose or adjust items in
the on screen display.
MENU Button Use this button to enter or exit the on screen
display.
This Indicator lights up green when the monitor
operates normally. If the monitor is in DPM
(Energy Saving) mode, this indicator will flicker.
Power (DPMS)
Indicator
Use this button to turn the monitor on or off.
Power Button
Use this button to enter a selection in the on
screen display.
SELECT Button
Control Function
CONTROLS LOCKED/UNLOCKED
: MENU and
This function allows you to secure the current
control settings, so that they cannot be
inadvertently changed. Press and hold the MENU
button and button for 3 seconds: the message
"CONTROLS LOCKED" appears.
You can unlock the OSD controls at any time by
pushing the MENU button and button for 3
seconds:
The message "CONTROLS UNLOCKED" will
appear.
CONTROLS LOCKED
CONTROLS UNLOCKED

A6
On Screen Display (OSD) Control Adjustment
Screen Adjustment
Making adjustments to the image size, position and operating parameters of
the monitor is quick and easy with the On Screen Display Control system. A
short example is quick and easy given below to familiarize you with the use of
the controls. The following section is an outline of the available adjustments
and selections you can make using the OSD.

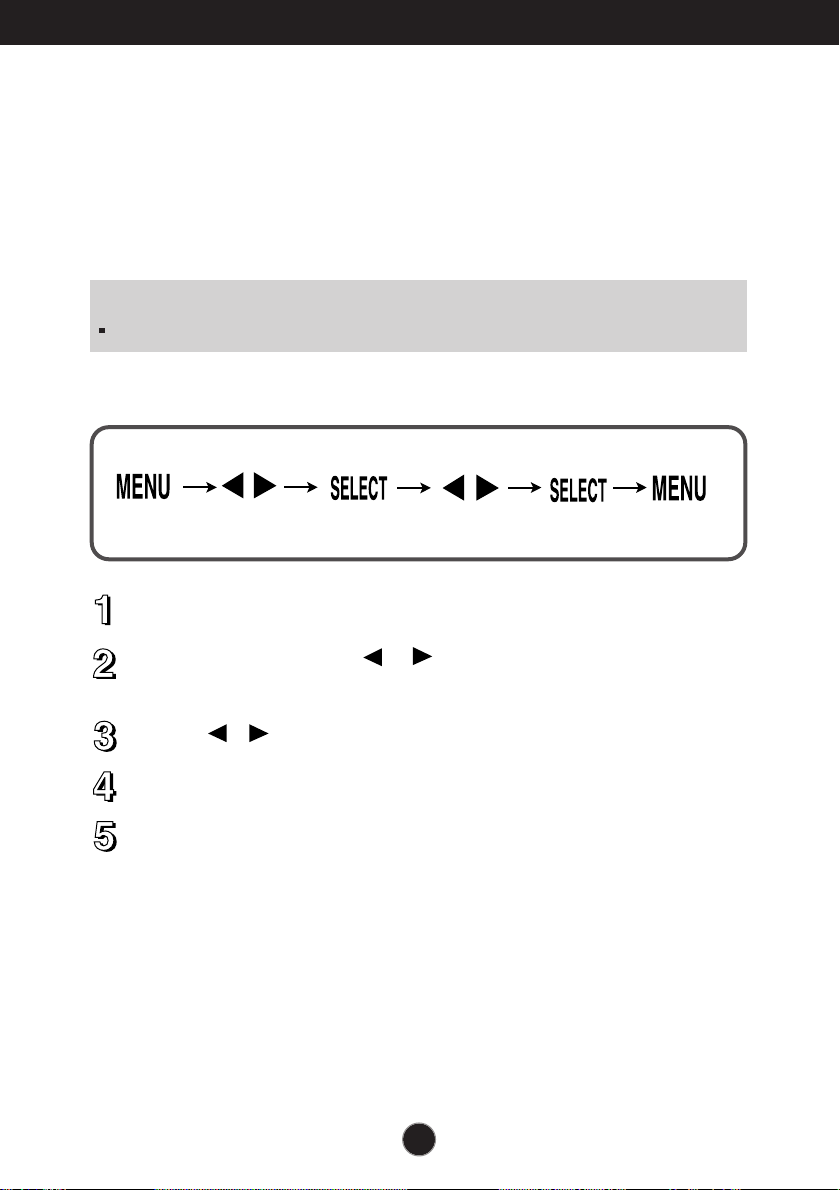

To make adjustments in the On Screen Display, follow these steps:
Press the MENU Button, then the main menu of the OSD appears.
To access a control, use the or Buttons. When the icon you want
becomes highlighted, press the SELECT Button.
Use the Buttons to adjust the item to the desired level.
Accept the changes by pressing the SELECT Button.
Exit the OSD by Pressing the MENU Button.
NOTE
Allow the monitor to stabilize for at least 30 minutes before making image adjustments.

A7
On Screen Display(OSD) Selection and Adjustment
Contrast
Brightness
H Position
H Size
V Position
V Size
Tilt
*
Pincushion
Pin Balance
Parallelogram
Trapezoid
Top Corner
*
Icon Main menu Icon Main menu
The following table indicates all the On Screen Display control, adjustment,
and setting menus.
: Adjustable
NOTE
The order of icons may differ depending on the model (A7~A10).
* This function is available for designated models only.
K
R G B

Bottom Corner *
H Corner *
H Moire
V Moire
COLOR 9300
6500
Recall
Reset
Language
OSD Time
Video Level
Degauss
Information
Exit
*

A8
On Screen Display(OSD) Selection and Adjustment
You were introduced to the procedure of selecting and adjusting an item
using the OSD system. Listed below are the icons, icon names, and icon
descriptions of the all items shown on the Menu.




Icon Sub menu Description
CONTRAST
To adjust the contrast of the screen.
BRIGHTNESS
H POSITION
H SIZE
V POSITION
V SIZE
TILT *
PINCUSHION
PIN BALANCE
PARALLELOGRAM
TRAPEZOID
To adjust the brightness of the screen.
To move image left and right.
To adjust image width.
To move image up and down.
To adjust image height.
To correct image rotation.
To correct a concave or convex bowing of the
image.
To correct the balance of both sides bowing.
To correctly adjust the skew of the image.
To correct geometric distortion.



 

A9
On Screen Display(OSD) Selection and Adjustment
Icon Sub menu Description
H CORNER *
To correct an irregular distortion of the displayed
image.
H MOIRE
V MOIRE
This item allows you to reduce the degree of moire.
(Moire is caused by interference Horizontal Scan
Line with the periodical dot screen). It is normally
OFF(H:0/V:0).
The moire adjustments may affect the focus of the
screen.
Moire adjustments may shake slightly while the
moire reduction function is on.
COLOR
9300
6500
Slightly bluish white.
Slightly reddish white.
K
Select the screen temperature which you prefer
among reddish or bluish or any color in between.
R G B
Set your own color levels.
RECALL
You can use this function to reload the modified parameters
for screen display operation, as specified by the user after
purchase: Position, Size, Side Pincushion, Side Pincushion
Balance, Parallelogram, Trapezoid, Top Corner, Bottom
Corner (These recalled options may differ depending on the
mode selected: Preset, User, or New).
If you don’t want to recall the monitor to these
modified settings, use the button to select
CANCEL and then press the SELECT button.
• OK
• CANCEL
To correct an irregular distortion of the displayed
image.
To correct an irregular distortion of the displayed
image.
TOP CORNER *
BOTTOM CORNER *
