LG 50PG200R User manual

PLASMA TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : PP81B
MODEL : 50PG200R 50PG200R-ZA
website:http://biz.LGservice.com
Internal Use Only

- 2 - LGE Internal Use OnlyCopyright©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
CONTENTS
CONTENTS .............................................................................................. 2
SAFETY PRECAUTIONS ..........................................................................3
SPECIFICATION........................................................................................4
ADJUSTMENT INSTRUCTION .................................................................6
TROUBLE SHOOTING............................................................................16
BLOCK DIAGRAM...................................................................................23
EXPLODED VIEW .................................................................................. 24
SVC. SHEET ...............................................................................................
PRINTED CIRCUIT DIAGRAM....................................................................

- 3 - LGE Internal Use OnlyCopyright©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Replacement Parts List.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this monitor is blown, replace it
with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1W), keep the resistor 10mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Due to high vacuum and large surface area of picture tube,
extreme care should be used in handling the Picture Tube.
Do not lift the Picture tube by it's Neck.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩand 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.

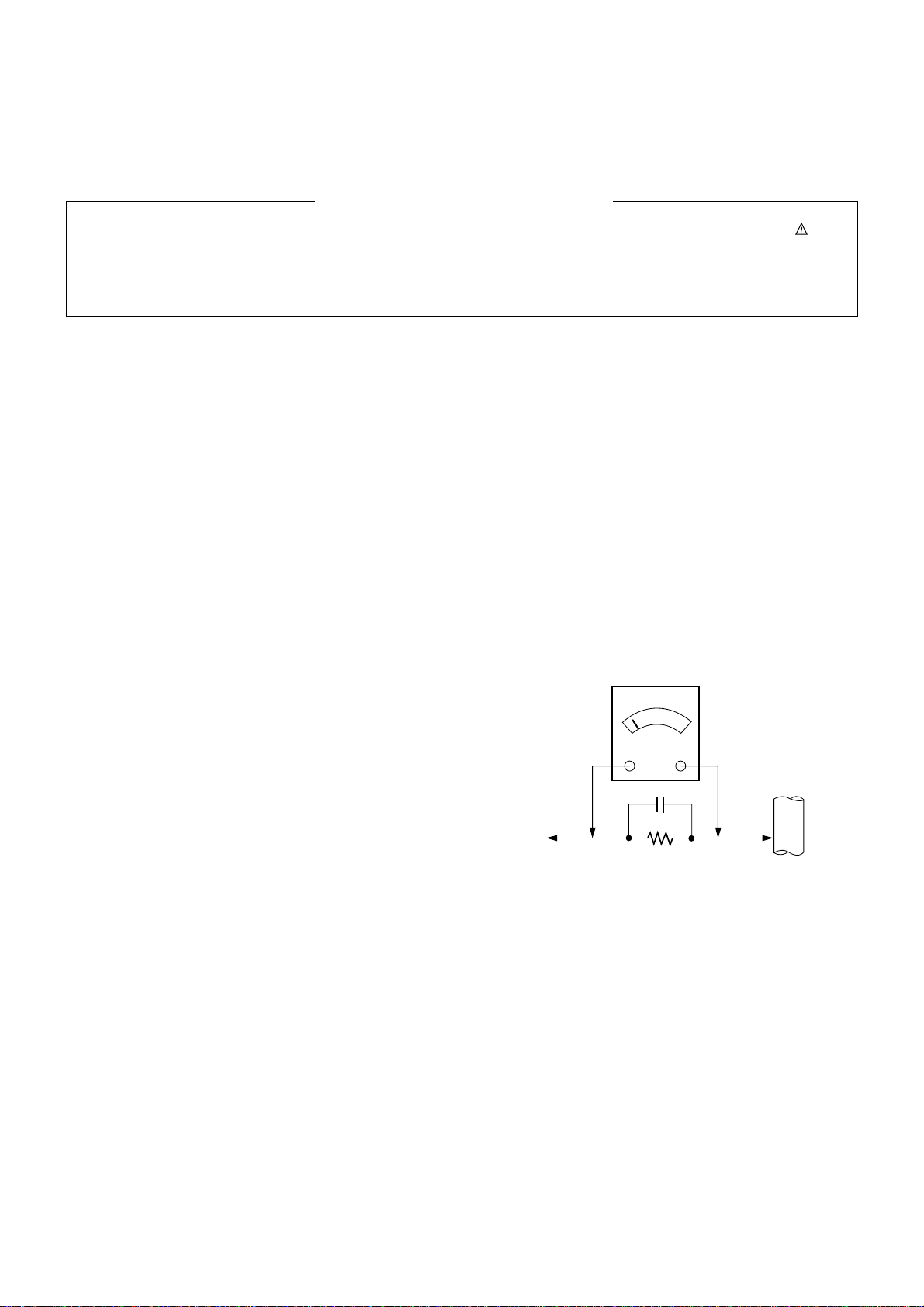

Leakage Current Hot Check circuit
1.5 Kohm/10W
To Instrument’s
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
IMPORTANT SAFETY NOTICE
0.15uF

- 4 - LGE Internal Use OnlyCopyright©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
SPECIFICATIONS
NOTE : Specifications and others are subject to change without notice for improvement .
VApplication Range
This spec is applied to the 50” PLASMA TV used PP81B Chassis.
V Specification
Each part is tested as below without special appointment.
1) Temperature : 25±5°C (77±9°F), CST : 40±5
2) Relative Humidity: 65±10%
3) Power Voltage: Standard Input voltage (100-240V~, 50/60Hz)
* Standard Voltage of each product is marked by models.
4) Specification and performance of each parts are followed each drawing and specification by part number in accordance with SBOM.
5) The receiver must be operated for about 20 minutes prior to the adjustment.
VTest Method
1) Performance : LGE TV test method followed.
2) Demanded other specification
Safety : CE, IEC specification
EMC : CE, IEC
VGeneral Specification ( 50” XGA Module)
Chassis
PP81B 50PG200R-ZA EU LG
Model Name Market Brand Remark
50PG200R-ZA Safety : IEC/EN60065,
EMI : EN55013
EMS : EN55020
EU
Model ApplianceMarket
TEST
Remark
Display Screen Device
Aspect Ratio
PDP Module
Operating Environment
Storage Environment
Input Voltage
1
2
3
4
5
6
No Item Specification Remark
50” Wide Color Display Module
16:9
PDP50PG1,
RGB Closed Type
1)Temp. : 0~55deg
2)Humidity : 20~80%
3)Temp. : -10~60deg
4)Humidity : 10~90%
100-240V~, 50/60Hz
Plasma Display Panel
Glass Filter
LGE SPEC.
Maker : LGIT, Sansung Sanken

- 5 - LGE Internal Use OnlyCopyright©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
Market
Broadcasting system
Available Channel
Receiving system
SCART Input(2EA)
Video Input (1EA)
S-Video Input (1EA)
Component Input (1EA)
RGB Input(1EA)
HDMIInput(2EA)
Audio Input (5EA)
1
2
3
4
5
6
7
8
9
10
11
No Item Specification Remark
EU
PAL-BG/I/DK, SECAM
BAND PAL
VHF/UHF C1~C69
CATV S1~S47
Upper Heterodyne
PAL
PAL
PAL
Y/Cb/Cr, Y/Pb/Pr
RGB-PC
HDMI-DTV
PC Audio, AV (3EA), SIDE AV(1EA)
Full Scart 1EA, Harf 1EA
Side AV
Side AV : S-Video Priority
REAR HDMI(2)
L/R Input(PC 1EA, Component 2EA, Rear 1EA,
Side 1EA)
V Model Specification

- 6 - LGE Internal Use OnlyCopyright©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
ADJUSTMENT INSTRUCTION
1. Application Range
This spec. sheet is applied to all of the PP81B Chassis.
2. Specification
(1) Because this is not a hot chassis, it is not necessary to use
an isolation transformer. However, the use of isolation
transformer will help protect test instrument.
(2) Adjustment must be done in the correct order.
(3) The adjustment must be performed in the circumstance of
25±5cC of temperature and 65±10% of relative humidity if
there is no specific designation.
(4) The input voltage of the receiver must keep 100~240V,
50/60Hz.
(5) Before adjustment, execute Heat-Run for 30 minutes at RF
no signal.
3. ADC calibration
3-1. PC input ADC
(1) Auto RGB Gain/Offset Adjustment
1) Convert to PC in Input-source
2) Signal equipment displays
Output Voltage : 700 mVp-p
Impress Resolution XGA (1024 x 768 @ 60Hz)
Model : 60 in Pattern Generator
(1024x768@60Hz Black and White Pattern)
Pattern : 54 in Pattern Generator (MSPG-925 SERISE)
[1/2 Black & White Pattern (Refer below picture)].
3) Adjust by commanding AUTO_COLOR_ADJUST(0xF1)
0x00 0x02 instruction.
(2) Confirmation
1) We confirm whether “0xF1 (offset), 0xF2 (gain)” address of
EEPROM “0xBC” is “0xAA” or not.
2) If “0xF1”, “0xF2” address of EEPROM “0xBC” isn’t “0xAA”,
we adjust once more
3) We can confirm the ADC values from “0x00~0x05”
addresses in a page “0xBC”
[Manual ADC process using Service Remocon. After enter
Service Mode by pushing “ADJ” key, execute “ADC Adjust” by
pushing “G” key at “Adjust-RGB”.
3-2. COMPONENT input ADC
(1) Component Gain/Offset Adjustment
1) Convert to Component in Input-source
2) Signal equipment displays
Impress Resolution 720P
MODEL : 217 in Pattern Generator
(720P/60Hz 100% Color Bar Mode)
PATTERN : 65 in Pattern Generator( MSPG-925 SERISE)
3) Adjust by commanding AUTO_COLOR_ADJUST(0xF1)
0x00 0x02 instruction
(2) Confirmation
1) We confirm whether “0xF3 (offset), 0xF4 (gain)” address of
EEPROM “0xBC” is “0xAA” or not.
2) If “0xF3”, “0xF4” address of EEPROM “0xBC” isn’t “0xAA”,
we adjust once more.
3) We can confirm the ADC values from “0x06~0x0B”
addresses in a page “0xBC

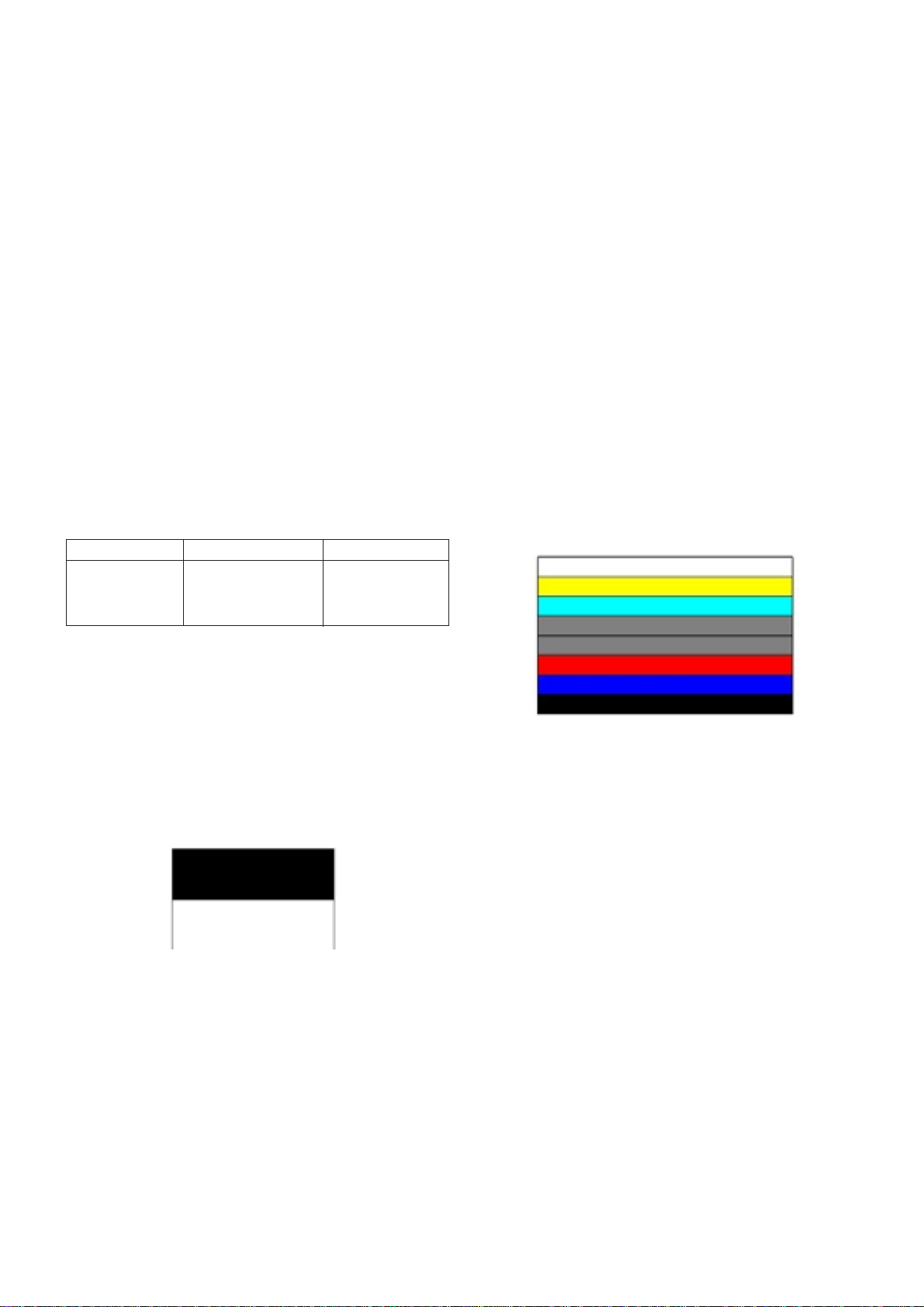

<Fig. 1>
Adjustment pattern (COMPONENT)
MSPG925FA
Component RGBADC Model : 60
(1024x768@60Hz)
Model : 216
(720P@60Hz)

- 7 - LGE Internal Use OnlyCopyright©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
4. PCB Assembly Adjustment Items
4-1. Option Adjustment Following BOM
Tool Option1
Tool Option2
Area Option
* Profile: Must be changed the option value because being
different with some setting value depend on module, inch
and market
* Equipment : Adjustment Remote Controller
(1) Push the IN-START key in the Adjust R/C.
(2) Input the Option Number that was specified in the BOM,
into the Shipping area.
(3) Select “Tool Option1/ Tool Option2/ Area Option” by using
D/E(CH+/-) key, and press the number key(0~9)
consecutively
ex) If the value of Tool Option1 is 7, input the data using
number key “7” (Fig. 2)
Caution: Don’t Push “IN-STOP” key after PCB assembly
adjustment.
(4) Adjustment method
Before PCBA check, have to change the Tool option and
Area option
[About PDP
After done all adjustments, Press IN-START button and
compare Tool option and Area option value with its BOM, if it
is correctly same then Change “RF mode” and then unplug
the AC cable.
If it is not same, then correct it same with BOM and unplug AC
cable.
For correct it to the model°Øs module from factory JIG model.
[Don’t push The IN-STOP KEY after completing the function
inspection.
5. S/W Program Download
5-1. Profile
This is for downloading the s/w to the flash memory of the
IC803
5-2. Equipment
(1) PC
(2) ISP_tool program
(3) Download jig
5-3. Connection Structure
5-4. Connection Condition
(1) IC name and circuit number : Flash Memory and IC803
(2) Use voltage : 3.3V (5 pin)
(3) SCL : 15 pin
(4) SDA : 12 pin
(5) Tact time : about 2min and 30seconds
6. Download Method (PCB Ass’y)
6-1. Preliminary Steps
(1) Connect the download jig to D-sub jack
(2) Connect the PC to USB jack
<Fig. 2>

- 8 - LGE Internal Use OnlyCopyright©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes

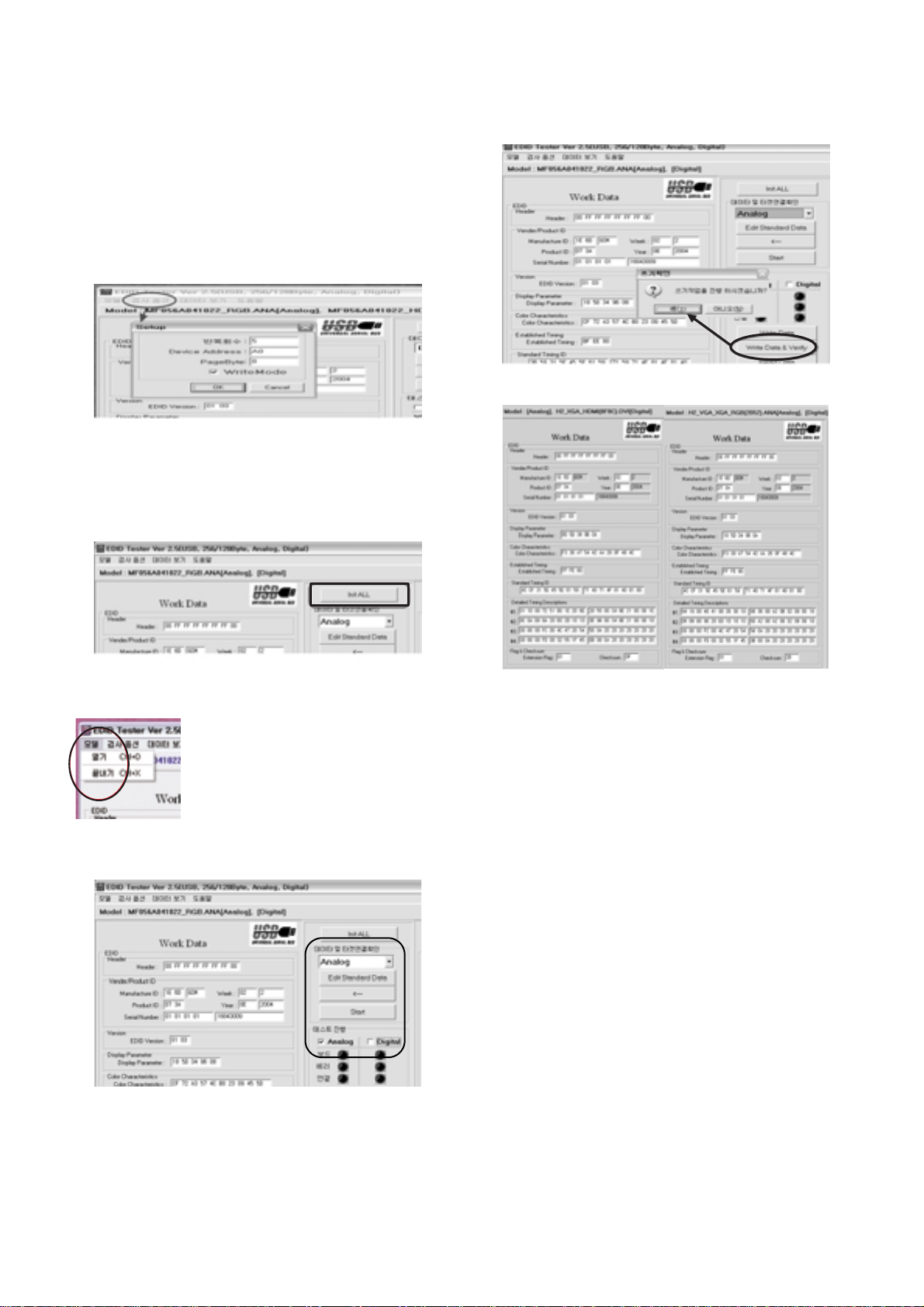

6-2. Download Steps
(1) Execute ‘ISP Tool’ program in PC, then a main window will
be opened
(2) Click the connect button and confirm “Dialog Box”.
(3) Click the Config button and Change speed
E2PROM Device setting : over the 350Khz
(4) Read and write bin file
Click “(1)Read” tab, and then load download file(XXXX.bin)
by clicking “Read”.
(5) Click “Auto(2)” tab and set as below
(6) Click “Run(3)”.
(7) After downloading, check “OK(4)” message.
7. EDID(The Extended Display
Identification Data) / DDC
(Display Data Channel) Download
[Caution
- Use the proper signal cable for EDID Download
- Never connect HDMI & D-SUB Cable at the same time.
- Use the proper cables below for EDID Writing
7-1. Profile:To be possible for plug and play
7-2. Equipment
(1) Adjusting PC with S/W for writing EDID Data.(S/W: EDID
TESTER Ver.2.5)
(2) A Jig for EDID Download
(3) Cable : Serial(9Pin or USB) to D-sub 15Pin cable, D-sub
15Pin cable, DVI to HDMI cable.
7-3. Connection Structure
Caution: Never connect HDMI & D-SUB Cable at the same time.
7-4. EDID Data
OXGA EDID DATA
<Analog : 128bytes>
<Fig. 3> Connection Diagram of DDC Download
1
2
3
Manufaturer
Version
Revision
GSM
Digital : 1
Digital : 3
1E6D
01
03
ConditionItemNo Hex Data

- 9 - LGE Internal Use OnlyCopyright©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
<HDMI 1 : 256bytes>
<HDMI 2 : 256bytes>
<HDMI 3 : 256bytes>
ODetail EDID Options are below (ⓐ, ⓑ, ⓒ, ⓓ, ⓔ)
ⓐProduct ID
ⓑSerial No
=> Controlled on production line
ⓒMonth, Year
=> Controlled on production line:
ex) Monthly: ‘11’ -> ‘0B’
Year: ‘2007’ -> ‘11’
ⓓModel Name(Hex)
ⓔChecksum
=> Changeable by total EDID data
* Ananlog(128Byte)
1)
2)
*HDMI 1/2/3 (256Byte)
1)
AB
50PG200R-ZA
Product ID
Model Name EDID table
E0C3
E1C3
Hex
C3E0
C3E1
DEC
50144(A)
50145(D)

- 10 - LGE Internal Use OnlyCopyright©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
7-5. Preparation for Adjustment
(1) As above Fig. 3, Connect the Set, EDID Download Jig,,
PC & Cable
(2) Turn on the PC & EDID Download Jig. And Execute the
S/W : EDID TESTER Ver.2.5
(3) Set up the S/W option
Repeat Number : 5
Device Address : A0
PageByte : 8
(4) Power on the Set
1) Sequence of Adjustment
1. DDC data of Analog-RGB
(1) Init the data
(2) Load the EDID data.(Open File).
[Analog - RGB : PP81A_RGB.ANA]
[Digital - HDMI1 : PP81A_HDMI1.DVI]
[Digital - HDMI2 : PP81A_HDMI2.DVI]
[Digital - HDMI3 : PP81A_HDMI3.DVI]
(3) Set the S/W as below.
(4) Push the “Write Data & Verify”button. And confirm “Yes”.
(5) If the writing is finished, you will see the “OK”message.
8. HDCP(High-Bandwidth Digital Contents Protection)
(1) Connect D-sub Signal Cable to D-Sub Jack
(2) Input HDCP key with HDCP-key- in-program
(3) HDCP Key value is stored on Main M-STAR
IC(LGE6891DD) which is 0x80~0x90 addresses of
0x00~0x01 page(EEPROM MAP PAGE0~PAGE1 /
START :A080)
(4) Play the Equipment(DVD Player) included HDCP Key and
confirm whether picture is displayed or not of using DVD
Player.
(5) HDCP Key value is different among the sets
Open File

- 11 - LGE Internal Use OnlyCopyright©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
9. Adjustment of White Balance
9-1. Purpose and Principle for Adjustment
of the Color Temperature
(1) Purpose: Adjust the color temperature to reduce the
deviation of the module color temperature.
(2) Principle : To adjust the white balance without the
saturation, Fix the one of R/G/B gain to C0 and decrease
the others.
(3) Adjustment mode: Two modes of Cool and Warm
(Cool data is automatically calibrated by the Medium data)
9-2. Required Equipment
(1) Remote controller for adjustment
(2) Color Analyzer : CA-100+ or CA-210 or same product
- PLASMA TV(ch : 10)
(3) Auto W/B adjustment instrument(only for Auto adjustment)
- Do the white balance adjustment under the 10LUX
[Notice: When using the Color Analyzer with PDP,
recommend the CA-100 more than CA-210.
If CA-100 can not available, it is also good to use the CA-210.
(4) PC (for communication through RGB)
(5) Pattern Generator (MSPG-925FA etc.)
-Before white balance, press the ADJ key 2times and do
the reset like Fig. 4
-To enter White-balance mode, press the ADJ key 2times.
[Caution: System control Host should be “DDC”for adjustment.
9-3. Connecting Diagram of Equipment for
Measuring(For Automatic Adjustment)
(1) Enter the adjustment mode of the white balance
- Enter the white balance adjustment mode at the same time
heat-run mode when pushing the power on by power only
key
- Maintain the white balance adjustment mode with same
condition of Heat-run
- Maintain after AC off/on in status of Heat-run pattern display
(2) Release the white balance adjustment mode
- Release the adjust mode after AC off/on or std-by off/on in
status of finishing the Hear-run mode
- Release the Adjust mode when receiving the aging off
command(F3 00 00) from adjustment equipment)
(3) Enter the adjust mode of white balance
- Enter the white balance adjustment mode with aging
command(F3, 00, FF)
OColor Temperature & Color Coordinates Setting
- When adjusting the Color Temperature, Color Analyzer CA-
210(Matrix should be corrected through CH10 of CS-1000)
should be used. When CA-210 have used, it don’t need to fit
the CH10.
- Adjust the Color Temperature based below adjustment color
coordinates.
OTarget Value CA-210(PDP : CH10), CA-100(PDP)
(Standard color coordinate and temperature when using the
CA-100+ or CA210 equipment)
OSynchronization relation between PSM and CSM
<Fig. 4>
Color Coordinate
xy
0.293±0.002
0.329±0.00
29,300K 6,500K 0.000 0.003
0.285±0.002
0.313±0.00
2
MEDIUM
WARM
Mode Temp uv
CSM Remark
Cool
Warm
Vivid
Mild
PSM

- 12 - LGE Internal Use OnlyCopyright©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
ODDC Adjustment Command Set
[R/G/B GAIN max value : C0
9-4. Adjustment of White Balance for
Manual Adjustment
Adjustment mode: Two modes of Medium(Vivid) and Warm
(Cool data is automatically calibrated by the Medium data)
- Equipment : 1) Color analyzer(CA100+, CA210) should be
used in the calibrated ch by CS-1000(.(LCD :
CH9, PDP : CH10)
2) Adjustment remocon
- For manual adjustment, it is also possible by the following
sequence.
Operate the zero-calibration of the CA-100+ or CA-210, then
stick sensor to the module when adjusting.
(1) Select white pattern of heat-run by pressing “POWER ON”
key on remote control for adjustment then operate heat run
longer than 15 minutes. (recommend)
(If not executed this step, the condition for W/B will be
different)
(2) Changing to the AV mode by remote control.(Push front-
AV)
(3) Input external pattern(85% white pattern).
(4) Stick sensor to center of the screen and select each items
(Red/Green/Blue Gain and Offset) using D/E(CH +/-) key
on R/C..
(5) Adjust R/ G/B Gain using F/G(VOL +/-) key on R/C.
(6) Adjust two modes of Medium(Vivid) and Warm as below
figure.
(Fix the one of R/G/B and change the others)
1) Default : Medium(Vivid)
2) Push the “VOL +”key twice : Warm
[Refer to the below case to know what value is fixed.
[CASE]
First adjust the coordinate much away from the target value(x, y).
1. x, y > target
1) Decrease the R, G.
2. x, y < target
1) First decrease the B gain,
2) Decrease the one of the others.
- In case of decreasing the x, decreasing the R : fix G
- In case of decreasing the y , decreasing the G : fix R
3. x > target , y < target
1) First decrease B, so make y a little more than the target.
2) Adjust x value by decreasing the R
4. x < target , y > target
1) First decrease B, so make x a little more than the target.
2) Adjust x value by decreasing the G
(7) When adjustment is completed, Exit adjustment mode
using EXIT key on R/C.
Adjustment
content
Aging On/Off
input select
R GAIN
G GAIN
B GAIN
R GAIN
G GAIN
B GAIN
R GAIN
G GAIN
B GAIN
CSM modo
EEPROM Read
EEPROM Write
No
1
2
3
4
5
6
CMD
(HEX)
F3
F4
16
18
1A
16
18
1A
16
18
1A
F2
E7
E8
ADR
00
00
00
01
02
00
00
00
VALUE
FF/00
00 - FE
00 - FE
00 - FE
00 - FE
00 - FE
00 - FE
00 - FE
00 - FE
00 - FE
00
01
02
00
data
Detail
OO : OFF
01 : ON
FF : WB Ready
0x10 : TV
0x20 : AV1
0x21 : AV2
0x23 : AV3
0x40 : Component1
0x41 : Component2
0x60 : RGB PC
0x90 : HDMI1
0x91 : HDMI2
0x92 : HDMI3
GAIN Adjsutment
CSM COOL
GAIN Adjsutment
CSM MEDIUM
GAIN Adjsutment
CSM WARM
COOL
MEDIUM
WARM
EEPROM read
EEPROM write
Color Coordinate
xy
0.293±0.002
0.329±0.00
29,300K 6,500K 0.000 0.003
0.285±0.002
0.313±0.00
2
MEDIUM
WARM
Mode Temp uv

- 13 - LGE Internal Use OnlyCopyright©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
10. Default Value in Adjustment
10-1. White Balance
(Default values maybe modified the module condition)
10-2. Press CH write condition
(1) AC on tilme on only one after assembled automatically
(2) CH recover SVC OSD manually
11. Internal press test
12. Sound spec.
Caution: Each PCB assembly must be checked by check JIG set.
(Because power PCB Assembly damages to PDP
Module, especially be careful)
13. POWER PCB Assy Voltage
Adjustment(Va, Vs voltage Adjustment)
13-1. Test Equipment:D.M.M 1EA
13-2. Connection Diagram for Measuring
Refer to Fig. 5
13-3. Adjustment Method
(1) Va Adjustment
1) After receiving 100% Full White Pattern, HEAT RUN.
2) Connect + terminal of D. M..M. to Va pin of P812,
connect -terminal to GND pin of P812.
3) After turning VR901,voltage of D.M.M adjustment as
same as Va voltage which on label of panel right/top
(deviation; ±0.5V)
(2) Vs Adjustment
1) Connect + terminal of D. M..M. to Vs pin of P812,
connect -terminal to GND pin of P812.
2) After turning VR951 401, voltage of D.M.M adjustment
as same as Vs voltage which on label of panel right/top
( deviation ; ±0.5V)
<Fig. 5> Connection Diagram of Power Adjustment for Measuring
Item
Dielectric Voltage (AC <-> FG)
Dielectric Voltage (Without FG)
Value
1.5
1.5
3
3
Unit
kV
kV
Remark
At 100mA for 1sec (Line)
At 100mA for 1min (OQC)
At 100mA for 1sec (Line)
At 100mA for 1min (OQC)
Item Min Typ Max Unit Remark
Audio Practical Max Output, L(Mono)/R 9 10 12 W

- 14 - LGE Internal Use OnlyCopyright©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
Storage
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
Factory System Band CH CH Name Freq(Mhz) Freq / 50Khz
Initial CH
(Gumi)
MA
(WR)
NT
PAL
SECAM
PAL
PAL
NTSC
PAL
PAL
PAL
PAL
PAL
PAL
PAL
PAL
SECAM
SECAM
SECAM
PAL
PAL
PAL
SECAM
PAL
PAL
PAL
PAL
PAL
SECAM
SECAM
PAL
SECAM
SECAM
NTSC
NTSC
NTSC
NTSC
NTSC
NTSC
NTSC
SECAM
PAL
PAL
PAL
PAL
PAL
BG
DK
BG
I
BG
BG
BG
BG
I
I
BG
BG
L
L
L
B
G
I
D
B
G
I
I
G
L
L
G
D
D
M
M
M
M
M
M
M
D/K
D/K
D/K
B/G
B/G
I
V/UHF
V/UHF
V/UHF
Cable
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
Cable
V/UHF
V/UHF
Cable
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
Cable
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
NZ01
R34
EU05
PI11
BR48
E04
EU07
EU50
EU52
PI41
PI63
5
21
SLB
CATVE
SL36
E5
E51
I41
R5
E4
E31
I21
I69
E48
L4
L45
E25
R7
R7
US-4
J-01
US-13(J-11)
US-14(J-13)
US-63(J62)
CATV-15
US-18(Digital)
R-1(CIS)
D-10(China10)
K-36
E-5
G-40
I-28
C 01
C 34
C 05
S 11
C 04
C 07
C 50
C 52
C 41
C 63
S 47
C 21
C 02
S 07
C 36
C 05
C 51
C 41
C 05
C 04
C 31
C 21
C 69
C 48
C 08
C 45
C 25
C 07
C 07
C 04
C 01
C 13
C 14
C 63
S 15
C 18
C 01
C 10
C 36
C 05
C 40
C 28
45.25
575.25
175.25
231.25
675.25
62.25
189.25
703.25
719.25
631.25
807.25
102.25
471.25
55.75
152.75
591.25
175.25
711.25
631.25
93.25
62.25
551.25
471.25
855.25
687.25
200.00
663.25
503.25
183.25
189.25
67.25
91.25
211.25
471.25
765.25
127.25
497(Center Freq)
49.75
200.25
695.25
175.25
623.25
527.25
905
11505
3505
4625
1245
3785
14065
14385
12625
16145
2045
9425
1115
3055
11825
3505
14225
12625
1865
1245
11025
9425
17105
13745
4000
13265
10065
3665
1345
1825
4225
9425
15305
2545
995
4005
13905
3505
12465
10545
14. Preset CH Information
14-1. Analog CH synthesis Table_Ver_1_0

- 15 - LGE Internal Use OnlyCopyright©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
Storage
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
Factory System Band CH CH Name Freq(Mhz) Freq / 50Khz
NT_
PANDA
RA
IN
NP
PAL
PAL
PAL
PAL
SECAM
NTSC
SECAM
PAL
NTSC
SECAM
SECAM
PAL
SECAM
PAL
SECAM
SECAM
PAL
PAL
PAL
PAL
PAL
PAL
PAL
SECAM
SECAM
SECAM
NTSC
PAL
NTSC
NTSC
NTSC
SECAM
PAL
JAPAN
JAPAN
JAPAN
PAL
PAL
NTSC
SECAM
PAL
SECAM
PAL
PAL
PAL
D/K
D/K
D/K
B/G
D/K
M
D/K
I
M
B/G
D/K
B/G
D/K
B/G
D/K
D/K
B/G
B/G
B/G
B/G
B/G
I
I
D/K
D/K
L
M
N
M
M
M
L
M
M
M
M
B/G
B/G
M
D/K
D/K
D/K
B/G
D/K
D/K
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
Cable
Cable
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
Cable
V/UHF
V/UHF
Cable
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
V/UHF
D-1
D-4
D-10
E-5
R-12
US-14
R-34
I-41
US-63
E-04
R-05
E-05
R-12
E-21
R-34
R-54
E-2
E-5
E-11
E-25
E-36
I-30
I-11
R-05
R-34
F-B
US-04
N-10
US-11
US-13
US-30
F-49
M-69
JA-01
JA-04
JA-36
Au-5
E-05
US-13
R-12
D-01
R-34
E-21
D-04
D-10
C 01
C 04
C 10
C 05
C 12
C 14
C 34
C 41
C 63
C 04
C 05
C 05
C 12
C 21
C 34
C 54
C 02
C 05
C 11
C 25
C 36
C 30
S 11
S 45
C 34
C 47
C 4
C 10
C 11
C 13
C 30
C 49
C 69
S-95
J 4
37
S-47
C 05
C 13
C 12
C 01
C 34
C 21
C 04
C 10
49.75
77.25
200.25
175.25
223.25
471.25
575.25
631.25
765.25
62.25
93.25
175.25
223.25
471.25
575.25
735.25
48.25
175.25
217.25
503.25
591.25
543.25
231.25
93.25
575.25
55.75
67.25
193.25
199.25
211.25
567.25
695.25
801.25
91.25
171.25
609.3
102.25
175.25
211.25
223.25
49.75
575.25
471.25
77.25
200.25
995
1545
4005
3505
4465
9425
11505
12625
15305
1245
1865
3505
4465
9425
11505
14705
965
3505
4345
10065
11825
10865
4625
1865
11505
1115
1345
3865
3985
4225
11345
13905
16025
1825
3425
12186
2045
3505
4225
4465
995
11505
9425
1545
4005

- 16 - LGE Internal Use OnlyCopyright©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
TROUBLE SHOOTING GUIDE

- 17 - LGE Internal Use OnlyCopyright©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes

- 18 - LGE Internal Use OnlyCopyright©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes

- 19 - LGE Internal Use OnlyCopyright©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes

- 20 - LGE Internal Use OnlyCopyright©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
