LG 60PY2D User manual

PLASMA TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : DF-057B
MODEL : 60PY2D
60PY2D-AB
website:http://biz.LGservice.com
e-mail:http://www.LGEservice.com/techsup.html
All manuals and user guides at all-guides.com
all-guides.com

- 2 -

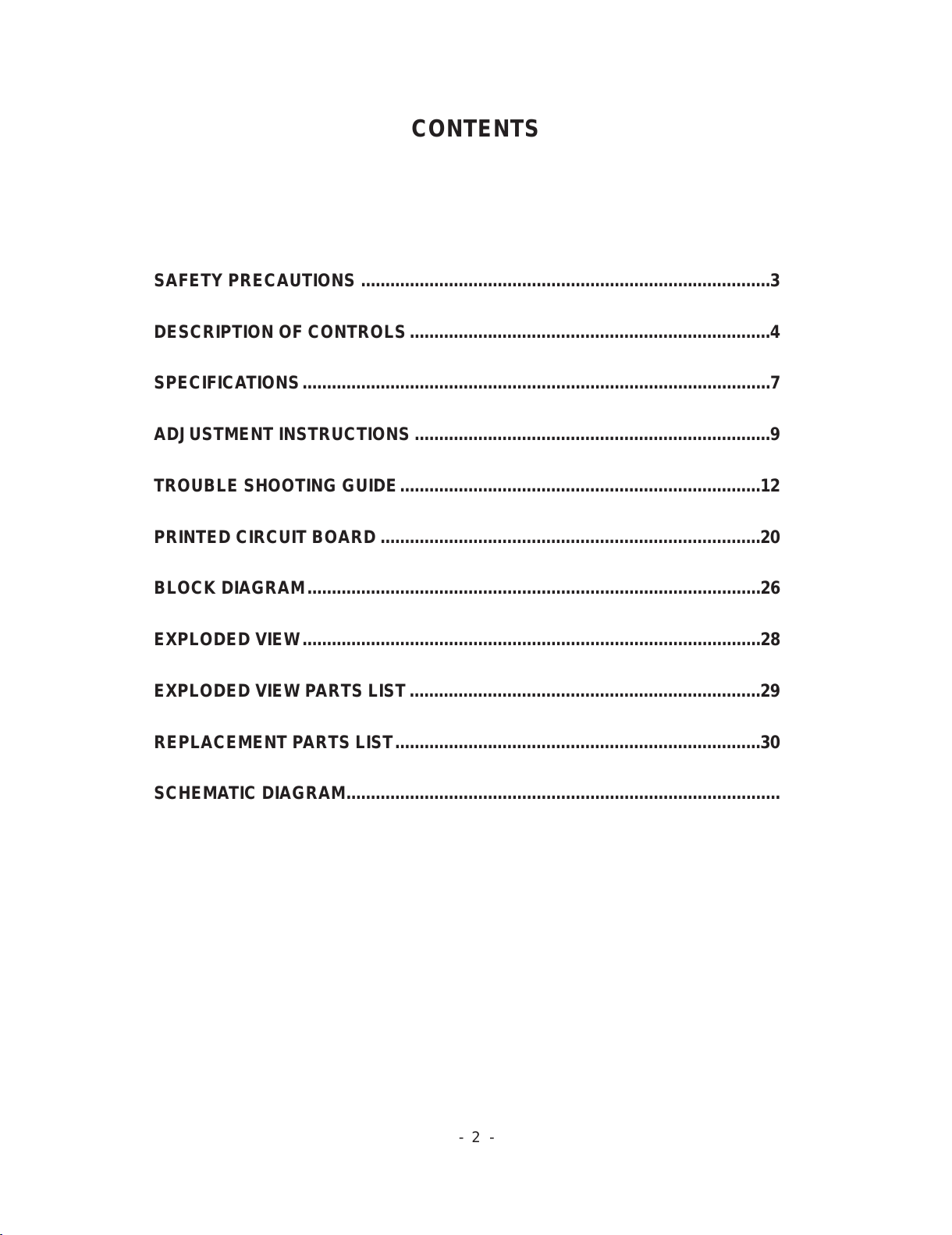

CONTENTS
SAFETY PRECAUTIONS ....................................................................................3
DESCRIPTION OF CONTROLS..........................................................................4
SPECIFICATIONS................................................................................................7

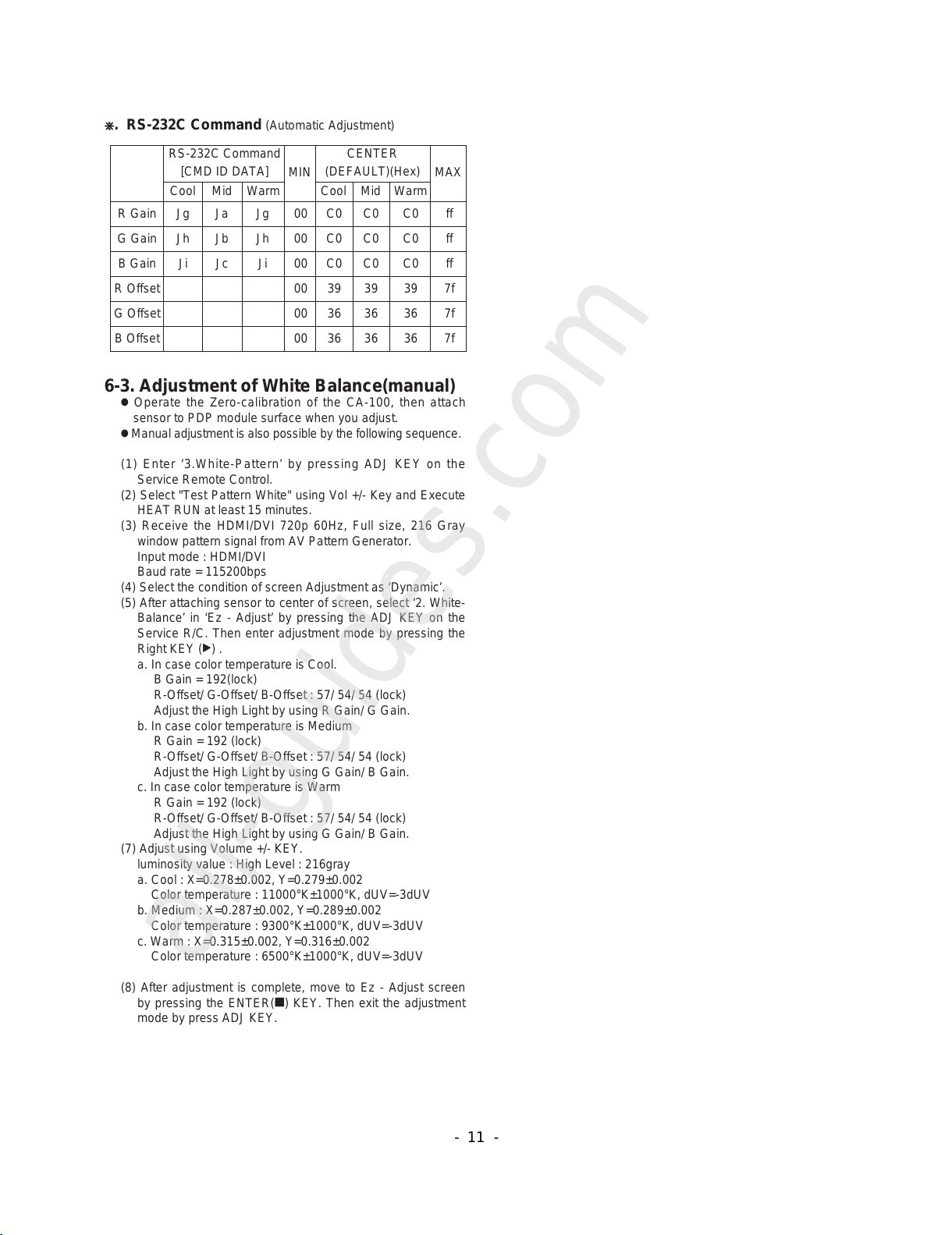

ADJUSTMENT INSTRUCTIONS .........................................................................9

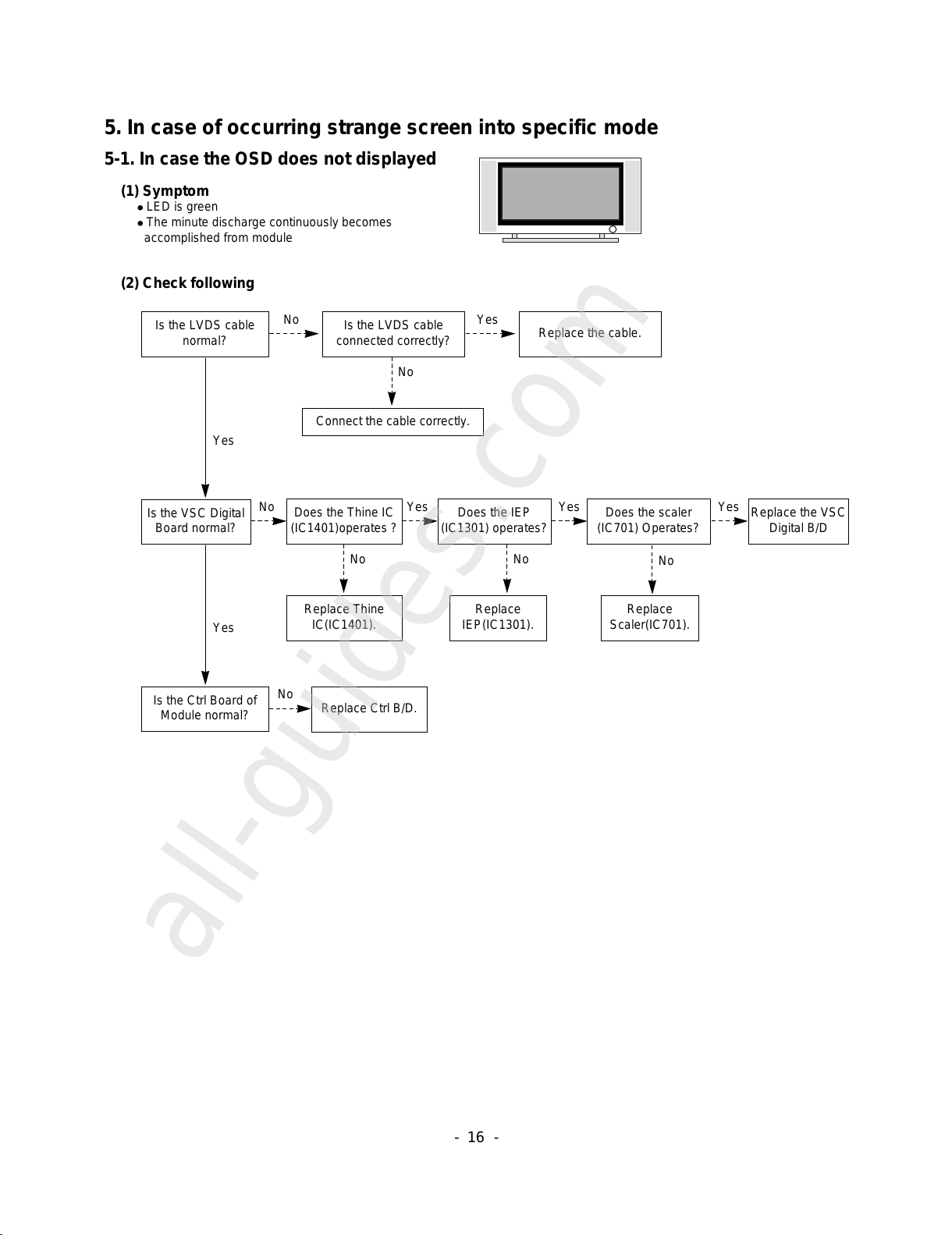

TROUBLE SHOOTING GUIDE..........................................................................12
PRINTED CIRCUIT BOARD ..............................................................................20
BLOCK DIAGRAM.............................................................................................26
EXPLODED VIEW..............................................................................................28
EXPLODED VIEW PARTS LIST........................................................................29
REPLACEMENT PARTS LIST...........................................................................30
SCHEMATIC DIAGRAM.........................................................................................
All manuals and user guides at all-guides.com

- 3 -

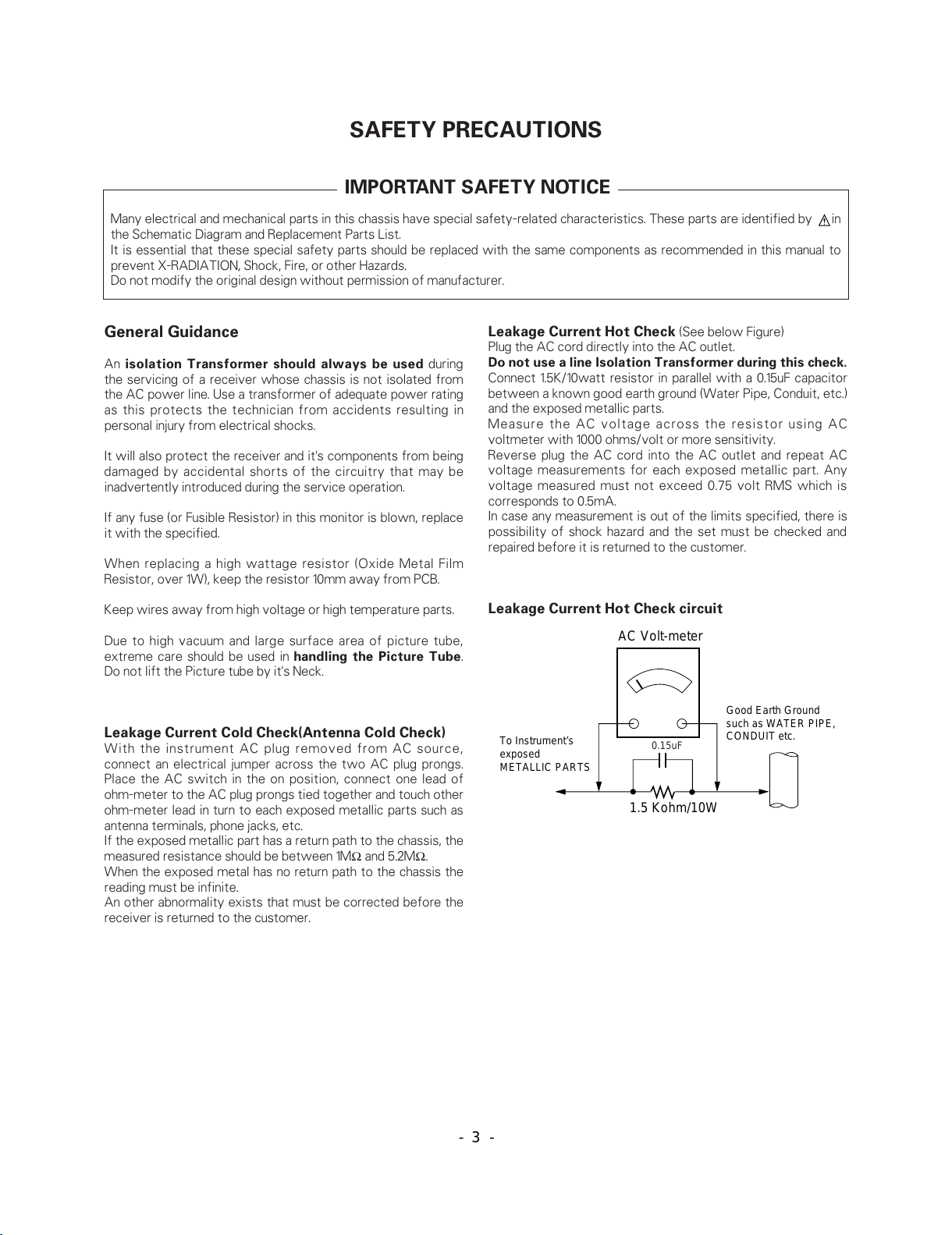

SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in
the Schematic Diagram and Replacement Parts List.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to
prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during
the servicing of a receiver whose chassis is not isolated from
the AC power line. Use a transformer of adequate power rating
as this protects the technician from accidents resulting in
personal injury from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this monitor is blown, replace
it with the specified.
When replacing a high wattage resistor (Oxide Metal Film
Resistor, over 1W), keep the resistor 10mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Due to high vacuum and large surface area of picture tube,
extreme care should be used in handling the Picture Tube.
Do not lift the Picture tube by it's Neck.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source,
connect an electrical jumper across the two AC plug prongs.
Place the AC switch in the on position, connect one lead of
ohm-meter to the AC plug prongs tied together and touch other
ohm-meter lead in turn to each exposed metallic parts such as
antenna terminals, phone jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩ and 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC
voltmeter with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC
voltage measurements for each exposed metallic part. Any
voltage measured must not exceed 0.75 volt RMS which is
corresponds to 0.5mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
1.5 Kohm/10W
To Instrument’s
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
IMPORTANT SAFETY NOTICE
0.15uF
All manuals and user guides at all-guides.com

MODE
D/ATV
TV
DVD
VCR
GUIDE
MENU
MUTE
SIZE UPDATE INDEX STILL
TIME REVEAL MIX I/II
PIP M/C EJECT SLEEP APM
PIP PR- PIP PR+ SWAP PIP INPUT
Q.VIEWLIST
FAV
OK
VOL PR
INPUT
POWER
ARC
TEXT
?
EXIT
INFO i
MARK
INPUT
Selects the TV, AV, Component, RGB or
HDMI modes.
switches the set on from standby.
POWER
switches the set on from standby or off to
standby.
ARC
Changes the picture format.
MARK
Selects the wanted functions.
Brings up the menu to select the Photo or
Music mode of Xstudio for memory cards.
EXIT
Clears all on-screen displays and returns
to TV viewing from any menu.
OK
accepts your selection or displays the
current mode.
DD/ EEor FF/ GG
Adjusts menu settings.
Selects menu item.
Q.VIEW
Returns to the previously viewed
programme.
I/II
selects the sound output or the audio
mode.
MAIN STILL
freezes motion of the picture.
SLEEP
Sets the sleep timer.
APM(Adaptive Picture Mode)
Concurrently, compare with the Dynamic ,
Standard , Mild and User on the screen.
FAV
selects a favourite programme.
NUMBER buttons
D/A TV
selects analogue or digital mode.
MODE
Selects another device.
GUIDE
shows a programme schedule.
(In Digital mode only)
VCR BUTTONS
Controls a video cassette recorder.
These buttons are used for X-Studio.
For further details, see the ‘X-Studio’ section.
MENU
Displays on screen menus one by one.
Exits the current menu.
Memorizes menu changes.
TEXT
These buttons are used for teletext.
For further details, see the ‘Teletext’ section.
COLOURED BUTTONS : These buttons are
used for teletext (only TELETEXT models)
or programme edit.
INFO
displays information on top of the screen
whilst watching the TV.
(In Digital mode only)
MUTE
Switches the sound on or off.
LIST
Displays the programme table.
M/C EJECT
Remove the Memory Card.
PIP
Switches the sub picture on or off.
Selects PIP or DW modes.
PIP PR + /-
Selects a programme for the sub picture.
SWAP
Alternates between main and sub picture.
PIP INPUT
Selects the input mode for the sub picture.
VOL DD/ EE(Volume Up/Down)
Increases/decreases sound level.
PR DD/ EE(Programme Up/Down)
Selects a programme.
LIGHT
Illuminates the remote control
buttons of selected
mode.
- 4 -
DESCRIPTION OF CONTROLS
All manuals and user guides at all-guides.com

- 5 -
INPUT
OK
71 8
1. Remote Control Sensor
2. Power Button
Switches the set on from standby or off to standby.
3. INPUT Button
Selects the TV, AV, Component, RGB or HDMI modes.
Switches the set on from standby.
4. MENU
Displays on screen menus one by one.
Exits the current menu.
Memorizes menu changes.
5. OK
Accepts your selection or displays the current mode.
6. DD/ EE(Programme Up/Down)
Selects a programme or a menu item.
Switches the set on from standby.
FF/ GG(Volume Up/Down)
Adjusts the volume.
Adjusts menu settings.
7. INDEX
Switches LED Display on or off.
8. Power Indicator
Illuminates red in standby mode, illuminates green when
the set is turned on.
9. Memory Card Slots 1, 2
9
2
3
4
5
6
<Front Panel Controls>
All manuals and user guides at all-guides.com

- 6 -

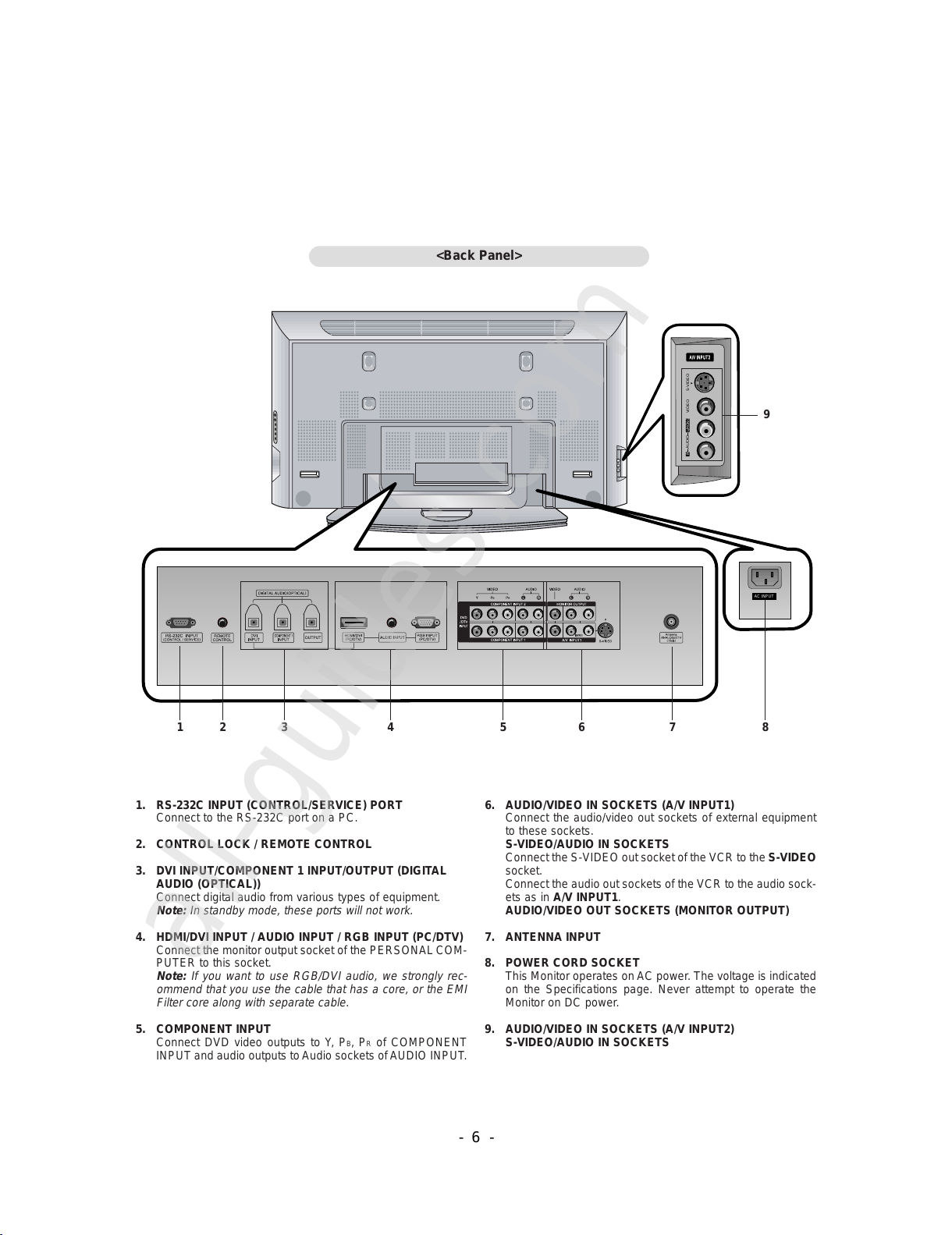

1. RS-232C INPUT (CONTROL/SERVICE) PORT
Connect to the RS-232C port on a PC.
2. CONTROL LOCK / REMOTE CONTROL
3. DVI INPUT/COMPONENT 1 INPUT/OUTPUT (DIGITAL
AUDIO (OPTICAL))
Connect digital audio from various types of equipment.
Note: In standby mode, these ports will not work.
4. HDMI/DVI INPUT / AUDIO INPUT / RGB INPUT (PC/DTV)
Connect the monitor output socket of the PERSONAL COM-
PUTER to this socket.
Note: If you want to use RGB/DVI audio, we strongly rec-
ommend that you use the cable that has a core, or the EMI
Filter core along with separate cable.
5. COMPONENT INPUT
Connect DVD video outputs to Y, PB, PRof COMPONENT
INPUT and audio outputs toAudio sockets of AUDIO INPUT.
6. AUDIO/VIDEO IN SOCKETS (A/V INPUT1)
Connect the audio/video out sockets of external equipment
to these sockets.
S-VIDEO/AUDIO IN SOCKETS
Connect the S-VIDEO out socket of the VCR to the S-VIDEO
socket.
Connect the audio out sockets of the VCR to the audio sock-
ets as in A/V INPUT1.
AUDIO/VIDEO OUT SOCKETS (MONITOR OUTPUT)
7. ANTENNA INPUT
8. POWER CORD SOCKET
This Monitor operates on AC power. The voltage is indicated
on the Specifications page. Never attempt to operate the
Monitor on DC power.
9. AUDIO/VIDEO IN SOCKETS (A/V INPUT2)
S-VIDEO/AUDIO IN SOCKETS
S-VIDEO
VIDEO
AUDIO
R
L/MONO
A/V INPUT2A/V INPUT2
AC INPUT
1
9
2 3 4 5 6 7 8
<Back Panel>
All manuals and user guides at all-guides.com
all-guides.com

SPECIFICATIONS
NOTE : Specifications and others are subject to change without notice for improvement .
- 7 -
VApplication Range
This spec is applied to the 42”/50”/60”PDP TV used DF-057B Chassis.
V Specification
Each part is tested as below without special appointment.
1) Temperature : 25±5°C (77±9°F)
2) Relative Humidity: 65±10%
3) Power Voltage: Standard Input voltage (100-240V~, 50/60Hz)
* Standard Voltage of each product is marked by models.
4) Specification and performance of each parts are followed each drawing and specification by part number in accordance with BOM.
5)
The receiver must be operated for about 20 minutes prior to the adjustment .
VTest Method
1) Performance : LGE TV test method followed.
2) Demanded other specification
Safety: CE, IEC specification
EMC : CE, IEC
VGeneral Specification
Remark
Safety : IEC60065, EN60065
EMC : CISPR 13 Class B
Model Name
60PY2D
Market
Australia
Broadcasting system
Available Channel
Tuner IF
Input Voltage
PDP Module
Aspect ratio
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
1
2
3
4
5
6
7
8
9
10
No Item Specification Remark
Min Typ Max Unit
PAL-B/G, DTV : DVB-T
VHF : 00~12
UHF : 28~69
CATV : 02~44
DTV : 06~12, 27~69
PAL : 38.90 MHz
DVB-T : 36.167 MHz
240V~, 50Hz
PDP60X5
16:9(wide)
040 deg
85 %
-20 60 deg
85 %
Maker : Sanken
RGB Close Type
All manuals and user guides at all-guides.com

VPDP MODULE(PDP60X5)
1) General Specification
2) Electro Optical Characteristic Specifications
3) Cell Defects
1319.6(H) * 741.9(V) ± 0.5 mm
1408(H) * 828(V) * 60(D) ± 1 mm
1366(H) * 768(V)
322(H) * 966(V)
U m
RGB vertical stripe
32 33 34 Kg
122 123 124 Kg
0 ~ 40 deg
20 ~ 80 %
800 ~ 1100 hPa
-20 ~ 60 deg
10 ~ 90 %
700 ~ 1100 hPa
4.5 5 5.5 min
14 15 16 min
- 8 -
Non ignition dot A zone
+ Unstable dot B zone
Uncontrollable dot A zone
B zone
Non extinguishing dot A zone
B zone
Cell defect distance
Total cell defects
Display area
Outline dimension
Number of Pixels
Cell Pitch
Color arrangement
Weight(net)
weight(gross)
Operating Temperature
Environment Humidity
Pressure
Storage Temperature
Environment Humidity
Pressure
Image stick Start time
minimization mode Low Brightness Arrival Time
1
2
3
4
5
6
7
8
9
10
No Item Specification Remark
Min Typ Max Unit
1Pixel = 3RGB Cells
1Pixel = 3RGB Cells
3EA 1BOX
Altitude : 0 to 2000M
750 1000 cd/m2
130 160 cd/m2
-15 0 15 %
0.275 0.290 0.305
0.310 0.325 0.340
-0.010 Ave. +0.010
3500:1 5000:1
40:1 60:1
500 570 W
White peak brightness
White average brightness
Brightness uniformity
Color coordinate WHITE X
Y
Color coordinate uniformity
Contrast ratio at dark room
Contrast ratio at office room
Power Consumption
1
2
3
4
5
6
7
8
No Item Specification Remark
Min Typ Max Unit
1/25 white window
Full white
Full white
Full White
4 Cells/screen
11
2Cells/screen
3
0 Cells/screen
0
25 mm
15 sub pixel
1
2
3
4
5
No Item Specification Remark
Min Typ Max Unit
2 cell conjunction point : N < 2
3 cell conjunction point : N = 0
2 cell conjunction point : N = 0
2 cell conjunction point : N = 0
Full screen
All manuals and user guides at all-guides.com

- 9 -

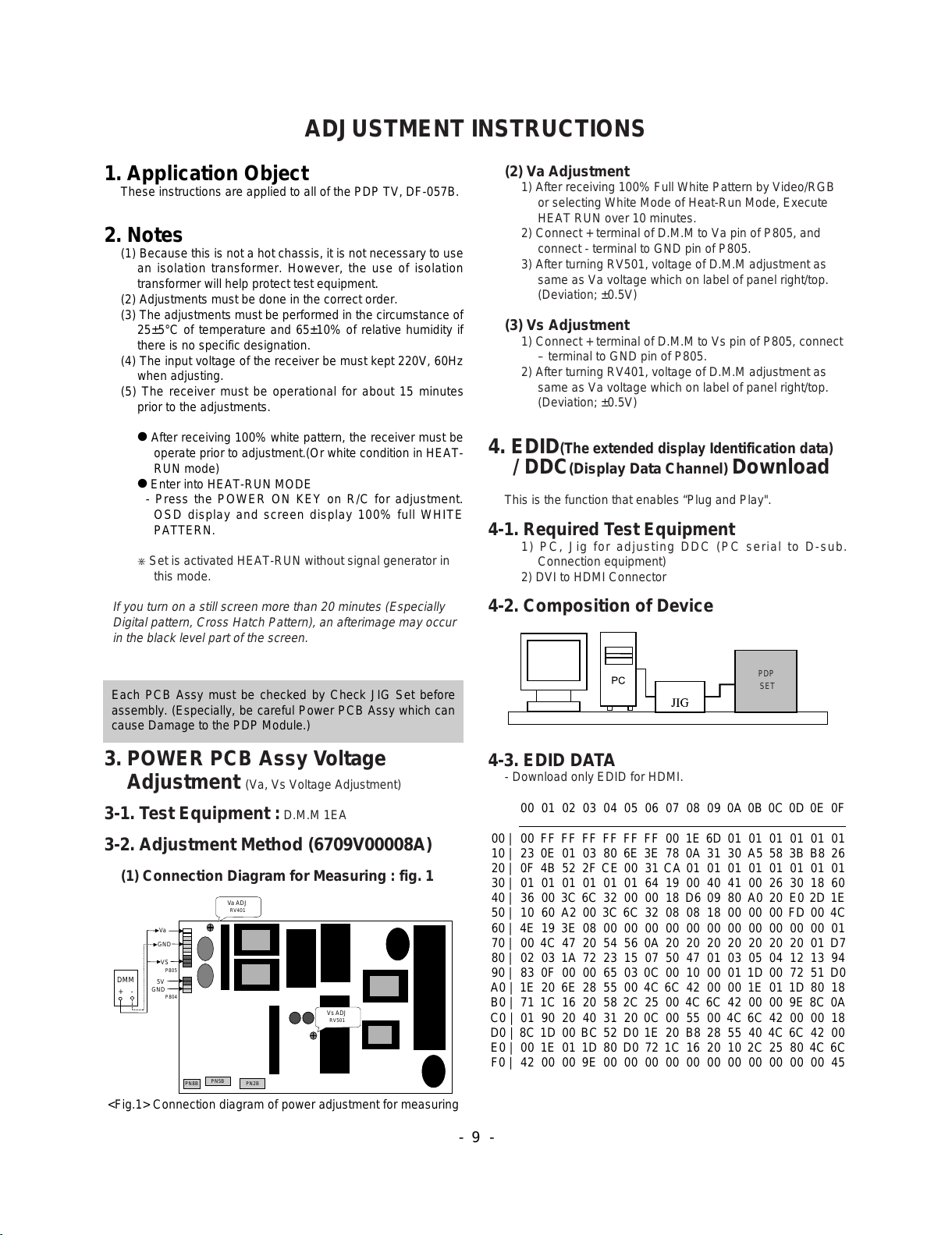

1. Application Object
These instructions are applied to all of the PDP TV, DF-057B.
2. Notes
(1) Because this is not a hot chassis, it is not necessary to use
an isolation transformer. However, the use of isolation
transformer will help protect test equipment.
(2) Adjustments must be done in the correct order.
(3) The adjustments must be performed in the circumstance of
25±5°C of temperature and 65±10% of relative humidity if
there is no specific designation.
(4) The input voltage of the receiver be must kept 220V, 60Hz
when adjusting.
(5) The receiver must be operational for about 15 minutes
prior to the adjustments.
OAfter receiving 100% white pattern, the receiver must be
operate prior to adjustment.(Or white condition in HEAT-
RUN mode)
OEnter into HEAT-RUN MODE
- Press the POWER ON KEY on R/C for adjustment.
OSD display and screen display 100% full WHITE
PATTERN.
[Set is activated HEAT-RUN without signal generator in
this mode.
If you turn on a still screen more than 20 minutes (Especially
Digital pattern, Cross Hatch Pattern), an afterimage may occur
in the black level part of the screen.
3. POWER PCB Assy Voltage
Adjustment (Va, Vs Voltage Adjustment)
3-1. Test Equipment :D.M.M 1EA
3-2. Adjustment Method (6709V00008A)
(1) Connection Diagram for Measuring : fig. 1
(2) Va Adjustment
1) After receiving 100% Full White Pattern by Video/RGB
or selecting White Mode of Heat-Run Mode, Execute
HEAT RUN over 10 minutes.
2) Connect + terminal of D.M.M to Va pin of P805, and
connect - terminal to GND pin of P805.
3) After turning RV501, voltage of D.M.M adjustment as
same as Va voltage which on label of panel right/top.
(Deviation; ±0.5V)
(3) Vs Adjustment
1) Connect + terminal of D.M.M to Vs pin of P805, connect
– terminal to GND pin of P805.
2) After turning RV401, voltage of D.M.M adjustment as
same as Va voltage which on label of panel right/top.
(Deviation; ±0.5V)
4. EDID (The extended display Identification data)
/ DDC(Display Data Channel) Download
This is the function that enables “Plug and Play".
4-1. Required Test Equipment
1) PC, Jig for adjusting DDC (PC serial to D-sub.
Connection equipment)
2) DVI to HDMI Connector
4-2. Composition of Device
4-3. EDID DATA
- Download only EDID for HDMI.
ADJUSTMENT INSTRUCTIONS
Each PCB Assy must be checked by Check JIG Set before
assembly. (Especially, be careful Power PCB Assy which can
cause Damage to the PDP Module.)
P805
Va
GND
VS
DMM
+ -
PN8B PN2B
PN5B
5V
GNDP804
Va ADJ
RV401
Vs ADJ
RV501
<Fig.1> Connection diagram of power adjustment for measuring
PDP
SET
00 |
10 |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
A0 |
B0 |
C0 |
D0 |
E0 |
F0 |
00
00
23
0F
01
36
10
4E
00
02
83
1E
71
01
8C
00
42
01
FF
0E
4B
01
00
60
19
4C
03
0F
20
1C
90
1D
1E
00
02
FF
01
52
01
3C
A2
3E
47
1A
00
6E
16
20
00
01
00
03
FF
03
2F
01
6C
00
08
20
72
00
28
20
40
BC
1D
9E
04
FF
80
CE
01
32
3C
00
54
23
65
55
58
31
52
80
00
05
FF
6E
00
01
00
6C
00
56
15
03
00
2C
20
D0
D0
00
06
FF
3E
31
64
00
32
00
0A
07
0C
4C
25
0C
1E
72
00
07
00
78
CA
19
18
08
00
20
50
00
6C
00
00
20
1C
00
08
1E
0A
01
00
D6
08
00
20
47
10
42
4C
55
B8
16
00
09
6D
31
01
40
09
18
00
20
01
00
00
6C
00
28
20
00
0A
01
30
01
41
80
00
00
20
03
01
00
42
4C
55
10
00
0B
01
A5
01
00
A0
00
00
20
05
1D
1E
00
6C
40
2C
00
0C
01
58
01
26
20
00
00
20
04
00
01
00
42
4C
25
00
0D
01
3B
01
30
E0
FD
00
20
12
72
1D
9E
00
6C
80
00
0E
01
B8
01
18
2D
00
00
01
13
51
80
8C
00
42
4C
00
0F
01
26
01
60
1E
4C
01
D7
94
D0
18
0A
18
00
6C
45
All manuals and user guides at all-guides.com

- 10 -

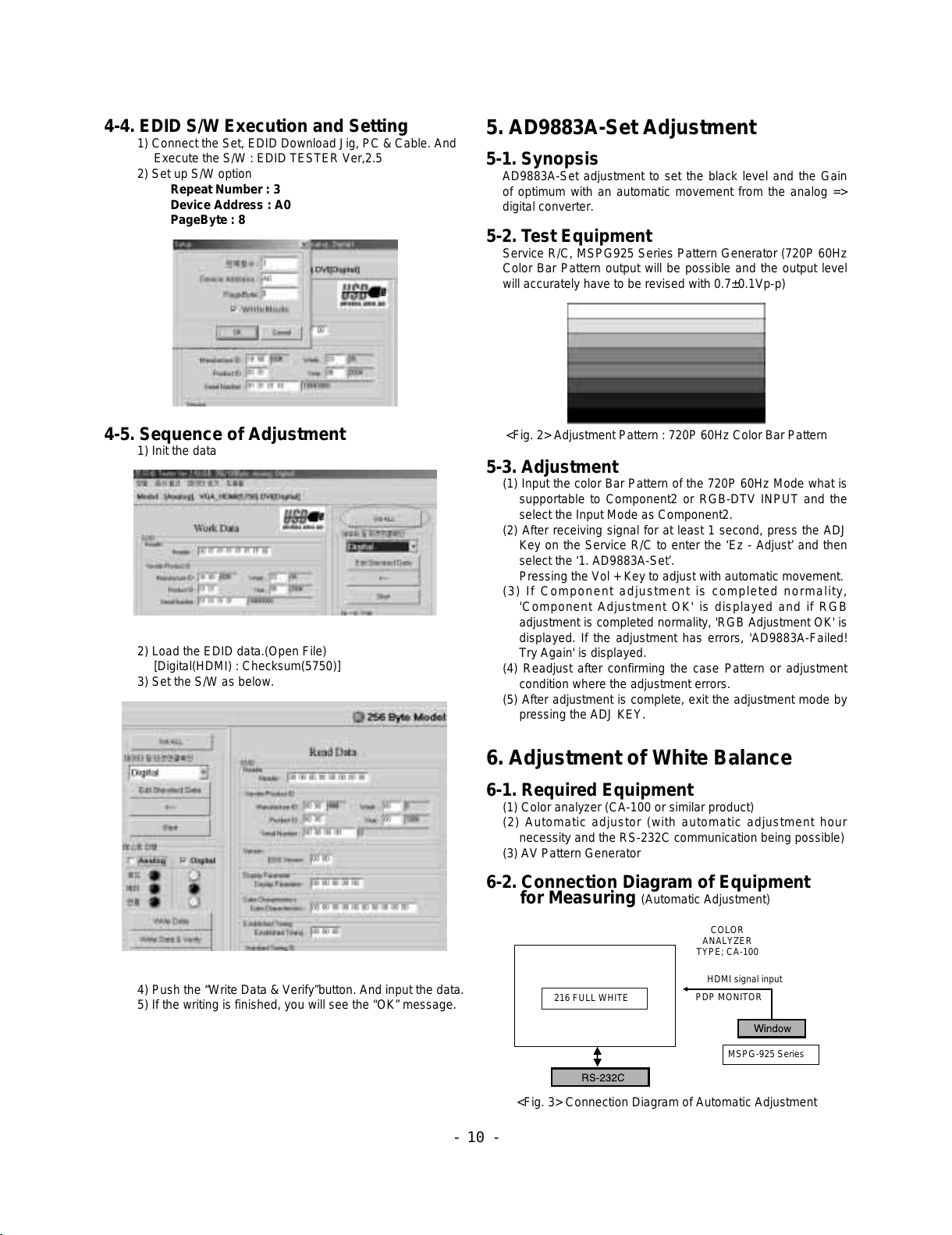

4-4. EDID S/W Execution and Setting
1) Connect the Set, EDID Download Jig, PC & Cable. And
Execute the S/W : EDID TESTER Ver,2.5
2) Set up S/W option
Repeat Number : 3
Device Address : A0
PageByte : 8
4-5. Sequence of Adjustment
1) Init the data
2) Load the EDID data.(Open File)
[Digital(HDMI) : Checksum(5750)]
3) Set the S/W as below.
4) Push the “Write Data & Verify”button. And input the data.
5) If the writing is finished, you will see the “OK” message.
5. AD9883A-Set Adjustment
5-1. Synopsis
AD9883A-Set adjustment to set the black level and the Gain
of optimum with an automatic movement from the analog =>
digital converter.
5-2. Test Equipment
Service R/C, MSPG925 Series Pattern Generator (720P 60Hz
Color Bar Pattern output will be possible and the output level
will accurately have to be revised with 0.7±0.1Vp-p)
5-3. Adjustment
(1) Input the color Bar Pattern of the 720P 60Hz Mode what is
supportable to Component2 or RGB-DTV INPUT and the
select the Input Mode as Component2.
(2) After receiving signal for at least 1 second, press the ADJ
Key on the Service R/C to enter the ‘Ez - Adjust’ and then
select the ‘1. AD9883A-Set’.
Pressing the Vol + Key to adjust with automatic movement.
(3) If Component adjustment is completed normality,
'Component Adjustment OK' is displayed and if RGB
adjustment is completed normality, 'RGB Adjustment OK' is
displayed. If the adjustment has errors, 'AD9883A-Failed!
Try Again' is displayed.
(4) Readjust after confirming the case Pattern or adjustment
condition where the adjustment errors.
(5) After adjustment is complete, exit the adjustment mode by
pressing the ADJ KEY.
6. Adjustment of White Balance
6-1. Required Equipment
(1) Color analyzer (CA-100 or similar product)
(2) Automatic adjustor (with automatic adjustment hour
necessity and the RS-232C communication being possible)
(3) AV Pattern Generator
6-2. Connection Diagram of Equipment
for Measuring (Automatic Adjustment)
<Fig. 2> Adjustment Pattern : 720P 60Hz Color Bar Pattern
<Fig. 3> Connection Diagram of Automatic Adjustment
216 FULL WHITE
HDMI signal input
PDP MONITOR
COLOR
ANALYZER
TYPE; CA-100
MSPG-925 Series
All manuals and user guides at all-guides.com

- 11 -
[[. RS-232C Command (Automatic Adjustment)
6-3. Adjustment of White Balance(manual)
O Operate the Zero-calibration of the CA-100, then attach
sensor to PDP module surface when you adjust.
O Manual adjustment is also possible by the following sequence.
(1) Enter ‘3.White-Pattern’ by pressing ADJ KEY on the
Service Remote Control.
(2) Select "Test Pattern White" using Vol +/- Key and Execute
HEAT RUN at least 15 minutes.
(3) Receive the HDMI/DVI 720p 60Hz, Full size, 216 Gray
window pattern signal from AV Pattern Generator.
Input mode : HDMI/DVI
Baud rate = 115200bps
(4) Select the condition of screen Adjustment as ‘Dynamic’.
(5) After attaching sensor to center of screen, select ‘2. White-
Balance’ in ‘Ez - Adjust’ by pressing the ADJ KEY on the
Service R/C. Then enter adjustment mode by pressing the
Right KEY (
G ) .
a. In case color temperature is Cool.
B Gain = 192(lock)
R-Offset/ G-Offset/ B-Offset : 57/ 54/ 54 (lock)
Adjust the High Light by using R Gain/ G Gain.
b. In case color temperature is Medium
R Gain = 192 (lock)
R-Offset/ G-Offset/ B-Offset : 57/ 54/ 54 (lock)
Adjust the High Light by using G Gain/ B Gain.
c. In case color temperature is Warm
R Gain = 192 (lock)
R-Offset/ G-Offset/ B-Offset : 57/ 54/ 54 (lock)
Adjust the High Light by using G Gain/ B Gain.
(7) Adjust using Volume +/- KEY.
luminosity value : High Level : 216gray
a. Cool : X=0.278±0.002, Y=0.279±0.002
Color temperature : 11000°K±1000°K, dUV=-3dUV
b. Medium : X=0.287±0.002, Y=0.289±0.002
Color temperature : 9300°K±1000°K, dUV=-3dUV
c. Warm : X=0.315±0.002, Y=0.316±0.002
Color temperature : 6500°K±1000°K, dUV=-3dUV
(8) After adjustment is complete, move to Ez - Adjust screen
by pressing the ENTER(A) KEY. Then exit the adjustment
mode by press ADJ KEY.
R Gain
G Gain
B Gain
R Offset
G Offset
B Offset
00
00
00
00
00
00
ff
ff
ff
7f
7f
7f
Jg
Jh
Ji
Ja
Jb
Jc
Jg
Jh
Ji
C0
C0
C0
39
36
36
C0
C0
C0
39
36
36
C0
C0
C0
39
36
36
RS-232C Command
[CMD ID DATA]
Cool Mid Warm Cool Mid Warm
MIN CENTER
(DEFAULT)(Hex) MAX
All manuals and user guides at all-guides.com
all-guides.com

- 12 -

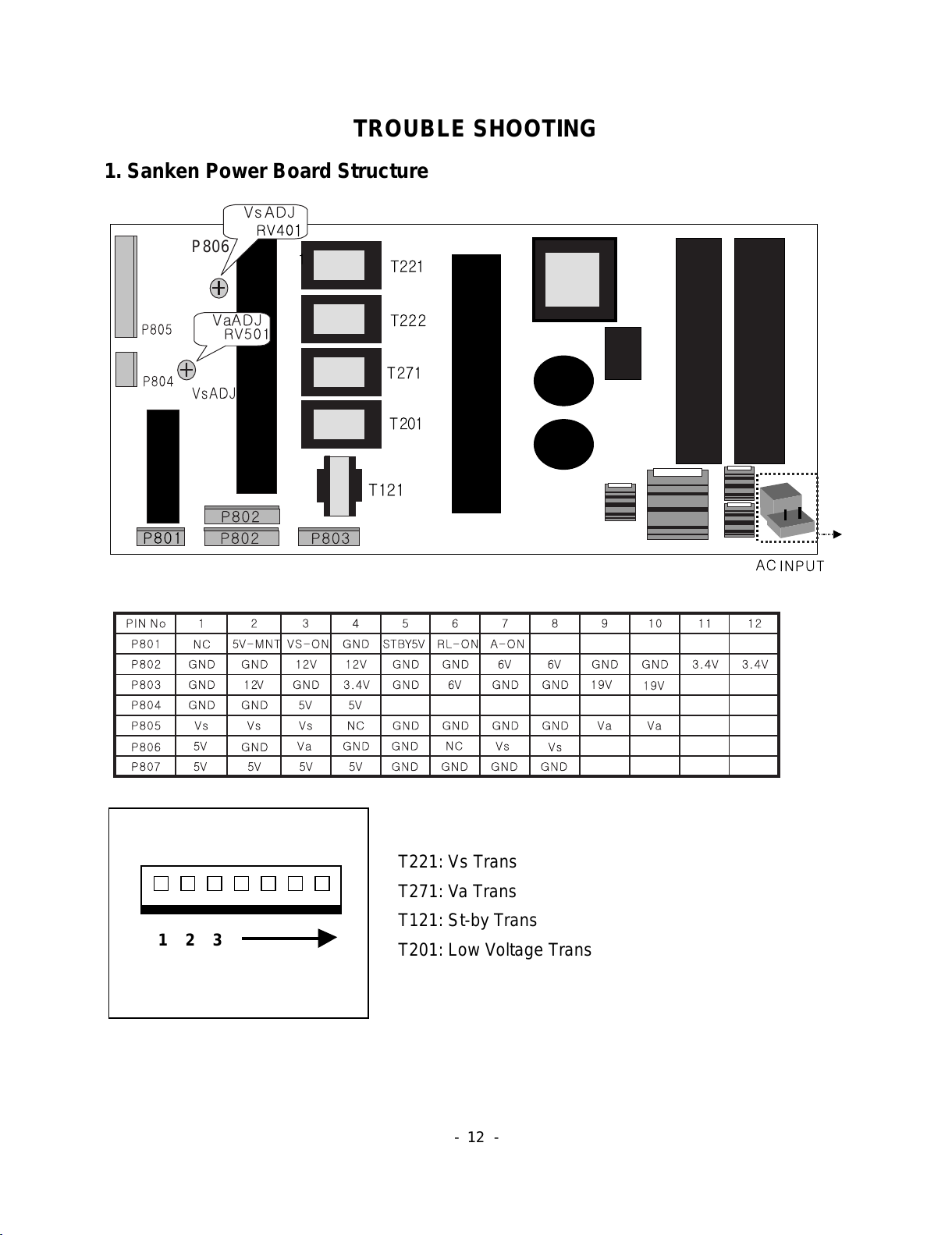

1. Sanken Power Board Structure
P806
1 2 3
T221: Vs Trans
T271: Va Trans
T121: St-by Trans
T201: Low Voltage Trans
TROUBLE SHOOTING
All manuals and user guides at all-guides.com

- 13 -
2. Protect Mode
(1) Symptom
ØAfter once shining, it does not discharged minutely
from the module
ØThe Rely falls(The sound is audible “click”)
ØIt is converted with the color where the front LED
is red from green.
(2) Check following
Is the Power Board
normal? Replace Power Board.
Is output the normality Low/High
voltage except Stand-by 5V?
Yes
No No
Is the each
connector normal? Replace the connector.
Replace
Y-Board.
After connecting well each connector,
the normality it operates?
Yes
No No
Is the Ctrl Board
normal? Replace X-Board.
Is the output voltage normal after
remove P1, 2, 4, 9, 10 connector of
Ctrl-B/D?
Yes
No Yes
Is the Y- Board
normal?
Is the output voltage
normal after remove
P5, P6 connector of
Y-B/D?
Is the Fuse(FS2) on Y-B/D normal?
(In case of open is replace)
Yes
No Yes Yes
Replace
Z-Board.
Is the Z- Board
normal?
Is the output voltage
normal after remove
P1 connector of
Z-B/D?
Is the Fuse(FS1, FS2) on Z-B/D
normal? (In case of open is replace)
Yes
No Yes
Is the X- Board
normal?
Is the output voltage normal after
remove P1, 2, 3, 4, 5 connector of
X-B/D?
After remove P1, P2, P3 output voltage
normality: Replace Right X-B/D
After remove P4, P5 output voltage
normality: Replace Left X-B/D
Yes
No Yes
Is the VSC Board
normal? Is the output voltage normal after remove P1001, P1100?
After crisis COF of each board, check the normality operates.
If in case normality operates, correspondence COF Fail is
replace the module.
After remove P1001, 1100 normal
operation: Replace VSC Board
Yes
No
Is the COF of X, Y, Z
normal?
No
Yes
Yes
All manuals and user guides at all-guides.com

- 14 -

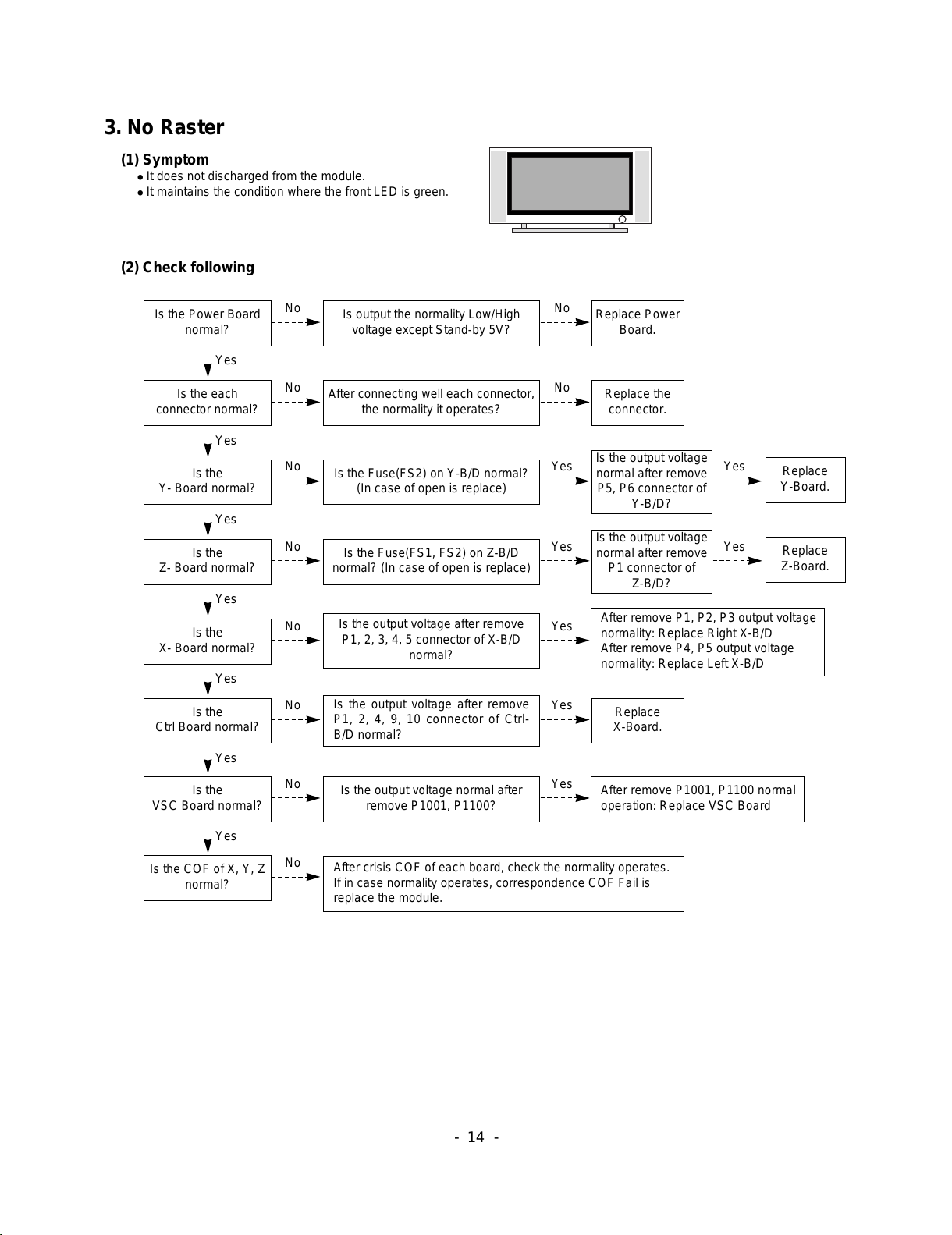

3. No Raster
(1) Symptom
ØIt does not discharged from the module.
ØIt maintains the condition where the front LED is green.
(2) Check following
Is the Power Board
normal? Replace Power Board.
Is output the normality Low/High
voltage except Stand-by 5V?
Yes
No No
Is the each
connector normal? Replace the connector.
Replace
Y-Board.
After connecting well each connector,
the normality it operates?
Yes
No No
Is the
Ctrl Board normal? Replace X-Board.
Is the output voltage after remove
P1, 2, 4, 9, 10 connector of Ctrl-
B/D normal?
Yes
No Yes
Is the
Y- Board normal?
Is the output voltage
normal after remove
P5, P6 connector of
Y-B/D?
Is the Fuse(FS2) on Y-B/D normal?
(In case of open is replace)
Yes
No Yes Yes
Replace
Z-Board.
Is the
Z- Board normal?
Is the output voltage
normal after remove
P1 connector of
Z-B/D?
Is the Fuse(FS1, FS2) on Z-B/D
normal? (In case of open is replace)
Yes
No Yes
Is the
X- Board normal?
Is the output voltage after remove
P1, 2, 3, 4, 5 connector of X-B/D
normal?
After remove P1, P2, P3 output voltage
normality: Replace Right X-B/D
After remove P4, P5 output voltage
normality: Replace Left X-B/D
Yes
No Yes
Is the
VSC Board normal? Is the output voltage normal after remove P1001, P1100?
After crisis COF of each board, check the normality operates.
If in case normality operates, correspondence COF Fail is
replace the module.
After remove P1001, P1100 normal
operation: Replace VSC Board
Yes
No
Is the COF of X, Y, Z
normal?
No
Yes
Yes
All manuals and user guides at all-guides.com

4. No Power
(1) Symptom
ØIt is not discharged minutely from the module.
ØLight does not come in into the front LED.
(2) Check following
- 15 -
Is the power cord plug in? Plug in the power cord.
Yes
No
Is the Line Filter and Power
Board Cable connected? Connect the Cable.
Yes
No
Is the Fuse(F101)
on Power Board normal? Replace the Fuse.
Yes
No
Yes
Is the Power Board and
VSC Board Cable connected? Connect the Cable.
Yes
No
Is the Power cables of the VSC
Board Cable connected? Replace the cables.
No
After the cable connect is
removed to Power Board(except
the CN101 connection cable), the
AC voltage marking is authorized
on manual. When ST-BY 5V is not
operated, replace Power Board
All manuals and user guides at all-guides.com

- 16 -
5. In case of occurring strange screen into specific mode
5-1. In case the OSD does not displayed
(1) Symptom
ØLED is green
ØThe minute discharge continuously becomes
accomplished from module
(2) Check following
Is the LVDS cable
normal?
Is the VSC Digital
Board normal?
Is the LVDS cable
connected correctly?
Connect the cable correctly.
Yes
No
No
Yes
Does the Thine IC
(IC1401)operates ?
Replace Thine
IC(IC1401).
No
Is the Ctrl Board of
Module normal? Replace Ctrl B/D.
No
No
Does the IEP
(IC1301) operates?
Replace
IEP(IC1301).
Yes
No
Does the scaler
(IC701) Operates?
Replace
Scaler(IC701).
Yes
Replace the cable.
Yes
Replace the VSC
Digital B/D
Yes
No
All manuals and user guides at all-guides.com
all-guides.com

- 17 -
5-2. In case of does’t display the screen into specific mode
(1) Symptom
ØThe screen does not become the display from specific input mode
(2) Check following
ØCheck the all input mode should become normality display .
ØCheck the Video(Main)/Data(Sub), Video(Main)/Video(Sub) should become
normality display from the PIP mode or DW mode. (Re-Check it Swap)
Check the VPC3230(IC201) if the main picture is abnormal, and
Check the VPX3226(IC301) if the sub picture is abnormal.
(3) In case of becomes unusual display from RF mode
(4) In the case of becomes unusual display from AV mode
Is the Tuner normal?
Is the CXA2069Q
(IC301) normal?
Is the Tuner Cable|
connected correctly?
Connect the Cable correctly.
Yes
No
No
Yes
Is the VPC3230 or
VPX3226 normal?
Replace the Tuner
No
Is the Input voltage, IIC Communication
and CVBS output normal?
Yes
Is the Input voltage, IIC
Communication and HV sync
normal?
No Replace the IC No
Is the Input voltage, IIC
Communication and HV sync
normal?
No Replace the IC No
Is the CXA2069Q
normal?
Yes
Yes
Is the VPC3230 or
VPX3226 normal?
Is the Scaler normal?
Is the Input voltage, IIC
Communication and HV sync
normal?
No Replace the IC No
Is the Input voltage, IIC
Communication and HV sync
normal?
Is the Input voltage, IIC
Communication and HV
sync normal?
No
No
Replace the IC
Replace the IC
No
No
All manuals and user guides at all-guides.com

- 18 -
(5) in case of becomes unusual display from Component, RGB-DTV/PC mode
(6) in case of becomes unusual display from HDMI-DVI mode
(7) in case of becomes unusual display from HDMI-DV mode (at the PC input)
Is the CXA2181Q
(IC401) normal?
Yes
Is the AD9883
(IC501) normal?
Is the Input voltage, IIC
Communication and
HV sync normal?
No Replace the IC No
Is the Input voltage, IIC
Communication and
HV sync normal?
No Replace the IC No
Yes
Is the Scaler normal? Is the Input voltage, IIC
Communication and
HV sync normal?
No Replace the IC No
Is the EDID correct?
Yes
Is the Graphic card driver of the
PC the latest version?
Input the correct EDID in the
EEPROM(IC102)
No
Update the Graphic card driver
with the latest version
No
Yes
Is the Scaler normal? Is the Input voltage, IIC
Communication and HV sync
normal?
No Replace IC No
Is the Sil9011
(IC601) normal?
Yes
Is the Input voltage, IIC
Communication and
HV sync normal?
No Replace the IC No
Is the EDID correct?
Yes
Input the correct EDID
in the EEPROM(IC102)
No
Is the Scaler normal? Is the Input voltage, IIC
Communication and
HV sync normal?
No Replace the IC No
All manuals and user guides at all-guides.com

- 19 -

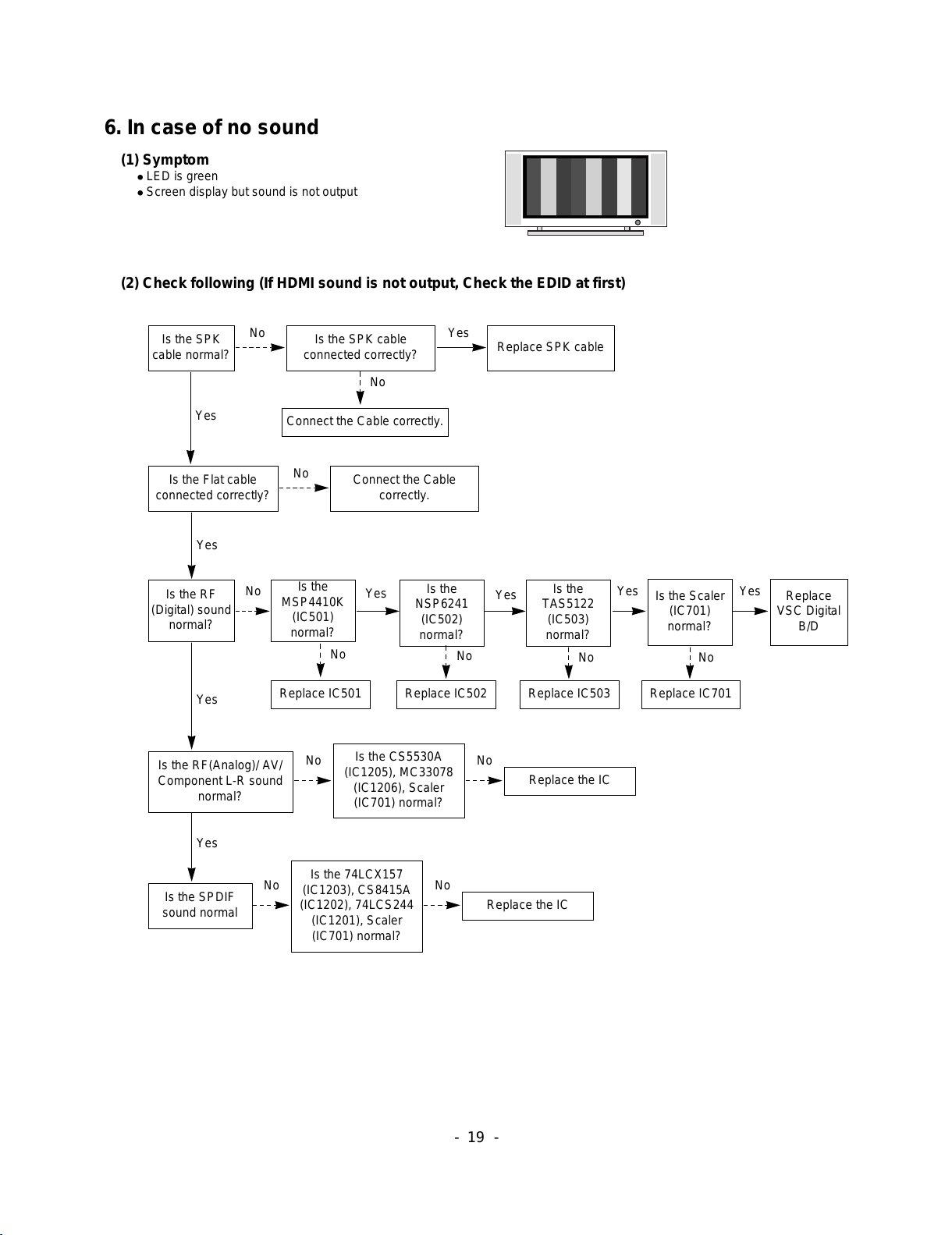

6. In case of no sound
(1) Symptom
ØLED is green
ØScreen display but sound is not output
(2) Check following (If HDMI sound is not output, Check the EDID at first)
Is the SPK
cable normal? Is the SPK cable connected correctly?
Connect the Cable correctly.
No
No
Replace IC501
No
Replace IC502
No
Replace SPK cable
Yes
Yes
Is the RF
(Digital) sound
normal?
No Is the
MSP4410K
(IC501)
normal?
Is the
NSP6241
(IC502)
normal?
Replace IC503
No No
Is the
TAS5122
(IC503)
normal?
Is the Scaler
(IC701)
normal?
Replace IC701
Yes Yes Yes
Yes
Is the RF(Analog)/ AV/
Component L-R sound
normal?
Yes
Yes
Replace
VSC Digital
B/D
Yes
Is the Flat cable
connected correctly? Connect the Cable
correctly.
No
No Is the CS5530A
(IC1205), MC33078
(IC1206), Scaler
(IC701) normal?
No Replace the IC
Is the SPDIF
sound normal
No Is the 74LCX157
(IC1203), CS8415A
(IC1202), 74LCS244
(IC1201), Scaler
(IC701) normal?
No Replace the IC
All manuals and user guides at all-guides.com

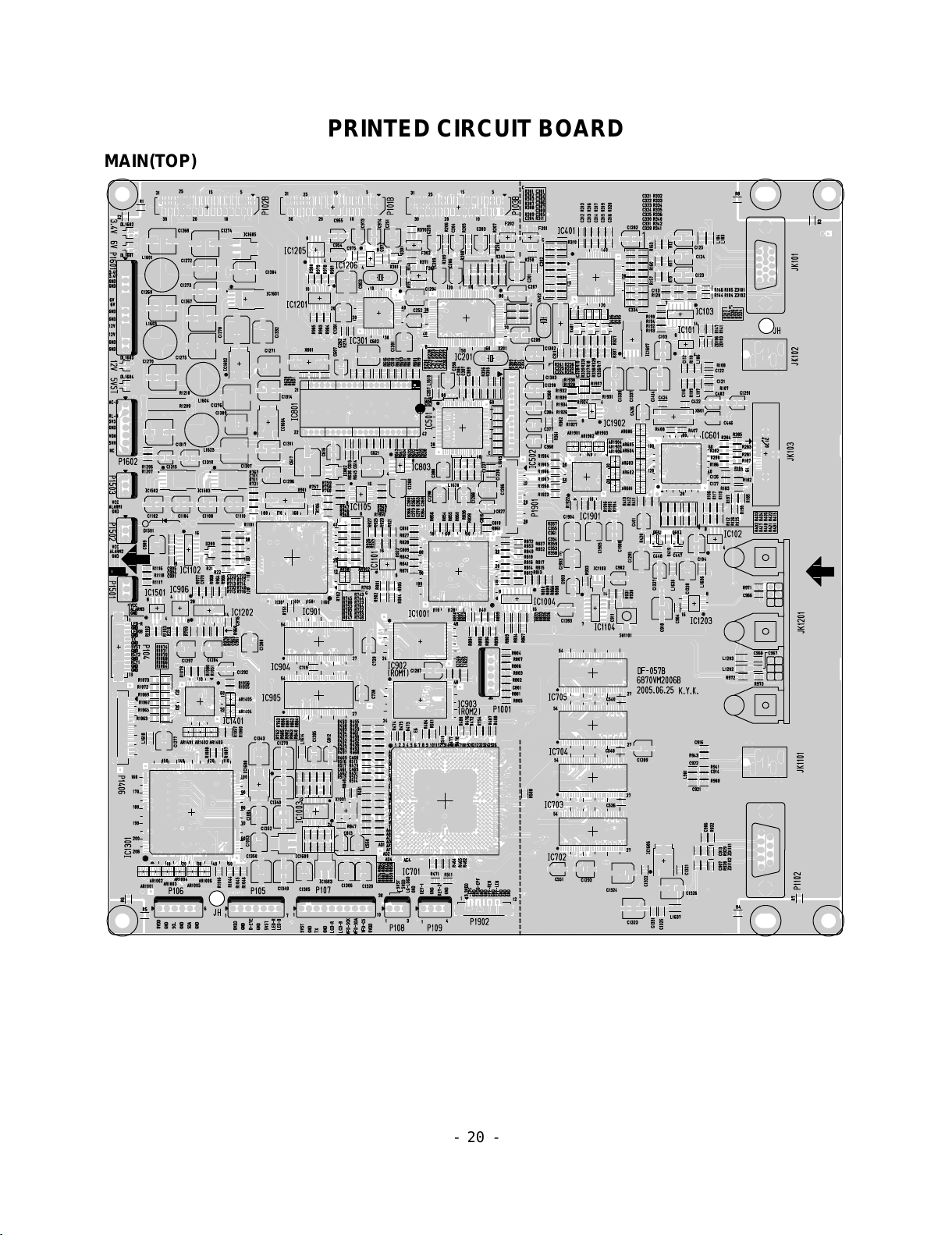

PRINTED CIRCUIT BOARD
- 20 -
MAIN(TOP)
All manuals and user guides at all-guides.com
