LG 42PX3DCV - Plasma Panel With TV Tuner User manual

PLASMA TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : AF-05FC
MODEL : 42PX3DCV 42PX3DCV-UC
CANADA : http//biz.lgservice.com
USA : http//www.lgservice.com
: http//lgservice.com/techsup.html
PR
VOL
MENUTV/AV OK

- 2 -
SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in
the Schematic Diagram and Replacement Parts List.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to
prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An lsolation Transformer should always be used during
the servicing of a receiver whose chassis is not isolated from
the AC power line. Use a transformer of adequate power rating
as this protects the technician from accidents resulting in
personal injury from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitary that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this monitor is blown, replace
it with the same specified type.
When replacing a high wattage resistor (Oxide Metal Film
Resistor, over 1W), keep the resistor 10mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source,
connect an electrical jumper across the two AC plug prongs.
Place the AC switch in the on positioin, connect one lead of
ohm-meter to the AC plug prongs tied together and touch other
ohm-meter lead in turn to each exposed metallic parts such as
antenna terminals, phone jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩ and 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC
voltmeter with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC
voltage measurements for each esposed metallic part. Any
voltage measured must not exceed 0.75 volt RMS which is
corresponds to 0.5mA.
In case any measurement is out of the limits sepcified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
CANADA: LG Electronics Canada, Inc. 550 Matheson
Boulevard East Mississauga, Ontario L4Z 4G3
USA : LG Customer Interactive Center
P.O.Box 240007, 201 James Record Road Huntsville,
AL 35824
Digital TV Hotline [phone]
1.5 Kohm/10W
To Instrument's
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
IMPORTANT SAFETY NOTICE
0.15uF

- 3 -
DESCRIPTION OF CONTROLS...........................................4
SPECIFICATIONS.................................................................8
ADJUSTMENT INSTRUCTIONS ..........................................9
BLOCK DIAGRAM...............................................................14
EXPLODED VIEW...............................................................16
EXPLODED VIEW PARTS LIST.........................................17
REPLACEMENT PARTS LIST............................................18
SCHEMATIC DIAGRAM..........................................................
PRINTED CIRCUIT BOARDS.................................................
TABLE OF CONTENTS

- 4 -
- This is a simplified representation of front panel.
Here shown may be somewhat different from your TV.
Controls
Controls

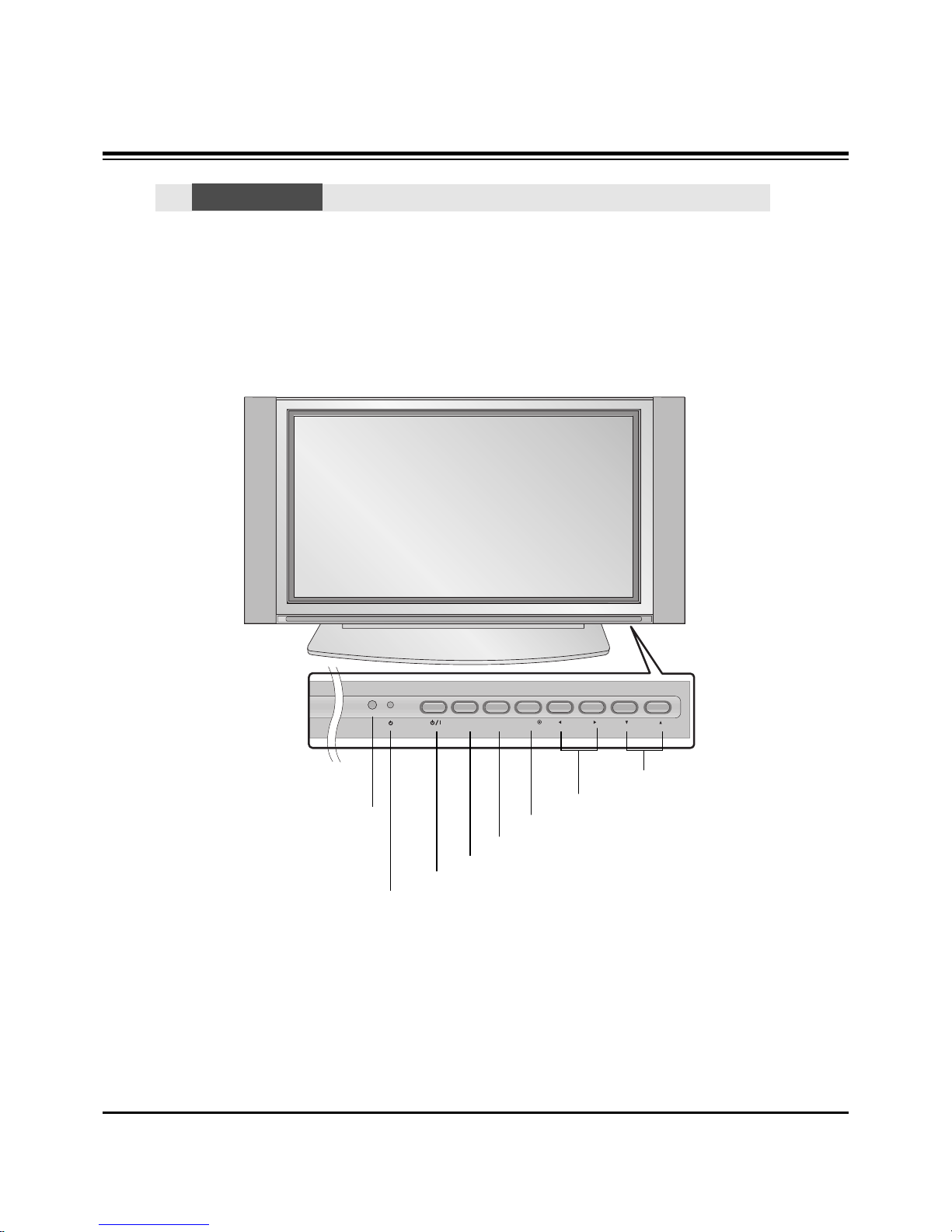

Front Panel Controls
Front Panel Controls
MENU VOL CH
TV/VIDEOENTER
POWER Button
Remote Control Sensor VOLUME (FF,GG) Buttons
Power Standby Indicator
Illuminates red in standby mode, Illuminates
green when the TV is turned on.
CHANNEL (EE, DD) Buttons
MENU Button
TV/VIDEO Button
ENTER Button
DESCRIPTION OF CONTROLS

- 5 -
RS-VIDEOVIDEO
L/MONO
AUDIO
FRONT
A/V INPUT
RS-232C INPUT
(CONTROL/SERVICE)
AUDIO
R
L
DVI
INPUT
COMPONENT2
INPUT
OUTPUT
AUDIO
INPUT
RGB INPUT
VIDEO
HDMI /DVI
COMPONENTINPUT1
R
L
(MONO)
CABLE
ANTENNA
ACINPUT
DVD
/DTV
INPUT
COMPONENTINPUT2
MONITOROUTPUT
A/V INPUT
VIDEO
AUDIO
S-VIDEO
REMOTE
CONTROL
DIGITAL AUDIO (OPTICAL)
S-VIDEO Input
A connection available to provide bet-
ter picture quality than the video input.
VIDEO Input
Connects the video signal from a
video device.
AUDIO Input
Use to connect to hear stereo sound
from an external device.
Antenna Input
Connect over-the-
air signals to this
jack.
RGB/AUDIO INPUT
Connect the monitor output connector
from a PC to the appropriate input port.
Digital Audio (DVI: Digital Visual
Interface/Component2) Input/
Digital Audio Output
Connect digital audio from vari-
ous types of equipment. Note: In
standby mode,
these ports will not work.
DVD/DTV Input
(Component 1-2)
Connect a component
video/audio device to
these jacks.
Monitor Output
Connect a sec-
ond TV or
Monitor.
Remote Control Port
Connect your wired
remote control here.
S-Video Input
Connect S-Video out
from an S-VIDEO
device to the S-
VIDEO input.
CABLE Input
Connect cable signals to this
jack, either directly or through
a cable box.
RS-232C INPUT (CON-
TROL/SERVICE) PORT
Connect to the RS-232C
port on a PC.
HDMI/DVI
connect a
DVI(Video)
signal to
HDMI/DVI.
Audio/Video Input
Connect audio/video
output from an
external device to
these jacks.
Power Cord Socket
This TV operates on an AC power. The voltage
is indicated on the Specifications page. Never
attempt to operate the TV on DC power.

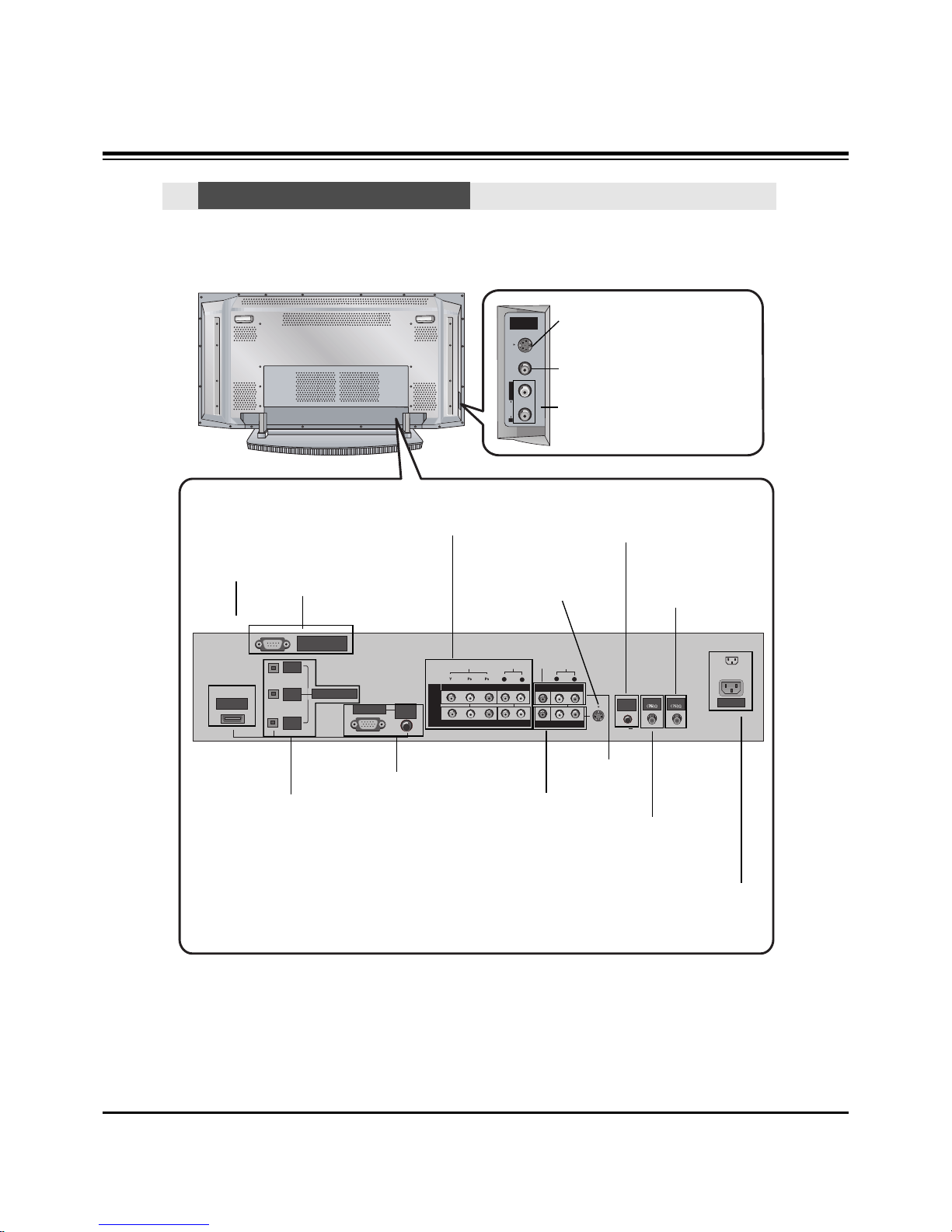

Connection Options
Connection Options
Back Connection Panel
Back Connection Panel
DESCRIPTION OF CONTROLS

- 6 -

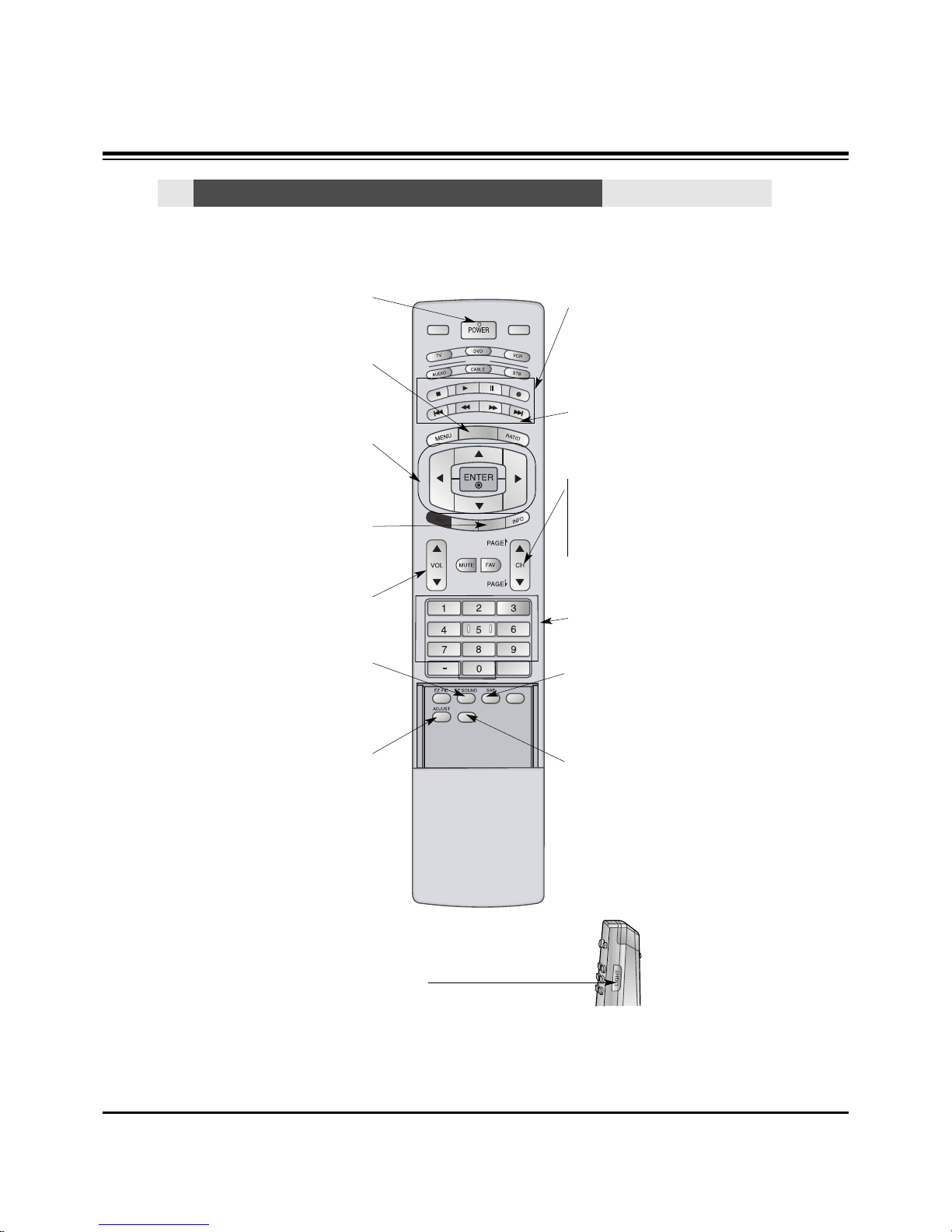

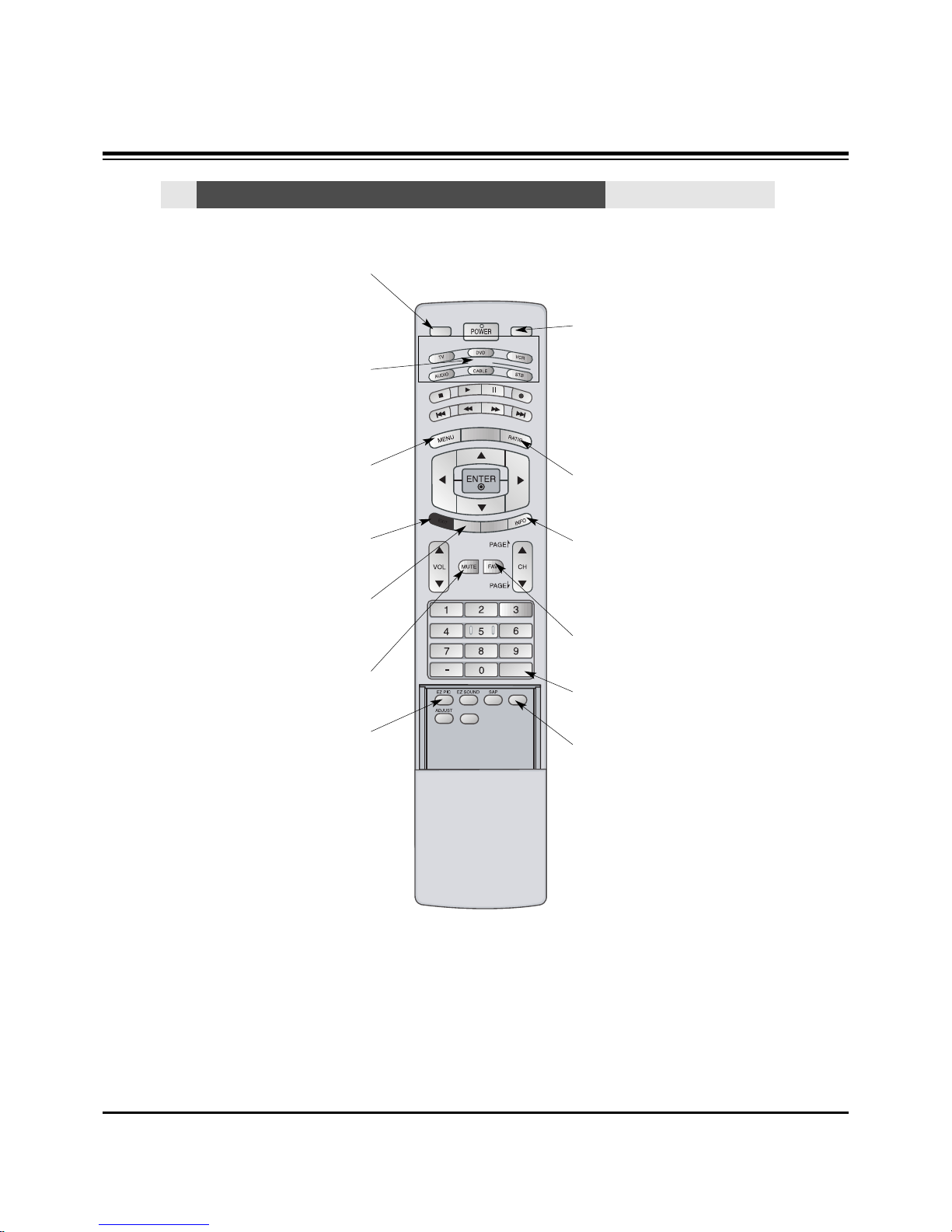

-When using the remote control, aim it at the remote control sensor on the TV.
MODE
DAY -
DAY +
FLASHBK
TIMER
FREEZE
TV INPUT TV/VIDEO
EXIT
GUIDE
CC
APM
TV INPUT
• Rotates the input mode between Antenna
and Cable.
• Video, Front Video, Component 1-2, RGB-
DTV (or RGB-PC) and HDMI/DVI input
sources, screen returns to the last TV.
MUTE
Switches the sound on or off.
MODE
Selects the remote operating mode: TV,
DVD, VCR, AUDIO, CABLE or STB. Select
a mode other than TV, for the remote to
operate an external device.
FLASHBK
Tunes to the recent channels.
EXIT
Clears all on-screen displays and returns to
TV viewing from any menu.
TIMER
Lets you select the amount of time before
your TV turns itself off automatically.
MENU
Brings up the main menu to the screen.
EZ PIC
Selects a factory preset picture mode
depending on the viewing environment. FREEZE
Freezes the currently-viewed picture.
Main picture is frozen.
TV/VIDEO
External input modes rotate in regular
sequence: Antenna, Cable, Video, Front
Video, Component 1-2, RGB-DTV (or
RGB-PC) and HDMI/DVI input sources.
(Video, Front Video, Component 1-2 input
sources are linked automatically, only if
these are connected )
RATIO
Changes the aspect ratio.
INFO
When you watch the TV, information dis-
plays on top of the screen. Not available
in Component 1-2, RGB and HDMI/DVI
mode.
FAV
Scrolls the Favorite channels.
Remote Control Key Functions
Remote Control Key Functions
DESCRIPTION OF CONTROLS

- 7 -
DAY+/DAY-
Moves the Listings Grid forward or back-
ward in 24 hour increments.
MODE
DAY -
DAY +
FLASHBK
TIMER
FREEZE
TV INPUT TV/VIDEO
EXIT
GUIDE
CC
APM
NUMBER buttons
VCR/DVD BUTTONS
• Control some video cassette recorders
or DVD players. ("RECORD" button is not
available for DVD players.)
POWER
Turns your TV or any other programmed
equipment on or off, depending on mode.
CC
Select a closed caption:
Off, CC1~4, Text1~4.
THUMBSTICK (Up/Down/Left/Right/ENTER)
Allows you to navigate the on-screen menus
and adjust the system settings to your pref-
erence. CHANNEL UP/DOWN
Selects available channels found with EZ
scan.
PAGE UP/PAGE DOWN
Moves from one full set of screen infor-
mation to the next one.
EZ SOUND
Selects the sound appropriate for the pro-
gram's character. SAP
Selects MTS sound: Mono, Stereo, and
SAP in Analog mode. Change the audio
language in DTV mode.
LIGHT
Illuminates the remote control
buttons of selected mode.
VOLUME UP/DOWN
Increases/decreases the sound level.
GUIDE
Shows program schedule.
ADJUST
Adjusts screen position, size, and phase in
PC mode.
Remote Control Key Functions
Remote Control Key Functions
APM(Adaptive Picture Mode)
Concurrently, compare with the
Daylight, Normal, Night Time.and
Custom on the screen.
DESCRIPTION OF CONTROLS

- 8 -
•The specifications shown above may be changed without prior notice for quality improvement.
MODELS
AC100-240V ~ 50/60Hz
NTSC-M, ATSC, 64 & 256 QAM
VHF 2 ~ 13, UHF 14 ~ 69, CATV 1 ~ 135, CADTV 1 ~ 135, DTV 2 ~ 69
75 Ω
32 ~ 104°F (0 ~ 40°C)
Less than 80%
47.6 / 1210
27.6 / 701
11.3 / 286.5
79.4 / 36
852 x 480 (Dot)
Width (inches / mm)
Height (inches / mm)
Depth (inches / mm)
Weight (pounds / kg)
Resolution
Power requirement
Television System
Program Coverage
External Antenna Impedance
Operating Temperature Range
Operating Humidity Range
42PX3DCV-UC
SPECIFICATIONS

1. Application Object
These instructions are applied to all of the PDP TV, AF-05FC.
2. Notes
(1) Because this is not a hot chassis, it is not necessary to use
an isolation transformer. However, the use of isolation
transformer will help protect test equipment.
(2) Adjustments must be done in the correct order.
(3) The adjustments must be performed in the conditions of
25±5°C of temperature and 65±10% of relative humidity if
there is no specific designation.
(4) The input voltage of the receiver be must kept 110V, 60Hz
during adjustment.
(5) The receiver must be operational for about 15 minutes
prior to the adjustments.
1) After receiving 100% white pattern, the receiver must be
operated 15 minutes prior to adjustment. (Or 8. White
Pattern condition in EZ - Adjust)

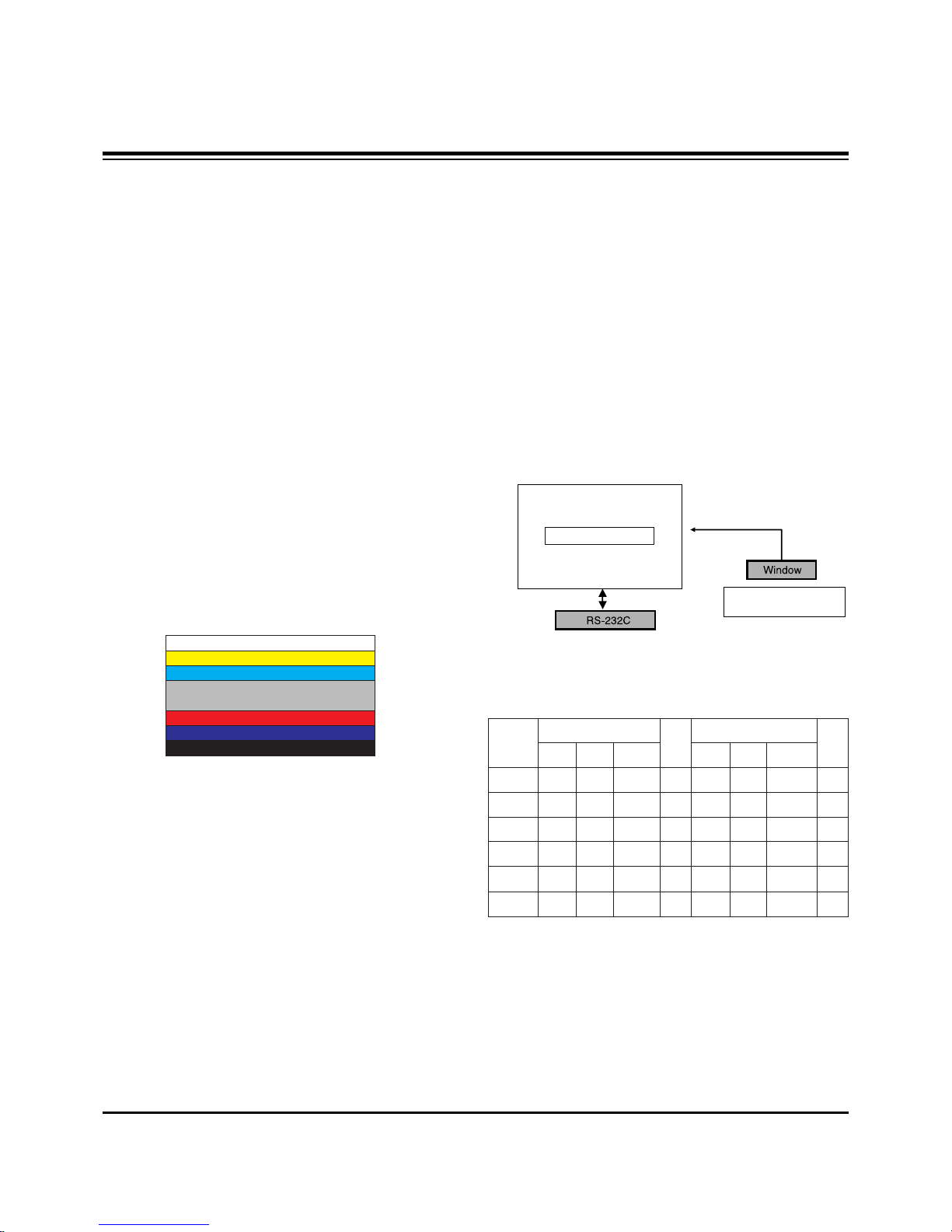

2) Enter into White Pattern
- Pressing POWER ON Key on Service Remote Control
(S R/C)
- Enter the Ez - Adjust by pressing ADJ Key on Service
Remote Control (S R/C).
- Select the 7. White Pattern using CH +/- Key and
press the Enter(Y) Key.
Display the 100% Full White Pattern.
[The set will display white screen without a signal
generator in this mode.
If you turn on a still screen more than 20 minutes (Especially
Digital pattern, Cross Hatch Pattern), an afterimage may occur
in the black level part of the screen.
3. EPLD Download
(1) Test Equipment: PC, Jig for download
(2) Connect the power of VSC B/D.
(3) Execute download program(iMPACK) of PC.
(4) After executing the hot key on the Programmer, click icon
(5) End after confirming
4. POD Certificate Download
4-1. Preparation for Adjustment
(1) Connect the MEMORY JIG and PC.
(2) Turn on the JIG MAIN POWER SWITCH.
(3) After turn on the PC and MONITOR, execute the
‘Certificate Downloader v1.4’ from the screen.
4-2. Adjustment Sequence
(1) After open the ‘Certificate Downloader v1.4’, enter
Connection set and set the as same below.
The port settings are determined by each PC's setup.
(2) Select ‘Connection’ and SET connected to RS-232C.
(3) After clicking "Enter", confirm that "Enter Password:"
appears.
- 9 -
ADJUSTMENT INSTRUCTIONS
PC VSC
B/D

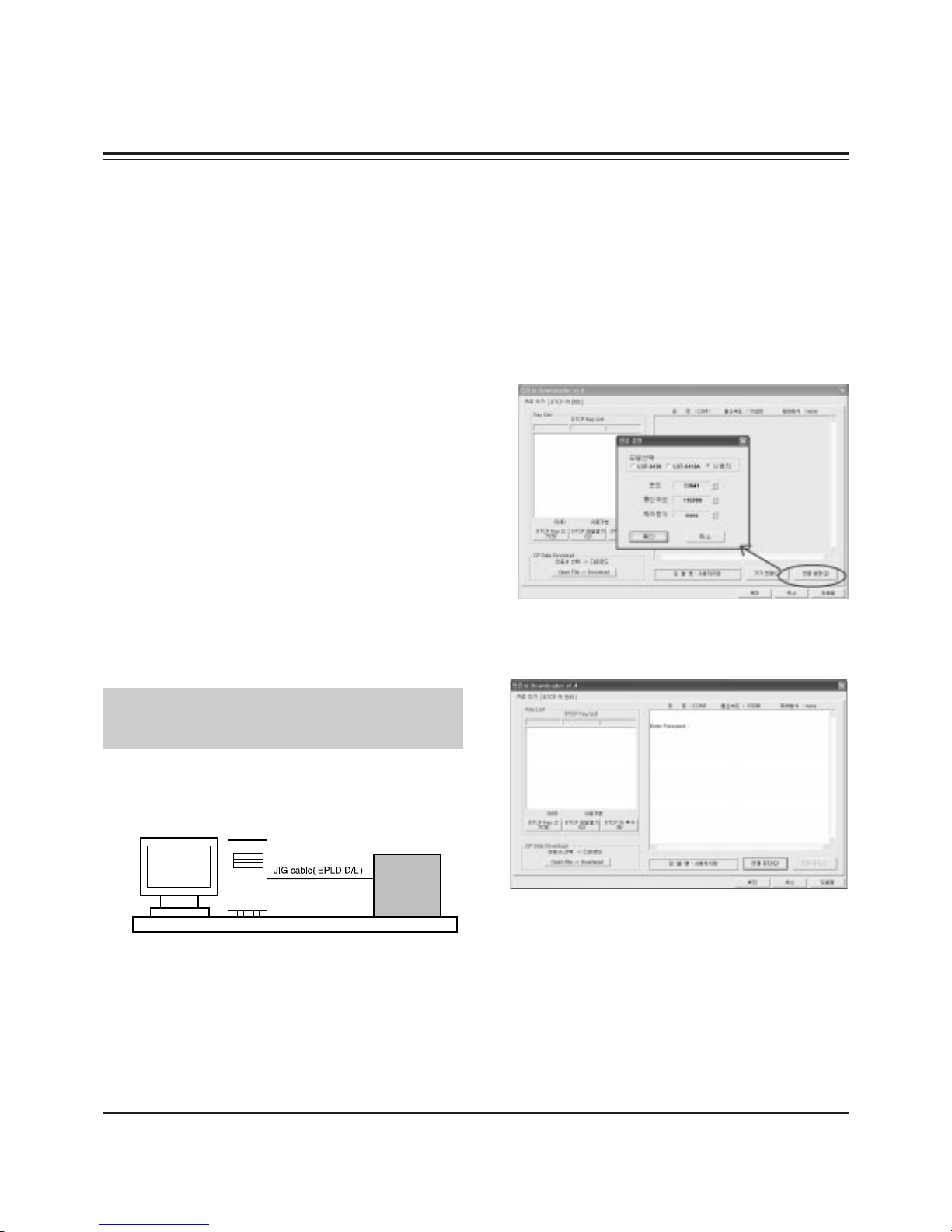

<Fig 1> Connection Diagram of EPLD Download

- 10 -
ADJUSTMENT INSTRUCTIONS

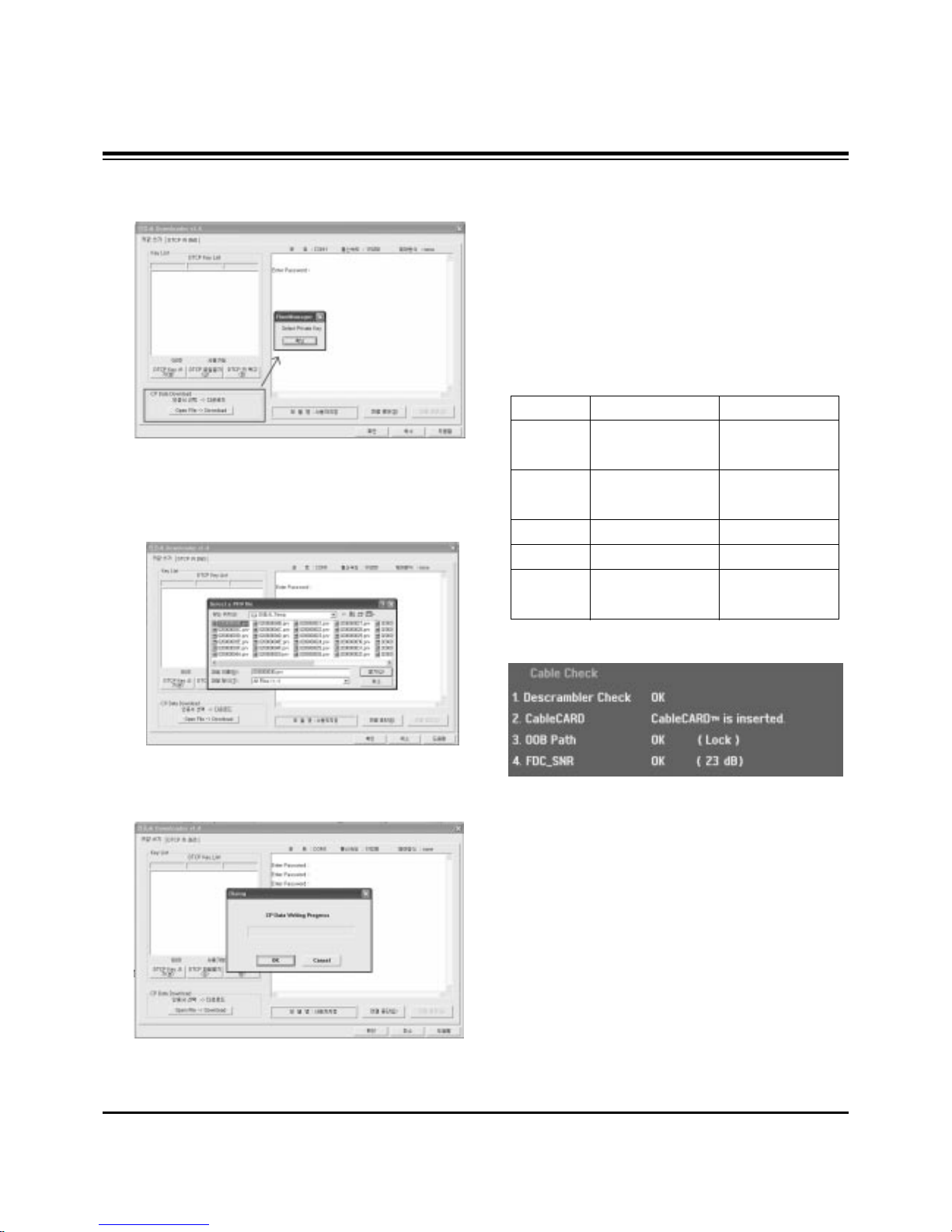

(4) Click the "OpenFile - Download" button from CP Data
Download, ‘select Private Key’ appears and click ENTER.
(5) After clicking ENTER, the ‘opens Private key' window
appears and select the Private key applied to the SET.
The Private Key file name is on the Label of the Digital
Board.
(6) When the Dialog window appears, click OK and the write
work will begin.
(7) When completed, click ‘CP Data Download: OK’
[When ‘CP Data Download: OK’ does not appear, certificate
has not Download correctly.
SET is rebooted and certificate Download work must be
repeated.
5. Cable Operation Confirmation
(1) Confirm that the Cable Card is inserted in the slot.
(2) Enter the EZ adjust menu by pressing Adjust on the
Service Remote Control (S R/C).
(3) Go to number 2 Cable Check and press the Right key (G) .
(4) Confirm items below.
Name
Descrambler
Check
CableCARD
OOB Path
FDC_SNR
Video Signal
Normal
OK
CableCARDTM
is inserted.
OK(Lock)
OK(20dB above)
Normal Screen
Defective
Not OK
CableCARDTM
is removed.
Not OK(Unlock)
Not OK(20dB under)
Black Screen
(No Picture)

- 11 -
ADJUSTMENT INSTRUCTIONS
6. POWER PCB Assy Voltage
Adjustment (Va, Vs Voltage Adjustment)
6-1. Test Equipment : D.M.M 1EA
6-2. Connection Diagram for Measuring
Refer to Fig 1.
6-3. Adjustment
(1) Va Adjustment
1) Connect + terminal of D.M.M to Va pin of P805 and
connect – terminal to GND pin of P805.
2) Adjust RV601 voltage to match that of the label on the
Top/Right of the panel. (Deviation : ±0.5V)
(2) Vs Adjustment
1) Connect + terminal of D.M.M to Vs pin of P805 and
connect – terminal to GND pin of P805.
2) Adjust RV401 voltage to match that of the label on the
Top/Right of the panel. (Deviation : ±0.5V)
7. EDID(The Extended Display
Identification Data)/DDC
(Display Data Channel) download
This is the function that enables “Plug and Play".
7-1. HDMI EDID Data Input
(1) Required Test Equipment
1) Jig for adjusting PC, DDC. (PC serial to D-sub.
Connection equipment)
2) S/W for writing DDC(EDID data write & read)
3) D-Sub cable
4) Jig for HDMI Cable connection
(2) Preparation for Adjustments &
Setting of Device
1) Set devices as below and turn on the PC and JIG.
2) Open S/W for writing DDC (EDID data write & read).
(operated in DOS mode)
7-2. EDID DATA for AF-05FC
:EDID for HDMI 1 (DDC (Display Data Channel) Data)
EDID table =
0 1 2 3 4 5 6 7 8 9 A B C D E F
__________________________________________________
00 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 | 00 0F 01 03 80 73 41 96 0A CF 74 A3 57 4C B0 23
20 | 09 48 4C 2F CE 00 31 40 45 40 61 40 01 01 01 01
30 | 01 01 01 01 01 01 01 1D 00 72 51 D0 1E 20 6E 28
40 | 55 00 C4 8E 21 00 00 1E 01 1D 80 18 71 1C 16 20
50 | 58 2C 25 00 C4 8E 21 00 00 9E 00 00 00 FC 00 4C
60 | 47 2D 54 56 0A 20 20 20 20 20 20 20 00 00 00 FD
70 | 00 3B 3C 1F 2D 08 00 0A 20 20 20 20 20 20 01 77
80 | 02 03 15 F2 46 84 85 03 02 07 06 23 15 07 50 65
90 | 03 0C 00 10 00 8C 0A D0 8A 20 E0 2D 10 10 3E 96
A0 | 00 C4 8E 21 00 00 18 8C 0A D0 8A 20 E0 2D 10 10
B0 | 3E 96 00 13 8E 21 00 00 18 8C 0A A0 14 51 F0 16
C0 | 00 26 7C 43 00 C4 8E 21 00 00 98 8C 0A A0 14 51
D0 | F0 16 00 26 7C 43 00 13 8E 21 00 00 98 00 00 00
E0 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
F0 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 88
Each PCB Assy must be checked by Check JIG Set before
assembly. (Especially, be careful Power PCB Assy which can
cause Damage to the PDP Module.)

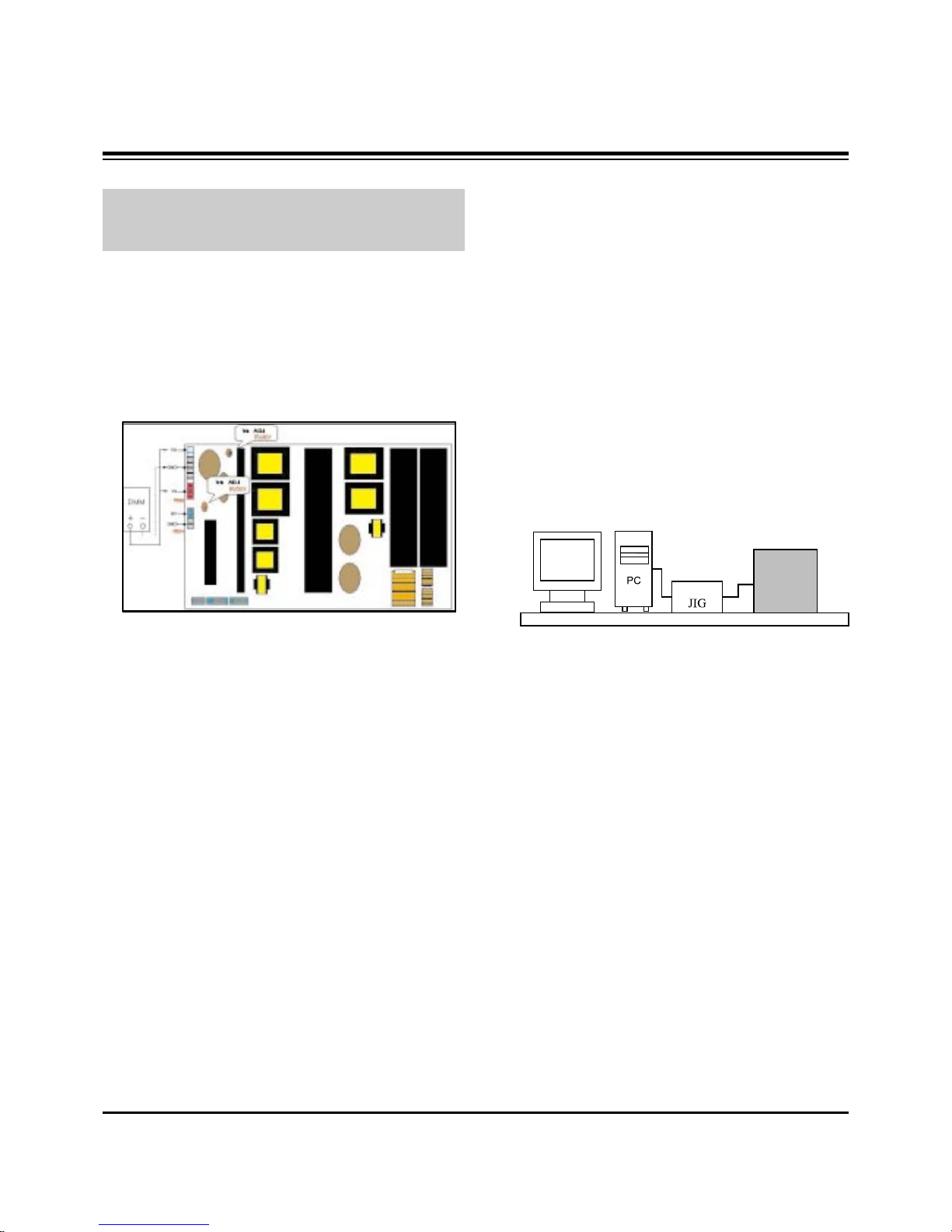

<Fig. 1> Connection Diagram of Power Adjustment for the
Measuring (Power Board)
PDP TV SET
(or Digital Board)
<Fig. 2>

- 12 -
ADJUSTMENT INSTRUCTIONS
:EDID DATA for RGB
EDID table =
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
__________________________________________________
00 | 00 FF FF FF FF FF FF 00 1E 6D 01 01 01 01 01 01
10 | 06 0D 01 03 18 5C 34 96 08 CF 72 A3 57 4C B0 23
20 | 09 45 5D EF CE 00 31 D9 31 59 45 59 01 01 01 01
30 | 01 01 01 01 01 40 C3 1E 00 20 41 00 20 30 10 60
40 | 13 00 98 08 32 00 00 18 00 00 00 FC 00 4C 47 20
50 | 54 56 0A 20 20 20 20 20 20 20 00 00 00 FD 00 30
60 | 4C 1E 64 0F 00 0A 20 20 20 20 20 20 00 00 00 00
70 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 C5
8. AD9883A-Set Adjustment
8-1. Synopsis
AD9883A-Set adjustment to set the black level and the Gain
of optimum with an automatic movement from the analog =>
digital converter.
8-2. Test Equipment
Service R/C, 801GF(802B, 802F, 802R) or MSPG925FA
Pattern Generator
(720P The Horizontal 100% Color Bar Pattern output will be
possible and the output level will accurately have to be
adjusted to 0.7±0.1Vp-p)
8-3. Adjustment
(1) Select Component1 or Component2 as the input with
100% Horizontal Color Bar Pattern(HozTV31Bar) in 720p
Mode and select ‘Normal’ on screen.
(2) After receiving signal for at least 1 second, press the ADJ
Key on the Service R/C to enter the ‘Ez - Adjust’ and select
the ‘3. AD9883A-Set’.
Pressing the Enter Key to adjust with automatic movement.
(3) When the adjustment is over, 'AD9883A Component
Success’ is displayed. If the adjustment has errors,
'AD9883A Configuration Error’ is displayed.
(4) After the Component AD9883A adjustment is over, convert
the RGB-DTV Mode and display Pattern.
When the adjustment is over, 'AD9883A RGB_DTV
Success’ is displayed. If the adjustment has errors,
'AD9883A Configuration Error’ is displayed.
(5) Readjust after confirming the case Pattern or adjustment
condition where the adjustment had errors.
(6) After adjustment is complete, exit the adjustment mode by
pressing the ADJ KEY.
9. Adjustment of White Balance
9-1. Required Equipment
(1) Color analyzer (CA-100 or similar product)
(2) Automatic adjustor (with automatic adjustment hour
necessity and the RS-232C communication being possible)
(3) Pattern Generator(MSPG-925FA): DVI Output
9-2. Connection Diagram of Equipment
for Measuring (Automatic Adjustment)
[[RS-232C Command (Automatic Adjustment)
<Fig. 3> Adjustment Pattern : 720P/60Hz HozTV31Bar Pattern
Full White Pattern Digital RGB
PDP MONITOR
COLOR
ANALYZER
TYPE; CA-100
MSPG-925FA
<Fig. 4> Connection Diagram of Automatic Adjustment
R Gain
G Gain
B Gain
R Cut
G Cut
B Cut
jg
jh
ji
Cool
ja
jb
jc
Med
RS-232C COMMAND CENTER(DEFAULT)
jd
je
jf
00
00
00
ff
ff
ff
Warm Min Max
C0
91
4C
40
40
40
Cool
C0
B3
95
40
40
40
Med
C0
BD
B7
40
40
40
Warm

- 13 -
ADJUSTMENT INSTRUCTIONS
9-3. Adjustment of White Balance
O Operate the Zero-calibration of the CA-100, then attach
sensor to PDP module surface when you adjust.
O Manual adjustment is also possible by the following sequence.
(1) Enter ‘Ez - Adjust’ by pressing ADJ KEY on the Service
Remote Control.
(2) Select "7. WHITE PATTERN" using CH +/- Key and HEAT
RUN at least 30 minutes by pressing the ENTER Key.
(3) Receive the Window pattern signal from Digital Pattern
Generator. (AV Input: connect the ‘HDMI’)
(4) After attaching sensor to center of screen, select ‘5. White-
Balance’ of ‘Ez - Adjust’ by pressing the ADJ KEY on the
Service R/C. Then enter adjustment mode by pressing the
Right KEY (
G ) .
(5) Adjust the Hight Light using G Gain/B Gain(Cool: 42”).
Adjust the Hight Light using R Gain/G Gain(Cool: 50”).
Adjust the Hight Light using G Gain/B Gain(Medium).
Adjust the Hight Light using G Gain/B Gain(Warm).
(6) Adjust using Volume +/- KEY.
After adjustment is complete, exit the adjustment mode by
pressing the ADJ KEY.
High Level: 216gray
[Cool]
X; 0.278±0.002 Y; 0.279±0.002
Color temperature: 11000°K±1000°K
[Medium]
X; 0.287±0.002 Y; 0.289±0.002
Color temperature: 9300°K±1000°K
[Warm]
X; 0.315±0.002 Y; 0.316±0.002
Color temperature: 6500°K±1000°K
10. Video(uPD)
10-1. Required Equipment
(1) Service R/C
(2) MSPG925FA Pattern Generator
(100% Color Bar Pattern output will be possible and the
output level will accurately have to be adjusted to
0.7±0.1Vp-p: Model #201(NTSC-M), Patter #32))
10-2. Adjustment
(1) After receive signal to Ant input, CVBS output of
MSPG925FA to Video and confirm the signal receiving.
(2) Enter the ‘EZ-ADJUST’ by pressing the ADJ Key on the
Service R/C.
(3) Select ‘3. Video(uPD)-Set’ and enter the adjustment mode
by pressing the right key(
G ).
(4) When enter the adjustment mode, displayed the TV 2CH
Screen automatic at picture and appear as below figure.
(5) When the automatic adjustment is over, 'RF Configuration
Success’ is displayed. If the adjustment has errors, 'Video
Configuration Error’ is displayed.
(6) After the RF signal automatic adjustment is over, convert
the Video Mode as below figure and adjust with automatic
movement the Video Mode.
When the automatic adjustment is over, 'Video
Configuration Success’ is displayed. If the adjustment has
errors, 'Video Configuration Error’ is displayed.

- 14 -
BLOCK DIAGRAM
–
– –
–
–

- 15 -
NOTES

- 16 -
EXPLODED VIEW
300
301
304
302
202 206
203
204
201
205
580
410
121
601
600
120
400
303
207
200
430
590
560
501
502
520
530
570

- 17 -
EXPLODED VIEW PARTS LIST
120 6401VD0032A SPEAKER ASSEMBLY,FULL RANGE(R) RZ-42PX30 FILM TYPE
121 6401VD0033A SPEAKER ASSEMBLY,FULL RANGE(L) RZ-42PX30 FILM TYPE
200 6348Q-E080N PDP,42 852*480 PDP42V70102.AKLGG
6348Q-E107G PDP,42 852*480 PDP42V70652.DDRSA
201 6871QCH053A PCB ASSEMBLY,DISPLAY CTRL ASSY 42V7 FPGA
202 6871QDH084A PCB ASSEMBLY,DISPLAY YDRV ASSY 42V7 YDRV TOP B/D
203 6871QDH085A PCB ASSEMBLY,DISPLAY YDRV ASSY 42V7 YDRV BTM B/D
204 6871QLH047A PCB ASSEMBLY,DISPLAY XRLT ASSY 42V7 XL B/D
205 6871QRH055A PCB ASSEMBLY,DISPLAY XRRT ASSY 42V7 XR B/D
206 6871QYH036A PCB ASSEMBLY,DISPLAY YSUS ASSY 42V7
207 6871QZH041A PCB ASSEMBLY,DISPLAY ZSUS ASSY 42V7 ZSUS ASSY
300 3091V00816J CABINET ASSEMBLY,42PX3DCV-UC STEREO RF052C FILM TYPE
3091V00816M CABINET ASSEMBLY,42PX3DCV-UC STEREO 3090V00676 FILM TYPE SKD
301 4980V01203A SUPPORTER ASSY,AL FILTER TOP RZ-42PX30
4980V01203B SUPPORTER ASSY,AL FILTER TOP RZ-42PX30 C/SKD
302 4980V01204A SUPPORTER ASSY,AL FILTER BOTTOM RZ-42PX30
4980V01204B SUPPORTER ASSY,AL FILTER BOTTOM RZ-42PX30 C/SKD
303 4980V01205A SUPPORTER ASSY,AL FILTER RIGHT RZ-42PX30
4980V01205B SUPPORTER ASSY,AL FILTER RIGHT RZ-42PX30 C/SKD
304 4980V01206A SUPPORTER ASSY,AL FILTER LEFT RZ-42PX30
4980V01206B SUPPORTER ASSY,AL FILTER LEFT RZ-42PX30 C/SKD
400 3809V00605D BACK COVER ASSEMBLY,DU-42PX13X NON CHASSIS CHANGE BK
3809V00605G BACK COVER ASSEMBLY,42PX3RVB NON CHASSIS CHANGE BK SPRAY
410 4980V01071A SUPPORTER ASSY,AL MODULE VER. RZ-42PX10
4980V01071B SUPPORTER ASSY,AL VERTICAL RZ-42PX10 SKD
430 3501V00216J BOARD ASSEMBLY,AP-42DX30 MF056C 42PX3DV TITAN SILVER
3501V00216K BOARD ASSEMBLY,AP-42DX30 MF056C 42PX3DV C/SKD TITAN SILVER
501 3301V00083C PLATE ASSEMBLY,DU-42PX13X DCR BK PLATE TUNER
502 3301V00082E PLATE ASSEMBLY,3300V00555A 3300V00556B COVER 42PX3DCV
520 6871VMMC83A PCB ASSEMBLY,MAIN AF-05FC 42PX1DCV-UA DIGITAL BOARD
530 6871VSMAUZA PCB ASSEMBLY,SUB TUNER AF05FC 42PX1DCV-UA ANALOG BOARD
560 6871VSMSA9A PCB ASSEMBLY,SUB CONT AF05FC 42PX1DCV-UA
570 6871VSMQ67A PCB ASSEMBLY,SUB AUDIO AF05FA TU-50PY22
580 6709V00003A POWER SUPPLY ASSEMBLY,PDP 42INCH AF05FB 420W 1H255W SANKEN
590 31419SN046A CHASSIS ASSEMBLY,SUB AF05FC AC INET ASSY
31419SF048A CHASSIS ASSEMBLY,SUB AF05FC AC INET ASSY PACKING
600 6871VSMT96A PCB ASSEMBLY,SUB A/V AF05FB DU-50PX41S SIDE A/V
601 4811V00118L BRACKET ASSEMBLY,SIDE AV DU-42PX13X AF05FC DCR BK
4811V00118R BRACKET ASSEMBLY,SIDE AV 42PX3DCV-UC AF044A SKD
No. Part No. Description

- 18 -
REPLACEMENT PARTS LIST
LOCA. NO PART NO DESCRIPTION
IC508
IC600
IC601
IC602
IC602
IC603
IC603
IC604
IC605
IC606
IC607
IC800
IC801
IC802
IC805
IC808
IC809
IC900
IC902
IC407
IC408
Q101
Q102
Q119
Q120
Q121
Q122
Q123
Q124
Q125
Q126
Q127
Q149
Q150
Q151
Q152
Q153
Q154
Q155
Q156
Q157
Q158
Q159
Q160
Q161
Q162
0IMCRFA010A
0IMCRFA013A
0ICB533100A
0ISS416162D
0IMO330780B
0IPRPNE008A
0ITO741570C
0ICB841500B
0IPMGKE032A
0IPMGSG018C
0IPRPFA015A
0IPRPS5006A
0IMCRAD002A
0IPMGA0010A
0IPRPFA016A
0IMMRAL014B
0IMCRSJ001A
0IMCRXL003B
0IPRP00009A
0TR830009BA
0TR830009BA
0TR387500AA
0TR387500AA
0TR150400BA
0TR150400BA
0TR150400BA
0TR387500AA
0TR387500AA
0TR150400BA
0TR150400BA
0TR387500AA
0TR150400BA
0TR387500AA
0TR150400BA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR150400BA
0TR150400BA
0TR150400BA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
KA7809R 2P
74LCX244MTC 20P
CS5331A-KSR 8SOIC TP ADC -
K4S161622H-UC80 50P
MC33078D 8/SOIC LINEAR +-18V OP AMP
UPD64011BGM-8ED-A 160
TC74LCX157FT 16P
CS8415A-CZR 28P
KIA78R09F 5PIN DPAK R/TP 1A,9V
LD1086DT15TR 2P DPAK R/TP 1.5V 1.5A
FMS6410CSX-NL(PB-FREE) 8P
SIL9021CTU(PB FREE) 144P
AD9883AKST-110 80P
AZ1117H-3.3 SOT-223 3P R/TP 3.3V
FMS6407MTC20X-NL(PB-FREE) 20P
AT24C02N-10SI-2.7 8P
SC1565IST-1.8 3P SOT223
XC95144XL-10TQG144C 144P
ICL3232CBNZ 16P
BSS83
BSS83
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
LOCA. NO PART NO DESCRIPTION
IC100
IC101
IC101
IC112
IC1301
IC1302
IC1305
IC1700
IC1701
IC1705
IC1706
IC200
IC200
IC201
IC201
IC202
IC203
IC203
IC204
IC204
IC205
IC205
IC206
IC207
IC208
IC209
IC300
IC300
IC301
IC302
IC302
IC303
IC304
IC305
IC400
IC401
IC402
IC405
IC406
IC500
IC501
IC502
IC503
IC504
IC505
IC506
0IPRPBM001B
0ISO206900A
0IMCRSJ001A
0IMMRAL014B
0IMCRSJ001A
0IMCRTH002A
0ICTMLG018B
0IMI623200B
0IPRPNS054A
0IPMGKE032A
0IMCRSH001A
0IKE702900G
0IMCRMN027D
0ILNR00015A
0ISTLPH026A
0IMCRFA013A
0IMCRXL004A
0IMCRSH001A
0IMCRCY001A
0IMCRSJ001A
0IMCRCY002A
0IMCRSJ001A
0IMCRFA010A
0IMCRSH001A
0IMCRFA010A
0IPMGA0010A
0IMCRSO025A
0IMCRPH026B
0IMCRAL021A
0IMMRHY038C
0ITK118100B
0IMMRHY038C
0ICTM00006A
0IPRP00538A
0IMCRSJ001A
0ICTMLG009C
0IMCRTI028C
0IMCRAL006A
0IKE704200J
0IMMRSS041F
0IMMRSS041F
0IMMRSS041F
0IMMRSS041F
0IMCRCY001A
0ICTMLG013A
0IMCRFA004A
PPC405GPR-3JB266C 456 BALL,35MM
CXA2069Q QFP64 BK I2C BUS AV S/W
SC1565IST-1.8 3P SOT223
AT24C02N-10SI-2.7 8P
SC1565IST-1.8 3P SOT223
THC63LVD103 64P
LGDP4411 IEP2 208P
M62320FP 16P
LM75CIMX-3 8P
KIA78R09F 5PIN DPAK R/TP 1A,9V
PQ05DZ1U SHARP 5
KIA7029AF SOT-89 TP 2.9V
MSP4440K 80P
NSP-2100A 64P
74LVC14APW 14PIN
74LCX244MTC 20P
XC95288XL-10TQG144C 144P
PQ05DZ1U SHARP 5
CY2305SXC-1HT 8P
SC1565IST-1.8 3P SOT223
CY2309SXC-1HT 16P R/TP 3.3V
SC1565IST-1.8 3P SOT223
KA7809R 2P
PQ05DZ1U SHARP 5
KA7809R 2P
AZ1117H-3.3 SOT-223 3P R/TP 3.3V 1A
CXA2181Q 48P
PA9516APW 16P
AT24C512W-10SI-2.7 8P
HY57V561620CT-H 54PIN
TK11840L 8P SOT23L
HY57V561620CT-H 54PIN
LGDT3701 128P
FSA1156P6X-NL 6P/MAA06A
SC1565IST-1.8 3P SOT223
LGDT1102C HD2.3 SBGA-432P
TAS5122DCARG4 56P
AT24C16AN-10SU-2.7 8P
KIA7042AF SOT-89 TP 4.2V
K4S641632H-UC60 54P
K4S641632H-UC60 54P
K4S641632H-UC60 54P
K4S641632H-UC60 54P
CY2305SXC-1HT 8P
LGDT1901A 24P
KA2904DTF 8SOP R/TP OP-AMP
IC
RUN DATE : 2005.6.16
For Capacitor & Resistors, the
charactors at 2nd and 3rd digit
in the P/No. means as follows;
CC, CX, CK, CN : Ceramic
CQ : Polyestor
CE : Electrolytic
RD : Carbon Film
RS : Metal Oxide Film
RN : Metal Film
RF : Fusible
TRANSISTOR

- 19 -
LOCA. NO PART NO DESCRIPTION
Q163
Q164
Q165
Q166
Q167
Q175
Q176
Q177
Q201
Q202
Q203
Q204
Q205
Q206
Q207
Q208
Q209
Q301
Q305
Q306
Q503
Q504
Q601
Q602
Q6607
Q6608
Q800
Q801
Q805
Q806
Q808
D200
D204
D301
D505
D506
D801
D900
D901
LD101
LED170
LED301
LED302
LED901
C1
C100
C101
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR150400BA
0TR150400BA
0TR150400BA
0TR150400BA
0TR387500AA
0TR387500AA
0TR102008AA
0TR387500AA
0TR387500AA
0TR387500AA
0TRKE80038A
0TR387500AA
0TR150400BA
0TR150400BA
0TR150400BA
0TR150400BA
0TR150400BA
0TR150400BA
0TR102009AG
0TR102009AG
0TR830009BA
0TR830009BA
0TR830009BA
0DD184009AA
0DZRM00248A
0DD184009AA
0DD184009AA
0DD184009AA
0DD184009AA
0DRSE00038A
0DRSE00038A
0DL200000CA
0DL233309AC
0DL233309AC
0DL233309AC
0DL233309AC
0CC560CK41A
0CS335EFKDC
0CK104CF56A
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
KRA102S SOT23 CHIP TR
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
KTC3552T-RTK SOT-23F 50V 3A
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP KRC102S SOT-23 NA NA
CHIP KRC102S SOT-23 NA NA
BSS83
BSS83
BSS83
KDS184 TP KEC - 85V - 300MA
ZENERS,RLZ8.2B-TE11
KDS184 TP KEC - 85V - 300MA
KDS184 TP KEC - 85V - 300MA
KDS184 TP KEC - 85V - 300MA
KDS184 TP KEC - 85V - 300MA
SDC15 SOT23 12.8V
SDC15 SOT23 12.8V
LED,SAM5670(DL-2LRG)
LED,SAM2333
LED,SAM2333
LED,SAM2333
LED,SAM2333
56PF 1608 50V 5%
3.3UF 3216 16V 20%,-20% (SMD)
0.1UF 1608 16V 10%
LOCA. NO PART NO DESCRIPTION
C101
C102
C103
C103
C104
C104
C105
C106
C107
C108
C109
C110
C111
C112
C113
C114
C115
C116
C117
C118
C118
C119
C120
C1200
C1201
C1203
C121
C1213
C1214
C1216
C1219
C122
C1221
C123
C124
C1242
C125
C1255
C1258
C126
C1264
C1266
C1269
C1273
C1277
C1279
C1318
C1321
C1322
C1323
C1324
0CE225VK6DC
0CK103CK56A
0CE106VF6DC
0CE4763F618
0CE225VK6DC
0CE106VF6DC
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CE106VF6DC
0CE106VF6DC
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CE105SK6DC
0CK104CF56A
0CK104CF56A
0CE475SK6DC
0CE475SK6DC
0CE226SF6DC
0CK104CF56A
0CE476SF6DC
0CK105DF64A
0CE476SF6DC
0CE476SF6DC
0CK104CF56A
0CE476SF6DC
0CE106VF6DC
0CK104CF56A
0CE108DJ618
0CK104CF56A
0CE476SF6DC
0CE108DJ618
0CE336SD6DC
0CE476SF6DC
0CE476SF6DC
0CE107SF6DC
0CE476SF6DC
0CE477SF6DC
0CE107SF6DC
0CK104CF56A
0CE476SF6DC
0CE476SF6DC
0CK104CF56A
0CK103CK56A
2.2UF MV 50V 20%
0.01UF 1608 50V 10%
10UF MV 16V 20%
47UF SRE,SE 16V 20%
2.2UF MV 50V 20%
10UF MV 16V 20%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
10UF MV 16V 20%
10UF MV 16V 20%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
1UF MVG 50V 20%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
4.7UF MVG 50V 20%
4.7UF MVG 50V 20%
22UF MVG 16V 20%
0.1UF 1608 16V 10%
47UF MVG 16V 20%
1UF 2012 16V 20%
47UF MVG 16V 20%
47UF MVG 16V 20%
0.1UF 1608 16V 10%
47UF MVG 16V 20%
10UF MV 16V 20%
0.1UF 1608 16V 10%
1000UF STD 35V M
0.1UF 1608 16V 10%
47UF MVG 16V 20%
1000UF STD 35V M
33UF MVG 10V 20%
47UF MVG 16V 20%
47UF MVG 16V 20%
100UF MVG 16V 20%
47UF MVG 16V 20%
470UF MVG 16V 20%
100UF MVG 16V 20%
0.1UF 1608 16V 10%
47UF MVG 16V 20%
47UF MVG 16V 20%
0.1UF 1608 16V 10%
0.01UF 1608 50V 10%
REPLACEMENT PARTS LIST
DIODE
CAPACITOR

- 20 -
LOCA. NO PART NO DESCRIPTION
C1325
C1326
C1327
C1328
C1329
C1330
C1331
C1332
C1333
C1334
C1335
C1336
C1337
C1338
C1339
C1341
C1342
C1343
C1344
C1345
C1346
C1347
C1348
C1349
C1350
C1351
C1352
C1353
C1354
C1355
C1356
C1357
C1358
C1359
C1360
C1361
C1362
C1363
C144
C148
C149
C150
C152
C158
C161
C162
C163
C168
C1700
C1701
C1702
0CE476SF6DC
0CK104CF56A
0CE106VF6DC
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK102CK56A
0CK104CF56A
0CK104CF56A
0CE106VF6DC
0CK102CK56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CE106VF6DC
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CE476SF6DC
0CE476SF6DC
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK106EF56A
0CE105SK6DC
0CE226SF6DC
0CE226SF6DC
0CE476SF6DC
0CE107SF6DC
0CE105SK6DC
0CE105SK6DC
0CE225VK6DC
0CE225VK6DC
0CK105DF64A
0CK104CF56A
0CK104CF56A
0CK104CF56A
47UF MVG 16V 20%
0.1UF 1608 16V 10%
10UF MV 16V 20%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
1000PF 1608 50V 0.1
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
10UF MV 16V 20%
1000PF 1608 50V 0.1
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
10UF MV 16V 20%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
47UF MVG 16V 20%
47UF MVG 16V 20%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
10UF 3216 16V 10%
1UF MVG 50V 20%
22UF MVG 16V 20%
22UF MVG 16V 20%
47UF MVG 16V 20%
100UF MVG 16V 20%
1UF MVG 50V 20%
1UF MVG 50V 20%
2.2UF MV 50V 20%
2.2UF MV 50V 20%
1UF 2012 16V 20%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
LOCA. NO PART NO DESCRIPTION
C1703
C1704
C1705
C1706
C1707
C1708
C1709
C171
C1710
C1711
C1712
C1713
C1714
C1715
C172
C1722
C1727
C1730
C1731
C1739
C1740
C1741
C1742
C175
C186
C190
C202
C203
C204
C205
C205
C207
C207
C208
C209
C210
C211
C212
C212
C213
C213
C214
C214
C215
C215
C216
C216
C217
C217
C218
C219
0CE477SF6DC
0CE477SF6DC
0CE477SF6DC
0CE477SF6DC
0CE477SF6DC
0CE477SF6DC
0CK104CF56A
0CK105DF64A
0CK104CF56A
0CK104CF56A
0CE476SF6DC
0CE476SF6DC
0CK104CF56A
0CK104CF56A
0CE106SK6DC
0CE477SF6DC
0CK104CF56A
0CK104CF56A
0CE477SF6DC
0CK104CF56A
0CE476SF6DC
0CK104CF56A
0CE476SF6DC
0CE108DJ618
0CF4741L438
0CF4741L438
0CE106VF6DC
0CE106VF6DC
0CK104CF56A
0CK104CF56A
0CE476SF6DC
0CK104CF56A
0CE477DJ618
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CK104CF56A
0CE477SF6DC
0CK104CF56A
0CE477SF6DC
0CK104CF56A
0CE477SF6DC
0CK104CF56A
0CE477DJ618
0CK104CF56A
0CE477SF6DC
0CK104CF56A
0CE477SF6DC
0CK104CF56A
0CE226SF6DC
470UF MVG 16V 20%
470UF MVG 16V 20%
470UF MVG 16V 20%
470UF MVG 16V 20%
470UF MVG 16V 20%
470UF MVG 16V 20%
0.1UF 1608 16V 10%
1UF 2012 16V 20%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
47UF MVG 16V 20%
47UF MVG 16V 20%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
10UF MVG 50V 20%
470UF MVG 16V 20%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
470UF MVG 16V 20%
0.1UF 1608 16V 10%
47UF MVG 16V 20%
0.1UF 1608 16V 10%
47UF MVG 16V 20%
1000UF STD 35V M
0.47UF D 63V 5%
0.47UF D 63V 5%
10UF MV 16V 20%
10UF MV 16V 20%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
47UF MVG 16V 20%
0.1UF 1608 16V 10%
470UF STD 35V 20%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
0.1UF 1608 16V 10%
470UF MVG 16V 20%
0.1UF 1608 16V 10%
470UF MVG 16V 20%
0.1UF 1608 16V 10%
470UF MVG 16V 20%
0.1UF 1608 16V 10%
470UF STD 35V 20%
0.1UF 1608 16V 10%
470UF MVG 16V 20%
0.1UF 1608 16V 10%
470UF MVG 16V 20%
0.1UF 1608 16V 10%
22UF MVG 16V 20%
REPLACEMENT PARTS LIST
